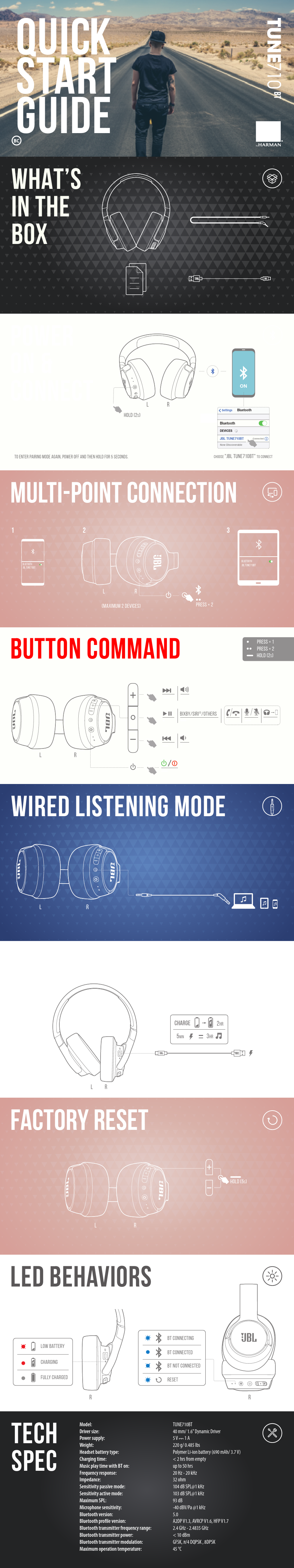

JBL TUNE710BT Quick Start Guide
What's in the Box
The package typically includes the JBL TUNE710BT headphones and necessary accessories.
Power On & Connect
To turn on and enter pairing mode: Hold the power button for 2 seconds. To re-enter pairing mode, power off the headphones and then hold the power button for 5 seconds.
Connecting to a device: On your device's Bluetooth settings, choose "JBL TUNE710BT" to connect.
Multi-Point Connection
The JBL TUNE710BT can connect to a maximum of 2 devices simultaneously. This feature allows for seamless switching between devices.
Button Commands
- Press once: Play/Pause music, Answer/End call.
- Press twice: Next track, activate voice assistant (Siri/Bixby/Others).
- Hold (2s): Power on/off, initiate pairing mode.
Wired Listening Mode
Connect the included audio cable to the headphones and your device for wired listening. This mode does not require Bluetooth connection.
Charging
Connect the USB charging cable to the headphones and a power source. The LED indicator will show the charging status.
- Charging: LED is red.
- Fully Charged: LED turns off or turns green (depending on model specifics).
A full charge takes approximately 2 hours. A 5-minute charge provides up to 3 hours of playback.
Factory Reset
To reset the headphones to factory settings, press and hold the power button and the volume down button simultaneously for 5 seconds while the headphones are powered on and not connected to any device.
LED Behaviors
- BT Connecting: Blue LED flashes.
- BT Connected: Solid blue LED.
- BT Not Connected: No LED indication or flashing blue LED (depending on state).
- Low Battery: Red LED flashes.
- Charging: Solid red LED.
- Fully Charged: LED turns off or solid green.
- Reset: LED flashes rapidly or shows a specific pattern.
Technical Specifications
- Model: TUNE710BT
- Driver Size: 40 mm / 1.6" Dynamic Driver
- Power Supply: 5V-1A
- Weight: 220 g / 0.485 lbs
- Headset Battery Type: Polymer Li-ion battery (690 mAh / 3.7 V)
- Charging Time: < 2 hrs from empty
- Music Play Time with BT On: Up to 50 hrs
- Frequency Response: 20 Hz - 20 kHz
- Impedance: 32 ohm
- Sensitivity (Passive Mode): 104 dB SPL @ 1 kHz
- Sensitivity (Active Mode): 103 dB SPL @ 1 kHz
- Maximum SPL: 93 dB
- Microphone Sensitivity: -40 dBV/Pa @ 1 kHz
- Bluetooth Version: 5.0
- Bluetooth Profile Version: A2DP V1.3, AVRCP V1.6, HFP V1.7
- Bluetooth Transmitter Frequency Range: 2.4 GHz - 2.4835 GHz
- Bluetooth Transmitter Power: < 10 dBm
- Bluetooth Transmitter Modulation: GFSK, π/4 DQPSK, 8DPSK
- Maximum Operation Temperature: 45 °C
