Electronic Shutter Speed Auto/Manual, 1/3~1/100000s Minimum Illumination 0.001Lux/F1.0 ( Color,1/3s,30IRE) 0.006Lux/F1.0 ( Color,1/30s,30IRE) S/N Ratio More than 50dB IR LEDs N/A Lens Lens Type Fixed Mount Type Board-in Focal Length 3.6mm (6mm optional) Max. Aperture F1.0(F1.0) Angle of View H: 87°/54°, V:47°/20° Focus Control Fixed

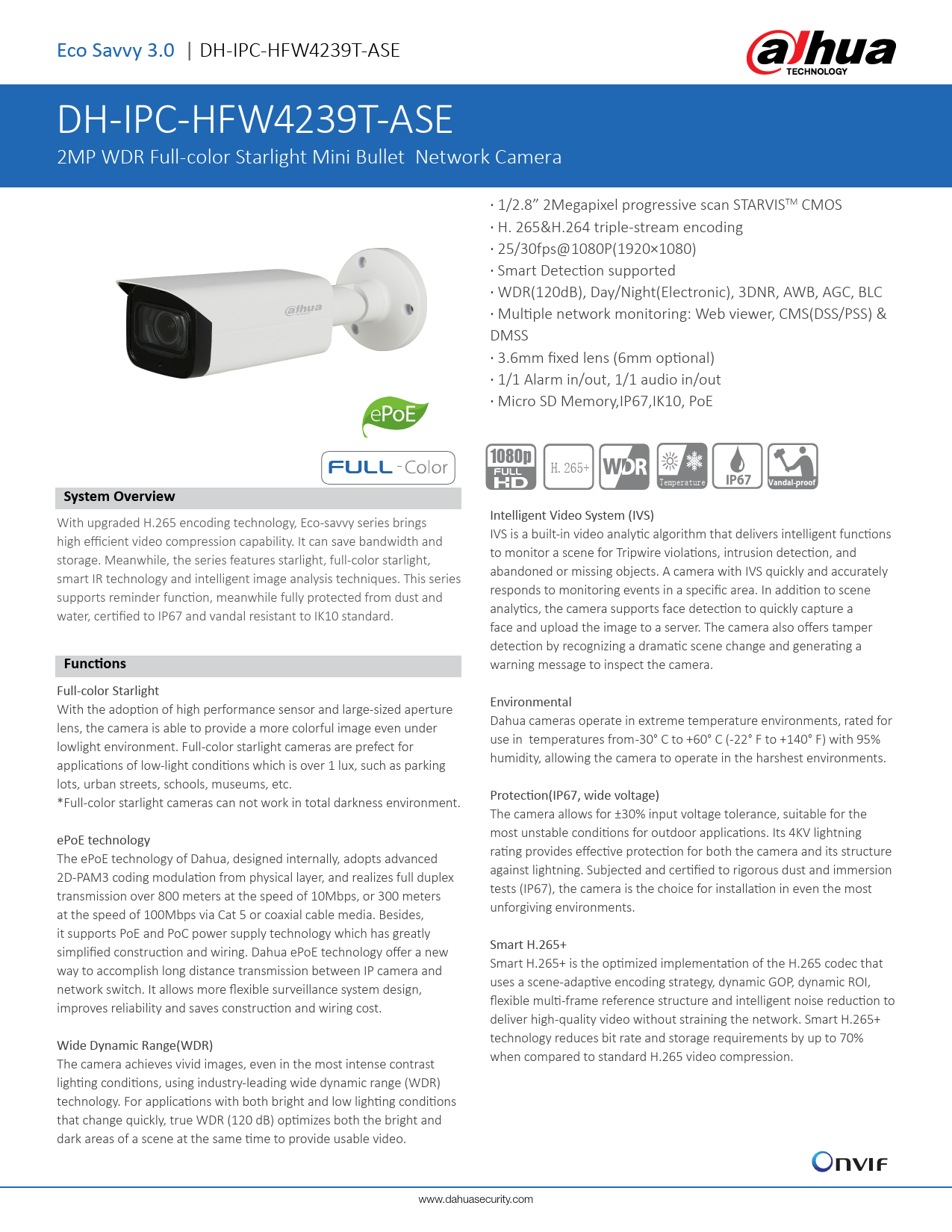

Eco Savvy 3.0 | DH-IPC-HFW4239T-ASE DH-IPC-HFW4239T-ASE 2MP WDR Full-color Starlight Mini Bullet Network Camera · 1/2.8" 2Megapixel progressive scan STARVISTM CMOS · H. 265&H.264 triple-stream encoding · 25/30fps@1080P(1920×1080) · Smart Detection supported · WDR(120dB), Day/Night(Electronic), 3DNR, AWB, AGC, BLC · Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS · 3.6mm fixed lens (6mm optional) · 1/1 Alarm in/out, 1/1 audio in/out · Micro SD Memory,IP67,IK10, PoE System Overview With upgraded H.265 encoding technology, Eco-savvy series brings high efficient video compression capability. It can save bandwidth and storage. Meanwhile, the series features starlight, full-color starlight, smart IR technology and intelligent image analysis techniques. This series supports reminder function, meanwhile fully protected from dust and water, certified to IP67 and vandal resistant to IK10 standard. Functions Full-color Starlight With the adoption of high performance sensor and large-sized aperture lens, the camera is able to provide a more colorful image even under lowlight environment. Full-color starlight cameras are prefect for applications of low-light conditions which is over 1 lux, such as parking lots, urban streets, schools, museums, etc. *Full-color starlight cameras can not work in total darkness environment. ePoE technology The ePoE technology of Dahua, designed internally, adopts advanced 2D-PAM3 coding modulation from physical layer, and realizes full duplex transmission over 800 meters at the speed of 10Mbps, or 300 meters at the speed of 100Mbps via Cat 5 or coaxial cable media. Besides, it supports PoE and PoC power supply technology which has greatly simplified construction and wiring. Dahua ePoE technology offer a new way to accomplish long distance transmission between IP camera and network switch. It allows more flexible surveillance system design, improves reliability and saves construction and wiring cost. Wide Dynamic Range(WDR) The camera achieves vivid images, even in the most intense contrast lighting conditions, using industry-leading wide dynamic range (WDR) technology. For applications with both bright and low lighting conditions that change quickly, true WDR (120 dB) optimizes both the bright and dark areas of a scene at the same time to provide usable video. 1080p H.265+ Temperature IP67 Vandal-proof Intelligent Video System (IVS) IVS is a built-in video analytic algorithm that delivers intelligent functions to monitor a scene for Tripwire violations, intrusion detection, and abandoned or missing objects. A camera with IVS quickly and accurately responds to monitoring events in a specific area. In addition to scene analytics, the camera supports face detection to quickly capture a face and upload the image to a server. The camera also offers tamper detection by recognizing a dramatic scene change and generating a warning message to inspect the camera. Environmental Dahua cameras operate in extreme temperature environments, rated for use in temperatures from-30° C to +60° C (-22° F to +140° F) with 95% humidity, allowing the camera to operate in the harshest environments. Protection(IP67, wide voltage) The camera allows for ±30% input voltage tolerance, suitable for the most unstable conditions for outdoor applications. Its 4KV lightning rating provides effective protection for both the camera and its structure against lightning. Subjected and certified to rigorous dust and immersion tests (IP67), the camera is the choice for installation in even the most unforgiving environments. Smart H.265+ Smart H.265+ is the optimized implementation of the H.265 codec that uses a scene-adaptive encoding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction to deliver high-quality video without straining the network. Smart H.265+ technology reduces bit rate and storage requirements by up to 70% when compared to standard H.265 video compression. www.dahuasecurity.com Eco Savvy 3.0 |DH-IPC-HFW4239T-ASE Technical Specification Camera Image Sensor 1/2.8" 2Megapixel progressive scan CMOS Effective Pixels RAM/ROM Scanning System Electronic Shutter Speed 1920(H) x 1080(V) 256MB/32MB Progressive Auto/Manual, 1/3~1/100000s Minimum Illumination 0.001Lux/F1.0 ( Color,1/3s,30IRE) 0.006Lux/F1.0 ( Color,1/30s,30IRE) S/N Ratio IR LEDs More than 50dB N/A Lens Lens Type Mount Type Focal Length Fixed Board-in 3.6mm (6mm optional) Max. Aperture F1.0(F1.0) Angle of View Focus Control Close Focus Distance Lens H: 87°/54°, V:47°/20° Fixed 1.6m(5.3ft)/3.5m (11.5ft) Detect Observe Recognize Identify DORI Distance 3.6 mm 53m(174ft) 21m(69ft) 11m(36ft) 5m(16ft) 6.0 mm 83m(289ft) 33m(108ft) 17m(56ft) 8m(26ft) Pan/Tilt/Rotation Pan/Tilt/Rotation Range Pan:0°~360°; Tilt:0°~90°; Rotation:0°~360° Intelligence Event Trigger IVS Motion detection, Video tampering , Scene changing, Network disconnection , IP address conflict, Illegal Access,Storage anomaly Tripwire, Intrusion, Object Abandoned/Missing Advanced Intelligent Functions Face Detection Video Compression Smart Codec Streaming Capability Resolution Frame Rate Bit Rate Control Bit Rate Day/Night H.265/H.264/H.264B/H.264H/MJPEG(Sub Stream) Support H.265+/H.264+ 3 Streams 1080P(1920x1080)/1.3M(1280x960)/ 720P(1280×720)/D1(704×576/704×480)/ VGA(640×480)/CIF(352×288/352×240) Main Stream: 1080P (1~25/30fps) Sub Stream: D1(1~25/30fps) Third Stream: 1080P(1~25/30fps) CBR/VBR H.264: 24K ~ 10240Kbps H.265: 14K ~ 9984Kbps Color(default) /Auto(Electronic) / B/W BLC Mode BLC / HLC / WDR(120dB) White Balance Gain Control Auto/Natural/Street Lamp/Outdoor/Manual Auto/Manual Noise Reduction 3D DNR Motion Detetion Off / On (4 Zone, Rectangle) Region of Interest Off / On (4 Zone) Electronic Image Stabilization (EIS) N/A Smart IR N/A Defog N/A Digital Zoom 16x Flip 0°/90°/180°/270° Mirror Off / On Privacy Masking Off / On (4 Area, Rectangle) Audio Compression G.711a/ G.711Mu/ AAC/ G.726 Network Ethernet Protocol Interoperability Streaming Method Max. User Access Edge Storage Web Viewer Management Software Smart Phone Certifications Certifications Interface Video Interface RJ-45 (10/100Base-T) HTTP;HTTPS;TCP;ARP;RTSP;RTP;RTCP;UDP;PPPOE;IE EE802.1X;SMTP;SNMP;FTP;DHCP;DNS;DDNS;PPPoE; IPV4/V6;QoS;UPnP;NTP;Bonjour;IEEE 802.1X;Multic ast;ICMP;IGMP;TLS;SSH;NFS ONVIF Profile S&G, API Unicast / Multicast 10 Users /20 Users NAS Local PC for instant recording Mirco SD card 128GB IE, Chrome, Firefox, Safari Smart PSS, DSS, DMSS IOS, Android CE (EN 60950:2000) UL:UL60950-1 FCC: FCC Part 15 Subpart B N/A Audio Interface RS485 Alarm Electrical Power Supply Power Consumption 1/1 channel In/Out N/A 1 channel In: 5mA 5VDC 1 channel Out: 300mA 12VDC DC12V, PoE (802.3af)(Class 0) <4W www.dahuasecurity.com Eco Savvy 3.0 |DH-IPC-HFW4239T-ASE Environmental Operating Conditions Strorage Conditions Ingress Protection Vandal Resistance Construction Casing Dimensions Net Weight Gross Weight -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH IP67 IK10 Metal 244.1mm×79mm×75.9mm (9.61"×3.11"×2.99") 0.815kg (1.80lb) 1.08kg (2.38lb) Ordering Information Type Part Number DH-IPCHFW4239TP-ASE Description 2MP Full-color Starlight Mini Bullet Network Camera, WDR, PAL 2MP camera DH-IPCHFW4239TN-ASE HFW4239TP-ASE HFW4239TN-ASE 2MP Full-color Starlight Mini Bullet Network Camera, WDR,NTSC 2MP Full-color Starlight Mini Bullet Network Camera, WDR,PAL 2MP Full-color Starlight Mini Bullet Network Camera, WDR,NTSC PFA135 Junction box Accessories (optional) PFA152-E Pole Mount LR1002 ePoE Over Coax Converter Accessories Optional: PFA135 Junction Box PFA152-E Pole Mount LR1002 ePoE Over Coax Converter Juncon Mount PFA135 Pole Mount PFA135 + PFA152-E Dimensions (mm/inch) Rev 001.001© 2018 Dahua. All rights reserved. Design and specifications are subject to change without notice. www.dahuasecurity.comAdobe PDF Library 15.0 Adobe InDesign CC 2017 (Windows)
