Switches AS Series - Panasonic
IEEE802.3ad (Manual) ・Other Port monitoring Multicast address group – registration function Storm control function Excellent install ability-Compact body(4,10,12 port)-Fan less (PoE:4,10 port / Non PoE 4,10,12,16,24 por…
AS Series
Full PDF Document
If the inline viewer fails, it will open the original document in compatibility mode automatically. You can also open the file directly.
Extracted Text

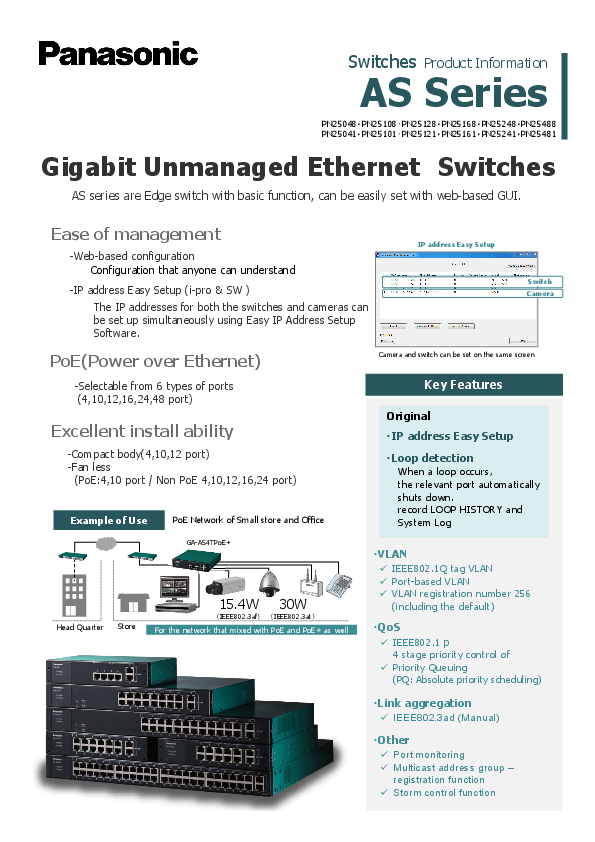

Switches Product Information AS Series PN25048PN25108PN25128PN25168PN25248PN25488 PN25041PN25101PN25121PN25161PN25241PN25481 Gigabit Unmanaged Ethernet Switches AS series are Edge switch with basic function, can be easily set with web-based GUI. Ease of management -Web-based configuration Configuration that anyone can understand -IP address Easy Setup (i-pro & SW ) The IP addresses for both the switches and cameras can be set up simultaneously using Easy IP Address Setup Software. IP address Easy Setup Switch Camera PoE(Power over Ethernet) Camera and switch can be set on the same screen -Selectable from 6 types of ports (4,10,12,16,24,48 port) Excellent install ability -Compact body(4,10,12 port) -Fan less (PoE:4,10 port / Non PoE 4,10,12,16,24 port) Example of Use PoE Network of Small store and Office Key Features Original IP address Easy Setup Loop detection When a loop occurs, the relevant port automatically shuts down. record LOOP HISTORY and System Log GA-AS4TPoE+ Head Quarter Store 15.4W 30W IEEE802.3af IEEE802.3at For the network that mixed with PoE and PoE+ as well VLAN IEEE802.1Q tag VLAN Port-based VLAN VLAN registration number 256 (including the default) QoS IEEE802.1 4 stage priority control of Priority Queuing (PQ: Absolute priority scheduling) Link aggregation IEEE802.3ad (Manual) Other Port monitoring Multicast address group � registration function Storm control function Specifications Product Name (Prodct No.) GA-AS4TPoE+ PN25048 GA-AS10TPoE+ PN25108 GA-AS12TPoE+ PN25128 GA-AS16TPoE+ PN25168 GA-AS24TPoE+ PN25248 GA-AS48TPoE+ PN25488 GA-AS4T PN25041 GA-AS10T PN25101 GA-AS12T PN25121 GA-AS16T PN25161 GA-AS24T PN25241 GA-AS48T PN25481 10/100/1000T 6 12 14 18 26 50 6 12 14 18 26 50 Interface Twisted pair port RJ45 connector Transmitting and receiving network system IEEE802.3 10BASE-T IEEE802.3u 100BASE-TX IEEE802.3ab 1000BASE-T Switching mode Packet transfer capabilityNon-blocking Max 14,880pps/port10Mbps Max 148,800pps/port100Mbps Max 1,488,000pps/port1000Mbps MAC Address table Max 8K entry/unit PN25488PN25481 Max 16K entry/unit Burrer memory:512K Byte/unit <PN25488PN25481>1.5M Transmittable framesEAPBUDU Software Specifications Agent: Management protocol :HTTP (RFC 2616) Data transfer protocol :TFTP (RFC 783) Loop detection: When a loop occurs, the relevant port automatically shuts down. record LOOP HISTORY and System Log Others Ping response (ICMP echo reply) function Syslog Client (system log sent to a Syslog server) TFTP Client(Firmware upgrade, save and read of configuration information) SNTP Client IP Address Easy Setting Operation environment Temperature: 0 - 40 Humidity: 20 - 80%RH no condensation GA-AS48TPoE+PN25488 Temperature: 0 - 50 Humidity: 20 - 80%RH no condensation AS Series Switches Product Information PoE Port 4 10 12 16 24 48 - Max Power Supply 62W 70W 84W 112W 168W 336W - Size(H�W�D) 44�210�210 mm 44�210�280 mm 44�210�280 mm 44�330�230 mm 44�440�257 mm 44�440�386 mm 44�210�130 mm 44�210�280 mm 44�210�280 mm 44�330�230 mm 44�440�257 mm 44�440�386 mm Fan Fanless Fanless Yes Yes Yes Yes Fanless Fanless Fanless Fanless Fanless Yes Layer 2 Switching Functions VLAN: IEEE802.1Q tag VLAN protocol Port-based VLAN VLAN registration number 256 (including the default) Internet Mansion function VLAN invalid setting function Link aggregation IEEE802.3ad link aggregation function (Manual) Port Monitoring: A plurality of target port can be specified QoS: IEEE802.1p 4 stage priority control of Scheduling scheme: Priority Queuing (PQ: Absolute priority scheduling) PoE power supply function: IEEE802.3af/IEEE802.3at power supply function Supply method Alternative A Cable signal lines 1, 2, 3, and 6 are used. Time setting: SNMP settings, time manual setting Multicast: Multicast address group registration function. (can be up to 256 groups of registration) Storm control function: Unknown unicast / Broadcast / Multicast of possible control the storm Rated Power supply AC100-240V, 50/60Hz, 2.0A(with a built-in power supply) Environmental Conditions EMC compliance: CISPR 22 Class A, EN 55022 Class A, EN 55032 Class A AS/NZS CISPR22 Class A VCCI Class A EN 61000-3-2, EN 61000-3-3 CISPR 48, EN 55048 IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-11 Safety compliance: IEC 60950-1 EN 60950-1 Environment compliance: RoHS compliant Panasonic Life Solutions Networks Co., Ltd https://panasonic.co.jp/ls/plsnw/english/
