This manual contains informaon to help you get years of safe and enjoyable service from your gas hot water Th ank you for choosing a KickAss KAHWSGAS88 LITRE INSTANT ANEOUS HOT WATER SYSTEM s ystem. Please take the me to read it in full before operang. IMPORTANT! Read these instrucons for use carefully. Familiarise yourself with the appliance ...
This manual contains informa on to help you get years of safe and enjoyable service from your gas hot water. Thank you for choosing a KickAss KAHWSGAS8 ...

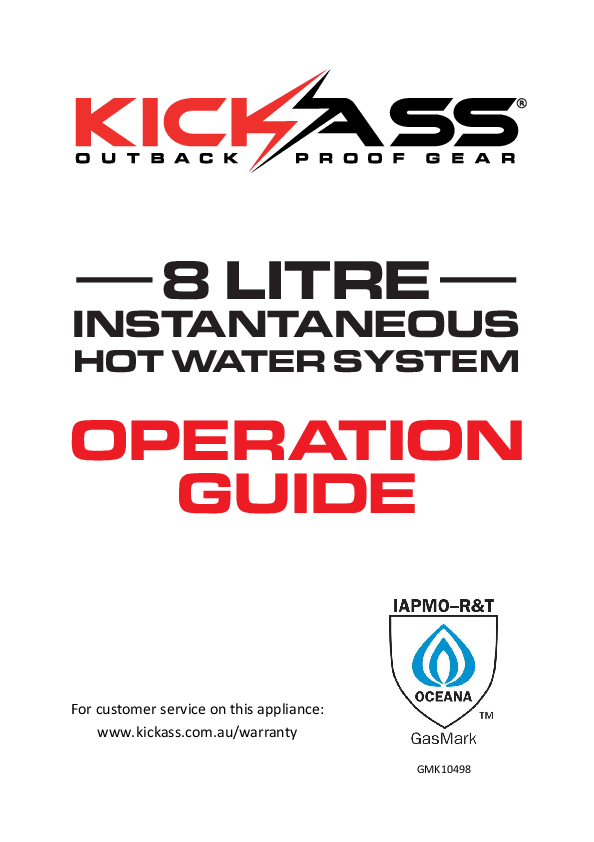

8 LITRE INSTANTANEOUS HOT WATER SYSTEM OPERATION GUIDE For customer service on this appliance: www.kickass.com.au/warranty GMK10498 Thank You! Thank you for choosing a KickAss® KAHWSGAS8 8 LITRE INSTANTANEOUS HOT WATER SYSTEM This manual contains informa on to help you get years of safe and enjoyable service from your gas hot water system. Please take the me to read it in full before opera ng. IMPORTANT! Read these instruc ons for use carefully. Familiarise yourself with the appliance before connec ng it to its gas container. Keep these instruc ons for future reference. IMPORTANT! This appliance is designed to be used with a source water temperature of 20°C or below. If the temperature of the outlet water exceeds 50°C the burners will shut off. You will need to turn the water flow off and on again to reignite the burners. THIS APPLIANCE IS NOT INTENDED FOR THE SUPPLY OF DRINKING WATER. THIS APPLIANCE IS INTENDED FOR THE SUPPLY OF HEATED WATER FOR THE PURPOSES OF WASHING AND CLEANING ONLY. CHECK AND CONFIRM SAFE WATER TEMPERATURE BEFORE USING THIS APPLIANCE. WATER FROM THIS APPLIANCE MAY BE VERY HOT. THIS APPLIANCE MUST BE PROTECTED FROM RAIN. 2 GENERAL WARNINGS This appliance shall only be used with a propane gas refillable container cer fied to AS2469. It may be hazardous to a empt to fit other types of gas containers. This appliance shall only be used with the approved 1200mm propane gas hose and regulator assembly that have been supplied. This appliance is to be stored in a dry and well-ven lated loca on away from direct sunlight. Do not store when s ll connected to the cylinder. Make sure that the cylinder is disconnected and is stored in a well-ven lated area, out of reach of children, and free from direct sunlight, heat and igni on sources. If being stored indoors, ensure that the loca on complies with AS/NZS1596. This appliance must only be serviced by an authorised person. DANGER! · Use outdoors only. · Only use in well ven lated areas. · Cau on: Accessible parts may be very hot. Keep young children away. · Do not use this appliance if it is leaking, damaged, or not opera ng properly. · Do not use this appliance if it has damaged or worn seals. · This appliance shall only be used in an above ground open-air situa on with natural ven la on, without stagnant air, where gas leakage and products of combus on are rapidly dispersed by wind and natural convec on. · Only use the hose assembly as supplied with this appliance for connec on to the cylinder. DO NOT USE ADAPTORS. · Children must be supervised by an adult at all mes when using this appliance. · Never leave appliance una ended when opera ng. · Do not use as a cooking appliance or modify for any other reason. 3 CARBON MONOXIDE HAZARD USING THIS APPLIANCE IN AN ENCLOSED SPACE MAY CAUSE DEATH. DO NOT USE IN CARAVANS, TENTS, MARINE CRAFT, CARS, MOBILE HOMES, OR SIMILAR LOCATIONS. IMPORTANT · Avoid twis ng or kinking the flexible gas hose. · If there is a leak in your appliance (smell of gas), immediately a empt to turn off the cylinder valve. Remove the appliance to a well-ven lated loca on away from any igni on source. Check for leaks using soapy water. Do not try to detect leaks using a flame. · Do not a empt to move or relocate the appliance when it is opera ng. Ex nguish the burner and allow it to cool. Disconnect the gas cylinder then move the appliance using the handle. CHECKING FOR GAS LEAKS · Check that seals between the appliance and the gas container are in place and in good condi on before connec ng the gas container. · If the O-ring on the POL fi ng of the gas hose is missing, worn, or damaged, please contact KickAss® · Please use the supplied regulator and hose. · NEVER check for leaks with a flame or pilot light. · To safely check for leaks, use the `soapy water' method. Coat the connec on points with a thin layer of soapy water. If you see bubbles appear, turn the cylinder gas control off and re ghten the connec on before re-tes ng. · The connec on points to check are: between the gas bo le and the gas hose between the rubber and brass parts of the gas hose · Inspect the appliance regularly for signs of wear, leaks or incorrect opera on. If symptoms such as burner flares, ligh ng issues, hose or connec on damage, or leaks from the seals or gas controls are iden fied, do not a empt to repair; please contact KickAss® · To check if gas remains in the cylinder, disconnect from the appliance and hold the cylinder in a ver cal posi on then shake from side to side. If there is a sound or feel of liquid movement inside the cylinder contains gas. · Change the gas cylinder outside in a well-ven lated loca on away from people, animals, and igni on sources such as naked flames, pilot lights, and electrical equipment such as heaters. 4 HANGING THE APPLIANCE OUTDOOR USE ONLY The appliance must be used outdoors only. Combus ble surfaces, fabrics, and flammable materials must be kept at least 1000mm away from the sides and top of the appliance while it is opera ng. The appliance is designed to be hung upright against a non-combus ble ver cal surface. Do not operate from a non-upright posi on. Doing so can be dangerous and will damage the appliance. Do not operate the appliance in a dusty environment, or within 300mm of any electrical appliances or electrical wires. During opera on, ensure that the combus on air inlets on the sides of the unit and the combus on air exhaust on the top of the unit are kept free from obstruc ons. APPLIANCE PERFORMANCE Important this appliance is designed to be used with a source water temperature of 20°C or below. If the temperature of the outlet water exceeds 50°C the burners will shut off; you will be required to turn the water flow off and on again to reignite the burners. This appliance is designed to raise the outlet water temperature by a maximum (average) of 25°C above the source water temperature. The temperature increase can be adjusted using the gas regulator and water regulator control knobs located at the front of the device. Increasing the gas flow, or decreasing the water flow, will increase the outlet water temperature. SAFETY FEATURES The appliance is equipped with the following safety features: Over temperature sensor. The appliance will not allow the burner to remain in opera on once the outlet water temperature reaches 50°C. To relight the burner you will need to turn the water flow off and back on. Water flow sensor. Water must be flowing through the system to allow the burner to ignite. If the water supply is restricted (for example: if you shut off the water flow at the showerhead), the burner will be ex nguished and will not relight un l the water flow recommences. 5 SAFETY INSTRUCTIONS This appliance must only be used in an above ground open-air situa on with natural ven la on, without stagnant areas, where gas leakage is rapidly dispersed by wind and natural convec on. The following figures show outdoor areas suitable for use with this appliance. Rectangular area shave been used in these figures the same principles apply to any other shaped areas. Any enclosure in which the appliance is used shall comply with one of the following: A) An enclosure with walls on all sides, but with no overhead cover, such as: B) Within a par al enclosure that includes an overhead cover and no more than two walls, such as: 6 C) Within a par al enclosure that includes an overhead cover and more than two walls, the following shall apply: a. At least 25% of the total wall area is completely open b. 30% or more in total of the remaining wall side, back and front wall areas is open and unrestricted. c. In the case of balconies, 20% or more of the total wall area shall remain open and unrestricted. For example: 7 PARTS INCLUDED Descrip on Quan ty Iden fica on Portable gas water 1 piece heater Remarks Shower head with 1 set shower hose Gas regulator with gas hose 1 set Water adaptor 1 piece Test for leaks a er fi ng (see page 4) Washers 2 pieces Installa on kit 1 set Not required for opera on TOOLS REQUIRED FOR ASSEMBLY · Shi ing spanner 8 PREPARING THE APPLIANCE Before use, it is important to prepare the appliance by installing the proper adaptors to suit its intended use. In this example, we will be preparing the portable water heater to be used with a garden hose water input. (To use with other water input sources such as a water pump, please consult the pump instruc on manual or contact us for advice). 1) Remove the heater and all components from the box and place them on a table in front of you. Remove the Styrofoam. Iden fy the gas input, hot water output, cold water input, and ba ery box on the underside of the heater. 2) Insert the two quality `D' ba eries into the ba ery box, with polari es as shown, and close the ba ery box lid. 3) Fit the gas hose with regulator to the gas adapter fi ng on the `gas input'. Tighten the connec on with a spanner, taking care not to over- ghten as this could damage the nut or the gas inlet adaptor. Test for leaks a er fi ng (see CHECKING FOR GAS LEAKS on page4). Wrap the `water input' thread with two rota ons of Teflon tape (not included) and the install the supplied garden hose adaptor. Tighten the adapter connec on with a spanner, taking care not to over- ghten as this could break or crack the inlet pipe. 4) To a ach the showerhead to the supplied flexible shower hose, first place one of the supplied washers in the threaded fi ng between the shower hose and showerhead. Then screw the fi ng onto the showerhead. 5) A ach to the included hand showerhead. Note that you can also apply Teflon tape to this threaded connec on to avoid leaks. 9 OPERATING THE APPLIANCE Now that the appliance has been prepared with the proper adapter fi ngs and connec ons for our intended use (with a garden hose water supply) we can set it up for opera on. 1) Find a suitable sturdy, non -combus ble ver cal surface to hang the appliance. The surface should be at least 1000mm clear from the sides and 1000mm from the top of all combus ble surfaces, fabrics, flammable materials, and people. Hang the appliance on a suitable ver cal surface by the handle a ached to the back cover of the heater. The appliance is ready to be connected to gas and water hoses. 2) A ach the flexible hose and regulator to the `gas inlet'. Tighten this connec on with a spanner, taking care not to over ghten as doing so may damage the pipe. 3) Connect the other end of the flexible hose and gas regulator to the propane gas cylinder. Hand- ghten the connec on in an an -clockwise direc on. Note: never place the gas cylinder directly beside or above the appliance. 4) Turn the gas cylinder on (open) in an an -clockwise direc on one full turn, and then check the connections for leaks with soapy water. DO NOT use a flame. If a leak is detected, turn the cylinder valve off (closed) and re ghten all connec ons and retest. 5) Once you determine that there are no leaks present with the gas valve open, turn the cylinder valve to the off (closed) posi on. 6) Place the second supplied washer inside the threaded fi ng on the loose end of the shower hose. A ach this fi ng to the `water outlet' connec on. If necessary, you can use Teflon tape to avoid leaks. 7) Prepare a garden hose with a `quick fi ng' connec on and a ach it to the male garden hose fi ng already installed on the `water inlet' pipe. (This appliance is also compa ble with other forms of water supply including low voltage water pumps. For informa on on how to connect to this please consult your pump accessory instruc on manual or contact KickAss®). 8) Ensure the igni on switch located on the bo om of the unit is turned to the `on'posi on. 9) Ensure that the flow regula on switch on the showerhead is in the `off' posi on. 10) IMPORTANT: It is important that when star ng the appliance that the gas regulator is set to the minimum posi on, fully to the le , indicated by the thin do ed end of the curved line. 11) IMPORTANT: It is important that when star ng the appliance that the wate r regulator is set to the maximum posi on, fully to the le , indicated by the thick do ed end of the curved line. 12) Turn the gas cylinder on in an an clockwise direc on one full turn. 13) Open the valve for your water supply. Water should not start to flow out of the showerhead as it is s ll in the `off' posi on. 14) When ready, slide the flow regula on switch on the showerhead to the `on' posi on. Water will start to flow through the showerhead within a few seconds. You should hear a series of clicks and then the burner should ignite. The burner flame can be seen opera ng through the viewing window located at the front of the appliance. 15) Adjust the temperature of the water flowing from the showerhead by turning the `gas' and `water' knobs. 10 a. Turning the gas knob towards the symbol will increase gas flow. Turning the gas knob towards the symbol will decrease gas flow. b. Turning the water knob towards the symbol will increase water flow. Turning the water knob towards the symbol will decrease water flow. c. For higher temperatures increase the gas flow and decrease the water flow. d. You can also adjust the temperature of the water flowing from the showerhead using the `season' control knob. The `Summer' se ng turns off some burners to save gas. The `Winter' se ng turns on all burners to provide ho er water. Warning! Take care to test the ini al temperature of the water flowing from the showerhead, as it may be hot enough to cause injury. The water flow can be stopped at any me by sliding the regula on swit ch on the showerhead to the `off' posi on. The burner will ex nguish. To reignite the burner, slide the flow regula on switch to the `on' posi on . Water will commence to flow and the burner will ignite within 5 seconds. WATER CYCLING INSTRUCTIONS To achieve maximum water temperature at higher flow rates you can `cycle' the water. To do this, pump the water from a source reservoir (such as a bucket) through the heater and back into the reservoir. You can cycle the water as many mes as required to reach your desired temperature, up to 50°C. STORING THE APPLIANCE 1) A er use, turn the cylinder gas valve in a clockwise direc on to the `off' (closed) posi on. The burner will con nue to operate un l all gas has been bled from the hose and regulator assembly. 2) Wait for the flame to go out, then turn the appliance control valve(s) off. 3) Turn off the water supply at the garden hose tap. Disconnect the `quick fi ng' garden hose a achment from the `water inlet' . 4) Disconnect the regulator and hose assembly from the appliance and gas cylinder and store away. 5) Disconnect the showerhead and hose from the `water outlet', hold the shower head approximately 1 metre from the ground and allow all water to drain out before rolling up and storing away. 11 DISCONNECTING FROM CYLINDER 1. Check that the appliance is fully ex nguished, the gas cylinder control valve is in the fully `off' posi on and all surfaces are cool. 2. Loosen the connec on to the gas cylinder in a clockwise direc on. DRAINING THE HEATER WHEN STORING BELOW 0°C When the ambient temperature is below freezing, it is essen al to drain the water a er using the heater. Failure to do so will void your warranty. 1. Ensure that the heater is disconnected from the gas supply. 2. Ensure that the heater is disconnected from the water supply. 3. Ensure that the shower hose is disconnected from the heater. 4. Turn the water flow knob to . 5. Operate the drain valve at the base of the appliance un l all water has drained from the heater. CARE INSTRUCTIONS Using warm soapy water with a mild detergent wipe down all surfaces and areas of the appliance, taking care not to allow water to enter the burner outlets. Before each use, check that the screen filter on the `gas inlet' and `water inlet' pipes is in place and cleaned of any par cles. · DO NOT submerge the appliance in a sink or bowl. · DO NOT use abrasive cleaners or bleach. 12 TROUBLESHOOTING This guide should be followed in case of failure of the appliance to operate correctly. If problems persist contact us. DO NOT MODIFY THE APPLIANCE. DO NOT ATTEMPT TO REPAIR THE APPLIANCE. Problem The appliance will not light at all Water flows through the unit, but is not hot Water is not hot enough Cause Make sure you have new ba eries installed in the correct posi on. Check the cap of the ba ery case for instruc ons on how they should be installed. Check for sufficient water pressure. The unit must have a minimum of 0.25 MPa of sustained water pressure to ac vate the burners. There may be debris or epoxy residue in the water regulator. Check that the water inlet filter screen is clean. To flush the system, you can reverse the hook up by taking the water inlet pipe and hooking it up to the water outlet side and back. The gas cylinder may be contaminated by air. Turn the unit on and off several mes to purge the air from the gas. Check that the shower flow water regulator is in the open posi on. New ba eries may be required for the igni on switch. Check the cap of the ba ery case for instruc ons on how they should be installed. Check that the water pressure is at least 0.25 MPa to ac vate the burners. Ensure that the liquid propane regulator is threaded all the way to the unit and that you have an adequate amount of gas in your propane bo le. Verify that you have hooked up both the incoming and outgoing water supply properly. The showerhead should be a ached to the water outlet (located at the centre) and the water inlet should be a ached to your incoming connec on (located at the far right) as labelled. Adjust the gas regulator and water regulator to meet your desired temperature. To increase temperature, turn the gas regulator control from minimum to maximum and turn the water regulator control from maximum to minimum. Turn the burner control knob, in the centre of the unit, to the Winter se ng. This will ac vate more burners. Check source water temperature. If the source water temperature is too cold then you can `cycle' the water (see WATER CYCLING INSTRUCTIONS on page 11). Check that there is a blue flame in the `viewing window'. If you see a yellow flame it could mean a breakdown in the gas regulator. Please contact KickAss® directly if this happens; do not a empt to use the heater. 13 The unit starts for a short amount of me and then shuts off Check your gas cylinder to ensure it is not empty. If using a new cylinder, try to cycle the unit on and off by using the showerhead switch several mes to purge the air from the gas lines. You can check if the gas cylinder is empty by using a scale. Disconnect the bo le and place it on a scale, making sure the valve is firmly closed. The tare (empty) weight of the bo le is stamped on the neck ring. The difference between the scale reading and the tare weight indicates approximately how much gas is in the bo le. Do not expose the water heater to strong winds. This unit ac vates at a sustained water pressure of 0.25 MPa. If your supply water pressure is below the minimum, the unit will not ignite. SPECIFICATIONS Model number Injector size Total nominal gas consump on Gas pressure Min water pressure Max water pressure Size Weight Gas input connec on Water input connec on Water output connec on KAHWSGAS8 0.61 mm 28MJ/h 2.8 kPa 0.3 MPa 1.0 MPa 500 x 300 x 135 mm 5.3 kg G½ G ½ G ½ 14 KICKASS.COM.AU For warranty, please proceed to kickass.com.au/warrantyCorel PDF Engine Version 17.2.0.688 CorelDRAW X7
