Conforms to UL 2703 mechanical and bonding requirements. See Flush Mount Manual for more info. ...

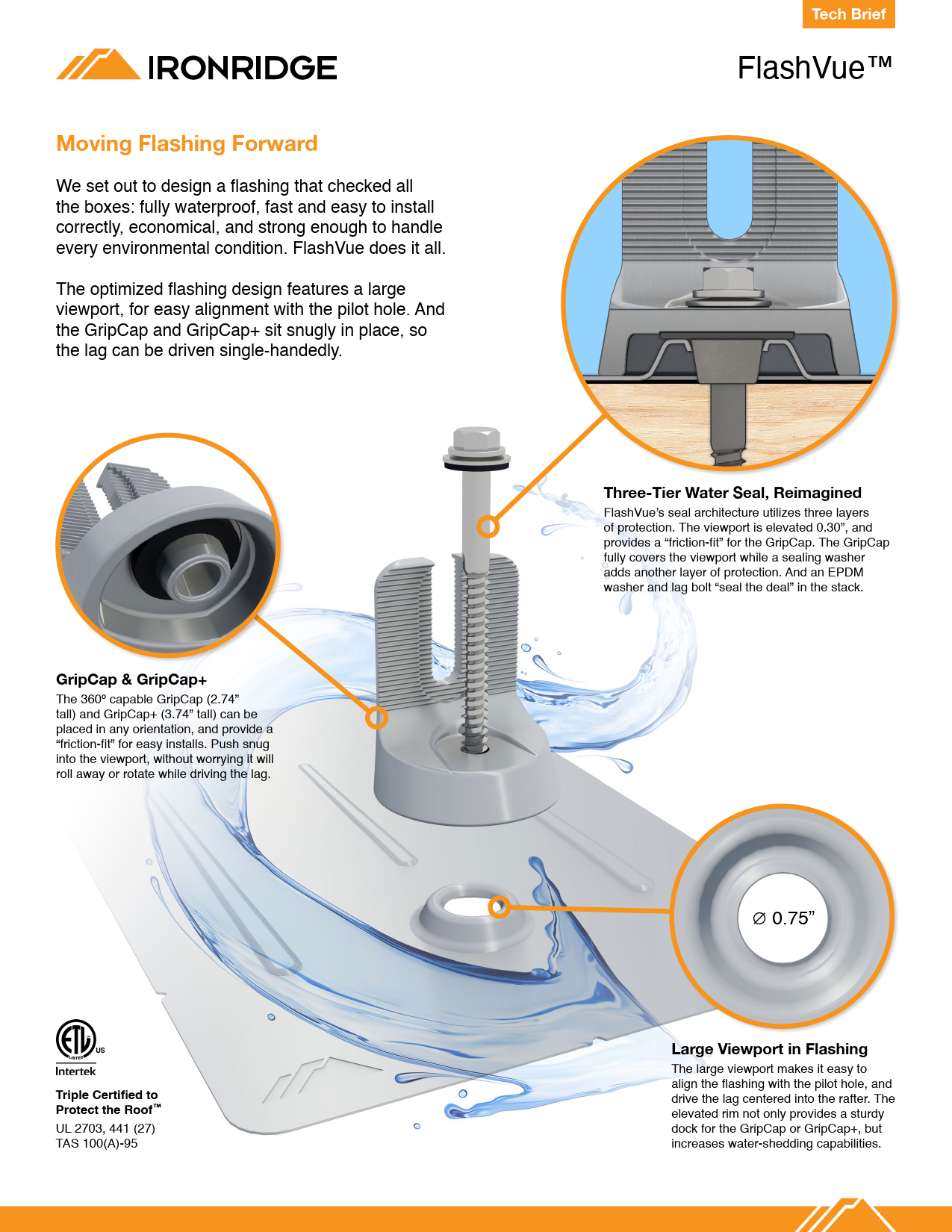

Moving Flashing Forward We set out to design a flashing that checked all the boxes: fully waterproof, fast and easy to install correctly, economical, and strong enough to handle every environmental condition. FlashVue does it all. The optimized flashing design features a large viewport, for easy alignment with the pilot hole. And the GripCap and GripCap+ sit snugly in place, so the lag can be driven single-handedly. GripCap & GripCap+ The 360º capable GripCap (2.74" tall) and GripCap+ (3.74" tall) can be placed in any orientation, and provide a "friction-fit" for easy installs. Push snug into the viewport, without worrying it will roll away or rotate while driving the lag. Triple Certified to Protect the RoofTM UL 2703, 441 (27) TAS 100(A)-95 Tech Brief FlashVueTM Three-Tier Water Seal, Reimagined FlashVue's seal architecture utilizes three layers of protection. The viewport is elevated 0.30", and provides a "friction-fit" for the GripCap. The GripCap fully covers the viewport while a sealing washer adds another layer of protection. And an EPDM washer and lag bolt "seal the deal" in the stack. 0.75" Large Viewport in Flashing The large viewport makes it easy to align the flashing with the pilot hole, and drive the lag centered into the rafter. The elevated rim not only provides a sturdy dock for the GripCap or GripCap+, but increases water-shedding capabilities. See Your Pilot Holes Large Viewport in Flashing FlashVue makes pilot holes highly visible, like never before. No more tedious guesswork on hot roofs. Solve Roof Undulations Also Available: GripCap+ We know roofs are not always perfectly flat. GripCap+ can help when undulations get in the way. Tech Brief Trusted Strength & Certification Attachment Loading FlashVue has been tested and rated to support 1161 (lbs) of uplift and 353 (lbs) of lateral load. Structural Certification Designed and certified for compliance with the International Building Code & ASCE/SEI-7. Water Seal Ratings Passed both the UL 441 Section 27 "Rain Test" and TAS 100-95 "Wind Driven Rain Test" by Intertek. UL 2703 Listed System Conforms to UL 2703 mechanical and bonding requirements. See Flush Mount Manual for more info. © 2020 IronRidge, Inc. All rights reserved. Visit www.ironridge.com or call 1-800-227-9523 for more information. Version 1.0Adobe PDF Library 15.0 Adobe InDesign 15.1 (Macintosh)
