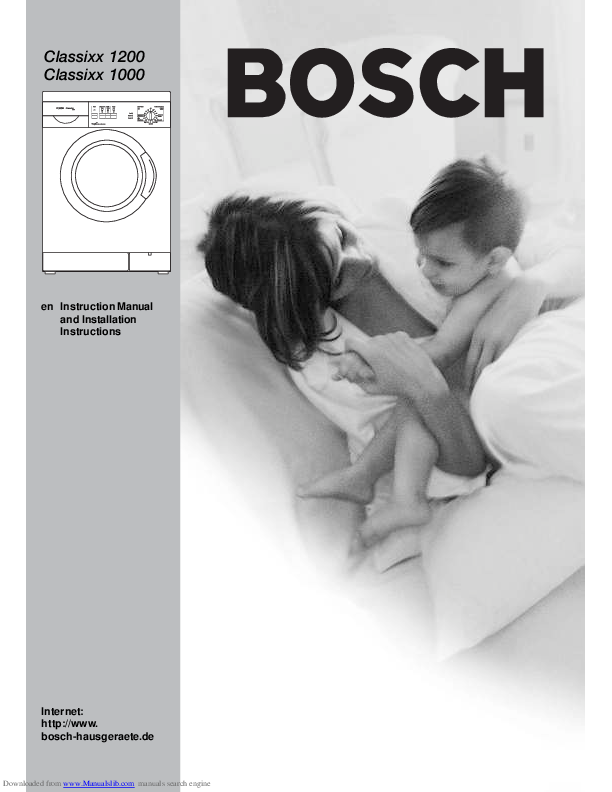

Classixx 1200 Classixx 1000
en Instruction Manual and Installation Instructions
Internet: http://www. bosch-hausgeraete.de
Downloaded from www.Manualslib.com manuals search engine

Table of Contents

Operating Instructions
Installation Instructions

General Information . . . . . . . . . . . . . . . . . . . . . . . . 3 Disposal Information . . . . . . . . . . . . . . . . . . . . . . . 4 Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . 5 Environmental Protection / Conservation Issues . . . . . . . . . . . . . . . . . . . . . . . . 6 Your New Washing Machine . . . . . . . . . . . . . . . . . 7 Before Using Your Washing Machine For the First Time . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Preparing the Laundry . . . . . . . . . . . . . . . . . . . . . . 10 Sorting the laundry . . . . . . . . . . . . . . . . . . . . . . . . . 11 Loading the laundry . . . . . . . . . . . . . . . . . . . . . . . . 14 Laundry Detergents and Additives . . . . . . . . . . . . 15 Programmes and Functions . . . . . . . . . . . . . . . . . 17 Washing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 When the Programme has Ended . . . . . . . . . . . . 23 Special Applications . . . . . . . . . . . . . . . . . . . . . . . . 24 Cleaning and Care . . . . . . . . . . . . . . . . . . . . . . . . . 26 Troubleshooting Minor Faults . . . . . . . . . . . . . . . . 31 Customer Service . . . . . . . . . . . . . . . . . . . . . . . . . . 34 Consumption Rates . . . . . . . . . . . . . . . . . . . . . . . . 35 Installation, Connection and Transport . . . . . . . . 36

2
Downloaded from www.Manualslib.com manuals search engine

General Information
The new washing machine which you have just purchased is a modern, highquality domestic appliance. Your washing appliance is distinguished by its economical consumption of power, water and detergent. Each washing machine which leaves our factory has undergone a thorough performance test and is in fully working order. If you have any queries - especially concerning installation and connection of the washing machine - our customer service will be happy to advise you. Further information and a selection of our products can be found on our Internet page: http://www.bosch-hausgeraete.de
Please read and observe these operating and installation instructions and all other information enclosed with the washing machine. These operating and installation instructions describe various models. Differences are indicated in the appropriate places. Keep all documentation in a safe place for subsequent use or for the next owner of the appliance.
3
Downloaded from www.Manualslib.com manuals search engine

Disposal Information

Disposing of the packaging
Disposing of your old appliance

The shipping package has protected your new appliance on its way to your home. All packaging materials are environmentfriendly and recyclable. Please contribute to a better environment by disposing of packaging materials in an environmentally conscious manner.
Please ask your dealer or local authority about best means of disposal.
d Danger of suffocation! Keep children away from shipping carton and packaging components. Danger of suffocation from plastic film and folding cartons.
Old appliances are not worthless rubbish! Environmentconscious recycling can reclaim valuable raw materials.
d Danger of fatal injury! On outof service appliances, unplug mains plug. Cut off power cord and discard with mains plug.
To prevent playing children from becoming trapped and endangered, ensure that the door locking mechanism is disabled.

4
Downloaded from www.Manualslib.com manuals search engine

Safety Information
q Your washing machine is intended: - For domestic use only. - For washing machinewashable fabrics in washing solution. - For operation using cold tap water and conven tional laundry detergents and additives that are suitable for use in washing machines.
q Do not leave children unsupervised near the washing machine.
q Keep pets away from the washing machine. q Do not insert/pull out the mains plug with wet
hands. q Do not pull out the mains plug by tugging the
cable. q Do not touch the loading door if washing at high
temperatures. q Caution when draining hot water. q Do not climb onto the washing machine and do
not lean on the open loading door.
5
Downloaded from www.Manualslib.com manuals search engine

Environmental Protection / Conservation Issues

Your washing machine uses water, energy and detergent efficiently, thereby protecting the environment and reducing your household costs. See Page 35 for consumption values of your appliance.

Using your washing machine in an efficient and environmentally friendly manner:

q Do not exceed recommended load.

Cottons + Linens Easycare Delicates and Woollens

5.0 kg / 11 lb 3.0 kg / 6.6 lb 2.0 kg / 4.4 lb

q Where possible, use the 60 �C Intensive Stains programme instead of the 90 �C y Cottons + Linens programme. The extended washing dura
tion means that a cleaning result comparable to
that of the 90 �C programme is achieved using considerably less energy.

q Avoid using the Prewash programme when wash ing lightly to normally soiled laundry.

q Add detergent according to the degree of soiling, amount of laundry and water hardness, and ob
serve the detergent manufacturer's instructions.

6
Downloaded from www.Manualslib.com manuals search engine

Your New Washing Machine
Filling laundry detergent and/or additive dispensers Dispenser I: Detergent for prewash or starch. Dispenser II: Detergent for main wash, soaking agent, softener, bleach or stain remover. Dispenser 2: Cleaning product, e.g. fabric softener, fabric conditioner (do not fill above the lower edge of the insert 1).

Open the loading door ...

and close it.

Downloaded from www.Manualslib.com manuals search engine

Drain washing solution if necessary
7

Control panel
2. Control lights illuminate End when programme is finished. Active when M Start is pressed. Ready when programme is selected. Flashing control lights = operating fault.

1. Select a programme
Programme selector switches the washing machine on/off. Can be rotated in either direction.
The programme selector does not rotate while the programme is running the programme sequence is electronically controlled.

3. Press buttons for additional functions

(where required to supplement the programme)

I Reduced Time: Shortened programme duration.

B 9:

Reduced spin speed.

L Rinse Hold:

Laundry is left in rinsing water.

It is also possible to combine the additional functions at any time.

The control light above the option button lights up when the respective additional function is active.

To cancel the additional function: Press the button again.

4. Press the M Start button The washing process begins (programme must have been selected).

8
Downloaded from www.Manualslib.com manuals search engine

Before Using Your Washing Machine For the First Time
Caution The washing machine must have been installed and connected properly (refer to Page 36). Your appliance was tested before leaving the factory. To remove any water left over from testing procedures, the first washing cycle should be carried out without laundry in the machine. i Do not load any laundry.
1. Turn on the water tap. 2. Pull out the detergent dispenser up to the end
stop.
3. Pour approx. 1 litre / 1 � pt of water into cham
ber II of the detergent dispenser.
4. Half fill the measuring beaker with detergent and
pour into chamber II. Do not use any special de tergents for delicates or woollens (excessive foam).
5. Close the detergent dispenser. 6. Set the programme selector
to 90 �C y Cottons + Linens. The Ready control light comes on.
7. Press the M Start button.
The Active control light comes on. When the End control light comes on:
8. Set the programme selector to Off.
9
Downloaded from www.Manualslib.com manuals search engine

Preparing the Laundry
Caution Loose debris (e.g. coins, paper clips, needles, nails) can damage items of clothing as well as parts of the washing machine (e.g. drum). q Empty all pockets on items of clothing. q Brush out any sand from pockets and cuffs. q Close zipfasteners and button up bed covers. q Remove curtain runners or tie them up in a net /
bag. q The following items must be washed inside a net /
pillow case: - Extremely delicate items, e.g. fine tights, net
curtains. - Small items, e.g. small socks or handkerchiefs. - Underwired bras (the wire may come loose
during washing and cause damage). q When washing trousers, knitwear and woven
fabrics, e.g. shirts, Tshirts or sweatshirts, always turn these items inside out.
10
Downloaded from www.Manualslib.com manuals search engine

Sorting the laundry

according to colour

Caution Items of clothing can become discoloured. Never wash new multicoloured items together with other items.
White items may become grey. Always wash white and coloured items separately.

according to degree of dirt

slight dirt normal dirt
Downloaded from www.Manualslib.com manuals search engine

No recognizable dirt or staining. Laundry may have some body odour.
- Light summer clothing and sportswear that has only been worn for a few hours.
- Tshirts, shirts and blouses that have been worn for up to one day.
- Bed linen and guest towels that have been used for one day.
Visible dirt and/or some light staining recognizable.
- Tshirts, shirts and blouses that are very sweaty or have been worn several times.
- Underwear that has been worn for one day.
- Tea towels, hand towels and bed linen that have been used for up to one week.
- Net curtains (without nicotine staining) that have not been washed for up to � year.
11

intensive dirt typical stains removing stains

Dirt and/or staining recognizable.
- Kitchen hand towels that have been used for up to one week.
- Fabric napkins.
- Bibs.
- Children's outer clothing or football shirts and shorts with grass and soil stains.
- Working clothes such as overalls or baker's and butcher's coats.
- Skin fat, cooking oils / fat, sauces, mineral oil, wax (containing fat / oil).
- Tea, coffee, red wine, fruit, vegetables (bleachable).
- Blood, egg, milk, starch (containing protein / carbohydrate).
- Soot, soil, sand (pigments), red sand on tennis clothes.
Wherever possible, remove / pretreat stains whilst they are still fresh.
First, dab soapy water onto the stain. Do not rub. Subsequently wash the items of clothing using the appropriate programme.
Several washing cycles may sometimes be required in order to remove stubborn / dried in stains.

12
Downloaded from www.Manualslib.com manuals search engine

according to their care label specifications

Only wash laundry that is labelled with the following care symbols:
e d
90 �C Cottons + Linens
c b a
60 �C, 40 �C, 30 �C Cottons + Linens
h g f
60 �C, 40 �C, 30 �C Easycare
l g k f
40 �C, 30 �C Delicates
6 l g k f
40 �C, 30 �C Woollens (hand and machinewashable) Laundry that is labelled with the following care symbol must not be washed in the washing machine:
B = do not wash

Downloaded from www.Manualslib.com manuals search engine

Loading the laundry
d Risk of explosion! Items of clothing that have been pretreated with sol ventbased cleaning agents, e.g. stain remover and dry cleaning spirit, represent an explosion hazard once loaded into the washing machine. Therefore, these items must first be rinsed thoroughly by hand. Caution Loose debris in the washing machine drum can damage the laundry. Before loading the laundry, check that there is no debris in the drum.
1. Open the loading door.
2. Unfold the sorted items of clothing and place them
loosely into the drum. Mix up large and small items. Items of varying size will distribute better during the spin cycle. i Do not exceed recommended load: Overloading will cause poor wash results and encourage creasing.
3. Close the loading door.
Take care not to trap any items of clothing be tween the loading door and rubber seal.
14
Downloaded from www.Manualslib.com manuals search engine

Laundry Detergents and Additives

Dispensing the correct amount of detergent
Too little detergent: Too much detergent:

d Risk of poisoning! Keep detergents and additives out of the reach of children.
q Dispense the detergent according to:
- the water hardness. This information can be obtained from your local water authority.
- the amount of laundry.
- the amount of soil. Information on soiling can be found on Page 11.
- the specifications of the detergent manufacturer. Dispensing the correct amount of detergent relieves the strain on the environment and ensures optimum washing results.
q Pour liquid detergent into the appropriate dispens ing chamber.
The laundry is not cleaned properly and will, after a while, become grey and stiff. Greyish brown spots (fat globules) may appear on the laundry. The heaters may calcify.
Environmentally incompatible, excessive foam re duces wash agitation causing poor washing and rins ing results.

Downloaded from www.Manualslib.com manuals search engine

Filling laundry detergent and/or additive dispensers

Dispenser I: Detergent for prewash or starch.
Dispenser II: Detergent for main wash, soaking agent, softener, bleach or stain remover.
Dispenser 2: Cleaning product, e.g. fabric softener, fabric conditioner.
- Fill at least to lower edge of insert 1.
- If the liquid additive is thick, mix with a little water before dispensing (prevents clogging of the over flow).
1. Pull out the detergent dispenser up to the end
stop.
2. Add the detergent and/or additive.
3. Close the detergent dispenser.

16
Downloaded from www.Manualslib.com manuals search engine

Programmes and Functions

Basic programmes

Select the desired programme - see also the separate programme overview.
90�C y Cottons + Linens An energyintensive programme for heatresistant textiles, e.g. cotton or linen.
To protect the drainage pipes, the hot water is mixed with approx. 7 litres of cold water before being drained.
60�C Intensive Stains For stained, heavily soiled textiles, e.g. cotton or linen. Energysaving programme. The extended washing time achieves a cleaning result comparable to that of the 90 �C programme, but uses considerably less energy.
60�C Cottons + Linens with Prewash For very dirty, hardwearing fabrics. Select this programme in order to remove stains containing protein from your laundry.
30, 40, 60 �C y Cottons + Linens For hardwearing textiles, e.g. cotton or linen.
30, 40, 60 �C A Easycare For easycare textiles, e.g. cotton, linen, synthetic materials or blended fabrics.

Downloaded from www.Manualslib.com manuals search engine

Extra cycle programme selector

30 �C Delicates For delicate, washable textiles, e.g. silk, satin, synthetic materials or blended fabrics (e.g. curtains).
Delicates cycle at 30 �C for hand and machine washable silk. We do not recommend washing these textiles with other rougher textiles. To treat very delicate silk textiles even more gently, reduce the time by pressing the I Reduced Time button. No spinning between rinse cycles. Maximum spin speed: 600 r.p.m.
30 �C, cold u Woollens For hand and machine washable wool or woolrich textiles, e.g. cashmere, mohair or angora.
K Rinse Rinse cycle with subsequent spin cycle for rinsing handwashed laundry or for starching.
Maximum spin speed: 800 r.p.m.
B Spin Spin cycle for spinning handwashed laundry. Water is drained before the spin cycle. Maximum spin speed: 800 r.p.m.
b Drain Water is drained after a programme with the L Rinse Hold setting for gentle treatment of delicate laundry.

18
Downloaded from www.Manualslib.com manuals search engine

Additional options buttons

I Reduced Time
Reduced washing duration - only 2 rinsing cycles. Suitable for slightly dirty laundry.
Recommended load amount: Up to a maximum of 3 kg.

9 Basic setting = Button not pressed In the y Cottons + Linens programme the fabrics will be spun at the maximum possible spin speed.
In the A Easycare, Delicates and u Woollens programmes, a lower spin speed will automatically be used, irrespective of whether this option button is actuated or not - for the gently washing of the laundry.
Maximum spin speeds

Revolutions per minute WFL 2462 WFL 2062

1200

1000

800

600

800

Type of laundry / Extra cycle
y Cottons+Linens A Easycare
Delicates u Woollens K Rinse B Spin

L Rinse hold For delicate textiles and net curtains. All programmes can be carried out without the final spin cycle. The laundry is left in the final rinsing water.
Before the laundry can be unloaded, the b Drain or B Spin programme must be performed.
i All of the previous rinse cycles have a short intermediate spin cycle apart from the programme Delicates. This improves the results of the rinse.

Downloaded from www.Manualslib.com manuals search engine

Additional functions

Load adjust Load adjust" matches the water and power consumption to each programme - according to the amount of washing and type of textiles. Water and energy consumption is therefore reduced when washing small amounts of laundry.
Unbalanced load detection system The automatic unbalanced load detection system spins the washing several times to ensure even distri bution. If the washing is very unevenly distributed, it is not spun for reasons of safety or the end speed is redu ced. In the woollens programme the washing is spun only twice to prevent matting.

20
Downloaded from www.Manualslib.com manuals search engine

Washing

1. Turn on the water tap.

Example:

2. Turn the programme selector to the desired pro
gramme (refer also to separate Programme Chart"). The Ready control light comes on.
3. Where required, press the option button(s) for
additional function(s).
4. Press the M Start button.
The Active control light comes on, and the pro gramme starts. i The Active control light remains lit for the entire duration of the programme.

Downloaded from www.Manualslib.com manuals search engine

Changing a programme
Cancelling active programme

If you have accidentally selected the wrong programme:
1. Turn the programme selector to Off.
2. Turn the programme selector to the desired pro
gramme. The Ready control light comes on.
3. Press the M Start button.
The Active control light comes on, and the new programme starts.
If you wish to prematurely end a programme:
1. Turn the programme selector to Off.
2. Turn the programme selector
to b Drain or B Spin. The Ready control light comes on.
3. Press the M Start button.
The Active control light comes on.

22
Downloaded from www.Manualslib.com manuals search engine

When the Programme has Ended

Unloading the laundry

The End control light comes on.
1. Turn the programme selector to Off,
and, where required:
2. Select a programme option ( b Drain, B Spin or
K Rinse).
3. Press the M Start button.
4. At the end of the programme option, turn the pro
gramme selector to Off.
1. Turn off the water tap.
2. Open the loading door.
If the loading door cannot be opened: q Wait for 2 minutes (the safety function is active) or q there is still water in the washing machine
if the L Rinse Hold option was selected. In this latter case, select the b Drain or B Spin programme.
3. Unload the laundry.
Caution Remove any foreign objects (e.g. coins, paper clips) from the drum and rubber seal) - risk of rust!
i Leave the loading door open to allow the inside of the washing machine to dry out.

Downloaded from www.Manualslib.com manuals search engine

Special Applications

Presoak Starching

1. Load laundry of the same colour.
2. Add the presoak agent to chamber II according to
the manufacturer's specifications.
3. Turn the programme selector
to 30 �C y Cottons + Linens. The Ready control light comes on.
4. Press the M Start button.
The Active control light comes on, and the pro gramme starts.
5. After approx. 15 minutes, turn the programme se
lector to Off. The laundry is left to lie in the water.
6. Select a programme after the desired soaking pe
riod.
i No additional detergent required, the soaking solution is used for washing.
i The laundry must not be treated with fabric softener.
1. Load the laundry.
2. Dispense the correct amount of starch for approx.
15 litres / 3.3 gal. of water. Powdered starch must first be dissolved in water according to the manufacturer's specifications.
3. Turn the programme selector to K Rinse.
4. Select L Rinse Hold if required.
5. Press the M Start button.

24
Downloaded from www.Manualslib.com manuals search engine

Dyeing Decolorizing

As soon as water starts to enter the machine:
6. Pull out the detergent dispenser slightly.
7. Add the starching solution to chamber I.
8. Close the detergent dispenser.
q If the L Rinse Hold option is selected, the b Drain programme must subsequently be selected.
Only use dyes that are environmentally compatible and suitable for use in washing machines.
Caution Discoloration of the laundry in subsequent wash cycles cannot be completely ruled out.
q Always use dyes in accordance with the manufacturer's instructions.
After dyeing:
1. Pour � measuring beaker of detergent into dis
penser II.
2. Without any laundry in the drum,
allow the 90 �C y Cottons + Linens programme to run through.
3. Wipe the seal clean.
Caution Decolorants may contain sulphur or chlorine. These substances can cause parts of the washing machine to corrode. Do not decolorize items of laundry in the washing machine.

Downloaded from www.Manualslib.com manuals search engine

Cleaning and Care

Cleaning the appliance housing and control panel
Cleaning the drum

d Risk of electric shock! Always disconnect the appliance from the mains before cleaning. Never clean the washing machine with a jet of water.
d Risk of explosion! Never use solvents to clean the appliance.
As required: q Use hot soapy water or a mild, nonabrasive
cleaning agent. Rub dry with a soft towel.
In the event that rust spots have formed due to leftover debris (e.g. coins, paper clips, needles, nails): q Use a chorinefree cleaning agent. Follow the
manufacturer's instructions. Never use steel wool.

26
Downloaded from www.Manualslib.com manuals search engine

Cleaning the deter gent dispenser

In the event that residual detergents or additives have accumulated:
1. Pull out the detergent dispenser up to the end
stop, press down the hollow on the insert and re move the detergent dispenser completely.

2. Pull up the insert. 3. Rinse the detergent dispenser under hot running
water.
4. Push down the insert until it clicks into place. 5. Insert the detergent dispenser.

Descaling the washing machine

Caution Descaling agents contain acids which can attack parts of the washing machine and discolour the laundry.
Provided that you use the correct amount of detergent, it is not necessary to descale the washing machine.
If, however, descaling the appliance becomes necessary, please follow the instructions provided by the descaling agent manufacturer.

Downloaded from www.Manualslib.com manuals search engine

Cleaning the drain pump

This is necessary if the washing solution cannot be completely drained. The pump is blocked by either loose debris or fluff which accumulates if fluffgiving fabrics are washed.
Draining the washing solution i Up to 20 litres / 4.4 gal. Have a suitable container
ready.
d Risk of scalding! Allow the hot washing solution to cool. Keep children and domestic pets away from the washing machine.
1. Turn the programme selector to Off.
2. Fold down the cover panel.

3. Unscrew the pump cap slightly until the washing

90 �C max.

solution slowly begins to run into the cover plate cavity.

4. When the cover plate cavity is half full, tighten the
pump cap and empty the cover plate cavity.

i Repeat the last two steps until all the washing solution has been drained.

5. Completely remove the pump cap.
6. Remove any loose debris / fluff from inside the
pump and clean the pump. The pump impeller must be able to rotate. Clean any residue or fluff from the thread of the pump cap and pump housing.
7. Attach and tighten the pump cap.
8. Attach and close the cover plate.

28
Downloaded from www.Manualslib.com manuals search engine

To avoid unused detergent from flowing into the drain during the next wash cycle:
9. Pour 1 litre / 1 � pt of water into chamber II.
10.Select the b Drain programme.

Cleaning water inlet strainers
Release the water pressure in the supply hose
Cleaning the strainer at the water tap

This is necessary if very little or no water flows into the washing machine.
1. Turn off the water taps. 2. Turn the programme selector to any programme
(except B Spin and b Drain).
3. Press the M Start button, and allow the pro
gramme to run for approx. 40 seconds.
4. Turn the programme selector to Off.
1. Disconnect the hose from the water tap. 2. Rinse the strainer under flowing water. 3. Reconnect the hose.

Downloaded from www.Manualslib.com manuals search engine

Cleaning the strainer on the washing machine

1. Disconnect the hose from the back of the washing
machine.

2. Pull out the strainer and rinse under running water.
3. Insert the strainer and reconnect the hose.
4. Turn on the water tap and check whether water is
still discharged. If water is still discharged, check that the strainer is attached properly.
5. Turn off the water taps.

30
Downloaded from www.Manualslib.com manuals search engine

Troubleshooting Minor Faults

d Risk of electric shock! Repairs must only be carried out by our Customer Service or an authorized technician.
If repairs are needed, and assuming that you cannot eliminate the fault yourself with the aid the following table:
1. Turn the programme selector to Off.
2. Disconnect the washing machine from the mains.
3. Turn off the water tap.
4. Call Customer Service (refer to Page 34).

Fault
The loading door cannot be opened.
Detergent residue in the detergent dispenser.

Cause L Rinse Hold was selected. Safety function is active. Detergent was damp or lumpy.

Control lights do not come on.

A fuse has triggered. Power failure.

Plug is loose or not inserted.

Action
Select b Drain or B Spin.
Wait for 2 minutes.
Clean and dry the detergent dispenser (refer to Page 27).
Use the dispensing aid for liquid detergents.
Switch on / replace the fuse.
Call Customer Service if this fault is repeated.
An interrupted programme will be resumed when power returns. If you wish to unload the laundry, proceed as in Cleaning the drain pump", Page 28.
Insert the plug.

Downloaded from www.Manualslib.com manuals search engine

Fault

Cause

Action

Programme does not start. The Ready control light flashes.

Loading door not closed.

Check whether laundry is trapped in door.
Close the loading door (a click should be heard).

Programme does not start.

M Start button not pressed.

Press the M Start button.

Water does enter the machine or detergent is not washed away. The Active control light flashes.

Water tap not turned on. Supply hoses kinked or trapped. Strainers in supply hoses clogged.

Turn on water tap.
Eliminate the cause.
Clean the strainers (refer to Page 29).

Detergent in chamber I is A programme without Prewash was Select 60 �C Cottons + Linens

not washed away.

selected.

with Prewash.

Water cannot be seen in This is not a fault.

drum.

The water lies below the visible part of the drum.

Washing solution is not completely drained. The End" control light flashes.

Loose debris is blocking the pump. Clean the pump (refer to Page 28).

Fluffproducing laundry was washed at a high temperature. The water drainage pipe or drain hose is blocked.

Clean the water drainage pipe and/or drain hose.

Water is flowing out from The thread of the supply hose is not Tighten the thread. underneath the machine. tight.

Leak in the drain hose.

Replace the drain hose.

Foam coming out of the To much detergent. detergent dispenser.

Mix 1 tablespoon of fabric softener with � litre / 1 pt of water and pour into chamber II of the detergent dis penser.

Reduce the amount of detergent next time.

The laundry was not spun

Large items of clothing became entangled and could not be distributed evenly in the drum. For safety reasons, the highspeed final spin cycle was automatically cancelled.

Always load large and small items together into the drum (see also unbalanced load detection system).

32
Downloaded from www.Manualslib.com manuals search engine

Fault

Cause

Action

Spin result unsatisfactory. L Rinse or B Spin programme selected - maximum spin speed 800 r.p.m.

Repeated spinning at short intervals.

This is not a fault. The imbalance compensation system is attempting to balance the load through repeated spins.

The programme takes longer than usual.

This is not a fault. Unbalanced load detection system attempts to distribute the washing evenly by spinning it several times.

Always load large and small items together into the drum.

The foam detection feature has

Add a more appropriate amount of

activated an additional rinsing cycle detergent next time.

to reduce the amount of foam.

Unsatisfactory washing The degree of dirt was higher than Select a more suitable programme.

result.

supposed.

Not enough detergent.

Detergent residue on the laundry.

Some phosphatefree detergents contain waterinsoluble residues that may appear as light spots on the laundry.

Add detergent according to the manufacturer's specifications.
Select K Rinse immediately, or brush off spots when laundry is dry.

Grey residues on the laundry.

Dirt accumulation from ointments, fats or oils.

Add the maximum amount of detergent and select the highest permissible temperature next time.

Downloaded from www.Manualslib.com manuals search engine

Customer Service

Identification plate

Before calling the Customer Service, please make sure that you cannot eliminate the fault yourself (refer to Page 31).
This is because consultation provided by our technicians, even within the warranty period, will lead to costs being incurred by yourself.
Your nearest Customer Service centre can be found in the index supplied. When calling the Customer Service, please specify the product number (ENr.) and production number (FDNr.) of your appliance.
These numbers are shown on the rating plate which can be found on the frame of the open door and also on the identification plate, enclosed by a thick line, on the front of the machine behind the nameplate.

ENr.

Product number

Production number

Please note the two numbers in the space provided

above.

In specifying the product number and production number of your appliance, you help us in our attempt to prevent unnecessary travelling and the associated extra costs.

34
Downloaded from www.Manualslib.com manuals search engine

Consumption Rates

Normal programme

Load

Consumption rates **

(without additional functions)

Electricity

Water

Duration

40 �C y Cottons + Linens 5.0 kg *

0.55 kWh

54 l

118 min.

60 �C y Cottons + Linens 5.0 kg

0.95 kWh

54 l

118 min.

60 �C Intensive Stains

5.0 kg *

0.95 kWh

49 l

135 min.

90 �C y Cottons + Linens 5.0 kg (the hot washing solution is mixed with approx. 7 litres of cold water before being drained)

1.9 kWh

61 l

121 min.

40 �C A Easycare

3.0 kg *

0.5 kWh

50 l

78 min.

30 �C Delicates

2.0 kg

0.3 kWh

50 l

50 min.

30�C u Woollens

2.0 kg *

0.2 kWh

35 l

50 min.

* Calculated from test programmes pursuant to EN 60 456: 1999 and IEC 60456 Ed.3 1998: 02

** The consumption rates may deviate from the stated values depending on water pressure and hardness, room temperature, type and amount of laundry, detergents used, fluctuations in the mains voltage and selected additional functions.

Downloaded from www.Manualslib.com manuals search engine

Installation, Connection and Transport

Safety information
Supplied accessories

d Risk of injury!
The washing machine is heavy. Take care when lifting it.
Caution Frozen hoses can tear / burst. Do not install the washing machine outdoors or in an area prone to frost.
Take care not to damage the washing machine. Do not hold onto protruding parts (e.g. loading door) when lifting.
In addition to the safety information listed here, the local water and electricity supplier may have special requirements.
If in any doubt, have the appliance connected by an authorized technician.
In the drum:
- Water supply hoses.

Moisture in the drum is due to the final inspection which every washing machine undergoes before it leaves the factory.

36
Downloaded from www.Manualslib.com manuals search engine

On the rear of the appliance: - Water drainage hose - Elbow for attachment of the drainage hose, e.g. to
the sink. - Mains cable with plug.
Depending on the connection situation: - 1 hose clip 24-40 mm (DIY store) is also re
quired for connection to a siphon.
The bag contains: - Covers for placing over the openings after the
transport bolts have been removed. - Wrench.

Useful tools

The following tools are helpful: - Ring wrench (SW 13). - Spirit level.

Dimensions of the washing machine

Width = 600 mm Depth = 590 mm Height = 860 mm Approx. weight = 73 kg

Downloaded from www.Manualslib.com manuals search engine

Installation area
Builtunder or builtin appliance installation

Appliance stability is important so that the washing machine does not wander" during the spin cycles.
The installation area must be solid and even. Soft floor surfaces, such as carpets or surfaces with foam backing, are not suitable.
If the washing machine is to be installed on a wood joist ceiling:
1. If possible, place the washing machine in a corner
of the room.
2. Screw a waterresistant wooden board (at least
30 mm thick) to the floor.
3. Affix the feet of the washing machine using holding
brackets *.
If the washing machine is to be placed on a pedestal:
4. Affix the feet of the washing machine using holding
brackets *.
* Holding brackets (set) can be obtained from a specialist store or the Customer Service (order no. WMZ 2200).
The appliance must be built under or built in prior to connecting the power supply.
The appliance can be built into or under a kitchen work surface. For this purpose, a recess width of 60 cm is required.
q The washing machine must only be installed under a onepiece worktop that is permanently attached to the surrounding cabinets.
Caution For safety reasons in builtunder installation, a metal cover* must be assembled by a specialist in place of the appliance cover plate.
* The metal cover (kit) can be obtained from a specialist store or the Customer Service (order no. WMZ 2390).

38
Downloaded from www.Manualslib.com manuals search engine

Transport bolts
Before removing the transport bolts
Removing the transport bolts

Caution The transport bolts must always be removed before using the appliance for the first time and must be retained for any subsequent transport (e.g. when moving).
1. Take the hose out of the holder.
2. Detach the elbow.
3. Release all four transport bolts using the SW 13
wrench until they can be moved freely.
4. Completely remove transport bolts by reaching
through the open washing machine door and pul ling the drum forwards slightly.

5. Insert the covers.

Downloaded from www.Manualslib.com manuals search engine

Storing the transport bolts

Always keep the transport bolts for subsequent trans portation of the appliance (e.g. when moving house).
q Store the transport bolts with washer and bush (and spring) attached.

40
Downloaded from www.Manualslib.com manuals search engine

max. 100 cm max. 100 cm

Hose and cable lengths
Lefthand connection

approx. 100 cm
approx. 145 cm

Righthand connection

approx. 85 cm
approx. 145 cm approx. 90 cm

Other hoses

approx. 135 cm
Available from specialist dealers: - Connector fittings for plastic hose
(approx. 2.50 m), order no. WMZ 2380. - Extended supply hose (approx. 2.20 m).

Downloaded from www.Manualslib.com manuals search engine

Water connection
Water supply
Connect the water supply hose

Caution Operate the washing machine with cold drinking water only. Do not connect the appliance to the mixer tap of an unpressurized hotwater boiler.
If in any doubt, have the water connection carried out by an authorized technician.
The water supply hoses must not be:
q Bent or squashed.
q Modified or cut through (stability can no longer be guaranteed).
Plastic threads must only be tightened by hand. Do not remove the strainer from the water supply hose.
Observe the water pressure in the supply network:
q The water pressure should be between 1 and 10 bars (when the tap is turned on, at least 8 litres of water is discharged per minute).
q A pressure reducing valve must be installed if the maximum water pressure is exceeded.
1. To the back of the washing machine, and...

42
Downloaded from www.Manualslib.com manuals search engine

2. To the water tap.

10 mm mini.
After connection Water drainage
Drainage into a siphon

3. Turn on the water tap completely and check that
the connection points are watertight.
Caution Do not bend or pull the water drainage hose.
Height difference between the placement area and drainage point: maximum 100 cm.
1. Secure the connection point with a hose band clip
of 24-40 mm dia. (from specialist store).

Drainage into a wash basin

Caution The plug must not block the drain of the wash basin.
1. Secure the water drainage hose so that it does not
slide out.
2. When water is being drained, check that the water
flow is fast enough.

Downloaded from www.Manualslib.com manuals search engine

Levelling procedure

All four appliance feet must be firmly on the ground. The washing machine must not wobble.
Level the washing machine with the assistance of the four adjustable feet and a spirit level:
1. Loosen the counternut 1 using the wrench.
2. Adjust the height by means of turning the ap
pliance foot 2.
3. Tighten lock nut 1 against the housing.

44
Downloaded from www.Manualslib.com manuals search engine

Electrical connection

Caution The washing machine must only be connected to alternating current and using a properly installed socket outlet with earthing contact.
The mains voltage must correspond to the voltage specification on the washing machine (nameplate). Connection specifications as well as the required fuses are stipulated on the appliance nameplate.
Make sure that:
q the mains plug fits the socket outlet.
q the cable crosssection is permissible.
q the earthing system is properly installed.
The mains cable may be replaced by an electrician only. Replacement mains cable available from customer service.
Do not use multiple plugs / connectors or extension cables.
In the event that an earthleakage circuit breaker is to be used, only use types marked with the following symbol: 7. Only this symbol can guarantee compliance with all current regulations.
Do not insert / remove the mains plug with wet or damp hands.
Handle the plug body only when removing the plug from the socket.

Downloaded from www.Manualslib.com manuals search engine

Transport
Preparing and inserting the transport bolts

Before transporting the washing machine (e.g. when moving)
1. Turn off the water tap(s).
2. Release the water pressure in the supply hose(s)
(refer to Page 29).
3. Drain any residual washing solution (refer to
Page 28).
4. Disconnect the washing machine from the mains.
5. Dismantle the supply and drainage hoses.
6. Remove the covers.
7. Pull the bolt out of the sleeve until the end of the
bolt is flush with the end of the sleeve.

8. Insert and tighten the transport bolts.
The lug on the washer must be located in the groove in the rear panel of the housing. i Having transported the appliance and ensured proper installation and connection, after removing the transport bolts first allow the b Drain programme to run through before starting the first wash programme.
46
Downloaded from www.Manualslib.com manuals search engine

Downloaded from www.Manualslib.com manuals search engine

ROBERT BOSCH HAUSGER�TE GMBH
Downloaded from www.Manualslib.com manuals search engine

0703 en 5050 002 351
