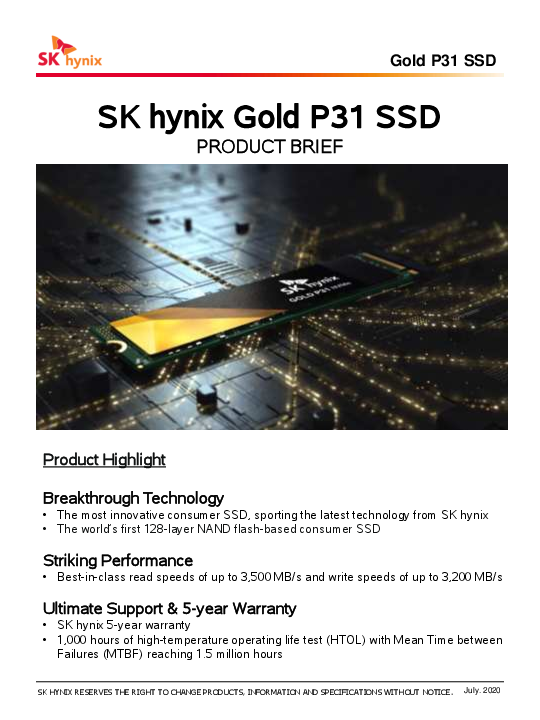

SK hynix Gold P31 SSD
Full PDF Document
If the inline viewer fails, it will open the original document in compatibility mode automatically. You can also open the file directly.
Extracted Text
Gold P31 SSD SK hynix Gold P31 SSD PRODUCT BRIEF Product Highlight Breakthrough Technology � The most innovative consumer SSD, sporting the latest technology from SK hynix � The world's first 128-layer NAND flash-based consumer SSD Striking Performance � Best-in-class read speeds of up to 3,500 MB/s and write speeds of up to 3,200 MB/s Ultimate Support & 5-year Warranty � SK hynix 5-year warranty � 1,000 hours of high-temperature operating life test (HTOL) with Mean Time between Failures (MTBF) reaching 1.5 million hours SK HYNIX RESERVES THE RIGHT TO CHANGE PRODUCTS, INFORMATION AND SPECIFICATIONS WITHOUT NOTICE. July. 2020 Gold P31 SSD Gold P31 Series Product Specification Capacity 1TB 500GB Form Factor M.2 2280 Single Side NAND Technology 4D NAND Interface PCIe NVMe Gen3, up to 4 lanes Sequential Performance 1) 3) 4) Read (up to) Write (up to) 3,500 MB/s 3,500 MB/s (TLC) 3,200 MB/s 1,700 MB/s (TLC) 3,500 MB/s 3,500 MB/s (TLC) 3,100 MB/s 950 MB/s (TLC) Random Performance 2) 3) 5) Read (up to) Write (up to) Latency 6) Power Consumption 7) Queue Support 570K IOPS 500K IOPS (TLC) 570K IOPS 500K IOPS (TLC) 600K IOPS 370K IOPS (TLC) 600K IOPS 220K IOPS (TLC) Read 90us Active 8) Idle(Slumber) Write 45us L1.2 6.3W <50mW <5mW - Support up to 256 queues - Support up to 1,024 queue depth for each queue Temperature Range Operation 9) - 0 to 70 - Temperature Sensor (SMART Attributes Bytes 02:01h) Reliability 10) Dimension Weight Voltage MTBF 11) 1.5M hours BER 12) 1 error in 1015 bits transferred (22.00�0.15) x (80.00�0.15) x (Max. 2.23) mm Max 7.0g 3.3V�5% Notes - May not be compatible with BIOS that supports Pyrite 1.0 and OPAL - For cloning, use USB-PCIe M.2 adapter with JMicron JMS583, ASMedia ASM2362, or Realtek RTL9210. - May not be compatible with Macbook Pro, Macbook Air SK HYNIX RESERVES THE RIGHT TO CHANGE PRODUCTS, INFORMATION AND SPECIFICATIONS WITHOUT NOTICE. July. 2020 Gold P31 SSD 1) Measured using IOmeter1.1 with QD(queue depth) 32. Set to 128KiB alignment. (1MB/sec = 1,000,000 bytes/sec) 2) Measured using IOmeter1.1 with 4 threads, QD 32 each. Set to 4KiB alignment. 3) IOmeter1.1 is used for measuring. Measurements are performed on 1GB of LBA range with a queue depth 32 & 8 worker system. System variations may affect results. (Test Pre-condition : Secure erased and NTFS formatted of a secondary drive) 4) Set to 128KiB alignment /1MB/sec = 1,000,000 bytes/sec was used in sequential performances. 5) Set to 4KiB alignment, 8 threads condition 6) Device measured by IOmeter1.1 with queue depth 1 workload and Read latency measured on random 4KiB transfers. 7) All numbers are average data measured out of more than 3 times 8) Active power is measured during execution of sequential write 128KB with queue depth 32. 9) Measured w/o condensation. And Operating mode is measured by temperature sensor, SMART Attributes Bytes 02:01h. 10) The SSD incorporate advanced technology for defect and error management, they use various combinations of hardwarebased error correction algorithms and firmware based static and dynamic wear-leveling algorithms. 11) 1.5M Mean Time Between Failures is estimated based on population. statistics not relevant to individual units through 12) Reliability demonstration Test (RDT). 13) Bit error rate will not exceed one sector in the specified number of bits read. In the unlikely event of a read error, the SSD will report it as a read failure to the host; the sector in error is considered corrupt and is not returned to the host. SK HYNIX RESERVES THE RIGHT TO CHANGE PRODUCTS, INFORMATION AND SPECIFICATIONS WITHOUT NOTICE. July. 2020
