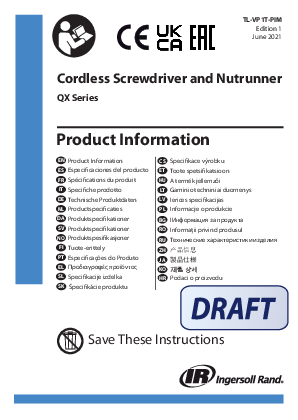

Product Information
This document provides product information for the Ingersoll Rand QX Series Cordless Screwdriver and Nutrunner.
Save These Instructions
[Ingersoll Rand Logo]
Product Safety Information
Intended Use
These Cordless Tools are designed for assembly applications requiring precise torque control, accuracy, consistency and repeatability and are recommended for tightening requirements.
⚠️ WARNING: Read all safety warnings, instructions, illustrations, and specifications provided with this power tool. Failure to follow the warnings and instructions may result in electric shock, fire and / or serious injury. Save all warnings and instructions for future reference.
- Do not puncture or burn batteries. Improper disposal may cause personal injury.
- Use only with Ingersoll Rand IC Process Communication Module (IC-PCM) when used in radio mode.
- Use of any other batteries may cause property damage.
For additional information, refer to the following manuals available for download from ingersollrand.com:
- Cordless Screwdriver and Nutrunner Safety Manual Form 47114541
- Battery Charger Safety Information Manual Form 10567832
- Battery Safety Information Manual Form 10567840
- IC-PCM Safety Information Manual Form 24074205
Product Specifications
QX Model Identification
The QX Series model number is a code that identifies specific features. An example model number is QXXD2PT012PQ04.
- Series
- Q
- Family
- X
- Communication
- B = Bluetooth, F = none, X = Zigbee & Bluetooth
- User Interface
- D = Display, N = No display
- Motor/Power
- 2 = 20V, 5 = 40V
- Body Style
- A = Angle, P = Pistol
- Activation
- T = Trigger
- Output Size
- 00 = none, 04 = 1/4", 06 = 3/8", 08 = 1/2"
- Output Style
- M = Multiplied, Q = Quick Connect, S = Square
- Version
- E = ETS*, H = C1D2** & ETS*, P = Standard, V = C1D2**
Maximum Torque (Nm)
| Model Code | Max. Torque (Nm) |
|---|---|
| 004 | 005 |
| 008 | 010 |
| 012 | 015 |
| 024 | 027 |
| 018 | 080 |
| 020 | 030 |
| 035 | 040 |
*ETS = Ergonomic Tightening System
** = Class I, Division 2, Groups A-D (sold in USA and Canada only)
Tool Specifications Table
| Family | Communication | Interface | Power | Body | Activation | Torque (Nm) | Variant | Output Type | Output Size | Voltage (V, DC) | Battery Model | Sound Pressure Level (dB(A)) | Vibration Level, *K (EN62851) (m/s²) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| QX | B | D | 2 | P | T | 004 | P | 04 | 20 | >70.0 | 2.5 | ||
| QX | B | D | 2 | P | T | 008 | V | BL2005 | >70.0 | 7.3 | |||
| QX | B | D | 2 | P | T | 012 | E | S | 06 | BL2010 | 73.5 | 2.5 | |
| QX | B | D | 2 | P | T | 018 | H | Q | 08 | 20 | BL2012 | >70.0 | 12.9 |
| QX | X | N | 5 | A | T | 024 | E | 40 | BL2022 | >70.0 | 9.6 | ||
| QX | X | N | 5 | A | T | 02 | P | 71.0 | 2.5 | ||||
| QX | X | N | 5 | A | T | 03 | V | 71.0 | 2.5 | ||||
| QX | X | N | 5 | A | T | 040 | E | BL4011 | 71.5 | 9.9 | |||
| QX | X | N | 5 | A | T | 080 | H | 71.0 | 2.5 | ||||
| QX | B | F | P | 00 | P | 73.5 | 2.5 | ||||||
| QX | B | F | P | 01 | V | S | 06 | 73.5 | 2.5 | ||||
| QX | B | F | P | 027 | E | 08 | >70.0 | 6.9 | |||||
| QX | B | F | P | H | 71.0 | 2.5 | |||||||
| QX | B | F | P | P | 72.6 | 11.9 | |||||||
| QX | B | F | P | V | |||||||||
| QX | B | F | P | E | |||||||||
| QX | B | F | P | H |
*K = Vibration measurement uncertainty 3dB(A).
It is recommended that the tool be used in ambient temperatures (Ta) between 0°C and 45°C. However, the higher the ambient temperature, the lower the duty cycle the tool will be capable to support.
[Certification Mark] Conforms to UL STD. 62841-1 and 62841-2-2. Conforms to ANSI STD. 12.12.01-2012, Class I, Division 2, Groups A-D, T3A.
[Certification Mark] Certified to CSA STD. C22.2 No. 62841-1 and 62841-2-2. Certified to CSA STD. C22.2 No 213.
Declaration of Noise and Vibration Emission
The declared vibration total value has been measured in accordance with a standard test method and may be used for comparing one tool to another. It may be used for a vibration emission level representing the main applications of the tool. However, if the tool is used for a different application, with different accessories or poorly maintained, the vibration emission may differ. This may significantly increase the exposure level over the total working period. An estimation of the level of exposure to vibration should also take into account the time when the tool is switched off or when it is running free speed.
Installation
Cable Connection
A standard USB cable (USB to Mini Type B) can be used to connect to a computer loaded with ICS software. Maximum cable length 2 meters.
Auxiliary Handle Mounting
Mount Auxiliary Handle on Gear Case with Plastic Handle positioned in the groove. Hand tighten.
Hanger Connection
For Pistol Tool, insert ends of hanger accessory at top of housing. For Angle Tool, hang using molded feature at rear of housing.
Adjustments
⚠️ WARNING: Disconnect the tool from the battery before making any adjustments or changing accessories. Such preventive safety measures reduce the risk of starting the tool accidentally.
Storage
Disconnect the battery from the tool when not in use.
Parts and Maintenance
Tool service is recommended every year or 250,000 cycles, whichever comes first. Tool repair and maintenance should only be carried out by authorized, trained personnel. When service or repair is required, contact an Ingersoll Rand office or distributor.
NOTICE: For 'Assembly/Disassembly' and other maintenance instructions regarding these products, see Maintenance Information Form 47104302, located at ingersollrand.com or contact the nearest Ingersoll Rand office or distributor.
Environmental Protection
When the life of an Ingersoll Rand electrical product has expired, it must be recycled in accordance with all applicable standards and regulations (local, state, country, federal, etc.). Improper disposal may endanger the environment.
Symbol Identification
- ♻️ Return waste material for recycling.
- ?️❌ Do not dispose of this product with household waste material.
- ? Product contains Lithium-Ion. Do not dispose of this product with household waste material.
Safety Information - Explanation of Safety Signal Words
- ⚠️ DANGER
- Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.
- ⚠️ WARNING
- Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.
- ⚠️ CAUTION
- Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury or property damage.
- ℹ️ NOTICE
- Indicates information or a company policy that relates directly or indirectly to the safety of personnel or protection of property.
Radio Frequency (RF) Equipment Declaration of Conformity
The declarations provided below pertain to the RF devices contained in the Ingersoll Rand product.
FCC Compliance (English)
This device complies with Part 15 of the FCC Rules and complies with Innovation, Science and Economic Development Canada's licence-exempt RSS(s). Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, used and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.
Ingersoll Rand Industrial Technologies
800-D Beaty Street, Davidson, NC 28036
Phone: 704-896-4000
[FCC Certification Mark]
[ISED Canada Certification Mark]
