| DH-XVR4108HS-I

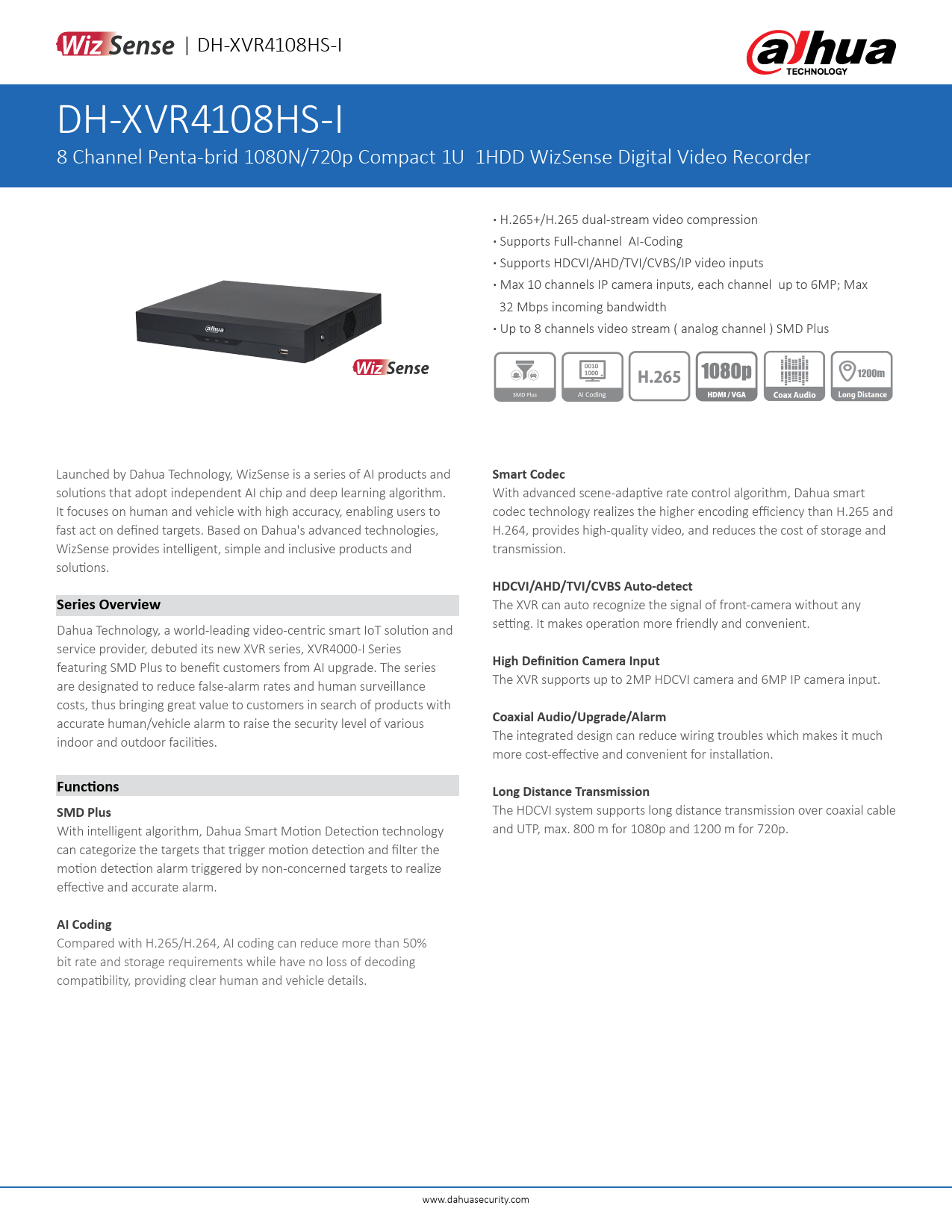

DH-XVR4108HS-I
8 Channel Penta-brid 1080N/720p Compact 1U 1HDD WizSense Digital Video Recorder
� H.265+/H.265 dual-stream video compression � Supports Full-channel AI-Coding � Supports HDCVI/AHD/TVI/CVBS/IP video inputs � Max 10 channels IP camera inputs, each channel up to 6MP; Max 32 Mbps incoming bandwidth � Up to 8 channels video stream ( analog channel ) SMD Plus

Launched by Dahua Technology, WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on human and vehicle with high accuracy, enabling users to fast act on defined targets. Based on Dahua's advanced technologies, WizSense provides intelligent, simple and inclusive products and solutions.
Series Overview
Dahua Technology, a world-leading video-centric smart IoT solution and service provider, debuted its new XVR series, XVR4000-I Series featuring SMD Plus to benefit customers from AI upgrade. The series are designated to reduce false-alarm rates and human surveillance costs, thus bringing great value to customers in search of products with accurate human/vehicle alarm to raise the security level of various indoor and outdoor facilities.
Functions
SMD Plus With intelligent algorithm, Dahua Smart Motion Detection technology can categorize the targets that trigger motion detection and filter the motion detection alarm triggered by non-concerned targets to realize effective and accurate alarm.
AI Coding Compared with H.265/H.264, AI coding can reduce more than 50% bit rate and storage requirements while have no loss of decoding compatibility, providing clear human and vehicle details.

Smart Codec With advanced scene-adaptive rate control algorithm, Dahua smart codec technology realizes the higher encoding efficiency than H.265 and H.264, provides high-quality video, and reduces the cost of storage and transmission.
HDCVI/AHD/TVI/CVBS Auto-detect The XVR can auto recognize the signal of front-camera without any setting. It makes operation more friendly and convenient.
High Definition Camera Input The XVR supports up to 2MP HDCVI camera and 6MP IP camera input.
Coaxial Audio/Upgrade/Alarm The integrated design can reduce wiring troubles which makes it much more cost-effective and convenient for installation.
Long Distance Transmission The HDCVI system supports long distance transmission over coaxial cable and UTP, max. 800 m for 1080p and 1200 m for 720p.

www.dahuasecurity.com

| DH-XVR4108HS-I

Technical Specification System

Main Processor

Embedded processor

Operating System

Embedded linux

SMD Plus

Performance

8 channels

AI Search

Search by target classification (Human, Vehicle)

Video and Audio

Analog Camera Input

8 channels, BNC

HDCVI Camera Input

1080p@ 25/30 fps, 720p@ 25/30 fps

AHD Camera Input

1080p@ 25/30 fps, 720p@ 25/30 fps

TVI Camera Input

1080p@25/30 fps, 720p@25/30 fps

CVBS Camera Input

PAL/NTSC

IP Camera Input

8+2 channels, each channel up to 6MP

Audio In/Out

1/1, RCA

Two-way Talk

Reuse audio in/out, RCA

Recording

Compression

AI Coding/H.265+/H.265/H.264+/H.264

Resolution
Record Rate
Bit Rate Record Mode Record Interval Audio Compression

1080N; 720p; 960H; D1; HD1; BCIF; CIF
Main Stream: 8-channel: the 1st channel 1080N/720p(1 fps�25/30 fps), others 1080N/720p(1 fps�15 fps); 960H/D1/CIF/(1 fps�25/30 fps) Sub stream: 8-channel: CIF (1 fps�7 fps)
32 kbps�6144 kbps per channel
Manual; Schedule (General, Continuous); MD (Video detection: Motion Detection, Video Loss, Tampering); Alarm; Stop
1 min� 60 min (default: 60 min), Pre-record: 1 s�30 s, Post-record: 10 s�300 s
G.711A; G.711U; PCM

Audio Sample Rate

8 KHz, 16 bit per channel

Audio Bit Rate

64 kbps per channel

Display

Interface

1 HDMI; 1 VGA

Resolution Multi-screen Display OSD
Network

1920 � 1080, 1280 � 1024, 1280 � 720
When IP extension mode not enabled: 1/4/8/9 When IP extension mode enabled: 1/4/8/9/16
Camera title; Time; Video loss; Camera lock; Motion detection; Recording

Interface Network Protocol Max. User Access

1 RJ-45 Port (100 Mbps)
HTTP; HTTPS; TCP/IP; IPv4/IPv6; Wi-Fi; 3G/4G; SNMP; UPnP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; PPPoE; DDNS; FTP; Alarm Server; P2P; IP Search (Supports Dahua IP camera, DVR, NVS, etc.)
128 users

Smart Phone

iPhone; iPad; Android

Interoperability

ONVIF 16.12, CGI Conformant

Video Detection and Alarm

Trigger Events

Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips

Video Detection

Motion Detection, MD Zones: 396 (22 � 18), Video Loss, Tampering and Diagnosis

Alarm input

N/A

Relay Output

N/A

Playback and Backup

Playback Search Mode Playback Function Backup Mode

1/4/9
Time/Date; Alarm; MD and Exact Search (accurate to second)
Play; Pause; Stop; Rewind; Fast play; Slow Play; Next File; Previous File; Next Camera; Previous Camera; Full Screen; Repeat; Shuffle; Backup Selection; Digital Zoom
USB Device/Network

Storage

Internal HDD

1 SATA port, up to 6 TB capacity

eSATA

N/A

Auxiliary Interface

USB

2 USB ports (USB 2.0)

RS485

1 Port, for PTZ Control

RS232

N/A

Electrical

Power Supply Power Consumption (Without HDD)
Construction
Dimensions
Net Weight (without HDD) Gross Weight

DC 12V/1.5A < 7W
Compact 1U, 260.0 mm � 237.9 mm � 47.6 mm (10.24'' � 9.37'' � 1.87'') 0.89 kg (1.96 lb) 1.40 kg (3.09 lb)

Installation

Desktop installation

Environmental

Operating Conditions

-10�C to +45�C (+14�F to +113�F), 0%�90% (RH)

Storage Conditions

-20�C to +70�C (-4�F to +158�F) , 0%�90% (RH)

Third-party Support

Third-party Support

Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more

Certifications

FCC: Part 15 Subpart B

Certifications

CE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN 61000-3-2; EN 61000-3-3; EN 55032; EN 50130; EN 55024

www.dahuasecurity.com

| DH-XVR4108HS-I

Ordering Information

Type

Model

8 Channel WizSense XVR

DH-XVR4108HS-I

Description
Compact 1U WizSense Digital Video Recorder

Panels

1

2

6

Dimensions (mm[inch])
 >@
 >@

 >@  >@

3 4 5 7 8 9 10

1 Video In 3 Audio Out 5 Network Port 7 RS�485 Port 9 DC 12V Power Input

2 Audio In 4 HDMI Port 6 VGA Port 8 USB Port 10 Ground

227.1 >8.94@ 237.9 >9.37@

Rev 001.001

� 2021 Dahua. All rights reserved. Design and specifications are subject to change without notice. Pictures in the document are for reference only, and the actual product shall prevail.
