2 Technical Data TD026079EN Effective December 2020 Power Xpert Meter 1000 Series EATO www.eaton.com Metering • Voltage V1, V2, V3, VLnavg, V12, V23, V31, VLlavg • Current I1, I2, I3, In, Iavg • Power P1, P2, P3, Psum •…
Full PDF Document
If the inline viewer fails, it will open the original document in compatibility mode automatically. You can also open the file directly.
Extracted Text

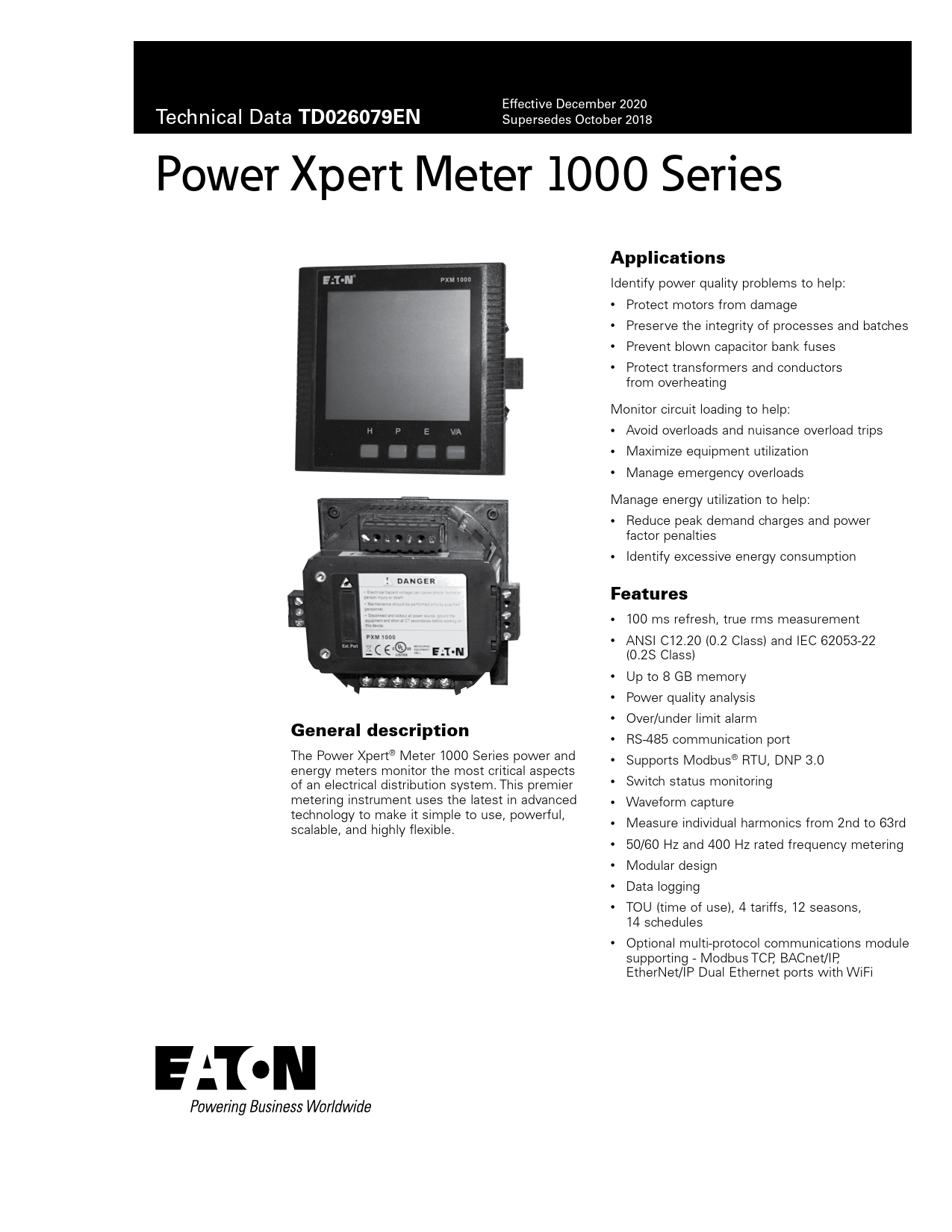

Technical Data TD026079EN Effective December 2020 Supersedes October 2018 Power Xpert Meter 1000 Series General description The Power Xpert� Meter 1000 Series power and energy meters monitor the most critical aspects of an electrical distribution system. This premier metering instrument uses the latest in advanced technology to make it simple to use, powerful, scalable, and highly flexible. Applications Identify power quality problems to help: � Protect motors from damage � Preserve the integrity of processes and batches � Prevent blown capacitor bank fuses � Protect transformers and conductors from overheating Monitor circuit loading to help: � Avoid overloads and nuisance overload trips � Maximize equipment utilization � Manage emergency overloads Manage energy utilization to help: � Reduce peak demand charges and power factor penalties � Identify excessive energy consumption Features � 100 ms refresh, true rms measurement � ANSI C12.20 (0.2 Class) and IEC 62053-22 (0.2S Class) � Up to 8 GB memory � Power quality analysis � Over/under limit alarm � RS-485 communication port � Supports Modbus� RTU, DNP 3.0 � Switch status monitoring � Waveform capture � Measure individual harmonics from 2nd to 63rd � 50/60 Hz and 400 Hz rated frequency metering � Modular design � Data logging � TOU (time of use), 4 tariffs, 12 seasons, 14 schedules � Optional multi-protocol communications module supporting - Modbus TCP, BACnet/IP, EtherNet/IP Dual Ethernet ports with WiFi Technical Data TD026079EN Effective December 2020 Metering � Voltage V1, V2, V3, VLnavg, V12, V23, V31, VLlavg � Current I1, I2, I3, In, Iavg � Power P1, P2, P3, Psum � Reactive power Q1, Q2, Q3, Qsum � Apparent power S1, S2, S3, Ssum � Frequency F � Power factor PF1, PF2, PF3, PF � Energy Ep_imp, Ep_exp, Ep_total, Ep_net, Epa_imp, Epa_exp, Epb_imp_Epb_exp, Epc_imp, Epc_exp � Reactive energy Eq_imp, Eq_exp, Eq_total, Eq_net, Eqa_imp, Eqa_exp, Eqb_imp, Eqb_exp, Eqc_imp, Eqc_exp � Apparent energy Es, Esa, Esb, Esc � Demand Dmd_P, Dmd_Q, Dmd_S, Dmd_I1, Dmd_I2, Dmd_I3 � Load features � Four quadrant power Features Monitoring � Power quality � Voltage harmonics 2nd to 63rd and THD � Current harmonics 2nd to 63rd and THD � 400 Hz type, only support 2nd to 15th � Voltage crest factor � Telephone Interference Factor (TIF) � Current K factor � Voltage unbalance factor U_unbl � Current unbalance factor I_unbl � Max./min. statistics with time stamps Alarms Limits can be set for up to 16 indicated parameters and can be set with a specified time interval. If any input of the indicated parameters is over or under its setting limit and persists over the specified time interval, the event will be recorded with time stamps and trigger the alarm DO output. The 16 indicated parameters can be selected from any of the 80 parameters available. I/O option module A maximum of three modules can be used for one meter. Digital input, digital output, pulse output, relay output, analog input and analog output are provided by I/O option module. Anti-tampering seal Users can physically seal the meter similar to a utility meter in order to provide anti-tampering protection. All metrological programming and user-defined parameters are protected with a physical seal. High frequency metering Designed for use with 400 Hz aircraft systems, PXM 1000 series power meters effectively monitor aircraft ground power units. Power Xpert Meter 1000 Series Data logging PXM 1100/1200/1300 offers three assignable historical logs where the majority of the metering parameters can be recorded. The onboard memory is up to 16 MB and each log size is adjustable. A real-time clock allows for any logged events to be accurately time stamped. With the addition of the PXM1K-ETHMULTI communication module, the memory size expands to an industry-leading 8 GB memory with 1-second interval datalogging. Time of use Users can assign up to four different tariffs (sharp, peak, valley, and normal) to different time periods within a day according to the billing requirements. The PXM 1200 meter will calculate and accumulate energy to different tariffs according to the meter's internal clock timing and TOU settings. Waveform capture PXM 1300 can record 100 groups of voltage and current waveforms. It provides the waveform record of 10 cycles before and after the triggering point. It also supports a settable triggering condition. COMTRADE waveform file format is available for waveform capture with optional communication module (PXM1K-ETHMULTI) Power quality event logging When a power quality event happens, such as voltage sag and swell, etc., PXM 1300 will record the timestamp and the triggering condition of the event. It can save up to 50,000 power quality events. Automatic frequency adaptation Rated frequency is adjusted automatically to local frequency such as 50 Hz or 60 Hz. The same meter can be used in countries with different electrical frequencies. Flexible current input Compatible with different current transformers such as 5 A, 1 A, 333 mV and Rogowski coils all available from Eaton. Communications Standard � RS-485 Communication protocols supported � Modbus RTU � DNP 3.0 � Modbus TCP option � BACnet/IP option � HTTP/HTTPS option � Ethernet/IP option � WiFi option � IPv6 option � SMTP (Simple Mail Transfer Protocol) option � SNMP (Simple Network Management Protocol), V2, V3 option � Ability to connect to Eaton's Power Xpert Gateway 900/950 Display � Clear and large character LCD screen display with white backlight � Wide environmental temperature endurance � Display load percentage, four quadrant power, and load nature outline � Small size 96 � 96 DIN or 4-inch ANSI round 2 EATON www.eaton.com Power Xpert Meter 1000 Series Technical Data TD026079EN Effective December 2020 Features Category Metering Real-time metering Energy and demand TOU Monitoring Time of use Daylight saving time Waveform capture Power quality Item Phase voltage Line voltage Current Power Reactive power Apparent power Power factor Frequency Energy Reactive energy Apparent energy Demand Energy/max. demand Two adjustable formats Voltage and current waveform* Voltage unbalance factor Parameters V1, V2, V3, VLnavg V12, V23, V31, Vllavg I1, I2, I3, In, Iavg P1, P2, P3, Psum Q1, Q2, Q3, Qsum S1, S2, S3, Ssum PF1, PF2, PF3, PF F Ep_imp, Ep_exp, Ep_total, Ep_net, Epa_imp, Epa_exp, Epb_imp, Epb_exp, Epc_imp, Epc_exp Eq_imp, Eq_exp, Eq_total, Eq_net, Eqa_imp, Eqa_exp, Eqb_imp, Eqb_exp, Eqc_imp, Eqc_exp Es, Esa, Esb, Esc Dmd_P, Dmd_Q, Dmd_S, Dmd_I1, Dmd_I2, Dmd_I3 TOU, 4 tariffs, 12 seasons, 14 schedules Month/day/hour/minute Month/week/first few weeks/hour/minute Trigger, manual, DI change, sag/dips, swell, overcurrent U_unbl PXM 1000 PXM 1100 PXM 1200 PXM 1300 n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n -- -- n -- -- -- n -- -- -- -- n n n n n Others Statistics Alarm Power quality event logging Data logging Onboard memory size Communication Time Current unbalance factor Voltage THD Current THD Individual harmonics Voltage crest factor TIF Current K factor MAX with time stamp MIN with time stamp Over/under limit alarm Sag/dips, swell Data logging 1 Data logging 2 Data logging 3 Memory Optional Communication modules Optional Communication modules RS-485 port, half duplex, optical isolated Real-time clock I_unbl n THD_V1,THD_V2,THD_V3, THD_Vavg n THD_I1, THD_I2, THD_I, THD_Iavg n Harmonics 2nd to 63rd (50 Hz or 60 Hz) n Harmonics 2nd to 15th (400 Hz) Crest factor n Telephone Interference Factor n K factor n Each phase of V & l; Total of P, Q, S, PF & F; n demand of I1, I2, I3, P, Q&S; each phase THD of V & I; unbalance factor of V & I V, I, P, Q, S, PF, V_THD and I_THD each phase and n total or average; unbalance factor of V and I; load type; analog input of each channel; demand of I1, I2, I3, P, Q&S; reverse phase sequence; DI1~DI28 Voltage -- F, V1/2/3/avg, V12/23/13/avg, I1/2/3/n/avg, P1/2/3/ -- sum, Q1/2/3/sum, S1/2/3/sum, PF1/2/3, PF, U_unbl, I_unbl, Load Type, Ep_imp, Ep_exp, Ep_total, Ep_net, Eq_imp, Eq_exp, Eq_total, Eq_net, Es, Epa_imp, Epa_exp, Epb_imp,Epb_exp, Epc_imp, Epc_exp, Eqa_imp, Eqa_exp, Eqb_imp, Eqb_exp, Eqc_imp, Eqc_exp, Esa, Esb, Esc, THD_V1/2/3/avg, THD_I1/2/3/avg, harmonics 2nd to 63rd, crest factor, THFF, K factor, sequence and phase angles, DI counter, AI, AO, Dmd P/Q/S, Dmd I1/2/3 Bytes -- PXM1K-MTCPP & PXM1K-BIPP 4GB n PXM1K-ETHMULTI 8GB n Modbus�-RTU protocol/DNP3.0 n Year, month, date, hour, minute, second n n n n n n n n n n n n n n n n n n n n n n n n n n n n -- -- n n n n 8 MB n n n n 8 MB n n n n 16 MB n n n n * The PXM1300 takes 512 samples per cycle. For the waveform capture function on the PXM1300 the sample rate is 64 samples. EATON www.eaton.com 3 Technical Data TD026079EN Effective December 2020 Accessories Digital/analog I/O Integrate data to/from other devices with field expandable plug-in I/O modules. PXM1K-1XX Power Xpert Meter 1000 Series Panel mount remote display PXM 1000 panel mount remote display for DIN rail mount transducer version (PXM1000 T). Includes one 6 ft cable. � 6x digital inputs � 24 Vdc power for digital inputs � 2x relay outputs PXM1K-2XX � 4x digital inputs � 2x digital outputs � 2x analog outputs PXM1K-3XX Communications modules A standard RS-485 port and optional communication modules support a wide array of protocols. PXM1K-MTCPP / PXM1K-BIPP PXM1K-ETHMULTI � 4x digital inputs � 2x relay outputs � 2x analog inputs Din-Rail mounting adapter PXM1K-DINADPT is a din rail mounting adapter that provides an easy way to din rail mount the PXM1000 meter with an integrated display. It will not work with a remote display or a transducer version. Communication protocols Communication modules PXM1K-MTCPP PXM1K-BIPP PXM1K-ETHMULTI* MODBUS-TCP X X X HTTP/HTTPs webserver X X X SMTP email X X X SNMP V X, V2 X, V2 X, V3 HTTP/HTTPs push X X X FTP post X X X sFTP server X X X Datalogging 4GB 4GB 8GB Datalogging interval 15 sec 15 sec 1 sec BACnet-IP X X WiFi X EtherNet/IP X IPv6 X Dual RJ45 ports X COMTRADE X Waveform display X * Additional details on the module is available in the user manual MN150013EN 4 EATON www.eaton.com Power Xpert Meter 1000 Series Meter input wiring 1A Fuse* Shorting terminal block PXM 1000 Technical Data TD026079EN Effective December 2020 1 A Fuse* Shorting terminal block PXM 1000 Figure 1. Three-phase, four-wire (3LN, 3CT) Line ABC 1 A Fuse * Shorting terminal block I11 I12 VNV3 V2 V1 I21 I22 PXM 1000 I31 I32 Load Figure 2. Three-phase, three-wire (3LL, 3CT) Line A BCN 1 A Fuse* Figure 4. Three-phase, three-wire with PT and 2CT (2LL, 3CT) 1 A Fuse* Shorting terminal block PXM 1000 Figure 5. Single-phase, three-wire (1LL, 2CT) 1 A Fuse* Shorting terminal block Load I11 I12 VN V3 V2 V1 I21 I22 PXM 1000 I31 I32 Shorting terminal block PXM 1000 Figure 3. Three-phase, four-wire with PT (3LN, 3CT) Figure 6. Single-phase, two-wire (1LN, 1CT) * 1A fuse typical Note 1: Shorting terminal block not required when used with voltage input current sensors Note 2: For meters used with voltage input current sensors, unused channels need to be tied to ground as shown in the figures. If meters are used with amperage input current sensors, then the unused channels do not need to be tied to ground. I/O cards wiring Digital Input Digital Output Vdc Digital Input DI1 DI2 DI3 DI4 DI5 DI6 DIC RO1 RO2 ROC V+ V- DI1 DI2 DI3 DI4 DIC QF5 QF4 QF3 QF2 QF1 QF6 QF5 QF4 QF3 QF2 QF1 � + +� Figure 7. PXM1K-X1X Figure 8. PXM1K-X2X/X3X +� 20�160 Vac/dc EATON www.eaton.com 5 Technical Data TD026079EN Effective December 2020 Dimensions in inches (mm) 3.78 (96.0) Multifunction power meter H P E V/A 3.78 (96.0) Front view Figure 9. PXM 1000 3.78 (96.0) 3.78 (96.0) Rear view Figure 10. DIN mount meter 3.58 (91.0) 1.41 (35.9) 1.99 (50.7) Side view 3.58 (91.0) 0.30 (7.60) 1.40 (35.50) 1.41 (35.9) 1.99 (50.7) Side view 0.55 (14.00) 55.60 (2.189) 90.00 (3.543) 22.00 (0.866) Power Xpert Meter 1000 Series 3.62 (92.0) Cut out 4.02 (102.0) Cut out 3.62 (92.0) Cut out 3.78 (96.0) Multifunction power meter H P E V/A 3.58 (91.0) 3.78 (96.0) 1.41 (35.9) 0.39 (10.0) Front view Side view Note: Display module is connected with a 6 ft 10-pin RJ45 cable. Display module opening size and PXM 1000 body openings are exactly the same size. Figure 12. External display module 3.54 (90.0) 2.19 (55.6) Figure 13. I/O module 0.77 (19.5) 22.00 (0.866) Figure 11. PXM1K-ETHMULTI 0.47" (12mm) 3.54" (90mm) 0.20" (5mm) 2.16" (55mm) 6 EATON www.eaton.com 0.20" (5mm) Figure 14. PXM1K DIN rail mounting adapter Power Xpert Meter 1000 Series Technical Data TD026079EN Effective December 2020 Ordering information To order a Power Xpert Meter 1000, the catalog number should be determined using Table 1. The table illustrates how to include the desired factory options as part of a catalog number. I/O and communication option modules are separate and field installable. Up to 3 I/O modules per meter can be installed. While installing communication module up to 2 I/O modules per meter can be installed. Power Xpert Meter modules include panel mounting brackets. Example 1: PXM1000MA15 (PXM 1000 meter/display, 5 A, 100�415 Vac or 100�300 Vdc) Example 2: PXM1300MA13 (PXM 1300 meter/display, 333 mV, 100�415 Vac or 100�300 Vdc) Table 1. Power Xpert Meter 1000 catalog numbering system PXM 1000 M A 1 5 - 1 Meter series 1000 = Multifunction meter 1100 = Plus data logging 1200 = Plus data logging and time of use 1300 = Plus data logging, waveform capture, and PQ logging Meter type M = Meter (with integral display) T = Transducer only (no display) Power supply 1 = 100�415 Vac or 100�300 Vdc 4 = 20�60 Vdc Current input 1 = 1 A secondary 3 = 333 mV secondary 5 = 5 A secondary R = Rogowski coil Ring terminal Blank = No ring terminal 1 = Ring terminal Table 2. Power Xpert Meter 1000 I/O module Description Catalog number PXM 1000 I/O module logic address 1; 2 RO, 6DI with DI power supply 24 Vdc PXM 1000 I/O module logic address 2; 2 RO, 6DI with DI power supply 24 Vdc PXM 1000 I/O module logic address 1; 4 DI, 2 DO, 2 AO (4�20 mA) PXM 1000 I/O module logic address 1; 4 DI, 2 DO, 2 AO (0�20 mA) PXM 1000 I/O module logic address 1; 4 DI, 2 DO, 2 AO (1�5 V) PXM1K-110 PXM1K-120 PXM1K-210 PXM1K-211 PXM1K-212 PXM 1000 I/O module logic address 1; 4 DI, 2 DO, 2 AO (0�5 V) PXM1K-213 PXM 1000 I/O module logic address 2; 4 DI, 2 DO, 2 AO (4�20 mA) PXM1K-220 PXM 1000 I/O module logic address 2; 4 DI, 2 DO, 2 AO (0�20 mA) PXM1K-221 PXM 1000 I/O module logic address 2; 4 DI, 2 DO, 2 AO (1�5 V) PXM1K-222 PXM 1000 I/O module logic address 2; 4 DI, 2 DO, 2 AO (0�5 V) PXM1K-223 PXM 1000 I/O module logic address 1; 4 DI, 2 RO, 2 AI (4�20 mA) PXM1K-310 PXM 1000 I/O module logic address 1; 4 DI, 2 RO, 2 AI (0�20 mA) PXM 1000 I/O module logic address 1; 4 DI, 2 RO, 2 AI (1�5 V) PXM 1000 I/O module logic address 1; 4 DI, 2 RO, 2 AI (0�5 V) PXM 1000 I/O module logic address 2; 4 DI, 2 RO, 2 AI (4�20 mA) PXM 1000 I/O module logic address 2; 4 DI, 2 RO, 2 AI (0�20 mA) PXM 1000 I/O module logic address 2; 4 DI, 2 RO, 2 AI (1�5 V) PXM1K-311 PXM1K-312 PXM1K-313 PXM1K-320 PXM1K-321 PXM1K-322 PXM 1000 I/O module logic address 2; 4 DI, 2 RO, 2 AI (0�5 V) PXM1K-323 Table 3. Power Xpert Meter 1000 accessories Description Catalog number PXM 1000 panel mount remote display for DIN rail mount PXM1K-DISP-3 transducer version; include one 6 ft cable PXM 1000 din rail mounting adapter PXM1K-DINADPT PXM1000 terminal plug kit PXM1K-TPK PXM1000 DISPLAY CABLE (15FT) PXM1K-DISPCBL-15 Table 4. Power Xpert Meter 1000 communications modules Description Catalog number PXM 1000 Modbus TCP with Web/HTTP Push PXM1K-MTCPP PXM 1000 BACnet/IP and Modbus TCP with Web/HTTP Push PXM1K-BIPP PXM1000 Dual-port ethernet accessory module* PXM1K-ETHMULTI Reference * Antenna is not included with the module. An antenna with RP-SMA(f) connector and supporting 2.4 GHz will work * Additional details on the module are available in the user manual (MN150013EN) Table 5. Rogowski coils Description PXM 1000 16-inch long Rogowski coil CT with 4-inch window calibrated for 5�1200 A PXM 1000 16-inch long Rogowski coil CT with 4-inch window calibrated for 12.5�3000 A PXM 1000 16-inch long Rogowski coil CT with 4-inch window calibrated for 25�6000 A PXM 1000 16-inch long Rogowski coil CT with 4-inch window calibrated for 50�12,000 A PXM 1000 16-inch long Rogowski coil CT with 4-inch window calibrated for 250�50,000 A PXM 1000 24-inch long Rogowski coil CT with 7-inch window calibrated for 5�1200 A PXM 1000 24-inch long Rogowski coil CT with 7-inch window calibrated for 12.5�3000 A PXM 1000 24-inch long Rogowski coil CT with 7-inch window calibrated for 25�6000 A PXM 1000 24-inch long Rogowski coil CT with 7-inch window calibrated for 50�12,000 A PXM 1000 24-inch long Rogowski coil CT with 7-inch window calibrated for 250�50,000 A PXM 1000 36-inch long Rogowski coil CT with 10-inch window calibrated for 5�1200 A PXM 1000 36-inch long Rogowski coil CT with 10-inch window calibrated for 12.5�3000 A PXM 1000 36-inch long Rogowski coil CT with 10-inch window calibrated for 25�6000 A PXM 1000 36-inch long Rogowski coil CT with 10-inch window calibrated for 50�12,000 A PXM 1000 36-inch long Rogowski coil CT with 10-inch window calibrated for 250�50,000 A PXM 1000 47-inch long Rogowski coil CT with 14-inch window calibrated for 5�1200 A PXM 1000 47-inch long Rogowski coil CT with 14-inch window calibrated for 12.5�3000 A PXM 1000 47-inch long Rogowski coil CT with 14-inch window calibrated for 25�6000 A PXM 1000 47-inch long Rogowski coil CT with 14-inch window calibrated for 50�12,000 A PXM 1000 47-inch long Rogowski coil CT with 14-inch window calibrated for 250�50,000 A Catalog number CS-16-4-1000-RC CS-16-4-2500-RC CS-16-4-5000-RC CS-16-4-12000-RC CS-16-4-50000-RC CS-24-7-1000-RC CS-24-7-2500-RC CS-24-7-5000-RC CS-24-7-12000-RC CS-24-7-50000-RC CS-36-10-1000-RC CS-36-10-2500-RC CS-36-10-5000-RC CS-36-10-12000-RC CS-36-10-50000-RC CS-47-14-1000-RC CS-47-14-2500-RC CS-47-14-5000-RC CS-47-14-12000-RC CS-47-14-50000-RC EATON www.eaton.com 7 Technical Data TD026079EN Effective December 2020 Technical information Input Current inputs (each channel) Nominal secondary sensor settings: Current Sensor Input Options 5A 1A 333mV 100mV Rope CT Nominal Configuration 5A 1A 1A 1A Selection Metering range (%of nominal) 200% 200% 120% 120% Pickup current (%of nominal) 0.1% 0.1% 0.5% 0.5% Withstand: 20 A rms continuous, 100 A rms for 1 second, non-recurring Burden: 0.05 VA (typical) at 5 A rms Accuracy: 0.2% full scale Voltage inputs (each channel) Nominal full scale: 400 Vac L-N, 690 Vac L-L (+20%) Withstand: 1500 Vac continuous, 2500 Vac, 50/60 Hz for 1 minute Input impedance: 2 mohm per phase Metering frequency: 45�65 Hz, 300�500 Hz Pickup voltage: 10 Vac Accuracy: 0.2% full scale Energy accuracy Active: Class 0.2 s (according to IEC 62053-22), Class 0.2 s (according to ANSI C12.20) Reactive: Class 2 (according to IEC 62053-23) Harmonic resolution Metered value: 63rd harmonic (50 Hz or 60 Hz type), 15th harmonic (400 Hz type) Communication RS-485 (standard) Modbus RTU and DNP 3.0 Two-wire shielded twisted pair cable connection Baud rate: 1200�38,400 bps Ethernet (optional) 10M/100M BaseT MODBUS� TCP/IP BACnet-IP EtherNet/IP IPv6 SNMP HTTP/HTTPs Webserver HTTP/HTTPs, FTP data post SMTP NTP Standard compliance Measurement standard: IEC 62053-22; ANSI C12.20 Environmental standard: IEC 60068-2 Safety standard: IEC 61010-1, UL 61010-1, IEC 61557-12 EMC standard: IEC 61000-4/-2-3-4-5-6-8-11, CISPR 22, IEC 61000-3-2, IEC 61000-62/4 Outlines standard: DIN 43700, ANSI C39.1 Power Xpert Meter 1000 Series Operating environment Operation temperature: �25 �C to +70 �C Storage temperature: �40 �C to +85 �C Relative humidity: 5% to 95% noncondensing Protection level: IP54 (front), IP30 (cover) I/O option Digital input Input voltage range: 20�160 Vac/Vdc Input current (max.): 2 mA Start voltage: 15 V Stop voltage: 5 V Pulse frequency (max.): 100 Hz, 50% duty ratio (5 ms ON and 5 ms OFF) SOE resolution: 2 ms Digital output (DO) (photo-MOS) Voltage range: 0�250 Vac/Vdc Load current: 100 mA (max.) Output frequency: 25 Hz, 50% duty ratio (20 ms ON, 20 ms OFF) Isolation voltage: 2500 Vac Relay output (RO) Switching voltage (max.): 250 Vac, 30 Vdc Load current: 5 A (resistive), 2 A (inductive) Set time: 10 ms (max.) Contact resistance 30 mohm (max.) Isolation voltage: 2500 Vac Mechanical life: 1.5 x 107 Analog output (AO) Output range: 0�5 V / 1�5 V, 0�20 mA / 4�20 mA (optional) Accuracy: 0.5% Temperature drift: 50 ppm / �C typical Isolation voltage: 500 Vdc Open circuit voltage: 15 V Analog input (AI) Input range: 0�5 V / 1�5 V, 0�20 mA / 4�20 mA (optional) Accuracy: 0.2% Temperature drift: 50 ppm / �C typical Isolation voltage: 500 Vdc Power supply for DI (24 Vdc) Output voltage: 24 Vdc Output current: 42 mA Load (max.): 21 DIs Control power Universal: AC or DC AC/DC control power Operating range: 100�415 Vac, 50/60 Hz; 100�300 Vdc Burden: 5 W Frequency: 50/60 Hz Withstand: 3250 Vac, 50/60 Hz for 1 minute Installation Category III (distribution) Low voltage DC control power (optional) Operating range: 20�60 Vdc Burden: 5 W Eaton 1000 Eaton Boulevard Cleveland, OH 44122 United States Eaton.com � 2020 Eaton All Rights Reserved Printed in USA Publication No. TD026079EN / TBG001356 December 2020 Eaton is a registered trademark. All other trademarks are property of their respective owners.
