Extracted Text

bMogesyncRtBwehfeorwe-egshlecidcoshoebmtevmneeirnoce.eweycfoooiatumnsnr:d/

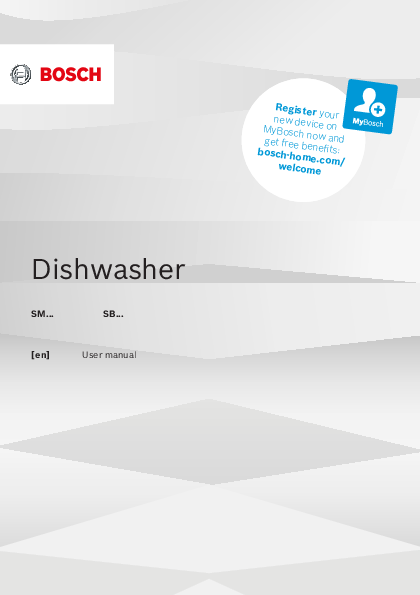

Dishwasher

SM...

SB...

[en]

User manual

en
Table of contents
Safety ............................................... 4 General information.......................... 4 Intended use..................................... 4 Restriction on user group................. 4 Safe installation ................................ 5 Safe use ........................................... 6 Damaged appliance ......................... 8 Risk to children ................................ 9 Safety systems ............................... 10 Preventing material damage ........ 11 Safe installation .............................. 11 Safe use ......................................... 11 Childproof lock1 ............................ 12 Electric childproof lock................... 12 Environmental protection and saving energy................................ 12 Disposing of packaging ................. 12 Saving energy................................. 12 Zeolith drying ............................ 13 AquaSensor1................................... 13 Sensors .......................................... 13 Installation and connection.......... 14 Scope of supply ............................. 14 Installing and connecting the appliance ............................................ 14 Drainage connection ...................... 14 Drinking water connection ............. 15 Electrical connection ...................... 15 Familiarising yourself with your appliance............................... 16 Appliance ....................................... 16 Controls .......................................... 17 Programmes .................................. 19 Information for test institutes .......... 21 Additional functions ..................... 21

Features......................................... 22 Top basket ..................................... 23 Bottom basket ................................ 24 Cutlery basket ................................ 25 Cutlery drawer ................................ 25 Etagere ........................................... 26 Folding prongs ............................... 26 Small items holder ......................... 27 Knife shelf....................................... 27 Basket heights................................ 27 Before using for the first time ...... 28 Performing initial start-up ............... 28 Water softening system................ 28 Overview of water hardness settings................................................ 28 Setting water softening system ...... 29 Special salt ..................................... 29 Switching off water softening system ............................................ 30 Regeneration of the water softening system ............................ 30 Rinse aid system........................... 31 Rinse aid ........................................ 31 Setting the amount of rinse aid ...... 31 Switching rinse aid system off ....... 32 Detergent ....................................... 32 Suitable detergents ........................ 32 Unsuitable detergents .................... 33 Information on detergents .............. 33 Adding detergent ........................... 34 Tableware ...................................... 35 Damage to glass and tableware .... 35 Arrange tableware .......................... 36 Removing tableware....................... 37 Basic operation ............................. 37 Opening appliance door ................ 37

1 Depending on the appliance specifications 2

Switching on the appliance ............ 37 Setting a programme ..................... 37 Setting additional functions ............ 37 Setting timer programming ............ 37 Starting the programme ................. 38 Interrupting programme ................. 38 Terminate programme.................... 38 Switching off appliance .................. 38 Basic settings................................ 39 Overview of basic settings ............. 39 Changing basic settings................. 41 Cleaning and servicing ................. 41 Cleaning the tub ............................. 41 Self-cleaning interior1...................... 42 Cleaning products .......................... 42 Tips on appliance care................... 42 Machine Care 1 ........................... 42 Filter system ................................... 43 Cleaning spray arms ...................... 44 Troubleshooting............................ 45 Appliance safety ............................. 45 Error code / Fault display / Signal................................................... 46 Washing results .............................. 48 Information on display panel.......... 54 Malfunctions ................................... 55 Mechanical damage....................... 56 Noise .............................................. 56 Clean wastewater pump................. 57 Transportation, storage and disposal ......................................... 57 Removing the appliance ................ 57 Protect appliance from frost........... 58 Transporting the appliance ............ 58 Disposing of old appliance ............ 58

en Customer Service.......................... 58 Product number (E-Nr.) and production number (FD) ...................... 59 AQUA-STOP guarantee1................. 59 Technical specifications............... 59

1 Depending on the appliance specifications 3

enSafety
Safety
Please read the safety information to ensure that you use the appliance safely. General information � Read this instruction manual carefully. Only this will ensure you
use the appliance safely and efficiently. � Keep the instruction manual and the product information safe
for future reference or for the next owner. � Check the appliance after unpacking it. Do not connect the ap-
pliance if it has been damaged in transit. Intended use Read the information on intended use to ensure that you use the appliance correctly and safely. Only use this appliance: � For cleaning household tableware. � In private households and in enclosed spaces in a domestic en-
vironment. � Up to an altitude of max. 2500 m above sea level. Restriction on user group Avoid risks to children and vulnerable persons. This appliance may be used by children aged 8 or over and by people who have reduced physical, sensory or mental abilities or inadequate experience and/or knowledge, provided that they are supervised or have been instructed on how to use the appliance safely and have understood the resulting dangers. Children must not play with the appliance. Cleaning and user maintenance must not be performed by children unless they are being supervised. Keep children under the age of 8 years away from the appliance and power cable.
4

Safetyen
Safe installation Follow these safety instructions when installing the appliance.
WARNING Risk of injury! Improper installation may cause injury. When installing and connecting the appliance, follow the in-
structions in the manual and installation instructions. WARNING Risk of electric shock! � Improper installation is dangerous. Connect and operate the appliance only in accordance with
the specifications on the rating plate. Connect the appliance to a power supply with alternating
current only via a properly installed socket with earthing. The protective conductor system of the domestic electrical
installation must be properly installed. Never equip the appliance with an external switching
device, e.g. a timer or remote control. When the appliance is installed, the mains plug of the
power cord must be freely accessible. If free access is not possible, an all-pole isolating switch must be installed in the permanent electrical installation according to the installation regulations. When installing the appliance, check that the power cable is not trapped or damaged. � Cutting through the supply hose or immersing the Aqua-Stop valve in water is dangerous. Never immerse the plastic housing in water. The plastic housing on the supply hose contains an electric valve. Never cut through the supply hose. The supply hose contains electric power cables. WARNING Risk of fire! It is dangerous to use an extended power cord and non-approved adapters. Do not use extension cables or multiple socket strips. If the power cord is too short, contact Customer Service.
5

enSafety
Only use adapters approved by the manufacturer. WARNING Risk of injury! Hinges move when opening and closing the appliance door and can cause injury. If built-under or integrable appliances are not in a cavity so
that one side is accessible, the hinge area must be covered at the side. Covers are available from Customer Service or specialist outlets. WARNING Risk of tipping! Improper installation may cause the appliance to tip up. Only install built-under or integrable appliances under a continuous worktop that is securely connected to adjacent cabinets. WARNING Risk of burns! If the appliance is not installed properly, this may result in burns. With free-standing appliances, ensure that they are installed with the back panel against a wall. Safe use WARNING Risk of serious harm to health! Failure to comply with safety instructions and directions for use on packagings of detergent and rinse aid products may cause serious harm to health. Follow the safety instructions and directions for use on the packagings of detergent and rinse aid products. WARNING Risk of explosion! � Adding solvents to the interior of the appliance may cause explosions. Never add solvents to the interior of the appliance.
6

Safetyen
� Highly caustic alkaline or highly acidic cleaning agents in conjunction with aluminium parts in the interior of the appliance may cause explosions. Never use highly caustic alkaline or highly acidic cleaning agents, in particular commercial or industrial products, in conjunction with aluminium parts (e.g. grease filters of extractor hoods or aluminium pans), e.g. for the Machine Care programme. WARNING Risk of injury!
� Leaving the appliance door open may result in injury. Only open the appliance door to load or unload tableware in order to prevent accidents, e.g. through tripping. Do not sit or stand on the appliance door when open.
� Knives and utensils with sharp points can cause injuries. Arrange knives and utensils with sharp points in the cutlery basket with the points downwards, on the knife shelf or in the cutlery drawer. WARNING Risk of scalding! If you open the appliance door while the programme is running, hot water may splash out of the appliance. Open the appliance door carefully if the programme is still running. WARNING Risk of tipping! Overfilling the Baskets may cause the appliance to tip up. Never overfill the Baskets with free-standing appliances. WARNING Risk of electric shock!
� An ingress of moisture can cause an electric shock. Only use the appliance in enclosed spaces. Never expose the appliance to intense heat or humidity. Do not use steam- or high-pressure cleaners to clean the appliance.
7

enSafety
� If the insulation of the power cord is damaged, this is dangerous. Never let the power cord come into contact with hot appliance parts or heat sources. Never let the power cord come into contact with sharp points or edges. Never kink, crush or modify the power cord. WARNING Risk of burns! The blow opening of the Zeolith container becomes hot and can cause burns. Never touch the blow opening of the Zeolith container.
Damaged appliance Follow the safety instructions if the appliance is damaged.
WARNING Risk of electric shock! � If the appliance or the power cord is damaged, this is danger-
ous. Never operate a damaged appliance. Never operate an appliance with a cracked or fractured sur-
face. Never pull on the power cord to unplug the appliance. Al-
ways unplug the appliance at the mains. If the appliance or the power cord is damaged, immediately
unplug the power cord or switch off the fuse in the fuse box and turn off the water tap. "Call Customer Service." Page 58 Repairs to the appliance should only be carried out by trained specialist staff. � Incorrect repairs are dangerous. Repairs to the appliance should only be carried out by trained specialist staff. Only use genuine spare parts when repairing the appliance. If the power cord of this appliance is damaged, it must be replaced with a special connection cable, which is available from the manufacturer or his Customer Service.
8

Safetyen
Risk to children Follow the safety instructions if there are children in your home.
WARNING Risk of suffocation! � Children may put packaging material over their heads or wrap
themselves up in it and suffocate. Keep packaging material away from children. Do not let children play with packaging material. � Children may breathe in or swallow small parts, causing them to suffocate. Keep small parts away from children. Do not let children play with small parts. WARNING Risk of harm to health! Children can lock themselves in the appliance, thereby putting their lives at risk. With redundant appliances, unplug the power cord. Then
cut through the cord and damage the lock on the appliance door beyond repair so that the appliance door will no longer close. WARNING Risk of crushing! With higher-level appliances, children can become crushed between the appliance door and cabinet doors underneath. Keep an eye on children when opening and closing the appliance door. WARNING Risk of chemical burns! Rinse aid and detergent may cause chemical burns to the mouth, throat and eyes. Keep children away from detergent and rinse aid products. Keep children away from the appliance when open. The water in the interior of the dishwasher is not drinking water. It may contain residues of detergents and rinse aid.
9

enSafety
WARNING Risk of injury! Children may get their fingers caught in the slots of the tablet collecting tray and injure themselves. Keep children away from the appliance when open. WARNING Risk of suffocation! Children may become trapped in the appliance and suffocate. Use the childproof lock if fitted. Never let children play with or operate the appliance. Safety systems Protect children from possible hazards resulting from the appliance. Depending on the features of the model, the appliance comes with a "Childproof lock", Page 12.
10

Preventing material dam- Preventingmaterialdamage age
Preventing material damage
Safe installation
Follow the instructions when installing the appliance. ATTENTION! � Improper installation of the appli-
ance may cause damage. If the dishwasher is installed
above or below other domestic appliances, follow the information on installation in combination with a dishwasher in the installation instructions for the individual appliances. If there is no information or if the installation instructions do not include the relevant information, contact the manufacturer of these appliances to check that the dishwasher can be installed above or below these appliances. If no information is available from the manufacturer, the dishwasher should not be installed above or below such appliances. To ensure the safe operation of all domestic appliances, continue following the installation instructions for the dishwasher. Do not install the dishwasher under a hob. Do not install the dishwasher near heat sources, e.g. radiators, heat storage tanks, ovens or other appliances that generate heat. � Modified or damaged water hoses may result in material damage and damage to the appliance. Never kink, crush, modify or cut through water hoses.

Preventing material damageen Only use the water hoses sup-
plied with the appliance or genuine spare hoses. Never re-use water hoses that have been used before. � If the water pressure is too high or too low, this may impair functioning of the appliance. Make sure that the water pressure in the water supply system is min. 50 kPa (0,5 bar) and max. 1000 kPa (10 bar). If the water pressure exceeds the maximum value specified, a pressure-reducing valve must be installed between the drinking water connection and the hose set of the appliance.
Safe use
Follow the instructions when using the appliance. ATTENTION! � Escaping water vapour can dam-
age fitted units. When the programme ends,
leave the appliance to cool down for a while before opening the door. � Special salt can damage the tub due to corrosion. To make sure that any special salt that escapes is washed out of the tub, add the special salt to the dispenser for special salt immediately before the programme starts. � Detergent may damage the water softening system. Only fill the dispenser of the water softening system with special dishwasher salt. � Unsuitable cleaning agents may damage the appliance. Do not use a steam cleaner.
11

enChildproof lock So as not to scratch the finish on the appliance, do not use sponges with a rough surface or abrasive cleaning agents. To prevent corrosion, do not use sponge cloths on dishwashers with a stainless steel front or rinse such cloths thoroughly several times before using them for the first time.

Childproof lock Childprooflock

The Childprooflock childproof lock lets you protect children from possible hazards resulting from the appliance. Depending on the features of the appliance model, the appliance comes with an electric childproof lock.

Electric childproof lock
The electric childproof lock makes it more difficult to open the appliance door. You can activate or deactivate the electric childproof lock in the "Basic settings" Page 39.

WARNING Risk of suffocation! Children may become trapped in the appliance and thus suffocate. Activate the electric childproof lock
and close the appliance door. "Opening appliance door", Page 37

Environmental protection Environmentalprotectionandsavingenergy and saving energy
Help protect the environment by us- Environmentalprotectionandsavingenergy ing your appliance in a way that conserves resources and by disposing of reusable materials properly.
Disposing of packaging
The packaging materials are environmentally compatible and can be recycled. Sort the individual components by
type and dispose of them separately. Information about current disposal methods are available from your specialist dealer or local authority.
Saving energy
If you follow these instructions, your appliance will use less electricity and less water.
Use the Eco 50� programme. The Eco 50� programme is energy efficient and environmentally friendly. "Programmes", Page 19
If you do not have much tableware to wash, use the additional Half Load function.1
The programme will adjust to a lower load and consumption will be reduced. "Additional functions", Page 21
Change the sensor setting to the default.
Consumption is reduced. "Sensors", Page 13

1 Depending on the appliance specifications 12

Environmental protection and saving energyen

Zeolith drying automatically helps to save energy.
"Zeolith drying ", Page 13
Zeolith drying
The appliance features a Zeolith container. Zeolith drying lets you save energy. Zeolite is a mineral that can store moisture and heat energy and then release them again. During dishwashing heat energy is used to heat up the washing water and dry the mineral. During the drying phase moisture from the interior of the dishwasher is stored in the mineral and heat energy is released. The heat energy is blown out into the interior of the dishwasher with dry air. This speeds up and improves drying. Zeolith drying therefore saves a great deal of energy. Tip: To avoid impairing Zeolith drying performance, do not position tableware parts directly in front of the intake opening or the blow opening of the Zeolith container. Do not position heat-sensitive tableware parts directly in front of the blow opening of the Zeolith container. "Appliance", Page 16
AquaSensor1
The AquaSensor is an optical measuring device (light barrier) which measures the turbidity of the washing water. You can save water with the AquaSensor. Use of the AquaSensor depends on the programme. If the soiling level is low, the washing water is used in the next wash cycle, so reducing water

consumption by 3-6 litres. If the soiling level is is greater, the washing water is drained off and replaced with fresh water. In the automatic programmes the temperature and running time are additionally adjusted to the level of soiling.

Sensors

The sensors adjust the programme sequence and strength in the automatic programmes depending on the level and type of soiling. The sensor has different sensitivity settings that can be changed in the basic settings.

Sensor setting SE:00 SE:01
SE:02

Description Optimum setting for a mixed load and heavily soiled tableware. Saves both energy and water. Adjusts the programme strength for effective removal of food remnants even with low soiling levels. Energy and water consumption are adjusted accordingly. Adjusts the programme strength for difficult conditions of use, e.g. stubborn dried-on food remnants. Recommended setting when using organic or ecological detergents containing low levels of active agents. Energy and water consumption are adjusted accordingly.

1 Depending on the appliance specifications 13

enInstallation and connection
Installation and connec- Installationandconnection tion
Installation and connection
Scope of supply
After unpacking all parts, check for any damage in transit and completeness of the delivery. If you have any complaints, contact the dealer who sold you the appliance or our Customer Service. Note: The appliance was tested at the factory to check it is in working order. It is possible that water has left marks on the appliance. These marks will disappear after the first wash cycle. The delivery consists of the following: � Dishwasher � Instruction manual � Installation instructions � Warranty1 � Installation material � Steam guard plate1 � Rubber apron1 � Mains cable � Quick reference guide1
Installing and connecting the appliance
You can position your built-under or integrable appliance in a fitted kitchen between wooden and plastic walls. If you subsequently install your dishwasher as a free-standing appliance, you must stop it from tipping over, e.g. by screwing it to the wall or installing it under a continuous worktop that is securely connected to adjacent cabinets. 1. "Follow the safety instructions."
Page 4

2. "Follow the instructions for electrical connection." Page 15
3. Check the "Scope of supply" Page 14 and the condition of the appliance.
4. Consult the installation instructions for the installation dimensions required.
5. Make the appliance level using the height-adjustable feet. Make sure that the appliance is standing on the floor securely.
6. "Install the drainage connection." Page 14
7. "Install the drinking water connection." Page 15
8. Connect the appliance to the power supply.
Drainage connection
Connect your appliance to drainage connection so dirty water is discharged via the wash cycle. Installing the drainage connection 1. Consult the installation instructions
supplied for the steps required here. 2. Connect the wastewater hose to the outlet connection of the siphon using the enclosed parts. 3. When doing so, check that the wastewater hose is not kinked, crushed or twisted. 4. Also check that there is no cover in the drainage system preventing the wastewater from being discharged.

1 Depending on the appliance specifications 14

Drinking water connection
Connect your appliance to a drinking water connection.
Installing the drinking water connection Note � If you are replacing the appliance,
you must use a new water supply hose. 1. Consult the installation instructions supplied for the steps required here. 2. Connect the appliance to the drinking water connection using the enclosed parts. Observe the "Technical data" Page 59. 3. When doing so, check that the drinking water connection is not kinked, crushed or twisted.
Electrical connection
Connect your appliance to the power supply.
Connecting the appliance to the electricity supply Notes � Follow the "Safety instructions"
Page 5. � Connect the appliance to alternat-
ing current only, in the range of 220 - 240 V and 50 Hz or 60 Hz. � Please note that the water safety system is only functional if there is a power supply. 1. Insert the non-heating appliance plug of the power cable into the appliance. 2. Insert the mains plug of the appliance into a nearby socket.

Installation and connectionen The connection data for the appliance can be found on the rating plate. 3. Check that the mains plug is inserted properly.

enFamiliarising yourself with your appliance
Familiarising yourself with your appliance Familiarisingyourselfwithyourappliance
Familiarise yourself with the parts of your appliance. Familiarisingyourselfwithyourappliance
Appliance
You can find an overview of the parts of your appliance here.
8 7 6
5 4
3

9
10 11 12 13 14
15

Rating plate

Rating plate with "E number and FD number" Page 59. The data you need for "Customer Service" Page 58.

1 Depending on the appliance specifications

Familiarising yourself with your applianceen

Detergent dispenser

"Detergent" Page 32 is added to the detergent dispenser.

Bottom basket

"Bottom basket" Page 24

Dispenser for special salt

Add special salt for the "Water softening system" Page 28 to the dispenser for special salt.

Lower spray arm

The lower spray arm washes the tableware in the bottom basket. If the tableware has not been washed properly, clean the spray arms. "Cleaning spray arms", Page 44

Tablet collecting tray

During the wash cycle tablets automatically fall out of the detergent dispenser into the tablet collecting tray where they can fully dissolve.

Top basket

"Top basket" Page 23

Cutlery drawer1

"Cutlery drawer" Page 25

EmotionLight1

Interior lighting of the appliance. "Overview of basic settings", Page 39

10 Etagere

"Etagere" Page 26

11 Upper spray arm

The upper spray arm washes the tableware in the top basket. If the tableware has not been washed properly, clean the spray arms. "Cleaning spray arms", Page 44

Intake opening of the Zeolith con- The intake opening is required for "Zeolith drying"

tainer

Page 13.

Blow opening of the Zeolith con- The blow opening is required for "Zeolith drying "

tainer

Page 13.

14 Filter system

"Filter system" Page 43

15 Cutlery basket1

"Cutlery basket" Page 25

16 Dispenser for rinse aid

Add rinse aid for the "Rinse aid system" Page 31 to the dispenser for rinse aid.

1 Depending on the appliance specifications

Controls
The controls are used to configure all functions of your appliance and to obtain information about the operating status. With some buttons you can perform different functions.

enFamiliarising yourself with your appliance

set
setup 3 sec.

Start

11 10 9 8 7

ON/OFF button

Programme buttons

Display

Timer programming

Programme buttons and additional functions

Start button

and reset button

Door opener1

Water supply display

Special salt refill indicator

10 Rinse aid refill indicator

button

1 Depending on the appliance specifications

"Switching on the appliance" Page 37 "Switching off the appliance" Page 38 " Programmes" Page 19

The display shows information about the remaining running time or the basic settings. You can change the basic settings via the display and the setting buttons. "Changing basic settings", Page 41 "Setting timer programming" Page 37

"Programmes" Page 19 "Additional functions" Page 21 "Starting the programme" Page 38 "Terminating the programme" Page 38 "Opening the appliance door" Page 37

"Display for water supply lights up" Page 47

"Water softening system" Page 28

"Rinse aid system" Page 31

If you press

for approx. 3 seconds, you

can open the basic settings.

"Changing basic settings", Page 41

Programmesen

Programmes Programmes

You Programmes can find an overview of the programmes that can be selected here. Different programmes, which can be found on the control panel of your appliance, are available depending on the appliance configuration. The running time may vary depending on the programme selected. The running time depends on the water temperature, the quantity of dishes, the level of soiling and the "Additional function" Page 21 selected. The

running time will change if the rinse aid system is switched off or rinse aid needs to be added. The consumption values can be found in the quick reference guide. The consumption values relate to normal conditions and a water hardness of 16 - 20 �E. Different influencing factors such as water temperature or pipe pressure may result in deviations.

Programme Intensive 70�
Auto 45-65�

Use

Programme se-

quence

Tableware: � Washing pots and
pans, non-fragile tableware and cutlery. Level of soiling: � Removing stubborn burned or dried-on food remnants containing starch and protein.

Intensive: � PreRinse � Cleaning 70 �C � Intermediate rinse � Rinsing 50 �C � Drying

When using powder detergent, you can also apply a little to the inside of the appliance door.

Tableware:

Sensor-controlled:

� Cleaning mixed

� Optimised by

tableware and cut-

sensors depending

lery.

on the soiling of the

Level of soiling:

washing water.

� Removing common

household food rem-

nants lightly dried-

on.

Additional functions All "Additional functions", Page 21
All "Additional functions", Page 21

enProgrammes Programme Eco 50�
Silence 50
Glass 40�
Quick 65�

Use

Programme se-

quence

Tableware:

Most economical pro-

� Cleaning mixed

gramme:

tableware and cut- � Pre-Rinse

lery.

� Cleaning 50 �C

Level of soiling:

� Intermediate rinse

� Removing common � Rinsing 35 �C

household food remnants lightly dried-

�

Drying

on.

Tableware:

Reduced noise:

� Cleaning mixed

� PreRinse

tableware and cut- � Cleaning 50 �C

lery.

� Intermediate rinse

Level of soiling: � Removing common
household food rem-

� �

Rinsing 35 �C Drying

nants lightly dried-

on.

Tableware:

Particularly gentle:

� Cleaning delicate � PreRinse

tableware, cutlery, � Cleaning 40 �C

temperature-sensit- � Intermediate rinse

ive plastics, glasses and stemware in the stemware basket.

� �

Rinsing 50 �C Drying

Level of soiling:

� Removing lightly ad-

hering fresh food

remnants.

Tableware:

Time-optimised:

� Cleaning mixed

� Cleaning 65 �C

tableware and cut- � Intermediate rinse

lery.

� Rinsing - �C

Level of soiling: � Removing common

� Drying

household food rem-

nants lightly dried-

on.

Additional functions All "Additional functions", Page 21
IntensiveZone Half Load HygienePlus ExtraDry Shine & Dry "Additional functions", Page 21 IntensiveZone VarioSpeedPlus Half Load ExtraDry Shine & Dry "Additional functions", Page 21 ExtraDry Shine & Dry "Additional functions", Page 21

Additional functionsen

Programme Short 60� Quick 45�
PreRinse Machine Care

Use

Programme se-

quence

Tableware:

Time-optimised:

� Cleaning mixed

� Cleaning 65 �C

tableware and cut- � Intermediate rinse

lery.

� Rinsing 50 �C

Level of soiling:

� Drying

� Removing common

household food rem-

nants lightly dried-

on.

Tableware:

Time-optimised:

� Cleaning delicate � Cleaning 45 �C

tableware, cutlery, � Intermediate rinse

temperature-sensit- � Rinsing 50 �C

ive plastics and

glasses.

Level of soiling:

� Removing lightly ad-

hering fresh food

remnants.

Tableware:

Cold rinse suitable:

� Cleaning all types of � Pre-Rinse

tableware.

Level of soiling:

� Cold rinsing, inter-

mediate cleaning.

Machine Care 70 �C

Additional functions All "Additional functions", Page 21
ExtraDry Shine & Dry "Additional functions", Page 21
None None

Information for test institutes
Test institutes are provided with information for comparability tests, e.g. according to EN60436. These are the conditions for conducting the tests, however they are not the results or consumption values. E-mail enquiries to: dishwasher@testappliances.com The product number (E-Nr.) and the production number (FD) are required here. They can be found on the rating plate on the appliance door.

Additional functions Additionalfunctions

You can find an overview of the addi- Additionalfunctions tional functions that can be selected here. Different additional functions, which can be found on the control panel of your appliance, are available depending on the appliance configuration.

Additional func- Use tion

VarioSpeedPlus

� The running time is shortened by 20% to 66% depending on the washing programme.

enFeatures

Additional func- Use tion

� Energy and water consumption are increased.

Half Load

� Switch on with small loads.
� It is recommended adding less detergent to the detergent dispenser than for a full machine load.
� The running time is shortened.
� Energy and water consumption are reduced.

HygienePlus

� To ensure a higher hygiene status for the appliance and dishes, the temperature is raised and maintained for an extra-long period.
� Especially suitable for cleaning chopping boards or baby bottles.
� Continuous use of this function increases the hygiene status.
� This will increase the running time and energy consumption.

IntensiveZone

� Switch on with mixed loads containing tableware with different soiling levels, e.g. place very soiled pots and pans in the bottom basket and normally soiled tableware in the top basket.
� The spray pressure in the bottom basket is increased and the maximum programme temperature held longer. This will increase the running time and energy consumption.

Additional func- Use tion

ExtraDry

� For a better drying result the final rinse temperature is increased and the drying phase extended.
� Especially suitable for drying plastic parts.
� There is a slight increase in energy consumption and the running time is extended.

Shine & Dry

� To avoid marks and improve drying, the quantity of water is increased and the drying phase extended.
� Energy consumption increases.
� Use rinse aid.

Features Features
You Features can find an overview of the possible features of your appliance and how to use them here. These features depend on the model of your appliance.

Top basket
Arrange cups and glasses in the top basket.
a

Featuresen 3. Press in the levers on the right and
left on the outside of the basket.

Knife shelf 1 You can adjust the height of the top basket to make room for larger items of tableware.
Adjusting top basket with side levers To wash large items of tableware in the baskets, adjust the shelf position of the top basket. 1. Pull out the top basket. 2. To prevent the basket from sud-
denly dropping down, hold the side of the basket by the top edge.

The basket can then slip down slightly. 4. Raise or lower the basket evenly to the right level. "Basket heights", Page 27
Check that the basket is level on both sides. 5. Slide the basket back in. Adjusting top basket with pairs of rollers To wash large items of tableware in the baskets, adjust the shelf position of the top basket. 1. Pull out the top basket.

1 Depending on the appliance specifications 23

enFeatures 2. Remove the basket.

Bottom basket
Arrange pans and plates in the bottom basket.

3. Insert the basket at the right basket height. "Basket heights", Page 27

a
Cutlery basket 1 Large plates up to a diameter of 31/34 cm1 can be arranged as shown.

Check that the basket is level on both sides. 4. Slide the basket back in.

1 Depending on the appliance specifications 24

Cutlery basket
Arrange cutlery in the cutlery basket, always without sorting it and with the sharp points downwards.

Featuresen 1. To fold down a side shelf, push the
lever forwards and fold down the side shelf . 2. To fold down the front prongs, push the lever forwards and fold down the prongs .

Cutlery drawer
Arrange cutlery in the cutlery drawer.

Tip If you want to return the cutlery drawer to the original position, fold the side shelf back up until it clicks into position.

Arrange cutlery with the points and sharp edges downwards. You can reorganise the cutlery drawer to make more space for longer/wider items of cutlery.1 Reorganising cutlery drawer1 You can fold down the side shelves and front prongs to make more space for longer/wider items of cutlery.
1 Depending on the appliance specifications 25

enFeatures
Etagere
Use the etagere and space underneath for small cups and glasses or for large items of cutlery, e.g. wooden spoons or serving cutlery.

Folding prongs
Use the folding prongs to position tableware securely, e.g. plates.

You can adjust the height of the etagere.1 If you do not need the etagere, you can fold it up. Adjusting etagere1 You can adjust the height of the etagere. 1. Position the etagere vertically and
pull it upwards .
1

You can fold the prongs down to position pans, bowls and glasses better.1
Folding down prongs1 If you do not need the prongs, fold them down. 1. Push the lever forwards and fold
down the prongs .

2 1 2 3
2. Position the etagere at a slight angle and move to the right height .
3. Push the etagere down. a The etagere clicks into position.

2. To use the folding prongs again, fold them back up.
a The folding prongs click in position.

1 Depending on the appliance specifications 26

Small items holder
Use the small items holder to position small items of tableware, e.g. light plastic parts.

Featuresen
Knife shelf
Use the knife shelf for long, sharp objects and long items of cutlery.

Basket heights
Set the baskets at the right height.

Appliance height 81.5 cm with cutlery basket

Level 1 max. � 2 max. � 3 max. �

Top basket 22 cm 24.5 cm 27 cm

Appliance height 81.5 cm with cutlery drawer

Level 1 max. � 2 max. � 3 max. �

Top basket 16 cm 18.5 cm 21 cm

Appliance height 86.5 cm with cutlery basket

Level 1 max. � 2 max. � 3 max. �

Top basket 24 cm 26.5 cm 29 cm

Bottom basket 31 cm 27.5 cm 25 cm
Bottom basket 31 cm 27.5 cm 25 cm
Bottom basket 34 cm 30.5 cm 28 cm

enBefore using for the first time

Appliance height 86.5 cm with cutlery drawer

Level 1 max. � 2 max. � 3 max. �

Top basket 18 cm 20.5 cm 23 cm

Bottom basket 34 cm 30.5 cm 28 cm

Before using for the Beforeusingforthefirsttime first time
Configure the settings for initial start- Beforeusingforthefirsttime up.
Performing initial start-up
On initial start-up or after a reset to the factory settings, you will need to make settings. Requirement: "The appliance has been installed and connected." Page 14 1. "Add special salt." Page 29 2. "Add rinse aid." Page 31 3. "Switch on the appliance."
Page 37

4. "Set the water softening system." Page 29
5. "Set the amount of rinse aid to be dispensed." Page 31
Tip: You can change these settings and other "Basic settings" Page 39 at any time.
Water softening system Watersofteningsystem
Hard water leaves limescale on the Watersofteningsystem tub and tableware and parts of the appliance may become blocked. To ensure good dishwashing results, you can treat the water with special salt and the water softening system. To avoid damage to the appliance, water with a hardness above 9 �E must be softened.

Overview of water hardness settings
You can find an overview of the water hardness values that can be selected here. You can find out how hard your water is from your local water company or by using a water hardness tester.

Water hardness �E 0 - 8 9 - 10 11 - 12 13 - 15 16 - 20 21 - 26 27 - 38

Hardness range Soft Soft Medium Medium Medium Hard Hard

mmol/l 0 - 1.1 1.2 - 1.4 1.5 - 1.8 1.9 - 2.1 2.2 - 2.9 3.0 - 3.7 3.8 - 5.4

Setting value H:00 H:01 H:02 H:03 H:04 H:05 H:06

Water softening systemen

Water hardness �E 39 - 62

Hardness range Hard

Note: Set the water hardness determined on your appliance. With a water hardness of 0 - 8 �E you can dispense with special salt and switch off the water softening system.

Setting water softening system
Set the water hardness on your appliance. 1. Determine the water hardness and
the appropriate setting value. "Overview of water hardness settings", Page 28 2. Press . 3. To open the basic settings, press
for 3 seconds. a The display shows H:xx. a The display shows . 4. Press or repeatedly until the
right water hardness has been set. The value H:04 is set at the factory. 5. To save the settings, press
for 3 seconds.

Special salt
You can use special salt to soften water.
Adding special salt If the special salt refill indicator lights up, add special salt to the dispenser for special salt just before the programme starts. The amount of special salt required depends on the water hardness: the higher the water hardness, the greater the amount of special salt required.

mmol/l 5.5 - 8.9

Setting value H:07

ATTENTION! � Detergent may damage the water
softening system. Only fill the dispenser of the wa-
ter softening system with special dishwasher salt. � Special salt can damage the tub due to corrosion. To make sure that any special salt that escapes is washed out of the tub, add the special salt to the dispenser for special salt immediately before the programme starts.

1. Unscrew the lid of the dispenser for special salt and remove.
2. On initial start-up: Fill the dispenser right up with water.
3. Note: Only use special salt for dishwashers. Do not use salt tablets. Do not use table salt. Add the special salt to the dispenser.

Funnel 1 Fill the dispenser right up with special salt. The water in the dispenser is displaced and forced out.

1 Depending on the appliance specifications 29

enWater softening system
4. Place the lid back on the dispenser and turn to close.
Switching off water softening system
Note To avoid damage to the appliance, only switch off the water softening system in the following cases: � The water hardness is max. 26 �E
and you are using combined detergents with salt replacement substances. According to manufacturers, combined detergents with salt replacement substances can generally only be used up to a water hardness of 26 �E without adding special salt. � The water hardness is 0 - 8 �E. You do not need to use special salt. 1. Press .

2. To open the basic settings, press for 3 seconds.
a The display shows H:xx. a The display shows . 3. Press or repeatedly until the
display shows H:00. 4. To save the settings, press
for 3 seconds. a The water softening system is
switched off and the salt refill indicator is deactivated.
Regeneration of the water softening system
In order to obtain fault-free function of the water softening system, the appliance performs reheating of the water softening system at regular intervals. Regeneration of the water softening system takes place before the end of the main rinse cycle in all programmes. It will increase the run time and consumption values, e.g. water and electricity.

Overview of consumption values with regeneration the water softening system Here you can find an overview of the maximum additional running time and consumption values during regeneration of the water softening system. You can find the column applicable to your model in the quick reference guide according to its water consumption in the Eco 50� programme.

Water consump- Regeneration of Additional run-

tion in litres (de- the water soften- ning time in

pending on

ing system after minutes

model)

x rinse cycles

6.5 / 6.7

7.5 / 7.7

9.5

above 10.5

Additional water Additional power

consumption in consumption in

litres

kWh

0.05

The consumption values specified are laboratory measurements determined in accordance with the currently

applicable standard and using the Eco 50� programme and the factory value of the water hardness is set to 16 - 20�E.

Rinse aid systemen 2. Add rinse aid up to the max mark.

Rinse aid system Rinseaidsystem
You can use the rinse aid system Rinseaidsystem and rinse aid to get tableware and glasses rinsed perfectly without marks.
Rinse aid
For optimum drying results, use rinse aid. Only use rinse aid for domestic dishwashers. Adding rinse aid If the rinse aid refill indicator lights up, top up with rinse aid. Only use rinse aid for domestic dishwashers. 1. Press the catch on the lid of the
dispenser for rinse aid and lift .
2
1

max

3. If rinse aid spills out, remove it from the tub. Spilled rinse aid can cause excessive frothing during the wash cycle.
4. Close the lid of the dispenser for rinse aid.
a The lid clicks into position.

Setting the amount of rinse aid

If there are streaks or water marks on tableware, change the amount of rinse aid.

1. Press .

2. To open the basic settings, press for 3 seconds.

a The display shows H:xx. a The display shows .

3. Press

repeatedly until the

display shows the value set at the

factory r:05.

4. Press or repeatedly until the right amount of rinse aid has been set.

The value r:05 is set at the factory. � A low setting adds less rinse aid
during the wash cycle and reduces streaking on tableware.

enDetergent

� A higher setting adds more rinse aid during the wash cycle, reduces water marks and improves the drying result.
5. To save the settings, press for 3 seconds.

Switching rinse aid system off

If you find the rinse aid refill indicator irritating, e.g. when using combined detergents with a rinse aid component, you can switch the rinse aid system off.

Tip: The function of rinse aid is limited with combined detergents. You will generally get better results using rinse aid.

1. Press .

2. To open the basic settings, press for 3 seconds.

a The display shows H:xx. a The display shows .

3. Press

repeatedly until the

display shows the value set at the

factory r:05.

4. Press or repeatedly until the display shows r:00.

5. To save the settings, press for 3 seconds.
a The rinse aid system is switched

off and the rinse aid refill indicator is deactivated.

Detergent Detergent

Find Detergent out which detergents are suitable for your appliance.

Suitable detergents

Only use detergents that are suitable for dishwashers. Both separate and combined detergents are suitable. For optimum washing and drying results, use separate detergent, adding "Special salt" Page 29 and "Rinse aid" Page 31 separately. Modern, powerful detergents mainly use a low-alkaline formulation with enzymes. Enzymes break down starch and remove protein. Oxygenbased bleaching agents are generally used to remove coloured marks, e.g. tea or ketchup. Note: Follow the manufacturer's instructions for each detergent.

Detergent Tabs
Powder detergent

Description Tabs are suitable for all cleaning functions and do not need to be measured out. With shorter Programmes tabs sometimes do not dissolve entirely and leave residues of detergent. This may impair the cleaning effect. Powder detergent is recommended for shorter Programmes. The dosage can be adjusted to the level of soiling.

Detergent Liquid detergent

Description Liquid detergent works faster and is recommended for shorter Programmes without PreRinse. Sometimes liquid detergent may leak out despite the detergent dispenser being closed. This is not a fault and is non-critical if you remember the following: � Only choose a pro-
gramme without PreRinse. � Do not select timer programming for starting the programme.
The dosage can be adjusted to the level of soiling.

Tip: Suitable detergents are available online via our website or from "Customer Services" Page 58.

Separate detergents Separate detergents are products that do not contain components other than detergent, e.g. powder detergent or liquid detergent. With powder and liquid detergent the dosage can be individually adjusted to the level of soiling of the tableware. For better washing and drying results and to avoid damage to the appliance, please additionally use "Special salt" Page 29 and "Rinse aid" Page 31.

Combined detergent Besides conventional separate detergents, a number of products are available with additional functions. These products contain not only detergent but also rinse aid and salt replacement substances (3in1) and,

Detergenten

depending on the combination (4in1, 5in1, ...), additional components such as glass protection or stainless steel cleaner. According to manufacturers, combined detergents generally only function up to a water hardness of 26 �E. With a water hardness above 26 �E you will need to add special salt and rinse aid. For the best washing and drying results we recommend using special salt and rinse aid from a water hardness of 17 �E. If you are using combined detergent, the washing programme is adjusted automatically to ensure the best possible washing and drying result.

Unsuitable detergents

Do not use detergent which could cause damage to the appliance or present a risk to health.

Detergent

Description

Hand washing-up Hand washing-up liquid

liquid

can cause increased froth-

ing and damage the appli-

ance.

Detergent containing chlorine

Chlorine residue on tableware may present a risk to health.

Information on detergents
Follow the instructions on detergents in everyday use. � Detergents marked as "organic" or
"ecological" (environmentally friendly) generally contain lower levels of active agents or completely dispense with certain substances. The cleaning effect may be restricted here. � Set the rinse aid and the water softening system to the separate detergent or combined detergent in use.

enDetergent � According to manufacturers, com-
bined detergents with salt replacement substances can only be used up to a certain water hardness, usually 26 �E, without adding special salt. For the best washing and drying results we recommend using special salt from a water hardness of 17 �E. � To prevent sticking, only touch detergents in a water-soluble pouch with dry hands and only ever place them in a dry detergent dispenser. � Even if the rinse aid and special salt refill indicators light up, washing programmes will run properly with combined detergents. � The function of rinse aid is limited with combined detergents. You will generally get better results using rinse aid. � Use tablets with a special drying performance.
Adding detergent
1. To open the detergent dispenser, press the locking latch.

2. Add the detergent to the dry detergent dispenser.
50 ml 25 ml 15 ml
If you are using tablets, one is enough. Insert the tablets in a horizontal position. If you are using powder or liquid detergent, follow the manufacturer's instructions and quantities for dosage in the detergent dispenser. 20 ml � 25 ml detergent is sufficient for normal soiling. If tableware is only lightly soiled, slightly less than the amount of detergent specified is usually sufficient.

3. Close the lid of the detergent dispenser.
a The lid clicks into position. a The detergent dispenser will open
automatically at the optimum time during the programme. Powder or liquid detergent will spread around the washing tank and dissolve there. Tablets will fall into the tablet collecting tray and dissolve in the right dosage. In order to ensure that tablets can dissolve evenly, do not place any other objects in the tablet collecting tray.
Tableware Tableware
Only Tableware clean tableware that is suitable for dishwashers. Note: Decorated glassware and parts made of aluminium or silver may fade or discolour with dishwashing. Delicate types of glass may turn cloudy after a few washing cycles.

Tablewareen

Damage to glass and tableware

Avoid damage to glass and tableware.

Cause

Recommendation

The following table- Only put tableware in

ware is not dish-

the dishwasher if it is

washer-safe:

marked as dish-

� Items of cutlery washer-safe by the

and tableware manufacturer.

made from wood

� Decorated glass-

ware, antique and

hand-crafted table-

ware

� Plastic parts not

resistant to heat

� Tableware made

from copper or tin

� Tableware soiled

with ash, wax, lub-

ricating grease or

paint

� Very small items of

tableware

Glass and tableware was not dishwashersafe.

Only put glasses and china in the dishwasher if it is marked as dishwasher-safe by the manufacturer.

The chemical composition of the detergent causes damage.

Use a detergent marked as gentle on tableware by the manufacturer.

Highly caustic alkaline If you are using highly

or highly acidic clean- caustic alkaline or

ing agents, in particu- highly acidic cleaning

lar commercial or in- agents, in particular

dustrial cleaning

commercial or indus-

agents, are not suit- trial cleaning agents,

able for dishwashers do not put aluminium

in conjunction with parts in the dish-

aluminium.

washer interior.

enTableware

Cause

Recommendation

The water temperat- Select a programme

ure of the programme with lower temperat-

is too high.

ures.

After the programme

has ended, take glass-

ware and cutlery out

of the appliance

without delay.

Arrange tableware
Arrange the tableware correctly to optimise the dishwashing result and prevent damage to both the appliance and tableware. Tips � Using the appliance allows you to
save energy and water compared to washing-up by hand. � See our website for examples of how to load your appliance efficiently, free of charge. � To save energy and water, load the machine with the number of place settings specified. "Technical specifications", Page 59 � For better washing and drying results, position items with curves or recesses at an angle so the water can run off.

To save resources, do not prerinse tableware under running water. 2. Observe the following when arranging tableware: � Put heavily soiled tableware in
the bottom basket, e.g. pans. The more powerful the spray jet, the better the dishwashing result will be. � To prevent damage to tableware, arrange it so it is stable and cannot tip over. � To prevent injury, arrange cutlery with the points and sharp edges downwards. � Position containers with the openings facing down so no water can collect in them. � Do not block the spray arms make sure that they can turn freely. � Do not place small parts in the tablet collecting tray and do not block it with tableware so as not to obstruct the lid of the detergent dispenser.

1. Remove large remnants of food from your tableware.
36

Removing tableware
WARNING Risk of injury! Hot tableware can cause burns to the skin. When hot, tableware is sensitive to shock, may crack and can result in injury. When the programme has ended,
do not empty the appliance until the tableware has cooled down for a while. 1. To prevent water dripping on the tableware, unload it starting at the bottom and working up. 2. Check the washing tank and accessories for soiling and clean if necessary. "Cleaning and servicing", Page 41
Basic operation Basicoperation
Basic operation
Opening appliance door
1. If the electric childproof lock is not activated, press on the upper middle section of the appliance door.
2. If the electric childproof lock is activated, press on the upper middle section of the appliance door twice with a short interval in between.
a The appliance door will open automatically.
Switching on the appliance
Press . The Eco 50� programme is set by default. The Eco 50� programme is an especially environmentally friendly programme and ideal for normally soiled tableware. It is the most effi-

Basic operationen
cient programme for the combination of energy/water consumption for this type of tableware and evidences conformity with the EU Ecodesign Directive. If you do not perform any actions on the appliance for 15 minutes, the appliance will automatically switch off.
Setting a programme
To adjust the wash cycle to the soiling level of the tableware, select a suitable programme. Press the right programme button.
"Programmes", Page 19 a The programme is set and the pro-
gramme button flashes.
Setting additional functions
You can set additional functions to complete the washing programme selected. Note: The additional functions which can be used depend on the programme selected. "Programmes", Page 19 Press the button for the relevant
additional function. "Additional functions", Page 21 a The additional function is set and the additional function button flashes.
Setting timer programming
You can delay the start of the programme by up to 24 hours. 1. Press or . a "00h:00m" appears on the display. 2. Use or to set the re-
quired start time for the programme. 3. Press . a This activates time preselection.
37

enBasic operation
Tip: To deactivate timer programming, press or repeatedly until "00h:00m" appears in the display.
Starting the programme
Press . a The programme has ended when
the display shows "00h:00m". Notes � If you want to add more tableware
while the appliance is running, do not use the tablet collecting tray as a handle for the top basket. You might touch the partially dissolved tablet. � You can only change a programme when running if you cancel it. "Terminate programme", Page 38 � The appliance switches off automatically 1 minute after the end of the programme to save energy. If you open the appliance door immediately after the programme has ended, the appliance will switch off after 4 seconds.
Interrupting programme
Note: When you open the appliance door once the appliance has heated up, leave the door slightly ajar for a few minutes and then close it. This will help prevent excess pressure building up in the appliance and stop the appliance door bursting open. 1. Press . a The programme is saved and the
appliance switches off. 2. Press to resume the pro-
gramme.

Terminate programme

To end a programme early or to switch from a programme that has already started, you will need to cancel it first.

1. Open the appliance door.

2. Press

for approx.

3 seconds.

3. Close the appliance door.

a The programme is cancelled and

ends after approx. 1 minute.

Switching off appliance
1. Please note the information on "Safe use" Page 11.
2. Press . 3. To prevent damage from dripping
water, turn the water tap off tight (not applicable to appliances with Aqua-Stop). Tip: If you press during the wash cycle, the programme currently running will be interrupted. When you switch the appliance back on, the programme continues automatically.

Basic settingsen

Basic settings Basicsettings

You Basicsettings can configure the appliance to meet your needs.

Overview of basic settings
The basic settings depend on the features of your appliance.

Basic setting Water hardness

Display text Selection

H:04 1

H:00 - H:07

Rinse aid dispensing r:05 1

r:00 - r:06

Sensor setting Extra Dry

SE:00 1 d:00 1

SE:00 - SE:02 d:00 - d:01

Hot water

A:00 1

A:00 - A:01

1 Factory setting (may vary according to model)

Description Set the water softening system to your water hardness. "Setting water softening system", Page 29 Level H:00 switches the water softening system off.
Set the amount of rinse aid to be dispensed. "Setting the amount of rinse aid", Page 31 Switch the rinse aid system off with level r:00.
Set the water sensor for identifying soiling. "Sensors", Page 13
The temperature is increased during the final rinse, which improves the drying result. This may increase the run time slightly. Note: Not suitable for delicate items of tableware. Switch Extra Dry on "d:01" or off "d:00".
Set cold water or hot water connection. Only set the appliance to hot water if this can be prepared with little energy and a suitable installation is available, e.g. solar heating system with circulation line. The water temperature should be at least 40 �C and max. 60 �C. Switch hot water on "A:01" or off "A:00".

enBasic settings
Basic setting EmotionLight

Display text E:01 1

Selection E:00 - E:01

TimeLight

S:01 1

S:00 - S:01

InfoLight

I:01 1

I:00 - I:01

Start programme

SP:01 1

SP:00 - SP:01

1 Factory setting (may vary according to model)

Description Interior light. � With the setting "E:00"m the in-
terior light is switched off. � With the setting "E:01", the in-
terior light can be activated via the ON/OFF button.
When the appliance door is opened, the interior lighting switches off automatically after 15 minutes. Switch TimeLight on or off. While the programme is running, status information is projected onto the floor below the appliance door relating to timer programming, the programme or the time remaining. If the base panel is pulled forwards or if the appliance is installed at eye level with the cabinet front fitted flush, the display is not visible. Level "S:00" switches TimeLight off. Switch InfoLight on or off. While the programme is running, a spot of light is projected onto the floor below the appliance door. This light will not be visible if the appliance is installed at eye level with the cabinet front fitted flush. If the appliance door is not completely closed, the spot of light will flash. The programme has ended when the spot of light is no longer visible on the floor. Level "I:00" switches InfoLightoff. Set a default programme for when the appliance is switched on. � With the setting "SP:00", the last
programme selected is set by default for when the appliance is switched on. � With the setting "SP:01", the Eco 50� programme is set by default for when the appliance is switched on.

Cleaning and servicingen

Basic setting Tone volume

Display text Selection

SL:02 1

SL:00 -SL:03

Button volume Childproof lock

bl:02 1 c:00 1

bl:00 - bl:03 c:00 - c:01

Factory setting

Start with Y:ES Confirm with

1 Factory setting (may vary according to model)

Description Adjustment of tone volume. End of programme indicated by an audible signal tone. Level "SL:00" switches the signal tone off. Set the button volume during operation. Level "bl:00" switches the button tones off. Switch the "Electric childproof lock", Page 12 on or off. Level "c:00" switches the childproof lock off. Restore changed settings to the factory settings. The settings for initial start-up must be configured.

Changing basic settings

1. Open the appliance door. 2. Press . 3. To open the basic settings, press
for 3 seconds.

a The display shows H:xx. a The display shows .

4. Press

repeatedly until the

display shows the required setting.

5. Press or repeatedly until the display shows the right value.

You can change several settings.

6. To save the settings, press for 3 seconds.

7. Close the appliance door.

Cleaning and servicing Cleaningandservicing
To keep your appliance working effi- Cleaningandservicing ciently for a long time, it is important to clean and maintain it carefully.
Cleaning the tub
WARNING Risk of harm to health! Using detergents containing chlorine may result in harm to health. Never use detergents containing
chlorine. 1. Remove any coarse soiling in the
interior with a damp cloth. 2. Add detergent to the detergent dis-
penser. 3. Select the programme with the
highest temperature. "Programmes", Page 19 4. "Start the programme without tableware." Page 38

enCleaning and servicing

Self-cleaning interior1
To remove deposits, the appliance self-cleans the interior at regular intervals. The programme sequence is automatically adjusted for self-cleaning, e.g. the cleaning temperature is briefly increased. Consumption values, e.g. water and electricity, may also increase. If the interior is no longer self-cleaned adequately and deposits occur, see this information: "Cleaning the tub", Page 41.

Cleaning products
Only use suitable cleaning products to clean your appliance. "Safe use", Page 11

Tips on appliance care

Follow the tips on appliance care to make sure your appliance functions properly at all times.

Action

Benefit

Wipe the door seals, This ensures the parts the front of the dish- of the appliance will washer and the con- remain clean and hytrol panel regularly us- gienic. ing a damp cloth and washing-up liquid.

If the appliance is not This will prevent ungoing to be used for a pleasant odours. while, leave the door slightly ajar.

Machine Care 1
Deposits can cause your dishwasher to malfunction, e.g. due to grease or limescale. To avoid such faults and

reduce odours, we recommend cleaning your appliance at regular intervals. Machine Care combined with commercially available machine care products is the right programme for the care of your appliance. Run Machine Care without tableware if the indicator for Machine Care lights up on the control panel or if advised to do so by the display. Once you have run the Machine Care programme, the indicator goes out. If your appliance does not have a reminder function, follow the directions for use on the machine care products.
Performing Machine Care Run the Machine Care programme if the indicator for Machine Care lights up on the control panel or if advised to do so by the display. Notes � Run the Machine Care programme
without any tableware in the dishwasher. � Only use suitable machine care products specially designed for dishwashers and not dishwasher detergent. Observe the manufacturer's instructions. � Make sure that there are no aluminium parts in the interior of the appliance. � If you have not run Machine Care after 3 washing cycles, the indicator for Machine Care will go out automatically. � Follow the safety instructions and the directions for use on the packagings of the machine care products. 1. Remove any coarse soiling in the interior with a damp cloth.

1 Depending on the appliance specifications 42

2. Clean filters. 3. Add the machine care product to
the appliance. 4. Press . 5. Press . a The Machine Care programme is
run. a As soon as machine care has fin-
ished, the indicator for Machine Care goes out.
Filter system
The filter system removes coarse soiling from the dishwashing cycle.
3
2

Cleaning and servicingen 2. Turn the coarse filter anticlockwise
and remove the filter system . Check that no foreign objects
fall into the sump.
2
1
3. Pull down the micro filter to remove.

1 Micro filter 2 Fine filter 3 Coarse filter
Cleaning filters Soiling in the dishwashing water may block the filters. 1. After each wash check the filters
for residue.

4. Press the locking catches together and lift the coarse filter out . 2 1

5. Clean the filter elements under running water. 43

enCleaning and servicing
Carefully clean the rim of dirt between the coarse and the fine filter. 6. Re-assemble the filter system. Make sure that the locking catches on the coarse filter click into position. 7. Insert the filter system into the appliance and turn the coarse filter clockwise. Make sure that the arrow markings match up.
Cleaning spray arms
Limescale and soiling in the dishwashing water may block the nozzles and bearings on the spray arms. Clean the spray arms regularly. 1. Unscrew the upper spray arm
and pull down to remove .

3. Check the outlet nozzles on the spray arms for blockages under running water and remove any foreign bodies.
4. Insert the lower spray arm. a The spray arm clicks into position. 5. Insert the upper spray arm and
screw it firmly in place.

1
2
2. Pull up the lower spray arm to remove.

Troubleshootingen

Troubleshooting Troubleshooting
You Troubleshooting can rectify minor faults on your appliance yourself. Read the troubleshooting information before contacting Customer Service. This will avoid unnecessary costs.

WARNING Risk of electric shock! Improper repairs are dangerous. Repairs to the appliance should only be carried out by trained specialist
staff. Only use genuine spare parts when repairing the appliance. If the power cord of this appliance is damaged, it must be replaced with a
special connection cable, which is available from the manufacturer or his Customer Service.

Appliance safety

Fault

Cause

Appliance door will not open Childproof lock is activated. or cannot be opened easily.

Appliance door does not open.

Door is not correctly adjusted.

Appliance has no power.

Troubleshooting
Adjust the appliance door as described in the installation instructions.
Check the mains plug and fuses. 1. Position the emergency release
supplied on the top right and left of the cabinet panel.

Appliance door and door seal are soiled. Automatic door opening is not in home position.

2. Open the appliance door by pulling lightly.
Clean the appliance door and door seal with a damp cloth and a little washing-up liquid.
Wait one second after closing the appliance door.

enTroubleshooting

Fault Appliance door opens too wide when activated.

Cause Door is not correctly adjusted.

Troubleshooting Adjust the appliance door as de-
scribed in the installation instructions.

Error code / Fault display / Signal

Fault E:07 lights up.

Cause Intake opening of Zeolith container is covered by items of tableware.

E:12 lights up.

Heating element is furred up.

E:14 lights up.

Water protection system is activated.

E:15 lights up.

Water protection system is activated.

E:16 lights up.

Water is continuously running into the appliance.

E:18 or indicator for water supply lights up.

Supply hose is kinked.
Water tap is turned off. Water tap is jammed or furred up.

Filter in the water supply is blocked.

Troubleshooting Re-arrange the tableware in the ap-
pliance so the "Intake opening of the Zeolith container " Page 16 is no longer obstructed. 1. Descale the appliance. 2. Operate the appliance with the Water softening system. 1. Turn off the water tap. 2. Call "Customer Service" Page 58. 1. Turn off the water tap. 2. Call "Customer Service" Page 58. 1. Turn off the water tap. 2. Call "Customer Service" Page 58. Install the supply hose without kinks. Turn on the water tap. Turn on the water tap. The flow rate must be at least 10 l/ min when the water supply is open. 1. Switch off the appliance. 2. Pull out the mains plug. 3. Turn off the water tap. 4. Unscrew the water connection.

Fault E:18 or indicator for water supply lights up.

Cause

Troubleshootingen
Troubleshooting 5. Remove the filter from the supply
hose

E:22 lights up.1 E:24 lights up.
E:25 lights up.

6. Clean the filter. 7. Re-insert the filter in the supply
hose. 8. Screw the water connection back
on. 9. Check the water connection for
leaks. 10. Restore the power supply. 11. Switch the appliance on.

Filters are soiled or blocked. Clean the filters. "Cleaning filters", Page 43

Wastewater hose is blocked 1. Reposition the wastewater hose

or kinked.

without kinks.

2. Remove residues.

Siphon connection is still sealed.

Check the connection to the siphon and open if necessary.

Cover of the wastewater pump is loose.

Secure the cover of the "Wastewater pump " Page 57 so it clicks into position.

Wastewater pump is blocked.

Clean the wastewater pump. "Clean wastewater pump", Page 57

Cover of the wastewater pump is loose

Secure the cover of the "Wastewater pump " Page 57 so it clicks into position.

1 Depending on the appliance specifications 47

enTroubleshooting

Fault E:27 lights up.

Cause Mains voltage is too low.

Another error code appears A technical fault is present. on the display. E:01 to E:30

Troubleshooting This is not a fault on the appliance. 1. Contact an electrician. 2. Have the mains voltage and elec-
trical installation checked by an electrician.
1. Press . 2. Unplug the appliance or switch off
the fuse. 3. Wait at least 2 minutes. 4. Insert the mains plug of the appli-
ance in a socket or switch on the fuse. 5. Switch the appliance on. 6. If the problem occurs again:
Press . Turn off the water tap. Pull out the mains plug. Contact "Customer Service"
Page 58 and give the error code.

Washing results
Fault Tableware is not dry.

Cause No rinse aid used or dosage set too low.

Troubleshooting 1. Add "Rinse aid" Page 31. 2. Set the amount of rinse aid to be
dispensed.

Selected programme has no Select a programme with drying. drying phase

Water collects in recesses of Position tableware at an angle

the tableware or cutlery.

where possible.

Troubleshootingen

Fault Tableware is not dry.
Plastic tableware is not dry. Cutlery is not dry. Appliance interior still wet after wash cycle. Remnants of food on tableware.

Cause

Troubleshooting

The combined detergent used has a poor drying performance.

1. Use rinse aid to improve drying performance.
2. Use a different combined detergent with a better drying performance.

Extra Dry not activated to im- Activate Extra Dry. prove drying performance.

Tableware removed too early or drying process not yet ended.

1. Wait until the programme ends. 2. Only remove tableware 30 minutes
after the programme has ended.

Rinse aid used has a limited Use a name-brand rinse aid.

drying performance.

Eco products may have limited ef-

fectiveness.

Not a fault. As plastic does No remedial action possible. not store heat so well, it also does not dry as well.

Cutlery not arranged properly in the cutlery basket or cutlery drawer.

1. Arrange the cutlery properly. "Arrange tableware", Page 36
2. Arrange cutlery individually where possible.
3. Avoid points of contact.

Not a fault. The condensation drying principle causes water droplets in the tub � they are indeed desirable here. The moisture in the air condenses on the inside walls, runs off and is pumped out.

No action required.

Tableware was placed too close together.

1. Arrange tableware with sufficient space in between. The spray jets must reach the surfaces of the tableware.
2. Avoid points of contact.

Basket is overfilled.

1. Arrange tableware with sufficient space in between. The spray jets must reach the surfaces of the tableware.
2. Avoid points of contact.

Spray arm rotation is blocked.

Arrange tableware so that it does not obstruct spray arm rotation.

enTroubleshooting

Fault Remnants of food on tableware.
Detergent residue in the appliance

Cause

Troubleshooting

Spray arm nozzles are blocked.

Clean the "Spray arms" Page 44.

Filters are soiled.

Clean the filters. "Cleaning filters", Page 43

Filters are inserted incorrectly and/or not engaged.

1. Insert the filters properly. "Filter system", Page 43
2. Engage the filters.

Washing programme selec- Select a more intensive washing

ted too weak.

programme.

Adjust the sensitivity of the sensors. "Sensors", Page 13

Tableware has been pre- Only remove large remnants of food

cleaned too intensely. The

and do not prerinse tableware.

sensors chose a weaker programme. Stubborn soiling cannot be entirely removed.

Adjust the sensitivity of the sensors. "Sensors", Page 13

Tall narrow receptacles in Do not position tall narrow recept-

corner areas are not rinsed acles at too great an angle or in

adequately.

corner areas.

Top baskets on right and left Set the top baskets on the left and

are not set to same height.

right to the same level.

"Top basket", Page 23

Lid of the detergent dispenser is blocked by items of tableware parts and will not open.

1. Arrange tableware in the top basket tableware so the tab collecting tray is not obstructed by tableware. "Arrange tableware", Page 36 Items of tableware are blocking the dispenser lid.
2. Do not place tableware or fragrance dispensers in the tablet collecting tray.

The lid of the detergent dis- Position the tab in the detergent dispenser is blocked by the tab penser crosswise, not vertically. and will not open.

Tabs are used in the quick Select a more intensive Programme

or short programme. Dissolv- or use "Powder detergent"

ing time of the tab is not at-

Page 32.

tained.

Troubleshootingen

Fault Detergent residue in the appliance
Water marks on plastic parts.

Cause

Troubleshooting

Washing effect and dissolving performance are reduced after a prolonged storage time or detergent is very lumpy.

Change your "detergent" Page 32.

Due to laws of physics

Select a more intensive pro-

droplet formation on plastic gramme.

surfaces is unavoidable. After drying water marks are visible.

Position tableware at an angle. "Arrange tableware", Page 36

Use rinse aid.

"Rinse aid", Page 31

Set the water softening system higher.

Wipeable or water-soluble Detergent substances are Change your "detergent"

coatings are present inside deposited there. These coat- Page 32.

the appliance or on the door. ings cannot generally be removed with chemicals.

Clean the appliance mechanically.

White coating is deposited in 1. Set the water softening system cor-

the appliance interior.

rectly.

In most cases you will need to increase the setting.

2. Change your detergent if required.

Special salt dispenser is not Screw the special salt dispenser

screwed tight.

tight.

Stubborn white coatings are Detergent substances are Change your "detergent"

present on tableware, inside deposited there. These coat- Page 32.

the appliance or the door.

ings cannot generally be removed with chemicals.

Clean the appliance mechanically.

The hardness range is set in- Set the "Water softening system"

correctly or the water hard- Page 28 to the water hardness

ness is greater than 62 �E

or add special salt.

(8,9 mmol/l).

3in1/organic/eco detergent is not effective enough.

Set the "Water softening system" Page 28 to the water hardness and use separate detergents (proprietary detergent, special salt, rinse aid).

Too little detergent is being Increase the amount of detergent

used.

used or change "Detergent "

Page 32.

enTroubleshooting

Fault

Cause

Troubleshooting

Stubborn white coatings are Washing programme selecpresent on tableware, inside ted too weak. the appliance or the door.

Select a more intensive washing programme.
Adjust the sensitivity of the sensors. "Sensors", Page 13

Tea residue or lipstick marks Washing temperature is too Select a programme with a higher

on tableware.

low.

washing temperature.

Too little detergent is being used or is unsuitable.

Use a suitable "Detergent " Page 32 and follow the manufacturer's instructions for the amount to be used.

Tableware has been pre- Only remove large remnants of food

cleaned too intensely. The

and do not prerinse tableware.

sensors chose a weaker programme. Stubborn soiling cannot be entirely removed.

Adjust the sensitivity of the sensors. "Sensors", Page 13

Coloured coatings (blue, yel- The formation of films is due Clean the appliance.

low, brown) that are difficult or impossible to remove are present inside the appliance or on stainless steel tableware.

to substances contained in vegetables (cabbage, celery, potatoes, noodles, etc.) or tap water (manganese).

You can remove deposits with "Mechanical cleaning" Page 41 or a machine cleaning product. It may not always be possible to completely remove deposits but they

are harmless to health.

The formation of films is due Clean the appliance.

to metal components on silver or aluminium tableware.

You can remove deposits with "Mechanical cleaning" Page 41

or a machine cleaning product. It

may not always be possible to com-

pletely remove deposits but they

are harmless to health.

Coloured deposits (yellow, The formation of films is due 1. Check the setting of the water

orange, brown) that are easy to ingredients of food rem-

softening system.

to remove are present inside nants and tap water (limesthe appliance (mainly at the cale) "soaplike".

2. Add special salt. "Adding special salt", Page 29

bottom).

3. If you are using combined deter-

gents (tabs), activate the water

softening system.

Follow the information about detergents. "Information on detergents", Page 33

Troubleshootingen

Fault

Cause

Troubleshooting

Plastic parts inside the appli- Plastic parts inside the appli- Discolouration can come about and

ance are discoloured.

ance may become discol-

will not impair functioning of the ap-

oured during the life of the

pliance.

dishwasher.

Plastic parts are discoloured.

Washing temperature is too Select a programme with a higher

low.

washing temperature.

Tableware has been pre- Only remove large remnants of food

cleaned too intensely. The

and do not prerinse tableware.

sensors chose a weaker programme. Stubborn soiling cannot be entirely removed.

Adjust the sensitivity of the sensors. "Sensors", Page 13

Removable streaks are present on glasses, glassware with a metallic appearance and cutlery.

Amount of rinse aid to be dispensed is set too high.
No rinse aid has been added. Detergent residue is present in the final rinse. Lid of the detergent dispenser is blocked by tableware items and will not open fully.

Set the rinse aid system to a lower setting.
"Adding rinse aid", Page 31
1. Arrange tableware in the top basket tableware so the tab collecting tray is not obstructed by tableware. "Arrange tableware", Page 36 Items of tableware are blocking the dispenser lid.
2. Do not place tableware or fragrance dispensers in the tablet collecting tray.

Tableware has been pre- Only remove large remnants of food

cleaned too intensely. The

and do not prerinse tableware.

sensors chose a weaker programme. Stubborn soiling cannot be entirely removed.

Adjust the sensitivity of the sensors. "Sensors", Page 13

Irreversible clouding of glassware.

Glasses are not dishwasherproof, only suitable for dishwashers.

Use dishwasher-proof glasses. Avoid a lengthy steam phase
(standing time after wash cycle ends).

Use a programme with a lower temperature.

Set the softening system to the water hardness.

Use detergent with a glass protection component.

enTroubleshooting

Fault

Cause

Troubleshooting

Rust spots on cutlery.

Cutlery is not sufficiently rust-resistant. Knife blades are often more severely affected.

Use rust-resistant tableware.

Cutlery may also rust if washed together with rusting items.

Do not wash rusting items.

Salt content in washing water is too high.

1. Remove any spilled special salt from the tub.
2. Screw the cap of the special salt dispenser on tight.

Detergent residue is present Spray arms were blocked by Check that the spray arms are not in the detergent dispenser tableware so detergent was blocked and can rotate freely. or the tablet collecting tray. not rinsed out.

Detergent dispenser was damp when detergent was added.

Only add detergent to a detergent dispenser when dry.

Excessive formation of foam Hand washing-up liquid is

occurs.

present in dispenser for

rinse aid.

Immediately add rinse aid to the dispenser. "Adding rinse aid", Page 31

Rinse aid has been spilled. Remove the rinse aid with a cloth.

Detergent or appliance care Change the brand of detergent. product used causes excessive foaming.

Information on display panel

Fault Special salt refill indicator lights up.
Refill indicator for special salt does not light up. Refill indicator for rinse aid lights up.
Refill indicator for rinse aid does not light up.

Cause

Troubleshooting

Insufficient special salt.

Add "Special salt" Page 29.

Sensor does not detect spe- Do not use special salt tablets. cial salt tablets.

Water softening system is "Setting water softening system"

switched off.

Page 29

Insufficient rinse aid.

1. Add "Rinse aid" Page 31. 2. Set the amount of rinse aid to be
dispensed.

Rinse aid system is switched "Setting the amount of rinse aid",

off.

Page 31

Troubleshootingen

Fault Machine Care indicator lights up.

Cause Machine care is recommended.

Troubleshooting Run the Machine Care programme
without tableware. Use a special machine care product.
The indicator will go out automatically after 3 wash cycles whether Machine Care is carried out or not.

Malfunctions

Fault

Cause

Troubleshooting

The appliance is not working.

Water is left in the appliance Filter system or area under

at the end of the pro-

the filters is blocked.

gramme.

1. Clean the "Filters" Page 43. 2. Clean the "Wastewater pump"
Page 57.

Programme has not yet ended.

Wait until the programme ends or cancel the programme with reset.

"Terminate programme", Page 38

Appliance cannot be switched on or operated.

Appliance functions have failed.

1. Pull out the mains plug or switch off the fuse.
2. Wait at least 2 minutes. 3. Connect the appliance to the power
supply. 4. Switch the appliance on.

Appliance does not start. The mains fuse has tripped. Check the relevant fuse.

Mains cable is not inserted.

1. Check whether the socket works. 2. Check whether the mains cable is
properly inserted in the socket and on the rear of the appliance.

Appliance door is not closed Close the appliance door. properly.

Programme starts automat- You did not wait until pro-

ically.

gramme ended.

"Terminate programme", Page 38

Appliance stops during the Appliance door is not closed Close the appliance door.

programme or cuts out.

properly.

Power and/or water supply 1. Check the power supply.

has been interrupted.

2. Check the water supply.

enTroubleshooting

Fault Appliance stops during the programme or cuts out.

Cause Top basket is pressing against inner door and preventing appliance door from being closed securely.

Troubleshooting Check whether the rear panel of the
appliance is being pressed in by a socket or hose holder that has not been removed.
Arrange the tableware so that no parts project beyond the basket and prevent the appliance door from closing properly.

Mechanical damage

Fault Appliance door cannot be closed.
Lid on the detergent dispenser cannot be closed.

Cause Door lock has been activated. Door cannot be closed due to installation method.
Automatic door opening is not in home position. Detergent dispenser or lid are blocked by sticky detergent residue.

Troubleshooting Close the appliance door with
greater force.
Check whether the appliance has been installed properly. When closed, the appliance door, its decor or attached parts should not knock against adjacent cabinets or the worktop.
Wait for a second after opening the appliance door.
Remove detergent residue.

Noise

Fault Filling valves making knocking noises.
Knocking or rattling noise.

Cause Caused by the domestic installation. No appliance fault present. Does not affect functioning of the appliance. Spray arm is striking tableware. With a small load the water jets directly strike against the tub.
Light items of tableware move about during the wash cycle.

Troubleshooting Can only be remedied in the do-
mestic installation.
Arrange tableware so that the spray arms do not strike tableware.
Distribute the tableware evenly. Load the appliance with more table-
ware. Position light items of tableware se-
curely.

Clean wastewater pump
Large remnants of food or foreign bodies can block the wastewater pump. As soon as the washing water no longer drains properly, the wastewater pump must be cleaned.
WARNING Risk of injury! Sharp and pointed objects or fragments of glass may block the waste water pump and cause injury. Remove any foreign bodies care-
fully. 1. Disconnect the appliance from the
power supply. 2. Remove the top and bottom bas-
ket. 3. Remove the filter system. 4. Scoop out any water.
Use a sponge if necessary. 5. Prise off the pump cover using a
spoon and grip it by the crosspiece.
6. Lift the pump cover inwards at an angle and remove.
7. Remove any remnants of food and foreign bodies in the area of the impeller.

Transportation, storage and disposalen 8. Insert the pump cover and press
down .
2 1
a The pump cover clicks into position.
9. Install the filter system. 10.Insert the top and bottom basket.
Transportation, storage Transportation,storageanddisposal and disposal
You can find out here how to prepare Transportation,storageanddisposal your appliance for transportation and storage. You will also find out how to dispose of old appliances.
Removing the appliance
1. Disconnect the appliance from the power supply.
2. Turn off the water tap. 3. Detach the drainage connection. 4. Detach the drinking water connec-
tion. 5. Loosen any screws fastening the
appliance to cabinet parts. 6. Remove the base panel if fitted. 7. Pull the appliance out carefully,
along with the hose behind it.

enCustomer Service
Protect appliance from frost
If there is a risk of frost where the appliance will be standing, e.g. in a holiday home, empty the appliance completely. "Empty the appliance."
Page 58
Transporting the appliance
To avoid damage to the appliance, empty it before transporting. Note: Always transport the dishwasher upright to prevent residual water getting into the machine's controls and damaging the appliance. 1. Remove tableware from the appli-
ance. 2. Secure loose parts. 3. Turn on the water tap. 4. "Switch on appliance." Page 37 5. Select the programme with the
highest temperature. "Programmes", Page 19 6. "Start the programme." Page 38 7. To drain the appliance, terminate the programme after approx. 4 minutes. "Terminate programme", Page 38 8. "Switch off the appliance." Page 38 9. Turn off the water tap. 10.To empty the residual water out of the appliance, detach the supply hose and let the water drain out.

Disposing of old appliance
Valuable raw materials can be reclaimed by recycling.
WARNING Risk of harm to health! Children can lock themselves in the appliance, thereby putting their lives at risk. With redundant appliances, unplug
the power cord. Then cut through the cord and damage the lock on the appliance door beyond repair so that the appliance door will no longer close. 1. Unplug the appliance from the mains. 2. Cut through the power cord. 3. Dispose of the appliance in an environmentally friendly manner.
This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU.
Customer Service CustomerService
IfCustomerService you have any queries, are unable to rectify faults on the appliance yourself or if your appliance needs to be repaired, contact Customer Service. You can solve many problems yourself by consulting the information on troubleshooting in these instructions or on our website. If this is not the case, contact our after-sales service.

With any warranty claims, we will make sure that your appliance is repaired by trained after-sales technicians using genuine spare parts, including after the manufacturer's warranty has expired. Function-relevant genuine spare parts according to the corresponding Ecodesign Order can be obtained from Customer Service for a period of at least 10 years from the date on which your appliance was placed on the market within the European Economic Area. Note: Under the terms of the manufacturer's warranty the use of Customer Service is free of charge. Detailed information on the warranty period and terms of warranty in your country is available from our aftersales service, your retailer or on our website. If you contact Customer Service, you will require the product number (ENr.) and the production number (FD) of your appliance. The contact details for Customer Service can be found in the enclosed Customer Service directory or on our website.
Product number (E-Nr.) and production number (FD)
You can find the product number (ENr.) and the production number (FD) on the appliance's rating plate. The rating plate is located inside the appliance door. Make a note of your appliance's details and the Customer Service telephone number to find them again quickly.

Technical specificationsen
AQUA-STOP guarantee1
In addition to warranty claims against the seller under the purchase agreement and in addition to our manufacturer's warranty, we will provide a replacement under the following conditions. � If our Aqua-Stop system is defect-
ive and causes water damage, we will make good the damage for private users. To ensure protection from water damage, the appliance must be connected to the power supply. � The liability guarantee is valid for the service life of the appliance. � A claim can only be made under the guarantee if the appliance has been correctly installed and connected with Aqua-Stop according to our instructions; this also includes correctly fitting the AquaStop extension (genuine accessory). Our guarantee does not cover defective supply lines or fittings up to the Aqua-Stop connection on the tap. � If your appliance is fitted with Aqua-Stop, you can leave your appliance unattended during operation and the tap turned on afterwards. The tap only needs to be turned off if you are away from home for a long period, e.g. on holiday for several weeks.

Technical specifications Technicalspecifications

Facts and figures for your appliance Technicalspecifications can be found here.

Weight Voltage

Max.: 60 kg 220 - 240 V, 50 Hz or 60 Hz

1 Depending on the appliance specifications 59

enTechnical specifications

Power rating Fuse Power consumption
Water pressure Inlet rate Water temperature Capacity

2000 - 2400 W 10 - 16 A Off mode/standby mode: 0.50 W Left-on mode: 0.50 W Networked standby: W Time in left-on mode: 0 min Time after which appliance is switched to networked standby mode: - min Complies with the latest regulations (EU) for energy labels and ecodesign at the time of placing on the market. Additional functions and settings may increase power consumption and times. � Min. 0.05 MPa
(0.5 bar) � Max. 1 MPa
(10 bar) Min. 10 l/min Cold water. Hot water max.: 60 �C 12 - 15 place settings

This product contains light sources from energy efficiency class G. These light sources are available as a spare part and should only be replaced by trained specialist staff.1 More information about your model can be found online at https://energylabel.bsh-group.com2. This web address is linked to the official EU EPREL product database. At the time of printing its web address had not

yet been published. Please then follow the instructions on searching for models. The model identifier is made up of the characters before the slash in the product number (E-Nr.) on the rating plate. Alternatively you can also find the model identifier in the first line of the EU energy label.

1 Depending on the appliance specifications 2 Only applies to countries in the European Economic Area 60

Thank you for buying a Bosch Home Appliance!
Register your new device on MyBosch now and profit directly from:
� Expert tips & tricks for your appliance � Warranty extension options � Discounts for accessories & spare-parts � Digital manual and all appliance data at hand � Easy access to Bosch Home Appliances Service
Free and easy registration � also on mobile phones: www.bosch-home.com/welcome
Looking for help? You'll find it here.
Expert advice for your Bosch home appliances, help with problems or a repair from Bosch experts. Find out everything about the many ways Bosch can support you: www.bosch-home.com/service Contact data of all countries are listed in the attached service directory.
Robert Bosch Hausger�te GmbH Carl-Wery-Stra�e 34 81739 M�nchen GERMANY www.bosch-home.com
*9001442509*
9001442509 (001008) 642 MW en
