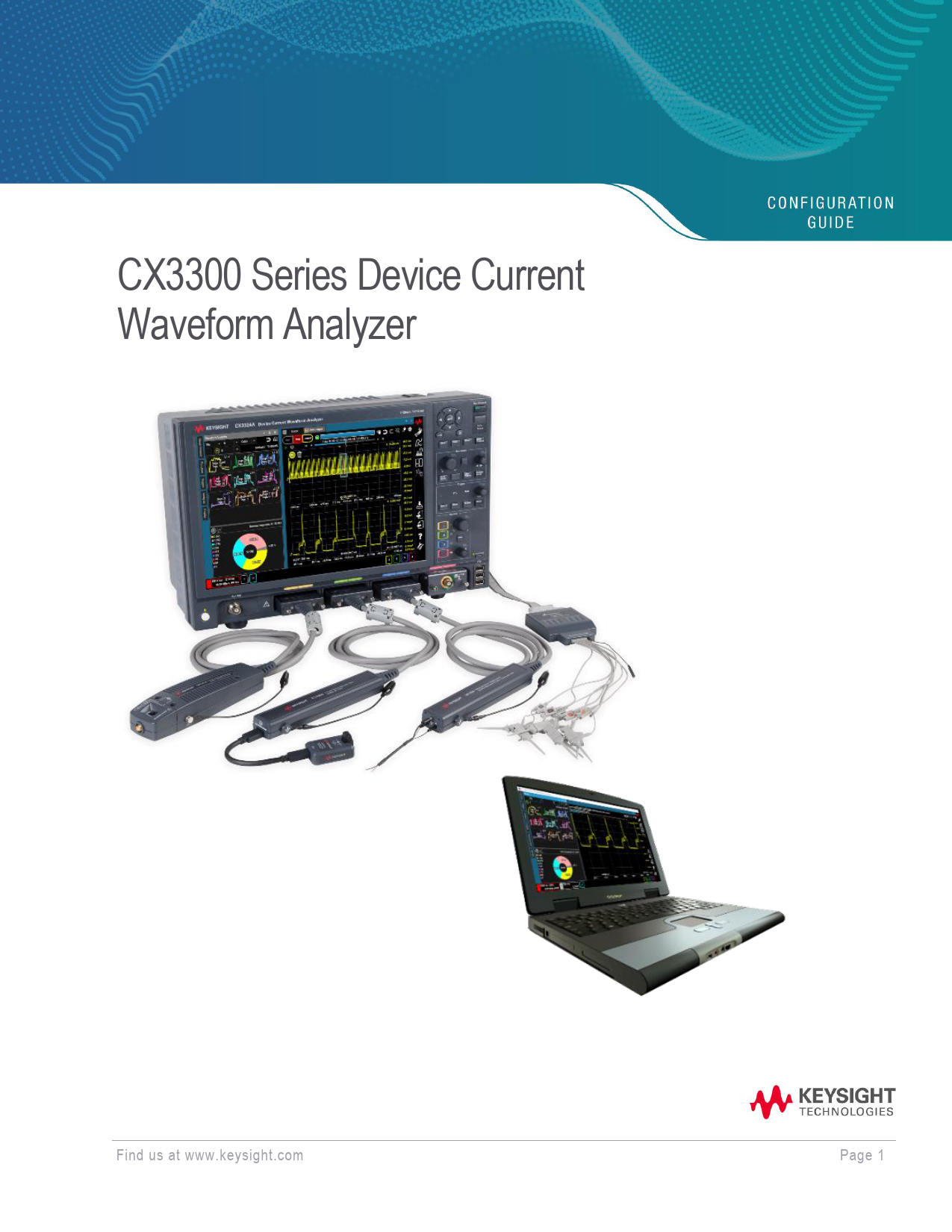

CX3300 Series Device Current Waveform Analyzer Find us at www.keysight.com Page 1 Overview of the CX3300 Series Configuration Steps The overview of the configuring steps for the CX3300 Series Device Current Waveform Analyzer (CX3300A Series) is shown below. This configuration guide has step-by-step instructions to help you configure your CX3300 Series with the related accessories, to meet specific test requirements. For detailed specifications, refer to the CX3300A Series Device Current Waveform Analyzer - Data Sheet (5992-1430EN). Find us at www.keysight.com Page 2 Configuring your Keysight CX3300 Series Device Current Waveform Analyzer Step 1. The CX3300 Series model and options selection There are four initial key parameters that you will need to select; 1. The number of channels (two or four) 2. The measurement bandwidth (50 MHz, 100 MHz or 200 MHz) 3. The measurement memory depth (4 Mpts, 16 Mpts, 64 Mpts or 256 Mpts) 4. One feature option; data logger mode Note: Upgrade products are available for the bandwidth, the memory depth and the data logger mode. If you want to upgrade in future, you can order them. Step 1-1. Selecting the CX3300 Series model The CX3300 Series contains the following two models. Select one model. Model CX3322A CX3324A Description Device Current Waveform Analyzer, 1 GSa/s, 14/16-bit, 2 Channel Device Current Waveform Analyzer, 1 GSa/s, 14/16-bit, 4 Channel Step 1-2. Select the bandwidth options The CX3322A and CX3324A have the following three bandwidth options. Select one from the options. Option B05 B10 B20 Bandwidth � 50 MHz Bandwidth � 100 MHz Bandwidth � 200 MHz Description Step 1-3. Select the memory options The CX3322A and CX3324A have the following four memory options. Select one from the options. Option 004 016 064 256 Memory � 4 M pts/ch Memory � 16 M pts/ch Memory � 64 M pts/ch Memory � 256 M pts/ch Description Find us at www.keysight.com Page 3 Step 1-4. Select data logger mode for the CX3300 Series: Optional STG Option Description Data logger mode for CX3322A and CX3324A Your chosen CX3300 Series configuration will be one of the combinations shown in the table below. Model CX3322A CX3322A-OC-BW CX3322A-B05 CX3322A-B10 CX3322A-B20 CX3322A-OC-MEMORY CX3322A-004 CX3322A-016 CX3322A-064 CX3322A-256 CX3322A-OC-FEATURE CX3322A-STG (Optional) CX3324A CX3324A-OC-BW CX3324A-B05 CX3324A-B10 CX3324A-B20 CX3324A-OC-MEMORY CX3324A-004 CX3324A-016 CX3324A-064 CX3324A-256 CX3324A-OC-FEATURE CX3324A-STG (Optional) Description Device Current Waveform Analyzer, 1 GSa/s, 14/16-bit, 2 Channel Bandwidth Options � Factory Installed Bandwidth � 50 MHz Bandwidth � 100 MHz Bandwidth � 200 MHz Memory Options � Factory Installed Memory � 4 M pts/ch Memory � 16 M pts/ch Memory � 64 M pts/ch Memory � 256 M pts/ch Feature Options � Factory Installed Data logger mode for CX3322A Device Current Waveform Analyzer, 1 GSa/s, 14/16-bit, 2 Channel Bandwidth Options � Factory Installed Bandwidth � 50 MHz Bandwidth � 100 MHz Bandwidth � 200 MHz Memory Options � Factory Installed Memory � 4 M pts/ch Memory � 16 M pts/ch Memory � 64 M pts/ch Memory � 256 M pts/ch Feature Options � Factory Installed Data logger mode for CX3324A Note: The CX3322A does not have a dedicated digital trigger input. The CX3324A supports the digital channel using the CX1152A Digital Channel interface cable. Find us at www.keysight.com Page 4 Step 2. The current sensors and sensor heads selection Step 2-1. Select the current sensors The following three current sensors are available: Select the necessary sensors. Model CX1101A CX1102A 2 CX1103A CX1104A CX1105A Description Current Sensor, Single Channel, � 40 V, 100 MHz, 40 nA - 1A 1 Current Sensor, Dual Channel, � 12 V, 100 MHz, 40 nA � 1 A 1 Current Sensor, Low Side, 200 MHz, 100 pA � 20 mA Current Sensor, Selectable Resistive Sensor Head, � 40 V, 20 MHz Differential Sensor, Single Channel, 100 MHz 1. The CX1101A and theCX1102A include 1 pcs. of CX1203A. 2. The CX1102A must be connected to two channels of a mainframe for the operation. Quick Selection Chart of Current Sensors 1. The CX1101A with CX1206A also supports up to 10 A. (Maximum bandwidth (-4 dB) is 3 MHz.) For further information, refer to the Device Current Waveform Analyzer, 7 Hints for Precise Current Measurements � Application Note (5992-2118EN). Find us at www.keysight.com Page 5 Step 2-2. Select the optional current sensor heads The following table shows the six current sensor heads that are available. According to the descriptions provided in the table, select the necessary current sensor heads which correspond with the current sensors selected in step 2-1. For CX1101A and CX1102A Model CX1201A CX1202A CX1203A CX1204A CX1205A CX1206A Description Sensor Head, Coaxial Through Sensor Head, Coaxial Through with V Monitor Sensor Head, Coaxial Termination 1 Sensor Head, Twisted Pair Adapter Sensor Head, Test Lead Adapter Sensor Head, High Current Adapter with Expander, 10 A For CX1104A Model CX1211A CX1212A CX1213A CX1214A CX1215A CX1216A Description Resistive Sensor Head, 15 A, 5.5 m Resistive Sensor Head, 10 A, 8 m Resistive Sensor Head, 5 A, 23 m Resistive Sensor Head, 3 A, 53 m Resistive Sensor Head, 2 A, 103 m Resistive Sensor Head, 0.25 A, 1 The following table shows the compatible combinations of current sensors and current sensor heads. Current sensor CX1101A CX1102A CX1103A CX1201A N/A CX1202A N/A CX1203A 1 1 N/A CX1204A N/A CX1205A N/A CX1206A N/A N/A Current sensor CX1104A CX1105A CX1211A N/A CX1212A N/A CX1213A N/A 1. The CX1101A and the CX1102A include 1 pcs. of CX1203A. CX1214A N/A CX1215A N/A CX1216A N/A Find us at www.keysight.com Page 6 Step 3. Optional accessories selection The following accessories are available for the CX3300 Series. Select the necessary accessories from the lists. Interface accessories Model CX1151A CX1152A 1 Description Passive Probe Interface Adapter 2 Digital Channel, 10 M Input, � 25 V, 8 Channel Other accessories Model CX3300A-KBD CX1903A CX1905B Description Keyboard and Optical Mouse Rack Mount Kit for CX3300 Series Attachment for 3D Probe Positioner 3 1. Cannot be used with the CX3322A. 2. The N2843A Passive Probe, 10:1, 500MHz, 1.2m is recommended for use with the CX1151A. 3. The N2787A 3D Probe Positioner is recommended for use with the CX1905B. CX1905A is obsolete and cannot be used with CX1104A or CX1105A. Find us at www.keysight.com Page 7 Step 4. Calibration plan selection Step 4-1. Select the relevant calibration services (optional) Keysight's factory calibration and Certification of Calibration (COC) are provided as standard. The optional ANSI Z540 and CCC with test data are available as following. Mainframe Current sensor Sensor Head Interface accessories CX3322A CX3324A CX1101A CX1102A CX1103A CX1104A CX1105A CX1201A-CX1206A CX1211A-CX1216A CX1151A CX1152A Calibration service Option -A6J ANSI Z540-1-1994 Calibration -UK6 Commercial calibration certification with Test Data N/A N/A N/A N/A Step 4-2. Select any re-calibration/re-certification services (optional for CX3322A and CX3324A) Keysight's re-calibration / re-certification optional calibration service is available for CX3322A and CX3324A. The calibrations include a proof of compliance according to the calibration standard. Select one from the following list. Description Calibration Assurance Plan - Return to Keysight - 3 years Calibration Assurance Plan - Return to Keysight - 5 years ANSI Z540-1-1994 Calibration - 3 years ANSI Z540-1-1994 Calibration - 5 years Product number R-50C-011-3 R-50C-011-5 R-50C-021-3 R-50C-021-5 Find us at www.keysight.com Page 8 Step 5. Optional PC application software selection Offline instrument PC software is available. You can choose optimal license type and term according to your needs. Model CX3300APPC Description Current Waveform Analytics Software License type Node-Lock Transportable USB Portable Floating License term Perpetual Subscription (6, 12, 24, 36 months) Upgrade License Products Upgrade products are available for the bandwidth and the memory depth. If you want to upgrade in future, you can order it. CX3322A upgrade Model CX1601U CX1602U CX1603U CX1651U CX1652U CX1653U CX1654U CX1655U CX1656U CX1631U Description Bandwidth upgrade from 50 MHz to 100 MHz for CX3322A, Fixed perpetual license Bandwidth upgrade from 50 MHz to 200 MHz for CX3322A, Fixed perpetual license Bandwidth upgrade from 100 MHz to 200 MHz for CX3322A, Fixed perpetual license Memory upgrade from 16 Mpts to 64 Mpts for CX3322A, Fixed perpetual license Memory upgrade from 16 Mpts to 256 Mpts for CX3322A, Fixed perpetual license Memory upgrade from 64 Mpts to 256 Mpts for CX3322A, Fixed perpetual license Memory upgrade from 4 Mpts to 16 Mpts for CX3322A, Fixed perpetual license Memory upgrade from 4 Mpts to 64 Mpts for CX3322A, Fixed perpetual license Memory upgrade from 4 Mpts to 256 Mpts for CX3322A, Fixed perpetual license Data logger mode upgrade for CX3322A, Fixed perpetual license Find us at www.keysight.com Page 9 CX3324A upgrade Model CX1611U CX1612U CX1613U CX1661U CX1662U CX1663U CX1664U CX1665U CX1666U CX1632U Description Bandwidth upgrade from 50 MHz to 100 MHz for CX3324A, Fixed perpetual license Bandwidth upgrade from 50 MHz to 200 MHz for CX3324A, Fixed perpetual license Bandwidth upgrade from 100 MHz to 200 MHz for CX3324A, Fixed perpetual license Memory upgrade from 16 Mpts to 256 Mpts for CX3324A, Fixed perpetual license Memory upgrade from 16 Mpts to 256 Mpts for CX3324A, Fixed perpetual license Memory upgrade from 64 Mpts to 256 Mpts for CX3324A, Fixed perpetual license Memory upgrade from 4 Mpts to 16 Mpts for CX3324A, Fixed perpetual license Memory upgrade from 4 Mpts to 64 Mpts for CX3324A, Fixed perpetual license Memory upgrade from 4 Mpts to 256 Mpts for CX3324A, Fixed perpetual license Data logger mode upgrade for CX3324A, Fixed perpetual license Learn more at: www.keysight.com For more information on Keysight Technologies' products, applications or services, please contact your local Keysight office. The complete list is available at: www.keysight.com/find/contactus Find us at www.keysight.com This information is subject to change without notice. � Keysight Technologies, 2020 - 2021, Published in USA, February 4, 2021, 5992-1434EN Page 10
