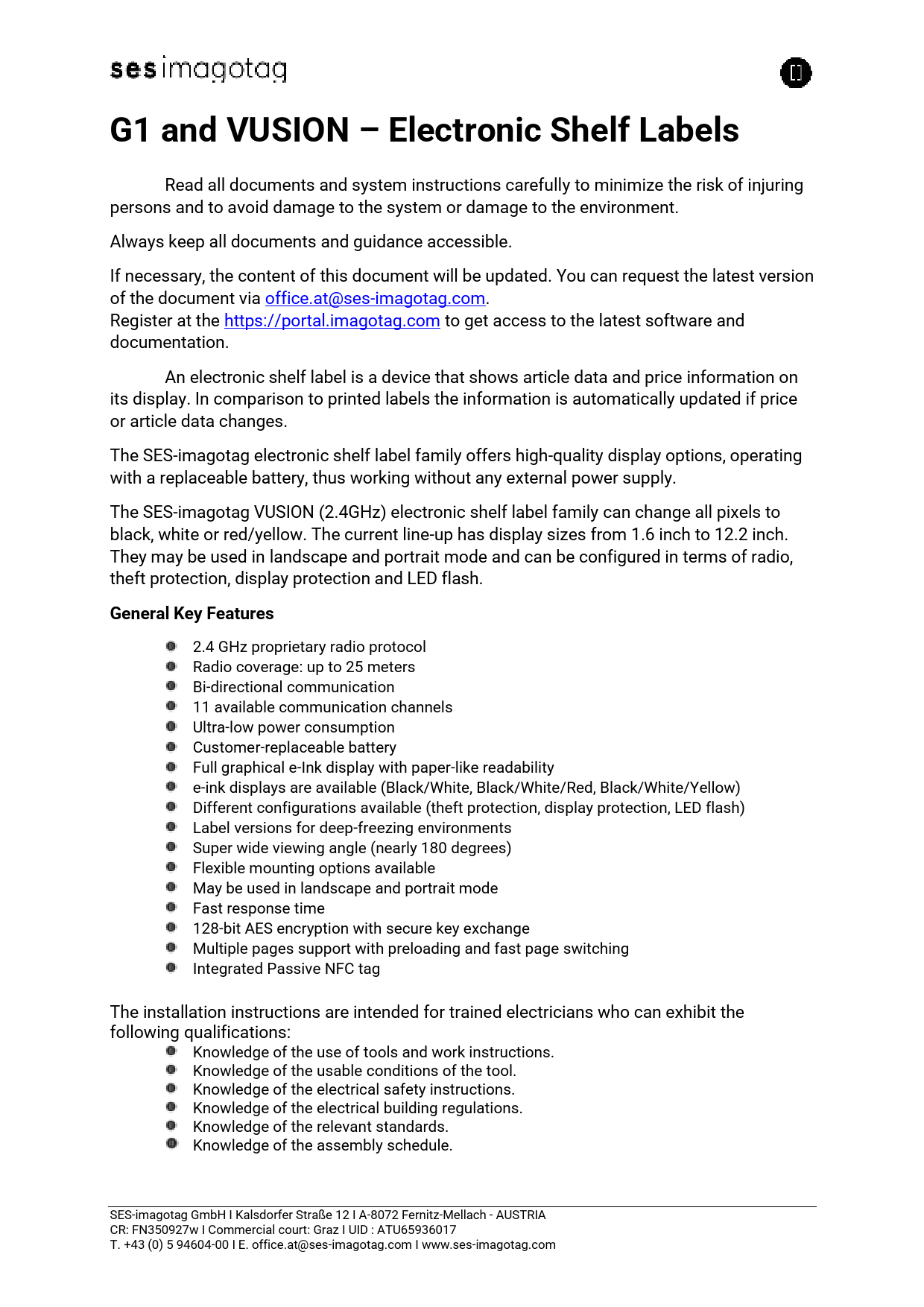

SES-imagotag G1 and VUSION - Electronic Shelf Labels
Product Overview and System Instructions
Introduction
Read all documents and system instructions carefully to minimize the risk of injuring persons and to avoid damage to the system or damage to the environment. Always keep all documents and guidance accessible.
If necessary, the content of this document will be updated. You can request the latest version of the document via office.at@ses-imagotag.com. Register at https://portal.imagotag.com to get access to the latest software and documentation.
An electronic shelf label (ESL) is a device that shows article data and price information on its display. In comparison to printed labels, the information is automatically updated if price or article data changes.
The SES-imagotag electronic shelf label family offers high-quality display options, operating with a replaceable battery, thus working without any external power supply.
The SES-imagotag VUSION (2.4GHz) electronic shelf label family can change all pixels to black, white, or red/yellow. The current line-up has display sizes from 1.6 inch to 12.2 inch. They may be used in landscape and portrait mode and can be configured in terms of radio, theft protection, display protection, and LED flash.
General Key Features
- 2.4 GHz proprietary radio protocol
- Radio coverage: up to 25 meters
- Bi-directional communication
- 11 available communication channels
- Ultra-low power consumption
- Customer-replaceable battery
- Full graphical e-Ink display with paper-like readability
- e-ink displays are available (Black/White, Black/White/Red, Black/White/Yellow)
- Different configurations available (theft protection, display protection, LED flash)
- Label versions for deep-freezing environments
- Super wide viewing angle (nearly 180 degrees)
- Flexible mounting options available
- May be used in landscape and portrait mode
- Fast response time
- 128-bit AES encryption with secure key exchange
- Multiple pages support with preloading and fast page switching
- Integrated Passive NFC tag
Installation Qualifications
The installation instructions are intended for trained electricians who can exhibit the following qualifications:
- Knowledge of the use of tools and work instructions.
- Knowledge of the usable conditions of the tool.
- Knowledge of the electrical safety instructions.
- Knowledge of the electrical building regulations.
- Knowledge of the relevant standards.
- Knowledge of the assembly schedule.
Model Specifications and Battery Information
The power supply for these labels are cell-button batteries. The following table provides an overview of different label models and their batteries.
| Caption | Model | Display Resolution | Active Display Area (mm) | Display Colors | Usable Pages | Battery Type | Operating Voltage | Nominal Capacity | Wake Up (seconds) | Battery Lifetime (5 years with N updates per day) |
|---|---|---|---|---|---|---|---|---|---|---|
| VUSION 1.6 | EDG2-0160-A | 152x152 | 27.5 x 27.5 | b/w/r, b/w/y | 4 | 1xCR2450 | 3V | 550 mAh | 30 | 1 |
| VUSION 2.2 | EDG2-0220-A, EDG3-0220-A, EDG3-0220-B | 212x104 | 48.6 x 23.8 | b/w/r, b/w/y | 4 | 2xCR2450 | 3V | 1100 mAh | 15 | 2 |
| VUSION 2.2 F | EDG2-0220-A | 212x104 | 48.6 x 23.8 | b/w | 4 | 2xCR2450 | 3V | 1100 mAh | 30 | 1 |
| VUSION 2.6 | EDG2-0260-A, EDG3-0260-A | 296x152 | 60.1 x 30.7 | b/w/r, b/w/y | 4 | 2xCR2450 | 3V | 1100 mAh | 15 | 2 |
| VUSION 2.6 F | EDG2-0260-A | 296x152 | 60.1 x 30.7 | b/w | 4 | 2xCR2450 | 3V | 1100 mAh | 30 | 1 |
| G1 2.7 | EDG1-0270-B | 264 x 176 | 57.3 x 38.2 | b/w/r | 4 | 2xCR2450 | 3V | 1100 mAh | 15 | 2 |
| VUSION 2.7 | EDG2-0270-A, EDG2-0270-B | 264x176 | 57.3 x 38.2 | b/w/r | 4 | 2xCR2450 | 3V | 1100 mAh | 15 | 2 |
| VUSION 2.9 | EDG3-0290-A | 384 x 168 | 67,6 x 29,6 | b/w/r | 4 | 2xCR2450 | 3V | 1100 mAh | 15 | 2 |
| VUSION 2.9 F | EDG3-0290-A | 384 x 168 | 67,6 x 29,6 | b/w | 4 | 2xCR2450 | 3V | 1100 mAh | 15 | 1 |
| VUSION 3.7 | EDG2-0370-A | 416x240 | 81.54 x 47.04 | b/w/r | 4 | 3xCR2450 | 3V | 1650 mAh | 15 | 2 |
| G1 4.2 | EDG1-0420-A, EDG1-0420-B | 400 x 300 | 84.8 x 63.6 | b/w/r | 4 | 3xCR2450 | 3V | 1650 mAh | 15 | 2 |
| VUSION 4.2 | EDG2-0420-A, EDG2-0420-B | 400x300 | 84.8 x 63.6 | b/w/r, b/w/y | 4 | 3xCR2450 | 3V | 1650 mAh | 15 | 2 |
| VUSION 4.5 | EDG2-0450-A | 480x176 | 104.2 x 38.2 | b/w/r, b/w/y | 4 | 3xCR2450 | 3V | 1650 mAh | 15 | 2 |
| VUSION 5.9 | EDG2-0590-A, EDG3-0590-A | 720x256 | 138.96 x 49.40 | b/w/r | 4 | 5xCR2450 | 3V | 2750 mAh | 15 | 2 |
| VUSION 7.4 | EDG2-0740-A | 480x800 | 97 x 161.6 | b/w/r, b/w/y | 4 | 4xCR2450 | 3V | 2200 mAh | 15 | 2 |
| VUSION 9.7 | EDG2-0970-A, EDG3-0970-A | 960x672 | 201.60 x 141.12 | b/w/r | 4 | 8xCR2450 | 3V | 4400 mAh | 15 | 2 |
| VUSION 12.2 | EDG2-1220-A | 768x960 | 190.08 x 237.6 | b/w/r, b/w/y | 6 | 6xCR2450 | 3V | 3300 mAh | 15 | 1 |
| VUSION Sway 2.6 | EDF3-0260-A | 296 x 152 | 60.0 x 31.0 | b/w/r | 4 | 1xCR2450 | 3V | 550 mAh | 15 | Up to 3 years with 1 update per day |
Note: Battery lifetime can vary depending on operating conditions (temperature, radio usage, etc.).
Environmental Conditions
General Remarks
The SES-imagotag VUSION Labels must be installed according to the mounting instructions of the producer. In rare cases, the usage of wireless appliances may be restricted by the building owner (e.g., Airport or Hospital). Please contact the appropriate authorities before installing the SES-imagotag VUSION Labels.
Operating Environments
E-Paper displays are moisture and UV sensitive. The absolute rating operating environments describe the boundary conditions for updating the display, while the absolute rating storage environment (see Storage and warehousing) describes the boundary conditions for a display not updating.
| BW | BW (Wide temp/Freezer) | BWR | |
|---|---|---|---|
| Operating temperature | 0° C to +45° C | -25° C to +30° C | 10° C to +40° C |
| Operating temperature for maximum lifetime | 21° C | 21° C | 21° C |
| Operating humidity | 30% - 80% | 30% - 80% | 35% - 70% |
Cleaning Instructions
Clean the electronic label with a damp cloth. Use only common household cleaners. Do not clean the label with alcohol, solvents, or abrasive cleaning products. Note: Do not use liquid or aerosol cleaners and keep away from water.
Temperature and Humidity Conditions
High humidity combined with low temperature is not recommended. Low temperature will reduce battery lifetime.
Storage and Warehousing
While displays are rated to perform according to specification for the warranty period at the absolute specified operating environment, better storage conditions lead to better E-Paper display performance. Like other moisture and UV sensitive components, SES-imagotag recommends storing labels in temperature and humidity-controlled environments, and whenever possible, under defined Optimal Storage Conditions, away from sunlight, to optimize performance.
It is strongly recommended to observe the following points to ensure the best operation, functioning, and battery lifetime:
| BW | BW (Wide temp/Freezer) | BWR | |
|---|---|---|---|
| Storage temperature | -20° C to +50° C | -20° C to +50° C | -20° C to +50° C |
| Storage humidity | 30% - 80% | 30% - 80% | 40% - 70% |
| Optimal storage temperature | 0° C to +30° C | 0° C to +30° C | 0° C to +30° C |
| Optimal storage humidity (non-condensing) | 40% - 60% | 40% - 60% | 40% - 60% |
- Do not operate any ESL Infrastructure (e.g., SES-imagotag AP-2010 or MAP 2014T/Lancom L-151E) in warehouses storing labels or where radio coverage might activate stored labels. The label will permanently try to connect to the access point, leading to less usable battery lifetime.
- The maximum storage time of labels should not exceed 0.5-1 year.
If these listed limits are not complied with, the specified battery lifetime can vary, and display quality can be influenced negatively.
Intended Use
The VUSION electronic shelf label family is exclusively designed to connect to Access Points of SES-imagotag or acknowledged partners via radio. The device may only be used in areas where the environmental conditions fulfill the requirements described in the chapter "Environmental".
Improper Use and Warnings
SES-imagotag is not responsible and does not assume liability for damage or injury to persons, property, environment, and the VUSION electronic shelf label family itself caused by improper installation or improper handling. The operator assumes liability for any damage that results from improper use.
The following usage is not allowed:
- Don't drop VUSION Family Labels.
- Keep VUSION Family Labels away from water.
- Don't use the VUSION Labels with defective parts.
- Don't use the VUSION Labels with spare parts and accessories which are not examined and approved by SES-imagotag.
- Unauthorized changes or modifications to the VUSION Labels and their components without the consent of SES-imagotag are strictly forbidden.
- The SES-imagotag VUSION Labels do not contain parts, except batteries, that are allowed to be maintained by the user.
- The SES-imagotag VUSION Labels must NOT be dismantled. For necessary maintenance or repair works, always contact the manufacturer.
- Don't throw VUSION Labels into the dustbin. Deposit VUSION Labels at a reprocessing company.
- Contact SES-imagotag for more details about the removal process.
- Please do not use any liquid or spray cleaners directly on the surface of the VUSION Labels.
- SES-imagotag takes no responsibility for stolen VUSION Labels without encryption.
KEEP BATTERIES OUT OF REACH OF CHILDREN
Swallowing batteries may lead to serious injury in as little as 2 hours or death, due to chemical burns and potential perforation of the esophagus. If you suspect your child has swallowed or inserted a button battery, immediately call your local Poisons Information Authority, with contact information available online.
- Don't heat, recharge, or bend the battery.
- Examine devices and make sure the battery compartment is correctly secured, e.g., that the screw or other mechanical fastener is tightened. Do not use if the compartment is not secure.
- Dispose of used button batteries immediately and safely. Empty batteries can still cause harm.
- Tell others about the risk associated with button batteries and how to keep their children safe.
To learn how to use the battery door opener, check out the video tutorial: https://vimeo.com/173469013/01c9f17b10
Certificates and Compliance
CE Declaration of Conformity
SES-imagotag GmbH hereby declares that the radio equipment VUSION 1.6" (EDG2-0160-A), VUSION 2.2" (EDG2-0220-A, EDG3-0220-A, EDG3-0220-B), VUSION 2.2" F (EDG2-0220-A), VUSION 2.6" (EDG2-0260-A, EDG3-0260-A), VUSION 2.6" F (EDG2-0260-A), VUSION 2.7" (EDG2-0270-A, EDG2-0270-B), VUSION 2.9" (EDG3-0290-A), VUSION 2.9" F (EDG3-0290-A), VUSION 3.7" (EDG2-0370-A), G1 4.2" (EDG1-0420-A, EDG1-0420-B), VUSION 4.2" (EDG2-0420-A, EDG2-0420-B), VUSION 4.5" (EDG2-0450-A), VUSION 5.9" (EDG2-0590-A, EDG3-0590-A), VUSION 7.4" (EDG2-0740-A), VUSION 9.7" (EDG2-0970-A, EDG3-0970-A), VUSION 12.2" (EDG2-1220-A), VUSION Sway 2.6 (EDF3-0260-A) is in compliance with Directive 2014/53/EU. The full text of the EU Declaration of Conformity is available at: https://www.ses-imagotag.com/wp-content/uploads/2019/11/DoC_VUSION_V2.pdf
FCC Compliance
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
CAUTION TO USERS
Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
FCC rules apply to the following products: VUSION 1.6" (EDG2-0160-A), VUSION 2.2" (EDG2-0220-A, EDG3-0220-A, EDG3-0220-B), VUSION 2.2" F (EDG2-0220-A), VUSION 2.6" (EDG2-0260-A, EDG3-0260-A), VUSION 2.6" F (EDG2-0260-A), VUSION 2.7" (EDG2-0270-A, EDG2-0270-B), VUSION 2.9" (EDG3-0290-A), VUSION 2.9" F (EDG3-0290-A), VUSION 3.7" (EDG2-0370-A), G1 4.2" (EDG1-0420-A, EDG1-0420-B), VUSION 4.2" (EDG2-0420-A, EDG2-0420-B), VUSION 4.5" (EDG2-0450-A), VUSION 5.9" (EDG2-0590-A, EDG3-0590-A), VUSION 7.4" (EDG2-0740-A), VUSION 9.7" (EDG2-0970-A, EDG3-0590-A), VUSION 12.2" (EDG2-1220-A), VUSION Sway 2.6 (EDF3-0260-A)
IC Compliance (Canada)
This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada's licence-exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause interference. (2) This device must accept any interference, including interference that may cause undesired operation of the device.
L'émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d'Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes: 1) L'appareil ne doit pas produire de brouillage; 2) L'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.
IC standards apply to the following products: VUSION 1.6" (EDG2-0160-A), VUSION 2.2" (EDG2-0220-A, EDG3-0220-A, EDG3-0220-B), VUSION 2.2" F (EDG2-0220-A), VUSION 2.6" (EDG2-0260-A, EDG3-0260-A), VUSION 2.6" F (EDG2-0260-A), VUSION 2.7" (EDG2-0270-A, EDG2-0270-B), VUSION 2.9" (EDG3-0290-A), VUSION 2.9" F (EDG3-0290-A), VUSION 3.7" (EDG2-0370-A), G1 4.2" (EDG1-0420-A, EDG1-0420-B), VUSION 4.2" (EDG2-0420-A, EDG2-0420-B), VUSION 4.5" (EDG2-0450-A), VUSION 5.9" (EDG2-0590-A, EDG3-0590-A), VUSION 7.4" (EDG2-0740-A), VUSION 9.7" (EDG2-0970-A, EDG3-0970-A), VUSION 12.2" (EDG2-1220-A), VUSION Sway 2.6 (EDF3-0260-A)
NCC Compliance (Taiwan)
NCC rules apply to the following products: VUSION 1.6" (EDG2-0160-A), VUSION 2.2" (EDG2-0220-A, EDG3-0220-B), VUSION 2.2" F (EDG2-0220-A), VUSION 2.6" (EDG2-0260-A, EDG3-0260-A), VUSION 2.6" F (EDG2-0260-A), VUSION 4.2" (EDG2-0420-A), VUSION 4.2" (EDG2-0420-B), VUSION 4.5" (EDG2-0450-A), VUSION 7.4" (EDG2-0740-A), VUSION 9.7" (EDG2-0970-A), VUSION 12.2" (EDG2-1220-A)
取得審驗證明之低功率射頻器材,非經核准,公司、商號或使用者均不得擅自變更頻率、加大功率或變更原設計之特性及功能。低功率射頻器材之使用不得影響飛航安全及干擾合法通信;經發現有干擾現象時,應立即停用,並改善至無干擾時方得繼續使用。前述合法通信,指依電信管理法規定作業之無線電通信。低功率射頻器材須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。
Japan Compliance
This device is granted pursuant to the Japanese Radio Law under the grant ID n°:
- 201-180158 (Model: EDG2-0160-A)
- 201-180162 (Model: EDG2-0220-A)
- 201-180029 (Model: EDG2-0260-A)
- 219-210004 (Model: EDG1-0270-B)
- 201-180159 (Model: EDG2-0420-A)
- 020-200028 (Model: EDG2-0420-B)
- 201-190006 (Model: EDG2-0450-A)
- 201-180160 (Model: EDG2-0740-A)
- 201-180711 (Model: EDG2-1220-A)
This device should not be modified (otherwise the granted designation number will become invalid).
本製品は、電波法に基づく特定無線設備の技術基準適合証明などを受けております。認証番号:
- 201-18
