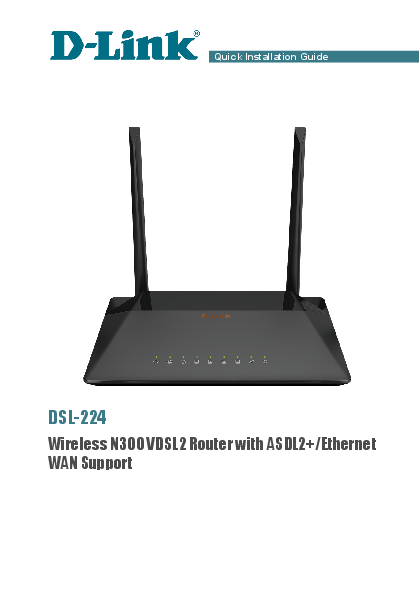

Quick Installation Guide
DSL-224
Wireless N300 VDSL2 Router with ASDL2+/Ethernet WAN Support
DSL-224
Quick Installation Guide
BEFORE YOU BEGIN
Delivery Package
· Router DSL-224 · Power adapter DC 12V/1A · RJ-11 telephone cable · Ethernet cable · Splitter · "Quick Installation Guide" (brochure). If any of the items are missing, please contact your reseller. The "User Manual" and "Quick Installation Guide" documents are available on D-Link website (see www.dlink.ru).
! Using a power supply with a different voltage rating than the one included will cause damage and void the warranty for this product.
2
DSL-224
Quick Installation Guide
Default Settings
Domain name of device IP address of device Username (login) Password
Name of wireless network (SSID)
Network key (PSK password)
dlinkrouter.local.
192.168.1.1
admin
admin
DSL-224
see WPS PIN on the barcode label on the bottom panel of the device
3
DSL-224
Quick Installation Guide
System Requirements and Equipment
· A computer with any operating system that supports a web browser. · A web browser to access the web-based interface of the router:
Apple Safari 8 and later Google Chrome 48 and later Microsoft Internet Explorer 10 and later Microsoft Edge 20.10240 and later Mozilla Firefox 44 and later Opera 35 and later. · A NIC (Ethernet or Wi-Fi adapter) to connect to the router. · An 802.11b, g, or n Wi-Fi adapter to create a wireless network.
4
DSL-224
Quick Installation Guide
CONNECTING TO PC
PC with Ethernet Adapter
1. Connect an Ethernet cable between any of LAN ports located on the back panel of the router and the Ethernet port of your PC.
2. To connect the device to a DSL line: connect a phone cable between the DSL port of the router and the MODEM port of the splitter. Connect your phone to the PHONE port of the splitter. Then connect another phone cable between a phone jack and the LINE port of the splitter.
3. To connect the device to an Ethernet line: please connect the router to the ISP's Ethernet line only after setting the WAN port and creating the Internet connection (see the Initial Configuration Wizard section, page 16).
4. Connect the power cord to the power connector port on the back panel of the router, then plug the power adapter into an electrical outlet or power strip.
5. Turn on the router by pressing the POWER button on its back panel.
Then make sure that your PC is configured to obtain an IP address automatically (as DHCP client).
5
DSL-224
Quick Installation Guide
Obtaining IP (OS Windows 7)
Address
Automatically
1. Click the Start button and proceed to the Control Panel window.
2. Select the Network and Sharing Center section. (If the Control Panel has the category view (the Category value is selected from the View by drop-down list in the top right corner of the window), choose the View network status and tasks line under the Network and Internet section.)
3. In the menu located on the left part of the window, select the Change adapter settings line.
4. In the opened window, right-click the relevant Local Area Connection icon and select the Properties line in the menu displayed.
5. In the Local Area Connection Properties window, on the Networking tab, select the Internet Protocol Version 4 (TCP/IPv4) line. Click the Properties button.
6
DSL-224
Quick Installation Guide
6. Make sure that the Obtain an IP address automatically and Obtain DNS server address automatically choices of the radio buttons are selected. Click the OK button.
7. Click the OK button in the connection properties window. 7
DSL-224
Quick Installation Guide
PC with Wi-Fi Adapter
1. To connect the device to a DSL line: connect a phone cable between the DSL port of the router and the MODEM port of the splitter. Connect your phone to the PHONE port of the splitter. Then connect another phone cable between a phone jack and the LINE port of the splitter.
2. To connect the device to an Ethernet line: please connect the router to the ISP's Ethernet line only after setting the WAN port and creating the Internet connection (see the Initial Configuration Wizard section, page 16).
3. Connect the power cord to the power connector port on the back panel of the router, then plug the power adapter into an electrical outlet or power strip.
4. Turn on the router by pressing the POWER button on its back panel.
5. Make sure that the Wi-Fi adapter of your PC is on. As a rule, modern notebooks with built-in wireless NICs are equipped with a button or switch that turns on/off the wireless adapter (refer to your PC documents). If your PC is equipped with a pluggable wireless NIC, install the software provided with your Wi-Fi adapter.
Then make sure that your Wi-Fi adapter is configured to obtain an IP address automatically (as DHCP client).
8
DSL-224
Quick Installation Guide
Obtaining IP Address Automatically and Connecting to Wireless Network (OS Windows 7)
1. Click the Start button and proceed to the Control Panel window.
2. Select the Network and Sharing Center section. (If the Control Panel has the category view (the Category value is selected from the View by drop-down list in the top right corner of the window), choose the View network status and tasks line under the Network and Internet section.)
3. In the menu located on the left part of the window, select the Change adapter settings line.
4. In the opened window, right-click the relevant Wireless Network Connection icon. Make sure that your Wi-Fi adapter is on, then select the Properties line in the menu displayed.
5. In the Wireless Network Connection Properties window, on the Networking tab, select the Internet Protocol Version 4 (TCP/IPv4) line. Click the Properties button.
9
DSL-224
Quick Installation Guide
6. Make sure that the Obtain an IP address automatically and Obtain DNS server address automatically choices of the radio buttons are selected. Click the OK button.
7. Click the OK button in the connection properties window. 8. To open the list of available wireless networks, select the icon of the
wireless network connection and click the Connect To button or leftclick the network icon in the notification area located on the right side of the taskbar.
10
DSL-224
Quick Installation Guide
9. In the opened window, in the list of available wireless networks, select the wireless network DSL-224 and click the Connect button.
10. In the opened window, enter the network key (see WPS PIN on the barcode label on the bottom panel of the device) in the Security key field and click the OK button.
11. Wait for about 20-30 seconds. After the connection is established, the network icon will be displayed as the signal level scale. If you perform initial configuration of the router via Wi-Fi connection,
! note that immediately after changing the wireless default settings of the router you will need to reconfigure the wireless connection using the newly specified settings.
11
DSL-224
Quick Installation Guide
CONFIGURING ROUTER
Connecting to Web-based Interface
Start a web browser. In the address bar of the web browser, enter the domain name of the router (by default, dlinkrouter.local) with a dot at the end and press the Enter key. Also you can enter the IP address of the device (by default, 192.168.1.1).
If the error "The page cannot be displayed" (or "Unable to display the
! page"/"Could not connect to remote server") occurs upon connecting to the web-based interface of the router, make sure that you have properly connected the router to your computer.
If the device has not been configured previously or the default settings have been restored, after access to the web-based interface the Initial Configuration Wizard opens (see the Initial Configuration Wizard section, page 16).
12
DSL-224
Quick Installation Guide
If you configured the device previously, after access to the web-based interface the login page opens. Enter the username (admin) in the Username field and the password you specified in the Password field, then click the LOGIN
button.
If you enter a wrong password several times, the web-based interface will be blocked for a while. Please wait for one minute and reenter the password you specified.
13
DSL-224
Quick Installation Guide
The Summary page displays general information on the router and its software.
14
DSL-224
Quick Installation Guide
The Home page displays links to the most frequently used pages with device's settings.
The web-based interface of the router is multilingual. You can select the needed language upon the initial configuration of the web-based interface of the router or in the System / Configuration section of the menu. Other settings of the router are available in the menu in the left part of the page. Go to the relevant section and select the needed page or run the wizard in the Initial Configuration section.
15
DSL-224
Quick Installation Guide
Initial Configuration Wizard
In order to start the Initial Configuration Wizard manually, go to the Initial Configuration section.
Click the OK button and wait until the factory default settings are restored.
If you perform initial configuration of the router via Wi-Fi connection, please make sure that you are connected to the wireless network of DSL-224 and click the NEXT button. Then click the START button.
If the device has not been configured previously or the default settings have been restored, the Initial Configuration Wizard starts automatically upon access to the web-based interface or upon opening a web site on the Internet.
16
DSL-224
Quick Installation Guide
1. Click YES in order to leave the current language of the web-based interface or click NO to select another language.
2. On the next page, click the CONTINUE button.
17
DSL-224
Quick Installation Guide
Selecting Operation Mode
In order to connect your device to a VDSL or ADSL line, on the Device mode page, from the Connection method list, select the VDSL or ADSL value correspondingly. In this mode you can configure a WAN connection, set your own settings for the wireless network, configure LAN ports to connect an STB or VoIP phone, and set your own password for access to the web-based interface of the device.
In order to connect your device to a private Ethernet line, on the Device mode page, from the Connection method list, select the Ethernet (LAN) value. In this mode you can configure one of the router's LAN port as the WAN port, configure a WAN connection, set your own settings for the wireless network, configure LAN ports to connect an STB or VoIP phone, and set your own password for access to the web-based interface of the device. When the operation mode is selected, click the NEXT button.
18
DSL-224
Quick Installation Guide
Configuring LAN Port as WAN Port
This configuration step is available for the Ethernet (LAN) mode.
1. On the Device connection page, select a free LAN port which will be used as the WAN port.
2. Click the NEXT button.
19
DSL-224
Quick Installation Guide
Configuring Ethernet WAN Connection
This configuration step is available for the Ethernet (LAN) mode.
You should configure your WAN connection in accordance with data
! provided by your Internet service provider (ISP). Make sure that you have obtained all necessary information prior to configuring your connection. Otherwise contact your ISP.
1. On the Internet connection type page, from the Connection type list, select the connection type used by your ISP and fill in the fields displayed on the page.
Static IPv4: Fill in the following fields: IP address, Subnet mask, Gateway IP address, and DNS IP address.
Static IPv6: Fill in the following fields: IP address, Prefix, Gateway IP address, and DNS IP address.
20
DSL-224
Quick Installation Guide
PPPoE, IPv6 PPPoE, PPPoE Dual Stack: Enter authorization data provided by your ISP (the username (login) in the Username field and the password in the Password field). Click the Show icon ( ) to display the entered password. If authorization is not required, select the Without authorization
checkbox.
2. If your ISP uses MAC address binding, select the Clone MAC address of your device checkbox.
3. If the Internet access is provided via a VLAN channel, select the Use VLAN checkbox and fill in the VLAN ID field.
4. Click the NEXT button.
21
DSL-224
Quick Installation Guide
Configuring VDSL WAN Connection
This configuration step is available for the VDSL mode.
You should configure your WAN connection in accordance with data
! provided by your Internet service provider (ISP). Make sure that you have obtained all necessary information prior to configuring your connection. Otherwise contact your ISP.
1. On the Internet connection type page, from the Connection type list, select the connection type used by your ISP and fill in the fields displayed on the page.
Static IPv4: Fill in the following fields: IP address, Subnet mask, Gateway IP address, and DNS IP address.
Static IPv6: Fill in the following fields: IP address, Prefix, Gateway IP address, and DNS IP address.
22
DSL-224
Quick Installation Guide
PPPoE, IPv6 PPPoE, PPPoE Dual Stack: Enter authorization data provided by your ISP (the username (login) in the Username field and the password in the Password field). Click the Show icon ( ) to display the entered password. If authorization is not required, select the Without authorization
checkbox.
2. If your ISP uses MAC address binding, select the Clone MAC address of your device checkbox.
3. If the Internet access is provided via a VLAN channel, select the Use VLAN checkbox and fill in the VLAN ID field.
4. Click the NEXT button.
23
DSL-224
Quick Installation Guide
Configuring ADSL WAN Connection
This configuration step is available for the ADSL mode.
You should configure your WAN connection in accordance with data
! provided by your Internet service provider (ISP). Make sure that you have obtained all necessary information prior to configuring your connection. Otherwise contact your ISP.
1. On the Internet connection type page, from the Connection type list, select the connection type used by your ISP and fill in the fields displayed on the page.
Static IPv4, IPoA: Fill in the following fields: IP address, Subnet mask, Gateway IP address, and DNS IP address.
Static IPv6: Fill in the following fields: IP address, Prefix, Gateway IP address, and DNS IP address.
24
DSL-224
Quick Installation Guide
PPPoE, IPv6 PPPoE, PPPoE Dual Stack, PPPoA: Enter authorization data provided by your ISP (the username (login) in the Username field and the password in the Password field). Click the Show icon ( ) to display the entered password. If authorization is not required, select the Without authorization checkbox.
2. Specify the VPI and VCI values in the relevant fields. 3. Click the NEXT button.
25
DSL-224
Quick Installation Guide
Configuring Wireless Network
1. On the Wireless Network 2.4 GHz page, in the Network name field, specify your own name for the wireless network or leave the value suggested by the router.
2. In the Password field, specify your own password for access to the wireless network or leave the value suggested by the router (WPS PIN of the device, see the barcode label).
3. You can restore the parameters of the wireless network specified before resetting to factory defaults. To do this, click the RESTORE button.
26
DSL-224
Quick Installation Guide
4. If you want to create an additional wireless network isolated from your LAN, select the Enable guest network checkbox.
5. In the Network name field, specify your own name for the guest wireless network or leave the value suggested by the router.
6. If you want to create a password for access to the guest wireless network, deselect the Open network checkbox and fill in the Password field.
7. If you want to limit the bandwidth of the guest wireless network, select the Enable shaping checkbox and fill in the Shaping field.
8. Click the NEXT button.
27
DSL-224
Quick Installation Guide
Configuring LAN Ports for IPTV/VoIP
1. On the IPTV page, select the Is an STB connected to the device checkbox.
2. Select a free LAN port for connecting your set-top box.
3. For the VDSL, Ethernet (LAN) modes: If the IPTV service is provided via a VLAN channel, select the Use VLAN ID checkbox and fill in the VLAN ID field.
4. For the ADSL mode: Specify the VPI and VCI values in the relevant fields.
5. Click the NEXT button.
28
DSL-224
Quick Installation Guide
6. On the VoIP page, select the Is an IP phone connected to the device checkbox.
7. Select a free LAN port for connecting your IP phone.
8. For the VDSL, Ethernet (LAN) modes: If the VoIP service is provided via a VLAN channel, select the Use VLAN ID checkbox and fill in the VLAN ID field.
9. For the ADSL mode: Specify the VPI and VCI values in the relevant fields.
10. Click the NEXT button.
29
DSL-224
Quick Installation Guide
Changing Web-based Interface Password
On this page you should change the default administrator password. To do this, enter a new password in the Admin password and Password confirmation fields. You may set any password except admin. Use digits, Latin letters (uppercase and/or lowercase), and other characters available in the US keyboard layout.1
Remember or write down the new password for the administrator account. In case of losing the new password, you can access the settings
! of the router only after restoring the factory default settings via the hardware RESET button. This procedure wipes out all settings that you have configured for your router. Click the NEXT button. On the next page, check all the settings you have just specified. Also you can save a text file with parameters set by the Wizard to your PC. To do this, click the SAVE CONFIGURATION FILE button and follow the dialog box appeared. To finish the Wizard, click the APPLY button. The router will apply settings, reboot, if needed, and check the Internet connection if the Wizard has configured a WAN connection.
1 0-9, A-Z, a-z, space, !"#$%&'()*+,-./:;<=>?@[\]^_`{|}~.
30
DSL-224
Quick Installation Guide
Configuring Local Area Network
1. Go to the Connections Setup / LAN page.
2. If needed, change the IPv4 address of the router's LAN interface and the mask of the local subnet. To do this, click the IPv4 tab and specify needed values in the IP address and Mask fields in the Local IP Address section.
3. If needed, specify your own IPv6 address of the router's LAN interface. To do this, click the IPv6 tab and select the Static value from the Mode of local IPv6 address assignment drop-down list in the Local IPv6 Address section. Then specify the needed value in the IPv6 address field.
31
DSL-224
Quick Installation Guide
4. IPv4 address assignment. By default, the built-in DHCP server of the router assigns IPv4 addresses to the devices of the LAN. If you want to manually assign IPv4 addresses, disable the DHCP server (click the IPv4 tab and select the Disable value from the Mode of dynamic IP address assignment drop-down list in the Dynamic IP Addresses section).
32
DSL-224
Quick Installation Guide
5. IPv6 address assignment. By default, the devices of the LAN automatically assign IPv6 addresses to themselves (the Stateless value is selected from the Mode of dynamic IPv6 address assignment drop-down list in the Dynamic IPv6 Addresses section on the IPv6 tab). If the devices of the LAN do not support IPv6 address
autoconfiguration, use the built-in DHCPv6 server of the router (select the Stateful value from the Mode of dynamic IPv6 address assignment drop-down list). If you want to manually assign IPv6 addresses to devices of the LAN, select the Disable value from the Mode of dynamic IPv6 address assignment drop-down list.
6. After specifying the needed parameters on the Connections Setup / LAN page, click the APPLY button.
33
DSL-224
Quick Installation Guide
SPECIFICATIONS*
Hardware
Processor
·
RAM
·
Flash
·
Interfaces
· ·
LEDs
·
·
·
·
·
·
Buttons
·
·
·
·
Antenna
·
MIMO
·
Power connector
·
RTL8685S (500MHz)
32MB, DDR2 SDRAM
8MB, SPI
RJ-11 DSL port 4 10/100BASE-TX LAN ports
POWER INTERNET DSL 4 LAN LEDs WLAN WPS
POWER button to power on/power off RESET button to restore factory default settings WPS button to set up wireless connection WIFI button to enable/disable wireless network
Two external non-detachable omnidirectional antennas (5dBi gain)
2 x 2
Power input connector (DC)
* The device features are subject to change without notice. For the latest versions of the firmware and relevant documentation, visit www.dlink.ru.
34
DSL-224 DSL Parameters
VDSL/ADSL Standards
ATM/PPP Protocols
Software
WAN connection types
Network functions
Quick Installation Guide
· VDSL2: ITU G.993.2, support of 8a, 8b, 8c, 8d, 12a, 12b, 17a, 30a profiles
· ADSL: Multi-mode, ANSI T1.413 Issue 2, ITU-T G.992.1 (G.dmt) Annex A, ITU-T G.992.2 (G.lite) Annex A, ITU-T G.994.1 (G.hs)
· ADSL2: ITU-T G.992.3 (G.dmt.bis) Annex A/L/M, ITU-T G.992.4 (G.lite.bis) Annex A
· ADSL2+: ITU-T G.992.5 Annex A/L/M · Bridged and routed Ethernet encapsulation · VC-based or LLC-based multiplexing · ATM Forum UNI3.1/4.0 PVC (up to 8 PVCs) · ATM Adaptation Layer Type 5 (AAL5) · ITU-T I.610 OAM F4/F5 loopback · ATM QoS · PPP over ATM (RFC 2364) · PPP over Ethernet (PPPoE) · Keep-alive for PPP connections
· PPPoA · PPPoE · IPv6 PPPoE · PPPoE Dual Stack · IPoA · Static IPv4 / Dynamic IPv4 · Static IPv6 / Dynamic IPv6 · Bridge · DHCP server/relay · Advanced configuration of built-in DHCP server · Stateful/Stateless mode for IPv6 address assignment,
IPv6 prefix delegation · DNS relay · Dynamic DNS · Static IP routing · Static IPv6 routing · IGMP Proxy · IGMP snooping · RIP · Support of UPnP IGD · Support of VLAN · WAN ping respond · Support of SIP ALG · Support of RTSP · LAN/WAN conversion
35
DSL-224
Quick Installation Guide
Software
Firewall functions
VPN QoS Management and monitoring
· Network Address Translation (NAT) · Stateful Packet Inspection (SPI) · IPv4/IPv6 filter · MAC filter · URL filter · DMZ · Prevention of ARP and DDoS attacks · Virtual servers · Built-in Yandex.DNS web content filtering service
· IPsec/PPTP/L2TP/PPPoE pass-through
· Interface grouping · VLAN priority (802.1p)
· Local and remote access to settings through TELNET/WEB (HTTP/HTTPS)
· Multilingual web-based interface for configuration and management
· Support of D-Link Assistant application for Android and iPhone smartphones
· Firmware update via web-based interface · Automatic notification on new firmware version · Saving/restoring configuration to/from file · Support of logging to remote host · Automatic synchronization of system time with NTP
server and manual time/date setup · Ping utility · Traceroute utility · TR-069 client
36
DSL-224
Quick Installation Guide
Wireless Module Parameters
Standards
·
Frequency range
·
Wireless connection security
· ·
·
·
Advanced functions
· ·
·
·
·
·
·
Wireless connection rate
· ·
·
Transmitter output power
·
The maximum value of the
·
transmitter output power
depends upon the radio
frequency regulations applied in
·
your country
Receiver sensitivity
·
·
·
Modulation schemes
·
·
·
IEEE 802.11b/g/n
2400 ~ 2483.5MHz
WEP WPA/WPA2 (Personal/Enterprise) filter WPS (PBC/PIN)
WMM (Wi-Fi QoS) Information on connected Wi-Fi clients Advanced settings Guest Wi-Fi / support of MBSSID Limitation of wireless network rate Periodic scan of channels, automatic switch to least loaded channel Autonegotiation of channel bandwidth in accordance with environment conditions (20/40 Coexistence)
IEEE 802.11b: 1, 2, 5.5, and 11Mbps IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, and 54Mbps IEEE 802.11n: from 6.5 to 300Mbps (from MCS0 to MCS15)
802.11b 15dBm (+/-1dB)
802.11g 14dBm (+/-1dB)
802.11n 14dBm (+/-1dB)
802.11b -86dBm
802.11g -72dBm
802.11n HT20 -67dBm HT40 -65dBm
802.11b: CCK (11, 5.5Mbps), DQPSK (2Mbps), DBPSK (1Mbps), DSSS 802.11g: PSK/CCK, DBPSK, DQPSK, OFDM, BPSK, QPSK, 16QAM, 64QAM 802.11n: PSK/CCK, DBPSK, DQPSK, OFDM, etc.
37
DSL-224
Quick Installation Guide
Physical Parameters
Dimensions (L x W x H) Weight
· 205 x 139 x 32 mm (8 x 5.5 x 1.3 in) · 260 g (0.6 lb)
Operating Environment
Power Temperature Humidity
· Output: 12V DC, 1A · Operating: from 0 to 40 °C · Storage: from -20 to 70 °C · From 5% to 95% (non-condensing)
38
DSL-224
Quick Installation Guide
SAFETY RULES AND CONDITIONS
Please carefully read this section before installation and connection of the device. Make sure that the power adapter and cables are not damaged. The device should be used only as intended in accordance with the documents.
The device is intended for use in dry, clean, dust-free, and well ventilated areas with normal humidity away from strong heat sources. Do not use the device outdoors or in the areas with high humidity. Do not place foreign objects on the device. Do not obstruct the ventilation openings of the device. The environmental temperature near the device and the temperature inside the device's cover should be within the range from 0 ° to +40 °.
Only use the power adapter supplied with the device. Do not plug in the adapter, if its case or cable are damaged. Plug the adapter only into working electrical outlets with parameters indicated on the adapter.
Do not open the cover of the device! Unplug the device before dusting and cleaning. Use a damp cloth to clean the device. Do not use liquid/aerosol cleaners or magnetic/static cleaning devices. Prevent moisture getting into the device or the power adapter.
The service life of the device is 2 years.
39
DSL-224
Quick Installation Guide
TECHNICAL SUPPORT
You can find software updates and user documentation on our website.
D-Link provides its customers with free support within the product's warranty period.
Customers can contact the technical support group by phone or by e-mail/Internet.
FOR TELEPHONE NUMBERS AND ADDRESSES OF D-LINK OFFICES WORLDWIDE VISIT
http://www.dlink.com/corporate/worldwideoffices/
40
Writer LibreOffice 5.1
