Security Systems

TO WHOM IT MAY CONCERN

Bosch Security Systems Torenallee 49
5617 BA Eindhoven The Netherlands

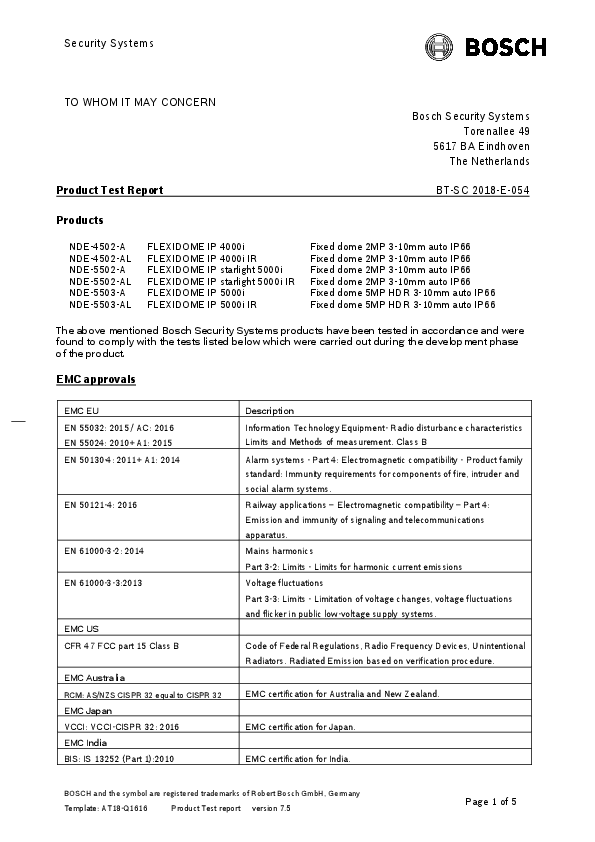

Product Test Report

BT-SC 2018-E-054

Products

NDE-4502-A NDE-4502-AL NDE-5502-A NDE-5502-AL NDE-5503-A NDE-5503-AL

FLEXIDOME IP 4000i FLEXIDOME IP 4000i IR FLEXIDOME IP starlight 5000i FLEXIDOME IP starlight 5000i IR FLEXIDOME IP 5000i FLEXIDOME IP 5000i IR

Fixed dome 2MP 3-10mm auto IP66 Fixed dome 2MP 3-10mm auto IP66 Fixed dome 2MP 3-10mm auto IP66 Fixed dome 2MP 3-10mm auto IP66 Fixed dome 5MP HDR 3-10mm auto IP66 Fixed dome 5MP HDR 3-10mm auto IP66

The above mentioned Bosch Security Systems products have been tested in accordance and were found to comply with the tests listed below which were carried out during the development phase of the product.

EMC approvals

EMC EU EN 55032: 2015 / AC: 2016 EN 55024: 2010+ A1: 2015 EN 50130-4: 2011+ A1: 2014
EN 50121-4: 2016
EN 61000-3-2: 2014
EN 61000-3-3:2013
EMC US CFR 47 FCC part 15 Class B
EMC Australia RCM: AS/NZS CISPR 32 equal to CISPR 32 EMC Japan VCCI: VCCI-CISPR 32: 2016 EMC India BIS: IS 13252 (Part 1):2010

Description Information Technology Equipment- Radio disturbance characteristics Limits and Methods of measurement. Class B Alarm systems - Part 4: Electromagnetic compatibility - Product family standard: Immunity requirements for components of fire, intruder and social alarm systems. Railway applications ­ Electromagnetic compatibility ­ Part 4: Emission and immunity of signaling and telecommunications apparatus. Mains harmonics Part 3-2: Limits - Limits for harmonic current emissions Voltage fluctuations Part 3-3: Limits - Limitation of voltage changes, voltage fluctuations and flicker in public low-voltage supply systems.
Code of Federal Regulations, Radio Frequency Devices, Unintentional Radiators. Radiated Emission based on verification procedure.
EMC certification for Australia and New Zealand.
EMC certification for Japan.
EMC certification for India.

BOSCH and the symbol are registered trademarks of Robert Bosch GmbH, Germany

Template: AT18-Q1616

Product Test report version 7.5

Page 1 of 5

Security Systems

EMC Eurasian Economic Union - EAC EMC Korea - KC EMC Morocco - CMIM

EMC certification for Eurasian Economic Union. EMC certification for Korea. EMC certification for Morocco

Page 2 of 5

Security Systems

Safety approvals
Safety EU EN 62368-1:2014 + A11:2017
EN 60950-22: 2017
EN 62471: 2008 (Only for IR version) Safety USA + Canada UL 62368-1 CAN/CSA-C22.2 No. 62368-1-14 CSA/UL 60950-22 CAN/CSA-C22.2 No. 60950-22-07
Environmental approvals
Directive or standard RoHS EU, 2011/65/EU EN 50581:2012 WEEE EU, 2012/19/EU Packaging EU, 94/62/EC (amended by 2014/12/EC) N2580-1 (Bosch standard)
N33 6 (Bosch standard)
Management system
Directive or standard ISO 9001:2015
ISO 14001:2015

Audio/video, Information and Communication technology equipment Part 1: Safety requirements Information technology equipment - Safety - Part 22: Equipment installed outdoors. Eye Safety
Audio/video, Information and Communication technology equipment Part 1: Safety requirements Information technology equipment - Safety - Part 22: Equipment installed outdoors.
Description Restriction of the use of certain hazardous substances (RoHS)
Waste Electrical and Electronic Equipment (WEEE) Packaging and packaging waste
Central directive Bosch-Norm N 2580-1: "Prohibition and declaration of substances" Bosch-Norm N 2580-1 regulates prohibited substances and those rated declarable in materials, and it is part of the requirements for materials. Design for Environment (DfE): Design and manufacturing rules.
Description Quality management systems ­ Requirements Scope: Development, Production, Installation and Sales. Environmental management systems ­ Requirements with guidance for use Scope: Development, Production, Sales and After Sales.

Page 3 of 5

Security Systems

Reliability tests

EN50130-5:2011 Alarm systems Part 5: Environmental test methods Dry heat (Operational) (EN 60068-2-2:2007) Dry heat (Endurance) (EN 60068-2-2:2007) Cold operation (Operational) (EN 60068-2-1:2007) Damp heat, steady state (Endurance) (EN 60068-2-78:2012) Damp heat, cyclic (Operational) (EN 60068-2-30:2005) Damp heat, cyclic (Endurance) (EN 60068-2-30:2005) Water ingress (Operational) (EN 60068-2-18:2001) Salt mist, cyclic (Endurance) (EN 60068-2-52:1996) Shock (Operational) (EN 60068-2-27:2009)
Impact (Operational) (EN 60068-2-75:2014)
Vibration sinusoidal (Operational) (EN 60068-2-6:2008)
Vibration sinusoidal (Endurance) (EN 60068-2-6:2008) Dust tightness (Endurance) (EN 60529:1991 A1:2000)

Class IV, fixed equipment, outdoor in general Temperature +70°C, Duration 16 hours.
Temperature +70°C, Duration 21 days.
Temperature -25°C, Duration 16 hours. Bosch tested more severe at temperature -40°C. Temperature +40°C, Relative Humidity 93%, duration 21 days.
Temperature +25°C to +55°C, Relative Humidity 93%, 2 cycles. Bosch tested more severe for 6 cycles. Temperature +25°C to +55°C, Relative Humidity 93%, 6 cycles.
Test procedure Ra1.1 or Rb1.2, 10min (Similar EN60529 IPX4). Bosch tested more severe for class IPx6 by mounting on a board. Temperature +15ºC to +35ºC, Relative Humidity 93%, 4 cycles, Duration 28 days. Halve sine wave pulse, duration 6ms, 3 pulses per direction, 6 directions. Bosch tested with acceleration of ± 1000 m/s2. Impact energy 1.0 Joule , 3 impacts per point (Similar to EN 62262 IK06 rating). Bosch tested more severe for IK10 rating. Frequency Range 10~150Hz, 5 m/s², 3 axes, Sweep rate 1 octave/min, 1 sweep/axis. Bosch tested with acceleration of 10m/s2 and in operational mode. Frequency Range 10~150Hz, 10 m/s², 3 axes, Sweep rate 1 octave/min, 20 sweep/axis. Duration 8h (similar to EN 60529 IP5X). Bosch tested more severe for IP6X rating.

Page 4 of 5

Security Systems

Additional Reliability tests
Environmental test methods MTBF calculation of used components HALT (Highly Accelerating Life Test)
Cold start test Transport tests acc. AV18-Q0681 ISTA-2A: 2011 1. Conditioning
2. Compression 3. First vibration test 4. Drop test after 1st vibration test 5. Second vibration test

Specific Test description
Based on: Siemens SN 29500, or FIT figures manufacturer. Theoretical MTBF is about 800.000 h. Overstress test to Fail, Operational, Lower Of Limitation = -40°C, High Of Limitation = +80°C, Vibration OL > 50Grms Combined Environment Stress: Temperature -40°C to +80°C, with 4 to 25 Grms for each cycle. At ambient temperature -40°C.
Pre-conditioning: Temp. +25°C, 43%RH, Duration 6 hours. Conditioning: Temp. +38°C, 85%RH, Duration 72 hours. Temp. +60°C, 30%RH, Duration 6 hours. Top to Bottom, Apply and Hold, Duration 60min. Calculated test load = 972 lbs Frequency 232CPM, Duration 62 min. ; Number of Impact (cycle): 14200 cycles Height depending of weight of product. Drop height (inch): 32; drop times: 10 Frequency 232CPM, Duration 62 min. ; Number of Impact (cycle): 14200 cycles

Data subject to change without notice. Eindhoven, July 2020.
