Next-Generation Performance, Control and Value The Clarity Matrix G3 LCD Video Wall System is the ultimate LCD video wall solution for applications seeking the very best visual performance and mission-critical reliability. Clarity Matrix G3 features a unique design that optimizes the extremely thin bezel LCD with 24x7 operation,
Next-Generation Performance, Control and Value The Clarity Matrix G3 LCD Video Wall System is the ultimate LCD video wall solution for applications seeking the very best visual performance and mission-critical reliability.
... ensure perfectly synchronized video playback without manual configuration. ... 1/2021 www.planar.com. CLARITY MATRIX G3 LCD VIDEO WALL SYSTEM ...

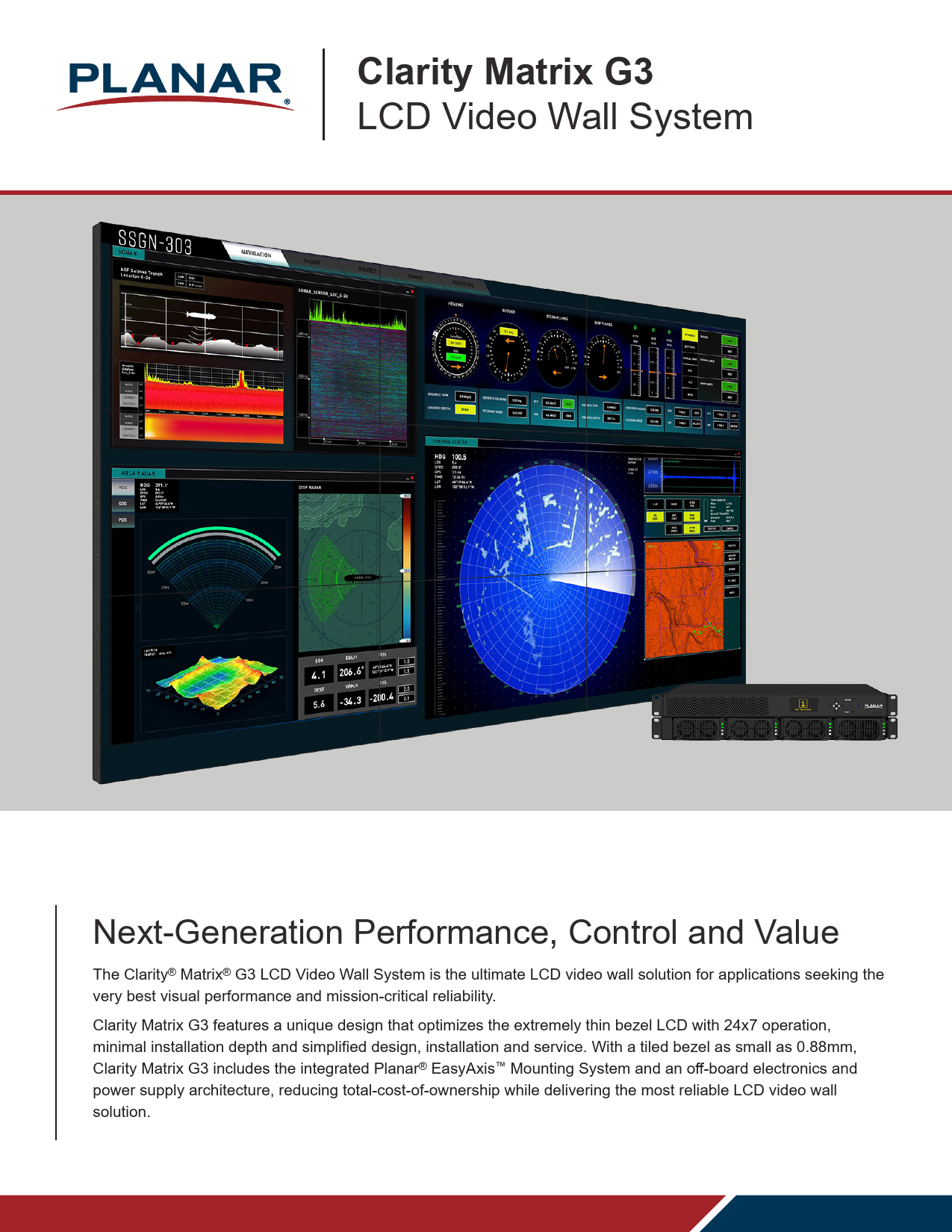

Clarity Matrix G3 LCD Video Wall System Next-Generation Performance, Control and Value The Clarity® Matrix® G3 LCD Video Wall System is the ultimate LCD video wall solution for applications seeking the very best visual performance and mission-critical reliability. Clarity Matrix G3 features a unique design that optimizes the extremely thin bezel LCD with 24x7 operation, minimal installation depth and simplified design, installation and service. With a tiled bezel as small as 0.88mm, Clarity Matrix G3 includes the integrated Planar® EasyAxisTM Mounting System and an off-board electronics and power supply architecture, reducing total-cost-of-ownership while delivering the most reliable LCD video wall solution. Unique Architecture and Benefits by Design Designed and developed by video wall industry experts, the third generation Clarity Matrix G3 LCD Video Wall System addresses the challenges faced by all video wall installations including: mounting and alignment, reliability and extended operation, service and maintenance access and simple, effective image processing and management. At the heart of Clarity Matrix G3 is a distributed design that takes heat, complexity and potential points-of-failure off the LCD display and places it with a centrally located, easily accessible and highly reliable rack-mounted system. 65", 55", 46" LCD displays Tiled bezel width as small as 0.88mm Optional Planar® ERO-LCDTM protects surface and can be touch-enabled System Components: · Clarity Matrix G3 LCD displays · Planar EasyAxis Mounting System · Planar Big Picture Plus video processing with Planar WallSync technology · Off-Board Planar Remote Power Supply and Planar Video Controller · Planar WallDirector Software Off-board power supplies eliminate need for outlets behind displays Planar Video Controller drives up to 9 Full HD display sections Perfect alignment with Planar EasyAxis Mounting System Fanless LCD module for whisper-quiet operation Planar WallSync synchronizes video playback & eliminates image tearing between displays Planar Remote Power Supply drives up to eight displays Simplified Design, Installation and Service Designing, installing and servicing an LCD video wall has never been easier with Clarity Matrix G3. The architecture is focused on eliminating compatibility and integrity concerns, as well as eliminating costs associated with long distance cable extenders and AC power outlets behind the video wall. Fewer cables are necessary to run to the video wall, simplifying and reducing the cost of the system. Service Mode for in-wall servicing Architecture Advantages: · Integrated video and power extension up to 200 feet (60 meters) · Rack-mount components can be co-located with sources and processing equipment for easy serviceability and no disruption at the video wall · No third-party long-distance extenders or cables needed · Entire video wall is controlled with a single remote control, RS-232 or LAN device, including third-party control system · Power and video looping between panels for minimizing long-distance cable runs · No AC outlets required behind the displays Perfect Alignment The Clarity Matrix G3 LCD Video Wall System includes the Planar EasyAxis Mounting System with built-in precision alignment capabilities, an in-wall service position and an industry-leading total installation depth as small as 3.6" (91mm). As a result, Clarity Matrix G3 has the thinnest footprint of any LCD video wall, making it compliant with the Americans with Disabilities Act (ADA) requirement for protruding objects of less than four inches. Planar EasyAxis adjustment cams facilitate precise 6-axis alignment ensuring uniform, minimized imageto-image gap. Advanced Video Wall Processing Clarity Matrix G3 delivers extensive and flexible video wall processing options to display sources on the video wall. With Planar® Big Picture PlusTM Video Wall Processing, Clarity Matrix G3 allows sources to be scaled across the entire video wall or any section of the video wall. To simplify Planar Big Picture Plus set-up, Clarity Matrix G3 has position sensors built into the LCD that determine its location within the array and scale the sources across the video wall, saving hours of set-up time. Planar Big Picture Plus Processing allows for ultra-high resolution content up to 4K to spread over multiple displays at native resolution. For more complex configurations, Clarity Matrix G3 supports all leading image processing and digital signage software solutions including the Clarity® VCSTM Video Wall Processor. Solving a range of video wall genlock and synchronization challenges, Clarity Matrix G3 includes Planar® WallSyncTM genlock technology. Planar WallSync uses Smart Genlock to automatically ensure perfectly synchronized video playback without manual configuration. Scale across multiple displays 4K Picture in Picture (PiP) Mission Critical Design The unique architecture of Clarity Matrix G3 provides a mission-critical design with hot-swappable redundant Remote Power Supply Modules, redundant AC input circuitry, reduced thermal stress and health and status monitoring capabilities. Clarity Matrix G3 adds n+1 hot swapping capabilities with the Planar® Remote Power Supply so in the event of failure, the video wall remains operational without disruption. Optional n+1 redundant Power Supply Module Fits standard 19" rack Hot-swappable modules For government and military customers delivering highly sensitive information, the Fiber Video Extension option provides a more secure and longer distance option for extending the video signal from Clarity Matrix G3 offboard electronics to Clarity Matrix G3 displays. Flexible resolution support Tile multiple sources in single display Planar WallDirector Software Clarity Matrix G3 leverages Planar® WallDirectorTM Software-- a new intuitive and powerful software tool to simplify installation, configuration and operation of your video wall. The Planar WallDirector Software allows users to: · Set-up & configure a video wall · Monitor the health & status of all video wall components from a convenient, centralized location · Send customized email or SNMP alerts to select people when specific fault conditions arise · Store & recall windowing layouts via simple, one-button presets · Drag & drop video wall canvas, for window positioning & sizing CLARITY MATRIX G3 LCD VIDEO WALL SYSTEM SPECIFICATIONS Model Diagonal Display Dimension (including mount, WxHxD) Display Weight Landscape (including mount) Display Weight Portrait (including mount) MX65U-4K 65 in / 1651 mm 54.4 x 31.8 x 3.7 in (1433.6 x 808.6 x 93 mm) 64 lbs / 29 kg LX55M/MX55M 55 in / 1397 mm 47.6 x 26.8 x 3.5 in (1210.5 x 681.2 x 90 mm) 47 lbs / 21.1 kg LX55X/MX55X 55 in / 1397 mm 47.7 x 26.9 x 3.6 in (1211 x 683 x 91 mm) LX55U 55 in / 1397 mm 47.8 x 26.9 x 3.6 in (1213 x 684 x 91 mm) 51 lbs / 23 kg LX46X 46 in / 1168.4 mm 40.3 x 22.7 x 3.6 in (1019 x 573 x 91 mm) LX46U/MX46U 46 in / 1168.4 mm 40.2 x 22.7 x 3.6 in (1022 x 577 x 91 mm) 40 lbs / 18 kg 66 lbs / 30 kg 49 lbs / 22.4 kg 53 lbs / 24kg 42 lbs / 19 kg Brightness Tiled Bezel Width Power Consumption (Max/display) Heat Load (Max/display) Mounted Depth (wall to display face) LCD Technology Display Resolution Contrast Ratio Cat6A STP Cables/Connectors Full Viewing Angle Backlight Sensing and Reporting 800 cd/m² or nits 3.7 mm / .15 in 390W 1331 BTU/hr 3.7 in / 93 mm 3840 x 2160 4000:1 500 cd/m² or nits 700 cd/m² or nits .88 mm / .04 in 500 cd/m² or nits 800 cd/m² or nits 1.7 mm / .06 in 500 cd/m² or nits 3.7 mm / .15 in 500 cd/m² or nits 800 cd/m² or nits 1.7 mm / .06 in 3.7 mm / .15 in LX: 235W / MX: 235W LX: 155W / MX: 225W 155W 125W LX: 115W / MX: 140W LX: 802 BTU/hr MX: 802 BTU/hr 10000:1 (local dimming on) 1100:1 (local dimming off) LX: 529 BTU/hr MX: 767 BTU/hr 529 BTU/hr 3.6 in / 91 mm Commercial-grade direct-view LCD 1920 x 1080 Required 178° At Display Level 4000:1 426 BTU/hr LX: 392 BTU/hr MX: 477 BTU/hr Display Module Position Sensing Yes Acoustic Noise at Display Operating Temperature/Humidity Protective / Touch Glass Option Fanless/Noiseless 5° to 40° C | 41° to 104° F (20-90% relative humidity, non-condensing) Planar ERO-LCD technology (Optional) Regulations Complies with EN60950, FCC Class A, CISPR22/85, EC, EU RoHS, TAA Compliant Mounting Solutions Americans with Disability Act (ADA) Compliance Orientation Floor Standing Mount Bases In-Wall Service Display Module Position Adjustment MOUNTING Planar EasyAxis Mounting System (1 per display included) | VESA hole pattern available (Optional) Yes, clearance from wall under 4in Landscape or Portrait Optional Front and Rear 6-axis integrated adjustments Model Type Line Voltage Power Output Power Supply Configurations Redundancy Hot Swap Low Power Standby Mode Power Status Maximum Distance from Wall REMOTE POWER SUPPLY RPS110 RPS220 1RU rack mount; 19in (482.6mm) rack 1.5RU rack mount; 19in (482.6mm) rack 100-240 Volts AC autoranging 200-240 Volts AC autoranging 1200W per output 1, 2 or 3 outputs 2, 4 or 6 outputs n + 1 redundant option Supported for each power supply module <3W in standby mode Diagnostic LEDs per power supply module 200ft (60m) standard, 500ft (152.4m) maximum VIDEO CONTROLLER Type 1U rack mount controller drives up to 9 Full HD (1920x1080) panels Video Inputs Video Outputs Image Scaling Mullion Compensation Control Controller Status Maximum Distance from Wall 4x HDMI 2.0 (w/ HDCP 2.2); 1x DisplayPort 1.2 9-Output Controller: 9x RJ45 8P8C, 1x DisplayPort 1.2 4-Output Controller: 4x RJ45 8P8C, 1x DisplayPort 1.2 Planar Big Picture Plus Processing, Planar WallSync, PiP, 4K at 60Hz upscaling and downscaling Integrated with pixel by pixel adjustments IR Remote Control, RS-232, USB, Network, Planar WallDirector Software Diagnostic LEDs, health monitoring and alerts 200ft (60m) FIBER VIDEO EXTENSION MODULE OPTION Type 1U rack mount module drives up to 4 displays Fiber Optic Connection Type 10G Duplex LC SFP+ single mode transceivers supporting distances up to 10km (32.8kft) (Single mode transceivers supporting 2km (6500ft) included) from video wall. Compatible with multi mode transceivers supporting up to 300m (980ft) from the wall. (Multi mode transceivers not provided) USB Extension USB-B at module; USB-A at panel IR Remote Extension Embedded Power Powered by the Remote Power Supply. Optional AC Power Adapter available when the Fiber Module is located away from the Remote Power Supply. www.planar.com Planar is a trademark of Planar Systems, Inc. All other trademarks and service marks are property of their holders. Copyright © 2021 Planar Systems, Inc. All rights reserved. This document may not be copied in any form without permission from Planar. Information in this document is subject to change without notice. 1/2021Adobe PDF Library 15.0 Adobe InDesign 15.1 (Windows)
