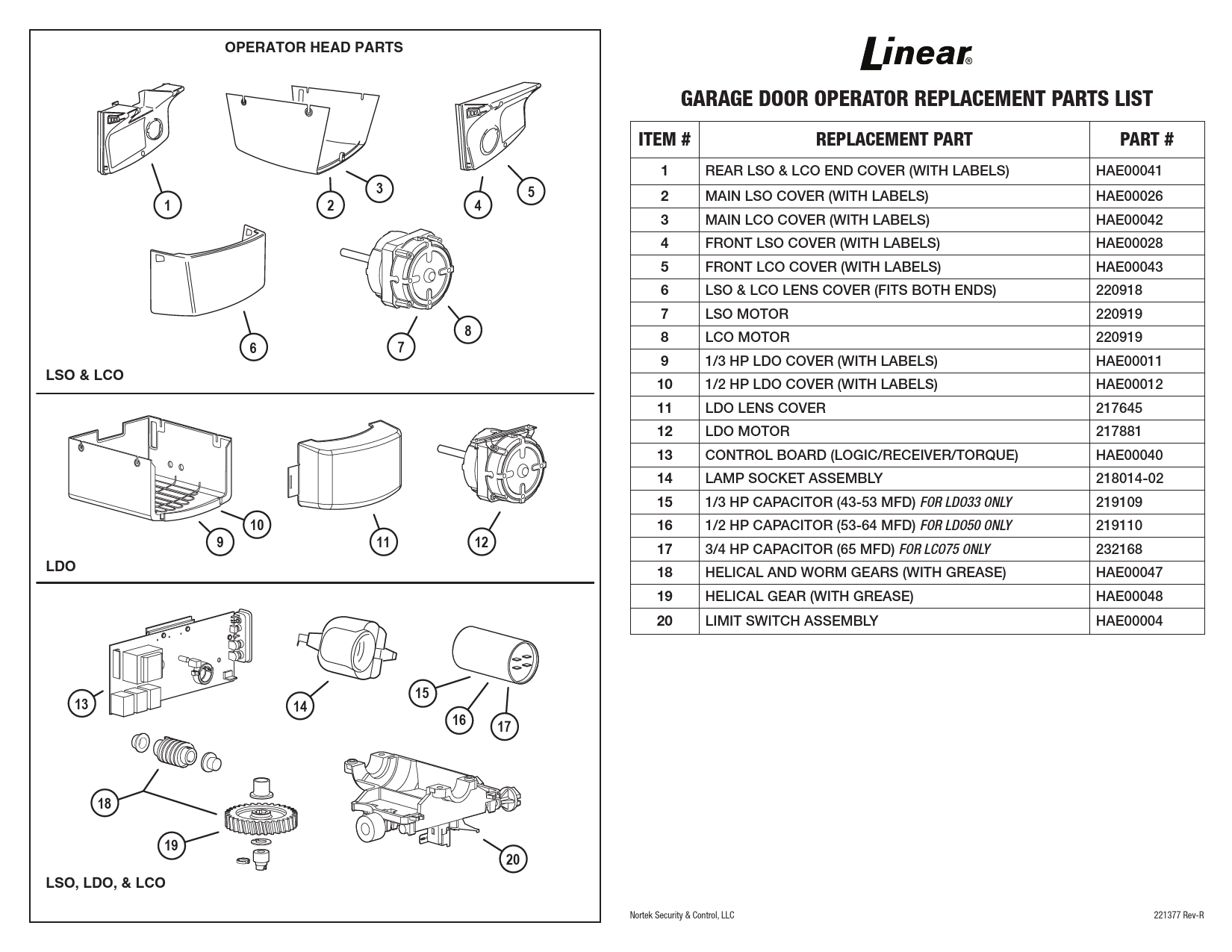

OPERATOR HEAD PARTS

3

5

1

2

4

6 LSO & LCO

8 7

LDO

10 9

11

12

13
18 19
LSO, LDO, & LCO

15 14
16 17 20

GARAGE DOOR OPERATOR REPLACEMENT PARTS LIST

ITEM #

REPLACEMENT PART

1

REAR LSO & LCO END COVER (WITH LABELS)

2

MAIN LSO COVER (WITH LABELS)

3

MAIN LCO COVER (WITH LABELS)

4

FRONT LSO COVER (WITH LABELS)

5

FRONT LCO COVER (WITH LABELS)

6

LSO & LCO LENS COVER (FITS BOTH ENDS)

7

LSO MOTOR

8

LCO MOTOR

9

1/3 HP LDO COVER (WITH LABELS)

10 1/2 HP LDO COVER (WITH LABELS)

11 LDO LENS COVER

12 LDO MOTOR

13 CONTROL BOARD (LOGIC/RECEIVER/TORQUE)

14 LAMP SOCKET ASSEMBLY

15 1/3 HP CAPACITOR (43-53 MFD) FOR LDO33 ONLY

16 1/2 HP CAPACITOR (53-64 MFD) FOR LDO50 ONLY

17 3/4 HP CAPACITOR (65 MFD) FOR LCO75 ONLY

18 HELICAL AND WORM GEARS (WITH GREASE)

19 HELICAL GEAR (WITH GREASE)

20 LIMIT SWITCH ASSEMBLY

PART #
HAE00041 HAE00026 HAE00042 HAE00028 HAE00043 220918 220919 220919 HAE00011 HAE00012 217645 217881 HAE00040 218014-02 219109 219110 232168 HAE00047 HAE00048 HAE00004

Nortek Security & Control, LLC

221377 Rev-R

DC OPERATOR HEAD PARTS

1

3

4

2

5 LDCO 800

6

7

8

9

11

12

10
13 14

16

17

15

GARAGE DOOR OPERATOR REPLACEMENT PARTS LIST

ITEM #

REPLACEMENT PART

PART #

1

LDCO CONTROL BOARD, BBU COMPATIBLE (800)

HAE00061

2

LDCO FRONT COVER (WITH LABEL) (800)

HAE00051

3

BATTERY BACKUP UNIT (800)

BBU

4

LDCO ENCODER BOARD (800/841/850/852/863B)

HAE00058

5

LDCO MAIN COVER (WITH LABELS) (800)

HAE00052

6

LDCO LIGHT LENS (800/850)

228152

7

LDCO MOTOR (WITH ENCODER) (800/841/850/852/863B) HAE00057

8

COVER, MAIN (852)

10015922-01

9

ASSY, FRONT COVER (850)

HAE00071

10 KIT, PCBA, LDCO (841/850/852/863B)

HAE00070

11 TRANSFORMER (841/850/852/863B)

10012046

12 COVER, MAIN (841/863B)

HAE00073

13 BRACKET KIT (852)

10016007

14 REPLACEMENT BATTERY, 12V (841/850/852/863B)

BATT54

15 BATTERY AND HOUSING (841/850)

BATT54BOX

16 BATTERY HOUSING (850/863B)

10015410-004

17 BATTERY HOUSING (852)

10015932-001

18 LED PANEL (841/850)

10014504-01

19 LED PANELS (852)

10014504-02

20 LED PANELS (863B)

RP9005

18

19

LDCO 850, 852, 841, 863B

20
Nortek Security & Control, LLC

221377 Rev-R

MISCELLANEOUS OPERATOR PARTS

1 2

3

4 7

5

6

8 9 10

GARAGE DOOR OPERATOR REPLACEMENT PARTS LIST

ITEM #

REPLACEMENT PART

1 DOOR ARM - STRAIGHT 2 DOOR ARM - BENT 3 SAFETY BEAM SENDER & RECEIVER (WITH WIRE) 4 COMPLETE HARDWARE KIT 5 WALL STATION (LDO/LSO/LCO/800) 6 WIFI (SMART) WALL STATION (850/852/841/863B) 7 WIRE KIT (15 SETS OF WIRE AND CLIPS) 8 LDO INSTRUCTIONS AND LABELS 9 LSO INSTRUCTIONS AND LABELS 10 LCO INSTRUCTIONS AND LABELS 11 WIRE CLIP KIT (100 CLIPS) 12 GEL CAP KIT (100 PIECES)

PART #
227966 227967 HAE00002 220205-02 HAE00001 HAE00072 HAE00044 HAE00030 HAE00031 HAE00045 HAE00019 HAE00020

11 12

Nortek Security & Control, LLC

221377 Rev-R

OPERATOR RAIL PARTS 2
1 5 67
3

4 8
HBT BELT DRIVE RAILS

10 9

11

12

13 14 15

17 18 19 20
16

4 HCT and HCI CHAIN DRIVE RAILS

GARAGE DOOR OPERATOR REPLACEMENT PARTS LIST

ITEM #

REPLACEMENT PART

1 HBT DRIVE SPROCKET 2 HBT PULLEY AND BRACKET 3 HBT INNER SLIDE ASSEMBLY 4 TROLLEY ASSEMBLY 5 7 FOOT BELT ASSEMBLY 6 8 FOOT BELT ASSEMBLY 7 10 FOOT BELT ASSEMBLY
INCLUDES BELT CLAMPS INSTEAD OF INNERSLIDE 8 10 FOOT BELT TROLLEY INNERSLIDE
INCLUDES TENSIONER
9 10 FOOT BELT TROLLEY OUTERSLIDE 10 DRIVE SPROCKET HOLDER AND BELT CLAMP
BELT CLAMP FOR USE ON HBT BELT RAILS ONLY 11 HCT DRIVE SPROCKET 12 HCI DRIVE SPROCKET 13 HCT PULLEY AND BRACKET 14 HCT TURNBUCKLE ASSEMBLY 15 HCT INNER SLIDE ASSEMBLY 16 CENTER SUPPORT BRACKET 17 7 FOOT CHAIN ASSEMBLY 18 8 FOOT CHAIN ASSEMBLY 19 10 FOOT CHAIN ASSEMBLY 20 12 FOOT CHAIN ASSEMBLY

PART #
220499 218954-03 HAE00022 218189-01 HAE00023 HAE00033 HAE00065
HAE00066
10010527-01 HAE00049
217436 227653 HAE00014 HAE00013 HAE00018 CSB HAE00015 HAE00032 HAE00017 HAE00046

Copyright © 2020 Nortek Security & Control, LLC

221377 Rev-R
