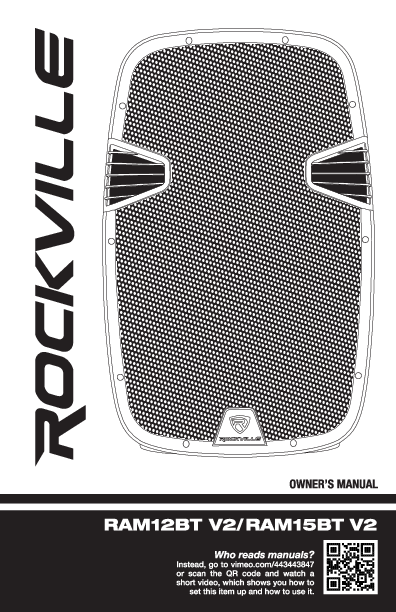

Rockville RAM12BT V2 / RAM15BT V2 Owner's Manual

Introduction

Thank you for purchasing the Rockville RAM-BT v2 series pro audio speaker with Bluetooth and TWS wireless stereo linking. Please read this installation guide carefully for proper use of your RAM-BT v2. For assistance, contact our technical help line at 1-646-758-0144, Monday through Friday, 9am to 5pm EST.

Includes

  • Active/Powered DJ/PA Speaker With Built-in Bluetooth
  • 2 Wireless Microphones
  • Built-in Rechargeable Battery
  • Power Cable
  • Remote Control

Important Safety Instructions

  • To reduce the risk of electric shock, never open the unit. Refer service to an authorized Rockville service center.
  • Do not expose this unit to moisture.
  • Ensure the unit is situated in a properly ventilated area.
  • Make sure the unit is placed on a level and stable surface.

Setting Up Your RAM BT V2 Professional Sound System

The RAM BT V2 unit produces sound from its woofer and tweeter horn. Lower frequencies travel along the floor and walls, while the tweeter horn is more directional. Position the tweeter horns at ear level to the listening audience, ensuring they are not blocked by furniture. Woofer aiming is less critical.

For optimal sound dispersion and clear vocal reproduction, it is recommended to place speakers on stands, such as the Rockville RVES05 (not included), so the tweeter sounds radiate above the listening crowd.

How To Avoid Irritating Feedback

Microphone placement is crucial for avoiding feedback. Always set up your microphone behind the speaker. When making adjustments, approach the speaker from the rear.

Stage Monitor Setup

Stage monitors face the performer, which can cause feedback. To avoid this:

  1. Use a microphone with high directivity (cardioid or hyper-cardioid polar pattern).
  2. Never point the microphone directly in front of the speaker.
  3. Position microphones at a 90-degree angle to the stage monitor's axis (cardioid) or at an acute angle (hyper-cardioid).

A feedback eliminating processor can be added for additional flexibility.

Setting Level Controls

Follow these steps to set input level controls (gains):

  1. Unplug all inputs except the one you wish to set the gain for (e.g., Line In RCA inputs).
  2. Set the line level input device volume (smart phone, tablet, MP3 player, etc.) to 60%.
  3. Slowly turn up the Line Level control. Turn it down one or two notches if the clip indicator LED turns on or distortion is heard.

Please Note: For mixers, set the RAM-BTv2 Line Level to 50%, the mixer master volume to 50%, and adjust the mixer channel level. Boost the Line Level control if the signal is not strong enough. Adjust Mic Volume while speaking into the microphone in relation to the music volume.

Wireless Speaker Linking

The RAM-BT v2 supports True Wireless Stereo (TWS) linking, allowing two speakers to play in stereo wirelessly.

  1. Ensure both RAM-BTv2 units are powered ON and within 32 feet of each other.
  2. Press the Mode button on both units to enter Bluetooth mode.
  3. Press and hold the SCAN/TWS button on one unit for 3 seconds. The LCD should read "BLUETOOTH BT-A Connected" (primary unit).
  4. The secondary unit's LCD will read "BLUETOOTH BT-B Connected".
  5. On your phone's Bluetooth interface, select "ROCKVILLE". You should now hear audio from both units.

Please Note: In TWS mode, the primary unit controls all functions.

Application Uses

Microphone Presentations

The RAM-BT v2 features ultra-low noise Mic inputs via XLR and 1/4" TRS jacks.

  1. Ensure the Power switch is OFF.
  2. Plug the microphone into the XLR/1/4" combo jack.
  3. Switch the RAM-BT v2 unit ON.
  4. Adjust Mic Volume controls as described in the "Setting Level Controls" section.

Stand behind the unit when adjusting microphone levels to avoid feedback.

Talk Over Feature

When ON, the TALK OVER function prioritizes microphone volume. When OFF, microphones can be used at the same volume level as other features (Bluetooth, MP3, SD, etc.).

Line Input

Connect a mixer via the XLR input or other stereo signal sources (smart phone, tablet, MP3 player, CD player) via the RCA inputs. Do not use both at once.

  1. Ensure the Power switch is OFF.
  2. Connect the mixer or line level signal source.
  3. Switch the RAM-BT v2 unit ON.
  4. Adjust the Line In level control as described in the "Setting Level Controls" section.

Wireless Microphone Set-Up

Connect the two included wireless microphones:

  1. Ensure the RAM BT unit power switch is ON.
  2. Set Mic A Volume, Mic B Volume, and Channel B wireless Mic Volume to minimum.
  3. Press the VHF power button (red indicator LED should be ON).
  4. Switch on one microphone; it should automatically connect to its channel, and the corresponding LED will light up.
  5. Repeat for the second microphone.
  6. Use the Mic A / Mic B volume controls to adjust each microphone's volume.

Record Function

Record input from any mic or line source to a USB or SD card.

  1. Insert a USB or SD card and ensure the input source is ready.
  2. Press the red record button to begin recording (LCD displays "INITIAL").
  3. Press the red record button again to stop recording and save the audio files (named REC0001.MP3, etc.). Use Previous/Next buttons to find files.

Line Out Balanced Connection

The XLR Line Out allows outputting the amplifier signal to a powered subwoofer, another powered speaker, or an amp. Connect the output device using an XLR to XLR or XLR to 1/4" TRS cable. Rockville recommends RCXFM20E-B (XLR to XLR) or RCXMB20-B (XLR to 1/4" TRS) cables.

Bluetooth Pairing

Connect your Bluetooth-enabled device (iPod, iPhone, MP3 player, Android phone, etc.):

  1. Ensure the RAM-BT v2 unit's power switch is ON.
  2. Turn on the Bluetooth feature on your device.
  3. Press the Mode button on the RAM-BT v2 until "BLUETOOTH Disconnected" is displayed.
  4. On your device, select "ROCKVILLE" from the list of available Bluetooth devices.
  5. If pairing is successful, "BLUETOOTH Connected" will be displayed. You can now stream music.

Built-in Battery

The unit has a built-in 12 volt, 9 amp battery providing up to 12 hours of use. Battery status is indicated by LED1 and LED2:

STATUS LED1 LED2
1. NOT charging OFF OFF
2. Charging OFF ON
3. Fully charged ON OFF
4. Overvoltage OFF Flashing slowly
5. Pulse charging OFF Flashing quickly

To charge the battery, plug the unit into an outlet. Charging takes approximately 6 hours. Turn off the unit immediately when the battery is drained to prevent damage.

External Battery Power

The RAM BT can also be powered by an external 12V battery source (e.g., a car battery). Connect the positive (+) terminal to the +12V input and the negative (-) terminal to the GND input using spade terminals. Remember, RED is POSITIVE and BLACK is NEGATIVE.

Features

  • High-power 2-way pro sound reinforcement speaker system
  • Bluetooth connectivity
  • True Wireless Stereo (TWS) linking
  • Digital MP3/FM radio music player w/LCD display
  • USB/SD Inputs: Accepted file formats - MP3, WAV, WMA
  • Wireless remote control
  • Wireless VHF Mic Capability (2 wireless mics included) w/independent volume control
  • Compact and lightweight system delivers distortion-free sound
  • Linear Class AB amplifier technology
  • Internal switch-mode power supply
  • 5-Band Graphic Equalizer
  • Japanese-made pure titanium-diaphragm compression driver
  • Ultra-wide dispersion, 40° large-format horizontal wave guide horn
  • Ultra-low noise Mic input via XLR / 1/4" TRS combo jack
  • XLR and RCA line inputs (do not use both at once)
  • XLR line output
  • 35mm pole socket for stand mounting
  • Built-in wheels and retractable top handle
  • High impact ABS construction
  • Amplifier clip limit & power LED indicators
  • Built-in 12V/9A battery with optional external battery connection
  • External user serviceable fusing

Specifications

RAM12BT V2

  • Power: 600 Watts Peak/300 Watts Program/150 Watts RMS
  • 4 Ohm 1.5" KSV High Power Voice Coil
  • 25mm, 8 Ohm Titanium Diaphragm Tweeter
  • 60oz Magnet Motor Structure

RAM15BT V2

  • Power: 800 Watts Peak/400 Watts Program/200 Watts RMS
  • 4 Ohm 2" KSV High Power Voice Coil
  • 34mm, 8 Ohm Titanium Diaphragm Tweeter
  • 80oz Magnet Motor Structure

Troubleshooting

No power

  1. Ensure the unit is plugged in and the power switch is ON.
  2. Check that the power cable is securely connected.
  3. Check and replace the fuse if necessary (see page 18).

No sound/distorted sound

  1. Verify all cables are plugged in correctly.
  2. Check Volume settings.
  3. Ensure your microphone is ON.
  4. If using a mixing console, set faders and balance to center positions and increase levels.

Buzzing sound

Use a proper cable. For 1/4" cables, ensure correct type (instrument, TS, or TRS) and check compatibility with connected gear and speaker input.

Mic feedback

Point microphones away from the speaker. Ensure mics are behind the speaker (see page 4).

Poor Mic sound

  1. Ensure you are using the Mic In port.
  2. If using wireless mics, check batteries, volume settings, and extend antennas fully.

Not enough bass

Add a subwoofer for deeper bass, as PA speakers are not optimized for very low frequencies.

Bluetooth pairing fails

  1. Ensure both devices are ON and discoverable.
  2. Turn both devices OFF and then ON again.
  3. Verify the correct source is selected.
  4. Ensure the Bluetooth device is within 5 feet of the unit.
  5. Move devices away from other wireless electronics.
  6. Ensure the unit is not paired to a previously connected device.

TWS pairing fails

  1. Ensure both devices are ON.
  2. Ensure both devices are in Bluetooth mode.
  3. Ensure both RAM-BT units are near each other.
  4. Ensure the unit is not paired to a previously connected device.
  5. If TWS pairing is successful but Bluetooth pairing fails, refer to the "Bluetooth pairing fails" section.

No SD or USB playback

  1. Ensure you are in USB/SD mode.
  2. Ensure the SD card or USB drive is properly connected.
  3. Verify audio files are in the correct format (see page 16).
  4. Ensure the SD card/USB drive is not damaged.

Replacing the Fuse

Follow these steps to replace the fuse:

  1. Use a screwdriver to release the fuse holder.
  2. Remove the fuse holder.
  3. Remove the fuse.
  4. Replace the fuse.
  5. Re-insert the fuse holder.

Federal Communications Commission Compliance Information

Responsible party name: Rockville

Address: 600 Bayview Ave. Entrance A, Inwood, NY 11096

This product, RAM-BT V2 pro audio speakers, complies with FCC rules. Operation is subject to two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. If interference occurs, try one or more of the following measures:

  • Reorient or relocate the receiving antenna.
  • Increase the separation between the equipment and receiver.
  • Connect the equipment to an outlet on a different circuit than the receiver.
  • Consult the dealer or an experienced radio/TV technician.

© 2020 ROCKVILLE // Features and specifications are subject to change without notice.
