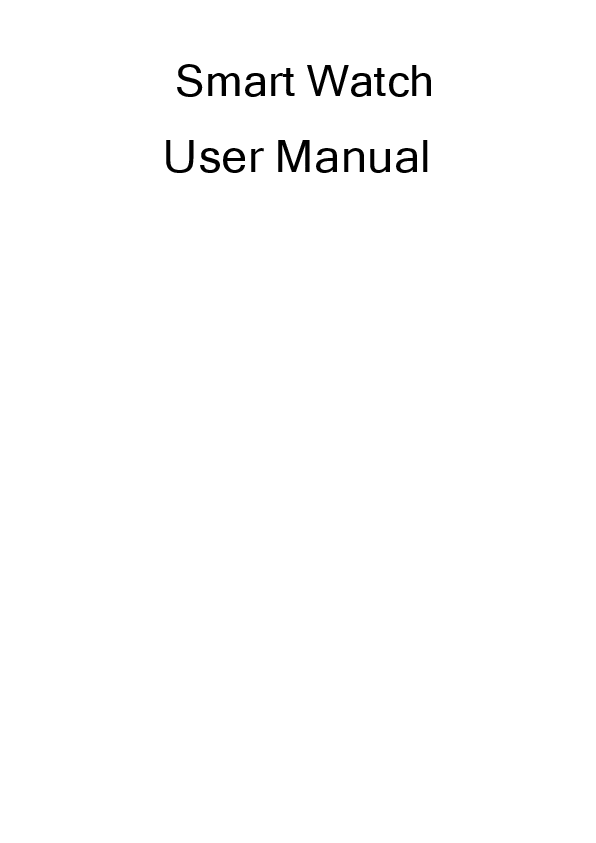

Document preview
File info: application/pdf · 40 pages · 2.80MB

Smart Watch User Manual

Downloading and Connecting with Da Fit APP

To use your smart watch, you need to download and install the Da Fit APP.

  1. Download and install the Da Fit APP.
  2. Scan the QR code with your mobile phone to download the APP.
  3. For iOS systems, select the App Store, search for "Da Fit App", and download it.
  4. For Android systems, select Google Play to download and install the Da Fit App, or scan the QR code to download.

Note: Your mobile phone must support Android 5.1 or iOS 8.0 or above, and Bluetooth 4.0 or above.

To connect the smart watch, click on "Add Device" within the Da Fit APP.

[Visual: QR code labeled "Da Fit"]

Connecting Smart Watch with Da Fit APP

After scanning, click on your device in the device list to connect it directly to your Android system.

For iOS systems, a Bluetooth pairing request will appear. Click "Pair" to confirm.

[Visual: Screenshot showing a list of devices with "BSW005" selected for Android connection.]

[Visual: Screenshot of an iOS Bluetooth pairing request for "BSW005", with "Cancel" and "Pair" options.]

Once connected, the screen will indicate "Successfully connected".

To allow the watch to display all phone notifications, click "Allow" when prompted.

For both Android and iOS, click on the "Notifications" tab in the Da Fit app to manage which notifications are displayed. It is recommended to enable all notifications for ease of use.

[Visual: Screenshot showing the Da Fit app interface with "Notifications" highlighted.]

[Visual: Screenshot of the notification settings screen with toggles for various apps like Phone, Messages, Facebook, Twitter, etc.]

Bluetooth Calling Function

This watch features Bluetooth calling, allowing you to make calls directly from the watch without needing to open your phone. You can also view call history. Ensure a stable Bluetooth connection between the watch and phone for this function.

The watch is equipped with a built-in microphone and speaker for calls, music, and notifications.

Part A: How to Connect

Step 1: After connecting the watch to the Da Fit App, navigate to your phone's Bluetooth settings and pair the watch.

For iOS: Switch on Bluetooth in your phone's settings. The available device should appear as "Audio_BSW005". It will show "Connected" once paired.

[Visual: Screenshot of iOS Bluetooth settings showing "Audio_BSW005" as "Connected".]

For Android: Switch on Bluetooth in your phone's settings. The available device should appear as "Audio_BSW005". Accept the Bluetooth Pairing Request.

[Visual: Screenshot of Android Bluetooth settings showing "Audio_BSW005" as "Available devices" and a "Bluetooth pairing request" pop-up.]

Once accepted, the screen will display "Connected for calls & audio".

[Visual: Screenshot showing "Audio_BSW005" listed under "Paired devices" with "Connected for calls and audio".]

Step 2: Using the Phone Function

Swipe right on the watch to access the phone function. After successful Bluetooth connection, you will see the phone interface.

You can view recent calls by clicking on "RECENT CALL".

[Visual: Watch screen showing "RECENT CALL", "DIAL PAD", "CONTACT" options.]

[Visual: Watch screen displaying recent call history with dates and numbers.]

Clicking on the "DIAL PAD" will display a number pad on your watch.

[Visual: Watch screen showing a numeric dial pad.]

Once a number is dialed, a call button will appear in the right corner.

[Visual: Watch screen showing a number being dialed and a call button.]

You can talk through the watch using its microphone and adjust the speaker volume using the '+' and '-' buttons. Press the red button to disconnect the call.

[Visual: Watch screen showing an active call with volume controls and a hang-up button.]

Part B: How to Disconnect

To disconnect Bluetooth calling, go to your phone's Bluetooth settings and "unpair" the "Audio_BSW005" device.

The "Calls" button on the extreme left top of the watch interface can also be used to connect/disconnect Bluetooth calling with a single touch.

Part C: Add Contacts

You can add up to 8 contacts to your watch. Go to the "Favourite Contacts" section in the Da Fit App to add contacts. The selected contacts will sync to your watch.

Click on "Favorite Contacts" in the Da Fit app to add contacts.

[Visual: Da Fit app screen showing "Favorite Contacts" section.]

Select the contacts you wish to add from your phone's address book. The contacts will then be added to your watch.

[Visual: Screenshot showing a list of contacts to select from, with selected contacts indicated.]

[Visual: Screenshot showing "Favorite Contacts" list on the watch with added contacts.]

Part D: Switch between Phone / Watch

During an active call, if your watch is connected to your phone via Bluetooth, calls will come to the watch by default. To switch the call to your phone, click the "Audio_BSW005" Bluetooth icon to unselect it during the active call.

[Visual: Watch screen showing an active call with "Bluetooth turned on" and the Bluetooth icon highlighted.]

[Visual: Watch screen showing an active call with "Bluetooth turned off" and the Bluetooth icon unhighlighted.]

Part E: Listen to Music

You can listen to music on your watch when it's connected to your phone via Bluetooth. You can play, pause, and control your favorite songs directly from the watch.

[Visual: Watch screen displaying music player controls (play, pause, skip) with equalizer visualization.]

Part F: Battery Advisory

Battery Life:

  • The battery lasts for 24 hours with Bluetooth calling mode enabled.
  • If Bluetooth calling mode is disabled, the battery can last for 5 days.
  • On standby, the battery can last for up to 30 days.

Advisory: To conserve battery, it is advised to turn off Bluetooth when not in use.

Part G: Call Reset in Case Bluetooth Connection is Lost

If the Bluetooth connection for voice calls gets disconnected and the watch is not visible in your phone's Bluetooth devices list (i.e., you don't see "Audio_BSW005"), please reset the call connection by clicking the call reset button in the main menu.

Click on the Settings Icon ⚙️.

[Visual: Watch screen showing various icons including a settings gear icon.]

Click on the Call Reset Icon (labeled "PHONE RESET").

[Visual: Watch screen showing "BRIGHTNESS", "PHONE:ON", and "PHONE RESET" options.]

Confirm the reset process by selecting the checkmark ✔️.

[Visual: Watch screen showing "PHONE RESET?" with "X" and "✔️" options.]

Functions Navigation

The watch screen can be navigated by sliding left/right or up/down.

[Visual: Diagram showing navigation gestures: Swipe Down for Control Center, Swipe Up for Feature Pages, Swipe Left for Menu, Swipe Right for Feature Pages.]

[Visual: Watch screen displaying the Control Center with icons like Phone ?, Brightness ?, Weather ☁️, Menu ☰, Info ℹ️, Settings ⚙️.]

[Visual: Watch screen displaying Feature Pages like Steps ?, Sleep ?, Heart Rate ❤️.]

Watch Face Functions Navigation and Button Instructions

The watch features a full touch control screen with a reflective display and a button.

Functions Navigation: The screen can be navigated by sliding left/right or up/down.

By default, the watch face page is displayed. From the watch face page, you can:

  • Slide down to view watch settings. The Phone Icon ? needs to be clicked to connect to Bluetooth calling. Other options include Brightness ?, Weather ☁️, Menu ☰, Info ℹ️, and Settings ⚙️.
  • Slide up to view messages and other notifications.

[Visual: Watch screen showing the Control Center with icons and descriptions.]

[Visual: Watch screen displaying message notifications from "LUKE" and "LEE".]

  • Slide left to view the quick menu, allowing access to any function with a single click.
  • Slide right to view phone, music, steps, sleep, heart rate, SPO2, and weather data.

[Visual: Watch screen displaying the quick menu with various app icons.]

[Visual: Watch screens showing Phone, Music Player, Steps, Sleep, Heart Rate, SPO2, and Weather interfaces.]

On each function screen, sliding down provides more details.

SPO2: Displays oxygen saturation percentage. Includes reference values and a 7-day data chart.

[Visual: Watch screen showing SPO2 reading and a reference value chart.]

Heart Rate: Displays current heart rate in BPM. Includes HR zones and a 24-hour HR chart.

[Visual: Watch screen showing Heart Rate reading and HR zones chart.]

Steps: Displays daily step count and a 7-day data chart showing steps, kcal, and km.

[Visual: Watch screen showing Steps count and a 7-day data chart.]

Touch Button Operations

Short press from the side button:

  • To unlock the screen in the lock screen status.
  • To return to the watch face page from the first-level menu entry in the unlocked status.

[Visual: Watch face displaying time and step/calorie count.]

Long press from the side button:

  • To turn on the watch in the power-off status.

[Visual: Watch screen showing "POWEROFF?" with "X" and "✔️" options.]

Watch Wearing and Charging

It is recommended to wear the watch with moderate tightness, about two fingers away from your wrist, to ensure the optical heart rate monitor works properly.

Charging:

  • Plug the charger's USB port into a mobile phone charger or a computer USB port to charge the watch.
  • Attach the charging pin to charge the smart watch.
  • The charging icon will appear on the screen, indicating that the watch is being charged.
  • It is recommended to use computer USB ports or brand mobile phone chargers.

[Visual: Diagram showing the watch being connected to a charger.]

[Visual: Watch screens showing different battery charging states: empty (red), partially charged (green), fully charged (green).]

Use of Functions

The watch has many functions accessible by swiping left to the menu. A brief overview of the functions includes:

  • Stopwatch ⏱️
  • Breathe ?
  • Bluetooth Calling ?
  • Weather ☁️
  • Music ?
  • Heart Rate ❤️
  • SPO2 ?
  • Flashlight ?
  • Sleep ?
  • Message ?
  • Training ?️
  • Timer ⏲️
  • Settings ⚙️
  • Steps ?
  • Alarm ⏰
  • Shutter ?

Detailed Function Descriptions

Steps: The watch automatically tracks steps. Your movement stats reset to 0 at midnight.

[Visual: Watch screen showing step count and a 7-day data chart.]

Sleep: Wear the watch while sleeping to track hours slept and sleep quality. Sleep stats reset to 0 at 8 PM.

[Visual: Watch screen showing sleep duration and sleep score breakdown.]

Exercise: This feature includes 8 exercise modes: Running, Walking, Cycling, Skipping, Football, Basketball, Badminton, Swimming.

[Visual: Watch screens showing different exercise modes like Walking, Running, Cycling, Skipping, Badminton, Basketball, Football, Swimming.]

Heart Rate: The watch records your heart rate throughout the day. You can tap the page to start measuring.

[Visual: Watch screen showing Heart Rate and HR zones.]

Music: Remotely control your phone's music player once the watch is connected.

[Visual: Watch screen showing music player controls.]

Oxygen Tracking (SPO2): Tap the SPO2 page to start measuring and view previous data. Includes reference values and data charts.

[Visual: Watch screen showing SPO2 reading and reference values.]

Weather: View current weather and forecast for tomorrow. This information is synced from the app. The watch needs to be connected to your phone via Bluetooth for updates. Weather alerts can be toggled in the Da Fit App settings.

[Visual: Watch screen showing weather icon, temperature, and location. Also shows a forecast list.]

Camera: Remotely control your phone's camera once the watch is connected.

[Visual: Watch screen showing a camera icon.]

Settings

The settings page provides access to various features:

  • Stopwatch: Begin, close, and stop time lines.
  • Vibration: Turn vibration on or off.
  • Timer: A countdown timer to count time forward, set goals, and finish events on time.
  • Alarm: The watch vibrates to remind you when the mobile phone alarm rings.
  • Phone: Make calls directly from the watch.
  • Brightness: Adjust screen brightness using a slider.
  • Theater: Dim brightness and mute vibration.
  • Factory reset: Reset all data. Requires re-connecting the watch afterwards.
  • About: View firmware version and Bluetooth address.
  • Power off: Turn off the watch.
  • App QR Code: Scan to download the Da Fit app.

[Visual: Watch screen showing various settings options like BRIGHTNESS, PHONE:ON, PHONE RESET, MUTE:ON, DND, THEATER, STYLE, RESET, POWEROFF, QRCODE, ABOUT.]

[Visual: Watch screen showing brightness adjustment slider.]

[Visual: Watch screen showing Theater mode activation.]

[Visual: Watch screen showing "RESET?" with "X" and "✔️" options.]

[Visual: Watch screen showing "POWEROFF?" with "X" and "✔️" options.]

[Visual: Watch screen showing "APP QR CODE".]

Other Settings

Watch Face

Replace the Watch Face on the Watch: Long press the screen to access watch face options. Scroll left and click to select your desired watch face. Alternatively, slide down to Settings, select "Dial Switch", and swipe left to choose a watch face.

[Visual: Multiple watch face examples displayed on the watch screen.]

Replace the Watch Face on the App: Tap the "Profile" -> "BSW005" page, then go to "Watch face settings" to download and sync watch faces from the Watch Face Store.

Notifications

Enable Notifications

During use, enable "App alerts" in the Da Fit App and ensure the watch and mobile phone are connected.

For iOS devices, pair the watch with your phone's Bluetooth before use.

For Android devices, include the Da Fit App in your phone's whitelist or self-starting list in background settings to prevent it from being closed by the system. This ensures reminders are received.

View Notifications

When a notification alert is received, the watch will vibrate and display the content. If not viewed immediately, slide up on the watch face page to go to messages and check the notification.

Workout

Sliding left on the watch face page makes Activity app items visible. For more information, refer to the "Introduction to the Workout Function" section.

Weather

The weather page displays current and next-day weather information synced from the app. Keep Bluetooth connected to receive the latest weather changes and alerts.

Settings (Detailed)

In the settings page, you can find options for Stopwatch, Alarm, Countdown, Brightness, Vibration, Theatre, Reset, About, Power off, and App QR Code.

Stopwatch: Begin and close any time line and stop the watch.

Vibration: Turn the watch's vibration on or off.

Timer: A countdown timer for time forward counting, goal setting, and event timing.

Alarm: The watch vibrates to remind you when a mobile phone alarm rings.

Phone: Make calls directly from the watch.

Brightness: Adjust screen brightness.

Theater: Dim brightness and mute vibration.

Factory reset: Reset all data. Requires re-connection.

About: View firmware version and Bluetooth address.

Power off: Turn off the watch.

App QR Code: Scan to download the app.

DND, Style, Dial Watch

DND (Do Not Disturb): Puts the watch into DND mode, stopping message pushes.

[Visual: Watch screen showing DND mode activated.]

Style: Change the appearance of the quick menu.

[Visual: Watch screen showing different menu styles like "honeycomb" and "9 Palace grid".]

Dial Watch: Change the watch face with a click.

[Visual: Multiple watch face examples.]

Watch Status Reminder

Incoming Call: The watch vibrates to remind you of incoming calls, allowing you to answer or reject them.

Idle alerts: If you sit for too long, the watch vibrates to remind you to get up. Enable this in "Profile" -> "My devices" -> "Idle alerts" on the Da Fit App.

[Visual: Icons for "MOVE" and "WATER" alerts.]

Goal Notifications: The watch vibrates when you reach your step goal. Enable this in "Profile" -> "My devices" -> "Goal notifications" on the Da Fit App.

[Visual: Icon for "GOAL" notification.]

Watch Alarm Alert

When the mobile phone alarm rings, the watch vibrates to remind you. Enable "Watch alarm alert" in "Profile" -> "My devices" on the Da Fit App.

[Visual: Watch screen showing an alarm notification.]

Introduction to the Workout Function

Start Workouts:

  • Select a workout type in the Activity entry and enable it.
  • Press and hold the touch button to quickly start a preset workout.

The watch supports: Walking, Running, Cycling, Skipping, Football, Basketball, Badminton.

Before starting a workout, check if the watch has enough storage space.

[Visual: Watch screens showing workout start prompts and exercise mode selection.]

Daily Maintenance of the Watch

  1. The watch is not resistant to erosive liquids like seawater, acidic/alkaline solutions, or chemical reagents. Damages from misuse are not covered under warranty.
  2. Do not use detergents, hand sanitizer, or bath foam for cleaning to avoid skin irritation or device corrosion.
  3. Do not swim or shower with your smartwatch.

Precautions

  • The watch has an IP67 water and dustproof rating but is not suitable for swimming or bathing.
  • Do not operate the watch underwater. After contact with water, wipe it dry with a soft cloth before operating the touch screen or charging.
  • The watch is not resistant to erosive liquids. Damages from misuse are not covered under warranty.

Models: BSW005, Fire-Boltt Ring Bluetooth Calling Smartwatch

Full PDF Document

If the viewer doesn’t load, open the file directly.
