Keep this manual in a convenient location for future reference. Note that these instructions may not cover all details or variations in equipment or cover every ...
Before operating the device, read these instructions carefully and ... Replacement SRAM backup batteries must be either Rayovac Model BR2335 or Panasonic .

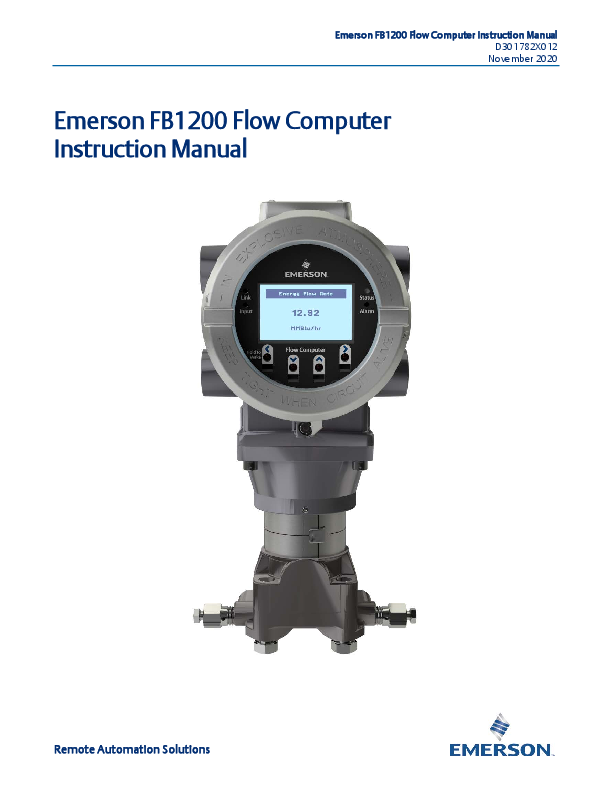

Emerson FB1200 Flow Computer Instruction Manual D301782X012 November 2020 Emerson FB1200 Flow Computer Instruction Manual Remote Automation Solutions Emerson FB1200 Flow Computer Instruction Manual D301782X012 November 2020 Device Safety Considerations Reading these Instructions Before operating the device, read these instructions carefully and understand their safety implications. In some situations, improperly using this device may result in damage or injury. Keep this manual in a convenient location for future reference. Note that these instructions may not cover all details or variations in equipment or cover every possible situation regarding installation, operation, or maintenance. Should problems arise that are not covered sufficiently in the text, immediately contact Customer Support for further information. Protecting Operating Processes A failure of this device for whatever reason -- may leave an operating process without appropriate protection and could result in possible damage to property or injury to persons. To protect against this, you should review the need for additional backup equipment or provide alternate means of protection (such as alarm devices, output limiting, fail-safe valves, relief valves, emergency shutoffs, emergency switches, etc.). Contact Remote Automation Solutions for additional information. Returning Equipment If you need to return any equipment to Remote Automation Solutions, it is your responsibility to ensure that the equipment has been cleaned to safe levels, as defined and/or determined by applicable federal, state and/or local law regulations or codes. You also agree to indemnify Remote Automation Solutions and hold Remote Automation Solutions harmless from any liability or damage which Remote Automation Solutions may incur or suffer due to your failure to ensure device cleanliness. Grounding Equipment Ground metal enclosures and exposed metal parts of electrical instruments in accordance with OSHA rules and regulations as specified in Design Safety Standards for Electrical Systems, 29 CFR, Part 1910, Subpart S, dated: April 16, 1981 (OSHA rulings are in agreement with the National Electrical Code). You must also ground mechanical or pneumatic instruments that include electrically operated devices such as lights, switches, relays, alarms, or chart drives. Important: Complying with the codes and regulations of authorities having jurisdiction is essential to ensuring personnel safety. The guidelines and recommendations in this manual are intended to meet or exceed applicable codes and regulations. If differences occur between this manual and the codes and regulations of authorities having jurisdiction, those codes and regulations must take precedence. Protecting from Electrostatic Discharge (ESD) This device contains sensitive electronic components which be damaged by exposure to an ESD voltage. Depending on the magnitude and duration of the ESD, it can result in erratic operation or complete failure of the equipment. Ensure that you correctly care for and handle ESD-sensitive components. System Training A well-trained workforce is critical to the success of your operation. Knowing how to correctly install, configure, program, calibrate, and trouble-shoot your Emerson equipment provides your engineers and technicians with the skills and confidence to optimize your investment. Remote Automation Solutions offers a variety of ways for your personnel to acquire essential system expertise. Our full-time professional instructors can conduct classroom training at several of our corporate offices, at your site, or even at your regional Emerson office. You can also receive the same quality training via our live, interactive Emerson Virtual Classroom and save on travel costs. For our complete schedule and further information, contact the Remote Automation Solutions Training Department at 800-338-8158 or email us at education@emerson.com. Ethernet Connectivity This automation device is intended to be used in an Ethernet network which does not have public access. The inclusion of this device in a publicly accessible Ethernet-based network is not recommended. ii Contents Contents Emerson FB1200 Flow Computer Instruction Manual D301782X012 November 2020 Section 1. Introduction 1 1.1 Safety Labels ...........................................................................................................................................3 1.2 Features ..................................................................................................................................................3 1.3 FB1200 Flow Computer Models ...............................................................................................................4 1.3.1 FB1200 Flow Computer (with Multi-variable or Static Pressure Sensor) ........................................4 1.3.2 FB1200 Flow Computer (without Integral Sensor) .......................................................................5 1.4 Central Processing Unit (CPU)..................................................................................................................5 1.4.1 Memory ......................................................................................................................................5 1.5 Explosion-proof Enclosure .......................................................................................................................5 1.5.1 Physical Security..........................................................................................................................6 1.6 I/O...........................................................................................................................................................7 1.7 Power Options.........................................................................................................................................7 1.8 Communications.....................................................................................................................................8 1.9 Human-Machine Interface (HMI) Module.................................................................................................8 1.10 FBxWifiTM Communications .....................................................................................................................9 1.11 Software Tools ......................................................................................................................................10 1.12 RoHS2 Compliance................................................................................................................................10 Section 2. Installation 11 2.1 Hazardous Locations .............................................................................................................................11 2.2 Environmental Specifications ................................................................................................................11 2.3 Required Tools ......................................................................................................................................12 2.4 Site Considerations ...............................................................................................................................12 2.5 General Wiring Guidelines .....................................................................................................................15 2.6 Front or Rear End Caps ..........................................................................................................................15 2.6.1 Removing/Replacing Retaining Clamp on End Caps ...................................................................16 2.6.2 Removing the Front or Rear End Caps ........................................................................................17 2.6.3 Replacing the Front or Rear End Caps.........................................................................................18 2.7 Mounting the Enclosure ........................................................................................................................18 2.7.1 Bolting Considerations ..............................................................................................................18 2.7.2 O-rings with Flange Adapters.....................................................................................................20 2.7.3 Direct Mount.............................................................................................................................21 2.7.4 Indirect Mount ..........................................................................................................................21 2.7.5 Rotating the Housing ................................................................................................................24 2.8 Grounding the Device ...........................................................................................................................26 2.9 Terminal Plate .......................................................................................................................................27 2.10 Power Modes ........................................................................................................................................28 2.10.1 Low Power Mode .......................................................................................................................28 2.10.2 Standard Power Mode ...............................................................................................................30 2.10.3 Notes on Battery Life .................................................................................................................31 2.11 Connecting Power .................................................................................................................................31 2.11.1 Connecting DC Power ...............................................................................................................32 2.11.2 Connecting Battery Power.........................................................................................................33 2.12 Installing the Optional Solar Panel .........................................................................................................34 2.12.1 Attaching Mounting Hardware to the Solar Panel ......................................................................34 2.12.2 Mounting the Solar Panel (Integral Mount) ................................................................................36 Contents iii Emerson FB1200 Flow Computer Instruction Manual D301782X012 November 2020 2.12.3 Mounting the Solar Panel (Remote Mount)................................................................................38 2.12.4 Connecting Solar Power ............................................................................................................39 2.12.5 Adjusting the Optional Solar Panel Tilt Angle .............................................................................40 2.13 Connecting Communication Ports.........................................................................................................41 2.13.1 Connecting to COM1.................................................................................................................41 2.13.2 Connecting to COM2 and COM3 ...............................................................................................44 2.13.3 Ethernet Port.............................................................................................................................49 Section 3. I/O Configuration and Wiring 51 3.1 Analog Inputs ........................................................................................................................................55 3.1.1 AI Wiring ...................................................................................................................................55 3.2 Analog Outputs .....................................................................................................................................59 3.2.1 AO Wiring .................................................................................................................................59 3.3 Digital Inputs.........................................................................................................................................61 3.3.1 DI Wiring...................................................................................................................................62 3.4 Digital Outputs......................................................................................................................................64 3.4.1 DO Wiring .................................................................................................................................65 3.5 Pulse Inputs...........................................................................................................................................67 3.5.1 PI Wiring ...................................................................................................................................67 3.6 Connecting the RTD ..............................................................................................................................69 3.7 Connecting a Rosemount 4088B Transmitter for Use in a Second Meter Run .........................................72 Section 4. Operation 75 4.1 Powering Up/Powering Down the Device ..............................................................................................75 4.2 Establishing Communications ...............................................................................................................75 4.2.1 Communicating with the SCADA Host.......................................................................................75 4.2.2 Communicating with a Laptop Using One of the Serial Ports......................................................76 4.2.3 Communicating with a Laptop Using Ethernet...........................................................................76 4.2.4 Communicating with a Laptop Wirelessly with FBxWifi ..............................................................77 4.3 Communicating using the HMI Module .................................................................................................78 Section 5. Service and Troubleshooting 81 5.1. Returning the Unit for Repairs ...............................................................................................................82 5.2. Interpreting the Status LEDs ..................................................................................................................83 5.3. Switch and Buttons ...............................................................................................................................85 5.4. Removing/Replacing the HMI Module ...................................................................................................85 5.5. Replacing the Main Battery Pack............................................................................................................86 5.6. Removing/Replacing the SRAM Battery .................................................................................................88 5.7. Upgrading System Firmware .................................................................................................................90 Appendix A. Special Instructions for Class I Division 2 Locations 91 Appendix B. Special Instructions for Class I Division 1 Locations 95 Appendix C. ATEX Non-Sparking Zone 2 Certifications 99 Appendix D. ATEX Flame-Proof Zone 1 Certifications 101 Index 103 iv Contents Emerson FB1200 Flow Computer Instruction Manual D301782X012 November 2020 Contents v Section 1: Introduction Emerson FB1200 Flow Computer Instruction Manual D301782X012 November 2020 This section covers the following topics: Safety Labels Features FB1200 Flow Computer Models Central Processing Unit (CPU) Explosion-proof Enclosure I/O Power Options Communications Human-Machine Interface (HMI) Module FBxWifiTM Communications Software Tools RoHS2 Compliance The Emerson FB1200 Flow Computer supports measurement for one or two meter runs. This manual describes how to install and configure the Emerson FB1200 Flow Computer hardware. For information on using the FBxConnectTM configuration software, see the online help that accompanies FBxConnect. Introduction 1 Emerson FB1200 Flow Computer Instruction Manual D301782X012 November 2020 Figure 1-1: FB1200 Flow Computer 1 HMI module 2 Front end cap (cover) 3 Data plate 4 Rear end cap (cover) 5 Conduit fittings 6 Enclosure 7 Sensor module 2 Introduction 1.1 1.2 Introduction Emerson FB1200 Flow Computer Instruction Manual D301782X012 November 2020 Safety Labels This product may display safety label(s) to identify potential hazards. The same types of notices appear within the documentation. Whenever you see an exclamation point (!) enclosed within a triangle (shown to the left), consult the documentation for additional safety information about the hazard and how to avoid it. The labels used are : DANGER MAY CAUSE DEATH Observe all precautionary signs posted on the equipment. Failure to do so may result in death or serious injury to personnel. WARNING DANGER TO PERSONNEL AND EQUIPMENT Observe all precautionary signs posted on the equipment. Failure to do so may result in injury to personnel or cause damage to the equipment. CAUTION MAY CAUSE INJURY TO PERSONNEL OR DAMAGE EQUIPMENT Observe all precautionary signs posted on the equipment. Failure to do so may result in injury to personnel or cause damage to the equipment. SAFETY FIRST General instructions and safety reminders. Features The FB1200 Flow Computer includes the following key features: Enclosure suitable for use in Class I Division 1 explosion proof and Ex db Zone 1 flame- proof environments Enclosure suitable for use in Class I Division 2 non-incendive and Ex nA Zone 2 non- sparking environments Integral multi-variable sensor for measurement of Pressure (P) and Differential Pressure (DP) Connections for customer-supplied resistance temperature detector (RTD) for measurement of temperature (T) Support for a second meter run through communication with a separate external transmitter Base I/O consists of two on-board channels you can individually configure as either digital input (DI), digital output (DO) or pulse input (PI) and two on-board I/O channels you can 3 Emerson FB1200 Flow Computer Instruction Manual D301782X012 November 2020 individually configure as either analog input (AI) or analog output (AO). Optional 6-channel expansion I/O board available Power from a DC power supply, or an optional lead acid battery/solar panel combination Serial communication options for RS-232, RS-485 (2-wire), and RS-485/422 (4-wire). Ethernet HMI module with optional display and back light for local operator interaction Optional Wi-Fi® transceiver (802.11 b/g) for field technician to access the flow computer from a laptop without physical cable connection. Application software supports AGA3, AGA8, ISO 5167, ISO 6976, and API 21.1 calculations in U.S., metric, or other natural gas standard units. Application software optionally supports API Chapter 11.1, API Chapter 12.2, API 20.1, and API 21.2 calculations in U.S., metric, or other hydrocarbon liquid standard units. 1.3 FB1200 Flow Computer Models You can purchase the FB1200 Flow Computer with or without integrated sensors. 1.3.1 FB1200 Flow Computer (with Multi-variable or Static Pressure Sensor) The flow computer with sensors has either a multi-variable sensor module or a static pressure sensor: Figure 1-2: FB1200 Flow Computer Multivariable (Left); Static Pressure (Right) 4 Introduction 1.3.2 Emerson FB1200 Flow Computer Instruction Manual D301782X012 November 2020 FB1200 Flow Computer (without Integral Sensor) The no integral sensor version includes no sensor module. In this case the process variable data used in flow computer calculations comes from external devices and enters the device through the serial ports or I/O channels. Figure 1-3: FB1200 Flow Computer (No Integral Sensor Version) 1.4 1.4.1 1.5 Introduction Central Processing Unit (CPU) The flow computer's CPU is a NXP® Kinetis® K61 series CPU with an ARM® Cortex® M4 processor that operates at 4 MHz to 60 MHz depending on the power mode. The CPU runs the Micrium operating system. Memory The flow computer includes both static and flash memory. Table 1-1: Memory Memory Usage 8 MB SRAM Holds in-use configuration, current state of all variables 128 MB Flash Holds firmware image, historical logs, configuration backup (if saved to flash), and the executing program Explosion-proof Enclosure The FB1200 Flow Computer includes an explosion-proof enclosure made of either aluminum or stainless steel. The enclosure consists of the main housing, two threaded covers, and four conduit entry points. 5 Emerson FB1200 Flow Computer Instruction Manual D301782X012 November 2020 The four conduit entry points are ¾ in NPT pipe threaded holes that permit entry of field conduit for I/O and communication wiring. ATEX installations use a ¾ in NPT to M20 thread reducer. Unused apertures shall be closed with suitable blanking elements. The FB1200 Flow Computer can operate in an unprotected outdoor environment. Wiring for I/O, communications, and power enters the enclosure through the four conduit fittings with appropriate protective seals and connects to the terminal plate. The front end cap (cover) provides a viewing window for the HMI module. You can access the terminal plate by removing the rear end cap (cover). The FB1200 Flow Computer has North American certification for Class I Division 1 Groups C and D (explosion proof) and Class I Division 2 Groups A, B, C and D (non-incendive) hazardous locations or non-hazardous locations. See Appendix A and Appendix B for more information. The FB1200 Flow Computer has European certification for EExd Zone 1 (flame proof) and EExd Zone 2 (non-sparking) hazardous locations or non-hazardous locations. See Appendix C and Appendix D for more information. Details on certification information are included on the data plate screwed to the top of the enclosure. 1.5.1 Physical Security The flow computer end caps include retaining clamps for ATEX/IEC applications. In addition, if local regulations require it, you can wire a tamper-resistant seal using the tie holes located in the front and rear end caps, and in the coupling screws. Figure 1-4: Retaining Clamps and Tie Holes for Tamper-resistant Seals 1 Retaining clamp (For ATEX & IEC approved products only) 2 Tie holes in end caps 3 Tie holes in coupling screws 6 Introduction 1.6 1.7 Emerson FB1200 Flow Computer Instruction Manual D301782X012 November 2020 I/O The flow computer comes with base I/O from both the CPU and the built-in multi-variable (MV) sensor. Base I/O consists of: Pressure (P) input from the MV sensor, differential pressure (DP) input from the MV sensor, connections for temperature (T) input from a customer-supplied RTD or a single static pressure sensor. Two on-board I/O channels that you can individually configure as digital input (DI), digital output (DO), or pulse input (PI) Two on-board I/O channels that you can individually configure as either analog input (AI) or analog output (AO) An optional 6-channel expansion I/O board includes: Four I/O channels that you can individually configure as digital inputs (DI), digital outputs (DO), or pulse inputs (PI) Two I/O channels that you can individually configure as either analog inputs (AI), or analog outputs (AO) Table 1-2: FB1200 Flow Computer I/O Configurations FB1200 Flow Computer without optional I/O FB1200 Flow Computer with optional I/O MV (P, DP, T) or Static Pressure Sensor 2 DI/DO/PI channels 2 AI/AO channels MV (P, DP, T) or Static Pressure Sensor 6 DI/DO/PI channels (4 of these reside on the 6-channel expansion I/O board) 4 AI/AO channels (these reside on the 6-channel expansion I/O board) Power Options You can power the flow computer using an external DC input, an internal battery, or an internal rechargeable battery connected to a solar panel. Important Use only batteries supplied with the flow computer or sold by Emerson Remote Automation Solutions as spare parts for this flow computer. If you substitute a battery you obtain elsewhere you void your certification unless it is the identical part from the same manufacturer as that supplied with the flow computer from Emerson. Introduction 7 Emerson FB1200 Flow Computer Instruction Manual D301782X012 November 2020 Table 1-3: Power Options Option Usage External DC Power Supply 5.7 Vdc to 30 Vdc external supply (Max power at 10 watts) Lead Acid Battery Pack 6.0 Vdc 4.5Ah Not suitable with ATEX or IECEx applications Can be optionally charged by a 6-watt solar panel 1.8 Communications The flow computer includes three serial communication ports and one Ethernet port. The serial ports allow communication using DNP3, Modbus, BSAP, and ROC protocols. The Ethernet port is an RJ-45 connector. The Ethernet port supports a maximum of six concurrent TCP connections (sockets). Table 1-4: Serial Ports Port Type Use COM1 Serial communications Software-selectable for RS-232, RS485 (2-wire), RS-485/422 (4-wire) operation 4-wire RS-232, RS-485 (2-wire), RS-485/422 (4-wire) communication to host or other devices. 4-wire used with external radio. COM2 Serial communications Software-selectable for RS-232, or RS-485 (2-wire) operation 2-wire RS-232 or RS-485 (2-wire) communication to host or other devices. COM3 Serial communications Software-selectable for RS-232, or RS-485 (2-wire) operation 2-wire RS-232 or RS-485 (2-wire) communication to host or other devices. 1.9 Human-Machine Interface (HMI) Module The flow computer includes an HMI module with an optional liquid crystal display (LCD) for local operator access to the device. The LCD, if present, shows a series of menus that sequentially display the current values of particular process variables. A configuration parameter in FBxConnect determines whether you must log in first to view the menus. If required, you log in by selecting alphanumeric characters by scrolling through a list until you select the correct character. The HMI module includes four LEDs to provide status information. Units with the display include four infrared (IR) buttons for operator interaction. 8 Introduction Emerson FB1200 Flow Computer Instruction Manual D301782X012 November 2020 To conserve power, the HMI module enters sleep mode after a period of inactivity. Sleep mode disables FBxWifi communication. In FBxConnect, you can configure the number of minutes of inactivity triggering sleep mode through the LCD Sleep Time parameter. Setting this parameter to 0 disables sleep mode which keeps the HMI module on but uses significantly more power. Figure 1-5: HMI Module with LCD Figure 1-6: HMI Module without LCD 1.10 Note If your flow computer does not include the LCD option, you still have the status LEDs and a single IR button for waking up the device (shown in Figure 1-6). FBxWifiTM Communications The flow computer has an optional Wi-Fi® transceiver (FBxWifi) that enables you to connect via a laptop or tablet from some small distance away. This capability allows an operator to potentially remain outside the hazardous location and still communicate with the flow computer. The operator's laptop must have Wi-Fi capability, line-ofsight access to the HMI module, and must be loaded with FBxConnect configuration software. Once connected, the operator can view process values, edit configuration parameters, and collect logs. Introduction 9 Emerson FB1200 Flow Computer Instruction Manual D301782X012 November 2020 Note The FBxWifi electronics reside inside the HMI module. The HMI module must be awake to use FBxWifi communications You can wake it up manually by holding a finger against the front cover glass over the Hold to Wake button (the left-most button) for typically from five to ten seconds. 1.11 1.12 Software Tools The FBxConnect configuration software provides a series of wizards that allow you to perform configuration activities for the flow computer. You connect a PC running the FBxConnect configuration software to the flow computer using one of the communication ports or through a wireless connection. You can then: Set parameters within your application Configure I/O channels Specify the serial communication method for a port (RS-232 to RS-485) as needed View or collect audit trail information such as alarm, event, or historical logs Update system firmware RoHS2 Compliance Device without Integral MVS or SP Sensor: RoHS (2) EU Directive 2011/65/EU Device with Integral MVS or SP Sensor: RoHS (2) EU Directive 2011/65/EU: This product may be considered out-of-scope when used for the intended design purpose in a Large Scale Fixed Installation (LSFI). Consult https://www.emerson.com/compliance for up-to-date product information. 10 Introduction Section 2: Installation Emerson FB1200 Flow Computer Instruction Manual D301782X012 November 2020 2.1 2.2 This section covers the following topics: Hazardous Locations Environmental Specifications Required Tools Site Considerations General Wiring Guidelines Front or Rear End caps Mounting the Enclosure Grounding the Device Terminal Plate Power Modes Connecting Power Installing the Optional Solar Panel Connecting Communication Ports The flow computer ships from the factory fully assembled, except for the optional solar panel assembly. Hazardous Locations The housing for the FB1200 Flow Computer is an explosion-proof case designed to operate in hazardous locations. For North America the FB1200 Flow Computer has certifications for Class I, Division 1 (Groups C & D) explosion-proof, Class I Division 2 (Groups A, B, C & D) non-incendive, and non-hazardous locations only. Appendix A contains special information for Class I Division 2 installations; Appendix B contains special information for Class I Division 1 installations. For Europe the FB1200 Flow Computer has certifications for Ex db Zone 1 flame-proof and for Ex nA Zone 2 non-sparking installations and non-hazardous locations only. Appendix C contains special information for Ex nA Zone 2 installations; Appendix D contains special information for Ex db Zone 1 installations. All certifications are listed on the data plate located on the top of the device. Environmental Specifications This section summarizes the environmental specifications for the device. For full details, refer to the product data sheet FB1200 Flow Computer (D301790X012). Installation 11 Emerson FB1200 Flow Computer Instruction Manual D301782X012 November 2020 Table 2-1: Environmental Specifications Specification Range Ambient Temperature -40°C to +80 °C (-40 °F to +176 °F) - no battery, C1D1/C1D2 -40°C to +80 °C (-40°F to +176 °F) lead acid battery, C1D1/C1D2 -40°C to +80 °C (-40 °F to +176 °F) no battery, ATEX/IEC Ex db -40°C to +80 °C (-40 °F to +176 °F) no battery, ATEX/IEC Ex nA Maximum Process Connection Temperature 120 °C (248 °F) Humidity 5% to 95% non-condensing Vibration 2g over 10 to 150 Hz; 1g over 150 to 200 Hz 2.3 Required Tools Certain tools and equipment are required for installing and servicing the flow computer. Table 2-2: Required Tools Tool Use Torque wrench For bolting/mounting the flow computer 2.5 mm hexagonal wrench For manipulating rotation set screw 3 mm hexagonal wrench For screw for M4 x 0.7 end cap retaining clamp (ATEX required) 9/16 in hexagonal wrench For installing/removing ¾ in NPT conduit plugs 1 1/16 in combination wrench For installing/removing ¾ in NPT to M20 thread reducer (ATEX required) #1 Phillips-head screwdriver For screws on HMI module #2 Phillips-head screwdriver For screws on other modules and boards 1/8 inch flat-head screwdriver For 5.08 mm pitch terminal block connections 3/32-inch flat head screwdriver For 3.81 mm pitch terminal block connections Laptop PC running Field Tools with FBxConnect configuration software For software configuration 2.4 Site Considerations The flow computer must reside in an accessible location for configuration and service. Refer to the dimensional drawings for information on the space required. Ensure the installation location provides easy access to the HMI module. 12 Installation Emerson FB1200 Flow Computer Instruction Manual D301782X012 November 2020 If your unit includes the optional solar panel, ensure the installation location provides sufficient space to mount the solar panel and adequate sunlight to charge the battery. If your unit includes the optional FBxWifi, ensure the installation location provides line-ofsight access to the transceiver. Figure 2-1: FB1200 Flow Computer Dimensions Multivariable Sensor Version (Option F1) Installation 13 Emerson FB1200 Flow Computer Instruction Manual D301782X012 November 2020 Figure 2-2: FB1200 Flow Computer Dimensions No Integral Sensor Version (Option F0) 14 Installation Emerson FB1200 Flow Computer Instruction Manual D301782X012 November 2020 Figure 2-3: FB1200 Flow Computer Dimensions Static Pressure Sensor (Option F2) 2.5 2.6 Installation General Wiring Guidelines The flow computer's pluggable terminal blocks use compression-type terminals. The 5.08 mm pitch terminal blocks accommodate wire between 28 and 12 AWG; the 3.81 mm pitch terminal blocks accommodate wire between 28 and 14 AWG. When making a connection, insert the bare end of the wire (approx. 1/4" max) into the clamp adjacent to the screw and secure the screw. To prevent shorts, ensure that no bare wire is exposed. Allow some slack in the wire while making terminal connections. Slack makes the wires more manageable and helps minimize mechanical strain on the terminal blocks. Use twisted pair, shielded and insulated cable for communication and I/O wiring to minimize signal errors caused by electromagnetic interference (EMI), radio frequency interference (RFI) and transients. When using shielded cable, ground all shields at only one point in the appropriate system. This prevents circulating ground current loops that can cause signal errors. Front or Rear End Caps The flow computer includes two threaded covers (end caps). The front end cap includes a window for viewing the HMI module; the rear end cap provides access to the terminal plate for power and I/O wiring. 15 Emerson FB1200 Flow Computer Instruction Manual D301782X012 November 2020 2.6.1 Removing/Replacing Retaining Clamp on End Caps For flameproof ATEX/IEC applications, each end cap includes a retaining clamp which screws down to prevent the end cap from being unscrewed. Figure 2-4: Front End Cap with Retaining Clamp Fitted 1 End Cap 2 Screw 3 Retaining Clamp Figure 2-5: Retaining Clamp in Place To loosen or tighten the screw, use a 3mm hexagonal wrench. When tightening, torque to 12 in-lbs (1.4 N m). Figure 2-6: Retaining Clamp and Screw 16 Installation 2.6.2 Emerson FB1200 Flow Computer Instruction Manual D301782X012 November 2020 Removing the Front or Rear End Caps DANGER EXPLOSION HAZARD: Never remove end cap(s) in a hazardous location. Removing end cap(s) in a hazardous location could result in an explosion. Note If you need more leverage place a long screwdriver or other appropriate tool across the two notches in the end cap to act as a pry bar (see Figure 2-7). Figure 2-7: Removing or Tightening the End Cap with Long Screwdriver 1. Remove the retaining clamp (if present). (See Section 2.6.1) 2. Grasp the end cap (front or rear). Figure 2-8: Front (left) and Rear (right) End caps 3. Unscrew the end cap turning it counter-clockwise until it comes off. Set it aside in a safe location. Installation 17 Emerson FB1200 Flow Computer Instruction Manual D301782X012 November 2020 Figure 2-9: Front (left) and Rear (right) End Caps Removal 2.6.3 2.7 2.7.1 18 Replacing the Front or Rear End Caps DANGER EXPLOSION HAZARD: Ensure the area in which you perform this operation is non-hazardous. Performing this operation in a hazardous area could result in an explosion. 1. Grasp the end cap (front or rear). 2. Carefully align the end cap threads with the threads of the enclosure. Important When replacing the rear end cap, ensure wires connecting to the terminal plate do not get crimped or caught between the end cap threads and the enclosure. 3. Screw the end cap clockwise (eight full turns) until it is tightly sealed to the enclosure. 4. Replace the retaining clamp (if required). (See Section 2.6.1) Note If you need more leverage place a long screwdriver or other appropriate tool across the two notches in the end cap to act as a pry bar (see Figure 2-7). Mounting the Enclosure You can mount the flow computer either directly to a manifold on the pipeline or indirectly on a two-inch pipe or pole. Direct mount installations use either a traditional mounting kit or a coplanar mounting kit. Indirect mount installations use an inline mounting kit. Bolting Considerations If the flow computer installation requires assembly of a process flange, manifold, or flange adapters, follow these assembly guidelines to ensure a tight seal for optimal performance characteristics of the flow computer. Only use bolts supplied with the flow computer or sold by Emerson Remote Automation Solutions as spare parts. Refer to the figure for common flow computer assemblies with the bolt length required for proper flow computer installation. DANGER Installation Emerson FB1200 Flow Computer Instruction Manual D301782X012 November 2020 EXPLOSION HAZARD: Ensure the area in which you perform this operation is non-hazardous. Performing this operation in a hazardous area could result in an explosion. Note For all other manifolds, contact your local Emerson Sales office or Emerson Impact Partner. Bolts are typically carbon steel or stainless steel. Confirm the material by viewing the markings on the head of the bolt and referencing the figure. If bolt material is not shown in the figure, contact your local Emerson Remote Automation Solutions representative for more information. Figure 2-10: Transmitter with Coplanar Flange Figure 2-11: Transmitter with Coplanar Flange and Optional Flange Adapters Figure 2-12: Transmitter with Traditional Flange and Optional Flange Adapters Installation Use the following bolt installation procedure: 1. Carbon steel bolts do not require lubrication. Stainless steel bolts are factory-coated with a lubricant to ease installation. Do not apply any additional lubricant when installing either type of bolt. 2. Finger-tighten the bolts. 3. Torque the bolts to the initial torque value using a crossing pattern. See Table 2-3 for initial torque value. 19 Emerson FB1200 Flow Computer Instruction Manual D301782X012 November 2020 4. Torque the bolts to the final torque value using the same crossing pattern. See Table 2-3 for final torque value. 5. Verify that the flange bolts protrude through the sensor module before applying pressure. Table 2-3: Torque Values for the Flange and Flange Adapter Bolts Bolt Material Head markings Initial Torque Final Torque Carbon Steel (CS) 300 in. -lbs. (33.9 N m) 650 in. -lbs. (73.4 N m) Stainless Steel (SST) 150 in. -lbs. (16.9 N m) 300 in. -lbs. (33.9 N m) Figure 2-13: Proper Bolt Installation 2.7.2 1 Bolt 2 Sensor module O-rings with Flange Adapters DANGER Failure to install proper flange adapter O-rings may cause process leaks, which can result in death or serious injury. Only use the O-ring that is designed for its specific flange adapter. 20 Installation Figure 2-14: O-rings with Flange Adapters Emerson FB1200 Flow Computer Instruction Manual D301782X012 November 2020 2.7.3 2.7.4 1 Flange 2 O-ring 3 Square PTFE-based profile 4 Round Elastomer profile 1. Whenever the flange or adapters are removed, visually inspect the O-rings. 2. Replace the O-rings if there are any signs of damage, such as nicks or cuts. 3. If the O-rings are replaced, re-torque the flange bolts and alignment screws after installation to compensate for seating of the O-rings. Direct Mount Direct mount installations use either a traditional mounting kit or a coplanar mounting kit. Mount the flow computer directly to the pipeline only if the pipeline includes a process manifold. DANGER EXPLOSION HAZARD: Ensure the area in which you perform this operation is non-hazardous. Performing this operation in a hazardous area could result in an explosion. 1. Place taps in the top or side of the line. 2. Mount the flow computer beside or above the taps. Indirect Mount You can mount the flow computer to a two-inch pipe or pole. Indirect mount can use the inline, coplanar, or traditional flange mounting kits. DANGER EXPLOSION HAZARD: Ensure the area in which you perform this operation is non-hazardous. Performing this operation in a hazardous area could result in an explosion. Installation 21 Emerson FB1200 Flow Computer Instruction Manual D301782X012 November 2020 Figure 2-15: Traditional Flange Mounting Kit 1 2.0 in. pipe diam. U-bolt assembly (5/16-18 x 4.0 LG) with (2) nuts (item 3) 2 Mounting bracket 3 Apply Loctite® 222TM Low Strength Purple Threadlocker to nuts. Torque nuts to 30 in-lbs (3.4 N m 4 7/16-20 x .625 cs/zinc cobalt screws (4). Torque to 30 in-lbs (3.4 N m) 22 Installation Figure 2-16: Coplanar Mounting Kit Emerson FB1200 Flow Computer Instruction Manual D301782X012 November 2020 1 Tubular L-shaped bracket 2 3/8-16 x 1 ½ in socket head wire lockable screw (2) Apply Killark® LUBG-6 Thread Lubricant to threads. Torque screws to 30 in-lbs (3.4 N m) 3 Split 3/8 lock washer (2) 4 5/16-18 keps nut (2). Apply Loctite 222 Low Strength Purple Threadlocker to nuts. Torque nuts to 30 in-lbs (3.4 N m) 5 U-bolt bracket 6 2-inch diameter pipe U-bolt Installation 23 Emerson FB1200 Flow Computer Instruction Manual D301782X012 November 2020 Figure 2-17: Inline Mounting Kit 2.7.5 1 Pipe mounting bracket 2 U-bolt 2 ½ inch diam. pipe (5/16-18 x 3.75 long) 3 5/16 flat lock washer (2) 4 5/16-18 300 series hex nut (2) - Apply Loctite 222 Low Strength Purple Threadlocker to threads. Torque nuts to 30 in-lbs (3.4 N m) 5 U-bolt clamp assembly - Apply Loctite 222 threadlocker to threads. Torque nuts to 30 in-lbs (3.4 N m) Rotating the Housing To improve accessibility to the HMI module or to ease wiring, you can optionally rotate the housing. Important Never rotate the housing more than 180 degrees from its original (as-shipped) position. Overrotation can break electronics within the unit. 24 Installation Emerson FB1200 Flow Computer Instruction Manual D301782X012 November 2020 Figure 2-18: Housing Rotation Set Screw (1 each side) 1 Set Screw (one each side) DANGER EXPLOSION HAZARD: Ensure the area in which you perform this operation is non-hazardous. Performing this operation in a hazardous area could result in an explosion. 3. Loosen the two housing rotation set screws. 4. Rotate the housing no more than 180 degrees from its original (as-shipped) position. 5. Re-tighten the two housing rotation set screws. Torque to 6 in-lbs. (0.7 N m). Installation 25 Emerson FB1200 Flow Computer Instruction Manual D301782X012 November 2020 2.8 Grounding the Device The flow computer includes a grounding lug on the terminal plate. Figure 2-19: Ground Lug 1 Ground Lug DANGER EXPLOSION HAZARD: Ensure the area in which you perform this operation is non-hazardous. Performing this operation in a hazardous area could result in an explosion. Once you have installed the unit, run a ground wire between the ground lug and a known good earth ground. You route the ground wire through one of the conduit fittings. Use stranded copper wire to earth ground and keep the length as short as possible. Clamp or braze the ground wire to the ground bed conductor (typically a stranded copper AWG 0000 cable installed vertically or horizontally). Run the ground wire so that any routing bend in the cable has a minimum radius of 30.5 cm (12 inches) below ground and 20.4 cm (8 inches) above ground. For more information on grounding or if your installation uses cathodic protection, refer to Site Considerations for Equipment Installation, Grounding, and Wiring (D301452X012). 26 Installation 2.9 Emerson FB1200 Flow Computer Instruction Manual D301782X012 November 2020 Terminal Plate The terminal plate includes the various terminal blocks (TB) for power and I/O connections. The terminal plate's appearance varies depending upon whether you have the optional 6-channel expansion I/O module installed with 3.81 pitch connections; when it is installed there are eight or nine connections per terminal blocks instead of six 5.08 pitch connections. Compare your device to the pictures to see which terminal plate you have. Figure 2-20: Terminal Plate (without Optional I/O with 6 5.08 mm Pitch Connectors) Installation 27 Emerson FB1200 Flow Computer Instruction Manual D301782X012 November 2020 Terminal Plate (with Optional I/O with 8 3.81 mm Pitch Connectors) 2.10 2.10.1 28 Power Modes To keep power consumption to a minimum, especially for remote sites, the flow computer can run in two different power modes: Low Power Mode (4 or 8 MHz CPU clock speed) or Standard Power Mode (60 MHz CPU clock speed). Low Power Mode The flow computer normally runs in low power mode for typical metering applications. The radio Power Control function (configurable in FBxConnect) switches the flow computer into standard power mode at specified times when serial communications are required, then it reverts to low power mode when the communication period is over. A serial connection to a remote 4088B MVT can occur in low power mode. Installation Installation Emerson FB1200 Flow Computer Instruction Manual D301782X012 November 2020 The local display (HMI module) with FBxWifi communications and FBxWifi uses additional power. You can configure it in FBxConnect to shut down after a period of inactivity. Important You must disable the Ethernet port (using a jumper) to run in low power mode. See Section 2.13.3. Table 2-4: Typical Power Usage Low Power Mode at Room Temperature Description Power Usage (mW) at 6.1Vdc Base flow computer with integral multivariable DP and pressure sensor and temperature measurement for a single meter run. Historical configuration supports maximum of: 47 4 averages 12 Station 1 history points (Group 4) 10 User Periodic history points (Group 1) Base flow computer with integral static pressure sensor and temperature measurement and a pulsed input for a single meter run Historical configuration supports maximum of: 45 4 averages 12 Station 1 history points (Group 4) 10 User Periodic history points (Group 1) Base flow computer with integral multivariable DP and pressure sensor and temperature measurement, communicating to remote 4088B-dual meter run (4088B externally powered) 82 Historical configuration supports maximum of: 8 averages 24 Station 1 & Station 2 history points (Group 4/Group 5) 10 User Periodic history points (Group 1) Additional Load Options: Display and backlight active 292 FBxWifi 315 FBxWifi and display active 337 DO active (1 Hz, 50:50 duty cycle, no load) 1 Important If you increase the number of history points/averages beyond any of the maximum limits detailed in Table 2-4, the flow computer cannot operate in low power mode and automatically runs in standard power mode. 29 Emerson FB1200 Flow Computer Instruction Manual D301782X012 November 2020 2.10.2 Standard Power Mode When serial communication is active (other than to a remote 4088B MVT) the flow computer operates in standard power mode. The unit also uses standard power mode when: The HMI module display is ON FBxWifi is active Ethernet port enabled in the flow computer Modbus Master communication active PIDs, Math/logic Blocks, Action Blocks, Effect blocks enabled 6-channel expansion I/O board installed and enabled in the flow computer; if board installed but disabled in FBxConnect, can remain in low power mode Power control zone enabled Table 2-5: Typical Power Usage Standard Power Mode at room temperature Description Power Usage Power Usage Power Usage (mW) at 6Vdc (mW) at 12Vdc (mW) at 24Vdc Base flow computer with integral multivariable DP and pressure sensor and 230 245 287 temperature measurement for a single meter run Base flow computer with integral static pressure sensor and temperature 244 260 305 measurement and a pulsed input for a single meter run Base flow computer with integral multivariable DP and pressure sensor and temperature measurement, 278 306 373 communicating to remote 4088B - dual meter run (4088B externally powered) Additional Load Options: Display and backlight active 162 168 178 FBxWifi 189 185 200 FBxWifi and display active 204 207 221 DO active (1 Hz, 50:50 duty cycle, no load) 1 1 1 PI active (10 KHz, 50:50 duty square wave) 13 14 15 6-channel expansion I/O board installed 40 49 80 Ethernet enabled 100 Mbit 435 421 462 Ethernet active 100 Mbit 459 443 489 30 Installation 2.10.3 Emerson FB1200 Flow Computer Instruction Manual D301782X012 November 2020 Notes on Battery Life Battery life varies based on numerous factors including temperature, communication usage, and various load options. To achieve the maximum battery life noted in the product data sheet requires that you: Limit use of the display, backlight, and FBxWifi options. Limit communication activity. Disable power to all I/O (except for the MV or static pressure sensor, or RTD). To do this, click Configure > I/O Setup > I/O Configuration > Properties and select Disable for each I/O module. 2.11 See the product data sheet FB1200 Flow Computer (D301790X012) for information on the additional power load of various options. Connecting Power Power can come from an external DC supply, or a lead acid battery pack with a solar panel. See Section 2.12.4 for information on solar power connections. Power connections are made through conduit fittings to the terminal plate. Remove the rear end cap for access to the terminal plate. Installation 31 Emerson FB1200 Flow Computer Instruction Manual D301782X012 November 2020 2.11.1 Connecting DC Power DANGER EXPLOSION HAZARD: Ensure the area in which you perform this operation is non-hazardous. Performing this operation in a hazardous area could result in an explosion. When power comes from an external DC supply, connect using the +DCIN and DCIN terminals. Use standard copper wire (#18 AWG minimum). The device supports both 12V and 24V power supplies. It accepts DC voltage from 5.7 to 30V; the amount of power required varies depending upon the options used. Note The top portion of Figure 2-21 shows the unit with optional I/O; the bottom portion shows the unit without optional I/O. Figure 2-21: DC Power Connections 1 To External power supply 32 Installation 2.11.2 Connecting Battery Power Emerson FB1200 Flow Computer Instruction Manual D301782X012 November 2020 DANGER EXPLOSION HAZARD: Ensure the area in which you perform this operation is non-hazardous. Performing this operation in a hazardous area could result in an explosion. When power comes from an internal battery pack, the battery pack plugs into one of two connectors. Figure 2-22: Connecting the Battery Pack 1 Left Battery Connector 2 Right Battery Connector Restriction The solar panel and lead acid battery combination cannot be used with ATEX/IECEx applications. Installation 33 Emerson FB1200 Flow Computer Instruction Manual D301782X012 November 2020 2.12 Installing the Optional Solar Panel If you purchased the lead acid battery/solar panel kit for main power, you need to install the supplied 6W solar panel. If you purchased the lead acid battery with a solar regulator but you are supplying your own solar panel, follow the manufacturer's instructions for remote mounting. DANGER EXPLOSION HAZARD: Ensure the area in which you perform this operation is non-hazardous. Performing this operation in a hazardous area could result in an explosion. Solar panel installation involves: Attaching mounting hardware to the solar panel (if not attached prior to shipment). Mounting the solar panel in one of two ways: · Integral mount (solar panel attaches directly to the flow computer) · Remote mount (solar panel mounts to a pole) Wiring power to the solar panel. Setting the tilt angle of the panel for maximum solar exposure. 2.12.1 Attaching Mounting Hardware to the Solar Panel DANGER EXPLOSION HAZARD: Ensure the area in which you perform this operation is non-hazardous. Performing this operation in a hazardous area could result in an explosion. Attach mounting hardware to the solar panel as shown in Figure 2-23. Attach aluminum tilt brackets (Item 2) to solar panel using the provided pan head screws (Item 3), hex nuts (Item 10 in Figure 2-24), and #10 lock washers (Item 9 in Figure 2-24). Apply Loctite® Threadlocker 222 sparingly to threads of hex nuts (Item 6). Attach mounting bracket to tilt brackets using provided hex nuts (Item 6), hex bolts (Item 5), washers (Item 4), and spring lock washers (Item 7). The spring lock washer goes between the washer and the nut. Torque to 30 in-lbs (3.4 N m). 34 Installation Emerson FB1200 Flow Computer Instruction Manual D301782X012 November 2020 Figure 2-23: Attaching Mounting Hardware to the Solar Panel 1 6V, 6W solar panel 2 aluminum tilt bracket (2) 3 10-32 x ½ pan head screw (4). Note: Matching hex nuts and washers not visible in this graphic; see Items 9 and 10 in Figure 2-24 4 5/16 flat washer (4); only two visible in this graphic 5 5/16-18 x .75 LG hex head bolt (2) 6 5/16-18 hex nut (2); only one visible in this graphic 7 5/16 flat spring lock washer (2) only one visible; placed on bolt between washer and nut 8 mounting bracket Installation 35 Emerson FB1200 Flow Computer Instruction Manual D301782X012 November 2020 2.12.2 Mounting the Solar Panel (Integral Mount) DANGER EXPLOSION HAZARD: Ensure the area in which you perform this operation is non-hazardous. Performing this operation in a hazardous area could result in an explosion. Restriction The solar panel and lead acid battery combination cannot be used with ATEX/IECEx applications. The integral mount solar panel cannot be used in a Class I Division 1 area; C1D1 solar panels must be remote mounted with the solar panel in a safe area. 1. Apply Loctite® 380TM Black Instant Adhesive to threads of elbow pipe (Item 15 in Figure 220). Attach elbow pipe (Item 15) to the flow computer conduit opening (Item 16); torque to 50 in-lbs (5.6 N m). 2. Apply Loctite 380 adhesive sparingly to threads of pipe (Item 14). 3. Attach pipe (Item 14) to elbow pipe (Item 15). Torque to 50 in-lbs (5.6 N m). 4. Attach pipe cap (Item 11) to top of pipe (Item 14). Torque to 50 in-lbs (5.6 N m). 5. Apply Loctite 222 threadlocker sparingly to threads of U-bolt (Item 12). 6. Attach solar panel assembly to pipe (Item 14) using U-bolt (Item 12). 7. Attach a ground wire at the back of the solar panel. For more information on grounding, refer to Site Considerations for Equipment Installation, Grounding, and Wiring Manual (D301452X012). 8. Adjust swivel and tilt angle for maximum solar exposure (see Section 2.13.5). 36 Installation Figure 2-24: Integral Mounted Solar Panel Emerson FB1200 Flow Computer Instruction Manual D301782X012 November 2020 1 6V, 6W solar panel 2 aluminum tilt bracket (2) 3 10-32 x ½ pan head screw (4). 4 5/16 flat washer (4); only two visible in this graphic 5 5/16-18 x .75 LG hex head bolt (2) 8 mounting bracket 9 #10 lock washer (4) 10 #10-32 hex nut (4) 11 ¾ NPT pipe cap 12 U-bolt 1 1/8 in. diam. pipe x ¼ -20 x 2-inch-long 13 pipe threads (2) 14 ¾ NPT x 8-inch-long threaded pipe 15 ¾ NPT 90-degree female x male elbow pipe 16 Conduit fitting Installation 37 Emerson FB1200 Flow Computer Instruction Manual D301782X012 November 2020 2.12.3 Mounting the Solar Panel (Remote Mount) DANGER EXPLOSION HAZARD: Ensure the area in which you perform this operation is non-hazardous. Performing this operation in a hazardous area could result in an explosion. Restriction Battery power is not allowed in ATEX/IECEx applications. 1. Apply Loctite 222 thread locker sparingly to threads of U-bolt (Item 12). 2. Attach solar panel assembly to pole using U-bolt (Item 12). Torque to 30 in-lbs (3.4 N m). 3. Adjust swivel and tilt angle for maximum solar exposure (see Section 2.13.5). Figure 2-25: Remote Mounted (pole mounted) Solar Panel 1 6V, 6W solar panel 2 mounting bracket 12 U-bolt 1 1/8 in. diam. pipe x ¼ -20 x 2 inch long 17 pole (customer supplied) 38 Installation 2.12.4 Connecting Solar Power Emerson FB1200 Flow Computer Instruction Manual D301782X012 November 2020 DANGER EXPLOSION HAZARD: Ensure the area in which you perform this operation is non-hazardous. Performing this operation in a hazardous area could result in an explosion. When power comes from a solar panel/lead acid battery combination, connect using the +SPIN and SPIN terminals and standard copper wire (#18 AWG minimum). Note The top portion of Figure 2-26 shows wiring for units with option I/O; the bottom portion shows wiring for units without optional I/O. Figure 2-26: Wiring Solar Power 1 To solar panel Restriction Battery power is not allowed in ATEX/IECEx applications. Installation 39 Emerson FB1200 Flow Computer Instruction Manual D301782X012 November 2020 2.12.5 Adjusting the Optional Solar Panel Tilt Angle DANGER EXPLOSION HAZARD: Ensure the area in which you perform this operation is non-hazardous. Performing this operation in a hazardous area could result in an explosion. The mounting brackets allow you to adjust the solar panel for maximum solar exposure. You can adjust the swivel of the panel by adjusting the U-bolt. Figure 2-27: Adjusting Solar Panel Tilt Angle Point the solar panel surface due south (in the northern hemisphere) or due north (in the southern hemisphere) at an angle determined by the latitude of the site. Table 2-6 shows the angle (from horizontal) at which you should install the solar panel to maximize annual energy output. At most latitudes, you can improve performance by reducing the angle during the summer and increasing the angle during the winter. If no seasonal adjustments in panel direction are needed then adjust the position for the worst-case December-February angle. Solar insolation is the amount of solar energy in hours received each day by an optimally tilted panel during the worst month of the year. An insolation rating of one hour means that the site, on average, would receive one hour of solar energy at the panel's rated power level (1000W/m2 per day). This rating varies from less than one hour in northern Canada to more than six hours in the Sahara Desert. 40 Installation 2.13 2.13.1 Table 2-6: Solar Panel Tilt Angle Latitude 0 to 4° 5 to 20° 21 to 45° 46 to 65° 66 to 75° Emerson FB1200 Flow Computer Instruction Manual D301782X012 November 2020 Installation Angle 10° from horizontal Add 5° from the local latitude Add 10° from the local latitude Add 15° from the local latitude 80° from horizontal Connecting Communication Ports DANGER EXPLOSION HAZARD: Ensure the area in which you perform this operation is non-hazardous. Performing this operation in a hazardous area could result in an explosion. The communication ports allow you to connect either to a PC or laptop running FBxConnect software or to other devices. If your application measures two meter runs, you must dedicate a port for communication to the external transmitter for the second meter run. Access the three serial communication ports and the Ethernet port on the terminal plate under the rear end cap. Route communication cables through the conduit fittings and connect the cables on the terminal plate. Connecting to COM1 COM1 can be configured for RS-232, RS-485 (2-wire), or RS-485/422 (4-wire) communications. When connecting COM1 to another device using RS-232, use wiring as shown in Figure 2-28. Note The upper portion of Figure 2-28 shows wiring for units with optional I/O; the lower portion shows wiring for units without optional I/O. Installation 41 Emerson FB1200 Flow Computer Instruction Manual D301782X012 November 2020 Figure 2-28: Connecting a Device to COM1 Using RS-232 1 RS-232 port (COM1) on FB device 2 RS-232 port on external device When connecting COM1 to another device using RS-485/422 (4-wire), use wiring as shown in Figure 2-29. Note The upper portion of Figure 2-29 shows wiring for units with optional I/O; the lower portion shows wiring for units without optional I/O. 42 Installation Emerson FB1200 Flow Computer Instruction Manual D301782X012 November 2020 Figure 2-29: Connecting a Device to COM1 Using RS-485/422 (4-wire) 1 RS-485/422 (4-wire) port (COM1) on FB device 2 RS-485/422 (4-wire) port on external device When connecting COM1 to another device using RS-485 (2-wire), use wiring as shown in Figure 230. Note The upper portion of Figure 2-30 shows wiring for units with optional I/O; the lower portion shows wiring for units without optional I/O. Installation 43 Emerson FB1200 Flow Computer Instruction Manual D301782X012 November 2020 Figure 2-30: Connecting a Device to COM1 Using RS-485 (2-wire) 2.13.2 1 RS-485 (2-wire) port (COM1) on FB device 2 RS-485 (2-wire) port on external device Regardless of the interface standard (RS-232, RS-485 [2-wire or 4-wire]), you must use FBxConnect to configure the port for proper usage. Connecting to COM2 and COM3 COM2 and COM3 operate identically. Each can be configured for either RS-232 or RS-485 (2-wire) communication. When connecting COM2 or COM3 to an RS-232 port on another device (a PC or another controller/flow computer) use wiring as shown in Figure 2-31: 44 Installation Emerson FB1200 Flow Computer Instruction Manual D301782X012 November 2020 Figure 2-31: Connecting a Device to COM2 or COM3 Using RS-232 (with Optional I/O) 1 RS-232 port (COM2) on FB device 2 RS-232 port (COM3) on FB device 3 RS-232 port on external device Note COM3 does not have its own GND terminal. Use either GND terminal on the COM1 terminal block. Installation 45 Emerson FB1200 Flow Computer Instruction Manual D301782X012 November 2020 Figure 2-32: Connecting a Device to COM2 or COM3 Using RS-232 (without optional I/O) 1 RS-232 port (COM2) on FB device 2 RS-232 port on external device 3 RS-232 port (COM3) on FB device Note COM2 does not have its own GND terminal. Use either GND terminal on the COM1 terminal block. When connecting COM2 or COM3 to an RS-485 (2-wire) port on another device (such as a transmitter), use wiring as shown in Figure 2-33: 46 Installation Emerson FB1200 Flow Computer Instruction Manual D301782X012 November 2020 Figure 2-33: Connecting a Device to COM2 or COM3 Using RS-485 (2-wire) (with optional I/O) 1 RS-485 (2-wire) port (COM2) on FB device 2 RS-485 (2-wire) port (COM3) on FB device 3 RS-485 (2-wire) port on external device Note COM3 does not have its own GND terminal. Use either GND terminal on the COM1 terminal block. Installation 47 Emerson FB1200 Flow Computer Instruction Manual D301782X012 November 2020 Figure 2-34: Connecting a Device to COM2 or COM3 Using RS-485 (2-wire) (without optional I/O) 1 RS-485 (2-wire) port (COM2) on FB device 2 RS-485 (2-wire) port on external device 3 RS-485 (2-wire) port (COM3) on FB device Note Neither COM2 nor COM3 have GND terminals. Use either GND terminal on the COM1 terminal block when grounding COM2 or COM3. Regardless of the interface standard (RS-232 or RS-485 2-wire), you must use FBxConnect to configure the port for proper usage. 48 Installation 2.13.3 Emerson FB1200 Flow Computer Instruction Manual D301782X012 November 2020 Ethernet Port The Ethernet port is a standard 8-pin 10/100Base-T RJ-45 modular connector located on the terminal plate. Connect to the Ethernet port using the appropriate Category 5 shielded patch cable Note The default IP address for the Ethernet port is 192.168.1.10; the default port is 20000. Figure 2-35: Location of Ethernet Port 1 Ethernet Port Note If you ordered Ethernet, the unit ships with Ethernet enabled. If you need to operate the device in lower power mode, you must disable Ethernet. Jumper J10 on the CPU module (see Figure 2-36) controls whether Ethernet is enabled or disabled (lower power mode). See the CPU Module Field Replacement Guide (D301802X012) for information on how to open the unit to gain access to the CPU module. Installation 49 Emerson FB1200 Flow Computer Instruction Manual D301782X012 November 2020 Figure 2-36: Ethernet Port jumper 50 Installation Emerson FB1200 Flow Computer Instruction Manual D301782X012 November 2020 Section 3: I/O Configuration and Wiring This section covers the following topics: Analog Inputs Analog Outputs Digital Inputs Digital Outputs Pulse Inputs Connecting the RTD Connecting a Rosemount 4088B Transmitter For Use in a Second Meter Run I/O in the flow computer comes from the integrated multivariable sensor and RTD connector, the CPU board, as well as from the optional 6-channel expansion I/O board. Note When using a digital output to drive an inductive load (such as a relay coil), place a suppression diode across the load. This protects the DO from the reverse Electro-Motive Force (EMF) spike generated when the inductive load is switched off. Notes About Power for an External Device Connected to a Flow Computer I/O Point: If the external device does not include its own integrated power supply, you must provide your own external supply (30Vdc maximum) for that device. I/O Configuration and Wiring 51 Emerson FB1200 Flow Computer Instruction Manual D301782X012 November 2020 Figure 3-1: Base I/O on CPU (with Optional I/O) A When wiring a 1-5 V Analog Input (AI), use configuration at left B When wiring a 4-20 mA Analog Input (AI), use configuration at left 1 Field Device 2 Power Supply 30Vdc Max 3 500 mA load max 4 To AGND 5 To AIAOx 6 Dry contact 52 I/O Configuration and Wiring Figure 3-2: Base I/O On CPU (without Optional I/O) Emerson FB1200 Flow Computer Instruction Manual D301782X012 November 2020 A When wiring a 1-5 V Analog Input (AI), use configuration at left B When wiring a 4-20 mA Analog Input (AI), use configuration at left 1 Field Device 2 Power Supply 30Vdc Max 3 500 mA load max 4 To AGND 5 To AIAOx 6 Dry contact I/O Configuration and Wiring 53 Emerson FB1200 Flow Computer Instruction Manual D301782X012 November 2020 Figure 3-3: Optional 6-channel Expansion I/O Module A When wiring a 1-5 V Analog Input (AI), use configuration at left B When wiring a 4-20 mA Analog Input (AI), use configuration at left 1 Field Device 2 Power Supply 30Vdc Max 3 500 mA load max 4 To AGND 5 To AIAOx 6 Dry contact 54 I/O Configuration and Wiring 3.1 3.1.1 Emerson FB1200 Flow Computer Instruction Manual D301782X012 November 2020 Analog Inputs The flow computer includes two on-board channels you can individually configure as either analog inputs (AI) or analog outputs (AO). In addition, if you purchased the optional 6-channel expansion I/O board, there are two additional channels you can individually configure as either AIs or AOs. Note No external resistor is required for a current (mA) device. You can apply a 250 ohm resistor using analog input configuration selections in FBxConnect. When configured as analog inputs, the channels have the following characteristics: Table 3-1: Analog Input Characteristics Type Number Supported Characteristics Analog Input (AI) 0 to 4 as follows: 1 or 2 non-isolated channels on CPU board (AIAO1 and AIAO2) always present. You can configure one, both, or neither as AIs. 1 or 2 additional non-isolated channels on optional 6-channel expansion I/O board (AIAO3 and AIAO4). If present you can configure one, both, or neither as AIs. 4 to 20 mA range (@24Vdc), or 1 to 5Vdc Over range for calibration purposes: 3.2 to 20.8 mA or 0.8 to 5.2 Vdc Externally powered Factory calibrated (re-calibration is unnecessary for at least 3 years) Signal conditioning When you configure a channel as an AI it cannot be used as an AO AI Wiring Wire analog inputs as shown in the following figures. Note Figures 3-4 and 3-5 show analog input wiring for AIAO2. AIAO1 and AIAO2 share the same GND terminal. I/O Configuration and Wiring 55 Emerson FB1200 Flow Computer Instruction Manual D301782X012 November 2020 Figure 3-4: 4-20 mA AI Wiring (Base I/O with Optional I/O Module) 1 Field Device 2 Power Supply 30Vdc Max Figure 3-5: 1-5 V AI Wiring (Base I/O with optional I/O) 1 Field Device 56 I/O Configuration and Wiring Emerson FB1200 Flow Computer Instruction Manual D301782X012 November 2020 Figure 3-6: AI Wiring (Base I/O without Optional I/O Module) A When wiring a 1-5 V Analog Input (AI), use configuration at left B When wiring a 4-20 mA Analog Input (AI), use configuration at left 1 Field Device 2 Power Supply 30Vdc Max 3 To AGND 4 To AIAOx Note Figures 3-7 and 3-8 show analog input wiring for AIAO3. AIAO3 and AIAO4 share the same GND terminal. I/O Configuration and Wiring 57 Emerson FB1200 Flow Computer Instruction Manual D301782X012 November 2020 Figure 3-7: 4-20 mA AI Wiring (with Optional 6-channel Expansion I/O Module). 1 Field Device 2 Power Supply 30Vdc Max Figure 3-8: 1-5 V Analog Input (AI) Wiring (Optional 6-channel Expansion I/O Module 1 Field Device 58 I/O Configuration and Wiring 3.2 3.2.1 Emerson FB1200 Flow Computer Instruction Manual D301782X012 November 2020 Analog Outputs The flow computer includes two on-board channels you can individually configure as either analog outputs (AO) or analog inputs. In addition, if you purchased the optional 6-channel expansion I/O board, there are two additional channels you can individually configure as either AOs or AIs. When configured as analog outputs, the channels have the following characteristics: Table 3-2: Analog Output Characteristics Type Number Supported Characteristics Analog Output (AO) 0 to 4 as follows: 1 or 2 non-isolated channels on CPU board (AIAO1 and AIAO2) always present. You can configure one, both, or neither as AOs. Note: If you configure both as AOs we recommend you provide isolation to avoid ground loops which could affect readings. 1 or 2 additional non-isolated channels on optional 6-channel expansion I/O board (AIAO3 and AIAO4). If present you can configure one, both, or neither as AOs. 4 to 20 mA range (@24Vdc) Externally powered field device (AIAO1/AIAO2) AO provides current to power field device (AIAO3/ AIAO4) AO sinks current to system ground Factory calibrated (re-calibration is unnecessary for at least 3 years) You can configure a fail state so that on power up or if the CPU fails the output drives to 0 µA When a channel is configured as an AO it cannot be used as an AI AO Wiring Wire analog outputs as shown in the following figures. Note Figure 3-9 shows analog output wiring for AIAO1. AIAO1 and AIAO2 share the same GND terminal. I/O Configuration and Wiring 59 Emerson FB1200 Flow Computer Instruction Manual D301782X012 November 2020 Figure 3-9: AO Wiring (Base I/O with Optional I/O) 1 Field Device 2 Power Supply 30Vdc Max Figure 3-10: AO Wiring (Base I/O without Optional I/O) 1 Field Device 2 Power Supply 30Vdc Max 60 I/O Configuration and Wiring Emerson FB1200 Flow Computer Instruction Manual D301782X012 November 2020 Note Figure 3-11 shows analog output wiring for AIAO4. AIAO3 and AIAO4 share the same GND terminal. Figure 3-11: AO Wiring (with Optional 6-channel Expansion I/O Module) 3.3 1 Field Device Digital Inputs Depending upon how you ordered it, the flow computer includes either two or six channels you can individually configure as digital inputs (DI), digital outputs (DO), or pulse inputs (PI). When configured as digital inputs, the channels have the following characteristics: Table 3-3: Digital Input Characteristics Type Number Supported Characteristics Digital Input (DI) 0 to 6 as follows: 1 or 2 non-isolated channels on CPU board (PI/DI/DO1 and PI/DI/DO2). Two always present; you can configure one, both, or neither as DIs. 1 to 4 additional non-isolated channels on optional 6-channel expansion I/O board (PI/DI/DO3 through PI/DI/DO6). If present you can con- figure one, two, three, four or none as DIs. Circuit protection 30ms input filtering Maximum input frequency of 10 Hz Selectable current source of 66 µA or 2 mA Either externally driven or internally driven and pulled to ground by dry contact closures or open collector devices When a channel is configured as a DI it cannot be used as a DO or PI channel I/O Configuration and Wiring 61 Emerson FB1200 Flow Computer Instruction Manual D301782X012 November 2020 3.3.1 DI Wiring The following figures show how to wire digital inputs. Note Figure 3-12 shows discrete input wiring for DIDO1. DIDO1 and DIDO2 share the same GND terminal. Figure 3-12: DI Wiring (Base I/O with Optional I/O) 1 Dry contact 62 I/O Configuration and Wiring Emerson FB1200 Flow Computer Instruction Manual D301782X012 November 2020 Figure 3-13: DI Wiring (Base I/O without Optional I/O) 1 Dry contact Note Figure 3-14 shows discrete input wiring for DIDO5. DIDO5 and DIDO6 share the same GND terminal. DIDO3 and DIDO4 share a different GND terminal. Figure 3-14: DI Wiring - (with Optional 6-channel Expansion I/O Module) 1 Dry contact I/O Configuration and Wiring 63 Emerson FB1200 Flow Computer Instruction Manual D301782X012 November 2020 3.4 Digital Outputs Depending upon how you ordered it, the flow computer includes two or six channels you can configure as digital outputs (DO), digital inputs (DI) or pulse inputs (PI). Note When using a digital output to drive an inductive load (such as a relay coil), place a suppression diode across the load. This protects the DO from the reverse Electro-Motive Force (EMF) spike generated when the inductive load is switched off. When configured as digital outputs, the channels have the following characteristics: Table 3-4: Digital Output Characteristics Type Number Supported Characteristics Digital Output (DO) 0 to 6 as follows: 1 or 2 non-isolated channels on CPU board (PI/DI/DO1 and PI/DI/DO2). Two always present; you can configure one, both, or neither as DOs. 1 to 4 additional non-isolated channels on optional 6-channel expansion I/O board (PI/DI/DO3 through PI/DI/DO6). If present you can configure one, two, three, four or none as DOs. DO is a low side switch that sinks current to ground Current rating of 500 mA Maximum operating frequency of 50 Hz Pulse off/on time can be configurable with a 31 ms minimum on time and a 31 ms minimum off time Can be configured in software with an output state for initial power-up and in the case of a CPU failure Software configurable failure mode of fail open, fail closed, or hold last state When a channel is configured as a DO it cannot be used as a DI or PI channel 64 I/O Configuration and Wiring 3.4.1 Emerson FB1200 Flow Computer Instruction Manual D301782X012 November 2020 DO Wiring The following diagrams show how to wire digital outputs. Note Figure 3-15 shows digital output wiring for DIDO2. DIDO1 and DIDO2 share the same GND terminal. DIDO3 and DIDO4 share a different GND terminal. Figure 3-15: DO Wiring (Base I/O with Optional I/O) 1 Power Supply 30VDC max 2 500 mA load max I/O Configuration and Wiring 65 Emerson FB1200 Flow Computer Instruction Manual D301782X012 November 2020 Figure 3-16: DO Wiring (Base I/O without Optional I/O) 1 Power Supply 30Vdc Max 2 500 mA load max Note Figure 3-17 shows digital output wiring for DIDO4. DIDO3 and DIDO4 share the same GND terminal. DIDO5 and DIDO6 share a different GND terminal. Figure 3-17: DO Wiring (with Optional 6-channel Mixed I/O Module) 1 Power Supply 30Vdc Max 2 500 mA load max 66 I/O Configuration and Wiring 3.5 3.5.1 Emerson FB1200 Flow Computer Instruction Manual D301782X012 November 2020 Pulse Inputs The flow computer includes two channels that can be individually configured as pulse inputs (PI), digital inputs (DI), or digital outputs (DO). When configured as pulse inputs, the PI channels have the following characteristics: Table 3-5: Pulse Input Characteristics Type Number Supported Characteristics Pulse Input (PI) 0 to 6 as follows: 1 or 2 non-isolated channels on CPU board (PI/DI/DO1 and PI/DI/DO2). Two always present; you can configure one, both, or neither as PIs. 1 to 4 additional non-isolated channels on optional 6-channel expansion I/O board (PI/DI/DO3 through PI/DI/DO6). If present you can con- figure one, two, three, four or none as PIs. Supports dry contacts and open collector outputs connected to ground and voltage inputs Supports single pulse for volume or mass Input filtering selectable at 30 µs or 1 ms Frequency range from 0 to10.5 KHz Maximum input frequency for the 1 ms filter is 300 Hz When a channel is configured as a PI it cannot be used as a DI or DO channel ON when greater than 3.0V; OFF when less than 2.0V PI Wiring The following diagrams show how to wire the pulse inputs. Note Figure 3-18 shows pulse input wiring for PIDIDO1. PIDIDO1 and PIDIDO2 share the same GND terminal. I/O Configuration and Wiring 67 Emerson FB1200 Flow Computer Instruction Manual D301782X012 November 2020 Figure 3-18: PI Wiring (Base I/O with Optional I/O) Figure 3-19: PI Wiring (Base I/O without Optional I/O) 68 I/O Configuration and Wiring Emerson FB1200 Flow Computer Instruction Manual D301782X012 November 2020 Note Figure 3-20 shows pulse input wiring for PIDIDO5. PIDIDO5 and PIDIDO6 share the same GND terminal. PIDIDO3 and PIDIDO4 share a different GND terminal. Figure 3-20: PI Wiring (with Optional I/O Module) 3.6 Connecting the RTD DANGER EXPLOSION HAZARD: Ensure the area in which you perform this operation is non-hazardous. Performing this operation in a hazardous area could result in an explosion. RTD connections reside on the terminal plate under the rear end cap. The flow computer supports 2wire, 3-wire, and 4-wire operation. Route the RTD cable through the conduit fittings and connect them on the terminal plate (as shown on Figure 3-21 and Figure 3-22). Note The device defaults to the 4-wire RTD configuration; you can change this setting in FBxConnect. I/O Configuration and Wiring 69 Emerson FB1200 Flow Computer Instruction Manual D301782X012 November 2020 Figure 3-21: Wiring for 2-Wire, 3-Wire, and 4-Wire RTD (Units with Optional I/O) 1 2-Wire RTD 2 3-Wire RTD 3 4-Wire RTD 70 I/O Configuration and Wiring Emerson FB1200 Flow Computer Instruction Manual D301782X012 November 2020 Figure 3-22: Wiring for 2-Wire, 3-Wire, and 4-Wire RTD (Units without Optional I/O) 1 2-Wire RTD 2 3-Wire RTD 3 4-Wire RTD I/O Configuration and Wiring 71 Emerson FB1200 Flow Computer Instruction Manual D301782X012 November 2020 3.7 Connecting a Rosemount 4088B Transmitter for Use in a Second Meter Run Data for the second run comes from an external transmitter such as the Rosemount 4088B. Figure 3-23: Connecting a 4088B Transmitter for a Second Meter Run 1 RS-485 bus, twisted pair required 2 Enable AC termination using switches. 3 User-provided power supply (5.4V to 30V) 72 I/O Configuration and Wiring Emerson FB1200 Flow Computer Instruction Manual D301782X012 November 2020 See the RosemountTM 4088 MultivaribleTM Transmitter Reference Manual (00809-0100-4088, Rev CB, Feb. 2017) for details on installing the 4088B. 1. Using twisted pair wire, connect the RS-485 terminals for COM3 to the RS-485 terminals on the 4088B as shown in the graphic. 2. Set switches on the 4088B for bus termination or use a 120 ohm resistor. 3. Use FBxConnect software to configure COM3 for RS-485. In particular, enable termination for the port. I/O Configuration and Wiring 73 Emerson FB1200 Flow Computer Instruction Manual D301782X012 November 2020 74 I/O Configuration and Wiring Section 4: Operation Emerson FB1200 Flow Computer Instruction Manual D301782X012 November 2020 4.1 4.2 4.2.1 Operation This section covers the following topics: Powering Up/Powering Down the Device Establishing Communications Communicating using the HMI Module This section describes day-to-day operation of the Emerson FB1200 Flow Computer including how to turn it on and off and how to communicate with it. Powering Up/Powering Down the Device DANGER Do not attempt to connect or disconnect power from the unit in a hazardous area. Ensure the area is non-hazardous. Failure to do so could result in an explosion. 1. Remove the front end cap. 2. Terminal block TB1 includes connections for DC power (+DCIN, -DCIN) and solar power (+SPIN, -SPIN). Battery power (which is also used with solar power) has its own internal connections. Plug in TB1 to activate DC or solar power. If your device uses an internal battery and it is not connected, connect it as discussed in 2.12.3 Connecting Battery Power. Unplug TB1 to deactivate DC or solar power. If your device uses an internal battery, disconnect the main battery. This turns on (or shuts OFF) power from either an external power supply or the battery pack/solar panel. Note When you turn power on, the backlight on the HMI module lights, momentarily turns off and then remains lit while the INPUT LED blinks. After approximately one minute the initialization process finishes and the HMI starts to display live data. Establishing Communications The flow computer supports three ways to establish communications: through the host SCADA system, through a local laptop computer running FBxConnect, or through the HMI module. Communicating with the SCADA Host Communication to the flow computer through a SCADA host computer requires configuration of the host computer software, which varies depending upon whether you are using OpenEnterprise or another host software package. Much of this configuration is beyond the scope of this topic, but no matter which host you are using, there are certain steps you must take: 75 Emerson FB1200 Flow Computer Instruction Manual D301782X012 November 2020 1. Decide how the SCADA host should communicates with the flow computer. This could be through connection with one of the communication ports. A serial port connection could be a cable directly connected to the SCADA host or there could be intermediate connections through a radio or modem. An Ethernet port connection must be through an Ethernet switch with an appropriate Category 5 shielded patch cable. 2. Decide which communication protocol you will use. This could be DNP3, ROC, or BSAP. See these documents for more information: Emerson FB Flow Computer DNP3 Protocol Specifications Manual (D301806X012) ROC Protocol Specifications Manual (for Emerson FBx-series) (D301828X012) BSAP Communication Guide for FB1000/FB2000 Series Flow Computers (D301808X012) 3. Provide the SCADA host with information about the various parameters it needs to extract from the application running in the flow computer. Typically, the SCADA host software includes a utility that allows you to identify this information so it can be incorporated into the database at the SCADA host. 4. Using whatever human-machine interface (HMI) tools exist for the SCADA host, create graphical displays or reports that include the parameters from the application required for successful operator interaction (setpoints, flow variables and so on). 4.2.2 Communicating with a Laptop Using One of the Serial Ports If the flow computer is not awake, you must wake it up first. (See Section 4.3) Your laptop must have Field Tools software with FBxConnect software installed. You must know a valid username/password combination for the flow computer. DANGER EXPLOSION HAZARD: Ensure the area in which you perform this operation is non-hazardous. Performing this operation in a hazardous area could result in an explosion. 1. Connect a cable between a serial port (or serial/USB adapter) on your laptop and port COM2 on the flow computer. 2. Launch Field Tools and add a new serial connection for this device; this launches FBxConnect configuration software. (If you already have an existing saved serial connection for this device in Field Tools, just double-click on it in the Connections list.) 3. Log into the flow computer if prompted. 4. Use the FBxConnect configuration software to view or change any desired parameters. 5. When finished, log off the flow computer and disconnect the cable from its serial port. 4.2.3 Communicating with a Laptop Using Ethernet Your laptop must have Field Tools software with FBxConnect software installed. You must know a valid username/password combination for the flow computer. 76 Operation 4.2.4 Operation Emerson FB1200 Flow Computer Instruction Manual D301782X012 November 2020 DANGER EXPLOSION HAZARD: Ensure the area in which you perform this operation is non-hazardous. Performing this operation in a hazardous area could result in an explosion. 1. Connect a Category 5 shielded cable between an Ethernet port on your laptop and an Ethernet switch for your network. 2. Connect a Category 5 shielded cable between your Ethernet switch and the Ethernet port on the flow computer. 3. Launch Field Tools and add an IP connection for the device then click Connect to start the FBxConnect software. (If you already have an existing saved IP connection for this device in Field Tools, just double-click on it in the Connections list.) 4. Log into the flow computer if prompted. 5. Use the FBxConnect software to view/change any desired parameters. 6. When finished, log off from the flow computer and disconnect the cable. Communicating with a Laptop Wirelessly with FBxWifi You must have purchased the flow computer with the optional FBxWifi communcations feature to connect to a laptop PC wirelessly. Additionally: Wi-Fi® must be configured and working on your laptop PC. Your laptop PC must have Field Tools software with FBxConnect installed. You must know a valid username/password combination for the flow computer. You must know the name of the wireless network and the security key required to connect to it. Your laptop PC must be within line-of-sight with either the front display of the flow computer or of an external antenna for the FBxWifi communications module. If the flow computer is not awake, you must wake it up first. (See Section 4.3) WARNING Ensure that you and your laptop PC are in a non-hazardous area. 1. Launch Field Tools software and add a new wireless connection. (If you already have a saved wireless connection for this device in Field Tools, just double-click on the device in the Connections list and skip to Step 4.) 2. Select the wireless network to which the flow computer belongs and enter the appropriate security key. 3. Click Connect to start the FBxConnect software. 4. Log into the flow computer if prompted. 5. Use the FBxConnect software to view or change any desired parameters. 6. When finished, log off the flow computer and disconnect from the wireless network. 77 Emerson FB1200 Flow Computer Instruction Manual D301782X012 November 2020 4.3 Communicating using the HMI Module You must have purchased the flow computer with the HMI module version that includes the optional display. Not all models include the display. Units without the display still include a button to wake up the device and status LEDs. Notes If the device is configured to require logins to view data, you must know a valid username/password combination for the flow computer. To conserve power, the HMI module enters sleep mode after a period of inactivity. Sleep mode disables FBxWifi communication. In FBxConnect, you can configure the number of minutes of inactivity triggering sleep mode through the LCD Sleep Time parameter. Setting this parameter to 0 disables sleep mode which keeps the HMI module on but uses significantly more power. The operator "awakens" the device by holding a finger against the front cover glass over the Hold to Wake button (the left-most button) for typically five to ten seconds. You can also pre-define a number of automatic wake-up times during the day from the Power Control screen in FBxConnect. To temporarily keep the HMI module out of sleep mode, maintain an active FBxConnect connection. So long as communications remain active, the HMI module does not sleep. 1. Go to the front of the flow computer and touch your finger on the glass above the Hold to Wake button until the display lights up. (This may take several seconds.) Figure 4-1: Waking the Display 78 Operation Emerson FB1200 Flow Computer Instruction Manual D301782X012 November 2020 2. If prompted, login using a valid username/password combination. For information on how the buttons work, see Table 4-1. 3. The display enters Screen Saver Mode where it sequentially presents a series of screens showing details about the meter run flow rates, totals, and current process variables. Figure 4-2: Infrared (IR) Button Location Operation 1 Left Infrared (IR) Button 2 Down Infrared (IR) Button 3 Up Infrared (IR) Button 4 Right Infrared (IR) Button Note When using the IR buttons, aim your finger at the round spot just below the arrow. 79 Emerson FB1200 Flow Computer Instruction Manual D301782X012 November 2020 Table 4-1: Infrared (IR) Buttons on HMI Module Button OR Mode Screen Saver Data Entry Idle Mode Screen Saver Data Entry Data Entry Use Tap once to move up or down one item through list of parameters. Hold to stay on current parameter. Tap (UP) once to move the cursor to the previous character in the list or (DOWN) once to move the cursor to the next character in the list.Hold (UP) or (DOWN) to scroll more quickly through the character list. Hold to wake the display (if screen is off) Log out (if logged on) Tap once to move the cursor to the left.Hold to perform action shown on screen (such as "Hold to Accept") Tap once to move the cursor to the right.Hold to perform action shown on screen (such as "Hold to Cancel") Symbol(s) representing the status of a value may appear in the upper right of the display, next to the description. Multiple symbols may display. If there are no data quality issues, no symbols display. Table 4-2: Symbols on Display Symbol Meaning Alarm: The parameter value shown is in an alarm state (such as High Alarm, Low Alarm, etc.). Override: The parameter value shown is in override mode (that is, a userentered fixed value). Fault: The parameter value shown is somehow invalid. Unverified: For parameter values that require additional validation (beyond simple database min/max range checking), the firmware has not yet validated the parameter value shown. 80 Operation Emerson FB1200 Flow Computer Instruction Manual D301782X012 November 2020 Section 5. Service and Troubleshooting This section covers the following topics: Returning the Unit for Repairs Interpreting the Status LEDs Switch and Buttons Removing/Replacing the HMI Module Replacing the Main Battery Pack Removing/Replacing the SRAM Battery Upgrading System Firmware To maintain hazardous location certifications, you can only replace components in the field with the exact same part so that the model string on the data plate remains correct. This means you cannot add any hardware not reflected in the model string or upgrade a hardware component to a newer version; any such upgrades are prohibited and void the hazardous location certification. For a list of user serviceable parts contact your Emerson Remote Automation Solutions sales representative or Emerson Impact Partner. This chapter describes the service tasks that everyone needs to know such as replacing batteries or installing a firmware upgrade. A separate series of field replacement guides covers major field replaceable components. Any replacement not covered in this chapter or in the field replacement guides (such as adding or upgrading hardware or replacing sensors) can only be performed at an Emerson-authorized repair facility. Important Use only batteries supplied with the flow computer or sold by Emerson as spare parts for this flow computer. If you substitute a battery you obtain elsewhere you will void your certification unless it is the identical part from the same manufacturer as that supplied with the flow computer from Emerson. Service and Troubleshooting 81 Emerson FB1200 Flow Computer Instruction Manual D301782X012 November 2020 Figure 5-1: FB1200 Flow Computer Components 1 Front end cap (cover) 2 HMI module 3 Battery pack 4 Data plate 5 Rear end cap (cover) 6 Threaded ¾ in NPT to M20 x 1.5 conduit fitting (2 of 4 shown) 7 Housing/Enclosure 8 Sensor Module 9 Mounting hardware 5.1. Returning the Unit for Repairs Only certain field replacement procedures are allowed under warranty and hazardous location certification. Other types of repairs cannot be performed in the field. In those cases, you must ship the unit to an Emerson-authorized repair facility. Contact Emerson Remote Automation Solutions for a return authorization number and instructions for where to ship the unit. 82 Service and Troubleshooting 5.2. Emerson FB1200 Flow Computer Instruction Manual D301782X012 November 2020 WARNING International safety regulations restrict the shipment of lithium batteries. If you need to return the flow computer, remove the lithium battery before you ship the unit. Failure to remove the lithium battery may delay or prevent shipment of the flow computer. Interpreting the Status LEDs The flow computer display has four (4) status LEDs. The meaning of each LED varies depending upon the color displayed or whether the LED flashes. Figure 5-2: LED Locations 1 Input LED 2 Link LED 3 Status LED 4 Alarm LED Service and Troubleshooting 83 Emerson FB1200 Flow Computer Instruction Manual D301782X012 November 2020 Table 5-1: LED Descriptions LED Color/State Link LED GREEN Input LED GREEN Flashing YELLOW Status LED GREEN RED YELLOW Alarm LED Off Flashing GREEN Momentary GREEN approximately every 6 seconds Alternating RED, GREEN, YELLOW GREEN Flashing RED RED Meaning An active wired Ethernet connection exists. Otherwise it is off. (FB1200/FB2200 only) One of the IR buttons is being pressed. CPU booting or CPU has not yet recognized HMI module when HMI first powered on; goes off when recognized. OK - Normal Unit failed Low power source/change battery soon (FB1100 Flow Computer with lithium battery pack only) No power System is booting HMI module is in sleep mode (to reduce power consumption); LED goes on when HMI module checks the "Hold to Wake" IR button. HMI module boot firmware loaded but no application is present. You may see this during an HMI firmware update. No alarms. HMI firmware update in progress. Alarms are present. Table 5-2: Special LED Sequences using Multiple LEDs LED Sequence Color/State Link, Input, Status, and Alarm all solid RED HMI module failed. Replace with spare or return for repairs. Link and Alarm alternately flash RED; sequence CPU stuck in boot mode. Contact technical repeats support. 84 Service and Troubleshooting 5.3. 5.4. Emerson FB1200 Flow Computer Instruction Manual D301782X012 November 2020 Switch and Buttons A momentary switch and two push buttons on the HMI module provide trouble-shooting options for the flow computer. DANGER EXPLOSION HAZARD: Never remove end cap(s) in a hazardous location. Removing end cap(s) in a hazardous location could result in an explosion. Table 5-3: Switch and Buttons Button Name Purpose Procedure SYSTEM RESET Resets power. This momentary switch Move the SYSTEM RESET switch interrupts power to the flow either up or down. Unit powers off computer to reset it. Used if system is and then restarts. powered on but is non-functional; this attempts a reboot. A Clears memory (SRAM). The SRAM 1. Press and hold the A button. memory holds current data values and 2. While continuing to hold the A pending alarm messages. If unit has button, move the SYSTEM RESET unexpectedly stopped operating, you switch either up or down to can depress this button on power-up initiate a reset. to clear that information from 3. Release the A button. The system memory (hard reset). Try this if a clears SRAM during the power up SYSTEM RESET alone does not work. sequence. B Currently undefined None Removing/Replacing the HMI Module You do not need to power down the unit to replace the HMI module. DANGER Ensure the flow computer is in a non-hazardous area. Never remove/replace the HMI module in a hazardous area. Important The HMI module includes the FBxWifi transceiver; once you remove the HMI module; Wi-Fi communication with the flow computer ceases. 1. Remove the retaining clamp from the front end cap (if present). (See Section 2.6.1.) 2. Unscrew the front end cap. 3. Loosen the four captive fastening screws on the HMI module. Service and Troubleshooting 85 Emerson FB1200 Flow Computer Instruction Manual D301782X012 November 2020 Figure 5-3: Captive Fastening Screws 5.5. 4. Grasp the HMI module and remove it by gently pulling it straight out. 5. To replace the HMI module, line up the printed circuit board (PCB) with the slot on the back and gently press it back on. Tighten the four captive fastening screws. 6. Replace the front end cap. Screw the end cap clockwise (eight full turns) until it is tightly sealed to the enclosure. Replace the retaining clamp, if applicable (see Section 2.6.1). Replacing the Main Battery Pack Periodically you must replace the main battery pack. FBxConnect provides a battery life indicator to show the number of days in use. WARNING If lead acid battery voltage falls below 4.7V, the battery can no longer be recharged, and the charging system considers the battery dead. You must replace the battery. Figure 5-4: Main Battery Pack The device provides two battery connectors, enabling you to hot-swap the battery pack in a nonhazardous location. Slide out the first battery pack (leaving it connected), attach the new battery to 86 Service and Troubleshooting Emerson FB1200 Flow Computer Instruction Manual D301782X012 November 2020 the second (available) connector (so both batteries are connected), and then disconnect the old battery pack. DANGER EXPLOSION HAZARD: Ensure the area in which you perform this operation is non-hazardous. Performing this operation in a hazardous area could result in an explosion. DANGER EXPLOSION HAZARD: Do not disconnect equipment unless power has been removed or the area is known to be non-hazardous. DANGER EXPLOSION HAZARD: Substitution of any components may impair suitability for Class I, Division 1 or Class I, Division 2. DANGER EXPLOSION HAZARD: Do not replace batteries unless power has been switched off or the area is known to be non-hazardous. Batteries must only be changed in an area known to be nonhazardous. WARNING There are no user-serviceable parts inside the battery pack. Do not open the battery pack as you may damage the battery pack or injure yourself. Restriction Battery packs cannot be used with ATEX or IECEx applications. Keep the replacement battery pack handy during the procedure. 1. Remove the retaining clamp from the front end cap (if present). (See Section 2.6.1.) 2. Remove the front end cap. 3. Loosen the two bottom captive fastening screws on the HMI module. Leave the two top screws connected to the battery pack. 4. Grasp the HMI module and gently pull it and the battery pack out of the enclosure, leaving the battery still connected. Service and Troubleshooting 87 Emerson FB1200 Flow Computer Instruction Manual D301782X012 November 2020 Figure 5-5: Removing the Battery Pack 5.6. 5. Connect the new battery to the open connector. Route the wires so they are in the recessed area. Make sure the wires won't get caught in the end cap threads. 6. Disconnect the old battery pack's connector from the unit and set the old battery pack aside. 7. Slide the new battery pack into the unit. 8. Loosen the top captive fastening screws on the HMI module to separate it from the old battery pack. 9. Align the HMI module with the new battery pack and the tab on the CPU carrier board (bezel). Gently press the assembly on, being careful not to pinch the battery wires. Tighten all four screws. 10. Replace the front end cap. Screw the end cap clockwise (eight full turns) until it is tightly sealed to the enclosure. Replace the retaining clamp, if applicable (see Section 2.6.1). Removing/Replacing the SRAM Battery A lithium coin cell battery provides backup power for the SRAM and the real time clock. The SRAM backup battery can last for up to 10,000 hours of cumulative operation, and only runs if the main power system fails. You do not need to power down the unit to replace the SRAM backup battery. Important If the unit is ever powered down without the SRAM battery installed, SRAM data is lost. Always back up your data before you remove the SRAM battery if you know that main power will also be off. Replacement SRAM backup batteries must be either Rayovac® Model BR2335 or Panasonic® Model BR2330. DANGER Ensure the flow computer is in a non-hazardous area. Never remove end caps in a hazardous area. 88 Service and Troubleshooting Emerson FB1200 Flow Computer Instruction Manual D301782X012 November 2020 DANGER Do not disconnect equipment unless power has been removed or the area is known to be nonhazardous. DANGER EXPLOSION HAZARD: Substitution of any components may impair suitability for Class I, Division 1 or Class I, Division 2. DANGER EXPLOSION HAZARD: Do not replace batteries unless power has been switched off or the area is known to be non-hazardous. Batteries must only be changed in an area known to be nonhazardous. 1. Remove the retaining clamp from the front end cap (if present). (See Section 2.6.1.) 2. Remove the front end cap. 3. Remove the HMI module. 4. Grasp the coin cell battery and remove it from its slot. Figure 5-6: Removing/Replacing the Coin Cell Battery 5. Insert the new coin cell battery in the slot. The positive side (+) must be on top. CAUTION When inserting the SRAM coin cell battery, push the battery gently into its slot until it stops. The battery should slide in easily. Do not use excessive force. 6. Replace the HMI module. 7. Replace the front end cap. Screw the end cap clockwise (eight full turns) until it is tightly sealed to the enclosure. Replace the retaining clamp, if applicable (see Section 2.6.1.). Service and Troubleshooting 89 Emerson FB1200 Flow Computer Instruction Manual D301782X012 November 2020 5.7. Upgrading System Firmware Periodically Emerson releases new system firmware for the flow computer to introduce new features or update system functions. You must know a valid username/password combination for the flow computer to complete this process. DANGER EXPLOSION HAZARD: Ensure the area in which you perform this operation is non-hazardous. Performing this operation in a hazardous area could result in an explosion. 1. Launch Field Tools and use FBxConnect to connect to the flow computer. 2. Click the Services tab, then click Firmware Update. 3. Click Configuration Save to save the flow computer's configuration. 4. Click History Collection to save the historical data contained in the flow computer. 5. Click Firmware Update. 6. In the Firmware Update dialog box, click Browse and navigate to the zip file containing your new system firmware. The grid updates with details of the firmware version currently in the device, and the firmware version in the zip file. Figure 5-7: Firmware Update Dialog Box 7. Select the checkbox in the Selected column to choose the firmware. If you are downloading the same version that is already installed on the device, select Download Even If Unchanged. Click Start to begin the firmware download. Allow the download to proceed to completion. If you choose to cancel the firmware download before it completes, the system restores the current version already in the device. 90 Service and Troubleshooting Emerson FB1200 Flow Computer Instruction Manual D301782X012 November 2020 Appendix A: Special Instructions for Class I Division 2 Locations 1. The Emerson FB1200 Flow Computer is listed by Underwriters Laboratories (UL) as nonincendive and is suitable for use in Class I, Division 2, Groups A, B, C and D hazardous locations or nonhazardous locations. Read this appendix carefully before installing a nonincendive Emerson FB1200 Flow Computer. Refer to the other chapters of this manual for general information. In the event of a conflict between the other chapters of this manual and this appendix, always follow the instructions in this appendix. 2. The Emerson FB1200 Flow Computer includes both non-incendive and unrated field circuits. Unless a circuit is specifically identified in this appendix as non-incendive, the circuit is unrated. Unrated circuits must be wired using wiring methods as specified in Article 501-4(b) of the National Electrical Code (NEC), NFPA 70 for installations in the United States, or as specified in Section 18-152 of the Canadian Electrical Code for installation in Canada. 3. All communication ports terminate on the terminal plate within the enclosure. Wiring to the connectors is unrated. No connections may be made to communication ports unless the user ensures that the area is known to be nonhazardous. Connections to the "Local Port" are temporary and must be short in duration to ensure that flammable concentrations do not accumulate while it is in use. 4. An RTD may be supplied with the Emerson FB1200 Flow Computer. Connection to the RTD is approved as a non-incendive circuit so that Division 2 wiring methods are not required. 5. I/O connections are unrated and must be wired using Division 2 wiring methods. DANGER EXPLOSION HAZARD: Do not disconnect equipment unless power has been removed or the area is known to be non-hazardous. DANGER EXPLOSION HAZARD: Substitution of any components may impair suitability for Class I, Division 1 or Class I, Division 2. DANGER EXPLOSION HAZARD: Do not replace batteries unless power has been switched off or the area is known to be non-hazardous. Batteries must only be changed in an area known to be nonhazardous. Special Instructions for Class I Division 2 Locations 91 Emerson FB1200 Flow Computer Instruction Manual D301782X012 November 2020 Figure A-1: Data Plate (No Battery) Class I Division 2 Non-incendive (UL) 92 Special Instructions for Class I Division 2 Locations Emerson FB1200 Flow Computer Instruction Manual D301782X012 November 2020 Figure A-2: Data Plate (Lead Acid Battery) Class I Division 2 Non-incendive (UL) Special Instructions for Class I Division 2 Locations 93 Emerson FB1200 Flow Computer Instruction Manual D301782X012 November 2020 94 Special Instructions for Class I Division 2 Locations Emerson FB1200 Flow Computer Instruction Manual D301782X012 November 2020 Appendix B: Special Instructions for Class I Division 1 Locations 1. The Emerson FB1200 Flow Computer is listed by Underwriters Laboratories (UL) as explosion proof and is suitable for use in Class I, Division 1, Groups C and D hazardous locations or nonhazardous locations. Read this appendix carefully before installing an Emerson FB1200 Flow Computer. Refer to the other chapters of this manual for general information. In the event of a conflict between the other chapters of this manual and this appendix, always follow the instructions in this appendix. 2. The Emerson FB1200 Flow Computer includes both non-incendive and unrated field circuits. Unless a circuit is specifically identified in this appendix as non-incendive, the circuit is unrated. Unrated circuits must be wired using wiring methods as specified in Article 501-4(b) of the National Electrical Code (NEC), NFPA 70 for installations in the United States, or as specified in Section 18-152 of the Canadian Electrical Code for installation in Canada. DANGER Though the Emerson FB1200 Flow Computer has a local port for local interrogation, it should not be accessed with the cover removed in a Class I Division 1 area unless it has first been verified that no flammable concentrations exist in that area. The local port may be wired through a conduit, using seals, to an unclassified or Division 2 area. 3. All communication ports terminate on the terminal plate within the enclosure. Wiring to the connectors is unrated. No connections may be made to communication ports unless the user ensures that the area is known to be nonhazardous. Connections to the "Local Port" are temporary and must be short in duration to ensure that flammable concentrations do not accumulate while it is in use. 4. An RTD may be supplied with the Emerson FB1200 Flow Computer. Connection to the RTD is approved as a non-incendive circuit. Note A bendable RTD (with a plastic bushing, as utilized in Division 2 installations) may not be used in a Division 1 area as it renders the area non-explosion proof. Use an RTD connection head and explosion-proof conduit for Division 1 installations. 5. I/O connections are unrated and must be wired using wiring methods as specified in Article 501-4(b) of the National Electrical Code (NEC), NFPA 70 for installations in the United States, or as specified in Section 18-152 of the Canadian Electrical Code for installation in Canada. Special Instruction for Class I Division 1 Locations 95 Emerson FB1200 Flow Computer Instruction Manual D301782X012 November 2020 DANGER EXPLOSION HAZARD: Do not disconnect equipment unless power has been removed or the area is known to be non-hazardous. DANGER EXPLOSION HAZARD: Substitution of any components may impair suitability for Class I, Division 1 or Class I, Division 2. DANGER EXPLOSION HAZARD: Do not replace batteries unless power has been switched off or the area is known to be non-hazardous. Batteries must only be changed in an area known to be nonhazardous. DANGER The area must be known to be non-hazardous before servicing the unit and before installing or removing I/O wiring. 96 Special Instructions for Class I Division 1 Locations Emerson FB1200 Flow Computer Instruction Manual D301782X012 November 2020 Figure B-1: Data Plate (No Battery) Class I Division 1 Explosion Proof (UL) Special Instruction for Class I Division 1 Locations 97 Emerson FB1200 Flow Computer Instruction Manual D301782X012 November 2020 Figure B-2: Data Plate (Lead Acid Battery) Class I Division 1 Explosion Proof (UL) 98 Special Instructions for Class I Division 1 Locations Emerson FB1200 Flow Computer Instruction Manual D301782X012 November 2020 Appendix C: ATEX Non-Sparking Zone 2 Certifications This appendix includes notes on ATEX certifications. For full details, please refer to the Emerson FB1200 Flow Computer Safe Use Instructions (D301769X012). Special Conditions of Use: Make provisions to ensure, in the event of transient disturbances, that the rated voltage does not exceed 140% of the peak rated voltage. Impact tests on the display were conducted based on Group II values for the low risk of mechanical danger, in accordance with Table 13 of both EN 60079-0:2012+A11:2013 and IEC 60079-0 6th Edition. Install flow computers with displays in areas where the risk of impact is low. Lead Acid Battery, and Solar Panel options are not for use in ATEX/ IECEx applications. For Zone 2 installation, take care to install and use the flow computer in such a way that excludes the danger of electrostatic charge. Refer to field replacement guides for replacement of the following parts: Replacement Part Kit Number End Caps 399122-01-0 and 399123016-KIT HMI Module Display Assembly 399379-01-0, 621627011KIT, 399380-01-0, 621627020-KIT CPU Board 399134018-KIT Termination Board and Terminal Block 399185-01-1, 400216010KIT, 395791014-KIT 395803000-KIT 6-Channel I/O Expansion Board 400215-01-0 Sensor Assembly Variable Kit Number Coin Cell Battery 395620-03-1 Field Replacement Guide document number D301814X012 D301816X012 D301802X012 D301820X012 D301819X012 D301842X012 D301854X012 This device was evaluated according to the following standards: IEC 60079-0 6th Edition IEC 60079-15 4th Edition EN 60079-0 :2012+A11:2013 EN 60079-15:2010 ATEX Non-Sparking Zone 2Certifications 99 Emerson FB1200 Flow Computer Instruction Manual D301782X012 November 2020 Enclosure Rating: IP66 Terminal blocks for the FB1200 Flow Computer have the following characteristics: Terminal blocks can accommodate two conductors per channel. Stranded or solid wire allowed. Torque values: NM 0.5-0.6 Wire size: 28-12 AWG (0.08 3.3 mm2); (0.32 2.05 mm) Bristol Inc. d.b.a. Remote Automation Solutions 1100 Buckingham Street Watertown, CT 06795 U.S.A. Figure C-1: Data Plate ATEX nA Non-Sparking 100 ATEX Non-Sparking Zone 2 Certifications Emerson FB1200 Flow Computer Instruction Manual D301782X012 November 2020 Appendix D: ATEX Flame-Proof Zone 1 Certifications The data plate and certain conditions of use are shown below. For full details refer to the Emerson FB1200 Flow Computer Safe Use Instructions (D301769X012). Figure D-1: Data Plate ATEX Ex db Flame-proof ATEX Flame-Proof Zone 1 Certifications 101 Emerson FB1200 Flow Computer Instruction Manual D301782X012 November 2020 Special Conditions of Use / Schedule of Limitations: Contact your authorized sales and service representative for any maintenance or repair beyond the routine maintenance of the FB1200 Flow Computer. Do not alter or disassemble any of the fireproof joints of the FB1200 Flow Computer. The Model 4088 and Model 215 Scalable Pressure Transmitters provided with the FB1200 Flow Computer contain a thin-wall diaphragm. Installation, maintenance, and use must take into account the environmental conditions to which the diaphragm is subjected. Follow the manufacturer's instructions for installation and maintenance to ensure safety during the device's lifetime. Refer to field replacement guides for replacement of the following parts: Replacement Part Kit Number End Caps 399122-01-0 and 399123016-KIT HMI Module Display Assembly 399379-01-0, 621627011KIT, 399380-01-0, 621627020-KIT CPU Board 399134018-KIT Termination Board and Terminal Block 399185-01-1, 400216010KIT, 395791014-KIT 395803000-KIT 6-Channel I/O Expansion Board 400215-01-0 Sensor Assembly Variable Kit Number Coin Cell Battery 395620-03-1 Field Replacement Guide document number: D301814X012 D301816X012 D301802X012 D301820X012 D301819X012 D301842X012 D301854X012 This device was evaluated according to the following standards: IEC 60079-0, 6th Edition IEC 60079-1, 7th Edition EN 60079-0:2012+A11:2013 EN 60079-1:2014 102 ATEX Flame-Proof Zone 1 Certifications Index Emerson FB1200 Flow Computer Instruction Manual D301782X012 November 2020 4 4088B transmitter ...................................................72 A Analog Inputs ..........................................................55 Analog Outputs .......................................................59 ATEX Certification notes about.................................................. 99, 101 ATEX Zone 1 ..........................................................101 ATEX Zone 2 ............................................................99 Attaching Mounting Hardware to the Solar Panel .....34 B Battery connecting ........................................................... 33 Bolting Considerations.............................................18 C Case rotating ................................................................ 24 Class I Division 1.......................................................95 Class I Division 2.......................................................91 COM1 wiring ................................................................... 41 COM2 wiring ................................................................... 44 COM3 wiring ................................................................... 44 Communication establishing .......................................................... 75 through an Ethernet port......................................76 to a laptop using a wireless connection.................77 to laptop through a serial port ..............................76 using HMI module ................................................78 with SCADA host ..................................................75 Communication ports connecting ........................................................... 41 overview ................................................................8 Configuration software ............................................10 Connecting 4088B transmitter................................................72 Index battery ................................................................ 33 DC power ............................................................ 32 Ethernet .............................................................. 49 I/O....................................................................... 51 ports ................................................................... 41 power.................................................................. 31 RTD ..................................................................... 69 solar power ......................................................... 39 Coplanar mounting kit ............................................ 23 Covers removing........................................................15, 17 replacing ............................................................. 18 CPU ............................................................................5 D Daily operation ....................................................... 75 DC power connecting .......................................................... 32 Digital Inputs .......................................................... 61 Digital Outputs ....................................................... 64 Direct mounting ..................................................... 21 E Enclosure explosion-proof ......................................................5 mounting the ...................................................... 18 End caps removing........................................................15, 17 replacing ............................................................. 18 Environmental Specifications .................................. 11 Equipment required for servicing the unit ............... 12 Ethernet connecting .......................................................... 49 Ethernet communications....................................... 76 Ethernet Port Location .............................................................. 49 Explosion-proof Enclosure ..........................................5 F FBxWifi.................................................................... 77 Features .....................................................................3 Figures 103 Emerson FB1200 Flow Computer Instruction Manual D301782X012 November 2020 1-1. FB1200 Flow Computer ...................................2 1-2. FB1200 Flow Computer (MV or Static Pressure Version) .............................................................. 4 1-3. FB1200 Flow Computer (No Integral Sensor) ...5 1-4. Retaining Clamps and Tie Holes for Tamper- resistant Seals.....................................................6 1-5. HMI Module with LCD......................................9 1-6. HMI Module without LCD ................................9 2-1. FB1200 Flow Computer Dimensions Multivariable Sensor Version.............................13 2-2. FB1200 Flow Computer Dimensions (No Integral Sensor) ................................................14 2-3. FB1200 Flow Computer Dimensions (with Static Pressure Sensor) ...............................................15 2-4. Front End Cap with Retaining Clamp Fitted ....16 2-5. Retaining Clamp in Place ...............................16 2-6. Retaining Clamp and Screw ...........................16 2-7.Removing or Tightening the End Cap with Prybar ............................................................... 17 2-8. Front (left) and Rear (right) End Caps .............17 2-9. Front (left) and Rear (right) End Caps Removal ......................................................................... 18 2-10. Transmitter with Coplanar Flange................19 2-11. Transmitter with Coplanar Flange and Optional Flange Adapters .................................19 2-12. Transmitter with Traditional Flange and Optional Flange Adapters .................................19 2-13. Bolt Installation ...........................................20 2-14. O-rings (w/ Flange Adapters ........................21 2-15. Traditional Flange Mounting Kit...................22 2-16. Coplanar Mounting Kit ................................23 2-17. Inline Mounting Kit......................................24 2-18. Housing Rotation Set Screws .......................25 2-19. Ground Lug .................................................26 2-20. Terminal Plate .............................................27 2-21.DC Power Connections.................................32 2-22. Connecting the Battery Pack .......................33 2-23. Attaching Mounting Hardware to the Solar Panel ................................................................35 2-24. Integral mounted solar panel.......................37 2-25. Solar panel remote mounted (pole mounted) ......................................................................... 38 2-26. Wiring Solar Power ......................................39 2-27. Adjusting Solar Panel Tilt Angle ...................40 2-28. Connecting a Device to COM1 Using RS-23242 2-29. Connecting a Device to COM1 Using RS- 485/422 (4-wire) ..............................................43 2-30. Connecting a Device to COM1 Using RS-485 (2-wire) ............................................................44 104 2-31. Connecting a Device to COM2 or COM3 Using RS-232 (with Optional I/O) ............................... 45 2-32. Connecting a Device to COM2 or COM3 Using RS-232 (without optional I/O) .......................... 46 2-33. Connecting a Device to COM2 or COM3 Using RS-485 (2-wire) (with optional I/O) .................. 47 2-34. Connecting a Device to COM2 or COM3 Using RS-485 (2-wire) (without optional I/O) ............. 48 2-35. Location of Ethernet Port ............................ 49 2-36. Ethernet Jumper ......................................... 50 3-1. Base I/O on CPU (with optional I/O)............... 52 3-2. Base I/O On CPU (without Optional I/O) ........ 53 3-3. Optional 6-channel Expansion I/O Board ....... 54 3-4. 4-20 mA AI Wiring (Base I/O with Optional I/O Module) ........................................................... 56 3-5. 1-5 V AI Wiring (Base I/O with Optional I/O) .. 56 3-6. AI Wiring (Base I/O without Optional I/O Module) ........................................................... 57 3-7. 4-20 mA AI Wiring (with Optional 6-channel Expansion I/O Module) ..................................... 58 3-8. 1-5 V Analog Input (AI) Wiring (with Optional 6- channel Expansion I/O Module)........................ 58 3-9. AO Wiring (Base I/O with Optional I/O) ......... 60 3-10. AO Wiring (Base I/O without Optional I/O) 60 3-11. AO Wiring (with Optional 6-channel Expansion I/O Module) ..................................................... 61 3-12. DI Wiring (Base I/O with Optional I/O)......... 62 3-13. DI Wiring (Base I/O -without Optional I/O) .. 63 3-14. DI Wiring - (with Optional 6-channel Expansion I/O Module) ..................................................... 63 3-15. DO Wiring (Base I/O with Optional I/O) ....... 65 3-16. DO Wiring (Base I/O without Optional I/O).. 66 3-17. DO Wiring (with Optional 6-channel Mixed I/O Module ............................................................ 66 3-18. PI Wiring (Base I/O with Optional I/O) ......... 68 3-19. PI Wiring (Base I/O without Optional I/O ..... 68 3-20. PI Wiring (with Optional I/O Module) .......... 69 3-21. Wiring for 2-, 3-, and 4-Wire RTD (Units with Optional I/O).................................................... 70 3-22. Wiring for 2-Wire, 3-Wire, and 4-Wire RTD (Units without Optional I/O)............................. 71 3-23. Connecting a 4088B Transmitter for a Second Meter Run........................................................ 72 4-1. Waking the Display....................................... 78 4-2. Infrared (IR) Button Location......................... 79 A-1. Data Plate (No Battery) Class I Div 2 Non- incendive (UL).................................................. 92 A-2. Data Plate (Lead Acid Battery) Class I Div 2 Non-incendive (UL) .......................................... 93 Index B-1. Data Plate (No Battery) Class I Div 1 Explosion Proof (UL) .........................................................97 B-2. Data Plate (Lead Acid Battery) Class I Div 1 Explosion Proof (UL)..........................................98 C-1. Data Plate ATEX nA Non-Sparking.............100 D-1. Data Plate ATEX Ex db Flame-proof...........101 Flameproof ATEX Zone 1 certification notes..........................101 FLASH amount of ..............................................................5 G Grounding ...............................................................26 H Hazardous locations.................................................11 ATEX Zone 1.......................................................101 ATEX Zone 2.........................................................99 Class I Division 1 ...................................................95 Class I Division 2 ...................................................91 HMI module ......................................................... 8, 78 symbols on display ...............................................80 Housing rotating ................................................................ 24 I I/O configuration and wiring ......................................51 options................................................................... 7 Indirect mounting....................................................21 Inline mounting kit...................................................24 Installation ............................................................... 11 L LCD communicating using ..........................................78 Location of Ethernet port .........................................49 Low Power Mode .....................................................28 M Memory FLASH ....................................................................5 SRAM .....................................................................5 Models ....................................................................... 4 Mounting direct ...................................................................21 indirect ................................................................21 Mounting kit coplanar ...............................................................23 Index Emerson FB1200 Flow Computer Instruction Manual D301782X012 November 2020 inline ................................................................... 24 traditional ........................................................... 22 N Non-sparking ATEX Zone 2 certification notes ........................... 99 Notes on Battery Life ............................................... 31 O Operation ............................................................... 75 O-rings.................................................................... 20 P Physical Security ........................................................6 Ports connecting .......................................................... 41 Power connecting .......................................................... 31 options ...................................................................7 turning ON or OFF ............................................... 75 Power Modes .......................................................... 28 Pulse Inputs ............................................................ 67 R Removing/Replacing End Cap Retaining Clamp ....... 16 ROHS2 Compliance................................................. 10 Rotating the housing............................................... 24 RTD connecting .......................................................... 69 Run 2 transmitter connecting .......................................................... 72 S Safety Labels ..............................................................3 Screen Saver Mode.................................................. 79 Second meter run connections for ................................................... 72 Security seals .............................................................6 Serial communications............................................ 76 Site considerations.................................................. 12 Software Tools ........................................................ 10 Solar panel adjusting the tilt angle......................................... 40 installing the optional.......................................... 34 integral mounting ............................................... 36 remote mount (pole mount) ............................... 38 remote mounted (pole)....................................... 38 Solar power connecting .......................................................... 39 105 Emerson FB1200 Flow Computer Instruction Manual D301782X012 November 2020 SRAM amount of ..............................................................5 Standard Power Mode..............................................30 Symbols on LCD display......................................................80 T Tables 1-1. Memory ..........................................................5 1-2. FB1200 Flow Computer I/O Configurations......7 1-3. Power Options.................................................8 1-4. Serial Ports ......................................................8 2-1. Environmental Specifications ........................12 2-2. Required Tools ..............................................12 2-4. Typical Power Usage Low Power Mode ........29 2-5. Typical Power Usage (Standard Power Mode)30 2-6. Solar Panel Tilt Angle .....................................41 2-3. Bolt Torque Values ........................................20 3-1. AI Characteristics...........................................55 3-2. AO Characteristics .........................................59 3-3. DI Characteristics ..........................................61 3-4. DO Characteristics........................................ 64 3-5. PI Characteristics .......................................... 67 4-1. Infrared (IR) Buttons on HMI Module............. 80 4-2. Symbols on Display....................................... 80 Terminal plate......................................................... 27 Tools required......................................................... 12 Traditional flange mounting kit ............................... 22 Transmitter connecting for a second meter run ...................... 72 W Wi-Fi ....................................................................9, 77 Wiring guidelines............................................................ 15 I/O....................................................................... 51 Z Zone 2 ATEX certification ................................................ 99 Zone1 ATEX certification .............................................. 101 106 Index Emerson FB1200 Flow Computer Instruction Manual D301782X012 November 2020 For customer service and technical support, visit www.Emerson.com/SupportNet Global Headquarters, North America, and Latin America: Emerson Automation Solutions Remote Automation Solutions 6005 Rogerdale Road Houston, TX 77072 U.S.A. T +1 281 879 2699 | F +1 281 988 4445 www.Emerson.com/RemoteAutomation Europe: Emerson Automation Solutions Remote Automation Solutions Unit 1, Waterfront Business Park Dudley Road, Brierley Hill Dudley DY5 1LX UK T +44 1384 487200 | F +44 1384 487258 Middle East/Africa: Emerson Automation Solutions Remote Automation Solutions Emerson FZE P.O. Box 17033 Jebel Ali Free Zone South 2 Dubai U.A.E. T +971 4 8118100 | F +971 4 8865465 Asia-Pacific: Emerson Automation Solutions Remote Automation Solutions 1 Pandan Crescent Singapore 128461 T +65 6777 8211| F +65 6777 0947 © 2018-2020 Remote Automation Solutions, a business unit of Emerson Automation Solutions. All rights reserved. This publication is for informational purposes only. While every effort has been made to ensure accuracy, this publication shall not be read to include any warranty or guarantee, express or implied, including as regards the products or services described or their use or applicability. Remote Automation Solutions (RAS) reserves the right to modify or improve the designs or specifications of its products at any time without notice. All sales are governed by RAS terms and conditions which are available upon request. RAS accepts no responsibility for proper selection, use or maintenance of any product, which remains solely with the purchaser and/or end-user. Remote Automation SolutionsAdobe PDF Library 15.0
