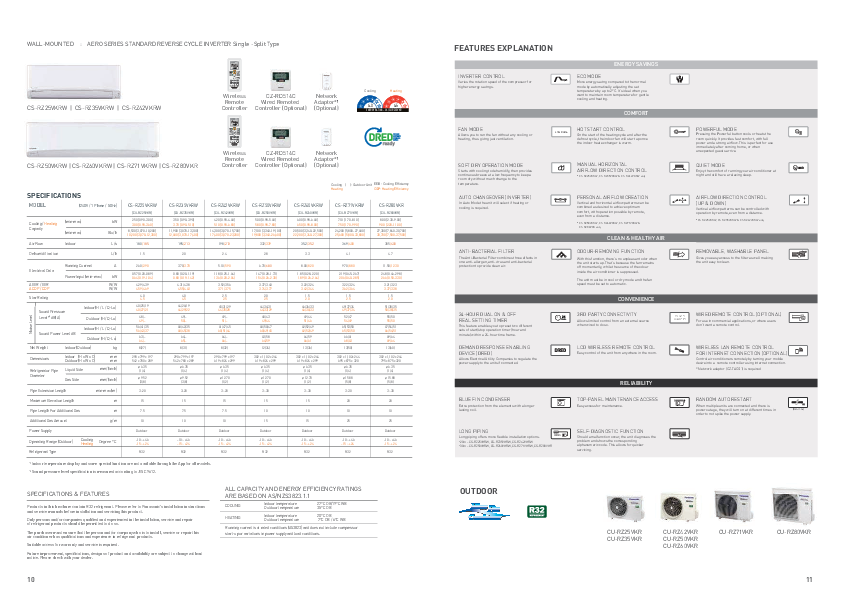

WALL-MOUNTED : AERO SERIES STANDARD REVERSE CYCLE INVERTER Single -Split Type CS-RZ25VKRW | CS-RZ35VKRW | CS-RZ42VKRW Wireless CZ-RD514C Network Remote Wired Remoted Adaptor* Controller Controller (Optional) (Optional) Cooling Heating 4.0 4.5 ENERGY RATING � CS/CU-RZ25VKR CS-RZ50VKRW | CS-RZ60VKRW | CS-RZ71VKRW | CS-RZ80VKR Wireless CZ-RD514C Network Remote Wired Remoted Adaptor* Controller Controller (Optional) (Optional) SPECIFICATIONS MODEL (240V / 1 Phase / 50Hz) Cooling / Heating Capacity (min-max) (min-max) Air Flow Indoor Dehumidification kW Btu/h L/s L/h CS-RZ25VKRW [CU-RZ25VKR] 2.50 [0.90-3.00] 3.00 [0.90-3.60] 8,530 [3,070-10,200] 10,200 [3,070-12,300] 180/185 1.5 CS-RZ35VKRW [CU-RZ35VKR] 3.50 [0.90-3.90] 3.70 [0.90-5.10] 11,900 [3,070-13,300] 12,600 [3,070-17,400] 195/213 2.0 CS-RZ42VKRW [CU-RZ42VKR] 4.20 [0.90-4.60] 5.10 [0.90-6.80] 14,300 [3,070-15,700] 17,400 [3,070-23,200] 198/213 2.4 Noise Level Electrical Data AEER / EER ACOP / COP Star Rating Running Current A Power Input (min-max) kW W/W W/W Sound Pressure Level*2 dB(A) Indoor (H / L / Q-Lo) Outdoor (H / Q-Lo) Sound Power Level dB Indoor (H / L / Q-Lo) Outdoor (H / Q-Lo) Net Weight Dimensions Refrigerator Pipe Diameter Indoor (Outdoor) kg Indoor (H x W x D) mm Outdoor (H x W x D) mm Liquid Side mm/(inch) Gas Side mm/(inch) Pipe Extension Length Maximum Elevation Length min-max (m) m Pipe Length For Additional Gas m Additional Gas Amount g/m Power Supply Operating Range (Outdoor) Refrigerant Type Cooling Heating Degree �C 2.60/2.90 0.57 (0.20-0.89) 0.64 (0.19-1.04) 4.29/4.39 4.59/4.69 4.0 4.5 40/25/19 40/27/21 48/49/56/41/35 56/43/37 63/64/- 8(27) 290 x 799 x 197 542 x 780 x 289 � 6.35 (1/4) � 9.52 (3/8) 3~20 15 7.5 10 Outdoor -10 ~ +46 -15 ~ +24 R32 3.70/3.70 0.80 (0.20-1.19) 0.80 (0.19-1.42) 4.31/4.38 4.55/4.63 4.0 4.5 44/26/19 44/29/22 49/50/60/42/35 60/45/38 64/65/- 8(31) 290 x 799 x 197 542 x 780 x 289 � 6.35 (1/4) � 9.52 (3/8) 3~20 15 7.5 10 Outdoor -10 ~ +46 -15 ~ +24 R32 5.10/5.90 1.18 (0.25-1.64) 1.36 (0.20-2.04) 3.52/3.56 3.71/3.75 2.5 2.5 45/31/29 44/35/28 49/51/61/47/45 60/51/44 64/66/- 8(32) 290 x 799 x 197 619 x 824 x 299 � 6.35 (1/4) � 12.70 (1/2) 3~20 15 7.5 10 Outdoor -10 ~ +46 -15 ~ +24 R32 *1 Indoor temperature display and some special function are not available through the App for all models. *2 Sound pressure level specification is measured according to JIS C9612. CS-RZ50VKRW [CU-RZ50VKR] 5.00 [0.98-5.60] 5.80 [0.98-7.80] 17,100 [3,340-19,100] 19,800 [3,340-26,600] 332/339 2.8 6.70/6.80 1.47 (0.28-1.73) 1.54 (0.26-2.30) 3.37/3.40 3.74/3.77 2.0 2.5 44/34/31 44/33/29 48/43 49/44 60/50/47 60/49/45 63/58 64/59 12(34) 302 x 1,102 x 244 619 x 824 x 299 � 6.35 (1/4) � 12.70 (1/2) 3~30 15 10 15 Outdoor -10 ~ +46 -15 ~ +24 R32 Cooling ( ): Outdoor Unit EER : Cooling Efficiency Heating COP: Heating Efficiency CS-RZ60VKRW [CU-RZ60VKR] 6.00 [0.98-6.60] 6.50 [0.98-8.00] 20,500 [3,340-22,500] 22,200 [3,340-27,300] 352/352 3.3 8.00/8.20 1.85 (0.28-2.20 ) 1.89 (0.26-2.64) 3.22/3.24 3.42/3.44 1.5 2.0 46/36/33 46/36/33 49/44 51/46 62/52/49 62/52/49 64/59 66/61 13(36) 302 x 1,102 x 244 619 x 824 x 299 � 6.35 (1/4) � 12.70 (1/2) 3~30 15 10 15 Outdoor -10 ~ +46 -15 ~ +24 R32 CS-RZ71VKRW [CU-RZ71VKR] 7.10 [1.70-8.10] 7.50 [1.70-9.90] 24,200 [5,800-27,600] 25,600 [5,800-33,800] 369/400 4.1 9.70/8.80 2.19 (0.45-2.67) 2.06 (0.40-2.85) 3.22/3.24 3.62/3.64 1.5 2.5 49/37/34 49/37/34 52/47 54/49 65/53/50 65/53/50 66/61 68/63 13(50) 302 x 1,102x 244 695 x 875 x 320 � 6.35 (1/4) � 15.88 (5/8) 3~30 20 10 25 Outdoor -10 ~ +46 -15 ~ +24 R32 CS-RZ80VKR [CU-RZ80VKR] 8.00 [2.30-9.00] 9.00 [2.20-11.00] 27,300 [7,840-30,700] 30,700 [7,500-37,500] 385/400 4.7 11.50/12.30 2.48 (0.46-2.98) 2.66 (0.50-3.30) 3.21/3.23 3.37/3.38 1.5 2.0 51/38/35 50/38/35 55/50 55/50 67/54/51 66/54/51 69/64 69/64 13(60) 302 x 1,102 x 244 795 x 875 x320 � 6.35 (1/4) � 15.88 (5/8) 3~30 20 10 25 Outdoor -10 ~ +46 -15 ~ +24 R32 SPECIFICATIONS & FEATURES Products in this brochure contain R32 refrigerant. Please refer to Panasonic's installation instructions and service manuals before installation and servicing this product. Only persons and/or companies qualified and experienced in the installation, service and repair of refrigerant products should be permitted to do so. The purchaser must ensure that the person and/or company who is to install, service or repair this air conditioner has qualifications and experience in refrigerant products. Suitable access for warranty and service is required. Future improvement, specifications, designs of product and availability are subject to change without notice. Please check with your dealer. ALL CAPACITY AND ENERGY EFFICIENCY RATINGS ARE BASED ON AS/NZS3823.1.1 COOLING Indoor temperature Outdoor temperature 27�C DB/19�C WB 35�C DB HEATING Indoor temperature Outdoor temperature 20�C DB 7�C DB / 6�C WB Running current is at rated conditions (AS3823) and does not include compressor start-up or variations in power supply and load conditions. 10 FEATURES EXPLANATION INVERTER CONTROL Varies the rotation speed of the compressor for higher energy savings. ENERGY SAVINGS ECO MODE More energy saving compared to the normal mode by automatically adjusting the set temperature by up to 2�C. It's ideal when you want to maintain room temperature for gentle cooling and heating. COMFORT FAN MODE Allows you to run the fan without any cooling or heating, thus giving just ventilation. FAN MODE HOT START CONTROL On the start of the heating cycle and after the defrost cycle, the indoor fan will start up once the indoor heat exchanger is warm. SOFT DRY OPERATION MODE Starts with cooling to dehumidify, then provides continuous breeze at a low frequency to keep a room dry without much change to the temperature. AUTO CHANGEOVER (INVERTER) In Auto Mode the unit will select if heating or cooling is required. ANTI-BACTERIAL FILTER The Anti-Bacterial Filter combines three effects in one: anti-allergen, anti-virus and anti-bacterial protection to provide clean air. MANUAL HORIZONTAL AIRFLOW DIRECTION CONTROL * CS-RZ25VKRW, CS-RZ35VKRW & CS-RZ42VKRW only PERSONAL AIRFLOW CREATION Vertical and horizontal airflow patterns can be combined as desired to achieve optimum comfort, with operation possible by remote, even from a distance. * CS-RZ50VKRW, CS-RZ60VKRW, CS-RZ71VKRW & CS-RZ80VKR only CLEAN & HEALTHY AIR ODOUR-REMOVING FUNCTION With this function, there's no unpleasant odor when the unit starts up. That's because the fan remains off momentarily, while the source of the odour inside the air conditioner is suppressed. The unit must be in cool or dry mode and the fan speed must be set to automatic. CONVENIENCE POWERFUL MODE Pressing the Powerful button cools or heats the room quickly. It provides fast comfort, with full power and a strong airflow. This is perfect for use immediately after coming home, or when unexpected guests arrive. QUIET MODE Enjoy the comfort of running your air conditioner at night and still have a relaxing sleep. AIRFLOW DIRECTION CONTROL (UP & DOWN) Vertical airflow patterns can be controlled with operation by remote, even from a distance. *CS-RZ25VKRW, CS-RZ35VKRW & CS-RZ42VKRW only REMOVABLE, WASHABLE PANEL Gives you easy access to the filter as well making the unit easy to clean. 24-HOUR DUAL ON & OFF REAL SETTING TIMER This feature enables you to preset two different sets of start/stop operation timer (hour and minute) within a 24-hour time frame. DEMAND RESPONSE ENABLING DEVICE (DRED) Allows Electrical Utility Companies to regulate the power supply to the units if connected. 3RD PARTY CONNECTIVITY Allows limited control from an external source when wired to do so. 3RD PARTY CONNECTIVITY WIRED REMOTE CONTROL (OPTIONAL) For use in commercial applications, or where users don't want a remote control. LCD WIRELESS REMOTE CONTROL Easy control of the unit from anywhere in the room. RELIABILITY WIRELESS LAN REMOTE CONTROL FOR INTERNET CONNECTION (OPTIONAL) Control air conditioners remotely by turning your mobile desire into a remote controller using internet connection. * Network adaptor (CZ-TACG1) is required BLUE FIN CONDENSER Extra protection from the elements with a longer lasting coil. TOP-PANEL MAINTENANCE ACCESS Easy access for maintenance. RANDOM AUTO RESTART When multiple units are connected and there is power outage, they will turn on at different times in order to not spike the power supply. (Random) LONG PIPING Long piping offers more flexible installation options. 30m *20m - CS-RZ25VKRW, CS-RZ35VKRW, CS-RZ42VKRW *30m - CS-RZ50VKRW, CS-RZ60VKRW, CS-RZ71VKRW, CS-RZ80VKR SELF-DIAGNOSTIC FUNCTION Should a malfunction occur, the unit diagnoses the problem and shows the corresponding alphanumeric code. This allows for quicker servicing. OUTDOOR CU-RZ25VKR CU-RZ35VKR CU-RZ42VKR CU-RZ50VKR CU-RZ60VKR CU-RZ71VKR CU-RZ80VKR 11
