PROTON must be fully installed, as per manfacturer's instructions, in order to achieve complete compliance with BS5733 or IEC60884-1. Installation must be ...Missing:

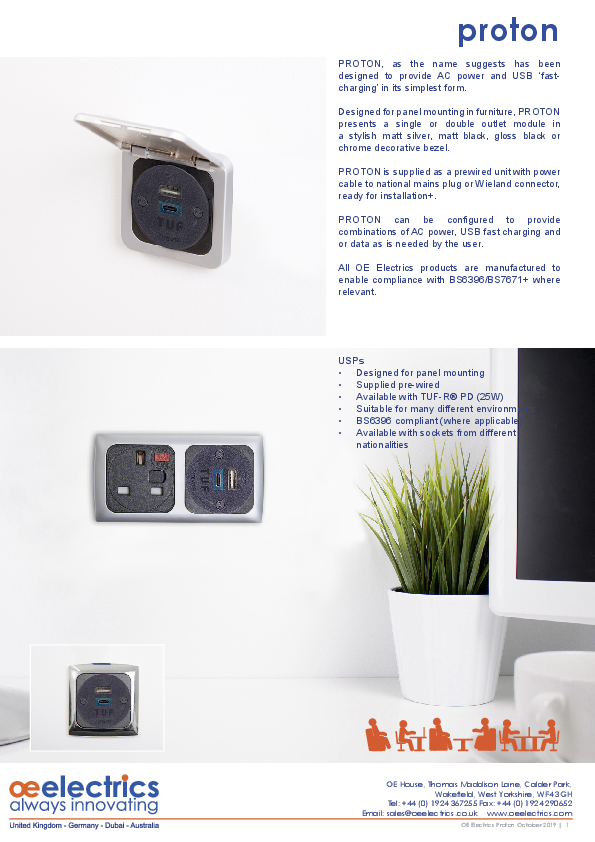

proton PROTON, as the name suggests has been designed to provide AC power and USB `fastcharging' in its simplest form. Designed for panel mounting in furniture, PROTON presents a single or double outlet module in a stylish matt silver, matt black, gloss black or chrome decorative bezel. PROTON is supplied as a prewired unit with power cable to national mains plug or Wieland connector, ready for installation+. PROTON can be configured to provide combinations of AC power, USB fast charging and or data as is needed by the user. All OE Electrics products are manufactured to enable compliance with BS6396/BS7671+ where relevant. USPs · Designed for panel mounting · Supplied pre-wired · Available with TUF-R® PD (25W) · Suitable for many different environments · BS6396 compliant (where applicable) · Available with sockets from different nationalities OE House, Thomas Maddison Lane, Calder Park, Wakefield, West Yorkshire, WF4 3GH Tel: +44 (0) 1924 367255 Fax: +44 (0) 1924 290652 Email: sales@oeelectrics.co.uk www.oeelectrics.com OE Electrics Proton October 2019 | 1 technical Common Units MA XM FUSE TUF-R A+C 25W UKF + TUF-R A+C 25W SCH SCH + TUF-R A+C 25W MAXM FUSE MAXM FUSE AUS 2 x UKF** UKU 2 x FRB *see website for more ** UK Fused (UKF) (required for BS6396 compliance) NOT compatible with PROTON single gang + PROTON must be fully installed, as per manfacturer's instructions, in order to achieve complete compliance with BS5733 or IEC60884-1. Installation must be completed before PROTON is connected to the supply. Unit dimensions 64 117 Features Configuration: Single outlet units: AC power, USB charging only or data/AV only Double outlet units: AC power only, USB charging only or data/AV only. Combined AC power, USB charging and/or data/AV NB: UK fused sockets can only be fitted in double outlet units. Colours: Socket fascias: Matt black Decorative bezels: Matt silver, matt black, gloss black or chrome Bezel with lid: Matt black Fusing: To enable compliance to BS6396, UK sockets in double outlets units can be ordered with 3.15 or 5A anti surge ceramic fuses Testing: All PROTON units are 100% tested before despatch Safety approvals: Sockets are approved to appropriate national and international standards e.g. BS1363,BS5733 and IEC608841. The Twin USB fast charger has been certified to IEC609501 and UL60950-1. CE Marking: All European specification units are CE marked by OE Electrics. Fixings: PROTON units can be snapped into 16mm panels or screw fixed into any suitable surface. Shuttered fascia Mounting details 46 60 60 8 40 40 Cutout dimensions 50 46 46 50 46 8 46 53 R24,7 99 103 Cable outlet positions cable outlet postion cable outlet position cable outlet positions OE House, Thomas Maddison Lane, Calder Park, Wakefield, West Yorkshire, WF4 3GH Tel: +44 (0) 1924 367255 Fax: +44 (0) 1924 290652 Email: sales@oeelectrics.co.uk www.oeelectrics.com OE Electrics Proton October 2019 | 2Adobe PDF Library 15.0 Adobe InDesign 14.0 (Macintosh)
