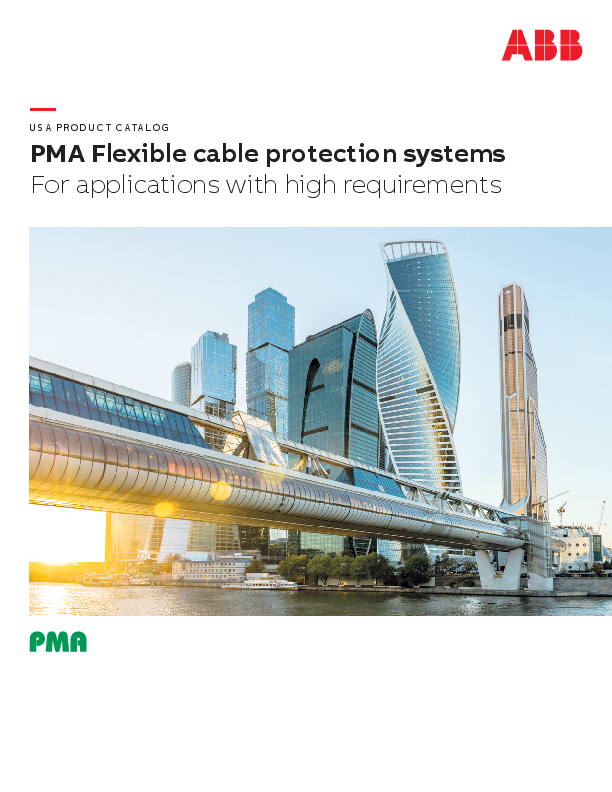

USA PRODUCT CATALOG
PMA Flexible cable protection systems For applications with high requirements
-- PMA cable protection products from ABB can be used in an extremely wide range of applications. The list is virtually endless, including rail vehicles and infrastructure, industrial machines, electrical systems on ships, solar and wind energy generation installations, telecommunications, construction and medical equipment. Wherever cables are installed and exposed to mechanical stresses and environmental hazards. Today and tomorrow we guarantee best quality regarding products, technical support, service and delivery.
-- Table of contents
004007 Introduction
008036PMA conduits
038049PMAFIX Pro Connectors
050090
PMAFIX Connectors IP66 IP68 (IP69)
091094
PMAFIXPlus Connectors IP68 (IP69)
096099Special connectors
100119Accessories
120127
PMA JUMBO sizes
128133PMA Divisible System
134143PMAJACK Plastic and metal braids
144154 Technical annex
155171
Index
172
Important information
173
Further information
4
PMA FLEXIBLE CABLE PROTECTION SYSTEMS FOR APPLICATIONS WITH HIGH REQUIREMENTS
-- Introduction A swiss manufacturer with a global presence
There is no better reference than satisfied customers. PMA cable protection provides customized specific solutions for customers worldwide.
ABB's PMA manufacturing site is located in Uster (Switzerland), close to Zurich. The majority of what we produce for the world market is made at this location. Also our research and development department is located here.
Thanks of our large network of professional partners in all of the major industrialised countries around the globe, we are able to guarantee best quality regarding products, technical support, service and fast delivery.
ABB is focused on providing solutions that address the critical issues in every area of operations, allowing customers to focus on plant sustainability, cost, quality, flexibility, safety and regulatory challenges.
INTRODUCTION - A SWISS COMPANY WITH A GLOBAL PRESENCE
5
Setting new standards and trends Customer needs are a top priority at ABB, and we work every day to ensure all our customer requirements are met in our products. We offer cable protection solutions and services that are tailored to meet requirements in every type of application. Our range extends from basic items right up to the most demanding high-tech products. We can develop system solutions and special products that are designed to meet specific customer requirements. Our intensive research and development activities, which include the field of new materials, are a major reason why PMA products from ABB continues to set new standards and trends in the cable protection marketplace. These efforts together with excellent quality and service have helped us build up an outstanding reputation with leading corporations around the world.
From pioneer to market leader ABB has been developing, producing, and selling top-quality PMA cable protection systems since 1975. Our high-quality Swiss products have rapidly earned us an excellent reputation worldwide and established us as the market leader. Our range of more than 6,500 products gives customers the protection they need in railway, mechanical engineering, and shipbuilding applications worldwide. PMA products are also the solution of choice in automation, building installations and other projects where power and data cables require dependable protection.
Unique benefits of PMA products from ABB Service to the customer is what motivates us. In addition to series production, PMA can build fittings and conduits to meet individual requirements as a special service to our customers.
· A safe, reliable system that is easy to install · Vibration-proof connections · System connection strength · Ingress protection conforming to recognized test
methods · High impact strength even at low temperatures · High compression strength (peak load) · Long-term reversed-bending resistance · Good chemical resistance · Fire protection (flammability and smoke
generation) · Good weather resistance · Long wearing
...and much more
6
PMA FLEXIBLE CABLE PROTECTION SYSTEMS FOR APPLICATIONS WITH HIGH REQUIREMENTS
-- Introduction Areas of applications
Mechanical engineering A considerable number of PMA cable protection systems are used in mechanical engineering. A few examples illustrate how varied the range of mechanical engineering applications is. You will find our products in machine tools, packaging machines, printing machines, as well as heating, ventilation, conveyer, and filling systems. PMA products also make a vital contribution to the smooth operation of high voltage and emergency power systems, can production machinery and woodworking machines, etc. PMA cable protection solutions safeguard cables, wires and data links against heat, cold, tensile stress, pressure stress, and other external influences in the important mechanical engineering industry.
Rail vehicles/Rail infrastructure PMA products from ABB have proven their dependability in railway construction projects around the world. This is the reason why large corporations including Siemens, Alstom, Bombardier, PESA, CSR/CNR, Deutsche Bahn, and SNCF have chosen us as supplier over a period of many years. Our special railway engineering product line provides protection and safety on signalling systems, couplings, trucks, and gangways, as well as roof, and underfloor equipment.
The range of applications is very extensive. PMA products contribute to the safe operation of trams, locomotives, freight cars, high-speed trains, and even roller coasters.
Worldwide recognitions All PMA products are rigorously tried and tested to meet the demands of industry worldwide.
INTRODUCTION - AREAS OF APPLICATIONS
7
Automation/Robotics In the field of automation, there is a need for products that can withstand the stress of motion-intensive applications. Solutions developed by ABB for the automation industry fully meet these requirements. Special conduit designs, supports and abrasion protection sleeves provide optimal protection along the entire length of all moving elements, enabling engineers to achieve a massive reduction in torsional forces. There is good reason why leading robotics manufacturers rely on ABB technology.
Countless applications PMA cable protection products from ABB can be used in an extremely wide range of applications. The list is virtually endless and includes industries such as telecommunications, construction equipment and medical equipment. Wherever there is a need for cable protection, the PMA product portfolio provides safe, dependable, forward-looking solutions or will develop them specially for you to meet your individual needs.
8
PMA FLEXIBLE CABLE PROTECTION SYSTEMS FOR APPLICATIONS WITH HIGH REQUIREMENTS
-- PMA conduits Conduit guide
Products
PMAFLEX Pro
PMAFLEX
PHT POH PSX CYL ESD PCL PCS PCSL PEL PIS/PIH
Application areas Machine building
Traction vehicles
Rail infrastructure Automation/ Robotics Ship + Off-shore
Energy Food & Beverage Others
General applications
Heavy loads
Outdoor applications
Antistatic requirements
Outdoor applications with sunlight exposure
Outdoor applications
Indoor applications Outdoor applications with sunlight exposure
Indoor and tunnel applications Moving systems
Systems with extreme movements Moving systems with antistatic requirements
Outdoor general applications
Indoor applications
Passenger area Outdoor applications with sunlight exposure
Indoor applications Exposed to radiation General applications
Vehicle building Telecommunications
Building constructions
Ex hazardous areas (ATEX, IECEx) High temperature applications
Page no.
static dynamic
static dynamic
static dynamic
static dynamic
static dynamic
static dynamic
static static static dynamic dynamic dynamic static dynamic static dynamic static static static static static dynamic static indoor outdoor indoor outdoor static static
l
l
l
l
ll
l
l l
l l l
l
l l
l
l
ll
l
ll
l
l
l
ll
l
ll
l
ll
l
ll
l
ll
l
lll
l
l
l
ll
l
ll
l
l
l
l
lll
l
l
l
ll
l
l
l
l
l
l
l
l
l
l
l l
15 15 16 17 17 18 19 19 20 20
PMA CONDUITS - CONDUIT GUIDE
9
POS PUE PVD VAM VAML VCS VOH PLR XESX XPCL XR90 XSOL XVCS1H XVCS2H XVCSF XPCS XPCSF JFBD JXPCSF JLLPA CUS PUS VUS PACOF PPCOF LLPA LLPF
PMAFLEX
PMAFLEX Multilayer
PMA PMAFLEX PLus Divisible
PMA
overextruded
(UL-Listed) System Smart Line
l
ll l
lll
l lll
lll l ll ll l
l
ll
l ll
ll
l
ll
l
l
l
l
l
ll l
l
ll
l
ll
l
l
lll
l
ll ll lll ll ll lll l ll l
l l l l
l
ll l
l
l
l
l
l
l
l
ll
l
ll
l
ll
l
l
ll
l
l
lll l l
lll l
l
ll
ll
l
l
l
l l l
l lll
ll
l
l
l
ll
l
ll
l
l
l
ll
l l ll
ll l ll
ll
l
l
ll
l
l ll
ll
l
ll
ll
21 21 22 22 23 23 24 24
* 25 ** 25 26 26 27 27 28 29 29 30 31 31 32 33 33 34 35
Please see catalogue EX-System Please see catalogue Automation Products
Key lrecommended lsuitable (application details to be considered) l recommeded (products in stock for US) l suitable (application details to be considered) (products in stock for US)
* See PMA Ex-System brochure ** See PMA Automation brochure
10
PMA FLEXIBLE CABLE PROTECTION SYSTEMS FOR APPLICATIONS WITH HIGH REQUIREMENTS
-- PMA conduits Conduit guide
Products
PMAFLEX Pro
PMAFLEX
PHT POH PSX CYL ESD PCL PCS PCSL PEL PIS/PIH
Material properties
Approvals
Hazardous Food & Beverage Temperature range Sizes
Ductility
Reversed bending resistance
Compression resistance
Low temperature performance
High temperature performance
Resistance to weathering
Bi-National Recognition File UL1696 & CSA C22.2 No. 227.3-05 CSA C22.2 No. 227.3-05
Bi-National Listing File UL1660 & CSA C22.2 No. 227.2.1
Free from halogens, REACH + RoHS compliant Non flame propagating EN61386 EN 45545-2
NFPA 130 (ASTM E162 ASTM E662) BSS 7239/SMP 800-C ASTM E1354 PN-K 2511 GOST 12.1.044-89 DNV (Type approved) Lloyd's Register (Type approved) Bureau Veritas (Type approved) ATEX IECEx NSF Ecolab Continuous operating temperature (acc. to DO 9.21-4510)
Short term max. operating temperature 168h (acc. to DO 9.21-4360) Nominal width min. Nominal width max. Metric size min. Metric size max.
Page no.
l
l
l
l
l
lll l
lllllll
l
lll
l
l
l
l
l
lll
l
l
lll
l
l
lll
l
Min. () Max. (+)
(+)
50 25 100 135 95 170 180 120 200
40 40 50 50 50 50 50 105 90 105 95 95 60 95 160 150 160 150 150 150
07 10 10 48 48 48 10 12 12 50 50 50
07 07 07 07 07 10 07 125 95 125 95 48 48 125
10 10 10 10 10 12 10 146 106 146 106 50 50 146
15 15 16
17 17 18 19 19 20 20
PMA CONDUITS - CONDUIT GUIDE
11
PMAFLEX
PMAFLEX Multilayer
PMA PMAFLEX PLus Divisible
PMA
overextruded
(UL-Listed) System Smart Line
POS PUE PVD VAM VAML VCS VOH PLR XESX XPCL XR90 XSOL XVCS1H XVCS2H XVCSF XPCS XPCSF JFBD JXPCSF JLLPA CUS PUS VUS PACOF PPCOF LLPA LLPF
l
l
ll
l
l
l
llllllll
llllll
ll
l
ll
ll
ll
ll
lllll
lllll
lllll
25 60 40 40 40 50 40 40 95 50 150 105 105 105 105 105
130 160 160 160 160 160
l l l l ll l l lll
lll l l
l l
50 50 40 50 50 50 50 40 50 90 105 95 95 90 90 105 95 95 150 160 150 150 120 120 160 150 150
lll l
lll lll lll
l l
18 50 18 90 95 105 120 150
40 50 50 105 95 105 160 150 160
ll ll l l l
40 20 105 105 160 150
ll ll
l
ll ll ll
40 40 105 105 160 160
07 17 10 10 10 07 07 07 95 70 29 48 125 95 125 48 10 20 12 12 12 10 10 10 106 80 32 50 146 106 146 50
10 12 17 12 12 12 10 10 07 48 48 48 48 48 48 48 48 48 12 16 20 16 16 16 12 12 12 50 50 50 50 50 50 50 50 50
12 12 12 48 48 48 16 16 16 30 50 50
17 17 17 48 48 48 20 20 20 50 50 50
07 07 70 70 10 10 80 80
07 07 125 48 10 10 146 50
21 21 22 22 23 23 24 24
* 25 ** 25 26 26 27 27 28 28 29 29 30 30 31 32 32 33 34
Key lcorrect
* See PMA Ex-System brochure ** See PMA Automation brochure
12
PMA FLEXIBLE CABLE PROTECTION SYSTEMS FOR APPLICATIONS WITH HIGH REQUIREMENTS
-- PMA conduits Overview
Conduits to protect cables. We offer many different conduit types for diverse applications with various technical requirements.
The product groups: · PMAFLEX Pro · PMAFLEX · PMAFLEX PLus · PMAFLEX Multilayer · PMA Divisible System · PMA Smart Line · PMA overbraided · PMA overextruded
Conduit sizes range from 6mm to 125mm Ø, from lightweight to heavyweight, and from pliable to highly flexible. PMA also offers slit and divisible conduits. Standard colours are black and grey.
Many conduits are specially approved, e.g. CSA, UL Recognition, DNV, Lloyds, Bureau Veritas etc. All conduits are REACH and RoHS compliant.
PMA CONDUITS - OVERVIEW
13
--
PMA CONDUITS
PMA offers a large range of very different mono- and multilayer conduit types which fulfill high technical demands to protect humans and cables.
14
PMA FLEXIBLE CABLE PROTECTION SYSTEMS FOR APPLICATIONS WITH HIGH REQUIREMENTS
-- PMA conduits Part number codes
For part number explanation only, not to be used as a configuration tool. Part Numbers printed in RED are priority stock items in the US Distribution Center.
X PCL T 12 S B . 50 L
Type
Construction MonolayerBlank Multilayer_X Over extruded _J Over ext. & ML JX
Profile Fine profile T Fine profile D Coarse profile G
Nominal width (NW)
Color
outer layer
Black
B
Gray
S
Orange
O
Black
A
Color
inner layer
(for multilayer
conduit)
Green
G
Blue
B
Orange
O
Coil length
(Meters)
50
.50
30
.30
10
.10
Contact factory for other coil lengths
Options Slit L
R
Radius
d1 d2
Stat. radius = Lowest recommended bending radius for static (fixed) installation. Dyn. radius = Lowest recommended bending radius for dynamic (flexible) installation.
Profile
Fine profile T Tight bending radius.
Coarse profile G High pull-out strength.
PMAFLEX PRO - TYPE PHT & POH CONDUIT
15
-- PMAFLEX Pro Type PHT & POH conduit
-- Type PHT - Highly flexible, medium/heavy-duty
PHT
PHT Index
min. Ductility
max.
Fatigue reversed bending
Compression resistance (PHTT-17B)
Compression resistance (PHTG-17B)
Low temperature performance
Weathering resistance
Order no. (black)
Conduit size
Stat./Dyn.
Inside Ø Outside Ø
radius
PU
NW
Metric
Inch
(mm) (inch)
(mm)
(mm)
(m)
PHTT-07B.50
07
10
1/4
6.2
0.244
10.0
15/40
50
PHTT-10B.50
10
12
5/16
9.6
0.378
13.0
20/55
50
PHTT-12B.50
12
16
3/8
12.0
0.472
15.8
30/65
50
PHTT-17B.50
17
20
1/2
16.2
0.638
21.2
40/70
50
PHTT-23B.50
23
25
3/4
22.6
0.890
28.5
45/95
50
PHTG-17B.50
17
20
1/2
15.2
0.598
21.2
40/75
50
PHTG-23B.50
23
25
3/4
22.0
0.866
28.5
45/100
50
PHTG-29B.50
29
32
1
27.7
1.091
34.5
55/120
50
PHTG-36B.30
36
40
1-1/4
35.8
1.409
42.5
60/180
30
PHTG-48B.30
48
50
1-1/2
46.8
1.843
54.5
70/200
30
For applications at high and very low temperatures / dynamic applications Specially formulated polyamide elastomer. Both excellent flexibility and high compression strength Enhanced temperature range compared to standard polyamides High resistance to ultra violet rays and weathering
Materials Specially formulated polyamide elastomer
Certification Free from halogens, REACH compliant
and RoHS compliant
Temperature range 50oC to +135oC
Short-term to: +180oC Impact resistance
Extremely good at low temperatures
Colour Black
UV Resistance High
-- Type POH - Very flexible, medium-duty
POH
POH Index min.
Ductility Fatigue reversed bending Compression resistance Low temperature performance Weathering resistance
max.
Order no. (black)
Order no. (grey)
Conduit size
NW Metric
Inch
POHT-10B.50 POHT-10S.50
10
12 5/16
POHT-12B.50 POHT-12S.50
12
16
3/8
POHG-17B.50 POHG-17S.50
17
20
1/2
POHG-23B.50 POHG-23S.50
23
25
3/4
POHG-29B.50 POHG-29S.50
29
32
1
POHG-36B.30 POHG-36S.30
36
40 1-1/4
POHG-48B.30 POHG-48S.30
48
50 1-1/2
For highest fire and passenger safety requirements Excellent fire safety characteristics acc. to BS 6853 1a (interior) Good ductility and reversed bending characteristics
Materials Specially modified polypropylene
Certification Free from halogens, REACH compliant
and RoHS compliant
Stat. Inside Ø Outside Ø radius PU
(mm) (inch)
(mm) (mm) (m)
9.2 0.362
13.0
13.0 50
11.8 0.465
15.8
15.8 50
15.7 0.618
21.2
21.2 50
22.0 0.866
28.5
28.5 50
27.4 1.079
34.4
34.4 50
35.8 1.409
42.4
42.4 30
46.8 1.843
54.4
54.5 30
Temperature range 25oC to +95oC
Short-term to: +120oC Fire performance
acc. to BS 6853 1a (interior)
Colour Black/Grey
UV Resistance
16
PMA FLEXIBLE CABLE PROTECTION SYSTEMS FOR APPLICATIONS WITH HIGH REQUIREMENTS
-- PMAFLEX Pro Type PSX conduit
-- Type PSX - Flexible, light-duty
PSX
PSX Index min.
Ductility Fatigue reversed bending Compression resistance Low temperature performance Weathering resistance
max.
Order no. (black)
Conduit size
Inside Ø Outside Ø
NW
Metric
Inch
(mm) (inch)
(mm)
Stat.
radius
PU
(mm)
(m)
PSXT-10B.50
10
12
5/16
9.8
0.386
13.0
20
50
PSXT-12B.50
12
16
3/8
12.2
0.476
15.8
30
50
PSXT-17B.50
17
20
1/2
16.2
0.638
21.2
35
50
PSXG-23B.50
23
25
3/4
22.3
0.878
28.5
45
50
PSXG-29B.50
29
32
1
28.0
1.102
34.5
55
50
PSXG-36B.30
36
40
1-1/4
36.5
1.437
42.5
60
30
PSXG-48B.30
48
50
1-1/2
47.5
1.870
54.5
70
30
For applications with highest fire safety performance requirements / with extreme temperature conditions / exposed to radiation. Chemical resistance: To oils, fats, acids, alcohols and hot water (good resistance to hydrolysis) Excellent high and low temperature properties High radiation resistance Very good ductility
Materials Specially modified polyetherimide
Certification Free from halogens, REACH compliant
and RoHS compliant
Temperature range 100oC to +170oC
Short-term to: +200oC Fire performance
Low smoke density and toxicity
Colour Black
UV Resistance
PMAFLEX - TYPE CYL & ESD CONDUIT
17
-- PMAFLEX Type CYL & ESD conduit
-- Type CYL - Very flexible, medium-duty conduit
CYL
Approvals
CYL Index min.
Ductility Fatigue reversed bending Compression resistance Low temperature performance Weathering resistance
max.
Order no. (black)
Order no. (grey)
Conduit size
NW Metric
Inch
Stat. Inside Ø Outside Ø radius PU
(mm) (inch)
(mm) (mm) (m)
CYLT-07B.50 CYLT-07S.50
07
10
1/4
6.2 0.244
10.0
15 50
CYLT-10B.50 CYLT-10S.50
10
12
5/16
9.6 0.378
13.0
20 50
CYLT-12B.50 CYLT-12S.50
12
16
3/8
12.0 0.472
15.8
30 50
CYLT-17B.50 CYLT-17S.50
17
20
1/2
16.2 0.638
21.2
40 50
CYLT-23B.50 CYLT-23S.50
23
25
3/4
22.6 0.890
28.5
45 50
CYLT-29B.50 CYLT-29S.50
29
32
1
29.0 1.142
34.5
55 50
CYLT-36B.30 CYLT-36S.30
36
40 1-1/4
36.5 1.437
42.5
60 30
CYLT-48B.30 CYLT-48S.30
48
50 1-1/2
47.5 1.870
54.5
70 30
CYLG-23B.50 CYLG-23S.50
23
25
3/4
21.9 0.862
28.5
45 50
CYLG-29B.50 CYLG-29S.50
29
32
1
27.6 1.087
34.5
55 50
CYLG-36B.30 CYLG-36S.30
36
40 1-1/4
36.0 1.417
42.5
60 30
CYLG-48B.30 CYLG-48S.30
48
50 1-1/2
47.0 1.850
54.5
70 30
CYLG-56B.30 CYLG-56S.30
56
68
2
56.3 2.217
67.2 120 30
CYLG-70B.10 CYLG-70S.10
70
80 2-1/2
68.0 2.677
80.0 160 10
CYLG-95B.10 CYLG-95S.10
95
106
4
91.9 3.618
106.0 210 10
CYLG-125B.06 CYLG-125S.06
125
146
5
126.5 4.980
146.5 450 06
For machine building and installation industries / static and slightly dynamic applications Very good ductility and good reversed bending characteristics Good mechanical characteristics even under extreme conditions, such as low temperatures and low humidity
Materials Specially formulated polyamide 6
Certification Free from halogens, REACH compliant
and RoHS compliant
Temperature range 40oC to +105oC
Short-term to: +160oC Self extinguishing acc. to UL 94 V2
Colour Black/Grey
UV Resistance
-- Type ESD - Very flexible, medium-duty conduit
ESD
ESD Index min.
Ductility Fatigue reversed bending Compression resistance Low temperature performance Weathering resistance
max.
Order no. (black)
Conduit size
NW Metric
Inch
Stat./Dyn.
Inside Ø Outside Ø
radius
PU
(mm) (inch)
(mm)
(mm)
(m)
ESDT-07B.50
07
10
1/4
6.2 0.244
10.0
15/40
50
ESDT-10B.50
10
12
5/16
9.6 0.378
13.0
20/50
50
ESDT-12B.50
12
16
3/8
12.0 0.472
15.8
30/70
50
ESDT-17B.50
17
20
1/2
16.4 0.646
21.1
40/75
50
ESDT-23B.50
23
25
3/4
22.6 0.890
28.4
45/90
50
ESDT-29B.50
29
32
1
29.0 1.142
34.3
55/110
50
ESDT-36B.30
36
40
1-1/4
36.5 1.437
42.5
60/160
30
ESDT-48B.30
48
50
1-1/2
47.5 1.870
54.5
70/200
30
ESDG-56B.30
56
68
2
56.5 2.224
67.0
110/250
30
ESDG-70B.10
70
80
2-1/2
67.5 2.657
80.0
150/330
10
ESDG-95B.10
95
106
4
91.5 3.602
106.0
170/440
10
For dynamic applications in robotics and automation where electrostatic charge and uncontrolled discharge need to be avoided Prevents electrostatic charging. For indoor and outdoor use (very good cold temperature performance)
Materials Specially modified polyamide 12
Certification Free from halogens, REACH compliant
and RoHS compliant
Temperature range 40oC to +90oC
Short-term to: +150oC Fatigue resistance
Excellent fatigue resistance
Colour Black
UV Resistance Excellent
18
PMA FLEXIBLE CABLE PROTECTION SYSTEMS FOR APPLICATIONS WITH HIGH REQUIREMENTS
-- PMAFLEX Type PCL conduit
-- Type PCL - Very flexible, medium-duty
PCL
Approvals
PCL Index min.
Ductility Fatigue reversed bending Compression resistance Low temperature performance Weathering resistance
max.
Order no. (black)
Order no. (grey)
Conduit size
Stat. Inside Ø Outside Ø radius PU
NW Metric
Inch (mm) (inch)
(mm) (mm) (m)
PCLT-07B.50 PCLT-07S.50
07
10
1/4
6.2 0.244
10.0
15 50
PCLT-10B.50 PCLT-10S.50
10
12
5/16
9.6 0.378
13.0
20 50
PCLT-12B.50 PCLT-12S.50
12
16
3/8 12.0 0.472
15.8
30 50
PCLT-17B.50 PCLT-17S.50
17
20
1/2 16.2 0.638
21.2
40 50
PCLT-23B.50 PCLT-23S.50
23
25
3/4 22.6 0.890
28.5
45 50
PCLT-29B.50 PCLT-29S.50
29
32
1 29.0 1.142
34.5
55 50
PCLT-36B.30 PCLT-36S.50
36
40 1-1/4 36.5 1.437
42.5
60 30
PCLT-48B.30 PCLT-48S.50
48
50 1-1/2 47.5 1.870
54.5
70 30
PCLG-17B.50 PCLG-17S.50
17
20
1/2 15.3 0.602
21.2
40 50
PCLG-23B.50 PCLG-23S.50
23
25
3/4 21.9 0.862
28.5
45 50
PCLG-29B.50 PCLG-29S.50
29
32
1 27.6 1.087
34.5
55 50
PCLG-36B.30 PCLG-36S.30
36
40 1-1/4 36.0 1.417
42.5
60 30
PCLG-48B.30 PCLG-48S.30
48
50 1-1/2 47.0 1.850
54.5
70 30
PCLG-56B.30 PCLG-56S.30
56
68
2 56.3 2.217
67.2 130 30
PCLG-70B.10 PCLG-70S.10
70
80 2-1/2 67.5 2.650
80.0 160 10
PCLG-95B.10 PCLG-95S.10
95
106
4 91.5 3.602
106.0 210 10
PCLG-125B.6 PCLG-125S.6
125
146
5 126.5 4.980
146.5 450
6
For machine building, installation and vehicle building industries / static and slightly dynamic applications Very good ductility and good reversed bending characteristics. Very good long-term properties Very good mechanical characteristics even under extreme conditions, such as low temperatures and low humidity
Materials Specially formulated polyamide 6
Certification Free from halogens, REACH compliant
and RoHS compliant
Temperature range 50oC to +105oC
Short-term to: +160oC Self extinguishing acc. to UL 94 V2
Colour Black/Grey
UV Resistance
PMAFLEX - TYPE PCS & PCSL CONDUIT
19
-- PMAFLEX Type PCS & PCSL conduit
-- Type PCS - Very flexible, heavy-duty conduit
PCS
PCS Index min.
Ductility Fatigue reversed bending Compression resistance Low temperature performance Weathering resistance
max.
Order no. (black)
Order no. (grey)
Conduit size
NW Metric
Inch
Stat./Dyn. Inside Ø Outside Ø radius PU
(mm) (inch)
(mm)
(mm) (m)
PCST-07B.100 PCST-07S.50
07
10
1/4
6.0 0.236
10.0 15/40 100
PCST-10B.50
PCST-10S.50
10
12
5/16
9.2 0.362
13.0 20/50 50
PCST-12B.50
PCST-12S.50
12
16
3/8
11.8 0.465
15.8 25/70 50
PCST-17B.50
PCST-17S.50
17
20
1/2
16.0 0.630
21.2 35/80 50
PCSG-17B.50
PCSG-17S.50
17
20
1/2
15.2 0.598
21.2 35/85 50
PCSG-23B.50
PCSG-23S.50
23
25
3/4
21.5 0.846
28.5 40/110 50
PCSG-29B.50
PCSG-29S.50
29
32
1
27.7 1.091
34.4 50/130 50
PCSG-36B.30
PCSG-36S.30
36
40 1-1/4
35.8 1.409
42.4 60/180 30
PCSG-48B.30
PCSG-48S.30
48
50 1-1/2
46.8 1.843
54.4 70/220 30
PCSG-56B.30
PCSG-56S.30
56
68
2
56.1 2.209
67.2 130/280 30
PCSG-70B.10
PCSG-70S.10
70
80 2-1/2
66.5 2.618
80.0 170/360 10
PCSG-95B.10
PCSG-95S.10
95
106
4
91.0 3.583
106.0 250/470 10
For dynamic outside applications in railway vehicles / outdoor applications with highest requirements to UV and weathering resistance Extensive railway approvals. Very good ductility and good reversed bending characteristics Very good mechanical characteristics even under extreme conditions, such as low temperatures and low humidity Highest reversed bending resistance Excellent resistance to ultra violet rays and weathering EN45545-2 HL2 (R22 +R23)
Materials Specially modified polyamide 12
Certification Free from halogens, REACH compliant
and RoHS compliant
Temperature range 50oC to +95oC
Short-term to: +150oC Fatigue resistance
Excellent fatigue resistance
Colour Black/Grey
UV Resistance Excellent
-- Type PCSL - Highly flexible, medium-duty conduit
PCSL
PCSL Index min.
Ductility Fatigue reversed bending Compression resistance Low temperature performance Weathering resistance
max.
Order no. (black)
PCSLT-07B.50
Order no. (grey)
PCSLT-07S.50
Conduit size
NW Metric
Inch
07
10
1/4
Stat./Dyn. Inside Ø Outside Ø radius PU
(mm) (inch)
(mm)
(mm) (m)
6.2 0.244
10.0 15/40 50
PCSLT-10B.50 PCSLT-10S.50
10
12
5/16
9.6 0.378
13.0 20/50 50
PCSLT-12B.50 PCSLT-12S.50
12
16
3/8
11.9 0.469
15.8 25/65 50
PCSLT-17B.50
PCSLT-17S.50
17
20
1/2
16.4 0.646
21.1 30/65 50
PCSLG-17B.50 PCSLG-17S.50
17
20
1/2
15.2 0.598
21.1 30/80 50
PCSLG-23B.50 PCSLG-23S.50
23
25
3/4
21.7 0.854
28.4 40/100 50
PCSLG-29B.50 PCSLG-29S.50
29
32
1
27.4 1.079
34.3 50/120 50
PCSLG-36B.30 PCSLG-36S.30
36
40 1-1/4
35.8 1.409
42.3 60/180 30
PCSLG-48B.30 PCSLG-48S.30
48
50 1-1/2
46.7 1.839
54.2 70/200 30
For dynamic outside applications in railway vehicles / outdoor applications with highest requirements to UV and weathering resistance Extensive railway approvals. Good mechanical characteristics even under extreme conditions, such as low temperatures and low humidity Excellent reversed bending resistance Excellent resistance to ultra violet rays and weathering EN45545-2 HL2 (R22 +R23)
Materials
Temperature range
Colour
Specially modified polyamide 12
50oC to +95oC
Black
Certification Free from halogens, REACH compliant
and RoHS compliant
Short-term to: +150oC Fatigue resistance
Excellent fatigue resistance
UV Resistance Excellent
20
PMA FLEXIBLE CABLE PROTECTION SYSTEMS FOR APPLICATIONS WITH HIGH REQUIREMENTS
-- PMAFLEX Type PEL & PIS/PIH conduit
-- Type PEL - Highly flexible, light-duty, soft
PEL
PEL Index min.
Ductility Fatigue reversed bending Compression resistance Low temperature performance Weathering resistance
max.
Order no.
Order no.
(grey)
(grey, slit)
NW
PELT-10S.50
PELT-10SL.50
10
PELT-12S.50
PELT-12SL.50
12
PELT-17S.50
PELT-17SL.50
17
PELT-23S.50
PELT-23SL.50
23
PELT-29S.30
PELT-29SL.30
29
PELT-36S.30
PELT-36SL.30
36
PELT-48S.30
PELT-48SL.30
48
For electrical cabinets and appliance construction Very good ductility Suitable for small bending radii Good resistance against strong acids and bases
Conduit size
Metric
Inch
12
5/16
16
3/8
20
1/2
25
3/4
32
1
40 1-1/4
50 1-1/2
Materials Specially modified polyethylene
Certification Free from halogens, REACH compliant
and RoHS compliant
Stat.
Inside Ø Outside Ø radius
PU
(mm) (inch)
(mm)
(mm) (m)
9.7 0.382
12.7
20
50
11.5
0.453
15.5
30
50
16.0
0.630
20.9
35
50
22.5 0.886
27.5
40
50
28.5
1.122
33.8
50
30
34.0 1.339
41.6
60
30
47.0 1.850
53.2
70
30
Temperature range 50oC to +60oC
Colour Grey
UV Resistance
-- Type PIS/PIH - Highly flexible, medium- and heavy-duty
PIS/PIH
Approvals
PIS/PIH Index min.
Ductility Fatigue reversed bending Compression resistance Low temperature performance Weathering resistance
max.
Order no. (black)
Order no. (grey)
Conduit size
Stat./dyn.
Inside Ø (mm) Outside Ø
radius PU
NW Metric (Inch) (mm) (inch)
(mm)
(mm) (m)
PIST-07B.50
PIST-07S.50
07
10
1/4
6.2 0.244
10.0
15/40 50
PIST-10B.50
PIST-10S.50
10
12
5/16
9.6 0.378
13.0
20/50 50
PIST-12B.50
PIST-12S.50
12
16
3/8 11.9 0.469
15.8
25/65 50
PIST-17B.50
PIST-17S.50
17
20
1/2 16.4 0.646
21.1
30/65 50
PIST-23B.50
PIST-23S.50
23
25
3/4 22.6 0.890
28.4
35/90 50
PIST-29B.50
PIST-29S.50
29
32
1 29.0 1.142
34.3 45/110 50
PIST-36B.30
PIST-36S.30
36
40 1-1/4 36.5 1.437
42.5 60/165 30
PIST-48B.30
PIST-48S.30
48
50 1-1/2 47.5 1.870
54.5 70/180 30
PISG-17B.50
PISG-17S.50
17
20
1/2 15.2 0.598
21.1
30/80 50
PISG-23B.50 PISG-23S.50
23
25
3/4 21.7 0.854
28.4 40/100 50
PISG-29B.50 PISG-29S.50
29
32
1 27.9 1.098
34.7 50/120 50
PISG-36B.30 PISG-36S.30
36
40 1-1/4 35.8 1.409
42.3 60/180 30
PISG-48B.30 PISG-48S.30
48
50 1-1/2 46.7 1.839
54.2 70/200 30
PIHG-56B.30 PIHG-56S.30
56
68
2 56.3 2.217
67.2 110/270 30
PIHG-70B.30 PIHG-70S.30
70
80 2-1/2 67.2 2.646
79.6 150/350 30
PIHG-95B.30 PIHG-95S.30
95
106
4 91.3 3.594
106.0 170/450 30
PIHG-125B.20 PIHG-125S.20
125
146
5 126.5 4.980
146.5 350/480 20
For robotics and automation applications. UL 94 V0. Excellent UV resistance and weathering characteristics PIS: Medium-wall (Nominal width 07 to 48) / PIH: Heavy-wall (Nominal width 56 to 125) Very good reversed bending characteristics. Good mechanical characteristics even under extreme conditions, such as low temperatures and low humidity
Materials
Temperature range
Colour
Specially modified polyamide 12
50oC to +95oC
Black/Grey
Certification
Short-term to: +150oC
Free from halogens, REACH compliant
Weathering characteristics UV Resistance
and RoHS compliant
Excellent
Excellent
PMAFLEX - TYPE POS & PUE CONDUIT
21
-- PMAFLEX Type POS & PUE conduit
-- Type POS - Highly flexible, medium-duty
POS
POS Index min.
Ductility Fatigue reversed bending Compression resistance Low temperature performance Weathering resistance
max.
Order no. (black)
Conduit size
NW Metric
Inch
Stat./Dyn.
Inside Ø Outside Ø
radius
PU
(mm) (inch)
(mm)
(mm)
(m)
POST-10B.50
10
12
5/16
9.6
0.378
13
20/50
50
POST-12B.50
12
16
3/8
11.9 0.469
15.8
30/70
50
POST-17B.50
17
20
1/2
16.2
0.638
21.2
35/75
50
POST-23B.50
23
25
3/4
22.6 0.890
28.5
40/100
50
POST-29B.50
29
32
1
29
1.142
34.5
50/120
50
POST-36B.30
36
40
1-1/4
36.5
1.437
42.5
60/180
30
POST-48B.30
48
50
1-1/2
47.5
1.870
54.5
70/195
30
POSG-29B.50
29
32
1
27.6 1.087
34.5
50/120
50
POSG-36B.30
36
40
1-1/4
36
1.417
42.5
60/180
30
POSG-48B.30
48
50
1-1/2
47 1.850
54.5
70/195
30
POSG-70B.30
70
80
2-1/2
67.2 2.646
79.6
150/350
30
POSG-95B.30
95
106
4
91.3 3.594
106
170/450
30
For automation as well as for machine building and industrial installations, especially where continuous movements occur Excellent reversed bending performance and flexibility Good impact resistance. Good resistance against strong acids
Materials Specially modified polypropylene
Certification Free from halogens, REACH compliant
and RoHS compliant
Temperature range 25oC to +95oC
Short-term to: +130oC Fatigue resistance
Colour Black
UV Resistance
-- Type PUE - Highly flexible, medium-duty
PUE
PUE Index min.
Ductility Fatigue reversed bending Compression resistance Low temperature performance Weathering resistance
max.
Order no. (black)
Conduit size
NW Metric
Inch
PUET-23B.50
23
25
3/4
PUET-29B.30
29
32
1
PUET-36B.30
36
40
1-1/4
PUET-48B.21
48
50
1-1/2
PUEG-56B.30
56
68
2
PUEG-70B.30
70
80
2-1/2
For robotic applications with multi-axial movements Specially suitable for tight bending-radii Highest reversed bending resistance Excellent chafing characteristics
Materials Specially formulated polyurethane
Certification Free from halogens, REACH compliant
and RoHS compliant
Stat./Dyn.
Inside Ø Outside Ø
radius
PU
(mm)
(inch)
(mm)
(mm)
(m)
22.4
0.882
28.5
35/70
50
28.8
1.134
34.5
40/90
30
35.8
1.409
42.4
50/120
30
48.6
1.913
54.5
60/130
21
56.3
2.217
67.2
90/170
30
68.2
2.685
80.5
100/220
30
Temperature range 60oC to +50oC
Colour Black
Fatigue resistance -
UV Resistance -
22
PMA FLEXIBLE CABLE PROTECTION SYSTEMS FOR APPLICATIONS WITH HIGH REQUIREMENTS
-- PMAFLEX Type PVD & VAM conduit
-- Type PVD - Pliable, medium-duty
PVD
Order no. (transparent)
Conduit size
NW Metric
Inch
(mm)
PVDT-10P.50
10
12
5/16
9.5
PVDT-12P.50
12
16
3/8
11.8
PVDT-17P.50
17
20
1/2
16.0
PVDT-23P.50
23
25
3/4
22.6
PVDT-29P.50
29
32
1
29.0
For long-term high temperature requirements in machine building applications Excellent chemical resistance also at high temperatures Very good abrasion resistance High stiffness
Inside Ø Outside Ø
(inch)
(mm)
0.374
12.6
0.465
15.5
0.630
20.8
0.890
28.0
1.142
34.1
Stat.
radius
PU
(mm)
(m)
20
50
30
50
40
50
45
50
50
50
PVD Index
min. Ductility
max.
Fatigue reversed bending
Compression resistance
Low temperature performance
Weathering resistance
Materials Specially formulated PVDF
Certification Free from halogens, REACH compliant
and RoHS compliant
Temperature range 60oC to +150oC
Fire performance Self-extinguishing / free from cadmium
Colour Transparent
UV Resistance Excellent
-- Type VAM - Flexible, heavy-duty
VAM
VAM Index
min. Ductility
max.
Fatigue reversed bending
Compression resistance
Low temperature performance
Weathering resistance
Order no. (black)
Order no. (grey)
Conduit size
NW Metric
Inch
Inside Ø Outside Ø
(mm) (inch)
(mm)
VAMT-10B.50
VAMT-10S.50
10
12
5/16
9.2
0.362
13.0
VAMT-12B.50
VAMT-12S.50
12
16
3/8
11.8
0.465
15.8
VAMG-17B.50
VAMG-17S.50
17
20
1/2
15.2
0.598
21.2
VAMG-23B.50
VAMG-23S.50
23
25
3/4
22.0
0.866
28.5
VAMG-29B.50
VAMG-29S.50
29
32
1
27.7
1.091
34.4
VAMG-36B.30
VAMG-36S.30
36
40 1-1/4
35.8
1.409
42.4
VAMG-48B.30
VAMG-48S.30
48
50 1-1/2
46.8
1.843
54.4
For high fire and passenger safety requirements in interior applications such as passenger areas or public buildings HL3 acc. to EN 45545-2 NFPA 130 compliant High impact and compression strength High stiffness
Materials Specially formulated polyamide 6
Certification Free from halogens, REACH compliant
and RoHS compliant
Temperature range 40oC to +105oC
Short-term to: +160oC Fire performance
Minimal development of smoke and gases
Stat.
radius
PU
(mm) (m)
25
50
30
50
40
50
50
50
60
50
70
30
80
30
Colour Black/Grey
UV Resistance -
PMAFLEX - TYPE VAML & VCS CONDUIT
23
-- PMAFLEX Type VAML & VCS conduit
-- Type VAML - Flexible, medium-duty
VAML
VAML Index min.
Ductility Fatigue reversed bending Compression resistance Low temperature performance Weathering resistance
max.
Order no. (black)
VAMLT-10B.50
Order no. (grey)
VAMLT-10S.50
Conduit size
NW Metric
Inch
10
12
5/16
(mm) 9.6
Inside Ø Outside Ø
(inch)
(mm)
0.378
13.0
VAMLT-12B.50
VAMLT-12S.50
12
16
3/8
12.0
0.472
15.8
VAMLG-17B.50
VAMLG-17S.50
17
20
1/2
15.3
0.602
21.2
VAMLG-23B.50 VAMLG-23S.50
23
25
3/4
22.6
0.890
28.5
VAMLG-29B.50 VAMLG-29S.50
29
32
1
27.6
1.087
34.5
VAMLG-36B.30 VAMLG-36S.30
36
40 1-1/4
36.0
1.417
42.5
VAMLG-48B.30 VAMLG-48S.30
48
50 1-1/2
47.0
1.850
54.5
VAMLG-56B.30 VAMLG-56S.30
56
68
2
56.3
2.217
67.2
VAMLG-70B.10
VAMLG-70S.10
70
80 2-1/2
67.5
2.657
80.0
VAMLG-95B.10 VAMLG-95S.10
95
106
4
91.5
3.602
106.0
VAMLG-125B.6
VAMLG-125S.6
125
146
5
126.0
4.961
146.5
For high fire and passenger safety requirements in interior applications such as passenger areas or public buildings HL3 acc. to EN 45545-2 NFPA 130 compliant Good flexibility. Good impact strength
Materials Specially formulated polyamide 6
Certification Free from halogens, REACH compliant
and RoHS compliant
Temperature range 40oC to +105oC
Short-term to: +160oC Fire performance
Minimal development of smoke and gases
Stat.
radius
PU
(mm) (m)
20
50
30
50
40
50
45
50
55
50
65
30
75
30
140
30
160
10
210
10
450
6
Colour Black/Grey
UV Resistance
-- Type VCS - Flexible, heavy-duty
VCS
VCS Index min.
Ductility Fatigue reversed bending Compression resistance Low temperature performance Weathering resistance
max.
Order no. (black)
Order no. (grey)
Conduit size
NW Metric
Inch
VCST-07B.100 VCST-07S.100
07
10
1/4
VCST-10B.50 VCST-10S.50
10
12
5/16
VCST-12B.50 VCST-12S.50
12
16
3/8
VCST-17B.50 VCST-17S.50
17
20
1/2
VCSG-17B.50 VCSG-17S.50
17
20
1/2
VCSG-23B.50 VCSG-23S.50
23
25
3/4
VCSG-29B.50 VCSG-29S.50
29
32
1
VCSG-36B.30 VCSG-36S.30
36
40 1-1/4
VCSG-48B.30 VCSG-48S.30
48
50 1-1/2
VCSG-56B.30 VCSG-56S.30
56
68
2
VCSG-70B.10 VCSG-70S.10
70
80 2-1/2
VCSG-95B.10 VCSG-95S.10
95
106
4
For static external installations High compression and impact strengths at low temperatures and low humidity Good ductility. Very good resistance to ultra violet rays and weathering
Materials Specially formulated polyamide 6
Certification Free from halogens, REACH compliant
and RoHS compliant
Stat.
Inside Ø Outside Ø radius
PU
(mm) (inch)
(mm) (mm) (m)
6.0 0.236
10.0
20 100
9.2 0.362
13.0
25 50
11.8 0.465
15.8
30 50
16.0 0.630
21.2
40 50
15.2 0.598
21.2
40 50
22.0 0.866
28.5
50 50
27.7 1.091
34.4
60 50
35.8 1.409
42.4
70 30
46.8 1.843
54.4
80 30
56.1 2.209
67.2
150 30
66.5 2.618
80.0
200
10
91.0 3.583
106.0
300
10
Temperature range 50oC to +105oC
Short-term to: +160oC Fatigue resistance -
Colour Black/Grey
UV Resistance Very good
24
PMA FLEXIBLE CABLE PROTECTION SYSTEMS FOR APPLICATIONS WITH HIGH REQUIREMENTS
-- PMAFLEX Type VOH & PLR conduit
-- Type VOH - Pliable, very heavy-duty
VOH
VOH Index
min. Ductility
max.
Fatigue reversed bending
Compression resistance
Low temperature performance
Weathering resistance
Order no. (black)
Order no. (grey)
Conduit size
NW Metric
Inch
VOHD-07B.50
VOHD-07S.50
07
10
1/4
VOHD-10B.50
VOHD-10S.50
10
12
5/16
VOHD-12B.50
VOHD-12S.50
12
16
3/8
VOHG-17B.50
VOHG-17S.50
17
20
1/2
VOHG-23B.50
VOHG-23S.50
23
25
3/4
VOHG-29B.50
VOHG-29S.50
29
32
1
VOHG-36B.30
VOHG-36S.30
36
40 1-1/4
VOHG-48B.30
VOHG-48S.30
48
50 1-1/2
VOHG-56B.10
VOHG-56S.10
56
68
2
VOHG-70B.10
VOHG-70S.10
70
80 2-1/2
VOHG-95B.10
VOHG-95S.10
95
106
4
VOHG-125B.6
VOHG-125S.6
125
146
5
For applications in heavy machine and plant construction High compression resistance Highest degree of mechanical protection Very good UV and weathering resistance Good fire safety characteristics
Materials Specially modified polyamide 6
Certification Free from halogens, REACH compliant
and RoHS compliant
Stat.
Inside Ø Outside Ø radius
PU
(mm) (inch)
(mm) (mm) (m)
5.8 0.228
10.0
30 50
9.0 0.354
13.0
35 50
11.6 0.457
15.8
40 50
14.5 0.571
21.0
60 50
21.1 0.831
28.5
70 50
26.6 1.047
34.5
80 50
35.0 1.378
42.5
90 30
46.5 1.831
54.5 100 30
55.5 2.185
67.2 135
10
67.0 2.638
80.0 200
10
90.5 3.563
106.0 300
10
126.0 4.961
146.5 480
6
Temperature range 40oC to +105oC
Short-term to: +160oC Fire performance Good
Colour Black/Grey
UV Resistance Very good
-- Type PLR - flexible, medium-wall
PLR
PLR Index
min. Ductility
max.
Fatigue reversed bending
Compression resistance
Low temperature performance
Weathering resistance
Order no. (black)
Order no. (grey)
Conduit size NW Metric Inch Profile
PLRT-07B.50
PLRT-07S.50
07
10 1/4
T
PLRT-10B.50
PLRT-10S.50
10
12 5/16
T
PLRT-12B.50
PLRT-12S.50
12
16 3/8
T
PLRG-17B.50
PLRG-17S.50
17
20 1/2
G
PLRG-23B.50
PLRG-23S.50
23
25 3/4
G
PLRG-29B.50
PLRG-29S.50
29
32
1
G
PLRG-36B.30
PLRG-36S.30
36
40 1-1/4
G
PLRG-48B.30
PLRG-48S.30
48
50 1-1/2
G
In light rail rolling stock applications e.g. Tram, Metro, Monorail HL2 acc. to EN 45545-2 Good pressure resistance Very good fire safety characteristics
Inside Ø Outside Ø
(mm) (inch)
(mm)
6.2 0.244
10.0
9.6 0.378
13.0
12.0 0.472
15.8
15.8 0.622
21.2
21.9 0.862
28.5
27.6 1.087
34.5
36.0 1.417
42.5
47.0 1.850
54.5
Materials Specially modified polyamide 6
Certification Free from halogens, REACH compliant
and RoHS compliant
Temperature range 40oC to +105oC
Short-term to: +160oC Fire performance
Self-extinguishing / Very good
Stat.
radius
PU
(mm) (m)
15 50
20 50
30 50
40 50
45 50
55 50
60 30
70 30
Colour Black/Grey
UV Resistance -
PMAFLEX MULTIL AYER - T YPE XPCL & XSOL CONDUIT
25
-- PMAFLEX Multilayer Type XPCL & XSOL conduit
-- Type XPCL - Highly flexible, medium-duty
XPCL
XPCL Index min.
Ductility
max.
Fatigue reversed bending
Compression resistance
Low temperature performance
Weathering resistance
Order no. (black/blue)
Order no. (grey/blue)
Conduit size
NW Metric
Inch
Inside Ø Outside Ø
Stat. radius
PU
(mm)
(inch)
(mm) (mm) (m)
XPCLT-10BB.50 XPCLT-10SB.50
10
12 5/16
9.6 0.378
13.0
20 50
XPCLT-12BB.50 XPCLT-12SB.50
12
16
3/8
11.8 0.465
15.6
30 50
XPCLT-17BB.50 XPCLT-17SB.50
17
20
1/2
16.6 0.654
21.0
40 50
XPCLG-17BB.50 XPCLG-17SB.50
17
20
1/2
15.6 0.614
20.9
40 50
XPCLG-23BB.50 XPCLG-23SB.50
23
25
3/4
21.9 0.862
28.5
45 50
XPCLG-29BB.50 XPCLG-29SB.50
29
32
1
27.6 1.087
34.5
55 50
XPCLG-36BB.30 XPCLG-36SB.30
36
40 1-1/4
36.0 1.417
42.5
60 30
XPCLG-48BB.30 XPCLG-48SB.30
48
50 1-1/2
47.0 1.850
54.5
70 30
For machine building and equipment with high requirements Allows easy cable insertion due to low friction inner layer V ery good ductility and good reversed bending characteristics Good mechanical characteristics even under extreme conditions, such as low temperatures and low humidity
Materials Outer layer: Specially formulated polyamide 6 Intermediate layer: Specially bonding compound
Inner layer: Specially modified polyethylene Certification
Free from halogens, REACH compliant and RoHS compliant
Temperature range 50oC to +105oC
Short-term to: +160oC
Colour Black/Blue Grey/Blue
Fire performance Self-extinguishing
UV Resistance
-- Type XSOL - Highly flexible, medium-duty
XSOL Approvals
Order no. (black/green)
Conduit size NW Metric Inch
Stat. Inside Ø Outside Ø radius PU
(mm) (inch)
(mm) (mm) (m)
XSOLT-10BG.50
10
12 5/16
9.6 0.378
13.0
25 50
XSOLT-12BG.50
12
16
3/8
11.8 0.465
15.6
30 50
XSOLG-17BG.50
17
20
1/2
15.2 0.598
21.0
40 50
XSOLG-23BG.50
23
25
3/4
22.0 0.866
28.5
50 50
XSOLG-29BG.50
29
32
1
27.5 1.083
34.4
60 50
XSOLG-36BG.30
36
40 1-1/4
35.8 1.409
42.4
70 30
XSOLG-48BG.30
48
50 1-1/2
46.8 1.843
54.4
80 30
All-purpose, especially in long-term external applications, e.g. energy technology Very good resistance to UV and weathering Very high ductility and reversed bending resistance Very good mechanical strength High impact resistance even under extreme conditions, such as low temperatures and low humidity
XSOL Index min.
Ductility
max.
Fatigue reversed bending
Compression resistance
Low temperature performance
Weathering resistance
Materials Outer layer: Specially formulated polyamide 12 Intermediate layer: Specially bonding compound
Inner layer: Specially modified polyamide 6 Certification
Free from halogens, REACH compliant and RoHS compliant
Temperature range 50oC to +95oC
Short-term to: +150oC
Colour Black/Green
Fire performance Good fire safety characteristics
Self-extinguishing
UV Resistance Very good
26
PMA FLEXIBLE CABLE PROTECTION SYSTEMS FOR APPLICATIONS WITH HIGH REQUIREMENTS
-- PMAFLEX Multilayer Type XVCS1H & XVCS2H conduit
-- Type XVCS1H - Flexible, heavy-duty
XVCS1H
Order no. (black/green)
Conduit size
Stat.
Inside Ø Outside Ø
radius
PU
NW
Metric
Inch
(mm)
(inch)
(mm)
(mm)
(m)
XVCS1H-10BG.50
10
12
5/16
9.2
0.362
13.0
25
50
XVCS1H-12BG.50
12
16
3/8
11.7
0.461
15.5
30
50
XVCS1H-17BG.50
17
20
1/2
15.2
0.598
21.0
40
50
XVCS1H-23BG.50
23
25
3/4
21.7
0.854
28.4
50
50
XVCS1H-29BG.50
29
32
1
27.5
1.083
34.3
60
50
XVCS1H-36BG.30
36
40
1-1/4
35.8 1.409
42.2
70
30
XVCS1H-48BG.30
48
50
1-1/2
46.8
1.843
54.3
80
30
For track side applications and other exterior static applications Easy layouting through: High conduit ductility and formability / Low friction inner layer facilitates cable insertion Excellent impact characteristics at low temperatures
XVCS1H Index min.
Ductility
max.
Fatigue reversed bending
Compression resistance
Low temperature performance
Weathering resistance
Materials Outer layer: Specially formulated polyamide 6 Intermediate layer: Specially bonding compound
Inner layer: Specially modified polyolefin Certification
Free from halogens, REACH compliant and RoHS compliant
Temperature range 50oC to +90oC
Short-term to: +120oC
Colour Black/Green
Atmospheric corrosion resistance Very good
UV Resistance Very good
-- Type XVCS2H - Flexible, heavy-duty
XVCS2H
Order no. (black/green)
Conduit size
Inside Ø Outside Ø
NW
Metric
Inch
(mm)
(inch)
(mm)
XVCS2H-10BG.50
10
12
5/16
9.2 0.362
13.0
XVCS2H-12BG.50
12
16
3/8
11.7 0.461
15.5
XVCS2H-17BG.50
17
20
1/2
15.2 0.598
21.0
XVCS2H-23BG.50
23
25
3/4
22.0 0.866
28.4
XVCS2H-29BG.50
29
32
1
27.7 1.091
34.3
XVCS2H-36BG.30
36
40
1-1/4
35.8 1.409
42.2
XVCS2H-48BG.30
48
50
1-1/2
46.8 1.843
54.3
For track side applications and other exterior static applications with high UV exposure Easy layouting through: High conduit ductility and formability / Low friction inner layer facilitates cable insertion Excellent impact characteristics at low temperatures
Stat.
radius
PU
(mm)
(m)
20
50
25
50
35
50
40
50
50
50
60
30
70
30
XVCS2H Index
min. Ductility
max.
Fatigue reversed bending
Compression resistance
Low temperature performance
Weathering resistance
Materials Outer layer: Specially formulated polyamide 12 Intermediate layer: Specially bonding compound
Inner layer: Specially modified polyolefin Certification
Free from halogens, REACH compliant and RoHS compliant
Temperature range 50oC to +90oC
Short-term to: +120oC
Colour Black/Green
Atmospheric corrosion resistance Excellent
UV Resistance Excellent
PMAFLEX MULTIL AYER - T YPE X VCSF & XPCS CONDUIT
27
-- PMAFLEX Multilayer Type XVCSF & XPCS conduit
1
--
--Type XVCSF - Flexible, heavy-duty
TECHNICAL DATA SHEET
PMAFLEX Multilayer - XVCSF - Corrugated Conduit
Flexible, heavy-duty
Order no.
Profile
(black/blue)
(T/G)
PXMVCAS®FCable Protection
XVCSFT-10BB.50
T
MultilXayVerCcSonFdTu-i1t f2oBr eBxt.e5r0nal rail T
applications
XVCSFG-17BB.50
G
Conduit size
NW Metric Inch
10
12 5/16
12
16 3/8
17
20 1/2
rec. fitting thread size PG Metric 9 M12x1.5 11 M16x1.5 16 M20x1.5
XVCSFG-23BB.50
G 23
25 3/4 21 M25x1.5
XVCSFG-29BB.50
G 29
32
1 29 M32x1.5
XVCSFG-36BB.30
G 36
40 1-1/4 36 M40x1.5
XVCSFG-48BB.30
G 48
50 1-1/2 48 M50x1.5
Multilayer conduit for external rail applications
Applications:
ColourR: ail static external applications such as under carriage, bogie, etc.
· Rail static external applications such as under carriage, bogie, · OuteHr laiygerh: blcacok mpression and impact strengths at low temperature and low humidity
etc.
· Inner layer: blue
Good flexibility and very good UV resistance and weathering characteristics
Features & Benefits: · Good flexibility
C· hPelemaisCceaorlepfmreorptpoerawtiwtesiw:b.plmea.wch ith PMAFIX Pro, PMAFIX, PMA Smart Line and accessories
XVCSF Index · High compression and impact strengths at low temperature and low humidity
EN 45545-2 HL2 (R22 & R23)
Environmental properties:
· Self-extinguishing
· Free from halogens and cadmium
min.
max. · RoHS and REACH compliant
Materials:
Materials
·DOuutcertlialyietr:yspecially formulated polyamide 6
· Inner layer: specially modified polyamide 6
Outer layer: Specially formulated polyamide 6
CFoamtpiagtibuleewriteh:versed bending
· PMAFIX Pro, PMAFIX, PMA Smart Line and accessories
TCemopmerapturree rsasngieo: n resistance
· 50°C ... +105°C continuous, +160°C short-term
CLoonfwormtsetmo: perature performance
· EN 45545-2 HL2 (R22 & R23)
Weathering resistance
Weathering resistance: · Very good UV resistance and weathering characteristics
Inner layer: Specially modified polyamide 6
XVCSF-Index min. Ductility Fatigue reversed bending Compression resistance Low temperature performance
max.
Certification
Free from halogens and cadmium
RoHS and REACH compliant
Weathering resistance
Inside Ø
Outside Ø
Stat. radius
Weight PU
(mm) (inch) (mm) (mm) (kg/100m) (m)
9.6 0.378 12.8
20
3.1 50
11.9 0.469 15.6
25
4.2 50
15.6 0.614 21.0
35
7.5 50
21.6 0.850 28.4
45
12.0 50
27.5 1.083 34.5
55
15.0 50
35.7 1.406 42.4
65
19.0 30
46.8 1.843 54.2
85
25.0 30
Temperature range 50oC to +105oC
Short-term to: +160oC
Colour Black/Blue
Fire performance Self-extinguishing
UV Resistance Very good
TDS - XVCSF - 10063-00
-- Type XPCS - Very flexible, heavy-duty
XPCS
XPCS Index
min. Ductility
max.
Fatigue reversed bending
Compression resistance
Low temperature performance
Weathering resistance
Order no. (black/green)
Conduit size
NW
Metric
Inch
(mm)
Inside Ø Outside Ø
(inch)
(mm)
XPCST-10BG.50
10
12
5/16
9.2
0.362
13.0
XPCST-12BG.50
12
16
3/8
11.8
0.465
15.8
XPCSG-17BG.50
17
20
1/2
15.2
0.598
21.2
XPCSG-23BG.50
23
25
3/4
21.5 0.846
28.5
XPCSG-29BG.50
29
32
1
27.7
1.091
34.4
XPCSG-36BG.30
36
40
1-1/4
35.8 1.409
42.4
XPCSG-48BG.30
48
50
1-1/2
46.8
1.843
54.4
XPCSG-56BG.30
56
68
2
56.7
2.232
67.5
XPCSG-70BG.30
70
80
2-1/2
67.5
2.657
79.0
For dynamic outside applications in railway vehicles For outdoor applications with highest requirements to UV and weathering resistance Extensive railway approvals Good mechanical characteristics even under extreme conditions, such as low temperatures and low humidity HL2 acc. to EN 45545-2 NFPA 130 compliant
Stat. radius
(mm) 20 25 35 40 50 60 70
110 130
Materials Outer layer: Specially formulated polyamide 12
Inner layer: Specially formulated polyamide 6
Temperature range 40oC to +95oC
Short-term to: +150oC
Dyn. radius PU
(mm) (m) 50 50 70 50 85 50
110 50 130 50 180 30 220 30 270 30 320 30
Colour Black/Green
Certification Free from halogens, REACH compliant
and RoHS compliant
Fire performance Self-extinguishing
UV Resistance Excellent
28
PMA FLEXIBLE CABLE PROTECTION SYSTEMS FOR APPLICATIONS WITH HIGH REQUIREMENTS
-- PMAFLEX Multilayer Type XPCSF conduit
-- Type XPCSF - Very flexible, heavy-duty
XPCSF
XPCSF Index
min. Ductility
max.
Fatigue reversed bending
Compression resistance
Low temperature performance
Weathering resistance
Order no. (black/orange)
Conduit size
Inside Ø Outside Ø
Stat. radius
NW Metric
Inch
(mm)
(inch)
(mm)
(mm)
XPCSFT-07BO.100
07
10
1/4
0.6
0.236
10.0
15
XPCSFT-10BO.50
10
12
5/16
9.2 0.362
13.0
20
XPCSFT-12BO.50
12
16
3/8
11.8 0.465
15.8
25
XPCSFG-17BO.50
17
20
1/2
15.2 0.598
21.2
35
XPCSFG-23BO.50
23
25
3/4
21.5 0.846
28.5
40
XPCSFG-29BO.50
29
32
1
27.5 1.083
34.4
50
XPCSFG-36BO.30
36
40
1-1/4
35.8 1.409
42.4
60
XPCSFG-48BO.30
48
50
1-1/2
46.8 1.843
54.4
70
For dynamic outside applications in railway vehicles For outdoor applications with highest requirements to UV and weathering resistance Extensive railway approvals Excellent flexibility Very good mechanical characteristics even under extreme conditions, such as low temperatures and low humidity HL3 acc. to EN 45545-2
Materials Outer layer: Specially formulated polyamide 12 Inner layer: Specially formulated polyamide 12
Temperature range 40oC to +95oC
Short-term to: +150oC
Certification Free from halogens, REACH compliant
and RoHS compliant
Fire performance Self-extinguishing
Dyn.
radius
PU
(mm) (m)
40 100
50 50
70 50
85 50
110 50
130 50
180 30
220 30
Colour Black/Orange
UV Resistance Excellent
PMA OVEREXTRUDED CONDUITS - TYPE JFBD & JXPCSF CONDUIT
29
-- PMA overextruded conduits Type JFBD & JXPCSF conduit
-- Type JFBD - Flexible, medium-duty
JFBD Approvals
Conduit size
Order no.
NW Metric
Inch
JFBDT-12C01.50
12
16
3/8
JFBDG-17C01.50
17
20
1/2
JFBDG-23C01.50
23
25
3/4
JFBDG-29C01.50
29
32
1
JFBDG-36C01.30
32
40
1-1/4
JFBDG-48C01.30
48
50
1-1/2
Smooth easy to clean out layer High reversed bending stresses Excellent flexibility in combination with high strength High resistance to chemicals and cleaning agents For indoor food zone non contact Outer layer made from FDA compliant material Corrosion free
Inside Ø Outside Ø
(mm)
(inch)
(mm)
11.8 0.465
16.0
15.6
0.614
21.6
21.7 0.854
28.8
27.4 1.079
34.7
35.8 1.409
42.7
46.7 1.839
54.6
Stat. radius
(mm) 70 85
110 140 200 230
Dyn. radius PU
(mm) (mm) 100 50 125 50 160 50 200 50 260 30 300 30
JFBD Index min.
Ductility
Fatigue reversed bending Compression resistance Low temperature performance Weathering resistance
max.
1
Materials Conduit: made from high-grade, specially formulated polyamide 12
Overextrusion: made from modified polyamide elastomer Certification
FDA 21 CFR / EU 10/2011 compliant outer layer material; ECOLAB certificate
Colour Corrugated conduit: blue Overextrusion: blue, translucent
UV Resistance -
--
--Type JXPCSF - Highly flexible, heavy-duty
TECHNICAL DATA SHEET
PMA OXC - JXPCSF - Over-extruded Conduit
Highly flexible, heavy-duty
Order no.
(black/orange)
Profile (T/G)
PJXMPAC® SCFable Protection
JXPCSFT-12BO.50
T
Over-extruded conduit for rail applications
designed spJecXifPicaCllyStFo Gpre-v1e7ntBthOe .50
G
acoccnudmitiuolnatsi.oJnXofPicCe uSnFdeGr e-x2tr3emBeOcl.i5m0ate
G
JXPCSFG-29BO.50
G
Conduit size
Stat. Dyn.
d1
d2
d3 radius radius
Weight PU
NW Metric Inch (mm) (inch) (mm) (mm) (mm) (mm) (kg/100m) (m)
12
16 3/8 11.8 0.465 15.8 16
70 100
4.9 50
17
20 1/2 15.2 0.598 21.2 21.6
85 125
8.6 50
23
25 3/4 21.5 0.846 28.5 28.8 110 160
13.5 50
29
32
1 27.7 1.091 34.4 34.8 140 200
16.7 50
JXPCSFG-36BO.30
G 36
40 1-1/4 35.8 1.409 42.8 42.8 200 260
21.6 30
JXPCSFG-48BO.30
G 48
50 1-1/2 46.8 1.843 54.4 54.8 230 300
29.4 30
Applications: · For dynamic or static external applications in railway vehicles · On the roof, between carriages and on bogies
Features & Benefits: · Excellent flexibility
JXPCSF Index · Self-extinguishing
· Smooth outer layer prevents accumulation of ice
min. · Easy cleaning
· High resistance to chemicals and cleaning agents
MDauterciatlsi: lity
· Multi layer conduit: specially formulated polyamide 12 · Overextrusion: specially formulated polyamide 12
Fatigue reversed bending
Compatible with: · PMAFIX Pro and accessoriess
Compression resistance
Temperature range: · 50°C ... +95°C continuous, +150°C short-term
CLoonfwormts eto:mperature performance
· EN 45545-2 HL3 (R22 & R23)
WWeaethaertinhg eresrisitnangce:resistance
· Excellent UV resistance and weathering characteristics
Over-extruded conduit for rail applications designed specifically to prevent the accumulation of ice under extreme climate conditions
Colour: For dynamic or static external applications in railway vehicles - on the roof, between carriages and on bogies
· ·
Excellent flexibility. Conduit outer layer: black, Inner layer: orange
Overextrusion: black
Smooth
outer
layer
prevents
accumulation
of
ice
Product selection: Part no.
Chemical Easy properties: cleaning and high resistance to chemicals and cleaning agents. Compatible with PMAFIX Pro and accessoribelasck
· Please refer to wEwNw.p4m5a.c5h 45-2 HL3 (R22 & R23)
Profile T/G
Environmental properties:
· Free from halogens and cadmium
max. · RoHS and REACH compliant
Materials
JXPCSFT-12BO
T
TemperatJXuPCrSeFGr-1a7BnOge G
JXPCSFG-23BO
G
Multi layer conduit: specially formulated polyamide 12
50oCJXPtCSoFG+-299B5O oC G
Overextrusion: specially formulated polyamide 12
JXPCSFG-36BO
G
Short-term JtXoPC:SF+G1-458B0OoC G
Conduit size
NW
metric
d1
12
16
11.8
17 C2o0lour 15.2
23
25
21.5
Bla29ck/Or3a2 nge 27.7
36
40
35.8
48
50
46.8
Dimen
d2
d
15.8
21.2
2
28.5
2
34.4
3
42.4
4
54.4
5
JXPCSF-Index min.
max.
Our customer service dept. or local distribution partner will be pleased to help you concerning produc
Ductility Fatigue reversed bending
Certification
Fire performance
UV Resistance
Compression resistance Low temperature performance
Free from halogens and cadmium
Self-extinguishing
Excellent
Weathering resistance
RoHS and REACH compliant
TDS - JXPCSF - 16322-01
stat. R. = lowest recommended bending radius for static (fixed) installation
dyn. R. = lowest recommended bending radius for dynamic (flexible) installation
30
PMA FLEXIBLE CABLE PROTECTION SYSTEMS FOR APPLICATIONS WITH HIGH REQUIREMENTS
-- PMA overextruded conduits Type JLLPA conduit
-- Type JLLPA - Flexible, heavy-duty
JLLPA
JLLPA Index
min. Ductility
max.
Fatigue reversed bending
Compression resistance
Low temperature performance
Weathering resistance
Order no. (black)
Conduit size
Stat.
d1
d2
d3 radius
Weight
PU
NW
Metric
Inch (mm) (inch) (mm) (mm) (mm) (kg/100m) (m)
JLLPA-12A.50
12
16
3/8 12.1 0.476 15.6 15.8
40
4.5
50
JLLPAG-17A.50
17
20
1/2 15.8 0.622 21.1 21.2
55
7.4
50
JLLPAG-23A.50
23
25
3/4 21.9 0.862 28.4 28.5
75
11.4
50
JLLPAG-29A.50
29
32
1 27.8 1.094 34.5 34.7
90
15.4
50
JLLPAG-36A.30
36
40 1-1/4 36.1 1.421 42.4 42.6
110
18.6
30
JLLPAG-48A.30
48
50 1-1/2 46.9 1.846 54.5 54.6
140
27.4
30
Flexible, smooth over-extruded conduit for applications with cleaning requirements
For static applications in machine building, installation and construction industries
For general applications with cleaning requirements
Smooth outer layer for easy cleaning, good resistance to chemicals and cleaning agents. Corrosion free
Flexibility in combination with high strength. Compatible with PMAFIX Pro
Product selection:
UL Recognition according to UL 1696 (file E80294)
Part no. black
Profile T/G
Conduit size
NW
metric
d1
Dime d2
Materials Conduit: High-grade, specially formulated
polyamide 6 Overextrusion: modified polyamide 6
Certification
TempeJrXPaCtSuFTr-1e2BOrangeT
12
C1o6 lour 11.8
15.8
JXPCSFG-17BO
G
18JXoPCCSFtGo-23+B1O05oCG
17
20
15.2
21.2
23
2B5 lack 21.5
28.5
Short-terJmXPCStFoG-:2+9B1O60oCG
JXPCSFG-36BO
G
29
32
27.7
34.4
36
40
35.8
42.4
JXPCSFG-48BO
G
48
50
46.8
54.4
Fire performance UV Resistance Our customer service dept. or local distribution partner will be pleased to help you concerning produ
Free from halogens and cadmium
Self-extinguishing
Very good
RoHS and REACH compliant
stat. R. = lowest recommended bending radius for static (fixed) installation
dyn. R. = lowest recommended bending radius for dynamic (flexible) installation
PMAFLEX PLUS - TYPE CUS & PUS CONDUIT
31
-- PMAFLEX PLus Type CUS & PUS conduit
-- Type CUS - Very flexible, medium-duty
CUS Approvals
Order no. (black)
Order no. (grey)
Conduit size
NW Metric
Inch
(mm)
Stat. Inside Ø Outside Ø radius
(inch)
(mm) (mm)
PU (m/ft)
CUSG-17B.31
CUSG-17S.31
17
20
1/2
15.2 0.598
21.2 40 31/100
CUSG-23B.31
CUSG-23S.31
23
25
3/4
21.9 0.862
28.5
45 31/100
CUSG-29B.31
CUSG-29S.31
29
32
1
27.6 1.087
34.5
55 31/100
CUSG-36B.31
CUSG-36S.31
36
40 1-1/4
36.0 1.417
42.5 60 31/100
CUSG-48B.31
CUSG-48S.31
48
50 1-1/2
47.0 1.850
54.5
70 31/100
For machine building and installation industries For electrical installations, especially in the US market Inexpensive solution for requirements acc. to UL 1660 (UL Listing) Good ductility and reversed bending characteristics Very good mechanical properties even under extreme conditions, such as low temperatures and low humidity
CUS Index min.
Ductility Fatigue reversed bending Compression resistance Low temperature performance Weathering resistance
max.
Materials Specially modified polyamide 6
Certification Free from halogens, REACH compliant
and RoHS compliant
Temperature range 40oC to +105oC
Short-term to: +160oC Fire protection
Self-extinguishing, acc. to UL 94 V2
Colour Black/Grey
UV Resistance -
-- Type PUS - Very flexible, heavy-duty
PUS Approvals
Order no. (black)
Order no. (grey)
Conduit size NW Metric Inch
PUSG-17B.31
PUSG-17S.31
17
20
1/2
PUSG-23B.31
PUSG-23S.31
23
25
3/4
PUSG-29B.31
PUSG-29S.31
29
32
1
PUSG-36B.31
PUSG-36S.31
36
40 1-1/4
PUSG-48B.31
PUSG-48S.31
48
50 1-1/2
For long-term external applications with approval acc. to UL 1660 (UL Listing) For dynamic applications Very good reversed bending resistance Very good mechanical strength at low temperatures Excellent resistance to ultra violet rays and weathering cULus listed
Stat./Dyn. Inside Ø Outside Ø radius
(mm) (inch)
(mm)
(mm)
15.2 0.598
21.2 35/85
22.0 0.866
28.5 40/110
27.7 1.091
34.4 50/130
35.8 1.409
42.4 60/180
46.8 1.843
54.4 70/220
PU (m/ft) 31/100 31/100 31/100 31/100 31/100
PUS Index min.
Ductility Fatigue reversed bending Compression resistance Low temperature performance Weathering resistance
max.
Materials Specially modified polyamide 12
Certification Free from halogens, REACH compliant
and RoHS compliant
Temperature range 50oC to +95oC
Short-term to: +150oC Fire protection
Self-extinguishing, acc. to UL 94 V2
Colour Black/Grey
UV Resistance Excellent
32
PMA FLEXIBLE CABLE PROTECTION SYSTEMS FOR APPLICATIONS WITH HIGH REQUIREMENTS
-- PMAFLEX PLus Type VUS conduit
-- Type VUS - Flexible, heavy-duty
VUS
Order no. (black)
Order no. (grey)
Conduit size NW Metric Inch
Inside Ø Outside Ø
(mm) (inch)
(mm)
VUSG-17B.31
VUSG-17S.31
17
20
1/2 15.2 0.598
21.2
VUSG-23B.31
VUSG-23S.31
23
25
3/4 22.0 0.866
28.5
VUSG-29B.31
VUSG-29S.31
29
32
1
27.7 1.091
34.4
VUSG-36B.31
VUSG-36S.31
36
40 1-1/4 35.8 1.409
42.4
VUSG-48B.31
VUSG-48S.31
48
50 1-1/2 46.8 1.843
54.4
For static exterior installations with approval acc. to UL 1660 (UL Listing) For applications requiring high compression resistance Good ductility High mechanical strength even under extreme conditions, such as low temperatures and low humidity Very good resistance to ultra violet rays and weathering
Stat. radius
(mm) 40 50 60 70 80
PU (m/ft) 31/100 31/100 31/100 31/100 31/100
Approvals
VUS Index
min. Ductility
max.
Fatigue reversed bending
Compression resistance
Low temperature performance
Weathering resistance
Materials Specially modified polyamide 6
Certification Free from halogens, REACH compliant
and RoHS compliant
Temperature range 50oC to +105oC
Short-term to: +160oC Fire performance -
Colour Black/Grey
UV Resistance Very good
PMA DIVISIBLE SYSTEM - TYPE PACOF & PPCOF CONDUIT
33
-- PMA Divisible System Type PACOF & PPCOF conduit
-- Type PACOF - Flexible, divisible
PACOF
PACOF Index min.
Ductility Fatigue reversed bending Compression resistance Low temperature performance Weathering resistance
max.
Order no. (black)
Conduit size
NW
Metric
Inch
PACOF-07B.50
07
10
1/4
PACOF-10B.50
10
12
5/16
PACOF-12B.50
12
16
3/8
PACOF-17B.50
17
20
1/2
PACOF-23B.50
23
25
3/4
PACOF-29B.50
29
32
1
PACOF-36B.30
36
40
1-1/4
PACOF-48B.30
48
50
1-1/2
PACOF-70B.10
70
80
2-1/2
HL3 according to EN45545-2 NFPA 130 compliant For machine building and plant construction For trouble-free retrofitting and applicable for repairs Can be opened and closed again in longitudinal direction any time Good ductility Good compression resistance
Materials
Specially modified polyamide 6
Certification
Free from halogens, REACH compliant
and RoHS compliant
Stat.
Inside Ø Outside Ø
radius
PU
(mm)
(inch)
(mm)
(mm)
(m)
5.6
0.220
10.0
30
50
8.5
0.335
12.8
33
50
11.0
0.433
15.6
35
50
15.5
0.610
21.1
45
50
22.1
0.870
28.4
70
50
27.2
1.071
34.5
120
50
32.0
1.260
42.4
145
30
43.9
1.728
54.1
150
30
62.0
2.441
79.0
190
10
Temperature range 40oC to +105oC
Short-term to: +160oC Fire performance
Colour Black
UV Resistance
-- Type PPCOF - Flexible, divisible
PPCOF
PPCOF Index min.
Ductility Fatigue reversed bending Compression resistance Low temperature performance Weathering resistance
max.
Order no. (black)
Conduit size
NW
Metric
Inch
PPCOF-07B.50
07
10
1/4
PPCOF-10B.50
10
12
5/16
PPCOF-12B.50
12
16
3/8
PPCOF-17B.50
17
20
1/2
PPCOF-23B.50
23
25
3/4
PPCOF-29B.50
29
32
1
PPCOF-36B.30
36
40
1-1/4
PPCOF-48B.30
48
50
1-1/2
PPCOF-70B.10
70
80
2-1/2
For machine building and plant construction For trouble-free retrofitting and applicable for repairs Can be opened and closed again in longitudinal direction any time Good reversed bending resistance
Materials Specially modified polypropylene PP
Certification -
Stat.
Inside Ø Outside Ø
radius
PU
(mm)
(inch)
(mm)
(mm)
(m)
5.6
0.220
10.0
25
50
8.5
0.335
12.8
28
50
11.0
0.433
15.6
35
50
15.1
0.594
21.1
45
50
22.1
0.870
28.4
60
50
26.6
1.047
34.5
100
50
31.8
1.252
42.4
120
30
43.9
1.728
54.1
140
30
60.5
2.382
78.0
200
10
Temperature range 20oC to +105°C
Short-term to +150°C Fire performance
Colour Black
UV Resistance
34
PMA FLEXIBLE CABLE PROTECTION SYSTEMS FOR APPLICATIONS WITH HIGH REQUIREMENTS
-- PMA Smart Line Type LLPO & LLPA conduit
-- Type LLPO - Very flexible, light-duty
LLPO
LLPO Index min.
Ductility Fatigue reversed bending Compression resistance Low temperature performance Weathering resistance
max.
Order no.
Order no.
(black)
(grey)
NW
LLPO-07A.50 LLPO-07S.50
07
LLPO-10A.50 LLPO-10S.50
10
LLPO-12A.50 LLPO-12S.50
12
LLPO-17A.50
LLPO-17S.50
17
LLPO-23A.50 LLPO-23S.50
23
LLPO-29A.50 LLPO-29S.50
29
LLPO-36A.30 LLPO-36S.30
36
LLPO-48A.30 LLPO-48S.30
48
For machine building and installation Excellent reversed bending characteristics Very good resistance against acids and hydrolysis
Conduit size
Metric
Inch Profile
10
1/4
T
12 5/16
T
16
3/8
T
20
1/2
T
25
3/4
T
32
1
T
40 1-1/4
T
50 1-1/2
T
Materials Specially modified polyolefine
Certification Free from halogens, REACH compliant
and RoHS compliant
Inside Ø Outside Ø
(mm) (inch)
(mm)
6.2 0.244
10.0
9.6 0.378
13.0
12.0 0.472
15.8
16.2 0.638
21.2
22.6 0.890
28.5
29.0 1.142
34.5
36.5 1.437
42.5
47.5 1.870
54.5
Temperature range 20oC to +90oC
Short-term to: +130oC Fire protection
Good flammability
Stat. radius PU
(mm) (m) 15 50 20 50 30 50 40 50 45 50 55 50 60 30 70 30
Colour Black/Grey
UV Resistance
-- Type LLPA - Very flexible, medium-duty
LLPA
Order no. (black) LLPA-07A.50 LLPA-10A.50 LLPA-12A.50 LLPA-17A.50 LLPA-23A.50 LLPA-29A.50 LLPA-36A.30 LLPA-48A.30
Order no. (grey) LLPA-07S.50 LLPA-10S.50 LLPA-12S.50 LLPA-17S.50 LLPA-23S.50 LLPA-29S.50 LLPA-36S.30 LLPA-48S.30
Conduit size
NW Metric Inch Profile
07
10 1/4
T
10
12 5/16
T
12
16 3/8
T
17
20 1/2
T
23
25 3/4
T
29
32
1
T
36 40 1-1/4
T
48
50 1-1/2
T
Inside Ø (mm) (inch)
6.2 0.244 9.6 0.378 12.0 0.472 16.2 0.638 22.6 0.890 29.0 1.142 36.5 1.437 47.5 1.870
Outside Ø (mm) 10.0 13.0 15.8 21.2 28.5 34.5 42.5 54.5
Stat. radius PU
(mm) (m) 15 50 20 50 30 50 40 50 45 50 55 50 60 30 70 30
Approvals
LLPA Index min.
Ductility Fatigue reversed bending Compression resistance Low temperature performance Weathering resistance
max.
LLPAG-17A.50 LLPAG-17S.50
17
LLPAG-23A.50 LLPAG-23S.50
23
LLPAG-29A.50 LLPAG-29S.50
29
LLPAG-36A.30 LLPAG-36S.30
36
LLPAG-48A.30 LLPAG-48S.30
48
LLPAG-56A.30 LLPAG-56S.30
56
LLPAG-70A.10 LLPAG-70S.10
70
LLPAG-95A.10 LLPAG-95S.10
95
LLPAG-125A.06 LLPAG-125S.06
125
For machine building, installation and construction industries Good ductility Good mechanical characteristics
Materials Specially modified polyamide 6
Certification Free from halogens, REACH compliant
and RoHS compliant
20 1/2
25 3/4
32
1
40 1-1/4
50 1-1/2
68
2
80 2-1/2
106
4
146
5
G 15.8 0.622 G 21.9 0.862 G 27.6 1.087 G 36.0 1.417 G 47.0 1.850 G 56.3 2.217 G 68.0 2.677 G 91.9 3.618 G 126.5 4.980
21.2 28.5 34.5 42.5 54.5 67.2 80.0 106.0 146.5
40 50 45 50 55 50 60 30 70 30 120 30 160 10 210 10 450 06
Temperature range 40oC to +105oC
Short-term to: +160oC Self extinguishing acc. to UL 94 V2
Colour Black/Grey
UV Resistance
PMA SMART LINE - TYPE LLPF
35
-- PMA Smart Line Type LLPF
-- Type LLPF - Very flexible, medium-duty
LLPF
Order no. (black) LLPF-07A.50 LLPF-10A.50 LLPF-12A.50 LLPF-17A.50 LLPF-23A.50 LLPF-29A.50
Order no. (grey) LLPF-07S.50 LLPF-10S.50 LLPF-12S.50 LLPF-17S.50 LLPF-23S.50 LLPF-29S.50
Conduit size
Stat. Inside Ø Outside Ø radius PU
NW Metric
Inch Profile (mm) (inch)
(mm) (mm) (m)
7
10
1/4
T 6.2 0.244
10.0
15 50
10
12 5/16
T 9.6 0.378
13.0
20 50
12
16
3/8
T 12.0 0.472
15.8
30 50
17
20
1/2
T 16.2 0.638
21.2
40 50
23
25
3/4
T 22.6 0.890
28.5
45 50
29
32
1
T 29.0 1.142
34.5
55 50
LLPF Index min.
Ductility
Fatigue reversed bending Compression resistance Low temperature performance Weathering resistance
max.
LLPFG-17A.50 LLPFG-17S.50
17
LLPFG-23A.50 LLPFG-23S.50
23
LLPFG-29A.50 LLPFG-29S.50
29
LLPFG-36A.30 LLPFG-36S.30
36
LLPFG-48A.30 LLPFG-48S.30
48
For machine building, installation and construction industries For applications with high fire safety requirements UL 94 V0 Good pressure resistance Very good fire safety characteristics
Materials Specially modified polyamide 6
Certification Free from halogens, REACH compliant
and RoHS compliant
20
1/2
25
3/4
32
1
40 1-1/4
50 1-1/2
G 15.8 0.622 G 21.9 0.862 G 27.6 1.087 G 36.0 1.417 G 47.0 1.850
21.2 28.5 34.5 42.5 54.5
40 50 45 50 55 50 60 30 70 30
Temperature range 40oC to +105oC
Short-term to: +160oC Fire protection
Self-extinguishing
Colour Black/Grey
UV Resistance
36
PMA FLEXIBLE CABLE PROTECTION SYSTEMS FOR APPLICATIONS WITH HIGH REQUIREMENTS
-- PMA overbraided conduits PMA stainless steel overbraiding for conduits
-- PMA stainless steel overbraiding for conduits
Order no. (black)
Conduit size NW Metric
For conduit profile
Fits to metal connector
Weight net
without
Braid spec d1 Ø d2 Ø
conduit PU
(mm) (mm) (mm) (kg/100 m) (m)
xxxT-12x/S.50
12
16
T MONK-M162 24 x 8 x 0.30
* 17.5
11.9 50
xxxT-17x/S.50
17
20
T MONK-M207 32 x 7 x 0.30
* 23.0
13.8 50
xxxG-17x/S.50
17
20
G MONK-M207 32 x 7 x 0.30
* 23.0
13.8 50
xxxG-23x/S.50
23
25
G MONK-M253 36 x 8 x 0.30
* 31.0
17.8 50
xxxG-29x/S.50
29
32
G MONK-M329 36 x 10 x 0.30
* 36.0
22.2 50
xxxG-36x/S.30
36
40
G MONK-M406 36 x 12 x 0.30
* 44.5
26.7 30
xxxG-48x/S.30
48
50
G MONK-M508 36 x 14 x 0.30
* 58.5
30.7 30
Our customer service or your local distribution partner will be pleased to help you concerning product availability and lead time Application: in machine and railway construction; for high mechanical loads; in areas with hot swarf and flying sparks Characteristics: increased mechanical conduit protection; extremely high abrasion resistance Coverage: > 90% Suitable for PMAFLEX, PMA Smart Line; Special metal fittings (MONK)
Materials Braid made with stainless stell AISI
Certification RoHS compliant
Temperature range 70oC to +1000oC Fire performance
Colour Metal
UV Resistance
PMA OVERBR AIDED CONDUITS - PMA STAINLESS STEEL OVERBR AIDING FOR CONDUITS
37
38
PMA FLEXIBLE CABLE PROTECTION SYSTEMS FOR APPLICATIONS WITH HIGH REQUIREMENTS
-- PMAFIX Pro Introduction
Next generation cable protection. The extremely successful and technically proven PMAFIX System has been developed further to create the PMAFIX Pro product range.
The new generation fittings are the product of experience gained over many years in the most varied application areas. The PMAFIX Pro has two components, an outer body and an inner sealing element. The sealing element functions both as a seal and as a locking mechanism providing all ingress protection grades up to IP68 and IP69 even in applications where there is long term continuous movement. PMAFIX Pro is manufactured by using multiple component injection moulding process.
Key features · Meets all ingress protection categories up to and
including IP68 and IP69 also when the conduit connection is continually in motion · Manufactured with newest 2-component injection moulding technology · Fulfills highest international quality and standard requirements · Intelligent safety locking mechanism · Allows simple "push-in" installation of conduits · Due to the integrated conduit supports conduit remains centralised with little deformation even when bent sharply directly at the fitting
PMAFIX PRO - INTRODUCTION
39
40
PMA FLEXIBLE CABLE PROTECTION SYSTEMS FOR APPLICATIONS WITH HIGH REQUIREMENTS
-- PMAFIX Pro General technical details
-- 01 patent -- 02 Up to 100 bar
Material · Fittings made from specially modified
polyamide 6 · Threads made from nickel-plated brass or
polyamide 6 · Sealings made from cross linked polyester
elastomer · Self-extinguishing · Free from halogens, REACH + RoHS compliant · Temperature range: 50°C to +105°C, short-term
to +160°C
Characteristics · Highest assembly reliability the fitting only
locks when the sealing element is fully inserted · Highest operational safety assured through
visual and acoustic correct assembly controls · Excellente resistance to ultra violet rays and
weathering · Highest impact resistance through fully
closed design · Highest conduit pull out strength · Vibration-proof connection to PMA conduits · Fits conduit profiles fine (T) and coarse (G) · To avoid accidental opening, disassembling
only possible with a screwdriver
-- IP68 + IP69
Static + dynamic
· Highest sealing through fully closed system
also in highest dynamic applications
· Extra long ribbed sealing areas (cross linked
material)
· 360° locking and sealing element shields against
--
high pressure water jets (up to 100 bar)
01
· Content of delivery: Locking and sealing element
and thread seal for male threads (O-Ring and/or
flat gasket)
-- 02
PMAFIX PRO - PART NUMBER CODES
41
-- PMAFIX Pro Part number codes
For part number explanation only, not to be used as a configuration tool. Part Numbers printed in RED are priority stock items in the US Distribution Center.
N K N H M 20 7 10
Colour
Black with
metal thread N
Grey with
metal thread M
Black
B
Type
Serie
Straight
N
45° elbow
A
90° curved
elbow
B
Female thread I
Thread type Metric thread M UN thread for round connector U
Mode of ingress protection
IP68 + IP69 with thread seal
H
IP68 + IP69 on conduit side
S
IP68 + IP69 with strain relief
Z
Thread code (Table 2)
PMA Conduit code (Table 1)
Thread length
-- Connector series IP68 + IP69
--
--
--
--
01
02
03
04
-- 01 Straight (N) -- 02 45° elbow (A) -- 03 90° curved elbow (B) -- 04 Female thread (I)
42
PMA FLEXIBLE CABLE PROTECTION SYSTEMS FOR APPLICATIONS WITH HIGH REQUIREMENTS
-- PMAFIX Pro Size codes, installation
-- Table 1: Conduit codes
-- Table 2: Thread codes
Nominal width 10 12 17 23 29 36 48
Metric size 12 16 20 25 32 40 50
PMA code
0 2 7 3 9 6 8
-- Additional code for female thread connectors
Thread Metric M12x1.5 M16x1.5 M20x1.5 M25x1.5 M32x1.5 M40x1.5 M50x1.5 M63x1.5
Type
With O-ring groove (MIL C 5015)
PMA code
G
PMA code M12 M16 M20 M25 M32 M40 M50 M63
Thread UN 7/820 UNEF 120 UNEF 13/1618 UNEF 17/1618 UNEF 1¾18 UNS 218 UNS 2¼16 UN
PMA code U21 U24 U29 U35 U43 U50 U56
-- Installation IP68 + IP69
BB
AA
BBB
AAA
-- 01
A = Corrugated conduit B = Sealing and locking element C = Fitting body D = Thread seal (O-ring or flat gasket*)
BB BBB
DD
AA
DDD
AAA
-- 02
Place corrugated conduit (A) at a slight angle against the sealing element (B), then push right into the end.
AA++BB AAA+++BBB
CC CCC -- 03
Push the conduit and sealing element (A+B) together into the outer body of the fitting (C). Water or a lubricating agent can help facilitate the push-in process.
CCLLIICCKK!! CCCLLLIIICCCKKK!!!
-- 04
The locking mechanism engages when the sealing element is pushed in fully.
-- 05
To disengage the locking mechanism introduce a size 1 screwdriver parallel to the conduit into the opening shown in the detail drawing.
- -
--
- - -
06
Pull the conduit and screwdriver out of the fitting together keeping the screwdriver parallel to the conduit.
PMAFIX PRO - CONNECTORS METRIC, METAL THREAD
-- PMAFIX Pro Connectors metric, metal thread
B
g
A
A
43
A
B A
g
g = Thread length A x B = External dimensions
A
A
g
g
g
g
g = Thread length A = Overall length
-- Type KNH - Connector straight, metric metal thread
KNH, patent Approvals
Order no. black IP68 + IP69
Order no. grey IP68 + IP69
Thread metric
NKNH-M120-10
MKNH-M120-10
M12 x 1.5
NKNH-M160-10
MKNH-M160-10
M16 x 1.5
NKNH-M162-10
MKNH-M162-10
M16 x 1.5
NKNH-M202-10
MKNH-M202-10
M20 x 1.5
NKNH-M207-10
MKNH-M207-10
M20 x 1.5
NKNH-M257-11
MKNH-M257-11
M25 x 1.5
NKNH-M253-11
MKNH-M253-11
M25 x 1.5
NKNH-M323-13
MKNH-M323-13
M32 x 1.5
NKNH-M329-13
MKNH-M329-13
M32 x 1.5
NKNH-M409-13
MKNH-M409-13
M40 x 1.5
NKNH-M406-13
MKNH-M406-13
M40 x 1.5
NKNH-M506-14
MKNH-M506-14
M50 x 1.5
NKNH-M508-14
MKNH-M508-14
M50 x 1.5
NKNH-M638-14
MKNH-M638-14
M63 x 1.5
For applications in railway vehicles and heavy machine construction High thread and system connection strength
Fits to conduit size
NW
Metric
10
12
10
12
12
16
12
16
17
20
17
20
23
25
23
25
29
32
29
32
36
40
36
40
48
50
48
50
Thread length
(mm) 10.0 10.0 10.0 10.0 10.0 11.0 11.0 13.0 13.0 13.0 13.0 14.0 14.0 14.0
Overal length
(mm) 45.0 45.0 50.5 50.5 56.0 57.0 59.5 61.5 67.0 68.5 74.0 75.0 81.0 81.0
44
PMA FLEXIBLE CABLE PROTECTION SYSTEMS FOR APPLICATIONS WITH HIGH REQUIREMENTS
-- Connectors metric, metal thread Type KNZ
-- Type KNZ - Connector straight with strain relief, metric metal thread
KNZ, patent Approvals
Order no. IP68 + IP69 Compl., black
Order no. fitting*
Order no. insert
Thread metric
NKNZ-M120/P1 NKNZ-M120R/P EK 150p7
M12 x 1.5
NKNZ-M120/P2
EK 150p8
M12 x 1.5
NKNZ-M120/P3
EK 150p9
M12 x 1.5
NKNZ-M160/P1 NKNZ-M160R/P E 150p7
M16 x 1.5
NKNZ-M160/P2
E 150p8
M16 x 1.5
NKNZ-M160/P3
E 150p9
M16 x 1.5
NKNZ-M202/P1 NKNZ-M202R/P E 152p7
M20 x 1.5
NKNZ-M202/P3
E 152p9
M20 x 1.5
NKNZ-M202/P4
E 152p11
M20 x 1.5
NKNZ-M207/P3 NKNZ-M207R/P E 152p9
M20 x 1.5
NKNZ-M207/P4
E 152p11
M20 x 1.5
NKNZ-M207/P5
E 152p13
M20 x 1.5
NKNZ-M257/P4 NKNZ-M257R/P E 153p11
M25 x 1.5
NKNZ-M257/P5
E 153p13
M25 x 1.5
NKNZ-M257/P6
E 153p16
M25 x 1.5
NKNZ-M253/P5 NKNZ-M253R/P EK 154p13
M25 x 1.5
NKNZ-M253/P6 NKNZ-M253R1/P EK 154p16
M25 x 1.5
NKNZ-M323/P2 NKNZ-M323R/P E 154p13
M32 x 1.5
NKNZ-M323/P4
E 154p18
M32 x 1.5
NKNZ-M323/P5 NKNZ-M323R1/P E 154p20
M32 x 1.5
NKNZ-M329/P2 NKNZ-M329R/P EK 155p18
M32 x 1.5
NKNZ-M329/P3
EK 155p20
M32 x 1.5
NKNZ-M329/P4
EK 155p25
M32 x 1.5
NKNZ-M409/P1 NKNZ-M409R/P E 155p16
M40 x 1.5
NKNZ-M409/P2
E 155p18
M40 x 1.5
NKNZ-M409/P3
E 155p20
M40 x 1.5
NKNZ-M409/P4
E 155p25
M40 x 1.5
NKNZ-M409/P5
E 155p28
M40 x 1.5
NKNZ-M406/P1 NKNZ-M406R/P E 156p25HF
M40 x 1.5
NKNZ-M406/P2
EK 156p28
M40 x 1.5
NKNZ-M506/P1 NKNZ-M506R/P E 156p32
M50 x 1.5
NKNZ-M506/P3
E 156p36
M50 x 1.5
NKNZ-M508/P2 NKNZ-M508R/P E 157p36HF
M50 x 1.5
NKNZ-M508/P3
E 157p40HF
M50 x 1.5
NKNZ-M638/P1 NKNZ-M638R/P E 158pm1x35 M63 x 1.5
NKNZ-M638/P2
E 158p44
M63 x 1.5
* without insert For applications in railway vehicles and heavy machine construction For the separation of damp and dry areas Sealing inserts are made from TPE-V With integrated strain relief and optimal ingress protection at the cable (up to IP68/10 bar) High thread and system connection strength Temperature range sealing insert Pflitsch: 40°C to +135°C Note: For several conductors multiple sealing inserts MDE are available. R/P version of fitting has to be used in combination with multiple sealing inserts
Fits to conduit size
NW Metric
Terminal Thread Overall range length length (mm) (mm) (mm)
10
12 4.06.5
5.0 53.5
10
12 5.08.0
5.0 53.5
10
12 6.59.5
5.0 53.5
10
12 4.06.5
6.0 54.5
10
12 5.08.0
6.0 54.5
10
12 6.59.5
6.0 54.5
12
16 4.06.5
6.5 60.5
12
16 6.59.5
6.5 60.5
12
16 7.010.5
6.5 60.5
17
20 6.59.5
6.5 66.5
17
20 7.010.5
6.5 66.5
17
20 9.013.0
6.5 66.5
17
20 7.010.5
7.5 67.5
17
20 9.013.0
7.5 67.5
17
20 11.515.5
7.5 67.5
23
25 9.013.0
7.5 75.0
23
25 11.515.5
7.5 75.0
23
25 9.013.0
8.0 76.0
23
25 14.018.0
8.0 76.0
23
25 17.020.5
8.0 76.0
29
32 14.018.0
8.0 83.0
29
32 17.020.5
8.0 83.0
29
32 20.025.0
8.0 83.0
29
32 11.515.5
8.0 83.0
29
32 14.018.0
8.0 83.0
29
32 17.020.5
8.0 83.0
29
32 20.025.0
8.0 83.0
29
32 24.028.0
8.0 83.0
36
40 20.025.0
9.0 87.5
36
40 24.028.0
9.0 87.5
36
40 27.032.0 10.0 90.0
36
40 32.036.0 10.0 90.0
48
50 32.036.0 10.0 100.0
48
50 36.040.0 10.0 100.0
48
50 32.035.0 10.0 100.0
48
50 39.044.0 10.0 100.0
CONNECTORS METRIC, METAL THREAD - T YPE KNZ
45
-- Connectors metric, metal thread Type KNZ
-- Type KNZ - Connector straight with strain relief, metric long metal thread
KNZ, patent Approvals
Order no. IP68 + IP69 Compl., black
Order no. fitting*
Order no. insert
Thread metric
NKNZ-M160/P1-L NKNZ-M160R/P-L E 150p7
M16 x 1.5
NKNZ-M160/P2-L
E 150p8
M16 x 1.5
NKNZ-M160/P3-L
E 150p9
M16 x 1.5
NKNZ-M202/P1-L NKNZ-M202R/P-L E 152p7
M20 x 1.5
NKNZ-M202/P3-L
E 152p9
M20 x 1.5
NKNZ-M202/P4-L
E 152p11
M20 x 1.5
NKNZ-M207/P3-L NKNZ-M207R/P-L E 152p9
M20 x 1.5
NKNZ-M207/P4-L
E 152p11
M20 x 1.5
NKNZ-M207/P5-L
E 152p13
M20 x 1.5
NKNZ-M257/P5-L NKNZ-M257R/P-L E 153p13
M25 x 1.5
NKNZ-M257/P6-L
E 153p16
M25 x 1.5
NKNZ-M323/P2-L NKNZ-M323R/P-L E 154p13
M32 x 1.5
NKNZ-M323/P4-L
E 154p18
M32 x 1.5
NKNZ-M323/P5-L NKNZ-M323R1/P-L E 154p20
M32 x 1.5
NKNZ-M329/P2-L NKNZ-M329R/P-L EK 155p18
M32 x 1.5
NKNZ-M329/P3-L
EK 155p20
M32 x 1.5
NKNZ-M409/P3-L NKNZ-M409R/P-L E 155p20
M40 x 1.5
NKNZ-M409/P4-L
E 155p25
M40 x 1.5
NKNZ-M409/P5-L
E 155p28
M40 x 1.5
NKNZ-M506/P1-L NKNZ-M506R/P-L E 156p32
M50 x 1.5
NKNZ-M506/P3-L
E 156p36
M50 x 1.5
NKNZ-M508/P2-L NKNZ-M508R/P-L E 157p36HF
M50 x 1.5
NKNZ-M508/P3-L
E 157p40HF
M50 x 1.5
NKNZ-M638/P1-L NKNZ-M638R/P-L E 158pm1x35 M63 x 1.5
NKNZ-M638/P2-L
E 158p44
M63 x 1.5
* without insert For applications in railway vehicles and heavy machine construction For the separation of damp and dry areas Sealing inserts are made from TPE-V With integrated strain relief and optimal ingress protection at the cable (up to IP68/10 bar) High thread and system connection strength Temperature range sealing insert Pflitsch: 40°C to +135°C Note: For several conductors multiple sealing inserts MDE are available. R/P version of fitting has to be used in combination with multiple sealing inserts
Fits to conduit size
NW Metric
Terminal Thread Overall range length length (mm) (mm) (mm)
10
16 4.06.5 15.0 63.5
10
16 5.08.0 15.0 63.5
10
16 6.59.5 15.0 63.5
12
20 4.06.5 15.0 69.0
12
20 6.59.5 15.0 69.0
12
20 7.010.5 15.0 69.0
17
20 6.59.5 15.0 75.0
17
20 7.010.5 15.0 75.0
17
20 9.013.0 15.0 75.0
17
25 9.013.0 15.0 75.0
17
25 11.515.5 15.0 75.0
23
32 9.013.0 15.0 83.0
23
32 14.018.0 15.0 83.0
23
32 17.020.5 15.0 83.0
29
32 14.018.0 15.0 90.0
29
40 17.020.5 15.0 90.0
29
40 17.020.5 15.0 90.0
29
40 20.025.0 15.0 90.0
29
50 24.028.0 15.0 90.0
36
50 27.032.0 15.0 95.0
36
50 32.036.0 15.0 95.0
48
50 32.036.0 15.0 105.0
48
50 36.040.0 15.0 105.0
48
63 32.035.0 15.0 105.0
48
63 39.044.0 15.0 105.0
46
PMA FLEXIBLE CABLE PROTECTION SYSTEMS FOR APPLICATIONS WITH HIGH REQUIREMENTS
-- Connectors metric, metal thread Type KAH & KBH
-- Type KAH - Connector 45° elbow, metric metal thread
KAH, patent Approvals
Order no. black IP68 + IP69
Order no. grey IP68 + IP69
Thread metric
NKAH-M120-10 MKAH-M120-10
M12 x 1.5
NKAH-M160-10 MKAH-M160-10
M16 x 1.5
NKAH-M162-10 MKAH-M162-10
M16 x 1.5
NKAH-M202-10 MKAH-M202-10
M20 x 1.5
NKAH-M207-10 MKAH-M207-10
M20 x 1.5
NKAH-M257-11 MKAH-M257-11
M25 x 1.5
NKAH-M253-11 MKAH-M253-11
M25 x 1.5
NKAH-M323-13 MKAH-M323-13
M32 x 1.5
NKAH-M329-13 MKAH-M329-13
M32 x 1.5
NKAH-M409-13 MKAH-M409-13
M40 x 1.5
NKAH-M406-13 MKAH-M406-13
M40 x 1.5
NKAH-M506-14 MKAH-M506-14
M50 x 1.5
NKAH-M508-14 MKAH-M508-14
M50 x 1.5
NKAH-M638-14 MKAH-M638-14
M63 x 1.5
For applications in railway vehicles and heavy machine construction High thread and system connection strength
Fits to conduit size
NW
Metric
10
12
10
12
12
16
12
16
17
20
17
20
23
25
23
25
29
32
29
32
36
40
36
40
48
50
48
50
Thread length
(mm) 10.0 10.0 10.0 10.0 10.0 11.0 11.0 13.0 13.0 13.0 13.0 14.0 14.0 14.0
External dimensions
(mm) 55.5 x 43.0 55.5 x 45.0 62.5 x 50.0 62.5 x 52.0 71.0 x 59.5 72.0 x 62.5 80.0 x 68.0 82.0 x 72.0 93.0 x 79.5 94.5 x 85.5 105.5 x 93.5 106.5 x 98.5 120.0 x 111.0 120.0 x 114.0
-- Type KBH - Connector 90° curved elbow, metric metal thread
KBH, patent Approvals
Order no. black IP68 + IP69
Order no. grey IP68 + IP69
Thread metric
NKBH-M120-10 MKBH-M120-10
M12 x 1.5
NKBH-M160-10 MKBH-M160-10
M16 x 1.5
NKBH-M162-10
MKBH-M162-10
M16 x 1.5
NKBH-M202-10 MKBH-M202-10
M20 x 1.5
NKBH-M207-10
MKBH-M207-10
M20 x 1.5
NKBH-M257-11
MKBH-M257-11
M25 x 1 5
NKBH-M253-11 MKBH-M253-11
M25 x 1.5
NKBH-M323-13 MKBH-M323-13
M32 x 1.5
NKBH-M329-13 MKBH-M329-13
M32 x 1.5
NKBH-M409-13 MKBH-M409-13
M40 x 1.5
NKBH-M406-13 MKBH-M406-13
M40 x 1.5
NKBH-M506-14 MKBH-M506-14
M50 x 1.5
NKBH-M508-14 MKBH-M508-14
M50 x 1.5
NKBH-M638-14 MKBH-M638-14
M63 x 1.5
For applications in railway vehicles and heavy machine construction High thread and system connection strength Smooth elbow allows easy threading of wires and cables
Fits to conduit size
NW
Metric
10
12
10
12
12
16
12
16
17
20
17
20
23
25
23
25
29
32
29
32
36
40
36
40
48
50
48
50
Thread length
(mm) 10.0 10.0 10.0 10.0 10.0 11.0 11.0 13.0 13.0 13.0 13.0 14.0 14.0 14.0
External dimensions
(mm) 44.0 x 62.5 44.0 x 64.5 47.5 x 72.0 47.5 x 74.0 53.0 x 81.0 54.0 x 84.0 63.0 x 92.0 65.0 x 96.0 75.0 x 108.0 76.5 x 114.0 87.5 x 126.0 88.5 x 131.0 101.0 x 145.5 101.0 x 148.5
CONNECTORS, FEMALE POLYAMIDE UNEF THRE AD - T YPE KIHG
47
-- Connectors, female polyamide UNEF thread Type KIHG
-- Type KIHG - Connector straight, UN female thread for MIL-C5015
KIHG, patent Approvals
Order no. black IP68 + IP69
Thread UN
Shell size MIL
BKIHG-U212
7/820 UNEF
16
BKIHG-U217
7/820 UNEF
16
BKIHG-U242
120 UNEF
18
BKIHG-U247
120 UNEF
18
BKIHG-U243
120 UNEF
18
BKIHG-U292
13/1618 UNEF
20
BKIHG-U297
13/1618 UNEF
20
BKIHG-U293
13/1618 UNEF
20
BKIHG-U299
13/1618 UNEF
20
BKIHG-U357
17/1618 UNEF
24
BKIHG-U353
17/1618 UNEF
24
BKIHG-U359
17/1618 UNEF
24
BKIHG-U433
1¾18 UNS
32
BKIHG-U439
1¾18 UNS
32
BKIHG-U503
218 UNS
36
BKIHG-U509
218 UNS
36
BKIHG-U506
218 UNS
36
BKIHG-U508
218 UNS
36
BKIHG-U566
2¼16 UN
40
BKIHG-U568
2¼16 UN
40
For applications in railway vehicles and heavy machine construction Suitable for MIL connector, series C5015
Fits to conduit size
NW
Metric
12
16
17
20
12
16
17
20
23
23
12
16
17
20
23
25
29
32
17
20
23
25
29
32
23
25
29
32
23
25
29
32
36
40
48
50
36
40
48
50
Thread length
(mm) 9.0 9.0 9.0 9.0 9.0 9.0 9.0 9.0 9.0 9.0 9.0 9.0
10.0 10.0 10.0 10.0 10.0 10.0 10.0 10.0
Overall length
(mm) 47.0 52.5 47.0 52.5 55.5 50.5 52.5 55.5 61.0 58.0 55.5 61.0 62.5 62.0 67.0 67.5 67.0 73.5 72.0 73.5
48
PMA FLEXIBLE CABLE PROTECTION SYSTEMS FOR APPLICATIONS WITH HIGH REQUIREMENTS
-- Connectors metric, female metal thread Type KIS
-- Type KIS - Connector straight, metric metal female thread
KIS, patent
Order no. black IP68 + IP69 NKIS-M162 NKIS-M207 NKIS-M253 NKIS-M329 NKIS-M406 NKIS-M508 NKIS-M638
Thread metric M16 x 1.5 M20 x 1.5 M25 x 1.5 M32 x 1.5 M40 x 1.5 M50 x 1.5 M63 x 1.5
Approvals
Fits to conduit size
NW
Metric
12
16
17
20
23
25
29
32
36
40
48
50
48
50
Thread length
(mm) 9.0
10.5 10.5 11.0 13.5 15.0 17.5
Overall length
(mm) 49.0 56.0 58.5 65.5 72.0 83.0 84.0
For applications in railway vehicles and heavy machine construction High thread and system connection strength No seal on female thread side
CONNECTORS NYLON STRAIGHT FITTING - TYPE JKNH & JKBH
49
-- Connectors nylon straight fitting Type JKNH & JKBH
-- Type JKNH - Connector two-piece, straight, IP69, metric thread
JKNH Approvals
Order no. blue
Thread size
metric
Fits to conduit size
NW
Inch
JKNH-M162 M16 x 1.5
12
3/8
JKNH-M202 M20 x 1.5
12
3/8
JKNH-M207 M20 x 1.5
17
1/2
JKNH-M257 M25 x 1.5
17
1/2
JKNH-M253 M25 x 1.5
23
3/4
JKNH-M323 M32 x 1.5
23
3/4
JKNH-M329 M32 x 1.5
29
1
JKNH-M409 M40 x 1.5
29
1
JKNH-M406 M40 x 1.5
36 1-1/4
JKNH-M506 M50 x 1.5
36 1-1/4
JKNH-M508 M50 x 1.5
48 1-1/2
JKNH-M638 M63 x 1.5
48 1-1/2
Very high impact resistance - easy push-in assembly Corrosion-free Excellent conduit pull-out strength IP69 system protection for indoor splash zone areas
g (mm)
11.0 12.5 14.5 16.5 19.0 23.0 26.0 29.0 32.0 37.5 42.0 48.5
Ø ID (mm)
11.0 11.0 11.0 12.0 12.0 15.0 15.0 19.0 19.0 19.0 19.0 19.0
Ø D (mm)
28.5 28.5 35.0 35.0 42.0 43.0 51.5 51.5 65.0 65.0 75.0 75.0
Dimensions
L max.
sw
(mm) (mm)
47.5
25
47.5
25
53.5
32
54.5
32
57.0
38
60.5
38
65.5
46
69.5
46
75.0
60
75.0
60
81.0
70
81.0
70
Weight kg/100 pcs
0.8 0.9 1.4 1.5 1.7 2.0 3.2 3.7 5.9 6.2 7.5 7.8
Packing unit/pcs
10 10 10 10 10 10 10 10 10 10 10 10
-- Type JKBH - 90° curved elbow, IP69, metric thread
JKBH Approvals
Order no. blue
Thread size
metric
Fits to conduit size NW
Dimensions
g d1 d2 d3 SW
A
B
R
Weight
(mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) kg/100 pcs
JKBH-M162
M16 x 1.5
12
11 8.0 28.5 24.0 15.0 44.5 72.0 28.0
1.5
JKBH-M202
M20 x 1.5
12
11 11.8 28.5 28.0 15.0 44.5 74.0 28.0
1.3
JKBH-M207
M20 x 1.5
17
11 11.5 35.0 29.0 20.0 50.0 81.0 29.5
2.5
JKBH-M257
M25 x 1.5
17
12 16.5 35.0 35.0 20.0 51.0 84.0 29.5
2.2
JKBH-M253
M25 x 1.5
23
12 16.0 43.0 35.0 26.0 59.5 92.0 35.0
3.9
JKBH-M323
M32 x 1.5
23
15 22.5 43.0 40.0 26.0 63.0 94.5 35.0
3.2
JKBH-M329
M32 x 1.5
29
15 23.0 51.5 43.0 33.0 73.0 108.0 41.5
6.8
JKBH-M409
M40 x 1.5
29
19 28.5 51.5 51.0 33.0 77.0 112.0 41.5
6.0
JKBH-M406
M40 x 1.5
36
19 29.5 60.5 55.0 41.0 87.5 126.0 49.0
11.0
JKBH-M506
M50 x 1.5
36
19 37.0 60.5 59.0 41.0 87.5 128.0 49.0
9.0
JKBH-M508
M50 x 1.5
48
19 38.5 73.0 69.0 46.0 100.5 145.5 55.5
18.0
JKBH-M638
M63 x 1.5
48
19 48.0 73.0 75.0 55.0 100.5 148.5 55.5
14.0
Very high impact resistance - easy push-in assembly Corrosion-free Excellent conduit pull-out strength IP69 system protection for indoor splash zone areas
Packing unit/pcs
10 10 10 10 10 10 10 10 10 10 10 10
50
PMA FLEXIBLE CABLE PROTECTION SYSTEMS FOR APPLICATIONS WITH HIGH REQUIREMENTS
-- PMAFIX IP66, IP68 (IP69) General technical details
PMAFIX connectors. The designation PMAFIX describes a very large range of connectors for PMA conduits with the patented PMA safety clip system.
Connectors are available for degrees of ingress protection IP66 and IP68 according to IEC 60529. IP66 connectors are fitted with a pre-installed universal safety clip which ensures a quick "push-in" installation. IP68 connectors for increased requirements will be delivered with a special conduit seal cap. The new PMAFIX IP68GT fittings combine simplest push-in assembly with highest sealing performance. It is also possible to upgrade to IP69 by retrofitting water impact protection.
Material · Fittings made from specially formulated
polyamide 6 · Threads made from nickel-plated brass or
polyamide 6 · Self-extinguishing · Free from halogens, REACH + RoHS compliant · Very good chemical properties · Temperature range: 40°C to +105°C, short-term
to +160°C · Characteristics · Excellent conduit pull-out strength · High impact resistance · Vibration-proof connection to PMA corrugated
conduits · Fits conduit profiles fine (T) and coarse (G) · To avoid accidental opening, disassembly is only
possible with a screwdriver
PMAFIX IP66, IP68 (IP69) - GENER AL TECHNICAL DETAILS
51
52
PMA FLEXIBLE CABLE PROTECTION SYSTEMS FOR APPLICATIONS WITH HIGH REQUIREMENTS
-- PMAFIX General technical details
-- Patent
-- Patent
-- Patent
--
IP66
IP66 static IP54 dynamic · One piece fitting · Conical sealing method · Easy "push-in" installation · Pre-installed safety clip AFN2 · Content of delivery: Connector with pre-installed
safety clip
--
IP68GT
IP68, IP69 static IP67, IP69 dynamic · The single piece PMAFIX IP68GT fitting with
integrated sealing cap and pre-installed locking clip · Simple push-in assembly (as with the proven PMAFIX IP66 system) · The extra long sealing cap guarantees the highest level of ingress protection · Identical approvals as for the PMAFIX IP68 system component version · Fast modification of specification drawings through simple addition of ,GT` to the existing order number (e.g. BVNV-M257 BVNV-M257GT) · Additional water protection ring WPS for IP69 ingress protection in conjunction with the IP68 system to be applied right after the IP68 connector onto the conduit · Content of delivery: Connector with integrated sealing cap, pre-installed safety clip and thread seal for male thread (O-ring and/or flat gasket)
--
IP68
IP68, IP69 static IP67, IP69 dynamic · High sealing through additional seal cap · For highest dynamic applications · Additional water protection ring WPS for IP69
ingress protection in conjunction with the IP68 system to be applied right after the IP68 connector onto the conduit · Content of delivery: Connector with sealing cap, safety clip and thread seal for male thread (O-ring and/or flat gasket)
PMAFIX CONNECTORS - PART NUMBER CODES
53
-- PMAFIX connectors Part number codes
For part number explanation only, not to be used as a configuration tool. Part Numbers printed in RED are priority stock items in the US Distribution Center.
B V N DZ P16 7 GT / 01
Color
Black PA thread
B
Gray PA thread
S
Transparent PA thread T
Black with metal thread N
Grey with metal thread M
Special color
X
Construction type
Fixed thread
V
Swivel thread
S
PMAFIX series
Straight
N
90° elbow
W
90° curved elbow
B
45° elbow
A
90° elbow with flange
O
Female thread
I
Y piece
Y
T piece
T
Straight female threadNI
90° elbow female thread
BI
-- Connector series
--
01 Serie N
--
02 Serie W
--
03 Serie B
--
--
01
04 Serie A
--
05 Serie O
--
06 Serie I
--
07 Serie Y
--
08 Serie T
--
05
Thread type
PG thread
P
Metric thread
M
Metric fine thread F
NPT thread
N
Gas thread
G
UN thread for
round connector U
PMA conduit code (Table 1)
Thread size (Table 2)
Mode of ingress protection
Self-sealing IP66
D
With seal cap IP67 on conduit side
L
With seal cap IP68 on conduit side
R
With gasket reinforced IP68
V
Add. combined sealing with strain relief IP68 Z
Add. combined sealing with strain relief IP66 DZ
Safety retaining
clip type
Universal
safety clip GT
Oval clip
...
w/ cable sealS
w/o cable sealR
Modification code
Strain relief
grommet size
/Px
Thread length
/-10
Long thread (15mm) /-L
Fire barrier
/Bx
Without strain
relief insert
R/P
Special features
(consult factory) /01
--
--
--
02
03
04
--
--
--
06
07
08
54
PMA FLEXIBLE CABLE PROTECTION SYSTEMS FOR APPLICATIONS WITH HIGH REQUIREMENTS
-- PMAFIX Size codes
-- Table 1: Conduit codes
Nominal width 07 10 12 17 23 29 36 48
Metric size 10 12 16 20 25 32 40 50
Inch 1/4 5/16 3/8 1/2 3/4
1 1-1/4 1-1/2
-- Additional code for female thread connectors
PMA code
M 0 2 7 3 9 6 8
Type AMP Souriau (ex Burndy) UTG 6 With O-ring groove (MIL C 5015) Souriau UTO/UTS
PMA code
A B G S
-- Table 2: Thread codes
Thread metric
PMA code
M12 x 1.5 M16 x 1.5 M20 x 1.5
M12 M16 M20
M25 x 1.5 M32 x 1.5 M40 x 1.5 M50 x 1.5 M63 x 1.5
M25 M32 M40 M50 M63
Thread PG
PG07 PG09 PG11 PG13.5 PG16 PG21 PG29 PG36 PG42 PG48
M 8 x 1.0
F08
M12 x 1.0
F12
M18 x 1.0
F18
PMA code
P07 P09 P11 P13 P16 P21 P29 P36 P42 P48
Thread Gas G ¼ G 3/8 G ½ G ¾ G 1
G 1¼ G 1½
G 2 G 2¼ G 2½
PMA code G00 G01 G02 G04 G06 G07 G08 G09
G10 G11
Thread NPT
N ½ N ¾ N 1 N 1¼ N 1½ N 2
PMA code
Thread UN
N02 N04 N06 N07 N08 N09
½28 UNEF 9/1624 UNEF 5/824 UNEF 11/1624 UNEF ¾20 UNEF 13/1620 UNEF 7/820 UNEF 15/1620 UNEF
120 UNEF 11/1618 UNEF 13/1618 UNEF
1¼18 UNEF 15/1618 UNEF 13/818 UNEF 17/1618 UNEF 15/818 UNEF
1¾18 UNS 218 UNS 2¼16 UN 23/812 UN 2½12 UN
PMA code
U12 U13 U15 U16 U18 U20 U21 U23 U24 U26 U29 U30 U32 U34 U35 U40 U43 U50 U56 U57 U62
PMAFIX - INSTALL ATION
-- PMAFIX Installation
-- Installation IP66
C A
B
-- 01
A = Conduit B = Fitting C = Universal safety clip
A A A
C
C
C
D
B BB
-- 02
Push in the conduit (A) with a slight twist until the stop.
C
C
-- 03 To re-open use a screwdriver. The screwdriver slot in the oval clip (C) should be on the conduit side.
Locking clip pre-installed in all IP66 connectors.
-- * Ensure to follow O-ring manufacturers guidelines when using O-rings for sealing purposes.
55
-- Installation IP68GT
C D
A
A
B
B
-- 01
A = Conduit B = Fitting with integrated sealing cap C = Universal safety clip D = Thread seal (either O-ring or flat gasket*, not both)
C D
A A
A
B B
C
B
-- 02
Push in the conduit (A) right into the end of the fitting (B) with a slight twist. Additional insertion resistance will be felt when the end of the fitting has been reached.
C
-- 03
To re-open use a screwdriver. The screwdriver slot in the oval clip (C) should be on the conduit side.
Pre-installed sealing cap and locking clip in all IP68GT connectors.
56
PMA FLEXIBLE CABLE PROTECTION SYSTEMS FOR APPLICATIONS WITH HIGH REQUIREMENTS
-- PMAFIX Installation
--
Installation IP68 (IP69)
CC
EE
AA
A
BB A
AA
CC CC
DD
EE EE
BB BB
DD DD
-- 01
A = Conduit B = Sealing cap C = Fitting D = Oval clip E = Thread seal (O-ring or flat seal*)
AA
AA AA
DD
DD DD
-- 03
Push in the conduit (A) with a slight twist until the stop. Insert oval clip (D) in the locking element window and click into place. Screwdriver slot in the oval clip should be on conduit side.
BB
BB BB
-- 05 For IP69: Based on IP68 System A = Conduit with IP68 fitting B = WPS half shells
AA
BB A A
A A
BB BB
* For safety reasons, oval clip will not fit if seal cap is not fully installed.
Ensure to follow O-ring manufacturers guidelines when using O-rings for sealing purposes.
BB BB
BB
-- 02 Push sealing cap (B) completely onto the conduit in order to achieve IP68.
CC CC
CC
-- 04 To re-open use a screwdriver.
-- 06 To re-open use a screwdriver.
PMAFIX - CONNECTORS METRIC, POLYAMIDE THRE AD
57
-- Fitting dimensions
g = Thread length A = Overall length
g = Thread length A x B = External dimensions
-- PMAFIX Connectors metric, polyamide thread
-- Type VN - Connector straight, metric thread
VN
Approvals Please replace "B" for black with
"S" for grey in front of the order no.
Order no.
Order no.
IP66
IP68*
NW
BVND-M12MGT BVNV-M12M
07
BVND-M120GT
BVNV-M120
10
BVND-M160GT
BVNV-M160
10
BVND-M162GT
BVNV-M162
12
BVND-M200GT
BVNV-M200
10
BVND-M202GT
BVNV-M202
12
BVND-M207GT
BVNV-M207
17
BVND-M203GT
BVNV-M203
23
BVND-M257GT
BVNV-M257
17
BVND-M253GT
BVNV-M253
23
BVND-M323GT
BVNV-M323
23
BVND-M329GT
BVNV-M329
29
BVND-M409GT
BVNV-M409
29
BVND-M406GT
BVNV-M406
36
BVND-M506GT
BVNV-M506
36
BVND-M508GT
BVNV-M508
48
BVND-M638GT
BVNV-M638
48
For cable protection systems in a wide range of applications
Fits to conduit size
Metric
Inch
10
1/4
12
5/16
12
5/16
16
3/8
12
5/16
16
3/8
20
1/2
25
3/4
20
1/2
25
3/4
25
3/4
32
1
32
1
40
1-1/4
40
1-1/4
50
1-1/2
50
1-1/2
Thread metric M12 x 1.5 M12 x 1.5 M16 x 1.5 M16 x 1.5 M20 x 1.5 M20 x 1.5 M20 x 1.5 M20 x 1.5 M25 x 1.5 M25 x 1.5 M32 x 1.5 M32 x 1.5 M40 x 1.5 M40 x 1.5 M50 x 1.5 M50 x 1.5 M63 x 1.5
Thread length
(mm) 11.0 11.0 11.0 11.0 11.0 11.0 11.0 11.0 12.0 12.0 15.0 15.0 19.0 19.0 19.0 19.0 19.0
Overall length
(mm) 34.5 36.5 36.5 39.5 36.5 39.5 47.5 51.0 48.5 52.0 55.5 56.0 60.0 72.5 72.0 72.5 72.0
58
PMA FLEXIBLE CABLE PROTECTION SYSTEMS FOR APPLICATIONS WITH HIGH REQUIREMENTS
-- Connectors metric, polyamide thread Type VNDZ/VNZ & VA
-- Type VNDZ/VNZ - Connector straight with strain relief, metric thread
Order no. IP66
Order no. IP68
Thread metric
VNDZ/VNZ
BVNDZ-M160GT
M16 x 1.5
BVNDZ-M162GT BVNZ-M162S
M16 x 1.5
BVNDZ-M207GT BVNZ-M207S
M20 x 1.5
BVNDZ-M253GT BVNZ-M253S
M25 x 1.5
BVNDZ-M329GT BVNZ-M329S
M32 x 1.5
BVNDZ-M406GT BVNZ-M406S
M40 x 1.5
BVNDZ-M508GT BVNZ-M508S
M50 x 1.5
BVNDZ-M638GT BVNZ-M638S
M63 x 1.5
For machine and plant construction For separation of damp and dry areas Integrated strain relief optimally holds and seals cables If several conductors are used with the connector multiple sealing inserts should be considered Note: For several conductors multiple sealing inserts MDE are available
Fits to conduit size
NW Metric
Inch
10
12 5/16
12
16
3/8
17
20
1/2
23
25
3/4
29
32
1
36
40 1-1/4
48
50 1-1/2
48
50 1-1/2
Terminal range
5.0 10.0 5.0 10.0 10.0 14.0 13.0 18.0 18.0 25.0 22.0 32.0 30.0 38.0 34.0 4 4.0
Thread length
(mm) 8.0 8.0 8.0 8.0
10.0 10.0 12.0 12.0
Overall length
(mm) 62.0 62.0 72.0 81.0 85.0
108.5 119.5 119.5
-- Type VA - Connector 45° elbow, metric thread
VA Approvals
Order no. IP66 BVAD-M120GT BVAD-M160GT BVAD-M162GT BVAD-M202GT BVAD-M207GT BVAD-M253GT BVAD-M329GT BVAD-M406GT BVAD-M506GT BVAD-M508GT BVAD-M638GT
Order no. IP68 BVAV-M160 BVAV-M162 BVAV-M202 BVAV-M207 BVAV-M253 BVAV-M329 BVAV-M406 BVAV-M506 BVAV-M508 BVAV-M638
Thread metric M12 x 1.5 M16 x 1.5 M16 x 1.5 M20 x 1.5 M20 x 1.5 M25 x 1.5 M32 x 1.5 M40 x 1.5 M50 x 1.5 M50 x 1.5 M63 x 1.5
Fits to conduit size
NW Metric
Inch
10
12
5/16
10
12
5/16
12
16
3/8
12
16
3/8
17
20
1/2
23
25
3/4
29
32
1
36
40
1-1/4
36
40
1-1/4
48
50
1-1/2
48
50
1-1/2
Thread length
(mm) 11.0 11.0 11.0 11.0 11.0 12.0 15.0 19.0 19.0 19.0 19.0
Overall length
(mm) 43.5 x 37.0 43.5 x 38.0 48.0 x 40.0 48.0 x 41.5 55.5 x 51.5 65.0 x 58.5 73.5 x 66.5 92.5 x 85.5 92.5 x 89.5 100.0 x 96.0 100.0 x 104.0
Please replace "B" for black with "S" for grey in front of the order no.
CONNECTORS METRIC, POLYAMIDE THRE AD - T YPE VB & V W
59
-- Connectors metric, polyamide thread Type VB & VW
-- Type VB - Connector 90° curved elbow, metric thread
VB Approvals
Order no. IP66 BVBD-M207GT BVBD-M257GT BVBD-M253GT BVBD-M323GT BVBD-M329GT BVBD-M409GT BVBD-M406GT BVBD-M506GT BVBD-M508GT BVBD-M638GT
Order no. IP68 BVBV-M207 BVBV-M257 BVBV-M253 BVBV-M323 BVBV-M329 BVBV-M409 BVBV-M406 BVBV-M506 BVBV-M508 BVBV-M638
Thread metric M20 x 1.5 M25 x 1.5 M25 x 1.5 M32 x 1.5 M32 x 1.5 M40 x 1.5 M40 x 1.5 M50 x 1.5 M50 x 1.5 M63 x 1.5
Fits to conduit size
NW Metric
Inch
17
20
1/2
17
20
1/2
23
25
3/4
23
25
3/4
29
32
1
29
32
1
36
40 1-1/4
36
40 1-1/4
48
50 1-1/2
48
50 1-1/2
Thread length
(mm) 11.0 12.0 12.0 15.0 15.0 19.0 19.0 19.0 19.0 19.0
External dimensions
(mm) 47.5 x 73.0 48.5 x 76.0 57.5 x 83.0 61.0 x 87.5 70.5 x 93.0 74.5 x 98.5 85.0 x 121.0 85.0 x 125.0 98.5 x 130.0 98.5 x 138.0
For cable protection systems in a wide range of applications Smooth elbow allows easy threading of wires and cables Note: For smaller conduit sizes NW 10 to NW 12 appropriate standard elbows of type VW are also available
-- Type VW - Connector 90° elbow, metric thread
VW Approvals
Order no. IP66 BVWD-M12MGT BVWD-M120GT BVWD-M160GT BVWD-M200GT BVWD-M162GT BVWD-M202GT BVWD-M207GT BVWD-M253GT BVWD-M329GT BVWD-M406GT BVWD-M508GT
Order no. IP68 BVWV-M12M BVWV-M120 BVWV-M160 BVWV-M162 BVWV-M202 BVWV-M207 BVWV-M253 BVWV-M329 BVWV-M406 BVWV-M508
Thread metric M12 x 1.5 M12 x 1.5 M16 x 1.5 M20 x 1.5 M16 x 1.5 M20 x 1.5 M20 x 1.5 M25 x 1.5 M32 x 1.5 M40 x 1.5 M50 x 1.5
Fits to conduit size
NW Metric
Inch
07
10
1/4
10
12 5/16
10
12 5/16
10
12 5/16
12
16
3/8
12
16
3/8
17
20
1/2
23
25
3/4
29
32
1
36
40 1-1/4
48
50 1-1/2
Thread length
(mm) 11.0 11.0 11.0 11.0 11.0 11.0 11.0 12.0 15.0 19.0 19.0
External dimensions
(mm) 32.0 x 35.0 34.0 x 39.5 34.0 x 40.5 34.0 x 42.5 38.5 x 46.0 38.5 x 47.5 43.5 x 58.5 54.0 x 65.0 64.5 x 73.0 78.0 x 96.0 91.5 x 106.0
For cable protection systems in a wide range of applications Note: For sizes NW 17 to NW 48 curved elbows of type VB are also available
Please replace "B" for black with "S" for grey in front of the order no.
60
PMA FLEXIBLE CABLE PROTECTION SYSTEMS FOR APPLICATIONS WITH HIGH REQUIREMENTS
-- Connectors metric, metal thread Type VNV
-- Type VNV - Connector straight, metric metal thread
VNV Approvals
Order no. IP68, black
Order no. IP68, grey
Thread metric
NVNV-M120-10
MVNV-M120-10
M12 x 1.5
NVNV-M120-5
MVNV-M120-5
M12 x 1.5
NVNV-M160-10
MVNV-M160-10
M16 x 1.5
NVNV-M160-5
MVNV-M160-5
M16 x 1.5
NVNV-M162-10
MVNV-M162-10
M16 x 1.5
NVNV-M162-5
MVNV-M162-5
M16 x 1.5
NVNV-M202-10
MVNV-M202-10
M20 x 1.5
NVNV-M202-6
MVNV-M202-6
M20 x 1.5
NVNV-M207-10
MVNV-M207-10
M20 x 1.5
NVNV-M207-6
MVNV-M207-6
M20 x 1.5
NVNV-M257-11
MVNV-M257-11
M25 x 1.5
NVNV-M257-7
MVNV-M257-7
M25 x 1.5
NVNV-M253-11
MVNV-M253-11
M25 x 1.5
NVNV-M253-7
MVNV-M253-7
M25 x 1.5
NVNV-M323-13
MVNV-M323-13
M32 x 1.5
NVNV-M323-8
MVNV-M323-8
M32 x 1.5
NVNV-M329-13
MVNV-M329-13
M32 x 1.5
NVNV-M329-8
MVNV-M329-8
M32 x 1.5
NVNV-M409-13
MVNV-M409-13
M40 x 1.5
NVNV-M409-8
MVNV-M409-8
M40 x 1.5
NVNV-M406-13
MVNV-M406-13
M40 x 1.5
NVNV-M406-8
MVNV-M406-8
M40 x 1.5
NVNV-M506-14
MVNV-M506-14
M50 x 1.5
NVNV-M506-9
MVNV-M506-9
M50 x 1.5
NVNV-M508-14
MVNV-M508-14
M50 x 1.5
NVNV-M508-9
MVNV-M508-9
M50 x 1.5
NVNV-M638-14
MVNV-M638-14
M63 x 1.5
NVNV-M638-10
MVNV-M638-10
M63 x 1.5
For applications in railway vehicles and heavy machine construction High thread and system connection strength
Fits to conduit size
Thread length
NW
Metric
Inch
(mm)
Overall length
(mm)
10
12
5/16
10.0
40.0
10
12
5/16
5.0
35.0
10
12
5/16
10.0
40.0
10
12
5/16
5.0
35.0
12
16
3/8
10.0
43.0
12
16
3/8
5.0
38.0
12
16
3/8
10.0
43.0
12
16
3/8
6.0
39.0
17
20
1/2
10.0
51.0
17
20
1/2
6.0
47.0
17
20
1/2
11.0
52.0
17
20
1/2
7.0
48.0
23
25
3/4
11.0
54.0
23
25
3/4
7.0
50.0
23
25
3/4
13.0
56.0
23
25
3/4
8.0
51.0
29
32
1
13.0
57.3
29
32
1
8.0
52.3
29
32
1
13.0
57.3
29
32
1
8.0
52.3
36
40
1-1/4
13.0
71.4
36
40
1-1/4
8.0
66.4
36
40
1-1/4
14.0
72.4
36
40
1-1/4
9.0
67.4
48
50
1-1/2
14.0
72.4
48
50
1-1/2
9.0
67.4
48
50
1-1/2
14.0
72.4
48
50
1-1/2
10.0
68.4
CONNECTORS NPT, METAL THREAD - T YPE VNV
61
-- Connectors NPT, metal thread Type VNV
-- Type VNV - Connector straight, metric metal thread
VNV
Order no. IP68, black NVNV-N022 NVNV-N027 NVNV-N043 NVNV-N069 NVNV-N076 NVNV-N088 NVNV-N098
Approvals
Thread NPT ½ ½ ¾ 1 1¼ 1½ 2
Fits to conduit size
NW
Metric
Inch
12
16
3/8
17
20
1/2
23
25
3/4
29
32
1
36
40
1-1/4
48
50
1-1/2
48
50
1-1/2
Thread length
(mm) 15.4 15.4 15.7 19.6 20.2 20.6 21.4
Overall length
(mm) 48.1 56.4 58.7 63.9 78.6 79.0 79.8
For applications in railway vehicles and heavy machine construction High thread and system connection strength
62
PMA FLEXIBLE CABLE PROTECTION SYSTEMS FOR APPLICATIONS WITH HIGH REQUIREMENTS
-- Connectors with strain relief, metric, metal thread Type VNZ
-- Type VNZ - Connector straight with strain relief, metric metal thread
Order no. IP68 Compl., black
Order no. fitting*
Order no. insert
Thread metric
Fits to conduit size
NW Metric Inch
Terminal Thread Overall range length length (mm) (mm) (mm)
VNZ
NVNZ-M120S/P1 NVNZ-M120R/P
EK 150p7
M12 x 1.5 10
12 5/16 4.06.5
5.0 48.5
NVNZ-M120S/P2
EK 150p8
M12 x 1.5 10
12 5/16 5.08.0
5.0 48.5
NVNZ-M120S/P3
EK 150p9
M12 x 1.5 10
12 5/16 6.59.5
5.0 48.5
NVNZ-M160S/P1 NVNZ-M160R/P
E 150p7
M16 x 1.5 10
12 5/16 4.06.5
6.0 49.5
NVNZ-M160S/P2
E 150p8
M16 x 1.5 10
12 5/16 5.08.0
6.0 49.5
NVNZ-M160S/P3
E 150p9
M16 x 1.5 10
12 5/16 6.59.5
6.0 49.5
NVNZ-M202S/P1 NVNZ-M202R/P
E 152p7
M20 x 1.5 12
16 5/16 4.06.5
6.0 54.0
NVNZ-M202S/P3
E 152p9
M20 x 1.5 12
16 5/16 6.59.5
6.0 54.0
NVNZ-M202S/P4
E 152p11
M20 x 1.5 12
16 5/16 7.010.5
6.0 54.0
N VNZ-M207S/P3 NVNZ-M207R/P
E 152p9
M20 x 1.5 17
20 1/2 6.59.5 6.5 60.0
NVNZ-M207S/P4
E 152p11
M20 x 1.5 17
20 1/2 7.010.5 6.5 60.0
NVNZ-M207S/P5
E 152p13
M20 x 1.5 17
20 1/2 9.013.0 6.5 60.0
NVNZ-M253S/P5 NVNZ-M253R/P
EK 154p13 M25 x 1.5 23
25 3/4 9.013.0
7.5 72.5
NVNZ-M253S/P6
EK 154p16 M25 x 1.5 23
25 3/4 11.515.5
7.5 72.5
NVNZ-M257S/P4 NVNZ-M257R/P
E 153p11
M25 x 1.5 17
20 1/2 7.010.5
7.5 61.5
NVNZ-M257S/P5
E 153p13
M25 x 1.5 17
20 1/2 9.013.0
7.5 61.5
NVNZ-M257S/P6
E 153p16
M25 x 1.5 17
20 1/2 11.515.5
7.5 61.5
NVNZ-M323S/P4 NVNZ-M323R/P
E 154p18
M32 x 1.5 23
25 3/4 14.018.0
8.0 73.0
NVNZ-M323S/P5 NVNZ-M323R1/P E 154p20
M32 x 1.5 23
25 3/4 17.020.5
8.0 73.0
NVNZ-M329S/P2 NVNZ-M329R/P
EK 155p18 M32 x 1.5 29
32
1 14.018.0
8.0 73.0
NVNZ-M329S/P3
EK 155p20 M32 x 1.5 29
32
1 17.020.5
8.0 73.0
NVNZ-M329S/P4
EK 155p25 M32 x 1.5 29
32
1 20.025.0
8.0 73.0
NVNZ-M406S/P1 NVNZ-M406R/P E 156p25HF M40 x 1.5 36
40 1-1/4 20.025.0
9.0 87.0
NVNZ-M406S/P2
EK 156p28 M40 x 1.5 36
40 1-1/4 24.028.0
9.0 87.0
NVNZ-M409S/P1 NVNZ-M409R/P E 155p16
M40 x 1.5 29
32
1 11.515.5
8.0 73.0
NVNZ-M409S/P2
E 155p18
M40 x 1.5 29
32
1 14.018.0
8.0 73.0
NVNZ-M409S/P3
E 155p20
M40 x 1.5 29
32
1 17.020.5
8.0 73.0
NVNZ-M409S/P4
E 155p25
M40 x 1.5 29
32
1 20.025.0
8.0 73.0
NVNZ-M409S/P5
E 155p28
M40 x 1.5 29
32
1 24.028.0
8.0 73.0
NVNZ-M506S/P1 NVNZ-M506R/P E 156p32
M50 x 1.5 36
40 1-1/4 27.032.0
9.0 89.5
NVNZ-M506S/P3
E 156p36
M50 x 1.5 36
40 1-1/4 32.036.0
9.0 89.5
NVNZ-M508S/P2 NVNZ-M508R/P E 157p36HF M50 x 1.5 48
50 1-1/2 32.036.0
9.0 92.0
NVNZ-M508S/P3
E 157p40HF M50 x 1.5 48
50 1-1/2 36.040.0
9.0 92.0
NVNZ-M638S/P1 NVNZ-M638R/P
E 158pm1x35 M63 x 1.5 48
50 1-1/2 32.035.0 10.0 90.5
NVNZ-M638S/P2
E 158p44
M63 x 1.5 48
50 1-1/2 39.044.0 10.0 90.5
*without insert For applications in railway vehicles and heavy machine construction For the separation of damp and dry areas Sealing inserts are made from TPE-V With integrated strain relief and optimal ingress protection at the cable (up to IP68/10 bar) High thread and system connection strength Temperature range sealing insert Pflitsch: 40°C to +135°C Note: For several conductors multiple sealing inserts MDE are available. R/P version of fitting has to be used in combination with multiple sealing inserts
FIRE BARRIER CONNEC TORS WITH STR AIN RELIEF, METRIC , METAL THRE AD - T YPE VNZ
63
-- Fire barrier connectors with strain relief, metric, metal thread Type VNZ
-- Type VNZ - Fire barrier connector straight with strain relief, metric metal thread
Order no. IP68 Compl., black
Thread metric
VNZ
NVNZ-M120S/B1
M12 x 1.5
NVNZ-M120S/B2
M12 x 1.5
NVNZ-M120S/B3
M12 x 1.5
NVNZ-M160S/B1
M16 x 1.5
NVNZ-M160S/B2
M16 x 1.5
NVNZ-M160S/B3
M16 x 1.5
NVNZ-M202S/B1
M20 x 1.5
NVNZ-M202S/B3
M20 x 1.5
NVNZ-M202S/B4
M20 x 1.5
N VNZ-M207S/B1
M20 x 1.5
N VNZ-M207S/B2
M20 x 1.5
N VNZ-M207S/B3
M20 x 1.5
NVNZ-M207S/B4
M20 x 1.5
NVNZ-M207S/B5
M20 x 1.5
NVNZ-M253S/B5
M25 x 1.5
NVNZ-M253S/B6
M25 x 1.5
NVNZ-M257S/B4
M25 x 1.5
NVNZ-M257S/B5
M25 x 1.5
NVNZ-M257S/B6
M25 x 1.5
NVNZ-M323S/B4
M32 x 1.5
NVNZ-M323S/B5
M32 x 1.5
NVNZ-M329S/B2
M32 x 1.5
NVNZ-M329S/B3
M32 x 1.5
NVNZ-M329S/B4
M32 x 1.5
NVNZ-M406S/B1
M40 x 1.5
NVNZ-M406S/B2
M40 x 1.5
NVNZ-M409S/B1
M40 x 1.5
NVNZ-M409S/B2
M40 x 1.5
NVNZ-M409S/B3
M40 x 1.5
NVNZ-M409S/B4
M40 x 1.5
NVNZ-M409S/B5
M40 x 1.5
NVNZ-M506S/B1
M50 x 1.5
NVNZ-M506S/B3
M50 x 1.5
NVNZ-M508S/B2
M50 x 1.5
NVNZ-M508S/B3
M50 x 1.5
NVNZ-M638S/B1
M63 x 1.5
NVNZ-M638S/B2
M63 x 1.5
*without insert Fire barrier function, according to standard EN45545-2/-3 For applications in railway vehicles and heavy machine construction For the separation of damp and dry areas Sealing inserts are made from T80S With integrated strain relief and optimal ingress protection at the cable (up to IP68/10 bar) High thread and system connection strength Temperature range sealing insert Pflitsch: 40°C to +135°C Note: For several conductors multiple sealing inserts MDE are available. R/P version of fitting has to be used in combination with multiple sealing inserts
Fits to conduit size
NW
Metric
Inch
Terminal range (mm)
10
12
5/16
4.0 6.5
10
12
5/16
5.0 8.0
10
12
5/16
6.59.5
10
12
5/16
4.0 6.5
10
12
5/16
5.0 8.0
10
12
5/16
6.59.5
12
16
3/8
4.0 6.5
12
16
3/8
6.59.5
12
16
3/8
7.0 10.5
17
20
1/2
4.0 6.5
17
20
1/2
5.0 8.0
17
20
1/2
6.59.5
17
20
1/2
7.0 10.5
17
20
1/2
9.0 13.0
23
25
3/4
9.0 13.0
23
25
3/4
11.515.5
17
20
1/2
7.0 10.0
17
20
1/2
9.0 13.0
17
20
1/2
11.515.5
23
25
3/4
14.0 18.0
23
25
3/4
17.0 20.5
29
32
1
14.0 18.0
29
32
1
17.0 20.5
29
32
1
20.0 25.0
36
40
1-1/4
20.0 25.0
36
40
1-1/4
24.0 28.0
29
32
1
11.515.5
29
32
1
14.0 18.0
29
32
1
17.0 20.5
29
32
1
20.0 25.0
29
32
1
24.0 28.0
36
40
1-1/4
27.0 32.0
36
40
1-1/4
32.0 36.0
48
50
1-1/2
32.0 36.0
48
50
1-1/2 36.040.0
48
50
1-1/2
32.0 35.0
48
50
1-1/2 39.044.0
Thread length
(mm) 5.0 5.0 5.0 6.0 6.0 6.0 6.0 6.0 6.0 6.5 6.5 6.5 6.5 6.5 7.5 7.5 7.5 7.5 7.5 8.0 8.0 8.0 8.0 8.0 9.0 9.0 8.0 8.0 8.0 8.0 8.0 9.0 9.0 9.0 9.0
10.0 10.0
Overall length
(mm) 48.5 48.5 48.5 49.5 49.5 49.5 54.0 54.0 54.0 60.0 60.0 60.0 60.0 60.0 72.5 72.5 61.5 61.5 61.5 73.0 73.0 73.0 73.0 73.0 87.0 87.0 73.0 73.0 73.0 73.0 73.0 89.5 89.5 92.0 92.0 90.5 90.5
64
PMA FLEXIBLE CABLE PROTECTION SYSTEMS FOR APPLICATIONS WITH HIGH REQUIREMENTS
-- Connectors with strain relief, metric, long metal thread Type VNZ
-- Type VNZ - Connector straight with strain relief, metric long metal thread
Order no. IP68 Compl., black
Order no. fitting*
Order no. insert
Thread metric
VNZ
NVNZ-M120S/P1-L NVNZ-M120R/P-L EK 150p7
M12 x 1.5
NVNZ-M120S/P3-L
M12 x 1.5
NVNZ-M160S/P1-L NVNZ-M160R/P-L E 150p7
M16 x 1.5
NVNZ-M160S/P2-L
E 150p8
M16 x 1.5
NVNZ-M160S/P3-L
E 150p9
M16 x 1.5
NVNZ-M202S/P1-L NVNZ-M202R/P-L E 152p7
M20 x 1.5
NVNZ-M202S/P3-L
E 152p9
M20 x 1.5
NVNZ-M202S/P4-L
E 152p11
M20 x 1.5
NVNZ-M207S/P3-L NVNZ-M207R/P-L E 152p9
M20 x 1.5
NVNZ-M207S/P4-L
E 152p11
M20 x 1.5
NVNZ-M207S/P5-L
E 152p13
M20 x 1.5
NVNZ-M257S/P5-L NVNZ-M257R/P-L E 153p13
M25 x 1.5
NVNZ-M257S/P6-L
E 153p16
M25 x 1.5
NVNZ-M323S/P4-L NVNZ-M323R/P-L E 154p18
M32 x 1.5
NVNZ-M323S/P5-L NVNZ-M323R1/P-L E 154p20
M32 x 1.5
NVNZ-M329S/P2-L NVNZ-M329R/P-L E 155p18
M32 x 1.5
NVNZ-M329S/P3-L
E 155p20
M32 x 1.5
NVNZ-M409S/P3-L NVNZ-M409R/P-L E 155p20
M40 x 1.5
NVNZ-M409S/P4-L
E 155p25
M40 x 1.5
NVNZ-M409S/P5-L
E 155p28
M40 x 1.5
NVNZ-M506S/P1-L NVNZ-M506R/P-L E 156p32
M50 x 1.5
NVNZ-M506S/P3-L
E 156p36
M50 x 1.5
NVNZ-M508S/P2-L NVNZ-M508R/P-L E 157p36HF M50 x 1.5
NVNZ-M508S/P3-L
E 157p40HF M50 x 1.5
NVNZ-M638S/P1-L NVNZ-M638R/P-L E 158pm1X35 M63 x 1.5
NVNZ-M638S/P2-L
E 158p44
M63 x 1.5
*without insert For applications in railway vehicles and heavy machine construction For the separation of damp and dry areas Sealing inserts are made from TPE-V With integrated strain relief and optimal ingress protection at the cable (up to IP68/10 bar) High thread and system connection strength Temperature range sealing insert Pflitsch: 40°C to +135°C Note: For several conductors multiple sealing inserts MDE are available R/P version of fitting has to be used in combination with multiple sealing inserts
Fits to conduit size
NW Metric Inch
Terminal Thread Overall range length length (mm) (mm) (mm)
10
12 5/16 4.06.5 15.0 66.5
10
12 5/16 6.59.5 15.0 66.5
10
12 5/16 4.06.5 15.0 58.5
10
12 5/16 5.08.0 15.0 58.5
10
12 5/16 6.59.5 15.0 58.5
12
16 3/8 4.06.5 15.0 62.5
12
16 3/8 6.59.5 15.0 62.5
12
16 3/8 7.010.5 15.0 62.5
17
20 1/2 6.59.5 15.0 68.5
17
20 1/2 7.010.5 15.0 68.5
17
20 1/2 9.013.0 15.0 68.5
17
20 1/2 9.013.0 15.0 69.0
17
20 1/2 11.515.5 15.0 69.0
23
25 3/4 14.018.0 15.0 80.0
23
25 3/4 17.020.5 15.0 80.0
29
32
1 14.018.0 15.0 91.0
29
32
1 17.020.5 15.0 91.0
29
32
1 17.020.5 15.0 80.0
29
32
1 20.025.0 15.0 80.0
29
32
1 24.028.0 15.0 80.0
36
40 1-1/4 27.032.0 15.0 94.5
36
40 1-1/4 32.036.0 15.0 94.5
48
50 1-1/2 32.036.0 15.0 97.0
48
50 1-1/2 36.040.0 15.0 97.0
48
50 1-1/2 32.035.0 15.0 95.5
48
50 1-1/2 39.044.0 15.0 95.5
CONNECTORS METRIC, METAL THREAD - T YPE VAV
65
-- Connectors metric, metal thread Type VAV
-- Type VAV - Connector 45° elbow, metric metal thread
VAV Approvals
Order no. IP68, black
Order no. IP68, grey
Thread metric
NVAV-M120-10
MVAV-M120-10
M12 x 1.5
NVAV-M120-5
MVAV-M120-5
M12 x 1.5
NVAV-M162-10
MVAV-M162-10
M16 x 1.5
NVAV-M162-5
MVAV-M162-5
M16 x 1.5
NVAV-M207-10
MVAV-M207-10
M20 x 1.5
NVAV-M207-6
MVAV-M207-6
M20 x 1.5
NVAV-M253-11
MVAV-M253-11
M25 x 1.5
NVAV-M253-7
MVAV-M253-7
M25 x 1.5
NVAV-M329-13
MVAV-M329-13
M32 x 1.5
NVAV-M329-8
MVAV-M329-8
M32 x 1.5
NVAV-M406-13
MVAV-M406-13
M40 x 1.5
NVAV-M406-8
MVAV-M406-8
M40 x 1.5
NVAV-M508-14
MVAV-M508-14
M50 x 1.5
NVAV-M508-9
MVAV-M508-9
M50 x 1.5
NVAV-M638-14
MVAV-M638-14
M63 x 1.5
NVAV-M638-10
MVAV-M638-10
M63 x 1.5
For applications in railway vehicles and heavy machine construction High thread and system connection strength
Fits to conduit size
NW Metric
Inch
10
12
5/16
10
12
5/16
12
16
3/8
12
16
3/8
17
20
1/2
17
20
1/2
23
25
3/4
23
25
3/4
29
32
1
29
32
1
36
40
1-1/4
36
40
1-1/4
48
50
1-1/2
48
50
1-1/2
48
50
1-1/2
48
50
1-1/2
Thread length
(mm) 10.0 5.0 10.0 5.0 10.0 6.0 11.0 7.0 13.0 8.0 13.0 8.0 14.0 9.0 14.0 10.0
External dimensions
(mm) 48.5 x 37.0 43.5 x 37.0 53.0 x 40.5 48.0 x 40.5 60.5 x 51.5 56.5 x 51.5 70.0 x 60.5 66.0 x 60.5 77.0 x 68.0 72.0 x 68.0 94.0 x 87.5 89.0 x 87.5 102.0 x 101.0 97.0 x 101.0 102.0 x 104.0 98.0 x 104.0
66
PMA FLEXIBLE CABLE PROTECTION SYSTEMS FOR APPLICATIONS WITH HIGH REQUIREMENTS
-- Connectors metric, metal thread Type VBV
-- Type VBV - Connector 90° curved elbow, metric metal thread
VBV Approvals
Order no. IP68, black
Order no. IP68, grey
Thread metric
Fits to conduit size
NW Metric
Inch
NVBV-M207-10
MVBV-M207-10
M20 x 1.5
17
20
1/2
NVBV-M207-6
MVBV-M207-6
M20 x 1.5
17
20
1/2
NVBV-M257-11
MVBV-M257-11
M25 x 1.5
17
20
1/2
NVBV-M257-7
MVBV-M257-7
M25 x 1.5
17
20
1/2
NVBV-M253-11
MVBV-M253-11
M25 x 1.5
23
25
3/4
NVBV-M253-7
MVBV-M253-7
M25 x 1.5
23
25
3/4
NVBV-M323-13
MVBV-M323-13
M32 x 1.5
23
25
3/4
NVBV-M323-8
MVBV-M323-8
M32 x 1.5
23
25
3/4
NVBV-M329-13
MVBV-M329-13
M32 x 1.5
29
32
1
NVBV-M329-8
MVBV-M329-8
M32 x 1.5
29
32
1
NVBV-M409-13
MVBV-M409-13
M40 x 1.5
29
32
1
NVBV-M409-8
MVBV-M409-8
M40 x 1.5
29
32
1
NVBV-M406-13
MVBV-M406-13
M40 x 1.5
36
40
1-1/4
NVBV-M406-8
MVBV-M406-8
M40 x 1.5
36
40
1-1/4
NVBV-M506-14
MVBV-M506-14
M50 x 1.5
36
40
1-1/4
NVBV-M506-9
MVBV-M506-9
M50 x 1.5
36
40
1-1/4
NVBV-M508-14
MVBV-M508-14
M50 x 1.5
48
50
1-1/2
NVBV-M508-9
MVBV-M508-9
M50 x 1.5
48
50
1-1/2
NVBV-M638-10
MVBV-M638-10
M63 x 1.5
48
50
1-1/2
NVBV-M638-14
MVBV-M638-14
M63 x 1.5
48
50
1-1/2
For applications in railway vehicles and heavy machine construction High thread and system connection strength Smooth elbow allows easy threading of wires and cables Note: Appropriate standard elbows of type VW are available for smaller conduit sizes NW 10 to NW 12
Thread length
(mm) 10.0 6.0 11.0 7.0 11.0 7.0 13.0 8.0 13.0 8.0 13.0 8.0 13.0 8.0 14.0 9.0 14.0 9.0 14.0 10.0
External dimensions
(mm) 51.0 x 73.0 47.0 x 73.0 52.0 x 76.0 48.0 x 76.0 62.5 x 85.0 58.5 x 85.0 64.5 x 89.0 59.5 x 89.0 74.0 x 94.5 69.0 x 94.5 75.5 x 100.5 70.5 x 100.5 86.5 x 123.0 81.5 x 123.0 87.5 x 130.0 82.5 x 130.0 100.5 x 135.0 95.5 x 135.0 100.5 x 138.0 96.5 x 138.0
CONNECTORS METRIC, METAL THREAD - T YPE V W V
67
-- Connectors metric, metal thread Type VWV
-- Type VWV - Connector 90° elbow, metric metal thread
VWV Approvals
Order no. IP68, black
Order no. IP68, grey
Thread metric
NVWV-M120-10
MVWV-M120-10
M12 x 1.5
NVWV-M120-5
MVWV-M120-5
M12 x 1.5
NVWV-M160-10
MVWV-M160-10
M16 x 1.5
NVWV-M160-5
MVWV-M160-5
M16 x 1.5
NVWV-M162-10
MVWV-M162-10
M16 x 1.5
NVWV-M162-5
MVWV-M162-5
M16 x 1.5
NVWV-M202-10
MVWV-M202-10
M20 x 1.5
NVWV-M202-6
MVWV-M202-6
M20 x 1.5
NVWV-M207-10
MVWV-M207-10
M20 x 1.5
NVWV-M207-6
MVWV-M207-6
M20 x 1.5
NVWV-M253-11
MVWV-M253-11
M25 x 1.5
NVWV-M253-7
MVWV-M253-7
M25 x 1.5
NVWV-M329-13
MVWV-M329-13
M32 x 1.5
NVWV-M329-8
MVWV-M329-8
M32 x 1.5
NVWV-M406-13 MVWV-M406-13
M40 x 1.5
NVWV-M406-8
MVWV-M406-8
M40 x 1.5
NVWV-M508-14 MVWV-M508-14
M50 x 1.5
NVWV-M508-9
MVWV-M508-9
M50 x 1.5
NVWV-M638-14
MVWV-M638-14
M63 x 1.5
NVWV-M638-10
MVWV-M638-10
M63 x 1.5
For applications in railway vehicles and heavy machine construction High thread and system connection strength Note: Curved elbows of type VB are also available for sizes NW 17 to NW 48
Fits to conduit size
NW Metric
Inch
10
12
5/16
10
12
5/16
10
12
5/16
10
12
5/16
12
16
3/8
12
16
3/8
12
16
3/8
12
16
3/8
17
20
1/2
17
20
1/2
23
25
3/4
23
25
3/4
29
32
1
29
32
1
36
40 1-1/4
36
40 1-1/4
48
50 1-1/2
48
50 1-1/2
48
50 1-1/2
48
50 1-1/2
Thread length
(mm) 10.0 5.0 10.0 5.0 10.0 5.0 10.0 6.0 10.0 6.0 11.0 7.0 13.0 8.0 13.0 8.0 14.0 9.0 14.0 10.0
External dimensions
(mm) 37.5 x 39.5 32.5 x 39.5 37.5 x 41.5 32.5 x 41.5 42.0 x 46.5 37.0 x 46.5 42.0 x 49.0 38.0 x 49.0 47.0 x 58.5 43.0 x 58.5 59.0 x 67.0 55.0 x 67.0 68.0 x 74.5 63.0 x 74.5 80.5 x 98.0 75.5 x 98.0 95.5 x 111.0 90.5 x 111.0 94.5 x 114.0 90.5 x 114.0
68
PMA FLEXIBLE CABLE PROTECTION SYSTEMS FOR APPLICATIONS WITH HIGH REQUIREMENTS
-- Connectors with strain relief, metric, metal thread Type VWZ
-- Type VWZ - Connector 90° elbow with strain relief, metric metal thread
Order no. IP68 Compl., black
Order no. fitting*
VWZ
NVWZ-M160S/P1 NVWZ-M160R/P
NVWZ-M160S/P2
NVWZ-M160S/P3
NVWZ-M202S/P1 NVWZ-M202R/P
NVWZ-M202S/P3
NVWZ-M202S/P4
NVWZ-M207S/P1 NVWZ-M207R/P
NVWZ-M207S/P3
NVWZ-M207S/P4
NVWZ-M207S/P5
NVWZ-M257S/P5 NVWZ-M257R/P
NVWZ-M257S/P6
*without insert For applications in railway vehicles and heavy machine construction For the separation of damp and dry areas Straight connector: Specially formulated polyamide 6 90° elbow: Zinc diecast Female thread and locknut: Nickel-plated brass Pflitsch sealing insert: TPE-V With integrated strain relief and optimal ingress protection at the cable (up to IP68/10 bar) High thread and system connection strength Temperature range sealing insert Pflitsch: 40°C to +135°C
Order no. insert E 150p7 E 150p8 E 150p9 E 127p7 E 152p7 E 152p11 E 152p7 E 152p9 E 152p11 E 152p13 E 153p13 E 153p16
Thread metric M16 x 1.5 M16 x 1.5 M16 x 1.5 M20 x 1.5 M20 x 1.5 M20 x 1.5 M20 x 1.5 M20 x 1.5 M20 x 1.5 M20 x 1.5 M25 x 1.5 M25 x 1.5
Fits to conduit size
NW Metric Inch
Terminal Thread Overall range length length (mm) (mm) (mm)
10
12 5/16 4.06.5
8.0 65.0
10
12 5/16 5.08.0
8.0 65.0
10
12 5/16 6.59.5
8.0 65.0
12
16 3/8 4.06.5
8.0 74.5
12
16 3/8 6.59.5
8.0 74.5
12
16 3/8 7.010.5
8.0 74.5
17
20 1/2 4.06.5
8.0 81.0
17
20 1/2 6.59.5
8.0 81.0
17
20 1/2 7.010.5
8.0 81.0
17
20 1/2 9.013.0
8.0 81.0
17
20 1/2 9.013.0
8.0 84.0
17
20 1/2 11.515.5
8.0 84.0
CONNECTORS PG, POLYAMIDE THRE AD - T YPE VN
69
-- Connectors PG, polyamide thread Type VN
-- Type VN - Connector straight, PG thread
VN
Approvals Please replace "B" for
black with "S" for grey in front of the order no.
Order no. IP66
Order no. IP68
BVND-P07MGT-11 BVNV-P07M
BVND-P07MGT-8
BVND-P070GT-11 BVNV-P070
BVND-P070GT-8
BVND-P072GT-11 BVNV-P072
BVND-P072GT-8
BVND-P09MGT-11 BVNV-P09M
BVND-P09MGT-8
BVND-P090GT-11 BVNV-P090
BVND-P090GT-8
BVND-P092GT-11 BVNV-P092
BVND-P092GT-8
BVND-P097GT-11 BVNV-P097
BVND-P097GT-8
BVND-P11MGT-11 BVNV-P11M
BVND-P11MGT-8
BVND-P110GT-11 BVNV-P110
BVND-P110GT-8
BVND-P112GT-11 BVNV-P112
BVND-P112GT-8
BVND-P117GT-11 BVNV-P117
BVND-P117GT-8
BVND-P13MGT-11 BVNV-P13M
BVND-P13MGT-8
BVND-P130GT-11 BVNV-P130
BVND-P130GT-8
BVND-P132GT-11 BVNV-P132
BVND-P132GT-8
BVND-P137GT-11 BVNV-P137
BVND-P137GT-8
BVND-P160GT-11
BVND-P160GT-8
BVND-P162GT-11 BVNV-P162
BVND-P163GT-11 BVNV-P163
BVND-P163GT-8
BVND-P167GT-11 BVNV-P167
BVND-P167GT-8
BVND-P213GT
BVNV-P213
BVND-P296GT
BVNV-P296
BVND-P299GT
BVNV-P299
BVND-P366GT
BVNV-P366
BVND-P368GT
BVNV-P368
BVND-P428GT
BVNV-P428
BVND-P488GT
BVNV-P488
For cable protection systems in a wide range of applications
Thread PG 07 07 07 07 07 07 09 09 09 09 09 09 09 09 11 11 11 11 11 11 11 11
13.5 13.5 13.5 13.5 13.5 13.5 13.5 13.5
16 16 16 16 16 16 16 21 29 29 36 36 42 48
Fits to conduit size
NW Metric
Inch
07
10
1/4
07
10
1/4
10
12 5/16
10
12 5/16
12
16
3/8
12
16
3/8
07
10
1/4
07
10
1/4
10
12 5/16
10
12 5/16
12
16
3/8
12
16
3/8
17
20
1/2
17
20
1/2
07
10
1/4
07
10
1/4
10
12 5/16
10
12 5/16
12
16
3/8
12
16
3/8
17
20
1/2
17
20
1/2
07
10
1/4
07
10
1/4
10
12 5/16
10
12 5/16
12
16
3/8
12
16
3/8
17
20
1/2
17
20
1/2
10
12 5/16
10
12 5/16
12
16
3/8
23
25
3/4
23
25
3/4
17
20
1/2
17
20
1/2
23
25
3/4
36
40 1-1/4
29
32
1
36
40 1-1/4
48
50 1-1/2
48
50 1-1/2
48
50 1-1/2
Thread length
(mm) 11.0 8.0 11.0 8.0 11.0 8.0 11.0 8.0 11.0 8.0 11.0 8.0 11.0 8.0 11.0 8.0 11.0 8.0 11.0 8.0 11.0 8.0 11.0 8.0 11.0 8.0 11.0 8.0 11.0 8.0 11.0 8.0 11.0 11.0 8.0 11.0 8.0 12.0 12.0 12.0 13.0 13.0 13.0 13.0
External dimensions
(mm) 34.5 31.5 36.5 33.5 39.0 36.0 34.5 31.5 36.5 33.5 39.0 36.0 47.5 44.5 34.5 31.5 36.5 33.5 39.0 36.0 47.5 44.5 34.5 31.5 36.5 33.5 39.0 36.0 47.5 44.5 36.5 33.5 39.0 51.0 48.0 47.5 44.5 52.0 67.5 53.0 66.0 68.5 68.5 66.5
70
PMA FLEXIBLE CABLE PROTECTION SYSTEMS FOR APPLICATIONS WITH HIGH REQUIREMENTS
-- Connectors PG, polyamide thread Type VNDZ/VNZ & VA
-- Type VNDZ/VNZ - Connector straight with strain relief, PG thread
Order no. IP66
Order no. IP68
VNDZ/VNZ
BVNDZ-P090GT BVNZ-P090S
BVNDZ-P112GT BVNZ-P112S
BVNDZ-P132GT BVNZ-P132S
BVNDZ-P137GT BVNZ-P137S
BVNDZ-P167GT BVNZ-P167S
BVNDZ-P163GT BVNZ-P163S
BVNDZ-P213GT BVNZ-P213S
BVNDZ-P299GT BVNZ-P299S
BVNDZ-P366GT BVNZ-P366S
BVNDZ-P488GT BVNZ-P488S
For machine and plant construction For separation of damp and dry areas Integrated strain relief optimally holds and seals cables If several conductors are used with the connector multiple sealing inserts should be considered Note: For several conductors multiple sealing inserts MDE are available
Thread PG 09 11
13.5 13.5
16 16 21 29 36 48
Fits to conduit size
NW Metric Inch
10
12 5/16
12
16
3/8
12
16
3/8
17
20
1/2
17
20
1/2
23
25
3/4
23
25
3/4
29
32
1
36
40 1-1/4
48
50 1-1/2
Terminal range
4.0 8.0 5.0 10.0 6.0 12.0 6.0 12.0 10.0 14.0 10.0 14.0 13.0 18.0 18.0 25.0 22.0 32.0 34.0 4 4.0
Thread length
(mm) 7.5 8.0 9.0 9.0
10.0 10.0 11.0 11.0 13.0 14.0
Overall length
(mm) 56.0 60.5 62.0 69.0 72.0 79.0 82.0 85.0
112.0 112.0
-- Type VA - Connector 45° elbow, PG thread
VA Approvals
Order no. IP66 BVAD-P090GT BVAD-P112GT BVAD-P132GT BVAD-P137GT BVAD-P167GT BVAD-P213GT BVAD-P299GT BVAD-P366GT BVAD-P488GT
Order no. IP68 BVAV-P090 BVAV-P112 BVAV-P132 BVAV-P137 BVAV-P167 BVAV-P213 BVAV-P299 BVAV-P366 BVAV-P488
Thread PG 09 11
13.5 13.5
16 21 29 36 48
Fits to conduit size
NW Metric
Inch
10
12
5/16
12
16
3/8
12
16
3/8
17
20
1/2
17
20
1/2
23
25
3/4
29
32
1
36
40
1-1/4
48
50
1-1/2
Thread length
(mm) 11.0 11.0 11.0 11.0 11.0 11.0 12.0 13.0 13.0
Overall length
(mm) 43.5 x 37.0 48.0 x 40.0 48.0 x 41.5 55.5 x 51.5 55.5 x 51.5 63.0 x 58.0 69.0 x 66.0 86.0 x 86.0 94.0 x 100.0
For cable protection systems in a wide range of applications
Please replace "B" for black with "S" for grey in front of the order no.
CONNECTORS PG, POLYAMIDE THRE AD - T YPE VB
71
-- Connectors PG, polyamide thread Type VB
-- Type VB - Connector 90° curved elbow, PG thread
VB Approvals
Order no. IP66 BVBD-P167GT BVBD-P213GT BVBD-P299GT BVBD-P366GT BVBD-P488GT
Order no. IP68 BVBV-P167 BVBV-P213 BVBV-P299 BVBV-P366 BVBV-P488
Thread PG 16 21 29 36 48
Thread Fits to conduit size length
NW
Metric
Inch
(mm)
External dimensions
(mm)
17
20
1/2
11.0
47.5 x 73.0
23
25
3/4
12.0
57.5 x 85.0
29
32
1
12.0
67.5 x 96.0
36
40
1-1/4
13.0 79.0 x 123.0
48
50
1-1/2
13.0 92.5 x 135.0
For cable protection systems in a wide range of applications Smooth elbow allows easy threading of wires and cables Note: For smaller conduit sizes NW 07 to NW 12 appropriate standard elbows of type VW are also available
Please replace "B" for black with "S" for grey in front of the order no.
72
PMA FLEXIBLE CABLE PROTECTION SYSTEMS FOR APPLICATIONS WITH HIGH REQUIREMENTS
-- Connectors PG, polyamide thread Type VW
-- Type VW - Connector 90° elbow, PG thread
VW Approvals
Order no. IP66
Order no. IP68
Thread PG
BVWD-P07MGT-11 BVWV-P07M
07
BVWD-P07MGT-8
07
BVWD-P070GT-11 BVWV-P070
07
BVWD-P070GT-8
07
BVWD-P072GT-11 BVWV-P072
07
BVWD-P072GT-8
07
BVWD-P09MGT-11 BVWV-P09M
09
BVWD-P09MGT-8
09
BVWD-P090GT-11 BVWV-P090
09
BVWD-P090GT-8
09
BVWD-P092GT-11 BVWV-P092
09
BVWD-P092GT-8
09
BVWD-P11MGT-11 BVWV-P11M
11
BVWD-P11MGT-8
11
BVWD-P110GT-11 BVWV-P110
11
BVWD-P110GT-8
11
BVWD-P112GT-11 BVWV-P112
11
BVWD-P112GT-8
11
BVWD-P13MGT-11 BVWV-P13M
13.5
BVWD-P13MGT-8
13.5
BVWD-P130GT-11 BVWV-P130
13.5
BVWD-P130GT-8
13.5
BVWD-P132GT-11 BVWV-P132
13.5
BVWD-P132GT-8
13.5
BVWD-P137GT-11 BVWV-P137
13.5
BVWD-P137GT-8
13.5
BVWD-P167GT-11 BVWV-P167
16
BVWD-P167GT-8
16
BVWD-P213GT
BVWV-P213
21
BVWD-P299GT
BVWV-P299
29
BVWD-P366GT
BVWV-P366
36
BVWD-P488GT
BVWV-P488
48
For cable protection systems in a wide range of applications Note: For sizes NW 17 to NW 48 curved elbows of type VB are also available
Fits to conduit size
NW Metric
Inch
07
10
1/4
07
10
1/4
10
12
5/16
10
12
5/16
12
16
3/8
12
16
3/8
07
10
1/4
07
10
1/4
10
12
5/16
10
12
5/16
12
16
3/8
12
16
3/8
07
10
1/4
07
10
1/4
10
12
5/16
10
12
5/16
12
16
3/8
12
16
3/8
07
10
1/4
07
10
1/4
10
12
5/16
10
12
5/16
12
16
3/8
12
16
3/8
17
20
1/2
17
20
1/2
17
20
1/2
17
20
1/2
23
25
3/4
29
32
1
36
40 1-1/4
48
50 1-1/2
Thread length
(mm) 11.0 8.0 11.0 8.0 11.0 8.0 11.0 8.0 11.0 8.0 11.0 8.0 11.0 8.0 11.0 8.0 11.0 8.0 11.0 8.0 11.0 8.0 11.0 8.0 11.0 8.0 11.0 8.0 12.0 12.0 13.0 13.0
External dimensions
(mm) 32.0 x 35.0 29.0 x 35.0 34.0 x 39.5 31.0 x 39.5 38.5 x 44.5 35.5 x 44.5 32.0 x 36.5 29.0 x 36.5 34.0 x 39.5 31.0 x 39.5 38.5 x 44.5 35.5 x 44.5 32.0 x 38.0 29.0 x 38.0 34.0 x 41.0 31.0 x 41.0 38.5 x 46.0 35.5 x 46.0 32.0 x 39.5 29.0 x 39.5 34.0 x 42.5 31.0 x 42.5 38.5 x 47.5 35.5 x 47.5 43.5 x 58.5 40.5 x 58.5 43.5 x 58.5 40.5 x 58.5 54.0 x 67.0 61.5 x 74.5 72.0 x 98.0 85.5 x 111.0
Please replace "B" for black with "S" for grey in front of the order no.
CONNECTORS PG, METAL THREAD - T YPE VNV
73
-- Connectors PG, metal thread Type VNV
-- Type VNV - Connector straight, PG metal thread
VNV Approvals
Order no. IP68, black NVNV-P090 NVNV-P112 NVNV-P137 NVNV-P167 NVNV-P213 NVNV-P293 NVNV-P299 NVNV-P366 NVNV-P488
Order no. IP68, grey MVNV-P090 MVNV-P112 MVNV-P137 MVNV-P167 MVNV-P213 MVNV-P293 MVNV-P299 MVNV-P366 MVNV-P488
Thread PG 09 11
13.5 16 21 29 29 36 48
Fits to conduit size
NW Metric
Inch
10
12
5/16
12
16
3/8
17
20
1/2
17
20
1/2
23
25
3/4
23
25
3/4
29
32
1
36
40
1-1/4
48
50
1-1/2
Thread length
(mm) 12.0 12.0 13.0 13.0 14.0 14.0 14.0 17.0 17.0
Overall length
(mm) 42.0 45.0 54.0 54.0 57.0 57.0 58.5 75.5 75.5
For applications in railway vehicles and heavy machine construction High thread and system connection strength
74
PMA FLEXIBLE CABLE PROTECTION SYSTEMS FOR APPLICATIONS WITH HIGH REQUIREMENTS
-- Connectors PG, with strain relief, metal thread Type VNZ
-- Type VNZ - Connector straight with strain relief, PG metal thread
Order no. IP68 Compl., black
Order no. fitting*
Order no. insert
Thread PG
VNZ
NVNZ-P090S/P1 NVNZ-P090R/P E 150p7
09
NVNZ-P090S/P3
E 150p9
09
NVNZ-P110S/P1 NVNZ-P110R/P E 151p7
11
NVNZ-P110S/P3
E 151p9
11
NVNZ-P112S/P1 NVNZ-P112R/P E 151p7
11
NVNZ-P112S/P3
E 151p9
11
NVNZ-P112S/P4
E 151p11
11
NVNZ-P160S/P1 NVNZ-P160R/P E 152p11
16
NVNZ-P167S/P3 NVNZ-P167R/P E 153p9
16
NVNZ-P167S/P4
E 153p11
16
NVNZ-P167S/P5
E 153p13
16
NVNZ-P167S/P6
E 153p16
16
NVNZ-P213S/P1 NVNZ-P213R/P E 154p11
21
NVNZ-P213S/P4
E 154p18
21
NVNZ-P213S/P5 NVNZ-P213R1/P E 154p20
21
NVNZ-P299S/P3 NVNZ-P299R/P E 155p20
29
NVNZ-P299S/P4
E 155p25
29
NVNZ-P299S/P5
E 155p28
29
NVNZ-P366S/P1 NVNZ-P366R/P E 156p32
36
NVNZ-P366S/P2
E 156p34
36
NVNZ-P366S/P3
E 156p36
36
NVNZ-P488S/P1 NVNZ-P488R/P E 158pm 1x35
48
NVNZ-P488S/P2
E 158p44
48
*without insert For applications in railway vehicles and heavy machine construction For the separation of damp and dry areas Sealing inserts are made from TPE-V With integrated strain relief and optimal ingress protection at the cable (up to IP68/10 bar) High thread and system connection strength Temperature range sealing insert Pflitsch: 40°C to +135°C Note: For several conductors multiple sealing inserts MDE are available R/P version of fitting has to be used in combination with multiple sealing inserts
Fits to conduit size NW Metric Inch
Terminal Thread Overall range length length (mm) (mm) (mm)
10
12 5/16 4.06.5
6.0 49.5
10
12 5/16 6.59.5
6.0 49.5
10
12 5/16 4.06.5
6.0 52.0
10
12 5/16 6.59.5
6.0 52.0
12
16 3/8 4.06.5
6.0 53.5
12
16 3/8 6.59.5
6.0 53.5
12
16 3/8 7.010.5
6.0 53.5
10
12 5/16 4.06.5
6.5 52.5
17
20 1/2 6.59.5
6.5 61.0
17
20 1/2 7.010.5
6.5 61.0
17
20 1/2 9.013.0
6.5 61.0
17
20 1/2 11.515.5
6.5 61.0
23
25 3/4 7.010.5
7.0 72.0
23
25 3/4 14.018.0
7.0 72.0
23
25 3/4 17.020.5
7.0 72.0
29
32
1 17.020.5
8.0 73.5
29
32
1 20.025.0
8.0 73.5
29
32
1 24.028.0
8.0 73.5
36
40 1-1/4 27.032.0
9.0 88.0
36
40 1-1/4 29.0 34.0
9.0 88.0
36
40 1-1/4 32.036.0
9.0 88.0
48
50 1-1/2 32.035.0 10.0 90.5
48
50 1-1/2 39.044.0 10.0 90.5
CONNECTORS PG, METAL THREAD - T YPE VAV & VBV
75
-- Connectors PG, metal thread Type VAV & VBV
-- Type VAV - Connector 45° elbow, PG metal thread
VAV Approvals
Order no. IP68, black NVAV-P090 NVAV-P112 NVAV-P137 NVAV-P167 NVAV-P213 NVAV-P299 NVAV-P366 NVAV-P488
Order no. IP68, grey MVAV-P090 MVAV-P112 MVAV-P137 MVAV-P167 MVAV-P213 MVAV-P299 MVAV-P366 MVAV-P488
Thread PG 09 11
13.5 16 21 29 36 48
Fits to conduit size
NW Metric
Inch
10
12
5/16
12
16
3/8
17
20
1/2
17
20
1/2
23
25
3/4
29
32
1
36
40
1-1/4
48
50
1-1/2
Thread length
(mm) 12.0 12.0 13.0 13.0 14.0 14.0 17.0 17.0
External dimensions
(mm) 50.5 x 37.0 55.0 x 40.5 63.5 x 50.0 63.5 x 50.0 73.0 x 60.5 78.0 x 68.0 98.0 x 87.5 105.0 x 101.0
For applications in railway vehicles and heavy machine construction High thread and system connection strength
-- Type VBV - Connector 90° curved elbow, PG metal thread
Order no. IP68, black
Order no. IP68, grey
VBV
NVBV-P167
MVBV-P167
NVBV-P213
MVBV-P213
NVBV-P299
MVBV-P299
NVBV-P366
MVBV-P366
NVBV-P488
MVBV-P488
Thread PG 16 21 29 36 48
Fits to conduit size
NW Metric
Inch
17
20
1/2
23
25
3/4
29
32
1
36
40
1-1/4
48
50
1-1/2
Thread length
(mm) 13.0 14.0 14.0 17.0 17.0
External dimensions
(mm) 54.0 x 73.0 65.5 x 85.0 75.0 x 96.0 90.5 x 123.0 103.5 x 135.0
Approvals
For applications in railway vehicles and heavy machine construction High thread and system connection strength Smooth elbow allows easy threading of wires and cables Note: For smaller conduit sizes NW 10 to NW 12 appropriate standard elbows of type VW are also available
76
PMA FLEXIBLE CABLE PROTECTION SYSTEMS FOR APPLICATIONS WITH HIGH REQUIREMENTS
-- Connectors PG, metal thread Type VWV
-- Type VWV - Connector 90° elbow, PG metal thread
VWV Approvals
Order no. IP68, black NVWV-P090 NVWV-P112 NVWV-P137 NVWV-P167 NVWV-P213 NVWV-P299 NVWV-P366 NVWV-P488
Order no. IP68, grey MVWV-P090 MVWV-P112 MVWV-P137 MVWV-P167 MVWV-P213 MVWV-P299 MVWV-P366 MVWV-P488
Thread PG 09 11
13.5 16 21 29 36 48
Fits to conduit size
NW
Metric
Inch
10
12
5/16
12
16
3/8
17
20
1/2
17
20
1/2
23
25
3/4
29
32
1
36
40
1-1/4
48
50
1-1/2
Thread length
(mm) 12.0 12.0 13.0 13.0 14.0 14.0 17.0 17.0
External dimensions
(mm) 39.5 x 39.5 45.5 x 45.0 50.0 x 58.5 50.0 x 58.5 62.0 x 67.0 69.0 x 74.5 83.5 x 98.0 96.5 x 111.0
For applications in railway vehicles and heavy machine construction High thread and system connection strength Note: Curved elbows of type VB are also available for sizes NW 17 to NW 48
CONNECTORS GAS, POLYAMIDE THRE AD - T YPE VN & V W
77
-- Connectors GAS, polyamide thread Type VN & VW
-- Type VN - Connector straight, GAS thread
Order no. IP66
VN
BVND-G00MGT
BVND-G000GT
BVND-G010GT
BVND-G012GT
BVND-G022GT
BVND-G027GT
BVND-G043GT
BVND-G069GT
BVND-G076GT
BVND-G088GT
BVND-G098GT
For cable protection systems in a wide range of applications
Order no. IP68 BVNV-G00M BVNV-G000 BVNV-G010 BVNV-G012 BVNV-G022 BVNV-G027 BVNV-G043 BVNV-G069 BVNV-G076 BVNV-G088 BVNV-G098
-- Type VW - Connector 90° elbow, GAS thread
Order no. IP66
VW
BVWD-G00MGT
BVWD-G000GT
BVWD-G010GT
BVWD-G012GT
BVWD-G022GT
BVWD-G027GT
BVWD-G043GT
BVWD-G069GT
BVWD-G076GT
BVWD-G088GT
BVWD-G098GT
For cable protection systems in a wide range of applications
Order no. IP68 BVWV-G00M BVWV-G000 BVWV-G010 BVWV-G012 BVWV-G022 BVWV-G027 BVWV-G043 BVWV-G069 BVWV-G076 BVWV-G088 BVWV-G098
Thread GAS ¼ ¼ ½ ½ ¾ 1 1¼ 1½ 2
Fits to conduit size
NW Metric
Inch
07
10
1/4
10
12
5/16
10
12
5/16
12
16
3/8
12
16
3/8
17
20
1/2
23
25
3/4
29
32
1
36
40
1-1/4
48
50
1-1/2
48
50
1-1/2
Thread length
(mm) 11.0 11.0 11.0 11.0 13.0 13.0 14.0 15.0 18.0 18.0 18.0
Overall length
(mm) 34.5 36.5 36.5 39.0 41.0 49.5 54.0 56.0 71.0 71.5 71.5
Thread GAS ¼ ¼ ½ ½ ¾ 1 1¼ 1½ 2
Fits to conduit size
NW Metric
Inch
07
10
1/4
10
12
5/16
10
12
5/16
12
16
3/8
12
16
3/8
17
20
1/2
23
25
3/4
29
32
1
36
40
1-1/4
48
50
1-1/2
48
50
1-1/2
Thread length
(mm) 11.0 11.0 11.0 11.0 13.0 13.0 14.0 15.0 18.0 18.0 18.0
External dimensions
(mm) 32.0 x 36.5 34.0 x 39.5 34.0 x 40.5 38.5 x 46.0 40.5 x 47.5 45.5 x 58.5 56.0 x 66.5 64.5 x 73.5 77.0 x 96.0 90.5 x 106.0 90.5 x 111.0
Please replace "B" for black with "S" for grey in front of the order no.
78
PMA FLEXIBLE CABLE PROTECTION SYSTEMS FOR APPLICATIONS WITH HIGH REQUIREMENTS
-- Connectors NPT, polyamide thread Type VN & VA
-- Type VN - Connector straight, NPT thread
VN Approvals
Order no. IP66 BVND-N022GT BVND-N027GT BVND-N043GT BVND-N069GT BVND-N076GT BVND-N088GT BVND-N098GT
Order no. IP68 BVNV-N022 BVNV-N027 BVNV-N043 BVNV-N069 BVNV-N076 BVNV-N088 BVNV-N098
Thread NPT ½ ½ ¾ 1 1¼ 1½ 2
Fits to conduit size
NW Metric
Inch
12
16
3/8
17
20
1/2
23
25
3/4
29
32
1
36
40
1-1/4
48
50
1-1/2
48
50
1-1/2
Thread length
(mm) 13.0 13.0 14.0 15.0 18.0 18.0 18.0
Overall length
(mm) 41.5 49.5 54.0 56.0 71.0 71.5 71.5
For cable protection systems in a wide range of applications
-- Type VA - Connector 45° elbow, NPT thread
VA Approvals
Order no. IP66 BVAD-N022GT BVAD-N027GT BVAD-N043GT BVAD-N069GT BVAD-N076GT BVAD-N088GT -
Order no. IP68 BVAV-N022 BVAV-N027 BVAV-N043 BVAV-N069 BVAV-N076 BVAV-N088 BVAV-N098
Thread NPT ½ ½ ¾ 1 1¼ 1½ 2
Fits to conduit size
NW
Metric
Inch
12
16
3/8
17
20
1/2
23
25
3/4
29
32
1
36
40
1-1/4
48
50
1-1/2
48
50
1-1/2
Thread length
(mm) 13.0 13.0 14.0 15.0 18.0 18.0 18.0
External dimensions
(mm) 50.0 x 41.5 57.5 x 51.5 67.0 x 60.0 73.5 x 67.0 91.5 x 85.5 99.0 x 96.0 99.0 x 101.0
For cable protection systems in a wide range of applications
Please replace "B" for black with "S" for grey in front of the order no.
CONNECTORS NPT, POLYAMIDE THRE AD - T YPE V W
79
-- Connectors NPT, polyamide thread Type VW
-- Type VW - Connector 90° elbow, NPT thread
VW Approvals
Order no. IP66 BVWD-N022GT BVWD-N027GT BVWD-N043GT BVWD-N069GT BVWD-N076GT BVWD-N088GT BVWD-N098GT
Order no. IP68 BVWV-N022 BVWV-N027 BVWV-N043 BVWV-N069 BVWV-N076 BVWV-N088 BVWV-N098
Thread NPT ½ ½ ¾ 1 1¼ 1½ 2
Fits to conduit size
NW
Metric
Inch
12
16
3/8
17
20
1/2
23
25
3/4
29
32
1
36
40
1-1/4
48
50
1-1/2
48
50
1-1/2
Thread length
(mm) 13.0 13.0 14.0 15.0 18.0 18.0 18.0
External dimensions
(mm) 40.5 x 47.5 45.5 x 58.5 56.0 x 66.5 64.5 x 73.5 77.0 x 96.0 90.5 x 106.0 90.5 x 111.0
For applications in railway vehicles and heavy machine construction High thread and system connection strength Note: Curved elbows of type VB are also available for sizes NW 17 to NW 48
Please replace "B" for black with "S" for grey in front of the order no.
80
PMA FLEXIBLE CABLE PROTECTION SYSTEMS FOR APPLICATIONS WITH HIGH REQUIREMENTS
-- Swivel connectors, metric/PG/NPT metal thread Type SBV & SWV/SBV
-- Type SBV - Swivel connector 90° curved elbow, metric/PG metal thread
Order no. IP68, black
Thread metric
SBV
NSBV-M207-10
M20 x 1.5
NSBV-M253-11
M25 x 1.5
NSBV-M329-13
M32 x 1.5
NSBV-M406-13
M40 x 1.5
NSBV-M409-13
M40 x 1.5
NSBV-M508-14
M50 x 1.5
NSBV-M638-14
M63 x 1.5
Fits to conduit size
NW
Metric
17
20
Inch 1/2
23
25
3/4
29
32
1
36
40
1-1/4
29
32
1
48
50
1-1/2
48
50
1-1/2
Approvals
Order no. IP68, black
Thread PG
Fits to conduit size
NW
Metric
Inch
NSBV-P167-6.5
16
17
20
1/2
NSBV-P213-7
21
23
25
3/4
NSBV-P299-8
29
29
32
1
NSBV-P366-9
36
36
40
1-1/4
NSBV-P488-10
48
48
50
1-1/2
For applications with high technical requirements mainly in machine building Suitable for occasional rotation Thread and integrated swivel adapter made from nickel-plated brass High thread and system connection strength Smooth elbow allows easy threading of wires and cables
-- Type SWV/SBV - Swivel connector 90° curved elbow, NPT metal thread
SWV/SBV Approvals
Order no. IP68, black NSWV-N022/01 NSBV-N027/01 NSBV-N043/01 NSBV-N069/01 NSBV-N076/01 NSBV-N088/01 NSBV-N098/01
Thread NPT ½ ½ ¾ 1 1¼ 1½ 2
Fits to conduit size
NW
Metric
Inch
12
16
3/8
17
20
1/2
23
25
3/4
29
32
1
36
40
1-1/4
48
50
1-1/2
48
50
1-1/2
Thread length
(mm) 10.0 11.0 13.0 13.0 13.0 14.0 14.0
Thread length
(mm) 6.5 7.0 8.0 9.0
10.0
External dimensions
(mm) 62.5 x 74.5 73.0 x 87.5 86.5 x 98.0 98.5 x 127.5 86.5 x 98.0 113.5 x 139.0 110.0 x 139.0
External dimensions
(mm) 58.0 x 74.5 69.0 x 87.5 80.0 x 98.0 91.5 x 127.5 106.0 x 139.0
Thread length
(mm) 15.4 15.4 15.7 19.6 20.2 20.6 21.4
External dimensions
(mm) 57.0 x 48.5 66.5 x 74.5 77.5 x 87.5 92.0 x 98.0 104.5 x 125.5 118.5 x 138.5 119.5 x 138.5
For applications with high technical requirements mainly in heavy machine building and rail applications Suitable for occasional rotation Thread and integrated swivel adapter made from colourless anodized aluminium High thread and system connection strength Smooth elbow allows easy threading of wires and cables
SWIVEL CONNECTORS, METRIC/NPT METAL THREAD - T YPE SNV
81
-- Swivel connectors, metric/NPT metal thread Type SNV
-- Type SNV - Swivel connector, straight, IP68 metric metal thread
SNV Approvals
Order no. IP68, black NSNV-M120-10 NSNV-M162-10 NSNV-M207-10 NSNV-M253-11 NSNV-M329-13 NSNV-M329-7 NSNV-M406-13 NSNV-M406-7 NSNV-M409-13 NSNV-M508-14 NSNV-M638-14
Thread metric M12 x 1.5 M16 x 1.5 M20 x 1.5 M25 x 1.5 M32 x 1.5 M32 x 1.5 M40 x 1.5 M40 x 1.5 M40 x 1.5 M50 x 1.5 M63 x 1.5
Fits to conduit size
NW
Metric
Inch
10
12
5/16
12
16
3/8
17
20
1/2
23
25
3/4
29
32
1
29
32
1
36
40
1-1/4
36
40
1-1/4
29
32
1
48
50
1-1/2
48
50
1-1/2
For applications in railway vehicles and heavy machine construction Specially formulated polyamide 6 Thread and integrated swivel adapter made from nickel-plated brass Very high impact resistance. High thread and system connection strength. Suitable for occasional rotation Easy introduction of wires and cables Vibration-proof connection to PMAFLEX conduits Very good chemical properties Free from halogens and cadmium Fits both conduit profiles fine (T) and coarse (G) IP68, IP69
Thread length
(mm) 10.0 10.0 10.0 11.0 13.0 7.0 13.0 7.0 13.0 14.0 14.0
-- Type SNV - Swivel connector, straight, NPT metal thread
SNV Approvals
Order no. IP68, black NSNV-N022/01 NSNV-N027/01 NSNV-N043/01 NSNV-N069/01 NSNV-N076/01 NSNV-N088/01 NSNV-N098/01
Thread NPT ½ ½ ¾ 1 1¼ 1½ 2
Fits to conduit size
Thread length
NW
Metric
Inch
(mm)
12
16
3/8
15.4
17
20
1/2
15.4
23
25
3/4
15.7
29
32
1
19.6
36
40
1-1/4
20.2
48
50
1-1/2
20.6
48
50
1-1/2
21.4
Overall length
(mm) 50.5 53.5 62.5 67.5 72.0 66.0 85.5 79.5 72.0 87.5 84.0
Overall length
(mm) 58.0 66.5 72.0 77.5 91.5 92.0 93.0
For applications with high technical requirements mainly in machine building Specially formulated polyamide 6 Thread and integrated swivel adapter made from colourless anodized aluminium Very high impact resistance. High thread and system connection strength. Suitable for occasional rotation Easy introduction of wires and cables Vibration-proof connection to PMAFLEX conduits Very good chemical properties Free from halogens and cadmium Fits both conduit profiles fine (T) and coarse (G) IP68, IP69
82
PMA FLEXIBLE CABLE PROTECTION SYSTEMS FOR APPLICATIONS WITH HIGH REQUIREMENTS
-- Swivel connectors with female NPT metal thread Type SNIV & SBIV
-- Type SNIV - Swivel connector straight, female NPT metal thread, IP68
SNIV Approvals
Order no. black NSNIV-N022/01 NSNIV-N027/01 NSNIV-N043/01 NSNIV-N069/01 NSNIV-N076/01 NSNIV-N088/01 NSNIV-N098/01
Thread
NPT
NW
½
12
½
17
¾
23
1
29
1¼
36
1½
48
2
48
Fits to conduit size
Metric
Inch
16
3/8
20
1/2
25
3/4
32
1
40
1-1/4
50
1-1/2
50
1-1/2
Thread length
(mm) 13.6 13.6 14.1 16.8 17.3 17.3 17.8
Overall length
(mm) 59.0 67.0 72.5 76.5 91.5 93.5 93.0
For applications with high technical requirements mainly in machine building
-- Type SBIV - 360° Swivel connector, 90° curved elbow, IP68, female NPT metal thread
SBIV Approvals
Order no. IP68, black NSWIV-N022/01 NSBIV-N027/01 NSBIV-N043/01 NSBIV-N069/01 NSBIV-N076/01 NSBIV-N088/01 NSBIV-N098/01
Thread
NPT
NW
½
12
½
17
¾
23
1
29
1¼
36
1½
48
2
48
Fits to conduit size
Metric
Inch
16
3/8
20
1/2
25
3/4
32
1
40
1-1/4
50
1-1/2
50
1-1/2
Thread length
(mm) 13.6 13.6 14.1 16.8 17.3 17.3 17.8
Overall length
(mm) 48.5 x 46.5 67.0 x 74.5 78.0 x 87.5 91.0 x 98.0 104.5 x 125.5 119.5 x 138.5 119.0 x 138.5
Technical requirements mainly in heavy machine building and rail applications Suitable for occasional rotation Specially formulated polyamide 6 Thread and integrated swivel adapter made from colourless anodized aluminium Very high impact resistance High thread and system connection strength Suitable for occasional rotation Easy introduction of wires and cables Vibration-proof connection to PMAFLEX conduits Very good chemical properties Free from halogens and cadmium Fits both conduit profiles fine (T) and coarse (G) IP68, IP69
FLANGES, CONNECTORS WITH FEMALE, METRIC THREAD - TYPE VO & VI
83
-- Flanges, connectors with female, metric thread Type VO & VI
-- Type VO - Flange 90°
VO
Order no. IP66 BVOD-P167GT BVOD-P213GT BVOD-P299GT BVOD-P366GT BVOD-P488GT
Order no. IP68 BVOV-P167 BVOV-P213 BVOV-P299 BVOV-P366 BVOV-P488
Fits to conduit size
NW Metric
Inch
17
20
1/2
23
25
3/4
29
32
1
36
40
1-1/4
48
50
1-1/2
Width x Length x Depth (mm)
46.0 x 66.0 x 35.5 65.5 x 70.0 x 43.0 67.0 x 78.0 x 49.5 85.0 x 102.0 x 65.5 86.0 x 119.0 x 77.5
Screw sizes
2 x M5 2 x M6 4 x M6 4 x M6 4 x M6
For cable protection systems in a wide range of applications Flange seal FGO4 made from EPDM, flange seal FGO4/01 made from NBR Temperature range with FG04: 40°C to +105°C Temperature range with FG04/01: 25°C to +70°C
-- Type VI - Connector straight, female metric thread
VI Approvals
Order no. IP66, black
Order no. IP68, black
BVID-M12MGT
BVID-M160GT
BVIR-M160
BVID-M162GT
BVIR-M162
BVIR-M202
BVID-M207GT
BVIR-M207
BVID-M253GT
BVIR-M253
BVIR-M257
BVID-M329GT
BVIR-M329
BVID-M406GT
BVIR-M406
BVID-M508GT
BVIR-M508
BVID-M638GT
BVIR-M638
For cable protection systems in a wide range of applications VID: IP66 static/IP54 dynamic, conduit side VIR: IP68 static/IP67 dynamic, conduit side No seal on female thread side
Thread metric M12 x 1.5 M16 x 1.5 M16 x 1.5 M20 x 1.5 M20 x 1.5 M25 x 1.5 M25 x 1.5 M32 x 1.5 M40 x 1.5 M50 x 1.5 M63 x 1.5
Fits to conduit size
NW Metric
Inch
07
10
1/4
10
12
5/16
12
16
3/8
12
16
3/8
17
20
1/2
23
25
3/4
17
20
1/2
29
32
1
36
40
1-1/4
48
50
1-1/2
48
50
1-1/2
Thread length
(mm) 8.0 8.0 8.0 8.0 8.0 8.0 8.0
10.0 10.0 10.0 10.0
Overall length
(mm) 32.0 33.5 36.5 36.5 44.5 48.5 44.5 51.5 65.5 65.5 65.5
Please replace "B" for black with "S" for grey in front of the order no.
84
PMA FLEXIBLE CABLE PROTECTION SYSTEMS FOR APPLICATIONS WITH HIGH REQUIREMENTS
-- Connectors with female, metric metal thread Type VIR
-- Type VIR - Connector straight, female metric metal thread
VIR Approvals
Order no. IP68, black NVIR-M120 NVIR-M160 NVIR-M162 NVIR-M207 NVIR-M253 NVIR-M329 NVIR-M406 NVIR-M508 NVIR-M638
Thread
metric
NW
M12 x 1.5
10
M16 x 1.5
10
M16 x 1.5
12
M20 x 1.5
17
M25 x 1.5
23
M32 x 1.5
29
M40 x 1.5
36
M50 x 1.5
48
M63 x 1.5
48
Fits to conduit size
Metric
Inch
12
5/16
12
5/16
16
3/8
20
1/2
25
3/4
32
1
40
1-1/4
50
1-1/2
50
1-1/2
Thread length
(mm) 7.5 9.0 9.0
10.0 10.0 11.0 13.0 15.0 17.5
Overall length
(mm) 35.0 40.5 42.0 50.0 56.0 55.5 71.0 75.0 76.0
For applications in railway vehicles and heavy machine construction High thread and system connection strengths VIR: IP68 static/IP67 dynamic, conduit side No seal on female thread side
Please replace "B" for black with "S" for grey in front of the order no.
CONNECTOR STR AIGHT, PG FEMALE THREAD - T YPE FIL/ VIR & VIZR
85
-- Connector straight, PG female thread Type FIL/VIR & VIZR
-- Type FIL/VIR - Connector straight, female PG thread
Order no. IP67, black
FIL/VIR
BFIL-P07M
BFIL-P070
BFIL-P090
BFIL-P112
BFIL-P117
BFIL-P132
BFIL-P137
BFIL-P160
BFIL-P167
BFIL-P217
BFIL-P213
BFIL-P293
BFIL-P299
BFIL-P369
BFIL-P366
BFIL-P488
For cable protection systems in a wide range of applications VIR: IP68 static/IP67 dynamic, conduit side FIL: IP67 static/IP65 dynamic, conduit side No seal on female thread side
Order no. IP68, black BVIR-P070 BVIR-P090 BVIR-P112 BVIR-P167
Thread PG 07 07 07 09 09 11 11 11
13.5 13.5
16 16 16 21 21 29 29 36 36 48
Fits to conduit size
Thread length
Overall length
NW
Metric
Inch
(mm)
(mm)
07
10
1/4
8.0
29.0
10
12
5/16
8.0
34.5
10
12
5/16
8.0
33.5
10
12
5/16
8.0
32.5
10
12
5/16
8.0
33.5
12
16
3/8
8.0
32.5
12
16
3/8
8.0
36.5
17
20
1/2
8.0
35.0
12
16
3/8
8.0
32.5
17
20
1/2
8.0
33.5
10
12
5/16
7.0
37.0
17
20
1/2
8.0
33.5
17
20
1/2
8.0
44.5
17
20
1/2
10.5
35.5
23
25
3/4
8.0
39.0
23
25
3/4
9.0
42.0
29
32
1
9.0
43.0
29
32
1
16.0
52.0
36
25
1-1/4
13.0
64.0
48
50
1-1/4
13.0
65.0
-- Type VIZR - Connector straight, female PG metal thread
Order no. IP68, black
VIZR
NVIZR-P07M
NVIZR-P090
NVIZR-P110
NVIZR-P112
NVIZR-P137
NVIZR-P167
NVIZR-P213
NVIZR-P299
NVIZR-P366
NVIZR-P488
For applications in railway vehicles and heavy machine construction High thread and system connection strengths VIZR: IP68 static/IP67 dynamic, conduit side No seal on female thread side
Thread PG 07 09 11 11
13.5 16 21 29 36 48
Fits to conduit size
Thread length
Overall length
NW
Metric
Inch
(mm)
(mm)
07
10
1/4
6.0
35.0
10
12
5/16
9.0
38.5
10
12
5/16
9.0
41.0
12
16
3/8
9.0
42.0
17
20
1/2
8.0
46.5
17
20
1/2
9.5
48.0
23
25
3/4
10.0
58.0
29
32
1
12.5
57.0
36
40
1-1/4
13.0
76.0
48
50
1-1/2
14.0
75.0
86
PMA FLEXIBLE CABLE PROTECTION SYSTEMS FOR APPLICATIONS WITH HIGH REQUIREMENTS
-- Connectors with female UNEF thread Type VI
-- Type VI - Connector straight, UNEF female thread for AMP connectors
Order no. IP66, black
Order no. IP68, black
VI
BVIDA-U15MGT
BVIRA-U15M
BVIDA-U150GT
BVIRA-U150
BVIDA-U152GT
BVIRA-U152
BVIDA-U180GT
BVIRA-U180
BVIDA-U182GT
BVIRA-U182
BVIDA-U187GT
BVIRA-U187
BVIDA-U232GT
BVIRA-U232
BVIDA-U237GT
BVIRA-U237
BVIDA-U233GT
BVIRA-U233
BVIDA-U347GT
BVIRA-U347
BVIDA-U343GT
BVIRA-U343
BVIDA-U402GT
BVIRA-U402
BVIDA-U407GT
BVIRA-U407
BVIDA-U403GT
BVIRA-U403
For cable protection systems in a wide range of applications Suitable for the AMP connector serie CPC VIDA: IP66 static/IP54 dynamic, conduit side. VIRA: IP68 static/IP67 dynamic, conduit side No seal on female thread side
-- Type VI - Connector straight, UNEF female thread for Souriau connectors
Thread UNEF
24 24 24 ¾20 ¾20 ¾20 15/1620 15/1620 15/1620 118 118 118 118 118
Fits to conduit size
NW
Metric
Inch
07
10
1/4
10
12
5/16
12
16
3/8
10
12
5/16
12
16
3/8
17
20
1/2
12
16
3/8
17
20
1/2
23
25
3/4
17
20
1/2
23
25
3/4
12
16
3/8
17
20
1/2
23
25
3/4
Order no. IP66, black
Order no. IP68, black
Thread UNEF
Fits to conduit size
NW
Inch
Shell size UTG-6
VI
BVIDB-U162GT
BVIRB-U162
11/1624
12
3/8
128
BVIDB-U202GT
BVIRB-U202
13/1620
12
3/8
14 12
BVIDB-U232GT
BVIRB-U232
15/1620
12
3/8
16 19
BVIDB-U237GT
BVIRB-U237
15/1620
17
1/2
16 19
BVIDB-U267GT
BVIRB-U267
11/1618
17
1/2
1823
BVIDB-U297GT
BVIRB-U297
13/1618
17
1/2
20 28
BVIDB-U293GT
BVIRB-U293
13/1618
23
3/4
20 28
BVIDB-U323GT
BVIRB-U323
15/1618
23
3/4
2235
BVIDB-U357GT
BVIRB-U357
17/1618
17
1/2
24 4 8
BVIDB-U353GT
BVIRB-U353
17/1618
23
3/4
24 4 8
BVIDB-U359GT
BVIRB-U359
17/1618
29
1
24 4 8
For cable protection systems in a wide range of applications Suitable for the Souriau connector series UTG-6/ITT Cannon Trident VIDB: IP66 static/IP54 dynamic, conduit side. VIRB: IP68 static/IP67 dynamic, conduit side No seal on female thread side
Order no. IP68, black
Thread UNEF
Fits to conduit size
NW
Inch
BVIRS-U162
11/1624
12
3/8
BVIRS-U202
13/1620
12
3/8
BVIRS-U237
15/1620
17
1/2
BVIRS-U267
11/1618
17
1/2
BVIRS-U293
13/1618
23
3/4
BVIRS-U323
15/1618
23
3/4
BVIRS-U359
17/1618
29
1
For cable protection systems in a wide range of applications Suitable for the Souriau connector series UTO and UTS VIRS: IP68 static/IP67 dynamic, conduit side. No seal on female thread side
Shell size UTG-6 12 14 16 18 20 22 24
Thread length
(mm) 8.0 8.0 8.0 8.0 8.0 8.0 8.0 8.0 8.0 8.0 8.0 7.0 7.0 7.0
Overall length
(mm) 31.5 33.5 36.5 33.5 36.5 44.5 38.5 46.5 48.5 46.5 48.5 55.5 61.5 60.5
Thread length
(mm) 4.0 4.5 4.5 4.5 4.5 6.5 6.5 6.5 6.5 6.5 6.5
Overall length
(mm) 43.5 44.0 49.0 52.0 52.0 55.5 52.0 52.0 58.5 54.0 50.5
Thread length
(mm) 9.4 9.4
10.0 9.2 9.8 9.8 9.7
Overall length
(mm) 47.5 47.5 56.0 55.5 56.0 56.0 55.5
CONNECTORS WITH FEMALE UN THREAD - TYPE VI
87
-- Connectors with female UN thread Type VI
-- Type VI - Connector straight, UN female thread for MIL-C5015
VI Approvals
Order no. IP66, black
Order no. IP68, black
Thread UN
BVIVG-U152*
24 UNEF
BVIVG-U187*
¾20 UNEF
BVIVG-U210*
20 UNEF
BVIDG-U212GT
BVIVG-U212*
20 UNEF
BVIDG-U217GT
BVIVG-U217*
20 UNEF
BVIDG-U242GT
BVIVG-U242*
120 UNEF
BVIVG-U243*
120 UNEF
BVIDG-U247GT
BVIVG-U247*
120 UNEF
BVIVG-U292*
13/1618 UNEF
BVIDG-U293GT
BVIVG-U293*
13/1618 UNEF
BVIDG-U297GT
BVIVG-U297*
13/1618 UNEF
BVIVG-U299*
13/1618 UNEF
BVIVG-U349*
13/818 UNEF
BVIVG-U352*
17/1618 UNEF
BVIDG-U353GT
BVIVG-U353*
17/1618 UNEF
BVIVG-U356*
17/1618 UNEF
BVIDG-U357GT
BVIVG-U357*
17/1618 UNEF
BVIDG-U359GT
BVIVG-U359*
17/1618 UNEF
BVIDG-U433GT
BVIVG-U433*
1¾18 UNS
BVIDG-U436GT
BVIVG-U436*
1¾18 UNS
BVIVG-U437*
1¾18 UNS
BVIDG-U439GT
BVIVG-U439*
1¾18 UNS
BVIVG-U503*
218 UNS
BVIDG-U506GT
BVIVG-U506*
218 UNS
BVIVG-U508*
218 UNS
BVIDG-U509GT
BVIVG-U509*
218 UNS
BVIVG-U563*
2¼16 UN
BVIDG-U566GT
BVIVG-U566*
2¼16 UN
BVIVG-U568*
2¼16 UN
BVIDG-U569GT
BVIVG-U569*
2¼16 UN
BVIVG-U628*
2½16 UN
For applications in machine, vehicle and traction building industries Suitable for MIL connector series C5015 VIDG: IP66 static/IP54 dynamic, conduit- and thread side VIVG: IP68 static/IP67 dynamic, conduit- and thread side No seal on female thread side * UL Recognition according to UL 1619
Fits to conduit size
NW Metric
Inch
12
16
3/8
17
20
1/2
10
07
5/16
12
16
3/8
17
20
1/2
12
16
3/8
23
25
3/4
17
20
1/2
12
16
3/8
23
25
3/4
17
20
1/2
29
32
1
29
32
1
12
16
3/8
23
25
3/4
36
40
1-1/4
17
20
1/2
29
29
1
23
25
3/4
36
40
1-1/4
17
20
1/2
29
32
1
23
25
3/4
36
40
1-1/4
48
50
1-1/2
29
32
1
23
25
3/4
36
40
1-1/4
48
50
1-1/2
29
32
1
48
50
1-1/2
Thread length
(mm) 8.0 9.0 9.0 9.0 9.0 9.0 9.0 9.0 9.0 9.0 9.0 9.0 9.0 9.0 9.0 9.0 9.0 9.0
10.0 10.0 10.0 10.0 10.0 10.0 10.0 10.0 10.0 10.0 10.0 10.0 10.0
Overall length
(mm) 36.5 46.5 37.0 38.5 46.5 40.5 55.0 47.5 40.5 55.0 47.5 47.0 52.0 39.0 52.0 63.0 46.5 52.0 52.0 62.5 46.5 51.5 51.5 62.5 64.5 55.0 51.0 62.0 64.0 51.0 64.0
88
PMA FLEXIBLE CABLE PROTECTION SYSTEMS FOR APPLICATIONS WITH HIGH REQUIREMENTS
-- Y, T pieces, conduit adapters Type VY & VT
-- Type VY - Y piece
Order no. IP66
Order no. IP68
VY
BVYD-100707GT BVYR-100707
BVYD-121010GT BVYR-121010
BVYD-171212GT BVYR-171212
BVYD-231717GT BVYR-231717
BVYD-292323GT BVYR-292323
BVYD-362929GT BVYR-362929
BVYD-483636GT BVYR-483636
Approvals
1 x conduit size
NW
Metric
Inch
10
12
5/16
12
16
3/8
17
20
1/2
23
25
3/4
29
32
1
36
40
1-1/4
48
50
1-1/2
2 x conduit size
NW
Metric
Inch
07
10
1/4
10
12
5/16
12
16
3/8
17
20
1/2
23
25
3/4
29
32
1
36
40
1-1/4
-- Type VT - T piece VT
Approvals
Sizes can be adapted with AV conduit adapters to fit smaller conduit dimensions
Order no. IP66 BVTD-101010GT BVTD-121212GT BVTD-171717GT BVTD-232323GT BVTD-292929GT BVTD-363636GT BVTD-484848GT
Order no. IP68 BVTR-101010 BVTR-121212 BVTR-171717 BVTR-232323 BVTR-292929 BVTR-363636 BVTR-484848
3 x conduit size
NW
Metric
Inch
10
12
5/16
12
16
3/8
17
20
1/2
23
25
3/4
29
32
1
36
40
1-1/4
48
50
1-1/2
Sizes can be adapted with AV conduit adapters to fit smaller conduit dimensions
Please replace "B" for black with "S" for grey in front of the order no.
Y, T PIECES, CONDUIT ADAPTERS - T YPE AV
89
-- Y, T pieces, conduit adapters Type AV
-- Type AV - Conduit adapter AV
Approvals
Order no. IP66, black
Order no. IP68, black
Fits to fitting for
NW Metric
Inch
BAVR-10/07
10
12
5/16
BAVD-12/10GT
BAVR-12/10
12
16
3/8
BAVD-17/10GT
BAVR-17/10
17
20
1/2
BAVD-17/12GT
BAVR-17/12
17
20
1/2
BAVD-23/10GT
BAVR-23/10
23
25
3/4
BAVD-23/12GT
BAVR-23/12
23
25
3/4
BAVD-23/17GT
BAVR-23/17
23
25
3/4
BAVD-29/10GT
BAVR-29/10
29
32
1
BAVD-29/12GT
BAVR-29/12
29
32
1
BAVD-29/17GT
BAVR-29/17
29
32
1
BAVD-29/23GT
BAVR-29/23
29
32
1
BAVD-36/29GT
BAVR-36/29
36
40
1-1/4
BAVD-48/36GT
BAVR-48/36
48
50
1-1/4
Allows conduit size reduction of PMA connectors, particularly of T and Y pieces
Fits to fitting size
NW Metric
Inch
07
10
1/4
10
12
5/16
10
12
5/16
12
16
3/8
10
12
5/16
12
16
3/8
17
20
1/2
10
12
5/16
12
16
3/8
17
20
1/2
23
25
3/4
29
32
1
36
40
1-1/4
Overall length
(mm) 43.0 46.0 53.0 54.0 54.0 53.0 62.0 56.5 55.0 61.0 64.0 81.0 88.5
90
PMA FLEXIBLE CABLE PROTECTION SYSTEMS FOR APPLICATIONS WITH HIGH REQUIREMENTS
-- Connections, connection splices, metric, PG Type VNR-REM & VSG
-- Type VNR-REM - Connection to solid metal tube, metric/PG
VNR-REM
Order no. IP66 without clamp BVNR-REM162 BVNR-REM187 BVNR-REM207 BVNR-REM253 BVNR-REM329 BVNR-REM406 BVNR-REM508
Order no. IP68 with clamp BVNR-REM162-24 BVNR-REM187-28 BVNR-REM207-28 BVNR-REM253-32 BVNR-REM329-44 BVNR-REM406-50 BVNR-REM508-65
Order no. IP66 without clamp
Order no. IP68 with clamp
BVNR-RE12
BVNR-RE12-24
BVNR-RE1317
BVNR-RE1317-28
BVNR-RE17
BVNR-RE17-28
BVNR-RE23
BVNR-RE23-32
BVNR-RE29
BVNR-RE29-44
BVNR-RE36
BVNR-RE36-50
BVNR-RE48
BVNR-RE48-65
Quick connection of solid metal tubes with flexible PMA conduits Jubilee clip made of galvanised bright steel Available with or without jubilee clip IP68 on corrugated conduit side, on tube side up to IP68 with sealant
-- Type VSG - Connection splice for flexible conduits
Order no. IP66
Order no. IP68
VSG
BVSGD-1212GT
BVSGR-1212
BVSGD-1717GT
BVSGR-1717
BVSGD-2323GT
BVSGR-2323
BVSGD-2929GT
BVSGR-2929
BVSGD-3636GT
BVSGR-3636
BVSGD-4848GT
BVSGR-4848
Fits to conduit size Steel tube Inside Ø
Overall length
NW
Metric
Inch
metric
(mm)
(mm)
12
16
3/8
M16
16.0
54.0
17
20
1/2
M18
18.5
65.0
17
20
1/2
M20
20.0
65.0
23
25
3/4
M25
26.0
71.0
29
32
1
M32
32.0
71.0
36
40
1-1/4
M40
40.0
90.0
48
50
1-1/2
M50
50.0
90.0
Fits to conduit size Steel tube Inside Ø
Overall length
NW
Metric
Inch
PG
(mm)
(mm)
12
16
3/8
PG11
18.5
56.0
17
20
1/2
PG13
20.4
65.0
17
20
1/2
PG16
22.5
65.0
23
25
3/4
PG21
28.5
71.0
29
32
1
PG29
37.0
71.0
36
40
1-1/4
PG36
47.0
84.0
48
50
1-1/2
PG48
59.3
90.0
Fits to conduit size
Inside Ø
Overall length
NW
Metric
Inch
(mm)
(mm)
12
16
3/8
23.5
66.0
17
20
1/2
29.5
87.0
23
25
3/4
37.0
103.0
29
32
1
44.0
100.0
36
40
1-1/4
53.5
130.0
48
50
1-1/2
66.0
133.0
Approvals
Designed for optimal connection of PMA conduits
Please replace "B" for black with "S" for grey in front of the order no.
PMA FIXPLUS FITTINGS WITH METRIC THREADS - TYPE UNV-M-UL & UAV-M-UL
91
-- PMA FIXPLus fittings with metric threads Type UNV-M-UL & UAV-M-UL
-- Type UNV-M-UL - Connector straight, metric thread
UNV-M-UL Approvals
Order no. black BUNV-M207-UL BUNV-M257-UL BUNV-M253-UL BUNV-M323-UL BUNV-M329-UL BUNV-M409-UL BUNV-M406-UL BUNV-M506-UL BUNV-M508-UL BUNV-M638-UL
Order no. grey SUNV-M207-UL SUNV-M257-UL SUNV-M253-UL SUNV-M323-UL SUNV-M329-UL SUNV-M409-UL SUNV-M406-UL SUNV-M506-UL SUNV-M508-UL SUNV-M638-UL
Thread metric M20 x 1.5 M25 x 1.5 M25 x 1.5 M32 x 1.5 M32 x 1.5 M40 x 1.5 M40 x 1.5 M50 x 1.5 M50 x 1.5 M63 x 1.5
Fits to conduit size
NW
Inch
17
1/2
17
1/2
23
3/4
23
3/4
29
1
29
1
36
1-1/4
36
1-1/4
48
1-1/2
48
1-1/2
Thread length
(mm) 11.0 12.0 12.0 15.0 15.0 19.0 19.0 19.0 19.0 19.0
Outside Ø
(mm) 29.5 32.0 37.0 43.0 44.0 49.0 55.0 59.0 69.0 75.0
Overall length
(mm) 47.5 48.5 52.0 55.5 56.0 60.0 72.5 72.0 72.5 72.0
Extremely high impact resistance Vibration-resistant connection to PMA FLEXPLus conduits Easy installation High conduit pull-out strength Very good chemical properties Free from halogens and cadmium Fits conduit profile coarse (G) Lock nut delivered with the fitting
-- Type UAV-M-UL - Connector 45° elbow, metric thread
UAV-M-UL
Order no. black BUAV-M207-UL BUAV-M253-UL BUAV-M329-UL BUAV-M406-UL BUAV-M506-UL BUAV-M508-UL BUAV-M638-UL
Order no. grey SUAV-M207-UL SUAV-M253-UL SUAV-M329-UL SUAV-M406-UL SUAV-M506-UL SUAV-M508-UL SUAV-M638-UL
Thread metric M20 x 1.5 M25 x 1.5 M32 x 1.5 M40 x 1.5 M50 x 1.5 M50 x 1.5 M63 x 1.5
Fits to conduit size
NW
Inch
17
1/2
23
3/4
29
1
36
1-1/4
36
1-1/4
48
1-1/2
48
1-1/2
Thread length
(mm) 11.0 12.0 15.0 19.0 19.0 19.0 19.0
Outside Ø
(mm) 29.5 37.0 44.0 53.5 53.5 66.0 66.0
Overall length
(mm) 55.5 65.0 73.5 92.5 92.5
100.0 100.0
Overall height
(mm) 51.5 58.5 66.5 85.5 89.5 96.0
104.0
Approvals
Extremely high impact resistance Vibration-resistant connection to PMA FLEXPLus conduits Easy installation High conduit pull-out strength Very good chemical properties Free from halogens and cadmium Fits conduit profile coarse (G) Lock nut delivered with the fitting
92
PMA FLEXIBLE CABLE PROTECTION SYSTEMS FOR APPLICATIONS WITH HIGH REQUIREMENTS
-- PMA FIXPLus fittings with metric threads Type UWV-M-UL
-- Type UWV-M-UL - Connector 90° elbow, metric thread
UNV-M-UL
Order no. black BUWV-M207-UL BUWV-M253-UL BUWV-M329-UL BUWV-M406-UL BUWV-M508-UL
Order no. grey SUWV-M207-UL SUWV-M253-UL SUWV-M329-UL SUWV-M406-UL SUWV-M508-UL
Thread metric M20 x 1.5 M25 x 1.5 M32 x 1.5 M40 x 1.5 M50 x 1.5
Fits to conduit size
NW Inch
17
1/2
23
3/4
29
1
36 1-1/4
48 1-1/2
Thread length
(mm) 11.0 12.0 15.0 19.0 19.0
Outside Ø
(mm) 29.5 37.0 44.0 53.5 66.0
Overall length
(mm) 58.5 65.0 73.0 69.0 106.0
Overall height
(mm) 43.5 54.0 64.5 78.0 91.5
Approvals
Extremely high impact resistance Vibration-resistant connection to PMA FLEXPLus conduits Easy installation High conduit pull-out strength Very good chemical properties Free from halogens and cadmium Fits conduit profile coarse (G) Lock nut delivered with the fitting
PMA FIXPLUS FITTINGS WITH NPT THREADS - TYPE UNV-N-UL & UAV-N-UL
93
-- PMA FIXPLus fittings with NPT threads Type UNV-N-UL & UAV-N-UL
-- Type UNV-N-UL - Connector straight, NPT thread
UNV-N-UL
Order no. black BUNV-N027-UL BUNV-N043-UL BUNV-N069-UL BUNV-N076-UL BUNV-N088-UL BUNV-N098-UL
Order no. grey SUNV-N027-UL SUNV-N043-UL SUNV-N069-UL SUNV-N076-UL SUNV-N088-UL SUNV-N098-UL
Approvals
Thread size NPT ½ 3/4 1 11/4 1½ 2
Fits to conduit size
NW
Inch
17
1/2
23
3/4
29
1
36
1-1/4
48
1-1/2
48
1-1/2
Thread length
(mm) 13.0 14.0 15.0 18.0 18.0 18.0
Outside Ø
(mm) 29.5 37.0 44.0 55.0 69.0 69.0
Overall length
(mm) 49.5 54.0 56.0 71.0 71.5 71.5
Extremely high impact resistance Vibration-resistant connection to PMA FLEXPLus conduits Easy installation High conduit pull-out strength Very good chemical properties Free from halogens and cadmium Fits conduit profile coarse (G) Lock nuts available on request
-- Type UAV-N-UL - Connector 45° elbow, NPT thread
UNV-N-UL
Order no. black BUAV-N027-UL BUAV-N043-UL BUAV-N069-UL BUAV-N076-UL BUAV-N088-UL BUAV-N098-UL
Order no. grey SUAV-N027-UL SUAV-N043-UL SUAV-N069-UL SUAV-N076-UL SUAV-N088-UL SUAV-N097-UL
Thread size NPT ½ 3/4 1 11/4 1½ 2
Fits to conduit size
NW
Inch
17
1/2
23
3/4
29
1
36 1-1/4
36 1-1/4
48 1-1/2
Thread Outside
length
Ø
(mm) (mm)
13.0
29.5
14.0
37.0
15.0
44.0
18.0
53.5
18.0
66.0
18.0
66.0
Overall length
(mm) 57.5 67.0 73.5 91.5 99.0 99.0
Overall height
(mm) 51.5 60.0 67.0 85.5 96.0
101.0
Approvals
Extremely high impact resistance Vibration-resistant connection to PMA FLEXPLus conduits Easy installation High conduit pull-out strength Very good chemical properties Free from halogens and cadmium Fits conduit profile coarse (G) Lock nuts available on request
94
PMA FLEXIBLE CABLE PROTECTION SYSTEMS FOR APPLICATIONS WITH HIGH REQUIREMENTS
-- PMA FIXPLus fittings with NPT threads Type UWV-M-UL
-- Type UWV-M-UL - Connector 90° elbow, NPT thread
UNV-N-UL
Order no. black BUWV-N027-UL BUWV-N043-UL BUWV-N069-UL BUWV-N076-UL BUWV-N088-UL BUWV-N098-UL
Order no. grey SUWV-N027-UL SUWV-N043-UL SUWV-N069-UL SUWV-N076-UL SUWV-N088-UL SUWV-N098-UL
Thread size NPT ½ 3/4 1 11/4 1½ 2
Fits to conduit size
NW
Inch
17
1/2
23
3/4
29
1
36
1-1/4
48
1-1/2
48
1-1/2
Thread Outside
length
Ø
(mm) (mm)
13.0
29.5
14.0
37.0
15.0
44.0
18.0
53.5
18.0
66.0
18.0
66.0
Overall length
(mm) 58.5 66.5 73.5 96.0 106.0 111.0
Overall height
(mm) 45.5 56.0 64.5 77.0 90.5 90.5
Approvals
Extremely high impact resistance Vibration-resistant connection to PMA FLEXPLus conduits Easy installation High conduit pull-out strength Very good chemical properties Free from halogens and cadmium Fits conduit profile coarse (G) Lock nuts available on request
PMA FIXPLUS FITTINGS WITH NPT THREADS - TYPE UWV-M-UL
95
96
PMA FLEXIBLE CABLE PROTECTION SYSTEMS FOR APPLICATIONS WITH HIGH REQUIREMENTS
-- Special connectors Introduction
Meet the demands of our customers. We are always looking for ways to offer our best services.
In addition to the broad ranges of connectors offered within the PMAFIX Pro, PMAFIX and Smartline product lines, PMA offers further application specific connector solutions such as the MPNK-M series for high temperatures applications, JENQ-M series for Food and Beverage applications and the MONK-M to terminate an overbraided conduit.
SPECIAL CONNECTORS - INTRODUCTION
97
98
PMA FLEXIBLE CABLE PROTECTION SYSTEMS FOR APPLICATIONS WITH HIGH REQUIREMENTS
-- Metal connectors, metric Type MPNK & MONK
-- Type MPNK - Metal connector for PMA conduits, metric thread
MPNK
Order no. metal MPNK-M160 MPNK-M162 MPNK-M207 MPNK-M253 MPNK-M329
Thread metric M16 x 1.5 M16 x 1.5 M20 x 1.5 M25 x 1.5 M32 x 1.5
Fits to conduit size
NW 10 12 17 23 29
Fits to conduit size profile
T T T G G
For high temperature applications Suitable for high mechanical loads Nickel-plated brass Seals made from silicon Easy introduction of wires and cables Vibration-proof connection to PMAFLEX conduits Very good chemical properties IP68
-- Type MONK - Metal connector for overbraided conduits, metric thread
MONK
Order no. metal MONK-M162 MONK-M207 MONK-M253 MONK-M329 MONK-M406 MONK-M508
Thread metric M16 x 1.5 M20 x 1.5 M25 x 1.5 M32 x 1.5 M40 x 1.5 M50 x 1.5
Fits to conduit size NW
12 17 23 29 36 48
Fits to conduit profile
T T G G G G
Inside Ø min.
(mm) 12.0 12.0 15.8 19.0 26.5
Thread length
(mm) 12.0 12.0 14.0 15.0 18.0
Inside Ø min.
(mm) 12.0 16.0 19.0 26.5 35.0 45.0
Thread length
(mm) 12.0 14.0 15.0 18.0 15.0 16.0
For termination of overbraided conduits For high temperature applications and applications in areas with hot metal shavings and flying sparks Nickel-plated brass Seals made from silicon
STAINLESS STEEL LIQUID TIGHT FITTING - T YPE JENQ
99
-- Stainless steel liquid tight fitting Type JENQ
-- Type JENQ - for overextruded conduit, IP69
JENQ
Order no. JENQ-M162-10 JENQ-M207-10 JENQ-M253-11 JENQ-M329-13 JENQ-M406-13 JENQ-M506-14
Thread size metric
M16 x 1.5 M20 x 1.5 M25 x 1.5 M32 x 1.5 M40 x 1.5 M50 x 1.5
Fits to conduit size NW
12 17 23 29 36 48
Thread length
(mm) 10.0 10.0 11.0 13.0 13.0 14.0
Inside Ø min.
(mm) 9.2
13.0 18.3 24.0 32.4 42.3
Ø D (mm)
31.9 35.0 44.5 55.5 61.5 78.0
Wrench size
(mm) 35.9 36.9 41.6 48.7 51.2 57.4
sw 30.0 32.0 40.0 50.0 57.0 74.0
Approvals
IP 69 rating For termination of overextruded conduits For high hygienic requirements Suitable for food & beverage industry Unique single piece design Stainless Steel 316L material Seals made from FDA compliant material Easy cleaning High thread and system connection strengths High resistance to chemicals and cleaning agents Easy assembly
100
PMA FLEXIBLE CABLE PROTECTION SYSTEMS FOR APPLICATIONS WITH HIGH REQUIREMENTS
-- Accessories Introduction
For flexible and application friendly solutions. PMA offers a vast array of practical accessories in order to complete the PMA cable protection system.
We offer lock nuts produced from polyamide or metal, thread reducers and enlargers, conduit adapters, swivel adapters as well as different mounting clips for conduits. All this practical products will help to create the PMA line for our customers even more flexible and application friendly.
ACCESSORIES - INTRODUCTION
101
102
PMA FLEXIBLE CABLE PROTECTION SYSTEMS FOR APPLICATIONS WITH HIGH REQUIREMENTS
-- Flat gaskets, metric, PG, NPT, GAS Type SVN4
-- Type SVN4 - Flat thread gasket, metric/NPT/PG/GAS
SVN4
Order no. SVN4-M12 SVN4-M12/02 SVN4-M16 SVN4-M16/02 SVN4-M20 SVN4-M20/02 SVN4-M25 SVN4-M25/01 SVN4-M25/02 SVN4-M32 SVN4-M32/02 SVN4-M40 SVN4-M40/01 SVN4-M40/02 SVN4-M50 SVN4-M50/01 SVN4-M50/02 SVN4-M63
Fits to thread metric
M12 x 1.5 M12 x 1.5 M16 x 1.5 M16 x 1.5 M20 x 1.5 M20 x 1.5 M25 x 1.5 M25 x 1.5 M25 x 1.5 M32 x 1.5 M32 x 1.5 M40 x 1.5 M40 x 1.5 M40 x 1.5 M50 x 1.5 M50 x 1.5 M50 x 1.5 M63 x 1.5
Inside Ø (mm) 12.0 12.0 16.0 16.0 20.0 20.0 25.0 25.0 25.0 32.0 32.0 40.0 40.0 40.0 50.0 50.0 50.0 63.0
Outside Ø (mm) 20.0 23.0 22.0 25.0 27.0 33.0 35.0 31.0 39.0 43.0 49.0 55.0 51.0 64.0 69.0 59.0 74.0 75.0
Order no. SVN4-07 SVN4-09 SVN4-11 SVN4-13 SVN4-16 SVN4-21 SVN4-29 SVN4-36 SVN4-42 SVN4-48
Fits to thread PG 07 07 11
13.5 16 21 29 36 42 48
Inside Ø (mm) 12.5 15.2 18.6 20.4 22.5 28.3 37.0 47.0 54.0 59.3
Outside Ø (mm) 16.5 20.0 24.0 31.0 31.0 37.0 48.0 57.0 60.0 69.0
Order no. SVN4-N02/01 SVN4-N04/01 SVN4-N06/01 SVN4-N07/01 SVN4-N08/01 SVN4-N09/01
Fits to thread PG 1/2 3/4 1
1¼ 1 1/2
2
Inside Ø (mm) 28.0 36.0 46.0 55.0 70.0 70.0
Outside Ø (mm) 21.6 27.0 33.7 42.5 48.6 60.7
Order no.
Fits to thread GAS
Inside Ø (mm)
Outside Ø (mm)
SVN4-G00
¼
13.2
20.0
SVN4-G01
16.7
22.0
SVN4-G02
½
21.0
28.0
SVN4-G04
¾
26.5
34.0
SVN4-G06
1
33.3
42.0
SVN4-G07
1¼
41.9
53.0
SVN4-G08
1½
47.8
62.0
SVN4-G09
2
59.6
69.0
For sealing of polyamide or metal threads of PMA fittings. For ingress protection at the thread up to IP68 For solid sealing of uneven rough contact areas around the thread hole or when no constructive measures for O-Rings are provided NBR reinforced with aramide fibres (asbestos-free). Temperature range: 50°C to +200°C, short-term to +350°C Note: Depending on flange sizes flat thread gaskets can have different widths. Please indicate fitting for which gasket is needed for replacement orders
Thickness (mm) 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5
Thickness (mm) 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5
Thickness (mm) 1.5 1.5 1.5 1.5 1.5 1.5
Thickness (mm) 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5
LOCKING CLIPS, WATER IMPACT PROTECTION - T YPE AFN2, OVN2 & WPS
103
-- Locking clips, water impact protection Type AFN2, OVN2 & WPS
-- Type AFN2 - Universal safety clip
Order no. dark grey
AFN2
AFN2-07GT.LOSE
AFN2-10GT.LOSE
AFN2-12GT.LOSE
AFN2-17GT.LOSE
AFN2-23GT.LOSE
AFN2-29GT.LOSE
AFN2-36GT.LOSE
AFN2-48GT.LOSE
Pre-installed in PMA connectors IP66 and IP68GT Allows simple push-in assembly of PMA conduits
Fits to conduit size
NW
Inch
Profile
07
1/4
G + T
10
5/16
G + T
12
3/8
G + T
17
1/2
G + T
23
3/4
G + T
29
1
G + T
36
1-1/4
G + T
48
1-1/2
G + T
-- Type OVN2 - Oval clip
Order no. dark grey
OVN2
OVN2-07.100
OVN2-10.50
OVN2-12.50
OVN2-17.50
OVN2-23.30
OVN2-29.20
OVN2-36.40
OVN2-48.20
Provides reliable fixation of PMA conduits within PMA IP68 fittings
Fits to conduit size
NW
Inch
Profile
07
1/4
G + T
10
5/16
G + T
12
3/8
G + T
17
1/2
G + T
23
3/4
G + T
29
1
G + T
36
1-1/4
G + T
48
1-1/2
G + T
Width (mm)
14.0 17.5 20.5 26.5 34.0 40.5 50.0 62.0
Length (mm) 14.0 17.0 20.0 22.0 27.5 32.0 39.0 47.0
Thickness (mm) 7.0 8.0 7.3 8.0 11.8 11.8 9.5 9.5
Width (mm)
14.0 17.5 21.0 26.5 34.0 40.5 49.5 62.0
Length (mm) 14.0 17.0 19.0 22.5 27.5 32.0 39.0 47.0
Thickness (mm) 6.0 7.0 6.0 7.0 10.5 10.5 8.5 8.5
-- Type WPS - Water impact protection
Order no. black
Fits to conduit size
NW
Profile
WPS
WPS-NW10
10
G + T
WPS-NW12
12
G + T
WPS-NW17
17
G + T
WPS-NW23
23
G + T
WPS-NW29
29
G + T
WPS-NW36
36
G + T
WPS-NW48
48
G + T
Increased protection of PMAFIXfittings against water jet impact increased protection up to IP69 For increased ingress protection requirements regarding high pressure/steam jet cleaning Based on PMAFIX IP68 system Two-piece water impact protection with click cap Retrofit installation possible
Outside Ø (mm) 22.0 26.0 33.0 40.0 47.0 59.0 71.0
Thickness (mm) 8.0 8.0 8.0 9.0 9.5 10.0 10.0
104
PMA FLEXIBLE CABLE PROTECTION SYSTEMS FOR APPLICATIONS WITH HIGH REQUIREMENTS
-- Sealing caps Type NVN3, NFN3 & NR
-- Type NVN3 - Sealing cap, reinforced
Order no.
NW
NVN3
NVN3-07.100
07
NVN3-09.50
10
NVN3-11.50
12
NVN3-16.50
17
NVN3-21.30
23
NVN3-29.20
29
NVN3-36.20
36
NVN3-48.10
48
In connection with PMAFIX connectors (,,V" series) and PMA corrugated conduits For ingress protection IP68 static/IP67 dynamic Specially modified polyesterelastomer Free from halogens and cadmium Fits both conduit profiles: fine (T) and coarse (G) Temperature range: 40°C to +105°C
-- Type NFN3 - Sealing cap
Order no.
NW
NFN3
NFN3-07
07
NFN3-09
10
NFN3-11
12
NFN3-16
17
NFN3-21
23
NFN3-29
29
NFN3-36
36
NFN3-48
48
In connection with PMAFIX connectors (,,F" series) and PMA corrugated conduits For ingress protection IP67 static/IP65 dynamic Specially modified polyesterelastomer Free from halogens and cadmium Fits conduit profiles: fine (T) and coarse (G) Temperature range: 40°C to +105°C
-- Type KNH2 - PMAFIX Pro sealing and locking element
Metric 10 12 16 23 25 32 40 50
Fits to conduit size Inch 1/4 5/16 3/8 1/2 3/4 1
1-1/4 1-1/2
Inch 1/4 5/16 3/8 1/2 3/4
1 1-1/4 1-1/2
Fits to conduit size Profile 10 12 16 23 25 32 40 50
KNH2
Order no. KNH2-NW10 KNH2-NW12 KNH2-NW17 KNH2-NW23 KNH2-NW29 KNH2-NW36 KNH2-NW48
Fits to conduit size
Outside Ø
NW
Metric
Inch
(mm)
10
12
5/16
22.0
12
16
3/8
25.5
17
20
1/2
31.5
23
25
3/4
38.5
29
32
1
46.5
36
40
1-1/4
55.5
48
50
1-1/2
68.0
For use in connection with PMAFIX PRO connectors PMA corrugated conduits for ingress protection IP68 and IP69 static and dynamic Specially modified PA6/Polyester-elastomer Free from halogens and cadmium Fits conduit profiles: fine (T) and coarse (G) Temperature range: 40°C to +105°C
Length (mm) 9.0 9.0 12.0 16.5 13.0 14.0 17.5 17.5
Length (mm) 9.0 9.0 9.0 9.0 9.0 9.0 11.0 11.0
Overall length
(mm) 28.0 33.5 38.5 41.0 46.5 50.5 56.5
ENLARGERS, REDUCERS, METRIC AND PG - TYPE ME & MR
105
-- Enlargers, reducers, metric and PG Type ME, MR & NR
-- Type ME - Enlarger, brass, metric thread
ME
For enlargement of an existing thread Nickel-plated brass Hexagonal form Temperature range: 60°C to +200°C
Order no. M12M16M M16M20M M20M25M M25M32M M32M40M M40M50M M50M63M
-- Type MR - Reducer, brass, metric thread
Thread outside
Metric
Length (mm)
M12 x 1.5
5.0
M16 x 1.5
5.0
M20 x 1.5
6.0
M25 x 1.5
7.0
M32 x 1.5
8.0
M40 x 1.5
8.0
M50 x 1.5
9.0
Thread inside
Metric
Length (mm)
M16 x 1.5
7.0
M20 x 1.5
7.5
M25 x 1.5
8.0
M32 x 1.5
9.0
M40 x 1.5
10
M50 x 1.5
13
M63 x 1.5
16
Wrench size
(mm) 18 22 27 34 42 52 65
Inside Ø (mm) 8.0 12.0 15.0 21.0 26.0 34.0 44.0
Overall length
(mm) 16.0 16.5 18.5 20.5 23.5 30.0 32.5
Order no. standard
MR
M16M12M
M20M12M
M20M16M
M25M16M
M25M20M
M32M20M
M32M25M
M40M25M
M40M32M
M50M32M
M50M40M
M63M40M
M63M50M
Reduction of threaded or clearance holes to smaller thread sizes Nickel-plated brass Temperature range: 60°C to +200°C Round form without O-ring, XXXX/6 hexagonal form with O-ring
Order no. hexagonal M16M12M/6 M20M12M/6 M20M16M/6 M25M16M/6 M25M20M/6 M32M20M/6 M32M25M/6 M40M25M/6 M40M32M/6 M50M32M/6 M50M40M/6 M63M40M/6 M63M50M/6
Thread outside metric
M16 x 1.5 M20 x 1.5 M20 x 1.5 M25 x 1.5 M25 x 1.5 M32 x 1.5 M32 x 1.5 M40 x 1.5 M40 x 1.5 M50 x 1.5 M50 x 1.5 M63 x 1.5 M63 x 1.5
Thread inside metric
M12 x 1.5 M12 x 1.5 M16 x 1.5 M16 x 1.5 M20 x 1.5 M20 x 1.5 M25 x 1.5 M25 x 1.5 M32 x 1.5 M32 x 1.5 M40 x 1.5 M40 x 1.5 M50 x 1.5
-- Type NR - Reducer, PG
Order no.
NR
1109N
1309N
1311N
1609N
1611N
1613N
2113N
2116N
2921N
3629N
Reduction of threaded or clearance holes to smaller PG thread sizes High-grade, glass fibre reinforced Polyamid 6 Temperature range: 30°C to +100°C
Thread outside PG 11
13.5 13.5
16 16 16 21 21 29 36
Thread inside PG 09 09 11 09 11
13.5 13.5
16 21 29
Length (mm) 22.5 15.0 24.0 16.0 16.0 27.0 16.0 16.0 17.0 24.0
Inside Ø (mm) 10.5 10.0 11.5 10.0 11.5 13.5 13.5 15.5 22.0 30.5
Outside Ø (mm) 24.5 26.0 26.0 29.0 29.0 29.0 35.5 35.5 43.0 54.0
106
PMA FLEXIBLE CABLE PROTECTION SYSTEMS FOR APPLICATIONS WITH HIGH REQUIREMENTS
-- Enlargers, reducers, PG Type ME & MR
-- Type ME - Enlarger, brass, PG thread
ME
For enlargement of an existing thread Nickel-plated brass Temperature range: 60°C to +200°C
Order no. metal, standard 0709M 0911M 0913M 1113M 1116M 1121M 1316M 1321M 1621M 1629M 2129M 2936M 4248M
-- Type MR - Reducer, brass, PG thread
Order no. metal, standard
MR
0907M
1107M
1109M
1307M
1309M
1311M
1607M
1609M
1611M
1613M
2111M
2113M
2116M
2916M
2921M
3621M
3629M
4229M
4236M
4836M
4842M
Reduction of threaded or clearance holes to smaller thread sizes Nickel-plated brass Temperature range: 60°C to +200°C
Thread outside
Length
PG
(mm)
07
5.0
09
6.0
09
6.0
11
6.0
11
6.5
11
6.5
13.5
6.5
13.5
6.5
16
6.5
16
6.5
21
7.0
29
8.0
42
10.0
Thread inside
Length
PG
(mm)
09
07
11
07
13
7.5
13
08
16
8.5
21
10
16
7.5
21
8.5
21
8.5
29
11
29
11.5
36
12
48
17
Outside Ø (mm) 17.0 20.0 22.0 22.0 24.0 30.0 24.0 30.0 30.0 39.0 39.0 50.0 64.0
Overall length
(mm) 15.0 16.5 17.5 17.5 19.0 21.0 19.0 21.0 21.0 22.5 23.0 27.5 33.0
PG 09 11 11 13.5 13.5 13.5 16 16 16 16 21 21 21 29 29 36 36 42 42 48 48
Thread outside Length (mm) 6.0 6.0 6.0 6.5 6.5 6.5 6.5 6.5 6.5 6.5 7.0 7.0 7.0 8.0 8.0 9.0 9.0 10 10 10 10
Thread inside PG 07 07 09 07 09 11 07 09 11
13.5 11
13.5 16 16 21 21 29 29 36 36 42
Outside Ø (mm) 17.0 20.0 20.0 22.0 22.0 22.0 24.0 24.0 24.0 24.0 30.0 30.0 30.0 39.0 39.0 50.0 50.0 57.0 57.0 64.0 64.0
Overall length (mm) 8.5 8.5 8.5 9.0 9.0 9.0 9.5 9.5 9.5 9.5 10.0 10.0 10.0 11.5 11.5 12.5 12.5 14.0 14.0 14.0 14.0
PLUG SCREWS, METRIC, PG - TYPE 514
-- Plug screws, metric, PG Type 514
-- Type 514 - Plug screw, metric/PG thread
Order no. grey
514
514-M12
514-M16
514-M20
514-M25
514-M32
514-M40
514-M50
514-M63
For closing off unused threaded holes Polyamide 6 glass fibre reinforced Free from halogens and cadmium IP54 Temperature range: 30°C to +100°C
Order no. grey 514-07 514-09 514-11 514-13 514-16 514-21 514-29 514-36 514-48
Fits to thread metric
M12 x 1.5 M16 x 1.5 M20 x 1.5 M25 x 1.5 M32 x 1.5 M40 x 1.5 M50 x 1.5 M63 x 1.5
Fits to thread PG 07 09 11
13.5 16 21 29 36 48
Outside Ø (mm) 15.0 20.0 24.0 30.0 37.0 46.0 56.0 70.0
Outside Ø (mm) 15.0 19.0 22.0 25.0 27.0 33.0 44.5 55.5 69.5
107
Height (mm) 10.0 10.5 10.5 13.0 13.5 14.0 16.5 17.0
Height (mm) 10.0 10.0 10.0 10.0 10.0 12.5 13.0 15.0 17.0
Thread length (mm) 6.0 6.0 6.0 8.0 8.0 8.0 10.0 12.0
Thread length (mm) 6.0 6.0 6.0 6.0 6.0 8.0 8.0 10.0 12.0
108
PMA FLEXIBLE CABLE PROTECTION SYSTEMS FOR APPLICATIONS WITH HIGH REQUIREMENTS
-- Lock nuts, metric, PG Type MN
-- Type MN - Hexagonal lock nut, polyamide, metric/PG thread
Order no. black
Order no. grey
MN
BMN-M12
GMN-M12
BMN-M16
GMN-M16
BMN-M20
GMN-M20
BMN-M25
GMN-M25
BMN-M32
GMN-M32
BMN-M40
GMN-M40
BMN-M50
GMN-M50
BMN-M63
GMN-M63
Glass fibre reinforced Polyamid 6 High tightening torques
Order no. black BMN-07 BMN-09 BMN-11 BMN-13 BMN-16 BMN-21 BMN-29 BMN-36 BMN-48
Order no. grey GMN-07 GMN-09 GMN-11 GMN-13 GMN-16 GMN-21 GMN-29 GMN-36 GMN-48
Fits to thread metric
M12 x 1.5 M16 x 1.5 M20 x 1.5 M25 x 1.5 M32 x 1.5 M40 x 1.5 M50 x 1.5 M63 x 1.5
Fits to thread PG 07 09 11
13.5 16 21 29 36 48
Wrench size (mm) 17 22 26 32 41 50 60 75
Wrench size (mm) 19 22 24 27 30 36 46 60 70
Height (mm) 5.0 5.0 5.6 6.0 7.0 7.0 8.0 8.0
Height (mm) 5.0 5.0 5.0 6.0 6.0 7.0 7.0 8.0 8.0
LOCK NUTS, METRIC, PG - TYPE MM
-- Lock nuts, metric, PG Type MM
-- Type MM - Hexagonal lock nut, brass, metric/PG thread
Order no.
MM
GMM-M12
GMM-M16
GMM-M20
GMM-M25
GMM-M32
GMM-M40
GMM-M50
GMM-M63
Nickel-plated brass Maximum possible torque Safe system connection
Order no. GMM-07 GMM-09 GMM-11 GMM-13 GMM-16 GMM-21 GMM-29 GMM-36 GMM-42 GMM-48
Fits to thread metric
M12 x 1.5 M16 x 1.5 M20 x 1.5 M25 x 1.5 M32 x 1.5 M40 x 1.5 M50 x 1.5 M63 x 1.5
Fits to thread PG 07 09 11
13.5 16 21 29 36 42 48
Wrench size (mm) 15 19 24 30 36 46 60 70
Wrench size (mm) 15 18 21 23 26 32 41 51 60 64
109
Height (mm) 2.8 2.8 3.0 3.5 4.0 4.5 5.0 5.5
Height (mm) 2.8 2.8 3.0 3.0 3.0 3.5 4.0 5.0 5.0 5.5
110
PMA FLEXIBLE CABLE PROTECTION SYSTEMS FOR APPLICATIONS WITH HIGH REQUIREMENTS
-- System supports, half-shells Type VH & GN
-- Type VH - System support
VH
Order no. support BVH-17-010 BVH-23-010 BVH-29-010 BVH-36-010 BVH-48-010
Order no. clip BVH-17-020 BVH-23-020 BVH-29-020 BVH-36-020 BVH-48-020
Order no. complete BVH-17-000 BVH-23-000 BVH-29-000 BVH-36-000 BVH-48-000
Fits to conduit size
NW
Metric
17
20
23
25
29
32
36
40
48
50
Width x Height x Depth (mm)
35 x 36 x 36 35 x 44 x 36 46 x 52 x 40 53 x 58 x 60 66 x 72 x 60
Fixing screws 6 x M5 6 x M5 6 x M5 6 x M5 6 x M5
For applications in machine building and installation Optimal axial strain relief due to integrated rib Variable fixation possible due to six holes, safe against turning With safety lid suitable for overhead installation High retention forces PA 6
-- Type GN - Half shell
Order no. fine profile, black
Order no. coarse profile, black
Fits to conduit size
NW
Metric
GN
BGN-S12T
12
16
BGN-S17T
BGN-S17G
17
20
BGN-S23T
BGN-S23G
23
25
BGN-S29T
BGN-S29G
29
32
BGN-S36T
36
40
BGN-S36G
36
40
BGN-S48T
48
50
BGN-S48G
48
50
BGN-S70G
70
80
For conduit fixation in conjunction with beam systems, particularly in traction and machine applications Fixes conduit against axial movements Allows radial turning of conduit Especially suitable for dynamic applications due to rounded edges PA 6
Outside Ø (mm) 26.5 32.0 39.5 47.0 55.0 55.0 66.5 66.5 93.5
Width (mm)
34.0 34.0 34.0 34.0 36.5 34.0 36.5 34.0 38.0
Please replace "B" for black with "S" for grey in front of the order no.
SYSTEM SUPPORTS, RAILS FOR SYSTEM SUPPORTS - TYPE FH-0 & FHS
111
-- System supports, rails for system supports Type FH-0 & FHS
-- Type FH-0 - System support, one-piece
Order no. black
FH-0
BFH-07-0
BFH-10-0
BFH-12-0
BFH-17-0
BFH-23-0
BFH-29-0
BFH-36-0
BFH-48-0
For applications in machine building and installation Optimal axial strain relief due to integrated rib Suitable for overhead installations due to safety lid High retention forces Quick mounting due to single hole fixing Fits to rail for system support FHS PA 6
-- Type FHS - Rail for system support
Order no. grey SFH-07-0 SFH-10-0 SFH-12-0 SFH-17-0 SFH-23-0 SFH-29-0 SFH-36-0 SFH-48-0
Fits to conduit size Width x Height x Depth
NW
Metric
Inch
(mm)
07
10
1/4
17.0 x 21.5 x 20.0
10
12
5/16
20.5 x 24.5 x 20.0
12
16
3/8
24.0 x 27.0 x 20.0
17
20
1/2
30.0 x 34.0 x 20.0
23
25
3/4
38.5 x 42.0 x 20.0
29
32
1
45.5 x 48.0 x 20.0
36
40
1-1/4
55.5 x 56.0 x 20.0
48
50
1-1/2
67.5 x 68.0 x 20.0
Fixing screws 1 x M4 1 x M5 1 x M5 1 x M6 1 x M6 1 x M6 1 x M6 1 x M6
Order no. black
Order no. grey
Fits to system supports
Length x Height x Depth (mm)
FHS
BFHS-00
SFHS-00
FH-NW-0
275.0 x 15.5 x 25.0
Additional position supports or distance spacers
BFHS-PH
SFHS-PH
Position support with screws
BFHS-PH1
SFHS-PH1
Distance spacers
For flexible assembly of one-piece system supports and/or fixation of various conduit sizes Glass fibre reinforced polyamide 6 Extremely robust construction High stiffness Positioning and distance spacers available Glass fibre reinforced PA6
112
PMA FLEXIBLE CABLE PROTECTION SYSTEMS FOR APPLICATIONS WITH HIGH REQUIREMENTS
-- Tube clamps Type GL & GH
-- Type GL - Tube clamp, one-piece
Order no. black
GL
BGL-07
BGL-10
BGL-12
BGL-17
BGL-23
BGL-29
Order no. grey SGL-07 SGL-10 SGL-12 SGL-17 SGL-23 SGL-29
Used in general machine and installation applications Integrated rib provides axial strain relief Allows turning of the conduit, thus avoiding torsion stresses Pre-fixation on the conduit possible PA 6
-- Type GH - Tube clamp, one-piece
Order no. black
GH
BGH-23
BGH-29
BGH-36
BGH-48
BGH-56
BGH-70
BGH-95
Used in general machine and installation applications Integrated rib provides axial strain relief Allows turning of the conduit, thus avoiding torsion stresses Pre-fixation on the conduit possible Allows solid fixation with 2 screws PA 6
Order no. grey SGH-23 SGH-29 SGH-36 SGH-48 SGH-56 SGH-70 SGH-95
Fits to conduit size
Width
Fixing
NW
Metric
Inch
(mm)
screws
07
10
1/4
25.0
1 x M4
10
12
5/16
27.0
1 x M4
12
16
3/8
31.0
1 x M4
17
20
1/2
39.5
1 x M5
23
25
3/4
49.0
1 x M5
29
32
1
57.0
1 x M6
Thread outside
Width
Fixing
NW
Metric
Inch
(mm)
screws
23
25
3/4
16.0
2 x M5
29
32
1
19.0
2 x M6
36
40
1-1/4
24.0
2 x M6
48
50
1-1/2
24.0
2 x M6
56
68
2
26.0
2 x M8
70
80
2-1/2
30.0
2 x M8
95
106
4
30.0
2 x M8
TUBE CLAMPS - TYPE SGB & SGS
113
-- Tube clamps Type SGB & SGS
-- Type SGB - Tube clamp
Order no. black
SGB
SGB-07
SGB-09
SGB-11
SGB-16
SGB-21
SGB-29
SGB-36
SGB-48
For fixation of static conduits Galvanized steel Elastomer profile (EPDM) free from halogens Smooth connection to PMA conduits Good resistance to ozone and ageing Temperature range: 40°C to +120°C
-- Type SGS - Tube clamp
Order no. black
SGS
SGS-36
SGS-48
SGS-56
SGS-70
SGS-95
SGS-125
For fixation of static conduits Galvanized steel Elastomer profile (EPDM) free from halogens Smooth connection to PMAconduits Good resistance to ozone and ageing Temperature range: 40°C to +120°C Galvanized steel/EPDM
Fits to conduit size
NW
Metric
Inch
07
10
1/4
10
12
5/16
12
16
3/8
17
20
1/2
23
25
3/4
29
32
1
36
40
1-1/4
48
50
1-1/2
Width (mm)
13.0 13.0 13.0 16.0 16.0 19.0 19.0 19.0
Fixing screws 1 x M4 1 x M4 1 x M4 1 x M5 1 x M5 1 x M6 1 x M6 1 x M6
Fits to conduit size
Width x Height x Depth
Fixing
NW
Metric
Inch
(mm)
screws
36
40
1-1/4
80.0 x 48.0 x 19.0
2 x M6
48
50
1-1/2
94.0 x 58.0 x 19.0
2 x M6
56
68
2
118.0 x 72.0 x 24.0
2 x M8
70
80
2-1/2
130.0 x 85.0 x 24.0
2 x M8
95
106
4
156.0 x 110.0 x 24.0
2 x M8
125
146
5
200.0 x 152.0 x 24.0
2 x M8
114
PMA FLEXIBLE CABLE PROTECTION SYSTEMS FOR APPLICATIONS WITH HIGH REQUIREMENTS
-- System supports Type GPS, GP & BGP-3x48
-- Type GPS - System support, one-piece, stackable
Order no.
GPS
BGPS-12/01*
BGPS-17
BGPS-23
BGPS-29
BGPS-36
BGPS-48
BGPS-56
NW
Metric
12
16
17
20
23
25
29
32
36
40
48
50
56
68
Fits to conduit size
Inch
DIN-NW
3/8
2
1/2
2
3/4
2
1
3
1-1/4
3
1-1/2
4
2
4
Width (mm)
70.0 70.0 70.0 85.0 85.0 115.0 115.0
Height (mm) 51.0 51.0 51.0 65.0 65.0 92.5 92.5
*This size will be delivered with a half-shell insert In railway vehicle construction, heavy machine building industry and other applications with increased mechanical requirements Heavy design, high retention forces. Applicable with standard metal C rails Clasp for easy pre-mounting and final assembly. Especially suitable for dyn. applic. due to rounded edges The following nominal widths can be combined for stacking: NW 12 with NW 17 + 23, NW 17 with NW 23, NW 29 with NW 36, NW 48 with NW 56 Content of delivery: System support and 2 screws for securing of the lid (optional); without mounting accessories PA 6
-- Type GP - System support, stackable
Order no.
Thread outside
NW
Metric
Inch
GP
BGP-12/01*
12
16
3/8
BGP-17
17
20
1/2
BGP-23
23
25
3/4
BGP-29
29
32
1
BGP-36
36
40
1-1/4
BGP-48
48
50
1-1/2
BGP-56G
56
68
2
Width (mm) 48.0 48.0 48.0 62.0 62.0
76.0 87.0
Height (mm) 66.0 66.0 66.0 66.0 66.0 66.0 78.0
Depth (mm) 30.0 30.0 30.0 30.0 30.0 30.0 30.0
Depth (mm) 36.0 36.0 36.0 36.0 36.0 36.0 36.0
*This size will be delivered with a half-shell insert In railway vehicle construction, heavy machine building industry and other applications with increased mechanical requirements Variable stacking possibilities, due to the "Block"-system a high rigidity is guaranteed Fixes conduit against axial movements. Allows radial turning of conduit Especially suitable for dyn. applic. due to rounded edges. Variety of support possibilities Content of delivery: System support with assembling screws; without mounting accessories PA 6
-- Type BGP-3x48- Multiple system support
Thread outside
Order no.
NW
Metric
Inch
Profile
BGP
BGP-3x48
48
50
1-1/2
G and T
Width (mm)
30.0
Height (mm)
84.0
Length (mm)
214.0
In railway vehicle construction, heavy machine building industry and other applications with increased mechanical requirements Multiple system support for 3 x NW48 max. conduits Axial fixation of conduit. Conduit rotation possible (avoids torsion) Especially suitable for dynamic applications due to rounded edges PA 6
Please replace "B" for black with "S" for grey in front of the order no.
CONDUIT TERMINATIONS - T YPE RKS & CT
115
-- Conduit terminations Type RKS & CT
-- Type RKS - Conduit terminal sleeve
Order no. black
RKS
RKS-07
RKS-10
RKS-12
RKS-17
RKS-23
RKS-29
RKS-36
RKS-48
RKS-56
For clean conduit end termination where no fitting is required PA 6
Fits to conduit size
Inside Ø
Outside Ø
Length
NW
Metric
Inch
(mm)
(mm)
(mm)
07
10
1/4
4.5
12.5
16.0
10
12
5/16
8.0
15.5
16.0
12
16
3/8
10.0
19.0
20.0
17
20
1/2
13.0
24.0
21.0
23
25
3/4
20.0
32.0
22.0
29
32
1
25.0
38.0
22.0
36
40
1-1/4
33.0
46.0
25.0
48
50
1-1/2
45.0
58.0
25.0
56
68
2
54.0
71.0
28.0
-- Type CT - Conduit termination
Order no.
black
NW
CT
BCT-10
10
BCT-12
12
BCT-17
17
BCT-23
23
BCT-29
29
BCT-36
36
For sealing of cables and wires at the exit from PMA corrugated conduits Avoids ingression of dirt and liquids Can be fixed additionally with cable ties Neoprene rubber Temperature range: 30°C to +120°C
Fits to conduit size
Metric 12
Inch 5/16
16
3/8
20
1/2
25
3/4
32
1
40
1-1/4
Clamping range (mm) 4 8 59 714 14 22 16 22 16 29
Length (mm) 28.0 35.0 42.0 51.0 53.0 55.0
Height (mm) 13.0 16.0 21.0 28.0 34.0 42.0
116
PMA FLEXIBLE CABLE PROTECTION SYSTEMS FOR APPLICATIONS WITH HIGH REQUIREMENTS
-- Abrasion protection sleeves, tools Type SS/SV & EWZ
-- Type SS/SV - Abrasion protection sleeve
SS/SV
Order no.
NW
BSS-17
17
BSS-23
23
BSS-29
29
BSS-36
36
BSS-48
48
BSS-56G
56
BSV-70G
70
Abrasion protection for corrugated conduits in positions exposed to chafing Increases the life time of moving conduits PA 6
-- Type EWZ - Draw-in tool
EWZ
Order no. black with hole
EWZ-02
Order no. black with handle
EWZ-03
Fits to conduit size
Metric
Inch
20
1/2
25
3/4
32
1
40
1-1/4
50
1-1/2
68
2
80
2-1/2
Outside Ø (mm) 42.0 49.0 55.0 63.0 75.0 90.0 108.0
Length (mm) 22.0 26.0 26.0 30.0 30.0 33.0 60.0
Fits to conduit size
NW
Inch
7.534
Width x Length x Depth (mm)
117.7 x 45.2 x 71.9
Suitable for drawing in cables or wires into PMA Divisible System conduits or other slit conduits Designed in a handy shape and equipped with a practical hand grip for wedging or with hole for direct holding of the wires Polyamide 6.6 Colour: black
TOOLS - TYPE PMACUT
-- Tools Type PMACUT
-- Type PMACUT - Cutting tool for conduits, NW 0748
PMACUT
Order no. Cutting tool PMACUT-38
PMACUT-52
Order no. Spare blade FP-38
FP-52
117
Cutting range 038
052
NW 0729 2348
For conduit size
Inch 1/4 1 3/4 1-1/2
Can be used to cut all PMA conduits Enables a precise and straight cut around the corrugation Metal Colour: Red
-- Type PMACUT - Cutting tool for conduits, NW 56125
PMACUT
Order no. black PMACUT-NW56 PMACUT-NW70 PMACUT-NW95 PMACUT-NW125
Can be used to cut all PMA conduits with large nominal widths Enables a precise and straight cut at the top of the corrugation High level of safety through retractable blade Aluminium
Fits to conduit size
Length x Width x Depth
NW
Metric
Inch
(mm)
56
68
2
337 x 101 x 15
70
80
2-1/2
350 x 110 x 15
95
106
4
400 x 142 x 20
125
146
5
443 x 182 x 20
118
PMA FLEXIBLE CABLE PROTECTION SYSTEMS FOR APPLICATIONS WITH HIGH REQUIREMENTS
-- Elbow adapters, metric Type MAVI & MAVIK
-- Type MAVI - Special 45° elbow adapter, metric thread
Order no.
Inside
Thread metric Outside
Thread length outside (mm)
Outside Ø (mm)
MAVI
MAVI-M20/01
M20 x 1.5
M20 x 1.5
10.0
35.0
MAVI-M25/01
M25 x 1.5
M25 x 1.5
11.0
39.0
MAVI-M32/01
M32 x 1.5
M32 x 1.5
13.0
46.0
MAVI-M40/01
M40 x 1.5
M40 x 1.5
13.0
55.0
MAVI-M50/01
M50 x 1.5
M50 x 1.5
14.0
65.0
MAVI-M63/01
M63 x 1.5
M63 x 1.5
14.0
80.0
Where a certain cable outlet angle is required In connection with PMA connectors, especially connectors with strain relief VNZ Enables different mounting positions: With a lock nut behind a clearance hole / In threaded holes (lock nut on MAVI side for positioning) / With SCA spin-coupler Nickel-plated aluminium (other materials e.g. stainless steel or nickel-plated brass available on request) High thread and system connection strength IP68 static/IP67 dynamic Temperature range: 60°C to +105°C
Overall length
(mm) 45.0 51.0 54.0 62.0 75.0 84.0
-- Type MAVIK - Positioning 45° elbow adapter, metric thread
Order no.
Inside
Thread metric Outside
Thread length outside (mm)
Outside Ø (mm)
MAVIK
MAVIK-M20/01
M20 x 1.5
M20 x 1.5
10.0
35.0
MAVIK-M25/01
M25 x 1.5
M25 x 1.5
11.0
39.0
MAVIK-M32/01
M32 x 1.5
M32 x 1.5
13.0
46.0
MAVIK-M40/01
M40 x 1.5
M40 x 1.5
13.0
55.0
MAVIK-M50/01
M50 x 1.5
M50 x 1.5
14.0
65.0
MAVIK-M63/01
M63 x 1.5
M63 x 1.5
14.0
80.0
Where a certain cable outlet angle is required In connection with PMA connectors, especially connectors with strain relief VNZ The counter nut allows accurate positioning of the outlet direction in threaded holes Adapter made from nickel-plated aluminium (other materials e.g. stainless steel or nickel-plated brass available on request), counter nut made from nickel-plated brass High thread and system connection strength IP68 static/IP67 dynamic Temperature range: 60°C to +105°C
Overall length
(mm) 52.0 58.0 61.0 69.5 83.0 92.0
SWIVEL AND POSITIONING ADAPTERS, METRIC, PG - TYPE SWA & SCA
-- Swivel and positioning adapters, metric, PG Type SWA & SCA
-- Type SWA - Swivel adapter with special sealing, metric/PG metal thread
SWA
Order no. SWA-M16-10 SWA-M20-10 SWA-M25-11 SWA-M32-13 SWA-M40-13 SWA-M50-14 SWA-M63-14
Thread metric M16 x 1.5 M20 x 1.5 M25 x 1.5 M32 x 1.5 M40 x 1.5 M50 x 1.5 M63 x 1.5
Thread length (mm) 10.0 10.0 11.0 13.0 13.0 14.0 14.0
Order no.
Thread PG
SWA-P09
09
SWA-P11
11
SWA-P16
16
SWA-P21
21
SWA-P29
29
SWA-P36
36
SWA-P48
48
Allow PMA connectors to swivel freely in applications where such movement is occasionally necessary In connection with PMA connectors with metal thread Nickel-plated brass with thread edge protection IP68 and IP69 Temperature range: 40°C to +105°C
Thread length (mm) 15.0 15.0 15.0 15.0 15.0 15.0 15.0
-- Type SCA - Positioning adapter, metric/PG metal thread
SCA
Order no. SCA-M16-10 SCA-M20-10 SCA-M25-11 SCA-M32-13 SCA-M40-13 SCA-M50-14 SCA-M63-14
Thread metric M16 x 1.5 M20 x 1.5 M25 x 1.5 M32 x 1.5 M40 x 1.5 M50 x 1.5 M63 x 1.5
Thread length (mm) 10.0 10.0 11.0 13.0 13.0 14.0 14.0
Order no. SCA-P09
SCA-P11
SCA-P16
SCA-P21
SCA-P29
SCA-P36
SCA-P48 Allows easy positioning of elbow connectors with metal thread In connection with PMA connectors with metal thread (Metric: Metal long thread) Nickel-plated brass High fastening torque with thread edge protection P68 and IP69 Temperature range: 40°C to +105°C
Thread PG 09 11 16 21 29 36 48
Thread length (mm) 12.0 12.0 13.0 14.0 14.0 17.0 17.0
Outside Ø (mm) 23.0 27.0 32.0 45.0 55.0 59.0 75.0
Outside Ø (mm) 23.0 27.0 32.0 40.0 50.0 59.0 70.0
Outside Ø (mm) 22.0 26.0 32.0 39.0 50.0 59.0 75.0
Outside Ø (mm) 22.0 26.0 29.0 39.0 44.0 59.0 69.0
119
Overall length
(mm) 37.5 38.5 41.0 46.5 47.5 49.5 52.0
Overall length
(mm) 44.5 45.5 48.0 51.0 52.0 55.0 55.0
Overall length
(mm) 32.0 33.0 35.0 39.5 41.0 43.5 45.5
Overall length
(mm) 35.0 36.0 38.0 41.0 42.5 49.0 50.5
120
PMA FLEXIBLE CABLE PROTECTION SYSTEMS FOR APPLICATIONS WITH HIGH REQUIREMENTS
-- PMA JUMBO sizes General technical details
Larger sizes for big solutions. When you need conduits with larger sizes for your cable protection, we provide you with a comprehensive selection of larges size conduits including connectors and flanges.
-- * All conduits are REACH and RoHS compliant
The PMA JUMBO product line includes a range of large size cable protection products. Seven different conduit types using a variety of raw materials to provide optimal performance in various applications and compatible fittings. · PMA JUMBO conduits polyamide and
polyurethane conduits in the large nominal width sizes NW56, 70, 95, 125 (PA6 conduits PCL, CYL, VCS, VOH) (PA12 conduits PIS, PCS) (PU conduits PUE) · PMAGRIP flange and threaded fittings plus accessories BGG (straight), BGO (90°) flange fittings achieve a sealing rating of IP50 and IP65 with a conduit sealing ring BGGV (straight), BGOV (90°) flange fittings achieve a sealing rating of IP68
Material · Conduits made from specially formulated
PA6, PA12 and PU · Fittings made from specially formulated
polyamide 6 · Self-extinguishing · Free from halogens, REACH + RoHS compliant* · Very good chemical properties · Temperature range:
PA6 40°C to +105°C, short-term to +160°C PA12 40°C to +95°C, short-term to +150°C PU 60°C to +50°C
Characteristics · Excellent conduit pull-out strength · High impact resistance · All PMA Jumbo conduits have a coarse (G) profile · The conduit types PIS and VCS are UL recognized
in jumbo sizes for use with the flange type fittings.
PMA JUMBO SIZES -GENER AL TECHNICAL DETAILS
121
122
PMA FLEXIBLE CABLE PROTECTION SYSTEMS FOR APPLICATIONS WITH HIGH REQUIREMENTS
-- Conduits, large sizes Type PMAFLEX JUMBO conduits
-- Type PMAFLEX JUMBO conduits
Order no. black CYLG-56B.30* CYLG-70B.10* CYLG-95B.10*
Order no. grey CYLG-56S.30* CYLG-70S.10* CYLG-95S.10*
Conduit size
NW Metric Inch
56
68
2
70
80 2-1/2
95 106
4
Stat./Dyn.
Inside Ø Outside
radius
PU
(mm) (inch) Ø (mm)
(mm) meter
56.7 2.232
67.4
120/
30
67.5 2.657
79.7
140/
10
91.6 3.606 106.2
190/
10
PMAFLEX JUMBO conduits
PCLG-56B.30 PCLG-70B.10 PCLG-95B.10 PCLG-125B.6
PCLG-56S.30 PCLG-70S.10 PCLG-95S.10 PCLG-125S.6
56
68
2 56.3 2.217
67.2
130/
30
70
80 2-1/2 67.5 2.657
80.0
160/
10
95 106
4 91.5 3.602 106.0
210/
10
125 146
5 126.5 4.980 146.5
450/
6
PIHG-56B.30 PIHG-70B.30 PIHG-95B.30 PIHG-125B.20
PIHG-56S.30 PIHG-70S.30 PIHG-95S.30 PIHG-125S.20
56
68
2 56.3 2.217
67.2 110/270
30
70
80 2-1/2 67.2 2.646
79.6 150/350
30
95 106
4 91.3 3.594 106.0 170/450
30
125 146
5 126.5 4.980 146.5 350/480
20
VCSG-56B.30 VCSG-70B.10 VCSG-95B.10
VCSG-56S.30 VCSG-70S.10 VCSG-95S.10
56
68
2 56.1 2.209
67.2
150/
30
70
80 2-1/2 66.5 2.618
80.0
200/
10
95 106
4 91.0 3.583 106.0
300/
10
LLPAG-56A.30 LLPAG-70A.10 LLPAG-95A.10 LLPAG-125A.6
LLPAG-56S.30 LLPAG-70S.10 LLPAG-95S.10 LLPAG-125S.6
56
68
2 56.3 2.217
67.2
120/
30
70
80 2-1/2 68.0 2.677
80.0
160/
10
95 106
4 91.9 3.618 106.0
210/
10
125 146
5 126.5 4.980 146.5
450/
6
VOHG-56B.10 VOHG-70B.10 VOHG-95B.10 VOHG-125B.6
VOHG-56S.10 VOHG-70S.10 VOHG-95S.10 VOHG-125S.6
56
68
2 55.5 2.185
67.2
135/
10
70
80 2-1/2 67.0 2.638
80.0
200/
10
95 106
4 90.5 3.563 106.0
300/
10
125 146
5 126.0 4.961 146.5
480/
6
XPCSG-56BG.30 XPCSG-70BG.10 XPCSG-95BG.10
56
68
2 56.7 2.232
67.5 110/270
30
70
80 2-1/2 67.5 2.657
79.0 130/320
10
95 106
4 91.6 3.606 106.0 170/430
10
Approvals
PCSG-56B.30 PCSG-70B.10 PCSG-95B.10
PCSG-56S.30 PCSG-70S.10 PCSG-95S.10
56
68
2 56.1 2.209
70
80 2-1/2 66.5 2.618
95 106
4 91.0 3.583
67.2 130/280
30
80.0 170/360
10
106 250/470
10
PUEG-56B.30
56
68
PUEG-70B.30
70
80
* Not approved to UL 1696 / CSA C22.2 No. 227.3-05 (UL file E 80294) For further conduits and other sizes see conduit guide
2 2-1/2
56.3 2.217 68.2 2.685
67.2 90/170
30
80.5 100/220
30
PMAGRIP FLANGE CONNECTORS - TYPE GG & GO
123
-- PMAGRIP flange connectors Type GG & GO
-- Type GG - Flange straight
Order no. black
Order no. grey
GG
BGG-56
SGG-56
BGG-70
SGG-70
BGG-95
SGG-95
BGG-125
SGG-125
Fits to conduit size
NW
Metric
56
68
Inch 2
70
80
2-1/2
95
106
4
125
146
5
Width (mm)
82.0 97.0 126.0
Height (mm) 97.0 114.0 146.0 194.0
Depth (mm)
42.0 48.0 53.0 79.0
Approvals
Ingress protection: IP50 without conduit seal ring (IP65 with conduit seal ring) Flange seal FGO4 made from EPDM, standard for indoor and outdoor applications Flange seal FGO4/01 made from NBR, optional for indoor applications with special chemical requirements Temperature range with FGO4: 40°C to +105°C Temperature range with FGO4/01: 25°C to +70°C Content of delivery: Flange part, fixation clamps (incl. 2 screws), flange seal (FGO4 or FGO4/01), conduit seal ring (optional for IP65)
-- Type GO - Flange 90° elbow
GO
Order no. black BGO-56 BGO-70 BGO-95
Order no. grey SGO-56 SGO-70 SGO-95
Fits to conduit size
NW
Metric
Inch
56
68
2
70
80
2-1/2
95
106
4
Width (mm)
82.0 97.0 126.0
Height (mm) 97.0 114.0 146.0
Depth (mm) 101.0 115.0 149.0
Approvals
Ingress protection: IP50 without conduit seal ring (IP65 with conduit seal ring) Flange seal FGO4 made from EPDM, standard for indoor and outdoor applications Flange seal FGO4/01 made from NBR, optional for indoor applications with special chemical requirements Temperature range with FG04: 40°C to +105°C Temperature range with FG04/01: 25°C to +70°C Content of delivery: Flange part, fixation clamps (incl. 2 screws), flange seal (FGO4 or FGO4/01), conduit seal ring (optional for IP65)
124
PMA FLEXIBLE CABLE PROTECTION SYSTEMS FOR APPLICATIONS WITH HIGH REQUIREMENTS
-- PMAGRIP flange connectors Type GGV & GOV
-- Type GGV - Flange straight
GGV
Order no. black, IP68 BGGV-56 BGGV-70 BGGV-95
Fits to conduit size
Width
Height
Depth
NW
Metric
Inch
(mm)
(mm)
(mm)
56
68
2
82.0
97.0
42.0
70
80
2-1/2
97.0
114.0
48.0
95
106
4
126.0
146.0
53.0
Approvals
In railway vehicle construction as well as in a wide range of industrial applications with high sealing and safety requirements Flange seal FGO4 made from EPDM, standard for indoor and outdoor applications Flange seal FGO4/01 made from NBR on request, optional for indoor applications with special chemical requirements Ingress protection: IP68, IP69 with conduit sealing NVN3 Temperature range with FG04: 40°C to +105°C Temperature range with FG04/01: 25°C to +70°C If the application temperature is above 70°C we recommend to use an additional internal conduit support sleeve (BES) Content of delivery: Flange part, fixation clamps (incl. 2 screws), conduit seal (NVN3), flange seal (FGO4 or FGO4/01)
-- Type GOV - Flange 90° elbow
GOV
Order no. black, IP68 BGOV-56 BGOV-70 BGOV-95
Fits to conduit size
Width
Height
Depth
NW
Metric
Inch
(mm)
(mm)
(mm)
56
68
2
82.0
97.0
101.0
70
80
2-1/2
97.0
114.0
115.0
95
106
4
126.0
146.0
149.0
Approvals
In railway vehicle construction as well as in a wide range of industrial applications with high sealing and safety requirements Flange seal FGO4 made from EPDM, standard for indoor and outdoor applications Flange seal FGO4/01 made from NBR on request, optional for indoor applications with special chemical requirements Ingress protection: IP68, IP69 with conduit sealing NVN3 Temperature range with FG04: 40°C to +105°C Temperature range with FG04/01: 25°C to +70°C If the application temperature is above 70°C we rec. to use an additional internal conduit support sleeve (BES) Content of delivery: Flange part, fixation clamps (incl. 2 screws), conduit seal (NVN3), flange seal (FGO4 or FGO4/01)
PMAGRIP THREADED CONNECTORS - TYPE GG & GI
125
-- PMAGRIP threaded connectors Type GG & GI
-- Type GG - Connector straight with locking clamps, metric/PG thread
Order no. black
Order no. grey
GG
BGG-M6356
SGG-M6356
BGG-P3656
SGG-P3656
Thread M63 x 1.5
PG 36
Fits to conduit size
NW Metric
Inch
56
68
2
56
68
2
Thread length
(mm)
18.0
18.0
Outside Ø
(mm)
98.0
98.0
Overall length
(mm)
57.5
57.3
Ingress protection: IP50 without conduit seal ring (IP65 with conduit seal ring) Content of delivery: Threaded part, fixation clamps (incl. 2 screws), conduit seal ring (optional for IP65)
-- Type GI - Connector straight with locking clamps, metric female thread
Order no. black
Order no. grey
GI
BGI-M7556
SGI-M7556
Thread M75 x 1.5
Fits to conduit size
NW Metric
Inch
56
68
2
Thread length
(mm)
15.0
Outside Ø
(mm)
98.0
Overall length
(mm)
53.3
Ingress protection: IP50 without conduit seal ring (IP65 with conduit seal ring) Content of delivery: Threaded part, fixation clamps (incl. 2 screws), conduit seal ring (optional for IP65)
126
PMA FLEXIBLE CABLE PROTECTION SYSTEMS FOR APPLICATIONS WITH HIGH REQUIREMENTS
-- Tube clamps, conduit seal rings, large size accessories Type GH & SGS
-- Type GH - Tube clamp, one-piece
Order no. black
GH
BGH-56
BGH-70
BGH-95
Order no. grey SGH-56 SGH-70 SGH-95
Fits to conduit size
NW
Metric
Inch
56
68
2
70
80
2-1/2
95
106
4
Width (mm)
26.0 30.0 30.0
Fixing screw 2 x M8 2 x M8 2 x M8
For general machine and installation applications Integrated rib provides axial strain relief Allows turning of the conduit thus avoiding torsion stresses Pre-fixation on the conduit possible Allows solid fixation with 2 screws For other sizes of BGH tube clamps please see page 112 PA 6
-- Type SGS - Tube clamp
Order no.
SGS
SGS-36
SGS-48
SGS-56
SGS-70
SGS-95
SGS-125
For fixation of static conduits Galvanized steel Elastomer profile (EPDM) free from halogens Smooth connection to PMAconduits Good resistance to ozone and ageing Temperature range: 40°C to +120°C
Fits to conduit size
Width x Height x Depth
Fixing
NW
Metric
Inch
(mm)
screw
36
40
1-1/4
80.0 x 48.0 x 19.0
2 x M6
48
50
1-1/2
94.0 x 58.0 x 19.0
2 x M6
56
68
2
118.0 x 72.0 x 24.0
2 x M8
70
80
2-1/2
130.0 x 85.0 x 24.0
2 x M8
95
106
4
156.0 x 110.0 x 24.0
2 x M8
125
146
5
200.0 x 152.0 x 24.0
2 x M8
TUBE CLAMPS, CONDUIT SEAL RINGS, LARGE SIZE ACCESSORIES - TYPE SGO3
127
-- Tube clamps, conduit seal rings, large size accessories Type SGO3
-- Type SGO3 - Conduit seal ring
SGO3
Order no. SGO3-56 SGO3-70 SGO3-95 SGO3-125
Fits to conduit size
NW
Metric
Inch
56
68
2
70
80
2-1/2
95
106
4
125
146
5
Inside Ø (mm) 49.5 61.5 86.0 122.0
Outside Ø (mm) 61.0 74.0 102.0 142.0
Thickness (mm) 1.5 1.5 1.5 2.0
Used at the conduit end for sealing between the PMAGRIP flanges GG/GO/GI and PMA JUMBO conduits Nitrile rubber NBR Temperature range: 40°C to +105°C
128
PMA FLEXIBLE CABLE PROTECTION SYSTEMS FOR APPLICATIONS WITH HIGH REQUIREMENTS
-- PMA Divisible System General technical details
One-piece Divisible System. The ideal solution for repairs, retrofit and pre-loomed applications. Equally all PMA conduits are compatible.
PMA offers a divisible system based upon PMA standard nominal widths.
This allows free combination of the PACOF and PPCOF divisible conduits with PMAFIX Pro, PMAFIX and PMA Smart Line fittings. Using the PMA Divisible System Fittings repairs can be easily made to existing installations without disconnecting cables. Equally all PMA conduits also slit are compatible with the fittings of the divisible system.
Material · Conduits made from spec. formulated PA 6
and Polypropylene · Fittings made from specially formulated
polyamide 6 · Colour: Black · Free from halogens, REACH + RoHS compliant · Temperature range:
Conduits: 40°C to +160°C Connectors: 40°C to min. +105°C
Characteristics · Fast installation · Conduit can be installed in fitting prior to
closing the fitting · High impact resistance · High conduit pull-out strength · Fits conduit profiles fine (T) and coarse (G)
PMA DIVISIBLE SYSTEM - GENER AL TECHNICAL DETAILS
129
130
PMA FLEXIBLE CABLE PROTECTION SYSTEMS FOR APPLICATIONS WITH HIGH REQUIREMENTS
-- Conduits Type PACOF & PPCOF
-- Type PACOF - Flexible, divisible
PACOF
PACOF Index min.
Ductility Fatigue reversed bending Compression resistance Low temperature performance Weathering resistance
max.
Order no. black
Fits to conduit size
NW
Metric
Inch
PACOF-07B.50
07
10
1/4
PACOF-10B.50
10
12
5/16
PACOF-12B.50
12
16
3/8
PACOF-17B.50
17
20
1/2
PACOF-23B.50
23
25
3/4
PACOF-29B.50
29
32
1
PACOF-36B.30
36
40
1-1/4
PACOF-48B.30
48
50
1-1/2
PACOF-70B.10
70
80
2-1/2
For machine building and plant construction For trouble-free retrofitting and applicable for repairs Specially modified polyamide 6 Can be opened and closed again in longitudinal direction any time Good ductility Good compression resistance Free from halogens, REACH + RoHS compliant Temperature range: 40°C to +105°C, short-term to +160°C IP50
Inside Ø (mm) 5.6 8.5 11.0 15.5 22.1 27.2 32.0 43.9 62.0
Outside Ø (mm) 10.0 12.8 15.6 21.1 28.4 34.5 42.4 54.1 79.0
Stat. radius
(mm) 30 33 35 45 70
120 145 150 190
PU meter
50 50 50 50 50 50 30 30 10
PPCOF
PPCOF Index min.
Ductility Fatigue reversed bending Compression resistance Low temperature performance Weathering resistance
max.
Order no. black
Fits to conduit size
NW
Metric
Inch
PPCOF-07B.50
07
10
1/4
PPCOF-10B.50
10
12
5/16
PPCOF-12B.50
12
16
3/8
PPCOF-17B.50
17
20
1/2
PPCOF-23B.50
23
25
3/4
PPCOF-29B.50
29
32
1
PPCOF-36B.30
36
40
1-1/4
PPCOF-48B.30
48
50
1-1/2
PPCOF-70B.10
70
80
2-1/2
For machine building and plant construction For trouble-free retrofitting and applicable for repairs Specially modified polypropylene PP Can be opened and closed again in longitudinal direction any time Good reversed bending resistance Temperature range: 20°C to +105°C, short-term to +150°C IP50
Inside Ø (mm) 5.6 8.5 11.0 15.1 22.1 26.6 31.8 43.9 60.5
Outside Ø (mm) 10.0 12.8 15.6 21.1 28.4 34.5 42.4 54.1 78.0
Stat. radius
(mm) 25 28 35 45 60
100 120 140 200
PU meter
50 50 50 50 50 50 30 30 10
CONNECTORS, LOCK NUTS - TYPE LNO & LN
131
-- Connectors, lock nuts Type LNO & LN
-- Type LNO - Divisible connector straight, one-piece, metric thread
Order no. black
Thread
metric
NW
LNO
BLNO-M160
M16 x 1.5
10
BLNO-M162
M16 x 1.5
12
BLNO-M202
M20 x 1.5
12
BLNO-M207
M20 x 1.5
17
BLNO-M257
M25 x 1.5
17
BLNO-M253
M25 x 1.5
23
BLNO-M323
M32 x 1.5
23
BLNO-M329
M32 x 1.5
29
BLNO-M409
M40 x 1.5
29
BLNO-M406
M40 x 1.5
36
BLNO-M508
M50 x 1.5
48
Divisible connector straight, one-piece, metric thread Compatible with PMA standard, slit and divisible conduits with standard nominal widths In industries, plant construction, machine building as well as in house and electrical installations For retrofit installation or repair IP54 Special: Push-in installation of conduit into pre-installed fitting also possible
Fits to conduit size
Metric
Inch
12
5/16
16
3/8
16
3/8
20
1/2
20
1/2
25
3/4
25
3/4
32
1
32
1
40
1-1/4
50
1-1/2
Thread length
(mm) 13.0 13.0 13.0 13.0 14.0 14.0 17.0 17.0 21.0 22.0 22.0
Overall length
(mm) 37.5 39.5 39.5 43.5 44.5 52.5 56.0 61.0 65.0 74.5 80.5
-- Type LN - Divisible lock nut, metric thread
Order no. black
LN
BLN-M16
BLN-M20
BLN-M25
BLN-M32
BLN-M40
BLN-M50
Compatible with divisible PMA connectors, type BLNO For retrofit installation or repair Temperature range: 40°C to +100°C, short-term: +130°C
Thread metric M16 x 1.5 M20 x 1.5 M25 x 1.5 M32 x 1.5 M40 x 1.5 M50 x 1.5
Fits with divisible connector
BLNO-M160
BLNO-M162
BLNO-M202
BLNO-M207
BLNO-M257
BLNO-M253
BLNO-M323
BLNO-M329
BLNO-M409
BLNO-M406
BLNO-M508
Wrench size
(mm) 22.0 26.0 32.0 41.0 50.0 60.0
Width (mm)
8.0 8.0 9.0 12.0 15.0 15.0
132
PMA FLEXIBLE CABLE PROTECTION SYSTEMS FOR APPLICATIONS WITH HIGH REQUIREMENTS
-- T, Y pieces, connection splice Type LTO & LYO
-- Type LTO - Divisible T piece, one-piece
LTO, patent
Order no. black, IP40 BLTO-070707 BLTO-101010 BLTO-121212 BLTO-171717 BLTO-232323 BLTO-292929
3x conduit sizes
NW
Metric
Inch
07
10
1/4
10
12
5/16
12
16
3/8
17
20
1/2
23
25
3/4
29
32
1
Compatible with PMA standard, slit and divisible conduits with standard nominal widths In industries, plant construction, machine building as well as in house and electrical installations For retrofit installation or repair IP40 Conduit can be installed in fitting prior to closing the fitting
-- Type LYO - Divisible Y piece, one-piece
Order no. black, IP40
LYO
BLYO-100707
BLYO-121010
BLYO-171212
BLYO-231717
BLYO-292917
1x conduit size
NW
Metric
Inch
10
12
5/16
12
16
3/8
17
20
1/2
23
25
3/4
17
20
1/2
2x conduit sizes
NW
Metric
Inch
07
10
1/4
10
12
5/16
12
16
3/8
17
20
1/2
29
32
1
Compatible with PMA standard, slit and divisible conduits with standard nominal widths In industries, plant construction, machine building as well as in house and electrical installations For retrofit installation or repair IP40 Conduit can be installed in fitting prior to closing the fitting
T, Y PIECES, CONNECTION SPLICE - T YPE LSGO
-- T, Y pieces, connection splice Type LSGO
-- Type LSGO - One-piece, divisible
LSGO
Order no. black, IP40 BLSGO-101010 BLSGO-121212 BLSGO-171717 BLSGO-232323
Fits to conduit size
NW
Inch
10
5/16
12
3/8
17
1/2
23
3/4
Overall length (mm) 36 36 38 39
133
Outer Ø (mm) 16 21 26 33
Compatible with PMA standard, slit and divisible conduits with standard nominal widths In industries, plant construction, machine building as well as in house and electrical installations For retrofit installation or repair Polyamide (Nylon) 66 IP40 rated
134
PMA FLEXIBLE CABLE PROTECTION SYSTEMS FOR APPLICATIONS WITH HIGH REQUIREMENTS
-- PMAJACK Plastic and metal braids General technical details
Bundling and abrasion protection. Polyamide, polyester and steel braids an alternative way to bundle and protect electrical cables.
Plastic braids manufactured from polyester and polyamide filaments the other alternative solution for protecting and bundling cables.
This PMA cable protection system provides simple bundling and abrasion protection for cables and wires.
Various braid types to fulfill different requirements complimented by a range of braid terminations for simple and clean assembly.
Material · Braids made from polyamide 6.6 or polyester · Terminations made from PA 6, aluminium or brass · Free from halogens, REACH + RoHS compliant
Characteristics · Flammability of braids:
polyamide 6.6 UL 94 V2, polyester UL 94 V0 · Braid design: Following DIN 65 164 part 1+2 · EN 45545-2 HL3
PMA JACK PL ASTIC AND METAL BR AIDS - GENER AL TECHNICAL DETAILS
135
136
PMA FLEXIBLE CABLE PROTECTION SYSTEMS FOR APPLICATIONS WITH HIGH REQUIREMENTS
-- Plastic braided hoses Type F.66 & C.66
-- Type F.66 - Braided hose F.66
Approvals
Order no. black F.66.04SW F.66.06SW F.66.08SW F.66.10SW F.66.12SW F.66.16SW F.66.20SW F.66.25SW F.66.30SW F.66.40SW F.66.50SW F.66.70SW
Order no. grey F.66.04GR F.66.06GR F.66.08GR F.66.10GR F.66.12GR F.66.16GR F.66.20GR F.66.25GR F.66.30GR F.66.40GR F.66.50GR F.66.70GR
Weight Operative Operative
nom. per
range
range
Fits to
100 m
min. Ø
max. Ø
NW
termination
(kg)
(mm)
(mm)
4
0.4
3.0
7.0
6
SRER-06
0.6
5.0
8.0
8
SRER-06
0.8
7.0
10.0
10
SRER-06
1.0
9.0
13.0
12
SRER-06
1.4
11.0
16.0
16
SRER-16
1.7
15.0
21.0
20
SRER-16
2.0
20.0
26.0
25 SRER-21/SRER-29
2.4
24.0
31.0
30 SRER-21/SRER-29
3.5
28.0
38.0
40
SRER-29
4.2
38.0
49.0
50 SREV-40/SRER-50
5.1
48.0
65.0
70 SREV-40/SRER-50
4.9
48.0
85.0
Monofile Ø: 0.28mm for increased abrasion properties Coverage: >90% Polyamide 6.6 Specifications: DIN 5510 (S4/SR2/ST2), UL-File E 125 619, EN45545-2 HL3 Temperature range: 55°C to +135°C, short-term to +160°C
-- Type C.66 - Braided hose
C.66
Order no. black C.66.10SW C.66.12SW C.66.16SW C.66.20SW C.66.25SW C.66.30SW C.66.40SW C.66.45SW
Monofile Ø: 0.28mm for increased abrasion properties Coverage: >75% Polyamide 6.6 Specifications: DIN 5510 (S4/SR2/ST2), EN45545-2 HL3 Temperature range: 55°C to +135°C, short-term to +160°C
Order no. grey C.66.10GR C.66.12GR C.66.16GR C.66.20GR C.66.25GR C.66.30GR C.66.40GR
Weight Operative Operative
nom. per
range
range
Fits to
100 m
min. Ø
max. Ø
NW
termination
(kg)
(mm)
(mm)
10
SRER-06
0.7
8.0
14.0
12 SRER-06/SRER-16
0.9
9.0
18.0
16 SRER-06/SRER-16
1.2
11.0
22.0
20 SRER-16/SRER-21
1.4
14.0
26.0
25 SRER-16/SRER-21
1.4
18.0
28.0
30 SRER-21/SRER-29
2.5
25.0
43.0
40
SRER-29
2.5
30.0
52.0
45 SREV-40/SRER-50
4.0
40.0
73.0
PL A STIC BR AIDED HOSES - T YPE L.66 & F.PX
137
-- Plastic braided hoses Type L.66 & F.PX
-- Type L.66 - Braided hose
Order no. black
Order no. grey
L.66
L.66.04SW
L.66.04GR
L.66.08SW
L.66.08GR
L.66.10SW
L.66.10GR
L.66.16SW
L.66.16GR
L.66.20SW
L.66.20GR
L.66.25SW
L.66.25GR
L.66.30SW
L.66.30GR
L.66.40SW
L.66.40GR
L.66.50SW
L.66.50GR
Monofile Ø: 0.25mm Coverage: >65% Polyamide 6.6 Specifications: DIN 5510 (S4/SR2/ST2), NF F 16-101/102 (I3/F2), EN45545-2 HL3 Temperature range: 55°C to +135°C, short-term to +160°C
Weight Operative Operative
nom. per
range
range
Fits to
100 m
min. Ø
max. Ø
NW
termination
(kg)
(mm)
(mm)
04
0.4
4.0
5.0
08
SRER-06
0.5
5.0
10.0
10
SRER-06
0.8
7.0
13.0
16
SRER-16
0.9
11.0
20.0
20
SRER-16
1.4
17.0
33.0
25
SRER-21/SRER-29
1.5
21.0
34.0
30
SRER-21/SRER-29
1.8
25.0
45.0
40
SRER-29
1.9
31.0
55.0
50
SREV-40/SRER-50
3.2
58.0
70.0
-- Type F.PX - Braided hose
Order no. grey
F.PX
F.PX.04GR
F.PX.06GR
F.PX.08GR
F.PX.10GR
F.PX.12GR
F.PX.16GR
F.PX.20GR
F.PX.25GR
F.PX.30GR
F.PX.40GR
Monofile Ø: 0.28mm for increased abrasion properties Coverage: >90% Polyester Specifications: DIN 5510 (S4/SR2/ST2), NF F 16-101/102 (I3/F2), EN45545-2 HL3 Temperature range: 50°C to +120°C, short-term to +150°C
Weight Operative Operative
nom. per
range
range
Fits to
100 m
min. Ø
max. Ø
NW
termination
(kg)
(mm)
(mm)
04
0.3
3.0
7.0
06
SRER-06
0.5
5.0
8.0
08
SRER-06
0.7
7.0
10.0
10
SRER-06
0.8
9.0
13.0
12
SRER-06
1.1
11.0
16.0
16
SRER-16
1.3
15.0
21.0
20
SRER-16/SRER-21
1.5
20.0
26.0
25
SRER-16/SRER-21
2.0
24.0
31.0
30
SRER-21/SRER-29
2.9
28.0
38.0
40
SREV-40
3.1
38.0
49.0
138
PMA FLEXIBLE CABLE PROTECTION SYSTEMS FOR APPLICATIONS WITH HIGH REQUIREMENTS
-- Plastic braided hoses Type L.PX & G.PX
-- Type L.PX - Braided hose
Weight nom. Operative range
Order no.
Order no.
Fits to
per 100m
min. Ø
black
grey
NW
termination
(kg)
(mm)
L.PX
L.PX.04SW
L.PX.04GR
04
0.4
3.0
L.PX.08SW
L.PX.08GR
08
SRER-06
0.5
5.0
L.PX.10SW
L.PX.10GR
10
SRER-06
0.7
7.0
L.PX.16SW
L.PX.16GR
16
SRER-16
0.8
11.0
L.PX.20SW
L.PX.20GR
20
SRER-16
1.2
19.0
L.PX.25SW
L.PX.25GR
25 SRER-21/SRER-29
1.4
21.0
L.PX.30SW
L.PX.30GR
30 SRER-21/SRER-29
1.7
25.0
L.PX.40SW
L.PX.40GR
40
SRER-29
1.7
31.0
L.PX.50SW
L.PX.50GR
50 SREV-40/SRER-50
2.7
40.0
Monofile Ø: 0.22mm. Coverage: >65%. Polyester Specifications: DIN 5510 (S4/SR2/ST2), NF F 16-101/102 (I1/F2), EN45545-2 HL3. Temperature range: 50°C to +120°C, short-term to +150°C
Operative range max. Ø
(mm) 8.0
10.0 14.0 20.0 28.0 34.0 40.0 55.0 68.0
-- Type G.PX - Braided hose
Order no. black
Packing unit
NW
PU/m
G.PX
G.PX.05SW
05
25
G.PX.08SW
08
25
G.PX.10SW
10
25
G.PX.13SW
13
25
G.PX.16SW
16
25
G.PX.19SW
19
25
G.PX.25SW
25
25
G.PX.29SW
29
25
G.PX.32SW
32
25
G.PX.38SW
38
25
G.PX.50SW
50
25
Open, self winding construction. For retrofit installation. Overlapping: 90° (+40°/25°). Polyester Specifications: DIN 5510 (S4/SR2/ST2), NF F 16-101/102 (I3/F2), EN45545-2 HL3. Temperature range: 55°C to +150°C
Weight nom. per 100m (kg)
1.6 2.0 2.3 2.5 3.4 3.8 4.8 5.3 6.1 8.3 8.7
Recommended range
min. Ø (mm)
max. Ø (mm)
4.5
5.5
7.0
9.0
9.0
11.0
11.5
13.0
14.5
17.5
17.0
21.0
22.5
27.5
26.0
32.0
29.0
35.0
34.0
42.0
45.0
55.0
-- Type B.PX - Braided hose
B.PX
Order no. black B.PX.12SW B.PX.15SW B.PX.30SW
Packing
Weight Recommended range
Construction
unit nom. per
min. Ø
max. Ø
NW numb. x Ø mm
PU/m 100m (kg)
(mm)
(mm)
12
96 x 0.20
100
0.5
6.0
18.0
15
144 x 0.20
100
0.7
10.0
28.0
30
192 x 0.20
100
0.9
20.0
42.0
Coverage: > 50%. Excellent abrasion properties. Lightweight structure. High flexibility. Excellent flame-retardant properties. Polyester Specifications: EN 45545-2 HL3 (R22 & R23). UL94 V0. Temperature range: 50°C to +120°C continuous, +150°C short-term
BR AID TERMINATIONS, CONNECTORS - T YPE RER/REV
139
-- Braid terminations, connectors Type RER/REV
-- Type RER/REV - Braid termination
RER/REV
Order no. grey SRER-06 (x) SRER-16 (x) SRER-21 (x) SRER-29 (z) SRER-50 (z) SREV-40 (y)
AI
AA
BI
BA
H
L
G
S
C
NW
(mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm)
06
6.5
13
13
21
33
13
6
16
16
24
15
25
39
15
7
21
22
32
20
29
43
15
7
29
30
40
18
29
43
39
7
50
50
61
18
29
43
50
7
40
47
58
34
44
20
24
44
38
10
For termination and fixation of plastic braided hoses Suitable for: F.66, C.66, L.66, F.PX, L.PX braids Polyamide 6 For exact braid and termination fitting configuration please refer to PMAJACK data sheets
RER x = with one mounting hole
REV y = with two mounting holes
(x)
(y)
RER z = with three mounting holes
(z)
140
PMA FLEXIBLE CABLE PROTECTION SYSTEMS FOR APPLICATIONS WITH HIGH REQUIREMENTS
-- Braid terminations, connectors Type BREIR & MREIR
-- Type BREIR - Connector for plastic braids, female thread
BREIR
Order no. black BREIR-U2916
BREIR-U3516
Thread
size
NW
UNEF
Fits to PMAJACK
Ø
Ø
Ø
C.66 L.66 ID D1
B
G
g
H D2
F.66 F.PX L.PX (mm) (mm) (mm) (mm) (mm) (mm) (mm)
16 13/1618 1220 1225 1625 36.2 20.5 10.5 36.5
9 15 25
16 17/1618 1220 1225 1625 42.5 20.5 11.5 37.5
9 15 25
For round connectors Suitable for: F.66, C.66, L.66, F.PX, L.PX braids Polyamide 6
BREIR
-- Type MREIR - Connector for plastic braids, female thread
MREIR
Order no. grey
MREIR-U3529
Thread
size
NW
UNEF
29 17/1618
F.66 2540
Fits to PMAJACK
C.66
F.PX
30+40 2540
g (mm)
29
Ø D1 (mm)
40.0
Ø D2 (mm)
40.5
L (mm)
37.5
Ø ID (mm)
30.0
For round connectors Suitable for: F.66, C.66, L.66, F.PX, L.PX braids Black anodized aluminium
MREIR
STAINLESS STEEL BR AIDS, TOOLS - T YPE F. 304, PMA-TIE-TOOL & HSG
141
-- Stainless steel braids, tools Type F.304, PMA-Tie-tool & HSG
-- Type F.304 - Stainless steel braided hose
F.304
Order no. F.304.10 F.304.12 F.304.17 F.304.23 F.304.29 F.304.36 F.304.48
Surface coverage: >90% Temperature range: 70°C to +1000°C
-- Type PMA-Tie-tool - Clamping tool for metal cable ties
PMA-Tie-tool
Order no. PMA-Tie-tool
Braid specification
24 x 7 x 0.3 24 x 8 x 0.3 24 x 12 x 0.3 36 x 9 x 0.3 36 x 11 x 0.3 36 x 9 x 0.4 48 x 10 x 0.4
Fits to conduit size NW 10 12 17 23 29 36 48
Operative range min. Ø
(mm) 10.0 10.0 15.0 21.0 25.0 32.0 55.0
Operative range max. Ø
(mm) 18.0 24.0 28.0 34.0 40.0 47.0 80.0
For PMA-Tie-tool width (mm)
6.35
Handtool, self locking for speedy application Allows easy strapping of metal cable ties "Band-It" For long lasting fixation without deformation Stainless steel Colour: Black
-- Type HSG - Hot cutting tool
HSG
Order no. HSG-00
For quick and easy cutting of plastic braidings Smallest hot cutting tool for permanent use With fixed edge (working area 30mm) Voltage: 230 V50 Hz (115 V60 Hz) Performance: 40W Length of the connecting lead: 2m
Order no. Spare cutting tape
HSG-00-SB
142
PMA FLEXIBLE CABLE PROTECTION SYSTEMS FOR APPLICATIONS WITH HIGH REQUIREMENTS
-- Connectors, adapters Type VEMD
-- Type VEMD - Connector for overbraided conduits, metric/PG metal thread
VEMD
Order no. with jubilee clip MVEMD-M406/01 MVEMD-M508/01 MVEMD-M6356/01
Thread metric 40 x 1.5 40 x 1.5 63 x 1.5
Nickel-plated aluminium IP66 up to IP68 on request
Order no. with jubilee clip
MVEMD-P4856/01
Thread PG
48
VEMD with metal cable tie "Band-It"
Fits to conduit size
NW
Metric
36
40
48
50
56
68
Fits to conduit size
NW
Metric
56
68
Outside Ø x Length (mm)
55.0 x 59.0 65.0 x 62.0 80.0 x 72.0
Outside Ø x Length (mm)
80.0 x 72.0
VEMD with jubilee clip
Content of delivery includes blue marked products.
CONNECTORS, ADAPTERS - TYPE VEMD-RER
-- Connectors, adapters Type VEMD-RER
-- Type VEMD-RER - Adapter for overbraided conduits
VEMD-RER
Order no. with Band-It* MVEMD-RER6
MVEMD-RER8
Order no. with jubilee clip MVEMD-RER6/01
143
Fits to conduit size
NW
Metric
36
40
48
50
Width x Height x Length (mm)
54.0 x 54.0 x 53.0
66.0 x 66.0 x 53.0
*Metal cable tie Nickel-plated aluminium IP66 on conduit side
VEMD-RER with metal cable tie "Band-It" VEMD-RER with jubilee clip
Content of delivery includes blue marked products.
144
PMA FLEXIBLE CABLE PROTECTION SYSTEMS FOR APPLICATIONS WITH HIGH REQUIREMENTS
-- Technical annex Introduction
Conforms with standards. Intensive research and testing is the reason PMA continues to set new standards and trends in cable protection.
PMA products conform to worldwide standards and regulations.
As a pioneer in the field of cable protection, we have always given high priority to our own testing facilities, and we have consciously introduced stringent in-house standards. This approach has enabled PMA to exercise a significant influence on the development of international standards. Standards committees with responsibility for cable systems regularly ask our company to provide advice or participate as an active member.
High quality product from AZ From basic items to high-tech products, all of our products meet the most stringent quality requirements.
Some of the outstanding are: · Resistance to temperature, weathering,
UV radiation and chemical agents · High system pull-out resistance · Excellent fire protection characteristics
(flammability, smoke density and toxicity) · Excellent system ingress protection up to IP68
and IP69 · Extremely long service life · Conformance to all major international product
standards
TECHNICAL ANNEX - TESTING METHODS IEC EN 61386
145
-- Technical annex Testing methods according to IEC EN01386 and PMA internal procedures
-- PMA DO is a PMA in-house test
-- IEC EN 61386 PMA DO 9.21-4425
Resistance to fatigue when exposed to continuous bending Both standards describe tests designed to evaluate conduit resistance to fatigue when exposed to continuous cycles of repetitive bending. The test procedure involves bending back and forth around a central pivotal point. Although the test procedure is the same for both standards there are differences in the test parameters and the classification of results. For a "pliable" classification according to IEC EN 61386-22 a conduit must withstand 3 cycles at the minimum declared operating temperature. For a "flexible" classification according to IEC EN 61386-23 a conduit must withstand 5000 cycles at the minimum declared operating temperature. PMA DO 9.21-4425 tests the conduit at 23°C and 50% r.h. but the test is not limited to a fixed number of cycles. It continues until the first signs of damage occur in order to find the actual performance limit.
-- PMA DO 9.21-4420
Resistance to fatigue when exposed to continuous bending This PMA internal standard describes a demanding test for conduit fatigue when exposed to continuous repetitive bending. The conduit is fixed at the top of the apparatus, it passes over and under two pulley wheels. A weight is suspended at the bottom end simulating the weight of cables within the conduit. The pulley wheels move up and down continuously bending the conduit twice through 180° over its entire length. The test is performed at 23°C and 50% r.h. and continues until the first signs of damage occur.
146
PMA FLEXIBLE CABLE PROTECTION SYSTEMS FOR APPLICATIONS WITH HIGH REQUIREMENTS
-- Technical annex Testing methods according to IEC EN01386 and PMA internal procedures
-- PMA DO is a PMA in-house test.
-- IEC EN 61386 PMA DO 9.21-4320
Compression strength Both standards describe a test designed to evaluate conduit resistance to compression forces. Excessive deformation of a conduit under compression could potentially cause damage to cables being protected within it. The force required to compress the conduit between two square plates to a specific % of its original diameter is measured. Relaxation over time and recovery after removal of the force are evaluated. The tests are performed at 23°C and 50% r.h. IEC EN 61386 uses two 50mm x 50mm plates and allows 25% deformation. PMA DO 9.21-4320 records results with 50mm x 50mm and 100mm x 100mm test plates and allows 20% deformation.
-- IEC EN 61386 PMA DO 9.21-4610
System security pull-out strength Both standards are designed to test the security of the connection between conduit and fitting. Two fittings with a piece of conduit between them are pulled apart with steadily increasing force. Extension of the conduit is recorded graphically against the force applied. The force required to pull the conduit out of the fitting is determined. The tests are performed at 23°C and 50% r.h.
-- IEC EN 61386 PMA DO 9.21-4330
Resistance to impact These standards describe tests to evaluate the resistance of conduits to high energy impacts. They can be performed on conduits at various temperatures. Weights of different mass are dropped from an adjustable height directly onto a conduit sample which has been conditioned at the specified temperature. The energy of impact can be calculated as mass x gravity x height. The geometry of the object falling onto the conduit is regulated. No breaks, cracks or excessive permanent deformation should be visible after the test.
TECHNICAL ANNEX - TESTING METHODS IEC EN 61386
147
-- Technical annex Testing methods according to IEC EN01386 and PMA internal procedures
-- PMA DO is a PMA in-house test.
-- PMA DO 9.21-4380
Flexibility at low temperature This standard describes a test procedure to evaluate the flexibility of conduits at low temperatures. The conduit under test is placed in a climatic chamber at the lowest specified operating temperature for four hours. It is then removed and immediately bent around a mandrel of diameter related to the outside diameter (OD) of the conduit. Four classifications are achievable based upon the smallest achievable bending radius without damage.
-- PMA DO 9.21-4360
Resistance to thermal ageing This standard describes a procedure designed to evaluate the thermal stability of a conduit and its resistance to thermal ageing. The conduit is exposed to a temperature significantly above the maximum recommended continuous operating temperature for 168 hours, 160°C (PA6) or 150°C (PA12). The Flexibility at Low Temperature procedure DO 9.21-4380 is performed both before and after the thermal ageing procedure. The results are compared to detect any change in material characteristics.
-- PMA DO 9.21-4430 IECEN 61386
Flammability tests PMA DO 9.21-4430 evaluates flammability characteristics using a defined flame from a standard burner. The time before ignition, fire propagation behaviour and extinguishing time after removal of the heat source are all factors in evaluating the flammability of conduits for a Self-Extinguishing Classification IEC 61386 uses the EN 60695-2-10 Glow wire test procedure to evaluate the flame Propagation behavior of conduits allocating the classifications. Non-flame propagating or flame propagating.
148
PMA FLEXIBLE CABLE PROTECTION SYSTEMS FOR APPLICATIONS WITH HIGH REQUIREMENTS
-- Technical annex Ingress protections according to IEC 60529
-- Ingress protection (IP) according to IEC 60529
Ingress protection (IP) A standard to classify product performance regarding ingress protection.
Different number different protection! For example, products classified as IPx8 are not automatically protected against jet water! Immersion tests for classifications IPx7 and IPx8 differ from the tests for protection against jet water for IPx6, IPx5, or IPx4. Therefore PMA cable protection systems are tested regarding different sealing requirements.
-- PMA Products
IPx4
Splash water from all directions
PMAFIX Pro
l
PMAFIX IP68+ WPS
l
PMAFIX IP68/
IP68GT
l
IPx5
Jet water at any angle
l
l
l
IPx6
Powerful jet water from any angle
l
l
l
IPx7
Submersion (1m, 30 min.)
l
l
l
IPx8
Submersion at time and pressure >IPx7
l
l
l
IPx9
High pressure (up to 100 bar, 80°C) water from any angle
l
l*
l*
*IEC 60529 can be fulfilled without WPS (Water impact protection ring). PMA recommends the use of the WPS ring for trouble free practical applications
PMAFIX IP66 l
l
l
l*
PMA Smart
Line l
l
l
l*
-- PMA products offer complete protection!
-- Tested to 100 bar
TECHNICAL ANNEX - INGRESS PROTECTIONS IEC 60529
149
-- Technical annex Ingress protections according to IEC 60529
-- Dust
Protection against contact and penetration of foreign objects Degree of protection (contact/foreign bodies)
No protection
Objects greater than 50mm Ø, accidental touch by hands
Objects greater than 12.5mm Ø, accidental touch by fingers
Objects greater than 2.5mm Ø, e.g. tools/wires
Objects greater than 1mm Ø, e.g. tools/wires
Protected against dust - limited ingress (no harmful deposits)
Totally protected against dust (dust-tight)
The second digit stands for protection
against water
IIIPPP 666 888
The first digit stands for protection against dust
IPIP 66 88
-- Water
Protection against fluids Degree of protection (water)
No protection
Protected against vertically falling drops of water
Protected against direct sprays of water 15° from vertical
Protected against sprays of water to 60° from vertical
Protected against water sprayed from all directions - limited ingress permitted Protected against low pressure jets of water from all directions - limited ingress permitted Protected against strong pressure jets of water, heavy seas - limited ingress permitted
Protection against the effects of immersion between 15cm - 1m
Protection against long periods of immersion under a quoted pressure, e.g. 2 bar at 24 hours IP69 Automotive standard DIN40050 and signifies resistance to high pressure jets of water (up to 80 bar) from any angle
150
PMA FLEXIBLE CABLE PROTECTION SYSTEMS FOR APPLICATIONS WITH HIGH REQUIREMENTS
-- Technical annex Table of thread dimensions
-- Metric fine thread - EN 60423
Metric 12 16 20 25 32 40 50 63
Pitch (mm)
1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5
Ø D1 (mm)
12 16 20 25 32 40 50 63
Ø D2 (mm) 10.16 14.16 18.16 23.16 30.16 38.16 48.16 61.16
-- PG thread - DIN 40430
Hole 0/+0.3
(mm) PG 12.0 07 16.0 09 20.0 11 25.0 13 32.0 16 40.0 21 50.0 29 63.0 36 48
Pitch (mm) 1.270 1.411 1.411 1.411 1.411 1.588 1.588 1.588 1.588
Ø D1 (mm)
12.5 15.2 18.6 20.4 22.5 28.3 37.0 47.0 59.3
Ø D2 (mm) 11.28 13.86 17.26 19.06 21.16 26.78 35.48 45.48 57.78
Hole (mm)
12.7 15.4 18.8 20.7 22.8 28.6 37.4 47.5 59.8
Pitch
Pitch
-- GAS pipe thread - DIN 259 Bl. 3, ISO 228/I
GAS 1/4 ½ ¾ 1 11/4 1½ 2
Pitch (mm) 1.337 1.337 1.814 1.814 2.309 2.309 2.309 2.309
Ø D1 (mm) 13.157 16.662 20.955 26.441 33.249 41.910 47.803 59.614
Ø D2 (mm) 11.445 14.950 18.631 24.117 30.291 38.952 44.845 56.656
-- American standard taper pipe thread - ANSI/ASME B1.20
Hole (mm)
13.4 17.0 21.3 26.8 33.7 42.4 48.3 60.2
NPT 1/4 ½ ¾ 1 11/4 1½ 2
Pitch (mm) 1.411 1.411 1.814 1.814 2.209 2.209 2.209 2.209
Ø D1 (mm) 13.716 17.145 21.336 26.670 33.401 42.164 48.260 60.325
Hole D2 (mm) 13.9 17.4 21.6 26.9 33.7 42.4 48.5 60.6
55°
Pitch
Ø D1 Ø D2
Pitch
Ø D1
Tapering 6.25%
TECHNICAL ANNEX - COMPARISON TABLE
-- Technical annex Comparison table
-- Conduit
Nominal width NW
Standard 07 10 10 12 12 17 17 23 23 29 29 36 36 48 48
Metric 10 12 12 16 16 20 20 25 25 32 32 40 40 50 50
-- Connector metric
Inside Ø nom. (mm) 6.2 9.6 9.6 12.0 12.0 16.2 16.2 22.6 22.6 29.0 29.0 36.5 36.5 47.5 47.5
Inside diameter mm (nom.) ID
Thread size M12 M12 M16 M16 M20 M20 M25 M25 M32 M32 M40 M40 M50 M50 M63
-- Conduit
Nominal width NW
Standard 07 10 12 17 23 29 36 48
Metric 10 12 16 20 25 32 40 50
-- Connector PG
Inside Ø nom. (mm) 6.2 9.6 12.0 16.2 22.6 29.0 36.5 47.5
Inside diameter mm (nom.) ID
Thread size PG07 PG09 PG11 PG13.5 PG16 PG21 PG29 PG36 PG42 PG48
151
Metal thread
5.7 9.6 9.7 13.5 13.5 18.3 18.4 24.2 25.4 31.4 32.6 39.5 41.5 51.4
Polyamide thread 8.0 8.0 11.0 11.0 13.0 14.6 19.0 19.0 24.0 26.0 32.0 32.0 39.0 42.0 53.0
Metal thread
9.5 12.5 14.5 16.5 22.0 30.0 40.0
49.5
Polyamide thread 8.0 10.0 13.0 14.5 17.5 22.5 30.5 37.5 46.0 50.0
ID ID
Inside diameter threads to inside diameter conduits.
NW ID
ID
152
PMA FLEXIBLE CABLE PROTECTION SYSTEMS FOR APPLICATIONS WITH HIGH REQUIREMENTS
-- Technical annex Tightening torques
-- Recommended tightening torques for PMA fittings - For threaded bore holes and with lock nuts
Thread M12 M16 M20 M25 M32 M40 M50 M63
Metal* [Nm] 4.0 4.0 6.0 8.0 10.0 15.0 15.0 15.0
Polyamide** [Nm] 1.5 3.0 4.0 6.0 8.0 9.0 10.0 10.0
* Thread combination: Metal + metal ** Thread combination: Metal + polyamide or polyamide + polyamide
Thread PG07 PG09 PG11 PG13.5 PG16 PG21 PG29 PG36 PG48
Metal* [Nm] 3.5 4.0 6.0 6.0 7.0 8.0 10.0 15.0 15.0
Polyamide [Nm] 1.5 1.5 2.0 2.5 4.0 5.0 9.0 15.0 15.0
-- Strain relief fittings - According to EN 50262
-- According to DIN VDE 0619
Thread M12 M16 M20 M25 M32 M40 M50 M63
Metal NVNZ-Mxxxx NKNZ-Mxxxx
[Nm] EN 5.0 5.0 7.5
10.0 15.0 20.0 20.0 20.0
Metal NVNZ-Mxxxx/P NKNZ-Mxxxx/P
[Nm] 6.0 8.0
10.0 10.0 15.0 20.0 20.0 20.0
Polyamide S/BVNZ-Mxxxx
[Nm] EN 0.9 3.0 4.0 7.5
10.0 10.0 10.0 10.0
Note: These values where gauged at standard climate (23°C/50% relative humidity)
Thread PG07 PG09 PG11 PG13.5 PG16 PG21 PG29 PG36 PG48
Metal NVNZ-Pxxxx
[Nm] 6.25 6.25 6.25 6.25
7.5 10.0 10.0 10.0 10.0
Metal NVNZ-Pxxxx/P
[Nm] 6.0 8.0
10.0 10.0 10.0 15.0 20.0 30.0 40.0
Polyamide S/BVNZ-Pxxxx
[Nm] 2.5
3.75 3.75 3.75
5.0 7.5 7.5 7.5 7.5
TECHNICAL ANNEX - APPLICATIONS ENGINEERING INFORMATION
153
-- Technical annex Applications engineering information
Fill factor, relevant guidelines The question of conduit capacity or fill factor arises in the use of cable protection systems. This describes the extent to which a conduit can or should be filled with cables and/or conductors based on the available cross-sectional area.
In all cases, PMA recommends that a conduit capacity of 70% not be exceeded. (Applicationspecific procedures and standards must also be considered.)
This ensures that operation is not unnecessarily impaired by increased friction between the individual conductors in dynamically moving systems. In addition, subsequent installation of additional conductors and/or cables is also possible if necessary.
Wiring installation: fixation PMA AG recommends that cable protection systems be fastened with a spacing of 300mm to 500mm between supports. This spacing can be varied depending on the application and location. This recommendation applies for all available dimensions. For larger diameters, the increased load due to the cables and conductors in the conduit is accounted for by adherence to the support spacing. PMA supplies suitable system supports for various strength requirements and applications.
European standard EN 50343:2003-5.15 "Railway applications Rolling stock Rules for installation of cabling" specifies the following spacing between supports for fastening conductors: Horizontal wiring: 300mm Vertical wiring: 500mm (Application specific guidelines and standards should also be considered.)
Fill factor max. 70% Fixation distances
154
PMA FLEXIBLE CABLE PROTECTION SYSTEMS FOR APPLICATIONS WITH HIGH REQUIREMENTS
-- Technical annex Chemical resistance
-- Chemical resistance comparison table
Resistance against Acetic acid (10%) Acetone Ammonia (30%) Benzine Brake fluid Caustic soda Ethyl alcohol (40%) Glycol Hydrochloric acid (10%) Methanol Methyl ethyl ketone Nitric acid (10%) Ozone Paint thinner Perchlorethylene Paraffin Phosphoric acid (10%) Sea water Soap solution Sodium chloride Sulphuric acid (10%) Toluene Trichlorethylene Turpentine Urine
Chemical formula
C2H4O2 C3H6O NH3 NaOH C2H6O
C2H6O2 HCL
CH4O C4H8O
HNO3 O3
C2Cl4
H3O4P
NaCI H2SO4
C7H8 C2HCl3
PA6, Polyamide 6 PA6.6, Polyamide 6.6
1 3 3 3 3 3 3 3 0 2 3 0 2 3 2 3 1 3 3 3 1 3 1 3 3
PA12, Polyamide 12 PA11, Polyamide 11
2 3 3 3 3 3 3 3 1 3 3 0 2 3 2 3 2 3 3 3 2 3 2 3 3
PP, Polypropylene PE, Polyethylene 3 3 3 2 3 3 3 3 3 3 3 2 2 1 2 1 3 3 3 3 3 1 0 0 3
PFA
TPU
PVDF
0
3
0
3
0
3
1
3
0
3
1
3
1
3
0
3
0
3
1
3
0
3
0
3
1
3
0
3
0
3
0
3
0
3
2
3
2
3
3
3
0
3
0
3
0
3
0
3
3
3
Resistance against oils and greases
Chemical
PA6, Polyamide 6
formula PA6.6, Polyamide 6.6
PA12, Polyamide 12 PA11, Polyamide 11
Cutting oils*
3
3
Diesel oil
3
3
ASTM Oil Nr. 3
3
3
Fuel oil
3
3
Hydraulic oils*
3
3
Mineral oils
3
3
Spark-erosion liquids
3
3
Skydrol
1
2
Transformer oils*
3
3
*Synthetic additives can affect the oil resistance of plastics. Please contact PMA for further information
PP, Polypropylene PE, Polyethylene 2 2 2 2 2 2 2 2 2
PFA
TPU
PVDF
1
3
2
3
1
3
1
3
1
3
3
3
1
3
0
3
1
3
Key: 3 = Excellent resistance/suitable for permanent contact 2 = Resistant/suitable for occasional contact 1 = Relatively resistant/suitable for short-term contact 0 = Not recommended
Important The chemical resistance of plastic products is also dependant on factors such as temperature, amount of time exposed to chemicals (e.g. occasional contact or immersed) as well as the concentration of the specific chemicals. The stated chemical resistances are valid for a temperature of 20°C. The chemical resistance table above serves only as a guide for the use of polyamide products in conjunction with the listed chemicals. Each specific application should be controlled for suitability by the end-user.
INDEX - PRODUCTS IN ALPHABETICAL ORDER
155
-- Index Products in alphabetical order
Part. no. 0709M 0907M 0911M 0913M 1107M 1109M 1109N 1113M 1116M 1121M 1307M 1309M 1309N 1311M 1311N 1316M 1321M 1607M 1609M 1609N 1611M 1611N 1613M 1613N 1621M 1629M 2111M 2113M 2113N 2116M 2116N 2129M 2916M 2921M 2921N 2936M 3621M 3629M 3629N 4229M 4236M 4248M 4836M 4842M 514-07 514-09 514-11 514-13 514-16 514-21 514-29
GID no. 7TA A 292550 R0 0 0 0 7TA A 292550 R0 0 01 7TA A 292550 R0 0 02 7TA A 292550 R0 0 03 7TA A 292550 R0 0 0 4 7TA A 292550 R0 0 05 7TA A 292550 R0 0 06 7TA A 292550 R0 0 07 7TA A 292550 R0 0 08 7TA A 292550 R0 0 0 9 7TA A 292550 R0 010 7TA A 292550 R0 011 7TA A 292550 R0 012 7TA A 292550 R0 013 7TA A 292550 R0 014 7TA A 292550 R0 015 7TA A 292550 R0 016 7TA A 292550 R0 017 7TA A 292550 R0 018 7TA A 292550 R0 019 7TA A 292550 R0 020 7TA A 292550 R0 021 7TA A 292550 R0 022 7TA A 292550 R0 023 7TA A 292550 R0 024 7TA A 292550 R0 025 7TA A 292550 R0 026 7TA A 292550 R0 027 7TA A 292550 R0 028 7TA A 292550 R0 029 7TA A 292550 R0 030 7TA A 292550 R0 031 7TA A 292550 R0 032 7TA A 292550 R0 033 7TA A 292550 R0 034 7TA A 292550 R0 035 7TA A 292550 R0 036 7TA A 292550 R0 037 7TA A 292550 R0 038 7TA A 292550 R0 039 7TA A 292550 R0 0 4 0 7TA A 292550 R0 0 41 7TA A 292550 R0 0 42 7TA A 292550 R0 0 43 7TA A 292690 R0 0 0 0 7TA A 292690 R0 0 01 7TA A 292690 R0 0 02 7TA A 292690 R0 0 03 7TA A 292690 R0 0 0 4 7TA A 292690 R0 0 05 7TA A 292690 R0 0 06
Page 106 106 106 106 106 106 105 106 106 106 106 106 105 106 105 106 106 106 106 105 106 105 106 105 106 106 106 106 105 106 105 106 106 106 105 106 106 106 105 106 106 106 106 106 107 107 107 107 107 107 107
Part. no. 514-36 514-48 514-M12 514-M16 514-M20 514-M25 514-M32 514-M40 514-M50 514-M63 AFN2-07GT.LOSE AFN2-10GT.LOSE AFN2-12GT.LOSE AFN2-17GT.LOSE AFN2-23GT.LOSE AFN2-29GT.LOSE AFN2-36GT.LOSE AFN2-48GT.LOSE B.PX.12SW B.PX.15SW B.PX.30SW BAVD-12/10GT BAVD-17/10GT BAVD-17/12GT BAVD-23/10GT BAVD-23/12GT BAVD-23/17GT BAVD-29/10GT BAVD-29/12GT BAVD-29/17GT BAVD-29/23GT BAVD-36/29GT BAVD-48/36GT BAVR-10/07 BAVR-12/10 BAVR-17/10 BAVR-17/12 BAVR-23/10 BAVR-23/12 BAVR-23/17 BAVR-29/10 BAVR-29/12 BAVR-29/17 BAVR-29/23 BAVR-36/29 BAVR-48/36 BCT-10 BCT-12 BCT-17 BCT-23 BCT-29
GID no. 7TA A 292690 R0 0 07 7TA A 292690 R0 0 08 7TA A 292690 R0 0 0 9 7TA A 292690 R0 010 7TA A 292690 R0 011 7TA A 292690 R0 012 7TA A 292690 R0 013 7TA A 292690 R0 014 7TA A 292690 R0 015 7TA A 292690 R0 016 7TA A 29270 0 R0 0 0 0 7TA A 29270 0 R0 0 01 7TA A 29270 0 R0 0 02 7TA A 29270 0 R0 0 03 7TA A 29270 0 R0 0 0 4 7TA A 29270 0 R0 0 05 7TA A 29270 0 R0 0 06 7TA A 29270 0 R0 0 07
7TA A 292580 R0 0 0 0 7TA A 292580 R0 0 01 7TA A 292580 R0 0 02 7TA A 292580 R0 0 03 7TA A 292580 R0 0 0 4 7TA A 292580 R0 0 05 7TA A 292580 R0 0 06 7TA A 292580 R0 0 07 7TA A 292580 R0 0 08 7TA A 292580 R0 0 0 9 7TA A 292580 R0 010 7TA A 292580 R0 011 7TA A 292580 R0 013 7TA A 292580 R0 014 7TA A 292580 R0 015 7TA A 292580 R0 016 7TA A 292580 R0 017 7TA A 292580 R0 018 7TA A 292580 R0 019 7TA A 292580 R0 020 7TA A 292580 R0 021 7TA A 292580 R0 022 7TA A 292580 R0 023 7TA A 292580 R0 024 7TA A 292580 R0 025 7TA A 29286 0 R0 0 45 7TA A 29286 0 R0 0 46 7TA A 29286 0 R0 0 47 7TA A 29286 0 R0 0 4 8 7TA A 29286 0 R0 0 49
Page 107 107 107 107 107 107 107 107 107 107 103 103 103 103 103 103 103 103 138 138 138 89 89 89 89 89 89 89 89 89 89 89 89 89 89 89 89 89 89 89 89 89 89 89 89 89 115 115 115 115 115
Part. no. BCT-36 BFH-07-0 BFH-10-0 BFH-12-0 BFH-17-0 BFH-23-0 BFH-29-0 BFH-36-0 BFH-48-0 BFHS-00 BFHS-PH BFHS-PH1 BFIL-P070 BFIL-P07M BFIL-P090 BFIL-P112 BFIL-P117 BFIL-P132 BFIL-P137 BFIL-P160 BFIL-P167 BFIL-P213 BFIL-P217 BFIL-P293 BFIL-P299 BFIL-P366 BFIL-P369 BFIL-P488 BGG-125 BGG-56 BGG-70 BGG-95 BGG-M6356 BGG-P3656 BGGV-56 BGGV-70 BGGV-95 BGH-23 BGH-29 BGH-36 BGH-48 BGH-56 BGH-70 BGH-95 BGI-M7556 BGL-07 BGL-10 BGL-12 BGL-17 BGL-23 BGL-29
GID no. 7TA A 29286 0 R0 050
Page 115
7TA A 29270 0 R0 0 0 9
111
7TA A 29270 0 R0 011
111
7TA A 29270 0 R0 012
111
7TA A 29270 0 R0 013
111
7TA A 29270 0 R0 015
111
7TA A 29270 0 R0 017
111
7TA A 29270 0 R0 018
111
7TA A 29270 0 R0 020
111
7TA A 29270 0 R0 022
111
7TA A 29270 0 R0 024
111
7TA A 29270 0 R0 025
111
7TA A 292610 R0 0 03
85
7TA A 292610 R0 0 0 4
85
7TA A 292610 R0 0 05
85
7TA A 292610 R0 0 06
85
7TA A 292610 R0 0 07
85
7TA A 292610 R0 0 08
85
7TA A 292610 R0 0 0 9
85
7TCA292000R0600
85
7TA A 292610 R0 010
85
7TA A 292610 R0 011
85
7TA A 292610 R0 012
85
7TCA292000R0601
85
7TA A 292610 R0 013
85
7TA A 292610 R0 014
85
7TCA292000R0602
85
7TA A 292610 R0 015
85
7TA A 29286 0 R0 0 0 0
123
7TA A 29286 0 R0 0 01
123
7TA A 29286 0 R0 0 02
123
7TA A 29286 0 R0 0 03
123
7TA A 29286 0 R0 0 0 4
125
7TA A 29286 0 R0 0 05
125
7TA A 29286 0 R0 0 06
124
7TA A 29286 0 R0 0 07
124
7TA A 29286 0 R0 0 08
124
7TA A 292720 R0 014
112
7TA A 292720 R0 015
112
7TA A 292720 R0 016
112
7TA A 292720 R0 017
112
7TAA292720R0018 112,126
7TAA292720R0019 112,126
7TAA292720R0020 112,126
7TA A 29286 0 R0 0 0 9
125
7TA A 292720 R0 021
112
7TA A 292720 R0 022
112
7TA A 292720 R0 023
112
7TA A 292720 R0 024
112
7TA A 292720 R0 025
112
7TA A 292720 R0 026
112
156
PMA FLEXIBLE CABLE PROTECTION SYSTEMS FOR APPLICATIONS WITH HIGH REQUIREMENTS
-- Index Products in alphabetical order
Part. no. BGN-S12T BGN-S17G BGN-S17T BGN-S23G BGN-S23T BGN-S29G BGN-S29T BGN-S36G BGN-S36T BGN-S48G BGN-S48T BGN-S70G BGO-56 BGO-70 BGO-95 BGOV-56 BGOV-70 BGOV-95 BGP-12/01 BGP-17 BGP-23 BGP-29 BGP-3x48 BGP-36 BGP-48 BGP-56G BGPS-12/01 BGPS-17 BGPS-23 BGPS-29 BGPS-36 BGPS-48 BGPS-56 BKIHG-U212 BKIHG-U217 BKIHG-U242 BKIHG-U243 BKIHG-U247 BKIHG-U292 BKIHG-U293 BKIHG-U297 BKIHG-U299 BKIHG-U353 BKIHG-U357 BKIHG-U359 BKIHG-U433 BKIHG-U439 BKIHG-U503 BKIHG-U506 BKIHG-U508 BKIHG-U509
GID no. 7TA A 292680 R0 0 0 0 7TA A 292680 R0 0 01 7TA A 292680 R0 0 02 7TA A 292680 R0 0 03 7TA A 292680 R0 0 0 4 7TA A 292680 R0 0 05 7TA A 292680 R0 0 06 7TA A 292680 R0 0 07 7TA A 292680 R0 0 08 7TA A 292680 R0 0 0 9 7TA A 292680 R0 010 7TA A 292680 R0 011 7TA A 29286 0 R0 010 7TA A 29286 0 R0 011 7TA A 29286 0 R0 012 7TA A 29286 0 R0 013 7TA A 29286 0 R0 014 7TA A 29286 0 R0 015 7TCA292000R6631 7TCA292000R6632 7TCA292000R6633 7TCA292000R6634 7TCA292000R8706 7TCA292000R6635 7TCA292000R6636 7TA A 29286 0 R0 026 7TCA292000R5539 7TA A 29286 0 R0 027 7TA A 29286 0 R0 028 7TA A 29286 0 R0 029 7TA A 29286 0 R0 030 7TA A 29286 0 R0 031 7TA A 29286 0 R0 032 7TA A 2924 0 0 R0 028 7TA A 2924 0 0 R0 029 7TA A 2924 0 0 R0 030 7TA A 2924 0 0 R0 031 7TA A 2924 0 0 R0 032 7TA A 2924 0 0 R0 033 7TA A 2924 0 0 R0 034 7TA A 2924 0 0 R0 035 7TA A 2924 0 0 R0 036 7TA A 2924 0 0 R0 037 7TA A 2924 0 0 R0 038 7TA A 2924 0 0 R0 039 7TA A 2924 0 0 R0 0 4 0 7TA A 2924 0 0 R0 0 41 7TA A 2924 0 0 R0 0 42 7TA A 2924 0 0 R0 0 43 7TA A 2924 0 0 R0 0 4 4 7TA A 2924 0 0 R0 0 45
Page 110 110 110 110 110 110 110 110 110 110 110 110 123 123 123 124 124 124 114 114 114 114 114 114 114 114 114 114 114 114 114 114 114 47 47 47 47 47 47 47 47 47 47 47 47 47 47 47 47 47 47
Part. no. BKIHG-U566 BKIHG-U568 BLN-M16 BLN-M20 BLN-M25 BLN-M32 BLN-M40 BLN-M50 BLNO-M160 BLNO-M162 BLNO-M202 BLNO-M207 BLNO-M253 BLNO-M257 BLNO-M323 BLNO-M329 BLNO-M406 BLNO-M409 BLNO-M508 BLSGO-101010 BLSGO-121212 BLSGO-171717 BLSGO-232323 BLTO-070707 BLTO-101010 BLTO-121212 BLTO-171717 BLTO-232323 BLTO-292929 BLYO-100707 BLYO-121010 BLYO-171212 BLYO-231717 BLYO-292917 BMN-07 BMN-09 BMN-11 BMN-13 BMN-16 BMN-21 BMN-29 BMN-36 BMN-48 BMN-M12 BMN-M16 BMN-M20 BMN-M25 BMN-M32 BMN-M40 BMN-M50 BMN-M63
GID no. 7TA A 2924 0 0 R0 0 46 7TA A 2924 0 0 R0 0 47 7TA A 29274 0 R0 0 0 0 7TA A 29274 0 R0 0 01 7TA A 29274 0 R0 0 02 7TA A 29274 0 R0 0 03 7TA A 29274 0 R0 0 0 4 7TA A 29274 0 R0 0 05 7TA A 29274 0 R0 0 06 7TA A 29274 0 R0 0 07 7TA A 29274 0 R0 0 08 7TA A 29274 0 R0 0 0 9 7TA A 29274 0 R0 010 7TA A 29274 0 R0 011 7TA A 29274 0 R0 012 7TA A 29274 0 R0 013 7TA A 29274 0 R0 014 7TA A 29274 0 R0 015 7TA A 29274 0 R0 016 7TCA292000R9460 7TCA292000R9461 7TCA292000R9462 7TCA292000R9463 7TCA292000R4700 7TCA292000R4701 7TCA292000R4702 7TCA292000R4703 7TCA292000R4704 7TCA292000R4705 7TCA292000R4706 7TCA292000R4707 7TCA292000R4708 7TCA292000R4709 7TCA292000R4710 7TA A 292670 R0 0 08 7TA A 292670 R0 0 0 9 7TA A 292670 R0 010 7TA A 292670 R0 011 7TA A 292670 R0 012 7TA A 292670 R0 013 7TA A 292670 R0 014 7TA A 292670 R0 015 7TA A 292670 R0 016 7TA A 292670 R0 020 7TA A 292670 R0 021 7TA A 292670 R0 022 7TA A 292670 R0 023 7TA A 292670 R0 024 7TA A 292670 R0 025 7TA A 292670 R0 026 7TA A 292670 R0 027
Page 47 47
131 131 131 131 131 131 131 131 131 131 131 131 131 131 131 131 131 133 133 133 133 132 132 132 132 132 132 132 132 132 132 132 108 108 108 108 108 108 108 108 108 108 108 108 108 108 108 108 108
Part. no. BREIR-U2916 BREIR-U3516 BSS-17 BSS-23 BSS-29 BSS-36 BSS-48 BSS-56G BSV-70G BVAD-M120GT BVAD-M160GT BVAD-M162GT BVAD-M202GT BVAD-M207GT BVAD-M253GT BVAD-M329GT BVAD-M406GT BVAD-M506GT BVAD-M508GT BVAD-M638GT BVAD-N022GT BVAD-N027GT BVAD-N043GT BVAD-N069GT BVAD-N076GT BVAD-N088GT BVAD-P090GT BVAD-P112GT BVAD-P132GT BVAD-P137GT BVAD-P167GT BVAD-P213GT BVAD-P299GT BVAD-P366GT BVAD-P488GT BVAV-M160 BVAV-M162 BVAV-M202 BVAV-M207 BVAV-M253 BVAV-M329 BVAV-M406 BVAV-M506 BVAV-M508 BVAV-M638 BVAV-N022 BVAV-N027 BVAV-N043 BVAV-N069 BVAV-N076 BVAV-N088
GID no. 7TA A 292920 R0 0 07 7TCA292000R0853 7TA A 292850 R0 013 7TA A 292850 R0 014 7TA A 292850 R0 015 7TA A 292850 R0 016 7TA A 292850 R0 017 7TA A 292850 R0 018 7TA A 292850 R0 019 7TA A 292150 R0 032 7TA A 292150 R0 033 7TA A 292150 R0 034 7TA A 292150 R0 035 7TA A 292150 R0 036 7TA A 292150 R0 037 7TA A 292150 R0 038 7TA A 292150 R0 039 7TA A 292150 R0 0 4 0 7TA A 292150 R0 0 41 7TA A 292150 R0 0 42 7TA A 292150 R0 0 43 7TA A 292150 R0 0 4 4 7TA A 292150 R0 0 45 7TA A 292150 R0 0 46 7TA A 292150 R0 0 47 7TA A 292150 R0 0 4 8 7TA A 292150 R0 0 49 7TA A 292150 R0 050 7TA A 292150 R0 051 7TA A 292150 R0 052 7TA A 292150 R0 053 7TA A 292150 R0 054 7TA A 292150 R0 055 7TA A 292150 R0 056 7TA A 292150 R0 057 7TA A 292150 R0 065 7TA A 292150 R0 066 7TA A 292150 R0 067 7TA A 292150 R0 068 7TA A 292150 R0 069 7TA A 292150 R0 070 7TA A 292150 R0 071 7TA A 292150 R0 072 7TA A 292150 R0 073 7TA A 292150 R0 074 7TA A 292150 R0 075 7TA A 292150 R0 076 7TA A 292150 R0 077 7TA A 292150 R0 078 7TA A 292150 R0 079 7TA A 292150 R0 080
Page 140 140 116 116 116 116 116 116 116 58 58 58 58 58 58 58 58 58 58 58 78 78 78 78 78 78 70 70 70 70 70 70 70 70 70 58 58 58 58 58 58 58 58 58 58 78 78 78 78 78 78
INDEX - PRODUCTS IN ALPHABETICAL ORDER
157
-- Index Products in alphabetical order
Part. no. BVAV-N098 BVAV-P090 BVAV-P112 BVAV-P132 BVAV-P137 BVAV-P167 BVAV-P213 BVAV-P299 BVAV-P366 BVAV-P488 BVBD-M207GT BVBD-M253GT BVBD-M257GT BVBD-M323GT BVBD-M329GT BVBD-M406GT BVBD-M409GT BVBD-M506GT BVBD-M508GT BVBD-M638GT BVBD-P167GT BVBD-P213GT BVBD-P299GT BVBD-P366GT BVBD-P488GT BVBV-M207 BVBV-M253 BVBV-M257 BVBV-M323 BVBV-M329 BVBV-M406 BVBV-M409 BVBV-M506 BVBV-M508 BVBV-M638 BVBV-P167 BVBV-P213 BVBV-P299 BVBV-P366 BVBV-P488 BVH-17-000 BVH-17-010 BVH-17-020 BVH-23-000 BVH-23-010 BVH-23-020 BVH-29-000 BVH-29-010 BVH-29-020 BVH-36-000 BVH-36-010
GID no. 7TA A 292150 R0 081 7TA A 292150 R0 082 7TA A 292150 R0 083 7TA A 292150 R0 08 4 7TA A 292150 R0 085 7TA A 292150 R0 086 7TA A 292150 R0 087 7TA A 292150 R0 088 7TA A 292150 R0 089 7TA A 292150 R0 0 90 7TA A 292150 R0 0 91 7TA A 292150 R0 0 92 7TA A 292150 R0 0 93 7TA A 292150 R0 0 94 7TA A 292150 R0 0 95 7TA A 292150 R0 0 96 7TA A 292150 R0 0 97 7TA A 292150 R0 0 98 7TA A 292150 R0 0 99 7TA A 292150 R010 0 7TA A 292150 R0101 7TA A 292150 R0102 7TA A 292150 R0103 7TA A 292150 R010 4 7TA A 292150 R0105 7TA A 292150 R0106 7TA A 292150 R0107 7TA A 292150 R0108 7TA A 292150 R010 9 7TA A 292150 R0110 7TA A 292150 R0111 7TA A 292150 R0112 7TA A 292150 R0113 7TA A 292150 R0114 7TA A 292150 R0115 7TA A 292150 R0116 7TA A 292150 R0117 7TA A 292150 R0118 7TA A 292150 R0119 7TA A 292150 R0120 7TA A 29270 0 R0 027 7TA A 29270 0 R0 028 7TA A 29270 0 R0 029 7TA A 29270 0 R0 030 7TA A 29270 0 R0 031 7TA A 29270 0 R0 032 7TA A 29270 0 R0 033 7TA A 29270 0 R0 034 7TA A 29270 0 R0 035 7TA A 29270 0 R0 036 7TA A 29270 0 R0 037
Page 78 70 70 70 70 70 70 70 70 70 59 59 59 59 59 59 59 59 59 59 71 71 71 71 71 59 59 59 59 59 59 59 59 59 59 71 71 71 71 71
110 110 110 110 110 110 110 110 110 110 110
Part. no. BVH-36-020 BVH-48-000 BVH-48-010 BVH-48-020 BVIDA-U150GT BVIDA-U152GT BVIDA-U15MGT BVIDA-U180GT BVIDA-U182GT BVIDA-U187GT BVIDA-U232GT BVIDA-U233GT BVIDA-U237GT BVIDA-U343GT BVIDA-U347GT BVIDA-U402GT BVIDA-U403GT BVIDA-U407GT BVIDB-U162GT BVIDB-U202GT BVIDB-U232GT BVIDB-U237GT BVIDB-U267GT BVIDB-U293GT BVIDB-U297GT BVIDB-U323GT BVIDB-U353GT BVIDB-U357GT BVIDB-U359GT BVIDG-U212GT BVIDG-U217GT BVIDG-U242GT BVIDG-U247GT BVIDG-U293GT BVIDG-U297GT BVIDG-U353GT BVIDG-U357GT BVIDG-U359GT BVIDG-U433GT BVIDG-U436GT BVIDG-U439GT BVIDG-U506GT BVIDG-U509GT BVIDG-U566GT BVIDG-U569GT BVID-M12MGT BVID-M160GT BVID-M162GT BVID-M207GT BVID-M253GT BVID-M329GT
GID no. 7TA A 29270 0 R0 038 7TA A 29270 0 R0 039 7TA A 29270 0 R0 0 4 0 7TA A 29270 0 R0 0 41 7TA A 292610 R0 025 7TA A 292610 R0 026 7TA A 292610 R0 027 7TA A 292610 R0 028 7TA A 292610 R0 029 7TA A 292610 R0 030 7TA A 292610 R0 031 7TA A 292610 R0 032 7TA A 292610 R0 033 7TA A 292610 R0 034 7TA A 292610 R0 035 7TA A 292610 R0 036 7TA A 292610 R0 037 7TA A 292610 R0 038 7TA A 292610 R0 039 7TA A 292610 R0 0 4 0 7TA A 292610 R0 0 41 7TA A 292610 R0 0 42 7TA A 292610 R0 0 43 7TA A 292610 R0 0 4 4 7TA A 292610 R0 0 45 7TA A 292610 R0 0 46 7TA A 292610 R0 0 47 7TA A 292610 R0 0 4 8 7TA A 292610 R0 0 49 7TA A 292610 R0 050 7TA A 292610 R0 051 7TA A 292610 R0 052 7TA A 292610 R0 053 7TA A 292610 R0 054 7TA A 292610 R0 055 7TA A 292610 R0 056 7TA A 292610 R0 057 7TA A 292610 R0 058 7TA A 292610 R0 059 7TA A 292610 R0 06 0 7TA A 292610 R0 061 7TA A 292610 R0 062 7TA A 292610 R0 063 7TA A 292610 R0 06 4 7TA A 292610 R0 065 7TA A 292610 R0 016 7TA A 292610 R0 017 7TA A 292610 R0 018 7TA A 292610 R0 019 7TA A 292610 R0 020 7TA A 292610 R0 021
Page 110 110 110 110 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 87 87 87 87 87 87 87 87 87 87 87 87 87 87 87 87 83 83 83 83 83 83
Part. no. BVID-M406GT BVID-M508GT BVID-M638GT BVIR A - U150 BVIR A - U152 BVIR A - U15M BVIR A - U180 BVIR A - U182 BVIR A - U187 BVIRA-U232 BVIRA-U233 BVIRA-U237 BVIRA-U343 BVIR A - U347 BVIRA-U402 BVIRA-U403 BVIRA-U407 BVIRB-U162 BVIRB-U202 BVIRB-U232 BVIRB-U237 BVIRB-U267 BVIRB-U293 BVIRB-U297 BVIRB-U323 BVIRB-U353 BVIRB-U357 BVIRB-U359 BVIR-M160 BVIR-M162 BVIR-M202 BVIR-M207 BVIR-M253 BVIR-M257 BVIR-M329 BVIR-M406 BVIR-M508 BVIR-M638 BVIR-P070 BVIR-P090 BVIR-P112 BVIR-P167 BVIRS-U162 BVIRS-U202 BVIRS-U237 BVIRS-U267 BVIRS-U293 BVIRS-U323 BVIRS-U359 BVIVG-U152 BVIVG-U187
GID no. 7TA A 292610 R0 022 7TA A 292610 R0 023 7TA A 292610 R0 024 7TA A 292610 R0 080 7TA A 292610 R0 081 7TA A 292610 R0 082 7TA A 292610 R0 083 7TA A 292610 R0 08 4 7TA A 292610 R0 085 7TA A 292610 R0 086 7TA A 292610 R0 087 7TA A 292610 R0 088 7TA A 292610 R0 089 7TA A 292610 R0 0 90 7TA A 292610 R0 0 91 7TA A 292610 R0 0 92 7TA A 292610 R0 0 93 7TA A 292610 R0 0 94 7TA A 292610 R0 0 95 7TA A 292610 R0 0 96 7TA A 292610 R0 0 97 7TA A 292610 R0 0 98 7TA A 292610 R0 0 99 7TA A 292610 R010 0 7TA A 292610 R0101 7TA A 292610 R0102 7TA A 292610 R0103 7TA A 292610 R010 4 7TA A 292610 R0 066 7TA A 292610 R0 067 7TA A 292610 R0 068 7TA A 292610 R0 069 7TA A 292610 R0 070 7TA A 292610 R0 071 7TA A 292610 R0 072 7TA A 292610 R0 073 7TA A 292610 R0 074 7TA A 292610 R0 075 7TA A 292610 R0 076 7TA A 292610 R0 077 7TA A 292610 R0 078 7TA A 292610 R0 079 7TCA292000R0041 7TCA292000R0042 7TCA292000R0043 7TCA292000R0044 7TCA292000R0045 7TCA292000R0046 7TCA292000R0047 7TA A 292610 R0105 7TA A 292610 R0106
Page 83 83 83 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 83 83 83 83 83 83 83 83 83 83 83 83 83 83 86 86 86 86 86 86 86 87 87
158
PMA FLEXIBLE CABLE PROTECTION SYSTEMS FOR APPLICATIONS WITH HIGH REQUIREMENTS
-- Index Products in alphabetical order
Part. no. BVIVG-U210 BVIVG-U212 BVIVG-U217 BVIVG-U242 BVIVG-U243 BVIVG-U247 BVIVG-U292 BVIVG-U293 BVIVG-U297 BVIVG-U299 BVIVG-U349 BVIVG-U352 BVIVG-U353 BVIVG-U356 BVIVG-U357 BVIVG-U359 BVIVG-U433 BVIVG-U436 BVIVG-U437 BVIVG-U439 BVIVG-U503 BVIVG-U506 BVIVG-U508 BVIVG-U509 BVIVG-U563 BVIVG-U566 BVIVG-U568 BVIVG-U569 BVIVG-U628 BVND-G000GT BVND-G00MGT BVND-G010GT BVND-G012GT BVND-G022GT BVND-G027GT BVND-G043GT BVND-G069GT BVND-G076GT BVND-G088GT BVND-G098GT BVND-M120GT BVND-M12MGT BVND-M160GT BVND-M162GT BVND-M200GT BVND-M202GT BVND-M203GT BVND-M207GT BVND-M253GT BVND-M257GT BVND-M323GT
GID no. 7TA A 292610 R0107 7TA A 292610 R0108 7TA A 292610 R010 9 7TA A 292610 R0110 7TA A 292610 R0111 7TA A 292610 R0112 7TA A 292610 R0113 7TA A 292610 R0114 7TA A 292610 R0115 7TA A 292610 R0116 7TCA292000R1035 7TA A 292610 R0169 7TA A 292610 R0117 7TA A 292610 R0118 7TA A 292610 R0119 7TA A 292610 R0120 7TA A 292610 R0121 7TA A 292610 R0122 7TA A 292610 R0123 7TA A 292610 R0124 7TA A 292610 R0125 7TA A 292610 R0126 7TA A 292610 R0127 7TA A 292610 R0128 7TA A 292610 R0129 7TA A 292610 R0130 7TA A 292610 R0131 7TA A 292610 R0132 7TCA292000R1039 7TA A 292150 R0127 7TA A 292150 R0128 7TA A 292150 R0129 7TA A 292150 R0130 7TA A 292150 R0131 7TA A 292150 R0132 7TA A 292150 R0133 7TA A 292150 R0134 7TA A 292150 R0135 7TA A 292150 R0136 7TA A 292150 R0137 7TA A 292150 R0138 7TA A 292150 R0139 7TA A 292150 R014 0 7TA A 292150 R0141 7TA A 292150 R0142 7TA A 292150 R014 4 7TA A 292150 R0146 7TA A 292150 R0147 7TA A 292150 R0149 7TA A 292150 R0150 7TA A 292150 R0152
Page 87 87 87 87 87 87 87 87 87 87 87 87 87 87 87 87 87 87 87 87 87 87 87 87 87 87 87 87 87 77 77 77 77 77 77 77 77 77 77 77 57 57 57 57 57 57 57 57 57 57 57
Part. no. BVND-M329GT BVND-M406GT BVND-M409GT BVND-M506GT BVND-M508GT BVND-M638GT BVND-N022GT BVND-N027GT BVND-N043GT BVND-N069GT BVND-N076GT BVND-N088GT BVND-N098GT BVND-P070GT-11 BVND-P070GT-8 BVND-P072GT-11 BVND-P072GT-8 BVND-P07MGT-11 BVND-P07MGT-8 BVND-P090GT-11 BVND-P090GT-8 BVND-P092GT-11 BVND-P092GT-8 BVND-P097GT-11 BVND-P097GT-8 BVND-P09MGT-11 BVND-P09MGT-8 BVND-P110GT-11 BVND-P110GT-8 BVND-P112GT-11 BVND-P112GT-8 BVND-P117GT-11 BVND-P117GT-8 BVND-P11MGT-11 BVND-P11MGT-8 BVND-P130GT-11 BVND-P130GT-8 BVND-P132GT-11 BVND-P132GT-8 BVND-P137GT-11 BVND-P137GT-8 BVND-P13MGT-11 BVND-P13MGT-8 BVND-P160GT-11 BVND-P160GT-8 BVND-P162GT-11 BVND-P163GT-11 BVND-P163GT-8 BVND-P167GT-11 BVND-P167GT-8 BVND-P213GT
GID no. 7TA A 292150 R0154 7TA A 292150 R0156 7TA A 292150 R0157 7TA A 292150 R0159 7TA A 292150 R016 0 7TA A 292150 R0161 7TA A 292150 R0162 7TA A 292150 R0163 7TA A 292150 R016 4 7TA A 292150 R0165 7TA A 292150 R0166 7TA A 292150 R0167 7TA A 292150 R0168 7TA A 292150 R0169 7TA A 292150 R0170 7TA A 292150 R0171 7TA A 292150 R0172 7TA A 292150 R0173 7TA A 292150 R0174 7TA A 292150 R0176 7TA A 292150 R0177 7TA A 292150 R0178 7TCA292000R1057 7TA A 292150 R0179 7TCA292000R5693 7TA A 292150 R0180 7TCA292000R1058 7TA A 292150 R0181 7TA A 292150 R0182 7TA A 292150 R0183 7TA A 292150 R018 4 7TA A 292150 R0185 7TCA292000R1060 7TA A 292150 R0186 7TCA292000R5694 7TA A 292150 R0187 7TCA292000R1061 7TA A 292150 R0188 7TCA292000R1062 7TA A 292150 R0189 7TCA292000R1064 7TA A 292150 R0190 7TCA292000R1065 7TA A 292150 R0191 7TCA292000R5695 7TA A 292150 R0192 7TA A 292150 R0193 7TCA292000R1066 7TA A 292150 R0194 7TA A 292150 R0195 7TA A 292150 R0196
Page 57 57 57 57 57 57 78 78 78 78 78 78 78 69 69 69 69 69 69 69 69 69 69 69 69 69 69 69 69 69 69 69 69 69 69 69 69 69 69 69 69 69 69 69 69 69 69 69 69 69 69
Part. no. BVND-P296GT BVND-P299GT BVND-P366GT BVND-P368GT BVND-P428GT BVND-P488GT BVNDZ-M160GT BVNDZ-M162GT BVNDZ-M207GT BVNDZ-M253GT BVNDZ-M329GT BVNDZ-M406GT BVNDZ-M508GT BVNDZ-M638GT BVNDZ-P090GT BVNDZ-P112GT BVNDZ-P132GT BVNDZ-P137GT BVNDZ-P163GT BVNDZ-P167GT BVNDZ-P213GT BVNDZ-P299GT BVNDZ-P366GT BVNDZ-P488GT BVNR-RE12 BVNR-RE12-24 BVNR-RE1317 BVNR-RE1317-28 BVNR-RE17 BVNR-RE17-28 BVNR-RE23 BVNR-RE23-32 BVNR-RE29 BVNR-RE29-44 BVNR-RE36 BVNR-RE36-50 BVNR-RE48 BVNR-RE48-65 BVNR-REM162 BVNR-REM162-24 BVNR-REM187 BVNR-REM187-28 BVNR-REM207 BVNR-REM207-28 BVNR-REM253 BVNR-REM253-32 BVNR-REM329 BVNR-REM329-44 BVNR-REM406 BVNR-REM406-50 BVNR-REM508
GID no. 7TA A 292150 R0197 7TA A 292150 R0198 7TA A 292150 R0199 7TA A 292150 R020 0 7TA A 292150 R0201 7TA A 292150 R0202 7TA A 292150 R020 4 7TA A 292150 R0205 7TA A 292150 R0206 7TA A 292150 R0207 7TA A 292150 R0208 7TA A 292150 R020 9 7TA A 292150 R0210 7TA A 292150 R0211 7TA A 292150 R0212 7TA A 292150 R0213 7TA A 292150 R0214 7TA A 292150 R0215 7TA A 292150 R0216 7TA A 292150 R0217 7TA A 292150 R0218 7TA A 292150 R0219 7TA A 292150 R0220 7TA A 292150 R0221 7TA A 292150 R0222 7TA A 292150 R0223 7TA A 292150 R0224 7TA A 292150 R0225 7TA A 292150 R0226 7TA A 292150 R0227 7TA A 292150 R0229 7TA A 292150 R0230 7TA A 292150 R0232 7TA A 292150 R0233 7TA A 292150 R0235 7TA A 292150 R0236 7TA A 292150 R0238 7TA A 292150 R0239 7TA A 292150 R024 0 7TA A 292150 R0241 7TA A 292150 R0242 7TA A 292150 R0243 7TA A 292150 R024 4 7TA A 292150 R0245 7TA A 292150 R0246 7TA A 292150 R0247 7TA A 292150 R024 8 7TA A 292150 R0249 7TA A 292150 R0250 7TA A 292150 R0251 7TA A 292150 R0252
Page 69 69 69 69 69 69 58 58 58 58 58 58 58 58 70 70 70 70 70 70 70 70 70 70 90 90 90 90 90 90 90 90 90 90 90 90 90 90 90 90 90 90 90 90 90 90 90 90 90 90 90
INDEX - PRODUCTS IN ALPHABETICAL ORDER
159
-- Index Products in alphabetical order
Part. no. BVNR-REM508-65 BVNV-G000 BVNV-G00M BVNV-G010 BVNV-G012 BVNV-G022 BVNV-G027 BVNV-G043 BVNV-G069 BVNV-G076 BVNV-G088 BVNV-G098 BVNV-M120 BVNV-M12M BVNV-M160 BVNV-M162 BVNV-M200 BVNV-M202 BVNV-M203 BVNV-M207 BVNV-M253 BVNV-M257 BVNV-M323 BVNV-M329 BVNV-M406 BVNV-M409 BVNV-M506 BVNV-M508 BVNV-M638 BVNV-N022 BVNV-N027 BVNV-N043 BVNV-N069 BVNV-N076 BVNV-N088 BVNV-N098 BVNV-P070 BVNV-P072 BVNV-P07M BVNV-P090 BVNV-P092 BVNV-P097 BVNV-P09M BVNV-P110 BVNV-P112 BVNV-P117 BVNV-P11M BVNV-P130 BVNV-P132 BVNV-P137 BVNV-P13M
GID no. 7TA A 292150 R0253 7TA A 292150 R0256 7TA A 292150 R0257 7TA A 292150 R0258 7TA A 292150 R0259 7TA A 292150 R026 0 7TA A 292150 R0261 7TA A 292150 R0262 7TA A 292150 R0263 7TA A 292150 R026 4 7TA A 292150 R0265 7TA A 292150 R0266 7TA A 292150 R0267 7TA A 292150 R0268 7TA A 292150 R0269 7TA A 292150 R0270 7TA A 292150 R0272 7TA A 292150 R0273 7TA A 292150 R0274 7TA A 292150 R0275 7TA A 292150 R0277 7TA A 292150 R0279 7TA A 292150 R0281 7TA A 292150 R0282 7TA A 292150 R0283 7TA A 292150 R028 4 7TA A 292150 R0285 7TA A 292150 R0286 7TA A 292150 R0287 7TA A 292150 R0289 7TA A 292150 R0290 7TA A 292150 R0291 7TA A 292150 R0292 7TA A 292150 R0293 7TA A 292150 R0294 7TA A 292150 R0295 7TA A 292150 R0296 7TCA292000R1118 7TA A 292150 R0297 7TA A 292150 R0298 7TA A 292150 R0299 7TA A 292150 R1288 7TA A 292150 R030 0 7TA A 292150 R0301 7TA A 292150 R0302 7TA A 292150 R0303 7TA A 292150 R030 4 7TA A 292150 R0305 7TA A 292150 R0306 7TA A 292150 R0307 7TA A 292150 R0308
Page 90 77 77 77 77 77 77 77 77 77 77 77 57 57 57 57 57 57 57 57 57 57 57 57 57 57 57 57 57 78 78 78 78 78 78 78 69 69 69 69 69 69 69 69 69 69 69 69 69 69 69
Part. no. BVNV-P162 BVNV-P163 BVNV-P167 BVNV-P213 BVNV-P296 BVNV-P299 BVNV-P366 BVNV-P368 BVNV-P428 BVNV-P488 BVNZ-M162S BVNZ-M207S BVNZ-M253S BVNZ-M329S BVNZ-M406S BVNZ-M508S BVNZ-M638S BVNZ-P090S BVNZ-P112S BVNZ-P132S BVNZ-P137S BVNZ-P163S BVNZ-P167S BVNZ-P213S BVNZ-P299S BVNZ-P366S BVNZ-P488S BVOD-P167GT BVOD-P213GT BVOD-P299GT BVOD-P366GT BVOD-P488GT BVOV-P167 BVOV-P213 BVOV-P299 BVOV-P366 BVOV-P488 BVSGD-1212GT BVSGD-1717GT BVSGD-2323GT BVSGD-2929GT BVSGD-3636GT BVSGD-4848GT BVSGR-1212 BVSGR-1717 BVSGR-2323 BVSGR-2929 BVSGR-3636 BVSGR-4848 BVTD-101010GT BVTD-121212GT
GID no. 7TA A 292150 R030 9 7TCA292000R1137 7TA A 292150 R0310 7TA A 292150 R0311 7TA A 292150 R0312 7TA A 292150 R0313 7TA A 292150 R0314 7TCA292000R1147 7TA A 292150 R0315 7TA A 292150 R0316 7TA A 292150 R0317 7TA A 292150 R0318 7TA A 292150 R0319 7TA A 292150 R0320 7TA A 292150 R0321 7TA A 292150 R0322 7TA A 292150 R0323 7TA A 292150 R0327 7TA A 292150 R0328 7TA A 292150 R0329 7TA A 292150 R0330 7TA A 292150 R0331 7TA A 292150 R0332 7TA A 292150 R0333 7TA A 292150 R0334 7TA A 292150 R0335 7TA A 292150 R0336 7TA A 292150 R0337 7TA A 292150 R0338 7TA A 292150 R0339 7TA A 292150 R034 0 7TA A 292150 R0341 7TA A 292150 R0342 7TA A 292150 R0343 7TA A 292150 R034 4 7TA A 292150 R0345 7TA A 292150 R0346 7TA A 29230 0 R0 0 0 0 7TA A 29230 0 R0 0 01 7TA A 29230 0 R0 0 02 7TA A 29230 0 R0 0 03 7TA A 29230 0 R0 0 0 4 7TA A 29230 0 R0 0 05 7TA A 29230 0 R0 0 06 7TA A 29230 0 R0 0 07 7TA A 29230 0 R0 0 08 7TA A 29230 0 R0 0 0 9 7TA A 29230 0 R0 010 7TA A 29230 0 R0 011 7TA A 292150 R1292 7TA A 292150 R1293
Page 69 69 69 69 69 69 69 69 69 69 58 58 58 58 58 58 58 70 70 70 70 70 70 70 70 70 70 83 83 83 83 83 83 83 83 83 83 90 90 90 90 90 90 90 90 90 90 90 90 88 88
Part. no. BVTD-171717GT BVTD-232323GT BVTD-292929GT BVTD-363636GT BVTD-484848GT BVTR-101010 BVTR-121212 BVTR-171717 BVTR-232323 BVTR-292929 BVTR-363636 BVTR-484848 BVWD-G000GT BVWD-G00MGT BVWD-G010GT BVWD-G012GT BVWD-G022GT BVWD-G027GT BVWD-G043GT BVWD-G069GT BVWD-G076GT BVWD-G088GT BVWD-G098GT BVWD-M120GT BVWD-M12MGT BVWD-M160GT BVWD-M162GT BVWD-M200GT BVWD-M202GT BVWD-M207GT BVWD-M253GT BVWD-M329GT BVWD-M406GT BVWD-M508GT BVWD-N022GT BVWD-N027GT BVWD-N043GT BVWD-N069GT BVWD-N076GT BVWD-N088GT BVWD-N098GT BVWD-P070GT-11 BVWD-P070GT-8 BVWD-P072GT-11 BVWD-P072GT-8 BVWD-P07MGT-11 BVWD-P07MGT-8 BVWD-P090GT-11 BVWD-P090GT-8 BVWD-P092GT-11 BVWD-P092GT-8
GID no. 7TA A 292150 R1294 7TA A 292150 R0347 7TA A 292150 R034 8 7TA A 292150 R0349 7TA A 292150 R0350 7TA A 292150 R0351 7TA A 292150 R0353 7TA A 292150 R0355 7TA A 292150 R0358 7TA A 292150 R0359 7TA A 292150 R0361 7TA A 292150 R0363 7TA A 292150 R036 4 7TA A 292150 R0365 7TA A 292150 R0366 7TA A 292150 R0367 7TA A 292150 R0368 7TA A 292150 R0369 7TA A 292150 R0370 7TA A 292150 R0371 7TA A 292150 R0372 7TA A 292150 R0373 7TA A 292150 R0374 7TA A 292150 R0375 7TA A 292150 R0376 7TA A 292150 R0377 7TA A 292150 R0378 7TA A 292150 R0379 7TA A 292150 R0380 7TA A 292150 R0381 7TA A 292150 R0382 7TA A 292150 R0383 7TA A 292150 R038 4 7TA A 292150 R0385 7TA A 292150 R0386 7TA A 292150 R0387 7TA A 292150 R0388 7TA A 292150 R0389 7TA A 292150 R0390 7TA A 292150 R0391 7TA A 292150 R0392 7TA A 292150 R0393 7TCA292000R1233 7TA A 292150 R0394 7TCA292000R5702 7TA A 292150 R0395 7TCA292000R5703 7TA A 292150 R0396 7TCA292000R1236 7TA A 292150 R0397 7TCA292000R5704
Page 88 88 88 88 88 88 88 88 88 88 88 88 77 77 77 77 77 77 77 77 77 77 77 59 59 59 59 59 59 59 59 59 59 59 79 79 79 79 79 79 79 72 72 72 72 72 72 72 72 72 72
160
PMA FLEXIBLE CABLE PROTECTION SYSTEMS FOR APPLICATIONS WITH HIGH REQUIREMENTS
-- Index Products in alphabetical order
Part. no. BVWD-P09MGT-11 BVWD-P09MGT-8 BVWD-P110GT-11 BVWD-P110GT-8 BVWD-P112GT-11 BVWD-P112GT-8 BVWD-P11MGT-11 BVWD-P11MGT-8 BVWD-P130GT-11 BVWD-P130GT-8 BVWD-P132GT-11 BVWD-P132GT-8 BVWD-P137GT-11 BVWD-P137GT-8 BVWD-P13MGT-11 BVWD-P13MGT-8 BVWD-P167GT-11 BVWD-P167GT-8 BVWD-P213GT BVWD-P299GT BVWD-P366GT BVWD-P488GT BVWV-G000 BVWV-G00M BVWV-G010 BVWV-G012 BVWV-G022 BVWV-G027 BVWV-G043 BVWV-G069 BVWV-G076 BVWV-G088 BVWV-G098 BVWV-M120 BVWV-M12M BVWV-M160 BVWV-M162 BVWV-M202 BVWV-M207 BVWV-M253 BVWV-M329 BVWV-M406 BVWV-M508 BVWV-N022 BVWV-N027 BVWV-N043 BVWV-N069 BVWV-N076 BVWV-N088 BVWV-N098 BVWV-P070
GID no. 7TA A 292150 R0398 7TCA292000R5705 7TA A 292150 R0399 7TCA292000R1238 7TA A 292150 R0 4 0 0 7TA A 292150 R0 4 01 7TA A 292150 R0 4 02 7TCA292000R5706 7TA A 292150 R0 4 03 7TCA292000R1239 7TA A 292150 R0 4 0 4 7TCA292000R1240 7TA A 292150 R0 4 05 7TA A 292150 R0 4 06 7TA A 292150 R0 4 07 7TCA292000R5707 7TA A 292150 R0 4 08 7TA A 292150 R0 4 0 9 7TA A 292150 R0 410 7TA A 292150 R0 411 7TA A 292150 R0 412 7TA A 292150 R0 413 7TA A 292150 R0 414 7TA A 292150 R0 415 7TA A 292150 R0 416 7TA A 292150 R0 417 7TA A 292150 R0 418 7TA A 292150 R0 419 7TA A 292150 R0 420 7TA A 292150 R0 421 7TA A 292150 R0 422 7TA A 292150 R0 423 7TA A 292150 R0 424 7TA A 292150 R0 425 7TA A 292150 R0 426 7TA A 292150 R0 427 7TA A 292150 R0 428 7TA A 292150 R0 429 7TA A 292150 R0 430 7TA A 292150 R0 431 7TA A 292150 R0 432 7TA A 292150 R0 433 7TA A 292150 R0 434 7TA A 292150 R0 435 7TA A 292150 R0 436 7TA A 292150 R0 437 7TA A 292150 R0 438 7TA A 292150 R0 439 7TA A 292150 R0 4 4 0 7TA A 292150 R0 4 41 7TA A 292150 R0 4 42
Page 72 72 72 72 72 72 72 72 72 72 72 72 72 72 72 72 72 72 72 72 72 72 77 77 77 77 77 77 77 77 77 77 77 59 59 59 59 59 59 59 59 59 59 79 79 79 79 79 79 79 72
Part. no. BVWV-P072 BVWV-P07M BVWV-P090 BVWV-P092 BVWV-P09M BVWV-P110 BVWV-P112 BVWV-P11M BVWV-P130 BVWV-P132 BVWV-P137 BVWV-P13M BVWV-P167 BVWV-P213 BVWV-P299 BVWV-P366 BVWV-P488 BV YD -10 0707GT BV YD -121010 GT BV YD -171212GT BVYD-231717GT BVYD-292323GT BV YD -362929GT BVYD-483636GT BV YR-10 0707 BV YR-121010 BVYR-171212 BV YR-231717 BVYR-292323 BV YR-362929 BVYR-483636 C.66.10GR C.66.10SW C.66.12GR C.66.12SW C.66.16GR C.66.16SW C.66.20GR C.66.20SW C.66.25GR C.66.25SW C.66.30GR C.66.30SW C.66.40GR C.66.40SW C.66.45SW CUSG-17B.31 CUSG-17S.31 CUSG-23B.31 CUSG-23S.31 CUSG-29B.31
GID no. 7TCA292000R5709 7TA A 292150 R0 4 43 7TA A 292150 R0 4 4 4 7TA A 292150 R0 4 45 7TA A 292150 R0 4 46 7TA A 292150 R0 4 47 7TA A 292150 R0 4 4 8 7TCA292000R1259 7TA A 292150 R0 4 49 7TA A 292150 R0 450 7TA A 292150 R0 451 7TCA292000R1265 7TA A 292150 R0 452 7TA A 292150 R0 453 7TA A 292150 R0 454 7TA A 292150 R0 455 7TA A 292150 R0 456 7TA A 292150 R0 457 7TA A 292150 R0 458 7TA A 292150 R0 459 7TA A 292150 R0 46 0 7TA A 292150 R0 461 7TA A 292150 R0 462 7TA A 292150 R0 463 7TA A 292150 R0 46 4 7TA A 292150 R0 465 7TA A 292150 R0 466 7TA A 292150 R0 467 7TA A 292150 R0 468 7TA A 292150 R0 469 7TA A 292150 R0 470 7TA A 292910 R0 0 0 0 7TA A 292910 R0 0 01 7TA A 292910 R0 0 02 7TA A 292910 R0 0 03 7TA A 292910 R0 0 0 4 7TA A 292910 R0 0 05 7TA A 292910 R0 0 06 7TA A 292910 R0 0 07 7TA A 292910 R0 0 08 7TA A 292910 R0 0 0 9 7TA A 292910 R0 010 7TA A 292910 R0 011 7TA A 292910 R0 012 7TA A 292910 R0 013 7TA A 292910 R0 014 7TA A 292490 R0 0 0 0 7TCA292000R1523 7TA A 292490 R0 0 01 7TA A 292490 R0 0 02 7TA A 292490 R0 0 03
Page 72 72 72 72 72 72 72 72 72 72 72 72 72 72 72 72 72 88 88 88 88 88 88 88 88 88 88 88 88 88 88
136 136 136 136 136 136 136 136 136 136 136 136 136 136 136
31 31 31 31 31
Part. no. CUSG-29S.31 CUSG-36B.31 CUSG-36S.31 CUSG-48B.31 CUSG-48S.31 CYLG-125B.06 CYLG-125S.06 CYLG-23B.50 CYLG-23S.50 CYLG-29B.50 CYLG-29S.50 CYLG-36B.30 CYLG-36S.30 CYLG-48B.30 CYLG-48S.30 CYLG-56B.30 CYLG-56S.30 CYLG-70B.10 CYLG-70S.10 CYLG-95B.10 CYLG-95S.10 CYLT-07B.50 CYLT-07S.50 CYLT-10B.50 CYLT-10S.50 CYLT-12B.50 CYLT-12S.50 CYLT-17B.50 CYLT-17S.50 CYLT-23B.50 CYLT-23S.50 CYLT-29B.50 CYLT-29S.50 CYLT-36B.50 CYLT-36S.50 CYLT-48B.50 CYLT-48S.50 E 150p7
E 150p8
E 150p9
E 152p11
E 152p13
E 152p7
GID no.
7TA A 292490 R0 0 0 4
7TA A 292490 R0 0 05
7TA A 29236 0 R0 0 0 0 7TA A 29236 0 R0 0 01 7TA A 29224 0 R0 0 08 7TA A 29224 0 R0 0 0 9 7TA A 29224 0 R0 010 7TA A 29224 0 R0 011 7TA A 29224 0 R0 012 7TA A 29224 0 R0 013 7TA A 29224 0 R0 014 7TA A 29224 0 R0 015 7TA A 29236 0 R0 0 02 7TA A 29236 0 R0 0 03 7TA A 29236 0 R0 0 0 4 7TA A 29236 0 R0 0 06 7TA A 29236 0 R0 0 08 7TA A 29236 0 R0 010 7TA A 29224 0 R0 018 7TA A 29224 0 R0 019 7TA A 29224 0 R0 020 7TA A 29224 0 R0 021 7TA A 29224 0 R0 022 7TA A 29224 0 R0 023 7TA A 29224 0 R0 024 7TA A 29224 0 R0 025 7TA A 29224 0 R0 026 7TA A 29224 0 R0 027 7TA A 29224 0 R0 028 7TA A 29224 0 R0 029 7TA A 29224 0 R0 030 7TA A 29224 0 R0 031 7TA A 29224 0 R0 032 7TA A 29224 0 R0 033 7TCA292000R9071
7TCA292000R9074
7TCA292000R9075
7TCA292000R9081
7TCA292000R9083
7TCA292000R9076
Page 31 31 31 31 31 17 17 17 17 17 17 17 17 17 17
17,122 17,122 17,122 17,122 17,122 17,122
17 17 17 17 17 17 17 17 17 17 17 17 17 17 17 17 44,45, 62,64, 68,74 44,45, 62,64, 68 44,45, 62,64, 68,74 44,45, 62,64, 68,74 44,45, 62,64, 68 44,45, 62,64, 68
INDEX - PRODUCTS IN ALPHABETICAL ORDER
161
-- Index Products in alphabetical order
Part. no. E 152p9
E 153p11 E 153p13
E 153p16
E 154p11 E 154p13 E 154p18
E 154p20
E 155p16 E 155p18 E 155p20 E 155p25
E 155p28
E 156p25HF E 156p32
E 156p34 E 156p36
E 157p36HF E 157p40HF E 158p44
E 158pm1X35
E151P11 E151P7 E151P9 EK 150p7 EK 150p8 EK 150p9 EK 154p13 EK 154p16 EK 155p18 EK 155p20 EK 155p25 EK 156p28 ESDG-56B.10 ESDG-70B.10 ESDG-95B.10 ESDT-07B.50
GID no. 7TCA292000R9077
Page
44,45, 62,64,
68
7TCA292000R9090 44,62,74
7TCA292000R9091
44,45, 62,64, 68,74
7TCA292000R9092
44,45, 62,64, 68,74
7TCA292000R9094
74
7TCA292000R9095 44,45
7TCA292000R9097 7TCA292000R9098
44,45, 62,64, 68,74
44,45, 62,64, 68,74
7TCA292000R9107 44,62
7TCA292000R9101 44,62,64
7TCA292000R9138 44,62,64
7TCA292000R9108
44,45, 62,64,
74
7TCA292000R9109
44,45, 62,64,
74
7TCA292000R9104 44,62
7TCA292000R9110
44,45, 62,64,
74
7TCA292000R9121
74
7TCA292000R9111 7TCA292000R9112 7TCA292000R9113 7TCA292000R9114 7TCA292000R9127
44,45, 62,64,
74
44,45, 62,64
44,45, 62,64
44,45, 62,64,
74
44,45, 62,64
7TCA292000R9117
74
7TCA292000R9115
74
7TCA292000R9116
74
7TCA292000R9053 44,62,64
7TCA292000R9068 44,62
7TCA292000R9069 44,62
7TCA292000R9088 44,62
7TCA292000R9123 44,62
7TCA292000R9100 44,45,62
7TCA292000R9102 44,45,62
7TCA292000R9103 44,62
7TCA292000R9105 44,62
7TCA292000R7720
17
7TCA292000R7722
17
7TCA292000R1850
17
7TA A 29224 0 R0 0 49
17
Part. no. ESDT-10B.50 ESDT-12B.50 ESDT-17B.50 ESDT-23B.50 ESDT-29B.50 ESDT-36B.30 ESDT-48B.30 EWZ-02 EWZ-03 F.304.10 F.304.12 F.304.17 F.304.23 F.304.29 F.304.36 F.304.48 F.66.04GR F.66.04SW F.66.06GR F.66.06SW F.66.08GR F.66.08SW F.66.10GR F.66.10SW F.66.12GR F.66.12SW F.66.16GR F.66.16SW F.66.20GR F.66.20SW F.66.25GR F.66.25SW F.66.30GR F.66.30SW F.66.40GR F.66.40SW F.66.50GR F.66.50SW F.66.70GR F.66.70SW F.PX.04GR F.PX.06GR F.PX.08GR F.PX.10GR F.PX.12GR F.PX.16GR F.PX.20GR F.PX.25GR F.PX.30GR F.PX.40GR FP-38
GID no. 7TA A 29224 0 R0 050 7TA A 29224 0 R0 051 7TA A 29224 0 R0 052 7TA A 29224 0 R0 053 7TA A 29224 0 R0 054 7TA A 29224 0 R0 055 7TA A 29224 0 R0 056 7TA A 292880 R0 0 0 0 7TA A 292880 R0 0 01 7TA A 292910 R0 015 7TA A 292910 R0 016 7TA A 292910 R0 017 7TA A 292910 R0 018 7TA A 292910 R0 019 7TA A 292910 R0 020 7TA A 292910 R0 021 7TA A 292910 R0 024 7TA A 292910 R0 025 7TA A 292910 R0 026 7TA A 292910 R0 027 7TA A 292910 R0 028 7TA A 292910 R0 029 7TA A 292910 R0 030 7TA A 292910 R0 031 7TA A 292910 R0 032 7TA A 292910 R0 033 7TA A 292910 R0 034 7TA A 292910 R0 035 7TA A 292910 R0 036 7TA A 292910 R0 037 7TA A 292910 R0 038 7TA A 292910 R0 039 7TA A 292910 R0 0 4 0 7TA A 292910 R0 0 41 7TA A 292910 R0 0 42 7TA A 292910 R0 0 43 7TA A 292910 R0 0 4 4 7TA A 292910 R0 0 45 7TA A 292910 R0 0 46 7TA A 292910 R0 0 47 7TA A 292910 R0 065 7TA A 292910 R0 066 7TA A 292910 R0 067 7TA A 292910 R0 068 7TA A 292910 R0 069 7TA A 292910 R0 070 7TA A 292910 R0 071 7TA A 292910 R0 072 7TA A 292910 R0 073 7TA A 292910 R0 074 7TA A 292880 R0 0 02
Page 17 17 17 17 17 17 17
116 116 141 141 141 141 141 141 141 136 136 136 136 136 136 136 136 136 136 136 136 136 136 136 136 136 136 136 136 136 136 136 136 137 137 137 137 137 137 137 137 137 137 117
Part. no. FP-52 G.PX.05SW G.PX.08SW G.PX.10SW G.PX.13SW G.PX.16SW G.PX.19SW G.PX.25SW G.PX.29SW G.PX.32SW G.PX.38SW G.PX.50SW GMM-07 GMM-09 GMM-11 GMM-13 GMM-16 GMM-21 GMM-29 GMM-36 GMM-42 GMM-48 GMM-M12 GMM-M16 GMM-M20 GMM-M25 GMM-M32 GMM-M40 GMM-M50 GMM-M63 GMN-07 GMN-09 GMN-11 GMN-13 GMN-16 GMN-21 GMN-29 GMN-36 GMN-48 GMN-M12 GMN-M16 GMN-M20 GMN-M25 GMN-M32 GMN-M40 GMN-M50 GMN-M63 HSG-00 HSG-00-SB JENQ-M162-10 JENQ-M207-10
GID no. 7TA A 292880 R0 0 03 7TA A 292910 R0 075 7TA A 292910 R0 076 7TA A 292910 R0 077 7TA A 292910 R0 078 7TA A 292910 R0 079 7TA A 292910 R0 080 7TA A 292910 R0 081 7TA A 292910 R0 082 7TA A 292910 R0 083 7TA A 292910 R0 08 4 7TA A 292910 R0 085 7TA A 292670 R0 028 7TA A 292670 R0 029 7TA A 292670 R0 030 7TA A 292670 R0 032 7TA A 292670 R0 034 7TA A 292670 R0 035 7TA A 292670 R0 037 7TA A 292670 R0 038 7TA A 292670 R0 039 7TA A 292670 R0 0 4 0 7TA A 292670 R0 0 41 7TA A 292670 R0 0 43 7TA A 292670 R0 0 45 7TA A 292670 R0 0 47 7TA A 292670 R0 0 49 7TA A 292670 R0 051 7TA A 292670 R0 052 7TA A 292670 R0 053 7TA A 292670 R0 054 7TA A 292670 R0 055 7TA A 292670 R0 056 7TA A 292670 R0 057 7TA A 292670 R0 058 7TA A 292670 R0 059 7TA A 292670 R0 06 0 7TA A 292670 R0 061 7TA A 292670 R0 062 7TA A 292670 R0 063 7TA A 292670 R0 06 4 7TA A 292670 R0 065 7TA A 292670 R0 066 7TA A 292670 R0 067 7TA A 292670 R0 068 7TA A 292670 R0 069 7TA A 292670 R0 070 7TA A 292880 R0 0 0 4 7TA A 292880 R0 0 05 7TCA292000R0463 7TCA292000R0464
Page 117 138 138 138 138 138 138 138 138 138 138 138 109 109 109 109 109 109 109 109 109 109 109 109 109 109 109 109 109 109 108 108 108 108 108 108 108 108 108 108 108 108 108 108 108 108 108 141 141 99 99
162
PMA FLEXIBLE CABLE PROTECTION SYSTEMS FOR APPLICATIONS WITH HIGH REQUIREMENTS
-- Index Products in alphabetical order
Part. no. JENQ-M253-11 JENQ-M329-13 JENQ-M406-13 JENQ-M506-14 JFBDG-17C01.50 JFBDG-23C01.50 JFBDG-29C01.50 JFBDG-36C01.30 JFBDG-48C01.30 JFBDT-12C01.50 JKNH-M162 JKNH-M202 JKNH-M207 JKNH-M253 JKNH-M257 JKNH-M323 JKNH-M329 JKNH-M406 JKNH-M409 JKNH-M506 JKNH-M508 JKNH-M638 JLLPA-12A.50 JLLPAG-17A.50 JLLPAG-23A.50 JLLPAG-29A.50 JLLPAG-36A.30 JLLPAG-48A.30 JXPCSFG-17BO.50 JXPCSFG-23BO.50 JXPCSFG-29BO.50 JXPCSFG-36BO.30 JXPCSFG-48BO.30 JXPCSFT-12BO.50 KNH2-NW10 KNH2-NW12 KNH2-NW17 KNH2-NW23 KNH2-NW29 KNH2-NW36 KNH2-NW48 L.66.04GR L.66.04SW L.66.08GR L.66.08SW L.66.10GR L.66.10SW L.66.16GR L.66.16SW L.66.20GR L.66.20SW
GID no. 7TCA292000R0465 7TCA292000R0466 7TCA292000R0467 7TCA292000R0468 7TCA292000R7548 7TCA292000R7549 7TCA292000R7933 7TCA292000R7932 7TCA292000R7934 7TCA292000R7547 7TCA292000R9305 7TCA292000R9352 7TCA292000R9306 7TCA292000R9307 7TCA292000R9357 7TCA292000R9358 7TCA292000R9308 7TCA292000R9309 7TCA292000R9359 7TCA292000R9360 7TCA292000R9310 7TCA292000R9361 7TCA292000R9663 7TCA292000R9664 7TCA292000R9665 7TCA292000R9666 7TCA292000R9667 7TCA292000R9668 7TCA292000R9616 7TCA292000R9610 7TCA292000R9617 7TCA292000R9618 7TCA292000R9619 7TCA292000R9615 7TA A 29256 0 R0 0 0 0 7TA A 29256 0 R0 0 01 7TA A 29256 0 R0 0 02 7TA A 29256 0 R0 0 03 7TA A 29256 0 R0 0 0 4 7TA A 29256 0 R0 0 05 7TA A 29256 0 R0 0 06 7TA A 292910 R0175 7TA A 292910 R0176 7TA A 292910 R0177 7TA A 292910 R0178 7TA A 292910 R0179 7TA A 292910 R0180 7TA A 292910 R0181 7TA A 292910 R0182 7TA A 292910 R0183 7TA A 292910 R018 4
Page 99 99 99 99 29 29 29 29 29 29 49 49 49 49 49 49 49 49 49 49 49 49 30 30 30 30 30 30 29 29 29 29 29 29
104 104 104 104 104 104 104 137 137 137 137 137 137 137 137 137 137
Part. no. L.66.25GR L.66.25SW L.66.30GR L.66.30SW L.66.40GR L.66.40SW L.66.50GR L.66.50SW L.PX.04GR L.PX.04SW L.PX.08GR L.PX.08SW L.PX.10GR L.PX.10SW L.PX.16GR L.PX.16SW L.PX.20GR L.PX.20SW L.PX.25GR L.PX.25SW L.PX.30GR L.PX.30SW L.PX.40GR L.PX.40SW L.PX.50GR L.PX.50SW LLPA-07A.50 LLPA-07S.50 LLPA-10A.50 LLPA-10S.50 LLPA-12A.50 LLPA-12S.50 LLPA-17A.50 LLPA-17S.50 LLPA-23A.50 LLPA-23S.50 LLPA-29A.50 LLPA-29S.50 LLPA-36A.30 LLPA-36S.30 LLPA-48A.30 LLPA-48S.30 LLPAG-125A.06 LLPAG-125S.06 LLPAG-17A.50 LLPAG-17S.50 LLPAG-23A.50 LLPAG-23S.50 LLPAG-29A.50 LLPAG-29S.50 LLPAG-36A.30
GID no. 7TA A 292910 R0185 7TA A 292910 R0186 7TA A 292910 R0187 7TA A 292910 R0188 7TA A 292910 R0189 7TA A 292910 R0190 7TA A 292910 R0191 7TA A 292910 R0192 7TA A 292910 R0193 7TA A 292910 R0194 7TA A 292910 R0195 7TA A 292910 R0196 7TA A 292910 R0197 7TA A 292910 R0198 7TA A 292910 R0199 7TA A 292910 R020 0 7TA A 292910 R0201 7TA A 292910 R0202 7TA A 292910 R0203 7TA A 292910 R020 4 7TA A 292910 R0205 7TA A 292910 R0206 7TA A 292910 R0207 7TA A 292910 R0208 7TA A 292910 R020 9 7TA A 292910 R0210 7TA A 292030 R0 0 0 0 7TA A 292030 R0 0 01 7TA A 292030 R0 0 02 7TA A 292030 R0 0 03 7TA A 292030 R0 0 05 7TA A 292030 R0 0 06 7TA A 292030 R0 0 07 7TA A 292030 R0 0 08 7TA A 292030 R0 0 0 9 7TA A 292030 R0 010 7TA A 292030 R0 011 7TA A 292030 R0 012 7TA A 292030 R0 013 7TA A 292030 R0 014 7TA A 292030 R0 015 7TA A 292030 R0 016 7TA A 292030 R0 017 7TA A 292030 R0 018 7TA A 292030 R0 019 7TA A 292030 R0 020 7TA A 292030 R0 021 7TA A 292030 R0 022 7TA A 292030 R0 023 7TA A 292030 R0 024 7TA A 292030 R0 025
Page 137 137 137 137 137 137 137 137 138 138 138 138 138 138 138 138 138 138 138 138 138 138 138 138 138 138 34 34 34 34 34 34 34 34 34 34 34 34 34 34 34 34
34,122 34,122
34 34 34 34 34 34 34
Part. no. LLPAG-36S.30 LLPAG-48A.30 LLPAG-48S.30 LLPAG-56A.30 LLPAG-56S.30 LLPAG-70A.10 LLPAG-70S.10 LLPAG-95A.10 LLPAG-95S.10 LLPF-07A.50 LLPF-07S.50 LLPF-10A.50 LLPF-10S.50 LLPF-12A.50 LLPF-12S.50 LLPF-17A.50 LLPF-17S.50 LLPF-23A.50 LLPF-23S.50 LLPF-29A.50 LLPF-29S.50 LLPFG-17A.50 LLPFG-17S.50 LLPFG-23A.50 LLPFG-23S.50 LLPFG-29A.50 LLPFG-29S.50 LLPFG-36A.30 LLPFG-36S.30 LLPFG-48A.30 LLPFG-48S.30 LLPO-07A.50 LLPO-07S.50 LLPO-10A.50 LLPO-10S.50 LLPO-12A.50 LLPO-12S.50 LLPO-17A.50 LLPO-17S.50 LLPO-23A.50 LLPO-23S.50 LLPO-29A.50 LLPO-29S.50 LLPO-36A.30 LLPO-36S.30 LLPO-48A.30 LLPO-48S.30 M12M16M M16M12M M16M12M/6 M16M20M
GID no. 7TA A 292030 R0 026 7TA A 292030 R0 027 7TA A 292030 R0 028 7TA A 292030 R0 029 7TA A 292030 R0 030 7TA A 292030 R0 031 7TA A 292030 R0 032 7TA A 292030 R0 033 7TA A 292030 R0 034 7TA A 292030 R0 035 7TA A 292030 R0 036 7TA A 292030 R0 037 7TA A 292030 R0 038 7TA A 292030 R0 039 7TA A 292030 R0 0 4 0 7TA A 292030 R0 0 41 7TA A 292030 R0 0 42 7TA A 292030 R0 0 43 7TA A 292030 R0 0 4 4 7TA A 292030 R0 0 45 7TA A 292030 R0 0 46 7TA A 292030 R0 0 4 8 7TA A 292030 R0 0 49 7TA A 292030 R0 050 7TA A 292030 R0 051 7TA A 292030 R0 052 7TA A 292030 R0 053 7TA A 292030 R0 054 7TA A 292030 R0 055 7TA A 292030 R0 056 7TA A 292030 R0 057 7TA A 292030 R0 075 7TA A 292030 R0 076 7TA A 292030 R0 077 7TA A 292030 R0 078 7TA A 292030 R0 079 7TA A 292030 R0 080 7TA A 292030 R0 081 7TA A 292030 R0 082 7TA A 292030 R0 083 7TA A 292030 R0 08 4 7TA A 292030 R0 085 7TA A 292030 R0 086 7TA A 292030 R0 087 7TA A 292030 R0 088 7TA A 292030 R0 089 7TA A 292030 R0 0 90 7TA A 292550 R0 0 4 4 7TA A 292550 R0 0 45 7TA A 292550 R0 0 46 7TA A 292550 R0 0 47
Page 34 34 34
34,122 34,122 34,122 34,122 34,122 34,122
35 35 35 35 35 35 35 35 35 35 35 35 35 35 35 35 35 35 35 35 35 35 34 34 34 34 34 34 34 34 34 34 34 34 34 34 34 34 105 105 105 105
INDEX - PRODUCTS IN ALPHABETICAL ORDER
163
-- Index Products in alphabetical order
Part. no. M20M12M M20M12M/6 M20M16M M20M16M/6 M20M25M M25M16M M25M16M/6 M25M20M M25M20M/6 M25M32M M32M20M M32M20M/6 M32M25M M32M25M/6 M32M40M M40M25M M40M25M/6 M40M32M M40M32M/6 M40M50M M50M32M M50M32M/6 M50M40M M50M40M/6 M50M63M M63M40M M63M40M/6 M63M50M M63M50M/6 MAVIK-M20/01 MAVIK-M25/01 MAVIK-M32/01 MAVIK-M40/01 MAVIK-M50/01 MAVIK-M63/01 MAVI-M20/01 MAVI-M25/01 MAVI-M32/01 MAVI-M40/01 MAVI-M50/01 MAVI-M63/01 MK AH - M120 -10 MK AH - M16 0 -10 MK AH - M162-10 MK AH - M202-10 MK AH - M207-10 MK AH - M253 -11 MK AH - M257-11 MK AH - M323 -13 MK AH - M329 -13 MK AH - M4 06 -13
GID no. 7TA A 292550 R0 0 4 8 7TA A 292550 R0 0 49 7TA A 292550 R0 050 7TA A 292550 R0 051 7TA A 292550 R0 052 7TA A 292550 R0 053 7TA A 292550 R0 054 7TA A 292550 R0 055 7TA A 292550 R0 056 7TA A 292550 R0 057 7TA A 292550 R0 058 7TA A 292550 R0 059 7TA A 292550 R0 06 0 7TA A 292550 R0 061 7TA A 292550 R0 062 7TA A 292550 R0 063 7TA A 292550 R0 06 4 7TA A 292550 R0 065 7TA A 292550 R0 066 7TA A 292550 R0 067 7TA A 292550 R0 069 7TA A 292550 R0 070 7TA A 292550 R0 071 7TA A 292550 R0 072 7TA A 292550 R0 073 7TCA292000R2520 7TCA292000R0162 7TA A 292550 R0 074 7TA A 292550 R0 075 7TA A 29266 0 R0 0 06 7TA A 29266 0 R0 0 07 7TA A 29266 0 R0 0 08 7TA A 29266 0 R0 0 0 9 7TA A 29266 0 R0 010 7TA A 29266 0 R0 011 7TA A 29266 0 R0 0 0 0 7TA A 29266 0 R0 0 01 7TA A 29266 0 R0 0 02 7TA A 29266 0 R0 0 03 7TA A 29266 0 R0 0 0 4 7TA A 29266 0 R0 0 05 7TA A 2924 0 0 R0 062 7TA A 2924 0 0 R0 063 7TA A 2924 0 0 R0 06 4 7TA A 2924 0 0 R0 065 7TA A 2924 0 0 R0 066 7TA A 2924 0 0 R0 067 7TA A 2924 0 0 R0 068 7TA A 2924 0 0 R0 069 7TA A 2924 0 0 R0 070 7TA A 2924 0 0 R0 071
Page 105 105 105 105 105 105 105 105 105 105 105 105 105 105 105 105 105 105 105 105 105 105 105 105 105 105 105 105 105 118 118 118 118 118 118 118 118 118 118 118 118 46 46 46 46 46 46 46 46 46 46
Part. no. MK AH - M4 0 9 -13 MK AH - M506 -14 MK AH - M508 -14 MK AH - M638 -14 MKBH-M120-10 MKBH-M160-10 MKBH-M162-10 MKBH-M202-10 MKBH-M207-10 MKBH-M253-11 MKBH-M257-11 MKBH-M323-13 MKBH-M329-13 MKBH-M406-13 MKBH-M409-13 MKBH-M506-14 MKBH-M508-14 MKBH-M638-14 MKNH-M120-10 MKNH-M160-10 MKNH-M162-10 MKNH-M202-10 MKNH-M207-10 MKNH-M253-11 MKNH-M257-11 MKNH-M323-13 MKNH-M329-13 MKNH-M406-13 MKNH-M409-13 MKNH-M506-14 MKNH-M508-14 MKNH-M638-14 MONK-M162 MONK-M207 MONK-M253 MONK-M329 MONK-M406 MONK-M508 MPNK-M160 MPNK-M162 MPNK-M207 MPNK-M253 MPNK-M329 MREIR-U3529 MVAV-M120-10 MVAV-M120-5 MVAV-M162-10 MVAV-M162-5 MVAV-M207-10 MVAV-M207-6 MVAV-M253-11
GID no. 7TA A 2924 0 0 R0 072 7TA A 2924 0 0 R0 073 7TA A 2924 0 0 R0 074 7TA A 2924 0 0 R0 075 7TA A 2924 0 0 R0 076 7TA A 2924 0 0 R0 077 7TA A 2924 0 0 R0 078 7TA A 2924 0 0 R0 079 7TA A 2924 0 0 R0 080 7TA A 2924 0 0 R0 081 7TA A 2924 0 0 R0 082 7TA A 2924 0 0 R0 083 7TA A 2924 0 0 R0 08 4 7TA A 2924 0 0 R0 085 7TA A 2924 0 0 R0 086 7TA A 2924 0 0 R0 087 7TA A 2924 0 0 R0 088 7TA A 2924 0 0 R0 089 7TA A 2924 0 0 R0 0 90 7TA A 2924 0 0 R0 0 91 7TA A 2924 0 0 R0 0 92 7TA A 2924 0 0 R0 0 93 7TA A 2924 0 0 R0 0 94 7TA A 2924 0 0 R0 0 95 7TA A 2924 0 0 R0 0 96 7TA A 2924 0 0 R0 0 97 7TA A 2924 0 0 R0 0 98 7TA A 2924 0 0 R0 0 99 7TA A 2924 0 0 R010 0 7TA A 2924 0 0 R0101 7TA A 2924 0 0 R0102 7TA A 2924 0 0 R0103 7TCA292000R4711 7TCA292000R4712 7TCA292000R4713 7TCA292000R4714 7TCA292000R4715 7TCA292000R4716 7TCA292000R4717 7TCA292000R4718 7TCA292000R4719 7TCA292000R4720 7TCA292000R4721 7TCA292000R2699 7TA A 292150 R0 471 7TA A 292150 R0 472 7TA A 292150 R0 473 7TA A 292150 R0 474 7TA A 292150 R0 475 7TA A 292150 R0 476 7TA A 292150 R0 477
Page 46 46 46 46 46 46 46 46 46 46 46 46 46 46 46 46 46 46 43 43 43 43 43 43 43 43 43 43 43 43 43 43 98 98 98 98 98 98 98 98 98 98 98
140 65 65 65 65 65 65 65
Part. no. MVAV-M253-7 MVAV-M329-13 MVAV-M329-8 MVAV-M406-13 MVAV-M406-8 MVAV-M508-14 MVAV-M508-9 MVAV-M638-10 MVAV-M638-14 MVAV-P090 MVAV-P112 MVAV-P137 MVAV-P167 MVAV-P213 MVAV-P299 MVAV-P366 MVAV-P488 MVBV-M207-10 MVBV-M207-6 MVBV-M253-11 MVBV-M253-7 MVBV-M257-11 MVBV-M257-7 MVBV-M323-13 MVBV-M323-8 MVBV-M329-13 MVBV-M329-8 MVBV-M406-13 MVBV-M406-8 MVBV-M409-13 MVBV-M409-8 MVBV-M506-14 MVBV-M506-9 MVBV-M508-14 MVBV-M508-9 MVBV-M638-10 MVBV-M638-14 MVBV-P167 MVBV-P213 MVBV-P299 MVBV-P366 MVBV-P488 MVEMD-M406/01 MVEMD-M508/01 MVEMD-M6356/01 MVEMD-P4856/01 MVEMD-RER6 MVEMD-RER6/01 MVEMD-RER8 MVNV-M120-10 MVNV-M120-5
GID no. 7TA A 292150 R0 478 7TA A 292150 R0 479 7TA A 292150 R0 4 80 7TA A 292150 R0 4 81 7TA A 292150 R0 4 82 7TA A 292150 R0 4 83 7TA A 292150 R0 4 8 4 7TA A 292150 R0 4 85 7TA A 292150 R0 4 86 7TA A 292150 R0 4 87 7TA A 292150 R0 4 88 7TA A 292150 R0 4 89 7TA A 292150 R0 490 7TA A 292150 R0 491 7TA A 292150 R0 492 7TA A 292150 R0 493 7TA A 292150 R0 494 7TA A 292150 R0 495 7TA A 292150 R0 496 7TA A 292150 R0 497 7TA A 292150 R0 498 7TA A 292150 R0 499 7TA A 292150 R050 0 7TA A 292150 R0501 7TA A 292150 R0502 7TA A 292150 R0503 7TA A 292150 R050 4 7TA A 292150 R0505 7TA A 292150 R0506 7TA A 292150 R0507 7TA A 292150 R0508 7TA A 292150 R050 9 7TA A 292150 R0510 7TA A 292150 R0511 7TA A 292150 R0512 7TA A 292150 R0513 7TA A 292150 R0514 7TA A 292150 R0515 7TA A 292150 R0516 7TA A 292150 R0517 7TA A 292150 R0518 7TA A 292150 R0519 7TCA292000R2747 7TCA292000R2748 7TCA292000R2749 7TCA292000R2750 7TCA292000R2751 7TCA292000R2752 7TCA292000R2753 7TA A 292150 R0520 7TA A 292150 R0521
Page 65 65 65 65 65 65 65 65 65 75 75 75 75 75 75 75 75 66 66 66 66 66 66 66 66 66 66 66 66 66 66 66 66 66 66 66 66 75 75 75 75 75
142 142 142 142 143 143 143
60 60
164
PMA FLEXIBLE CABLE PROTECTION SYSTEMS FOR APPLICATIONS WITH HIGH REQUIREMENTS
-- Index Products in alphabetical order
Part. no. MVNV-M160-10 MVNV-M160-5 MVNV-M162-10 MVNV-M162-5 MVNV-M202-10 MVNV-M202-6 MVNV-M207-10 MVNV-M207-6 MVNV-M253-11 MVNV-M253-7 MVNV-M257-11 MVNV-M257-7 MVNV-M323-13 MVNV-M323-8 MVNV-M329-13 MVNV-M329-8 MVNV-M406-13 MVNV-M406-8 MVNV-M409-13 MVNV-M409-8 MVNV-M506-14 MVNV-M506-9 MVNV-M508-14 MVNV-M508-9 MVNV-M638-10 MVNV-M638-14 MVNV-P090 MVNV-P112 MVNV-P137 MVNV-P167 MVNV-P213 MVNV-P293 MVNV-P299 MVNV-P366 MVNV-P488 MVWV-M120-10 MVWV-M120-5 MVWV-M160-10 MVWV-M160-5 MVWV-M162-10 MVWV-M162-5 MVWV-M202-10 MVWV-M202-6 MVWV-M207-10 MVWV-M207-6 MVWV-M253-11 MVWV-M253-7 MVWV-M329-13 MVWV-M329-8 MVWV-M406-13 MVWV-M406-8
GID no. 7TA A 292150 R0522 7TA A 292150 R0523 7TA A 292150 R0524 7TA A 292150 R0525 7TA A 292150 R0526 7TA A 292150 R0527 7TA A 292150 R0528 7TA A 292150 R0529 7TA A 292150 R0530 7TA A 292150 R0531 7TA A 292150 R0532 7TA A 292150 R0533 7TA A 292150 R0534 7TA A 292150 R0535 7TA A 292150 R0536 7TA A 292150 R0537 7TA A 292150 R0538 7TA A 292150 R0539 7TA A 292150 R054 0 7TA A 292150 R0541 7TA A 292150 R0542 7TA A 292150 R0543 7TA A 292150 R054 4 7TA A 292150 R0545 7TA A 292150 R0546 7TA A 292150 R0547 7TA A 292150 R054 8 7TA A 292150 R0549 7TA A 292150 R0550 7TA A 292150 R0551 7TA A 292150 R0552 7TA A 292150 R0553 7TA A 292150 R0554 7TA A 292150 R0555 7TA A 292150 R0556 7TA A 292150 R0557 7TA A 292150 R0558 7TA A 292150 R0559 7TA A 292150 R056 0 7TA A 292150 R0561 7TA A 292150 R0562 7TA A 292150 R0563 7TA A 292150 R056 4 7TA A 292150 R0565 7TA A 292150 R0566 7TA A 292150 R0567 7TA A 292150 R0568 7TA A 292150 R0569 7TA A 292150 R0570 7TA A 292150 R0571 7TA A 292150 R0572
Page 60 60 60 60 60 60 60 60 60 60 60 60 60 60 60 60 60 60 60 60 60 60 60 60 60 60 73 73 73 73 73 73 73 73 73 67 67 67 67 67 67 67 67 67 67 67 67 67 67 67 67
Part. no. MVWV-M508-14 MVWV-M508-9 MVWV-M638-10 MVWV-M638-14 MVWV-P090 MVWV-P112 MVWV-P137 MVWV-P167 MVWV-P213 MVWV-P299 MVWV-P366 MVWV-P488 NFN3-07 NFN3-09 NFN3-11 NFN3-16 NFN3-21 NFN3-29 NFN3-36 NFN3-48 NK AH - M120 -10 NK AH - M16 0 -10 NK AH - M162-10 NK AH - M202-10 NK AH - M207-10 NK AH - M253 -11 NK AH - M257-11 NK AH - M323 -13 NK AH - M329 -13 NK AH - M4 06 -13 NK AH - M4 0 9 -13 NK AH - M506 -14 NK AH - M508 -14 NK AH - M638 -14 NKBH-M120-10 NKBH-M160-10 NKBH-M162-10 NKBH-M202-10 NKBH-M207-10 NKBH-M253-11 NKBH-M257-11 NKBH-M323-13 NKBH-M329-13 NKBH-M406-13 NKBH-M409-13 NKBH-M506-14 NKBH-M508-14 NKBH-M638-14 NKIS-M162 NKIS-M207 NKIS-M253
GID no. 7TA A 292150 R0573 7TA A 292150 R0574 7TA A 292150 R0575 7TA A 292150 R0576 7TA A 292150 R0577 7TA A 292150 R0578 7TA A 292150 R0579 7TA A 292150 R0580 7TA A 292150 R0581 7TA A 292150 R0582 7TA A 292150 R0583 7TA A 292150 R058 4 7TA A 29280 0 R0 0 0 0 7TA A 29280 0 R0 0 01 7TA A 29280 0 R0 0 02 7TA A 29280 0 R0 0 03 7TA A 29280 0 R0 0 0 4 7TA A 29280 0 R0 0 05 7TA A 29280 0 R0 0 06 7TA A 29280 0 R0 0 07 7TA A 2924 0 0 R010 4 7TA A 2924 0 0 R0105 7TA A 2924 0 0 R0106 7TA A 2924 0 0 R0107 7TA A 2924 0 0 R0108 7TA A 2924 0 0 R010 9 7TA A 2924 0 0 R0110 7TA A 2924 0 0 R0111 7TA A 2924 0 0 R0112 7TA A 2924 0 0 R0113 7TA A 2924 0 0 R0114 7TA A 2924 0 0 R0115 7TA A 2924 0 0 R0116 7TA A 2924 0 0 R0117 7TA A 2924 0 0 R0118 7TA A 2924 0 0 R0119 7TA A 2924 0 0 R0120 7TA A 2924 0 0 R0121 7TA A 2924 0 0 R0122 7TA A 2924 0 0 R0123 7TA A 2924 0 0 R0124 7TA A 2924 0 0 R0125 7TA A 2924 0 0 R0126 7TA A 2924 0 0 R0127 7TA A 2924 0 0 R0128 7TA A 2924 0 0 R0129 7TA A 2924 0 0 R0130 7TA A 2924 0 0 R0131 7TA A 2924 0 0 R0132 7TA A 2924 0 0 R0133 7TA A 2924 0 0 R0134
Page 67 67 67 67 76 76 76 76 76 76 76 76
104 104 104 104 104 104 104 104
46 46 46 46 46 46 46 46 46 46 46 46 46 46 46 46 46 46 46 46 46 46 46 46 46 46 46 46 48 48 48
Part. no. NKIS-M329 NKIS-M406 NKIS-M508 NKIS-M638 NKNH-M120-10 NKNH-M160-10 NKNH-M162-10 NKNH-M202-10 NKNH-M207-10 NKNH-M253-11 NKNH-M257-11 NKNH-M323-13 NKNH-M329-13 NKNH-M406-13 NKNH-M409-13 NKNH-M506-14 NKNH-M508-14 NKNH-M638-14 NKNZ-M120/P1 NKNZ-M120/P2 NKNZ-M120/P3 NKNZ-M120R/P NKNZ-M160/P1 NKNZ-M160/P1-L NKNZ-M160/P2 NKNZ-M160/P2-L NKNZ-M160/P3 NKNZ-M160/P3-L NKNZ-M160R/P NKNZ-M160R/P-L NKNZ-M202/P1 NKNZ-M202/P1-L NKNZ-M202/P3 NKNZ-M202/P3-L NKNZ-M202/P4 NKNZ-M202/P4-L NKNZ-M202R/P NKNZ-M202R/P-L NKNZ-M207/P3 NKNZ-M207/P3-L NKNZ-M207/P4 NKNZ-M207/P4-L NKNZ-M207/P5 NKNZ-M207/P5-L NKNZ-M207R/P NKNZ-M207R/P-L NKNZ-M253/P5 NKNZ-M253/P6 NKNZ-M253R/P NKNZ-M253R1/P NKNZ-M257/P4
GID no. 7TA A 2924 0 0 R0135 7TA A 2924 0 0 R0136 7TA A 2924 0 0 R0137 7TA A 2924 0 0 R0138 7TA A 2924 0 0 R0139 7TA A 2924 0 0 R014 0 7TA A 2924 0 0 R0141 7TA A 2924 0 0 R0142 7TA A 2924 0 0 R0143 7TA A 2924 0 0 R014 4 7TA A 2924 0 0 R0145 7TA A 2924 0 0 R0146 7TA A 2924 0 0 R0147 7TA A 2924 0 0 R014 8 7TA A 2924 0 0 R0149 7TA A 2924 0 0 R0150 7TA A 2924 0 0 R0151 7TA A 2924 0 0 R0152 7TA A 2924 0 0 R0153 7TA A 2924 0 0 R0154 7TA A 2924 0 0 R0155
7TA A 2924 0 0 R0156 7TCA292000R7735 7TA A 2924 0 0 R0157
7TA A 2924 0 0 R0158 7TCA292000R5581 7TCA292000R0183
7TA A 2924 0 0 R0161 7TCA292000R0184 7TA A 2924 0 0 R0162 7TCA292000R7948 7TA A 2924 0 0 R0163 7TCA292000R8006 7TCA292000R0185 7TCA292000R7752 7TA A 2924 0 0 R0165 7TCA292000R0186 7TA A 2924 0 0 R0166
7TA A 2924 0 0 R0167 7TCA292000R8008 7TCA292000R6163 7TCA292000R0187 7TCA292000R0188 7TCA292000R0189 7TCA292000R6152 7TCA292000R6288 7TCA292000R8813
Page 48 48 48 48 43 43 43 43 43 43 43 43 43 43 43 43 43 43 44 44 44 44 44 45 44 45 44 45 44 45 44 45 44 45 44 45 44 45 44 45 44 45 44 45 44 45 44 44 44 44 44
INDEX - PRODUCTS IN ALPHABETICAL ORDER
165
-- Index Products in alphabetical order
Part. no. NKNZ-M257/P5 NKNZ-M257/P5-L NKNZ-M257/P6 NKNZ-M257/P6-L NKNZ-M257R/P NKNZ-M257R/P-L NKNZ-M323/P2 NKNZ-M323/P2-L NKNZ-M323/P4 NKNZ-M323/P4-L NKNZ-M323/P5 NKNZ-M323/P5-L NKNZ-M323R/P NKNZ-M323R/P-L NKNZ-M323R1/P NKNZ-M323R1/P-L NKNZ-M329/P2 NKNZ-M329/P2-L NKNZ-M329/P3 NKNZ-M329/P3-L NKNZ-M329/P4 NKNZ-M329R/P NKNZ-M329R/P-L NKNZ-M406/P1 NKNZ-M406/P2 NKNZ-M406R/P NKNZ-M409/P1 NKNZ-M409/P2 NKNZ-M409/P3 NKNZ-M409/P3-L NKNZ-M409/P4 NKNZ-M409/P4-L NKNZ-M409/P5 NKNZ-M409/P5-L NKNZ-M409R/P NKNZ-M409R/P-L NKNZ-M506/P1 NKNZ-M506/P1-L NKNZ-M506/P3 NKNZ-M506/P3-L NKNZ-M506R/P NKNZ-M506R/P-L NKNZ-M508/P2 NKNZ-M508/P2-L NKNZ-M508/P3 NKNZ-M508/P3-L NKNZ-M508R/P NKNZ-M508R/P-L NKNZ-M638/P1 NKNZ-M638/P1-L NKNZ-M638/P2
GID no. 7TA A 2924 0 0 R0172 7TA A 2924 0 0 R0173 7TA A 2924 0 0 R0174 7TCA292000R0190 7TCA292000R0191 7TCA292000R6630 7TCA292000R0192 7TCA292000R0193 7TA A 2924 0 0 R0177 7TCA292000R0194 7TA A 2924 0 0 R0178 7TCA292000R9595 7TA A 2924 0 0 R0179 7TCA292000R8774 7TA A 2924 0 0 R0180 7TCA292000R6197 7TCA292000R0195 7TCA292000R9446 7TCA292000R6029 7TCA292000R9017 7TCA292000R0196 7TCA292000R6284
7TCA292000R5867 7TCA292000R0197 7TCA292000R6071 7TCA292000R9509 7TCA292000R9235 7TCA292000R6028
7TA A 2924 0 0 R0187 7TCA292000R0198 7TA A 2924 0 0 R0188 7TCA292000R8009 7TA A 2924 0 0 R0189 7TCA292000R0199 7TA A 2924 0 0 R0192
7TA A 2924 0 0 R0193 7TCA292000R8548 7TCA292000R0200 7TCA292000R0201 7TA A 2924 0 0 R0196 7TCA292000R8788 7TA A 2924 0 0 R0197 7TCA292000R9600 7TCA292000R0202
7TA A 2924 0 0 R020 0
7TA A 2924 0 0 R0201
Page 44 45 44 45 44 45 44 45 44 45 44 45 44 45 44 45 44 45 44 45 44 44 45 44 44 44 44 44 44 45 44 45 44 45 44 45 44 45 44 45 44 45 44 45 44 45 44 45 44 45 44
Part. no. NKNZ-M638/P2-L NKNZ-M638R/P NKNZ-M638R/P-L NSBIV-N027/01 NSBIV-N043/01 NSBIV-N069/01 NSBIV-N076/01 NSBIV-N088/01 NSBIV-N098/01 NSBV-M207-10 NSBV-M253-11 NSBV-M329-13 NSBV-M406-13 NSBV-M409-13 NSBV-M508-14 NSBV-M638-14 NSBV-N027/01 NSBV-N043/01 NSBV-N069/01 NSBV-N076/01 NSBV-N088/01 NSBV-N098/01 NSBV-P167-6.5 NSBV-P213-7 NSBV-P299-8 NSBV-P366-9 NSBV-P488-10 NSNIV-N022/01 NSNIV-N027/01 NSNIV-N043/01 NSNIV-N069/01 NSNIV-N076/01 NSNIV-N088/01 NSNIV-N098/01 NSNV-M120-10 NSNV-M162-10 NSNV-M207-10 NSNV-M253-11 NSNV-M329-13 NSNV-M329-7 NSNV-M406-13 NSNV-M406-7 NSNV-M409-13 NSNV-M508-14 NSNV-M638-14 NSNV-N022/01 NSNV-N027/01 NSNV-N043/01 NSNV-N069/01 NSNV-N076/01 NSNV-N088/01
GID no. 7TCA292000R8547 7TCA292000R9837 7TCA292000R9838 7TCA292000R8950 7TCA292000R0471 7TCA292000R8951 7TCA292000R0472 7TCA292000R0474 7TCA292000R0475 7TA A 292150 R0585 7TA A 292150 R0586 7TA A 292150 R0587 7TA A 292150 R0588 7TCA292000R2945 7TA A 292150 R0589 7TA A 292150 R0590 7TCA292000R8940 7TCA292000R8941 7TCA292000R8942 7TCA292000R8943 7TCA292000R8944 7TCA292000R8945 7TA A 292150 R0591 7TA A 292150 R0592 7TA A 292150 R0593 7TA A 292150 R0594 7TA A 292150 R0595 7TCA292000R9059 7TCA292000R8946 7TCA292000R9060 7TCA292000R8936 7TCA292000R9061 7TCA292000R9062 7TCA292000R9063 7TCA292000R5954 7TCA292000R5955 7TCA292000R5956 7TCA292000R5957 7TCA292000R5958 7TCA292000R5959 7TCA292000R5960 7TCA292000R5961 7TCA292000R5962 7TCA292000R5963 7TCA292000R5964 7TCA292000R8904 7TCA292000R8905 7TCA292000R8906 7TCA292000R8907 7TCA292000R8908 7TCA292000R8909
Page 45 44 45 82 82 82 82 82 82 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 82 82 82 82 82 82 82 81 81 81 81 81 81 81 81 81 81 81 81 81 81 81 81 81
Part. no. NSNV-N098/01 NSWIV-N022/01 NSWV-N022/01 NVAV-M120-10 NVAV-M120-5 NVAV-M162-10 NVAV-M162-5 NVAV-M207-10 NVAV-M207-6 NVAV-M253-11 NVAV-M253-7 NVAV-M329-13 NVAV-M329-8 NVAV-M406-13 NVAV-M406-8 NVAV-M508-14 NVAV-M508-9 NVAV-M638-10 NVAV-M638-14 NVAV-P090 NVAV-P112 NVAV-P137 NVAV-P167 NVAV-P213 NVAV-P299 NVAV-P366 NVAV-P488 NVBV-M207-10 NVBV-M207-6 NVBV-M253-11 NVBV-M253-7 NVBV-M257-11 NVBV-M257-7 NVBV-M323-13 NVBV-M323-8 NVBV-M329-13 NVBV-M329-8 NVBV-M406-13 NVBV-M406-8 NVBV-M409-13 NVBV-M409-8 NVBV-M506-14 NVBV-M506-9 NVBV-M508-14 NVBV-M508-9 NVBV-M638-10 NVBV-M638-14 NVBV-P167 NVBV-P213 NVBV-P299 NVBV-P366
GID no. 7TCA292000R8910 7TCA292000R0470 7TCA292000R8939 7TA A 292150 R0596 7TA A 292150 R0597 7TA A 292150 R0598 7TA A 292150 R0599 7TA A 292150 R06 0 0 7TA A 292150 R06 01 7TA A 292150 R06 02 7TA A 292150 R06 03 7TA A 292150 R06 06 7TA A 292150 R06 07 7TA A 292150 R06 08 7TA A 292150 R06 0 9 7TA A 292150 R0612 7TA A 292150 R0613 7TA A 292150 R0614 7TA A 292150 R0615 7TA A 292150 R0616 7TA A 292150 R0617 7TA A 292150 R0618 7TA A 292150 R0619 7TA A 292150 R0620 7TA A 292150 R0621 7TA A 292150 R0622 7TA A 292150 R0623 7TA A 292150 R0624 7TA A 292150 R0625 7TA A 292150 R0626 7TA A 292150 R0627 7TA A 292150 R0628 7TA A 292150 R0629 7TA A 292150 R0630 7TA A 292150 R0631 7TA A 292150 R0632 7TA A 292150 R0633 7TA A 292150 R0634 7TA A 292150 R0635 7TA A 292150 R0636 7TA A 292150 R0637 7TA A 292150 R0638 7TA A 292150 R0639 7TA A 292150 R06 4 0 7TA A 292150 R06 41 7TA A 292150 R06 42 7TA A 292150 R06 43 7TA A 292150 R06 4 4 7TA A 292150 R06 45 7TA A 292150 R06 46 7TA A 292150 R06 47
Page 81 82 80 65 65 65 65 65 65 65 65 65 65 65 65 65 65 65 65 75 75 75 75 75 75 75 75 66 66 66 66 66 66 66 66 66 66 66 66 66 66 66 66 66 66 66 66 75 75 75 75
166
PMA FLEXIBLE CABLE PROTECTION SYSTEMS FOR APPLICATIONS WITH HIGH REQUIREMENTS
-- Index Products in alphabetical order
Part. no. NVBV-P488 NVIR-M120 NVIR-M160 NVIR-M162 NVIR-M207 NVIR-M253 NVIR-M329 NVIR-M406 NVIR-M508 NVIR-M638 NVIZR-P07M NVIZR-P090 NVIZR-P110 NVIZR-P112 NVIZR-P137 NVIZR-P167 NVIZR-P213 NVIZR-P299 NVIZR-P366 NVIZR-P488 NVN3-07.100 NVN3-09.50 NVN3-11.50 NVN3-16.50 NVN3-21.30 NVN3-29.20 NVN3-36.20 NVN3-48.10 NVNV-M120-10 NVNV-M120-5 NVNV-M160-10 NVNV-M160-5 NVNV-M162-10 NVNV-M162-5 NVNV-M202-10 NVNV-M202-6 NVNV-M207-10 NVNV-M207-6 NVNV-M253-11 NVNV-M253-7 NVNV-M257-11 NVNV-M257-7 NVNV-M323-13 NVNV-M323-8 NVNV-M329-13 NVNV-M329-8 NVNV-M406-13 NVNV-M406-8 NVNV-M409-13 NVNV-M409-8 NVNV-M506-14
GID no. 7TA A 292150 R06 4 8 7TA A 292610 R0133 7TCA292000R0215 7TA A 292610 R0134 7TA A 292610 R0135 7TA A 292610 R0136 7TA A 292610 R0137 7TA A 292610 R0138 7TA A 292610 R0139 7TA A 292610 R014 0 7TA A 292610 R0141 7TA A 292610 R0142 7TA A 292610 R0143 7TA A 292610 R014 4 7TCA292000R0216 7TA A 292610 R0145 7TA A 292610 R0146 7TA A 292610 R0147 7TA A 292610 R014 8 7TA A 292610 R0149 7TA A 29280 0 R0 0 08 7TA A 29280 0 R0 0 0 9 7TA A 29280 0 R0 010 7TA A 29280 0 R0 011 7TA A 29280 0 R0 012 7TA A 29280 0 R0 013 7TA A 29280 0 R0 014 7TA A 29280 0 R0 015 7TA A 292150 R06 49 7TA A 292150 R0650 7TA A 292150 R0651 7TA A 292150 R0652 7TA A 292150 R0653 7TA A 292150 R0654 7TA A 292150 R0655 7TA A 292150 R0656 7TA A 292150 R0657 7TA A 292150 R0658 7TA A 292150 R0659 7TA A 292150 R066 0 7TA A 292150 R0661 7TA A 292150 R0662 7TA A 292150 R0663 7TA A 292150 R066 4 7TA A 292150 R0665 7TA A 292150 R0666 7TA A 292150 R0667 7TA A 292150 R0668 7TA A 292150 R0669 7TA A 292150 R0670 7TA A 292150 R0671
Page 75 84 84 84 84 84 84 84 84 84 85 85 85 85 85 85 85 85 85 85
104 104 104 104 104 104 104 104
60 60 60 60 60 60 60 60 60 60 60 60 60 60 60 60 60 60 60 60 60 60 60
Part. no. NVNV-M506-9 NVNV-M508-14 NVNV-M508-9 NVNV-M638-10 NVNV-M638-14 NVNV-N022 NVNV-N027 NVNV-N043 NVNV-N069 NVNV-N076 NVNV-N088 NVNV-N098 NVNV-P090 NVNV-P112 NVNV-P137 NVNV-P167 NVNV-P213 NVNV-P293 NVNV-P299 NVNV-P366 NVNV-P488 NVNZ-M120R/P NVNZ-M120R/P-L NVNZ-M120S/B1 NVNZ-M120S/B2 NVNZ-M120S/B3 NVNZ-M120S/P1 NVNZ-M120S/P1-L NVNZ-M120S/P2 NVNZ-M120S/P3 NVNZ-M120S/P3-L NVNZ-M160R/P NVNZ-M160R/P-L NVNZ-M160S/B1 NVNZ-M160S/B2 NVNZ-M160S/B3 NVNZ-M160S/P1 NVNZ-M160S/P1-L NVNZ-M160S/P2 NVNZ-M160S/P2-L NVNZ-M160S/P3 NVNZ-M160S/P3-L NVNZ-M202R/P NVNZ-M202R/P-L NVNZ-M202S/B1 NVNZ-M202S/B3 NVNZ-M202S/B4 NVNZ-M202S/P1 NVNZ-M202S/P1-L NVNZ-M202S/P3 NVNZ-M202S/P3-L
GID no. 7TA A 292150 R0672 7TA A 292150 R0673 7TA A 292150 R0674 7TA A 292150 R0675 7TA A 292150 R0676 7TCA292000R8980 7TCA292000R8981 7TCA292000R8985 7TCA292000R8986 7TCA292000R8982 7TCA292000R8983 7TCA292000R8984 7TA A 292150 R0677 7TA A 292150 R0678 7TA A 292150 R0679 7TA A 292150 R0680 7TA A 292150 R0681 7TA A 292150 R0682 7TA A 292150 R0683 7TA A 292150 R068 4 7TA A 292150 R0685 7TA A 292150 R0686
7TA A 292150 R0689 7TCA292000R0254 7TA A 292150 R0690 7TA A 292150 R0691 7TCA292000R0255 7TA A 292150 R0692 7TA A 292150 R0693
7TA A 292150 R0696 7TA A 292150 R0697 7TA A 292150 R0698 7TA A 292150 R0699 7TA A 292150 R070 0 7TA A 292150 R0701 7TA A 292150 R070 4 7TA A 292150 R0705 7TCA292000R9839 7TCA292000R9503
7TA A 292150 R0708 7TA A 292150 R070 9 7TA A 292150 R0710 7TA A 292150 R0711
Page 60 60 60 60 60 61 61 61 61 61 61 61 73 73 73 73 73 73 73 73 73 62 64 63 63 63 62 64 62 62 64 62 64 63 63 63 62 64 62 64 62 64 62 64 63 63 63 62 64 62 64
Part. no. NVNZ-M202S/P4 NVNZ-M202S/P4-L NVNZ-M207R/P NVNZ-M207R/P-L NVNZ-M207S/B1 NVNZ-M207S/B2 NVNZ-M207S/B3 NVNZ-M207S/B4 NVNZ-M207S/B5 NVNZ-M207S/P3 NVNZ-M207S/P3-L NVNZ-M207S/P4 NVNZ-M207S/P4-L NVNZ-M207S/P5 NVNZ-M207S/P5-L NVNZ-M253R/P NVNZ-M253S/B5 NVNZ-M253S/B6 NVNZ-M253S/P5 NVNZ-M253S/P6 NVNZ-M257R/P NVNZ-M257R/P-L NVNZ-M257S/B4 NVNZ-M257S/B5 NVNZ-M257S/B6 NVNZ-M257S/P4 NVNZ-M257S/P5 NVNZ-M257S/P5-L NVNZ-M257S/P6 NVNZ-M257S/P6-L NVNZ-M323R/P NVNZ-M323R/P-L NVNZ-M323R1/P NVNZ-M323R1/P-L NVNZ-M323S/B4 NVNZ-M323S/B5 NVNZ-M323S/P4 NVNZ-M323S/P4-L NVNZ-M323S/P5 NVNZ-M323S/P5-L NVNZ-M329R/P NVNZ-M329R/P-L NVNZ-M329S/B2 NVNZ-M329S/B3 NVNZ-M329S/B4 NVNZ-M329S/P2 NVNZ-M329S/P2-L NVNZ-M329S/P3 NVNZ-M329S/P3-L NVNZ-M329S/P4 NVNZ-M406R/P
GID no. 7TA A 292150 R0712 7TA A 292150 R0713 7TA A 292150 R0714 7TA A 292150 R0715 7TCA292000R9315 7TCA292000R9316 7TCA292000R9317 7TCA292000R9318 7TCA292000R9319 7TA A 292150 R0718 7TA A 292150 R0719 7TA A 292150 R0720 7TA A 292150 R0721 7TA A 292150 R0722 7TA A 292150 R0723 7TA A 292150 R0724
7TA A 292150 R0728 7TA A 292150 R0729 7TA A 292150 R0730 7TA A 292150 R0731
7TCA292000R9794
7TA A 292150 R0734 7TA A 292150 R0735 7TA A 292150 R0736 7TA A 292150 R0737 7TA A 292150 R0738 7TA A 292150 R0739 7TA A 292150 R074 0 7TA A 292150 R0741 7TA A 292150 R0742 7TCA292000R9137 7TCA292000R9795 7TA A 292150 R0745 7TA A 292150 R0746 7TA A 292150 R0747 7TA A 292150 R074 8 7TCA292000R0278 7TA A 292150 R0749
7TCA292000R9796 7TA A 292150 R0752 7TA A 292150 R0753 7TA A 292150 R0754 7TA A 292150 R0755 7TA A 292150 R0756 7TA A 292150 R0757
Page 62 64 62 64 63 63 63 63 63 62 64 62 64 62 64 62 63 63 62 62 62 64 63 63 63 62 62 64 62 64 62 64 62 64 63 63 62 64 62 64 62 64 63 63 63 62 64 62 64 62 62
INDEX - PRODUCTS IN ALPHABETICAL ORDER
167
-- Index Products in alphabetical order
Part. no. NVNZ-M406S/B1 NVNZ-M406S/B2 NVNZ-M406S/P1 NVNZ-M406S/P2 NVNZ-M409R/P NVNZ-M409R/P-L NVNZ-M409S/B1 NVNZ-M409S/B2 NVNZ-M409S/B3 NVNZ-M409S/B4 NVNZ-M409S/B5 NVNZ-M409S/P1 NVNZ-M409S/P2 NVNZ-M409S/P3 NVNZ-M409S/P3-L NVNZ-M409S/P4 NVNZ-M409S/P4-L NVNZ-M409S/P5 NVNZ-M409S/P5-L NVNZ-M506R/P NVNZ-M506R/P-L NVNZ-M506S/B1 NVNZ-M506S/B3 NVNZ-M506S/P1 NVNZ-M506S/P1-L NVNZ-M506S/P3 NVNZ-M506S/P3-L NVNZ-M508R/P NVNZ-M508R/P-L NVNZ-M508S/B2 NVNZ-M508S/B3 NVNZ-M508S/P2 NVNZ-M508S/P2-L NVNZ-M508S/P3 NVNZ-M508S/P3-L NVNZ-M638R/P NVNZ-M638R/P-L NVNZ-M638S/B1 NVNZ-M638S/B2 NVNZ-M638S/P1 NVNZ-M638S/P1-L NVNZ-M638S/P2 NVNZ-M638S/P2-L NVNZ-P090R/P NVNZ-P090S/P1 NVNZ-P090S/P3 NVNZ-P110R/P NVNZ-P110S/P1 NVNZ-P110S/P3 NVNZ-P112R/P NVNZ-P112S/P1
GID no.
7TA A 292150 R076 0 7TA A 292150 R0761 7TA A 292150 R0762 7TA A 292150 R0763
7TA A 292150 R0766 7TA A 292150 R0767 7TCA292000R0288 7TAA292150R0768 7TA A 292150 R0769 7TAA292150R0770 7TA A 292150 R0771 7TA A 292150 R0772 7TA A 292150 R0773 7TA A 292150 R0774
7TA A 292150 R0777 7TA A 292150 R0778 7TA A 292150 R0779 7TA A 292150 R0780 7TA A 292150 R0781 7TA A 292150 R0782
7TCA292000R9591 7TA A 292150 R0785 7TA A 292150 R0786 7TA A 292150 R0787 7TA A 292150 R0788 7TA A 292150 R0789 7TA A 292150 R0790
7TA A 292150 R0793 7TA A 292150 R0794 7TA A 292150 R0795 7TA A 292150 R0796 7TA A 292150 R0803 7TCA292000R0296 7TA A 292150 R0806 7TA A 292150 R080 9 7TA A 292150 R0812 7TA A 292150 R0813 7TAA292150R0816 7TAA292150R0819
Page 63 63 62 62 62 64 63 63 63 63 63 62 62 62 64 62 64 62 64 62 64 63 63 62 64 62 64 62 64 63 63 62 64 62 64 62 64 63 63 62 64 62 64 74 74 74 74 74 74 74 74
Part. no. NVNZ-P112S/P3 NVNZ-P112S/P4 NVNZ-P160R/P NVNZ-P160S/P1 NVNZ-P167R/P NVNZ-P167S/P3 NVNZ-P167S/P4 NVNZ-P167S/P5 NVNZ-P167S/P6 NVNZ-P213R/P NVNZ-P213R1/P NVNZ-P213S/P1 NVNZ-P213S/P4 NVNZ-P213S/P5 NVNZ-P299R/P NVNZ-P299S/P3 NVNZ-P299S/P4 NVNZ-P299S/P5 NVNZ-P366R/P NVNZ-P366S/P1 NVNZ-P366S/P2 NVNZ-P366S/P3 NVNZ-P488R/P NVNZ-P488S/P1 NVNZ-P488S/P2 NVWV-M120-10 NVWV-M120-5 NVWV-M160-10 NVWV-M160-5 NVWV-M162-10 NVWV-M162-5 NVWV-M202-10 NVWV-M202-6 NVWV-M207-10 NVWV-M207-6 NVWV-M253-11 NVWV-M253-7 NVWV-M329-13 NVWV-M329-8 NVWV-M406-13 NVWV-M406-8 NVWV-M508-14 NVWV-M508-9 NVWV-M638-10 NVWV-M638-14 NVWV-P090 NVWV-P112 NVWV-P137 NVWV-P167 NVWV-P213 NVWV-P299
GID no. 7TAA292150R0820 7TA A 292150 R0821
7TA A 292150 R0822 7TA A 292150 R0825 7TA A 292150 R0828 7TA A 292150 R0829 7TA A 292150 R0830 7TA A 292150 R0831 7TA A 292150 R0834 7TA A 292150 R0836 7TCA292000R0301 7TA A 292150 R0839 7TA A 292150 R08 4 0 7TAA292150R0843 7TA A 292150 R08 46 7TA A 292150 R08 47 7TA A 292150 R08 4 8 7TA A 292150 R0851 7TA A 292150 R0854 7TA A 292150 R0855 7TA A 292150 R0856 7TA A 292150 R0859 7TA A 292150 R0862 7TA A 292150 R0863 7TA A 292150 R086 4 7TA A 292150 R0865 7TA A 292150 R0866 7TA A 292150 R0867 7TA A 292150 R0868 7TA A 292150 R0869 7TA A 292150 R0870 7TA A 292150 R0871 7TA A 292150 R0872 7TA A 292150 R0873 7TA A 292150 R0874 7TA A 292150 R0875 7TA A 292150 R0876 7TA A 292150 R0877 7TA A 292150 R0878 7TA A 292150 R0879 7TA A 292150 R0880 7TA A 292150 R0881 7TA A 292150 R0882 7TA A 292150 R0883 7TA A 292150 R088 4 7TA A 292150 R0885 7TA A 292150 R0886 7TA A 292150 R0887 7TA A 292150 R0888 7TA A 292150 R0889
Page 74 74 74 74 74 74 74 74 74 74 74 74 74 74 74 74 74 74 74 74 74 74 74 74 74 67 67 67 67 67 67 67 67 67 67 67 67 67 67 67 67 67 67 67 67 76 76 76 76 76 76
Part. no. NVWV-P366 NVWV-P488 NVWZ-M160R/P NVWZ-M160S/P1 NVWZ-M160S/P2 NVWZ-M160S/P3 NVWZ-M202R/P NVWZ-M202S/P1 NVWZ-M202S/P3 NVWZ-M202S/P4 NVWZ-M207R/P NVWZ-M207S/P1 NVWZ-M207S/P3 NVWZ-M207S/P4 NVWZ-M207S/P5 NVWZ-M257R/P NVWZ-M257S/P5 NVWZ-M257S/P6 NVWZ-M323S/P4 OVN2-07.100 OVN2-10.50 OVN2-12.50 OVN2-17.50 OVN2-23.30 OVN2-29.20 OVN2-36.40 OVN2-48.20 PACOF-07B.50 PACOF-10B.50 PACOF-12B.50 PACOF-17B.50 PACOF-23B.50 PACOF-29B.50 PACOF-36B.30 PACOF-48B.30 PACOF-70B.10 PCLG-125B.6 PCLG-125S.6 PCLG-17B.50 PCLG-17S.50 PCLG-23B.50 PCLG-23S.50 PCLG-29B.50 PCLG-29S.50 PCLG-36B.30 PCLG-36S.30 PCLG-48B.30 PCLG-48S.30 PCLG-56B.30 PCLG-56S.30 PCLG-70B.10
GID no. 7TA A 292150 R0890 7TA A 292150 R0891 7TA A 292150 R0892 7TA A 292150 R0893 7TA A 292150 R0894 7TA A 292150 R0895 7TA A 292150 R0896 7TA A 292150 R0897 7TA A 292150 R0898 7TA A 292150 R0899 7TA A 292150 R0 90 0 7TCA292000R3285 7TA A 292150 R0 901 7TA A 292150 R0 902 7TA A 292150 R0 903 7TA A 292150 R0 90 4 7TA A 292150 R0 905 7TA A 292150 R0 906 7TCA292000R3286 7TA A 29270 0 R0 0 42 7TA A 29270 0 R0 0 43 7TA A 29270 0 R0 0 4 4 7TA A 29270 0 R0 0 45 7TA A 29270 0 R0 0 46 7TA A 29270 0 R0 0 47 7TA A 29270 0 R0 0 4 8 7TA A 29270 0 R0 0 49 7TA A 292730 R0 0 0 0 7TA A 292730 R0 0 01 7TA A 292730 R0 0 02 7TA A 292730 R0 0 0 4 7TA A 292730 R0 0 06 7TA A 292730 R0 0 08 7TA A 292730 R0 0 0 9 7TA A 292730 R0 010 7TA A 292730 R0 011 7TA A 29236 0 R0 011 7TA A 29236 0 R0 012 7TA A 29224 0 R0 059 7TA A 29224 0 R0 06 0 7TA A 29224 0 R0 062 7TA A 29224 0 R0 063 7TA A 29224 0 R0 065 7TA A 29224 0 R0 066 7TA A 29224 0 R0 069 7TA A 29224 0 R0 071 7TA A 29224 0 R0 073 7TA A 29224 0 R0 075 7TA A 29236 0 R0 013 7TA A 29236 0 R0 015 7TA A 29236 0 R0 017
Page 76 76 68 68 68 68 68 68 68 68 68 68 68 68 68 68 68 68 68
103 103 103 103 103 103 103 103 33,130 33,130 33,130 33,130 33,130 33,130 33,130 33,130 33,130 18,122 18,122
18 18 18 18 18 18 18 18 18 18 18,122 18,122 18,122
168
PMA FLEXIBLE CABLE PROTECTION SYSTEMS FOR APPLICATIONS WITH HIGH REQUIREMENTS
-- Index Products in alphabetical order
Part. no. PCLG-70S.10 PCLG-95B.10 PCLG-95S.10 PCLT-07B.50 PCLT-07S.50 PCLT-10B.50 PCLT-10S.50 PCLT-12B.50 PCLT-12S.50 PCLT-17B.50 PCLT-17S.50 PCLT-23B.50 PCLT-23S.50 PCLT-29B.50 PCLT-29S.50 PCLT-36B.30 PCLT-36S.50 PCLT-48B.30 PCLT-48S.50 PCSG-17B.50 PCSG-17S.50 PCSG-23B.50 PCSG-23S.50 PCSG-29B.50 PCSG-29S.50 PCSG-36B.30 PCSG-36S.30 PCSG-48B.30 PCSG-48S.30 PCSG-56B.30 PCSG-56S.30 PCSG-70B.10 PCSG-70S.10 PCSG-95B.10 PCSG-95S.10 PCSLG-17B.50 PCSLG-17S.50 PCSLG-23B.50 PCSLG-23S.50 PCSLG-29B.50 PCSLG-29S.50 PCSLG-36B.30 PCSLG-36S.30 PCSLG-48B.30 PCSLG-48S.30 PCSLT-07B.50 PCSLT-07S.50 PCSLT-10B.50 PCSLT-10S.50 PCSLT-12B.50 PCSLT-12S.50
GID no. 7TA A 29236 0 R0 019 7TA A 29236 0 R0 021 7TA A 29236 0 R0 023 7TA A 29224 0 R0 076 7TA A 29224 0 R0 077 7TA A 29224 0 R0 078 7TA A 29224 0 R0 079 7TA A 29224 0 R0 080 7TA A 29224 0 R0 081 7TA A 29224 0 R0 083 7TA A 29224 0 R0 085 7TA A 29224 0 R0 086 7TA A 29224 0 R0 088 7TA A 29224 0 R0 089 7TA A 29224 0 R0 0 91 7TA A 29224 0 R0 0 92 7TCA292000R3533 7TCA292000R3535 7TCA292000R3536 7TA A 29224 0 R0 0 93 7TA A 29224 0 R0 0 94 7TA A 29224 0 R0 0 96 7TA A 29224 0 R0 0 98 7TA A 29224 0 R0 0 99 7TA A 29224 0 R010 0 7TA A 29224 0 R0101 7TA A 29224 0 R0102 7TA A 29224 0 R0103 7TA A 29224 0 R010 4 7TA A 29236 0 R0 025 7TA A 29236 0 R0 026 7TA A 29236 0 R0 027 7TCA292000R0303 7TA A 29236 0 R0 029 7TA A 29236 0 R0 030 7TA A 29224 0 R0105 7TCA292000R5792 7TA A 29224 0 R0106 7TCA292000R5793 7TA A 29224 0 R0107 7TCA292000R5794 7TA A 29224 0 R0108 7TCA292000R5795 7TA A 29224 0 R010 9 7TCA292000R5796 7TA A 29224 0 R0110 7TCA292000R5797 7TA A 29224 0 R0111 7TCA292000R5798 7TA A 29224 0 R0112 7TCA292000R5799
Page 18,122 18,122 18,122
18 18 18 18 18 18 18 18 18 18 18 18 18 18 18 18 19 19 19 19 19 19 19 19 19 19 19,122 19,122 19,122 19,122 19,122 19,122 19 19 19 19 19 19 19 19 19 19 19 19 19 19 19 19
Part. no. PCSLT-17B.50 PCSLT-17S.50 PCST-07B.100 PCST-07S.50 PCST-10B.50 PCST-10S.50 PCST-12B.50 PCST-12S.50 PCST-17B.50 PCST-17S.50 PELT-10S.50 PELT-10SL.50 PELT-12S.50 PELT-12SL.50 PELT-17S.50 PELT-17SL.50 PELT-23S.50 PELT-23SL.50 PELT-29S.30 PELT-29SL.30 PELT-36S.30 PELT-36SL.30 PELT-48S.30 PELT-48SL.30 PHTG-17B.50 PHTG-23B.50 PHTG-29B.50 PHTG-36B.30 PHTG-48B.30 PHTT-07B.50 PHTT-10B.50 PHTT-12B.50 PHTT-17B.50 PHTT-23B.50 PIHG-125B.20 PIHG-125S.20 PIHG-56B.30 PIHG-56S.30 PIHG-70B.30 PIHG-70S.30 PIHG-95B.30 PIHG-95S.30 PISG-17B.50 PISG-17S.50 PISG-23B.50 PISG-23S.50 PISG-29B.50 PISG-29S.50 PISG-36B.30 PISG-36S.30 PISG-48B.30
GID no. 7TA A 29224 0 R0113 7TCA292000R5800 7TA A 29224 0 R0115 7TA A 29224 0 R0116 7TA A 29224 0 R0117 7TA A 29224 0 R0118 7TA A 29224 0 R0119 7TA A 29224 0 R0120 7TA A 29224 0 R0121 7TA A 29224 0 R0122 7TA A 29224 0 R0123 7TA A 29224 0 R0124 7TA A 29224 0 R0125 7TA A 29224 0 R0126 7TA A 29224 0 R0127 7TA A 29224 0 R0128 7TA A 29224 0 R0131 7TA A 29224 0 R0132 7TA A 29224 0 R0133 7TA A 29224 0 R0134 7TA A 29224 0 R0135 7TA A 29224 0 R0136 7TA A 29224 0 R0137 7TA A 29224 0 R0138 7TA A 292430 R0 0 0 0 7TA A 292430 R0 0 01 7TA A 292430 R0 0 02 7TA A 292430 R0 0 03 7TA A 292430 R0 0 0 4 7TA A 292430 R0 0 05 7TA A 292430 R0 0 06 7TA A 292430 R0 0 07 7TA A 292430 R0 0 08 7TA A 292430 R0 0 0 9 7TA A 29236 0 R0 031 7TA A 29236 0 R0 032 7TA A 29236 0 R0 033 7TA A 29236 0 R0 034 7TA A 29236 0 R0 036 7TA A 29236 0 R0 038 7TA A 29236 0 R0 0 4 0 7TA A 29236 0 R0 0 42 7TA A 29224 0 R0139 7TA A 29224 0 R014 0 7TA A 29224 0 R0142 7TA A 29224 0 R0143 7TA A 29224 0 R014 4 7TA A 29224 0 R0145 7TA A 29224 0 R0147 7TA A 29224 0 R0149 7TA A 29224 0 R0151
Page 19 19 19 19 19 19 19 19 19 19 20 20 20 20 20 20 20 20 20 20 20 20 20 20 15 15 15 15 15 15 15 15 15 15
20,122 20,122 20,122 20,122 20,122 20,122 20,122 20,122
20 20 20 20 20 20 20 20 20
Part. no. PISG-48S.30 PIST-07B.50 PIST-07S.50 PIST-10B.50 PIST-10S.50 PIST-12B.50 PIST-12S.50 PIST-17B.50 PIST-17S.50 PIST-23B.50 PIST-23S.50 PIST-29B.50 PIST-29S.50 PIST-36B.30 PIST-36S.30 PIST-48B.30 PIST-48S.30 PLRG-17B.50 PLRG-17S.50 PLRG-23B.50 PLRG-23S.50 PLRG-29B.50 PLRG-29S.50 PLRG-36B.30 PLRG-36S.30 PLRG-48B.30 PLRG-48S.30 PLRT-07B.50 PLRT-07S.50 PLRT-10B.50 PLRT-10S.50 PLRT-12B.50 PLRT-12S.50 PMACUT-38 PMACUT-52 PMACUT-NW125 PMACUT-NW56 PMACUT-NW70 PMACUT-NW95 PMA-Tie-tool POHG-17B.50 POHG-17S.50 POHG-23B.50 POHG-23S.50 POHG-29B.50 POHG-29S.50 POHG-36B.30 POHG-36S.30 POHG-48B.30 POHG-48S.30 POHT-10B.50
GID no. 7TA A 29224 0 R0152 7TA A 29224 0 R0153 7TA A 29224 0 R0154 7TA A 29224 0 R0155 7TA A 29224 0 R0156 7TA A 29224 0 R0157 7TA A 29224 0 R0158 7TA A 29224 0 R016 0 7TA A 29224 0 R0161 7TA A 29224 0 R0163 7TA A 29224 0 R016 4 7TA A 29224 0 R0165 7TA A 29224 0 R0166 7TA A 29224 0 R0167 7TA A 29224 0 R0168 7TA A 29224 0 R0169 7TA A 29224 0 R0170 7TCA292000R6231 7TCA292000R6259 7TCA292000R6232 7TCA292000R6260 7TCA292000R6233 7TCA292000R6261 7TCA292000R6234 7TCA292000R6262 7TCA292000R6235 7TCA292000R6263 7TCA292000R6236 7TCA292000R6264 7TCA292000R6237 7TCA292000R6265 7TCA292000R6238 7TCA292000R6266 7TA A 292880 R0 0 06 7TA A 292880 R0 0 07 7TA A 292880 R0 011 7TA A 292880 R0 0 08 7TA A 292880 R0 0 0 9 7TA A 292880 R0 010 7TCA292000R3742 7TA A 292430 R0 017 7TA A 292430 R0 018 7TA A 292430 R0 019 7TA A 292430 R0 020 7TA A 292430 R0 021 7TA A 292430 R0 022 7TA A 292430 R0 023 7TA A 292430 R0 024 7TA A 292430 R0 025 7TA A 292430 R0 026 7TA A 292430 R0 027
Page 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 24 24 24 24 24 24 24 24 24 24 24 24 24 24 24 24 117 117 117 117 117 117
141 15 15 15 15 15 15 15 15 15 15 15
INDEX - PRODUCTS IN ALPHABETICAL ORDER
169
-- Index Products in alphabetical order
Part. no. POHT-10S.50 POHT-12B.50 POHT-12S.50 POSG-29B.50 POSG-36B.30 POSG-48B.30 POSG-70B.30 POSG-95B.30 POST-10B.50 POST-12B.50 POST-17B.50 POST-23B.50 POST-29B.50 POST-36B.30 POST-48B.30 PPCOF-07B.50 PPCOF-10B.50 PPCOF-12B.50 PPCOF-17B.50 PPCOF-23B.50 PPCOF-29B.50 PPCOF-36B.30 PPCOF-48B.30 PPCOF-70B.10 PSXG-23B.50 PSXG-29B.50 PSXG-36B.30 PSXG-48B.30 PSXT-10B.50 PSXT-12B.50 PSXT-17B.50 PUEG-56B.30 PUEG-70B.30 PUET-23B.50 PUET-29B.30 PUET-36B.30 PUET-48B.21 PUSG-17B.31 PUSG-17S.31 PUSG-23B.31 PUSG-23S.31 PUSG-29B.31 PUSG-29S.31 PUSG-36B.31 PUSG-36S.31 PUSG-48B.31 PUSG-48S.31 PVDT-10P.50 PVDT-12P.50 PVDT-17P.50 PVDT-23P.50
GID no. 7TA A 292430 R0 028 7TA A 292430 R0 029 7TA A 292430 R0 030 7TCA292000R5823 7TCA292000R3749 7TCA292000R3750 7TA A 29290 0 R0 0 08 7TCA292000R0304 7TA A 29224 0 R0171 7TA A 29224 0 R0172 7TA A 29224 0 R0173 7TA A 29224 0 R0174 7TA A 29224 0 R0175 7TA A 29224 0 R0176 7TA A 29224 0 R0177 7TA A 292730 R0 012 7TA A 292730 R0 013 7TA A 292730 R0 014 7TA A 292730 R0 016 7TA A 292730 R0 018 7TA A 292730 R0 020 7TA A 292730 R0 021 7TA A 292730 R0 022 7TA A 292730 R0 023 7TA A 292430 R0 032 7TA A 292430 R0 033 7TA A 292430 R0 034 7TA A 292430 R0 035 7TA A 292430 R0 036 7TA A 292430 R0 037 7TCA292000R0305 7TA A 29236 0 R0 0 43 7TA A 29236 0 R0 0 4 4 7TA A 29290 0 R0 0 0 4 7TA A 29290 0 R0 0 05 7TA A 29290 0 R0 0 06 7TA A 29290 0 R0 0 07 7TA A 292490 R0 0 06
7TA A 292490 R0 0 07
7TA A 292490 R0 0 08
7TA A 292490 R0 0 0 9
7TA A 292490 R0 010
7TA A 29224 0 R0178 7TA A 29224 0 R0179 7TA A 29224 0 R0180 7TA A 29224 0 R0181
Page 15 15 15 21 21 21 21 21 21 21 21 21 21 21 21
33,130 33,130 33,130 33,130 33,130 33,130 33,130 33,130 33,130
16 16 16 16 16 16 16 21,122 21,122 21 21 21 21 31 31 31 31 31 31 31 31 31 31 22 22 22 22
Part. no. PVDT-29P.50 RKS-07 RKS-10 RKS-12 RKS-17 RKS-23 RKS-29 RKS-36 RKS-48 RKS-56 SCA-M16-10 SCA-M20-10 SCA-M25-11 SCA-M32-13 SCA-M40-13 SCA-M50-14 SCA-M63-14 SCA-P09 SCA-P11 SCA-P16 SCA-P21 SCA-P29 SCA-P36 SCA-P48 SFH-07-0 SFH-10-0 SFH-12-0 SFH-17-0 SFH-23-0 SFH-29-0 SFH-36-0 SFH-48-0 SFHS-00 SFHS-PH SFHS-PH1 SGB-07 SGB-09 SGB-11 SGB-16 SGB-21 SGB-29 SGB-36 SGB-48 SGG-125 SGG-56 SGG-70 SGG-95 SGG-M6356 SGG-P3656 SGH-23 SGH-29
GID no. 7TCA292000R3817 7TA A 292150 R0 907 7TA A 292150 R0 908 7TA A 292150 R0 90 9 7TA A 292150 R0 910 7TA A 292150 R0 911 7TA A 292150 R0 912 7TA A 292150 R0 913 7TA A 292150 R0 914 7TA A 292150 R0 915 7TA A 292630 R0 0 0 0 7TA A 292630 R0 0 01 7TA A 292630 R0 0 02 7TA A 292630 R0 0 03 7TA A 292630 R0 0 0 4 7TA A 292630 R0 0 05 7TA A 292630 R0 0 06 7TA A 292630 R0 0 07 7TA A 292630 R0 0 08 7TA A 292630 R0 0 0 9 7TA A 292630 R0 010 7TA A 292630 R0 011 7TA A 292630 R0 012 7TA A 292630 R0 013 7TA A 29270 0 R0 050 7TA A 29270 0 R0 051 7TA A 29270 0 R0 052 7TA A 29270 0 R0 053 7TA A 29270 0 R0 054 7TA A 29270 0 R0 055 7TA A 29270 0 R0 056 7TA A 29270 0 R0 057 7TA A 29270 0 R0 058 7TA A 29270 0 R0 06 0 7TA A 29270 0 R0 061 7TA A 292720 R0 027 7TA A 292720 R0 029 7TA A 292720 R0 031 7TA A 292720 R0 036 7TA A 292720 R0 039 7TA A 292720 R0 0 43 7TA A 292720 R0 0 4 4 7TA A 292720 R0 0 46 7TA A 29286 0 R0 033 7TA A 29286 0 R0 034 7TA A 29286 0 R0 035 7TA A 29286 0 R0 036 7TCA292000R4106 7TCA292000R4107 7TA A 292720 R0 0 47 7TA A 292720 R0 0 4 8
Page 22
115 115 115 115 115 115 115 115 115 119 119 119 119 119 119 119 119 119 119 119 119 119 119 111 111 111 111 111 111 111 111 111 111 111 113 113 113 113 113 113 113 113 123 123 123 123 125 125 112 112
Part. no. SGH-36 SGH-48 SGH-56 SGH-70 SGH-95 SGI-M7556 SGL-07 SGL-10 SGL-12 SGL-17 SGL-23 SGL-29 SGO3-125 SGO3-56 SGO3-70 SGO3-95 SGO-56 SGO-70 SGO-95 SGS-125 SGS-36 SGS-48 SGS-56 SGS-70 SGS-95 SRER-06 SRER-16 SRER-21 SRER-29 SRER-50 SREV-40 SVN4-07 SVN4-09 SVN4-11 SVN4-13 SVN4-16 SVN4-21 SVN4-29 SVN4-36 SVN4-42 SVN4-48 SVN4-G00 SVN4-G01 SVN4-G02 SVN4-G04 SVN4-G06 SVN4-G07 SVN4-G08 SVN4-G09 SVN4-M12 SVN4-M12/02
GID no. 7TA A 292720 R0 0 49
Page 112
7TA A 292720 R0 050
112
7TAA292720R0051 112,126
7TAA292720R0052 112,126
7TAA292720R0053 112,126
7TCA292000R4118
112
7TA A 292720 R0 054
112
7TA A 292720 R0 055
112
7TA A 292720 R0 056
112
7TA A 292720 R0 057
112
7TA A 292720 R0 058
112
7TA A 292720 R0 059
112
7TA A 292980 R0 0 0 0
127
7TA A 292980 R0 0 01
127
7TA A 292980 R0 0 02
127
7TA A 292980 R0 0 03
127
7TA A 29286 0 R0 037
123
7TA A 29286 0 R0 038
123
7TA A 29286 0 R0 039
123
7TAA292720R0060 113,126
7TAA292720R0061 113,126
7TAA292720R0062 113,126
7TAA292720R0063 113,126
7TAA292720R0064 113,126
7TAA292720R0065 113,126
7TA A 292920 R0 0 08
136
7TA A 292920 R0 0 0 9
136
7TA A 292920 R0 010
136
7TA A 292920 R0 011
136
7TA A 292920 R0 012
136
7TA A 292920 R0 013
136
7TA A 2926 4 0 R0 0 0 0
102
7TA A 2926 4 0 R0 0 01
102
7TA A 2926 4 0 R0 0 02
102
7TA A 2926 4 0 R0 0 03
102
7TA A 2926 4 0 R0 0 0 4
102
7TA A 2926 4 0 R0 0 05
102
7TA A 2926 4 0 R0 0 06
102
7TA A 2926 4 0 R0 0 07
102
7TA A 2926 4 0 R0 0 08
102
7TA A 2926 4 0 R0 0 0 9
102
7TA A 2926 4 0 R0 010
102
7TA A 2926 4 0 R0 011
102
7TA A 2926 4 0 R0 012
102
7TA A 2926 4 0 R0 013
102
7TA A 2926 4 0 R0 014
102
7TA A 2926 4 0 R0 015
102
7TA A 2926 4 0 R0 016
102
7TA A 2926 4 0 R0 017
102
7TA A 2926 4 0 R0 018
102
7TA A 2926 4 0 R0 019
102
170
PMA FLEXIBLE CABLE PROTECTION SYSTEMS FOR APPLICATIONS WITH HIGH REQUIREMENTS
-- Index Products in alphabetical order
Part. no. SVN4-M16 SVN4-M16/02 SVN4-M20 SVN4-M20/02 SVN4-M25 SVN4-M25/01 SVN4-M25/02 SVN4-M32 SVN4-M32/02 SVN4-M40 SVN4-M40/01 SVN4-M40/02 SVN4-M50 SVN4-M50/01 SVN4-M50/02 SVN4-M63 SWA-M16-10 SWA-M20-10 SWA-M25-11 SWA-M32-13 SWA-M40-13 SWA-M50-14 SWA-M63-14 SWA-P09 SWA-P11 SWA-P16 SWA-P21 SWA-P29 SWA-P36 SWA-P48 VAMG-17B.50 VAMG-17S.50 VAMG-23B.50 VAMG-23S.50 VAMG-29B.50 VAMG-29S.50 VAMG-36B.30 VAMG-36S.30 VAMG-48B.30 VAMG-48S.30 VAMLG-125B.6 VAMLG-125S.6 VAMLG-17B.50 VAMLG-17S.50 VAMLG-23B.50 VAMLG-23S.50 VAMLG-29B.50 VAMLG-29S.50 VAMLG-36B.30 VAMLG-36S.30 VAMLG-48B.30
GID no. 7TA A 2926 4 0 R0 020 7TA A 2926 4 0 R0 021 7TA A 2926 4 0 R0 022 7TA A 2926 4 0 R0 023 7TA A 2926 4 0 R0 024 7TCA292000R4288 7TA A 2926 4 0 R0 025 7TA A 2926 4 0 R0 026 7TA A 2926 4 0 R0 027 7TA A 2926 4 0 R0 028 7TCA292000R4289 7TA A 2926 4 0 R0 029 7TA A 2926 4 0 R0 030 7TCA292000R4290 7TA A 2926 4 0 R0 031 7TA A 2926 4 0 R0 032 7TA A 292590 R0 0 0 0 7TA A 292590 R0 0 01 7TA A 292590 R0 0 02 7TA A 292590 R0 0 03 7TA A 292590 R0 0 0 4 7TA A 292590 R0 0 05 7TA A 292590 R0 0 06 7TA A 292590 R0 0 07 7TA A 292590 R0 0 08 7TA A 292590 R0 0 0 9 7TA A 292590 R0 010 7TA A 292590 R0 011 7TA A 292590 R0 012 7TA A 292590 R0 013 7TA A 29224 0 R0195 7TA A 29224 0 R0196 7TA A 29224 0 R0197 7TA A 29224 0 R0198 7TA A 29224 0 R0199 7TA A 29224 0 R020 0 7TA A 29224 0 R0201 7TA A 29224 0 R0202 7TA A 29224 0 R0203 7TA A 29224 0 R020 4 7TA A 29236 0 R0 0 46 7TA A 29236 0 R0 0 47 7TA A 29224 0 R0205 7TA A 29224 0 R0206 7TA A 29224 0 R0207 7TA A 29224 0 R0208 7TA A 29224 0 R020 9 7TA A 29224 0 R0210 7TA A 29224 0 R0211 7TA A 29224 0 R0212 7TA A 29224 0 R0213
Page 102 102 102 102 102 102 102 102 102 102 102 102 102 102 102 102 119 119 119 119 119 119 119 119 119 119 119 119 119 119 22 22 22 22 22 22 22 22 22 22 23 23 23 23 23 23 23 23 23 23 23
Part. no. VAMLG-48S.30 VAMLG-56B.30 VAMLG-56S.30 VAMLG-70B.70 VAMLG-70S.70 VAMLG-95B.70 VAMLG-95S.70 VAMLT-10B.50 VAMLT-10S.50 VAMLT-12B.50 VAMLT-12S.50 VAMT-10B.50 VAMT-10S.50 VAMT-12B.50 VAMT-12S.50 VCSG-17B.50 VCSG-17S.50 VCSG-23B.50 VCSG-23S.50 VCSG-29B.50 VCSG-29S.50 VCSG-36B.30 VCSG-36S.30 VCSG-48B.30 VCSG-48S.30 VCSG-56B.30 VCSG-56S.30 VCSG-70B.10 VCSG-70S.10 VCSG-95B.10 VCSG-95S.10 VCST-07B.100 VCST-07S.100 VCST-10B.50 VCST-10S.50 VCST-12B.50 VCST-12S.50 VCST-17B.50 VCST-17S.50 VOHD-07B.50 VOHD-07S.50 VOHD-10B.50 VOHD-10S.50 VOHD-12B.50 VOHD-12S.50 VOHG-125B.6 VOHG-125S.6 VOHG-17B.50 VOHG-17S.50 VOHG-23B.50 VOHG-23S.50
GID no. 7TA A 29224 0 R0214 7TA A 29236 0 R0 0 4 8 7TA A 29236 0 R0 0 49 7TA A 29236 0 R0 050 7TA A 29236 0 R0 051 7TA A 29236 0 R0 052 7TA A 29236 0 R0 053 7TA A 29224 0 R0217 7TA A 29224 0 R0218 7TA A 29224 0 R0219 7TA A 29224 0 R0220 7TA A 29224 0 R0223 7TA A 29224 0 R0224 7TA A 29224 0 R0225 7TA A 29224 0 R0226 7TA A 29224 0 R0230 7TA A 29224 0 R0231 7TA A 29224 0 R0232 7TA A 29224 0 R0233 7TA A 29224 0 R0234 7TA A 29224 0 R0235 7TA A 29224 0 R0236 7TA A 29224 0 R0237 7TA A 29224 0 R0238 7TA A 29224 0 R0239 7TA A 29236 0 R0 054 7TA A 29236 0 R0 055 7TA A 29236 0 R0 056 7TA A 29236 0 R0 057 7TA A 29236 0 R0 058 7TA A 29236 0 R0 059 7TA A 29224 0 R024 0 7TA A 29224 0 R0241 7TA A 29224 0 R0242 7TA A 29224 0 R0243 7TA A 29224 0 R024 4 7TA A 29224 0 R0245 7TA A 29224 0 R0246 7TA A 29224 0 R0247 7TA A 29224 0 R024 8 7TA A 29224 0 R0249 7TA A 29224 0 R0250 7TA A 29224 0 R0251 7TA A 29224 0 R0252 7TA A 29224 0 R0253 7TA A 29236 0 R0 06 0 7TA A 29236 0 R0 061 7TA A 29224 0 R0255 7TA A 29224 0 R0257 7TA A 29224 0 R0259 7TA A 29224 0 R0261
Page 23 23 23 23 23 23 23 23 23 23 23 22 22 22 22 23 23 23 23 23 23 23 23 23 23
23,122 23,122 23,122 23,122 23,122 23,122
23 23 23 23 23 23 23 23 24 24 24 24 24 24 24,122 24,122 24 24 24 24
Part. no. VOHG-29B.50 VOHG-29S.50 VOHG-36B.30 VOHG-36S.30 VOHG-48B.30 VOHG-48S.30 VOHG-56B.10 VOHG-56S.10 VOHG-70B.10 VOHG-70S.10 VOHG-95B.10 VOHG-95S.10 VUSG-17B.31 VUSG-17S.31 VUSG-23B.31 VUSG-23S.31 VUSG-29B.31 VUSG-29S.31 VUSG-36B.31 VUSG-36S.31 VUSG-48B.31 VUSG-48S.31 WPS-NW10 WPS-NW12 WPS-NW17 WPS-NW23 WPS-NW29 WPS-NW36 WPS-NW48 XPCLG-17BB.50 XPCLG-17SB.50 XPCLG-23BB.50 XPCLG-23SB.50 XPCLG-29BB.50 XPCLG-29SB.50 XPCLG-36BB.30 XPCLG-36SB.30 XPCLG-48BB.30 XPCLG-48SB.30 XPCLT-10BB.50 XPCLT-10SB.50 XPCLT-12BB.50 XPCLT-12SB.50 XPCLT-17BB.50 XPCLT-17SB.50 XPCSFG-17BO.50 XPCSFG-23BO.50 XPCSFG-29BO.50 XPCSFG-36BO.30 XPCSFG-48BO.30 XPCSFT-07BO.100
GID no. 7TA A 29224 0 R0263 7TA A 29224 0 R0265 7TA A 29224 0 R0266 7TA A 29224 0 R0267 7TA A 29224 0 R0269 7TA A 29224 0 R0271 7TA A 29236 0 R0 062 7TA A 29236 0 R0 063 7TA A 29236 0 R0 06 4 7TA A 29236 0 R0 065 7TA A 29236 0 R0 066 7TA A 29236 0 R0 067 7TA A 292490 R0 011
7TA A 292490 R0 012
7TA A 292490 R0 013
7TA A 292490 R0 014
7TA A 292490 R0 015
7TA A 292650 R0 0 0 0 7TA A 292650 R0 0 01 7TA A 292650 R0 0 02 7TA A 292650 R0 0 03 7TA A 292650 R0 0 0 4 7TA A 292650 R0 0 05 7TA A 292650 R0 0 06 7TA A 29224 0 R0290 7TA A 29224 0 R0291 7TA A 29224 0 R0292 7TA A 29224 0 R0293 7TA A 29224 0 R0294 7TA A 29224 0 R0295 7TA A 29224 0 R0296 7TA A 29224 0 R0297 7TA A 29224 0 R0298 7TA A 29224 0 R0299 7TCA292000R0334 7TCA292000R9338 7TA A 29224 0 R030 0 7TA A 29224 0 R0301 7TA A 29224 0 R0302
7TCA292000R8726 7TCA292000R8802 7TCA292000R8803 7TCA292000R8804 7TCA292000R8805 7TCA292000R9467
Page 24 24 24 24 24 24
24,122 24,122 24,122 24,122 24,122 24,122
32 32 32 32 32 32 32 32 32 32 103 103 103 103 103 103 103 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 28 28 28 28 28 28
INDEX - PRODUCTS IN ALPHABETICAL ORDER
171
-- Index Products in alphabetical order
Part. no. XPCSFT-10BO.50 XPCSFT-12BO.50 XPCSG-17BG.50 XPCSG-23BG.50 XPCSG-29BG.50 XPCSG-36BG.30 XPCSG-48BG.30 XPCSG-56BG.30 XPCSG-70BG.10 XPCSG-70BG.30 XPCSG-95BG.10 XPCST-10BG.50 XPCST-12BG.50 XSOLG-17BG.50 XSOLG-23BG.50 XSOLG-29BG.50 XSOLG-36BG.30 XSOLG-48BG.30 XSOLT-10BG.50 XSOLT-12BG.50 XVCS1H-10BG.50 XVCS1H-12BG.50 XVCS1H-17BG.50 XVCS1H-23BG.50 XVCS1H-29BG.50 XVCS1H-36BG.30 XVCS1H-48BG.30 XVCS2H-10BG.50 XVCS2H-12BG.50 XVCS2H-17BG.50 XVCS2H-23BG.50 XVCS2H-29BG.50 XVCS2H-36BG.30 XVCS2H-48BG.30 XVCSFG-17BB.50 XVCSFG-23BB.50 XVCSFG-29BB.50 XVCSFG-36BB.30 XVCSFG-48BB.30 XVCSFT-10BB.50 XVCSFT-12BB.50 xxxG-17x/S.50 xxxG-23x/S.50 xxxG-29x/S.50 xxxG-36x/S.30 xxxG-48x/S.30 xxxT-12x/S.50 xxxT-17x/S.50
GID no. 7TCA292000R8799 7TCA292000R8801 7TCA292000R8829 7TCA292000R8831 7TCA292000R8832 7TCA292000R8834 7TCA292000R8835
7TCA292000R8827 7TCA292000R8828 7TA A 29224 0 R0303 7TA A 29224 0 R030 4 7TA A 29224 0 R0305 7TA A 29224 0 R0306 7TA A 29224 0 R0307 7TCA292000R0335 7TA A 29224 0 R0314 7TCA292000R5547 7TA A 29224 0 R0315 7TA A 29224 0 R0316 7TA A 29224 0 R0317 7TA A 29224 0 R0318 7TA A 29224 0 R0319 7TA A 29224 0 R0320
7TCA292000R4679 7TCA292000R4681 7TCA292000R4682 7TCA292000R4683 7TCA292000R4684 7TCA292000R4685 7TCA292000R9748 7TCA292000R9750 7TCA292000R9751 7TCA292000R9752 7TCA292000R9753 7TCA292000R9746 7TCA292000R9747
Page 28 28 27 27 27 27 27
27,122 122 27 122 27 27 25 25 25 25 25 25 25 26 26 26 26 26 26 26 26 26 26 26 26 26 26 27 27 27 27 27 27 27 36 36 36 36 36 36 36
172
PMA FLEXIBLE CABLE PROTECTION SYSTEMS FOR APPLICATIONS WITH HIGH REQUIREMENTS
-- Important information
The specifications and instructions for our customers in this document reflect the product engineering level at the time of manufacturing. PMA accepts no liability for damages resulting from unprofessional installation or application or misuse for a purpose. This disclaimer also includes damages to third parties. It is the customer's responsibility to check the delivered products and immediately notify PMA of detected faults. It is also the customer's responsibility to test the delivered product on its applicability for the intended purpose. PMA will accept no liability or responsibility for their products if a product or a PMA system is combined or used together with third-party products, i.e. products from other companies than PMA.
Jurisdiction in all legal disputes concerning product liability have the courts of the canton of Zurich/Switzerland. Swiss law applies.
To guarantee punctual deliveries please check availability of products before ordering.
The text, pictures, drawings and application photos which are published in this document may not, in part, or totally, be copied or used by any third party in any form or way. Especially the downloading of text, pictures, drawings, and application photos onto Online Services is strictly forbidden, irrespective of if they are edited for this purpose or not. At all times PMA reserves the right to take all legal steps necessary.
For more information go to: www.pma.ch
FURTHER INFORMATION
173
-- Further information Visit our website
Visit the PMA product web pages on pma.ch for our most up-to-date product lineup, and much more. This is the place to go to find all of the planning documents you need at your fingertips, including:
· Technical data sheets · General technical details · CAD files · Brochures · Videos
-- Automation Products
Cable Protection System for Automation Applications
DB-Nr. 16080-03 30.11.2017/MR
Technical Datasheet
Technisches Datenblatt
1/3
Three Layer Corrugated Conduit very flexible, medium-duty
Drei-Schicht-Wellrohr sehr flexibel, mittelschwer
XR90 PMAFLEX X-Serie
application
· for dynamically moving conduit systems
in robotics and automation industry
material
· outer, intermediate and inner layer made from
high-grade, specially formulated polyamide 12
characteristics · with wear indication function
· high resistance to continuous bending
· no abrupt conduit failure due to high tear
propagation resistance
· improved chafing resistance
· high resistance to torsion and elongation
· long service life
· free from halogen and cadmium
temperature range 40°C ... +95°C continuous, +150°C short-term
compatible with PMA Automation Products
colour / layers outer layer:
black
(protection layer) abrasion and UV resistant
intermediate layer: yellow
(warning layer)
inner layer:
red
(wear limit reached) conduit should be replaced
order no. black
conduit size NW metr.
rec. fitting thread
metric
PG
Einsatzbereich Material
· für dynamisch bewegte Kabelschutzsysteme im Roboter- und Automatenbau
· Aussen-, Mittel- und Innenschicht aus hochwertigem, speziell formuliertem Polyamid 12
Eigenschaften
· mit Abnutzungs-Indikator · hohe dynamische Belastbarkeit · kein plötzliches Rohrversagen durch hohe
Weiterreiss-Festigkeit
· erhöhte Abriebeigenschaften · hohe Torsions- und Strecksteifigkeit
· hohe Lebensdauer
· halogen- und cadmiumfrei
Temperaturbereich 40°C ... +95°C kontinuierlich, +150°C kurzzeitig
passend zu
PMA Automations-Produkte
Farbe / Schichten Aussenschicht:
schwarz
(Schutzschicht)
abriebfest und UV-beständig
Mittelschicht:
gelb
(Warnschicht)
Innenschicht:
rot
(Verschleissgrenze erreicht) Schutzrohr austauschen
dimensions in mm (nom.)
d1
d2
stat. R. dyn. R.
weight kg/100 m
packing unit metre
Bestell-Nr. schwarz
Rohrgrösse empf. Verschraubungs-
Gewinde
NW metr. metrisch
PG
Dimensionen in mm (nom.)
d1
d2
stat. R.
dyn. R.
Gewicht kg/100 m
Verp.-Einheit Meter
XR90T-17BR
17 20 M20
16
16.0
21.0
30
65
7.5
50
XR90G-17BR
17 20 M20
16
16.8
21.0
30
80
7.5
50
XR90T-23BR
23 25 M25
21
22.6
28.4
35
90
12.0
50
XR90G-23BR
23 25 M25
21
22.7
28.4
40
100
12.0
50
XR90T-29BR
29 32 M32 / M40
29
29.0
34.3
45
110
15.0
50
XR90G-29BR
29 32 M32 / M40
29
29.1
34.3
50
120
15.0
50
XR90G-36BR
36 40 M40 / M50
36
36.8
42.2
60
180
19.0
30
XR90G-48BR
48 50 M50 / M63
48
47.3
54.2
70
200
25.0
30
XR90G-56BR
56 68 PMAGRIP / PMAROBO 56.3
67.3
110
270
33.0
30
XR90G-70BR
70 80 PMAGRIP / PMAROBO 67.4
79.8
150
350
46.0
30
Our customer service dept. or local distribution partner will be pleased to help you concerning product availability and lead time Unser Kundendienst oder die lokale PMA-Vertretung gibt Ihnen über die Artikelverfügbarkeit und Lieferzeit gerne Auskunft
Fine profile T Feinprofil T
Tight bend radius Enge Biegeradien
Dimensions Dimensionen
stat. R. = lowest recommended bending radius for static (fixed) installation
kleinster empfohlener Biegeradius für statische (feste) Verlegung
Coarse profile G Grobprofil G
High pull-out strength Hohe Ausreisskräfte
X R90 G - 36 B R
Code reference X = multi layer R90 = type G = coarse profile 36 = nominal width B = colour-black
(outer layer) R = colour-red
(inner layer)
Nr.-Schlüssel Mehrschicht Typ Grobprofil Nennweite Farbe schwarz (Aussenschicht) Farbe rot (Innenschicht)
XR90-Index min.
dyn. R. = lowest recommended bending radius for dynamic (flexible) installation kleinster empfohlener Biegeradius für dynamische (flexible) Verlegung
max.
ductility
Biegbarkeit
fatigue / reverse bending
Dauer- / Biegewechselfestigkeit
pressure resistance
Druck- / Trittfestigkeit
cold temperature performance Kälteeigenschaften
weather resistance
Witterungseigenschaften
ABB Switzerland Ltd, PMA Cable Protection, Aathalstrasse 90, 8610 Uster, Switzerland, Phone: +41 58 585 00 11, pma-info@ch.abb.com, www.pma.ch
174
PMA FLEXIBLE CABLE PROTECTION SYSTEMS FOR APPLICATIONS WITH HIGH REQUIREMENTS
Additional information We reserve the right to make technical changes or modify the contents of this document without prior notice. With regard to purchase orders, the agreed particulars shall prevail. ABB AG does not accept any responsibility whatsoever for potential errors or possible lack of information in this document.
We reserve all rights in this document and in the subject matter and illustrations contained therein. Any reproduction, disclosure to third parties or utilization of its contents in whole or in parts is forbidden without prior written consent of ABB AG.
-- PMA Headquarters ABB Switzerland Ltd. PMA Cable Protection Aathalstrasse 90 CH-8610 Uster Phone +41 58 585 00 11 pma-info@ch.abb.com www.pma.ch -- PMA Sales offices USA ABB Installation Products Electrification Products Division 860 Ridge Lake Blvd. Memphis, TN 38120 +1 901-252-5000 elec_custserv@tnb.com tnb.abb.com
© Copyright 2020 ABB. All rights reserved. Specifications subject to change without notice.
PMA US CAT.1 / 7TKK001191 / 02.2020
Adobe InDesign 15.0 (Macintosh) Adobe PDF Library 15.0
