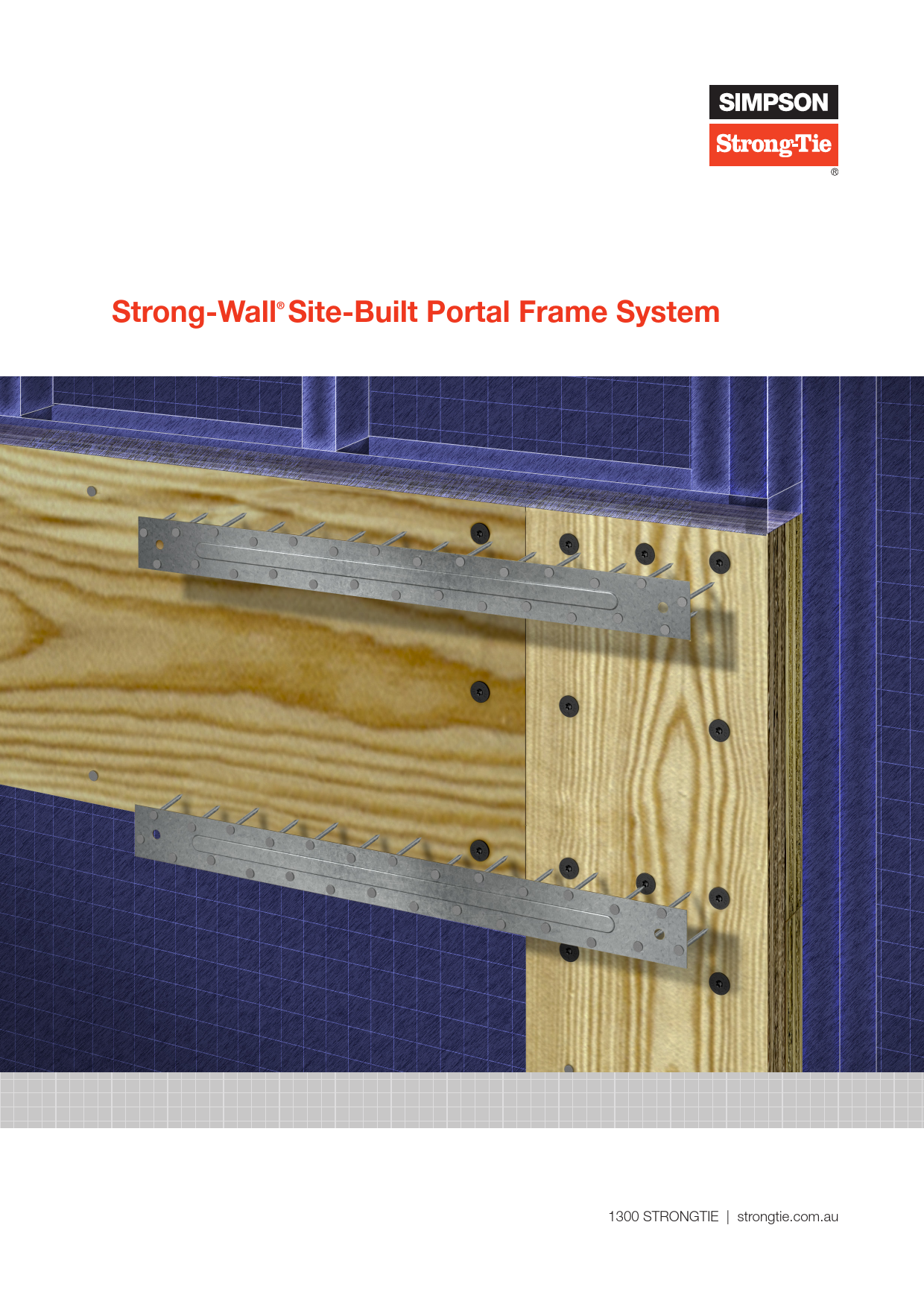

Strong-Wall� Site-Built Portal Frame System
1300 STRONGTIE | strongtie.com.au

Strong-Wall� Site-Built Portal Frame System

The Strong-Wall site-built portal frame system (PFS) provides designers, builders and contractors an easy way to achieve wall-bracing requirements with narrow wall widths. Simple and quick to install, the PFS is a cost-effective alternative to steel braced-wall solutions.

� Narrow wall width -- 240 mm or 300 mm nominal column sizes allow builders to maintain narrow return walls at garage openings and allow designers to maximize portal openings in standard wall framing, such as for large windows or sliding glass doors.
� Easy to assemble -- saves time for the installer and increases the confidence of the specifier that it will be installed properly.
� Cost effective -- site-built portal frames are less expensive than steel or moment frames.
� Larger openings -- designers need as much bracing capacity as possible to economically design structures.

Double-Wall Portal Frame System Installation Patent Pending

Single-Wall Portal (PFS-HKSAU) Double-Wall Portal (PFS-HKDAU)

Single-Wall Portal Frame Kit
(2) Holdown assemblies (2) Composite standoff bases* (5) Moment connection straps (1) Adjustable post base (ABW44Z) (33) SDW22300 truss-ply screws (8) SD9112 Connector screws (1) 6-lobe T40 driver bit (1) Installation instructions (T-L-PFSHWAU20)

Double-Wall Portal Frame Kit
(4) Holdown assemblies (4) Composite standoff bases* (8) Moment connection straps (66) SDW22300 truss-ply screws (1) 6-lobe T40 driver bit (1) Installation instructions (T-L-PFSHWAU20)
*Extra composite standoff bases included. Use only the base that corresponds to the column width and discard extra base(s).

2 | Strong-Wall� Site-Built Portal Frame System

1300 STRONGTIE | strongtie.com.au

F-L-PFSAU20 � 2020 Simpson Strong-Tie Company Inc.

Strong-Wall� Site-Built Portal Frame System

Portal Frame System Dimensions

Framing Materials

Column Size (mm)

Minimum Beam Depth
(mm)

LVL

(2) 240 x 45

(2) 300 x 45

1. Anchor bolts are not included in the Portal Frame System kit. 2. Refer to foundation details for minimum concrete dimensions.

Opening Dimensions (mm)

Max. Height 2,700

Allowable Width

min.

600

max.

5,500

Max. Total Height (mm)

Anchor Diameter (mm)

Each Column

Post

3,000

(2) 16

To specify a portal frame system, include the following: Single or double hardware kit Column size and material Beam size and material Anchor diameter, adhesive type and embedment depths Specific reference to any shim blocking or dwarf wall assembly details, if applicable Include the Simpson Strong-Tie installation detail sheet with your plans and reference the sheet number
Example:
� Simpson Strong-Tie PFS-HKSAU single wall portal with (2) 240x45 LVL column and (2) 300x45 LVL beam � Simpson Strong-Tie SET-XP� epoxy, 16 mm-diameter, ASTM F568 Grade 5.8 all-thread rod, 350 mm embedment See Simpson Strong-Tie� PFS installation details on sheets PFS1 and PFS2.

Beam depth 300 mm

Total height 3,000 mm max.

Column width 240� 300 mm

35 mm

Rough opening height

90x90 mm post
Rough opening width 600�5,500 mm

Adjacent framing not shown for clarity.

Dbl. 45 mm LVL
Dbl. 45 mm LVL
16 mm-dia. anchor bolts

275 min. for 240 mm nominal column 325 min. for 300 mm nominal column
Single-Wall Portal Installation

Double-Wall Portal Installation

F-L-PFSAU20 � 2020 Simpson Strong-Tie Company Inc.

1300 STRONGTIE | strongtie.com.au

Strong-Wall� Site-Built Portal Frame System | 3

Strong-Wall� Site-Built Portal Frame System

Portal Frame System Bracing Equivalents for Wind

Material LVL

Maximum Concurrent Vertical
Load on Column (kN)3
33.4

Allowable Lateral Load (kN)

240 mm Column

300 mm Column

Single-Wall Portal

Double-Wall Portal

System @ Allowable
(mm)

Single-Wall Portal

Double-Wall Portal

System @ Allowable
(mm)

2.26

4.52

12.00

2.94

5.87

11.00

Maximum Allowable Beam End Reaction
(kN)4
23.13

1. The Strong-Wall site-built portal frame system (PFS) is applicable for use up to 3 m max. The height is permitted to be increased to 3.6 m with a 600 mm max. dwarf wall. Wall-bracing allowable lateral load must be reduced by a 0.80 factor.
2. Use limited to single-story and the first of two-storey applications. 3. Concurrent vertical load denotes the total maximum concentric vertical load permitted on the panel acting in combination with the lateral wind loading. 4. The designer is responsible for the beam design. The reaction at beam/column interface shall not exceed the tabulated maximum allowable beam end reaction. 5. LVL is 14,000 MPa (minimum). LVL with E=13,200 MPa can be adopted with a reduction of 5% to bracing capacities. 6. Minimum header depths of 300 mm for LVL.

Wood Framing Details

Ply all framing
3,600 mm max. total wall height

Dwarf wall height
Strap (opposite side) Fasten with 90 mm nails or SDW22300 screws @ spacing per designer. Fastener quantity must meet or exceed strap capacity.

Full-height stud on both sides required per designer
3,000 mm max.

THIS SIDE UP

LVL Assembly
� PFSS-SISMtPBrPAoT1SnENgO2T-NTPEieN�DING
Wood Framing Details

THIS SIDE UP

Pony Wall Assembly Requirements

Dwarf Wall Assembly Requirements

Slab Anchorage
Post-installed anchoring all-thread must be installed with Simpson Strong-Tie SET-XP� adhesives.

275 mm min. for 240 mm nominal column 325 mm min. for 300 mm nominal column

de 350 mm

50�100 mm

Rebar as specified
Elevation View EGleavraaGtgioaenrSaVlaigebew Curb

Footing depth as specified

25 mm 350 mm

Anchor rod 50�100 mm

W
Section View
Section View

Rebar as specified

This flier is effective until June 30, 2022, and reflects information available as of January 1, 2020. This information is updated periodically and should not be relied upon after June 30, 2022. Contact Simpson Strong-Tie for current information and limited warranty or see strongtie.com/au.
� 2020 Simpson StrongTie Company Inc.

F-L-PFSAU20 1/20 exp. 6/22
