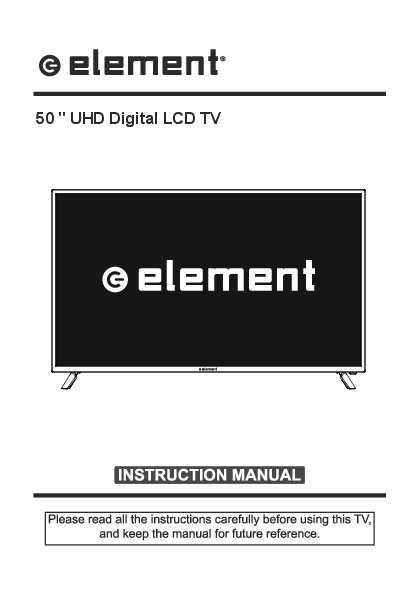

50 " UHD Digital LCD TV

CONTENTS
Important Safety Instructions
Additional Safety Information
Preparations What is Included Front View Rear View Wall Mounting Remote Control
Connecting External Devices
Operating Your TV Turning On/Off Your TV Setup Wizard Selecting The Input Source Channel Selection Volume Adjustment
Customizing TV Settings Navigating the On-screen Display Video Settings Audio Settings Time Settings Setup Menu Lock Settings Parental Control Channel Settings
USB Multimedia Viewing Pictures Viewing Videos
Troubleshooting
FCC Notes
Warranty

2
3
4 4 5 6 6 7
9
10 10 10 11 11 11
12 12 13 14 15 16 17 18 20
21 21 21
22
25
25
26
1

IMPORTANT SAFETY INSTRUCTIONS

� All the safety and operating instructions should be read before this product is operated.
� The safety and operating instructions should be retained for future reference.
� All warnings on the appliance and in the operating instructions should be adhered to.
� All operating and use instructions should be followed.
r � The appliance should not be used near water or moisture � for example, in a wet basement or near a swimming pool, and the like.

personnel. Servicing is required when the apparatus has been damaged in any way, such as the power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
environment.
WARNING: shock, do not expose this apparatus to rain or moisture. The apparatus should not be exposed to dripping or splashing. Objects

block any ventilation openings. Install in accordance with the manufacturer's instructions.
install near any heat sources such as radiators, heat registers, stoves, or
produce heat. defeat the safety purpose of
the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding-type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the
consult an electrician for replacement of the obsolete outlet.
on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

placed on apparatus. WARNING: The batteries shall not be exposed
like. WARNING: The main plug is used as disconnect device, the disconnect device shall remain readily operable. WARNING: To reduce the risk of electric
are no user-serviceable parts inside. Refer
RISQUE DE CHOC ELECTRIQUE NE PAS OUVRIR
This lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of non-insulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance instructions in the literature accompanying the appliance.
This equipment is a Class II or double insulated electrical appliance. It has been designed in such a way that it does not require a safety connection to electrical earth.

storms or when unused for long periods of time.
2

ADDITIONAL SAFETY INFORMATION
To ensure reliable and safe operation of this equipment, please read carefully all the instructions in this user guide, especially the safety information below.
Electrical Safety
The TV set should only be connected to a main power supply with voltage that matches the label at the rear of the product.
To prevent overload, do not share the same power supply socket with too many other electronic components.
Do not place any connecting wires where they may be stepped on or tripped over. Do not place heavy items on them, which may damage the leads. Hold the main plug, not the wires, when removing from a socket. During a thunderstorm, or when not using the television for extended period of time,
turn off the power switch on the back of the television. Do not allow water or moisture to enter the TV or power adapter. Do NOT use in wet,
moist areas, such as bathrooms, steamy kitchens or near swimming pools. Pull the plug out immediately, and seek professional help if the main plug or cable
is damaged, liquid is spilt onto the set, if accidentally exposed to water or moisture, if anything accidentally penetrates the ventilation slots or if the set does not work normally. Do not remove the safety covers. There are no user serviceable parts inside. Trying to service the unit yourself is dangerous and may invalidate the product's warranty. 4XDOL�HG SHUVRQQHO PXVW RQO\ VHUYLFH WKLV DSSDUDWXV To avoid battery leakage, remove exhausted batteries from the remote control, or when not using for long period. 'R QRW EUHDN RSHQ RU WKURZ H[KDXVWHG EDWWHULHV RQ D �UH Do not mix old and new batteries. 'R QRW PL[ $ONDOLQH6WDQGDUG &DUERQ=LQF RU 5HFKDUJHDEOH 1LFNHO &DGPLXP RU 1LFNHO 0HWDO +\GULGH EDWWHULHV
Physical Safety
Do not block ventilation slots in the back cover. You may place the TV in a cabinet, EXW HQVXUH DW OHDVW FP

FOHDUDQFH DOO DURXQG
Do not tap or shake the TV screen, or you may damage the internal circuits. Take good care of the remote control.
7R FOHDQ WKH 79 XVH D VRIW GU\ FORWK 'R QRW XVH VROYHQWV RU SHWUROHXP EDVHG �XLGV Do not install near any heat sources such as radiators, heat registers, stoves or other
DSSDUDWXV LQFOXGLQJ DPSOL�HUV WKDW SURGXFH KHDW Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized
plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong, the wide blade, or the third prong is provided for \RXU VDIHW\ ,I WKH SURYLGHG SOXJ GRHV QRW �W LQWR \RXU RXWOHW FRQVXOW DQ HOHFWULFLDQ IRU replacement of the obsolete outlet. Protect the power cord from being walked on or pinched particularly at plugs. Unplug the apparatus during lightning storms or when unused for long periods. 5HIHU DOO VHUYLFLQJ WR D TXDOL�HG VHUYLFH SHUVRQQHO 6HUYLFLQJ LV UHTXLUHG ZKHQ WKH apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled, or objects have fallen into the apparatus, has been exposed to rain or moisture, does not operate normally, or has been dropped.
3

PREPARATIONS
What is Included?

TV Set
50 " UHD Digital LED TV

Remote Control with Batteries

User Manual 4

50 " UHD Digital LED TV

Quick Start Guide

PREPARATIONS
Front View
� Switch the TV between On / Standby mode.
� INPUT Press to select among different input signal sources.
� MENU Display the OSD (on screen display) menu.
� CH -/+ Press to select a channel.
� VOL - /+ Press to adjust the volume.
� LED The LED light indicates when the TV is activated.
� IR Infrared Receiver.
5

PREPARATIONS
Rear View

6 5

LINE Output RF
Wall Mounting The TV is provided with mounting holes for a VESA approved wall mounting bracket (Not Supplied). Remove the screws holding the base to the base bracket and lift the base away (do not remove the base mounting brackets). Mount the VESA bracket using 4*M6*10 isometric threaded screws (Not Supplied).
Your new TV is heavy, please consult with professional wall mount installer to perform this installation. 6

PREPARATIONS
Remote Control
Power Button Picture Mode Button Sound Mode Button
Numeric Buttons
Channel Setup Button Mute Button
Volume Adjust Button TV Setup Menu Button
MTS Button Information Button
Up Button Left Button
CH.LIST Button Stop Button
Play/Pause Button REPEAT Button
ADD/ERASE Button

USB Button ASPECT Button Sleep Button
Return Button
Channel Selection Button Signal Source Button FREEZE Button Return Button ENTER Button Right Button Down Button EXIT Button Prev. Button Next Button CC Button V-CHIP Button FAV Button

period time. remote:
1. Install all batteries correctly, and as marked on the remote control.
7

PREPARATIONS
Remote Control

TV Operation
USB P.MODE S.MODE SLEEP ASPECT 0~9
VOL+/CH /
SOURCE MENU MTS FREEZE INFO RETURN
OK CH.LIST EXIT CC V-CHIP ADD/ERASE FAV

Switch the TV between on and standby mode. Access into the USB directly. Select picture mode: Dynamic/Movie/Custom/Standard. Select sound mode: Standard/Music/Movie/SportsCustom. Set the TV sleep timer: off/5/10.../180/240 min. Select the aspect ratio settings:Normal/Wide/Zoom/Cinema.
Enter multiple program channel number , such as 2-1. Return to previous viewing channel. Adjust the volume. Select a channel. Mute and restore your TV sound. Select among the different input signal sources: TV/AV/Component/ HDMI1/HDMI2/HDMI3/HDMI4/Media. Display the OSD 'on screen display' menu. Switch among different audio channels: STEREO/MONO/SAP. Freeze the picture. Display the present screen information such as the current channel and input source. Return to previous menu. Allows you to navigate the OSD menus and adjust the system settings to your preference.
Display program list. Exit the OSD 'on screen display' menu. Closed Caption selection: Off/On/CC on Mute. Set up parental control. Add or delete Favorite channels. Display the favorite channel list.

USB Operation /

Press to pause or resume the playback. Press to stop the playback and clear the existing memory.
Press to skip between chapters.

REPEAT

Press repeatedly to select the repeat mode.

CONNECTING EXTERNAL DEVICES

L-

-R Y/VIDEO Pb

AV/COMPONENT

3.5 mm-to-RCA cable

Home theater system or soundbar

OPERATING YOUR TV
Turning On/Off Your TV

physical connections. At this stage, the TV will enter Standby Mode and the red LED indicator will illuminate.
button on the main unit or on the remote control to turn the TV on. The red LED indicator will turn off.
The POWER button on the main unit or on the remote control can only switch the TV into standby. To completely turn off the TV, please disconnect the power cord from the power socket.

Setup Wizard

buttons to select your desired mode and press OK button to

Menu Language
Time Air/Cable Auto Scan
10

Select your desired language to be displayed on the menu. The default on-screen menu language is set as English.
Select the time zone and daylight saving time.
Select antenna between Air and Cable. Search and store the available channels automatically.

OPERATING YOUR TV
Selecting The Input Source
SOURCE button on the main unit or on the remote control to display the Input Source list.
buttons to select your desired input source among: TV/Component /AV/HDMI Media and then press OK

Input List TV AV
Component HDMI1(ARC)
HDMI2 HDMI3 HDMI4 Media

Channel Selection
CH /CH buttons on the main unit or on the remote control repeatedly to select the channel.
0-9 buttons on the remote control to select the channel directly.
Press "4", and then press OK button to select channel 4. Press "4" and "5", and then press OK button to select channel 45.

Volume Adjustment
VOL+/- buttons on the main unit or on the remote control to adjust the volume.
MUTE button again or the VOL+ button to resume the sound.

CUSTOMIZING TV SETTINGS
Navigating the On-screen Display MENU
12

CUSTOMIZING TV SETTINGS
Video Settings

MENU button on the main

unit or on the remote control then

press the

buttons to select

Video menu and then press the

or the OK button to enter.

buttons to select the

following video options and then

press the

buttons to adjust each

option's setting.

Picture Mode
Brightness
Contrast Color Tint Sharpness Color Temperature Advanced Settings

Cycle among picture modes: Standard/ Movie / Custom /Dynamic.
Alternative: you may press the P.MODE button to select the picture mode directly. Increase or decrease the amount of white in the picture. (For Custom cmode) Adjust the difference between light and dark levels in the pictures. (For Custom mode) Control the color intensity. (For Custom mode) Adjust the balance between red and green levels. Adjust the level of crispness in the edges between light and dark areas of the picture. (For Custom mode) Cycle among color temperature: Standard/Warm/Cool.
Adjust Aspect HDMI mode.

CUSTOMIZING TV SETTINGS
Audio Settings
MENU
Audio OK

Sound Mode

Standard/Music/Movie/Sports/Custom.

Alternative:

S.MODE

Treble Bass Balance MTS Audio Languages Digital Output Surround Sound Perfect Volume TV Speaker

(For Custom mode)
(For Custom mode)
speakers. Select the analog audio output mode: Mono, Stereo, and SAP.

Volume levels are automatically controlled same level when switch channels.

keep

the

Set on/off the TV speaker.

CUSTOMIZING TV SETTINGS
Time Settings
MENU
Time OK

Sleep Timer
Time Zone Daylight Saving Time Time Format Auto Clock Clock

Select a period of time after which the TV automatically switches to standby mode: off, 5min, 10min, 15min, 30min, 60min, 90min, 120min, 180min, or 240min.

Atlantic/

On/Off

Adjust time format, 24 hours, 12 hours.

Set the Auto Clock on or off.

Set the clock manually when Auto Clock is set to off.

CUSTOMIZING TV SETTINGS

Setup Menu

MENU button on the main

unit or on the remote control then

press the

buttons to select

Setup menu and then press the or

the OK button to enter.

buttons to select

the following setup options and then

press the

buttons to adjust each

option's setting.

Menu Language OSD Timeout CIosed Caption
Over Scan Input Label Other Settings
Reset Setup Wizard HDMI CEC

Select menu language among: English, Fran�ais or Espa�ol. The default on-screen menu language is
English.

Select and adjust the menu closing time 5s,15s, 30s, 45s,

60s.

ut e

CC Mode

Select CC mode among:CC On, or CC off, CC on Mute.

Select analog mode among: CC1, CC2,

CC3, CC4, Text1, Text2, Text3, Text4.

Option

Select digital mode among: Service1~6. Personalize the captioning style, such as the size and color of the digital caption.

Set on/off Overscanning of Digital TV.

Edit the input source name.

Audio Only

Turn off the TV screen and listen to the audio only.

Demo Mode

Select demo mode for retail promotion use with higher contrast, brightness, and color

settings.

HDMI 4K

Turn off the HDMI 4K when the connected device is not support 4K signal to avoid
the distorted picture.

Restore the TV to factory default settings.(Except the lock

Readjust basic TV data, language, Time Zone, Daylight Savings, Time Format, Channel.
.
Select to turn voice guidance on or off. When the voice guidance is on, you can adjust the Volume, Speed, and Pitch.
.

CUSTOMIZING TV SETTINGS
Lock Settings

MENU button on the main unit or on the remote control and then press

the

buttons to select Lock menu.

0-9 buttons to input 4-digit password to enter the Lock menu.

buttons to select the following options and then press the

buttons to adjust each option's setting.

Sound

Input 4-digit password

The default password is "0000".

Change Password

Use 0-9 buttons to input the old password and then input the new 4-digit password. Re-enter

KeyPad Lock Parental Lock Input Block US Rating
Canada Rating Region 5 Reset Region 5

Turn on and lock the TV button.
Select to turn the parental control on or off. The following options (Input Block, US Rating, and Canada Rating) will only be accessible when you turn the parental control on.

Select to lock specific input source.

TV
MPAA Canada English Canada French

TV RATING: Press OK button to lock or unlock TV rating. Select MPAA rating among: Off, G, PG, PG13, R, NC-17,or X.
Select MPAA rating for English-speaking Canada among: Off, C, C8+, G, PG,14+,18+. Select MPAA rating for Quebec Canada among: Off, G, 8 ans+, 13 ans+, 16 ans+, 18 ans+.

Set the Rating Region Table.

Select to reset the Region 5 setting.

CUSTOMIZING TV SETTINGS
Parental Control
Press the MENU button on the main unit or on the remote control and then press the buttons to select LOCK menu. Use the 0-9 buttons to input 4-digit password to enter
the LOCK menu. If used, this option feature can "block'' undesirable programming from appearing on the TV. Parental Control offers the user a wide variety of options and settings that restrict or "block'' the programming that can appear on the TV. Parental Control allows the user the capability of defining which program rating they consider acceptable to the younger more sensitive viewer. It can be preset and turned either on or off by the user specified. General audiences and children blocks should be both programmed into the rating systems should be used, for complete coverage. The ratings are based on the ages of children. Overview
a rating for MPAA, from the selections below,as well as ratings from the TV Parental Guidelines Rating Systems below, using the Age Block option for General Audiences, and for children. In addition to those, you may wish to add additional restrictions from the content block menu, and submenus examples below. Things to Consider before Setting up Parental Control Determine which rating you consider acceptable to the viewer. (For example, if you choose
source entirely? (Blocks the signal sent by the equipment, such as VCR, connected to the program "Content" based on individual parameters such as: Strong Dialog, Bad Language, secret password, in the Set Password option, using the numbers keys on the remote control. Do not forget the password, it is the only way you can access the Parental Control menu and change rating selections, or turn Parental Control off.Do you want the Parental Control to be active at all times? If not, you can turn it on or off with the Lock On/Off option.
children, both can be active at the same time. the programming that appears from the video sources. automatically restrict the programming that appears from the video sources.
18

CUSTOMIZING TV SETTINGS

G PG
PG-13

Grade General Audiences Parental Guidance Suggested
Parents Strongly Cautioned

R
NC-17 X No Rating

Restricted
No children under age 17 Hard Core Films

Meaning
Content not offensive to most viewers. Content is such that parents may not want their children to view the program. Program is inappropriate for pre-teens, with a greater degree of offensive material suggested than a PG rated program. Not for children under 17, strong element of sex and/or violence. Not for children under 17 under any circumstances. Strong sexual content. Same as NC-17 rating.
MPAA Not Rated.

TV Parental Guideline Rating System

TV-Y TV-Y7

Grade
All Children Directed to Older Children

Meaning
Content not offensive to most viewers. Considered suitable for children over 7, may contain fantasy violence scenes.

TV-G TV-PG TV-14 TV-MA

General Audience
Parental Guidance Suggested
Parents Strongly Cautioned Mature Audience Only

may watch unattended.
Suggested unsuitable for younger children, may contain suggestive language, bad language, sex and violence scenes.
unsuitable for children under 14, may contain strong language, bad language, sex and violence scenes.
Adults only, may contain strong language, bad language, sex and violence scenes.

Canadian Rating:

The V-Chip will automatically block certain categories that are "more restrictive". If you block TV -Y category, then TV-Y7 will be automatically blocked. Similarly,if you block TV-G category, then all the categories in the

CUSTOMIZING TV SETTINGS
Channel Settings

MENU button on the main

unit or on the remote control and

then press the

buttons to select

Channel menu.

buttons to select the

following channel options and then

press the

buttons to adjust each

option's setting.

Channels can only be used in TV mode

Air/Cable
Auto Channel Scan

Select antenna between Air and Cable. Search and store all available channels automatically. Enter the automatic scanning interface, select confirm scanning, and then enter the next interface. Then they scan the program, and when they're done they can watch it.
r te R

Favorite

Set the selected channel as one of the favorite programs.

te R

Channel List View/Skip Channel Number Channel Label

Open the channel list. Display the current channel label.

USB MULTIMEDIA
Viewing Pictures

SOURCE

Media button.

OK OK

Viewing Video SOURCE

Media button.
M-JPEG

OK OK

Operation Tips REPEAT

photo/

photo/ photo/

TROUBLESHOOTING
If your TV does not operate normally or cannot be turned on, please check the following troubleshooting questions. Remember also to check any other connected electronic device, such as DVD or blu-ray player to pinpoint the problem. If the TV still fails to operate normally, please contact technical support
n

SYMPTOM Dead. No LED lit

POSSIBLE CAUSE No power to the TV.

Dead. No LED lit red Set in standby mode.

Blue screen

No signal.
Incorrect source selected.

Noisy, snowy, ghosting Poor antenna signal.

REMEDY TV's AC socket. or the Standby button on the remote control.
select the correct source.
adjusting the antenna position. Check antenna connections.

No sound

External leads not connected "if used".

are connected properly.

TROUBLESHOOTING
Before contacting the service technician, perform the following simple checks. If any problem still persists, unplug the LED TV and call for assistance.

PROBLEM

POSSIBLE SOLUTIONS

Check that the main plug has been connected to a

wall outlet.

No sound and picture

Check that you have pressed the POWER on the front of the TV set.

Check the picture contrast and the brightness

setting.

Red LED indicator lights

Set in standby mode. Press either the Power button or the Standby button on the remote control.

Check the volume.

Sound muted? Press the MUTE button.

Normal picture but no sound Try another channel, the problem may be with the

broadcast.

Are the audio cables installed properly?

Check to see if there are any objects between the

The remote work

control

does

not

TV and remote control causing obstruction. $UH EDWWHULHV LQVWDOOHG ZLWK FRUUHFW SRODULW\ " Correct remote operating mode set: TV, VCR, etc?

Install new batteries.

Is the sleep timer set?

Power suddenly turns off

Check the power connection, power may be interrupted.

No broadcast on the station tuned.

Picture appears slowly after switching on

This is normal, the image is muted during the product start up process. Please contact a service provider if the picture has not appeared after 5 minutes.

Adjust the color in Menu option.

.HHS D VXI�FLHQW GLVWDQFH EHWZHHQ WKH SURGXFW DQG

the VCR.

Poor color or picture

Try another channel, the problem may be with the broadcast.

Are the VIDEO cables installed properly?

Activate any function to restore the brightness of the

picture.

Horizontal/vertical bars or Check for local interference, such as an electrical

picture shaking

appliance or power tool.

Blue screen

Press the SOURCE button to select correct source.

Station or cable experiencing problems. Tune to

Poor reception on some channels

another station. Station signal is weak, reorient antenna for better
reception.

Check for sources of possible interference.

Lines or streaks in pictures

Check the antenna (change the direction of the DQWHQQD

No output speakers

from

one

the

Adjust balance in the Menu option.

TROUBLESHOOTING

PROBLEM

POSSIBLE SOLUTIONS

The signal is out of range

frequency. loose.

Vertical bar or strip on the background, horizontal noise and incorrect position
Screen color is unstable or is a single color

H/V position.

Maintenance
Early malfunction can be prevented. Careful and regular cleaning can extend the amount of time you will have with your new TV. Be sure to turn the power off and unplug the power cord before you begin any cleaning. Do not use your TV in areas that are too hot or too cold, because the cabinet may warp or the screen may malfunction. Your TV works best in temperatures that are comfortable to you.

Do not place your TV in direct sunlight or near a heat source. -the ventilation should not be impeded by covering the ventilation openings with -no naked flame sources, such as lighted candles, should be placed on the -attention should be drawn to the environmental aspects of battery disposal.

Clean the screen
A great tip to dust off your screen: wet a soft cloth in a mixture of lukewarm water and a little fabric softener or dish washing detergent. Wring the cloth until it's almost dry, and then use to wipe the screen. Make sure the excess water is off the screen, then let air-dry before you turn on the TV.
Cleaning the cabinet
To remove dirt or dust, wipe the cabinet with a soft, dry, line-free cloth. Please be sure not to use a wet cloth.

FCC NOTES

- "Warning: Changes or

to this unit not expressly approved by the party

responsible for compliance could void the user's authority to operate the equipment."

- "NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

Please send all correspondence to: Element TV Company, LP. Customer Service

www.elementelectronics.com customerservice@elementelectronics.com
SPECIFICATIONS

Model name
Panel Size Display Type Panel Technology Panel6 0H zV s.1 20Hz Display Resolution HDMI Support
Panel Resolution Aspect Ratio Dynamic Contrast Ratio-Panel Brightness(CentreTyp.)Cd/M� ResponseT ime(G ToG) LampL ife(Typ.Hours) HorizontalV iewing Angle(AtC R>20) VerticalViewing Angle(AtC R>20)
TV System Channel Range

E4AA50N 49.5 inches diagonally LCD TFT 60Hz 3840x2160 Upto4K 3840x2 160 16:9 5000:1 220-250 8 ms
>30000 hours 170 170
ATSC/NTSC Air CH2~CH69 / Cable CH1~CH135

Design and

are subjects to change without prior notice.

WARRANTY
26

WARRANTY
27

This product contains electrical or electronic materials. The presence of these materials may, if not disposed of properly, have potential adverse effects on the environment and human health. Presence of this label on the product means it should not be disposed of as unsorted waste and must be collected separately. As a consumer, you are responsible for ensuring that this product is disposed of properly.
