When transferring the vehicle to another individual, include this user's manual so that the next driver can continue its use.

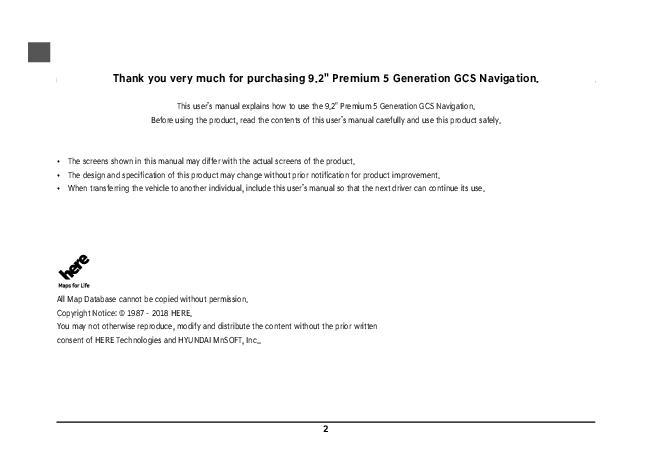

Thank you very much for purchasing 9.2" Premium 5 Generation GCS Navigation.
This user's manual explains how to use the 9.2" Premium 5 Generation GCS Navigation. Before using the product, read the contents of this user's manual carefully and use this product safely.
· The screens shown in this manual may differ with the actual screens of the product. · The design and specification of this product may change without prior notification for product improvement. · When transferring the vehicle to another individual, include this user's manual so that the next driver can continue its use.
All Map Database cannot be copied without permission. Copyright Notice: © 1987 - 2018 HERE. You may not otherwise reproduce, modify and distribute the content without the prior written consent of HERE Technologies and HYUNDAI MnSOFT, Inc..
2
TABLE OF CONTENTS
3 TABLE OF CONTENTS
GENERAL
11 NAME OF EACH COMPONENT 11 HEAD UNIT 12 DRIVER INFORMATION SYSTEM (DIS)
CONTROL 12 STEERING WHEEL REMOTE CONTROL
14 BASIC OPERATION
14 SYSTEM ON/OFF
14
STARTING THE SYSTEM FOR THE
fiRST TIME
14
TURNING THE SYSTEM OFF
14 ADJUSTING THE VOLUME OR AV ON/ OFF
14
AV OFF
14
AV ON
14
ADJUSTING THE VOLUME
15 RESETTING THE SYSTEM
15 USING THE CONTROLLER
15 USING THE TOUCH SCREEN
16 GENERAL OPERATION OF THE MENU IN AVAILABLE MODE
16
SOUND SETTINGS
16
DISPLAY SETTINGS
16
SWITCHING TO SIMPLE OR
NORMAL MODE
17 HOME SCREEN 17 BASIC OPERATION OF HOME SCREEN 18 CUSTOMIZING HOME SCREEN
19 ADDING YOUR FAVORITE MENU ITEMS
19 ADDING YOUR FAVORITE MENU ITEMS TO FAVORITES MENU
20 REORDERING YOUR FAVORITE MENU 20 DELETING YOUR FAVORITE MENU
MEDIA
21 PLAYING USB MUSIC 21 PAUSE 21 SKIP 21 SEARCH 21 SEEK 22 LIST 22 SHUFflE
3
22 REPEAT 23 SONG INFORMATION 23 HIDE CURRENT fiLE 23 SONGS FOR THIS ARTIST 23 SONGS FOR THIS ALBUM
24 PLAYING USB VIDEO 24 PAUSE 24 SKIP 24 SEARCH 24 SEEK 25 SWITCHING TO MENU SCREEN OR
FULL SCREEN 25 LIST 25 REPEAT 25 fiLE INFORMATION 26 SUBTITLE SETTINGS 26 VOICE SETTINGS
27 PLAYING IPOD® 27 PAUSE 27 SKIP 27 SEARCH 27 SEEK 28 LIST
TABLE OF CONTENTS
28
SEARCHING THE LIST
28
REORDERING CATEGORIES
28 SHUFflE
29 REPEAT
29 SONG INFORMATION
30 PLAYING BLUETOOTH® AUDIO 30 BEFORE PLAYING THE BLUETOOTH®
AUDIO 30 STARTING THE BLUETOOTH® AUDIO 30 PAUSE 30 SKIP 31 SHUFflE 31 REPEAT 31 SONG INFORMATION 31 CONNECTION SETTINGS
RADIO
32 LISTENING TO FM/AM RADIO 32 AUTO TUNING 32 MANUAL TUNING 32 PRESET TUNING 32 SAVING FM/AM AS PRESETS 33 DELETING FM/AM PRESETS
33 SCANNING FM/AM BROADCAST STATION
33 STATION LIST 34 REORDERING FM/AM PRESET 34 RADIO TEXT ON/OFF
35 LISTENING TO HD RADIOTM 35 HD RADIOTM SCREEN 35 HD RADIOTM ON/OFF
37 LISTENING TO SIRIUSXMTM RADIO 37 SIRIUSXMTM SCREEN
38 SIRIUSXMTM OPERATION
38 SELECTING SIRIUSXMTM BROADCAST CHANNEL
38
SELECTING A CHANNEL THROUGH
MANUAL SEARCH
38
SELECTING WITH CHANNEL UP/
DOWN
38
SELECTING A CHANNEL THROUGH
PRESET
38
SELECTING CHANNEL THROUGH
CHANNEL/CATEGORY LIST
38
SCANNING SIRIUSXMTM BROADCAST
CHANNEL
4
39 ENTER CHANNEL
39 SAVING SIRIUSXMTM PRESET
39 REORDERING SIRIUSXMTM PRESET
40 PROGRAM GUIDE
40 GAME ZONE
41
SETTING TEAM
41
VIEWING ACTIVE ALERT
41
ALERT ON/OFF
42 FAVORITES
42
VIEWING ACTIVE ALERT
42
ADDING TO FAVORITES
43
DELETING THE SONG OR ARTIST
SAVED IN FAVORITES MENU
43 FAVORITES ALERT ON/OFF
44 FEATURED FAVORITES
44 SUBSCRIPTION STATUS
PHONE
45 BLUETOOTH® WIRELESS TECHNOLOGY
45 BEFORE USING THE BLUETOOTH HANDS-FREE
45
WHAT IS BLUETOOTH WIRELESS
TECHNOLOGY?
TABLE OF CONTENTS
45
PRECAUTIONS FOR SAFE DRIVING
45
CAUTIONS UPON CONNECTING
BLUETOOTH PHONE
46 PAIRING AND CONNECTING THE UNIT AND A BLUETOOTH PHONE
46 WHEN NO PHONES HAVE BEEN PAIRED
48 WHEN A PHONE IS ALREADY PAIRED 50 DISCONNECTING THE CONNECTED
PHONE 50 DELETING BLUETOOTH DEVICES 51 BLUETOOTH SETTINGS
52 MAKING A CALL 52 MAKING A CALL BY ENTERING PHONE
NUMBER 52 MAKING A CALL BY VOICE
RECOGNITION 52 MAKING A CALL BY REDIALING 52 MAKING A CALL WITH SPEED DIAL
NUMBERS 53 ANSWERING/REJECTING A CALL 53 RESPONDING WITH MESSAGES 53 SWITCHING CALL TO THE MOBILE
PHONE
54 ENDING A CALL 54 USING THE MENU DURING A PHONE
CALL
55 CALL HISTORY 55 MAKING A CALL FROM CALL HISTORY 55 DOWNLOADING CALL HISTORY
56 CONTACTS 56 MAKING A CALL FROM CONTACTS 56 DOWNLOADING MOBILE PHONE
CONTACTS 56 SEARCHING FOR CONTACTS
57 FAVOURITES 57 CALLING FAVOURITES 57 ADDING AS A FAVOURITE 58 EDITING FAVOURITES 58 DELETING FAVOURITES
59 MESSAGES 59 CHECKING NEW MESSAGES 59 CHECKING NEW MESSAGE
CONTENTS
5
NAVIGATION
60 GETTING STARTED WITH NAVIGATION
60 GENERAL INFORMATION OF NAVIGATION USE
60
NAVIGATION USE RESTRICTIONS
60
WHAT IS GNSS?
60
ABOUT SATELLITE SIGNALS
60
ACQUIRING SATELLITE SIGNALS
61 MAP SCREEN
63 OPERATING NAVIGATION SCREEN 63 ZOOM IN/ZOOM OUT 63 MAP SCALE 63 MAKING A CALL TO POI 64 GUIDANCE TO PREVIOUS
DESTINATIONS 64 SCROLLING MAP
65 GENERAL OPERATIONS OF NAVIGATION MENU
65 NAVIGATION MENU 65 SEARCHING FOR POI
TABLE OF CONTENTS
65
POI SEARCH
66
DISPLAYING/HIDING POI ICONS ON
THE MAP SCREEN
67
EDITING POI CATEGORY
67 ADDING THE POSITION TO ADDRESS BOOK
67 TRAFfiC INFORMATION LIST
68 NAVIGATION VOLUME
68 NAVIGATION SETTINGS
69 SEARCHING FOR DESTINATION OF NAVIGATION
69 SEARCH
69 PREVIOUS DESTINATIONS
70 ADDRESS BOOK
70
ADDING TO A LOCATION TO THE
MY PLACES MENU
71
EDITING ADDRESS BOOK
71
DELETING ADDRESS BOOK
71
MY DATA
72 POI CATEGORIES
72 EMERGENCY
73 HOME/WORK/FAVORITE
73
REGISTERING HOME, WORK OR
FAVORITE PLACE
73
fiNDING YOUR HOME, WORK OR
FAVORITE PLACE
74 USING THE ROUTE MENU
74 CANCEL ROUTE
74 ROUTE OPTIONS
74 EDIT ROUTE
74
ADDING WAYPOINTS
75
REORDERING ROUTE
75
DELETING ROUTE
75 ROUTE OVERVIEW
76 ROUTE INFO. / AVOID
HD DATA
77 ABOUT HD DATA 77 ACCESSING HD DATA
78 TRAFfiC
79 WEATHER
80 DOPPLER RADAR
6
CONNECTED SERVICES
81 CONNECTED SERVICES
81 BEFORE USING CONNECTED SERVICES
81
WHAT IS CONNECTED SERVICES?
81
WHAT IS TELEMATICS?
81
ABOUT TRANSMISSION AND
RECEPTION OF RADIO WAVES
82 USING CONNECTED SERVICES 82 GETTING STARTED WITH CONNECTED
SERVICES 82 INTERIOR LIGHT BUTTON 82 CONNECTING WITH THE
CONNECTED CENTER
83 VOICE LOCAL SEARCH 83 WHAT IS VOICE LOCAL SEARCH? 83 STARTING VOICE LOCAL SEARCH
84 DRIVING INFO
85 VEHICLE DIAGNOSTICS
TABLE OF CONTENTS
86 MAINTENANCE
87 CONNECTED SETTINGS 87 FEATURE ENROLLMENT 87 MODEM INFORMATION 87 MODEM STATUS
88 CONNECTED SERVICES FEATURES
88 SAFETY
88
AUTOMATIC COLLISION
NOTIfiCATION AND ASSISTANCE
88
SOS EMERGENCY ASSISTANCE
88
ROADSIDE ASSISTANCE
88 CAR CARE
88
MONTHLY VEHICLE HEALTH REPORT
88
AUTOMATIC DIAGNOSTICS TROUBLE
CODE NOTIfiCATION
88
MAINTENANCE ALERT
89 REMOTE SERVICE
89
REMOTE DOOR LOCK/UNLOCK
89
REMOTE HORN/LIGHTS
89
REMOTE START WITH CLIMATE
CONTROL
89
CAR fiNDER
OTHERS
90 PHONE PROJECTION 90 WHAT IS ANDROID AUTO/APPLE
CARPLAY? 91 USING ANDROID AUTO OR APPLE
CARPLAY
92 VOICE MEMO
92 MAKING A VOICE MEMO
92
START
92
PAUSE
92
STOP
92 PLAYING A VOICE MEMO
92
PAUSE
92
SKIP
92
SEARCH
93
SAVING THE VOICE MEMO TO USB
DEVICE
93
STORAGE INFORMATION
93
DELETING VOICE MEMO
7
94 VOICE RECOGNITION SYSTEM
94 WHAT IS VOICE RECOGNITION?
94 VOICE RECOGNITION FEATURES BY LANGUAGE
94 OPERATING VOICE COMMAND
94
CONDITION FOR VOICE COMMAND
SYSTEM
95
STARTING VOICE RECOGNITION
95
SKIPPING PROMPT MESSAGES
95
RE-STARTING VOICE RECOGNITION
95
ENDING VOICE RECOGNITION
95
ADJUSTING VOICE RECOGNITION
VOLUME
95
BASIC OPERATION FOR VOICE
COMMAND (SETTING FM)
96 VOICE RECOGNITION QUICK START (MANUAL CONTROL)
96 ABOUT VOICE COMMAND "HELP"
97 VOICE COMMAND LIST 97 PHONE COMMANDS 98 RADIO COMMANDS 99 NAVIGATION COMMANDS 101 OTHER COMMANDS (COMMANDS
USED IN LIST/HELP/ETC.) 102 LIST OF NEAREST LOCATIONS
TABLE OF CONTENTS
109 SIRI® 109 ABOUT SIRI® 109 WHAT IS SIRI®? 109 USING SIRI® 109 STARTING SIRI® 109 RE-STARTING SIRI® 109 ENDING SIRI® 109 ADJUSTING SIRI® VOLUME
110 USING REAR CAMERA - OPTION 110 ABOUT REAR CAMERA 110 TURNING ON THE REAR CAMERA 110 BACKING UP & USING CAMERA
111 SVM (SURROUND VIEW MONITOR) - OPTION
111 ABOUT SVM (SURROUND VIEW MONITOR)
111 OPERATING FRONT SVM 112 OPERATING REAR SVM 112 SVM SETTING 113 WARNING DISPLAY 113 DRIVER'S DOOR OPEN INDICATOR 113 FRONT PASSENGER'S DOOR OPEN
INDICATOR
113 TRUNK OPEN INDICATOR 113 SIDE MIRROR FOLDING INDICATOR
114 CLIMATE 114 OPERATING CLIMATE 115 CLIMATE MENU
SETUP
116 NAVIGATION 116 DISPLAY 116 GUIDANCE 117 TRAFfiC 117 RESET
118 BLUETOOTH 118 BLUETOOTH CONNECTIONS 118 PREDEfiNED MESSAGES 119 BLUETOOTH VOICE PROMPTS 119 AUDIO SYSTEM INFO 120 VEHICLE NAME 120 PASSKEY 120 PRIVACY MODE 121 RESET
8
122 CONNECTED SERVICES 122 FEATURE ENROLLMENT 122 MODEM INFORMATION 122 MODEM STATUS
123 PHONE PROJECTION
124 ADVANCED 124 CUSTOM BUTTON 124 HOME SCREEN LAYOUT 124 MEDIA CHANGE NOTICES 125 MODE BUTTON (STEERING WHEEL) 125 HOME BUTTON (ROTARY
CONTROLLER)
126 DATE/TIME 126 GPS TIME 126 TIME SETTINGS 126 DAYLIGHT SAVING TIME 127 TIME ZONE 127 TIME FORMAT
128 GENERAL 128 LANGUAGE 128 KEYBOARD
TABLE OF CONTENTS
128 RETURN TO MAP: SET TIME 129 DISTANCE, SPEED UNIT 129 SCREEN SAVER
130 SOUND 130 BEEP 130 POSITION 130 EQUALIZER 131 PRIORITY 131 VOLUME (SYSTEM) 131 VOLUME (PHONE PROJECTION) 132 NAVIGATION VOLUME 132 SPEED DEPENDENT VOL. 132 QUANTUM LOGIC SURROUND
(OPTION) 133 CLARI-fi (OPTION) 133 ACTIVE SOUND DESIGN (OPTION) 133 RESET
134 DISPLAY 134 DISPLAY OFF 134 ADJUST VIDEO 134 ILLUMINATION 135 MODE 135 VIDEO DISPLAY RATIO
135 RESET
136 VOICE RECOGNITION
137 SYSTEM INFORMATION CHECK AND UPDATE GUIDE
137 SOFTWARE INFORMATION 137 UPDATE 137 STORAGE 138 WEB MANUAL 138 RESET
REFERENCE
139 PRECAUTIONS FOR SAFETY 139 NOTATIONS USED WITHIN THIS
USER'S MANUAL 141 FCC NOTICE (FOR USA) 141 FCC RF RADIATION EXPOSURE
STATEMENT 141 INDUSTRY CANADA STATEMENT 141 IC RADIATION EXPOSURE
STATEMENT (FOR CANADA)
9
142 GENERAL INFORMATION 142 CAUTIONS FOR THE USE OF USB 142 PLAYABLE fiLE STANDARD 142 PLAYABLE AUDIO fiLE STANDARD
(USB) 143 PLAYABLE VIDEO fiLE STANDARD 143 PLAYABLE SUBTITLE STANDARD 143 DIVX fiLE STANDARD 143 USING IPOD® DEVICES 143 PRECAUTIONS UPON USING IPOD® 144 SUPPORTED IPOD® DEVICES
145 BEFORE THINKING THE PRODUCT HAS MALFUNCTIONED
147 BEFORE THINKING THE PRODUCT HAS MALFUNCTIONED
149 TROUBLESHOOTING
152 TRADEMARKS AND LICENSES 152 IPOD® 152 SIRIUSXMTM 152 BLUETOOTH® WIRELESS
TECHNOLOGY
TABLE OF CONTENTS
152 HD RADIOTM TECHNOLOGY 153 NAVIGATION 153 END USER LICENSE AGREEMENT 153 TERMS AND CONDITIONS 156 COPYRIGHT FOR BRAND ICON 156 COPYRIGHT FOR JUNCTION VIEW 157 ABOUT MAP UPDATES 158 SPECIfiCATION 158 AV/NAVIGATION PRODUCT
SPECIfiCATION 159 CONNECTED SERVICES TERMINAL
PRODUCT SPECIfiCATION
10
NAME OF EACH COMPONENT NAME OF EACH COMPONENT
HEAD UNIT
The image of this product may be different from the actual product.
."1
/"7
3"%*0
.&%*"
%*41
4&&,
53"$,
a Power (PWR PUSH) button · Power on: Press this button in power OFF status. · Power off: Press and hold this button in power ON status. · Press this button to turn AV on or off in power ON status.
Volume control knob (VOL) Turn left/right to control volume.
b MAP button · Press to display the map screen of the current location. · Press to repeat the voice guidance when a destination is set.
c NAV button · Press to display the Navigation menu screen. · Press and hold to move to the Destination Search screen.
d RADIO button Selects the FM/AM/SiriusXM mode. Each time the button is pressed, the mode is changed in order to FM > AM > SiriusXM > FM.
11
e MEDIA button Press this button to move to the media playing screen. Press this button again to display the Media menu screen.
f DISP button Press to turn the screen on or off.
g S SEEK/TRACK W button The previous/next item is selected or searched in each mode. · Radio: A station with a good reception is selected · USB, iPod: File Change (Short Press), Fast Forward/Reverse Search (Long Press) · Bluetooth Audio: File Change · Android Auto/Apple CarPlay: File Change
h TUNE/FILE button · FM/AM: Turn to change the frequency. · SiriusXM mode: Turn to change the channel. · Media mode: Turn to search for the desired file.
i RESET hole Press to reset the unit.
NAME OF EACH COMPONENT
DRIVER INFORMATION SYSTEM (DIS) CONTROL
The image of this product may be different from the actual product.
)0.& #"$,
.&/6 ."1 /"7
4&561
a Controller Press or rotate to navigate through the menu screen.
b HOME button · Press to move to the HOME menu screen. · Press and hold to move to the map screen.
c (Custom Button) Press to move to the Custom Button menu. After setting a desired function, press to use the desired function. After setting it, press and hold to move to the Custom Button menu.
d BACK button · Press to move to the previous screen. · Press and hold to move to the HOME menu screen.
e SETUP button Press to move to the Setup menu.
f NAV button · Press to display the Navigation menu screen. · Press and hold to move to the Destination Search screen.
g MAP button · Press to display the map screen of the current location. · Press to repeat the voice guidance when a destination is set.
12
h MENU button Press to move to the pop-up menu in each mode.
STEERING WHEEL REMOTE CONTROL
The image of this product may be different from the actual product.
02'( 92/ 92/
a MODE button · Each time this button is pressed, the mode is changed. You can select the accessible media manually from Mode Button (Steering Wheel) menu. Only active/available media can be accessed. · If the media is not connected, corresponding modes will be disabled.
NAME OF EACH COMPONENT
· Press and hold the button to turn the AV on/off.
· When power is off, press the button to turn power back on.
b button · Press the button to activate voice recognition mode. · Press and hold the button to cancel voice recognition.
c VOL +/VOL - button Increases or decreases the volume level.
button Press to mute the sound.
d W/S button When it is pressed shortly; · FM/AM: plays broadcast frequencies saved to Favorites. · SiriusXM mode: plays broadcast channels saved to Favorites. · Media mode: plays previous/next file.
When it is pressed and held; · FM/AM: changes the broadcast
frequencies saved to Presets until the button is released. · SiriusXM mode: changes the broadcast channels saved to Presets until the button is released. · Media mode: rewinds or fast forwards the file.
e button When it is pressed shortly; · Searches new Bluetooth phone or connects the registered phone if Bluetooth is not connected. · If Bluetooth is connected, - Switches to the recent call history screen. - When pressed on the dial screen, makes a call. - When pressed on the incoming call screen, answers the call. - When pressed during call waiting, switches to waiting call (Call waiting).
When it is pressed and held; · Searches new Bluetooth phone or
connects the registered phone if Bluetooth is not connected. · If Bluetooth is connected, - When pressed during a Bluetooth
Hands-Free call, switches call back to mobile phone (Private) - When pressed while calling on the mobile phone, switches call back to Bluetooth Hands (Operates only when Bluetooth Hands-Free is connected)
f button · When pressed during a call, ends the phone call. · When pressed on the incoming call screen, rejects the call.
13
BASIC OPERATION
SYSTEM ON/OFF
STARTING THE SYSTEM FOR THE fiRST TIME 1. Press the engine start button. Once the
system is turned on, the booting process will start and the safety warning page is displayed.
2. Press [Confirm]. If you want to change the system language, press [Language]. For more details, refer to "Language" on page 128.
,NOTE
· You cannot operate the system while it is booting up. It may take some time for all of features of the system boot up.
· The safety warning page is displayed every time the ignition is turned on. The displayed warnings are related to safety, please closely read and comply with the safety warnings.
TURNING THE SYSTEM OFF Press and hold [PWR PUSH] button on the head unit. To turn the system on again, press [PWR PUSH] button on the head unit.
,NOTE
Check the volume when turning on the system. Before turning on the system, adjust the volume to a reasonable level.
ADJUSTING THE VOLUME OR AV ON/OFF
AV OFF Press [PWR PUSH] button on the head unit when the AV is ON. AV ON Press [PWR PUSH] button on the head unit when the AV is OFF. ADJUSTING THE VOLUME Rotate the volume control knob [VOL] on the head unit.
,NOTE
When you turn the unit off, the current volume level is automatically memorized. Whenever you turn the system on, it operates at the memorized volume level.
14
BASIC OPERATION
RESETTING THE SYSTEM
This feature is used to reset the system in the occurrence of an unforeseen error or problem. Press "RESET" button. (The use of a clip or pin is recommended when resetting the system.)
USING THE CONTROLLER
This control is used to move and select menus. Controller Description
Move in the menu by turning the controller left/ right.
USING THE TOUCH SCREEN
Press the desired menu on the screen to select a menu.
.&%*"
%*41
4&&,
53"$,
Push the controller up/ down/left/right/diagonally to move in the menu. Press the controller to select menu.
,NOTE
If you touch the screen while driving, the attention may be scattered and cause a traffic accident. For safety, please use after stopping.
15
BASIC OPERATION
GENERAL OPERATION OF THE MENU IN AVAILABLE MODE
SOUND SETTINGS This menu is used to adjust the sound effects for the whole system. 1. Press [Sound Settings] on the pop-up menu
in Radio or Media mode.
DISPLAY SETTINGS This menu is used to control the display brightness and image rate for the whole system. 1. Press [Display Settings] on the pop-up menu
in Video mode.
SWITCHING TO SIMPLE OR NORMAL MODE 1. Press [Simple] in each mode screen. Or
press [Menu] > [Simple Mode]. The Simple Mode screen appears.
2. For more details, refer to the "Sound" on page 130.
2. For more details, refer to the "Display" on page 134.
2. Press [Normal] to move to the Normal Mode. Or press [Menu] > [Normal Mode]. The Normal Mode screen appears.
16
HOME SCREEN
BASIC OPERATION OF HOME SCREEN
1. Press [HOME] button or [ ]. The HOME screen appears.
2. Press the desired menu on the HOME screen.
3. Subsequent operations will be performed according to the desired menu selection.
17
HOME SCREEN
CUSTOMIZING HOME SCREEN
You can change the position by pressing and holding the menu icon on the HOME screen. 1. Press and hold the desired menu icon on the
HOME screen. 3. Press [HOME] button or [ ].
2. Press and drag an item to rearrange the screen.
18
ADDING YOUR FAVORITE MENU ITEMS
ADDING YOUR FAVORITE MENU ITEMS TO FAVORITES MENU
If your Favorite menu items have been already saved in the Favorites menu, it can be easily accessed. 1. Press [HOME] button or [ ] > [Favorites].
3. Select one of the categories.
,NOTE
· A maximum of 25 items can be added to Favorites menu.
· If you select the menu item added to Favorites menu, it moves to the corresponding screen.
4. Select the desired item(s), then press [Add]. · [Mark All]: Selects all items. · [Unmark All]: Unmarks all items. · [Cancel]: Exits Favorites screen.
2. Press [Add to Favorites]. If your Favorite menu items are already added, press [Menu] > [Add].
19
ADDING YOUR FAVORITE MENU ITEMS
REORDERING YOUR FAVORITE MENU
1. Press [HOME] button or [ ] > [Favorites].
3. Press and hold an item, then move it up/ down to reorder.
DELETING YOUR FAVORITE MENU
1. Press [HOME] button or [ ] > [Favorites]. 2. Press [Menu] > [Delete].
2. Press [Menu] > [Reorder].
3. Select the desired item(s), then press [Delete] > [Yes]. · [Mark All]: Selects all items. · [Unmark All]: Unmarks all items. · [Cancel]: Exits delete screen.
20
PLAYING USB MUSIC PLAYING USB MUSIC
You can play music files saved in a USB memory device. Connect a USB device to the USB port. Playback will start automatically.
,NOTE
To play USB music while a different source is playing, press [HOME] button or [ ] > [Media] > [USB Music].
PAUSE
You can pause the playing file. Press [M] on screen or with the controller. Press [d] on screen or with the controller to play it again.
SKIP
You can play the previous or next file.
Position Description
Screen
· Press [C/V]. · Pressing [C] after 3 seconds
of playback time plays the current track/file from the beginning.
Head unit
· Press [S SEEK/TRACK W] button.
· Pressing [S SEEK] button after 3 seconds of playback time plays the current track/file from the beginning.
SEARCH
You can rewind/fast forward to a specific point of a file.
Position Description
Screen
Press and hold [C/V] and then release at the point you want.
Press and hold [S SEEK/TRACK Head unit W] button and then release at
the point you want. Push and hold the controller left Controller or right and then release at the point you want.
SEEK
You can play the file directly by searching for the desired file. Turn [TUNE/FILE] button to search for a desired file. If the desired file is displayed, press the [TUNE/FILE] button to play the file.
21
PLAYING USB MUSIC
LIST
You can play the desired file by searching the file list included in USB. 1. Press [List]. Or press [Menu] > [List].
2. Press the desired file after searching for a category. The category can be sorted by [Folders], [Songs], [Albums], [Artists] or [Recently Added].
,NOTE
If you press [Play] on the list screen, plays from the first file within the selected folder.
SHUFflE
All files can be played randomly. Press [Menu] > [Shuffle] from the playing screen.
,NOTE
You can set or cancel the Shuffle function by pressing [ ] on the playing screen.
REPEAT
The current playing file is played repeatedly. 1. Press [Menu] > [Repeat].
2. Press the desired item(s). · [Repeat All]: Repeats all files. Displayed as [Repeat Album] or [Repeat Artist] during playback from the [Albums] or [Artists] category. · [Repeat Folder]: Repeats all files within the current folder. · [Repeat One]: Repeats the current file.
,NOTE
You can set or cancel the Repeat function by pressing [ ]/[ ]/[ ]/[ ] on the playing screen.
: Repeat All : Repeat Album/Repeat Artist (It is displayed when all fi les repeat during playback from the [Albums] or [Artists] category.) : Repeat Folder : Repeat One
22
PLAYING USB MUSIC
SONG INFORMATION
This feature shows the artist, title, album and folder information of the song. 1. Press [Menu] > [Song Information].
2. Press [OK].
HIDE CURRENT fiLE
You can hide the current playing file. 1. Press [Menu] > [Hide Current File] from the
playing screen.
2. Press [Yes].
SONGS FOR THIS ARTIST
Moves the artist list of the current song. Press [Menu] > [Songs for This Artist].
,NOTE
You can go to the list by pressing artist on the playing screen.
SONGS FOR THIS ALBUM
Moves the album list of the current song. Press [Menu] > [Songs for This Album].
,NOTE
You can go to the list by pressing album art on the playing screen.
23
PLAYING USB VIDEO
You can play video files saved in a USB memory device. Connect a USB device to the USB port and playback starts automatically.
,NOTE
· To play USB Video while a different source is playing, press [HOME] button or [ ] > [Media] > [USB Video].
· Video is not available while driving. (Because of traffic regulations, video is only available while the vehicle is stopped or the transmission lever is put to P position.)
PAUSE
You can pause the playing file. Press [M] on screen. Press [d] on screen to play it again.
SKIP
You can play the previous or next file.
Position Description
Screen
· Press [C/V]. · Pressing [C] after 3 seconds
of playback time plays the current file from the beginning.
Head unit
· Press [S SEEK/TRACK W] button.
· Pressing [S SEEK] button after 3 seconds of playback time plays the current file from the beginning.
SEARCH
You can rewind/fast forward to a specific point of a file.
Position Description
Screen
Press and hold [C/V] and then release at the point you want.
Head unit
Press and hold [S SEEK/TRACK W] button and then release at the point you want.
SEEK
You can play the file directly by searching for the desired file. Turn [TUNE/FILE] button to search for a desired file. If the desired file is displayed, press the [TUNE/FILE] button to play the file.
24
PLAYING USB VIDEO
SWITCHING TO MENU SCREEN OR FULL SCREEN
· Press the screen. · Press [ ] on the playing screen. · Press [Menu] > [Full Screen]. · Wait 5 seconds to display the Full screen on
the Menu screen.
LIST
You can play the desired file by searching the file list included in USB. 1. Press [List]. Or press [Menu] > [List].
,NOTE
If you press [Play] on the list screen, plays from the first file within the selected folder.
REPEAT
The current playing file is played repeatedly. 1. Press [Menu] > [Repeat].
fiLE INFORMATION
This feature shows the name, resolution and playback time information of the file. 1. Press [Menu] > [File Information].
2. Press [OK].
2. Press the desired file.
2. Press the desired item(s). · [Repeat All]: Repeats all files. · [Repeat Folder]: Repeats all files within the current folder. · [Repeat One]: Repeats the current file.
,NOTE
You can set or cancel the Repeat function by pressing [ ]/[ ]/[ ] on the playing screen.
25
PLAYING USB VIDEO
SUBTITLE SETTINGS
1. Press [Menu] > [Subtitle Settings].
VOICE SETTINGS
1. Press [Menu] > [Voice Settings]. 2. Set the desired voice.
2. Set the desired option. · [View Subtitles]: Turns video subtitles on/ off. · [Font Size]: Adjusts the font size of video subtitles.
26
PLAYING IPOD®
1. Use iPod exclusive cable to connect iPod to USB connector.
2. Press [HOME] button or [ ] > [Media] > [iPod]. It runs iPod mode.
PAUSE
You can pause the playing file. Press [M] on screen. Press [d] on screen to play it again.
SKIP
You can play the previous or next file.
Position Description
· Press [C/V].
Screen
·
Pressing [C] after 3 seconds of playback time plays the
current file from the beginning.
Head unit
· Press [S SEEK/TRACK W] button.
· Pressing [S SEEK] button after 3 seconds of playback time plays the current file from the beginning.
SEARCH
You can rewind/fast forward to a specific point of a file.
Position Description
Screen
Press and hold [C/V] and then release at the point you want.
Head unit
Press and hold [S SEEK/TRACK W] button and then release at the point you want.
SEEK
You can play the file directly by searching for the desired file. Turn [TUNE/FILE] button to search for a desired file. If the desired file is displayed, press the [TUNE/FILE] button to play the file.
27
PLAYING IPOD®
LIST
SEARCHING THE LIST You can play the desired file by searching the file list included in iPod. 1. Press [List]. Or press [Menu] > [List].
REORDERING CATEGORIES 1. Press [Menu] > [Reorder Categories] on the
List screen.
SHUFflE
All files can be played randomly. Press [Menu] > [Shuffle] from the playing screen.
,NOTE
You can set or cancel the Shuffle function by pressing [ ] on the playing screen.
2. Press the desired file after searching for a category. The category can be sorted by [Playlists], [Artists], [Albums], [Songs] or [More].
2. Press and hold a category, then move it up/ down to reorder.
28
PLAYING IPOD®
REPEAT
The current playing file is played repeatedly. 1. Press [Menu] > [Repeat].
SONG INFORMATION
This feature shows the artist, title and album information of the song. 1. Press [Menu] > [Song Information].
2. Press [Repeat] repeatedly. · [ ]: Repeats all files. · [ ]: Repeats the current file. · [ ]: Cancels the repeat function.
,NOTE
You can change the Repeat function by pressing [ ]/[ ]/[ ] on the playing screen.
2. Press [OK].
29
PLAYING BLUETOOTH® AUDIO
BEFORE PLAYING THE BLUETOOTH® AUDIO
· Music saved in the mobile phone can be played in the car through Bluetooth audio streaming.
· Bluetooth audio can be played only when a Bluetooth phone has been connected. To play Bluetooth audio, connect the Bluetooth phone to the car system. For more information on connecting Bluetooth, please refer to user's manual "Pairing and Connecting the Unit and a Bluetooth Phone" on page 46.
· The audio streaming function may not be supported in some mobile phones. Only one function can be used at a time between the Bluetooth handsfree or Bluetooth audio function. For example, if you convert to the Bluetooth handsfree while playing Bluetooth audio, the music will be discontinued.
STARTING THE BLUETOOTH® AUDIO
Press [HOME] button or [ ] > [Media] > [Bluetooth Audio]. The Bluetooth audio screen is displayed.
30
PAUSE
You can pause the playing file. Press [M] on screen. Press [d] on screen to play it again.
,NOTE
This feature may not be supported on some Bluetooth devices.
SKIP
You can play the previous or next file.
Position Description
Screen
· Press [C/V]. · Pressing [C] after 3
seconds of playback time plays the current file from the beginning.
,NOTE
This feature may not be supported on some Bluetooth devices.
PLAYING BLUETOOTH® AUDIO
SHUFflE
All files can be played randomly. Press [Menu] > [Shuffle] from the playing screen.
,NOTE
· You can set or cancel the Shuffle function by pressing [ ] on the playing screen.
· This feature may not be supported on some Bluetooth devices.
REPEAT
The current playing file is played repeatedly. 1. Press [Menu] > [Repeat]. 2. Press the desired item(s).
· [Repeat All]: Repeats all files. · [Repeat One]: Repeats the current file. · [Repeat Off]: Cancels the repeat function.
,NOTE
· You can change the Repeat function by pressing [ ]/[ ]/[ ] on the playing screen.
· This feature may not be supported on some Bluetooth devices.
SONG INFORMATION
This feature shows the artist, title and album information of the song. 1. Press [Menu] > [Song Information].
2. Press [OK].
CONNECTION SETTINGS
1. Press [Menu] > [Connection Settings]. 2. For more details, refer to the "Bluetooth"
part on page 118.
31
LISTENING TO FM/AM RADIO LISTENING TO FM/AM RADIO
1. Press [RADIO] button on the head unit. Or press [HOME] button or [ ] > [Radio].
2. Press [Band] > [FM] or [AM] on the screen. The FM/AM screen of the most recent listened frequency is displayed.
AUTO TUNING
Press [S SEEK/TRACK W] button on the head unit. When a frequency is received, searching stops.
MANUAL TUNING
Turn [TUNE/FILE] button on the head unit in clockwise or counter-clockwise direction.
PRESET TUNING
From the 40 presets, select the frequency you want to listen to.
SAVING FM/AM AS PRESETS
A maximum of 40 frequencies can be saved manually as presets. 1. Select the band (FM, AM) you want to store
a frequency into. 2. Select the desired frequency. 3. Press [Menu] > [Save as Preset].
4. Press [Save]. The frequency is saved.
,NOTE
· If you want to save the frequency from Preset menu, press and hold [ ].
· When the frequency is saved on a number of which another frequency has already been saved, the previously saved frequency is erased.
32
LISTENING TO FM/AM RADIO
DELETING FM/AM PRESETS
1. Press [Menu] > [Delete Presets] on the voice FM/AM screen.
SCANNING FM/AM BROADCAST STATION
This function scans all frequencies and plays only frequencies with superior reception for 5 seconds each. 1. Select the band (FM, AM) you want. 2. Press [Menu] > [Scan FM] or [Scan AM].
STATION LIST
You can see broadcast station list with superior reception. 1. Select the band (FM, AM) you want. 2. Press [Station List] on the screen. Or press
[Menu] > [Station List].
2. Select the desired item(s), then press [Delete] > [Yes]. · [Mark all]: Selects all items. · [Unmark all]: Unmarks all items. · [Cancel]: Exits favourites screen.
,NOTE
When the scan is operating, pressing the controller will stop the function and remain on the stopped frequency.
3. Press the desired broadcast station. · Press [Menu] > [Refresh] to refresh the Station List.
33
LISTENING TO FM/AM RADIO
REORDERING FM/AM PRESET
This function reorders the frequency saved to presets. 1. Select the band (FM, AM) you want. 2. Press [Menu] > [Reorder Presets].
RADIO TEXT ON/OFF
If current broadcast includes Radio Text information, the text information is displayed on the screen. 1. Select the band (FM, AM) you want. 2. Press [Menu] > [Show Radio Text].
3. Press and hold a preset, then move it up/ down to reorder.
3. Pressing the [Show Radio Text] again will cancel the function.
34
LISTENING TO HD RADIOTM
You can turn HD radio on from the menu and listen to HD Radio Broadcasts. The HD Radio screen is displayed only when a HD Radio broadcast is being received.
HD RADIOTM SCREEN
a HD Radio Reception & Channel buttons Displays main HD Radio channels and used to directly select the currently available local channels.
b HD Channel Number · HD Channel number saved in preset. · Preset tuning: From the 40 presets, select the HD Channel you want to listen to.
c Broadcast Information Displays detailed information about the current broadcast. (Album Cover Art, Artist name, Song title, HD radio channel, Frequency, PTY, etc...)
d Frequency controller When controller is focused, it moves to center of screen. Turn the controller to search for frequency and move the red line.
,NOTE
HD Radio reception is included with the vehicle is in Radio mode. Methods used to reorder between channels, save preset frequency, or other methods of searching frequencies used for standard radios are identical for HD Radios. The HD Radio icon will be displayed when the vehicle is within regions where HD Radio signals can be received.
HD RADIOTM ON/OFF
1. Select the band (FM, AM) you want. If an HD Radio broadcast is received, the radio mode will switch from analog broadcast to HD Radio broadcast.
2. Press [Menu] > [HD Radio] on the screen. The HD radio will be off and switch to analog broadcast.
35
LISTENING TO HD RADIOTM ,NOTE
· The default setting of [HD Radio] is set to on. · HD radio Technology is a digital radio
technology used by FM and AM radio broadcast stations to transmit audio and data via a digital signal in conjunction with their analog signals. · While listening to the radio, the HD Radio icon will become displayed if receiving an HD radio broadcast.
36
LISTENING TO SIRIUSXMTM RADIO
1. Press [RADIO] button on the head unit. Or press [HOME] button or [ ] > [Radio].
2. Press [Band] > [SiriusXM] on the screen. The SiriusXM radio screen of the most recent listened channel will be displayed.
3. Select the desired broadcast channel.
SIRIUSXMTM SCREEN
a Preset list Displays the channels saved in the Preset list.
b Channel Logo Displays the channel logo of the channel currently playing.
c Channel Info Displays the current channel number, category and name.
d Save Saves to Preset the currently tuning channel.
37
e Contents Info Displays the artist, title and other information about the song currently playing.
f Live Changes to the Live Broadcast mode.
g v · When it is pressed shortly: Moves to the next item. · When it is pressed and held: Searches forward until the button is released.
h d/M (Play/Pause) Plays/Pauses the currently broadcasting program.
i c Repeats the previously broadcasted program. · When it is pressed shortly: Moves to the previous item. · When it is pressed and held: Searches backwards until the button is released.
j Time difference Displays the time difference between the song playing and the Live broadcast.
SIRIUSXMTM OPERATION
SELECTING SIRIUSXMTM BROADCAST CHANNEL
SELECTING A CHANNEL THROUGH MANUAL SEARCH Turn [TUNE/FILE] button on the head unit clockwise or counter-clockwise to display the previous or next channel information. SELECTING WITH CHANNEL UP/DOWN Press [S SEEK/TRACK W] button on the head unit. The previous or next channel will be selected. SELECTING A CHANNEL THROUGH PRESET Press the preset button of the desired channel.
SELECTING CHANNEL THROUGH CHANNEL/CATEGORY LIST 1. Press [Channel List] on the screen. Or press
[Menu] > [Channel List].
2. Select the desired category and channel. · Press [Categories] or [Menu] > [Category List] to move to the Category List menu. · Press [Menu] > [Featured Favorites] to move to the Featured Favorites menu. · If you want to skip a channel, press [Menu] > [Skip]. After press the channel to skip, press [ ] to confirm your selection.
,NOTE
The channel list may be different according to the region.
SCANNING SIRIUSXMTM BROADCAST CHANNEL Press [Menu] > [Scan SXM channels] on the SiriusXM radio screen. Scans all receivable channels for 5 seconds each.
,NOTE
When the scan is operating, pressing the controller will cancel the function and return to the previous channel.
38
SIRIUSXMTM OPERATION
ENTER CHANNEL
This feature is used to search for channels by entering channel numbers. 1. Press [Menu] > [Enter Channel] on the
SiriusXM radio screen.
SAVING SIRIUSXMTM PRESET
A total of 40 SiriusXM channels can be saved. 1. Select the desired channel. 2. Press [Save] or [Menu] > [Save as Preset].
REORDERING SIRIUSXMTM PRESET
The 40 SiriusXM channels can be reordered. 1. Press [Menu] > [Reorder Presets] on the
SiriusXM radio screen. 2. Press the desired preset from the list.
2. Enter the number of the channel you want to receive and press [9].
3. Press the desired preset number. The channel is saved.
,NOTE
When the channel is preset on a number of which another channel has already been preset, the previously preset channel is erased.
3. Move up and down and long press the selected preset, or drag it to the desired position.
39
SIRIUSXMTM OPERATION
PROGRAM GUIDE
You can check the program information and the schedules of broadcast channels. 1. Press [Menu] > [Program Guide] on the
SiriusXM radio screen.
When you select the other broadcast except the current broadcast channel:
GAME ZONE
You can check the list of sports leagues and games for selected league. (League: NFL, MLB, NBA, NHL, CFB, CBK, WCBK) 1. Press [Menu] > [More Features] > [Game
Zone] on the SiriusXM radio screen.
· Press [Categories] to search for category. Or Press [Menu] > [Category List].
2. Select the desired broadcast channel. When you select the current broadcast channel:
3. Select the desired item. · Press [Listen] to listen to the current broadcast. · Press [Remind Me] to reserve the broadcast. · Press [Close] to close the function.
,NOTE
Reminder time may be different from time set by user.
2. Listen to live broadcast by selecting the desired league and game.
40
SIRIUSXMTM OPERATION
SETTING TEAM You can listen to the game of the favorite team by marking the favorite team. 1. Press [Teams] on the live broadcast mode. 2. Select the desired league and mark the
desired team.
VIEWING ACTIVE ALERT You can listen to live broadcast by selecting the channel when the marked team is playing on other channel. 1. Press [Active] on the live broadcast mode.
ALERT ON/OFF This feature sets whether to display the pop-up on the screen when the marked team is playing on other channel. 1. Press [Alert] on the Teams menu.
,NOTE
When the marked team is playing on other channel, the pop-up is displayed on the screen. For more details, refer to "Alert On/Off".
2. Listen to live broadcast by selecting the desired item.
2. When the marked team is playing on other channel, the pop-up is displayed on the screen.
· [Listen]: Moves to the selected channel. · [Ignore]: Moves to the previous screen.
41
SIRIUSXMTM OPERATION
FAVORITES
You can check the song or artist added in Favorites menu. Press [Menu] > [More Features] > [Favorites] on the SiriusXM radio screen. The Favorites menu is displayed on the screen.
VIEWING ACTIVE ALERT You can listen to live broadcast by selecting the channel when the song or artist added in Favorites menu is playing on other channel. 1. Press [Active] on the favorites list.
ADDING TO FAVORITES You can add the artist or song in the Favorites menu. 1. Press [Menu] > [Add to Favorites] on the
SiriusXM radio screen.
,NOTE
When the song or artist added in Favorites menu is playing on other channel, the pop-up is displayed on the screen.
2. Listen to live broadcast by selecting the desired item.
2. Select the artist or song to add to Favorites menu.
It displays the number of the saved favorites and the number of total favorites. 42
SIRIUSXMTM OPERATION
,NOTE
You can play the song or artist by selecting the desired item when the song or artist added in Favorites menu is playing on other channel. DELETING THE SONG OR ARTIST SAVED IN FAVORITES MENU 1. Press [Menu] > [Delete] on the favorites
menu.
FAVORITES ALERT ON/OFF
This feature sets whether to display the pop-up on the screen when the song or artist added in Favorites menu is playing on other channel. 1. Press [Menu] > [More Features] > [Favorites
Alert] on the SiriusXM radio screen.
2. When the song or artist saved in Favorites menu is playing on other channel, the popup is displayed on the screen.
· [Listen]: Moves to the selected channel. · [Ignore]: Moves to the previous screen.
2. Select the desired item(s), then press [Delete] > [Yes]. · [Mark All]: Selects all items. · [Unmark All]: Unmarks all items. · [Cancel]: Exits delete screen.
Pressing the [Favorites Alert] again will cancel the function.
43
SIRIUSXMTM OPERATION
FEATURED FAVORITES
Featured Favorites allows SiriusXM to broadcast additional presets. Multiple sets Featured Favorites data can be broadcast by SiriusXM and can change from time to time. 1. Press [Menu] > [More Features] > [Featured
Favorites] on the SiriusXM radio screen.
SUBSCRIPTION STATUS
This feature is used to check the Subscription status of SiriusXM. 1. Press [Menu] > [More Features] >
[Subscription Status] on the SiriusXM radio screen.
2. Select the desired item. · Example 1: "Martha's Favorites" may represent Martha Stuart's favorites presets on her radio. · Example 2: During holidays, "Holiday Music" may represent all the SiriusXM channels that are playing the holiday music for easy access by users.
2. If you have not subscribed to the SiriusXM service, press [Call] to enable Services.
44
BLUETOOTH® WIRELESS TECHNOLOGY BLUETOOTH® WIRELESS TECHNOLOGY
BEFORE USING THE BLUETOOTH HANDS-FREE
WHAT IS BLUETOOTH WIRELESS TECHNOLOGY? · Bluetooth Wireless Technology refers
to a short-distance wireless networking technology which uses a 2.45GHz frequency to connect various devices within a certain distance. · Supported within PCs, external devices, Bluetooth phones, PDAs, various electronic devices, and automotive environments, Bluetooth Wireless Technology to be transmitted at high speeds without having to use a connector cable. · Bluetooth Hands-free refers to a device which allows the user to conveniently make phone calls with Bluetooth mobile phones through the system. · The Bluetooth Hands-free feature may not be supported in some mobile phones.
PRECAUTIONS FOR SAFE DRIVING
· Bluetooth is a feature that enables drivers to use handsfree while driving. Connecting the head unit with a Bluetooth phone allows the user to conveniently make calls, receive calls, and manage the phone book. Before using Bluetooth Wireless Technology, carefully read the contents of this user's manual.
· Excessive use or operations while driving may lead to negligent driving practices and be the cause of accidents. Do not operate the device excessively while driving.
· Viewing the screen for prolonged periods of time is dangerous and may lead to accidents. When driving, view the screen only for short periods of time.
CAUTIONS UPON CONNECTING BLUETOOTH PHONE
· Before connecting the head unit with the mobile phone, check to see that the mobile phone supports Bluetooth features.
· If you do not want automatic connection with your Bluetooth device, turn the Bluetooth feature off of the Bluetooth device.
· Park the vehicle when pairing the head unit with the mobile phone.
· Some Bluetooth features may occasionally not operate properly depending on the firmware version of your mobile phone. If such features can be operated after receiving a S/W upgrade from your mobile phone manufacturer, unpair all devices and pair again before use.
· When pairing the head unit with the iPhone for the frst time while your iPhone is connected to the USB port with iPhone cable, error message may be displayed on your iPhone. However, this is intended for operation. You may ignore it if your iPhone has been connected to the head unit.
45
PAIRING AND CONNECTING THE UNIT AND A BLUETOOTH PHONE
To use the Bluetooth feature, make sure the Bluetooth on your phone is turned on. Refer to your phone's user guide.
WHEN NO PHONES HAVE BEEN PAIRED
1. Press [ ] button on the steering wheel remote control or [Phone] on the HOME screen.
2. Search for the vehicle name in your Bluetooth device and confirm pairing. (The default vehicle name is GENESIS G80.)
3. If the SSP (Secure Simple Pairing) is not supported, input the passkey on your Bluetooth device. (The default passkey is 0000.)
<Example of Bluetooth Device Screen> (The pop-up screen may differ from the actual information of the Bluetooth device.)
<Example of Bluetooth Device Screen> (The pop-up screen may differ from the actual information of the Bluetooth device).
46
PAIRING AND CONNECTING THE UNIT AND A BLUETOOTH PHONE
4. Allow the access request to the contacts and the call record of the Bluetooth device if you want to use it.
<Example of Bluetooth Device Screen> (The pop-up screen may differ from the actual information of the Bluetooth device.)
5. Allow the access request to messages of the Bluetooth device if you want to use it.
<Example of Bluetooth Device Screen> (The pop-up screen may differ from the actual information of the Bluetooth device.)
,NOTE
· The initial vehicle name is registered as 'GENESIS G80' with the certification passkey of '0000'.
· Depending on the Bluetooth device, the certification passkey may or may not be required.
· Depending on the Bluetooth device, Android or iOS phone, the message may appear differently. For iOS phones, select [Settings] > [Bluetooth] > [ ] > [Show Notification].
· If SSP (Secure Simple Pairing) is not supported, Authorize the registration after entering the certification passkey (PIN code) on the Bluetooth Device.
6. When the connection is completed, the recent call screen is displayed on the screen. When the connection fails, a failure message is displayed on the screen.
47
PAIRING AND CONNECTING THE UNIT AND A BLUETOOTH PHONE
WHEN A PHONE IS ALREADY PAIRED
1. Press [HOME] button or [ ] > [Setup] > [Bluetooth] > [Bluetooth Connection].
3. Search for the vehicle name in your Bluetooth device and confirm pairing. (The default vehicle name is GENESIS G80.)
4. If the SSP (Secure Simple Pairing) is not supported, input the passkey on your Bluetooth device. (The default passkey is 0000.)
2. Select the device you want to connect. If there is no device you want to connect, press [Add New Device].
<Example of Bluetooth Device Screen> (The pop-up screen may differ from the actual information of the Bluetooth device.)
<Example of Bluetooth Device Screen> (The pop-up screen may differ from the actual information of the Bluetooth device).
48
PAIRING AND CONNECTING THE UNIT AND A BLUETOOTH PHONE
5. Allow the access request to the contacts and the call record of the Bluetooth device if you want to use it.
<Example of Bluetooth Device Screen> (The pop-up screen may differ from the actual information of the Bluetooth device).
6. Allow the access request to messages of the Bluetooth device if you want to use it.
<Example of Bluetooth Device Screen> (The pop-up screen may differ from the actual information of the Bluetooth device).
,NOTE
· The initial vehicle name is registered as 'GENESIS G80' with the certification passkey of '0000'.
· Depending on the Bluetooth device, the certification passkey may or may not be required.
· Depending on the Bluetooth device, Android or iOS phone, the message may appear differently. For iOS phones, select [Settings] > [Bluetooth] > [ ] > [Show Notification].
· If SSP (Secure Simple Pairing) is not supported, Authorize the registration after entering the certification passkey (PIN code) on the Bluetooth Device.
7. When your phone is successfully connected, the Bluetooth settings screen is displayed on the screen. When the connection fails, a failure message is displayed on the screen.
49
PAIRING AND CONNECTING THE UNIT AND A BLUETOOTH PHONE
,NOTE
· For safety reasons, pairing a Bluetooth phone is not possible when the vehicle is in motion. Park the vehicle in a safe location to pair a Bluetooth phone. It is possible to pair up to 5 mobile phones. In order to pair a new phone when there are already 5 mobile phones paired, you must first delete one of the previously paired phones.
· Some functions may not be supported due to limited Bluetooth compatibility between the car system and mobile phone.
· When a Bluetooth device is connected, a new device cannot be paired. If you want to pair a new phone, first disconnect the connected Bluetooth device.
DISCONNECTING THE CONNECTED PHONE
1. Press [ ] button on the steering wheel remote control or [Phone] on the HOME screen.
2. Press [Menu] > [Bluetooth Settings] > [Bluetooth Connection] on the screen.
3. Select the connected phone.
,NOTE
If you want to connect the disconnected phone again, select the disconnected phone.
DELETING BLUETOOTH DEVICES
If you no longer need to use a phone, you can delete the Bluetooth devices. Note that deleting a Bluetooth device will delete all call history and contact entries on the car system. 1. Press [ ] button on the steering wheel
remote control or [Phone] on the HOME screen. 2. Press [Menu] > [Bluetooth Settings] > [Bluetooth Connection] on the screen. 3. Press [Menu] > [Delete].
4. Select the phone you want to delete and press [Delete] > [Yes]. · [Mark All]: Selects all items. · [Unmark All]: Unmarks all items. · [Cancel]: Exits delete screen.
50
PAIRING AND CONNECTING THE UNIT AND A BLUETOOTH PHONE
BLUETOOTH SETTINGS
1. Press [ ] button on the steering wheel remote control or [Phone] on the HOME screen.
2. Press [Menu] > [Bluetooth Settings].
3. For more details, refer to the "Bluetooth" part on page 118.
51
MAKING A CALL
MAKING A CALL BY ENTERING PHONE NUMBER
Connect your unit and Bluetooth phone before making a call. 1. Press [ ] on the screen.
MAKING A CALL BY VOICE RECOGNITION
1. Press [ ] on the screen. The system waits for your command and displays a list of available commands on the screen.
<Dial Screen>
2. Enter the phone number using the keypad on the dial screen.
3. Press the [ ] on the dial screen or the [ ] button on the steering wheel remote control.
,NOTE
If you press the wrong number, press [ ] to delete the inputted number one digit at a time.
2. After the beep, say `Name1'.
MAKING A CALL BY REDIALING
Press and hold the [ ] on the dial screen or the [ ] button on the steering wheel remote control.
,NOTE
Redialing is not possible when there is no dialed call history.
MAKING A CALL WITH SPEED DIAL NUMBERS
Press and hold speed dial number using the keypad on the dial screen. Only speed dial numbers already saved on the mobile phone can be used for speed dial calls. Up to 3-digit speed dial numbers are supported.
,NOTE
For 3-digit speed dial numbers, press and hold the 3rd digit to make a call to the speed dial number.
52
MAKING A CALL
ANSWERING/REJECTING A CALL
1. If there is an incoming call, a popup message will appear.
2. Press [Accept] to answer the call.
RESPONDING WITH MESSAGES
1. If there is an incoming call, a popup message will appear.
SWITCHING CALL TO THE MOBILE PHONE
1. If you want to switch the call to the mobile phone while talking on the car handsfree, press [Use Private]. As shown below, the call is switched to the mobile phone.
2. Press [Message] to respond with messages.
To reject a call, select [Reject].
,NOTE
· If the Call-ID service is available, the caller's phone number is displayed.
· If caller's phone number is saved in the phone book, the caller's name is displayed on the unit.
· Upon receiving a call, the [Reject] function may not be supported in some mobile phones.
3. Select the desired message and press [Send].
,NOTE
Depending on the mobile phone model, the [Message] function may not be supported.
2. If you want to switch the call to the car handsfree while talking on the mobile phone, press [Use Hands-free]. The call is switched to the car handsfree.
53
MAKING A CALL
ENDING A CALL
1. To end a call, press [ End] on the screen or [ ] button on the steering wheel remote control.
2. The call is ended.
USING THE MENU DURING A PHONE CALL
When making a call, you can use the following menu items.
a Outgoing Volume Displays the Outgoing Volume settings. You can adjust the in-call volume that the other party hears (level 1 - 5).
b Mic On/Off Turns the Mic On/Off.
c Keypad Moves to a screen for entering ARS numbers.
54
CALL HISTORY
MAKING A CALL FROM CALL HISTORY
1. Press [ ] on the screen.
DOWNLOADING CALL HISTORY
You can download the call history information from your mobile phone. 1. Press [ ] > [Menu] > [Download] on the
screen.
2. Press [All], [Dialled], [Received], or [Missed]. · [All]: Displays entire call history list. · [Dialled]: Displays the outgoing call history list. · [Received]: Displays the incoming call history list. · [Missed]: Displays the missed call history list.
3. Press the entry you want to call.
,NOTE
The call history may not be saved in the call history list in some mobile phones.
2. Press [Yes].
,NOTE
· Up to 50 received, dialed, and missed call history lists can be downloaded.
· The download feature may not be supported in some mobile phones. Check to see that the Bluetooth device supports the download feature.
55
CONTACTS
MAKING A CALL FROM CONTACTS
1. Press [ ] on the screen. The contacts are displayed on the screen.
1. Press [ ] > [Menu] > [Download] on the screen.
SEARCHING FOR CONTACTS
1. Press [ ] > [Menu] > [Search Contacts] on the screen.
2. Press the phone number to make a call.
DOWNLOADING MOBILE PHONE CONTACTS
The phonebook download feature will only download contacts transmitted via Bluetooth (contacts saved on a Bluetooth device or on the SIM card). Contacts saved in a third-party app or contacts without a phone number will not be downloaded.
2. Press [Yes]. The present phone book is deleted and phone book of connected phone is duplicated.
,NOTE
· Upon downloading mobile phone contacts, the previous data is deleted.
· This feature may not be supported on some mobile phones.
2. Enter the name or phone number, press [9].
3. Select the contact you want to call.
56
FAVOURITES
CALLING FAVOURITES
If the phone number has been already stored in the Favourites, it can be easily called. First of all, add the phone number in the Favourites. 1. Press [ ] on the screen.
ADDING AS A FAVOURITE
Up to 10 contacts can be added to favourites menu. 1. Press [ ] on the screen. 2. Press [Menu] > [Add New] on the Favourites
screen.
,NOTE
If the phone numbers have already been stored in the favourites, you can add or delete them by pressing [Menu] > [Edit].
2. Select the desired Favourite.
3. Select the contact from the list of contacts.
4. Press [ ] > [Close] > [ ]. 57
FAVOURITES
EDITING FAVOURITES
1. Press [ ] on the screen. 2. Press [Menu] > [Edit] on the Favourites
screen.
4. Press [ ] or [ ]. · [ ]: Contact added to favourites · [ ]: Contact not added to favourites
5. Press [Close] or [ ].
DELETING FAVOURITES
1. Press [ ] on the screen. 2. Press [Menu] > [Delete] on the Favourites
screen.
3. Select the contact to edit.
3. Select the item you want to delete and press [Delete] > [Yes]. · [Mark All]: Selects all items. · [Unmark All]: Unmarks all items. · [Cancel]: Exits delete screen.
58
MESSAGES
You can check the text messages or send any message on the screen.
CHECKING NEW MESSAGES
1. When a message is received, the pop-up is displayed on the screen.
CHECKING NEW MESSAGE CONTENTS
1. Press [ ] on the screen.
,NOTE
· Only the messages received after the Bluetooth connection are specified in the list.
· Depending on the mobile phone model, [Reply] and [Call] functions may not be supported.
2. Select a desired item. · [View]: Report Moves to Message screen. · [Read]: Supports the message contents by voice. · [Close]: Closes the Message window.
,NOTE
Change the setting of [Show Notifications] of the device connected in Bluetooth Setting of Mobile Phone to 'On'.
2. Select a message.
3. Check the information on massage. · [Read]: Supports the message contents by voice. · [Reply]: Replys to the message. · [Call]: Calls the message sender. 59
GETTING STARTED WITH NAVIGATION GETTING STARTED WITH NAVIGATION
GENERAL INFORMATION OF NAVIGATION USE
NAVIGATION USE RESTRICTIONS Please observe and comply with local traffic rules and regulations. · For your safety, some features cannot be
operated while driving. Features that cannot be operated will be disabled. · The route displayed for destination guidance is a reference and the route guidance will take you to the vicinity of your destination. The highlighted route is not always; the shortest distance, the least congested, and in some cases might, not be the fastest route. · Road, name, and POI information may not always been completely updated. Some places may not include up to date information.
· The car position mark does not always indicate your exact location. This system uses GPS information, various sensors, and road map data to display the current position. However, errors in displaying your location may occur if the satellite is transmitting inaccurate signals or two or less satellite signals are being received. Errors that occur in such conditions cannot be corrected.
· The position of the vehicle within the navigation may differ from your actual location depending on various reasons, including the satellite transmission state, vehicle state (driving location and conditions), etc. Additionally, the car position mark may differ from the actual position if the map data is different from the actual road landscape, such as changes due to the construction of new roads. If such differences occur, driving for a short period of time will automatically correct the position of the vehicle through map matching or GPS information.
WHAT IS GNSS? The GNSS(Global Navigation Satellite System) is a satellite-based navigation system made up of a network of 32 satellites placed into orbit by the Global Positioning System (GPS) of U.S.A, GLONASS of RUSSIA, etc. GNSS works in any weather conditions, anywhere in the world, 24 hours a day. There are no subscription fees or setup charges to use GNSS.
ABOUT SATELLITE SIGNALS Your unit must acquire satellite signals to operate. If you are indoors, near tall buildings or trees, or in a parking garage, the unit cannot acquire satellite signal.
ACQUIRING SATELLITE SIGNALS Before the unit can determine your current position and navigate a route, you must do the following steps: 1. Go outside to an area free from tall
obstructions. 2. Turn on the unit. Acquiring satellite signals
can take a few minutes.
60
MAP SCREEN
a Vehicle position mark Displays current vehicle position and direction.
b Clock display Displays current time.
c Route guidance lane Displays the route guidance to the destination when a route is set.
d Moves to HOME menu screen.
e Map display Changes the map view perspective. Press [ ], [ ] or [ ].
·
(Heading up (2D)): The map displays
always showing the vehicle's direction
as proceeding towards the top of the
screen.
·
(North up (2D)): The map displays
always pointing north, regardless of the
direction of the vehicle is moving.
·
(3D) : The map displays always
the basic outline and details of the
surrounding roads and general area.
f Navigation Volume Sets the Navigation Voice guidance Volume.
g
Zoom in the map. Press [ ] repeatedly. h Map scale display
· Displays the current map scale. · Sets the zoom level automatically to the
guidance.
i
Zoom out the map. Press [ ] repeatedly. j Menu
Moves to quick menu screen. k Current position
Displays the current position. l Remaining distance display/Remaining
time Displays the distance and time of arrival to the destination or waypoint. Press to check the information on destination.
61
MAP SCREEN
m Cancel Route Cancels the route guidance to the destination or waypoint.
n Cancel Route Cancels the route guidance to the destination or waypoint.
o Route Changes the route conditions when a route is set.
p Destination Moves to Destination menu.
q Nearby POIs Finds a POI (Point Of Interest) near the current position, destination or route.
r Save Adds frequently used address to Address Book menu.
s Traffic Displays the traffic information.
t Navigation Volume Adjusts the navigation volume.
u Navigation Settings Moves to Navigation Settings menu.
62
OPERATING NAVIGATION SCREEN
The navigation system displays various information on the screen.
ZOOM IN/ZOOM OUT
· Pinch in/out to set the zoom level on the map screen.
· Turn the controller left/right to set the zoom level on the map screen.
Press [ ] or [ ] to set the zoom level on the map screen.
,NOTE
· Press [ ] or [ ] for over 1 second. The zoom will continuously change.
· If the zoom range limit is reached, the [ ]/ [ ] will be disabled.
· If you want to set the auto zoom, press [ ]
MAP SCALE
This function sets the zoom level automatically. Press [ ] on the map screen.
Name
Description
Scale Fix (inactive Fixes the displayed
- "Auto")
scale.
Changes the map
Auto Scale (active - "Auto")
scale automatically depending on the road class and guidance
distance.
63
MAKING A CALL TO POI
After searching for a POI, the POI phone number information can be used to make a call to the POI facility. 1. Use the various search methods, such as the
map scroll function, POI search function and destination search function to search for a POI.
2. Press [Call] on the menu screen. 3. Bluetooth is used to make a call to the POI
facility.
,NOTE
Making a call is not possible if there is no telephone information for a POI or if there is no mobile phone connected through Bluetooth.
OPERATING NAVIGATION SCREEN
GUIDANCE TO PREVIOUS DESTINATIONS
When starting the navigation, the "Guidance to Previous Destinations" pop-up appears for about 10 seconds. The pop-up is displayed only when the navigation is started without the route planned. Press one of the list.
SCROLLING MAP
1. Press and drag the map area on the screen. The selected point will be centered on the screen and the scroll mark will be displayed. Information about the marked point and straight line distance from the current position will be displayed at the center of the screen.
,NOTE
Press [HOME] button or [ ] > [Setup] > [Navigation] > [Display] > [Show Previous Destinations after Navigation Start-Up] to set the Guidance to Previous Destinations.
2. Press [Menu] > [Start Guidance].
64
GENERAL OPERATIONS OF NAVIGATION MENU
NAVIGATION MENU
1. Press [Menu] on the map screen.
· [Nearby POIs]: Finds a facility by searching for POI near current position.
· [Save]: Adds the position to Address Book menu.
· [Traffic]: Shows the traffic information list.
· [Navigation Volume]: Adjusts the navigation volume.
· [Navigation Settings]: Sets items related with navigation settings.
SEARCHING FOR POI
POI SEARCH You can find a POI (Point Of Interest) along route, near current position, near destination, near scroll mark or near city center. 1. Press [Menu] > [Nearby POIs].
2. Press the preferred setting method. · [Cancel Route]: Cancels the route guidance to the destination or waypoint. · [Route]: Changes the route conditions by using the Route menu when the route is activated. · [Destination]: Finds a destination by using the Destination menu.
65
· Press [All POI categories] to search for all the categories, then select the desired POI.
GENERAL OPERATIONS OF NAVIGATION MENU
2. Select one of POI category.
· [Near Destination]: Searches for POI's around the destination when a route is set.
· [Near Center of Map]: Searches for POI's around the current cursor when the map scrolled.
· [Near City Center]: Searches for POI's around the selected city centre.
4. Press the desired item.
,NOTE
The destination is saved in the Previous Destinations menu automatically. DISPLAYING/HIDING POI ICONS ON THE MAP SCREEN 1. Press [Menu] > [Nearby POIs] > [Edit].
· Press [Menu] > [Distance] to arrange the list in distance order.
· Press [Menu] > [Name] to arrange the list in name order.
3. Press the desired postion. · [Along Route]: Searches for POI's along route when a route is set. · [Near Current Position]: Searches for POI's around the current position.
· If you want to set the appropriate route condition according to your purpose, press [Routes].
· If you want to add a waypoint when a route is set, press [Add Waypint].
· If you want to make a call, press [Call].
5. Press [Start Guidance].
66
2. Mark or unmark the desired POI. The map icon is displayed on the right of POI menu screen.
GENERAL OPERATIONS OF NAVIGATION MENU
EDITING POI CATEGORY You can edit the POI category displayed on POI menu screen. 1. Press [Menu] > [Nearby POIs] > [Edit].
ADDING THE POSITION TO ADDRESS BOOK
You can add the current position or the selected place to address book. 1. Press [Menu] > [Save].
TRAFfiC INFORMATION LIST
The current traffic/road event information is basically displayed on the traffic information list. 1. Press [Menu] > [Traffic].
2. Select the POI to edit. 3. Select the desired POI. The selected POI
appears on POI menu screen.
2. Edit the desired item. · [Name]: Change the name. · [Display on Map]: Press [Icon], [Icon & Name] or [None] to display on the map screen. · [Favorites]: Set the symbol displayed on the map screen.
3. Press [Save] to save the setting.
,NOTE
Press [Menu] > [Destination] > [Address Book] to check the added position.
67
· Press [On Route] to display the traffic information on route when the route is set.
2. Press the traffic list to display the detailed information.
,NOTE
This feature may not be reflected depending on condition.
GENERAL OPERATIONS OF NAVIGATION MENU
NAVIGATION VOLUME
1. Press [Menu] > [Navigation Volume] to adjust the volume.
NAVIGATION SETTINGS
1. Press [Menu] > [Navigation Settings] to set the screen.
2. Sets the desired item. · [Navigation Volume]: Adjusts the navigation volume. · [Mute]: Sets the sound to mute. · [Navigation Volume Priority]: Lowers all other audio volumes when navigation guidance is playing.
2. For more details, refer to the "Display" on page 116.
68
SEARCHING FOR DESTINATION OF NAVIGATION
SEARCH
You can search your destination by name, address or coordinates. 1. Press [Menu] > [Destination] > [Search].
3. Select a location on the map from the list of your search results or filter your search results by city or category. · Press [Menu] > [Filter by City] to narrow your search results by city. · Press [Menu] > [Filter by Category] to narrow your search results by category.
,NOTE
The destination is saved in the Previous Destinations menu automatically.
PREVIOUS DESTINATIONS
You can select one of the locations you have previously searched for as a destination. 1. Press [Menu] > [Destination] > [Previous
Destinations].
2. Enter the name of the location, address or coordinates and press [ ].
· If you want to set the appropriate route condition according to your purpose, press [Routes].
· If you want to add a waypoint when a route is set, press [Add waypoint].
· If you want to add the position to Address book menu, press [Save].
4. Press [Start Guidance].
69
SEARCHING FOR DESTINATION OF NAVIGATION
· [All]: Displays all previous destinations, departing places, and searched places.
· [Previous Destinations]: Displays previous destination places.
· [Previous Start Points]: Displays previous departing places.
· [Freq. Visited Points]: Displays frequently visited places.
· Press [Menu] > [Name] or [Date] to arrange the list in name or date order.
· Press [Menu] > [Delete] to select and delete items from various entries all at once.
2. Press the preferred previous point from the list.
3. Press [Start Guidance].
ADDRESS BOOK
You can find the destination to a location saved in the Address Book menu. To utilize this function more effectively, destinations that you often travel to should be saved in advance. First of all, store in the Address Book menu through destination search function. 1. Press [Menu] > [Destination] > [Address
Book].
3. Press the desired item from the list. 4. Press [Start Guidance].
ADDING TO A LOCATION TO THE MY PLACES MENU
1. Press [My Places] in address book list. 2. Press [Menu] > [Add]. 3. Select a desired location through destination
search function.
2. Press [Favorite] or [My Places]. · Press [Menu] > [Date] or [Name] to arrange the list in date or name order. · Press [Menu] > [Add] to add a location. · Press [Menu] > [Edit] to select and edit an item among many items. · Press [Menu] > [Delete] to select and delete items from various entries all at once.
70
4. Sets the desired item. · [Name]: Changes the name. · [Display on Map]: Press [Icon], [Icon & Name] or [Off] to display on the map screen. · [Favorites]: Set the symbol displayed on the map screen.
5. Press [Save] to save the setting.
SEARCHING FOR DESTINATION OF NAVIGATION
EDITING ADDRESS BOOK
1. Press [Menu] > [Edit] in address book list. 2. Select the item to edit.
DELETING ADDRESS BOOK 1. Press [Menu] > [Delete] in address book list.
MY DATA 1. Press [Menu] > [Destination] > [Address
Book] > [My Data].
3. Edit the desired item. · [Name]: Changes the name. · [Display on Map]: Press [Icon], [Icon & Name] or [Off] to display on the map screen. · [Favorites]: Set the symbol displayed on the map screen.
4. Press [Save] to save the setting.
2. Select the desired item, then press [Delete] > [Yes]. · [Mark All]: Selects all items. · [Unmark All]: Unmarks all items. · [Cancel]: Exits delete screen.
2. Select the desired item. · [Import Address Book from USB Device]: This function is used to import the address book in the USB device to the navigation system. · [Export Address Book to USB Device]: This function is used to export the address book in the navigation system to the USB device.
71
SEARCHING FOR DESTINATION OF NAVIGATION
,NOTE
· The amount of data available for importing to a USB device is limited based on the number of address book items supported by the navigation system.
· If the data stored on the USB device uses different coordinates than those used by the current system, the importing location may change.
· Please make sure that the address book have been successfully imported before use.
· Only USB devices formatted in FAT16/32 are supported.
· Certain USB devices may not be supported due to compatibility issues.
POI CATEGORIES
You can find a destination from various categories. 1. Press [NAV] button > [Destination] > [POI
Categories].
· If you want to search for the POI category by history, Press [Menu] > [Category History].
· If you want to search for the POI category by name, press [Menu] > [Category Search]. Input the name, then press [ ] to finish.
2. Follow steps 2 to 4 of the "POI search".
EMERGENCY
You can find a destination by searching for a Police Stations, Hospitals, Genesis Dealerships or Road Assistance in emergency situations. 1. Press [NAV] button > [Destination] >
[Emergency] > [Police Stations], [Hospitals], [Genesis Dealerships] or [Roadside Assistance].
· Press [Menu] > [Name] or [Distance] to arrange the list in name or distance order.
2. Press the preferred item from the list. 3. Press [Start Guidance].
72
SEARCHING FOR DESTINATION OF NAVIGATION
HOME/WORK/FAVORITE
If your home location and office location have been already saved in the Favorite menu, it can be easily retrieved to set the route to your home location and office location. First of all, store in the Favorite menu through destination search function.
REGISTERING HOME, WORK OR FAVORITE PLACE 1. Press [NAV] button > [Destination] >
[Address Book] > [Favorite] > [Add Home], [Add Work], [Add Favorite 1], [Add Favorite 2] or [Add Favorite 3]. 2. Select the desired position through destination search function. 3. Press [OK] when the destination search is complete. It is saved in the Favorite menu automatically.
,NOTE
Press [NAV] button > [Destination] > [Address Book] > [Favorite] to check items saved in the Favorite menu.
fiNDING YOUR HOME, WORK OR FAVORITE PLACE 1. Press [NAV] button > [Destination] > [Address
Book] > [Favorite] > [Home], [Work], [Favorite 1], [Favorite 2] or [Favorite 3]. 2. Press [Start Guidance].
73
USING THE ROUTE MENU
CANCEL ROUTE
If you want to stop the route guidance when a route is active, press [Menu] > [Cancel Route] or press [NAV] button > [Route] > [Cancel Route].
ROUTE OPTIONS
You can modify the route conditions or confirm the route information. Set the appropriate route condition according to your purpose. 1. Press [NAV] button or [Menu] > [Route] >
[Route Options].
· [Avoid Ferries]: Searches for a route that avoids the use of ferries.
· [Avoid HOV/Carpool Lanes]: Searches for a route that avoids the use of HOV/ Carpool Lanes.
3. Press [Recalculate].
,NOTE
The Items set by user may not be reflected depending on condition.
EDIT ROUTE
This feature allows you to travel through the searched routes by editing the current route. Waypoints can be added/deleted/edited and the order can be changed. ADDING WAYPOINTS 1. Press [NAV] button or [Menu] > [Route] >
[Edit Route].
2. Sets the desired options. · [Avoid Freeways]: Searches for a route that minimizes or avoids the freeway. · [Avoid Toll Roads]: Searches for a route that minimizes or avoids toll roads.
2. Press [Add Waypoint]. 74
USING THE ROUTE MENU
3. Add the waypoint through destination search function.
4. If you want to add an waypoint, follow steps 2~3.
5. Press [Done] > [Start Guidance].
REORDERING ROUTE
1. Press [NAV] button or [Menu] > [Route] > [Edit Route].
2. Press the desired item from the list. 3. Drag and drop it to the desired position. 4. Press [Done] > [Start Guidance].
DELETING ROUTE 1. Press [NAV] button or [Menu] > [Route] >
[Edit Route]. 2. Press [Menu] > [Delete].
3. Select the desired item, then press [Delete] > [Yes]. · [Mark all]: Selects all items. · [Unmark all]: Unmarks all items. · [Cancel]: Exits delete screen.
ROUTE OVERVIEW
You can check the entire route between your current location and your destination. 1. Press [NAV] button or [Menu] > [Route] >
[Route Overview].
2. Press the desired route. · [Recommend]: Calculates the route based on the fastest arrival time. · [Alternate]: Calculates the alternate route. · [Shorter]: Calculates the route based on the shortest distance.
3. Press the desired item. · [Start Guidance]: Starts the route guidance. · [Route Options]: Modifies the route options.
75
USING THE ROUTE MENU
· [Route Info. / Avoid]: Checks the route information and search for new route by avoiding the selected street(s).
· [Edit Route]: Edits the current routes.
ROUTE INFO. / AVOID
This allows you to check the route information and search for new route by avoiding the selected road(s). 1. Press [NAV] button > [Route] > [Route Info. /
Avoid].
2. Press the checkmark to select the road(s) that you want to avoid.
3. Press [Done] > [Yes]. 4. Press [Current] > [Start Guidance].
76
ABOUT HD DATA ABOUT HD DATA
The HD Data is a paid membership satellite radio service which provides users with various information including traffic, weather, and more.
ACCESSING HD DATA
Press [HOME] button or [ ] > [HD Data].
77
TRAFfiC
The current traffic/road event information is basically displayed on the traffic information list. 1. Press [HOME] button or [ ] > [HD Data] >
[Traffic].
,NOTE
This feature may not be reflected depending on condition.
· [On Route]: Displays the traffic information on route when the route is set.
2. Press [Menu] > [Category] or [Distance] to sort in Category or Distance order. If you want to check the various traffic information, Press [Menu] > [Category] to search for category. (Accidents, Road Construction, etc)
3. Press the traffic list to display the detailed information.
78
WEATHER
This service provides current weather information in your region when the vehicle is within regions where HD Radio signals can be received. 1. Press [HOME] button or [ ] > [HD Data] >
[Weather].
· [Forecast]: Checks the weather forecast for the area received by HD Radio signals. Or press [Menu] > [Forecast].
2. Press [Menu] > [Location List]. You can check weather information in other region.
79
DOPPLER RADAR
This service provides Doppler Radar information in your region. when the vehicle is within regions where HD Radio signals can be received. Press [HOME] button or [ ] > [HD Data] > [Doppler Radar].
80
CONNECTED SERVICES CONNECTED SERVICES
BEFORE USING CONNECTED SERVICES
WHAT IS CONNECTED SERVICES? This is a telematics service based on our cutting-edge IT system that makes your driving experience more convenient and fun and features safety, security, vehicle diagnostics, remote control and even smartphone synchronization functions. Enjoy a smarter driving style with Connected Services. WHAT IS TELEMATICS? The word "Telematics" stems from the combination of telecommunications and informatics. It refers to an information system that provides a variety of driving information through the built-in terminal by analyzing each symptom and driving state. This allows for a much safer and more comfortable driving experience.
ABOUT TRANSMISSION AND RECEPTION OF RADIO WAVES
Connection to the Connected Center or wireless data transmission may be disrupted in the following places. For radio wave transmission/reception status, refer to the status displayed on the Connected Services screen. It is recommended that you use the Connected Services system when the antenna icon ( ) shows four bars or more. Places where Connected Services may be disrupted depending on the transmission/ reception status: · Inside tunnels · Mountainous areas or dense forest · Roads close to cliff edges · Densely built-up areas · On highways or roads underneath higher
interchange roads · Inside buildings
81
USING CONNECTED SERVICES
GETTING STARTED WITH CONNECTED SERVICES
Use Connected Services features such as Driving Info and Vehicle Diagnostics. Connected Services features can be used after activating the service. A separate fee may be charged for using Connected Services, and features may differ according to your service plan. Press [HOME] button or [ ] > [Connected Services].
· [Vehicle Diagnostics]: Diagnoses anomalies in the vehicle and checks diagnostic results.
· [Maintenance]: Checks the distance/date of the last/next maintenance service.
· [Connected Settings]: Displays [Feature Enrollment], [Modem Information], and [Modem Status].
INTERIOR LIGHT BUTTON
Selecting the Interior light button will allow you to make service required inquiries, place info searches, and emergency rescues by connecting to the Connected Center. Such features can be used only after subscribing to the Connected Services.
Location
sos
Details
(Connected Services) button Calls or ends the Connected Services call.
SOS button Calls or ends SOS call. Emergency Rescue Service in Emergency Situation.
(Voice Local Search) button Request information about places via Voice Local Search.
CONNECTING WITH THE CONNECTED CENTER
Press [ ] on the Interior light button to connect with the Connected Center.
82
VOICE LOCAL SEARCH
WHAT IS VOICE LOCAL SEARCH?
With Genesis Connected Services network service, you can search for HERE-provided place names with your voice. Voice local search specializes in place name searches and can be used by pressing the [ ] key in the Interior light button. The search is only available when connected communication network.
STARTING VOICE LOCAL SEARCH
Press [ ] key in the Interior light button (less than 0.8 seconds) to start Voice Local Search.
,NOTE
If you change the language set for the system to Korean, French or Spanish, this function will not be supported. Change the system language to other language.
a Example command Shows an example to ask for a place search.
b End Ends Voice Local Search. (With Voice Local Search, press [ ] key in the Interior light button again to end the service.)
83
DRIVING INFO
1. Press [HOME] button or [ ] > [Driving Info]. 2. Select [Menu] > [Update] to receive up-to-
date driving information.
84
VEHICLE DIAGNOSTICS
Vehicle Diagnostics will be canceled if you switch to another screen while diagnosis is in progress. To receive result details, you need to first register for Connected Services. Press [HOME] button or [ ] > [Connected Services] > [Vehicle Diagnostics].
85
MAINTENANCE
You can check the distance/date of the last/next maintenance service. Press [HOME] button or [ ] > [Connected Services] > [Maintenance].
86
CONNECTED SETTINGS
FEATURE ENROLLMENT
After you buy your car, you need to activate (register for) Connected Services to use any Connected Services features. Press [HOME] button or [ ] > [Connected Services] > [Connected Settings] > [Feature Enrollment].
MODEM INFORMATION
This feature is used to show the MEID modem information. Press [HOME] button or [ ] > [Connected Services] > [Connected Settings] > [Modem Information].
MODEM STATUS
This feature is used to show the device information. Press [HOME] button or [ ] > [Connected Services] > [Connected Settings] > [Modem Status].
,NOTE
· Activation may take up to five minutes. · Do not turn the engine off while activation is
in progress. · If activation fails, contact the Connected
Center at 1 (844) 405-2525. · During service activation, the hard keys in the
head unit do not work.
87
CONNECTED SERVICES FEATURES
SAFETY
AUTOMATIC COLLISION NOTIfiCATION AND ASSISTANCE Provides immediate assistance when an accident occurs and an airbag is deployed. In this event, an ACN signal, containing customer and location information, will automatically be transmitted to the response center. Upon receipt of the signal, a response specialist will attempt to establish voice communications with the vehicle occupants and forward any pertinent information to Connected Services emergency services.
SOS EMERGENCY ASSISTANCE Customers request emergency Connected Services emergence services by pressing the dedicated [SOS] button in the vehicle. This action transmits vehicle information and location to specially trained response specialists, who assist in coordinating the dispatch of appropriate emergency assistance to the customer. The response specialist remains on the line with the customer until advised assistance has arrived.
ROADSIDE ASSISTANCE With the single press of a button, drivers can contact Roadside Assistance and their vehicle information and location are automatically transmitted to a response center for quicker, more efficient assistance.
CAR CARE
MONTHLY VEHICLE HEALTH REPORT You can begin receiving a comprehensive diagnostic evaluation involving most aspects of your vehicle's performance (e.g., systems check, mileage attained, upcoming maintenance, etc.). AUTOMATIC DIAGNOSTICS TROUBLE CODE NOTIfiCATION When owners receive a vehicle trouble code notification, this feature provides an explanation. Through a combination of in-vehicle display alerts and guided voice messages, the owner will learn what to do next. MAINTENANCE ALERT This feature helps you keep your vehicle in optimum running order by notifying you in advance of regularly scheduled maintenance intervals. Notification is made via your choice of text messaging or email.
88
CONNECTED SERVICES FEATURES
REMOTE SERVICE
REMOTE DOOR LOCK/UNLOCK With this feature, you can lock or unlock your vehicle doors from virtually anywhere by using the Genesis Connected Services Mobile Apps, or using the Genesis Connected Services Owner's website. REMOTE HORN/LIGHTS When the parking sport in the parking lot of a hotel or mart is forgotten, the spot can be checked by the bilking lights and the horn sound. REMOTE START WITH CLIMATE CONTROL This feature enables you to remotely start your vehicle and set an engine timer (1-10 minutes) from virtually anywhere. You can also set the climate control temperature and turn on the front-window defroster, ensuring a warm or cool car is ready to go when you are.
CAR fiNDER The mobile app feature enables you to find your vehicle on a map.
89
PHONE PROJECTION PHONE PROJECTION
WHAT IS ANDROID AUTO/APPLE CARPLAY?
Securely access your smartphone while driving. Various functions of your smartphone are displayed on and operable from the screen of the multimedia device. (e.g. navigation, making a call, listening to music etc.) When connected, an Android Auto/Apple CarPlay icon appears on the screen. Available functions and operations may differ depending on the company model. For more information, visit the Google or Apple website.
- Google: http://support.google.com/ androidauto/
- Apple: http://www.apple.com/ios/carplay/ Cautions · Android Auto is a registered trademark of
Google Inc. · Apple CarPlay is a registered trademark of
Apple Inc. · Android Auto and Apple CarPlay are
unavailable if the phone OS is not the latest version or if the phone cannot be recognized due to a shutdown caused by a failure or defect in the device itself.
· Your phone may not be recognised if its battery is low. Charge your phone then try again.
· If your phone is shut down due to a defect in the device itself, reset your phone and try again.
· If the USB cable of the Android Auto/Apple CarPlay device is repeatedly disconnected and reconnected in a short period of time, the phone may malfunction. This can also cause a device failure.
· The device recognition time may differ depending on the device type and firmware/ OS version.
· Using the USB cable that came with the phone is recommended. (Using a nongenuine product may cause noise or malfunction.)
· Normal operations cannot be guaranteed if the phone is arbitrarily manipulated while Android Auto/Apple CarPlay is active.
· Apple CarPlay cannot be run while making a call via Bluetooth.
· Android Auto or Apple CarPlay may not operate normally due to mobile phone issues.
· Carrier charges may apply when using Android Auto or Apple CarPlay.
· Some features may not operate normally according to the version of iOS and Android.
· The following problems may occur due to phone-related issues:
[Android Auto] - Intermittent black screens appear when
entering Android Auto. - Differentiation of phones that support
Android Auto and those which do not, may not be possible. - Black screens appear in some areas of the screen due to app errors.
[Apple CarPlay] - Intermittent black screens appear when
entering Apple CarPlay. - Black screens appear in some areas of the
screen due to app errors when navigating between screens in Apple CarPlay. - Audio volume cannot be adjusted depending on the status of a connected mobile phone. - The sound output of a call may be cut upon disconnecting Apple CarPlay during a call via Apple CarPlay. - If services do not work properly due to problems similar to the specified above, check your phone, and if necessary, reconnect your phone after restarting.
90
PHONE PROJECTION
USING ANDROID AUTO OR APPLE CARPLAY
1. Make sure only genuine USB cables are used that were provided by the mobile phone´s manufacturer.
2. Enter [Android Auto] or [Apple CarPlay] from the HOME screen.
3. Now the features such as navigation, music and phone are ready to be used.
NOTICE · Before connecting your mobile phone, check
whether Android Auto or Apple CarPlay is activated in the Phone Projection menu. · After connecting the mobile phone, the phone has to be unlocked and the disclaimers on the phone have to be accepted in order to launch Android Auto or Apple CarPlay. · The screens and features displayed on the multimedia system correspond to the screens and features provided by Google or Apple. They are subject to changes according to the policy of the respective company.
NOTICE - Android Auto · Bluetooth media features will be disabled
when Android Auto is activated. After removing the USB cable, these features will be available again. · If Android Auto is not activated even after a successful connection, follow these steps: - Check whether an error occurred on the
phone. - Check whether Android Auto has been
closed on the phone. - Check whether Android Auto is activated in
the Phone Projection menu. · If Android Auto does not work normally even
after a reconnection has been made, visit the Google website. (http://support.google.com/ androidauto) · Please refer to the following websites to check the available countries for the Android Auto.(https://www.android.com/auto)
NOTICE - Apple CarPlay · Bluetooth phone/media features will be
disabled when Apple CarPlay is activated. After removing the USB cable, these features will be available again. · If Apple CarPlay is not activated even after a successful connection, follow these steps: - Check whether Apple CarPlay is disabled in
the iPhone´s application settings. - Check whether Apple CarPlay is activated
in the Phone Projection menu. · If Apple CarPlay does not work normally even
after a reconnection has been made, visit the Apple website. (http://www.apple.com/ios/ carplay) · Please refer to the following websites to check the available countries for the Apple CarPlay. (http://www.apple.com/ios/featureavailability)
91
VOICE MEMO
MAKING A VOICE MEMO
You can record your voice. Press [HOME] button or [ ] > [Voice Memo].
START Press [ ] on screen. Record your voice. PAUSE Press [M] on screen. STOP Press [Z] on screen during recording. The recorded file is saved to the voice memo list.
,NOTE
· Navigation guidance will be muted while recording.
· The latest recorded file is placed on the top of voice memo list.
· When the storage space is full while recording, the voice memo ends after saved.
PLAYING A VOICE MEMO
You can play your recorded voice. 1. Press [HOME] button or [ ] > [Voice
Memo]. 2. Press the recorded file from voice memo list.
PAUSE
Press [M] on screen. Press [d] on screen to play it again.
SKIP You can play the previous or next file.
Position Description
Screen Press [C/V].
Head unit
Press [S SEEK/TRACK W] button.
SEARCH
You can rewind/fast forward to a specific point of a file.
Position Description
Screen
Press and hold [C/V] and then release at the point you want.
Press and hold [S SEEK/TRACK Head unit W] button and then release at
the point you want.
92
VOICE MEMO
SAVING THE VOICE MEMO TO USB DEVICE
1. Connect an USB device to the USB port. 2. Press [Menu] > [Save to USB Device] on the
voice memo screen.
STORAGE INFORMATION
This menu is used to display the capacity of the stored information on the voice memo. Press [Menu] > [Storage Info] on the voice memo screen.
DELETING VOICE MEMO 1. Press [Menu] > [Delete] on the voice memo
screen.
3. Select the voice memo to save and [Save] > [Yes]. · [Mark All]: Selects all items. · [Unmark All]: Unmarks all items. · [Cancel]: Exits save screen.
2. Select the voice memo to delete and press [Delete] > [Yes]. · [Mark All]: Selects all items. · [Unmark All]: Unmarks all items. · [Cancel]: Exits delete screen.
93
VOICE RECOGNITION SYSTEM
WHAT IS VOICE RECOGNITION?
Voice recognition technology runs the system as ordered by recognizing your voice command to help with the operation of multimedia while you are driving the car. Regretfully, not all possible voice commands are recognized by the system due to technological limitations. To make up for these limitations, the system displays the voice commands that are available for you to use. There are errors in communication between people. Likewise, voice recognition sometimes misunderstands your voice command under certain circumstances. If this happens, either check the screen for the available options and say the command again, or manually select and press the button for the corresponding command on the screen.
VOICE RECOGNITION FEATURES BY LANGUAGE
Voice recognition support availability varies according to the language set for the system. Please verify the current language setting before using the voice recognition. · If you change the language set for the system
to Korean, voice recognition will not be supported. Change the system language to other language.
OPERATING VOICE COMMAND
CONDITION FOR VOICE COMMAND SYSTEM
Most of the functions can be operated by voice. Please follow the instructions below for optimal voice recognition performance. · To improve the voice recognition
performance, keep your car interior quiet by closing all windows and the sunroof. · Press the voice recognition button and say the desired voice command after the beep sound. · The microphone is positioned above the driver. Voice commands should be spoken by driver practicing proper posture. · Pronounce the voice commands naturally and clearly as if in a normal conversation. · Special symbols of Phonebook Name are not considered in voice recognition. Ex) James-Smith : "James Smith" · House number or digits in Phonebook Name should be spoken discretely. Ex) S1234 : "South one two three four" · Depending on the specifications, some commands may not be supported.
94
VOICE RECOGNITION SYSTEM
STARTING VOICE RECOGNITION
1. Press the [ ] button on the steering wheel remote control.
2. Say the desired voice command after the beep sound.
,NOTE
· For proper recognition, please say the command after the voice instruction and beep sound.
· When starting voice recognition, the voice command entry window with four representative commands is displayed.
· If voice recognition is in [Beginner], then the system will provide the detailed voice recognition guidance. If voice recognition is in [Normal], then the system will provide the simple version of voice recognition guidance. If voice recognition is in [Expert], then you will only hear a beep.
SKIPPING PROMPT MESSAGES While a prompt is playing, press the [ ] button on the steering wheel remote control quickly. The prompt is immediately ended and a beep will sound. After the beep, please say the voice command.
RE-STARTING VOICE RECOGNITION While the system waits for input, press the [ ] button on the steering wheel remote control quickly. The beep tone will sound, indicating the system is listening for a new input. Say a voice command.
ENDING VOICE RECOGNITION · While voice recognition is operating, press
and hold the [ ] button on the steering wheel remote control, or say `Exit'. · While using voice recognition, pressing other button except on the steering wheel remote control or a different button on head unit will end voice recognition.
ADJUSTING VOICE RECOGNITION VOLUME While voice recognition is operating, turn [VOL] knob on the head unit or press [VOL+/VOL-] button on the steering wheel remote control. BASIC OPERATION FOR VOICE COMMAND (SETTING FM) 1. Press the [ ] button on the steering wheel
remote control. The system waits for your command and displays a list of available commands on the screen.
2. After the beep, Say `FM'.
95
VOICE RECOGNITION SYSTEM
VOICE RECOGNITION QUICK START (MANUAL CONTROL)
The usual way of activating voice recognition is waiting for the voice guide and then speaking your command for a task. Since this method requires that you wait a while for the voice guide, you can select one of the commands shown on the screen to speed up the process. You might find this feature useful when you do not want to wait for the full voice guide or when the system does not recognize your voice.
ABOUT VOICE COMMAND "HELP"
1. Press the [ ] button on the steering wheel remote control.
2. After the beep, say `Help'. The available commands are displayed on the screen.
3. Select or say the displayed command on the screen.
96
VOICE COMMAND LIST
Voice recognition commands are classified as "Global Commands" and "Local Commands". · Global commands () : Commands that can be used immediately after activating voice recognition. · Local commands () : Commands that can be used in specific multimedia/navigation/Bluetooth mode states.
,NOTE
Some global and local commands will operate properly only when a USB, iPod, Bluetooth or other device has been connected.
PHONE COMMANDS
· Voice commands related to phone calls can be used after connecting the Bluetooth phone device. · To call a person, for example "Call <John Smith>" whose name is listed in contacts, you must first download the mobile phone contacts. (Up to 5,000
mobile phone contacts can be downloaded.) · After downloading the Bluetooth phone contacts, it will take some time to convert the phone contacts into voice data during which time you cannot
make a call by name yet. The time that it taken to convert voice data may vary depending on the number of contacts downloaded.
Command
Operation
Call
Downloaded mobile phone contacts is displayed on the screen, and afterwards, you can make a call by speaking the name.
Call <Name>
You can immediately make a call to (name) in the downloaded mobile phone contacts. Ex) "Call John Smith"
Call <Name> on Mobile
Call <Name> at Work
You can immediately make a call to (name) in the downloaded mobile phone contacts saved as `mobile'. Ex) "Call John Smith on mobile"
You can immediately make a call to (name) in the downloaded mobile phone contacts saved as `office'. Ex) "Call John Smith at work"
97
VOICE COMMAND LIST
Call <Name> at Home
Call <Name> on Other
Dial number
Dial <Phone #>
Change Bluetooth device
You can immediately make a call to (name) in the downloaded mobile phone contacts saved as `home'. Ex) "Call John Smith at home" You can immediately make a call to (name) in the downloaded mobile phone contacts saved as another phone category except `mobile, home, office'. Ex) "Call John Smith on other"
Displays a screen where you can say a phone number to dial.
You can make a call by directly speaking the number you want to call. Ex) Dial 123-456-7890 : "Dial one two three four five six seven eight nine zero"
It can disconnect from the Bluetooth device currently connected and connect to other Bluetooth devices already paired.
RADIO COMMANDS
Command Radio FM AM SiriusXMTM
Operation It runs radio that listened recently between FM, AM and SiriusXMTM. It runs FM radio. It runs AM radio. It runs SiriusXMTM radio.
98
VOICE COMMAND LIST
NAVIGATION COMMANDS
Check the following before you use navigation commands : 1. Search for and find addresses located in the state or province your car is currently in. If you want to search in another state, say the name of state/
province and then say the address. "Find Address" command is classified by states/provinces to provide you with faster service. 2. Some commands such as "Cancel Route" are available only when the destination is fixed.
Command
Operation
Find Address in <State>
Finds the address in <State> and sets it as the destination. Ex) Find Address in California. To find an address, you should say "House Number Street City" (in order, excluding the state). Ex) 300 (Three Zero Zero), Main Street, Almond
Find <POI Category>
Immediately finds <Category> of POI nearest to your current location. Ex) Find "Parking"
Previous Points
Displays a list combining Previous Destinations, Previous Searches, and Previous Starting Points all together. You can set a destination by saying the list number.
Previous Destinations
Displays a list of recent destinations and you can set a destination by saying the number on the list.
Previous Starting Points
Displays a list of recent starting points and you can set a destination by saying the number on the list.
Traffic Information Moves to the Traffic Information menu screen.
Go Home
Set your home as the destination. Your home address must be set up in the Navigation System.
Change Home
Changes location for Home.
99
VOICE COMMAND LIST
Go to Work
Set the destination to your office/place of work. Your office/place of work must be set up in the Navigation System.
Change Work
Changes location for Work.
Turn Guidance On Turns on the voice guidance system.
Turn Guidance Off Turns off the voice guidance system.
Zoom In
Zooms in on the navigation map to the fullest.
Zoom Out
Zooms out from the navigation map to the fullest.
Cancel Route
Cancels the route to the fixed destination and exits guidance.
Destination Information
Tells you the remaining distance and time to your destination.
Frequently Visited Points
Displays Frequently Visited Points.
Route Options
Moves to the Route Options screen.
Pause Route
Pauses the route guidance.
Resume Route
Restarts the route guidance.
Show Route
Displays a map overview of the entire route to your destination.
100
VOICE COMMAND LIST
OTHER COMMANDS (COMMANDS USED IN LIST/HELP/ETC.)
Command
Operation
Help
Goes to the voice recognition help screen. All available commands can then be identified and used.
Yes/No
When voice recognition is active, this command is used when an answer is requested for a confirmation question.
Line 1-4 (One-Four)
When you cannot select a certain name, such as in Call History, you can select it using line number. Simple numbers, such as "one" and "two", can be recognized.
Next/Previous
When five or more searched items are listed, you can move to the previous or next page using a voice command.
Manual Input
When Dial or Destination search results are displayed, this command is used to search manually rather than searching using a voice command. Voice recognition stops after this command is used.
Go Back
Goes back to the previous screen.
Exit
Ends the voice recognition.
101
VOICE COMMAND LIST
LIST OF NEAREST LOCATIONS
Navigation location names may be changed after a software update.
Restaurants
Fast Food Restaurants Arby's
Coffee Shops Starbucks
Olive Garden Papa John's
Boston Market BURGER KING
Dunkin' Donuts Tim Hortons
Papa Murphy's Pizza 73
Carl's Jr Chick-fil-A
American Restaurants Applebee's
Pizza Hut pizza pizza
Chipotle Church's Chicken
Bahama Breeze Boston's Restaurant & Sports Bar
Cici's Pizza Godfather's
Dairy Queen Firehouse Subs Fleming's
Cheeseburger in Paradise Chili's Grill
Cool River
Hungry Howie's Pizza
Marco's Pizza Latin American Restaurants
Hardee's IHOP
Denny's Frisch's Big Boy
Mexican Restaurants Cantina Laredo
In-N-Out Burger
Good Eats
Chevys
Jack in the Box Jimmy John's
KFC
Little Caesars Long John Silver's McAlister's Deli
McDonald's
Panda Express Panera Bread Popeyes Quiznos Sub Schlotzsky's SONIC SUBWAY
Taco Bell
Taco John's Waffle House
102
III Forks
El Chico
Lee Roy Selmon's
Del Taco
Lone Star Steakhouse & Saloon
Moe's Southwest Grill
Longhorn Steakhouse Qdoba
Luckys Cafe
Asian Restaurants
Outback Steakhouse Chinese Restaurants
Ponderosa
PF Chang's China Bistro
Publix
Japanese Restaurants
Seasons 52
Korean Restaurants
Sheetz
Seafood Restaurants
Silver Fox
Red Lobster
Texas Roadhouse
Captain D's
TGI Friday's
Vegetarian Restaurants
The Capital Grille
French Restaurants
A&W
Continental Restaurants
Bob Evans
African Restaurants
Buffalo Wild Wings
Other Restaurants
VOICE COMMAND LIST
Wendy's
White Castle Blimpie Checkers Culver's Five Guys Burgers and Fries Jamba Juice Jersey Mike's Subs Smoothie King Steak n Shake Whataburger
Cracker Barrel Old Country Store
Golden Corral Red Robin Ruby Tuesday Wingstop Italian Restaurants Bonefish Grill Carrabba's Italian Grill Chuck E Cheese's Domino's
Auntie Anne's
Baskin-Robbins Haagen-Dazs Hooters Roy's
TCBY
VAN DER VALK Bojangles' Cold Stone Creamery Zaxby's
Automotive Hyundai Dealerships Genesis Dealerships Gas Stations 76
ampm
Speedway Sunoco Sunoco Canada TEXACO TravelCenters of America
ARCO
Ultramar
BP Gas+ Casey's General Store Cenex Chevron
Valero Wawa Hess Express Irving Parking
CITGO
Auto Services
Conoco Esso
AAA Advance Auto Parts
ACDelco Hydrogen Stations Big O Tires CARQUEST Meineke Car Care Center Monro Muffler Brake & Service Napa Autocare Center Pep Boys Quick Lane Safelite AutoGlass Tires Plus Valvoline Instant Oil Change Roadside Assistance Auto Parts
103
VOICE COMMAND LIST
Exxon Fleetfuels
America's Tire AutoZone
GetGo
BOSCH Car Service
Giant Gasoline
O'Reilly Auto Parts
GTO Gulf Husky Ingles Gas Express Marathon Martin's Gasoline
Certigard Chevron CITGO Discount Tire Exxon Firestone
Meijer
GOODYEAR
Mobil
Gulf
Murphy Express
Jiffy Lube
Murphy USA
Kal Tire
Petro Stopping Centers Midas
Car Washes
PETRO-CANADA
Automobile Dealerships Motorcycle Dealerships Electric Charging Stations Aloha Chevron CITGO
Phillips 66 Pioneer QuikTrip Rutter's Sheetz Shell Sinclair
Costco
Exxon
Flying J
Fred Meyer Fuel Center
Fry's Fuel Center
Fry's Marketplace Fuel Center
Kroger Fuel Center
Kum & Go
104
Mobil
Kwik Trip
Napa
Meijer Gas Station
Murphy Express
PETRO-CANADA
NISSAN
Sears Auto Center
QuikTrip
Shell
Shell
TEXACO
TEXACO
AAMCO Transmissions Valero
VOICE COMMAND LIST
Travel Airports Hotels
Homewood Suites Hotel Indigo
Americas Best Value Inn Howard Johnson
AmericInn Andaz
Ascend Collection
Baymont Inn & Suites Best Western
Hyatt Place Hyatt Hyatt Summerfield Suites Intercontinental JW Marriott
Cambria Suites
La Quinta Inn & Suites
Canadas Best Value Inn Lexington
Candlewood Suites
Mainstay Suites
Clarion Hotel
Marriott
Comfort INN
Marriott VACATION CLUB
Comfort Suites
Microtel Inns & Suites
CONRAD
Motel 6
Country Inn & Suites by Carlson
NOVOTEL
Staybridge Suites Studio 6 Suburban Extended Stay Super 8 Thriftlodge Canada
Travelodge
Travelodge Canada VAN DER VALK WALDORF ASTORIA COLLECTION Wingate by Wyndham Wyndham Extended StayAmerica Fairfield Inn by Marriott Rental Car Agencies Alamo
AVIS
COURTYARD by Marriott
Omni Hotels
Crowne Plaza
Park Inn
Days Inn
Park Plaza
DELTA
QUALITY INN
Doubletree
Radisson
Econo Lodge
Radisson SAS
Embassy Suites
RAMADA
Grand Residences by Marriott
Red Roof Inn
Hampton Inn
Regent Hotels & Resorts
Renaissance
Hawthorn Suites
Residence Inn
Hilton
Ritz-Carlton
Hilton Garden Inn
Rodeway Inn
Hilton Grand Vacations Sheraton
Holiday Inn
Sleep Inn
Holiday Inn Express Hotel & Suites
SOFITEL
105
Budget
Dollar Rent A Car Enterprise Hertz National Thrifty Tourist Information
Tourist Attractions
Travel Agents
Rest Areas City Centers Campgrounds Ferry Terminals Bus Stations Local Transit
Train Stations
VOICE COMMAND LIST
Shopping
Department Stores
Meijer
Canadian Tire
Publix
Dollar General
Sav-Mor Foods
Dollar Tree
Save-A-Lot
Family Dollar
SuperValu
JCPenney
Albertsons
Kmart
ALDI
Kohl's
Piggly Wiggly
Nordstrom
Safeway
Sears
Winn-Dixie
Sears Hometown Store Pharmacies
Target
CVS/pharmacy
T.J. Maxx
Giant Drugstore
Walmart
Giant Eagle
Big Lots
Ingles Pharmacy
Macy's
Kmart Pharmacy
Marshalls
Kroger Pharmacy
Bath & Body Works BED BATH & BEYOND Carpet One Do It Best Family Video GNC HOBBY LOBBY Home Hardware Jo-Ann Michaels Party City Pier 1 Imports Sam's Club SEPHORA Sleepy's Sunglass Hut Toys"R"Us
Ross Dress For Less Convenience Stores 7-Eleven ampm BP Circle K Fleetfuels
Martin's Drugstore Meijer Pharmacy Publix Rite Aid Shoppers Drug Mart
Walgreens
GetGo
Medicine Shoppe
GTO
Safeway
Kangaroo Express
Sam's Club
Murphy Express
Electronics Stores
Murphy USA
AT&T
Petro Stopping Centers Best Buy
QuikTrip
Rutter's Sunoco Canada TravelCenters of America
GameStop Radioshack
Sprint
106
Tuesday Morning Sporting Goods Stores Dick's Sporting Goods Sports Authority HIBBETT SPORTS Music Stores Bookstores Barnes & Noble Booksellers Gift Shops Clothing Shops Mark's Payless Shoesource Aeropostale American Eagle Outfitters Cato Chico's
Children's Place
VOICE COMMAND LIST
Wawa Cumberland Farms Hess Express Mac's Mini Mart Quick Stop Valero Corner Store Shopping Centers
US Bank Grocery Stores Giant Eagle Giant Food Stores IGA Ingles Markets Food Lion
Staples
Dressbarn
T-Mobile
Famous Footwear
OfficeMax
Finish Line
US Cellular
Foot Locker
Verizon
GAP
Boost Mobile
Gymboree
Cricket Wireless
Hot Topic
metroPCS
Journeys
Home Specialty Stores Justice
ABC Fine Wine & Spirits Lane Bryant
Ace Hardware
Men's Wearhouse
Claire's
Old Navy
Costco
PacSun
Home Depot
Rainbowshops
Lowe's
rue21
Merle Norman
Victoria's Secret
PETCO
Shoe Stores
PETSMART
Payless Shoesource
Kmart Kroger Martin's Food Markets
Sally Beauty Supply SHERWIN-WILLIAMS True Value
General Merchandise
Recreation Amusement Parks Museums Cinemas Golf Courses
Sports Complexes Sports Activities Wineries Video & Game Rental
Ski Resorts Recreation Areas Other Recreation Areas
Financial Services Banks Bank of America BB&T Chase Citibank Citizens Bank Fifth Third Bank
Capital One CIBC First Citizens Bank First National Bank M&T Bank Santander Scotiabank
TD Bank TD Canada Trust US Bank Wells Fargo Bank of the West BMO Bank of Montreal BMO Harris Bank
107
VOICE COMMAND LIST
KeyBank
PNC Bank RBC Royal Bank Regions SunTrust TD Bank TD Canada Trust US Bank Wells Fargo Bank of the West
The Huntington National Bank Woodforest National Bank ATMs Bank of America BB&T Chase Citibank Citizens Bank Fifth Third Bank
KeyBank
BBVA Compass
PNC Bank
BMO Bank of Montreal RBC Royal Bank
BMO Harris Bank
Regions
Caisse Populaire Desjardins
SunTrust
Caisse Populaire Desjardins
Capital One
CIBC Commerce Bank First National Bank HSBC M&T Bank Santander Scotiabank State Employees' Credit Union Check Cashing Services Money Transfer
Community Police Stations Post Offices
Libraries
Schools Fire Departments
Convention Centers Churches
Synagogues
City Halls Civic Centers
Court Houses Government Offices Waste & Sanitary Services Utilities Business Facilities
Services
Hospitals
Cleaning & Laundry Services
Medical Services
Social Services
Physicians
Communication
Tax Services
Dentists
Attorneys
Photography Services
Funeral Homes
Tailors & Alterations
Hair & Beauty Services Movers
Nursing Homes
Optical Services Personal Services Repair Services Veterinary Hospitals Shipping Centers
108
SIRI®
ABOUT SIRI®
WHAT IS SIRI®? Apple wants to integrate the Siri to specific voice control system by working with car manufacturers. You can ask Siri through the [ ] button on the steering wheel remote control while driving. The Apple device (iOS device) screen does not light up to minimize impact on the driving.If there is "Eyes-free" function, you can operate the Siri feature. (Making phone calls, Playing music, Listening to or writing a text message, Finding the destination by using the map, Looking for calendar information, etc)
USING SIRI®
STARTING SIRI® 1. Connect your Apple device (iOS device) to
head unit through Bluetooth. Please check whether your Apple device (iOS device) supports Siri and turning Siri On.
2. Press and hold the [ ] button on the steering wheel remote control.
3. Say a command. For proper recognition, please say the command after the voice instruction and Siri beep tone.
RE-STARTING SIRI® · While system waits, press the [ ] button
on the steering wheel remote control. The command waiting condition is ended and the beep tone will make sound. After the "beep", say the voice command. · Press [Speak] on the Siri screen. The command waiting condition is ended and the beep tone will make sound. After the "beep", say the voice command.
ENDING SIRI® · While Siri is operating, press and hold the
[ ] button on the steering wheel remote control or say "Exit". · While using voice recognition, pressing other button except on the steering wheel remote control or a different button on head unit will end Siri feature recognition. · Press [Exit] on the Siri screen.
ADJUSTING SIRI® VOLUME While Siri is operating, turn [VOL] knob on the head unit or press [VOL+/VOL-] button on the steering wheel remote control.
,NOTE
· Please see the AVN system only supports "Music" and "Phone" related functions. Other functions will be performed in the your Apple device (iOS device).
· Eyes-Free mode would be activated automatically while you are driving. If the car is stopped (when the transmission lever is put to P), Eyes-Free mode would be deactivated automatically.
109
USING REAR CAMERA - OPTION
ABOUT REAR CAMERA
· Rear camera is an option for the customers who selected the option.
· In this instrument, for the safety of the user, a rear camera that can secure the rear view during the backward driving is connected.
· After the vehicle is started, if the transmission lever is put to R, the rear camera power is automatically turned on, and the rear camera starts operation.
· If you change the transmission lever location from R to another position, rear camera stops.
TURNING ON THE REAR CAMERA When the vehicle is started, put the transmission lever to R position.
,NOTE
Rear camera has an optical lens to secure wide view, so there is a little difference in the distance shown on the screen. For safety, make sure to check the rear, left, and right view by yourself.
BACKING UP & USING CAMERA
Never rely solely on the rear view camera when backing up. Prior to entering your vehicle always do a visual check of the area behind your vehicle, and before backing up be aware of your surroundings and supplement the rear view camera by looking over your shoulders and checking your rear view mirrors. Due to the difficulty of ensuring that the area behind you remains clear, always back up slowly and stop immediately if you even suspect that a person, and especially a child, might be behind you.
110
SVM (SURROUND VIEW MONITOR) - OPTION
ABOUT SVM (SURROUND VIEW MONITOR)
· SVM (Surround View Monitor) is an option that is provided to the customers who selected the option.
· Through the 4 cameras installed on the vehicle, it can view front, back, left and right side.
· While vehicle is started, if gear is put to R position, it automatically starts SVM (Surround View Monitor).
· If gear is changed from R to P position, SVM (Surround View Monitor) operation stops.
OPERATING FRONT SVM
After starting the vehicle, if you press camera view button after putting gear to N or D, front SVM starts.
a Wide View (Front) Only front screen of the vehicle is displayed.
b Top View (Front) Displays an enlarged top view of the front.
c Front + Left Front View It displays left front screen of the vehicle simultaneously.
d Front + Right Front View It displays right front screen of the vehicle simultaneously.
e Move to SVM Settings Menu.
f Top View Screen Displays top view that combines front, rear, left/right camera images.
g Front Camera Screen Front camera's view is displayed.
,NOTE
While front SVM is running, if you drive at about 15 km/h or more, SVM is turned off. At this state, even if you drive at about 15 km/h or less, SVM is remained at OFF state.
111
SVM (SURROUND VIEW MONITOR) - OPTION
OPERATING REAR SVM
After starting the vehicle, if you put gear at R position, rear SVM starts.
a Rear Around View It displays vehicle's rear screen and all direction (SVM) screens at the same time.
b Rear Wide View It displays only the rear screen of the vehicle.
c Rear + Left Rear View It displays left rear screen of the vehicle simultaneously.
d Rear + Right Rear View It displays right rear screen of the vehicle simultaneously.
e Move to SVM Settings Menu
f Top View Screen Displays top view that combines front, rear, left/right camera images.
g Rear Camera Screen It displays rear view through the rear camera.
,NOTE
SVM camera has an optical lens to secure wide view, so there is a little difference between the distance shown on the screen and the actual one. For safety, make sure to check the rear, left, and right view by yourself.
SVM SETTING
If you press [ ], it moves to Camera Settings screen.
· [Display Contents]: Enables/disables [Display Parking Guide Lines], [Approaching Object Warning] function.
· [Front View Default Mode]: Sets the initial view of the Front View.
112
SVM (SURROUND VIEW MONITOR) - OPTION
WARNING DISPLAY
DRIVER'S DOOR OPEN INDICATOR When the driver's door is open, " " (red colour on left door) indicator is displayed on the top left of the screen. FRONT PASSENGER'S DOOR OPEN INDICATOR When the front passenger's door is open, " " (red colour on right door) indicator is displayed on the top left of the screen.
TRUNK OPEN INDICATOR When trunk is open, " " (red colour on trunk) indicator is displayed on the top left of the screen. SIDE MIRROR FOLDING INDICATOR When the side mirror is folded, " " (side mirror) indicator is displayed on the top left of the screen.
113
CLIMATE
OPERATING CLIMATE
Press [HOME] button or [ ] > [Climate].
a Move to Home Screen.
b Mode Display It displays the currently running mode.
c Current Time Move to Date/Time Settings Screen.
d Menu It displays Climate Menu.
e Move to Home screen or previous screen.
f OUTSIDE It displays the outside temperature of the vehicle.
g PASSENGER It displays the set temperature of the front passenger seat.
h DRIVER It displays the set driver seat temperature.
i Excessive indoor CO2 Display It is displayed when excessive indoor CO2 is detected.
j SYNC When SYNC is selected on the center fascia, front passenger seat temperature is set based on driver seat.
k Blower Level It displays the set blower level.
l A/C It is displayed when A/C is selected on the center fascia, and air conditioner is operated for vehicle cooling.
m AUTO It is displayed when Auto is selected on the center fascia, and blower level and air conditioner/heater are automatically operated based on the set temperature.
114
CLIMATE
CLIMATE MENU
Press [Menu] on Climate screen.
c Auto Defog (ADS) If fogging occurs on the windshield due to internal/external temperature difference, the air conditioner automatically operates in the direction of the glass to clear the windshield.
d Help Move to Help Menu Screen.
a Rear Climate Turns Climate Control for the rear seats on or off. (If the air vent for rear seat is closed, the [Rear Climate] is deactivated.)
b Smart Vent When cabin humidity increases while the Climate Control is off, air is automatically expelled from the vehicle to maintain a comfortable environment.
115
NAVIGATION NAVIGATION
This menu describes navigation settings.
DISPLAY
This menu is used to change the display environment settings. 1. Press [HOME] button or [ ] > [Setup] >
[Navigation] > [Display].
2. Select the desired items. · [Map Display]: Changes the map view perspective. · [3D Buildings]: Displays the 3D building in screen. · [Show Previous Destinations after Navigation Start-Up]: Changes the previous destination view setting when starting Navigation. When this is selected and when navigation is started without a route planned, a list of previous
destination will be displayed. · [Auto Re-center Map]: Sets whether to
return to the current position on the map automatically after scrolling the map. · [Save Previous Destinations]: Sets whether to automatically save a location in Previous Destinations. · [Speed Limit]: Sets whether to display the Speed Limit Guidance or not. · [Text Size]: Sets the map font size to [Small], [Medium] or [Large]. · [GPS Information]: Checks the GPS information.
GUIDANCE
This menu is used to change the guidance settings. 1. Press [HOME] button or [ ] > [Setup] >
[Navigation] > [Guidance].
2. Select the desired items. · [Number of Guidance Prompts]: Sets the frequency of the route guidance to [Fewer] or [More]. · [Set Guide Distances]: Sets the method used to display distances in the turnbyturn directions display. Select [Distance from Vehicle] or [Distance Between Turns]. · [Navigation Guidance Priority]: Sets whether to lower all other audio volumes when Navigation prompts are playing.
116
NAVIGATION
TRAFfiC
1. Press [HOME] button or [ ] > [Setup] > [Navigation] > [Traffic].
RESET
This menu is used to reset all Navigation settings. 1. Press [HOME] button or [ ] > [Setup] >
[Navigation] > [Reset].
2. Select the desired item. · [Traffic-based Rerouting]: Sets the type of traffic-based rerouting to be used. · [Show Traffic Info.]: Shows traffic information.
2. Press [Yes].
117
BLUETOOTH
This menu describes Bluetooth settings.
BLUETOOTH CONNECTIONS
Press [HOME] button or [ ] > [Setup] > [Bluetooth] > [Bluetooth Connections].
a Paired device list Displays the paired Bluetooth device list. When selecting from the list, the device is either connected or disconnected.
b Menu Displays the Bluetooth Settings menu.
c Bluetooth audio connection status An icon appears when you make a Bluetooth audio connection.
d Bluetooth hands-free connection status An icon appears when you make a Bluetooth hands-free connection.
e Add new device Registers a new Bluetooth device.
f Add new device Registers a new Bluetooth device.
g Delete Deletes the registered Bluetooth devices.
PREDEfiNED MESSAGES
You can check and change registered reply messages. 1. Press [HOME] button or [ ] > [Setup] >
[Bluetooth] > [Predefined Messages].
2. Press [Replies for Text Messages] or [Replies for Rejected Calls].
118
BLUETOOTH
3. Select the desired message.
BLUETOOTH VOICE PROMPTS
1. Press [HOME] button or [ ] > [Setup] > [Bluetooth] > [Bluetooth Voice Prompts].
AUDIO SYSTEM INFO
1. Press [HOME] button or [ ] > [Setup] > [Bluetooth] > [Audio System Info].
4. Change the message, and then press [9].
,NOTE
Depending on the model of the connected Bluetooth device, [Predefined Messages] function may not be supported.
2. Select the desired option. · [Play Prompts]: Play voice prompts during the Bluetooth pairing process. · [Mute Prompts]: Mute voice prompts during the Bluetooth pairing process.
2. Press the desired item. · [Vehicle Name]: Changes the Bluetooth device name of the vehicle. · [Passkey]: Changes the passkey required to connect a Bluetooth device to the car.
119
BLUETOOTH
VEHICLE NAME 1. Press [HOME] button or [ ] > [Setup] >
[Bluetooth] > [Audio System Info] > [Vehicle Name].
PASSKEY 1. Press [HOME] button or [ ] > [Setup]
> [Bluetooth] > [Audio System Info] > [Passkey].
PRIVACY MODE
Privacy mode is used to protect private information. If you activate privacy mode, the audio system will not display contacts, call history, favorites, and messages. 1. Press [HOME] button or [ ] > [Setup] >
[Bluetooth] > [Privacy Mode].
2. Input the desired name using the keypad, then press [9].
,NOTE
The default vehicle name is set to GENESIS G80.
2. Change the authentication code using the keypad if needed.
2. Mark or unmark [Privacy Mode].
120
BLUETOOTH
RESET
This menu is used to reset Bluetooth settings to factory defaults. 1. Press [HOME] button or [ ] > [Setup] >
[Bluetooth] > [Reset].
2. Press [Yes].
121
CONNECTED SERVICES
This menu describes Connected Services settings.
FEATURE ENROLLMENT
This menu is used to activate the Connected Services. Press [HOME] button or [ ] > [Setup] > [Connected Services] > [Feature Enrollment].
MODEM INFORMATION
This menu is used to check the Modem Information. Press [HOME] button or [ ] > [Setup] > [Connected Services] > [Modem Information].
MODEM STATUS
This menu is used to check the Modem status. Press [HOME] button or [ ] > [Setup] > [Connected Services] > [Modem Status].
,NOTE
If activation fails, contact the Connected Center at 1 (844) 405-2525.
122
PHONE PROJECTION
In this menu Android Auto and Apple CarPlay can be enabled by setting a checkmark. 1. Press [HOME] button or [ ] > [Setup] >
[Phone Projection].
,NOTE
The [Phone Projection] settings cannot be changed while an external device is connected via USB.
2. Press the desired feature. · [Enable Android Auto]: The system is now ready to recognize an Android Auto device and launch Android Auto functions, when connected via USB. Make sure that an up-to-date version of Android (Android 5.0 and later) is installed. Some features may not be available while using Android Auto. · [Enable Apple CarPlay]: The system is now ready to recognize an Apple CarPlay device and launch Apple CarPlay functions, when connected via USB. Make sure that an up-to-date version of iOS is installed. Some features may not be available.
123
ADVANCED
CUSTOM BUTTON
This menu is used to select a function you want to execute with the custom button. 1. Press [HOME] button or [ ] > [Setup] >
[Advanced] > [Custom Button].
HOME SCREEN LAYOUT
This menu is used to select Home screen widgets and rearrange menu icons. 1. Press [HOME] button or [ ] > [Setup] >
[Advanced] > [Home Screen Layout].
MEDIA CHANGE NOTICES
This menu is used to display briefly media information whenever the content changes, except on Media playing screens. Press [HOME] button or [ ] > [Setup] > [Advanced] > [Media Change Notices].
2. Press the desired feature.
2. Press [Edit].
3. Hold and drag an item to rearrange the screen. 124
ADVANCED
MODE BUTTON (STEERING WHEEL)
This menu is used to access to selected media by using [MODE] button on the steering wheel remote control. Only active/available media can be accessed. 1. Press [HOME] button or [ ] > [Setup]
> [Advanced] > [Mode Button (Steering Wheel)].
HOME BUTTON (ROTARY CONTROLLER)
This menu is used to set the function to be activated when the [HOME] button is pressed briefly. 1. Press [HOME] button or [ ] > [Setup]
> [Advanced] > [HOME Button (Rotary Controller)].
2. Select the desired features.
2. Press a desired item. · [Go to Home Screen]: Switches to HOME Screen when you press HOME button shortly. · [Go to Map Screen]: Moves to the map screen when HOME button is pressed shortly.
125
DATE/TIME
This menu describes Date/Time settings.
GPS TIME
This menu is used to display time according to the received GPS time. Press [HOME] button or [ ] > [Setup] > [Date/ Time] > [GPS Time].
TIME SETTINGS
1. Press [HOME] button or [ ] > [Setup] > [Date/Time] > [Time Settings].
DAYLIGHT SAVING TIME
This menu is used to turn on/off daylight saving time feature. Press [HOME] button or [ ] > [Setup] > [Date/ Time] > [Daylight Saving Time].
,NOTE
When the GPS Time is turned off, you can set the time manually.
2. Set the time, then press [OK].
,NOTE
[Time settings] cannot be used when GPS time is set. To set the time manually, change [GPS Time] setting to off, and set the time.
,NOTE
When [Daylight Saving Time] is turned on, the clock is adjusted forward one hour.
126
DATE/TIME
TIME ZONE
This menu is used to select the time zone. 1. Press [HOME] button or [ ] > [Setup] >
[Date/Time] > [Time Zone].
TIME FORMAT
This function is used to convert the digital clock display between 12 Hour/24 Hour systems. 1. Press [HOME] button or [ ] > [Setup] >
[GPS time] > [Time Format].
2. Select the desired time zone.
2. Select [12Hr] or [24Hr].
127
GENERAL
LANGUAGE
This menu is used to set the language of the system display and voice language. 1. Press [HOME] button or [ ] > [Setup] >
[General] > [Language].
KEYBOARD
This menu is used to change the type of keyboard used within the system for each language. The set keyboard will be applied to all input modes across the entire system. 1. Press [HOME] button or [ ] > [Setup] >
[General] > [Keyboard].
RETURN TO MAP: SET TIME
This menu is used to switch from Radio/Media to Map screen automatically after selected time. 1. Press [HOME] button or [ ] > [Setup] >
[General] > [Return to Map: Set Time].
2. Select the desired language.
2. Select the keyboard type.
2. Press the desired item.
128
GENERAL
DISTANCE, SPEED UNIT
This menu is used to change the type of unit used within the system. 1. Press [HOME] button or [ ] > [Setup] >
[General] > [Distance, Speed Unit].
SCREEN SAVER
This menu is used to select the screen displayed when the system power is turned off. 1. Press [HOME] button or [ ] > [Setup] >
[General] > [Screen Saver].
2. Press the desired item.
2. Press the desired item. · [None]: The system does not show any screensaver when the display or power is off. · [Digital Clock]: The current date and time are displayed when the display or power is off.
129
SOUND
This menu is used to adjust the sound effects for the whole system.
BEEP
This menu is used to play a beep sound whenever you operate the touch screen. Press [HOME] button or [ ] > [Setup] > [Sound] > [Beep].
POSITION
This menu is used to set the sound position. 1. Press [HOME] button or [ ] > [Setup] >
[Sound] > [Position].
EQUALIZER
This menu is used to set the Treble/Mid/Bass. 1. Press [HOME] button or [ ] > [Setup] >
[Sound] > [Equalizer].
· [5-Position Simple Setting]: Touch the diagram to focus sound in the vehicle. Uncheck for more detailed control.
2. Adjust the sound position.
,NOTE
Press [ ] to reset sound to the center position after unchecking [5-Position Simple Setting].
2. Adjust the Treble/Midrange/Bass.
,NOTE
Press [Center] to reset the [Equalizer] settings.
130
SOUND
PRIORITY
This menu is used to set the volume ratio. 1. Press [HOME] button or [ ] > [Setup] >
[Sound] > [Priority].
VOLUME (SYSTEM)
This menu is used to set the volume for each mode. 1. Press [HOME] button or [ ] > [Setup] >
[Sound] > [Volume (System)].
VOLUME (PHONE PROJECTION)
This menu is used to set the volume for [Android Auto] and [Apple CarPlay] mode. 1. Press [HOME] button or [ ] > [Setup] >
[Sound] > [Volume (Phone Projection)].
2. Select the desired item. · [Navigation Guidance]: Lowers all other audio volumes when Navigation prompts are playing. · [Back-up Warning]: Lowers all other audio volumes when the vehicle shifts into reverse. · [Navigation During Calls]: Plays audio Navigation guidance during phone calls. · [Start-up Max. Vol. Limit]: Lowers Radio and Media volumes if they are higher than factory set maximum start-up levels.
2. Adjust the volume of the [Ringtone], [Voice Recognition Prompts], and [Navigation].
131
2. Adjust the volume of the [Android Auto] and [Apple CarPlay]. · [Android Auto]: Sets the media and guidance volume when using the Android Auto function. · [Apple CarPlay]: Sets the media, phone, navigation, voice, ringtone volume when using the Apple CarPlay function.
,NOTE
Press [Default] to reset the [Android Auto] and [Apple CarPlay] settings.
SOUND
NAVIGATION VOLUME
This menu is used to set the navigation volume. 1. Press [HOME] button or [ ] > [Setup] >
[Sound] > [Navigation Volume].
SPEED DEPENDENT VOL.
This menu is used to automatically control the audio volume according to the speed of the vehicle. 1. Press [HOME] button or [ ] > [Setup] >
[Sound] > [Speed Dependent Vol.].
QUANTUM LOGIC SURROUND (OPTION)
This menu is used to set to the stereo sound improving space and depth. 1. Press [HOME] button or [ ] > [Setup] >
[Sound] > [Quantum Logic Surround].
2. Select the desired item. · [Use Map Screen Volume Buttons]: Adjusts the volume using the volume buttons on the map screen. · [Use Map screen Volume Buttons or Volume Knob]: Adjusts the volume by using the volume buttons on the map screen or by turning the volume knob when the navigation guidance is playing.
2. Press the desired item.
132
2. Select the desired item. · [Audience]: Provides an intimate concert experience where the boundaries of the vehicle seemingly disappear. · [On Stage]: A surround-sound experience that puts listeners onstage with their favorite artists, placing individual instruments and musical elements throughout the cabin.
SOUND
CLARI-fi (OPTION)
This menu is used to improve the lexicon's patented sound enhancement algorithm for all compressed audio sources. Press [HOME] button or [ ] > [Setup] > [Sound] > [Clari-Fi].
ACTIVE SOUND DESIGN (OPTION)
This application is to produce engine sound through the audio system. Using the stateofart ASD(Active Sound Design) technology passengers can enjoy realistic engine sound corresponding to driving conditions. 1. Press [HOME] button or [ ] > [Setup] >
[Sound] > [Active Sound Design].
RESET
This menu is used to reset all Sound settings. 1. Press [HOME] button or [ ] > [Setup] >
[Sound] > [Reset].
2. Press [Yes].
2. Press the desired item.
133
DISPLAY
This menu is used to control the display brightness and image rate for the whole system.
DISPLAY OFF
This menu is used to turn the screen off. 1. Press [HOME] button or [ ] > [Setup] >
[Display].
ADJUST VIDEO
This menu can be set during video playback. 1. Press [HOME] button or [ ] > [Setup]
> [Display] > [Adjust Video] during video playback.
ILLUMINATION
This menu is used to set the brightness. 1. Press [HOME] button or [ ] > [Setup] >
[Display] > [Illumination].
2. Press [Display Off]. 3. Press the screen itself again to turn the
screen on.
2. Select the desired options. · [Brightness]: Adjusts the brightness. · [Contrast]: Adjusts the contrast. · [Saturation]: Adjusts the saturation.
,NOTE
Press [Center] to reset [Adjust Video] settings.
2. Adjust the screen brightness. · [Link to Cluster Illumination Control]: Checks the box to connect the display to the cluster's illumination control button. · [Daylight]: Adjusts the daylight screen brightness. · [Night]: Adjusts the night screen brightness.
,NOTE
Press [Default] to reset the screen brightness.
134
DISPLAY
MODE
This menu is used to set the display brightness according to mode changes. 1. Press [HOME] button or [ ] > [Setup] >
[Display] > [Mode].
VIDEO DISPLAY RATIO
This menu can be set during video playback. 1. Press [HOME] button or [ ] > [Setup] >
[Display] > [Video Display Ratio] during video playback.
RESET
This menu is used to reset all Display settings. 1. Press [HOME] button or [ ] > [Setup] >
[Display] > [Reset].
2. Select the desired options. · [Automatic]: Adjusts the brightness automatically according to surrounding brightness. · [Daylight]: Always maintains the brightness on high regardless of surrounding brightness. · [Night]: Always maintains the brightness on low regardless of surrounding brightness.
2. Select the desired option. · [Fit to Screen]: Displays the full screen. · [Normal View]: Displays the 4:3 screen with the black bar appeared at the left and right side.
2. Press [Yes].
135
VOICE RECOGNITION
This menu describes voice recognition settings. 1. Press [HOME] button or [ ] > [Setup] >
[Voice Recognition].
2. Press [Guidance].
· [Use Genesis Connected Services Network]: When Genesis Connected Services is activated, press the button in the rearview mirror / overhead console to initiate network Navigation searches. Network searches can provide a greater variety of results, but rely on network signal strength. Audio samples are collected and stored anonymously for further quality improvements. (English Only)
3. Select the desired item. · [Beginner]: Detailed voice recognition guidance is provided. · [Standard]: Voice Recognition guidance will provide brief prompts. · [Expert]: No voice recognition guidance is provided. Only a beep will be played.
136
SYSTEM INFORMATION CHECK AND UPDATE GUIDE
SOFTWARE INFORMATION
This menu is used to view the system information. Press [HOME] button or [ ] > [Setup] > [System Info] > [Software Information].
UPDATE
For system's software security, new function addition, and map update, you need an update. 1. Press [HOME] button or [ ] > [Setup] >
[System Info] > [Software Information].
STORAGE
This menu is used to display the capacity of the stored information on the voice memo. Press [HOME] button or [ ] > [Setup] > [System Info] > [Storage].
,NOTE
The system information may differ from the actual information of the vehicle.
2. After inserting the USB with the update file, press [Update]. Once updating is complete, the system will automatically restart.
,NOTE
· This product requires regular updates for software corrections, new functions and map updates. Updating may require up to 1 hour depending on the data size.
· Turning off the power or ejecting the USB during the update process may result in data loss.
137
SYSTEM INFORMATION CHECK AND UPDATE GUIDE
WEB MANUAL
This menu is used to view the Web Manual. 1. Press [HOME] button or [ ] > [Setup] >
[System Info] > [Web Manual].
RESET
This menu is used to reset all settings specified by the user. 1. Press [HOME] button or [ ] > [Setup] >
[System Info] > [Reset].
2. Scan the QR code of your mobile device. Keep display bright and avoid glare to scan correctly.
2. Press [Yes].
138
PRECAUTIONS FOR SAFETY PRECAUTIONS FOR SAFETY
NOTATIONS USED WITHIN THIS USER'S MANUAL
CAUTION
RISK OF ELECTRIC SHOCK DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
The lightning flash with the arrowhead symbol within an equilateral triangle is intended to alert the user about the presence of uninsulated dangerous voltage within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.
Always operate the vehicle in a safe manner. Do not become distracted by the vehicle while driving and always be fully aware of all driving conditions. Do not change settings or any functions.Pull over in a safe and legal manner before attempting such operations. To promote safety, certain functions are disabled unless the parking brake is on.
To reduce the risk of electric shock, do not remove the cover or back of this product. There are no user-serviceable parts inside. Refer servicing to qualified service personnel.
To reduce the risk of fire or electric shock, do not expose this product to dripping or splashing water, rain, or moisture.
When driving your vehicle, be sure to keep the volume of the unit low enough to allow you to hear sounds coming from the outside. Do not drop it and avoid heavy impacts at anytime. The driver should not watch the monitor while driving. If the driver watches the monitor while driving, it may lead to carelessness and cause an accident.
139
PRECAUTIONS FOR SAFETY
WARNING: · Don't use a cellular phone when you are
driving. You must stop at a safe place to use a cellular phone. · The use of the navigation radio by no means relieves the driver of his/her responsibilities. The highway code must always be observed. Always observe the current traffic situation. · The applicable traffic regulations and the prevailing traffic situation always take precedence over the instructions issued by the navigation system if they contradict one another. · For traffic safety reasons, use the navigation system menus only before starting a journey or when the vehicle is stationary. · In certain areas, one-way streets and turn off and entry prohibitions (e.g. pedestrian zones) are not recorded. In areas such as these the navigation system will issue a warning. Pay particular attention to one-way streets and turn off and entry restrictions.
· The navigation system does not take the relative safety of the suggested routes into consideration. Road blocks, building sites, height or weight restrictions, traffic or weather conditions or other influences which affect the route safety or travel time are not taken into consideration for the suggested routes. Use your own discretion in order to decide on the suitability of the suggested routes.
· The current legal road traffic speed limit always takes priority over the values saved on the data. It is impossible to provide an assurance that the speed values of the navigation system will always match those of the current traffic regulations in every situation.
· Always observe the applicable legal speed limits the traffic regulations. The vehicle speedometer must always be given priority for display of the vehicle speed.
· Do not rely exclusively on the navigation system when attempting to locate an emergency service (hospital, fire service etc.). It cannot be guaranteed that all available emergency services in your vicinity are saved in the database. Use your own discretion and abilities to secure help in such situations.
CAUTION: · Do not keep the navigation system running
with the engine stopped. Doing so may discharge the vehicle battery. When you use the navigation system, always keep the engine running. · When the driver wants to operate the navigation system, first park the vehicle in a safe location and set the parking brake. Operating the system while driving can distract the driver and may result in a serious accident. · Do not disassemble or modify this system. If you do, it may result in accidents, fire, or electrical shock. · Some states/provinces may have laws limiting the use of video screens while driving. Use the system only where it is legal to do so. · Do not use your phone in private mode when you are driving. You must stop at a safe location to use it.
140
PRECAUTIONS FOR SAFETY
FCC NOTICE (FOR USA)
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: · Reorient or relocate the receiving antenna. · Increase the separation between the
equipment and the receiver. · Connect the equipment to an outlet on
a circuit different from that to which the receiver is connected. · Consult the dealer or an experienced radio/ TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifi cations in construction of this device which are not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
FCC RF RADIATION EXPOSURE STATEMENT
[For having wireless function] This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be colocated or operating in conjunction with any other antenna or transmitter. This equipment should be installed and operated with minimum distance 20 cm (7.8 inches) between the radiator and your body.Users must follow the specifi c operating instructions for satisfying RF exposure compliance.
INDUSTRY CANADA STATEMENT
[For having wireless function] This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada's licence-exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause interference. (2) This device must accept any interference, including interference that may cause undesired operation of the device.
IC RADIATION EXPOSURE STATEMENT (FOR CANADA) [For having wireless function] This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20 cm (7.8 inches) between the antenna & your body. NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER'S AUTHORITY TO OPERATE THE EQUIPMENT.
141
GENERAL INFORMATION
CAUTIONS FOR THE USE OF USB
Please use it by installing a USB device after starting an engine. If the engine is started with a USB device installed, a USB device can be damaged. If it is not a standard format file, it is not played. · MP3/WMA file only supports a music file with
a compression level of 8 Kbps to 320 Kbps. · Be careful of static electricity when
connecting and disconnecting a USB external device. · If encrypted MP3 player is connected to an external USB device, it is not recognized. · When connecting a USB external device, it may not be recognized depending on the condition of a USB external device. · It supports FAT16, FAT32, exFAT and NTFS. · Some USB devices may not be supported due to compatibility issue. · Please do not allow human body or object to touch the USB connection. · Connecting and disconnecting a USB device for a short time repeatedly can cause its failure.
· Please connect and disconnect a USB external device only with the audio power turned off.
· The recognition time can vary depending on the type, capacity and format of a stored file but it is not a product failure.
· When using separate devices like USB HUB and extension cables, the USB may not be recognized. So, please use it by directly connecting to a multimedia port of a car.
· When uploading an application program in a specific USB, the file may not be played.
· When the USB device, that is not recognized as removable discs like MP3 Player, mobile phone and digital camera, was connected, it may not be operated properly.
· The charge through USB may not be supported in case of some mobile devices.
· No operation may be guaranteed except standard product (Metal Cover Type) USB memory.
· The operation of HDD Type, CF and SD memory is not guaranteed.
· The file that applied DRM (Digital Rights Management) is not played.
· The USB memory stick (SD Type or CF Type) used by being inserted into an adapter may not be recognized.
PLAYABLE fiLE STANDARD
PLAYABLE AUDIO fiLE STANDARD (USB) · Playable file format: ".mp3", ".wma", ".mka",
".wav", ".flac", ".m4a", ".ape", ".tta", ".aiff" · Playable Codec format: "MPEG-1 layer I,
II, III", "AC-3", "AAC", "WMA", "PCM (WAV only)", "ADPCM (WAV only)", "FLAC", "ALAC", "APE", "TTA", "AIFF" · Sampling frequency: 8 - 48 KHz (MP3), 22.5 48 KHz (WMA), 8 - 48KHz (PCM/WAV), 8 - 44KHz (ADPCM/WAV), 8 48 KHz (AC-3), 8 48 KHz (AAC) · Bit rate: 8 - 320 Kbps (MP3), 20 - 320 Kbps (WMA), 8 - 12.3 Mbps (PCM/WAV), 8 - 352.8 Kbps (ADPCM/WAV), 8 320 Kbps (AC-3), 8 - 320 Kbps (AAC), 8 - 4.6 Mbps (FLAC, ALAC, APE, TTA, AIFF)
142
GENERAL INFORMATION
PLAYABLE VIDEO fiLE STANDARD · Playable file format: ".avi", ".mpg", ".mpeg",
".divx", ".mp4", ".asf", ".wmv", "mkv" · Playable Codec format: "MPEG-1", "MPEG-2
simple profile main level", "MPEG-2 main profile low,main,high level", "VC-1", "AVC", "H.263 profile 0 ~ profile2", "MPEG4 v2, v3", "DIVX 3.11, 4, 5, 6", "Xvid" · Playable resolution and frame rate: (MPEG1) within 1280 x 720 30fps, 720 x 480p 30fps/720 x 576p 25fps (H.263), 720 x 480p 30fps/720 x 576p 25fps (Divx 3.11), 1920 x 1038 30fps (Divx 4, 5, 6), 1920 x 1080 30fps (other supported Codec format)
PLAYABLE SUBTITLE STANDARD · Playable file format: ".smi", ".srt" · Playable subtitle language: Korean, English,
Japanese, Chinese · When the file name of image and subtitles is
different, subtitles may not be displayed.
DIVX fiLE STANDARD
· The file name of DivX subtitle can be typed up to 45 letters in English and 22 letters in Korean alphabet.
· The code that cannot be shown is displayed as "_".
· When DivX file format does not match the main body, it may not be played normally.
USING IPOD® DEVICES
PRECAUTIONS UPON USING IPOD® · Some iPods with unsupported
communication protocols may not properly operate with the system. · If the iPod malfunctions due to an iPod device defect, reset the iPod and try again. (To learn more, refer to your iPod manual.) · During ACC ON state, connecting the iPod through the iPod cable (The cable that is supplied when purchasing iPod/iPhone product.) will charge the iPod through the system. · The use of genuine iPod cables supplied by Apple is recommended. (The use of other products may result in noise or abnormal operation.) · Within iPhones, streaming audio and iPod control may occasionally conflict. If problems persist, remove the iPhone and connect again. · Use iPod with complete synchronization to iTunes. Unauthorized song addition/deletion may cause abnormal operation.
143
GENERAL INFORMATION
· If iPod and Bluetooth are connected simultaneously with the same iPhone, you cannot use Bluetooth audio function.
· If iPod touch or iPhone is used, iOS 10.3.2 or greater is recommended.
SUPPORTED IPOD® DEVICES · iPhone 7 Plus, iPhone 7, iPhone SE · iPhone 6s Plus, iPhone 6s, iPhone 6 Plus,
iPhone 6 · iPhone 5s, iPhone 5c, iPhone 5 · iPhone 4s · iPad Pro (12.9-inch) 1st Generation, iPad Pro
(9.7-inch) · iPad mini 4, iPad mini 3, iPad mini 2, iPad
mini · iPad Air 2, iPad Air · iPad (4th generation), iPad (3rd generation),
iPad 2 · iPod touch (6th generation), iPod touch (5th
generation) · iPod nano (7th generation)
144
BEFORE THINKING THE PRODUCT HAS MALFUNCTIONED
The current position as shown on the navigation may differ from the actual position under the following conditions. The following occurrences are not malfunctions: · When driving on Y-shaped roads with narrow
angles the current position may be displayed in the opposite direction. · Within city streets, the current position may be displayed on the opposite side or on an off-road position. · When changing the zoom level from maximum to a different level, the current position may become displayed on a different road. · If the vehicle is loaded onto a ferry or a car transport vehicle, the current position may become stalled on the last position prior to loading. · When driving on a spiral-shaped road. · When driving in mountain regions with sharp turns or sudden brakes. · When entering a road after passing an underground parking structure, building parking structure, or roads with many rotations.
· When driving in heavy traffic with frequent starts and stops.
· When driving under slippery conditions, such as heavy sand, snow, etc.
· When the tires have recently been replaced. (Especially upon use of spare or studless tires)
· When using tires of improper size. · When the tire pressure for the 4 tires are
different. · When the replacement tire is worn or used.
(Especially studless tires having passed a second season) · When driving near high-rise buildings. · When a roof carrier has been installed. · When a long distance route is calculated while driving on an expressway, in such cases, continued driving will automatically enable the system to conduct map matching or use updated GPS information to provide the current position. (In such cases, up to several minutes may be required.)
Correct route guidance may not occur due to search conditions or driving position. The following occurrences are not malfunctions: · Guidance to go straight may be given while
driving on a straight road. · Guidance may not be given even when
having turned at an intersection. · There are certain intersections in which
guidance may not occur. · A route guidance signaling for a u-turn may
occur in some No u-turn intersections. · Route guidance signaling entrance into a No-
entry zone may occur. (No-entry zone, road under construction, etc.) · Guidance may be given to a position that is not the actual destination if roads to reach the actual destination do not exist or are too narrow. · Faulty voice guidance may be given if the vehicle breaks away from the designated route. (e.g. if a turn is made at an intersection while the navigation provided guidance to go straight.)
145
BEFORE THINKING THE PRODUCT HAS MALFUNCTIONED
These situations may occur after conducting route calculation. The following occurrences are not malfunctions: · Guidance may be given to a position differing
from the current position when turning at an intersection. · When driving in high speeds, route recalculation may take a longer period of time. · Route guidance signaling for a u-turn may occur in some No u-turn intersections. · Route guidance signaling entrance into Noentry zone may occur. (No-entry zone, road under construction, etc.) · Guidance may be given to a position removed from the actual destination if roads to reach the actual destination do not exist or are too narrow. · Faulty voice guidance may be given if the vehicle breaks away from the designated route .(e.g. If a turn is made at an intersection while the navigation provided guidance to go straight.)
146
BEFORE THINKING THE PRODUCT HAS MALFUNCTIONED
1. Errors which occur during the operation or installation of the device may be mistaken as a malfunction of the actual device. 2. If you are having problems with the device, try the suggestions listed below. 3. If the problems persist, contact your dealer. Problem: There are small red, blue, or green dots on the screen Possible Cause : Because the LCD is manufactured with technology requiring high point density, a pixel or lighting deficiency may occur within 0.01% of total pixels. Problem: The sound or image is not working Possible Cause :
- Has the Switch for the vehicle been turned to [ACC] or [ON]? - Has the SYSTEM been turned OFF? Problem: The screen is being displayed but sound is not working Possible Cause : - Has the volume been set to a low level? - Has the volume been muted?
Problem: When the power is turned on, the corners of the screen are dark
Possible Cause : - The display appearing somewhat dark after prolonged periods of use is normal with LCD panels. It is not a malfunction. - If the screen is very dark, contact your nearest dealer for assistance.
Problem: Sound is working from only one speaker Possible Cause : Are the positions of Fader or Balance sound controls adjusted to only one side?
147
BEFORE THINKING THE PRODUCT HAS MALFUNCTIONED
Problem: The external device is not working Possible Cause : Is the external device connected with a standard connector cable? Problem: When turning power on, the most recent mode screen is not displayed Possible Cause : Within modes that play files by reading external sources, such as discs, USB, iPod, or Bluetooth® streaming mode, the most recently played mode screen prior to turning off power may not properly load.
- If there is no disc or the corresponding device is not connected, the mode operated prior to the most recent mode will operate. - If the previous mode still cannot be properly played, the mode operated prior to that will operate.
148
TROUBLESHOOTING
Problem: The power does not turn on.
· Possible Cause : The fuse is disconnected. · Countermeasure:
- Replace with a suitable fuse. - If the fuse is disconnected again, please contact your dealer.
· Possible Cause : Device is not properly connected. · Countermeasure: Check to see that the device has been properly connected. Problem: The system does not play. · Possible Cause : The vehicle battery is low. · Countermeasure: Charge the battery if the problem persists, contact your point of purchase or service center. Problem: The image color/tone quality is low. · Possible Cause : The brightness, saturation, and contrast levels are not set properly. · Countermeasure: Properly adjust the brightness, saturation, and contrast levels through Display Setup. Problem: Sound does not work. · Possible Cause : The volume level is set to the lowest level. · Countermeasure: Adjust the volume level. · Possible Cause : The connection is not proper. · Countermeasure: Check to see that the device has been properly connected. · Possible Cause : The device is currently fast-forwarding, rewinding, scanning, or playing in slow mode. · Countermeasure: The sound will not work when the device is fast-forwarding, rewinding, scanning, or playing in slow mode.
149
TROUBLESHOOTING
Problem: The sound or image quality is low. · Possible Cause : Vibration is occurring from where the conversion switch has been installed. · Countermeasure: The sound may be short circuited and the image distorted if the device vibrates. Problem: The USB does not work · Possible Cause : USB memory is damaged. · Countermeasure: Please use after formatting the USB into FAT 16/32, exFAT, NTFS format. · Possible Cause : USB memory has been contaminated. · Countermeasure: Remove any foreign substances on the contact surface of the USB memory and multimedia terminal. · Possible Cause : A separately purchased USB HUB is being used. · Countermeasure: Directly connect the USB memory with the multimedia terminal on the vehicle. · Possible Cause : A USB extension cable is being used. · Countermeasure: Directly connect the USB memory with the multimedia terminal on the vehicle. · Possible Cause : A USB which is not a Metal Cover Type USB Memory is being used. · Countermeasure: Use standard USB Memory. · Possible Cause : An HDD type, CF, SD Memory is being used. · Countermeasure: Use standard USB Memory. · Possible Cause : There are no music files which can be played. · Countermeasure: Only MP3, WMA file formats are supported. Please use only the supported music file formats.
150
TROUBLESHOOTING
Problem: The iPod is not recognized even though it has been connected · Possible Cause : There are no titles which can be played. · Countermeasure: Use iTunes to download and save MP3 files into the iPod. · Possible Cause : The iPod firmware version has not been properly updated. · Countermeasure: Use iTunes to update the firmware version and reconnect the iPod with the device. · Possible Cause : The iPod device does not recognize downloads. · Countermeasure: Reset the iPod and reconnect with the device.
151
TRADEMARKS AND LICENSES
IPOD®
iPod® is a registered trademark of Apple Inc.
BLUETOOTH® WIRELESS TECHNOLOGY
SIRIUSXMTM
SiriusXMTM is a registered trademark of SiriusXMTM Satellite Radio Inc. All rights reserved.
The Bluetooth Wireless Technology word mark and logos are registered trademarks owned by Bluetooth Wireless Technology SIG, Inc.
HD RADIOTM TECHNOLOGY
HD Radio Technology manufactured under license from iBiquity Digital Corporation. U.S. and Foreign Patents. For patents see http:// dts.com/patents. HD Radio, Artist Experience, and the HD, HD Radio, and "ARC" logos are registered trademarks or trademarks of iBiquity Digital Corporation in the United States and/or other countries.
152
TRADEMARKS AND LICENSES
NAVIGATION
END USER LICENSE AGREEMENT PLEASE READ THIS END USER LICENSE AGREEMENT ("EULA") CAREFULLY BEFORE USING THE NAVIGATION SYSTEM. This is a license agreement between you and HYUNDAI MNSOFT, INC.. including its affiliates ("COMPANY") regarding a copy of COMPANY navigable map database together with associated software, media and explanatory printed documentation published by COMPANY (jointly the "Product"). The Product is provided for your personal, internal use only and not for resale. It is protected by copyright and is subject to the following terms which are agreed to by you, on the one hand, and COMPANY and its licensors (and their licensors and suppliers) (collectively, "Licensors") on the other hand. By using the Product, you accept and agree to all terms and conditions in this End User License Agreement ("EULA"). IF YOU DO NOT AGREE TO THE TERMS OF THIS EULA, YOU MUST PROMPTLY EXIT THE PRODUCT OPERATION PROGRAM AND DO NOT USE OR ACCESS TO THE PRODUCT. You agree that your rights under this EULA may be terminated automatically without notice if you fail to comply with any term(s) of this EULA.
TERMS AND CONDITIONS Personal Use Only. You agree to use this Product together with COMPANY authorized application for the solely personal, non-commercial purposes for which you were licensed, and not for service bureau, time-sharing or other similar purposes. Accordingly, but subject to the restrictions set forth in the following paragraphs, you agree not to otherwise reproduce, copy, modify, decompile, disassemble, create any derivative works of, or reverse engineer any portion of this Data, and may not transfer or distribute it in any form, for any purpose, except to the extent permitted by mandatory laws. You may not assign this EULA or any of the rights or licenses granted under this EULA, except when installed in the system for which it was created. Restrictions. Except where you have been specifically licensed to do so by COMPANY, and without limiting the preceding paragraph, you may not use the Product (i) with any products, systems, or applications installed or otherwise connected to or in communication with vehicles, capable of vehicle navigation, positioning, dispatch, real time route guidance, fleet management or similar applications; or (ii) with or in communication with any positioning devices or any mobile or wireless-connected electronic or computer devices, including
153
without limitation cellular phones, palmtop and handheld computers, pagers, and personal digital assistants or PDAs. COPYING OR USE OF THE PRODUCT EXCEPT AS PERMITTED BY THIS EULA IS UNAUTHORIZED AND IS COPYRIGHT INFRINGEMENT UNDER THE LAWS OF YOUR COUNTRY. IF YOU COPY OR USE THE PRODUCT WITHOUT COMPANY PERMISSION, EXCEPT AS PERMITTED BY THIS EULA, YOU ARE VIOLATING THE LAW AND LIABLE TO COMPANY AND ITS LICENSORS FOR DAMAGES, AND YOU MAY BE SUBJECT TO CRIMINAL PENALTIES. THE PRODUCT MAY INCLUDE ENFORCEMENT TECHNOLOGY DESIGNED TO PREVENT (i) UNAUTHORIZED COPYING OF THE PRODUCT ONTO PHYSICAL STORAGE MEDIA OR VIA TRANSFER OVER THE INTERNET OR OTHER ELECTRONIC COMMUNICATION MEANS AND/ OR (ii) ILLEGAL USAGE OF THE PRODUCT OTHER THAN BY A SPECIFICALLY AUTHORIZED DEVICE. YOU AGREE THAT COMPANY MAY USE THESE MEASURES TO PROTECT COMPANY AND THE LICENSORS AGAINST COPYRIGHT INFRINGEMENT. Uploads. The Product may provide functionality through which you are able to upload certain information about your use of the Product
TRADEMARKS AND LICENSES
(collectively, "Uploads") to COMPANY servers or receive other services from COMPANY (collectively, the "Services"). If you use such functionality, you authorize COMPANY to retain your Uploads on its servers. COMPANY will have no obligation to provide any Services, may change the form and nature of any Services at any time with or without notice to you, will have no liability whatsoever to you for any failure of the Product or Services to transmit your Uploads to or from COMPANY servers, may cease providing any Services at any time with or without notice to you, and will have no obligation to retain your Uploads (or any other materials you may provide to COMPANY) on its servers or return your Uploads (or any other materials you may provide to COMPANY) to you before deleting them from its servers. Storage. The Product may provide functionality through which you are able to store information (such as images) on the device on which you are using the Product. COMPANY will have no liability whatsoever to you or any third party for any failure of the Product to store any such information on such device. Personal Information. By using the Product, you agree to the collection, retention and processing of your personal data (including the location of your mobile device) by COMPANY
and to the storage and processing of such personal information on computers located outside of the country in which you reside. Even though COMPANY has taken steps intended to protect your personal information from being intercepted, accessed, used, or disclosed by unauthorized persons, COMPANY cannot fully eliminate security risks associated with your personal information and cannot guarantee that its systems will not be breached. See [*] for additional information regarding COMPANY's use of your personal information. Warning. The Product reflects reality as existing before you received the product and it comprises data and information from government other sources. accordingly, the product may contain inaccurate or incomplete information due to the passage of time, changing circumstances, sources used and the nature of collecting comprehensive geographic product, any of which may lead to incorrect results. THE PRODUCT AND SERVICES MAY NOT TO BE USED FOR SAFETY OF LIFE APPLICATIONS, OR FOR ANY OTHER APPLICATION IN WHICH THE ACCURACY OR RELIABILITY OF THE PRODUCT OR SERVICES COULD CREATE A SITUATION WHERE PERSONAL INJURY OR DEATH MAY OCCUR.
154
DO NOT ATTEMPT TO CONFIGURE THE PRODUCT OR INPUT INFORMATION WHILE DRIVING. FAILURE TO PAY FULL ATTENTION TO THE OPERATION OF YOUR VEHICLE COULD RESULT IN DEATH, SERIOUS INJURY, OR PROPERTY DAMAGE. BY USING THE PRODUCT, YOU ASSUME ALL RESPONSIBILITY AND RISK. Disclaimer of Warranty. The Product is provided to you "as is," and you agree to use it at your own risk. SUBJECT TO THE APPLICABLE LAWS, COMPANY AND THE LICENSORS MAKE NO GUARANTEES, REPRESENTATIONS OR WARRANTIES OF ANY KIND, EXPRESS OR IMPLIED, ARISING BY LAW OR OTHERWISE, INCLUDING BUT NOT LIMITED TO, content, QUALITY, accuracy, completeness, effectiveness, reliability, PERFORMANCE, MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, NONINFRINGEMENT, usefulness, use or results to be obtained from the Product, or that the Product or server will be uninterrupted or errorfree, OR THAT ERRORS IN THE PRODUCT OR NONCONFORMITY TO ITS DOCUMENTATION CAN OR WILL BE CORRECTED. YOU ACKNOWLEDGE THAT THE PROVISIONS OF THIS SECTION ARE A MATERIAL INDUCEMENT AND CONSIDERATION TO COMPANY AND THE LICENSORS TO GRANT THE LICENSE CONTAINED IN THIS EULA AND TO PROVIDE YOU WITH ACCESS TO THE SERVICES.
TRADEMARKS AND LICENSES
Limitation of Liability: TO THE MAXIMUM EXTENT PERMITTED UNDER THE APPLICABLE LAWS, COMPANY AND THE LICENSORS SHALL NOT BE LIABLE TO YOU: IN RESPECT OF ANY CLAIM, DEMAND OR ACTION, IRRESPECTIVE OF THE NATURE OF THE CAUSE OF THE CLAIM, DEMAND OR ACTION ALLEGING ANY LOSS, INJURY OR DAMAGES, DIRECT OR INDIRECT, INCURRED BY YOU OR ANY THIRD PARTY WHICH MAY ARISE IN CONNECTION WITH OR RESULT FROM THE USE OR POSSESSION OF THE PRODUCT; OR FOR ANY LOSS OF DATA, PROFIT, REVENUE, CONTRACTS OR SAVINGS, OR OTHER DIRECT, INDIRECT, INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF YOUR USE OF OR INABILITY TO USE THE PRODUCT, ANY DEFECT IN THE PRODUCT, OR THE BREACH OF THESE TERMS OR CONDITIONS, WHETHER IN AN ACTION IN CONTRACT OR TORT OR BASED ON A WARRANTY, EVEN IF COMPANY OR THE LICENSORS HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES AND NOTWITHSTANDING THE FAILURE OF ANY LIMITED REMEDY PROVIDED HEREIN. Exclusions. Some jurisdictions do not allow certain warranty exclusions or the limitation or exclusion of liability, so to that extent the above exclusion may not apply to you. To the extent that COMPANY may not, as a matter of
applicable law, disclaim any implied warranty or limit its liabilities, the scope and duration of such warranty and the extent of COMPANY's liability shall be the minimum permitted under such applicable law. The disclaimer of warranty and limitation of liability set forth in this EULA does not affect or prejudice your statutory rights where you have acquired the Product otherwise than in the course of business. Third-Party Copyright Notices. The third-party sourced data has been incorporated into or made a part of the Product and is being sublicensed to you subject to the terms and conditions of this EULA. In this regard, you shall not remove or tamper with any intellectual property rights notice attached or used in relation to data supplied by the Licensors. Entire Agreement. This EULA is the entire agreement between COMPANY (and the Licensors) and you pertaining to the subject matter hereof, and supersedes in their entirety any and all previous written or oral communications or documents (including, if you are obtaining an update, any agreement that may have been included with an earlier version of the Product) with respect to such subject matter.
155
Governing Law. This EULA shall be governed by the laws of the jurisdiction in which you reside at the date of acquisition of the Product. Should you at that moment reside outside the European Union or Switzerland, the law of the jurisdiction within the European Union or Switzerland where you acquired the Product shall apply. In all other cases, or if the jurisdiction where you acquired the Product cannot be defined, the laws of the Republic of Korea shall apply. This EULA will not be governed by the U.N. Convention on Contracts for the International Sale of Goods. The courts competent at your place of residence at the time you acquired the Product shall have jurisdiction over any dispute arising out of, or relating to this EULA, without prejudice to COMPANY's right to bring claims at your then current place of residence. Export Control. You agree not to export or reexport from anywhere any part of the Product in any form except in compliance with applicable export laws, rules and regulations, including but not limited to the laws, rules and regulations administered by the Office of Foreign Assets Control of the U.S. Department of Commerce and the Bureau of Industry and Security of the U.S. Department of Commerce.
TRADEMARKS AND LICENSES
Miscellaneous. If any provision of this EULA is found to be invalid or unenforceable, it will be enforced to the extent permissible and the remainder of this EULA will remain in full force and effect. Failure by COMPANY to prosecute any right with respect to a default hereunder will not constitute a waiver by COMPANY of the right to enforce rights with respect to the same or any other breach. No refunds or replacements will be permitted on damaged Product. U.S. Government End Users. If the Product is being acquired by or on behalf of the United States Government or any other entity seeking or applying rights similar to those customarily claimed by the United States Government, this Product and related documentation are "Commercial Items" as that term is defined at 48 C.F.R. ("FAR") 2.101. This Product and related documentation are licensed to the United States Government end users (a) only as "Commercial Items" and (b) with only those rights as are granted to all other end users in accordance with this EULA, and each copy of Product delivered or otherwise furnished shall be marked and embedded as appropriate with the following "Notice of Use," and shall be treated in accordance with such Notice:
Notice of Use Contractor (Manufacturer/ Supplier) Name: HYUNDAI MNSOFT, INC. This Product and related documentation are commercial items as defined in FAR 2.101 and is subject to this EULA under which this Product is provided. © 20XX HYUNDAI MNSOFT. All rights reserved. If the Contracting Officer, federal government agency, or any federal official refuses to use the legend provided herein, the Contracting Officer, federal government agency, or any federal official must notify COMPANY prior to seeking additional or alternative rights in the Product. End-User Terms Required by HERE. The Product utilizes map data that COMPANY licenses from HERE and the following copyright notices apply to such map data (the "HERE Data"): © 20XX HERE. All rights reserved. The HERE Data for areas of Canada includes information taken with permission from Canadian authorities, including: © Her Majesty the Queen in Right of Canada, © Queen's Printer for Ontario, © Canada Post Corporation, GeoBase.®, © Department of Natural Resources Canada. All rights reserved.
HERE holds a non-exclusive license from the United States Postal Service® to publish and sell ZIP+4® information. ©United States Postal Service® 20XX. Prices are not established, controlled or approved by the United States Postal Service®. The following trademarks and registrations are owned by the USPS: United States Postal Service, USPS, and ZIP+4.
COPYRIGHT FOR BRAND ICON The marks of companies displayed by this product to indicate business locations are the marks of their respective owners. The use of such marks in this product does not imply any sponsorship, approval, or endorsement by such companies of this product.
COPYRIGHT FOR JUNCTION VIEW Junction View Data provided by ZENRIN USA, INC. Copyright(C) 20XX, All rights Reserved.
156
TRADEMARKS AND LICENSES
ABOUT MAP UPDATES You can contact your KIA dealer or Call HYUNDAI MNSOFT at 1-888-757-0010. Information This product requires regular updates for new functions and map updates. Updating may require up to 1 hour depending on the data size. Turning off the power or ejecting the USB during the update process may result in damage to the system. Make sure to keep the ignition on and wait until updating is complete. CAUTION · The use of an uncertified USB may result in
damage to the system due to heat related deformation. · Product malfunctions caused by the use of an uncertified cards shall not be covered within the product warranty. · Repeatedly connecting/disconnecting the USB in a short period of time may cause damage to the device.
157
SPECIfiCATION
AV/NAVIGATION PRODUCT SPECIfiCATION
Common
Power Supply Operating Power Current Consumption
Dark Current
Operating Temperature Storage Temperature Dimensions (Head unit) Weight (Head unit) Name of equipment (model name)
DC 14.4 V (Battery) DC 9 V ~ DC 16 V Maximum6 A
(Head unit + Front screen included) Dark current within 168h: Max 10 mA (After ACC is off, average current for 168 hours) Dark current after 168h: Max 1 mA (After ACC is off and after 168 hours)
-20 ~ +70
-40 ~ +85 274 (W) x 127 (H) x 237 (D) mm 1.65 kg Car Navigation System (IAN1DX0TND9)
Bluetooth Radio
TFT-LCD (12.3")
158
Supported Profile
Supported Bluetooth Specification Frequency Range Output power (Class2) Number of Channels AM
Tuning range
Sensitivity Frequency response Signal-to-noise ratio FM Tuning range Sensitivity Frequency response Signal-to-noise ratio
Screen Size
Resolution
Operating Method
Viewing Angle Internal Lighting
HFP(1.7), A2DP (1.3), AVRCP (1.6)
4.2
2402 MHz ~ 2480 MHz 1.0 dBm 79
530 KHz ~ 1710 KHz (Guam 531 ~ 1701 KHz) 35 dBuV 30 Hz ~ 10000 Hz Minimum 45 dB
87.5 MHz ~ 107.9 MHz 10 dBuV 30 Hz ~ 10000 Hz Minimum 50 dB 233.95 mm (9.2 inches) 204 (W) X 114.72 (H) mm (Active area standard) 921,600 pixel TFT, In Plane Switching (IPS), Active Matrix 89/89/89/89 (L,R,U,D) LED
SPECIfiCATION
SiriusXMTM
Frequency
Sensitivity T.H.D
2337.490 MHz ~ 2340.020 MHz -80 dBm Maximum 0.2 %
· To obtain the source code under GPL, LGPL, MPL and other open source licenses, that is contained in this product, please visit http://opensource. lge.com. In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are available for download. LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping and handling) upon email request to opensource@lge.com. This offer is valid for three (3) years from the date on which you purchased the product.
· Designs and specifications are subject to change without prior notice.
CONNECTED SERVICES TERMINAL PRODUCT SPECIfiCATION
Common
Power Supply Operating Power Current Consumption
Dark current
Operating Temperature Storage Temperature External dimension Weight Name of equipment (model name)
DC 14.4 V (Battery) DC 9 V ~ DC 16V Max 2.5 A Dark current within 168h: Max 10 mA (After ACC is off, average current for 168 hours) Dark current after 168h: Max 1 mA (After ACC is off and after 168 hours)
-20 ~ +70
-40 ~ +85 93 (W) x 8 (H) x 39 (D) mm 40 g Car Navigation System (IAN1DX0TND9)
159
SPECIfiCATION
WCDMA LTE
Frequency Receiving sensitivity Transmission output
Frequency
Receiving sensitivity Transmission output
From Tx : 1852 to 1908MHz (B2) and from 826MHz to 847MHz(B5) From Rx : 1932 to 1988MHz (B2), and from 871MHz to 892MHz(B5) Less than -106 dBm (conducted) Power Class3(B2,B5) from 20.3 to 25.7dBm From Tx : 1850 to 1910 MHz (B2), from 1710MHz to 1755MHz(B4), from 824 to 849 MHz (B5), from 704 to 716 MHz (B17) From Tx : 1930 to 1990 MHz (B2), from 2110MHz to 2155MHz(B4), from 869 to 894 MHz (B5), from 734 to 746 MHz (B17) Less than -95 dBm @10M (B2) and less than -94 dBm @20M (B4) Less than -95 dBm @10M (B5) and less than -94 dBm @10M (B17) (Throughput 95%) From Power Class3 (B2,B4,B5,B17) 20.3 to 25.7dBm
IC certification
160
IC Identifier Model name Certification number Name of the person certified
2703H-RBHPB213A IAN1DX0TND9 2703H-GEN21CA
LG Electronics
*MFL71401303*
Acrobat Distiller 10.1.1 (Windows)
