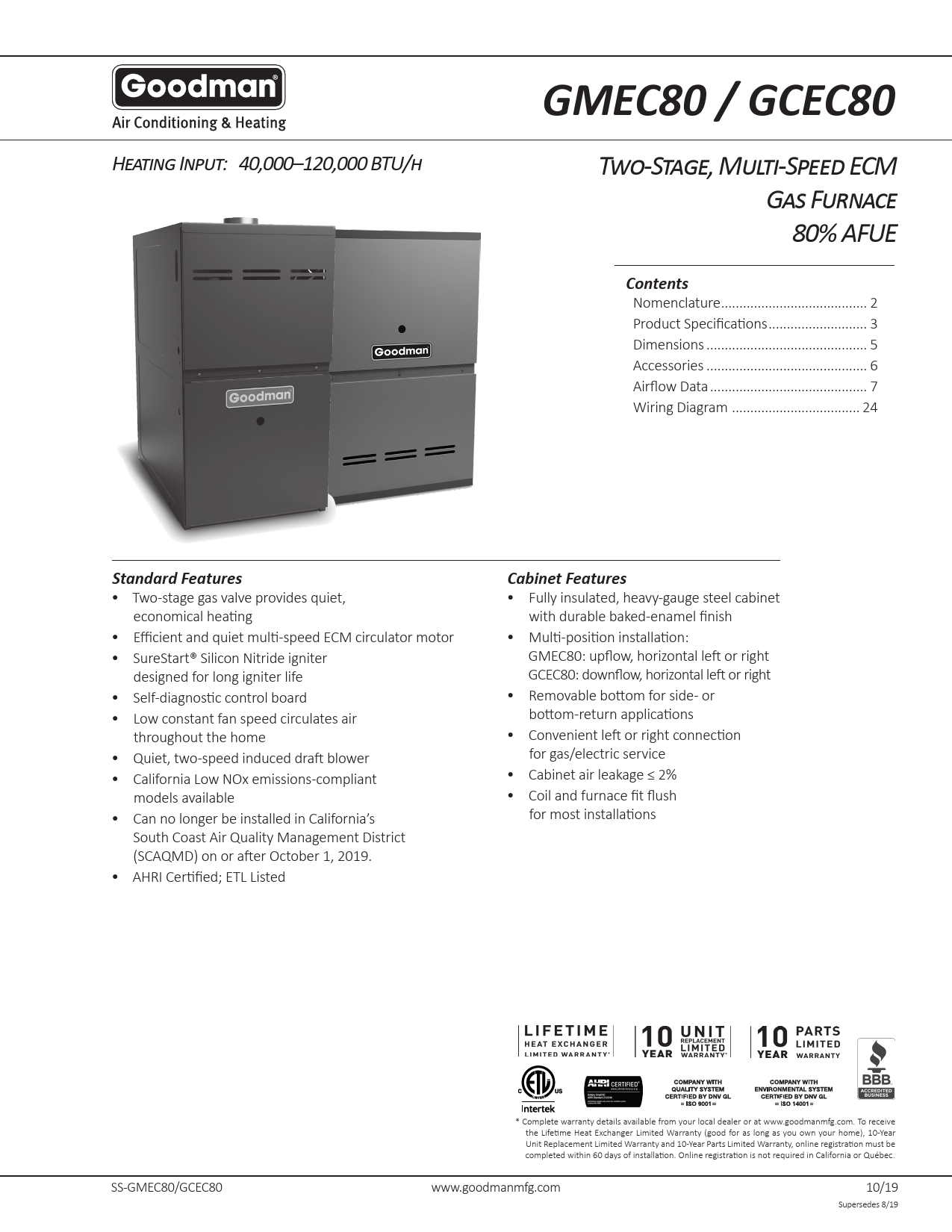

GMEC80 / GCEC80
Full PDF Document
If the inline viewer fails, it will open the original document in compatibility mode automatically. You can also open the file directly.
Extracted Text
Heating Input: 40,000�120,000 BTU/h GMEC80 / GCEC80 Two-Stage, Multi-Speed ECM Gas Furnace 80% AFUE Contents Nomenclature......................................... 2 Product Specifications............................ 3 Dimensions............................................. 5 Accessories............................................. 6 Airflow Data............................................ 7 Wiring Diagram .................................... 24 Standard Features � Two-stage gas valve provides quiet, economical heating � Efficient and quiet multi-speed ECM circulator motor � SureStart� Silicon Nitride igniter designed for long igniter life � Self-diagnostic control board � Low constant fan speed circulates air throughout the home � Quiet, two-speed induced draft blower � California Low NOx emissions-compliant models available � Can no longer be installed in California's South Coast Air Quality Management District (SCAQMD) on or after October 1, 2019. � AHRI Certified; ETL Listed Cabinet Features � Fully insulated, heavy-gauge steel cabinet with durable baked-enamel finish � Multi-position installation: GMEC80: upflow, horizontal left or right GCEC80: downflow, horizontal left or right � Removable bottom for side- or bottom-return applications � Convenient left or right connection for gas/electric service � Cabinet air leakage 2% � Coil and furnace fit flush for most installations SS-GMEC80/GCEC80 * Complete warranty details available from your local dealer or at www.goodmanmfg.com. To receive the Lifetime Heat Exchanger Limited Warranty (good for as long as you own your home), 10-Year Unit Replacement Limited Warranty and 10-Year Parts Limited Warranty, online registration must be completed within 60 days of installation. Online registration is not required in California or Qu�bec. www.goodmanmfg.com 10/19 Supersedes 8/19 Nomenclature G M E C 80 040 4 C * ** 1 2 3 4 5,6 7,8,9 10 11 12 13,14 Brand G- Goodman� Brand Configuration M- Upflow/Horizontal C- Downflow/Horizontal Engineering Major /Minor Revisions * Not used for inventory control. NOx N- Natural Gas X- Low NOx Motor V- Variable Speed ECM / ComfortBridgeTM E- Multi-Speed ECM S- Single Speed Cabinet Width A- 14" C- 21" B- 17�" D- 24�" Gas Valve M- Modulating C- Two Stage S- Single Stage H- Convertible Single Phase 2- 800 CFM 3- 1200 CFM Maximum CFM 4- 1600 CFM 5- 2000 CFM AFUE 80- 80% AFUE 040- 40,000 BTU/h 060- 60,000 BTU/h 080- 80,000 BTU/h MBTU/h 100- 100,000 BTU/h 120- 120,000 BTU/h 2 www.goodmanmfg.com SS-GMEC80/GCEC80 Specifications Heating Capacity High Fire Input (BTU/h)� High Fire Output (BTU/h)� : Natural Gas LP Gas Low Fire Input (BTU/h)� Low Fire Output (BTU/h)� : Natural Gas LP Gas AFUE� Available AC @ 0.5" ESP GMEC80 0403A* 40,000 32,000 32,000 28,000 22,400 22,400 80 1.5- 3.0 GMEC80 0603A* 60,000 48,000 48,000 42,000 33,600 33,600 80 1.5- 4.0 GMEC80 0603B* 60,000 48,000 48,000 42,000 33,600 33,600 80 1.5- 4.0 GMEC80 0803B* 80,000 64,000 64,000 56,000 44,800 44,800 80 3.0- 4.0 GMEC80 0804B* 80,000 64,000 64,000 56,000 44,800 44,800 80 2.0- 5.0 GMEC80 0804C* 80,000 64,000 64,000 56,000 44,800 44,800 80 2.5- 5.0 GMEC80 0805C* 80,000 64,000 64,000 56,000 44,800 44,800 80 2.5- 5.0 GMEC80 0805D* 80,000 64,000 64,000 56,000 44,800 44,800 80 2.5- 5.0 GMEC80 1004C* 100,000 80,000 80,000 70,000 56,000 56,000 80 2.0- 5.0 GMEC80 1005C* 100,000 80,000 80,000 70,000 56,000 56,000 80 2.0- 5.0 GMEC80 1205D* 120,000 96,000 96,000 84,000 67,200 67,200 80 2.0- 5.0 Temperature Rise Range (� F) 15-45/ 15-45 20-50/ 20-50 15-45/ 15-45 30-60/ 30-60 30-60/ 30-60 25-55/ 25-55 25-55/ 25-55 20-50/ 20-50 25-55/ 25-55 20-50/ 20-50 40-70/ 40-70 Circulator Blower Size (D x W) 10" x 6" 10" x 6" 10" x 8" 10" x 8" 10" x 10" 10" x 10" 10" x 10" 11" x 10" 10" x 10" 10" x 10" Horsepower- RPM 1/2 1/2 1/2 1/2 3/4 3/4 3/4 3/4 3/4 1 Speed 5 5 5 5 5 5 5 5 5 5 Vent Diameter� 4" 4" 4" 4" 4" 4" 4" 4" 4" 4" No. of Burners 3 3 3 4 4 4 4 4 5 5 Electrical Data Min. Circuit Ampacity� 8.7 8.7 8.7 8.7 12.45 12.45 15.32 15.32 12.45 15.32 Max.Overcurrent Device (amps)4 15 15 15 15 15 15 20 20 15 20 Ship Weight (lbs) 105 107 107 118 121 129 129 129 124 124 � Natural Gas BTU/h; for altitudes 0-4500' above sea level, reduce input rating by 4% for each 1000' above 4500' altitude. � DOE AFUE based upon Isolated Combustion System (ICS) � Minimum Circuit Ampacity = (1.25 x Circulator Blower Amps) + ID Blower amps. Wire size should be determined in accordance with National Electrical Codes. Extensive wire runs will require larger wire sizes. Maximum Overcurrent Protection Device refers to maximum recommended fuse or circuit breaker size. May use fuses or HACR-type circuit breakers of the same size as noted. Notes � All furnaces are manufactured for use on 115 VAC, 60 Hz, single-phase electrical supply. � Gas Service Connection �" FPT � Important: Size fuses and wires properly and make electrical connections in accordance with the National Electrical Code and/or all existing local codes. 11" x 10" 1 5 4" 6 15.32 20 124 SS-GMEC80/GCEC80 www.goodmanmfg.com 3 Specifications GCEC80 0403A* GCEC80 0603A* GCEC80 0603B* GCEC80 0804B* GCEC80 0805C* GCEC80 1005C* Heating Capacity High Fire Input (BTU/h)� 40,000 60,000 60,000 80,000 80,000 100,000 High Fire Output (BTU/h)� Natural Gas 32,000 48,000 48,000 64,000 64,000 80,000 LP Gas 32,000 48,000 48,000 64,000 64,000 80,000 Low Fire Input (BTU/h)� 28,000 42,000 42,000 56,000 56,000 70,000 Low Fire Output (BTU/h)� Natural Gas 22,400 33,600 33,600 44,800 44,800 56,000 LP Gas 22,400 33,600 33,600 44,800 44,800 56,000 AFUE� 80 80 80 80 80 80 Available AC @ 0.5" ESP 1.5- 3.0 1.5- 4.0 1.5- 4.0 2.0- 5.0 2.5- 5.0 2.0- 5.0 Temperature Rise Range (� F) 15-45 / 15-45 30-60 / 30-60 25-55 / 25-55 30-60 / 30-60 30-60 / 30-60 20-50 / 20-50 Circulator Blower Size (D x W) 10" x 6" 10" x 6" 10" x 8" 10" x 10" 10" x 10" 10" x 10" Horsepower- RPM 1/2 1/2 1/2 3/4 3/4 1 Speed 5 5 5 5 5 5 Vent Diameter� 4" 4" 4" 4" 4" 4" No. of Burners 3 3 3 4 4 5 Electrical Data Min. Circuit Ampacity� 8.7 8.7 8.7 12.45 15.32 15.32 Max. Overcurrent Device (amps) 15 15 15 15 20 20 Ship Weight (lbs) 105 107 107 121 129 124 � Natural Gas BTU/h; for altitudes 0-4500' above sea level, reduce input rating by 4% for each 1000' above 4500' altitude. � DOE AFUE based upon Isolated Combustion System (ICS) � Minimum Circuit Ampacity = (1.25 x Circulator Blower Amps) + ID Blower amps. Wire size should be determined in accordance with National Electrical Codes. Extensive wire runs will require larger wire sizes. Maximum Overcurrent Protection Device refers to maximum recommended fuse or circuit breaker size. May use fuses or HACR-type circuit breakers of the same size as noted. Notes � All furnaces are manufactured for use on 115 VAC, 60 Hz, single-phase electrical supply. � Gas Service Connection �" FPT � Important: Size fuses and wires properly and make electrical connections in accordance with the National Electrical Code and/or all existing local codes. 4 www.goodmanmfg.com SS-GMEC80/GCEC80 Alternate Gas Inlet 1�" A B GMEC80 Dimensions Alt. Flue Outlet -- Horizontal Left 1/ " 19�" High-Voltage Inlet Low-Voltage Inlet 28" 27" 20" 13�" 33" 23 / " Alt. Gas Inlet Alt. High Voltage 15" Alt. Low Voltage 23" Model GMEC800403A* GMEC800603A* GMEC800603B* GMEC800803B* GMEC800804B* GMEC800804C* GMEC800805C* GMEC800805D* GMEC801004C* GMEC801005C* GMEC801205D* W 14" 14" 17�" 17�" 17�" 21" 21" 24�" 21" 21" 24�" Dimensions D 28" 28" 28" 28" 28" 28" 28" 28" 28" 28" 28" H 33" 33" 33" 33" 33" 33" 33" 33" 33" 33" 33" Minimum Clearances to Combustible Materials Sides 1 Rear 0 Front 3 Bottom C Vent Top SW B 6 1 1 C = If placed on combustible floor, the floor MUST be wood ONLY. Notes: � For servicing or cleaning, a 24" front clearance is recommended. � Unit connections (electrical, flue, and drain) may necessitate greater clearances than the minimum clearances listed above. � In all cases, accessibility clearance must take precedence over clearances from the enclosure where accessibility clearances are greater. � Refer to the appropriate USA and Canadian codes: In the USA: the National Fuel Gas Code NFPA 54 / ANSI Z223.1 In Canada: the Canada National Standard of Canada, CAN/CSA B149.1 and CAN/CSA B142.2 SS-GMEC80/GCEC80 www.goodmanmfg.com 5 GCEC80 Dimensions 28" 19" High-Voltage Electrical Low-Voltage Electrical Gas Inlet 18" 11" A B 33" Model GCEC800403A* GCEC800603A* GCEC800603B* GCEC800804B* GCEC800805C* GCEC801005C* W 14" 14" 17�" 17�" 21" 21" Dimensions D 28" 28" 28" 28" 28" 28" H 33" 33" 33" 33" 33" 33" Minimum Clearances to Combustible Materials Vent � Sides Rear Front � Top SW B 1 0 3 6 1 1 Approved for line contact in the horizontal position. � 24" clearance for serviceability recommended. � Single Wall Vent (SW) to be used only as a connector. Refer to the venting tables outlined in the Installation Manual for additional venting requirements. Accessories Model LPM-08 AM11-1425-FA AM11-1625-FB AM11-2025-FC AM11-2525-FD Description LP Conversion Kit (Springs & Orifice) Deep Pleated Media Air Cleaner Deep Pleated Media Air Cleaner Deep Pleated Media Air Cleaner Deep Pleated Media Air Cleaner 6 www.goodmanmfg.com SS-GMEC80/GCEC80 GCEC800403A* Airflow Data PCBBF139 *CEC800403A* - COOLING DIP SWITCHES STATIC 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 S1-1, S1-2, S1-3 T STAT CALL CFM CFM CFM CFM CFM CFM CFM CFM Ylo OFF OFF OFF* Y 785 754 736 690 650 604 565 527 1348 1294 1261 1250 1229 1233 1205 1182 Ylo 663 647 597 551 501 458 408 355 ON OFF OFF Y 785 754 736 690 650 604 565 527 ON ON OFF Ylo 663 647 597 551 501 458 408 355 Y 1348 1294 1261 1250 1229 1233 1205 1182 Ylo 785 754 736 690 650 604 565 527 OFF ON OFF Y 591 568 518 463 411 355 300 243 Ylo 785 754 736 690 650 604 565 527 OFF OFF ON Y 1104 1058 1020 1022 1013 981 952 918 Ylo 663 647 597 551 501 458 408 355 OFF ON ON Y 591 568 518 463 411 355 300 243 ON OFF ON Ylo 1104 1058 1020 1022 1013 981 952 918 Y 1348 1294 1261 1250 1229 1233 1205 1182 ON ON ON Ylo 1104 1058 1020 1022 1013 981 952 918 Y 663 647 597 551 501 458 408 355 PCBBF139 *CEC800403A* - CONTINOUS FAN DIP Switches STATIC 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 S2-2 S2-3 S2-4 T STAT CALL CFM CFM CFM CFM CFM CFM CFM CFM OFF OFF OFF G 591 568 518 463 411 355 300 243 ON OFF OFF G 1104 1058 1020 1022 1013 981 952 918 ON ON OFF G 663 647 597 551 501 458 408 355 OFF ON OFF G 785 754 736 690 650 604 565 527 OFF OFF ON G 1348 1294 1261 1250 1229 1233 1205 1182 OFF ON ON G 591 568 518 463 411 355 300 243 ON OFF ON G 591 568 518 463 411 355 300 243 ON ON ON G 591 568 518 463 411 355 300 243 PCBBF139 DIP Switches STATIC 0.1 S1-4 S2-1 T STAT CALL CFM RISE OFF OFF* W1 591 35 W2 1104 27 ON OFF W1 663 31 W2 1104 27 ON ON W1 663 31 W2 785 38 OFF ON W1 785 26 W2 1348 22 *DEFAULT **NOT RECOMMENDED 0.2 CFM RISE 568 37 1058 28 647 32 1058 28 647 32 754 39 754 28 1294 23 *CEC800403A* - HEATING 0.3 0.4 CFM RISE CFM RISE 518 40 463 45 1020 29 1022 29 597 35 551 38 1020 29 1022 29 597 35 551 38 736 40 690 43 736 28 690 30 1261 23 1250 24 0.5 CFM RISE 411 N/A 1013 29 501 41 1013 29 501 41 650 N/A 650 32 1229 24 0.6 CFM 355 981 458 981 458 604 604 1233 0.7 CFM 300 952 408 952 408 565 565 1205 0.8 CFM 243 918 355 918 355 527 527 1182 SS-GMEC80/GCEC80 www.goodmanmfg.com 7 GCEC800603A* Airflow Data (cont.) PCBBF139 *CEC800603A*- COOLING DIP SWITCHES STATIC 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 S1-1, S1-2, S1-3 T STAT CALL CFM CFM CFM CFM CFM CFM CFM CFM Ylo OFF OFF OFF* Y 1160 1102 1055 1017 970 930 891 847 1411 1356 1313 1272 1235 1198 1162 1127 Ylo 656 589 532 465 402 348 271 219 ON OFF OFF Y 1160 1102 1055 1017 970 930 891 847 ON ON OFF Ylo 656 589 532 465 402 348 271 219 Y 1411 1356 1313 1272 1235 1198 1162 1127 Ylo 1160 1102 1055 1017 970 930 891 847 OFF ON OFF Y 716 647 592 541 478 420 368 296 Ylo 1160 1102 1055 1017 970 930 891 847 OFF OFF ON Y 1054 1002 951 906 861 820 797 754 Ylo 656 589 532 465 402 348 271 219 OFF ON ON Y 716 647 592 541 478 420 368 296 ON OFF ON Ylo 1054 1002 951 906 861 820 797 754 Y 1411 1356 1313 1272 1235 1198 1162 1127 ON ON ON Ylo 1054 1002 951 906 861 820 797 754 Y 656 589 532 465 402 348 271 219 PCBBF139 *CEC800603A* - CONTINOUS FAN DIP Switches STATIC 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 S2-2 S2-3 S2-4 T STAT CALL CFM CFM CFM CFM CFM CFM CFM CFM OFF OFF OFF G 716 647 592 541 478 420 368 296 ON OFF OFF G 1054 1002 951 906 861 820 797 754 ON ON OFF G 656 589 532 465 402 348 271 219 OFF ON OFF G 1160 1102 1055 1017 970 930 891 847 OFF OFF ON G 1411 1356 1313 1272 1235 1198 1162 1127 OFF ON ON G 716 647 592 541 478 420 368 296 ON OFF ON G 716 647 592 541 478 420 368 296 ON ON ON G 716 647 592 541 478 420 368 296 PCBBF139 DIP Switches STATIC 0.1 S1-4 S2-1 T STAT CALL CFM RISE OFF OFF* W1 716 43 W2 1054 42 ON OFF W1 656 47 W2 1054 42 ON ON W1 656 47 W2 1160 38 OFF ON** W1 1160 N/A W2 1411 N/A *DEFAULT **NOT RECOMMENDED 0.2 CFM RISE 647 48 1002 44 589 53 1002 44 589 53 1102 40 1102 N/A 1356 N/A *CEC800603A* - HEATING 0.3 0.4 CFM RISE CFM RISE 592 53 541 58 951 47 906 49 532 58 465 N/A 951 47 906 49 532 58 465 N/A 1055 42 1017 44 1055 N/A 1017 N/A 1313 N/A 1272 N/A 0.5 CFM RISE 478 N/A 861 52 402 N/A 861 52 402 N/A 970 46 970 N/A 1235 N/A 0.6 CFM 420 820 348 820 348 930 930 1198 0.7 CFM 368 797 271 797 271 891 891 1162 0.8 CFM 296 754 219 754 219 847 847 1127 8 www.goodmanmfg.com SS-GMEC80/GCEC80 GCEC800603B* Airflow Data (cont.) PCBBF139 *CEC800603B* - COOLING DIP SWITCHES STATIC 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 S1-1, S1-2, S1-3 T STAT CALL CFM CFM CFM CFM CFM CFM CFM CFM Ylo OFF OFF OFF* Y 1223 1144 1081 995 918 839 798 738 1395 1332 1272 1207 1136 1074 1007 948 Ylo 1032 800 578 487 387 301 235 151 ON OFF OFF Y 1223 1144 1081 995 918 839 798 738 ON ON OFF Ylo 1032 800 578 487 387 301 235 151 Y 1395 1332 1272 1207 1136 1074 1007 948 Ylo 1223 1144 1081 995 918 839 798 738 OFF ON OFF Y 1025 850 754 670 594 520 443 366 Ylo 1223 1144 1081 995 918 839 798 738 OFF OFF ON Y 1258 1179 1115 1030 954 885 814 776 OFF ON ON Ylo 1032 800 578 487 387 301 235 151 Y 1025 850 754 670 594 520 443 366 ON OFF ON Ylo 1258 1179 1115 1030 954 885 814 776 Y 1395 1332 1272 1207 1136 1074 1007 948 ON ON ON Ylo 1258 1179 1115 1030 954 885 814 776 Y 1032 800 578 487 387 301 235 151 PCBBF139 *CEC800603B* - CONTINOUS FAN DIP Switches STATIC 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 S2-2 S2-3 S2-4 T STAT CALL CFM CFM CFM CFM CFM CFM CFM CFM OFF OFF OFF G 1025 850 754 670 594 520 443 366 ON OFF OFF G 1258 1179 1115 1030 954 885 814 776 ON ON OFF G 1032 800 578 487 387 301 235 151 OFF ON OFF G 1223 1144 1081 995 918 839 798 738 OFF OFF ON G 1395 1332 1272 1207 1136 1074 1007 948 OFF ON ON G 1025 850 754 670 594 520 443 366 ON OFF ON G 1025 850 754 670 594 520 443 366 ON ON ON G 1025 850 754 670 594 520 443 366 PCBBF139 *CEC800603B* - HEATING DIP Switches STATIC 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 S1-4 S2-1 T STAT CALL CFM RISE CFM RISE CFM RISE CFM RISE CFM RISE CFM CFM CFM OFF OFF* W1 1025 30 850 37 754 41 670 46 594 52 520 443 366 W2 1258 35 1179 38 1115 40 1030 43 954 47 885 814 776 ON OFF W1 1032 30 800 39 578 54 487 N/A 387 N/A 301 235 151 W2 1258 35 1179 38 1115 40 1030 43 954 47 885 814 776 ON ON W1 1032 30 800 39 578 54 487 N/A 387 N/A 301 235 151 W2 1223 36 1144 39 1081 41 995 45 918 48 839 798 738 OFF ON** W1 1223 N/A 1144 N/A 1081 N/A 995 N/A 918 N/A 839 798 738 W2 1395 N/A 1332 N/A 1272 N/A 1207 N/A 1136 N/A 1074 1007 948 *DEFAULT **NOT RECOMMENDED SS-GMEC80/GCEC80 www.goodmanmfg.com 9 GCEC800804B* Airflow Data (cont.) PCBBF139 *CEC800804B* - COOLING DIP SWITCHES STATIC 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 S1-1, S1-2, S1-3 T STAT CALL CFM CFM CFM CFM CFM CFM CFM CFM Ylo OFF OFF OFF* Y 1596 1553 1512 1491 1450 1411 1388 1347 1757 1713 1691 1664 1625 1588 1552 1522 Ylo 784 716 645 583 516 405 334 282 ON OFF OFF Y 1596 1553 1512 1491 1450 1411 1388 1347 ON ON OFF Ylo 784 716 645 583 516 405 334 282 Y 1757 1713 1691 1664 1625 1588 1552 1522 Ylo 1596 1553 1512 1491 1450 1411 1388 1347 OFF ON OFF Y 1040 973 936 918 859 805 770 720 Ylo 1596 1553 1512 1491 1450 1411 1388 1347 OFF OFF ON Y 1401 1366 1320 1278 1236 1194 1153 1112 OFF ON ON Ylo 784 716 645 583 516 405 334 282 Y 1040 973 936 918 859 805 770 720 ON OFF ON Ylo 1401 1366 1320 1278 1236 1194 1153 1112 Y 1757 1713 1691 1664 1625 1588 1552 1522 ON ON ON Ylo 1401 1366 1320 1278 1236 1194 1153 1112 Y 784 716 645 583 516 405 334 282 PCBBF139 *CEC800804B* - CONTINOUS FAN DIP Switches STATIC 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 S2-2 S2-3 S2-4 T STAT CALL CFM CFM CFM CFM CFM CFM CFM CFM OFF OFF OFF G 1040 973 936 918 859 805 770 720 ON OFF OFF G 1401 1366 1320 1278 1236 1194 1153 1112 ON ON OFF G 784 716 645 583 516 405 334 282 OFF ON OFF G 1596 1553 1512 1491 1450 1411 1388 1347 OFF OFF ON G 1757 1713 1691 1664 1625 1588 1552 1522 OFF ON ON G 1040 973 936 918 859 805 770 720 ON OFF ON G 1040 973 936 918 859 805 770 720 ON ON ON G 1040 973 936 918 859 805 770 720 PCBBF139 DIP Switches STATIC 0.1 S1-4 S2-1 T STAT CALL CFM RISE OFF OFF* W1 1040 40 W2 1401 42 ON OFF W1 784 53 W2 1401 42 ON ON W1 784 53 W2 1596 37 OFF ON** W1 1596 N/A W2 1757 N/A *DEFAULT **NOT RECOMMENDED 0.2 CFM RISE 973 43 1366 43 716 58 1366 43 716 58 1553 38 1553 N/A 1713 N/A *CEC800804B* - HEATING 0.3 0.4 CFM RISE CFM RISE 936 44 918 45 1320 45 1278 46 645 N/A 583 N/A 1320 45 1278 46 645 N/A 583 N/A 1512 39 1491 40 1512 N/A 1491 N/A 1691 N/A 1664 N/A 0.5 CFM RISE 859 48 1236 48 516 N/A 1236 48 516 N/A 1450 41 1450 N/A 1625 N/A 0.6 CFM 805 1194 405 1194 405 1411 1411 1588 0.7 CFM 770 1153 334 1153 334 1388 1388 1552 0.8 CFM 720 1112 282 1112 282 1347 1347 1522 10 www.goodmanmfg.com SS-GMEC80/GCEC80 *CEC800805C* Airflow Data (cont.) PCBBF139 *CEC800805C* - COOLING DIP SWITCHES STATIC 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 S1-1, S1-2, S1-3 T STAT CALL CFM CFM CFM CFM CFM CFM CFM CFM Ylo OFF OFF OFF* Y 1782 1744 1715 1700 1660 1619 1579 1510 2145 2089 2058 2036 2020 2000 1971 1935 Ylo 1171 884 667 576 495 399 338 302 ON OFF OFF Y 1782 1744 1715 1700 1660 1619 1579 1510 ON ON OFF Ylo 1171 884 667 576 495 399 338 302 Y 2145 2089 2058 2036 2020 2000 1971 1935 Ylo 1782 1744 1715 1700 1660 1619 1579 1510 OFF ON OFF Y 1175 1098 1024 947 883 823 764 703 Ylo 1782 1744 1715 1700 1660 1619 1579 1510 OFF OFF ON Y 1547 1506 1474 1442 1390 1332 1273 1222 OFF ON ON Ylo 1171 884 667 576 495 399 338 302 Y 1175 1098 1024 947 883 823 764 703 ON OFF ON Ylo 1547 1506 1474 1442 1390 1332 1273 1222 Y 2145 2089 2058 2036 2020 2000 1971 1935 ON ON ON Ylo 1547 1506 1474 1442 1390 1332 1273 1222 Y 1171 884 667 576 495 399 338 302 PCBBF139 *CEC800805C* - CONTINOUS FAN DIP Switches STATIC 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 S2-2 S2-3 S2-4 T STAT CALL CFM CFM CFM CFM CFM CFM CFM CFM OFF OFF OFF G 1175 1098 1024 947 883 823 764 703 ON OFF OFF G 1547 1506 1474 1442 1390 1332 1273 1222 ON ON OFF G 1171 884 667 576 495 399 338 302 OFF ON OFF G 1782 1744 1715 1700 1660 1619 1579 1510 OFF OFF ON G 2145 2089 2058 2036 2020 2000 1971 1935 OFF ON ON G 1175 1098 1024 947 883 823 764 703 ON OFF ON G 1175 1098 1024 947 883 823 764 703 ON ON ON G 1175 1098 1024 947 883 823 764 703 PCBBF139 DIP Switches STATIC 0.1 S1-4 S2-1 T STAT CALL CFM RISE OFF OFF* W1 1175 35 W2 1547 38 ON OFF W1 1171 35 W2 1547 38 ON ON** W1 1171 N/A W2 1782 N/A OFF ON** W1 1782 N/A W2 2145 N/A *DEFAULT **NOT RECOMMENDED 0.2 CFM RISE 1098 38 1506 39 884 47 1506 39 884 N/A 1744 N/A 1744 N/A 2089 N/A *CEC800805C* - HEATING 0.3 0.4 CFM RISE CFM RISE 1024 41 947 44 1474 40 1442 41 667 N/A 576 N/A 1474 40 1442 41 667 N/A 576 N/A 1715 N/A 1700 N/A 1715 N/A 1700 N/A 2058 N/A 2036 N/A 0.5 CFM RISE 883 47 1390 43 495 N/A 1390 43 495 N/A 1660 N/A 1660 N/A 2020 N/A 0.6 CFM 823 1332 399 1332 399 1619 1619 2000 0.7 CFM 764 1273 338 1273 338 1579 1579 1971 0.8 CFM 703 1222 302 1222 302 1510 1510 1935 SS-GMEC80/GCEC80 www.goodmanmfg.com 11 **EC801005C* Airflow Data (cont.) PCBBF139 **EC801005C* - COOLING DIP SWITCHES STATIC 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 S1-1, S1-2, S1-3 T STAT CALL CFM CFM CFM CFM CFM CFM CFM CFM Ylo OFF OFF OFF* Y 1820 1769 1726 1685 1642 1603 1557 1521 2235 2185 2139 2108 2076 2032 2000 1964 Ylo 803 719 631 540 471 337 298 265 ON OFF OFF Y 1820 1769 1726 1685 1642 1603 1557 1521 ON ON OFF Ylo 803 719 631 540 471 337 298 265 Y 2235 2185 2139 2108 2076 2032 2000 1964 Ylo 1820 1769 1726 1685 1642 1603 1557 1521 OFF ON OFF Y 1626 1574 1524 1479 1433 1410 1400 1358 Ylo 1820 1769 1726 1685 1642 1603 1557 1521 OFF OFF ON Y 2169 2116 2070 2038 2003 1970 1933 1897 OFF ON ON Ylo 803 719 631 540 471 337 298 265 Y 1626 1574 1524 1479 1433 1410 1400 1358 ON OFF ON Ylo 2169 2116 2070 2038 2003 1970 1933 1897 Y 2235 2185 2139 2108 2076 2032 2000 1964 ON ON ON Ylo 2169 2116 2070 2038 2003 1970 1933 1897 Y 803 719 631 540 471 337 298 265 PCBBF139 **EC801005C* - CONTINOUS FAN DIP Switches STATIC 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 S2-2 S2-3 S2-4 T STAT CALL CFM CFM CFM CFM CFM CFM CFM CFM OFF OFF OFF G 1626 1574 1524 1479 1433 1410 1400 1358 ON OFF OFF G 2169 2116 2070 2038 2003 1970 1933 1897 ON ON OFF G 803 719 631 540 471 337 298 265 OFF ON OFF G 1820 1769 1726 1685 1642 1603 1557 1521 OFF OFF ON G 2235 2185 2139 2108 2076 2032 2000 1964 OFF ON ON G 1626 1574 1524 1479 1433 1410 1400 1358 ON OFF ON G 1626 1574 1524 1479 1433 1410 1400 1358 ON ON ON G 1626 1574 1524 1479 1433 1410 1400 1358 PCBBF139 DIP Switches STATIC 0.1 S1-4 S2-1 T STAT CALL CFM RISE OFF OFF* W1 1626 32 W2 2169 34 ON OFF W1 803 N/A W2 2169 34 ON ON W1 803 N/A W2 1820 41 OFF ON** W1 1820 N/A W2 2235 N/A *DEFAULT **NOT RECOMMENDED 0.2 CFM RISE 1574 33 2116 35 719 N/A 2116 35 719 N/A 1769 42 1769 N/A 2185 N/A **EC801005C* - HEATING 0.3 0.4 CFM RISE CFM RISE 1524 34 1479 35 2070 36 2038 36 631 N/A 540 N/A 2070 36 2038 36 631 N/A 540 N/A 1726 43 1685 44 1726 N/A 1685 N/A 2139 N/A 2108 N/A 0.5 CFM RISE 1433 36 2003 37 471 N/A 2003 37 471 N/A 1642 45 1642 N/A 2076 N/A 0.6 CFM 1410 1970 337 1970 337 1603 1603 2032 0.7 CFM 1400 1933 298 1933 298 1557 1557 2000 0.8 CFM 1358 1897 265 1897 265 1521 1521 1964 12 www.goodmanmfg.com SS-GMEC80/GCEC80 GMEC800403A* Airflow Data (cont.) PCBBF139 *MEC800403A* - COOLING DIP SWITCHES STATIC 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 S1-1, S1-2, S1-3 T STAT CALL CFM CFM CFM CFM CFM CFM CFM CFM Ylo OFF OFF OFF* Y 1138 1093 1057 1016 981 945 912 876 1367 1321 1286 1255 1223 1190 1160 1133 Ylo 923 865 824 802 759 715 674 631 ON OFF OFF Y 1138 1093 1057 1016 981 945 912 876 ON ON OFF Ylo 923 865 824 802 759 715 674 631 Y 1367 1321 1286 1255 1223 1190 1160 1133 Ylo 1138 1093 1057 1016 981 945 912 876 OFF ON OFF Y 553 496 436 372 308 252 198 N/A Ylo 1138 1093 1057 1016 981 945 912 876 OFF OFF ON Y 750 703 651 600 553 504 456 409 Ylo 923 865 824 802 759 715 674 631 OFF ON ON Y 553 496 436 372 308 252 198 N/A ON OFF ON Ylo 750 703 651 600 553 504 456 409 Y 1367 1321 1286 1255 1223 1190 1160 1133 Ylo 750 703 651 600 553 504 456 409 ON ON ON Y 923 865 824 802 759 715 674 631 PCBBF139 *MEC800403A* - CONTINOUS FAN DIP Switches STATIC 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 S2-2 S2-3 S2-4 T STAT CALL CFM CFM CFM CFM CFM CFM CFM CFM OFF OFF OFF G 553 496 436 372 308 252 198 N/A ON OFF OFF G 750 703 651 600 553 504 456 409 ON ON OFF G 923 865 824 802 759 715 674 631 OFF ON OFF G 1138 1093 1057 1016 981 945 912 876 OFF OFF ON G 1367 1321 1286 1255 1223 1190 1160 1133 OFF ON ON G 553 496 436 372 308 252 198 N/A ON OFF ON G 553 496 436 372 308 252 198 N/A ON ON ON G 553 496 436 372 308 252 198 N/A PCBBF139 DIP Switches STATIC 0.1 S1-4 S2-1 T STAT CALL CFM RISE OFF OFF* W1 553 38 W2 750 40 ON OFF W1 923 22 W2 750 40 ON ON W1 923 22 W2 1138 26 OFF ON** W1 1138 N/A W2 1367 N/A *DEFAULT **NOT RECOMMENDED 0.2 CFM RISE 496 42 703 42 865 24 703 42 865 24 1093 27 1093 N/A 1321 N/A *MEC800403A* - HEATING 0.3 0.4 CFM RISE CFM RISE 436 N/A 372 N/A 651 N/A 600 N/A 824 25 802 26 651 N/A 600 N/A 824 25 802 26 1057 28 1016 29 1057 N/A 1016 N/A 1286 N/A 1255 N/A 0.5 CFM RISE 308 N/A 553 N/A 759 27 553 N/A 759 27 981 30 981 N/A 1223 N/A 0.6 CFM 252 504 715 504 715 945 945 1190 0.7 CFM 198 456 674 456 674 912 912 1160 0.8 CFM N/A 409 631 409 631 876 876 1133 SS-GMEC80/GCEC80 www.goodmanmfg.com 13 GMEC800603A* Airflow Data (cont.) PCBBF139 *MEC800603A* - COOLING DIP SWITCHES STATIC 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 S1-1, S1-2, S1-3 T STAT CALL CFM CFM CFM CFM CFM CFM CFM CFM Ylo OFF OFF OFF* Y 1151 1091 1050 1007 964 926 885 850 1389 1341 1295 1258 1221 1176 1140 1105 Ylo 681 617 566 511 458 405 358 311 ON OFF OFF Y 1151 1091 1050 1007 964 926 885 850 ON ON OFF Ylo 681 617 566 511 458 405 358 311 Y 1389 1341 1295 1258 1221 1176 1140 1105 Ylo 1151 1091 1050 1007 964 926 885 850 OFF ON OFF Y 1079 1019 975 934 890 850 808 791 Ylo 1151 1091 1050 1007 964 926 885 850 OFF OFF ON Y 1328 1274 1231 1191 1155 1114 1081 1047 OFF ON ON Ylo 681 617 566 511 458 405 358 311 Y 1079 1019 975 934 890 850 808 791 ON OFF ON Ylo 1328 1274 1231 1191 1155 1114 1081 1047 Y 1389 1341 1295 1258 1221 1176 1140 1105 ON ON ON Ylo 1328 1274 1231 1191 1155 1114 1081 1047 Y 681 617 566 511 458 405 358 311 PCBBF139 *MEC800603A* - CONTINOUS FAN DIP Switches STATIC 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 S2-2 S2-3 S2-4 T STAT CALL CFM CFM CFM CFM CFM CFM CFM CFM OFF OFF OFF G 1079 1019 975 934 890 850 808 791 ON OFF OFF G 1328 1274 1231 1191 1155 1114 1081 1047 ON ON OFF G 681 617 566 511 458 405 358 311 OFF ON OFF G 1151 1091 1050 1007 964 926 885 850 OFF OFF ON G 1389 1341 1295 1258 1221 1176 1140 1105 OFF ON ON G 1079 1019 975 934 890 850 808 791 ON OFF ON G 1079 1019 975 934 890 850 808 791 ON ON ON G 1079 1019 975 934 890 850 808 791 PCBBF139 DIP Switches STATIC 0.1 S1-4 S2-1 T STAT CALL CFM RISE OFF OFF* W1 1079 29 W2 1328 33 ON OFF W1 681 46 W2 1328 33 ON ON W1 681 46 W2 1151 39 OFF ON W1 1151 27 W2 1389 32 *DEFAULT **NOT RECOMMENDED 0.2 CFM RISE 1019 31 1274 35 617 50 1274 35 617 50 1091 41 1091 29 1341 33 *MEC800603A* - HEATING 0.3 0.4 CFM RISE CFM RISE 975 32 934 33 1231 36 1191 37 566 N/A 511 N/A 1231 36 1191 37 566 N/A 511 N/A 1050 42 1007 44 1050 30 1007 31 1295 34 1258 35 0.5 CFM RISE 890 35 1155 38 458 N/A 1155 38 458 N/A 964 46 964 32 1221 36 0.6 CFM 850 1114 405 1114 405 926 926 1176 0.7 CFM 808 1081 358 1081 358 885 885 1140 0.8 CFM 791 1047 311 1047 311 850 850 1105 14 www.goodmanmfg.com SS-GMEC80/GCEC80 GMEC800603B* Airflow Data (cont.) PCBBF139 *MEC800603B* - COOLING DIP SWITCHES STATIC 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 S1-1, S1-2, S1-3 T STAT CALL CFM CFM CFM CFM CFM CFM CFM CFM Ylo OFF OFF OFF* Y 1330 1280 1229 1187 1146 1103 1061 1018 1465 1416 1382 1340 1299 1278 1257 1219 Ylo 737 661 589 531 456 384 313 252 ON OFF OFF Y 1330 1280 1229 1187 1146 1103 1061 1018 ON ON OFF Ylo 737 661 589 531 456 384 313 252 Y 1465 1416 1382 1340 1299 1278 1257 1219 Ylo 1330 1280 1229 1187 1146 1103 1061 1018 OFF ON OFF Y 1155 1100 1048 1002 952 907 861 816 Ylo 1330 1280 1229 1187 1146 1103 1061 1018 OFF OFF ON Y 1418 1376 1333 1288 1248 1206 1163 1124 OFF ON ON Ylo 737 661 589 531 456 384 313 252 Y 1155 1100 1048 1002 952 907 861 816 ON OFF ON Ylo 1418 1376 1333 1288 1248 1206 1163 1124 Y 1465 1416 1382 1340 1299 1278 1257 1219 ON ON ON Ylo 1418 1376 1333 1288 1248 1206 1163 1124 Y 737 661 589 531 456 384 313 252 PCBBF139 *MEC800603B* - CONTINOUS FAN DIP Switches STATIC 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 S2-2 S2-3 S2-4 T STAT CALL CFM CFM CFM CFM CFM CFM CFM CFM OFF OFF OFF G 1155 1100 1048 1002 952 907 861 816 ON OFF OFF G 1418 1376 1333 1288 1248 1206 1163 1124 ON ON OFF G 737 661 589 531 456 384 313 252 OFF ON OFF G 1330 1280 1229 1187 1146 1103 1061 1018 OFF OFF ON G 1465 1416 1382 1340 1299 1278 1257 1219 OFF ON ON G 1155 1100 1048 1002 952 907 861 816 ON OFF ON G 1155 1100 1048 1002 952 907 861 816 ON ON ON G 1155 1100 1048 1002 952 907 861 816 PCBBF139 DIP Switches STATIC 0.1 S1-4 S2-1 T STAT CALL CFM RISE OFF OFF* W1 1155 27 W2 1418 31 ON OFF W1 737 42 W2 1418 31 ON ON W1 737 42 W2 1330 33 OFF ON** W1 1330 N/A W2 1465 N/A *DEFAULT **NOT RECOMMENDED 0.2 CFM RISE 1100 28 1376 32 661 N/A 1376 32 661 N/A 1280 35 1280 N/A 1416 N/A *MEC800603B* - HEATING 0.3 0.4 CFM RISE CFM RISE 1048 30 1002 31 1333 33 1288 35 589 N/A 531 N/A 1333 33 1288 35 589 N/A 531 N/A 1229 36 1187 37 1229 N/A 1187 N/A 1382 N/A 1340 N/A 0.5 CFM RISE 952 33 1248 36 456 N/A 1248 36 456 N/A 1146 39 1146 N/A 1299 N/A 0.6 CFM 907 1206 384 1206 384 1103 1103 1278 0.7 CFM 861 1163 313 1163 313 1061 1061 1257 0.8 CFM 816 1124 252 1124 252 1018 1018 1219 SS-GMEC80/GCEC80 www.goodmanmfg.com 15 GMEC800803B* Airflow Data (cont.) PCBBF139 *MEC800803B* - COOLING DIP SWITCHES STATIC 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 S1-1, S1-2, S1-3 T STAT CALL CFM CFM CFM CFM CFM CFM CFM CFM Ylo OFF OFF OFF* Y 1160 1107 1060 1011 965 920 868 818 1231 1185 1136 1093 1049 1004 956 908 Ylo 706 631 563 486 404 338 280 232 ON OFF OFF Y 1160 1107 1060 1011 965 920 868 818 ON ON OFF Ylo 706 631 563 486 404 338 280 232 Y 1231 1185 1136 1093 1049 1004 956 908 Ylo 1160 1107 1060 1011 965 920 868 818 OFF ON OFF Y 1133 1009 956 903 856 804 774 722 Ylo 1160 1107 1060 1011 965 920 868 818 OFF OFF ON Y 1402 1358 1317 1274 1234 1195 1154 1113 OFF ON ON Ylo 706 631 563 486 404 338 280 232 Y 1133 1009 956 903 856 804 774 722 ON OFF ON Ylo 1402 1358 1317 1274 1234 1195 1154 1113 Y 1231 1185 1136 1093 1049 1004 956 908 ON ON ON Ylo 1402 1358 1317 1274 1234 1195 1154 1113 Y 706 631 563 486 404 338 280 232 PCBBF139 *MEC800803B* - CONTINOUS FAN DIP Switches STATIC 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 S2-2 S2-3 S2-4 T STAT CALL CFM CFM CFM CFM CFM CFM CFM CFM OFF OFF OFF G 1133 1009 956 903 856 804 774 722 ON OFF OFF G 1402 1358 1317 1274 1234 1195 1154 1113 ON ON OFF G 706 631 563 486 404 338 280 232 OFF ON OFF G 1160 1107 1060 1011 965 920 868 818 OFF OFF ON G 1231 1185 1136 1093 1049 1004 956 908 OFF ON ON G 1133 1009 956 903 856 804 774 722 ON OFF ON G 1133 1009 956 903 856 804 774 722 ON ON ON G 1133 1009 956 903 856 804 774 722 PCBBF139 DIP Switches STATIC 0.1 S1-4 S2-1 T STAT CALL CFM RISE OFF OFF* W1 1133 37 W2 1402 42 ON OFF** W1 706 N/A W2 1402 N/A ON ON** W1 706 N/A W2 1160 N/A OFF ON W1 1160 36 W2 1231 48 *DEFAULT **NOT RECOMMENDED 0.2 CFM RISE 1009 41 1358 44 631 N/A 1358 N/A 631 N/A 1107 N/A 1107 37 1185 50 *MEC800803B* - HEATING 0.3 0.4 CFM RISE CFM RISE 956 43 903 46 1317 45 1274 47 563 N/A 486 N/A 1317 N/A 1274 N/A 563 N/A 486 N/A 1060 N/A 1011 N/A 1060 39 1011 41 1136 52 1093 54 0.5 CFM RISE 856 48 1234 48 404 N/A 1234 N/A 404 N/A 965 N/A 965 43 1049 56 0.6 CFM 804 1195 338 1195 338 920 920 1004 0.7 CFM 774 1154 280 1154 280 868 868 956 0.8 CFM 722 1113 232 1113 232 818 818 908 16 www.goodmanmfg.com SS-GMEC80/GCEC80 GMEC800804B* Airflow Data (cont.) PCBBF139 *MEC800804B* - COOLING DIP SWITCHES STATIC 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 S1-1, S1-2, S1-3 T STAT CALL CFM CFM CFM CFM CFM CFM CFM CFM Ylo OFF OFF OFF* Y 1574 1521 1481 1439 1398 1374 1335 1295 1782 1726 1684 1645 1610 1574 1542 1506 Ylo 743 668 599 522 432 366 312 258 ON OFF OFF Y 1574 1521 1481 1439 1398 1374 1335 1295 ON ON OFF Ylo 743 668 599 522 432 366 312 258 Y 1782 1726 1684 1645 1610 1574 1542 1506 Ylo 1574 1521 1481 1439 1398 1374 1335 1295 OFF ON OFF Y 1130 1071 1027 973 922 870 817 787 Ylo 1574 1521 1481 1439 1398 1374 1335 1295 OFF OFF ON Y 1408 1369 1319 1282 1242 1193 1150 1109 OFF ON ON Ylo 743 668 599 522 432 366 312 258 Y 1130 1071 1027 973 922 870 817 787 ON OFF ON Ylo 1408 1369 1319 1282 1242 1193 1150 1109 Y 1782 1726 1684 1645 1610 1574 1542 1506 ON ON ON Ylo 1408 1369 1319 1282 1242 1193 1150 1109 Y 743 668 599 522 432 366 312 258 PCBBF139 *MEC800804B* - CONTINOUS FAN DIP Switches STATIC 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 S2-2 S2-3 S2-4 T STAT CALL CFM CFM CFM CFM CFM CFM CFM CFM OFF OFF OFF G 1130 1071 1027 973 922 870 817 787 ON OFF OFF G 1408 1369 1319 1282 1242 1193 1150 1109 ON ON OFF G 743 668 599 522 432 366 312 258 OFF ON OFF G 1574 1521 1481 1439 1398 1374 1335 1295 OFF OFF ON G 1782 1726 1684 1645 1610 1574 1542 1506 OFF ON ON G 1130 1071 1027 973 922 870 817 787 ON OFF ON G 1130 1071 1027 973 922 870 817 787 ON ON ON G 1130 1071 1027 973 922 870 817 787 PCBBF139 DIP Switches STATIC 0.1 S1-4 S2-1 T STAT CALL CFM RISE OFF OFF* W1 1130 37 W2 1408 42 ON OFF W1 743 56 W2 1408 42 ON ON** W1 743 N/A W2 1574 N/A OFF ON W1 1574 26 W2 1782 33 *DEFAULT **NOT RECOMMENDED 0.2 CFM RISE 1071 39 1369 43 668 N/A 1369 43 668 N/A 1521 N/A 1521 27 1726 34 *MEC800804B* - HEATING 0.3 0.4 CFM RISE CFM RISE 1027 40 973 43 1319 45 1282 46 599 N/A 522 N/A 1319 45 1282 46 599 N/A 522 N/A 1481 N/A 1439 N/A 1481 28 1439 29 1684 35 1645 36 0.5 CFM RISE 922 45 1242 48 432 N/A 1242 48 432 N/A 1398 N/A 1398 30 1610 37 0.6 CFM 870 1193 366 1193 366 1374 1374 1574 0.7 CFM 817 1150 312 1150 312 1335 1335 1542 0.8 CFM 787 1109 258 1109 258 1295 1295 1506 SS-GMEC80/GCEC80 www.goodmanmfg.com 17 GMEC800804C* Airflow Data (cont.) PCBBF139 *MEC800804C* - COOLING DIP SWITCHES STATIC 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 S1-1, S1-2, S1-3 T STAT CALL CFM CFM CFM CFM CFM CFM CFM CFM Ylo OFF OFF OFF* Y 1466 1399 1347 1290 1230 1170 1112 1054 1904 1832 1777 1727 1678 1630 1579 1523 Ylo 822 754 652 566 499 428 346 294 ON OFF OFF Y 1466 1399 1347 1290 1230 1170 1112 1054 ON ON OFF Ylo 822 754 652 566 499 428 346 294 Y 1904 1832 1777 1727 1678 1630 1579 1523 Ylo 1466 1399 1347 1290 1230 1170 1112 1054 OFF ON OFF Y 1352 1281 1218 1152 1076 1026 964 901 Ylo 1466 1399 1347 1290 1230 1170 1112 1054 OFF OFF ON Y 1669 1595 1527 1463 1407 1363 1336 1289 OFF ON ON Ylo 822 754 652 566 499 428 346 294 Y 1352 1281 1218 1152 1076 1026 964 901 ON OFF ON Ylo 1669 1595 1527 1463 1407 1363 1336 1289 Y 1904 1832 1777 1727 1678 1630 1579 1523 ON ON ON Ylo 1669 1595 1527 1463 1407 1363 1336 1289 Y 822 754 652 566 499 428 346 294 PCBBF139 *MEC800804C* - CONTINOUS FAN DIP Switches STATIC 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 S2-2 S2-3 S2-4 T STAT CALL CFM CFM CFM CFM CFM CFM CFM CFM OFF OFF OFF G 1352 1281 1218 1152 1076 1026 964 901 ON OFF OFF G 1669 1595 1527 1463 1407 1363 1336 1289 ON ON OFF G 822 754 652 566 499 428 346 294 OFF ON OFF G 1466 1399 1347 1290 1230 1170 1112 1054 OFF OFF ON G 1904 1832 1777 1727 1678 1630 1579 1523 OFF ON ON G 1352 1281 1218 1152 1076 1026 964 901 ON OFF ON G 1352 1281 1218 1152 1076 1026 964 901 ON ON ON G 1352 1281 1218 1152 1076 1026 964 901 PCBBF139 DIP Switches STATIC 0.1 S1-4 S2-1 T STAT CALL CFM RISE OFF OFF* W1 1352 31 W2 1669 36 ON OFF W1 822 50 W2 1669 36 ON ON W1 822 50 W2 1466 40 OFF ON W1 1466 28 W2 1904 31 *DEFAULT **NOT RECOMMENDED 0.2 CFM RISE 1281 32 1595 37 754 55 1595 37 754 55 1399 42 1399 30 1832 32 *MEC800804C* - HEATING 0.3 0.4 CFM RISE CFM RISE 1218 34 1152 36 1527 39 1463 41 652 N/A 566 N/A 1527 39 1463 41 652 N/A 566 N/A 1347 44 1290 46 1347 31 1290 32 1777 33 1727 34 0.5 CFM RISE 1076 39 1407 42 499 N/A 1407 42 499 N/A 1230 48 1230 34 1678 35 0.6 CFM 1026 1363 428 1363 428 1170 1170 1630 0.7 CFM 964 1336 346 1336 346 1112 1112 1579 0.8 CFM 901 1289 294 1289 294 1054 1054 1523 18 www.goodmanmfg.com SS-GMEC80/GCEC80 GMEC800805D* Airflow Data (cont.) PCBBF139 *MEC800805D* - COOLING DIP SWITCHES STATIC 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 S1-1, S1-2, S1-3 T STAT CALL CFM CFM CFM CFM CFM CFM CFM CFM Ylo OFF OFF OFF* Y 1698 1621 1553 1497 1437 1393 1328 1270 2266 2202 2143 2090 2040 1995 1945 1896 Ylo 1088 999 899 772 667 561 490 418 ON OFF OFF Y 1698 1621 1553 1497 1437 1393 1328 1270 ON ON OFF Ylo 1088 999 899 772 667 561 490 418 Y 2266 2202 2143 2090 2040 1995 1945 1896 Ylo 1698 1621 1553 1497 1437 1393 1328 1270 OFF ON OFF Y 1450 1382 1314 1243 1181 1115 1047 973 Ylo 1698 1621 1553 1497 1437 1393 1328 1270 OFF OFF ON Y 1886 1822 1758 1701 1646 1591 1535 1482 OFF ON ON Ylo 1088 999 899 772 667 561 490 418 Y 1450 1382 1314 1243 1181 1115 1047 973 ON OFF ON Ylo 1886 1822 1758 1701 1646 1591 1535 1482 Y 2266 2202 2143 2090 2040 1995 1945 1896 ON ON ON Ylo 1886 1822 1758 1701 1646 1591 1535 1482 Y 1088 999 899 772 667 561 490 418 PCBBF139 *MEC800805D* - CONTINOUS FAN DIP Switches STATIC 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 S2-2 S2-3 S2-4 T STAT CALL CFM CFM CFM CFM CFM CFM CFM CFM OFF OFF OFF G 1450 1382 1314 1243 1181 1115 1047 973 ON OFF OFF G 1886 1822 1758 1701 1646 1591 1535 1482 ON ON OFF G 1088 999 899 772 667 561 490 418 OFF ON OFF G 1698 1621 1553 1497 1437 1393 1328 1270 OFF OFF ON G 2266 2202 2143 2090 2040 1995 1945 1896 OFF ON ON G 1450 1382 1314 1243 1181 1115 1047 973 ON OFF ON G 1450 1382 1314 1243 1181 1115 1047 973 ON ON ON G 1450 1382 1314 1243 1181 1115 1047 973 PCBBF139 DIP Switches STATIC 0.1 S1-4 S2-1 T STAT CALL CFM RISE OFF OFF* W1 1450 29 W2 1886 31 ON OFF W1 1088 38 W2 1886 31 ON ON W1 1088 38 W2 1698 35 OFF ON W1 1698 24 W2 2266 26 *DEFAULT **NOT RECOMMENDED 0.2 CFM RISE 1382 30 1822 33 999 42 1822 33 999 42 1621 37 1621 26 2202 27 *MEC800805D* - HEATING 0.3 0.4 CFM RISE CFM RISE 1314 32 1243 33 1758 34 1701 35 899 46 772 N/A 1758 34 1701 35 899 46 772 N/A 1553 38 1497 40 1553 27 1497 28 2143 28 2090 28 0.5 CFM RISE 1181 35 1646 36 667 N/A 1646 36 667 N/A 1437 41 1437 29 2040 29 0.6 CFM 1115 1591 561 1591 561 1393 1393 1995 0.7 CFM 1047 1535 490 1535 490 1328 1328 1945 0.8 CFM 973 1482 418 1482 418 1270 1270 1896 SS-GMEC80/GCEC80 www.goodmanmfg.com 19 GMEC800805C* Airflow Data (cont.) PCBBF139 *MEC800805C* - COOLING DIP SWITCHES STATIC 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 S1-1, S1-2, S1-3 T STAT CALL CFM CFM CFM CFM CFM CFM CFM CFM Ylo OFF OFF OFF* Y 1583 1536 1515 1478 1434 1383 1317 1265 2145 2089 2058 2036 2020 2000 1971 1935 Ylo 1171 884 667 576 495 399 338 302 ON OFF OFF Y 1583 1536 1515 1478 1434 1383 1317 1265 ON ON OFF Ylo 1171 884 667 576 495 399 338 302 Y 2145 2089 2058 2036 2020 2000 1971 1935 Ylo 1583 1536 1515 1478 1434 1383 1317 1265 OFF ON OFF Y 1436 1402 1362 1313 1244 1182 1132 1079 Ylo 1583 1536 1515 1478 1434 1383 1317 1265 OFF OFF ON Y 1782 1744 1715 1700 1660 1619 1579 1510 OFF ON ON Ylo 1171 884 667 576 495 399 338 302 Y 1436 1402 1362 1313 1244 1182 1132 1079 ON OFF ON Ylo 1782 1744 1715 1700 1660 1619 1579 1510 Y 2145 2089 2058 2036 2020 2000 1971 1935 ON ON ON Ylo 1782 1744 1715 1700 1660 1619 1579 1510 Y 1171 884 667 576 495 399 338 302 PCBBF139 *MEC800805C* - CONTINOUS FAN DIP Switches STATIC 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 S2-2 S2-3 S2-4 T STAT CALL CFM CFM CFM CFM CFM CFM CFM CFM OFF OFF OFF G 1436 1402 1362 1313 1244 1182 1132 1079 ON OFF OFF G 1782 1744 1715 1700 1660 1619 1579 1510 ON ON OFF G 1171 884 667 576 495 399 338 302 OFF ON OFF G 1583 1536 1515 1478 1434 1383 1317 1265 OFF OFF ON G 2145 2089 2058 2036 2020 2000 1971 1935 OFF ON ON G 1436 1402 1362 1313 1244 1182 1132 1079 ON OFF ON G 1436 1402 1362 1313 1244 1182 1132 1079 ON ON ON G 1436 1402 1362 1313 1244 1182 1132 1079 PCBBF139 DIP Switches STATIC 0.1 S1-4 S2-1 T STAT CALL CFM RISE OFF OFF* W1 1436 29 W2 1782 33 ON OFF W1 1171 35 W2 1782 33 ON ON W1 1171 35 W2 1583 37 OFF ON** W1 1583 N/A W2 2145 N/A *DEFAULT **NOT RECOMMENDED 0.2 CFM RISE 1402 30 1744 34 884 47 1744 34 884 47 1536 39 1536 N/A 2089 N/A *MEC800805C* - HEATING 0.3 0.4 CFM RISE CFM RISE 1362 30 1313 32 1715 35 1700 35 667 N/A 576 N/A 1715 35 1700 35 667 N/A 576 N/A 1515 39 1478 40 1515 N/A 1478 N/A 2058 N/A 2036 N/A 0.5 CFM RISE 1244 33 1660 36 495 N/A 1660 36 495 N/A 1434 41 1434 N/A 2020 N/A 0.6 CFM 1182 1619 399 1619 399 1383 1383 2000 0.7 CFM 1132 1579 338 1579 338 1317 1317 1971 0.8 CFM 1079 1510 302 1510 302 1265 1265 1935 20 www.goodmanmfg.com SS-GMEC80/GCEC80 GMEC801004C* Airflow Data (cont.) PCBBF139 *MEC801004C* - COOLING DIP SWITCHES STATIC 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 S1-1, S1-2, S1-3 T STAT CALL CFM CFM CFM CFM CFM CFM CFM CFM Ylo OFF OFF OFF* Y 1265 1204 1146 1091 1034 973 918 870 1598 1547 1509 1464 1417 1387 1340 1295 Ylo 789 719 637 545 458 378 324 273 ON OFF OFF Y 1265 1204 1146 1091 1034 973 918 870 ON ON OFF Ylo 789 719 637 545 458 378 324 273 Y 1598 1547 1509 1464 1417 1387 1340 1295 Ylo 1265 1204 1146 1091 1034 973 918 870 OFF ON OFF Y 1424 1378 1330 1274 1226 1172 1119 1071 Ylo 1265 1204 1146 1091 1034 973 918 870 OFF OFF ON Y 1810 1764 1718 1682 1633 1596 1549 1510 OFF ON ON Ylo 789 719 637 545 458 378 324 273 Y 1424 1378 1330 1274 1226 1172 1119 1071 ON OFF ON Ylo 1810 1764 1718 1682 1633 1596 1549 1510 Y 1598 1547 1509 1464 1417 1387 1340 1295 ON ON ON Ylo 1810 1764 1718 1682 1633 1596 1549 1510 Y 789 719 637 545 458 378 324 273 PCBBF139 *MEC801004C* - CONTINOUS FAN DIP Switches STATIC 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 S2-2 S2-3 S2-4 T STAT CALL CFM CFM CFM CFM CFM CFM CFM CFM OFF OFF OFF G 1424 1378 1330 1274 1226 1172 1119 1071 ON OFF OFF G 1810 1764 1718 1682 1633 1596 1549 1510 ON ON OFF G 789 719 637 545 458 378 324 273 OFF ON OFF G 1265 1204 1146 1091 1034 973 918 870 OFF OFF ON G 1598 1547 1509 1464 1417 1387 1340 1295 OFF ON ON G 1424 1378 1330 1274 1226 1172 1119 1071 ON OFF ON G 1424 1378 1330 1274 1226 1172 1119 1071 ON ON ON G 1424 1378 1330 1274 1226 1172 1119 1071 PCBBF139 DIP Switches STATIC 0.1 S1-4 S2-1 T STAT CALL CFM RISE OFF OFF* W1 1424 36 W2 1810 41 ON OFF** W1 789 N/A W2 1810 N/A ON ON** W1 789 N/A W2 1265 N/A OFF ON W1 1265 41 W2 1598 46 *DEFAULT **NOT RECOMMENDED 0.2 CFM RISE 1378 38 1764 42 719 N/A 1764 N/A 719 N/A 1204 N/A 1204 43 1547 48 *MEC801004C* - HEATING 0.3 0.4 CFM RISE CFM RISE 1330 39 1274 41 1718 43 1682 44 637 N/A 545 N/A 1718 N/A 1682 N/A 637 N/A 545 N/A 1146 N/A 1091 N/A 1146 45 1091 48 1509 49 1464 51 0.5 CFM RISE 1226 42 1633 45 458 N/A 1633 N/A 458 N/A 1034 N/A 1034 50 1417 52 0.6 CFM 1172 1596 378 1596 378 973 973 1387 0.7 CFM 1119 1549 324 1549 324 918 918 1340 0.8 CFM 1071 1510 273 1510 273 870 870 1295 SS-GMEC80/GCEC80 www.goodmanmfg.com 21 GMEC801205D* Airflow Data (cont.) PCBBF139 *MEC801205D* - COOLING DIP SWITCHES STATIC 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 S1-1, S1-2, S1-3 T STAT CALL CFM CFM CFM CFM CFM CFM CFM CFM Ylo OFF OFF OFF* Y 1627 1566 1520 1470 1420 1398 1391 1343 2226 2165 2126 2083 2048 2011 1983 1945 Ylo 815 742 662 590 503 422 362 299 ON OFF OFF Y 1627 1566 1520 1470 1420 1398 1391 1343 ON ON OFF Ylo 815 742 662 590 503 422 362 299 Y 2226 2165 2126 2083 2048 2011 1983 1945 Ylo 1627 1566 1520 1470 1420 1398 1391 1343 OFF ON OFF Y 1381 1324 1274 1220 1164 1137 1109 1049 Ylo 1627 1566 1520 1470 1420 1398 1391 1343 OFF OFF ON Y 1831 1770 1723 1677 1630 1590 1547 1506 OFF ON ON Ylo 815 742 662 590 503 422 362 299 Y 1381 1324 1274 1220 1164 1137 1109 1049 ON OFF ON Ylo 1831 1770 1723 1677 1630 1590 1547 1506 Y 2226 2165 2126 2083 2048 2011 1983 1945 ON ON ON Ylo 1831 1770 1723 1677 1630 1590 1547 1506 Y 815 742 662 590 503 422 362 299 PCBBF139 *MEC801205D* - CONTINOUS FAN DIP Switches STATIC 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 S2-2 S2-3 S2-4 T STAT CALL CFM CFM CFM CFM CFM CFM CFM CFM OFF OFF OFF G 1381 1324 1274 1220 1164 1137 1109 1049 ON OFF OFF G 1831 1770 1723 1677 1630 1590 1547 1506 ON ON OFF G 815 742 662 590 503 422 362 299 OFF ON OFF G 1627 1566 1520 1470 1420 1398 1391 1343 OFF OFF ON G 2226 2165 2126 2083 2048 2011 1983 1945 OFF ON ON G 1381 1324 1274 1220 1164 1137 1109 1049 ON OFF ON G 1381 1324 1274 1220 1164 1137 1109 1049 ON ON ON G 1381 1324 1274 1220 1164 1137 1109 1049 PCBBF139 DIP Switches STATIC 0.1 S1-4 S2-1 T STAT CALL CFM RISE OFF OFF* W1 1381 45 W2 1831 49 ON OFF** W1 815 N/A W2 1831 N/A ON ON** W1 815 N/A W2 1627 N/A OFF ON W1 1627 38 W2 2226 40 *DEFAULT **NOT RECOMMENDED 0.2 CFM RISE 1324 47 1770 50 742 N/A 1770 N/A 742 N/A 1566 N/A 1566 40 2165 41 *MEC801205D* - HEATING 0.3 0.4 CFM RISE CFM RISE 1274 49 1220 51 1723 52 1677 53 662 N/A 590 N/A 1723 N/A 1677 N/A 662 N/A 590 N/A 1520 N/A 1470 N/A 1520 41 1470 42 2126 42 2083 43 0.5 CFM RISE 1164 53 1630 55 503 N/A 1630 N/A 503 N/A 1420 N/A 1420 44 2048 43 0.6 CFM 1137 1590 422 1590 422 1398 1398 2011 0.7 CFM 1109 1547 362 1547 362 1391 1391 1983 0.8 CFM 1049 1506 299 1506 299 1343 1343 1945 22 www.goodmanmfg.com SS-GMEC80/GCEC80 SS-GMEC80/GCEC80 BTUBTOUUOTuPtUpTuvtsVTsE. TMePmEpRerAaTtUuRrEe RRiIsSeEChCaHrAtRT 100 TETMePmEpeRrAaTtUurReERiRsIeSE 600 CFM 90 700 80 800 900 70 1000 1100 1200 60 1400 50 1600 1800 2000 40 2200 2400 CFM www.goodmanmfg.com Temperature Rise Range Chart 30 FFOoRrMmUulLaAsS BTUBTOUU/hTOPuUtpTut==CCFFMMxx1.10.80x8RxiseRISE 20 RISREis=e = BTBTUU/OHUOTutPpUutT C1F.M08x 1.08 � CFM 10 30 40 50 60 70 80 90 100 110 120 130 140 150 OOUuTtPpUuTt BTTUU//HhRx 1x,10000 23 Wiring Diagram GN GRD 24 OR BR GY PU YL High Voltage: Disconnect all power before servicing or installing this unit. Multiple power sources may be present. Failure to do so may cause property damage, personal injury, or death. HOT SURFACE IGNITER 21 2 CIRCUIT CONNECTOR ID BLOWER TWO-STAGE PRESSURE SWITCH ASSEMBLY OR LOW FIRE C PRESSURE NO SW ITCH C NO HI 3 OR PU TWO STAGE GAS VALVE C PM 2 1 BR GY (WHITE RODGERS) SOME UNITS MAY HAVE 1 ROLL OUT SWITCH HIGH FIRE PRESSURE SWITCH JUNCTION BOX YL BK WH DISCONNECT GND L TO 115 VAC/ 1 � /60 HZ POWER SUPPLY WITH OVERCURRENT PROTECTION DEVICE WARNING:DISCONNECT POWER BEFORE N SERVICING. WIRING TO UNIT MUST BE PROPERLY POLARIZED AND GROUNDED. OR PU FLAME SENSOR TO 115VAC/ 1� /60 HZ POWER SUPPLY WITH OVERCURRENT PROTECTION DEVICE WARNING: L GND N DISCONNECT POWER BEFORE SERVICING. WIRING TO UNIT MUST BE PROPERLY POLARIZED AND GROUNDED. DISCONNECT BK WH INTEGRATED CONTROL MODULE BK RD WH CIRC-H BL PK OR AUTO RESET PRIMARY LIMIT CONTROL PU 3 WH 2 RD 1 BK INDUCED DRAFT BLOWER BURNER COMPARTMENT GND BLOWER COMPARTMENT PU AUTO RESET AUXILIARY PK LIMIT CONTROL WH COM T5 T4 T3 T2 T1 BL RD OR BK RD BK LINE EAC-H L1 BK HUM X-FMR BK WH WH NEUTRAL OR BKBK WHRD WH CHASSIS GROUND GN BL INTEGRATED CONTROL MODULE DOOR SWITCH JUNCTION BOX LINE INDOOR AIR CIRCULATOR BLWR GND GND NEUTRAL HUM-OUT HUM EAC HUMIDIFIER ELECTRONIC AIR CLEANER IND HI IGN IND LO ID BLWR HOT SURFACE IGNITER FS NEUTRAL NEUTRAL NEUTRAL NEUTRAL LINE FLAME SENSOR 115 VAC NEUTRAL FUSE 3 A R TH (5) TO Y1 +VDC HLO (11) 24 VAC 40 VA TRANSFORMER AUTO RESET PRIMARY LIMIT CONTROL 24V THERMOSTAT CONNECTIONS N.E.C. CLASS 2 WIRE 5 4 32 1 5 CIRCUIT CONNECTOR S1 S2 GN BL S3 DIAGNOSTIC LED'S GY BR PU 1 4 7 10 YL 2 5 8 11 PK 3 6 9 12 BR OR YLO Y W1 W2 R G C TWIN N.E.C. CLASS 2 WIRE 24 V 3 A FUSE BR PK W1 W2 TO Y2 MICRO G O DEHUM C TO R AUTO RESET AUXILIARY LIMIT CONTROLS PS1 (12) C NO PS2 (2) NO LOW FIRE PRESS SWITCH HIGH FIRE PRESS. SWTICH C MANUAL RESET ROLLOUT LIMIT CONTROLS HLI (6) MVL (7) MVH (1) MVC (8) GND (4) TR (9) GND PM C HI GAS VALVE BK 115 VAC 24 VAC GY RD BK OR BL 12 3 45 ECM MTR HARNESS 4 WH 3 2 GN 1 RD BK GND CIRCULATOR BLOWER RED LED FLASH CODE STEADY ON = INTERNAL GV ERROR, MICRO AND FREQUENCY CHECK 0 RAPID = TWINNING ERROR 1 1 FLASH = FLAME SENSED WHEN NO FLAME SHOULD BE PRESENT 2 2 FLASHES = PRESSURE SWITCH STUCK CLOSED/INDUCER ERROR 3 3 FLASHES = 1ST STAGE PRESSURE SWITCH STUCK OPEN/INDUCER ERROR 4 4 FLASHES = OPEN LIMIT SWITCH 5 5 FLASHES = OPEN ROLLOUT/OPEN FUSE DETECTED 6 6 FLASHES = PRESSURE SWITCH CYCLE LOCKOUT 7 7 FLASHES = EXTERNAL LOCKOUT (RETRIES) 8 8 FLASHES = EXTERNAL LOCKOUT (RECYCLES) 9 9 FLASHES + GROUNDING OR REVERSED POLARITY 10 10 FLASHES = GAS FLOW WITH NO CALL FOR HEAT 11 11 FLASHES = LIMIT SWITCH OPEN-BLOWER FAILURE 12 12 FLASHES = IGNITOR RELAY FAILURE 3 DOUBLE FLASHES = 2ND STAGE PRESSURE SWITCH STUCK OPEN/INDUCER ERROR WH WH TO MICRO INDOOR AIR CIRCULATOR BLWR GND WH 40 VA TRANSFORMER OR BK INTEGRATED CONTROL MODULE BK NOTES: 1. SET HEAT ANTICIPATOR ON ROOM THERMOSTAT AT 0.7 AMPS. 2. MANUFACTURER'S SPECIFIED REPLACEMENT PARTS MUST BE USED BLOWER COMPARTMENT DOOR SWITCH (OPEN WHEN DOOR OPEN) WHEN SERVICING. 3. IF ANY OF THE ORIGINAL WIRE AS SUPPLIED WITH THE FURNACE MUST BE REPLACED IT MUST BE REPLACED WITH WIRING MATERIAL HAVING A TEMPERATURE RATING OF AT LEAST 105 $C. USE COPPER CONDUCTORS ONLY. 4. UNIT MUST BE PERMANENTLY GROUNDED AND CONFORM TO N.E.C. AND LOCAL CODES. 5. TO RECALL THE LAST 6 FAULTS, MOST RECENT TO LEAST RECENT, DEPRESS SWITCH FOR MORE THAN 2 SECONDS WHILE IN STANDBY AMBER LED FLASH CODE (NO THERMOSTAT INPUTS) 0 RAPID = LOW FLAME SENSE CURRENT 1 1 FLASH = NORMAL OPERATION WITH CALL FOR 1ST STAGE HEAT (W1) 2 2 FLASHES = NORMAL OPERATION WITH CALL FOR 2ND STAGE HEAT 3 3 FLASHES = W2 PRESENT WITH NO W1 COLOR CODES: PK PINK BR BROWN WH WHITE BL BLUE GY GRAY RD RED EQUIPMENT GND FIELD GND FIELD SPLICE SWITCH (TEMP.) IGNITER 4 4 FLASHES = Y PRESENT WITH NO G CALL, YLO PRESENT WITH NO G CALL GREEN LED FLASH CODE STEADY ON = STANDBY 0 RAPID = NORMAL OPERATION WITH CALL FOR FAN (G) YL YELLOW OR ORANGE PU PURPLE GN GREEN BK BLACK SWITCH (PRESS.) OVERCURRENT PROT. DEVICE JUNCTION TERMINAL INTERNAL TO 1 1 FLASH = NORMAL OPERATION WITH CALL FOR INTEGRATED CONTROL LOW STAGE COOL (YLO + G) 2 2 FLASHES = NORMAL OPERATION WITH CALL FOR HIGH STAGE COOL/ OR SINGLE STAGE COOLING (Y + G) PLUG CONNECTION LOW VOLTAGE (24V) LOW VOLTAGE FIELD HI VOLTAGE (115V) 0140F02452-B HI VOLTAGE FIELD Warning Wiring is subject to change. Always refer to the wiring diagram or the unit for the most up-to-date wiring. Goodman Manufacturing Company, L.P., reserves the right to discontinue, or change at any time, specifications or designs without notice or without incurring obligations. � 2019 � Goodman Manufacturing Company, L.P. � Houston, Texas � Printed in the USA. www.goodmanmfg.com SS-GMEC80/GCEC80
