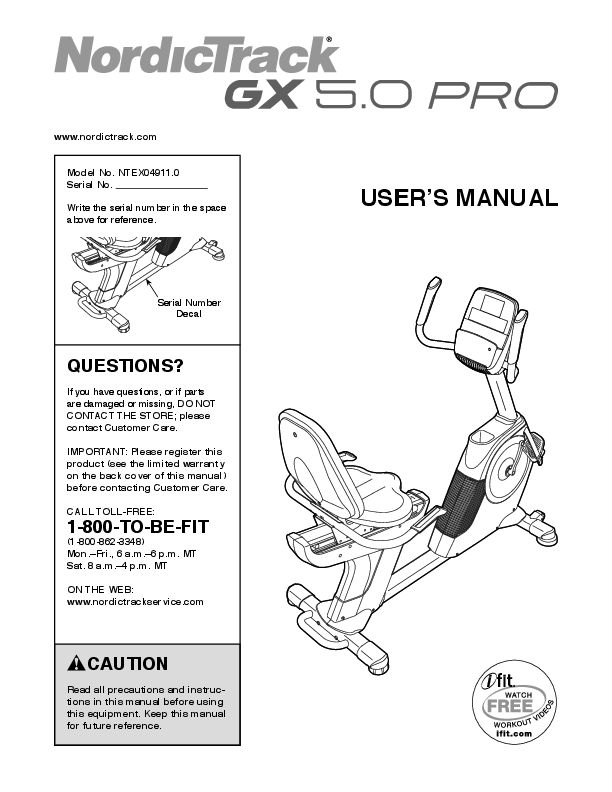

NordicTrack GX 5.0 PRO Exercise Bike User's Manual

Model No. NTEX04911.0

Serial No. _________________________

CAUTION

Read all precautions and instructions in this manual before using this equipment. Keep this manual for future reference.

Warning Decal Placement

This section shows the location(s) of the warning decal(s) on the exercise bike. If a decal is missing or illegible, contact Customer Care for a free replacement decal and apply it in the shown location. Note: Decals may not be shown at actual size.

Important Precautions

WARNING: To reduce the risk of serious injury, read all important precautions and instructions in this manual and all warnings on your exercise bike before using it.

ICON assumes no responsibility for personal injury or property damage sustained by or through the use of this product.

  1. Consult your physician before beginning any exercise program. This is especially important for persons over age 35 or persons with pre-existing health problems.
  2. Use the exercise bike only as described in this manual.
  3. It is the responsibility of the owner to ensure that all users of the exercise bike are adequately informed of all precautions.
  4. The exercise bike is intended for home use only. Do not use it in a commercial, rental, or institutional setting.
  5. Keep the exercise bike indoors, away from moisture and dust. Do not put it in a garage or covered patio, or near water.
  6. Place the exercise bike on a level surface with at least 2 ft. (0.6 m) of clearance around it. To protect the floor or carpet from damage, place a mat under the exercise bike.
  7. Inspect and properly tighten all parts regularly. Replace any worn parts immediately.
  8. Keep children under age 12 and pets away from the exercise bike at all times.
  9. Wear appropriate clothes while exercising; do not wear loose clothes that could become caught on the exercise bike. Always wear athletic shoes for foot protection.
  10. The exercise bike should not be used by persons weighing more than 350 lbs. (159 kg).
  11. The heart rate monitor is not a medical device. Various factors, including the user's movement, may affect the accuracy of heart rate readings. The heart rate monitor is intended only as an exercise aid in determining heart rate trends in general.
  12. Always keep your back straight while using the exercise bike; do not arch your back.
  13. Over exercising may result in serious injury or death. If you feel faint or if you experience pain while exercising, stop immediately and cool down.

Before You Begin

Thank you for selecting the revolutionary NORDICTRACK® GX 5.0 PRO exercise bike. The GX 5.0 PRO exercise bike provides an impressive selection of features designed to make your workouts at home more effective and enjoyable.

For your benefit, read this manual carefully before you use the exercise bike. If you have questions after reading this manual, please see the front cover of this manual. To help us assist you, note the product model number and serial number before contacting us. The model number and the location of the serial number decal are shown on the front cover of this manual.

Before reading further, please familiarize yourself with the parts that are labeled in the drawing below.

Dimensions: Length: 4 ft. 11 in. (150 cm) Width: 2 ft. 3 in. (69 cm)

Labeled Parts: Handlebar Accessory Tray, Backrest, Seat, Handle Leveling Foot, Console, Pedal/Strap, Wheel, Heart Rate Monitor, Adjustment Handle, Seat Handlebar.

Part Identification Chart

Use the drawings below to identify the small parts needed for assembly. The number in parentheses below each drawing is the key number of the part, from the PART LIST near the end of this manual. The number following the key number is the quantity needed for assembly. Note: If a part is not in the hardware kit, check to see if it has been preassembled. Extra parts may be included.

Key Number Quantity Description
862M8 Locknut
888M6 Washer
1004M10 Split Washer
777M4 x 16mm Screw
752M6 x 18mm Screw
258M6 x 38mm Screw
698M8 x 16mm Screw
702M8 x 65mm Button Bolt
674M10 x 16mm Screw
654M10 x 105mm Screw

Assembly Instructions

Assembly requires two persons.

Place all parts in a cleared area and remove packing materials. Do not dispose of packing materials until assembly is finished.

In addition to the included tool(s), assembly requires: one Phillips screwdriver, one adjustable wrench. Assembly may be easier with your own set of wrenches. To avoid damaging parts, do not use power tools.

  1. Orient the Front Stabilizer (15) so the indicated hole faces the pin on the Frame (1). While a second person lifts the front of the Frame (1), attach the Front Stabilizer (15) to the Frame with two M10 x 105mm Screws (65).
  2. While a second person lifts the rear of the Frame (1), attach the Rear Stabilizer (16) to the Frame with two M10 x 105mm Screws (65).
  3. Orient the Seat Frame (52) as shown. Attach the Seat Frame (52) to the Seat Carriage (41) with four M8 x 16mm Screws (69).
  4. Tip: Avoid damaging the wires inside the Seat Handlebar (11) during this step. Attach the Seat Handlebar (11) to the Seat Frame (52) with two M8 x 65mm Button Bolts (70) and two M8 Locknuts (86).
  5. Plug the Seat Pulse Wire (10) into the receptacle in the Right Rear Shield (97).
  6. Attach the Seat (9) to the Seat Frame (52) with four M6 x 38mm Screws (25) and four M6 Washers (88). Note: Only two Screws and two Washers are shown in the diagram.
  7. Attach the Backrest (8) to the Seat Frame (52) with four M6 x 38mm Screws (25) and four M6 Washers (88).
  8. Attach the Backrest Cover (103) to the Backrest (8) with two M6 x 18mm Screws (75).
  9. Orient the Upright (2) and the Top Shield (44) as shown. Slide the Top Shield upward onto the Upright. Have a second person hold the Upright (2) and Top Shield (44) near the Frame (1) until step 10. Locate the wire ties in the Upright (2). Tie the lower end of one wire tie to the Main Wire (43) and to the Frame Pulse Wire (42). Tie the end of the other wire tie to the end of the Receiver Wire (40). Next, pull the upper ends of the wire ties upward out of the top of the Upright. Tip: To prevent the wires from falling into the Upright (2), secure the wires with the wire ties.
  10. Tip: Avoid pinching the wires. Slide the Upright (2) onto the Frame (1). Attach the Upright (2) with four M10 x 16mm Screws (67) and four M10 Split Washers (100). Tip: Tighten the two Screws in the front of the Upright, and then tighten the other two Screws. Slide the Top Shield (44) downward and press it onto the Left and Right Front Shields (13, 14).
  11. Identify the Right Handlebar (20), which is marked with a "Right" sticker, and orient it as shown. Attach the Right Handlebar (20) to the Upright (2) with two M8 x 16mm Screws (69). Attach the Left Handlebar (7) in the same way.
  12. Identify and orient the Rear Upright Cover (57) as shown. Attach the Rear Upright Cover (57) to the Upright (2) with an M4 x 16mm Screw (77).
  13. Untie and discard the wire ties on the Main Wire (43), the Frame Pulse Wire (42), and the Receiver Wire (40). While a second person holds the Console (4) near the Upright (2), connect the wires on the Console to the Main Wire (43), to the Frame Pulse Wire (42), and to the Receiver Wire (40). Insert the excess wires into the Upright (2) or into the Console (4). Tip: Start all the screws before tightening any of them. Also, avoid pinching the wires. Attach the Console (4) to the Upright (2) with four M4 x 16mm Screws (77).
  14. Identify and orient the Front Upright Cover (58) as shown. Attach the Front Upright Cover (58) to the Upright (2) with two M4 x 16mm Screws (77).
  15. Identify the Right Pedal (21), which is marked with an "R." Using an adjustable wrench, firmly tighten the Right Pedal (21) clockwise into the Right Crank Arm (23). Firmly tighten the Left Pedal (not shown) counterclockwise into the Left Crank Arm (not shown). If necessary, press the right strap onto the post on the Right Pedal (21). To loosen the strap, press the indicated tab and pull the strap upward. To tighten the strap, simply pull the end of the strap downward. Adjust the strap on the Left Pedal (not shown) in the same way.
  16. Plug the Power Adapter (51) into the receptacle on the frame of the exercise bike. To plug the Power Adapter (51) into an outlet, see HOW TO PLUG IN THE POWER ADAPTER on page 14.
  17. Make sure that all parts are properly tightened before you use the exercise bike. Note: After assembly is completed, some extra parts may be left over. Place a mat beneath the exercise bike to protect the floor.

How to Use the Heart Rate Monitor

The heart rate monitor has two components: a chest strap and a sensor unit. Insert the tab on one end of the chest strap into one end of the sensor unit. Press the end of the sensor unit under the buckle on the chest strap. The tab should be flush with the front of the sensor unit.

Next, wrap the heart rate monitor around your chest and attach the other end of the chest strap to the sensor unit. Adjust the length of the chest strap, if necessary. The heart rate monitor should be under your clothes, tight against your skin, and as high under the pectoral muscles or breasts as is comfortable. Make sure that the logo on the sensor unit is facing forward and is right-side-up.

Pull the sensor unit away from your body a few inches and locate the two electrode areas on the inner side (the electrode areas are covered by shallow ridges). Using saline solution such as saliva or contact lens solution, wet both electrode areas. Return the sensor unit to a position against your chest.

Care and Maintenance

  • Dry the heart rate monitor after each use. The heart rate monitor is activated when you wet the electrode areas and put it on; it shuts off when removed and electrodes are dried. If not dried, the battery may drain prematurely.
  • Store the heart rate monitor in a warm, dry place. Do not store it in a plastic bag or other container that may trap moisture.
  • Do not expose the heart rate monitor to direct sunlight for extended periods or to temperatures above 122° F (50° C) or below 14° F (-10° C).
  • Do not excessively bend or stretch the sensor unit when using or storing.
  • Clean the sensor unit using a damp cloth--never use alcohol, abrasives, or chemicals. Hand wash and air dry the heart rate monitor.

Troubleshooting

  • Make sure that you are wearing the heart rate monitor as described. Note: If it does not function as described, move it slightly lower or higher on your chest.
  • Use saline solution (saliva or contact lens solution) to wet the two electrode areas. If heart rate readings do not appear until you begin perspiring, re-wet the electrode areas.
  • Position yourself near the console. For the console to display heart rate readings, the user must be within arm's length of the console.
  • The heart rate monitor is designed to work with people who have normal heart rhythms. Heart rate reading problems may be caused by medical conditions such as premature ventricular contractions (pvcs), tachycardia bursts, and arrhythmia.
  • The operation of the heart rate monitor can be affected by magnetic interference caused by high power lines or other sources. If it is suspected that this is a problem, try relocating the exercise bike.

How to Use the Exercise Bike

How to Plug in the Power Adapter

IMPORTANT: If the exercise bike has been exposed to cold temperatures, allow it to warm to room temperature before plugging in the power adapter. If you do not do this, you may damage the console displays or other electronic components.

Plug the power adapter into the receptacle on the frame of the exercise bike. Plug the power adapter into an appropriate outlet that is properly installed in accordance with all local codes and ordinances.

How to Adjust the Pedal Straps

To loosen the strap on a pedal, press the indicated tab and pull the strap upward. To tighten the strap, simply pull the end of the strap downward.

How to Level the Exercise Bike

If the exercise bike rocks slightly on your floor during use, turn one or both of the leveling feet under the rear stabilizer until the rocking motion is eliminated.

How to Move the Exercise Bike

To move the exercise bike, hold the handle on the rear stabilizer and carefully lift it until the exercise bike can be moved on the front wheels. Carefully move the exercise bike to the desired location and then lower it.

How to Adjust the Seat

The seat can be adjusted forward or backward to the position that is the most comfortable for you. To adjust the seat, push downward on the seat adjustment handle, slide the seat to the desired position, and then pull upward on the handle to lock the seat in place.

Console Features

The advanced console offers an array of features designed to make your workouts more effective and enjoyable.

When you use the manual mode of the console, you can change the resistance of the pedals with the touch of a button. While you exercise, the console will display continuous exercise feedback. You can also measure your heart rate using the handgrip heart rate monitor or the included chest heart rate monitor.

The console offers thirty onboard workouts--fifteen calorie workouts and fifteen performance workouts. Each workout automatically changes the resistance of the pedals as it guides you through an effective workout.

The console also features an iFit Live mode that enables the console to communicate with your wireless network through an optional iFit Live module. With the iFit Live mode, you can download personalized workouts, create your own workouts, track your workout results, race against other runners, and access many other features. To purchase an iFit Live module at any time, go to www.iFit.com or call the telephone number on the front cover of this manual.

You can even connect your MP3 player or CD player to the console sound system and listen to your favorite music or audio books while you exercise.

Note: If there is a sheet of plastic on the display, remove the plastic.

How to Use the Manual Mode

  1. Begin pedaling or press any button on the console to turn on the console. When you turn on the console, the display will turn on. The console will then be ready for use.
  2. Select the manual mode. Press the Manual Control button on the console to select the manual mode. If a wireless iFit Live module is not inserted into the console and connected to iFit Live, the manual mode will be selected automatically.
  3. Change the resistance of the pedals as desired. As you pedal, change the resistance of the pedals by pressing the Resistance increase and decrease buttons. Note: After you press a button, it will take a moment for the pedals to reach the selected resistance level.
  4. Follow your progress with the display. The display can show the following workout information:
    • Calories (Cals.)--Approximate number of calories burned.
    • Calories per Hour (Cals./Hr)--Approximate calories being burned per hour.
    • Distance (Dist.)--Distance pedaled in miles or kilometers.
    • Pulse--Heart rate when using the handgrip or chest heart rate monitor.
    • Resistance (Resist.)--Resistance level of the pedals shown briefly when changed.
    • Speed--Pedaling speed in miles per hour or kilometers per hour.
    • Time--Elapsed time in manual mode; time remaining in onboard workouts.
    The matrix offers several display tabs. Press the Display button until the desired tab is shown, or use the increase/decrease buttons next to the Enter button.
    • Speed--Shows a profile of speed settings. A new segment appears each minute.
    • My Trail--Shows a track representing 1/4 mile (400 m). A flashing rectangle shows progress. Also shows number of laps completed.
    • Calorie--Shows approximate calories burned. The height of each segment represents calories burned during that segment.
    As you exercise, the workout intensity level bar will indicate the approximate intensity level of your exercise.
  5. Measure your heart rate if desired. To use the included chest heart rate monitor, see page 13. To use the handgrip heart rate monitor, follow the instructions below. IMPORTANT: If you use both heart rate monitors at the same time, the console will not display your heart rate accurately.

    If there are sheets of plastic on the metal contacts on the handgrip heart rate monitor, remove the plastic. To measure your heart rate, hold the handgrip heart rate monitor with your palms resting against the contacts. Avoid moving your hands or gripping the contacts tightly.

    When your pulse is detected, a heart symbol in the calorie display will flash each time your heart beats, one or two dashes will appear, and then your heart rate will be shown. For the most accurate reading, hold the contacts for at least 15 seconds.

    If the display does not show your heart rate, make sure your hands are positioned correctly. Be careful not to move your hands excessively or squeeze the contacts tightly. For optimal performance, clean the contacts using a soft cloth; never use alcohol, abrasives, or chemicals.

  6. Turn on the fan if desired. The fan has low and high speed settings. Press the Fan increase and decrease buttons repeatedly to select a fan speed or to turn off the fan. Note: If the pedals do not move for about thirty seconds, the fan will turn off automatically.
  7. When you are finished exercising, the console will turn off automatically. If the pedals do not move for several seconds, a tone will sound, the console will pause, and the time will flash in the display. To resume your workout, simply resume pedaling. If the pedals do not move for several minutes and the buttons are not pressed, the console will turn off and the display will be reset.

Press the Home button to return to the default menu. If necessary, press the Home button again.

When a wireless iFit Live module is connected, the wireless symbol at the top of the display will show the strength of your wireless signal. Four arcs indicate full signal strength.

To exit the manual mode or a workout, press the Home button. If necessary, press the Home button again.

Change the volume level of the console by pressing the Volume increase and decrease buttons.

How to Use the Sound System

To play music or audio books through the console sound system while you exercise, plug the included audio cable into the jack on the console and into a jack on your MP3 player or CD player; make sure that the audio cable is fully plugged in.

Next, press the play button on your MP3 player or CD player. Adjust the volume level using the Volume increase and decrease buttons on the console or the volume control on your MP3 player or CD player.

How to Use an Onboard Workout

  1. Begin pedaling or press any button on the console to turn on the console. When you turn on the console, the display will turn on. The console will then be ready for use.
  2. Select an onboard workout. To select an onboard workout, press the "15 Calorie Workouts" button or the "15 Performance Workouts" button repeatedly until the desired workout appears in the display. When you select an onboard workout, the display will show the duration of the workout and the name of the workout. A profile of the speed settings of the workout will appear in the matrix. The maximum resistance level and the maximum speed for the workout will also appear in the display.
  3. Begin pedaling to start the workout. Each workout is divided into one-minute segments. One resistance level and one target speed is programmed for each segment. Note: The same resistance level and/or target speed may be programmed for consecutive segments.

During the workout, the profile on the speed tab will show your progress. The flashing segment of the profile represents the current segment of the workout. The height of the flashing segment indicates the target speed for the current segment.

IMPORTANT: The target speed is intended only to provide motivation. Your actual pedaling speed may be slower than the target speed. Make sure to pedal at a speed that is comfortable for you.

If the resistance level for the current segment is too high or too low, you can manually override the setting by pressing the Resistance buttons. IMPORTANT: When the current segment of the workout ends, the pedals will automatically adjust to the resistance level programmed for the next segment.

The workout will continue in this way until the last segment ends. To stop the workout at any time, stop pedaling. The time will flash in the display. To resume the workout, simply resume pedaling.

As you exercise, you will be prompted to keep your pedaling speed near the target speed for the current segment. When an upward-pointing arrow appears in the display, increase your pace. When a downward-pointing arrow appears, decrease your pace. When no arrow appears, maintain your current pace.

At the end of each segment of the workout, a series of tones will sound and the next segment of the profile will begin to flash. If a different resistance level and/or target speed is programmed for the next segment, the resistance level and/or target speed will appear in the display for a few seconds to alert you. The resistance of the pedals will then change.

  1. Follow your progress with the display. See step 4 on page 16.
  2. Measure your heart rate if desired. See step 5 on page 17.
  3. Turn on the fan if desired. See step 6 on page 17.
  4. When you are finished exercising, the console will turn off automatically. See step 7 on page 17.

How to Use an iFit Live Workout

  1. Begin pedaling or press any button on the console to turn on the console. When you turn on the console, the display will turn on. The console will then be ready for use.
  2. Insert the iFit Live module into the console. See step 3 on page 18. To use an iFit Live workout, insert the iFit Live module into the console. To purchase an iFit Live module at any time, go to www.iFit.com or call the telephone number on the front cover of this manual. You must have an iFit Live module to use an iFit Live workout. Note: To use an iFit Live module, you must have access to a computer with an internet connection and a USB port. You will also need an iFit.com membership. To use a wireless iFit Live module, you must also have your own wireless network including an 802.11b router with SSID broadcast enabled (hidden networks are not supported).
  3. Select a user. If more than one user is registered, you can switch users in the iFit Live main screen. Press the increase and decrease buttons next to the Enter button to select a user.
  4. Select an iFit Live workout. To select an iFit Live workout, press one of the iFit Live buttons. Before some workouts will download, you must add them to your schedule on www.iFit.com. Press the iFit Live button to download the next workout in your schedule. Press the My Trainer button, the My Maps button, the World Tour button, or the Event Training button to download the next workout of that type in your schedule. Press the Compete button to compete in a race that you have previously scheduled. For more information on the iFit Live workouts, please see www.iFit.com. When you select an iFit Live workout, the display will show the duration of the workout and the approximate number of calories you will burn. The display may also show the name of the workout. If you select a competition workout, the display may count down to the beginning of the race.
  5. Start the workout. During some workouts, the voice of a personal trainer will guide you through your workout. You can select an audio setting for your personal trainer (see HOW TO CHANGE CONSOLE SETTINGS on page 20).

To stop the workout at any time, stop pedaling. The time will flash in the display. To resume the workout, simply resume pedaling.

  1. Follow your progress with the displays. See step 4 on page 16. The My Trail tab will show a map of the trail you are walking or running or it will show a track and the number of laps you complete. During a competition workout, the Competition tab will show your progress in the race. As you race, the top line in the matrix will show how much of the race you have completed. The other lines will show other competitors. The end of the matrix represents the end of the race.
  2. Measure your heart rate if desired. See step 5 on page 17.
  3. Turn on the fan if desired. See step 6 on page 17.
  4. When you are finished exercising, the console will turn off automatically. See step 7 on page 17.

For more information on the iFit Live mode, go to www.iFit.com.

IMPORTANT: To satisfy exposure compliance requirements, the antenna and transmitter in the iFit Live module must be at least 8 in. (20 cm) from all persons and must not be near or connected to any other antenna or transmitter.

How to Change Console Settings

The console features a user mode that allows you to view usage information, select a unit of measurement, and adjust the contrast level of the display.

When an iFit Live module is connected to the console, you can also use the information mode to choose an audio setting for the voice of the personal trainer, set a default menu, check the status of the iFit Live module, and check for downloads.

  1. Select the information mode. To select the information mode, press and hold down the Display button for a few seconds until the information mode appears in the display.
  2. View usage information. The display will show the total number of hours that the exercise bike has been used. The display will also show the total distance (in miles or kilometers) that has been pedaled on the exercise bike.
  3. Select a unit of measurement if desired. The word ENGLISH for English miles or the word METRIC for metric kilometers will appear in the display to indicate the currently selected unit of measurement. To change the unit of measurement, press the Enter button repeatedly to select the desired unit of measurement.
  4. Adjust the contrast level of the display if desired. Press the decrease button to view the contrast level. The currently selected contrast level will appear in the display. Press the Resistance increase and decrease buttons to adjust the contrast level.
  5. Determine if an iFit Live module is connected to the console. If an iFit Live module is connected to the console, the display will show the words WIFI MODULE or USB MODULE. If no module is connected, the display will show the words NO IFIT MODULE. If no module is connected, go to step 10.
  6. Select an audio setting for the voice of the personal trainer if desired. Press the decrease button to view the audio setting for the voice of the personal trainer. The currently selected audio setting for the voice of the personal trainer will appear in the display. To change the audio setting, press the Enter button repeatedly to turn the voice of the personal trainer ON or OFF.
  7. Set the default menu if desired. Press the decrease button to view the default menu setting. The default menu is the menu that will appear when you turn on the console. Press the Enter button repeatedly to select the manual mode menu or the iFit Live menu as the default menu.
  8. Check the status of the iFit Live module if desired. Press the decrease button to view the iFit Live status display. The words CHECK WIFI STATUS or CHECK USB STATUS will appear in the display. Then, press the Enter button. After a few seconds, the status of the iFit Live module will appear in the display. To exit this display, press and hold down the Display button for a few seconds.
  9. Check for downloads if desired. Press the decrease button to view the downloads display. The words SEND/RECEIVE DATA will appear in the display. Then, press the Enter button. The console will then check for iFit Live workouts and firmware downloads.
  10. Exit the information mode. Press the Display button to exit the information mode.

Maintenance and Troubleshooting

Inspect and tighten all parts of the exercise bike regularly. Replace any worn parts immediately.

To clean the exercise bike, use a damp cloth and a small amount of mild soap. IMPORTANT: To avoid damage to the console, keep liquids away from the console and keep the console out of direct sunlight.

Console Troubleshooting

  • If the console does not turn on, make sure that the power adapter is fully plugged in.
  • If lines appear in the console display, see HOW TO CHANGE CONSOLE SETTINGS on page 20 and adjust the contrast level of the display.
  • If the handgrip heart rate monitor does not function properly, see step 5 on page 17.
  • If the console does not display your heart rate when you use the chest heart rate monitor, see TROUBLESHOOTING on page 13.

How to Adjust the Reed Switch

If the console does not display correct feedback, the reed switch should be adjusted.

To adjust the reed switch, first unplug the power adapter. Using a flat screwdriver, release the tabs at the front and along the sides of the Top Shield (44). Then, slide the Top Shield upward.

Locate the Reed Switch (46). Rotate the Pulley (29) until a Pulley Magnet (30) is aligned with the Reed Switch. Loosen, but do not remove, the indicated M4 x 16mm Screw (77). Slide the Reed Switch slightly toward or away from the Pulley Magnet.

Then, retighten the M4 x 16mm Screw (77). Plug in the power adapter and turn the Pulley (29) for a moment. Repeat these actions until the console displays correct feedback.

When the reed switch is correctly adjusted, reattach the top shield and then plug in the power adapter.

How to Adjust the Drive Belt

If the pedals slip while you are pedaling, even while the resistance is adjusted to the highest setting, the drive belt may need to be adjusted.

To adjust the drive belt, first unplug the power adapter. Then, you must remove the top shield, the right pedal, and the right shield (see the instructions below).

See the drawing on page 27. Using a flat screwdriver, release the tabs at the front and along the sides of the Top Shield (44). Then, slide the Top Shield upward. Next, using an adjustable wrench, turn the right pedal counterclockwise and remove it. Then, remove the screws from the right and left shields, and gently remove the right shield.

Loosen the M6 x 20mm Hex Screw (84). Tighten the M10 x 50mm Hex Screw (83) until the Drive Belt (47) is tight. When the Drive Belt is tight, tighten the M6 x 20mm Hex Screw.

When the Drive Belt (47) is correctly adjusted, reattach the right shield, the right pedal, and the top shield and then plug in the power adapter.

FCC Information

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, try to correct the interference by one or more of the following measures:

  • Reorient or relocate the receiving antenna.
  • Increase the separation between the equipment and the receiver.
  • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
  • Consult the dealer or an experienced radio/TV technician for help.

FCC CAUTION: To assure continued compliance, use only shielded interface cables when connecting to computer or peripheral devices. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.

Exercise Guidelines

WARNING: Before beginning this or any exercise program, consult your physician. This is especially important for persons over age 35 or persons with pre-existing health problems.

The heart rate monitor is not a medical device. Various factors may affect the accuracy of heart rate readings. The heart rate monitor is intended only as an exercise aid in determining heart rate trends in general.

These guidelines will help you to plan your exercise program. For detailed exercise information, obtain a reputable book or consult your physician. Remember, proper nutrition and adequate rest are essential for successful results.

Exercise Intensity

Whether your goal is to burn fat or to strengthen your cardiovascular system, exercising at the proper intensity is the key to achieving results. You can use your heart rate as a guide to find the proper intensity level. The chart below shows recommended heart rates for fat burning and aerobic exercise.

To find the proper intensity level, find your age at the bottom of the chart (ages are rounded off to the nearest ten years). The three numbers listed above your age define your "training zone." The lowest number is the heart rate for fat burning, the middle number is the heart rate for maximum fat burning, and the highest number is the heart rate for aerobic exercise.

Burning Fat--To burn fat effectively, you must exercise at a low intensity level for a sustained period of time. During the first few minutes of exercise, your body uses carbohydrate calories for energy. Only after the first few minutes of exercise does your body begin to use stored fat calories for energy. If your goal is to burn fat, adjust the intensity of your exercise until your heart rate is near the lowest number in your training zone. For maximum fat burning, exercise with your heart rate near the middle number in your training zone.

Aerobic Exercise--If your goal is to strengthen your cardiovascular system, you must perform aerobic exercise, which is activity that requires large amounts of oxygen for prolonged periods of time. For aerobic exercise, adjust the intensity of your exercise until your heart rate is near the highest number in your training zone.

Workout Guidelines

  • Warming Up--Start with 5 to 10 minutes of stretching and light exercise. A warm-up increases your body temperature, heart rate, and circulation in preparation for exercise.
  • Training Zone Exercise--Exercise for 20 to 30 minutes with your heart rate in your training zone. (During the first few weeks of your exercise program, do not keep your heart rate in your training zone for longer than 20 minutes.) Breathe regularly and deeply as you exercise--never hold your breath.
  • Cooling Down--Finish with 5 to 10 minutes of stretching. Stretching increases the flexibility of your muscles and helps to prevent post-exercise problems.

Exercise Frequency

To maintain or improve your condition, complete three workouts each week, with at least one day of rest between workouts. After a few months of regular exercise, you may complete up to five workouts each week, if desired. Remember, the key to success is to make exercise a regular and enjoyable part of your everyday life.

Part List

Key No.Qty.DescriptionKey No.Qty.Description
11Frame471Drive Belt
21Upright482Rear Stabilizer Cover
32Front Stabilizer492Handlebar Grip
41Console502Flange Screw
51Rail Adjustment Bar511Power Adapter
61Left Handlebar521Seat Frame
71Backrest531Resistance Rod Assembly
81Seat541Small Snap Ring
91Seat Pulse Wire/Pulse Grip Set558Carriage Bearing
101Seat Handlebar562Seat Frame Cap
111Brake Block571Rear Upright Cover
121Left Front Shield581Front Upright Cover
131Right Front Shield598Carriage Bushing
141Front Stabilizer602Rail Rod
151Rear Stabilizer611M6 x 14.67mm Shoulder Screw
162Wheel624Rod Cap
171Brake Leveling Foot632Brake Spacer
182Right Handlebar645M6 x 16mm Button Screw
191Right Pedal/Strap654M10 x 105mm Screw
201Left Pedal/Strap662Wheel Bolt
211Right Crank Arm674M10 x 16mm Screw
221Left Crank Arm681Large M6 Washer
238M6 x 38mm Screw698M8 x 16mm Screw
241Adjustment Bar Handle702M8 x 65mm Button Bolt
251Handle Bracket712M6 x 65mm Bright Button Bolt
261Large Snap Ring721M6 x 65mm Hex Bolt
271Pulley7321/4" x 14mm Screw
282Pulley Magnet748M8 x 28mm Button Bolt
291Crank Brake Axle752M6 x 18mm Screw
301Crank Bearing761M3.5 x 12mm Screw
311Flywheel7736M4 x 16mm Screw
321Flywheel Axle784M8 x 12mm Button Screw
332Resistance Magnet791M4 x 16mm Bright Button Screw
341Resistance Motor804Rail Screw
351Motor Bracket812M6 x 8mm Hex Screw
361Idler824M4 x 12mm Flange Screw
371Accessory Tray/Receiver Wire831M10 x 50mm Hex Screw
381Seat Carriage841M6 x 20mm Hex Screw
391Frame Pulse Wire/Receptacle851Resistance Wheel
401Main Wire862M8 Locknut
411Top Shield871M5 x 7mm Screw
421Clamp8815M6 Washer
431Reed Switch/Wire8910M8 Jam Nut
441*901M6 Locknut
451*9112M8 Split Washer
461*922Crank Cap
932M6 Bright Locknut941M5 Washer
951Steel Washer965M6 Split Washer
971Right Rear Shield981Left Rear Shield
992Tree Fastener1004M10 Split Washer
1012M10 Locknut1021Audio Cable
1031Backrest Cover1041Heart Rate Monitor Chest Strap Assembly
1051Tool*User's Manual

Note: Specifications are subject to change without notice. For information about ordering replacement parts, see the back cover of this manual.

Exploded Drawings

The exploded drawings (Drawing A and Drawing B) visually represent the assembly of the exercise bike, showing how parts fit together. Detailed textual descriptions for assembly and part identification are provided throughout this manual.

Ordering Replacement Parts

To order replacement parts, please see the front cover of this manual. To help us assist you, be prepared to provide the following information when contacting us:

  • The model number and serial number of the product (see the front cover of this manual).
  • The name of the product (see the front cover of this manual).
  • The key number and description of the replacement part(s) (see the PART LIST and the EXPLODED DRAWING near the end of this manual).

Limited Warranty

IMPORTANT: You must register this product within 30 days of the purchase date to avoid added fees for service needed under warranty. Go to www.nordictrackservice.com/registration.

ICON Health & Fitness, Inc. (ICON) warrants this product to be free from defects in workmanship and material, under normal use and service conditions. The frame is warranted for a lifetime. Parts are warranted for two (2) years from the date of purchase. Labor is warranted for one (1) year from the date of purchase.

This warranty extends only to the original purchaser (customer). ICON's obligation under this warranty is limited to repairing or replacing, at ICON's option, the product through one of its authorized service centers. All repairs for which warranty claims are made must be preauthorized by ICON. If the product is shipped to a service center, freight charges to and from the service center will be the customer's responsibility. If replacement parts are shipped while the product is under warranty, the customer will be responsible for a minimal handling charge. For in-home service, the customer will be responsible for a minimal trip charge.

This warranty does not extend to freight damage to the product. This warranty will automatically be voided if the product is used as a store display model, if the product is purchased or transported outside the USA, if all instructions in this manual are not followed, if the product is abused or improperly or abnormally used, or if the product is used for commercial or rental purposes. No other warranty beyond that specifically set forth above is authorized by ICON.

ICON is not responsible or liable for indirect, special, or consequential damages arising out of or in connection with the use or performance of the product; damages with respect to any economic loss, loss of property, loss of revenues or profits, loss of enjoyment or use, or costs of removal or installation; or other consequential damages of any kind. Some states do not allow the exclusion or limitation of incidental or consequential damages. Accordingly, the above limitation may not apply to the customer.

The warranty extended hereunder is in lieu of any and all other warranties, and any implied warranties of merchantability or fitness for a particular purpose are limited in their scope and duration to the terms set forth herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the above limitation may not apply to the customer.

This warranty provides specific legal rights; the customer may have other rights that vary from state to state.

ICON Health & Fitness, Inc., 1500 S. 1000 W., Logan, UT 84321-9813

Part No. 317081 R0112A

Printed in China © 2011 ICON IP, Inc.

Full PDF Document

Loading PDF...
Download PDF

If the inline viewer fails, it will open the original document in compatibility mode automatically. You can also open the file directly.
