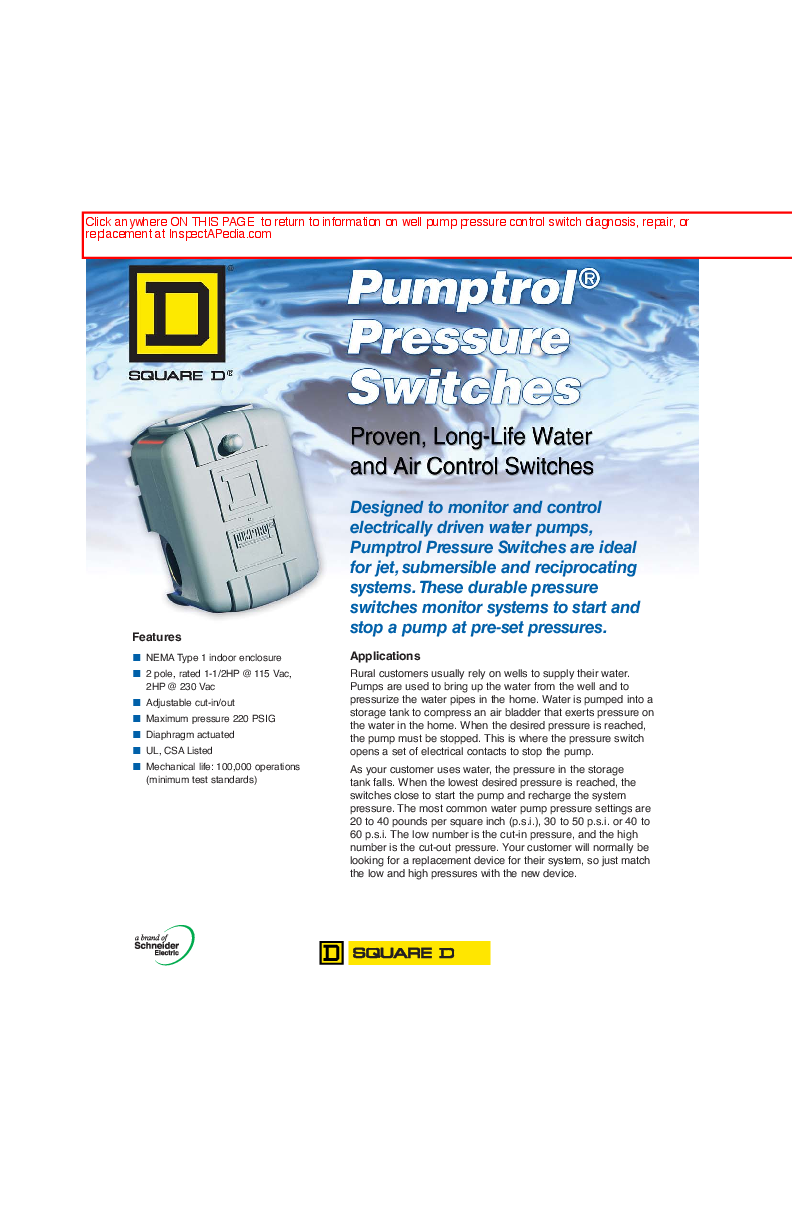

Pumptrol® Pressure Switches
Proven, Long-Life Water and Air Control Switches
Designed to monitor and control electrically driven water pumps, Pumptrol Pressure Switches are ideal for jet, submersible and reciprocating systems. These durable pressure switches monitor systems to start and stop a pump at pre-set pressures.
Features
- NEMA Type 1 indoor enclosure
- 2 pole, rated 1-1/2HP @ 115 Vac, 2HP @ 230 Vac
- Adjustable cut-in/out
- Maximum pressure 220 PSIG
- Diaphragm actuated
- UL, CSA Listed
- Mechanical life: 100,000 operations (minimum test standards)
Applications for Water Pumps
Rural customers usually rely on wells to supply their water. Pumps are used to bring up the water from the well and to pressurize the water pipes in the home. Water is pumped into a storage tank to compress an air bladder that exerts pressure on the water in the home. When the desired pressure is reached, the pump must be stopped. This is where the pressure switch opens a set of electrical contacts to stop the pump.
As your customer uses water, the pressure in the storage tank falls. When the lowest desired pressure is reached, the switches close to start the pump and recharge the system pressure. The most common water pump pressure settings are 20 to 40 pounds per square inch (p.s.i.), 30 to 50 p.s.i. or 40 to 60 p.s.i. The low number is the cut-in pressure, and the high number is the cut-out pressure. Customers will normally be looking for a replacement device for their system, so just match the low and high pressures with the new device.
A brand of Schneider Electric
SQUARE D®
Water Pump Pressure Switches – Type FSG
| Cut-in Pressure (PSIG) | Cut-Out Pressure (PSIG) | Pressure Connection (NPSF Internal) | Additional Features | Catalog Number |
|---|---|---|---|---|
| 20 | 40 | 1/4" | FSG2J18CP | |
| 20 | 40 | 1/4" | FSG2J20BP | |
| 20 | 40 | 1/4" | FSG2J20CP | |
| 20 | 40 | 1/4" | Manual cut-out lever | FSG2J20M1BP |
| 20 | 40 | 1/4" | Manual cut-out lever | FSG2J20M1CP |
| 20 | 40 | 1/4" | Low pressure cut-off | FSG2J20M4BP |
| 20 | 40 | 1/4" | Low pressure cut-off | FSG2J20M4CP |
| 20 | 40 | 1/4" | Pulsation plug | FSG2J20PBP |
| 20 | 40 | 1/4" | Pulsation plug | FSG2J20PCP |
| 20 | 40 | 3/8" | FSG3J20BP | |
| 20 | 40 | 3/8" | FSG3J20CP | |
| 30 | 50 | 1/4" | FSG2J21BP | |
| 30 | 50 | 1/4" | FSG2J21CP | |
| 30 | 50 | 1/4" | Manual cut-out lever | FSG2J21M1BP |
| 30 | 50 | 1/4" | Manual cut-out lever | FSG2J21M1CP |
| 30 | 50 | 1/4" | Low pressure cut-off | FSG2J21M4BP |
| 30 | 50 | 1/4" | Low pressure cut-off | FSG2J21M4CP |
| 40 | 60 | 1/4" | FSG2J24BP | |
| 40 | 60 | 1/4" | FSG2J24CP | |
| 40 | 60 | 1/4" | Low pressure cut-off | FSG2J24M4BP |
| 40 | 60 | 1/4" | Low pressure cut-off | FSG2J24M4CP |
Pumptrol Air Compressor Switches
Pumptrol Air Compressor Switches are ideal for controlling small electrically driven compressors. Pumptrol Air Compressor Switches are factory set with the following cut-out pressure settings: 100, 125 or 150 p.s.i.
Features
- NEMA Type 1 indoor enclosure
- 2-pole switch rated 1-1/2HP @ 115 Vac, 2HP @ 230 Vac
- Diaphragm actuated
- Adjustable cut-out pressure
- Fixed differential pressure, maximum pressure 220 PSIG
Air Compressor Pressure Switches – Type FHG
| Pressure Setting (PSIG) | Approx. Differential (PSIG) | Pressure Connection | Additional Features | Catalog Number |
|---|---|---|---|---|
| 100 | 20 | 1/4" | FHG2J27BP | |
| 100 | 20 | 1/4" | FHG2J27CP | |
| 100 | 20 | 1/4" | 2-way pressure relief | FHG2J27XCP |
| 125 | 30 | 1/4" | 2-way pressure relief | FHG12J52XBP |
| 125 | 30 | 1/4" | 2-way pressure relief | FHG12J52XCP |
| 150 | 30 | 1/4" | FHG12J55CP | |
| 150 | 30 | 1/4" | 2-way pressure relief | FHG12J55XBP |
| 150 | 30 | 1/4" | 2-way pressure relief | FHG12J55XCP |
