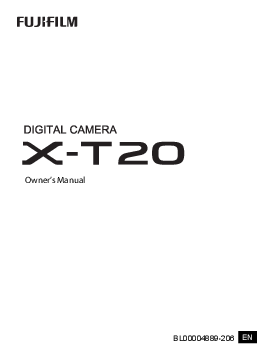

Owner's Manual BL00004889-206 EN

Introduction
Thank you for your purchase of this product. Be sure that you have read this manual and understood its contents before using the camera. Keep the manual where it will be read by all who use the product. For the Latest Information For the latest information on this product, including the latest versions of the manuals and sample color photographs, visit:
http://fujifilm-dsc.com/manuals/
The site can be accessed not only from your computer but also from smartphones and tablets.
ii

P Chapter Index

Menu List

1 Before You Begin

2 First Steps

3 Basic Photography and Playback

4 Movie Recording and Playback

5 Taking Photographs

6 The Shooting Menus

113

7 Playback and the Playback Menu

173

8 The Setup Menus

199

9 Shortcuts

241

10 Peripherals and Optional Accessories 255

11 Connections

277

12 Technical Notes

289

iii

Menu List

Menu List
Camera menu options are listed below.

Shooting Menus

Adjust settings when shooting photos or movies.

N See page 113 for details.

H IMAGE QUALITY SETTING

IMAGE SIZE

IMAGE QUALITY

RAW RECORDING

1/3

FILM SIMULATION GRAIN EFFECT

DYNAMIC RANGE

WHITE BALANCE

HIGHLIGHT TONE

SHADOW TONE

COLOR

SHARPNESS

NOISE REDUCTION

2/3 LONG EXPOSURE NR

LENS MODULATION

OPTIMIZER

COLOR SPACE

PIXEL MAPPING

SELECT CUSTOM SETTING

3/3 EDIT/SAVE CUSTOM

SETTING

P G AF/MF SETTING

115 FOCUS AREA

133

116 AF MODE

134

117 AF-C CUSTOM SETTINGS 135

118 AF POINT DISPLAY yz 136

120 121

1/2

NUMBER POINTS

THE

FOCUS

136

122 PRE-AF

137

126 AF-ILLUMINATOR

137

126 FACE/EYE DETECTION 127 SETTING

138

127 AF+MF

140

128 MF ASSIST

141

128 FOCUS CHECK

141

129

INTERLOCK SPOT AE & 2/2 FOCUS AREA

142

129 INSTANT AF SETTING 142

130 DEPTH-OF-FIELD SCALE 143

131 RELEASE/FOCUS PRIORITY 143

131 TOUCH SCREEN MODE 144

Menu List

A SHOOTING SETTING

P F FLASH SETTING

SCENE POSITION

147 FLASH FUNCTION SETTING 164

DRIVE SETTING

149 RED EYE REMOVAL

165

SELF-TIMER

151 TTL-LOCK MODE

166

INTERVAL TIMER 1/2 SHOOTING

152

LED LIGHT SETTING MASTER SETTING

167 167

PHOTOMETRY

154 CH SETTING

168

2/2

SHUTTER TYPE IS MODE ISO MOUNT ADAPTOR SETTING WIRELESS COMMUNICATION

155 156 157 160
163

B MOVIE SETTING MOVIE MODE MOVIE AF MODE HDMI OUTPUT INFO DISPLAY 4K MOVIE OUTPUT HDMI REC CONTROL

P
169 170 170 171 171

MIC LEVEL ADJUSTMENT 172

MIC/REMOTE RELEASE

172

The Playback Menu

Adjust playback settings.

N See page 180 for details.

C PLAY BACK MENU RAW CONVERSION ERASE CROP RESIZE
1/2 PROTECT IMAGE ROTATE RED EYE REMOVAL WIRELESS COMMUNICATION

P C PLAY BACK MENU

180 SLIDE SHOW

191

183 PHOTOBOOK ASSIST

192

186 187

2/2

PC AUTO SAVE PRINT ORDER

(DPOF)

194 195

188 instax PRINTER PRINT 197

189 DISP ASPECT

198

190

191

Menu List

Setup Menus Adjust basic camera settings.

N See page 199 for details.

D USER SETTING FORMAT DATE/TIME TIME DIFFERENCE a
MY MENU SETTING SENSOR CLEANING SOUND & FLASH RESET
D SOUND SETTING AF BEEP VOL. SELF-TIMER BEEP VOL. OPERATION VOL. SHUTTER VOLUME SHUTTER SOUND PLAYBACK VOLUME

P D SCREEN SETTING

201 EVF BRIGHTNESS

212

202 EVF COLOR

213

203 LCD BRIGHTNESS

213

204 LCD COLOR

214

204 1/2 IMAGE DISP.

214

206 EVF AUTOROTATE DISPLAYS 215

206 PREVIEW EXP./WB IN 207 MANUAL MODE

215

P PREVIEW PIC. EFFECT 216

208 FRAMING GUIDELINE

209 209 210

2/2

AUTOROTATE FOCUS SCALE

PB UNITS

DISP. CUSTOM SETTING

217 218 218 219

210

211

Menu List

D BUTTON/DIAL SETTING

EDIT/SAVE QUICK MENU

Fn/AE-L/AF-L BUTTON

SETTING

SELECTOR BUTTON

1/2

SETTING COMMAND

DIAL

SETTING

SHUTTER AF

SHUTTER AE

SHOOT WITHOUT LENS

FOCUS RING

AE/AF-LOCK MODE

2/2 APERTURE SETTING

TOUCH SCREEN SETTING

Menu List

P D POWER MANAGEMENT P

222 AUTO POWER OFF

231

224 PERFORMANCE

232

D SAVE DATA SETTING

226 FRAME NO.

234

226

SAVE ORG IMAGE EDIT FILE NAME

227 COPYRIGHT INFO

235 235 236

227 228 228 229 229

D CONNECTION SETTING WIRELESS SETTINGS PC AUTO SAVE SETTING GEOTAGGING SET-UP

P
237 238 238

230

instax PRINTER SETTING

CONNECTION

239

vii

P Table of Contents
Introduction................................................................................. ii For the Latest Information..............................................................ii
Menu List...................................................................................... iv Shooting Menus................................................................................. iv The Playback Menu ........................................................................... v Setup Menus......................................................................................... vi
Supplied Accessories ............................................................. xix About This Manual................................................................... xx
Symbols and Conventions..........................................................xx Terminology ......................................................................................... xx

1 Before You Begin

Parts of the Camera................................................................... 2 The Serial Number Plate.................................................................4 The Selector............................................................................................ 4 The Shutter Speed Dial.................................................................... 5 The Exposure Compensation Dial............................................ 5 The Drive Dial........................................................................................6 The Auto Mode Selector Lever................................................... 7 The Command Dials .........................................................................8 The Indicator Lamp ........................................................................ 10 The LCD Monitor .............................................................................. 11 Focusing the Viewfinder.............................................................. 11

viii

Table of Contents
Camera Displays .......................................................................12 Electronic Viewfinder/LCD Monitor...................................... 12 Choosing a Display Mode .......................................................... 14 Adjusting Display Brightness.................................................... 15 The Viewfinder Display................................................................. 15 The DISP/BACK Button ................................................................. 16 Customizing the Standard Display ....................................... 17
Using the Menus ......................................................................20 Touch Screen Mode.................................................................22
Shooting Touch Controls ............................................................ 22 Playback Touch Controls ............................................................. 24

2 First Steps

Attaching the Strap.................................................................28 Attaching a Lens.......................................................................30 Charging the Battery ..............................................................32 Inserting Batteries and Memory Cards ............................36
Compatible Memory Cards ....................................................... 40 Turning the Camera On and Off .........................................42 Checking the Battery Level...................................................43 Basic Setup .................................................................................44
Choosing a Different Language.............................................. 46 Changing the Time and Date................................................... 46

3 Basic Photography and Playback

Taking Photographs (Mode P).............................................48 aViewing Pictures.................................................................51 b Deleting Pictures .................................................................52

4 Movie Recording and Playback

F Recording Movies ..............................................................54 Adjusting Movie Settings............................................................ 57
aViewing Movies...................................................................58

5 Taking Photographs

Choosing a Shooting Mode .................................................62 Mode P: Program AE ...................................................................... 62 Mode S: Shutter-Priority AE ....................................................... 64 Mode A: Aperture-Priority AE................................................... 69 Mode M: Manual Exposure........................................................ 72 Auto Mode........................................................................................... 74
Autofocus....................................................................................77 Focus Mode......................................................................................... 78 Autofocus Options (AF Mode)................................................. 80 Focus-Point Selection.................................................................... 82
Manual Focus.............................................................................87 Checking Focus................................................................................. 89
d Exposure Compensation.................................................91 C (Custom) ........................................................................................... 91
Focus/Exposure Lock ..............................................................92 The AF-L and AE-L Buttons........................................................ 93

Table of Contents
BKT Bracketing............................................................................94 O AE BKT............................................................................................. 95 W ISO BKT........................................................................................... 95 X FILM SIMULATION BKT ......................................................... 95 HWHITE BALANCE BKT............................................................. 96 Y DYNAMIC RANGE BKT........................................................... 96
I Continuous Shooting (Burst Mode) ............................97 ADV. Advanced Filters...............................................................99
Advanced Filter Options............................................................100 j Multiple Exposures......................................................... 101 u Panoramas ........................................................................ 103 Flash Photography................................................................ 107
Flash Settings ...................................................................................109

6 The Shooting Menus

113

H IMAGE QUALITY SETTING ............................................. 114 IMAGE SIZE.........................................................................................115 IMAGE QUALITY ..............................................................................116 RAW RECORDING ...........................................................................117 FILM SIMULATION..........................................................................118 GRAIN EFFECT..................................................................................120 DYNAMIC RANGE ...........................................................................121 WHITE BALANCE.............................................................................122 HIGHLIGHT TONE ...........................................................................126 SHADOW TONE ...............................................................................126 COLOR ...................................................................................................127 SHARPNESS ........................................................................................127

NOISE REDUCTION........................................................................128 LONG EXPOSURE NR....................................................................128 LENS MODULATION OPTIMIZER ...........................................129 COLOR SPACE ...................................................................................129 PIXEL MAPPING ...............................................................................130 SELECT CUSTOM SETTING........................................................131 EDIT/SAVE CUSTOM SETTING.................................................131 G AF/MF SETTING ................................................................ 133 FOCUS AREA .....................................................................................133 AF MODE.............................................................................................134 AF-C CUSTOM SETTINGS...........................................................135 AF POINT DISPLAY yz ..........................................................136 NUMBER OF THE FOCUS POINTS .........................................136 PRE-AF ...................................................................................................137 AF ILLUMINATOR ............................................................................137 FACE/EYE DETECTION SETTING ............................................138 AF+MF ..................................................................................................140 MF ASSIST ...........................................................................................141 FOCUS CHECK..................................................................................141 INTERLOCK SPOT AE & FOCUS AREA..................................142 INSTANT AF SETTING ...................................................................142 DEPTH-OF-FIELD SCALE.............................................................143 RELEASE/FOCUS PRIORITY .......................................................143 TOUCH SCREEN MODE...............................................................144 A SHOOTING SETTING........................................................ 147 SCENE POSITION.............................................................................147 DRIVE SETTING.................................................................................149
xii

Table of Contents
SELF-TIMER .........................................................................................151 INTERVAL TIMER SHOOTING....................................................152 PHOTOMETRY...................................................................................154 SHUTTER TYPE .................................................................................155 IS MODE ...............................................................................................156 ISO ...........................................................................................................157 MOUNT ADAPTOR SETTING....................................................160 WIRELESS COMMUNICATION .................................................163 F FLASH SETTING................................................................. 164 FLASH FUNCTION SETTING.....................................................164 RED EYE REMOVAL ........................................................................165 TTL-LOCK MODE.............................................................................166 LED LIGHT SETTING ......................................................................167 MASTER SETTING ...........................................................................167 CH SETTING .......................................................................................168 B MOVIE SETTING ................................................................ 169 MOVIE MODE....................................................................................169 MOVIE AF MODE ............................................................................170 HDMI OUTPUT INFO DISPLAY.................................................170 4K MOVIE OUTPUT ........................................................................171 HDMI REC CONTROL....................................................................171 MIC LEVEL ADJUSTMENT ..........................................................172 MIC/REMOTE RELEASE ................................................................172

7 Playback and the Playback Menu

173

The Playback Display ........................................................... 174 The DISP/BACK Button ...............................................................176

xiii

Viewing Pictures.................................................................... 178 Playback Zoom................................................................................179 Multi-Frame Playback..................................................................179
CThe Playback Menu ......................................................... 180 RAW CONVERSION ........................................................................180 ERASE .....................................................................................................183 CROP ......................................................................................................186 RESIZE ....................................................................................................187 PROTECT ..............................................................................................188 IMAGE ROTATE .................................................................................189 RED EYE REMOVAL ........................................................................190 WIRELESS COMMUNICATION .................................................191 SLIDE SHOW......................................................................................191 PHOTOBOOK ASSIST ....................................................................192 PC AUTO SAVE..................................................................................194 PRINT ORDER (DPOF)...................................................................195 instax PRINTER PRINT...................................................................197 DISP ASPECT .....................................................................................198

8 The Setup Menus

199

D USER SETTING ................................................................... 200 FORMAT ...............................................................................................201 DATE/TIME ..........................................................................................202 TIME DIFFERENCE ..........................................................................203 a ..........................................................................................204 MY MENU SETTING.......................................................................204 SENSOR CLEANING .......................................................................206

xiv

Table of Contents
SOUND & FLASH.............................................................................206 RESET .....................................................................................................207 D SOUND SETTING .............................................................. 208 AF BEEP VOL. .....................................................................................208 SELF-TIMER BEEP VOL. .................................................................209 OPERATION VOL..............................................................................209 SHUTTER VOLUME.........................................................................210 SHUTTER SOUND...........................................................................210 PLAYBACK VOLUME ......................................................................211 D SCREEN SETTING.............................................................. 212 EVF BRIGHTNESS.............................................................................212 EVF COLOR .........................................................................................213 LCD BRIGHTNESS............................................................................213 LCD COLOR ........................................................................................214 IMAGE DISP.........................................................................................214 EVF AUTOROTATE DISPLAYS ....................................................215 PREVIEW EXP./WB IN MANUAL MODE...............................215 PREVIEW PIC. EFFECT...................................................................216 FRAMING GUIDELINE...................................................................217 AUTOROTATE PB .............................................................................218 FOCUS SCALE UNITS ....................................................................218 DISP. CUSTOM SETTING..............................................................219 D BUTTON/DIAL SETTING ................................................. 221 EDIT/SAVE QUICK MENU............................................................222 Fn/AE-L/AF-L BUTTON SETTING...........................................224 SELECTOR BUTTON SETTING..................................................226 COMMAND DIAL SETTING .......................................................226
xv

SHUTTER AF.......................................................................................227 SHUTTER AE.......................................................................................227 SHOOT WITHOUT LENS ..............................................................228 FOCUS RING ......................................................................................228 AE/AF-LOCK MODE.......................................................................229 APERTURE SETTING ......................................................................229 TOUCH SCREEN SETTING..........................................................230 D POWER MANAGEMENT.................................................. 231 AUTO POWER OFF.........................................................................231 PERFORMANCE ................................................................................232 D SAVE DATA SETTING........................................................ 233 FRAME NO. .........................................................................................234 SAVE ORG IMAGE ...........................................................................235 EDIT FILE NAME...............................................................................235 COPYRIGHT INFO ...........................................................................236 D CONNECTION SETTING.................................................. 237 WIRELESS SETTINGS .....................................................................237 PC AUTO SAVE SETTING.............................................................238 GEOTAGGING SET-UP ..................................................................238 instax PRINTER CONNECTION SETTING ...........................239

9 Shortcuts

241

Shortcut Options................................................................... 242 The Q (Quick Menu) Button............................................... 243
The Quick Menu Display ...........................................................243 Viewing and Changing Settings...........................................245 Editing the Quick Menu.............................................................246

xvi

Table of Contents
The Fn (Function) Buttons ................................................. 248 Assigning Roles to the Function Buttons........................250
E MY MENU............................................................................ 252 MY MENU SETTING.......................................................................252

10 Peripherals and Optional Accessories

255

External Flash Units.............................................................. 256 Flash Settings ...................................................................................257 SYNC TERMINAL..............................................................................259 BUILT-IN FLASH................................................................................260 SHOE MOUNT FLASH ..................................................................262 MASTER(OPTICAL) .........................................................................266
Lenses........................................................................................ 271 Lens Parts............................................................................................271 Removing Lens Caps ...................................................................272 Attaching Lens Hoods ................................................................272 Lenses with Aperture Rings.....................................................273 Lenses with No Aperture Rings.............................................274 Lenses with O.I.S. Switches.......................................................274 Manual Focus Lenses...................................................................275 Lens Care.............................................................................................276

11 Connections

277

HDMI Output .......................................................................... 278 Connecting to HDMI Devices ................................................278 Shooting ..............................................................................................279 Playback ...............................................................................................279

xvii

Wireless Transfer.................................................................... 280 Wireless Connections: Smartphones.................................280 Wireless Connections: Computers ......................................281
Connecting to Computers via USB ................................. 282 Windows .............................................................................................282 Mac OS X/macOS...........................................................................283 Connecting the Camera............................................................283
instax SHARE Printers .......................................................... 286 Establishing a Connection .......................................................286 Printing Pictures..............................................................................287

12 Technical Notes

289

Accessories from FUJIFILM ................................................ 290 For Your Safety ....................................................................... 294 Product Care ........................................................................... 307 Cleaning the Image Sensor ............................................... 308 Firmware Updates................................................................. 309
Checking the Firmware Version............................................309 Troubleshooting.................................................................... 310 Warning Messages and Displays ..................................... 319 Memory Card Capacity ....................................................... 323 Specifications ......................................................................... 324

xviii

Supplied Accessories
The following are included with the camera:
· NP-W126S rechargeable battery · BC-W126 battery charger · Body cap · Metal strap clips (× 2) · Clip attaching tool · Protective covers (× 2) · Shoulder strap · Owner's Manual (this manual) N If you purchased a lens kit, check that a lens is included.
xix

About This Manual
This manual contains instructions for your FUJIFILM X-T20 digital camera. Be sure you have read and understood its contents before proceeding.
Symbols and Conventions
The following symbols are used in this manual:
O Information that should be read to prevent
damage to the product.
N Additional information that may be helpful
when using the product.
P Pages on which related information may be found.
Menus and other text in the displays are shown in bold. Illustrations are for explanatory purposes only; drawings may be simplified, while photographs are not necessarily taken with the model of camera described in this manual.
Terminology
The optional SD, SDHC, and SDXC memory cards the camera uses to store pictures are referred to as "memory cards". The electronic viewfinder may be referred to as the "EVF" and the LCD monitor as the "LCD".
xx

Before You Begin
1

Parts of the Camera
1

Before You Begin

A Exposure compensation dial
.....................................................5, 91
B Shutter button............................... 50 C Auto mode selector lever.................7 D Shutter speed dial................ 5, 64, 72 E Hot shoe........................................256 F Drive dial............................................6 G N (flash pop-up) lever.................107 H Strap eyelet..................................... 28 I Connector cover J Focus mode selector.................... 78 K Lens signal contacts L Lens release button...................... 31 M Microphone .................................172

N AF-assist illuminator.................137
Self-timer lamp .........................151
O Front command dial .............8, 226 P ON/OFF switch............................... 42 Q Fn1 button....................................248 R Flash .................................................107 S Body cap ......................................... 30 T Microphone/remote release
connector ( 2.5 mm) ......................................... 55, 68, 172
U HDMI Micro connector (Type D)
.......................................................278
V Micro USB (Micro-B)
USB 2.0 connector...........35, 68, 283

Parts of the Camera
1

Before You Begin

W b (delete) button ........................ 52 X a (playback) button................. 51 Y Diopter adjustment control ...... 11 Z Electronic viewfinder (EVF)
............................................12, 14, 15
a VIEW MODE button....................... 14 b AE-L (exposure lock) button ...... 93 c Rear command dial
......................................... 9, 178, 226
d AF-L (focus lock) button ...............93 e Indicator lamp ........................10, 35 f Q (quick menu) button .............243 g Selector buttons......................4, 226 h MENU/OK button ......................4, 20

i DISP (display)/BACK button
................................................ 16, 176
j Cable channel cover for
DC coupler..................................290
k Battery-chamber cover .............. 36 l Battery-chamber cover latch.... 36 m Serial number plate........................4 n Tripod mount o Speaker............................................ 58 p LCD monitor..................11, 12, 14, 15 q Eye sensor ........................................14 r Battery latch .................................. 39 s Battery chamber .......................... 36 t Memory card slot ......................... 36

Before You Begin

The Serial Number Plate Do not remove the serial number plate, which provides the FCC ID, KC mark, serial number, and other important information. 1 The Selector Press the selector up (e), right (h), down (f), or left (g) to highlight items. The up, down, left, and right buttons also double as function buttons Fn2 through Fn5 (P 248). Control Lock To prevent accidental operation of the selector and Q button during shooting, press MENU/OK until X is displayed. The controls can be unlocked by pressing MENU/OK until X is no longer displayed.
4

The Shutter Speed Dial
The shutter speed dial is used to choose the shutter speed.

Parts of the Camera

1
The Exposure Compensation Dial Rotate the dial to choose an exposure compensation amount.

Before You Begin

The Drive Dial
Rotate the dial to choose from the following the drive modes.

Mode

F Movie

54 S Single frame

BKT1 BKT2

Bracketing

Adv.1 Adv.2

Advanced

filter

CH High-speed burst CL Low-speed burst

j Multiple exposure u Panorama

101 103

Before You Begin

The Auto Mode Selector Lever
Switch between auto and manual modes.

Parts of the Camera

Position

Mode Select from P (program AE), S (shutter-priority AE), A (aperture-priority AE), and M (manual) modes
(P 62, 64, 69, 72). Adjust shutter speed
and aperture using program shift (mode P) or set shutter speed and/or aperture manually (modes S, A, and M). Auto mode. The camera adjusts settings automatically according to the option selected by rotating the front command dial. Choose from modes suit-
ed to specific subject types (P 74), or select
S ADVANCED SR AUTO to let the camera auto-
matically match the mode to the subject (P 74).
Scene selection is not available in drive modes Adv.1, Adv.2, j, and u.

N Restrictions may apply to camera settings depending on
the mode and shooting conditions.

Before You Begin

The Command Dials Rotate or press the command dials to:
Front command dial 1

Rotate Press

· Select menu tabs or page through menus. · Adjust aperture. · Select a scene when shooting in auto mode. · Adjust exposure compensation when C is selected with
exposure compensation dial.
· View other pictures during playback.
Switch back and forth between aperture and exposure compensation when C is selected with the exposure compensation dial.

Before You Begin

Rear command dial

Parts of the Camera

1
· Highlight menu items. · Choose the desired combination of shutter speed

Rotate and aperture (program shift).

· Choose a shutter speed. · Adjust settings in the quick menu. · Choose the size of the focus frame. · Zoom in or out in full-frame or multi-frame playback.

Press

· Zoom in on the active focus point during playback. · Perform the function assigned to the DIAL function

button.

· Press and hold to choose the manual focus mode fo-

cus display.

Before You Begin

The Indicator Lamp
When the viewfinder is not in use, camera status is shown by the indicator lamp.
1

Indicator lamp

Camera status

Glows green Focus locked.

Blinks green

Focus or slow shutter speed warning. Pictures can be taken.

Blinks green Recording pictures. Additional pictures can be tak-

and orange en.

Glows orange

Recording pictures. taken at this time.

additional

pictures

can

Blinks orange Flash charging; flash will not fire when picture is taken.

Blinks red Lens or memory error.

N Warnings may also appear in the display.

Before You Begin

The LCD Monitor
The LCD monitor can be tilted for easier viewing, but be careful not to touch the wires or trap fingers or other objects behind the monitor. Touching the wires could cause camera malfunction.

Parts of the Camera
1

N The LCD monitor also functions as a touch screen
(P 22, 144).

Focusing the Viewfinder
The camera is equipped with diopter adjustment in the range -4 to +2 m1 to accommodate individual differences in vision. Rotate the diopter adjustment control until the viewfinder display is in sharp focus.

Before You Begin

Camera Displays

This section lists the indicators that may be displayed during shooting.

O For illustrative purposes, displays are shown with all indi-

cators lit.

Electronic Viewfinder/LCD Monitor

12/31/2050 10:00 AM

12000

Before You Begin

Camera Displays

A Focus check........................... 89, 141 U Sensitivity......................................157

B Depth-of-field preview .........70, 89 V Exposure compensation ............ 91

C Location data download

W Aperture .............................63, 69, 72

status............................................238 X Shutter speed....................63, 64, 72

D Movie mode.......................... 54, 169 Y TTL lock .......................166, 225, 251

E Time remaining ............................ 54 Z AE lock ............................. 92, 93, 227 F Number of available frames* ...323 a Metering........................................154 1

G Image quality and size ....115, 116 b Shooting mode............................. 62

H Date and time.............44, 202, 203 c Focus indicator.............................. 79

I Focus frame .............................82, 92 d Manual focus indicator.............. 87

J Virtual horizon .............................. 18 e Focus mode.................................... 78

K Focus warning ..................... 50, 319 f AF lock ............................. 92, 93, 227

L White balance.............................122 g AF+MF indicator........................140

M Film simulation...........................118 h Shutter type..................................155

N Dynamic range...........................121 i Continuous mode ........................ 97

O Temperature warning...............322 j Exposure indicator .................72, 91

P Control lock.......................................4 k Self-timer indicator....................151

Q Sound and flash indicator.......206 l Microphone/remote release ...172

R Histogram....................................... 19 m Flash (TTL) mode .......................109

S Distance indicator........................ 89

Flash compensation................109

T Battery level ................................... 43

* Shows "9999" if there is space for over 9999 frames.

Control Lock Pressing a locked control displays a X icon.

Before You Begin

Choosing a Display Mode Press the VIEW MODE button to cycle through the following display modes:
1 · E EYE SENSOR: Putting your eye
to the viewfinder turns the viewfinder on and the LCD monitor off; taking your eye away turns the viewfinder off and LCD monitor on.
· EVF ONLY: Viewfinder on, LCD monitor off. · LCD ONLY: LCD monitor on, viewfinder off. · EVF ONLY + E: Putting your eye to the viewfinder
turns the viewfinder on; taking it away turns the viewfinder off. The LCD monitor remains off. The Eye Sensor The eye sensor may respond to objects other than your eye or to light shining directly on the sensor.
Eye sensor
14

Before You Begin

Camera Displays
Adjusting Display Brightness The brightness and hue of the viewfinder and LCD monitor can be adjusted using the items in the D SCREEN SETTING menu. Choose EVF BRIGHTNESS or EVF COLOR to adjust viewfinder brightness or hue, 1 LCD BRIGHTNESS or LCD COLOR to do the same for the LCD monitor. The Viewfinder Display When ON is selected for D SCREEN SETTING > EVF AUTOROTATE DISPLAYS, the indicators in the viewfinder automatically rotate to match camera orientation.
O The display in the LCD monitor is unaffected.
15

Before You Begin

The DISP/BACK Button
The DISP/BACK button controls the display of indicators in the viewfinder and LCD monitor.
1

Viewfinder Standard

Information off

P
LCD Monitor Standard

Information off

Info display
16

Camera Displays
Customizing the Standard Display To choose the items shown in the standard display:

1 Display standard indicators.

Use the DISP/BACK button to display standard in-

dicators.

Before You Begin

2 Select DISP. CUSTOM SETTING.
Select D SCREEN SETTING > DISP. CUSTOM SETTING in the setup menu.

3 Choose items.

Highlight items and press MENU/OK to select or

deselect.
· FRAMING GUIDELINE · ELECTRONIC LEVEL · FOCUS FRAME · AF DISTANCE INDICATOR · MF DISTANCE INDICATOR · HISTOGRAM · SHOOTING MODE · APERTURE/S-SPEED/ISO · INFORMATION
BACKGROUND
· Expo. Comp. (Digit) · Expo. Comp. (Scale) · FOCUS MODE · PHOTOMETRY

· SHUTTER TYPE · FLASH · CONTINUOUS MODE · DUAL IS MODE · TOUCH SCREEN MODE · WHITE BALANCE · FILM SIMULATION · DYNAMIC RANGE · FRAMES REMAINING · IMAGE SIZE/QUALITY · MOVIE MODE & REC. TIME · BATTERY LEVEL · FRAMING OUTLINE

Before You Begin

4 Save changes.
Press DISP/BACK to save changes.

5 Exit the menus.

Press DISP/BACK as needed to exit the menus and

return to the shooting display.

Virtual Horizon Selecting ELECTRONIC LEVEL displays a virtual horizon. The camera is level when the two lines overlap. Note that the virtual horizon may not be displayed if the camera lens is pointed up or down.

Framing Outline Enable FRAMING OUTLINE to make the borders of the frame easier to see against dark backgrounds.

Before You Begin

Camera Displays

Histograms Histograms show the distribution of tones in the image. Brightness is shown by the horizontal axis, the number of pixels by the vertical axis.

Number of

pixels

Shadows

Highlights

Pixel brightness
· Optimal exposure: Pixels are distributed

in an even curve throughout the tone

range.
· Overexposed: Pixels are clustered on the

right side of the graph.

· Underexposed: Pixels are clustered on the
left side of the graph.

Before You Begin

Using the Menus
To display the menus, press MENU/OK.

Shooting

IMAGE QUALITY SETTING

IMAGE SIZE IMAGE QUALITY

RAW RECORDING

FILM SIMULATION

GRAIN EFFECT

DYNAMIC RANGE

WHITE BALANCE

HIGHLIGHT TONE

EXIT

To navigate the menus:

Playback
PLAY BACK MENU
RAW CONVERSION ERASE CROP RESIZE PROTECT IMAGE ROTATE RED EYE REMOVA WIRELESS COMMUNICATION
EXIT

1 Press MENU/OK to display the
menus.

IMAGE QUALITY SETTING
IMAGE SIZE IMAGE QUALITY RAW RECORDING FILM SIMULATION GRAIN EFFECT DYNAMIC RANGE WHITE BALANCE HIGHLIGHT TONE
EXIT

2 Press the selector left to high-
light the tab for the current menu.

IMAGE QUALITY SETTING
IMAGE SIZE IMAGE QUALITY RAW RECORDING FILM SIMULATION GRAIN EFFECT DYNAMIC RANGE WHITE BALANCE HIGHLIGHT TONE
EXIT

Tab

Using the Menus
3 Press the selector up or down to highlight the tab
(H, G, A, F, B, E, C or D) containing the desired item.

4 Press the selector right to place the cursor in the

menu.

N Use the front command dial to select menu tabs or page
through menus and the rear command dial to highlight
menu items.

Before You Begin

Touch Screen Mode
Use touch controls for shooting or playback.

Shooting Touch Controls
1 Touch controls can be used for such operations as choosing the focus area and taking photographs. The operation performed can be selected by tapping the touchscreen mode indicator in the display to cycle through the following options:

Mode TOUCH SHOOTING

Description

Tap your subject in the display to focus and release the shutter.

Tap to select a focus point. In focus mode S

(AF-S), focus will lock, while in focus mode C

(AF-C), the camera will continually adjust focus

in response to changes in the distance to the

subject.

Before You Begin

Touch Screen Mode

Mode

Description

AREA

Tap to select a point for focus or zoom. The focus frame will move to the selected point.

OFF

Touch controls off. The display does not respond

when tapped.

N Touch control settings can be adjusted using G AF/
MF SETTING > TOUCH SCREEN MODE (P 144). To
disable touch controls and hide the touch screen mode
indicator, select OFF for D BUTTON/DIAL SETTING >
TOUCH SCREEN SETTING.

Before You Begin

Playback Touch Controls When ON is selected for D BUTTON/DIAL SETTING > TOUCH SCREEN SETTING, touch controls can be used for the following playback operations:
1 · Swipe: Swipe a finger across the
display to view other images.
· Pinch-out: Place two fingers on the
display and spread them apart to zoom in.
· Pinch-in: Place two fingers on the
display and slide them together to zoom out.
N Pictures can be zoomed out until the entire image is
visible but no further.
· Double-tap: Tap the display twice
to zoom in on the selected area.
24

Before You Begin

Touch Screen Mode
· Drag: View other areas of the im-
age during playback zoom. 1
25

MEMO
26

First Steps
27

Attaching the Strap
Attach the strap clips to the camera and then attach the strap.

1 Open a strap clip.

Use the clip attaching tool to

open a strap clip, making sure

that the tool and clip are in the

orientations shown.

First Steps

2 Place the strap clip on an eyelet.
Hook the strap eyelet in the clip opening. Remove the tool, using the other hand to keep the clip in place.
O Keep the tool in a safe place,
as you will need it to open the strap clips when removing the strap.
28

3 Pass the clip through the eyelet.
Rotate the clip fully through the eyelet until it clicks closed.

Attaching the Strap

4 Attach a protective cover.

Place a protective cover over

the eyelet as shown, with the

black side of the cover toward

the camera.

First Steps

5 Fasten the strap.
Insert the strap through a protective cover and strap clip and fasten as shown.
O To avoid dropping the camera,
be sure the strap is correctly secured.
Repeat Steps 15 for the second eyelet.
29

First Steps

Attaching a Lens
The camera can be used with lenses for the FUJIFILM X-mount. Remove the body cap from the camera and the rear cap from the 2 lens. Place the lens on mount, keeping the marks on the lens and camera aligned, and then rotate the lens until it clicks into place.
O When attaching lenses, ensure that dust or other foreign
matter does not enter the camera and be careful not to touch the camera's internal parts. Do not press the lens release button while attaching the lens and be sure the latch has securely clicked into place.
30

First Steps

Removing Lenses To remove the lens, turn the camera off, then press the lens release button and rotate the lens as shown.

Attaching a Lens

O To prevent dust accumulating on the

lens or inside the camera, replace

the lens caps and camera body cap when the lens is not attached.

Lenses and Other Optional Accessories The camera can be used with lenses and accessories for the FUJIFILM X-mount.

O Before attaching or removing (exchanging) lenses, at-
tach the lens caps and check that the lenses are free of dust and other foreign matter. Do not change lenses in direct sunlight or under another bright light source, as light focused into the interior of the camera could cause it to malfunction.

Charging the Battery

The battery is not charged at shipment. Before use, charge the battery in the supplied battery charger.

O An NP-W126S rechargeable battery is supplied with the

camera. Charging takes about 150 minutes.

1 Place the battery in the charger.
Place the battery in the sup-

plied battery charger as shown.

CHARGE
First Steps

2 Plug the charger in.
Plug the charger into an indoor power outlet. The charging indicator will light.
3 Charge the battery.
Remove the battery when charging is complete.
32

Charging the Battery
The Charging Indicator The charging indicator shows battery charge status as follows:
Charging indicator

Off
On Blinks

Battery status

Action

Battery not inserted.

Insert the battery.

Battery fully charged.

Remove the battery.

Battery charging.

Battery fault.

Unplug the charger and remove the battery.

First Steps

O The supplied AC cord is for use exclusively with the sup-
plied battery charger. Do not use the supplied charger
with other cords or the supplied cord with other devices.

Do not affix labels or other objects to the battery. Failure to observe this precaution could make it impossible to remove the battery from the camera.

Do not short the battery terminals. The battery could

overheat.

Read the cautions in "The Battery and Power Supply".

Use only battery chargers designated for use with the battery. Failure to observe this precaution could result in product malfunction.

Do not remove the labels from the battery or attempt to split or peel the outer casing.

The battery gradually loses its charge when not in use. Charge the battery one or two days before use. If the battery fails to hold a charge, it has reached the end of its charging life and must be replaced.

Unplug the charger when it is not in use.

Remove dirt from the battery terminals with a clean, dry cloth. Failure to observe this precaution could prevent the battery from charging.

Note that charging times increase at low temperatures.

First Steps

Charging the Battery Charging via Computer The battery also charges if the camera is connected to a computer. Turn the camera off, insert the battery, and connect a USB cable as shown, making sure the connectors are fully inserted. The charging time of about 300 minutes is not affected by the type of cable used.
2

Charging status is shown by the indicator lamp.

Indicator lamp

Battery status

Battery charging

Off

Charging complete

Blinks

Battery fault

Connect the camera directly to the computer; do not use a USB hub or keyboard. Charging stops if the computer enters sleep mode; to resume charging, activate the computer and disconnect and reconnect the USB cable. Charging may not be supported depending on the model of computer, computer settings, and the computer's current state.

First Steps

Inserting Batteries and Memory Cards
After charging the battery, insert the battery and memory card as described below.
1 Open the battery-chamber cover.
2 Slide the battery-chamber latch as shown and open the battery-chamber cover.
O Do not open the battery-cham-
ber cover when the camera is on. Failure to observe this precaution could damage image files or memory cards. Do not use excessive force when handling the battery-chamber cover.
36

First Steps

Inserting Batteries and Memory Cards

2 Insert the battery.

Using the battery to keep the

battery latch pressed to one

side, insert the battery contacts

first in the direction shown by

the arrow. Confirm that the

battery is securely latched.

O Insert the battery in the orien-
tation shown. Do not use force or attempt to insert the battery upside down or backwards. The battery will slide in easily in the correct orientation.

3 Insert the memory card.
Holding the card in the orientation shown, slide it in until it clicks into place at the back of the slot.

O Be sure card is in the correct
orientation; do not insert at an
angle or use force.

First Steps

4 Close the battery-chamber cover.
Close and latch the cover.
O If the cover does not close,
check that the battery is in the correct orientation. Do not attempt to force the cover shut.
2
38

First Steps

Inserting Batteries and Memory Cards Removing the Battery Before removing the battery, turn the camera off and open the battery-chamber cover. To remove the battery, press the battery latch to the side, and slide the battery out of the camera as shown.
2
O The battery may become hot when used in high-tempera-
ture environments. Observe caution when removing the battery. Removing Memory Cards Before removing memory cards, turn the camera off and open the battery-chamber cover. Press and release the card to eject it part way (to prevent the card falling from the slot, press the center of the card and release it slowly, without removing your finger from the card). The card can then be removed by hand.
39

First Steps

Compatible Memory Cards FUJIFILM and SanDisk SD, SDHC, and SDXC memory cards have been approved for use in the camera; UHS-I is supported. Cards with a UHS speed class of 3 or better are recommended for movies. A complete list of approved memory cards is available at http://www. 2 fujifilm.com/support/digital_cameras/compatibility/. Operation is not guaranteed with other cards. The camera can not be used with xD-Picture Cards or MultiMediaCard (MMC) devices.
O Do not turn the camera off or remove the memory card
while the memory card is being formatted or data are being recorded to or deleted from the card. Failure to observe this precaution could damage the card. Memory cards can be locked, making it impossible to format the card or to record or delete images. Before inserting a memory card, slide the write-protect switch to the unlocked position.
40

First Steps

Inserting Batteries and Memory Cards
O Format memory cards before first use, and be sure to
reformat all memory cards after using them in a computer or other device.
Memory cards are small and can be swallowed; keep out of reach of children. If a child swallows a memory card, seek medical assistance immediately.
miniSD or microSD adapters that are larger or smaller 2
than memory cards may not eject normally; if the card does not eject, take the camera to an authorized service representative. Do not forcibly remove the card.
Do not affix labels or other objects to memory cards. Peeling labels can cause camera malfunction.
Movie recording may be interrupted with some types of memory card.
Formatting a memory card in the camera creates a folder in which pictures are stored. Do not rename or delete this folder or use a computer or other device to edit, delete, or rename image files. Always use the camera to delete pictures; before editing or renaming files, copy them to a computer and edit or rename the copies, not the originals. Renaming the files on the camera can cause problems during playback.
41

First Steps

Turning the Camera On and O
Use the ON/OFF switch to turn the camera on and off. Rotate the switch to ON to turn the camera on, or to OFF to turn the 2 camera off.
O Fingerprints and other marks on the lens or viewfinder
can affect pictures or the view through the viewfinder. Keep the lens and viewfinder clean.
N Press the a button to start playback. Press the shutter
button halfway to return to shooting mode. The camera will turn off automatically if no operations are performed for the length of time selected for D POWER MANAGEMENT > AUTO POWER OFF. To reactivate the camera after it has turned off automatically, press the shutter button halfway or turn the ON/OFF switch to OFF and then back to ON.
42

Checking the Battery Level
After turning the camera on, check the battery level in the display.

Battery level is shown as follows:

Indicator

Description

e Battery partially discharged. f Battery about 80% full.

g Battery about 60% full.

h Battery about 40% full.

i Battery about 20% full.

i Low battery. Charge as soon as

(red) possible.

j Battery exhausted. Turn camera

(blinks red) off and recharge battery.

First Steps

Basic Setup
A language-selection dialog is displayed the first time the camera is turned on.

1 Turn the camera on.

A language-selection dialog

will be displayed.

2 Choose a language.
Highlight a language and press MENU/OK.

First Steps

3 Set the date and time.
Press the selector left or right

DATE/TIME NOT SET

to highlight the year, month,

2019 2018

Y Y . M M . D D 2017

day, hour, or minute and press

2016 2015

up or down to change. To

SET

change the order in which the

year, month, and day are displayed, highlight the

date format and press the selector up or down.

Press MENU/OK to exit to shooting mode when set-

tings are complete.

First Steps

Basic Setup
N If the battery is removed for an extended period, the
camera clock will be reset and the language-selection dialog will be displayed when the camera is turned on. Skipping the Current Step Press DISP/BACK to skip the current step. Any steps you skip will be displayed the next time the camera is turned on.
2
45

First Steps

Choosing a Di erent Language To change the language:

Basic Setup

1 Display language options.
Select D USER SETTING > a.

2 Choose a language.

Highlight the desired option and press MENU/OK.

Changing the Time and Date To set the camera clock:
1 Display DATE/TIME options.
Select D USER SETTING > DATE/TIME.
2 Set the clock.
Press the selector left or right to highlight the year, month, day, hour, or minute and press up or down to change. Press MENU/OK to set the clock.

Basic Photography and Playback
47

Basic Photography and Playback

Taking Photographs (Mode P)
This section describes how to take pictures using program AE (mode P). See pages 6273 for information on S, A, and M modes.

1 Adjust settings for program AE.

A Auto mode selector lever (P 7): Select z. B Shutter speed (P 62): Select A (auto). C Drive mode (P 6): Select S (single frame). D Focus mode (P 78): Select S (single AF). E Aperture (P 62): Select A (auto).

Basic Photography and Playback

Taking Photographs (Mode P)
2 Check the shooting mode.
Confirm that P appears in the display.

3 Ready the camera.
Hold the camera steady with both hands and brace your elbows against your sides. Shaking or unsteady hands can blur your shots.
To prevent pictures that are out of focus or too dark (underexposed), keep your fingers and other objects away from the lens and AF-assist illuminator.
4 Frame the picture.
Lenses with Zoom Rings Use the zoom ring to frame the picture in the display. Rotate the ring left to zoom out, right to zoom in.

Taking Photographs (Mode P)
5 Focus.
Press the shutter button halfway to focus.

N If the subject is poorly lit, the
AF-assist illuminator may light.

Focus indicator Focus frame

If the camera is able to focus, it will beep twice and focus area and focus indicator will glow green.

Focus and exposure will lock while the shutter

button is pressed halfway.

If the camera is unable to focus, the focus frame will turn red, s will be displayed, and the focus indicator will blink white.

6 Shoot.
Smoothly press the shutter button the rest of the way down to take the picture.

Basic Photography and Playback

a Viewing Pictures
Pictures can be viewed in the viewfinder or LCD monitor. To view pictures full frame, press a.
100-0001
3
Additional pictures can be viewed by pressing the selector left or right or rotating the front command dial. Press the selector or rotate the dial right to view pictures in the order recorded, left to view pictures in reverse order. Keep the selector pressed to scroll rapidly to the desired frame.
N Pictures taken using other cameras are marked with a
m ("gift image") icon to warn that they may not display correctly and that playback zoom may not be available.
51

Basic Photography and Playback

b Deleting Pictures
Use the b button to delete pictures.
O Deleted pictures can not be recovered. Copy important
pictures to a computer or other storage device before proceeding.
1 With a picture displayed full frame, press the b
button and select FRAME. 3
ERASE
FRAME SELECTED FRAMES
ALL FRAMES
2 Press the selector left or right to scroll through
pictures and press MENU/OK to delete (a confirmation dialog is not displayed). Repeat to delete additional pictures.
N Protected pictures can not be deleted. Remove protec-
tion from any pictures you wish to delete (P 188).
Pictures can also be deleted from the menus using the
C PLAY BACK MENU > ERASE option (P 183).
52

Movie Recording and Playback
53

F Recording Movies
This section describes how to film movies in auto mode.
1 Rotate the drive dial to F.

Movie Recording and Playback

2 Rotate the auto mode selector
lever to AUTO to shoot movies

in S ADVANCED SR AUTO

mode.

N Rotate the lever to z to shoot movies in mode P.
Movies shot with U selected for MOVIE MODE
will also be recorded in mode P.

3 Press the shutter button to
start recording. A recording indicator (V) and the time remaining are displayed while recording is in progress.

Movie Recording and Playback

Recording Movies
4 Press the button again to end recording.
Recording ends automatically when the maximum length is reached or the memory card is full. Using an External Microphone Sound can be recorded with external microphones that connect using jacks 2.5 mm in diameter; microphones that require bus power can not be used. See the microphone manual for details.
4
55

O Sound is recorded via the built-in microphone or an
optional external microphone. Do not cover the micro-
phone during recording. Note that the microphone may
pick up lens noise and other sounds made by the cam-
era during recording.

Vertical or horizontal streaks may appear in movies containing very bright subjects. This is normal and does not indicate a malfunction.

N The indicator lamp lights while recording is in progress.

During recording, you can change exposure compensation by up to ±2 EV and adjust zoom using the zoom ring

on the lens (if available).

If the lens is equipped with an aperture mode switch, select the aperture mode before beginning recording. If an option other than A is selected, shutter speed and aperture can be adjusted while recording is in progress.

Recording may be unavailable at some settings, while in other cases settings may not apply during recording.

Movie Recording and Playback

Recording Movies
Adjusting Movie Settings
· The movie type, frame size, and frame rate can be
selected using B MOVIE SETTING > MOVIE MODE.
· Focus mode is selected using the focus mode se-
lector; for continuous focus adjustment, select C,
or choose S and enable Intelligent Face Detection
(Intelligent Face Detection is not available in focus
mode M).

Depth of Field

Choose low f-numbers to soften background details.

Movie Recording and Playback

a Viewing Movies
View movies on the camera.
In full-frame playback, movies are 12/31/205010:00AM identified by a W icon.

The following operations can be per-

formed while a movie is displayed:

Playback in

Playback

Selector progress (x) paused (y)

End playback

Pause playback

Start/resume playback

Adjust speed

Single frame rewind/advance

Progress is shown in the display during playback.

O Do not cover the speaker during
playback.

PLAY ±0

29m59s

STOP

PAUSE

Movie Recording and Playback

Viewing Movies
N Press MENU/OK to pause playback and display volume
controls. Press the selector up or down to adjust the volume; press MENU/OK again to resume playback. Volume can also be adjusted using D SOUND SETTING > PLAYBACK VOLUME.

Playback Speed

Press the selector left or right to adjust

29m59s

playback speed during playback. Speed

is shown by the number of arrows (M or

N).

STOP

PAUSE

Arrows

Movie Recording and Playback

MEMO
60

Taking Photographs
61

Taking Photographs

Choosing a Shooting Mode
For control over shutter speed and aperture (P, S, A, and M modes), rotate the auto mode selector lever to z. Rotate the lever to AUTO to choose from modes suited to specific subject types, or select S ADVANCED SR AUTO to let the camera automatically match the mode to the subject.
Mode P: Program AE Let the camera choose shutter speed and aperture 5 for optimal exposure. Other values that produce the same exposure can be selected with program shift.
B A C
Adjust settings as follows:
A Auto mode selector lever: z B Shutter speed: A (auto) C Aperture: A (auto)
62

Choosing a Shooting Mode
Confirm that P appears in the display.

O If the subject is outside the metering range of the cam-
era, the shutter speed and aperture displays will show " ".

Program Shift If desired, you can rotate the rear com-

mand dial to select other combinations

of shutter speed and aperture without altering exposure (program shift).

Shutter speed Aperture

O Program shift is not available during movie recording
or if the flash supports TTL auto or an auto option is se-
lected for H IMAGE QUALITY SETTING > DYNAMIC
RANGE.

N To cancel program shift, turn the camera off.

Taking Photographs

Mode S: Shutter-Priority AE Choose a shutter speed and let the camera adjust aperture for optimal exposure.
B A C

Adjust settings as follows:

A Auto mode selector lever: z B Shutter speed: Choose a shutter speed

C Aperture: A (auto)

Confirm that S appears in the display.

O If the correct exposure can not be achieved at the select-
ed shutter speed, aperture will be displayed in red. If the subject is outside the metering range of the camera, the aperture display will show " ".

Taking Photographs

Choosing a Shooting Mode
N At settings other than 180X, shutter speed can also be
adjusted in increments of 1/3 EV by rotating the rear command dial. Shutter speed can be adjusted even while the shutter button is pressed halfway. Sensitivity and Depth of Field If you choose a fast shutter speed when the subject is poorly lit, the camera autoexposure program will select a wider aperture. This will produce the correct exposure but may also reduce depth of field so that less of the area behind and in front of your subject appears to be in focus. To stop aperture down and increase depth of field, select a higher sensitivity.
5
65

Taking Photographs

Time (T) Rotate the shutter speed dial to T (time) to choose slow shutter speeds for long time-exposures. Use of a tripod is recommended to prevent the camera moving during the exposure.
1 Rotate the shutter speed dial
to T.
5 2 Rotate the rear command dial
to choose a shutter speed.
3 Press the shutter button all the way down to take
a picture at the selected shutter speed. A countdown timer will be displayed while the exposure is in progress.
N To reduce "noise" (mottling) in long time-exposures,
select ON for H IMAGE QUALITY SETTING > LONG EXPOSURE NR. Note that this may increase the time needed to record images after shooting.
66

Choosing a Shooting Mode
Bulb (B) Select a shutter speed of B (bulb) for long time-exposures in which you open and close the shutter manually. Use of a tripod is recommended to prevent the camera moving during the exposure.
1 Rotate the shutter speed dial
to B.

2 Press the shutter button all the way down. The
shutter will remain open for up to 60 minutes

while the shutter button is pressed; the display

shows the time elapsed since the exposure start-

ed.

N Selecting an aperture of A fixes shutter speed at 30 s.

To reduce "noise" (mottling) in long time-exposures, select ON for H IMAGE QUALITY SETTING > LONG EXPOSURE NR. Note that this may increase the time needed to record images after shooting.

Taking Photographs

Using a Remote Release An optional RR-90 remote release can be used for long time-exposures. The RR-90 connects via the Micro USB (Micro-B) USB 2.0 connector.
Alternatively, electronic releases from third-party suppliers can be connected via the microphone/remote release connector (2.5 mm 3-pole mini jack).
Third-party mechanical releases connect
5 as shown.

N A confirmation dialog will be dis-
played when a third-party release
is connected; press MENU/OK and
select n REMOTE for MIC/REMOTE
RELEASE.

CHECK MIC/REMOTE RELEASE

SETTING

SET

SKIP

Taking Photographs

Choosing a Shooting Mode
Mode A: Aperture-Priority AE Choose an aperture and let the camera adjust shutter speed for optimal exposure.
B A C

Taking Photographs

Adjust settings as follows:

A Auto mode selector lever: z B Shutter speed: A (auto)

C Aperture: Select Z and rotate the lens aperture

ring to adjust aperture

Confirm that A appears in the display.

O If the correct exposure can not be achieved at the select-
ed aperture, shutter speed will be displayed in red. If the subject is outside the metering range of the camera, the shutter speed display will show " ".
N Aperture can be adjusted even while the shutter button
is pressed halfway.
69

Previewing Depth of Field When PREVIEW DEPTH OF FIELD is assigned to a function button, pressing the button stops aperture down to the selected setting, allowing depth of field to be previewed in the display.

N If both AF DISTANCE INDICATOR and

MF DISTANCE INDICATOR are se-

lected in the D SCREEN SETTING >

DISP. CUSTOM SETTING list, depth of

field can also be previewed using the

depth-of-field indicator in the stan-

dard display. Use the DISP/BACK button

to display standard indicators.

Depth of eld

Use the G AF/MF SETTING > DEPTH-OF-FIELD SCALE option to choose how depth of field is displayed. Choose FILM FORMAT BASIS to help you make practical assessments of depth of field for pictures that will be viewed as prints and the like, PIXEL BASIS to help you assess depth of field for pictures that will be viewed at high resolutions on computers or other electronic displays.

Taking Photographs

Choosing a Shooting Mode Sensitivity and Motion Blur If you choose a narrow aperture when the subject is poorly lit, the shutter speed selected by the autoexposure program may not be fast enough to prevent motion blur. For faster shutter speeds that reduce motion blur, select a higher sensitivity.
5
71

Taking Photographs

Mode M: Manual Exposure Alter exposure from that selected by the camera.
B A C
Adjust settings as follows:
A Auto mode selector lever: z 5 B Shutter speed: Choose a shutter speed
C Aperture: Select Z and rotate the lens aperture
ring to adjust aperture
Confirm that M appears in the display. The amount the picture would be under- or over-exposed at current settings is shown by the exposure indicator; adjust shutter speed and aperture until the desired exposure is reached.
N At settings other than 180X, shutter speed can also be
adjusted in increments of 1/3 EV by rotating the rear command dial.
72

Taking Photographs

Choosing a Shooting Mode Exposure Preview To preview exposure in the LCD monitor, select an option other than OFF for D SCREEN SETTING > PREVIEW EXP./ WB IN MANUAL MODE. Select OFF when using the flash or on other occasions on which exposure may change when the picture is taken.
5
73

Auto Mode Auto mode offers options suited to particular subject types.
B A

Taking Photographs

Adjust settings as follows:

A Auto mode selector lever: AUTO B Drive dial: S (single frame)

The currently-selected scene appears in the display. Rotate the front command dial (or use the A SHOOTING SETTING > SCENE POSITION item in the shooting menu) to choose from the following options:

Mode S ADVANCED
SR AUTO h PORTRAIT

Description The camera automatically optimizes settings to suit the scene. Choose for portraits.

Choosing a Shooting Mode

Mode

Description

Z PORTRAIT Processes portraits to give the subject a smooth,

ENHANCER natural-looking complexion.

M LANDSCAPE Choose for daylight shots of buildings and land-

scapes.

N SPORT

Choose when photographing moving subjects.

O NIGHT

Choose for poorly lit twilight or night scenes.

H NIGHT

Choose this mode for slow shutter speeds when

(TRIPOD) shooting at night.

p FIREWORKS Slow shutter speeds are used to capture the ex-

panding burst of light from a firework.

Q SUNSET Choose this mode to record the vivid colors in

R SNOW

sunrises and sunsets.

Choose for crisp, clear shots that capture the

brightness of scenes dominated by shining

white snow.

s BEACH

Choose for crisp, clear shots that capture the

brightness of sunlit beaches.

f UNDERWATER Reduces the blue cast typically associated with

underwater lighting.

U PARTY

Capture indoor background lighting under low-

light conditions.

V FLOWER Effective for taking more vivid shots of flowers.

W TEXT

Take clear pictures of text or drawings in print.

Taking Photographs

Choosing a Shooting Mode
S ADVANCED SR AUTO
The scene selected by the camera in S ADVANCED SR AUTO mode is shown by an icon in the display.

· a AUTO

· c LANDSCAPE

· d NIGHT

· h NIGHT (TRIPOD)

· e MACRO

· v SUNSET

· x SKY · z SKY & GREENERY

· g BACKLIT PORTRAIT

· a PORTRAIT&MOTION · u BEACH · w SNOW · y GREENERY · d PORTRAIT · c MOVING OBJECT · b BACKLIT PORTRAIT&
MOTION

O The mode selected may vary with shooting conditions.

If the mode and subject do not match, select a scene

manually.

Taking Photographs

Autofocus
Take pictures using autofocus.
1 Rotate the focus mode selector
to S or C (P 78).

2 Use G AF/MF SETTING > AF MODE to choose an
AF mode (P 80).

3 Choose the position and size of

the focus frame (P 82).

4 Take pictures.
N For information on the autofocus system, visit:
http://fujifilm-x.com/af/en/index.html

Taking Photographs

Focus Mode
Use the focus mode selector to choose how the camera focuses.

Choose from the following options:

Mode

Description

S Single AF: Focus locks while the shutter button is pressed

(AF-S) halfway. Choose for stationary subjects.

Continuous AF: Focus is continually adjusted to reflect

C changes in the distance to the subject while the shutter
(AF-C) button is pressed halfway. Use for subjects that are in

motion. Eye-detection AF is not available.

M
(manual)

Manual: Focus manually using the lens focus ring. Choose for manual control of focus or in situations in which the
camera is unable to focus using autofocus (P 87).

N Regardless of the option selected, manual focus will be
used when the lens is in manual focus mode.

If ON is selected for G AF/MF SETTING > PRE-AF, focus will be adjusted continuously in modes S and C even when the shutter button is not pressed.

Taking Photographs

Autofocus The Focus Indicator The focus indicator turns green when the subject is in focus and blinks white when the camera is unable to focus. Brackets ("( )") indicate that the camera

is focusing and are displayed continu- Focus indicator ously in mode C. j is displayed in manual focus mode.
5
79

Autofocus Options (AF Mode) Choose how the camera focuses in modes S and C.

1 Press MENU/OK and go to the shooting menu. 2 Select G AF/MF SETTING > AF MODE. 3 Choose an AF mode.
N This feature can also be accessed via shortcuts (P 242).
How the camera focuses depends on the focus mode.

Focus Mode S (AF-S)

5 Option

Description

Sample image

r Camera focuses on subject in
SINGLE selected focus point. Use for pinPOINT point focus on selected subject.

Camera focuses on subject in se-

y
ZONE

lected focus zone. Focus zones include multiple focus points, making it easier to focus on subjects in

motion.

z Camera focuses automatically on
WIDE/ high-contrast subjects; display TRACKING shows areas in focus.

Taking Photographs

Focus Mode C (AF-C)

Option

Description

r Focus tracks subject at selected fo-
SINGLE cus point. Use for subjects moving POINT toward or away from camera.

Autofocus Sample image

y
ZONE

Focus tracks subject in selected focus zone. Use for subjects that are moving fairly predictably.

z
WIDE/ TRACKING

Focus tracks subjects moving through wide area of frame.

Taking Photographs

Focus-Point Selection Choose a focus point for autofocus.
Viewing the Focus-Point Display
1 Press MENU/OK and go to the shooting menu. 2 Select G AF/MF SETTING > FOCUS AREA to view
the focus-point display.
3 Use the selector and rear command dial to
choose a focus area (P 83).
5
82

Selecting a Focus Point
Use the selector to choose the focus point and the rear command dial to choose the size of the focus frame. The procedure varies with the option selected for AF mode.

Autofocus

DISP/BACK Selector button

Rear command dial

Press

Rotate

Press

r
Select focus Select center
y point focus point

Choose from 5 frame sizes Choose from 3 frame sizes

Restore original size

N Manual focus-point selection is not available when
z WIDE/TRACKING is selected in focus mode S.

Taking Photographs
AF mode

The Focus-Point Display
The focus-point display varies with the option selected for AF mode.

N Focus frames are shown by small squares (), focus
zones by the large squares.

r SINGLE POINT

AF mode y ZONE

z WIDE/TRACKING

Taking Photographs

5
Number of points Choose from zones Position focus frame available can be se- with 7 × 7, 5 × 5, or over subject and press lected using G AF/ 3 × 3 focus points. MENU/OK. MF SETTING > NUMBER OF THE FOCUS POINTS.

Available Focus Points
TTL contrast-detect AF offers more focus
points (A) than intelligent hybrid AF (B), which combines phase-detection
with TTL contrast-detect AF.

Autofocus
Burst Mode Focus-Frame Selection When continuous high-speed (CH) is selected for drive mode, the number of focus frames available in focus mode C drops.

Single point

Zone

Wide/tracking

Autofocus

Although the camera boasts a high-precision autofocus sys-

tem, it may be unable to focus on the subjects listed below.

· Very shiny subjects such as mirrors or car bodies. · Subjects photographed through a window or other reflec-

tive object.
· Dark subjects and subjects that absorb rather than reflect

light, such as hair or fur.
· Insubstantial subjects, such as smoke or flame. · Subjects that show little contrast with the background. · Subjects positioned in front of or behind a high-contrast

object that is also in the focus frame (for example, a subject

photographed against a backdrop of highly contrasting el-

ements).

Taking Photographs

Checking Focus To zoom in on the current focus area for precise focus, press the center of the rear command dial. Press the center of the rear command dial again to cancel zoom.

Autofocus

M
Normal display

M
Focus zoom

N 5

In focus mode S, zoom can be adjusted by rotating the

rear command dial when STANDARD or FOCUS PEAK

HIGHLIGHT is selected for G AF/MF SETTING > MF

ASSIST (P 141). Focus zoom is not available in focus

mode C or when G AF/MF SETTING > PRE-AF is on or

an option other than r SINGLE POINT is selected for

AF MODE.

Use D BUTTON/DIAL SETTING > Fn/AE-L/AF-L BUTTON SETTING to change the function performed by the center of the command dial or assign its default function to other controls.

Taking Photographs

Manual Focus
Adjust focus manually.
1 Rotate the focus mode selector
to M.

j will appear in the display.

2 Focus manually using the lens

focus ring. Rotate the ring left

to reduce the focus distance,

right to increase.

3 Take pictures.
N Use D BUTTON/DIAL SETTING > FOCUS RING to re-
verse the direction of rotation of the focus ring.
Regardless of the option selected, manual focus will be used when the lens is in manual focus mode.

Taking Photographs

Quick Focus To use autofocus to focus on the subject in the selected focus area, press the button to which focus lock or AF-ON has been assigned (the size of the focus area can be chosen with the rear command dial). In manual focus mode, you can use this feature to quickly focus on a chosen subject using either single or continuous AF according to the option chosen for G AF/MF SETTING > INSTANT AF SETTING.
5
88

Taking Photographs

Manual Focus
Checking Focus A variety of options are available for checking focus in manual focus mode.
The Manual Focus Indicator The manual focus indicator indi- Focus distance cates how closely the focus dis- (white line) tance matches the distance to the subject in the focus brackets. The white line indicates the distance Depth of eld to the subject in the focus area (in meters or feet according to the option selected for 5 D SCREEN SETTING > FOCUS SCALE UNITS in the setup menu), the blue bar the depth of field, or in other words the distance in front of and behind the subject that appears to be in focus.
Focus Zoom If ON is selected for G AF/MF SETTING > FOCUS CHECK, the camera will automatically zoom in on the selected focus area when the focus ring is rotated.
N If STANDARD or FOCUS PEAK HIGHLIGHT is selected
for G AF/MF SETTING > MF ASSIST, zoom can be adjusted by rotating the rear command dial.
89

Taking Photographs

Manual Focus
MF Assist The G AF/MF SETTING > MF ASSIST option can be used to check focus when pictures are framed in the LCD monitor or electronic viewfinder in manual focus mode.
N The MF ASSIST menu can be displayed by pressing and
holding the center of the rear command dial. The following options are available:
· FOCUS PEAK HIGHLIGHT: Highlights
high-contrast outlines. Rotate 5 the focus ring until the subject is
highlighted.
· DIGITAL SPLIT IMAGE: Displays a split
image in the center of the frame. Frame the subject in the split-image area and rotate the focus ring until the four parts of the split image are correctly aligned.
90

d Exposure Compensation
Adjust exposure.
Rotate the exposure compensation dial.
O The amount of compensation avail-
able varies with the shooting mode.

C (Custom)

When the exposure compensation

dial is rotated to C, exposure com-

pensation can be adjusted by ro-

tating the front command dial.

Taking Photographs

set
N The front command dial can be used to set exposure
compensation to values between -5 and +5 EV.
The front command dial can be used to set aperture or exposure compensation. Press the dial to toggle between the two.

Focus/Exposure Lock
Compose photographs with off-center subjects.
1 Focus: Position the subject in
the focus frame and press the shutter button halfway to lock focus and exposure. Focus and P exposure will remain locked while the shutter button is pressed halfway (AF/AE lock).

2 Recompose: Keep the shutter
button pressed halfway.

P
3 Shoot: Press the button all the way down.
N Focus lock using the shutter button is only available
when ON is selected for D BUTTON/DIAL SETTING >
SHUTTER AF, SHUTTER AE.

Taking Photographs

Focus/Exposure Lock
The AF-L and AE-L Buttons
Focus and exposure can also be locked with the AF-L and AE-L buttons. At default settings, the AF-L button locks focus, the AE-L button exposure. Focus and/or exposure will remain locked while the button is pressed, whether or not the shutter button is pressed halfway.

The roles of the buttons can be changed using the

following D BUTTON/DIAL SETTING options:
· Fn/AE-L/AF-L BUTTON SETTING: Choose the roles

played by the AE-L and AF-L buttons.
· AE/AF-LOCK MODE: If AE&AF ON/OFF SWITCH is

selected for AE/AF-LOCK MODE, focus and/or ex-

posure lock when the button is pressed and remain

locked until the button is pressed again.

Taking Photographs

BKT Bracketing
Automatically vary settings over a series of pictures.
1 Rotate the drive dial to BKT1 or
BKT2.

2 Navigate to DRIVE SETTING in the A SHOOTING

SETTING menu and select O AE BKT, W ISO

BKT, X FILM SIMULATION BKT, H WHITE BALANCE BKT, or Y DYNAMIC RANGE BKT.

N This feature can also be accessed via shortcuts
(P 242).

3 Take photographs.

Taking Photographs

Bracketing
O AE BKT Select a bracketing amount (options range from ±1/3 to ±2 EV in increments of 1/3 EV). Each time the shutter button is pressed, the camera will take three shots: one using the metered value for exposure, the second overexposed by the selected amount, and the third underexposed by the same amount.
N Regardless of the bracketing amount, exposure will not
exceed the limits of the exposure metering system.
W ISO BKT Select a bracketing amount (±1, ±2/3, or ±1/3). Each 5 time the shutter is released, the camera will take a picture at the current sensitivity and process it to create two additional copies, one with sensitivity raised and the other with sensitivity lowered by the selected amount.
X FILM SIMULATION BKT Each time the shutter is released, the camera takes one shot and processes it to create copies with different film simulation settings, chosen using A SHOOTING SETTING > BKT SETTING > FILM SIMULATION BKT.
95

Taking Photographs

Bracketing
H WHITE BALANCE BKT Select a bracketing amount (±1, ±2, or ±3). Each time the shutter is released, the camera takes one shot and processes it to create three copies: one at the current white balanced setting, one with fine-tuning increased by the selected amount, and another with fine-tuning decreased by the selected amount.
Y DYNAMIC RANGE BKT Each time the shutter button is pressed, the camera takes three shots with different dynamic ranges: 5 100% for the first, 200% for the second, and 400% for the third.
N While dynamic range bracketing is in effect, sensitivity
will be restricted to a minimum of ISO 800 (or to a minimum of ISO 200 to 800 when an auto option is selected for sensitivity); the sensitivity previously in effect is restored when bracketing ends.
96

I Continuous Shooting (Burst Mode)
Capture motion in a series of pictures.
1 Rotate the drive dial to select
CH (high-speed burst) or CL (low-speed burst).

2 Navigate to DRIVE SETTING in the A SHOOTING
SETTING menu and choose a frame advance rate.

N This feature can also be accessed via shortcuts

(P 242).

3 Take photographs. The camera will take pictures
while the shutter button is pressed; shooting ends when the shutter button is released or the memory card is full.

Taking Photographs

Continuous Shooting (Burst Mode)
O If file numbering reaches 999 before shooting is com-
plete, the remaining pictures will be recorded to a new folder.

Burst shooting may not begin if the space available on the memory card is insufficient.

Frame rate varies with the subject, shutter speed, sensitivity, and focus mode. Frame rates may slow and recording times increase as more shots are taken.

The flash turns off automatically; the previously-selected flash mode is restored when burst shooting is disabled.

Focus and Exposure Select focus mode C to vary focus with shot; to vary exposure

with each shot, select OFF for D BUTTON/DIAL SETTING >

SHUTTER AE.

N Selecting CH restricts the choice of focus frames in fo-
cus mode C and limits Intelligent Face Detection to the
area used for intelligent hybrid AF (TTL contrast-detect
AF+phase-detection AF; P 84).

Exposure and focus tracking performance may vary with such factors as aperture, sensitivity, and exposure compensation.

Taking Photographs

ADV. Advanced Filters
Take photos with filter effects.
1 Rotate the drive dial to Adv.1 or
Adv.2.

2 Navigate to DRIVE SETTING in the A SHOOTING
SETTING menu and choose a filter effect.

N This feature can also be accessed via shortcuts

(P 242).

3 Take photographs.

Taking Photographs

Advanced Filter Options

Advanced Filters

Choose from the following filters:

Filter

Description

G TOY CAMERA

Choose for a retro toy camera effect.

H MINIATURE

The tops and bottoms of pictures are blurred for a diorama effect.

I POP COLOR

Create high-contrast images with saturated colors.

J HIGH-KEY

Create bright, low-contrast images.

Z LOW-KEY

Create uniformly dark tones with few areas of emphasized highlights.

5 K DYNAMIC TONE

Dynamic tone expression is used for a fantasy effect.

X SOFT FOCUS

Create a look that is evenly soft throughout the whole image.

u PARTIAL COLOR (RED)

v PARTIAL COLOR (ORANGE) Areas of the image that are the select-

w PARTIAL COLOR (YELLOW) ed color are recorded in that color. All

x PARTIAL COLOR (GREEN) other areas of the image are recorded

y PARTIAL COLOR (BLUE) in black-and-white.

z PARTIAL COLOR (PURPLE)

N Depending on the subject and camera settings, images
may in some cases be grainy or vary in brightness or hue.

Taking Photographs

100

j Multiple Exposures
Create a photograph that combines two exposures.

Taking Photographs

1 Rotate the drive dial to j.

2 Take the first shot.

3 Press MENU/OK. The first shot
will be shown superimposed on the view through the lens and you will be prompted to take the second shot.

RETRY

EXIT

N To return to Step 2 and retake the first shot, press
the selector left. To save the first shot and exit with-
out creating a multiple exposure, press DISP/BACK.

101

4 Take the second shot, using
the first frame as a guide.

Multiple Exposures

5 Press MENU/OK to create the
multiple exposure, or press the selector left to return to Step 4 and retake the second shot.

EXIT 30 2.0

RETRY

EXIT

Taking Photographs

102

u Panoramas
Follow an on-screen guide to create a panorama.
1 Rotate the drive dial to u.

Taking Photographs

2 To select the size of the angle through which you
will pan the camera while shooting, press the selector left. Highlight a size and press MENU/OK.

3 Press the selector right to view a choice of pan 5
directions. Highlight a pan direction and press MENU/OK.

4 Press the shutter button all the way down to start
recording. There is no need to keep the shutter button pressed during recording.

5 Pan the camera in the direction
shown by the arrow. Shooting ends automatically when the camera is panned to the end of the guides and the panorama is complete.

Sweep camera along yellow line in direction of y

ANGLE

DIRECTION

30 2.0

800

103

Taking Photographs

For Best Results For best results, use a lens with a focal length of 35 mm or less (50 mm or less in 35 mm format). Prop your elbows against your sides and move the camera slowly in a small circle at a steady speed, keeping the camera parallel or at right angles to the horizon and being careful only to pan in the direction shown by the guides. Use a tripod for best results. If the desired results are not achieved, try panning at a different speed.
5
104

Taking Photographs

Panoramas
O If the shutter button is pressed all the way down be-
fore the panorama is complete, shooting will end and no panorama may be recorded. Shooting may also be interrupted if the camera is panned too quickly or too slowly. Panning the camera in a direction other than that shown cancels shooting. Panoramas are created from multiple frames; if ON is selected for D BUTTON/DIAL SETTING > SHUTTER AE, exposure for the entire panorama is determined by the first frame. The camera may in some cases record an greater or lesser angle than selected or be unable to stitch the frames together perfectly. The last part of the
panorama may not be recorded if shooting ends before 5
the panorama is complete. The desired results may not be achieved with moving subjects, subjects close to the camera, unvarying subjects such as the sky or a field of grass, subjects that are in constant motion, such as waves and waterfalls, or subjects that undergo marked changes in brightness. Panoramas may be blurred if the subject is poorly lit.
105

Panoramas
Viewing Panoramas In full-frame playback, you can use the rear command dial to zoom panoramas in or out. Alternatively, you can play the panorama back using the selector.

PLAY

STOP

PAUSE

Press the selector down to start playback and press again to pause. While playback is paused, you can scroll the panorama manually by pressing the selector left or right; vertical panora-
5 mas will scroll vertically, horizontal panoramas horizontally.
To exit to full-frame playback, press the selector up.

Taking Photographs

106

Flash Photography
Use the built-in flash for additional lighting when shooting at night or indoors under low light.
1 Slide the N lever as shown to
raise the flash.
O Be careful not to injure your-
self on the edges of the raised flash.

2 In the menus, navigate to

FLASH SETTING FLASH FUNCTION SETTING

F FLASH SETTING > FLASH

RED EYE REMOVAL TTL-LOCK MODE LED LIGHT SETTING

FUNCTION SETTING to display

MASTER SETTING CH SETTING

options for the built-in flash.

EXIT

N This feature can also be accessed via shortcuts
(P 242).

3 Highlight items using the se-
lector and rotate the rear command dial to change the high-
lighted setting (P 109).

MODE

Built-In Flash

ADJUST

END

4 Press DISP/BACK to put the changes into effect.

Taking Photographs

107

O Depending on the distance to the subject, some lenses
may cast shadows in photos taken with the flash.

The flash will not fire at some settings, for example in panorama mode or when the electronic shutter is used.

Choose shutter speeds slower than 180X when using the flash in exposure mode S (shutter-priority AE) or manual (M).

N Except in commander mode, the flash will fire several
times with each shot. Do not move the camera until
shooting is complete.

The flash will not fire if OFF is selected for SOUND & FLASH in the D USER SETTING menu.

Taking Photographs

108

Flash Settings
The following settings are available with the built-in flash.

Flash Photography

MODE

Built-In Flash

ADJUST

END

Setting

Description

Choose from the following options:

· TTL: TTL mode. Adjust flash compensation (B)
and choose a flash mode (C).

· M: The flash fires at the selected output (B) re-

gardless of subject brightness or camera settings. Output is expressed in fractions of full power,

A Flash control from / to /. The desired results may not be

mode

achieved at low values if they exceed the limits

of the flash control system; take a test shot and

check the results.

· C (COMMANDER): Choose if the flash is being

used to control remote synced flash units, for ex-

ample as part of a studio flash system.

· OFF: The flash does not fire.

B Flash compen- Adjust flash level. The options available vary with

sation/output the flash control mode (A).

Taking Photographs

109

Setting
C Flash mode
(TTL)
5
D Sync

Description
Choose a flash mode for TTL flash control. The op-
tions available vary with the shooting mode (P, S,
A, or M) selected.
· E (FLASH AUTO): The flash fires only as required;
flash level is adjusted according to subject brightness. A p icon displayed when the shut-
ter button is pressed halfway indicates that the
flash will fire when the photo is taken.
· F (STANDARD): The flash fires with every shot if
possible; flash level is adjusted according to sub-
ject brightness. The flash will not fire if not fully
charged when the shutter is released.
· G (SLOW SYNC.): Combine the flash with slow
shutter speeds when photographing portrait
subjects against a backdrop of night scenery.
The flash will not fire if not fully charged when
the shutter is released.
Choose whether the flash is timed to fire imme-
diately after the shutter opens (H/1ST CURTAIN)
or immediately before it closes (I/2ND CURTAIN).
1ST CURTAIN is recommended in most circum-
stances.

Taking Photographs

110

Flash Photography
Red-Eye Removal Red-eye removal is available when an option other than OFF is selected for F FLASH SETTING > RED EYE REMOVAL and G AF/MF SETTING > FACE/EYE DETECTION SETTING is ON. Red-eye removal minimizes "red-eye" caused when light from the flash is reflected from the subject's retinas.

Flash Sync Speed The flash will synchronize with the shutter at shutter speeds of 1/180 s or slower.

Optional Flash Units from FUJIFILM

The camera can be used with optional FUJIFILM shoe-mount-

ed flash units.

Third-Party Flash Units

Do not use third-party flash units that apply over 300 V to the

camera hot shoe.

Taking Photographs

111

MEMO
112

The Shooting Menus
113

H IMAGE QUALITY SETTING
Adjust image quality settings.

To display image quality settings, press MENU/OK in the shooting display and select the H (IMAGE QUALITY SETTING) tab.

IMAGE QUALITY SETTING
IMAGE SIZE IMAGE QUALITY RAW RECORDING FILM SIMULATION GRAIN EFFECT DYNAMIC RANGE WHITE BALANCE HIGHLIGHT TONE
EXIT

N The options available vary with the shooting mode se-
lected.

The Shooting Menus

114

IMAGE QUALITY SETTING
IMAGE SIZE
Choose the size and aspect ratio at which still pictures are recorded.

Option Image size Option Image size O 3 : 2 6000 × 4000 O 16 : 9 6000 × 3376 P 3 : 2 4240 × 2832 P 16 : 9 4240 × 2384 Q 3 : 2 3008 × 2000 Q 16 : 9 3008 × 1688

Option Image size O 1 : 1 4000 × 4000 P 1 : 1 2832 × 2832 Q 1 : 1 2000 × 2000

N IMAGE SIZE is not reset when the camera is turned off
or another shooting mode is selected.

Aspect Ratio
Pictures with an aspect ratio of 32 have the same proportions as a frame of 35 mm film, while an aspect ratio of 169
is suited to display on High Definition (HD) devices. Pictures 6
with an aspect ratio of 11 are square.

The Shooting Menus

115

IMAGE QUALITY
Choose a file format and compression ratio. Select FINE or NORMAL to record JPEG images, RAW to record RAW images, or FINE+RAW or NORMAL+RAW to record both JPEG and RAW images. FINE and FINE+RAW use lower JPEG compression ratios for higher-quality JPEG images, while NORMAL and NORMAL+RAW use higher JPEG compression ratios to increase the number of images that can be stored.

The Function Buttons

To toggle RAW image quality on or off for a single shot, assign

RAW to a function button (P 250). If a JPEG option is cur-

rently selected for image quality, pressing the button temporarily selects the equivalent JPEG+RAW option. If a JPEG+RAW

option is currently selected, pressing the button temporarily

selects the equivalent JPEG option, while if RAW is selected,

pressing the button temporarily selects FINE. Taking a picture

or pressing the button again restores the previous setting.

The Shooting Menus

116

IMAGE QUALITY SETTING
RAW RECORDING Choose whether to compress RAW images.

Option

Description

UNCOMPRESSED RAW images are not compressed.

RAW images are compressed using a reversible

LOSSLESS COMPRESSED

algorithm that reduces file size with no loss of image data. The images can be viewed in RAW FILE CONVERTER EX 2.0 or other software that supports

"lossless" RAW compression.

The Shooting Menus

117

FILM SIMULATION
Simulate the effects of different kinds of film, including black-and-white (with or without color filters). Choose a palette according to your subject and creative intent.

Option

Description

c PROVIA/

Standard color reproduction. Suited to a wide

STANDARD range of subjects, from portraits to landscapes.

d Velvia/VIVID

A high-contrast palette of saturated colors, suited to nature photos.

Enhances the range of hues available for skin

e ASTIA/SOFT 6

tones in portraits while preserving the bright blues of daylight skies. Recommended for outdoor portrait photography.

i CLASSIC
CHROME

Soft color and enhanced shadow contrast for a calm look.

Offers slightly more contrast than h PRO

g PRO Neg. Hi Neg. Std. Recommended for outdoor portrait

photography.

A soft-toned palette. The range of hues avail-

h PRO Neg. Std able for skin tones is enhanced, making this a

good choice for studio portrait photography.

The Shooting Menus

118

IMAGE QUALITY SETTING

Option

Description

a ACROS *

Take black-and-white photos with rich gradation and outstanding sharpness.

b MONOCHROME* Take pictures in standard black and white.

f SEPIA

Take pictures in sepia.

* Available with yellow (Ye), red (R), and green (G) filters, which deepen shades of gray corresponding to hues complementary to the selected color. The yellow (Ye) filter deepens purples and blues and the red (R) filter blues and greens. The green (G) filter deepens reds and browns, including skin tones, making it a good choice for portraits.

N Film simulation options can be combined with tone and
sharpness settings.

Film simulation settings can also be accessed via short- 6 cuts (P 242).

For more information, visit: http://fujifilm-x.com/en/x-stories/ the-world-of-film-simulation-episode-1/

The Shooting Menus

119

GRAIN EFFECT
Add a film grain effect. Select an amount (STRONG or WEAK) or choose OFF to turn film grain off.

Options

STRONG

WEAK

OFF

The Shooting Menus

120

IMAGE QUALITY SETTING
DYNAMIC RANGE
Control contrast. Choose lower values to increase contrast when shooting indoors or under overcast skies, higher values to reduce loss of detail in highlights and shadows when photographing high-contrast scenes. Higher values are recommended for scenes that include both sunlight and deep shade, for such high-contrast subjects as sunlight on water, brightly-lit autumn leaves, and portraits taken against a blue sky, and for white objects or people wearing white; note, however, that mottling may appear in pictures taken at higher values.

Options

AUTO

V 100% W 200% X 400%

N If AUTO is selected, the camera will automatically choose
either V 100% or W 200% according to the subject
and shooting conditions. Shutter speed and aperture
will be displayed when the shutter button is pressed
halfway.

W 200% is available at sensitivities of ISO 400 and above, X 400% at sensitivities of ISO 800 and above.

The Shooting Menus

121

WHITE BALANCE
For natural colors, choose a white balance option that matches the light source.

Option

Description

AUTO White balance is adjusted automatically.

k/l/m Measure a value for white balance.

k Choose a color temperature.

i For subjects in direct sunlight.

j For subjects in the shade.

k Use under "daylight" fluorescent lights.

l Use under "warm white" fluorescent lights.

m Use under "cool white" fluorescent lights.

n Use under incandescent lighting.

Reduces the blue cast typically associated with underwater lighting.

N Results vary with shooting conditions. Play pictures back
after shooting to check colors.

White balance is adjusted for flash lighting only in AUTO and g modes. Turn the flash off using other white balance options.

White balance options can also be accessed via short-
cuts (P 242).

The Shooting Menus

122

IMAGE QUALITY SETTING

Fine-Tuning White Balance

Pressing MENU/OK after selecting a WBSHIFT white balance option displays the dialog shown at right; use the selector to fine-tune white balance or press DISP/BACK to exit without fine-tuning.

AUTO
R:0 B:0 SET

The Shooting Menus

123

Custom White Balance

Choose k, l, or m to adjust

CUSTOM 1

white balance for unusual lighting

conditions. White balance mea-

surement options will be displayed; frame a white object so that it fills

SHUTTER : NEW WB

SHIFT

NOT CHANGE

the display and press the shutter button all the way

down to measure white balance (to select the most re-

cent custom value and exit without measuring white

balance, press DISP/BACK, or press MENU/OK to select the

most recent value and display the fine-tuning dialog).
· If "COMPLETED!" is displayed, press MENU/OK to set white

balance to the measured value.
6 · If "UNDER" is displayed, raise exposure compensation

and try again.
· If "OVER" is displayed, lower exposure compensation

and try again.

The Shooting Menus

124

IMAGE QUALITY SETTING

k: Color Temperature

Selecting k in the white balance menu displays a list of color temperatures; highlight a color temperature and press MENU/OK to select the highlighted option and display the fine-tuning dialog.

WHITE BALANCE

COLOR TEMPERATURE R:0 B:0

SET

SHIFT

10000K 9100K 8300K 7700K 7100K

Color Temperature Color temperature is an objective measure of the color of a light source, expressed in Kelvin (K). Light sources with a color temperature close to that of direct sunlight appear white; light sources with a lower color temperature have a yellow or red cast, while those with a higher color temperature are
tinged with blue. You can match color temperature to the 6
light source, or choose options that differ sharply from the color of the light source to make pictures "warmer" or "colder."

The Shooting Menus

125

HIGHLIGHT TONE
Adjust the appearance of highlights. Choose from seven options between +4 and -2.

Options

+4 +3 +2 +1

-1 -2

The Shooting Menus

6 SHADOW TONE
Adjust the appearance of shadows. Choose from seven options between +4 and -2.

Options

+4 +3 +2 +1

-1 -2

126

IMAGE QUALITY SETTING
COLOR Adjust color density. Choose from nine options between +4 and -4.
Options +4 +3 +2 +1 0 -1 -2 -3 -4

The Shooting Menus

SHARPNESS

Sharpen or soften outlines. Choose from nine options between +4 and -4.

Options +4 +3 +2 +1 0 -1 -2 -3 -4

127

NOISE REDUCTION Reduce noise in pictures taken at high sensitivities. Choose from nine options between +4 and -4.
Options +4 +3 +2 +1 0 -1 -2 -3 -4

6 LONG EXPOSURE NR Select ON to reduce mottling in long time-exposures.

Options

OFF

The Shooting Menus

128

IMAGE QUALITY SETTING
LENS MODULATION OPTIMIZER
Select ON to improve definition by adjusting for diffraction and the slight loss of focus at the periphery of the lens.

Options

OFF

The Shooting Menus

COLOR SPACE

Choose the gamut of colors available for color reproduction.

Option

Description

sRGB Recommended in most situations.

Adobe RGB For commercial printing.

129

PIXEL MAPPING
Use this option if you notice bright spots in your pictures.

1 Press MENU/OK in the shooting display and select
the H IMAGE QUALITY SETTING tab.

2 Highlight PIXEL MAPPING and press MENU/OK to
perform pixel mapping. Processing may take a few seconds.

O Results are not guaranteed.

Be sure the battery is fully charged before beginning pix-

el mapping.

Pixel mapping is not available when the camera tem-

perature is elevated.

The Shooting Menus

130

IMAGE QUALITY SETTING
SELECT CUSTOM SETTING
Recall settings saved with EDIT/SAVE CUSTOM SETTING. Settings can be recalled from any of the seven custom settings banks.

Banks

CUSTOM 1

CUSTOM 2

CUSTOM 3

CUSTOM 4

CUSTOM 5

CUSTOM 6

CUSTOM 7

The Shooting Menus

EDIT/SAVE CUSTOM SETTING

Save up to 7 sets of custom camera settings for commonly-encountered situations. Saved settings can be recalled using H IMAGE QUALITY SETTING > SELECT CUSTOM SETTING.

1 Press MENU/OK in shooting mode to display the
shooting menu. Select the H IMAGE QUALITY SETTING tab, then highlight EDIT/SAVE CUSTOM SETTING and press MENU/OK.

131

IMAGE QUALITY SETTING

2 Highlight a custom settings
bank and press MENU/OK to select.

IMAGE QUALITY SETTING
SELECT CUSTOM SECTUTSINTOGM 1 EDIT/SAVE CUSTOMCSUESTTTOINMG2
CUSTOM 3 CUSTOM 4 CUSTOM 5 CUSTOM 6 CUSTOM 7

3 Adjust the following as desired:

· ISO

· HIGHLIGHT TONE

· DYNAMIC RANGE · SHADOW TONE

· FILM SIMULATION · COLOR

· GRAIN EFFECT · SHARPNESS

· WHITE BALANCE · NOISE REDUCTION

CUSTOM 1
SAVE CURRENT SETTINGS ISO DYNAMIC RANGE FILM SIMULATION GRAIN EFFECT WHITE BALANCE HIGHLIGHT TONE SHADOW TONE
EXIT

4 Press DISP/BACK. A confirmation
dialog will be displayed; high-

SAVE CUSTOM SETTING CUSTOM 1 SET OK?

light OK and press MENU/OK.

OK CANCEL

N To store current camera settings in the selected bank,
highlight SAVE CURRENT SETTINGS in Step 3 and press
MENU/OK.

The Shooting Menus

132

G AF/MF SETTING
Adjust focus settings.

To display focus settings, press MENU/OK in the shooting display and select the G (AF/MF SETTING) tab.

AF/MF SETTING
FOCUS AREA AF MODE AF-C CUSTOM SETTINGS AF POINT DISPLAY NUMBER OF THE FOCUS POINTS PRE-AF AF ILLUMINATOR FACE/EYE DETECTION SETTING
EXIT

N The options available vary with the shooting mode se-
lected.

FOCUS AREA

Choose the focus area for autofocus, manual focus, and focus zoom.

The Shooting Menus

133

AF MODE Choose the AF mode for focus modes S and C.

Option

Description

The camera focuses on the subject in the selected focus

r point. The number of focus points available can be se-

SINGLE lected using G AF/MF SETTING > NUMBER OF THE

POINT FOCUS POINTS. Use for pin-point focus on a selected

subject.

y
ZONE

The camera focuses on the subject in the selected focus zone. Focus zones include multiple focus points, making it easier to focus on subjects that are in motion.

In focus mode C, the camera tracks focus on the subject

in the selected focus point while the shutter button is

6 z pressed halfway. In focus mode S, the camera automati-
WIDE/ cally focuses on high-contrast subjects; the areas in focus

TRACKING are shown in the display. The camera may be unable

to focus on small objects or subjects that are moving

rapidly.

The Shooting Menus

134

AF-C CUSTOM SETTINGS
Select focus-tracking options for focus mode C. Choose from Sets 15 according to your subject.

AF/MF SETTING
AF-C CUSTOM SETTINGS SET 1 STANDARD SETTING FOR MULTI-PURPOSE

Option

Description

SET 1 STANDARD SETTING FOR MULTI-PURPOSE

A standard tracking option that works well with the typical range of moving subjects.

SET 2 IGNORE OBSTACLES & CONTINUE
TO TRACK SUBJECT

The focus system attempts to track the chosen subject. Choose with subjects that are hard to keep in the focus area or if other objects are likely to enter the focus area with the subject.

SET 3 FOR

The focus system attempts to compensate for 6

ACCELERATING/ subject acceleration or deceleration. Choose

DECELERATINGSUBJECT for subjects prone to rapid changes in velocity.

SET 4 FOR SUDDENLY APPEARING
SUBJECT

The focus system attempts to focus quickly on subjects entering the focus area. Choose for subjects that appear abruptly or when rapidly switching subjects.

SET5FOR Choose for hard-to-track subjects prone not only

ERRATICALLYMOVING& to sudden changes in velocity but also to large

ACCEL./DECEL.SUBJECT movements front to back and left to right.

The Shooting Menus

135

AF POINT DISPLAY yz
Choose whether individual focus frames are displayed when ZONE or WIDE/TRACKING is selected for G AF/MF SETTING > AF MODE.

Options

OFF

The Shooting Menus

6 NUMBER OF THE FOCUS POINTS
Choose the number of focus points available for focus-point selection in manual focus mode or when SINGLE POINT is selected for AF MODE.

Option

Description

91 POINTS Choose from 91 focus points arranged in a 7- by 13-point

(7 × 13) grid.

325 POINTS Choose from 325 focus points arranged in a 13- by

(13 × 25) 25-point grid.

136

AF/MF SETTING
PRE-AF
If ON is selected, the camera will continue to adjust focus even when the shutter button is not pressed halfway. Note that this increases the drain on the battery.

Options

OFF

The Shooting Menus

AF ILLUMINATOR

If ON is selected, the AF-assist illuminator will light to assist autofocus.

Options

OFF

O The camera may be unable to focus using the AF-assist
illuminator in some cases. If the camera is unable to fo-
cus, try increasing the distance to the subject.

Avoid shining the AF-assist illuminator directly into your subject's eyes.

137

FACE/EYE DETECTION SETTING
Intelligent Face Detection sets focus and exposure for human faces anywhere in the frame, preventing the camera from focusing on the background in group portraits. Choose for shots that emphasize portrait subjects. Faces can be detected with the camera in vertical or horizontal orientation; if a face is detected, it will be indicated by a green border. If there is more than one face in the frame, the camera will select the face closest to the center; other faces are indicated by white borders. You can also choose whether the camera detects and focus6 es on eyes when Intelligent Face Detection is on. Choose from the following options:

Option

Description

FACE ON/EYE OFF Intelligent Face Detection only.

FACE ON/ The camera automatically chooses which eye to

EYE AUTO focus on when a face is detected.

FACE ON/RIGHT The camera focuses on the right eye of subjects

EYE PRIORITY detected using Intelligent Face Detection.

FACE ON/LEFT EYE The camera focuses on the left eye of subjects

PRIORITY detected using Intelligent Face Detection.

FACE OFF/EYE OFF Intelligent Face Detection and eye priority off.

The Shooting Menus

138

AF/MF SETTING
O In some modes, the camera may set exposure for the
frame as a whole rather than the portrait subject. If the subject moves as the shutter button is pressed, the face may not be in the area indicated by the green border when the picture is taken.
N If the camera is unable to detect the subject's eyes be-
cause they are hidden by hair, glasses, or other objects, the camera will instead focus on faces. Face/eye detection options can also be accessed via
shortcuts (P 242).
6
139

The Shooting Menus

AF+MF
If ON is selected in focus mode S, focus can be adjusted manually by rotating the focus ring while the shutter button is pressed halfway. Both standard and focus peaking MF assist options are supported.

Options

OFF

O Lenses with a focus distance indicator must be set to
manual focus mode (MF) before this option can be used.

Selecting MF disables the focus distance indicator. Set

the focus ring to the center of the focus distance indi-

cator, as the camera may fail to focus if the ring is set to

infinity or the minimum focus distance.

AF + MF Focus Zoom When ON is selected for G AF/MF SETTING > FOCUS CHECK and SINGLE POINT selected for AF MODE, focus zoom can be used to zoom in on the selected focus area. The zoom ratio (2.5× or 6×) can be selected using the rear command dial.

The Shooting Menus

140

AF/MF SETTING
MF ASSIST Choose how focus is displayed in manual focus mode.

Option

Description

STANDARD

Focus is displayed normally (focus peaking and digital split image are not available).

Displays a black-and-white (MONOCHROME) or

DIGITAL SPLIT IMAGE

color (COLOR) split image in the center of the frame. Frame the subject in the split-image area and rotate the focus ring until the three parts of the split image

are correctly aligned.

FOCUS PEAK The camera heightens high-contrast outlines. Choose

HIGHLIGHT a color and peaking level.

FOCUS CHECK

If ON is selected, the display will automatically zoom in on the selected focus area when the focus ring is rotated in manual focus mode.

Options

OFF

O Pressing the center of the rear command dial cancels fo-
cus zoom.

The Shooting Menus

141

INTERLOCK SPOT AE & FOCUS AREA
Select ON to meter the current focus frame when SINGLE POINT is selected for AF MODE and SPOT is selected for PHOTOMETRY.

Options

OFF

The Shooting Menus

6 INSTANT AF SETTING
Choose whether the camera focuses using single AF (AF-S) or continuous AF (AF-C) when the AF-L button is pressed in manual focus mode.

Options

AF-S

AF-C

142

AF/MF SETTING
DEPTH-OF-FIELD SCALE
Choose FILM FORMAT BASIS to help you make practical assessments of depth of field for pictures that will be viewed as prints and the like, PIXEL BASIS to help you assess depth of field for pictures that will be viewed at high resolutions on computers or other electronic displays.

PIXEL BASIS

Options FILM FORMAT BASIS

RELEASE/FOCUS PRIORITY

Choose how the camera focuses in focus mode AF-S or AF-C.

Option RELEASE FOCUS

Description Shutter response is prioritized over focus. Pictures can be taken when the camera is not in focus. Focus is prioritized over shutter response. Pictures can be only taken when the camera is in focus.

The Shooting Menus

143

TOUCH SCREEN MODE
Choose the shooting operations performed using touch controls.

Still Photography

Mode

Description

TOUCH SHOOTING Tap your subject in the display to focus and re-

lease the shutter. In burst mode, pictures will be

taken while you keep your finger on the display.

Tap to select a focus point. In focus mode S (AF-S),

focus will lock, while in focus mode C (AF-C), the

camera will continually adjust focus in response to changes in the distance to the subject. Focus

lock and continuous focus can be ended by tap-

ping the AF OFF icon.

AREA

Tap to select a point for focus or zoom. The focus

frame will move to the selected point.

OFF
Touch controls off. The display does not respond when tapped.

The Shooting Menus

144

Movie Recording

AF/MF SETTING

N We recommend that you select AREA for MOVIE AF
MODE in the shooting menu B (movie) tab before re-
cording movies using touch controls (in some movie
modes, AREA will be selected automatically).

Mode

Description

Tap your subject in the display to focus and start

recording. In focus mode C (AF-C), the camTOUCH SHOOTING era will continually adjust focus in response to

changes in the distance to the subject; to refo-

cus in focus mode S (AF-S) or to focus on a new

subject in focus mode C, tap the subject in the

monitor. To end recording, press the shutter

button.

Tap your subject in the display to focus and press

the shutter button to start or end recording.

In focus mode C (AF-C), the camera will

continually adjust focus in response to changes

in the distance to the subject; to refocus in focus

mode S (AF-S) or to focus on a new subject in

focus mode C, tap the subject in the monitor.

The Shooting Menus

145

AF/MF SETTING

Mode

Description

Tap to select a focus point and press the shut-

ter button to start or end recording. In focus

AREA

mode C (AF-C), the camera will continually

adjust focus in response to changes in the dis-

tance to the subject in the selected focus point.

In focus mode S (AF-S), you can move the focus

point by tapping the display, but can only refo-

cus using the control to which AF-ON has been

assigned (P 225).

OFF

Touch controls off. The display does not respond when tapped.

N 6 To disable touch controls and hide the touch screen mode indicator, select OFF for D BUTTON/DIAL SETTING > TOUCH SCREEN SETTING.

The Shooting Menus

146

A SHOOTING SETTING
Adjust shooting options.

To display shooting options, press MENU/OK in the shooting display and select the A (SHOOTING SETTING) tab.

SHOOTING SETTING
SCENE POSITION DRIVE SETTING SELF-TIMER INTERVAL TIMER SHOOTING PHOTOMETRY SHUTTER TYPE IS MODE ISO
EXIT

N The options available vary with the shooting mode se-
lected.

SCENE POSITION

Choose the mode selected when the drive dial is ro-

tated to S and the auto mode selector lever is rotated

to AUTO.

Mode S ADVANCED
SR AUTO h PORTRAIT Z PORTRAIT
ENHANCER M LANDSCAPE
N SPORT O NIGHT

Description The camera automatically optimizes settings to suit the scene. Choose for portraits. Processes portraits to give the subject a smooth, natural-looking complexion. Choose for daylight shots of buildings and landscapes. Choose when photographing moving subjects. Choose for poorly lit twilight or night scenes.

The Shooting Menus

147

Mode

Description

H NIGHT

Choose this mode for slow shutter speeds when

(TRIPOD) shooting at night.

p FIREWORKS Slow shutter speeds are used to capture the ex-

panding burst of light from a firework.

Q SUNSET Choose this mode to record the vivid colors in

sunrises and sunsets.

R SNOW

Choose for crisp, clear shots that capture the

brightness of scenes dominated by shining

white snow.

s BEACH

Choose for crisp, clear shots that capture the

brightness of sunlit beaches.

f UNDERWATER Reduces the blue cast typically associated with

underwater lighting.

6 U PARTY

Capture indoor background lighting under lowlight conditions.

V FLOWER Effective for taking more vivid shots of flowers.

W TEXT

Take clear pictures of text or drawings in print.

The Shooting Menus

148

SHOOTING SETTING
DRIVE SETTING Adjust settings for the various drive modes.

Option

Description

BKT1 SETTING Choose the settings used when the drive dial is ro-

BKT2 SETTING tated to BKT1 or BKT2 (P 150).

Select the frame rate used when the drive dial is

CH HIGH SPEED rotated to CH (continuous high speed): 14, 11, or

BURST 8 fps. Note that 14fps and 11fps are available only

with the electronic shutter.

CL LOW SPEED Select the frame rate used when the drive dial is

BURST rotated to CL (continuous low speed): 5, 4, or 3 fps.

Adv. FILTER 1

SELECT Choose the filter used when the drive dial is rotated

Adv. FILTER 2 to Adv.1 or Adv.2 (P 100).

SETTING

The Shooting Menus

149

BKT SETTING
Choose bracketing settings for the BKT1 and BKT2 positions on the drive dial. Use BKT SELECT to choose a bracketing type and the AE BKT, ISO BKT, FILM SIMULATION BKT, and WHITE BALANCE BKT options to choose the bracketing amount for each type.

Option

Description

Choose from O AE BKT, W ISO BKT,

BKT SELECT

X FILM SIMULATION BKT, H WHITE BALANCE BKT, and Y DYNAMIC RANGE

BKT.

AE BKT

Choose from ±1/3, ±2/3, ±1, ±11/3, ±12/3, and ±2.

ISO BKT Choose from ±1/3, ±2/3, and ±1.

FILM SIMULATION Choose the three film simulation types used

BKT

for film simulation bracketing (P 118).

WHITE BALANCE BKT Choose from ±1, ±2, and ±3.

The Shooting Menus

150

SELF-TIMER Choose a shutter release delay.

SHOOTING SETTING

Option

Description

The shutter is released two seconds after the shutter but-

R 2 SEC

ton is pressed. Use to reduce blur caused by the camera moving when the shutter button is pressed. The self-tim-

er lamp blinks as the timer counts down.

The shutter is released ten seconds after the shutter but-

S 10 SEC

ton is pressed. Use for photographs in which you wish to appear yourself. The self-timer lamp blinks immediately

before the picture is taken.

OFF Self-timer off.

If an option other than OFF is selected, the timer will start when

the shutter button is pressed all

the way down. The display in the

monitor shows the number of sec-

onds remaining until the shutter is released. To stop

the timer before the picture is taken, press DISP/BACK.

O Stand behind the camera when using the shutter but-
ton. Standing in front of the lens can interfere with focus
and exposure.

The self-timer turns off automatically when the camera is turned off.

The Shooting Menus

151

INTERVAL TIMER SHOOTING
Configure the camera to take photos automatically at a preset interval.

1 Highlight INTERVAL TIMER
SHOOTING in the A (SHOOTING SETTING) tab and press MENU/OK.

INTERVAL/NUMBER OF TIMES INTERVAL

NUMBER OF TIMES

2 Use the selector to choose the
interval and number of shots. Press MENU/OK to proceed.

3 Use the selector to choose the
starting time and then press

MENU/OK. Shooting will start

automatically.

END START WAITING TIME

CANCEL

LATER

ESTIMATED START TIME 11 : 00 PM

START

CANCEL

The Shooting Menus

152

SHOOTING SETTING
O Interval timer photography can not be used at a shutter
speed of B (bulb) or with multiple exposure photography. In burst mode, only one picture will be taken each time the shutter is released.

N Use of a tripod is recommended.

Check the battery level before starting. We recommend using an optional AC-9V AC power adapter and CP-W126 DC coupler.

The display turns off between shots and lights a few seconds before the next shot is taken. The display can be activated at any time by pressing the shutter button.

To continue shooting until the memory card is full, set

the number of shots to .

The Shooting Menus

153

PHOTOMETRY Choose how the camera meters exposure.

O The selected option will only take effect when G AF/MF
SETTING > FACE/EYE DETECTION SETTING is OFF.

Mode

Description

o
(multi)

The camera instantly determines exposure based on an analysis of composition, color, and brightness distribution. Recommended in most situations.

p
(centerweighted)

The camera meters the entire frame but greatest weight to the area at the center.

assigns

the

The camera meters lighting conditions in an area at

v
(spot)

the center of the frame equivalent to 2% of the total. Recommended with backlit subjects and in other cases in which the background is much brighter or darker than

the main subject.

Exposure is set to the average for the entire frame.

w Provides consistent exposure across multiple shots with

(average) the same lighting, and is particularly effective for land-

scapes and portraits of subjects dressed in black or white.

The Shooting Menus

154

SHOOTING SETTING

SHUTTER TYPE

Choose the shutter type. Choose the electronic shut-

ter to mute the shutter sound.

Option

Description

t MECHANICAL SHUTTER

Take pictures with the mechanical shutter.

s ELECTRONIC SHUTTER

Take pictures with the electronic shutter.

t MECHANICAL + The camera chooses the shutter type according

s ELECTRONIC to shooting conditions.

If an option other than t MECHANICAL SHUTTER

is selected, shutter speeds faster than ¼ s can be

chosen by rotating the shutter speed dial to 4000 and

then rotating the rear command dial.

O Distortion may be visible in shots of moving subjects
with electronic shutter, while banding and fog may occur in shots taken under fluorescent lights or other flickering or erratic illumination. When taking pictures with the shutter muted, respect your subjects' image rights and right to privacy.

N When the electronic shutter is used, the flash is disabled,
shutter speed and sensitivity are restricted to values of
1/3200030 s and ISO 12800200 respectively, and long ex-
posure noise reduction has no effect.

The Shooting Menus

155

IS MODE
Choose from the following image stabilization options:

Option

Description

L CONTINUOUS Image stabilization on. If + MOTION is se-

+ MOTION lected, the camera will adjust shutter speed

l CONTINUOUS

to reduce motion blur when a moving objects are detected.

As above, except that image stabilization is M SHOOTING performed only when the shutter button is
+ MOTION pressed halfway (focus mode C only) or the

shutter is released. If + MOTION is select-

ed, the camera will adjust shutter speed to
6 m SHOOTING ONLY reduce motion blur when a moving objects
are detected.

OFF

Image stabilization off. Choose this option when using a tripod.

N + MOTION has no effect when sensitivity is set to a fixed
value, and may also be unavailable at some other com-
binations of settings. The effect may vary with lighting
conditions and the speed at which the object is moving.

This option is available only with lenses that support image stabilization.

The Shooting Menus

156

SHOOTING SETTING
ISO Adjust the camera's sensitivity to light.

Option

Description

AUTO1 AUTO2 AUTO3

Sensitivity is automatically adjusted in response to shooting conditions.

12800200

Adjust sensitivity manually. Selected value is shown in display.

(25600 or 51200), L (100)

Choose for special situations. Note that mottling may appear in pictures taken at H, while L reduces dynamic range.

N Sensitivity is not reset when the camera is turned off.

Adjusting Sensitivity

High values can be used to reduce blur when lighting is poor,

while lower values allow slower shutter speeds or wider aper-

tures in bright light; note, however, that mottling may appear

in pictures taken at high sensitivities.

The Shooting Menus

157

AUTO
Choose the base sensitivity, maximum sensitivity, and minimum shutter speed for AUTO1, AUTO2, and AUTO3. Defaults are shown below.

Option DEFAULT SENSITIVITY MAX. SENSITIVITY MIN. SHUTTER SPEED

AUTO1 800

Default AUTO2 200 1600 / s

AUTO3 3200

The camera automatically chooses a sensitivity between the default and maximum values; sensitivity is only raised above the default value if the shutter 6 speed required for optimal exposure would be slower than the value selected for MIN. SHUTTER SPEED.

The Shooting Menus

158

SHOOTING SETTING
N If the value selected for DEFAULT SENSITIVITY is high-
er than that selected for MAX. SENSITIVITY, DEFAULT SENSITIVITY will be set to the value selected for MAX. SENSITIVITY.

The camera may select shutter speeds slower than MIN.

SHUTTER SPEED if pictures would still be underex-

posed at the value selected for MAX. SENSITIVITY. If

AUTO is selected for MIN. SHUTTER SPEED, the camera

will automatically choose a minimum shutter speed ap-

proximately equal to the inverse of the lens' focal length,

in seconds (for example, if the lens has a focal length

of 50 mm, the camera will choose a minimum shutter

speed in the neighborhood of 1/ 0 s). The minimum shut-

ter speed is not affected by the option selected for im-

age stabilization.

The Shooting Menus

159

MOUNT ADAPTOR SETTING
Adjust settings for M-mount lenses connected using an optional FUJIFILM M MOUNT ADAPTER.

Choosing a Focal Length
If the lens has a focal length of 21, 24, 28, or 35 mm, choose a matching option in the MOUNT ADAPTOR SETTING menu.
For other lenses, select option 5 or 6 and use the selector to enter the focal length. 6

LENS REGISTRATION
LENS 1 LENS 2 LENS 3 LENS 4 LENS 5 LENS 6
SET
LENS 5 INPUT FOCAL LENGTH

SET

CANCEL

The Shooting Menus

160

Distortion Correction
Choose from STRONG, MEDIUM, or WEAK options to correct BARREL or PINCUSHION distortion.

SHOOTING SETTING
LENS5 DISTORTION CORRECTION BARREL STRONG BARREL MEDIUM BARREL WEAK OFF PINCUSHION WEAK PINCUSHION MEDIUM PINCUSHION STRONG

The Shooting Menus

Color Shading Correction
Color (shading) variations between the center and edges of the frame can be adjusted separately for each corner.

SET

To use color shading correction, follow the steps below.
1 Rotate the rear command dial to choose a corner. 6
The selected corner is indicated by a triangle.

2 Use the selector to adjust shading until there is
no visible difference in color between the selected corner and the center of the image. Press the selector left or right to adjust colors on the cyan red axis. Press the selector up or down to adjust colors on the blueyellow axis.

N To determine the amount required, adjust color shading
correction while taking photos of blue sky or a sheet of
gray paper.

161

Peripheral Illumination Correction

Choose from values between 5

and +5. Choosing positive values

increases peripheral illumination,

while choosing negative values

SET

CANCEL

reduces peripheral illumination.

Positive values are recommended for vintage lenses,

negative values to create the effect of images taken

with an antique lens or a pinhole camera.

N To determine the amount required, adjust peripheral il-
lumination correction while taking photos of blue sky or
a sheet of gray paper.

The Shooting Menus

162

SHOOTING SETTING
WIRELESS COMMUNICATION Connect to smartphones running the "FUJIFILM Camera Remote" app. The smartphone can be used to browse the images on the camera, download selected images, control the camera remotely, or upload location data to the camera.
N For downloads and other information, visit:
http://fujifilm-dsc.com/wifi/
6
163

The Shooting Menus

F FLASH SETTING
Adjust flash-related settings.

To display flash-related settings, press MENU/OK in the shooting display and select the F (FLASH SETTING) tab.

FLASH SETTING FLASH FUNCTION SETTING RED EYE REMOVAL TTL-LOCK MODE LED LIGHT SETTING MASTER SETTING CH SETTING
EXIT

N The options available vary with the shooting mode se-
lected.

6 FLASH FUNCTION SETTING Choose a flash control mode, flash mode, or sync mode or adjust the flash level. The options available vary with the flash.
N See page 257 for more information.

MODE

Built-In Flash

ADJUST

END

The Shooting Menus

164

FLASH SETTING
RED EYE REMOVAL Remove red-eye effects caused by the flash.

Option

Description

FLASH + REMOVAL

A red-eye reduction pre-flash is combined with digital red-eye removal.

FLASH Flash red-eye reduction only.

REMOVAL Digital red-eye removal only.

OFF

Flash red-eye reduction and digital red-eye removal off.

N Flash red-eye reduction can be used in TTL flash control
mode. Digital red-eye removal is performed only when a
face is detected and is not available with RAW images.

The Shooting Menus

165

TTL-LOCK MODE
Instead of adjusting flash level with each shot, TTL flash control can be locked for consistent results across a series of photographs.

Option

Description

LOCK WITH LAST FLASH

Flash output is locked at the value metered for the most recent photo. An error message will be displayed if no previously metered value exists.

LOCK WITH The camera emits a series of pre-flashes and

METERING FLASH locks flash output at the metered value.

N To use TTL lock, assign TTL-LOCK to a camera control

and then use the control to enable or disable TTL lock

(P 250).

Flash compensation can be adjusted while TTL lock is in

effect.

The Shooting Menus

166

FLASH SETTING
LED LIGHT SETTING
Choose whether to use the flash unit's LED video light (if available) as a catchlight or AF-assist illuminator when taking photos.

Option

Role of LED video light in still photography

CATCHLIGHT Catchlight

AF ASSIST

AF-assist illuminator

AF ASSIST + CATCHLIGHT AF-assist illuminator and catchlight

OFF

None

N This option can also be accessed via the flash settings
menu.

The Shooting Menus

MASTER SETTING

Choose a flash group (A, B, or C) for the flash mounted on the camera hot shoe when it functions as a master flash controlling remote flash units via FUJIFILM wireless optical flash control, or choose OFF to limit master flash output to a level that does not affect the final picture.

Options

Gr A

Gr B

Gr C

OFF

N This option can also be accessed via the flash settings
menu.

167

FLASH SETTING
CH SETTING
Choose the channel used for communication between the master flash and remote flash units when using FUJIFILM optical wireless flash control. Separate channels can be used for different flash systems or to prevent interference when multiple systems are operating in close proximity.

Options

CH1

CH2

CH3

CH4

The Shooting Menus

168

B MOVIE SETTING
Adjust movie-recording options.

To display options for movie recording, press MENU/OK in the shooting display and select the B (MOVIE SETTING) tab.

MOVIE SETTING
MOVIE MODE MOVIE AF MODE HDMI OUTPUT INFO DISPLAY 4K MOVIE OUTPUT HDMI REC CONTROL MIC LEVEL ADJUSTMENT MIC/REMOTE RELEASE
EXIT

N The options available vary with the shooting mode se-
lected.

The Shooting Menus

MOVIE MODE

Choose a frame size and rate for movie recording.

Option
U 2160/29.97P U 2160/25P U 2160/24P U 2160/23.98P i 1080/59.94P i 1080/50P i 1080/29.97P i 1080/25P i 1080/24P i 1080/23.98P h 720/59.94P h 720/50P h 720/29.97P h 720/25P h 720/24P h 720/23.98P

Frame size 3840 × 2160
(4K)
1920 × 1080 (Full HD)
1280 × 720 (HD)

Rate 29.97 fps

25 fps

24 fps

23.98 fps

59.94 fps

50 fps

29.97 fps

25 fps

24 fps

23.98 fps

59.94 fps

50 fps

29.97 fps

25 fps

24 fps

23.98 fps

169

MOVIE AF MODE
Choose how the camera selects the focus point for movie recording.

Option

Description

MULTI Automatic focus-point selection.

AREA The camera focuses on the subject in the selected focus area.

The Shooting Menus

6 HDMI OUTPUT INFO DISPLAY
If ON is selected, HDMI devices to which the camera is connected will mirror the information in the camera display.

Options

OFF

170

MOVIE SETTING
4K MOVIE OUTPUT
Choose the destination for 4K movies shot while the camera is connected to an HDMI recorder or other device that supports 4K.

Option

Description

b CARD

4K movies are recorded to a camera memory card in 4K and output to the HDMI device in Full HD.

4K movies are output to the HDMI device in 4K, starting

HDMI when the shutter button is pressed. The camera does not

record 4K movies to a memory card.

HDMI REC CONTROL

Choose whether the camera sends movie start and stop signals to the HDMI device when the shutter button is pressed to start and stop movie recording.

Options

OFF

The Shooting Menus

171

MIC LEVEL ADJUSTMENT
Adjust the recording level for the built-in and external microphones.

MOVIE SETTING
MIC LEVEL ADJUSTMENT

Option

Description

4--1 Choose a recording level.

SET

CANCEL

N Displays shows the peak recording level detected in a
given period.

You can assign MIC LEVEL ADJUSTMENT to a camera

control and then using the control to adjust the micro-

phone level during recording.

MIC/REMOTE RELEASE
Specify whether the device connected to the microphone/remote release connector is a microphone or a remote release.

m MIC

Options

n REMOTE

The Shooting Menus

172

Playback and the Playback Menu
173

Playback and the Playback Menu

The Playback Display
This section lists the indicators that may be displayed during playback.
O For illustrative purposes, displays are shown with all indi-
cators lit.
12.31.2050 10:00 AM
7
174

Playback and the Playback Menu

The Playback Display

A Date and time...................... 44, 202 L Battery level ................................... 43

B Face detection indicator...........138 M Image size/quality ............115, 116

C Red-eye removal indicator

N Film simulation...........................118

..............................................165, 190 O Dynamic range...........................121

D Advanced filter.............................. 99 P White balance.............................122

E Location data.....................238, 280 Q Sensitivity......................................157

F Protected image .........................188 R Exposure compensation ............ 91

G Sound and flash indicator.......206 S Aperture .............................63, 69, 72

H Frame number ............................234 T Shutter speed....................63, 64, 72

I Gift image....................................... 51 U Playback mode indicator........... 51

J Photobook assist indicator......192 V Movie icon...................................... 58 K DPOF print indicator .................195 W Rating ............................................176

175

Playback and the Playback Menu

The DISP/BACK Button
The DISP/BACK button controls the display of indicators during playback.

Standard
12/31/2050 10:00 AM

Information off

12/31/2050 10:00 AM

12/31/2050 10:00 AM +21/3
7

FAVORITES
Favorites

Info display

Favorites: Rating Pictures To rate the current picture, press DISP/BACK and press the selector up and down to select from zero to five stars.

176

Playback and the Playback Menu

The Playback Display Viewing Photo Information The photo information display changes each time the selector is pressed up.
Basic data
12/31/2050 10:00 AM

LENS
FOCAL LENGTH COLOR SPACE LENS MODULATION OPT.

23.0mm F5.6 23.0mm sRGB ON

12/31/2050 10:00 AM

+21/3

S.S1/12000 F5.6 ISO 51200 +21/3
NEXT
Info display 2

Info display 1

Zooming in on the Focus Point Press the center of the rear command dial to zoom in on the

focus point. Press again to return to full-frame playback.

177

Playback and the Playback Menu

Viewing Pictures
Read this section for information on playback zoom and multi-frame playback.
Use the rear command dial to go from full-frame playback to playback zoom or multi-frame playback.
Full-frame playback
100-0001

Multi-frame playback
7

Nineframe view

Playback zoom DISP/BACK MENU/OK
Medium zoom

Hundredframe view

Maximum zoom

178

Playback and the Playback Menu

Viewing Pictures
Playback Zoom Rotate the rear command dial right to zoom in on the current picture, left to zoom out. To exit zoom, press DISP/BACK, MENU/OK, or the center of the rear command dial.
N The maximum zoom ratio varies with the option select-
ed for H IMAGE QUALITY SETTING > IMAGE SIZE. Playback zoom is not available with cropped or resized copies saved at a size of a.
Scroll When the picture is zoomed in, the selector can be used to view areas of the image not currently visible in the display.
Navigation window 7
Multi-Frame Playback To change the number of images displayed, rotate the rear command dial left when a picture is displayed full frame.
N Use the selector to highlight images and press MENU/OK
to view the highlighted image full frame. In the nineand hundred-frame displays, press the selector up or down to view more pictures.
179

Playback and the Playback Menu

C The Playback Menu
Adjust playback settings.

The playback menu is displayed when you press MENU/OK in playback mode.

PLAY BACK MENU
RAW CONVERSION ERASE CROP RESIZE PROTECT IMAGE ROTATE RED EYE REMOVA WIRELESS COMMUNICATION
EXIT

RAW CONVERSION
RAW pictures store information on camera settings separately from the data captured by the camera image sensor. Using C PLAY BACK MENU > RAW CONVERSION, you can create JPEG copies of RAW pictures using different options for the settings listed on page 182. The original image data are unaffect7 ed, allowing a single RAW image to be processed in a multitude of different ways.

1 With a RAW picture displayed, press MENU/OK to
display the playback menu.

180

Playback and the Playback Menu

2 Press the selector up or down
to highlight C PLAY BACK MENU > RAW CONVERSION and press MENU/OK to display settings.

The Playback Menu

RAW CONVERSION

REFLECT SHOOTING COND. PUSH/PULL PROCESSING DYNAMIC RANGE FILM SIMULATION GRAIN EFFECT WHITE BALANCE

CREATE

CANCEL

N These options can also be displayed by pressing the
Q button during playback.

3 Press the selector up or down
to highlight a setting and press the selector right to display options. Press the selector up or

RAW CONVERSION
100% 200% 400% WB

down to highlight the desired

option and press MENU/OK to select and return to

the settings list. Repeat this step to adjust addi-

tional settings.

4 Press the Q button to preview the JPEG copy and
press MENU/OK to save.

181

Playback and the Playback Menu

The settings that can be adjusted when converting

pictures from RAW to JPEG are:

Setting

Description

REFLECT

Create a JPEG copy using the settings in effect at

SHOOTING COND. the time the photo was taken.

PUSH/PULL PROCESSING

Adjust exposure.

DYNAMIC RANGE

Enhance details in highlights for natural contrast.

FILM SIMULATION Simulate the effects of different types of film.

GRAIN EFFECT Add a film grain effect.

WHITE BALANCE Adjust white balance.

WB SHIFT

Fine-tune white balance.

HIGHLIGHT TONE Adjust highlights.

SHADOW TONE Adjust shadows.

COLOR
7 SHARPNESS

Adjust color density. Sharpen or soften outlines.

NOISE REDUCTION Process the copy to reduce mottling.

LENS

Improve definition by adjusting for diffraction

MODULATION and the slight loss of focus at the periphery of

OPTIMIZER

the lens.

COLOR SPACE

Choose the color space used for color reproduction.

182

Playback and the Playback Menu

The Playback Menu
ERASE
Delete individual pictures, multiple selected pictures, or all pictures.

O Deleted pictures can not be recovered. Protect important
pictures or copy them to a computer or other storage
device before proceeding.

Option

Description

FRAME Delete pictures one at a time.

SELECTED FRAMES Delete multiple selected pictures.

ALL FRAMES Delete all unprotected pictures.

FRAME
1 Select FRAME for ERASE in the playback menu.
2 Press the selector left or right to scroll through 7
pictures and press MENU/OK to delete (a confirmation dialog is not displayed). Repeat to delete additional pictures.

183

Playback and the Playback Menu

SELECTED FRAMES
1 Select SELECTED FRAMES for ERASE in the play-
back menu.
2 Highlight pictures and press MENU/OK to select
or deselect (pictures in photobooks or printer orders are shown by S). Selected pictures are indicated by check marks (R).
3 When the operation is complete, press DISP/BACK
to display a confirmation dialog.
4 Highlight OK and press MENU/OK to delete the se-
lected pictures. 7
184

Playback and the Playback Menu

The Playback Menu
ALL FRAMES
1 Select ALL FRAMES for ERASE in the playback
menu.
2 A confirmation dialog will be displayed; highlight
OK and press MENU/OK to delete all unprotected pictures.
N Pressing DISP/BACK cancels deletion; note that any pic-
tures deleted before the button was pressed can not be recovered. If a message appears stating that the selected images are part of a DPOF print order, press MENU/OK to delete the pictures.
7
185

Playback and the Playback Menu

CROP Create a cropped copy of the current picture.

1 Display the desired picture.

2 Select CROP in the playback menu.

3 Use the rear command dial to zoom in and out
and press the selector up, down, left, or right to scroll the picture until the desired portion is displayed.

4 Press MENU/OK to display a confirmation dialog.

5 Press MENU/OK again to save the cropped copy to
a separate file.

N 7

Larger crops produce larger copies; all copies have an aspect ratio of 32. If the size of the final copy will be a,

YES will be displayed in yellow.

186

Playback and the Playback Menu

The Playback Menu
RESIZE Create a small copy of the current picture.
1 Display the desired picture. 2 Select RESIZE in the playback menu. 3 Highlight a size and press MENU/OK to display a
confirmation dialog.
4 Press MENU/OK again to save the resized copy to a
separate file.
N The sizes available vary with the size of the original im-
age.
7
187

Playback and the Playback Menu

PROTECT Protect pictures from accidental deletion. Highlight one of the following options and press MENU/OK.
· FRAME: Protect selected pictures. Press the selector
left or right to view pictures and press MENU/OK to select or deselect. Press DISP/BACK when the operation is complete.
· SET ALL: Protect all pictures. · RESET ALL: Remove protection from all pictures. O Protected pictures will be deleted when the memory
card is formatted.
7
188

Playback and the Playback Menu

IMAGE ROTATE Rotate pictures.

The Playback Menu

1 Display the desired picture. 2 Select IMAGE ROTATE in the playback menu. 3 Press the selector down to rotate the picture 90°
clockwise, up to rotate it 90° counterclockwise.

4 Press MENU/OK. The picture will automatically be
displayed in the selected orientation whenever it is played back on the camera.

N Protected pictures can not be rotated. Remove protec-
tion before rotating pictures.

The camera may not be able to rotate pictures created
with other devices. Pictures rotated on the camera will 7
not be rotated when viewed on a computer or on other cameras.

Pictures taken with D SCREEN SETTING > AUTOROTATE PB are automatically displayed in the correct orientation during playback.

189

Playback and the Playback Menu

RED EYE REMOVAL
Remove red-eye from portraits. The camera will analyze the image; if red-eye is detected, the image will be processed to create a copy with reduced red-eye.

1 Display the desired picture.

2 Select RED EYE REMOVAL in the playback menu.

3 Press MENU/OK.
N Results vary depending on the scene and the camera's
success in detecting faces. Red eye can not be removed from pictures that have already been processed using red-eye removal, which are indicated by a e icon during playback.

The amount of time needed to process the image varies with the number of faces detected.

Red eye removal can not be performed on RAW images.

190

Playback and the Playback Menu

The Playback Menu
WIRELESS COMMUNICATION Connect to smartphones running the "FUJIFILM Camera Remote" app. The smartphone can be used to browse the images on the camera, download selected images, control the camera remotely, or upload location data to the camera.
N For downloads and other information, visit:
http://fujifilm-dsc.com/wifi/
SLIDE SHOW View pictures in an automated slide show. Press 7 MENU/OK to start and press the selector right or left to skip ahead or back. Press DISP/BACK at any time during the show to view on-screen help. The show can be ended at any time by pressing MENU/OK.
N The camera will not turn off automatically while a slide
show is in progress.
191

PHOTOBOOK ASSIST Create books from your favorite photos.

Playback and the Playback Menu

Creating a Photobook
1 Select NEW BOOK for C PLAY BACK MENU >
PHOTOBOOK ASSIST.

2 Scroll through the images and press the selec-
tor up to select or deselect. Press MENU/OK to exit when the book is complete.

N Neither photographs a or smaller nor movies can
be selected for photobooks.

The first picture selected becomes the cover image.

Press the selector down to select the current image

for the cover instead.

3 Highlight COMPLETE PHOTOBOOK and press
MENU/OK (to select all photos for the book, choose

SELECT ALL). The new book will be added to the

list in the photobook assist menu.

N Books can contain up to 300 pictures. Books that contain
no photos are automatically deleted.

Photobooks Photobooks can be copied to a computer using MyFinePix Studio software.

192

Playback and the Playback Menu

Viewing Photobooks

The Playback Menu

Highlight a book in the photobook assist menu and press MENU/OK to display the book, then press the selector left or right to scroll through the pictures.

Editing and Deleting Photobooks
Display the photobook and press MENU/OK. The fol-
lowing options will be displayed; select the desired
option and follow the on-screen instructions.
· EDIT: Edit the book as described in "Creating a
Photobook".
· ERASE: Delete the book.

193

Playback and the Playback Menu

PC AUTO SAVE Upload pictures from the camera to a computer running the "FUJIFILM PC AutoSave" application (note that you must first install the software and configure the computer as a destination for images copied from the camera).
N For downloads and other information, visit:
http://fujifilm-dsc.com/wifi/
7
194

Playback and the Playback Menu

The Playback Menu
PRINT ORDER (DPOF)
Create a digital "print order" for DPOF-compatible printers.

1 Select C PLAY BACK MENU > PRINT ORDER
(DPOF).

2 Select WITH DATE s to print the date of record-
ing on pictures, WITHOUT DATE to print pictures without dates, or RESET ALL to remove all pictures from the print order before proceeding.

3 Display a picture you wish to include in or re-
move from the print order.

4 Press the selector up or down

PRINT ORDER (DPOF) DPOF: 00001

to choose the number of cop-

ies (up to 99). To remove a pic-

ture from the order, press the selector down until the number of copies is 0.

01 SHEETS

FRAME

SET

Total number of prints

Number of copies

5 Repeat steps 34 to complete the print order.

6 The total number of prints is displayed in the
monitor. Press MENU/OK to exit.

195

Playback and the Playback Menu

N The pictures in the current print order are indicated by a
u icon during playback. Print orders can contain a maximum of 999 pictures. If a memory card is inserted containing a print order created by another camera, a message will be displayed. Pressing MENU/OK cancels the print order; a new print order must be created as described above.
7
196

Playback and the Playback Menu

The Playback Menu
instax PRINTER PRINT
To print pictures to optional FUJIFILM instax SHARE printers, first select D CONNECTION SETTING > instax PRINTER CONNECTION SETTING and enter the instax SHARE printer name (SSID) and password, then follow the steps below.

1 Turn the printer on.

2 Select C PLAY BACK MENU >
instax PRINTER PRINT. The camera will connect to the printer.

PRINTER PRINT instax-12345678
CONNECTING TO PRINTER FUJIFILM-CAMERA-1234
CANCEL

N To print a frame from a burst sequence, display the
frame before selecting instax PRINTER PRINT.
7

3 Use the selector to display the
picture you want to print, then

PRINTER PRINT 100-0020

press MENU/OK. The picture

will be sent to the printer and printing will start.

TRANSMIT

CANCEL

instax-12345678

N Pictures taken with other cameras can not be printed.
The area printed is smaller than the area visible in the LCD monitor.

197

Playback and the Playback Menu

The Playback Menu
DISP ASPECT
Choose how High Definition (HD) devices display pictures with an aspect ratio of 32 (this option is available only when an HDMI cable is connected). Select 169 to display the image so that it fills the screen with its top and bottom cropped out, 32 to display the entire image with black bands at either side.

3:2
169

16:9
Option 32

7 Display

198

The Setup Menus
199

D USER SETTING
Adjust basic camera settings.
To access basic camera settings, press MENU/OK, select the D (SET UP) tab, and choose USER SETTING.

USER SETTING FORMAT DATE/TIME TIME DIFFERENCE
MY MENU SETTING SENSOR CLEANING SOUND & FLASH RESET

The Setup Menus

8 200

FORMAT To format a memory card:

USER SETTING

1 Select D USER SETTING > FORMAT in the D (SET
UP) tab.

2 A confirmation dialog will be
displayed. To format the memory card, highlight OK and press MENU/OK. To exit without formatting the memory card, select CANCEL or press DISP/BACK.

FORMAT FORMAT OK? ERASE ALL DATA
OK CANCEL

O All data--including protected pictures--will be delet-
ed from the memory card. Be sure important files have
been copied to a computer or other storage device.

Do not open the battery-chamber cover during format-

ting.

N The format menu can also be displayed by pressing the

center of the rear command dial while pressing and

holding the b button.

The Setup Menus

201

The Setup Menus

DATE/TIME To set the camera clock:
1 Select D USER SETTING > DATE/TIME in the
D (SET UP) tab.
2 Press the selector left or right to highlight the
year, month, day, hour, or minute and press up or down to change. To change the order in which the year, month, and day are displayed, highlight the date format and press the selector up or down.
3 Press MENU/OK to set the clock.
8
202

USER SETTING
TIME DIFFERENCE
Switch the camera clock instantly from your home time zone to the local time at your destination when traveling. To specify the difference between your local and home time zone:

1 Highlight g LOCAL and press MENU/OK.
2 Use the selector to choose the time difference
between local time and your home time zone. Press MENU/OK when settings are complete.

To set the camera clock to local time, highlight g LOCAL and press MENU/OK. To set the clock to the time in your home time zone, select h HOME. If g LOCAL is selected, g will be displayed in yellow for about three seconds when the camera is turned on.

Options

g LOCAL

h HOME

The Setup Menus

203

a Choose a language.

The Setup Menus

MY MENU SETTING

Edit the items listed in the E (MY MENU) tab, a per-

sonalized custom menu of frequently-used options.

1 Highlight D USER SETTING > MY

MY MENU SETTING

MENU SETTING in the D (SET

ADD ITEMS RANK ITEMS

UP) tab and press MENU/OK to dis-

REMOVE ITEMS

play the options at right.

204

2 Press the selector up or down to
highlight ADD ITEMS and press MENU/OK. Options that can be added to "my menu" are highlighted in blue.

USER SETTING

MY MENU SETTING
IMAGE SIZE IMAGE QUALITY RAW RECORDING FILM SIMULATION GRAIN EFFECT DYNAMIC RANGE WHITE BALANCE HIGHLIGHT TONE
SELECT

CANCEL

N Items currently in "my menu" are indicated by check
marks.

3 Highlight an item and press
MENU/OK to add it to "my menu".

MY MENU SETTING 1IMAGE SIZE

MOVE

SAVE

4 Press MENU/OK to return to the edit display.

5 Repeat Steps 3 and 4 until all the desired items
have been added.

N "My menu" can contain up to 16 items.

Editing "My Menu" To reorder or delete items, select RANK ITEMS or REMOVE ITEMS in Step 1.

The Setup Menus

205

SENSOR CLEANING
Remove dust from the camera image sensor.
· OK: Clean the sensor immediately. · WHEN SWITCHED ON: Sensor cleaning will be performed
when the camera is turned on.
· WHEN SWITCHED OFF: Sensor cleaning will be per-
formed when the camera turns off (sensor cleaning is not however performed if the camera turns off in playback mode).
N Dust that can not be removed using sensor cleaning can
be removed manually.

SOUND & FLASH
Select OFF to disable the speaker, flash, illuminator, and self-timer lamp in situations in which camera 8 sounds and lights may be unwelcome.

Options

OFF

The Setup Menus

206

USER SETTING
RESET Reset shooting or setup menu options to default values.

1 Highlight the desired option and press MENU/OK.

Option

Description

Reset all shooting menu settings other than

SHOOTING MENU custom white balance and custom settings

RESET banks created using EDIT/SAVE CUSTOM

SETTING to default values.

Reset all setup menu settings other than

SET-UP RESET DATE/TIME, TIME DIFFERENCE, and

CONNECTION SETTING to default values.

2 A confirmation dialog will be displayed; highlight
OK and press MENU/OK.

The Setup Menus

207

D SOUND SETTING
Make changes to camera sounds.

To access sound settings, press MENU/OK, select the D (SET UP) tab, and choose SOUND SETTING.

SOUND SETTING
AF BEEP VOL. SELF-TIMER BEEP VOL. OPERATION VOL. SHUTTER VOLUME SHUTTER SOUND PLAYBACK VOLUME

The Setup Menus

AF BEEP VOL.
Choose the volume of the beep that sounds when the camera focuses. The beep can be muted by se8 lecting f.

Options b (high) c (medium) d (low)

f (mute)

208

SOUND SETTING
SELF-TIMER BEEP VOL.
Choose the volume of the beep that sounds while the self-timer is active. The beep can be muted by selecting f.

Options b (high) c (medium) d (low)

f (mute)

The Setup Menus

OPERATION VOL.

Adjust the volume of the sounds produced when

camera controls are operated. Choose f to dis-

able control sounds.

Options b (high) c (medium) d (low)

f (mute)

209

SHUTTER VOLUME
Adjust the volume of the sounds produced by the electronic shutter. Choose f to disable the shutter sound.

Options b (high) c (medium) d (low)

f (mute)

SHUTTER SOUND Choose the sound made by the electronic shutter.

8
i SOUND 1

Options j SOUND 2

k SOUND 3

The Setup Menus

210

The Setup Menus

SOUND SETTING
PLAYBACK VOLUME Adjust the volume for movie playback. Choose from 10 options between 10 (high) and 1 (low) or select OFF to mute audio during movie playback.
Options 10 9 8 7 6 5 4 3 2 1 OFF
8
211

D SCREEN SETTING
Make changes to display settings.

To access display settings, press MENU/OK, select the D (SET UP) tab, and choose SCREEN SETTING.

SCREEN SETTING
EVF BRIGHTNESS EVF COLOR LCD BRIGHTNESS LCD COLOR IMAGE DISP. EVF AUTOROTATE DISPLAYS PREVIEW EXP./WB IN MANUAL MODE PREVIEW PIC. EFFECT

The Setup Menus

EVF BRIGHTNESS
Adjust the brightness of the display in the electronic viewfinder. Select MANUAL to choose from 11 op8 tions from +5 (bright) to -5 (dark), or select AUTO for automatic brightness adjustment.

Options

MANUAL

AUTO

212

The Setup Menus

SCREEN SETTING
EVF COLOR Adjust the hue of the display in the electronic viewfinder. Choose from 11 options between +5 and -5.
Options +5 +4 +3 +2 +1 0 -1 -2 -3 -4 -5
LCD BRIGHTNESS Adjust monitor brightness. Choose from 11 options between +5 and -5.
8
Options +5 +4 +3 +2 +1 0 -1 -2 -3 -4 -5
213

LCD COLOR Adjust monitor hue. Choose from 11 options between +5 and -5.
Options +5 +4 +3 +2 +1 0 -1 -2 -3 -4 -5

The Setup Menus

IMAGE DISP.
Choose how long images are displayed after shooting. Colors may differ slightly from those in the final image 8 and "noise" mottling may be visible at high sensitivities.

Option

Description

Pictures are displayed until the MENU/OK button is

CONTINUOUS

pressed zoom in

or the on the

shutter button is pressed halfway. active focus point, press the center

To of

the rear command dial; press again to cancel zoom.

1.5 SEC Pictures are displayed for the selected time or until the

0.5 SEC shutter button is pressed halfway.

OFF Pictures are not displayed after shooting.

214

SCREEN SETTING
EVF AUTOROTATE DISPLAYS
Choose whether the indicators in the viewfinder rotate to match camera orientation. Regardless of the option selected, the indicators in the monitor do not rotate.

Options

OFF

PREVIEW EXP./WB IN MANUAL MODE
Select PREVIEW EXP./WB to enable exposure and white balance preview in manual exposure mode, or choose PREVIEW WB to preview only white balance (PREVIEW WB is recommended in situations in which exposure and white balance are likely to change during shooting, as may be the case when you use a flash with an incandescent monitoring lamp). Select OFF when using a flash or on other occasions on which 8 exposure may change when the picture is taken.

Options

PREVIEW EXP./WB

PREVIEW WB

OFF

The Setup Menus

215

PREVIEW PIC. EFFECT
Choose ON to preview the effects of film simulation, white balance, and other settings in the monitor, OFF to make shadows in low-contrast, back-lit scenes and other hard-to-see subjects more visible.

Options

OFF

N If OFF is selected, the effects of camera settings will not
be visible in the monitor and colors and tone will differ
from those in the final picture. The display will however
be adjusted to show the effects of advanced filters and
of monochrome and sepia settings.

The Setup Menus

216

The Setup Menus
Display

SCREEN SETTING

FRAMING GUIDELINE

Choose a framing grid for shooting mode.

F GRID 9

Option G GRID 24

H HD FRAMING

P
For "rule of thirds" composition.

P
A six-by-four grid.

P
Frame HD pictures in the crop shown by the
lines at the top and bottom of the display.

N Framing guides are not shown at default settings but
can be displayed using D SCREEN SETTING > DISP.
CUSTOM SETTING (P 219).

217

AUTOROTATE PB
Choose ON to automatically rotate "tall" (portrait-orientation) pictures during playback.

Options

OFF

The Setup Menus

FOCUS SCALE UNITS

Choose the units used for the focus distance indica-

tor. 8

Options

METERS

FEET

218

The Setup Menus

SCREEN SETTING
DISP. CUSTOM SETTING Choose the items shown in the standard display.

1 In shooting mode, use the DISP/BACK button to
display standard indicators.

2 Press MENU/OK and select D SCREEN SETTING >
DISP. CUSTOM SETTING in the D (SET UP) tab.

3 Highlight items and press MENU/OK to select or

deselect.

Item

Default

Item

Default

FRAMING GUIDELINE

w SHUTTER TYPE

ELECTRONIC LEVEL

w FLASH

FOCUS FRAME

R CONTINUOUS MODE

AF DISTANCE INDICATOR w DUAL IS MODE

MF DISTANCE INDICATOR R TOUCH SCREEN MODE

HISTOGRAM

w WHITE BALANCE

SHOOTING MODE

R FILM SIMULATION

APERTURE/S-SPEED/ISO R DYNAMIC RANGE

INFORMATION BACKGROUND R FRAMES REMAINING

Expo. Comp. (Digit)

w IMAGE SIZE/QUALITY

Expo. Comp. (Scale)

R MOVIE MODE & REC. TIME R

FOCUS MODE

R BATTERY LEVEL

PHOTOMETRY

R FRAMING OUTLINE

219

4 Press DISP/BACK to save changes.

SCREEN SETTING

5 Press DISP/BACK as needed to exit the menus and
return to the shooting display.

The Setup Menus

8 220

D BUTTON/DIAL SETTING
Access options for camera controls.

To access control options, press MENU/OK, select the D (SET UP) tab, and choose BUTTON/DIAL SETTING.

BUTTON/DIAL SETTING
EDIT/SAVE QUICK MENU Fn/AE-L/AF-L BUTTON SETTING SELECTOR BUTTON SETTING COMMAND DIAL SETTING SHUTTER AF SHUTTER AE SHOOT WITHOUT LENS FOCUS RING

The Setup Menus

8 221

The Setup Menus

EDIT/SAVE QUICK MENU Choose the items displayed in the quick menu.

1 Select D BUTTON/DIAL SETTING > EDIT/SAVE
QUICK MENU in the D (SET UP) tab.

2 The current quick menu will be displayed; use the
selector to highlight the item you wish to change and press MENU/OK.

3 Highlight any of the following options and press

MENU/OK to assign it to the selected position.

· IMAGE SIZE

· MF ASSIST

· IMAGE QUALITY

· SELF-TIMER

· FILM SIMULATION *

· PHOTOMETRY

· GRAIN EFFECT *

· SHUTTER TYPE

· DYNAMIC RANGE *

· ISO

· WHITE BALANCE *

· TOUCH SCREEN MODE

· HIGHLIGHT TONE *

· FLASH FUNCTION SETTING

· SHADOW TONE *

· FLASH COMPENSATION

· COLOR *

· MOVIE MODE

· SHARPNESS *

· MIC LEVEL ADJUSTMENT

· NOISE REDUCTION *

· SOUND & FLASH

· SELECT CUSTOM SETTING * · EVF/LCD BRIGHTNESS

· AF MODE

· EVF/LCD COLOR

· AF-C CUSTOM SETTINGS

· NONE

· FACE/EYE DETECTION SETTING

* Stored in custom settings bank.

222

The Setup Menus

BUTTON/DIAL SETTING
N Select NONE to assign no option to the select-
ed position. When SELECT CUSTOM SETTING is selected, current settings are shown in the quick menu by the label BASE.
4 Highlight the desired item and press MENU/OK to
assign it to the selected position.
N The quick menu can also be accessed in shooting mode
by holding the Q button.
8
223

The Setup Menus

Fn/AE-L/AF-L BUTTON SETTING Choose the roles played by the function buttons.

1 Select D BUTTON/DIAL SETTING > Fn/AE-L/
AF-L BUTTON SETTING in the D (SET UP) tab.

2 Highlight the desired control and press MENU/OK.

3 Highlight any of the following options and press

MENU/OK to assign it to the selected control.

· IMAGE SIZE

· ISO

· IMAGE QUALITY

· WIRELESS COMMUNICATION

· RAW

· FLASH FUNCTION SETTING

· FILM SIMULATION

· TTL-LOCK

· GRAIN EFFECT

· MODELING FLASH

· DYNAMIC RANGE

· MIC LEVEL ADJUSTMENT

· WHITE BALANCE

· PREVIEW DEPTH OF FIELD

· SELECT CUSTOM SETTING · PREVIEWEXP./WBINMANUALMODE

· FOCUS AREA · FOCUS CHECK

· PREVIEW PIC. EFFECT · AE LOCK ONLY

· AF MODE

· AF LOCK ONLY

· AF-C CUSTOM SETTINGS

· AE/AF LOCK

· FACE/EYE DETECTION SETTING · AF-ON

· DRIVE SETTING

· APERTURE SETTING

· SELF-TIMER

· PLAYBACK

· PHOTOMETRY

· NONE (control disabled)

· SHUTTER TYPE

224

BUTTON/DIAL SETTING
N Function button assignment options can also be ac-
cessed by holding the DISP/BACK button. The selector can not be assigned more than one role at a time.

AF-ON
If AF-ON is selected, you can press the control instead of keeping the shutter button pressed halfway.

MODELING FLASH
If MODELING FLASH is selected when a compatible shoe-mounted flash unit is attached, you can press the control to test-fire the flash and check for shadows and the like (modeling flash).

TTL-LOCK

If TTL-LOCK is selected, you can press the control to

lock flash output according to the option selected for
F FLASH SETTING > TTL-LOCK MODE (P 166).

The Setup Menus

225

SELECTOR BUTTON SETTING
Choose the roles played by the up, down, left, and right buttons on the selector.

Option

Description

Fn BUTTON The selector buttons serve as function buttons.

FOCUS AREA

The selector buttons can be used to position the focus area.

N Selecting FOCUS AREA prevents you accessing the
functions assigned to the function buttons.

COMMAND DIAL SETTING Choose the roles played by the command dials.

8 Option

Description

Y F X S.S.

The front command dial controls aperture, the rear command dial shutter speed.

Y S.S. X F

The front command dial controls shutter speed, the rear command dial aperture.

The Setup Menus

226

BUTTON/DIAL SETTING
SHUTTER AF
Choose whether the camera focuses when the shutter button is pressed halfway.

Option

Description

In focus mode S (AF-S), the camera focuses when the shutter

button is pressed halfway and locks focus while the button remains in this position. In focus mode C (AF-C), focus is

adjusted continually while the button is pressed halfway.

OFF

The camera does not focus when the shutter button is pressed halfway.

SHUTTER AE

If ON is selected, exposure will lock while the shutter

button is pressed halfway. 8
Options

OFF

N Select OFF to allow the camera to adjust exposure be-
fore each shot taken in burst mode.

The Setup Menus

227

SHOOT WITHOUT LENS
Choose ON to enable the shutter release when no lens is attached.

Options

OFF

The Setup Menus

FOCUS RING

Choose the direction in which the focus ring is rotat-

ed to increase the focus distance. 8
Options

X CW (clockwise)

Y CCW (counterclockwise)

228

BUTTON/DIAL SETTING
AE/AF-LOCK MODE
If AE & AF ON WHEN PRESSING is selected, exposure and/or focus will lock while the AE-L or AF-L button is pressed. If AE & AF ON/OFF SWITCH is selected, exposure and/or focus will lock when the AE-L or AF-L button is pressed and remain locked until the button is pressed again.

Options

AE & AF ON WHEN PRESSING

AE & AF ON/OFF SWITCH

The Setup Menus

APERTURE SETTING

Choose the method used to adjust aperture when

using lenses with no aperture rings.

Option

Description

AUTO + Rotate the front command dial to choose the aperture.

o MANUAL Rotate past minimum aperture to choose A (auto).

Aperture is selected automatically; camera functions

AUTO in exposure mode P (program AE) or S (shutter-pri-

ority AE).

Rotate the front command dial to choose the aper-

MANUAL ture; camera functions in exposure mode A (aper-

ture-priority AE) or M (manual).

229

BUTTON/DIAL SETTING
TOUCH SCREEN SETTING Enable or disable touch-screen controls.

Options

OFF

The Setup Menus

8 230

D POWER MANAGEMENT
Adjust power management settings.

To access power management settings, press MENU/OK, select the D (SET UP) tab, and choose POWER MANAGEMENT.

POWER MANAGEMENT
AUTO POWER OFF PERFORMANCE

The Setup Menus

AUTO POWER OFF Choose the length of time before the camera turns off automatically when no operations are performed. Shorter times increase battery life; if OFF is selected, 8 the camera must be turned off manually.
Options 5 MIN 2 MIN 1 MIN 30 SEC 15 SEC OFF
231

POWER MANAGEMENT
PERFORMANCE Adjust power management settings.

AF performance LCD/EVF display

Option

(speed)

quality

HIGH PERFORMANCE

Fast

Very high

STANDARD

Normal

High

Battery endurance
Low
Normal

N When STANDARD is selected, the frame rate will drop
when no operations are being performed. Operating
camera controls returns the frame rate to normal.

The Setup Menus

232

D SAVE DATA SETTING
Make changes to file management settings.

To access file management settings, press MENU/OK, select the D (SET UP) tab, and choose SAVE DATA SETTING.

SAVE DATA SETTING
FRAME NO. SAVE ORG IMAGE EDIT FILE NAME COPYRIGHT INFO

The Setup Menus

8 233

The Setup Menus

FRAME NO.
New pictures are stored in image Frame number files named using a four-digit file number assigned by adding one to the last file number used. The Directory File file number is displayed during number number playback as shown. FRAME NO. controls whether file numbering is reset to 0001 when a new memory card is inserted or the current memory card is formatted.

Option

Description

Numbering continues from the last file number used

CONTINUOUS

or the first available file number, whichever is higher. Choose this option to reduce the number of pictures

with duplicate file names.

RENEW

Numbering is reset to 0001 after formatting or when a new memory card is inserted.

N 8

If the frame number reaches 999-9999, the shutter re-

lease will be disabled. Format the memory card after

transferring to a computer any pictures you wish to keep.

Selecting D USER SETTING > RESET sets FRAME NO. to CONTINUOUS but does not reset the file number.

Frame numbers for pictures taken with other cameras may differ.

234

SAVE DATA SETTING
SAVE ORG IMAGE
Choose ON to save unprocessed copies of pictures taken using RED EYE REMOVAL.

Options

OFF

The Setup Menus

EDIT FILE NAME
Change the file name prefix. sRGB images use a four-letter prefix (default "DSCF"), Adobe RGB images a three-letter prefix ("DSF") preceded by an under- 8 score.

Option sRGB Adobe RGB

Default prefix DSCF _DSF

Sample file name ABCD0001 _ABC0001

235

SAVE DATA SETTING
COPYRIGHT INFO
Copyright information, in the form of Exif tags, can be added to new images as they taken. Changes to copyright information are reflected only in images taken after the changes are made.

Option

Description

DISP COPYRIGHT INFO

View the current copyright information.

ENTER AUTHOR'S INFO

Enter the creator's name.

ENTER COPYRIGHT INFO

Enter the name of the copyright holder.

Delete the current copyright information. This

DELETE COPYRIGHT change applies only to images taken after this

INFO

option is selected; copyright information re-

corded with existing images is not affected.

The Setup Menus

236

D CONNECTION SETTING
Adjust settings for connection to other devices.

To access connection settings, press MENU/OK, select the D (SET UP) tab, and choose CONNECTION SETTING.

CONNECTION SETTING
WIRELESS SETTINGS PC AUTO SAVE SETTING GEOTAGGING SET-UP
PRINTER CONNECTION SETTING

The Setup Menus

WIRELESS SETTINGS Adjust settings for connection to wireless networks.

Option

Description

Choose a name (NAME) to identify the camera

GENERAL on the wireless network (the camera is assigned

SETTINGS a unique name by default) or select RESET

WIRELESS SETTINGS to restore default settings.

Choose ON (the default setting, recommended in 8
RESIZE most circumstances) to resize larger images to H

IMAGE FOR for upload to smartphones, OFF to upload images

SMARTPHONE at their original size. Resizing applies only to the

H copy uploaded to the smartphone; the original is

not affected.

Choose DELETE REGISTERED DESTINATION

PC AUTO SAVE PC to remove selected destinations, DETAILS OF

SETTINGS PREVIOUS CONNECTION to view computers to

which the camera has recently connected.

237

PC AUTO SAVE SETTING
Choose an upload destination. Choose SIMPLE SETUP to connect using WPS, MANUAL SETUP to configure network settings manually.

SIMPLE SETUP

Options

MANUAL SETUP

N For more information on wireless connections, visit:
http://fujifilm-dsc.com/wifi/

The Setup Menus

GEOTAGGING SET-UP

View location data downloaded from a smartphone

and choose whether to save the data with your pictures.

Option

Description

Choose whether location data downloaded from a

GEOTAGGING smartphone are embedded in pictures as they are

taken.

LOCATION Display the location data last downloaded from a

INFO smartphone.

N For more information on wireless connections, visit:
http://fujifilm-dsc.com/wifi/

238

The Setup Menus

CONNECTION SETTING
instax PRINTER CONNECTION SETTING Adjust settings for connection to optional FUJIFILM instax SHARE printers. The Printer Name (SSID) and Password The printer name (SSID) can be found on the bottom of the printer; the default password is "1111". If you have already chosen a different password to print from a smartphone, enter that password instead.
8
239

MEMO
240

Shortcuts
241

Shortcut Options
Customize camera controls to suit your style or situation. Frequently-used options can be added to the Q menu or a custom "my" menu or assigned to an Fn (function) button for direct access:
· The Q menu (P 243): The Q menu is displayed by
pressing the Q button. Use the Q menu to view or change the options selected for frequently-used menu items.
· "My menu" (P 252): Add frequently-used options
to this custom menu, which can be viewed by pressing MENU/OK and selecting the E ("MY MENU") tab.
· The function buttons (P 248): Use the function but-
tons for direct access to selected features.
9
242

Shortcuts

The Q (Quick Menu) Button
Press Q for quick access to selected options.
The Quick Menu Display At default settings, the quick menu contains the following items:
SELECT CUSTOM SETTING
BASE

Shortcuts

SET

A SELECT CUSTOM SETTING J SHADOW TONE

B ISO

K COLOR

C DYNAMIC RANGE

L SHARPNESS

D WHITE BALANCE

M SELF-TIMER

E NOISE REDUCTION

N AF MODE

F IMAGE SIZE

O FLASH FUNCTION SETTING

G IMAGE QUALITY

P EVF/LCD BRIGHTNESS

H FILM SIMULATION

I HIGHLIGHT TONE

243

The quick menu shows the options currently selected
for items BP, which can be changed as described
on page 246. SELECT CUSTOM SETTING The HIMAGE QUALITY SETTING > SELECT CUSTOM SETTING
item (item A) shows the current custom settings bank:
· q: No custom settings bank selected. · tu: Select a bank to view the settings saved using
the H IMAGE QUALITY SETTING > EDIT/SAVE CUSTOM SETTING option.
· rs: The current custom settings bank.
9
244

Shortcuts

The Q (Quick Menu) Button
Viewing and Changing Settings
1 Press Q to display the quick
menu during shooting.

2 Use the selector to highlight
items and rotate the rear command dial to change.

SELECT CUSTOM SETTING BASE

N Changes are not saved to the SET
current settings bank. Settings
that differ from those in the
current settings bank (t
u) are shown in red.

3 Press Q to exit when settings are complete.

Shortcuts

245

Editing the Quick Menu To choose the items displayed in the quick menu:
1 Press and hold the Q button
during shooting.
2 The current quick menu will be displayed; use the
selector to highlight the item you wish to change and press MENU/OK.
9
246

Shortcuts

The Q (Quick Menu) Button

3 Highlight any of the following options and press

MENU/OK to assign it to the selected position.

· IMAGE SIZE · IMAGE QUALITY · FILM SIMULATION * · GRAIN EFFECT * · DYNAMIC RANGE * · WHITE BALANCE * · HIGHLIGHT TONE * · SHADOW TONE * · COLOR * · SHARPNESS * · NOISE REDUCTION * · SELECT CUSTOM SETTING * · AF MODE · AF-C CUSTOM SETTINGS · FACE/EYE DETECTION SETTING

· MF ASSIST · SELF-TIMER · PHOTOMETRY · SHUTTER TYPE · ISO · TOUCH SCREEN MODE · FLASH FUNCTION SETTING · FLASH COMPENSATION · MOVIE MODE · MIC LEVEL ADJUSTMENT · SOUND & FLASH · EVF/LCD BRIGHTNESS · EVF/LCD COLOR · NONE

* Stored in custom settings bank.

N Select NONE to assign no option to the select-
ed position. When SELECT CUSTOM SETTING is 9
selected, current settings are shown in the quick
menu by the label BASE.

N The quick menu can also be edited using D BUTTON/
DIAL SETTING > EDIT/SAVE QUICK MENU.

Shortcuts

247

The Fn (Function) Buttons
The roles played by each of the function buttons can be selected by pressing and holding the button.

The default assignments are: Fn1 button

Fn2 button

Drive settings Fn3 button

AF mode Fn4 button

Shortcuts

Film simulation

Fn5 button

Flash mode AE-L button

Focus-frame selection
248

Exposure lock

AF-L button

The Fn (Function) Buttons Center of rear command dial

Focus lock

Focus check

Shortcuts

9 249

Assigning Roles to the Function Buttons To assign roles to the buttons:
1 Press and hold the DISP/BACK
button until a button selection menu is displayed.

Shortcuts

2 Highlight a button and press MENU/OK.

3 Highlight the desired role and press MENU/OK to

assign it to the selected button. Choose from:

· IMAGE SIZE

· ISO

· IMAGE QUALITY

· WIRELESS COMMUNICATION

· RAW

· FLASH FUNCTION SETTING

· FILM SIMULATION

· TTL-LOCK

· GRAIN EFFECT

· MODELING FLASH

· DYNAMIC RANGE

· MIC LEVEL ADJUSTMENT

· WHITE BALANCE

· PREVIEW DEPTH OF FIELD

· SELECT CUSTOM SETTING · PREVIEWEXP./WBINMANUALMODE

· FOCUS AREA

· PREVIEW PIC. EFFECT

· FOCUS CHECK

· AE LOCK ONLY

· AF MODE

· AF LOCK ONLY

· AF-C CUSTOM SETTINGS

· AE/AF LOCK

· FACE/EYE DETECTION SETTING · AF-ON

· DRIVE SETTING

· APERTURE SETTING

· SELF-TIMER

· PLAYBACK

· PHOTOMETRY

· NONE (control disabled)

· SHUTTER TYPE

250

The Fn (Function) Buttons
N Button assignments can also be selected using
D BUTTON/DIAL SETTING > Fn/AE-L/AF-L BUTTON SETTING. The selector can not be assigned more than one role at a time.

AF-ON
If AF-ON is selected, you can press the control instead of keeping the shutter button pressed halfway.

TTL-LOCK

If TTL-LOCK is selected, you can press the control to

lock flash output according to the option selected for

F FLASH SETTING > TTL-LOCK MODE (P 166).

Shortcuts

251

E MY MENU
Access a personalized menu of frequently-used options.

To display "my menu", press MENU/OK in the shooting display and select the E (MY MENU) tab.

MY MENU
SELF-TIMER INTERVAL TIMER SHOOTING FILM SIMULATION GRAIN EFFECT SHUTTER TYPE IS MODE FACE/EYE DETECTION SETTING ISO
EXIT

N The E tab is only available if options have been assigned
to MY MENU.

Shortcuts

MY MENU SETTING To choose the items listed in the E (MY MENU) tab:

1 Highlight D USER SETTING >
MY MENU SETTING in the D (SET UP) tab and press MENU/OK to display the options at right.

MY MENU SETTING
ADD ITEMS RANK ITEMS REMOVE ITEMS

9 2 Press the selector up or down
to highlight ADD ITEMS and press MENU/OK. Options that can be added to "my menu" are highlighted in blue.

MY MENU SETTING
IMAGE SIZE IMAGE QUALITY RAW RECORDING FILM SIMULATION GRAIN EFFECT DYNAMIC RANGE WHITE BALANCE HIGHLIGHT TONE
SELECT

CANCEL

N Items currently in "my menu" are indicated by check
marks.

252

3 Highlight an item and press
MENU/OK to add it to "my menu".

MY MENU
MY MENU SETTING 1IMAGE SIZE

MOVE

SAVE

4 Press MENU/OK to return to the edit display.

5 Repeat Steps 3 and 4 until all the desired items
have been added.

N "My menu" can contain up to 16 items.

Editing "My Menu" To reorder or delete items, select RANK ITEMS or REMOVE ITEMS in Step 1.

Shortcuts

253

MEMO
254

Peripherals and Optional Accessories
255

Peripherals and Optional Accessories

External Flash Units
Flash units can be mounted on the hot shoe or connected via the sync terminal. External flash units are more powerful than their built-in counterparts. Some support high-speed sync (FP) and can be used at shutter speeds faster than the sync speed, while others can function as master flash units controlling remote units via optical wireless flash control.
O You may be unable to test-fire the flash in some circum-
stances, for example when a setup menu is displayed on the camera.
10
256

External Flash Units
Flash Settings
To adjust settings for a flash unit mounted on the hot shoe or connected via the sync terminal:

1 Connect the unit to the camera.
2 In shooting mode, select FLASH
FUNCTION SETTING in the F (FLASH SETTING) menu tab. The options available vary with the flash unit.

FLASH SETTING FLASH FUNCTION SETTING RED EYE REMOVAL TTL-LOCK MODE LED LIGHT SETTING MASTER SETTING CH SETTING
EXIT

Peripherals and Optional Accessories

Description

Built-In Flash

Displayed when the built-in flash is raised.

107

SHOE MOUNT FLASH

Displayed when an optional flash unit mounted on the hot shoe and turned on.

is 262

MASTER (OPTICAL)

Displayed if an optional flash unit functioning as a master flash for FUJIFILM optical wireless remote flash control is connected and turned on.

266

O SYNC TERMINAL is displayed if the built-in flash is 10 lowered and either no flash unit, or an incompatible flash unit, is mounted on the hot shoe.

257

3 Highlight items using the se-
lector and rotate the rear command dial to change the highlighted setting.

MODE

Built-In Flash

ADJUST

END

4 Press DISP/BACK to put the changes into effect.

Red-Eye Removal Red-eye removal is available when an option other than OFF is selected for F FLASH SETTING > RED EYE REMOVAL and G AF/MF SETTING > FACE/EYE DETECTION SETTING is ON. Red-eye removal minimizes "red-eye" caused when light from the flash is reflected from the subject's retinas.

Peripherals and Optional Accessories

10 258

Peripherals and Optional Accessories

SYNC TERMINAL
SYNC TERMINAL is displayed if the built-in flash is lowered and either no flash unit, or an incompatible flash unit, is mounted on the hot shoe.

External Flash Units

MODE

SYNC TERMINAL

ADJUST

END

Setting

Description

Choose from the following options:
· M: A trigger signal is transmitted from the sync terminal

A Flash
control mode

and hot shoe when a picture is taken. Choose a shutter speed slower than the sync speed; even slower speeds may be required if the unit uses long flashes or has a slow response time.

· OFF: The sync terminal and hot shoe do not transmit a

trigger signal.

Choose whether the flash is timed to fire immediately

B Sync

after the shutter opens (H/1ST CURTAIN) or immediately before it closes (I/2ND CURTAIN). 1ST CURTAIN is recom-

mended in most circumstances.

259

BUILT-IN FLASH
The following options are available with the built-in flash.

MODE

Built-In Flash

ADJUST

END

Setting

Description

Peripherals and Optional Accessories

Choose from the following options:
· TTL: TTL mode. Adjust flash compensation (B)
and choose a flash mode (C).
· M: The flash fires at the selected output (B) re-

gardless of subject brightness or camera settings.

Output is expressed in fractions of full power,

A Flash control from / to /. The desired results may not be

mode

achieved at low values if they exceed the limits

of the flash control system; take a test shot and

check the results.
· C (COMMANDER): Choose if the flash is being

used to control remote synced flash units, for ex-

ample as part of a studio flash system.

· OFF: The flash does not fire.
B Flash compen- Adjust flash level. The options available vary with

sation/output the flash control mode (A).

260

Setting
C Flash mode
(TTL)
D Sync

External Flash Units

Description

Choose a flash mode for TTL flash control. The op-

tions available vary with the shooting mode (P, S,

A, or M) selected.
· E (FLASH AUTO): The flash fires only as required;

flash level is adjusted according to subject

brightness. A p icon displayed when the shut-

ter button is pressed halfway indicates that the

flash will fire when the photo is taken.
· F (STANDARD): The flash fires with every shot if

Peripherals and Optional Accessories

possible; flash level is adjusted according to sub-

ject brightness. The flash will not fire if not fully

charged when the shutter is released.
· G (SLOW SYNC.): Combine the flash with slow

shutter speeds when photographing portrait

subjects against a backdrop of night scenery.

The flash will not fire if not fully charged when

the shutter is released.

Choose whether the flash is timed to fire imme-

diately after the shutter opens (H/1ST CURTAIN)

or immediately before it closes (I/2ND CURTAIN).

1ST CURTAIN is recommended in most circum-

stances.

261

SHOE MOUNT FLASH
The following options are available with optional shoe-mounted flash units.

MODE

SHOE MOUNT FLASH

ADJUST

END

Peripherals and Optional Accessories

Setting
A Flash control
mode

Description
The flash control mode selected with the flash
unit. This can in some cases be adjusted from the
camera; the options available vary with the flash.
· TTL: TTL mode. Adjust flash compensation (B). · M: The flash fires at the selected output regard-
less of subject brightness or camera settings.
Output in some cases can be adjusted from the
camera (B).
· MULTI: Repeating flash. Compatible shoe-mount-
ed flash units will fire multiple times with each
shot.
· OFF: The flash does not fire. Some flash units can
be turned off from the camera.

262

External Flash Units

Setting

Description

The options available vary with flash control mode.
· TTL: Adjust flash compensation (the full value

may not be applied if the limits of the flash con-

trol system are exceeded). In the cases of the

EF-X20, EF-20, and EF-42, the selected value is

Flash compensation/output

added to the value selected with the flash unit. M/MULTI: Adjust flash output (compatible units only). Choose from values expressed as fractions

of full power, from / (mode M) or ¼ (MULTI)

down to / in increments equivalent to / EV.

The desired results may not be achieved at low

values if they exceed the limits of the flash con-

trol system; take a test shot and check the results.

Peripherals and Optional Accessories

10 263

Peripherals and Optional Accessories

Setting
C Flash mode
(TTL)
10 D Sync

Description
Choose a flash mode for TTL flash control. The op-
tions available vary with the shooting mode (P, S,
A, or M) selected.
· E (FLASH AUTO): The flash fires only as required;
flash level is adjusted according to subject
brightness. A p icon displayed when the shut-
ter button is pressed halfway indicates that the
flash will fire when the photo is taken.
· F (STANDARD): The flash fires with every shot if
possible; flash level is adjusted according to sub-
ject brightness. The flash will not fire if not fully
charged when the shutter is released.
· G (SLOW SYNC.): Combine the flash with slow
shutter speeds when photographing portrait
subjects against a backdrop of night scenery.
The flash will not fire if not fully charged when
the shutter is released.
Control flash timing.
· H (1ST CURTAIN): The flash fires immediately after
the shutter opens (generally the best choice).
· I (2ND CURTAIN): The flash fires immediately be-
fore the shutter closes.
· AUTO FP(HSS): High-speed sync (compatible units
only). The camera automatically engages front-cur-
tain high-speed sync at shutter speeds faster than
the flash sync speed. Equivalent to 1ST CURTAIN
when MULTI is selected for flash control mode.

264

External Flash Units

Setting

Description

The angle of illumination (flash coverage) for units

that support flash zoom. Some units allow the ad-

E Zoom

justment to be made from the camera. If AUTO is

selected, zoom will automatically be adjusted to

match coverage to lens focal length.

If the unit supports this feature, choose from:
· J (FLASH POWER PRIORITY): Gain range by slight-

F Lighting

ly reducing coverage.
· K (STANDARD): Match coverage to picture angle. · L (EVEN COVERAGE PRIORITY): Slightly increase

Peripherals and Optional Accessories

coverage for more even lighting.

Choose how the built-in LED light functions

during still photography (compatible units only):

as a catchlight (M/CATCHLIGHT), as an AF-assist

G LED light illuminator (N/AF ASSIST), or as both a catch-

light and an AF-ASSIST illuminator (O/AF ASSIST+

CATCHLIGHT). Choose OFF to disable the LED during

photography.

G Number of Choose the number of times the flash fires each

flashes * time the shutter is released in MULTI mode.

H Frequency *

Choose the frequency at which the flash fires in

MULTI mode.

* Full value may not be applied if limits of flash control system are

exceeded.

265

MASTER(OPTICAL)
The options at right will be displayed if the unit is currently functioning as master flash for FUJIFILM optical wireless remote flash control.

MODE

MASTER(OPTICAL)

ADJUST

END

The master and remote units

can be placed in up to three

groups (A, B, and C) and flash

mode and flash level adjust- A

ed separately for each group.

Four channels are available

for communication between

the units; separate channels can be used for different

flash systems or to prevent interference when multi-

ple systems are operating in close proximity.

Peripherals and Optional Accessories

266

Setting
A Flash control
mode (group A)
B Flash control
mode (group B)
C Flash control
mode (group C)

External Flash Units
Description
Choose flash control modes for groups A, B, and C.
TTL% is available for groups A and B only.
· TTL: The units in the group fire in TTL mode. Flash
compensation can be adjusted separately for
each group.
· TTL%: If TTL% is selected for either group A or B,
you can specify the output of the selected group
as a percentage of the other and adjust overall
flash compensation for both groups.
· M: In mode M, the units in the group fire at the
selected output (expressed as a fraction of full
power) regardless of subject brightness or cam-
era settings.
· MULTI: Choosing MULTI for any group sets all the
units in all groups to repeating flash mode. All
units will fire multiple times with each shot.
· OFF: If OFF is selected, the units in the group will
not fire.

Peripherals and Optional Accessories

267

Setting

Description

D E F

Flash compensation/output (group A) Flash compensation/output (group B) Flash compensation/output (group C)

Adjust flash level for the selected group according
to option selected for flash control mode. Note
that the full value may not be applied if the limits
of the flash control system are exceeded.
· TTL: Adjust flash compensation. · M/MULTI: Adjust flash output. · TTL%: Choose the balance between groups A and
B and adjust overall flash compensation.

Peripherals and Optional Accessories

Choose a flash mode for TTL flash control. The op-

tions available vary with the shooting mode (P, S,

A, or M) selected.

· E (FLASH AUTO): The flash fires only as required;

flash level is adjusted according to subject

brightness. A p icon displayed when the shut-

ter button is pressed halfway indicates that the

G Flash mode
(TTL)

flash will fire when the photo is taken.
· F (STANDARD): The flash fires with every shot if
possible; flash level is adjusted according to sub-

ject brightness. The flash will not fire if not fully

charged when the shutter is released.

· G (SLOW SYNC.): Combine the flash with slow

shutter speeds when photographing portrait

subjects against a backdrop of night scenery.

The flash will not fire if not fully charged when

the shutter is released.

268

Setting
H Sync
I Zoom J Lighting

External Flash Units

Description

Control flash timing.
· H (1ST CURTAIN): The flash fires immediately after

the shutter opens (generally the best choice).
· I (2ND CURTAIN): The flash fires immediately be-

fore the shutter closes.
· AUTO FP(HSS): High-speed sync (compatible

units only). The camera automatically engages

front-curtain high-speed sync at shutter speeds

faster than the flash sync speed. Equivalent to

Peripherals and Optional Accessories

1ST CURTAIN when MULTI is selected for flash con-

trol mode.

The angle of illumination (flash coverage) for units

that support flash zoom. Some units allow the ad-

justment to be made from the camera. If AUTO is

selected, zoom will automatically be adjusted to

match coverage to lens focal length.

If the unit supports this feature, choose from:
· J (FLASH POWER PRIORITY): Gain range by slight-

ly reducing coverage.

· K (STANDARD): Match coverage to picture angle.

· L (EVEN COVERAGE PRIORITY): Slightly increase

coverage for more even lighting.

269

Setting
K Master
K Number of
flashes
L Channel L Frequency

External Flash Units
Description Assign the master flash to group A (Gr A), B (Gr B), or C (Gr C). If OFF is selected, output from the master flash will be held to a level that does not affect the final picture. Available only if the unit is mounted on the camera hot shoe as a master flash for FUJIFILM optical wireless remote flash control in TTL, TTL%, or M mode. Choose the number of times the flash fires each time the shutter is released in MULTI mode. Choose the channel used by the master flash for communication with the remote flash units. Separate channels can be used for different flash systems or to prevent interference when multiple systems are operating in close proximity. Choose the frequency at which the flash fires in MULTI mode.

Peripherals and Optional Accessories

270

Lenses
The camera can be used with lenses for the FUJIFILM X-mount.
Lens Parts

Peripherals and Optional Accessories

A Lens hood B Mounting marks C Focus ring D Zoom ring E Aperture ring

F O.I.S. switch

G Aperture mode switch H Lens signal contacts

I Front lens cap

J Rear lens cap

271

Peripherals and Optional Accessories

Removing Lens Caps Remove lens caps as shown.
N Lens caps may differ from those
shown.
Attaching Lens Hoods When attached, lens hoods reduce glare and protect the front lens element.
10
272

Lenses

Lenses with Aperture Rings

At settings other than A, you can adjust aperture by rotating the lens aperture ring (exposure modes A and M).

A 16 11 8 5.6 4 2.8
A 16 11 8 5.6 4

Aperture ring

The Aperture Mode Switch If the lens has an aperture mode switch, Aperture ring aperture can be adjusted manually by sliding the switch to Z and rotating the aperture ring.

Aperture mode switch

Peripherals and Optional Accessories

273

Peripherals and Optional Accessories

Lenses with No Aperture Rings
The method used to adjust aperture can be selected using D BUTTON/ DIAL SETTING > APERTURE SETTING. When an option other than AUTO is selected, aperture can be adjusted using the front command dial.
N Aperture control defaults to the front command dial,
but can be reassigned to the rear command dial using DBUTTON/DIAL SETTING > COMMAND DIAL SETTING.

Lenses with O.I.S. Switches
If the lens supports optical image stabilization (O.I.S.), the image stabilization mode can be chosen in the camera menus. To activate image stabilization, slide the O.I.S. switch to ON.

O.I.S. switch

274

Manual Focus Lenses
Slide the focus ring to the front for autofocus.

Lenses

Peripherals and Optional Accessories

For manual focus, slide the focus ring to the back and rotate it while checking the results in the camera display. The focus distance and depth-of-field indicators can be used to assist manual focus.
The Depth-of-Field Indicator The depth-of-field indicator shows the approximate depth of field (the distance in front of and behind the focus point that appears to be in focus). The indicator is displayed in film format.

O Note that manual focus may not be available in all shooting

modes.

275

Peripherals and Optional Accessories

Lenses
Lens Care Use a blower to remove dust, then gently wipe with a soft, dry cloth. Any remaining stains can be removed by wiping gently with a piece of FUJIFILM lens-cleaning paper to which a small amount of lens-cleaning fluid has been applied. Replace the front and rear caps when the lens is not in use.
10
276

Connections
277

HDMI Output
Camera shooting and playback displays can be output to HDMI devices. Connecting to HDMI Devices Connect the camera to TVs or other HDMI devices using a third-party HDMI cable.
1 Turn the camera off. 2 Connect the cable as shown below, making sure
the connectors are fully inserted. Insert into HDMI connector
Insert into HDMI Micro connector (Type D)
O Use an HDMI cable no more than 1.5 m (4.9 ft.) long.
11 3 Configure the device for HDMI input as described
in the documentation supplied with the device.
278

Connections

HDMI Output
4 Turn the camera on. You can now shoot and play
back pictures while viewing the television display and save pictures to the HDMI device.
O The USB cable can not be used while an HDMI cable is
connected.
Shooting Shoot photos and record movies while viewing the scene through the camera lens on or saving footage to the HDMI device.
N This feature can be used to save 4K and Full HD movies
to an HDMI recorder.
Playback To start playback, press the camera a button. The camera monitor turns off and pictures and movies are output to the HDMI device. Note that the camera volume controls have no effect on sounds played on the TV; use the television volume controls to adjust the volume.
O Some televisions may briefly display a black screen when 11 movie playback begins.
279

Connections

Wireless Transfer
Access wireless networks and connect to computers, smartphones, or tablets. For downloads and other information, visit: http://fujifilm-dsc.com/wifi/
fujifilm Wi-Fi app
Wireless Connections: Smartphones Install the "FUJIFILM Camera Remote" app on your smartphone to browse the images on the camera, download selected images, control the camera remotely, or copy location data to the camera. Once the app is installed, connect using the A SHOOTING SETTING > WIRELESS COMMUNICATION or C PLAY BACK MENU > WIRELESS COMMUNICATION options in the camera menus.
11
280

Connections

Wireless Transfer
Wireless Connections: Computers Once you have installed the "FUJIFILM PC AutoSave" application and configured your computer as a destination for the images copied from the camera, you can upload pictures from the camera using C PLAY BACK MENU > PC AUTO SAVE.
11
281

Connections

Connecting to Computers via USB
Copy pictures to a computer via USB. Windows Use MyFinePix Studio to copy pictures to your computer, where they can be stored, viewed, organized, and printed. MyFinePix Studio is available for download from the following website:
http://fujifilm-dsc.com/mfs/
fujifilm mfs
Once download is complete, double-click the downloaded file ("MFPS_Setup.EXE") and follow the onscreen instructions to complete installation.
N You may need the Windows CD when starting the soft-
ware for the first time.
11
282

Connections

Connecting to Computers via USB
Mac OS X/macOS Pictures can be copied to your computer using Image Capture (supplied with your computer) or other software. Viewing RAW Files To view RAW files on your computer, use RAW FILE CONVERTER EX 2.0, available for download from:
http://fujifilm-dsc.com/rfc/
fujifilm rfc
Connecting the Camera
1 Find a memory card containing pictures you
want to copy to the computer and insert the card into the camera.
O Loss of power during transfer could result in loss of
data or damage to the memory card. Insert a fresh or fully-charged battery before connecting the camera.
11
283

Connections

2 Ready a third-party USB 2.0 cable with a Micro
USB (Micro-B) connector. Turn the camera off and connect the cable, making sure the connectors are fully inserted.

3 Turn the camera on.

Connections

4 Copy pictures to the computer using MyFinePix
Studio or applications provided with your operating system.

5 When transfer is complete, turn the camera off

and disconnect the USB cable.

284

Connecting to Computers via USB
O If a memory card containing a large number of images is
inserted, there may be a delay before the software starts and you may be unable to import or save images. Use a memory card reader to transfer pictures.
The USB cable must be no more than 1.5 m (4.9 ft.) long and be suitable for data transfer. Connect the camera directly to the computer; do not use a USB hub or keyboard.
Make sure that the computer does not display a message stating that copying is in progress and that the indicator lamp is out before turning the camera off or disconnecting the USB cable (if the number of images copied is very large, the indicator lamp may remain lit after the message has cleared from the computer display). Failure to observe this precaution could result in loss of data or damage to the memory card.
Disconnect the camera before inserting or removing memory cards.
In some cases, it may not be possible to access pictures saved to a network server using the software in the same way as on a standalone computer.
The user bears all applicable fees charged by the phone 11
company or Internet service provider when using services that require an Internet connection.
285

Connections

instax SHARE Printers
Print pictures from your digital camera to instax SHARE printers. Establishing a Connection Select D CONNECTION SETTING > instax PRINTER CONNECTION SETTING and enter the instax SHARE printer name (SSID) and password. The Printer Name (SSID) and Password The printer name (SSID) can be found on the bottom of the printer; the default password is "1111". If you have already chosen a different password to print from a smartphone, enter that password instead.
11
286

Connections

Printing Pictures

instax SHARE Printers

1 Turn the printer on.

2 Select C PLAY BACK MENU >
instax PRINTER PRINT. The camera will connect to the printer.

PRINTER PRINT instax-12345678
CONNECTING TO PRINTER FUJIFILM-CAMERA-1234
CANCEL

N To print a frame from a burst sequence, display the
frame before selecting instax PRINTER PRINT.

3 Use the selector to display the
picture you want to print, then press MENU/OK.

PRINTER PRINT 100-0020

TRANSMIT

CANCEL

instax-12345678

N Pictures taken with other cameras can not be printed.

The area printed is smaller than the area visible in the LCD monitor.

4 The picture will be sent to the printer and print-
ing will start.

Connections

287

MEMO
288

Technical Notes
289

Accessories from FUJIFILM
The following optional accessories are available from FUJIFILM. For the latest information on the accessories available in your region, check with your local FUJIFILM representative or visit http://www.fujifilm.com/products/ digital_cameras/index.html.
Rechargeable Li-ion batteries NP-W126/NP-W126S: Additional high-capacity NP-W126/ NP-W126S rechargeable batteries can be purchased as required.
Battery chargers BC-W126: Replacement battery chargers can be purchased as required. At +20 °C/+68 °F, the BC-W126 charges an NP-W126/NP-W126S in about 150 minutes.
AC power adapters AC-9V (requires CP-W126 DC coupler): Use this 100240 V, 50/60 Hz AC power adapter for extended shooting and playback or when copying pictures to a computer.
DC couplers CP-W126: Connect the AC-9V to the camera.
Remote releases
12 RR-90: Use to reduce camera shake or keep the shutter
open during a time exposure.
290

Technical Notes

Accessories from FUJIFILM Stereo microphones MIC-ST1: An external microphone for movie recording.
FUJINON lenses XF-series lenses: Interchangeable lenses for use exclusively with the FUJIFILM X-mount. XC-series lenses: Interchangeable lenses for use exclusively with the FUJIFILM X-mount. Shoe-mounted ash units EF-X500: This clip-on flash unit has a Guide Number of 50/164 (ISO 100, m/ft.) and supports FP (high-speed sync), allowing it to be used at shutter speeds that exceed the flash sync speed. Powered by four AA batteries or an optional EF-BP1 battery pack, it supports manual and TTL flash control and auto power zoom in the range 24105 mm (35 mm format equivalent) and features FUJIFILM optical wireless flash control, allowing it to be used as a master or remote flash unit for remote wireless flash photography. The flash head can be rotated 90° up, 10° down, 135° left, or 180° right for bounce lighting.
12
291

Technical Notes

Shoe-mounted ash units (continued) EF-42: This clip-on flash unit (powered by four AA batteries) has a Guide Number of 42/137 (ISO 100, m/ft.) and supports manual and TTL flash control and auto power zoom in the range 24105 mm (35 mm format equivalent). The flash head can be rotated 90° up, 180° left, or 120° right for bounce lighting. EF-X20: This clip-on flash unit has a Guide Number of 20/65 (ISO 100, m/ft.). Powered by two AAA batteries, this light, compact unit features a dial for adjusting TTL flash compensation or manual flash output. EF-20: This clip-on flash unit (powered by two AA batteries) has a Guide Number of 20/65 (ISO 100, m/ft.) and supports TTL flash control (manual flash control is not supported). The flash head can be rotated upwards 90° for bounce lighting.
Hand grips MHG-XT10: Features an improved grip. Batteries and memory cards can be removed with the grip in place, and the grip is equipped with a rail for quick-shoe camera mounts.
Leather cases BLC-XT10: This case combines practicality with the luxury of leather and comes with a cloth that can be used to wrap the camera before putting it in the case and on other occasions. Pictures can be taken and batteries inserted or removed with the camera still in its case.
12
292

Technical Notes

Accessories from FUJIFILM Grip belts GB-001: Improves grip. Combine with a hand grip for more secure handling. Macro extension tubes MCEX-11/16: Attach between the camera and the lens to shoot at high reproduction ratios. Teleconverters XF1.4X TC WR: Increases the focal length of the compatible lenses by about 1.4×. XF2X TC WR: Increases the focal length of the compatible lenses by about 2.0×. Mount adapters FUJIFILM M MOUNT ADAPTER: Allows the camera to be used with a wide selection of M-mount lenses. Body caps BCP-001: Cover the camera lens mount when no lens is attached. instax SHARE printers SP-1/SP-2: Connect via wireless LAN to print pictures on instax film.
12
293

Technical Notes

For Your Safety

IMPORTANT SAFETY INSTRUCTIONS

· Read Instructions: All the safety and operating in- Ventilation: Slots and openings in the cabinet are

structions should be read before the appliance provided for ventilation, to ensure reliable opera-

is operated.

tion of the video product and to protect it from

· Retain Instructions: The safety and operating in- overheating, and these openings must not be

structions should be retained for future reference. blocked or covered. The openings should never

· Heed Warnings: All warnings on the appliance and be blocked by placing the video product on a

in the operating instructions should be adhered to. bed, sofa, rug, or other similar surface.

· Follow Instructions: All operating and use instruc- This video product should not be placed in a

tions should be followed.

built-in installation such as a bookcase or rack

Installation

unless proper ventilation is provided or the man-

Power Sources: This video product should be oper- ufacturer's instructions have been adhered to.

ated only from the type of power source indicated This video product should never be placed near

on the marking label. If you are not sure of the type or over a radiator or heat register.

of power supply to your home, consult your ap- Attachments: Do not use attachments not recom-

pliance dealer or local power company. For video mended by the video product manufacturer as

products intended to operate from battery power, they may cause hazards.

or other sources, refer to the operating instructions. Water and Moisture: Do not use this video product

Grounding or Polarization: This video product is near water--for example, near a bath tub, wash

equipped with a polarized alternating-current bowl, kitchen sink, or laundry tub, in a wet base-

line plug (a plug having one blade wider than the ment, or near a swimming pool, and the like.

other). This plug will fit into the power outlet only Power-Cord Protection: Power-supply cords should one way. This is a safety feature. If you are unable be routed so that they are not likely to be walked to insert the plug fully into the outlet, try reversing on or pinched by items placed upon or against the plug. If the plug should still fail to fit, contact them, paying particular attention to cords at your electrician to replace your obsolete outlet. Do plugs, convenience receptacles, and the point not defeat the safety purpose of the polarized plug. where they exit from the appliance.

Technical Notes

Alternate Warnings: This video product is Accessories: Do not place this video product on an

equipped with a three-wire grounding-type plug, unstable cart, stand, tripod, bracket, or table. The

a plug having a third (grounding) pin. This plug video product may fall, causing serious injury to a

will only fit into a grounding-type power outlet. child or adult, and serious damage to the appli-

This is a safety feature. If you are unable to insert ance. Use only with a cart, stand, tripod, bracket,

the plug into the outlet, contact your electrician or table recommended by the manufacturer, or

to replace your obsolete outlet. Do not defeat the sold with the video product. Any mounting of the

safety purpose of the grounding type plug.

appliance should follow the manufacturer's in-

12 Overloading: Do not overload wall outlets and structions, and should use a mounting accessory

extension cords as this can result in a risk of fire recommended by the manufacturer.

or electric shock.

294

For Your Safety

An appliance and cart

Use

combination should be

Cleaning: Unplug this video product from the wall

moved with care. Quick

outlet before cleaning. Do not use liquid cleaners

stops, excessive force, and

or aerosol cleaners. Use a damp cloth for cleaning.

uneven surfaces may cause the appliance and cart combination to overturn.

Object and Liquid Entry: Never push objects of any kind into this video product through openings as they may touch dangerous voltage points or short

Antennas

out parts that could result in a fire or electric shock.

Outdoor Antenna Grounding: If an outside antenna Never spill liquid of any kind on the video product.

or cable system is connected to the video product, Lightning: For added protection for this video

be sure the antenna or cable system is grounded product receiver during a lightning storm, or

so as to provide some protection against voltage when it is left unattended and unused for long

surges and built-up static charges. Section 810 of periods of time, unplug it from the wall outlet

the National Electrical Code, ANSI/NFPA No. 70, pro- and disconnect the antenna or cable system. This

vides information with respect to proper grounding will prevent damage to the video product due to

of the mast and supporting structure, grounding of lightning and power-line surges.

the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.

Service Servicing: Do not attempt to service this video product yourself as opening or removing covers may expose you to dangerous voltage or other hazards.

EXAMPLE OF ANTENNA GROUNDING AS PER Refer all servicing to qualified service personnel.

NATIONAL ELECTRICAL CODE

Damage Requiring Service: Unplug this video product

Ground Clamp

Antenna Lead from the wall outlet and refer servicing to qualified

in Wire

service personnel under the following conditions:

Electric Service Equipment
Ground Clamps
Power Service Grounding Electrode System (NEC

Antenna

· When the power-supply cord or plug is damaged

Discharge Unit · If liquid has been spilled, or objects have fallen

(NEC SECTION 810-20)

into the video product.
· If the video product has been exposed to rain

or water.

Grounding Conductors (NEC SECTION 810-21)

· If the video product has been dropped or the
cabinet has been damaged. If the video product does not operate normally follow the operating instructions. Adjust only

Technical Notes

ART 250. PART H)

those controls that are covered by the operating

Power Lines: An outside antenna system should not instructions as an improper adjustment of other

be located in the vicinity of overhead power lines controls may result in damage and will often re-

or other electric light or power circuits, or where quire extensive work by a qualified technician to
12 it can fall into such power lines or circuits. When restore the video product to its normal operation.

installing an outside antenna system, extreme care When the video product exhibits a distinct change

should be taken to keep from touching such power in performance -- this indicates a need for service.

lines or circuits as contact with them might be fatal.

295

Replacement Parts: When replacement parts are Safety Check: Upon completion of any service or required, be sure the service technician has used repairs to this video product, ask the service techreplacement parts specified by the manufacturer nician to perform safety checks to determine that or have the same characteristics as the original the video product is in proper operating condition. part. Unauthorized substitutions may result in fire, electric shock or other hazards.

Be sure to read these notes before use

Safety Notes

The symbols on the product (including the acce-

· Make sure that you use your camera correct- sories) represent the following:

ly. Read these safety notes and your Owner's

Manual carefully before use.

· After reading these safety notes, store them in

Class II equipment (The construction of

a safe place.

the product is double-insulated.)

About the Icons

WARNING

The icons shown below are used in this docu-

If a problem arises, turn the camera off, re-

ment to indicate the severity of the injury or dam-

move the battery, and disconnect and unplug

age that can result if the information indicated

the AC power adapter. Continued use of the

by the icon is ignored and the product is used Unplug camera when it is emitting smoke, is emit-

incorrectly as a result.

from power ting any unusual odor, or is in any other

This icon indicates that death socket abnormal state can cause a fire or electric

WARNING or serious injury can result if

shock. Contact your FUJIFILM dealer.

the information is ignored.

Do not allow water or foreign objects to enter

This icon indicates that personal

the camera. If water or foreign objects get

CAUTION injury or material damage can re-

inside the camera, turn the camera off,

sult if the information is ignored.

remove the battery, and disconnect and

Technical Notes

The icons shown below are used to indicate the nature of the instructions which are to be observed.
Triangular icons tell you that this informa-

unplug the AC power adapter. Continued use of the camera can cause a fire or electric shock. Contact your FUJIFILM dealer.

tion requires attention ("Important").

Do not use the camera in the bathroom or

Circular icons with a diagonal bar tell you Do not shower. This can cause a fire or electric

that the action indicated is prohibited

use in the bathroom

shock.

("Prohibited").

or shower

Filled circles with an exclamation mark in-

Never attempt to change or take apart the

dicate an action that must be performed

camera (never open the case). Failure to

("Required").

Do not disas-

observe this precaution can cause fire or

semble electric shock.

296

WARNING
Should the case break open as the result of a fall or other accident, do not touch the exposed parts. Failure to observe this precaution could result in electric shock or in injury
Do not
touch from touching the damaged parts. Remove internal the battery immediately, taking care to avoid
parts
injury or electric shock, and take the product to the point of purchase for consultation. Do not change, heat or unduly twist or pull the connection cord and do not place heavy objects on the connection cord. These actions could damage the cord and cause a fire or electric shock. If the cord is damaged, contact your FUJIFILM dealer. Do not place the camera on an unstable surface. This can cause the camera to fall or tip over and cause injury. Never attempt to take pictures while in motion. Do not use the camera while walking or driving. This can result in you falling down or being involved in a traffic accident. Do not touch any metal parts of the camera during a thunderstorm. This can cause an electric shock due to induced current from the lightning discharge. Do not use the battery except as specified. Load the battery as shown by the indicator. Do not disassemble, modify, or heat batteries. Do not drop, strike, or throw batteries or otherwise subject them to strong impacts. Do not use batteries that show signs of leaking, deformation, discoloration, or other abnormalities. Use only designated chargers to recharge rechargeable batteries and do not attempt to recharge non-rechargeable Li-ion or alkaline batteries. Do not short batteries or store them with metallic objects. Failure to observe these precautions could result in the batteries overheating, igniting, rupturing, or leaking, causing fire, burns, or other injury.

For Your Safety
WARNING
Use only batteries or AC power adapters specified for use with this camera. Do not use voltages other than the power supply voltage shown. The use of other power sources can cause a fire. If the battery leaks and fluid gets in contact with your eyes, skin or clothing, flush the affected area with clean water and seek medical attention or call an emergency number right away. Do not use the charger to charge batteries other than those specified here. The supplied charger is for use only with batteries of the type supplied with the camera. Using the charger to charge conventional batteries or other types of rechargeable batteries can cause the battery to leak, overheat or burst. Using a flash too close to a person's eyes may cause visual impairment. Take particular care when photographing infants and young children. Do not remain in prolonged contact with hot surfaces. Failure to observe this precaution could result in low-temperature burns, particularly at high ambient temperatures or with users who suffer from poor circulation or reduced sensation, in which case use of a tripod or similar precautions are recommended. Do not leave one part of the body in contact with the product for prolonged periods while the product is on. Failure to observe this precaution could result in low-temperature burns, particularly during prolonged use, at high ambient temperatures, or with users who suffer from poor circulation or reduced sensation, in which case
12 use of a tripod or similar precautions are
recommended. Do not use in the presence of flammable objects, explosive gases, or dust.
297

Technical Notes

WARNING

CAUTION

When carrying the battery, install it in a dig-

Do not cover or wrap the camera or the AC

ital camera or keep it in the hard case. When

power adapter in a cloth or blanket. This can

storing the battery, keep it in the hard case.

cause heat to build up and distort the cas-

When discarding, cover the battery terminals

ing or cause a fire.

with insulation tape. Contact with other metallic objects or batteries could cause the battery to ignite or burst.

When you are cleaning the camera or you do not plan to use the camera for an extended period, remove the battery and disconnect

Keep memory cards, hot shoes, and other

and unplug the AC power adapter. Failure

small parts out of the reach of small children.

to do so can cause a fire or electric shock.

Children may swallow small parts; keep out of reach of children. Should a child swallow a small part, seek medical attention or call emergency. Keep out of reach of small children. Among the elements that could cause injury are the strap, which could become entangled about a child's neck, causing strangulation, and the flash, which could cause visual impairment. Follow the directions of airline and hospital personnel. This product generates radio-frequency emissions that could interfere with navigational or medical equipment.

When charging ends, unplug the charger from the power socket. Leaving the charger plugged into the power socket can cause a fire. When a memory card is removed, the card could comeoutoftheslottooquickly.Useyourfingerto hold it and gently release the card. Injury could result to those struck by the ejected card. Request regular internal testing and cleaning for your camera. Build-up of dust in your camera can cause a fire or electric shock. Contact your FUJIFILM dealer to request internal cleaning every two years. Please note that this service is not free of charge.

CAUTION
Do not use this camera in locations affected by oil fumes, steam, humidity or dust. This can

Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.

cause a fire or electric shock.

Do not leave this camera in places subject to ex-

Technical Notes

tremely high temperatures. Do not leave the

camera in locations such as a sealed vehicle

or in direct sunlight. This can cause a fire.

Do not place heavy objects on the camera.

This can cause the heavy object to tip over

or fall and cause injury.

Do not move the camera while the AC power

adapter is still connected. Do not pull on the

connection cord to disconnect the AC pow-

er adapter. This can damage the power cord

or cables and cause a fire or electric shock.

298

For Your Safety

The Battery and Power Supply

Note: Check the type of battery used in your camera The battery may be warm to the touch immedi-

and read the appropriate sections.

ately after charging or use. This is normal.

WARNING: Battery shall not be exposed to exces- Battery Life

sive heat such as sunshine, fire or the like.

At normal temperatures, the battery can be re-

The following describes the proper use of batter- charged about 300 times. A noticeable decrease

ies and how to prolong their life. Incorrect use can in the length of time the battery will hold a

shorten battery life or cause leakage, overheating, charge indicates that it has reached the end of its

fire, or explosion.

service life and should be replaced.

Li-ion Batteries Read this section if your camera uses a rechargeable Li-ion battery.

Storage Performance may be impaired if the battery is left unused for extended periods when fully charged. Run the battery flat before storing it.

The battery is not charged at shipment. Charge the battery before use. Keep the battery in its case when not in use.

If the camera will not be used for an extended period, remove the battery and store it in a dry place with an ambient temperature of from +15 °C to

Notes on the Battery

+25 °C (+59 °F to +77 °F). Do not store in loca-

The battery gradually loses its charge when not in tions exposed to extremes of temperature.

use. Charge the battery one or two days before use. Cautions: Handling the Battery

Battery life can be extended by turning the cam- · Do not transport or store with metal objects

era off when not in use.

such as necklaces or hairpins.

Battery capacity decreases at low temperatures; · Do not expose to flame or heat.

a depleted battery may not function when cold. · Do not disassemble or modify.

Keep a fully charged spare battery in a warm · Use with designated chargers only.

place and exchange as necessary, or keep the · Dispose of used batteries promptly.

battery in your pocket or other warm place and · Do not drop or subject to strong physical shocks.

insert it in the camera only when shooting. Do · Do not expose to water.

not place the battery in direct contact with hand · Keep the terminals clean.

warmers or other heating devices.

· The battery and camera body may become warm

Charging the Battery

to the touch after extended use. This is normal.

Charge the battery in the supplied battery char- Caution: Disposal

ger. Charging times will increase at ambient tem- Dispose of used batteries in accord with local

peratures below +10 °C (+50 °F) or above +35 °C regulations. Attention should be drawn to the en-

(+95 °F). Do not attempt to charge the battery at vironmental aspects of battery disposal. Use the

temperatures above 40 °C (+104 °F); at temperatures apparatus under moderate climate.

below 0 °C (+32 °F), the battery will not charge.

Technical Notes

Do not attempt to recharge a fully charged battery. The battery does not however need to be

fully discharged before charging.

299

AC Power Adapters (Available Separately)

· Do not use with other devices.

Use only FUJIFILM AC power adapters designated · Do not disassemble.

for use with this camera. Other adapters could · Do not expose to high heat and humidity.

damage the camera.

· Do not subject to strong physical shocks.

· The AC power adapter is for indoor use only. · The adapter may hum or become hot to the

· Be sure the DC plug is securely connected to touch during use. This is normal.

the camera.

· If the adapter causes radio interference, reorient

· Turn the camera off before disconnecting the or relocate the receiving antenna.

adapter. Disconnect the adapter by the plug,

not the cable.

Using the Camera

· Do not aim the camera at extremely bright Handling
light sources, such as the sun in a cloudless sky. To ensure that images are recorded correctly,

Failure to observe this precaution could damage do not subject the camera to impact or physical

the camera image sensor.

shocks while images are being recorded.

· Strong sunlight focused through the viewfinder
may damage the panel of electronic viewfinder (EVF). Do not aim the electronic viewfinder at the sun.

Liquid Crystal In the event that the display is damaged, care should be taken to avoid contact with liquid crystal. Take the urgent action indicated should any of

Take Test Shots

the following situations arise:

Before taking photographs on important occa- · If liquid crystal comes in contact with your skin,

sions (such as at weddings or before taking the clean the area with a cloth and then wash thor-

camera on a trip), take a test shot and view the oughly with soap and running water.
results to ensure that the camera is functioning · If liquid crystal enters your eyes, flush the affect-
normally. FUJIFILM Corporation can not accept ed eye with clean water for at least 15 minutes

Technical Notes

liability for damages or lost profits incurred as a and then seek medical assistance.

result of product malfunction.

· If liquid crystal is swallowed, rinse your mouth

Notes on Copyright Unless intended solely for personal use, images recorded using your digital camera system cannot

thoroughly with water. Drink large quantities of water and induce vomiting, then seek medical assistance.

be used in ways that infringe copyright laws with- Although the display is manufactured using ex-

out the consent of the owner. Note that some tremely high-precision technology, it may contain

restrictions apply to the photographing of stage pixels that are always lit or that do not light. This is

performances, entertainments, and exhibits, even not a malfunction, and images recorded with the

when intended purely for personal use. Users are product are unaffected.

also asked to note that the transfer of memory

12 cards containing images or data protected under copyright laws is only permissible within the re-

strictions imposed by those copyright laws.

300

For Your Safety

Trademark Information

Color Television Systems

Digital Split Image is a trademark or registered NTSC (National Television System Committee) is

trademark of FUJIFILM Corporation. xD-Picture a color television telecasting specification adopt-

Card and E are trademarks of FUJIFILM ed mainly in the U.S.A., Canada, and Japan. PAL

Corporation. The typefaces included herein are (Phase Alternation by Line) is a color television

solely developed by DynaComware Taiwan Inc. system adopted mainly in European countries

Macintosh, Mac OS, and macOS are trademarks and China.

of Apple Inc. in the U.S.A. and other countries. Windows is a registered trademark of Microsoft Corporation in the U.S.A. and other countries. Wi-Fi® and Wi-Fi Protected Setup® are registered trademarks of the Wi-Fi Alliance. The SDHC and SDXC logos are trademarks of SD-3C, LLC. The

Exif Print (Exif Version 2.3) Exif Print is a newly revised digital camera file format in which information stored with photographs is used for optimal color reproduction during printing.

HDMI logo is a trademark. All other trade names IMPORTANT NOTICE: Read Before Using the Software

mentioned in this manual are the trademarks or Direct or indirect export, in whole or in part, of registered trademarks of their respective owners. licensed software without the permission of the

Electrical Interference

applicable governing bodies is prohibited.

This camera may interfere with hospital or avia-

tion equipment. Consult with hospital or airline

staff before using the camera in a hospital or on

an aircraft.

NOTICES
To prevent fire or shock hazard, do not expose the unit to rain or moisture. Please read the "Safety Notes" and make sure you understand them before using the camera. Perchlorate Material--special handling may apply. See: http://www.dtsc.ca.gov/hazardouswaste/perchlorate

Technical Notes

12 301

For Customers in the U. S. A. Tested To Comply With FCC Standards FOR HOME OR OFFICE USE

FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.

This transmitter must not be co-located or oper-

Contains IC : 7736B-02000003 Contains FCC ID : W2Z-02000003

ating in conjunction with any other antenna or transmitter.

FCC Statement: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Radiation Exposure Statement: This device meets the government's requirements for exposure to radio waves. This device is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission of the U.S. Government.

CAUTION: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and

The exposure standard for wireless device employs a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6W/kg. Tests for SAR are conducted using standard operating positions accepted by the FCC with the device transmitting at its highest certified power level in all tested frequency bands.

used in accordance with the instructions, may cause Notes on the Grant: To comply with Part 15 of

harmful interference to radio communications. the FCC Rules, this product must be used with a

However, there is no guarantee that interference Fujifilm-specified ferrite-core A/V cable, USB ca-

will not occur in a particular installation. If this ble, and DC supply cord.

equipment does cause harmful interference to radio

A lithium ion battery that is re-

or television reception, which can be determined

cyclable powers the product

by turning the equipment off and on, the user is

you have purchased. Please call

encouraged to try to correct the interference by

1-800-8-BATTERY for information

Technical Notes

one or more of the following measures:

on how to recycle this battery.

· Reorient or relocate the receiving antenna. · Increase the separation between the equip-
ment and receiver.

For Customers in Canada CAN ICES-3 (B)/NMB-3(B)

· Connect the equipment into an outlet on a cir-
cuit different from that to which the receiver is

CAUTION: This Class B digital apparatus complies with Canadian ICES-003.

connected.

Industry Canada statement: This device complies

· Consult the dealer or an experienced radio/TV with Industry Canada's licence-exempt RSSs.

technician for help.

Operation is subject to the following two condi-

tions: (1) This device may not cause interference; and (2) This device must accept any interference,

including interference that may cause undesired

operation of the device.

302

For Your Safety

This device and its antenna(s) must not be co-lo- This symbol on the batteries or accu-

cated or operating in conjunction with any other mulators indicates that those batter-

antenna or transmitter, except tested built-in radi- ies shall not be treated as household

os. The County Code Selection feature is disabled waste.

for products marketed in the US/ Canada.

If your equipment contains easy removable

Radiation Exposure Statement: The available sci- batteries or accumulators please dispose these

entific evidence does not show that any health separately according to your local requirements.

problems are associated with using low power The recycling of materials will help to conserve

wireless devices. There is no proof, however, that natural resources. For more detailed information

these low power wireless devices are absolutely about recycling this product, please contact your

safe. Low power Wireless devices emit low levels local city office, your household waste disposal

of radio frequency energy (RF) in the microwave service or the shop where you purchased the

range while being used. Whereas high levels of product.

RF can produce health effects (by heating tissue), exposure of low-level RF that does not produce heating effects causes no known adverse health effects. Many studies of low-level RF exposures have not found any biological effects. Some studies have suggested that some biological

In Countries Outside the European Union, Norway, Iceland and Liechtenstein: If you wish to discard this product, including the batteries or accumulators, please contact your local authorities and ask for the correct way of disposal.

effects might occur, but such findings have not In Japan: This symbol on the batteries

been confirmed by additional research. X-T20 has indicates that they are to be disposed

been tested and found to comply with IC radia- of separately.

tion exposure limits set forth for an uncontrolled

environment and meets RSS-102 of the IC radio

frequency (RF) Exposure rules.

Technical Notes

Disposal of Electrical and Electronic Equipment in Private Households In the European Union, Norway, Iceland and Liechtenstein: This symbol on the product, or in the manual and in the warranty, and/or on its packaging indicates that this product shall not be treated as household waste. Instead it should be taken to an applicable collection point for the recycling of electrical and electronic equipment.

By ensuring this product is disposed of correctly,

you will help prevent potential negative conse-

quences to the environment and human health, which could otherwise be caused by inappropri-

ate waste handling of this product.

303

Be sure to read these notes before use

Safety Notes

WARNING

· Make sure that you use the lens correctly. Read
these safety notes and the camera Owner's Manual carefully before use.
· After reading these safety notes, store them in
a safe place.
About the Icons

Should the case break open as the result of a fall or other accident, do not touch the exposed parts. Failure to observe this precaution could result in electric shock or in injury
Do not
touch from touching the damaged parts. Remove internal the battery immediately, taking care to avoid
parts
injury or electric shock, and take the product

The icons shown below are used in this docu-

to the point of purchase for consultation.

ment to indicate the severity of the injury or dam-

Do not place on unstable surfaces. The prod-

age that can result if the information indicated

uct may fall, causing injury.

by the icon is ignored and the product is used

Do not view the sun through the lens or cam-

incorrectly as a result.

era viewfinders. Failure to observe this

This icon indicates that death WARNING or serious injury can result if

precaution can cause permanent visual impairment.

the information is ignored. This icon indicates that personal CAUTION injury or material damage can result if the information is ignored.
The icons shown below are used to indicate the nature of the instructions which are to be observed.
Triangular icons tell you that this information requires attention ("Important").

CAUTION
Do not use or store in locations that are exposed to steam, or smoke or are very humid or extremely dusty. Failure to observe this precaution can cause fire or electric shock. Do not leave in direct sunlight or in locations subject to very high temperatures, such as in a closed vehicle on a sunny day. Failure to

Circular icons with a diagonal bar tell you

observe this precaution can cause fire.

that the action indicated is prohibited ("Prohibited"). Filled circles with an exclamation mark indicate an action that must be performed ("Required").

Keep out of the reach of small children. This product could cause injury in the hands of a child. Do not handle with wet hands. Failure to observe this precaution can cause electric

Technical Notes

WARNING

shock. Keep the sun out of the frame when shooting

Do not immerse in or expose to water. Failure

backlit subjects. Sunlight focused into the

to observe this precaution can cause a fire

Do not immerse

or electric shock.

Do not disassemble (do not open the case). Failure to observe this precaution can

Do not disas-

cause fire, electric shock, or injury due to

semble product malfunction.

camera when the sun is in or close to the frame can cause fire or burns. When the product is not in use, replace the lens caps and store out of direct sunlight. Sunlight focused by the lens can cause fire or burns. Do not carry the camera or lens while they are attached to a tripod. The product can fall or

304

strike other objects, causing injury.

For Your Safety

European Union Regulatory Notice

This product complies with the following EU · Use only in the country in which the device was pur-

Directives:

chased. This device conforms to regulations gov-

· RoHS Directive 2011/65/EU

erning wireless network devices in the country

· RE Directive 2014/53/EU

in which it was purchased. Observe all location

Hereby, FUJIFILM Corporation declares that the regulations when using the device. FUJIFILM

radio equipment type FF160006 is in compliance does not accept liability for problems arising

with Directive 2014/53/EU.

from use in other jurisdictions.

The full text of the EU declaration of conformity is available at the following internet address: http:// www.fujifilm.com/products/digital_cameras/x/ fujifilm_x_t20/pdf/index/fujifilm_x_t20_cod.pdf

· Wireless data (images) may be intercepted by third
parties. The security of data transmitted over
wireless networks is not guaranteed.
· Do not use the device in locations subject to mag-
netic fields, static electricity, or radio interference.

This compliance is indicated by the following Do not use the transmitter in the vicinity of mi-

conformity marking placed on the product:

crowave ovens or in other locations subject to

magnetic fields, static electricity, or radio inter-

ference that may prevent reception of wireless

This marking is valid for non-Telecom products and signals. Mutual interference may occur when

EU harmonized Telecom products (e.g. Bluetooth). the transmitter is used in the vicinity of other

wireless devices operating in the 2.4 GHz band.

IMPORTANT: Read the following notices before using the camera's built-in wireless transmitter.

· The wireless transmitter operates in the 2.4 GHz
band using DSSS and OFDM modulation.

Q This product, which contains encryption

function developed in the United States,

is controlled by the United States Export

Administration Regulations and may not be ex-

ported or re-exported to any country to which

the United States embargoes goods.

· Use only as part of a wireless network. FUJIFILM

does not accept liability for damages resulting

Technical Notes

from unauthorized use. Do not use in applica-

tions requiring a high degree of reliability, for

example in medical devices or other systems

that may directly or indirectly impact human

life. When using the device in computer and

other systems that demand a greater degree of

reliability than wireless networks, be sure to take

all necessary precautions to ensure safety and

prevent malfunction.

305

For Your Safety
Wireless Network Devices: Cautions
· This device operates on the same frequency as commercial, educational, and medical devices and wireless
transmitters. It also operates on the same frequency as licensed transmitters and special unlicensed low-voltage transmitters used in RFID tracking systems for assembly lines and in other similar applications.
· To prevent interference with the above devices, observe the following precautions. Confirm that the RFID
transmitter is not in operation before using this device. Should you observe that the device causes interference in licensed transmitters used for RFID tracking, immediately stop using the affected frequency or move the device to another location. If you notice that this device causes interference in low-voltage RFID tracing systems, contact a FUJIFILM representative.
2.4DS/OF4 This sticker indicates that this device operates in the 2.4 GHz band using DSSS and OFDM modulation and may cause interference at distances of up to 40 m.
12
306

Technical Notes

Product Care
To ensure continued enjoyment of the product, observe the following precautions.
Camera body: Use a soft, dry cloth to clean the camera body after each use. Do not use alcohol, thinner, or other volatile chemicals, which could discolor or deform the leather on the camera body. Any liquid on the camera should be removed immediately with a soft, dry cloth. Use a blower to remove dust from the monitor, taking care to avoid scratches, and then gently wipe with a soft, dry cloth. Any remaining stains can be removed by wiping gently with a piece of FUJIFILM lens-cleaning paper to which a small amount of lens-cleaning fluid has been applied. To prevent dust entering the camera, replace the body cap when no lens is in place.
Image sensor: Multiple photographs marred by spots or blotches in identical locations may indicate the presence of dust on the image sensor. Clean the sensor using D USER SETTING > SENSOR CLEANING.
12
307

Technical Notes

Cleaning the Image Sensor
Dust that can not be removed using D USER SETTING > SENSOR CLEANING can be removed manually as described below.
O Note that there will be a charge to repair or replace the
image sensor if it is damaged during cleaning.
1 Use a blower (not a brush) to
remove dust from the sensor.
O Do not use a brush or blower
brush. Failure to observe this precaution could damage the sensor.
2 Check whether the dust has been successfully re-
moved. Repeat Steps 1 and 2 as necessary.
3 Replace the body cap or lens.
12
308

Technical Notes

Firmware Updates
Updates to product firmware may result in changes not described in the manual. For more information, visit: http://www.fujifilm.com/support/digital_cameras/ software
fujifilm firmware
Checking the Firmware Version
O The camera will only display the firmware version if a
memory card is inserted.
1 Turn the camera off and check that a memory
card is inserted.
2 Turn the camera on while pressing the DISP/BACK
button. The current firmware version will be displayed; check the firmware version.
3 Turn the camera off.
N If a lens is attached to the camera, you can also check the
lens firmware version.
12
309

Technical Notes

Troubleshooting
Consult the table below should you encounter problems using your camera. If you don't find the solution here, contact your local FUJIFILM distributor.

Power and Battery

Problem

Solution

· The battery is exhausted: Charge the battery or insert

a fully-charged spare battery (P 32).
The camera does · The battery is inserted incorrectly: Reinsert in the

not turn on. correct orientation (P 37).
· The battery-chamber cover is not latched: Latch the

battery-chamber cover (P 38).

The monitor The monitor may not turn on if the camera is turned

does not turn off and then on again very quickly. Press the shutter

on.

button halfway to activate the monitor.

· The battery is cold: Warm the battery by placing it

in a pocket or other warm place and reinsert it in

Technical Notes

the camera immediately before taking a picture.
· There is dirt on the battery terminals: Clean the ter-

The battery runs minals with a soft, dry cloth.
down quickly. · ON is selected for G AF/MF SETTING > PRE-

AF: Turn PRE-AF off (P 137).

· The battery has been charged many times: The battery

has reached the end of its charging life. Purchase

a new battery.

310

Troubleshooting

Problem

Solution

The camera turns The battery is exhausted: Charge the battery or insert a

off suddenly. fully-charged spare battery (P 32).

Charging does not start.

Reinsert the battery in the correct orientation and make sure that the charger is plugged in
(P 32).

Charging is slow. Charge the battery at room temperature.

· There is dirt on the battery terminals: Clean the ter-

The charging minals with a soft, dry cloth.

lamp blinks, but · The battery has been charged many times: The battery

the battery does has reached the end of its charging life. Purchase

not charge.

a new battery. If the battery still fails to charge,

contact your FUJIFILM dealer (P 290).

Menus and Displays

Problem

Solution

Display is not in Select ENGLISH for D USER SETTING >

English.

a (P 46, 204).

Shooting

Technical Notes

Problem

Solution

· The memory card is full: Insert a new memory card

No picture is or delete pictures (P 36, 183).
taken when the · The memory card is not formatted: Format the mem-

shutter button is ory card (P 201).

pressed.

· There is dirt on the memory card contacts: Clean the 12

contacts with a soft, dry cloth.

311

Problem

Solution

· The memory card is damaged: Insert a new memory

card (P 36).
· The battery is exhausted: Charge the battery or insert

No picture is a fully-charged spare battery (P 32).
taken when the · The camera has turned off automatically: Turn the

shutter button camera on (P 42).

is pressed

· You are using a third-party mount adapter: Select ON

(continued).

for SHOOT WITHOUT LENS (P 228).
· The indicator lamp was orange when you attempted to

record a panorama: Wait until the indicator lamps

turns off (P 10).

Mottling ("noise") appears in the monitor or viewfinder when the shutter button is pressed halfway.

Gain is increased to aid composition when the subject is poorly lit and aperture is stopped down, which may result in noticeable mottling when images are previewed in the displays. Images taken with the camera are unaffected.

The camera does The subject is not suited to autofocus: Use focus lock or

not focus.

manual focus (P 92).

Technical Notes

12 312

Troubleshooting

Problem

Solution

· The subject's face is obscured by sunglasses, a hat,

long hair, or other objects: Remove the obstructions

(P 138).
· The subject's face occupies only a small area of the frame:

No face is

Change the composition so that the subject's face

detected.

occupies a larger area of the frame (P 138).
· The subject's head is tilted or horizontal: Ask the sub-

ject to hold their head straight (P 138).
· The camera is tilted: Keep the camera level. · The subject's face is poorly lit: Shoot in bright light.

The selected subject is closer to the center of the

Wrong subject is frame than the main subject. Recompose the pic-

selected.

ture or turn face detection off and frame the picture

using focus lock (P 92).
· The ash is disabled: Adjust settings (P 107). · The ash is lowered: Raise the flash (P 107). · The battery is exhausted: Charge the battery or insert

The ash does a fully-charged spare battery (P 32).

not fire.

· The camera is in bracketing or continuous mode:

Select single frame mode (P 6).
· OFF is selected for SOUND & FLASH: Select ON

(P 206).

Technical Notes

313

Problem

Solution

· The subject is not in range of the ash: Position the

The ash does not fully light the subject.

subject in range of the flash.
· The ash window is obstructed: Hold the camera
correctly.
· Shutter speed is faster than the sync speed: Choose a

slower shutter speed (P 64, 72).

Some ash modes are not available.

OFF is selected for SOUND & FLASH: Select ON
(P 206).

· The lens is dirty: Clean the lens (P 276). · The lens is blocked: Keep objects away from the lens

Pictures are blurred.

(P 49).
· s is displayed during shooting and the focus frame

is displayed in red: Check focus before shooting

(P 50).
· Shutter speed is slow and the ambient temperature is

high: This is normal and does not indicate a mal-

function.

· Pixel mapping is required: Perform pixel mapping

Technical Notes

Pictures are using H IMAGE QUALITY SETTING > PIXEL

mottled.

MAPPING (P 130).
· The camera has been used continuously at high tem-

peratures or a temperature warning is displayed:

Turn the camera off and wait for it to cool down

(P 42).

314

Troubleshooting

Playback

Problem

Solution

Pictures are The pictures were taken with a different make or

grainy.

model of camera.

Playback zoom is The pictures were created using RESIZE or with a

unavailable. different make or model of camera.
· Playback volume is too low: Adjust playback volume

(P 211).
· The microphone was obstructed: Hold the camera

No sound in correctly during recording.
movie playback. · The speaker is obstructed: Hold the camera correctly

during playback.
· OFF is selected for SOUND & FLASH: Select ON

(P 206).

Selected pictures are not deleted.

Some of the pictures selected for deletion are tected. Remove protection using the device
which it was originally applied (P 188).

prowith

File numbering The battery-chamber cover was opened while the

is unexpectedly camera was on. Turn the camera off before opening

reset.

the battery-chamber cover (P 234).

Technical Notes

12 315

Connections

Problem

Solution

The monitor is blank.

The camera is connected to a TV: Pictures will be displayed on the TV instead of in the camera monitor
(P 278).
· The camera is not properly connected: Connect the

camera properly (P 278).
No picture or · Input on the television is set to"TV": Set input to"HDMI"

sound on TV. (P 278).
· The volume on the TV is too low: Use the controls on

the television to adjust the volume.

Both the TV and camera monitor are blank.

The display mode selected with the VIEW MODE button is EVF ONLY + E: Put your eye to the viewfinder or use the VIEW MODE button to choose another display mode.

The computer does not recognize the camera.

Be sure the camera and computer are correctly
nected (P 282).

con-

Can not transfer RAW or JPEG files to computer.

Use MyFinePix Studio
only; P 282).

transfer

pictures

(Windows

Technical Notes

12 316

Troubleshooting
Wireless Transfer
For additional information on troubleshooting wireless connections, visit: http://digital-cameras.support.fujifilm.com/app?pid=x

Problem

Solution

Problem

· The smartphone is too far away: Move the devices

connecting

closer (P 280).

or uploading · Nearby devices are causing radio interference: Move

pictures to

the camera and smartphone away from micro-

smartphone. wave ovens or cordless phones (P 280).
· The smartphone is connected to another device: The

smartphone and camera can connect to only one

device at a time. End the connection and try again

(P 280).
Can not upload · There are several smartphones in the vicinity: Try con-

images.

necting again. The presence of multiple smart-

phones can make connection difficult (P 280).
· The current image is a movie or was created on

another device and can not be uploaded to a

Technical Notes

smartphone (P 280).

Select ON for D CONNECTION SETTING >

Smartphone will not display pictures.

WIRELESS SETTING > RESIZE IMAGE FOR SMARTPHONE H. Selecting OFF increases upload times for larger images; in addition, some phones may not display images over a certain size

(P 237).

317

Troubleshooting

Miscellaneous

Problem

Solution

· Temporary camera malfunction: Remove and rein-

sert the battery (P 36).
The camera is · The battery is exhausted: Charge the battery or insert

unresponsive. a fully-charged spare battery (P 32).
· The camera is connected to a wireless LAN: End the

connection.

The camera does not function as expected.

Remove problem

and reinsert the battery (P 36). If
persists, contact your FUJIFILM dealer.

the

· Adjust the volume (P 208).

No sound.

· OFF is selected for SOUND & FLASH: Select ON

(P 206).

Pressing the

Q button does not display the

TTL-LOCK is active: End TTL-LOCK (P 251).

quick menu.

Technical Notes

12 318

Warning Messages and Displays
The following warnings appear in the display.

Warning

Description

i (red)

Low battery. Charge the battery or insert a fully-charged spare battery.

j (blinks red)

Battery exhausted. Charge the battery or insert a fully-charged spare battery.

s (displayed in The camera can not focus. Use focus lock to focus

red with red focus on another subject at the same distance, then re-

frame)

compose the picture.

Aperture or shutter speed displayed in red

The subject is too bright or too dark and the picture will be over- or under-exposed. Use the flash for additional lighting when taking photographs of poorly-lit subject.

FOCUS ERROR

LENS CONTROL Camera malfunction. Turn the camera off and

ERROR TURN OFF THE CAMERA AND

then on again. If the message persists, contact a FUJIFILM dealer.

TURN ON AGAIN

Technical Notes

NO CARD

The shutter can only be released when a memory
card is inserted. Insert a memory card.
· The memory card is not formatted or the memory card has

CARD NOT INITIALIZED

been formatted in a computer or other device: Format the memory card using D USER SETTING >

FORMAT.

319

Warning

Description

· The memory card contacts require cleaning: Clean the

CARD NOT

contacts with a soft, dry cloth. If the message is

INITIALIZED repeated, format the card. If the message persists,

(continued)

replace the card.
· Camera malfunction: Contact a FUJIFILM dealer.

Turn the camera off, remove the lens, and clean the

mounting surfaces, then replace the lens and turn LENS ERROR the camera on. If the problem persists, contact a

FUJIFILM dealer.

· The memory card is not formatted for use in the cam-

era: Format the card.
· The memory card contacts require cleaning or the memo-

CARD ERROR

ry card is damaged: Clean the contacts with a soft, dry cloth. If the message is repeated, format the card.

If the message persists, replace the card.
· Incompatible memory card: Use a compatible card. · Camera malfunction: Contact a FUJIFILM dealer.

PROTECTED CARD The memory card is locked. Unlock the card.

Technical Notes

The memory card is incorrectly formatted. Use the

BUSY

camera to format the card.

The memory card is full and pictures can not be

bMEMORY FULL recorded. Delete pictures or insert a memory card

with more free space.

· Memory card error or connection error: Reinsert the

12 WRITE ERROR card or turn the camera off and then on again. If
the message persists, contact a FUJIFILM dealer.

320

Warning Messages and Displays

Warning

Description

· Not enough memory remaining to record additional

WRITE ERROR (continued)

pictures: Delete pictures or insert a memory card
with more free space.
· The memory card is not formatted: Format the mem-

ory card.

The camera has run out of frame numbers (cur-

rent frame number is 999-9999). Insert a format-

ted memory card and select RENEW for D SAVE FRAME NO. FULL DATA SETTING > FRAME NO.. Take a picture

to reset frame numbering to 100-0001, then select

CONTINUOUS for FRAME NO..
· The file is corrupt or was not created with the camera:

The file can not be viewed.
· The memory card contacts require cleaning: Clean the

READ ERROR contacts with a soft, dry cloth. If the message is

repeated, format the card. If the message persists,

replace the card.
· Camera malfunction: Contact a FUJIFILM dealer.

Technical Notes

PROTECTED An attempt was made to delete or rotate to a pro-

FRAME

tected picture. Remove protection and try again.

The picture is damaged or was not created with the CAN NOT CROP camera.

Print orders can contain no more than 999 pictures.

DPOFFILEERROR Copy any additional pictures you wish to print to an-

other memory card and create a second print order. 12
CAN NOT ROTATE The selected picture can not be rotated.

321

Warning Messages and Displays

Warning

Description

F CAN NOT ROTATE

Movies can not be rotated.

CANNOTSETDPOF The picture can not be printed using DPOF.

F CAN DPOF

NOT

SET

Movies

can

not

printed

using

DPOF.

F CANNOT EXECUTE

Red-eye removal can not be applied to movies.

m CANNOT Red-eye removal can not be applied to pictures cre-

EXECUTE

ated with other devices.

MISMATCH:

4K MODE AND The movie mode selected with the camera is not

EXTERNAL compatible with the device to which the camera is

MONITOR connected via HDMI. Try selecting a different movie

CHANGE MOVIE mode.

MODE

Turn the camera off and wait for it to cool. Mottling

p (yellow) may increase in pictures taken when this warning

is displayed.

Turn the camera off and wait for it to cool. While

this warning is displayed, movies can not be re-

p (red)

corded, mottling may increase, and performance,

including frame advance rate and display quality,

may drop.

Technical Notes

322

Memory Card Capacity

The following table shows the recording time or number of pictures available at different image sizes. All figures are approximate; file size varies with the scene recorded, producing wide variations in the number of files that can be stored. The number of exposures or length remaining may not diminish at an even rate.

Technical Notes
Photos Movies1

Capacity 8 GB

16 GB

FINE NORMAL FINE NORMAL

O 32

540 800 1110 1660

RAW (UNCOMPRESSED)

150

320

RAW (LOSSLESS COMPRESSED)

310

640

U2160/29.97P, 25P, 24P, 23.98P 2

9 minutes 20 minutes

i1080/59.94P, 50P, 29.97P, 25P, 24P, 23.98P3 26 minutes 52 minutes

h720/59.94P, 50P, 29.97P, 25P, 24P, 23.98P4 51 minutes 103 minutes 1 Use a UHS speed class 3 card or better. 2 Individual movies can not exceed 10 minutes in length.

3 Individual movies can not exceed 15 minutes in length.

4 Individual movies can not exceed 30 minutes in length.

O Although movie recording will continue without interruption
when the file size reaches 4 GB, subsequent footage will be
recorded to a separate file which must be viewed separately.

323

Specifications

Technical Notes

System Model Product Number Effective pixels Image sensor Storage media Memory card slot File system
File format
Image size
Lens mount
12

FUJIFILM X-T20
FF160006
Approx. 24.3 million
23.5 mm × 15.6 mm (APS-C), X-Trans CMOS III sensor with primary color filter
FUJIFILM-recommended SD/SDHC/SDXC memory cards
SD memory card slot
Compliant with Design Rule for Camera File System (DCF), Exif 2.3, and Digital Print Order Format (DPOF)
· Still pictures: Exif 2.3 JPEG (compressed); RAW
(original RAF format, uncompressed or compressed using a lossless algorithm; special purpose software required); RAW+JPEG available
· Movies: H.264 standard with stereo sound (MOV)
O32(6000×4000) O169(6000×3376) O11(4000×4000) P32(4240×2832) P169(4240×2384) P11(2832×2832) Q32(3008×2000) Q169(3008×1688) Q11(2000×2000) RAW (6000 × 4000) O panorama: vertical (2160 × 9600)/horizontal (9600 × 1440)
P panorama: vertical (2160 × 6400)/horizontal (6400 × 1440)
FUJIFILM X mount

324

Specifications

System Sensitivity

· Still pictures: Standard output sensitivity equiv-

alent to ISO 20012800 in increments of / EV;

AUTO; extended output sensitivity equivalent

to ISO 100, 25600, or 51200
· Movies: Standard output sensitivity equivalent

to ISO 20012800 in increments of / EV

Metering

256-segment through-the-lens (TTL) metering;

MULTI, SPOT, AVERAGE, CENTER WEIGHTED

Exposure control Programmed AE (with program shift); shutter-pri-

ority AE; aperture-priority AE; manual exposure
Exposurecompensation · Still pictures: -5 EV+5 EV in increments of

/ EV
· Movies: -2 EV+2 EV in increments of / EV

Shutter speed

Mode P Other modes Time Bulb

Mechanical shutter 4 s to ¼ s 30 s to ¼ s Max. 60 min.

Electronic shutter

4 s to / s

30 s to / s Fixed at 1 s

Mechanical+ electronic

4 s to / s

30 s to / s Max. 60 min.

Technical Notes

12 325

System

Continuous

14 fps *

11 fps*

Frame rate 14 11

Frames per burst Up to approximately 42 Up to approximately 50

8.0 fps

8.0

Up to approximately 53

5.0 fps

5.0

Up to approximately 56

4.0 fps

4.0

Up to approximately 58

3.0 fps

3.0

Up to approximately 62

* Available with electronic shutter only.

O The frame rate varies with shooting conditions and the
number of images recorded. In addition, the frame rate
and number of frames per burst may vary depending
on the type of memory card used.

Focus

· Mode: Single or continuous AF; manual focus

with focus ring
· Focus-area selection: SINGLE POINT, ZONE,

WIDE/TRACKING
· Autofocus system: Intelligent hybrid AF (TTL

contrast-detect/phase-detection AF) with

AF-assist illuminator

Technical Notes

White balance

Custom 1, Custom 2, Custom 3, color temperature selection, auto, direct sunlight, shade, daylight fluorescent, warm white fluorescent, cool

white fluorescent, incandescent, underwater

12 Self-timer

Off, 2 sec., 10 sec.

326

Specifications

System Flash mode

· MODE: TTL MODE (FLASH AUTO, STANDARD,

SLOW SYNC.), MANUAL, COMMANDER,

SUPPRESSED FLASH
· SYNC. MODE: 1ST CURTAIN, 2ND CURTAIN · RED EYE REMOVAL: e FLASH+REMOVAL,

L FLASH, d REMOVAL, OFF

Hot shoe

Accessory shoe with TTL contacts

Sync contact

X contact; supports sync speeds as fast as / s

Sync terminal

Provided

Viewfinder

0.39-in., 2,360k-dot color OLED viewfinder

with diopter adjustment (-4 to +2 m-1); mag-

nification 0.62× with 50 mm lens (35 mm for-

mat equivalent) at infinity and diopter set to

-1.0 m-1; diagonal angle of view approximate-

ly 30.0° (horizontal angle of view approximately

25.0°); eye point approx. 17.5 mm

LCD monitor

3.0-in/7.6 cm, 1040k-dot color touchscreen

LCD monitor, tilting

Movies

U 2160/29.97P i 1080/59.94P h 720/59.94P

(with stereo sound) U 2160/25P i 1080/50P h 720/50P

U 2160/24P i 1080/29.97P h 720/29.97P

U 2160/23.98P i 1080/25P h 720/25P

i 1080/24P h 720/24P

i 1080/23.98P h 720/23.98P

Technical Notes

327

Input/output terminals

Digital input/output USB 2.0 High-Speed

Micro USB connector (Micro-B)

HDMI output

HDMI Micro connector (Type D)

Microphone/remote 2.5 mm 3-pole mini jack

release connector

Power supply/other

Power supply

NP-W126S rechargeable battery (supplied with

camera)

Camera size

118.4 mm × 82.8 mm × 41.4 mm (31.9 mm

(W × H × D)

excluding projections, measured at thinnest part)/

4.7 in. × 3.3 in. × 1.6 in. (1.3 in.)

Camera weight Approx. 333 g/11.7 oz., excluding battery,

accessories, and memory card

Shooting weight Approx. 383 g/13.5 oz., including battery and

memory card

Operating conditions · Temperature: 0 °C to +40 °C/+32 °F to +104 °F · Humidity: 10% to 80% (no condensation)

Technical Notes

12 328

Specifications

Power supply/other

Battery life

· Battery type: NP-W126S

· Photographs: The number of frames varies

with the option selected for PERFORMANCE:

PERFORMANCE

LCD

EVF

HIGH PERFORMANCE Approx. 260 Approx. 260

STANDARD

Approx. 350 Approx. 350

· Movies: The length of footage that can be re-

corded varies with the movie mode:

Continuance

Actual Battery life Battery life of

Mode of movie capture movie capture

U Approx. 50 minutes Approx. 70 minutes

i Approx. 60 minutes Approx. 95 minutes

CIPA standard, measured in mode P, using fully

charged battery (NP-W126S), XF35mmF1.4 R

lens, and SD memory card.

Note: Battery life varies with battery charge level and will decline at low temperatures.

Technical Notes

12 329

Wireless transmitter

Standards

IEEE 802.11b/g/n (standard wireless protocol)

Operating frequency · U. S. A., Canada, Taiwan: 2,412 MHz2,462 MHz

(11 channels)
· Other countries: 2,412 MHz2,472 MHz

(13 channels)

Maximum radio- 11.09 dBm

frequency power

(EIRP)

Access protocols Infrastructure

NP-W126S rechargeable battery

Nominal voltage 7.2 V

Nominal capacity 1260 mAh

Operating

0 °C to +40 °C/

temperature

+32 °F to +104 °F

Dimensions (W × H × D)

36.4 mm × 47.1 mm × 15.7 mm/ 1.4 in. × 1.9 in. × 0.6 in.

Weight

Approx. 47 g/1.7 oz.

Technical Notes

12 330

Specifications

BC-W126 battery charger

Rated input

100 V 240 V AC, 50/60 Hz

Input capacity 13 21VA

Rated output

8.4 V DC, 0.6 A

Supported batteries NP-W126S rechargeable batteries

Charging time Approx. 150 minutes (+20 °C/+68 °F)

Operating

5 °C to +40 °C/+41 °F to +104 °F

temperature

Dimensions

65 mm × 91.5 mm × 28 mm/

(W × H × D)

2.6 in. × 3.6 in. × 1.1 in., excluding projections

Weight

Approx. 77 g/2.7 oz.

Weight and dimensions vary with the country or region of sale. Labels, menus, and other displays may differ from those on the actual camera.

O Specifications and performance are subject to change
without notice. FUJIFILM will not be held liable for any
errors this manual may contain. The appearance of the
product may differ from that described in this manual.
