01.04 ML HTHBHWFE02D ESF00 SmartFitnessScale(web)

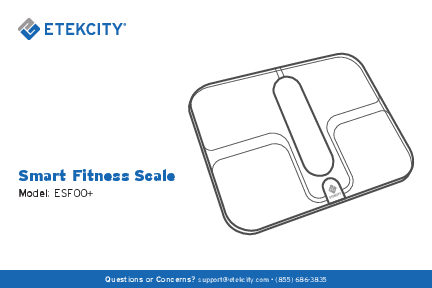

Smart Fitness Scale
Model: ESF00+

Questions or Concerns? support@etekcity.com · (855) 686-3835

1

Thank you for purchasing the ESF00+ Smart Fitness Scale by Etekcity.
If you have any questions or concerns, please reach out to our helpful Customer Support Team at support@etekcity.com. We hope you enjoy your new scale!
BECOME AN ETEKCITIZEN Get exclusive deals, giveaways, and product registration. Better products for better living.
Find us at etekcity.com 2

Table of Contents

Package Contents

3

Specifications

3

Safety Information

4

Function Diagram

5

Digital Display

6

Vesync App Setup

7

Using the Smart Scale

8

· Weighing without the VeSync App 8

· Weighing with the VeSync App

9

· Connecting the Scale to WiFi

13

· Using the App

15

Connecting with Other Fitness Apps

25

Maintenance

28

Troubleshooting

31

Warranty Information

35

Customer Support

36

Package Contents
1 x Smart Fitness Scale 1 x USB Charging Cable 1 x Measuring Tape 1 x Quick Start Guide

Specifications
Weight Capacity Graduation Weight Units Platform
Dimensions
Battery Type Charging Time Input Auto-Off

400 lb / 28 st / 180 kg 0.1 lb / 0.05 kg lb / st / kg ITO-coated glass 14.8 x 11.8 x 1.0 in / 375 x 300 x 24 mm 1000mAh Li-ion battery 3 hours DC 5V, 500mA 30 seconds

3

Safety Information

Please read and follow all instructions and safety guidelines in this manual.
Medical
· This scale should not be used to diagnose or treat any medical condition.
· Scale data should not be used as a substitute for medical advice from a healthcare professional.
· This scale uses a harmless electrical current to measure body fat. Consult a healthcare professional before using the smart scale if you use medical electronic equipment such as a pacemaker.
General Use
· Check the scale before using. Do not use the scale if it is damaged in any way.
· The glass platform is slippery when wet. Always make sure the platform and your feet are dry before stepping on for measurement.
· Place the scale on a hard, flat surface to avoid tipping.

· To weigh safely and accurately, stand with your feet shoulder-width apart while on the scale. Do not stand on the edge of the scale or jump on the scale.
· Avoid standing on the scale for a long period of time, or when not weighing yourself.
· Do not overload the scale. Maximum weight capacity is 400 lb / 180 kg.
· Keep the scale in a cool area with low humidity. Keep the scale away from heat sources, such as ovens or heaters. Avoid temperature fluctuations. Store the scale in a horizontal position, not vertical.
· Do not use while charging. Remove the USB charging cable before using.
· Handle with care. Not for commercial use. Household use only.
SAVE THESE
INSTRUCTIONS

4

Function Diagram
B

C

D

E

A TOP
G

UNDERSIDE F

A. Weighing Platform B. Display C. Anti-Skid Padding D. Unit Switching Button

E. Reset Button F. USB Charging Socket G. USB Charging Cable

5

Digital Display
A. WiFi Icon B. Bluetooth® Icon C. Battery Life Indicator D. Weight Units E. Weight Measurement F. Fat/Muscle/Water/Bone/BMR Measurement G. BMI Measurement H. BMI Tooltips
6

A

C

B

lb kg

D

E

Fat

%

Muscle

%

F

Water

%

Bone

%

BMR

Kcal

BMI
G

H

VeSync App Setup
Note: Due to app updates and improvements, the contents of this manual may change without notice. The VeSync app user interface may appear slightly different.
1. To download the VeSync app, scan the QR code, or search "VeSync" in the Apple App Store® or Google PlayTM Store.
Note: · This scale uses the VeSync app, not the VeSyncFit app. · For Android users, you may need to select Allow to use VeSync.
2. Open the VeSync app. If you already have an account, tap Log In. To create a new account, tap Sign Up.
7

Using the Smart Scale
Note: · To switch between pounds (lb), stone (st), and kilograms (kg), press the unit switching button on the underside of the scale. · If you are pregnant, scale measurements will not be accurate.
Weighing without the VeSync App
1. Place the scale on a hard, flat surface. [Figure 1.1]
2. Step onto the scale. The scale will automatically turn on and start measuring your weight.
3. Continue standing on the scale until the digits on the screen flash 3 times, showing your final measurement. [Figure 1.2]
8

Figure 1.1 Figure 1.2

Weighing with the VeSync App
Pairing the Scale with VeSync 1. Tap .

2. Tap Scales.

1 2

9

3. Select Etekcity Fitness Scale (ESF00+).
Note: Make sure your phone's Bluetooth® is turned on in your phone settings.

4. Stand on the scale and tap Next.

3
4
10

5. The app will take a moment to scan for devices. Tap Etekcity Fitness Scale to connect.

6. If the connection succeeded, go to step 9. If the connection failed, tap Why can't I connect to my device? at the bottom of the screen.

5 6
11

7. After following the "Troubleshooting" steps, tap < to return to the previous screen.
8. Then, tap Search Again.

9. Give your smart scale a unique name, or simply use the default name.
Note: You can change the name and picture at any time in Device Settings.

7

9 8
12

Connecting the Scale to WiFi
Optionally, connect your scale to WiFi after setup. Connecting your scale to WiFi will allow you to view your data from anywhere, even when you're not at home or within Bluetooth range of your scale. 1. Connect your phone to a secure 2.4GHz WiFi
network. Note:
· If the app fails to find your network, tap Why can't I find my WiFi network? to see possible reasons.
· If your SSID is set to hidden mode, tap Manual WiFi Setup, select your encryption method, and enter your SSID and password.
13

2. Enter your WiFi information and tap Connect.
14

Using the App
Creating a User
If you are a new user, you will need to enter physical information before weighing yourself for the first time so the scale can calculate your body metrics.

Note: · Entering inaccurate information will make the scale's measurements less accurate. · If you don't identify with the available gender options, or are unsure, pick the choice that you think best physically matches you. This choice is used for physical measurements, such as body fat percentages.

15

Weight Measurement
1. On the "My Home" screen, tap on the name of your smart scale.

2. Step on the scale with bare feet. Continue standing on the scale for 5­10 seconds. Your measurements will appear in the VeSync app.
Note: If you see a series of zeroes on the scale display, the scale is measuring your body fat and sending measurements to the VeSync app.

1

2

16

3. For further details, see:
A. More Measurements (page 18) B. Data Graphs (page 19) C. Device Settings (page 21)
Note: If you're wearing shoes or socks, the scale cannot measure health metrics such as body fat. Step on the scale with bare feet.

C B
A
17

More Measurements Scroll down for a comprehensive analysis of the 12 health metrics that the scale tracks. Tap on any of the health metrics for more information.
18

Data Graphs 1. Tap Data Graphs.
1

2. You can view daily, weekly, or monthly progress. Tap to view your weighing history.
2
19

3. Tap on any entry to see more information. Note: To delete, swipe left on an entry. 4. View the 12 health metrics that the scale tracks.
Tap on any of the health metrics for more information.
20

Device Settings Tap in the upper right corner to see Device Settings. · Tap on any setting to change it. · Tapping on your user icon will allow you to edit
your information. · If you skipped setting up your WiFi connection,
tap WiFi Connection to set it up at any time. · When you change the weight unit in the app, the
smart scale will change to match.
21

Guest Mode 1. Tap in the upper right corner to see Device
Settings. Tap Guest Mode. 2. Choose physical settings for a guest using the
smart scale. Note: Guest Mode measurement data will not be saved.
22

Data Sharing
You can share your measurement data with your friends.
1. Tap in the upper right corner to see Device Settings. Tap Data Sharing.

2. Tap Add Friends.
3. Enter your friend's email address to send a request.

3
2
23

A. Tap your friend's name to see their measurement data.
B. Tap My Data to see who you're sharing your information with.

C. Swipe left on a person's name to unshare your information.
D. Friend requests will appear in your VeSync inbox. Tap on the message to view the friend request and respond.

B A

D

D

Delete
C

24

Connecting with Other Fitness Apps
Fitbit
1. Tap in the upper right corner to see Device Settings. Tap Connect to Fitbit.
2. Turn on Fitbit, then sign in to your Fitbit account.

3. Allow VeSync to share your data with Fitbit.
Note: Sharing data is necessary for VeSync to connect with Fitbit.

1

3

2

25

Apple Health
1. Tap in the upper right corner to see Device Settings. Tap Connect to Apple Health.
2. The Health app should open automatically. If not, open the Health app and tap Sources at the bottom of the screen, then select "VeSync".

3. Turn all categories on to allow the VeSync app to access and update health data. Then, tap Allow at the top of the screen.
Note: If you tap Don't Allow, the Health app will not work with VeSync until you reopen the Health app, turn all categories on, and tap Allow.

3 3

1 2
26

Google Health
1. Tap in the upper right corner to see Device Settings. Tap Connect to Google Fit.
2. The Google Fit app should open automatically. If not, open the Google Fit app and tap Profile at the bottom of the screen, tap in the upper

right of the screen, and tap Manage connected apps.
3. Follow the instructions to allow VeSync to share your data with Google Fit.
Note: Sharing data is necessary for VeSync to connect with Google Fit.

Etekcity Example 1 etekcity1@example.com

VeSync

Etekcity Example 1 etekcity1@example.com
Etekcity Example 2 etekcity2@example.com
Etekcity Example 3 etekcity3@example.com

2

VeSync
1

3

Etekcity Example 1 etekcity1@example.com
Continue as Etekcity Example 1

4

27

Maintenance
Recalibrating the Scale
If the scale has been moved or flipped upside down, it must be recalibrated to ensure accurate results. 1. Place the scale on a hard, flat surface. 2. Step on the scale with one foot until digits
appear on the display. [Figure 3.1] Then, step off. 3. The scale will show " " while calibrating, then
" " when complete. [Figure 3.2]
Cleaning the Scale
· Use a slightly damp cloth to clean the surface of the scale, followed by a soft, dry cloth to wipe away any remaining moisture.
· Do not use chemical or abrasive cleaning agents to clean the scale.
28

Figure 3.1 Figure 3.2

Charging the Battery
The display will show " " when the battery needs to be charged.
1. Insert the USB charging cable into the USB charging socket. [Figure 4.1]

2. Plug the USB charging cable into a DC 5V adapter and plug into an outlet. You can also plug the cable into a powered USB outlet. [Figure 4.1]
3. The bars in the battery symbol ( ) will continuously fill as the scale charges. When charged, the symbol will be filled.

Figure 4.1
29

Display Messages
lb kg
Bluetooth Connection
lb kg
WiFi Connection

lb kg

No Connection

WiFi Icon

Flashes

lb kg

WiFi Connection in Progress

Change Battery
30

Overload

Calibrating

Troubleshooting
1. The scale doesn't turn on. · The scale may need to be charged. Plug it in and charge for 3 hours.
2. Nothing happens when I press the unit button. · The scale may need to be reset. Use a safety pin or paper clip to press the "Reset" button on the underside of the scale.
3. Information flashes on the screen and then disappears. · The battery is low and may need to be charged.

4. The scale doesn't connect with the VeSync app.
· Make sure your phone's operating system is running on iOS 8.0+ or Android 4.3+.
· Close and relaunch the VeSync app. Make sure you're using the latest version.
· Turn on Bluetooth on your phone (for Android users, make sure your Location is turned on as well).
· Make sure your scale and phone are within 30 ft / 10 m of each other.
· Make sure the scale is not currently connected to any other phone or app.
· Try turning off any VPN apps.
· The scale may need to be reset. Use a safety pin or paper clip to press the "Reset" button on the underside of the scale.

31

5. My scale will only measure my weight, or only my weight and BMI.
· Set up your smart scale in the VeSync app. Your BMI, Fat, Muscle, Water, Bone, and BMR measurements will show on the display, and more results will show on the app.
· Make sure Bluetooth is turned on.
· If you're wearing shoes or socks, the scale cannot measure health metrics such as body fat. Step on the scale with bare feet. [Figure 5.1]

Note: Resetting the scale will fix many issues.
A. To clear user data from the scale, press and hold the unit button on the underside of the scale for 10 seconds.
B. To hard reset the scale, use a safety pin or paper clip to press the "Reset" button on the underside of the scale.
If you still need help, please contact Customer Support (see page 36).

Conductive Areas Figure 5.1
32

FCC Statement to the User
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation.
Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:
· Reorient or relocate the receiving antenna. · Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. · Increase the separation between the equipment and receiver. · Consult the dealer or an experienced radio/TV technician for help.
33

FCC Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operating instructions for satisfying RF exposure compliance. To maintain compliance with FCC RF exposure compliance requirements, please follow operation instructions as documented in this manual. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This equipment should be installed and operated with a minimum distance of 20cm between the radiator and your body. The availability of some specific channels and/ or operational frequency bands are country dependent and are firmware programmed at the factory to match the intended destination. The firmware setting is not accessible by the end user.
34

Warranty Information
Product Name Smart Fitness Scale
Model ESF00+
Default Warranty Period 1 year
For your own reference, we strongly recommend that you record your order ID and date of purchase.
Order ID
Date of Purchase
Terms & Policy
Etekcity Corporation warrants all products to be of the highest quality in material, craftsmanship, and service, effective from the date of purchase to the end of the warranty period.
Etekcity Corporation will replace any product found to be defective due to manufacturer flaws based on eligibility. Refunds are available within the first 30 days of purchase. Refunds are only available to the original purchaser of the product. This warranty extends only to personal use and does not extend to any product that has been used for commercial, rental, or any other use in which the product is not intended for. There are no warranties other than the warranties expressly set forth with each product.
This warranty is non-transferrable. Etekcity Corporation is not responsible in any way for any damages, losses, or inconveniences caused by equipment failure or by user negligence, abuse, or use noncompliant with the user manual or any additional safety or use warnings included in the product packaging and manual.

This warranty does not apply to the following: · Damage due to abuse, accident, alteration, misuse, tampering, or vandalism. · Improper or inadequate maintenance. · Damage in return transit. · Unsupervised use by children under 18 years of age.
Etekcity Corporation and its subsidiaries assume no liability for damage caused by the use of the product other than for its intended use or as instructed in the user manual. Some states do not allow this exclusion or limitation of incidental or consequential losses so the foregoing disclaimer may not apply to you. This warranty gives you specific legal rights and you may also have other rights which may vary from state to state.
ALL EXPRESSED AND IMPLIED WARRANTIES, INCLUDING THE WARRANTY OF MERCHANTABILITY, ARE LIMITED TO THE PERIOD OF THE LIMITED WARRANTY.
Additional 1-Year Warranty You can extend your 1-year warranty by an additional year. Log onto www.etekcity.com/warranty to register your new product for the extended warranty. Please fill out all required fields and include your order ID, place of purchase, and purchase date, if applicable.
Defective Products & Returns If you discover your product is defective within the specified warranty period, please contact Customer Support via support@etekcity.com with a copy of your invoice and order ID. DO NOT dispose of your product before contacting us. Once our Customer Support Team has approved your request, please return the product with a copy of the invoice and order ID.
35

Customer Support

If you encounter any issues or have any questions about your new product, please contact our helpful Customer Support Team. Your satisfaction is our goal!

Customer Support
Etekcity Corporation 1202 N. Miller St., Suite A Anaheim, CA 92806
Email: support@etekcity.com Toll-Free: (855) 686-3835

Support Hours
Monday--Friday 9:00 am--5:00 pm PST/PDT
*Please have your invoice and order ID ready before contacting Customer Support.

36

Building on better living.
Connect with us @Etekcity
JD0519AL-M1_0519ESF00+
37



References

Adobe PDF Library 15.0 Adobe InDesign 14.0 (Macintosh)
