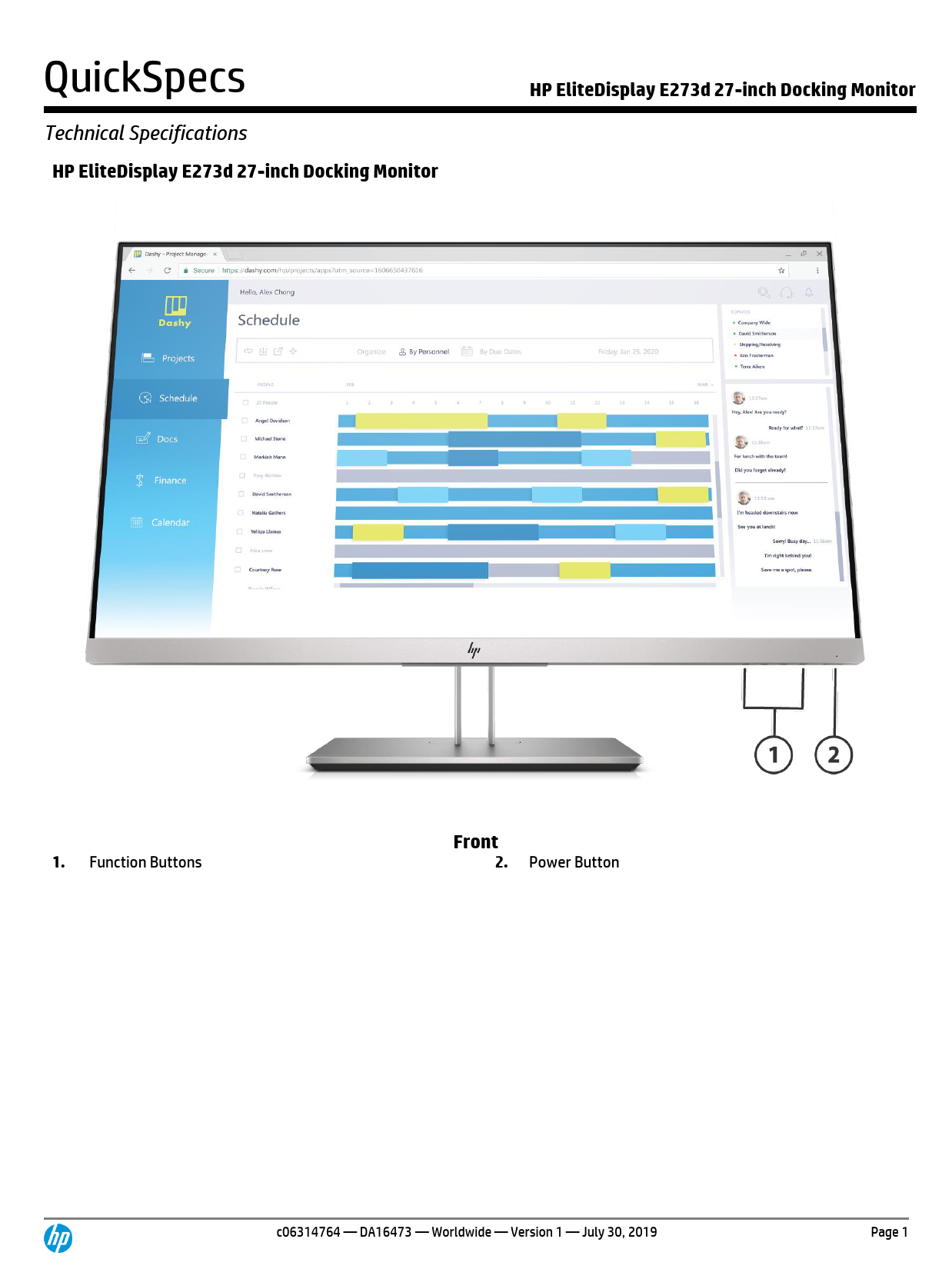

QuickSpecs
Technical Specifications HP EliteDisplay E273d 27-inch Docking Monitor
HP EliteDisplay E273d 27-inch Docking Monitor
1. Function Buttons
Front
2. Power Button
c06314764 -- DA16473 -- Worldwide -- Version 1 -- July 30, 2019
Page 1
QuickSpecs
Technical Specifications HP EliteDisplay E273d 27-inch Docking Monitor
HP EliteDisplay E273d 27-inch Docking Monitor
1. DC Power IN Connector 2. DC Power OUT Connector 3. Security Cable Slot 4. HDMI Port 5. DisplayPortTM 1.2 OUT Port 6. VGA Port 7. Audio-in Jack
Back
8.
9. 10. 11. 12. 13. 14.
USB Type-CTM Port USB Type-BTM Port Network Jack USB Type-A Port USB Type-A Port USB Type-A Ports (2) Headset Port
c06314764 -- DA16473 -- Worldwide -- Version 1 -- July 30, 2019
Page 2
QuickSpecs
Technical Specifications
HP EliteDisplay E273d 27-inch Docking Monitor
Models: 5WN63A8/5WN63U9/5WN63AA/5WN63A7/5WN63AS/5WN63AT
Panel Specifications
Display Size (Diagonal)
27.0 in
Display Panel Type
IPS w/LED backlight
Micro-Edge Bezel
Yes, 3-sided
Native Resolution*
1920 x 1080 @60 Hz
Native Resolution Note
The video card of the connected PC must be capable of
supporting 1920 x 1080 at 60 Hz and include 1 HDMI or 1
VGA or 1 DP output or USB Type-CTM DP Alt Mode to drive
the monitor at the Preferred Mode.
Panel Bit Depth
8 Bit (6 Bit + A-FRC)
Aspect Ratio
16:9
Brightness Typical
250 cd/m�
Static Contrast Ratio - Typical
1000:1
Static Contrast Ratio - Minimum
700:1
Dynamic Contrast Ratio (DCR)
5,000,000:1
Pixel Pitch
0.3114 x 0.3114 mm
Pixels Per Inch (PPI)
81.59
Backlight Lamp Life
30k minimum
(to half brightness - in hours)
Anti-Glare Panel
Yes
Response Time - Typical
5ms (GTG)
Horizontal Viewing Angle
178�
(typical CR>10)
Vertical Viewing Angle
178�
(typical CR>10)
Panel Active Area (w x h)
597.88(H) x 336.3(V)
Preset Graphic Modes/Supported
640�480 @59.940Hz
Resolutions
720�400 @70.087Hz
800�600 @60.317Hz
1024�768 @60.004Hz
1280�720 @60Hz
1280�800 @59.810Hz
1280�1024 @60.020Hz
1440�900 @59.887Hz
1600�900 @60Hz
1680�1050 @59.954Hz
1920�1080 @60Hz
Maximum Resolution
1920�1080 @ 60HZ
Recommended Resolution
1920�1080 @ 60HZ
Vertical Scan Range
50 - 60 Hz
Horizontal Scan Range
30 - 80 kHz
Default Color Temperature
Neutral (6500 K)
Maximum Pixel Clock Speed
170 MHz
*VGA or DisplayPortTM 1.2 or HDMI 1.4 required to drive panel at its native resolution
NOTE: Performance specifications represent the typical specifications provided by HP's component manufacturers; actual performance may vary either higher or lower.
c06314764 -- DA16473 -- Worldwide -- Version 1 -- July 30, 2019
Page 3
QuickSpecs
HP EliteDisplay E273d 27-inch Docking Monitor
Technical Specifications
Color Gamut Coverage NTSC sRGB
Color Management
Color Space / Subsampling Support Default Color Temperature Low Blue Light Modes RGB Channel Adjust
Monitor Specifications
Exterior Color of Monitor Bezel and Stand Plug & Play Tilt Swivel Pivot Height Adjustment Range VESA Mounting
Security Lock Ready Detachable Base Warranty
Multimedia
On Screen Display (OSD)
Webcam Microphone
On Screen Display User Controls
User Programmable Modes Monitor Control Buttons or Switches
User-Assignable Function Buttons Languages
72% >94% sRGB
RGB 4:4:4, YCBCR 4:4:4, YCBCR 4:2:2 Neutral (6500 K) Yes Yes, Gain
Asteroid in bezel and bucket frame and black in stand
Yes -5 TO +23 DEGREES Yes, 45� Pivot (CW & counter CW). Detent at 0 degrees Yes,150 mm Yes, 100 mm with integrated mount or with included bracket Yes Yes, ships detached 3-3-0 NA/TW/EMEA/ANZ/JPN/VIET/THAI 3-3-3 INDIA/PRC
Yes, 720p Yes, 2
Brightness, Contrast, Color Control, Input Control, Image Control, Power control, Menu Control, Management, USB Host Selection, Information, EXIT Yes, 10 Menu, Minus ("-")/Information, Plus ("+")/Viewing Modes, Back/Next Active Input, Power Yes, 3 (8 options) 10 (English, Spanish, German, French, Italian, Netherlands, Portuguese, Japanese, T-Chinese and S-Chinese)
Connector Types
USB Port Specifications
USB-Type CTM Port Specifications
DisplayPortTM HDMI USB Type-CTM VGA HDCP support Audio Output Audio Input Ethernet
USB Version
USB Hub Downstream Ports Upstream Ports Fast Charging USB Ports Power Output Maximum
USB-Type CTM Version
Upstream USB-Type CTM Ports Video Support
1 DisplayPort 1.2 out 1 HDMI 1.4 1 USB3.1 Type C upstream ports 1 VGA Yes, (USB-C Video and HDMI, Displaylink) 1, Analog 1, Analog Yes
3.1
Yes 4 Ports 2 Ports (Type-C & Type-B) 1 Port (Upper in side BD) Fast Charging: 7.5W; Standard 4.5W
USB 3.1 Gen1 / 5 G bps
1 Port USB-C Alt mode � DisplayPortTM 1.2
c06314764 -- DA16473 -- Worldwide -- Version 1 -- July 30, 2019
Page 4
QuickSpecs
HP EliteDisplay E273d 27-inch Docking Monitor
Technical Specifications
Power Output Power Output Maximum
5V/9V/10V/12V/15V/20V 65 W Max
Special Features
Remote Manageability User Presets Power Output over DC OUT
No Yes 90 w (From Monitor)
Power & Operating Specs
Power Supply Power Source Power Consumption - Maximum Energy Saving/Standby Mode Power Consumption - Typical Power cable length
External 100 � 240 VAC 50/60 Hz 170 W (Without DC power out, with power delivery) 0.5W 40 W 1830mm: 398062-001,150304-008,130627-008,121565001,285052-001,100613-008,286496-001,109197008,653326-001,438723-001,393312-001 2500mm: 187487-001,100661-001,401328-001 1800mm: 100614-009 2000mm: 403440-001
EU Energy Efficiency Class (EC1062)
Visible Screen Size
27"/68,5 cm
Operating Conditions
Operating Temperature - Celsius Operating Temperature - Fahrenheit Non-operating Temperature - Celsius Non-operating Temperature Fahrenheit Operating Humidity Non-operating Humidity Operating Altitude Non-operating Altitude
5� - 35�C 41� - 95�F -20� - 60�C -4� - 140�F
20% - 80% (non-condensing) 5% - 95% 0 - 5,000 m (16,400 ft.) 0 - 12.192 m (40,000 ft.)
Environmental Features and Certifications
Mercury-free LED display backlighting Arsenic-Free Display Glass Low Halogen**
Agency Approvals and Certifications
Microsoft WHQL Certification SmartWay Transport Partnership - NA only
Yes, Mercury-free LED backlights Yes GSE HP-00011-01B, table 2 defines low-halogen (BFR, CFR, PVC) WW application CE,CB,KC/KCC/NOM/ICE/ISO 9241-307/ EAC/TUVGS/cTUVus/PSB/CCC/CEL/ISC/VCCI/FCC/BSMI/Vietnam MEPS/Australian-New Zealand MEPS/WEEE/BIS
Win 10, Win 8.1, Win 7
Yes (NA SKU)
**External power supplies, power cords, cables and peripherals are not Low Halogen. Service parts obtained after purchase may not be Low Halogen.
Contains Recycled Plastics
Note: DisplayPortTM and the DisplayPortTM logo are trademarks owned by the Video Electronics Standards Association (VESA�) in the United States and other countries.
Contains Recycled Plastics in Back Cover
85% (5% Ocean Bound Plastic)
Contains Recycled Plastics in Base/Stand
85% (5% Ocean Bound Plastic)
c06314764 -- DA16473 -- Worldwide -- Version 1 -- July 30, 2019
Page 5
QuickSpecs
HP EliteDisplay E273d 27-inch Docking Monitor
Technical Specifications
Contains Recycled Plastics in Other Parts Recyclable Packaging (Box, packing materials) Recyclable Plastics Recyclable Packaging (Box, packing materials)
Unit Product/Package Specifications
Product Dimensions
(Unpacked with stand) (W x D x H)
Product Dimensions
(Packed) (W x D x H)
Display Head Dimensions
(Unpacked without stand) (W x D x H)
Base Area Footprint
(w x d mm)
Bezel Measurements
Product Weight
(Unpacked with stand)
85% (Deco, Middle Frame)
0% recyclable Plastics content by total weight of packing materials All All
Metric 61.094 x 21.4 x 50.85 cm
Imperial 24.05 x 8.43 x 20.02 in
73.2 x 28.2 x 44.6 cm
61.094 x 4.632 x 36.3 cm
260.0 x 214 mm Top 1.36 mm Side 1.36 mm Bottom 19.2 mm 7.52 kg
28.82 x 11.1 x 17.56 in
24.05 x 1.824 x 14.29 in
10.236 x 8.425 in Top 0.0535 in Side 0.0535 in Bottom 0.756 in 16.58 lb
Pallet Information
Pallet Dimensions
(L x W x H)
Pallet Layers Pallet Product per Layer Total Products per Pallet Container Load, 20-Foot Container Load, 40-Foot Container Load, 40-Foot HighQ
1140L x 740W x 125H mm
20/40" Wooden- 4 layers 4 sets 16 sets 224 units 512 units 640 units
44.88L x 29.13W x 4.92H inch
Software Included
Install DisplayLink USB Driver Software Install Monitor INF/ICM Software Install HP Display Assistant Install Cyberlink YouCam Open Auto-Adjustment Utility (for VGA input only)
Recommended Accessories*
Description
HP B300 PC Mounting Bracket HP Quick Release Bracket 2 HP S101 Speaker Bar HP Hot Desk Stand HP Executive 15.6 Backpack HP Sure Key Cable Lock
Part Number
2DW53AA 6KD15AA 5UU40AA W2Z73AA 6KD07AA 6UW42AA
*Sold separately and availability may vary by country
What's in the box?
AC power cord (1.83 m) 6.0 ft USB C-C cable (1.8 m) 5.9 ft USB A-B Cable (1.8 m) 5.9 ft DC-DC Cable (1.8 m) 5.9 ft DC Jack Dongle HDMI Cable External power supplier (230 W) QSP
c06314764 -- DA16473 -- Worldwide -- Version 1 -- July 30, 2019
Page 6
QuickSpecs
HP EliteDisplay E273d 27-inch Docking Monitor
Technical Specifications
Product notice
NOTE: Included cables may vary by country.
User Guide and Warranty Languages
User Guide Languages
Warranty Languages
English, Arabic, S. Chinese, T. Chinese, Czech, Danish, Dutch, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Kazakh, Korean, Norwegian, Polish, Brazilian Portuguese, Russian, Slovenian, Spanish, Swedish and Turkish English, Arabic, S. Chinese, T. Chinese, Czech, Danish, Dutch, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Kazakh, Korean, Norwegian, Polish, Brazilian Portuguese, Russian, Slovenian, Spanish, Swedish and Turkish.
c06314764 -- DA16473 -- Worldwide -- Version 1 -- July 30, 2019
Page 7
QuickSpecs
Technical Specifications
HP EliteDisplay E273d 27-inch Docking Monitor
Copyright � 2019 HP Development Company, L.P. The information contained herein is subject to change without notice. The only warranties for HP products are set forth in the express limited warranty statements accompanying such products. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein. Microsoft and Windows are registered trademarks or trademarks of Microsoft Corporation in the U.S. and/or other countries. ENERGY STAR is a registered trademark owned by the U.S. Environmental Protection Agency.
c06314764 -- DA16473 -- Worldwide -- Version 1 -- July 30, 2019
Page 8
QuickSpecs
Summary Change Log
V1 to V2
HP EliteDisplay E273d 27-inch Docking Monitor
