User Guide for EverStar models including: BC40BE, Automotive Bench Battery Charger and maintainer
engine start charge voltage altern check battery recond 062121 quick start guide bc40be this quick start guide is not a substitute for the instruction manual. please refer to the instruction manual and your vehicle’s user’s manual before use.
quick start guide bc40be this quick start guide is not a substitute for the instruction manual. please refer to the instruction manual and your vehicle’s user’s manual before use. if you have any questions, call customer service at 1-877-571-2391 mode selection control panel overheat alarm battery recondition
quick start guide bc40be this quick start guide is not a substitute for the instruction manual. please refer to the instruction manual and your vehicle’s user’s manual before use. if you have any questions, call customer service at 1-877-571-2391 mode selection control panel overheat alarm battery recondition indicator surroundings low temp ...

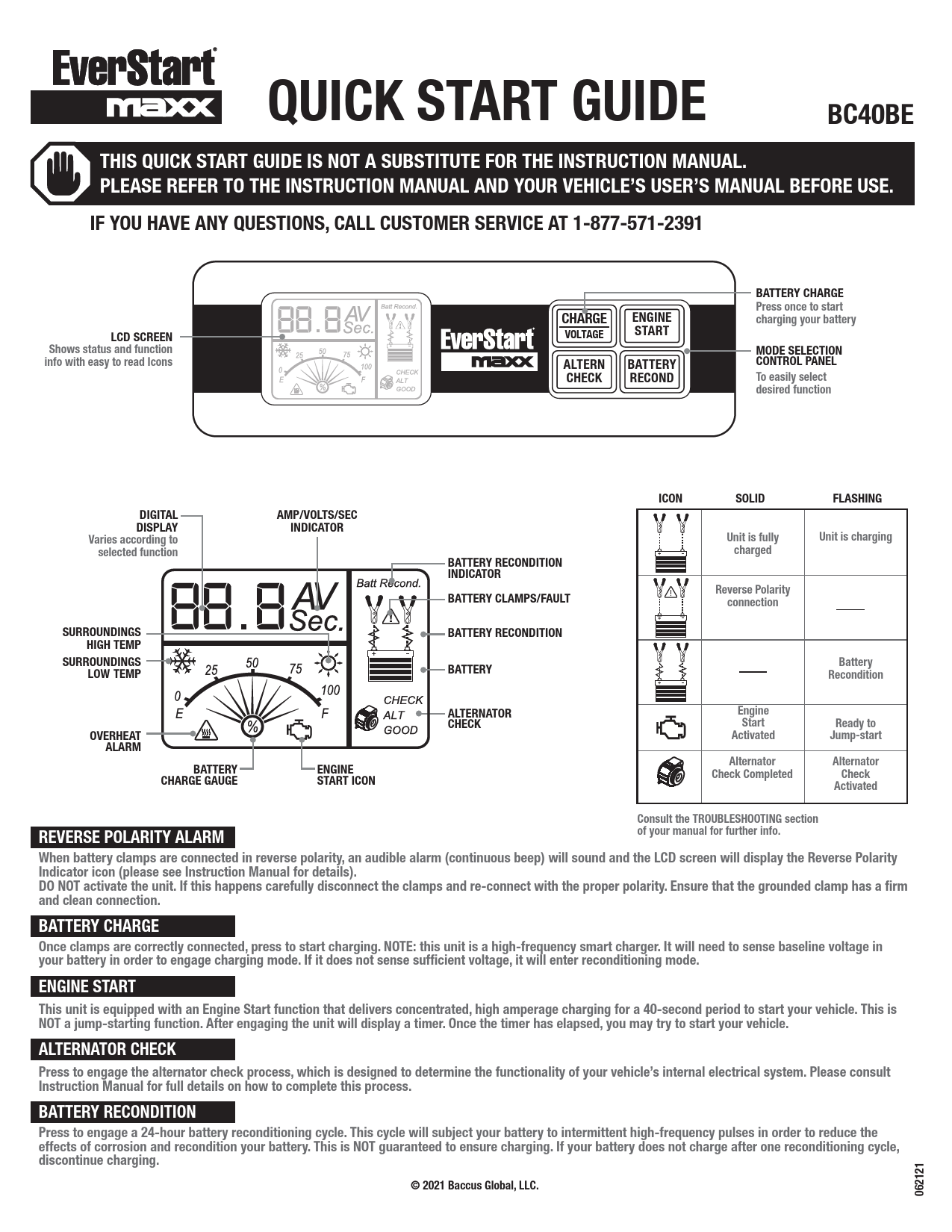

QUICK START GUIDE BC40BE THIS QUICK START GUIDE IS NOT A SUBSTITUTE FOR THE INSTRUCTION MANUAL. PLEASE REFER TO THE INSTRUCTION MANUAL AND YOUR VEHICLE'S USER'S MANUAL BEFORE USE. IF YOU HAVE ANY QUESTIONS, CALL CUSTOMER SERVICE AT 1-877-571-2391 LCD SCREEN Shows status and function info with easy to read Icons CHARGE ENGINE VOLTAGE START ALTERN BATTERY CHECK RECOND BATTERY CHARGE Press once to start charging your battery MODE SELECTION CONTROL PANEL To easily select desired function DIGITAL DISPLAY Varies according to selected function SURROUNDINGS HIGH TEMP SURROUNDINGS LOW TEMP AMP/VOLTS/SEC INDICATOR BATTERY RECONDITION INDICATOR BATTERY CLAMPS/FAULT BATTERY RECONDITION BATTERY ICON SOLID FLASHING Unit is fully charged Unit is charging Reverse Polarity connection Battery Recondition OVERHEAT ALARM BATTERY CHARGE GAUGE ENGINE START ICON ALTERNATOR CHECK Engine Start Activated Alternator Check Completed Ready to Jump-start Alternator Check Activated REVERSE POLARITY ALARM Consult the TROUBLESHOOTING section of your manual for further info. When battery clamps are connected in reverse polarity, an audible alarm (continuous beep) will sound and the LCD screen will display the Reverse Polarity Indicator icon (please see Instruction Manual for details). DO NOT activate the unit. If this happens carefully disconnect the clamps and re-connect with the proper polarity. Ensure that the grounded clamp has a firm and clean connection. BATTERY CHARGE Once clamps are correctly connected, press to start charging. NOTE: this unit is a high-frequency smart charger. It will need to sense baseline voltage in your battery in order to engage charging mode. If it does not sense sufficient voltage, it will enter reconditioning mode. ENGINE START This unit is equipped with an Engine Start function that delivers concentrated, high amperage charging for a 40-second period to start your vehicle. This is NOT a jump-starting function. After engaging the unit will display a timer. Once the timer has elapsed, you may try to start your vehicle. ALTERNATOR CHECK Press to engage the alternator check process, which is designed to determine the functionality of your vehicle's internal electrical system. Please consult Instruction Manual for full details on how to complete this process. BATTERY RECONDITION Press to engage a 24-hour battery reconditioning cycle. This cycle will subject your battery to intermittent high-frequency pulses in order to reduce the effects of corrosion and recondition your battery. This is NOT guaranteed to ensure charging. If your battery does not charge after one reconditioning cycle, discontinue charging. © 2021 Baccus Global, LLC. 062121Adobe PDF library 15.00 Adobe Illustrator 25.2 (Macintosh)
