REPAIR PARTS - HVACDirect.com
10123532 manual reset limit 350ºf (m3, m5, m6, m8, m10) 10123529 manual reset limit-green (m1, m2, m4, m7, m9, m11) pcbag127 pcb, ignition, dsi, 2 stg 11112501 pressure switch 0131m00714 programmed motor (m4) 0131m00715…
REPAIR PARTS
PDF Repair Parts
REPAIR PARTS nufacturing Company, L.P. 5151 San Felipe, Suite 500 RP-G3000B This manual is to be used by qualified technicians only.This manual replaces RP-G3000A.
Full PDF Document
If the inline viewer fails, it will open the original document in compatibility mode automatically. You can also open the file directly.
Extracted Text

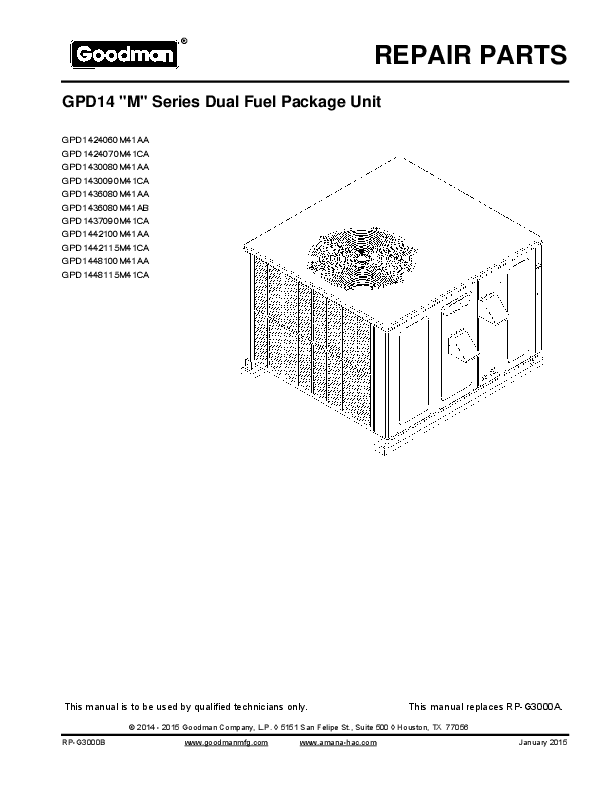

� REPAIR PARTS GPD14 "M" Series Dual Fuel Package Unit GPD1424060M41AA GPD1424070M41CA GPD1430080M41AA GPD1430090M41CA GPD1436080M41AA GPD1436080M41AB GPD1437090M41CA GPD1442100M41AA GPD1442115M41CA GPD1448100M41AA GPD1448115M41CA nufacturing Company, L.P. 5151 San Felipe, Suite 500 This manual is to be used by qualified technicians only. This manual replaces RP-G3000A. RP-G3000B � 2014 - 2015 Goodman Company, L.P. 5151 San Felipe St., Suite 500 Houston, TX 77056 www.goodmanmfg.com www.amana-hac.com January 2015 Important Information Index Functional Parts List Illustration and Parts ................................................................................................... ................................................................................................... Views shown are for parts illustrations only, not servicing procedures 3 4 - 15 Text Codes: AR - As Required NA - Not Available NS - Not Shown 00000000 - See Note QTY - Quantity Example (QTY 3) (If Quantity not shown, Quantity = 1) M - Model Example (M1) (If M Code not shown, then part is used on all Models) Expanded Model Nomenclature: Example M1 - Model#1 M2 - Model#2 M3 - Model#3 Goodman Company, L.P. is not responsible for personal injury or property damage resulting from improper service. Review all service information before beginning repairs. Warranty service must be performed by an authorized technician, using authorized factory parts. If service is required after the warranty expires, Goodman Company, L.P. also recommends contacting an authorized technician and using authorized factory parts. Goodman Company, L.P. reserves the right to discontinue, or change at any time, specifications or designs without notice or without incurring obligations. For assistance within the U.S.A. contact: Consumer Affairs Department Goodman Company, L.P. 7401 Security Way Houston, Texas 77040 877-254-4729-Telephone 713-863-2382-Facsimile For assistance outside the U.S.A. contact: International Division Goodman Company, L.P. 7401 Security Way Houston, Texas 77040 713-861-2500-Telephone 713-863-2382-Facsimile 2 www.goodmanmfg.com www.amana-hac.com RP-G3000B Functional Parts Part No: Description: 0130M00025 20269903 10735102 0163F00017 D6723303 B1368058 B1368000 CAP050400440CT CAP050450440CT ZP29K5EPFV130 ZP31K6EPFV130 ZP21K5EPFV130 ZP25K5EPFV130 ZP34K5EPFV130 ZP39K5EPFV130 0131M00061 0131M00429 0131M00009P CONT1P025024V CONT1P030024V 0130M00099 0130M00101 0230G00005 0130M00074 0130M00075 PCBDM133 0130M00106 B1086773 0150G00002 0150G00003 0130F00010 0151F00000P 0163R00003 0130F00014 10728343 10728344 10728342 10123532 10123529 PCBAG127 11112501 0131M00714 0131M00715 0131M00740 0131M00688 24V RELAY AUXILIARY LIMIT, AUTO RESET BECKETT BURNER (M2, M4, M7, M9, M11) BECKETT BURNER (M1, M3, M5, M6, M8, M10) BLOWER WHEEL (M3, M4, M5, M6, M7) BLOWER WHEEL 10 X 8 (M1, M2) BLOWER WHEEL 11 X 10 (M8, M9, M10, M11) CAPACITOR 5/40/440V/DUAL RD (M1, M2, M3, M4) CAPACITOR 5/45/440V/DUAL RD (M5, M6, M7, M8, M9, M10, M11) COMP,29000,208/230/60/1 (M5, M7) COMP,42500,208/230/60/1 (M6) COMPRESSOR 21300, 208/230/60/1 (M1, M2) COMPRESSOR 25200, 208/230/60/1 (M3, M4) COMPRESSOR 34500, 208/230/60/1 (M8, M9) COMPRESSOR 39000, 208/230/60/1 (M10, M11) COND MOTOR 1/4 HP, 1 SP, 8 PL (M3, M4, M5, M6, M7) COND MOTOR 1/4 HP, 1 SP,6 PL (M8, M9, M10, M11) COND MOTOR 1/6 HP, 1 SP, 8 PL (M1, M2) CONTACTOR 25 AMP, 1P, 24V (M1, M2, M3, M4, M5, M6, M7) CONTACTOR 30 AMP, 1P, 24V (M8, M9, M10, M11) CONTROL, DEFROST (M1, M2, M3, M4, M5, M6, M7) CONTROL, DEFROST (M8, M9, M10, M11) CRANKCASE HEATER SWITCH (M8, M9) CUT-OUT SWITCH, HIGH PRESSURE CUT-OUT SWITCH, LOW PRESSURE DEFROST CONTROL BOARD DISC THERMOSTAT CRNKCS HTR SW (M8, M9) FAN BLADE 22" (M1, M2) FAN BLADE SWEPT-WING (M3, M4, M5, M6, M7) FAN BLADE SWEPT-WING (M8, M9, M10, M11) FLAME SENSOR GAS VALVE - WHITE-RODGERS 2-STAGE HEATER, CRANKCASE 230V 40W (M8, M9) IGNITOR LIMIT SWITCH (M1, M2, M4, M7) LIMIT SWITCH (M8, M9, M10, M11) LIMIT SWITCH (M3, M5, M6) MANUAL RESET LIMIT 350�F (M3, M5, M6, M8, M10) MANUAL RESET LIMIT-GREEN (M1, M2, M4, M7, M9, M11) PCB, IGNITION, DSI, 2 STG PRESSURE SWITCH PROGRAMMED MOTOR (M4) PROGRAMMED MOTOR PROGRAMMED MOTOR (M10) PROGRAMMED MOTOR (M3) 0131M00689 PROGRAMMED MOTOR (M5, M6) 0131M00594 PROGRAMMED MOTOR (M7) 0131M00440 PROGRAMMED MOTOR (M9) 0131M00690 PROGRAMMED MOTOR (M8) 0131M00691 PROGRAMMED MOTOR (M11) 0131M00434 PROGRAMMED MOTOR (M2) 0131M00687 PROGRAMMED MOTOR (M1) 0151R00071 REVERSING VALVE (M8, M9, M10, M11) 0151R00069 B1225022 REVERSING VALVE (M1, M2, M3, M4, M5, M6, M7) SOLENOID COIL 0130M00138 TRANSFORMER 208/230, 24V Expanded Model Nomenclature M1 - GPD1424060M41AA M2 - GPD1424070M41CA M3 - GPD1430080M41AA M4 - GPD1430090M41CA M5 - GPD1436080M41AA M6 - GPD1436080M41AB M7 - GPD1437090M41CA M8 - GPD1442100M41AA M9 - GPD1442115M41CA M10 - GPD1448100M41AA M11 - GPD1448115M41CA RP-G3000B www.goodmanmfg.com www.amana-hac.com 3 Top Panel/Fan/Cabinet 4 www.goodmanmfg.com www.amana-hac.com RP-G3000B Top Panel/Fan/Cabinet Ref. Part No: No: Description: Image 1: 11 B1086773 11 0150G00002 11 0150G00003 21 0131M00061 FAN BLADE 22" (M1, M2) FAN BLADE SWEPT-WING (M3, M4, M5, M6, M7) FAN BLADE SWEPT-WING (M8, M9, M10, M11) COND MOTOR 1/4 HP, 1 SP, 8 PL (M3, M4, M5, M6, M7) 21 0131M00429 COND MOTOR 1/4 HP, 1 SP,6 PL (M8, M9, M10, M11) 21 0131M00009P COND MOTOR 1/6 HP, 1 SP, 8 PL (M1, M2) 31 0152G00003 FAN GRILLE 41 0121G00156PDG TOP PANEL 51 M0221817 SMALL SCREW (QTY 8) 61 0163M00006P ACORN NUT 5/16 HEX BLACK (QTY 4) 71 20464801PDG BLOWER DOOR 32" (M1, M2, M3, M4, M5, M6, M7) 71 20464806PDG BLOWER DOOR 40" (M8, M9, M10, M11) 81 20464802PDG EVAP/CONTROL DOOR 32" (M1, M2, M3, M4, M5, M6, M7) 81 20464807PDG 91 0121G00526DG EVAP/CONTROL DOOR 40" (M8, M9, M10, M11) HT EXCHANGE DOOR 32" (M1, M2, M3, M4, M5, M6, M7) 91 0121G00527DG 101 20464804PDG HT EXCHANGE DOOR 38" (M8, M9, M10, M11) COMPRESSOR DOOR 32" (M1, M2, M3, M4, M5, M6, M7) 101 20464809PDG 111 20467701PDG COMPRESSOR DOOR 40" (M8, M9, M10, M11) LOUVERED PANEL, COND SIDE 32" (M1, M2, M3, M4, M5, M6, M7) 111 20467702PDG LOUVERED PANEL, COND SIDE 40" (M8, M9, M10, M11) 121 20466101PDG 121 20466102PDG 131 0121G00673DG UTILITY PANEL 32" (M1, M2, M3, M4, M5, M6, M7) UTILITY PANEL 40" (M8, M9, M10, M11) PNL, DUCT, GAS 32.5" (M1, M2, M3, M4, M5, M6, M7) 131 0121G00674DG 141 0121G00460 141 0121G00462 161 20464401PDG PNL, DUCT, GAS 40" (M8, M9, M10, M11) SUPPORT POST 32" (M1, M2, M3, M4, M5, M6, M7) SUPPORT POST 40" (M8, M9, M10, M11) LOUVERED PANEL, COND SIDE 32" (M1, M2, M3, M4, M5, M6, M7) 161 20464402PDG LOUVERED PANEL, COND SIDE 40" (M8, M9, M10, M11) 181 0121G00290 251 20464201PDG BASE PAN RAIL (QTY 2) CORNER POST-COMP END 32" (M1, M2, M3, M4, M5, M6, M7) 251 20464202PDG CORNER POST-COMP END 40" (M8, M9, M10, M11) 261 20464301PDG CORNER POST-HAIRPIN END 32" (M1, M2, M3, M4, M5, M6, M7) 261 20464302PDG CORNER POST-HAIRPIN END 40" (M8, M9, M10, M11) 271 0121G00323 281 0121G00190 291 20472601 301 B1910012 NS B1373315 NS 0163M00175 NS 17788000083F NS 0163M00005P NS 0259G00106 FLUE HOOD (QTY 2) FLUE HOOD-LOWER SCREEN-FLUE HOOD GAS LINE GROMMET ACCESS FITTING (QTY 2) CAP WITH O-RING (QTY 2) PVC CONDUIT 8.25" WASHER, BLACK (.50 OD .218ID) (QTY 4) WIRE HARNESS, FAN MOTOR (M1, M2, M8, M9, M10, M11) Ref. Part No: No: Description: Image 1: NS 0259G00107 WIRE HARNESS, FAN MOTOR (M3, M4, M5, M6, M7) Expanded Model Nomenclature M1 - GPD1424060M41AA M2 - GPD1424070M41CA M3 - GPD1430080M41AA M4 - GPD1430090M41CA M5 - GPD1436080M41AA M6 - GPD1436080M41AB M7 - GPD1437090M41CA M8 - GPD1442100M41AA M9 - GPD1442115M41CA M10 - GPD1448100M41AA M11 - GPD1448115M41CA RP-G3000B www.goodmanmfg.com www.amana-hac.com 5 Partition Panels 6 www.goodmanmfg.com www.amana-hac.com RP-G3000B Partition Panels Ref. Part No: No: Description: Ref. Part No: No: Image 1: 71 20465305 71 20465304 71 20465302 101 20465201 BLOWER DIVIDER (M1, M2) BLOWER DIVIDER 32" 10 X 9 (M3, M4, M5, M6, M7) BLOWER DIVIDER 38" (M8, M9, M10, M11) FILLER PANEL, HEAT EXCHANGER 32" (M1, M2, M3, M4, M5, M6, M7) 101 20465202 FILLER PANEL, HEAT EXCHANGER 40" (M8, M9, M10, M11) 121 20465501 EVAP/HEAT EXCHANGER DIVIDER 32" (M1, M2, M3, M4, M5, M6, M7) 121 20465502 EVAP/HEAT EXCHANGER DIVIDER 38" (M8, M9, M10, M11) 131 20465701 141 20465801 141 20465802 151 20472501 161 0121G00555 221 20463802 FAN PARTITION SHELF FAN SURROUND 32" (M1, M2, M3, M4, M5, M6, M7) FAN SURROUND 40" (M8, M9, M10, M11) SHIELD, HEAT EXCHANGER TUBES DRAIN CHANNEL, SUCTION TUBE EVAP/BASEPAN BLOCK 32" (M1, M2, M3, M4, M5, M6, M7) 221 20463801 EVAP/BASEPAN BLOCK 40" (M8, M9, M10, M11) Expanded Model Nomenclature M1 - GPD1424060M41AA M2 - GPD1424070M41CA M3 - GPD1430080M41AA M4 - GPD1430090M41CA M5 - GPD1436080M41AA M6 - GPD1436080M41AB M7 - GPD1437090M41CA M8 - GPD1442100M41AA M9 - GPD1442115M41CA M10 - GPD1448100M41AA M11 - GPD1448115M41CA Effective July 2008 (serial codes 0807), single phase units will no longer be factory shipped with horizontal duct covers. For downshot applications, contact your local Goodman distributor. Description: RP-G3000B www.goodmanmfg.com www.amana-hac.com 7 Basepan/Blower Assembly 8 www.goodmanmfg.com www.amana-hac.com RP-G3000B Basepan/Blower Assembly Ref. Part No: No: Description: Image 1: 11 M0250565 21 0121M00038 31 B1376857 41 D6723303 41 B1368058 41 B1368000 61 B1393323 71 0121G00444 91 0121G00148 101 B1393800 121 0131M00434 121 0131M00440 121 0131M00594 121 0131M00687 121 0131M00688 121 0131M00689 121 0131M00690 121 0131M00691 121 0131M00714 121 0131M00715 121 0131M00740 131 20269903 141 764742 141 764740 141 1864703F 151 2509503F 161 0271F00001P 161 0271G00024 TC SCREW 1.25" (QTY 3) MOTOR MOUNT BAND MOTOR MOUNT ARM (QTY 3) BLOWER WHEEL (M3, M4, M5, M6, M7) BLOWER WHEEL 10 X 8 (M1, M2) BLOWER WHEEL 11 X 10 (M8, M9, M10, M11) MACHINE SCREW HWH 1/4-20 X 1-1/2 BZ BASEPAN, PACKAGE SINGLE COVER, DOWN DISCHARGE (QTY 2) LOCKNUT, NYLON, INSERT 1/4, 20 PROGRAMMED MOTOR (M2) PROGRAMMED MOTOR (M9) PROGRAMMED MOTOR (M7) PROGRAMMED MOTOR (M1) PROGRAMMED MOTOR (M3) PROGRAMMED MOTOR (M5, M6) PROGRAMMED MOTOR (M8) PROGRAMMED MOTOR (M11) PROGRAMMED MOTOR (M4) PROGRAMMED MOTOR PROGRAMMED MOTOR (M10) AUXILIARY LIMIT, AUTO RESET BLOWER BLOCK-OFF (M3, M4, M5, M6, M7) BLOWER BLOCK-OFF 10 X 8 (M1, M2) BLOWER CUT-OFF (M8, M9, M10, M11) AUXILIARY LIMIT BRACKET BLOWER HOUSING ASSY 10 X 8 (M1, M2) BLOWER HOUSING ASSY 10 X 9 (M3, M4, M5, M6, M7) 161 2539309 BLOWER HOUSING ASSY 11 X 10 (M8, M9, M10, M11) 171 20463701 11 X 10 BLOWER MOUNTING (M8, M9, M10, M11) Expanded Model Nomenclature M1 - GPD1424060M41AA M2 - GPD1424070M41CA M3 - GPD1430080M41AA M4 - GPD1430090M41CA M5 - GPD1436080M41AA M6 - GPD1436080M41AB M7 - GPD1437090M41CA M8 - GPD1442100M41AA M9 - GPD1442115M41CA M10 - GPD1448100M41AA M11 - GPD1448115M41CA Ref. Part No: No: Description: RP-G3000B www.goodmanmfg.com www.amana-hac.com 9 Compresor/Tubing Assembly 10 www.goodmanmfg.com www.amana-hac.com RP-G3000B Compresor/Tubing Assembly Ref. Part No: No: Description: Image 1: 11 ZP29K5EPFV130 11 ZP31K6EPFV130 11 ZP21K5EPFV130 11 ZP25K5EPFV130 11 ZP34K5EPFV130 11 ZP39K5EPFV130 31 M0221641 61 0202G00571 61 0202G00659 61 0202G00660 61 0202G00661 61 0202G00662 91 0201G00257 91 0201G00258 91 0201G00365 91 0201G00366 111 0151R00069 111 0151R00071 141 0130M00074 171 0163R00003 211 B1226206 211 B1226207 241 20485201 421 20464901DF NS B1339533 NS 0159G00002 COMP,29000,208/230/60/1 (M5, M7) COMP,42500,208/230/60/1 (M6) COMPRESSOR 21300, 208/230/60/1 (M1, M2) COMPRESSOR 25200, 208/230/60/1 (M3, M4) COMPRESSOR 34500, 208/230/60/1 (M8, M9) COMPRESSOR 39000, 208/230/60/1 (M10, M11) TF SHOULDER SCREW (QTY 4) EVAP COIL ASSY (M10, M11) EVAP COIL ASSY (M1, M2) EVAP COIL ASSY (M3, M4) EVAP COIL ASSY (M5, M6, M7) EVAP COIL ASSY (M8, M9) COND COIL TUBING ASSY (M1, M2) COND COIL TUBING ASSY (M3, M4, M5, M6, M7) COND COIL TUBING ASSY (M8, M9) COND COIL TUBING ASSY (M10, M11) REVERSING VALVE (M1, M2, M3, M4, M5, M6, M7) REVERSING VALVE (M8, M9, M10, M11) CUT-OUT SWITCH, HIGH PRESSURE HEATER, CRANKCASE 230V 40W (M8, M9) ACCUMULATOR (M1, M2, M3, M4, M5, M6, M7) ACCUMULATOR .875 (M8, M9, M10, M11) BI-FLOW FILTER DRIER DRAIN PAN-EVAP COIL COMPRESSOR GROMMET (QTY 4) COMPRESSOR SCROLL HARNESS (M1, M2, M3, M4, M5, M6, M7) NS 0159G00006 COMPRESSOR SCROLL HARNESS (M8, M9, M10, M11) NS 0130M00099 CONTROL, DEFROST (M1, M2, M3, M4, M5, M6, M7) NS 0130M00101 NS 0230G00005 NS 0130M00075 NS 0130M00106 NS 20513001 NS B1225022 NS 0259G00029 NS PKRP-4000 CONTROL, DEFROST (M8, M9, M10, M11) CRANKCASE HEATER SWITCH (M8, M9) CUT-OUT SWITCH, LOW PRESSURE DISC THERMOSTAT CRNKCS HTR SW (M8, M9) EVAP DRAIN FITTING SOLENOID COIL WIRE ASSY-9 CIRCUIT PISTON KIT CHART Ref. Part No: No: Description: Expanded Model Nomenclature M1 - GPD1424060M41AA M2 - GPD1424070M41CA M3 - GPD1430080M41AA M4 - GPD1430090M41CA M5 - GPD1436080M41AA M6 - GPD1436080M41AB M7 - GPD1437090M41CA M8 - GPD1442100M41AA M9 - GPD1442115M41CA M10 - GPD1448100M41AA M11 - GPD1448115M41CA RP-G3000B www.goodmanmfg.com www.amana-hac.com 11 Heat Exchanger/Manifold/Gas Valve 12 www.goodmanmfg.com www.amana-hac.com RP-G3000B Heat Exchanger/Manifold/Gas Valve Ref. Part No: No: Description: Image 1: 21 0131G00001 31 0121G00579 31 0121G00582 31 0121G00218 31 20463101 31 20463102 31 20463103 41 11112501 51 20490707 51 20490703 51 20490705 71 0130F00014 81 0151F00000P 91 0130F00010 101 20493103 101 20493104 101 20493106 111 0163F00017 111 10735102 121 20190411 121 20190412 121 20190413 131 10123532 ID BLOWER ID BLOWER PLATE (M1) ID BLOWER PLATE (M8, M10) ID BLOWER PLATE LRG 5 BRNR (M9, M11) ID BLOWER PLATE SML 2 BRNR (M3, M5, M6) ID BLOWER PLATE SML 3 BRNR (M2) ID BLOWER PLATE SML 4 BRNR (M4, M7) PRESSURE SWITCH PART/TUBE ASSY 3B (M1, M2) PART/TUBE ASSY 4B (M3, M4, M5, M6, M7) PART/TUBE ASSY 5B (M8, M9, M10, M11) IGNITOR GAS VALVE - WHITE-RODGERS 2-STAGE FLAME SENSOR MANIFOLD - 3 BRNR (M1, M2) MANIFOLD - 4 BRNR (M3, M4, M5, M6, M7) MANIFOLD - 5 BRNR (M8, M9, M10, M11) BECKETT BURNER (M1, M3, M5, M6, M8, M10) BECKETT BURNER (M2, M4, M7, M9, M11) BURNER BRACKET 3B (M1, M2) BURNER BRACKET 4B (M3, M4, M5, M6, M7) BURNER BRACKET 5B (M8, M9, M10, M11) MANUAL RESET LIMIT 350�F (M3, M5, M6, M8, M10) 131 10123529 MANUAL RESET LIMIT-GREEN (M1, M2, M4, M7, M9, M11) 141 20484401 141 20484402 151 11072202 151 11072203 151 11072204 161 M0221817 NS 20463001 ELBOW-FLUE LEFT ELBOW-FLUE RIGHT ORIFICE SHIELD (M1, M2) ORIFICE SHIELD (M3, M4, M5, M6, M7) ORIFICE SHIELD (M8, M9, M10, M11) SMALL SCREW (QTY 8) ID BLOWER PLATE GASKET LRG (M8, M9, M10, M11) NS 20462801 ID BLOWER PLATE GASKET SML (M1, M2, M3, M4, M5, M6, M7) NS 0163F00018 ORIFICE (M2, M4, M7, M9, M11) NS 10716005 ORIFICE (M1, M3, M5, M6, M8, M10) Expanded Model Nomenclature M1 - GPD1424060M41AA M2 - GPD1424070M41CA M3 - GPD1430080M41AA M4 - GPD1430090M41CA M5 - GPD1436080M41AA M6 - GPD1436080M41AB M7 - GPD1437090M41CA M8 - GPD1442100M41AA M9 - GPD1442115M41CA M10 - GPD1448100M41AA M11 - GPD1448115M41CA Ref. Part No: No: Description: RP-G3000B www.goodmanmfg.com www.amana-hac.com 13 Control Panel 14 www.goodmanmfg.com www.amana-hac.com RP-G3000B Control Panel Ref. Part No: No: Description: Image 1: 41 0130M00025 51 PCBAG127 61 0130M00138 71 CAP050400440CT 71 CAP050450440CT 24V RELAY PCB, IGNITION, DSI, 2 STG TRANSFORMER 208/230, 24V CAPACITOR 5/40/440V/DUAL RD (M1, M2, M3, M4) CAPACITOR 5/45/440V/DUAL RD (M5, M6, M7, M8, M9, M10, M11) 81 CONT1P025024V CONTACTOR 25 AMP, 1P, 24V (M1, M2, M3, M4, M5, M6, M7) 81 CONT1P030024V 91 PCBDM133 111 10728342 111 10728343 111 10728344 NS 20520901 NS 0259G00101 NS 0259G00102 NS 0259G00103 NS 0259G00104 CONTACTOR 30 AMP, 1P, 24V (M8, M9, M10, M11) DEFROST CONTROL BOARD LIMIT SWITCH (M3, M5, M6) LIMIT SWITCH (M1, M2, M4, M7) LIMIT SWITCH (M8, M9, M10, M11) CAPACITOR STRAP WIRE HARNESS ASSY WIRE HARNESS ASSY WIRE HARNESS ASSY WIRE HARNESS ASSY (M1, M2, M3, M4, M5, M6, M7) NS 0259G00105 NS 0259G00108 WIRE HARNESS ASSY (M8, M9, M10, M11) WIRE HARNESS ASSY (M1, M2, M3, M4, M5, M6, M7) NS 0259G00109 WIRE HARNESS ASSY (M8, M9, M10, M11) NS 0259G00098 WIRE HARNESS, 6 CIRCUIT NS 0259G00110 WIRE HARNESS, 9 CIRCUIT NS 0259G00099 WIRE HARNESS, ECONO NS 0259G00100 WIRE HARNESS, OUTDOOR THERMO Expanded Model Nomenclature M1 - GPD1424060M41AA M2 - GPD1424070M41CA M3 - GPD1430080M41AA M4 - GPD1430090M41CA M5 - GPD1436080M41AA M6 - GPD1436080M41AB M7 - GPD1437090M41CA M8 - GPD1442100M41AA M9 - GPD1442115M41CA M10 - GPD1448100M41AA M11 - GPD1448115M41CA Ref. Part No: No: Description: RP-G3000B www.goodmanmfg.com www.amana-hac.com 15
