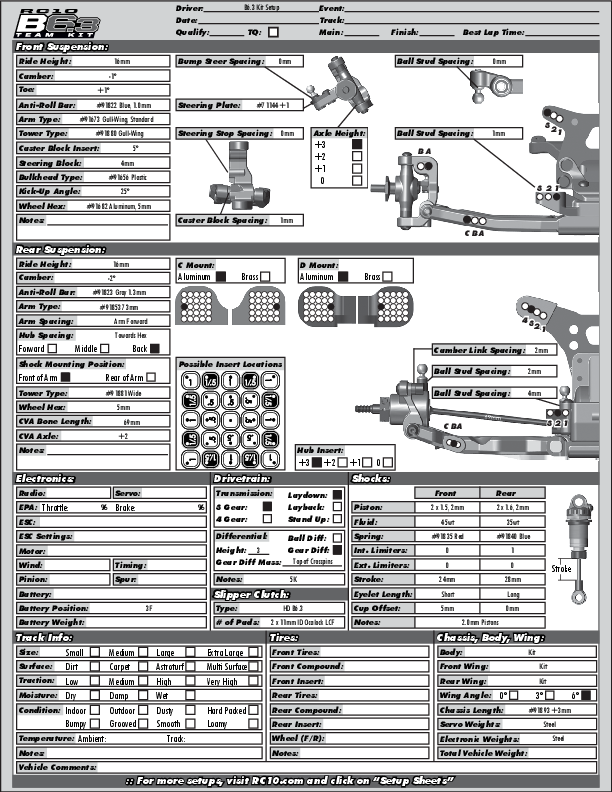

Original Document

If the viewer doesn’t load, open the PDF directly.

Extracted Text

Driver: Date: Qualify:

B6.3 Kit Setup TQ:

Event: Track: Main:

Finish:

Best Lap Time:

Front Suspension:

Ride Height:

16mm

Bump Steer Spacing: 0mm

Ball Stud Spacing: 0mm

Camber:

-1�

Toe:

+1�

Anti-Roll Bar: #91822 Blue, 1.0mm

Steering Plate: #71144 +1

Arm Type: #91673 Gull-Wing, Standard

Tower Type:

#91880 Gull-Wing

Caster Block Insert:

5�

Steering Block:

4mm

Bulkhead Type:

#91656 Plastic

Kick-Up Angle:

25�

Steering Stop Spacing: 0mm

Axle Height:
+3 +2 +1
0

Ball Stud Spacing: 1mm BA

321 321

Wheel Hex: #91682 Aluminum, 5mm

Notes:

Caster Block Spacing: 1mm

CBA

Rear Suspension:

Ride Height: Camber:

16mm -2�

C Mount:

Aluminum

Brass

D Mount:

Aluminum

Brass

Anti-Roll Bar: #91823 Gray 1.3mm

Arm Type:

#91853 73mm

Arm Spacing:

Arm Forward

Hub Spacing:

Towards Hex

Forward

Middle

Back

4 32 1 Camber Link Spacing: 2mm

Shock Mounting Position:

Front of Arm

Rear of Arm

Possible Insert Locations

Ball Stud Spacing: 2mm

Tower Type:

#91881 Wide

Ball Stud Spacing: 4mm

Wheel Hex:

5mm

CVA Bone Length: CVA Axle:

69mm +2

CBA

321

Notes:

Hub Insert:
+3 +2 +1 0

Electronics:

Drivetrain:

Shocks:

Radio:
EPA: Throttle:
ESC:

Servo:
% Brake:

Transmission: % 3 Gear:
4 Gear:

Laydown: Layback: Stand Up:

Piston: Fluid:

Front 2 x 1.5, 2mm
45wt

Rear 2 x 1.6, 2mm
35wt

ESC Settings: Motor: Wind: Pinion:

Timing: Spur:

Differential:

Ball Diff:

Height: 3

Gear Diff:

Gear Diff Mass: Top of Crosspins

Notes:

5K

Spring: Int. Limiters: Ext. Limiters: Stroke:

#91835 Red 0 0
24mm

#91840 Blue 1 0
28mm

Stroke

Battery:

Slipper Clutch:

Eyelet Length:

Short

Long

Battery Position:

3F

Type:

HD B6.3

Cup Offset:

5mm

0mm

Battery Weight:

# of Pads: 2 x 11mm ID Ocalock LCF Notes:

2.0mm Pistons

Track Info:

Tires:

Chassis, Body, Wing:

Size:

Small

Medium

Surface: Dirt

Carpet

Traction: Low

Medium

Moisture: Dry

Damp

Condition: Indoor

Outdoor

Bumpy Grooved

Temperature: Ambient:

Large Astroturf High Wet Dusty Smooth
Track:

Extra Large Multi Surface Very High
Hard Packed Loamy

Front Tires: Front Compound: Front Insert: Rear Tires: Rear Compound: Rear Insert: Wheel (F/R):

Body:

Kit

Front Wing:

Kit

Rear Wing:

Kit

Wing Angle: 0�

3�

6�

Chassis Length:

#91893 +3mm

Servo Weights:

Steel

Electronic Weights:

Steel

Notes:

Notes:

Total Vehicle Weight:

Vehicle Comments:

:: For more setups, visit RC10.com and click on "Setup Sheets"
