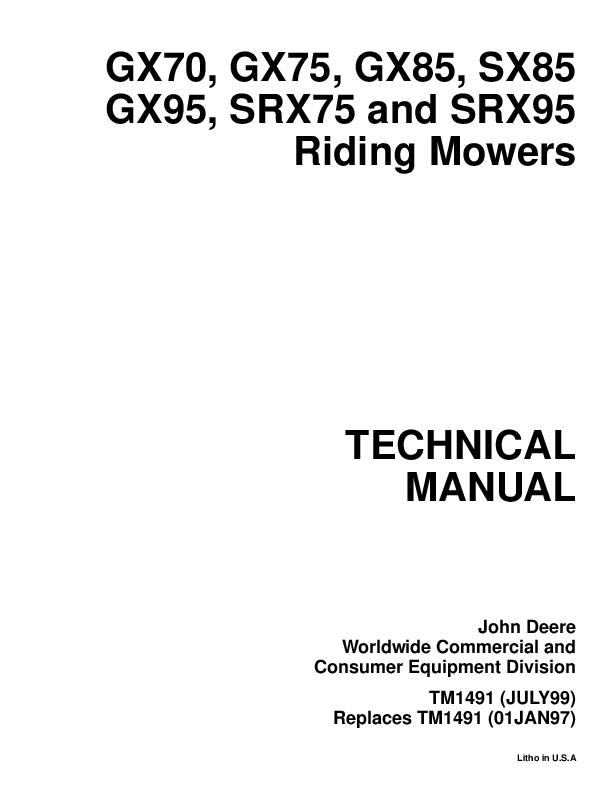

GX70, GX75, GX85, SX85 GX95, SRX75 and SRX95 Riding Mowers TECHNICAL MANUAL John Deere Worldwide Commercial and Consumer Equipment Division TM1491 (JULY99) Replaces TM1491 (01JAN97) Litho in U.S.A This technical manual is written for an experienced technician and contains sections that are specifically for this product. It is a part of a total product support program. The manual is organized so that all the information on a particular system is kept together. The order of grouping is as follows: · Table of Contents · General Diagnostic Information · Specifications · Electrical Wiring Harness Legend · Component Location · System Schematic · Wiring Harness · Troubleshooting Chart · Theory of Operation · Diagnostics · Tests & Adjustments · Repair Note: Depending on the particular section or system being covered, not all of the above groups may be used. Each section will be identified with a symbol rather than a number. The groups and pages within a section will be consecutively numbered. We appreciate your input on this manual. To help, there are postage paid post cards included at the back. If you find any errors or want to comment on the layout of the manual please fill out one of the cards and mail it back to us. INTRODUCTION Safety Specifications and Information Engine Electrical Power Train Steering Brakes All information, illustrations and specifications in this manual are based on the latest information available at the time of publication. The right is reserved to make changes at any time without notice. COPYRIGHT© 1999 Deere & Co. John Deere Worldwide Commercial and Consumer Equipment Division Horicon, WI All rights reserved Previous Editions COPYRIGHT© 1997, 1992, 1991, 1990, 1989, and 1988 7/12/99 Attachments Miscellaneous 1 - 1 SAFETY RECOGNIZE SAFETY INFORMATION HANDLE FLUIDS SAFELY--AVOID FIRES Be Prepared for Emergencies This is the safety-alert symbol. When you see this symbol on your machine or in this manual, be alert to the potential for personal injury. Follow recommended precautions and safe servicing practices. Understand Signal Words A signal word--DANGER, WARNING, or CAUTION-- is used with the safety-alert symbol. DANGER identifies the most serious hazards. DANGER or WARNING safety signs are located near specific hazards. General precautions are listed on CAUTION safety signs. CAUTION also calls attention to safety messages in this manual. REPLACE SAFETY SIGNS When you work around fuel, do not smoke or work near heaters or other fire hazards. Store flammable fluids away from fire hazards. Do not incinerate or puncture pressurized containers. Make sure machine is clean of trash, grease, and debris. Do not store oily rags; they can ignite and burn spontaneously. Be prepared if a fire starts. Keep a first aid kit and fire extinguisher handy. Keep emergency numbers for doctors, ambulance service, hospital, and fire department near your telephone. Replace missing or damaged safety signs. See the machine operator's manual for correct safety sign placement. 1 - 2 6/29/99 USE CARE IN HANDLING AND SERVICING BATTERIES SAFETY USE CARE AROUND HIGHPRESSURE FLUID LINES Avoid High-Pressure Fluids Prevent Battery Explosions · Keep sparks, lighted matches, and open flame away from the top of battery. Battery gas can explode. · Never check battery charge by placing a metal object across the posts. Use a voltmeter or hydrometer. · Do not charge a frozen battery; it may explode. Warm battery to 16°C (60°F). Prevent Acid Burns · Sulfuric acid in battery electrolyte is poisonous. It is strong enough to burn skin, eat holes in clothing, and cause blindness if splashed into eyes. · Avoid acid burns by: 1. Filling batteries in a well-ventilated area. 2. Wearing eye protection and rubber gloves. 3. Avoiding breathing fumes when electrolyte is added. 4. Avoiding spilling or dripping electrolyte. 5. Using proper jump start procedure. Escaping fluid under pressure can penetrate the skin causing serious injury. Avoid injury from escaping fluid under pressure by stopping the engine and relieving pressure in the system before disconnecting or connecting hydraulic or other lines. Tighten all connections before applying pressure. Search for leaks with a piece of cardboard. Protect hands and body from high-pressure fluids. If an accident occurs, see a doctor immediately. Any fluid injected into the skin must be surgically removed within a few hours or gangrene may result. Doctors unfamiliar with this type of injury should reference a knowledgeable medical source. Such information is available from Deere & Company Medical Department in Moline, Illinois, U.S.A. Avoid Heating Near Pressurized Fluid Lines · If you spill acid on yourself: 1. Flush your skin with water. 2. Apply baking soda or lime to help neutralize the acid. 3. Flush your eyes with water for 10--15 minutes. 4. Get medical attention immediately. · If acid is swallowed: 1. Drink large amounts of water or milk. 2. Then drink milk of magnesia, beaten eggs, or vegetable oil. 3. Get medical attention immediately. Flammable spray can be generated by heating near pressurized fluid lines, resulting in severe burns to yourself and bystanders. Do not heat by welding, soldering, or using a torch near pressurized fluid lines or other flammable materials. Pressurized lines can be accidentally cut when heat goes beyond the immediate flame area. 6/29/99 1 - 3 SAFETY USE SAFE SERVICE PROCEDURES Wear Protective Clothing Park Machine Safely Wear close fitting clothing and safety equipment appropriate to the job. Prolonged exposure to loud noise can cause impairment or loss of hearing. Wear a suitable hearing protective device such as earmuffs or earplugs to protect against objectionable or uncomfortable loud noises. Operating equipment safely requires the full attention of the operator. Do not wear radio or music headphones while operating machine. Service Machines Safely Before working on the machine: 1. Lower all equipment to the ground. 2. Stop the engine and remove the key. 3. Disconnect the battery ground strap. 4. Hang a "DO NOT OPERATE" tag in operator station. Support Machine Properly and Use Proper Lifting Equipment Tie long hair behind your head. Do not wear a necktie, scarf, loose clothing, or necklace when you work near machine tools or moving parts. If these items were to get caught, severe injury could result. Remove rings and other jewelry to prevent electrical shorts and entanglement in moving parts. Use Proper Tools Use tools appropriate to the work. Makeshift tools and procedures can create safety hazards. Use power tools only to loosen threaded parts and fasteners. For loosening and tightening hardware, use the correct size tools. DO NOT use U.S. measurement tools on metric fasteners. Avoid bodily injury caused by slipping wrenches. Use only service parts meeting John Deere specifications. If you must work on a lifted machine or attachment, securely support the machine or attachment. Do not support the machine on cinder blocks, hollow tiles, or props that may crumble under continuous load. Do not work under a machine that is supported solely by a jack. Follow recommended procedures in this manual. Lifting heavy components incorrectly can cause severe injury or machine damage. Follow recommended procedure for removal and installation of components in the manual. Work in Clean Area Before starting a job: 1. Clean work area and machine. 2. Make sure you have all necessary tools to do your job. 3. Have the right parts on hand. 4. Read all instructions thoroughly; do not attempt shortcuts. 1 - 4 6/29/99 SAFETY Using High--Pressure Washers Directing pressurized water at electronic/electrical components or connectors, bearings, hydraulic seals, fuel injection pumps or other sensitive parts and components may cause product malfunctions. Reduce pressure and spray at a 45 to 90 degree angle. Illuminate Work Area Safely Illuminate your work area adequately but safely. Use a portable safety light for working inside or under the machine. Make sure the bulb is enclosed by a wire cage. The hot filament of an accidentally broken bulb can ignite spilled fuel or oil. Work in Ventilated Area Avoid Harmful Asbestos Dust Avoid breathing dust that may be generated when handling components containing asbestos fibers. Inhaled asbestos fibers may cause lung cancer. Components in products that may contain asbestos fibers are brake pads, brake band and lining assemblies, clutch plates, and some gaskets. The asbestos used in these components is usually found in a resin or sealed in some way. Normal handling is not hazardous as long as airborne dust containing asbestos is not generated. Avoid creating dust. Never use compressed air for cleaning. Avoid brushing or grinding material containing asbestos. When servicing, wear an approved respirator. A special vacuum cleaner is recommended to clean asbestos. If not available, apply a mist of oil or water on the material containing asbestos. Keep bystanders away from the area. SERVICE TIRES SAFELY Engine exhaust fumes can cause sickness or death. If it is necessary to run an engine in an enclosed area, remove the exhaust fumes from the area with an exhaust pipe extension. If you do not have an exhaust pipe extension, open the doors and get outside air into the area. WARNING: California Proposition 65 Warning Diesel engine exhaust and some of its constituents are known to the State of California to cause cancer, birth defects, and other reproductive harm. Gasoline engine exhaust from this product contains chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. Remove Paint Before Welding or Heating Avoid potentially toxic fumes and dust. Hazardous fumes can be generated when paint is heated by welding, soldering, or using a torch. Do all work outside or in a well ventilated area. Dispose of paint and solvent properly. Remove paint before welding or heating. If you sand or grind paint, avoid breathing the dust. Wear an approved respirator. If you use solvent or paint stripper, remove stripper with soap and water before welding. Remove solvent or paint stripper containers and other flammable material from area. Allow fumes to disperse at least 15 minutes before welding or heating. Explosive separation of a tire and rim parts can cause serious injury or death. Do not attempt to mount a tire unless you have the proper equipment and experience to perform the job. Always maintain the correct tire pressure. Do not inflate the tires above the recommended pressure. Never weld or heat a wheel and tire assembly. The heat can cause an increase in air pressure resulting in a tire explosion. Welding can structurally weaken or deform the wheel. When inflating tires, use a clip-on chuck and extension hose long enough to allow you to stand to one side and NOT in front of or over the tire assembly. Use a safety cage if available. Check wheels for low pressure, cuts, bubbles, damaged rims or missing lug bolts and nuts. 6/29/99 1 - 5 SAFETY AVOID INJURY FROM ROTATING BLADES, AUGERS AND PTO SHAFTS HANDLE CHEMICAL PRODUCTS SAFELY Keep hands and feet away while machine is running. Shut off power to service, lubricate, or remove mower blades, augers, or PTO shafts. SERVICE COOLING SYSTEM SAFELY Explosive release of fluids from pressurized cooling system can cause serious burns. Shut off machine. Remove filler cap only when cool enough to touch with bare hands. Slowly loosen cap to first stop to relieve pressure before removing completely. Direct exposure to hazardous chemicals can cause serious injury. Potentially hazardous chemicals used with John Deere equipment include such items as lubricants, coolants, paints, and adhesives. A Material Safety Data Sheet (MSDS) provides specific details on chemical products: physical and health hazards, safety procedures, and emergency response techniques. Check the MSDS before you start any job using a hazardous chemical. That way you will know exactly what the risks are and how to do the job safely. Then follow procedures and recommended equipment. Dispose of Waste Properly Improperly disposing of waste can threaten the environment and ecology. Potentially harmful waste used with John Deere equipment includes such items as oil, fuel, coolant, brake fluid, filters, and batteries. Use leakproof containers when draining fluids. Do not use food or beverage containers that may mislead someone into drinking from them. Do not pour waste onto the ground, down a drain, or into any water source. Inquire on the proper way to recycle or dispose of waste from your local environmental or recycling center, or from your John Deere dealer. LIVE WITH SAFETY 1 - 6 Before returning machine to customer, make sure machine is functioning properly, especially the safety systems. Install all guards and shields. 6/29/99 SPECIFICATIONS AND INFORMATION CONTENTS CONTENTS Page SPECIFICATIONS AND INFORMATION SPECIFICATIONS--GX70/GX75 AND SRX75 GENERAL SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 SPECIFICATIONS--GX95 AND SRX75/SRX95 GENERAL SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 SPECIFICATIONS--GX85/SX85 GENERAL SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 METRIC FASTENER TORQUE VALUES . . . . . . . . . . . . . . . . . . . . . . . . . 5 METRIC FASTENER TORQUE VALUE--GRADE 7 . . . . . . . . . . . . . . . . 6 INCH FASTENER TORQUE VALUES . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 O-RING SEAL SERVICE RECOMMENDATIONS FACE SEAL FITTINGS WITH INCH STUD ENDS TORQUE . . . . . . . . . . . . . . . . . . . 8 FACE SEAL FITTINGS WITH METRIC STUD ENDS TORQUE . . . . . . . . . . . . . . . . . 9 O-RING FACE SEAL FITTINGS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 O-RING BOSS FITTINGS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 GASOLINE SPECIFICATIONS 4CYCLE ENGINES--NORTH AMERICA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 GASOLINE STORAGE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 4CYCLE ENGINES--EUROPE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 GASOLINE STORAGE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 OIL AND LUBRICANT SPECIFICATIONS 4CYCLE GASOLINE ENGINE OIL--NORTH AMERICA (KAWASAKI ENGINES) . 13 4CYCLE GASOLINE ENGINE OIL--EUROPE (KAWASAKI ENGINES) . . . . . . . . 13 4CYCLE GASOLINE ENGINE OIL--NORTH AMERICA (BRIGGS & STRATTON ENGINES). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 4CYCLE GASOLINE ENGINE OIL--EUROPE (BRIGGS & STRATTON ENGINES). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 BREAKIN 4-CYCLE GASOLINE ENGINE OIL--NORTH AMERICA . . . . . . . . . . . 15 BREAKIN 4-CYCLE GASOLINE ENGINE OIL--EUROPE . . . . . . . . . . . . . . . . . . . 16 GEAR TRANSMISSION GREASE--NORTH AMERICA . . . . . . . . . . . . . . . . . . . . . 17 GEAR TRANSMISSION GREASE--EUROPE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 ANTI-CORROSION GREASE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 GREASE--NORTH AMERICA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 GREASE --EUROPE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 ALTERNATIVE LUBRICANTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 SYNTHETIC LUBRICANTS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 LUBRICANT STORAGE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 MIXING OF LUBRICANTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 OIL FILTERS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 7/12/99 2 - 1 SPECIFICATIONS--GX70/GX75 AND SRX75 SPECIFICATIONS AND INFORMATION SPECIFICATIONS--GX70/GX75 AND SRX75 GENERAL SPECIFICATIONS Engine: Make . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . John Deere "K" Series Model . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . FC290V Starting System: GX70. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Recoil GX75 and SRX75 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Electric Crankcase Capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.1 L (1.16 U.S. qt) Electrical System: Type GX70 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . N/A Type GX75 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Volt Battery Size GX70. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . N/A Battery Size GX75 and SRX75 . . . . . . . . . . . . . 160 Cold Cranking Amps at18°C (0°F) Alternator. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Amp Fuel System: Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Carburetor Fuel Delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Gravity Fed Capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.0 L (1.1 U.S. gal) Drive Train: Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Gear Transaxle Number of Speeds . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Travel Speeds at Full Engine RPM: Forward. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0--8.7 km/h (0--5.4 mph) 1st Gear . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.8 km/h (1.1 mph) 2nd Gear. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.5 km/h (2.2 mph) 3rd Gear . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.3 km/h (3.3 mph) 4th Gear . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.8 km/h (4.2 mph) 5th Gear . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.0 km/h (5.0 mph) Reverse . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.1 km/h (1.9 mph) Final Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Spur Gear Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Disk Steering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Sector and Pinion Tires: Front . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 x 4.00--5 Rear . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 x 6.50--8 Overall Dimensions: Wheelbase . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1060 mm (42 in.) Minimum Ground Clearance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95 mm (3.74 in.) Overall Length. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1570 mm (62 in.) Overall Width: W/O Deck (Front) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 694 mm (27.3 in.) W/O Deck (Rear) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 780 mm (30.7 in.) W/Deck . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 790 mm (31.1 in.) Height . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1010 mm (39.76 in.) Weight GX70 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 143 kg (315 lb) Weight GX75 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 155 kg (340 lb) 2 - 2 7/19/99 SPECIFICATIONS AND INFORMATION SPECIFICATIONS--GX95 AND SRX75/SRX95 SPECIFICATIONS--GX95 AND SRX75/SRX95 GENERAL SPECIFICATIONS Engine: Make . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . John Deere "K" Series Model SRX75 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . FC290V Models GX95 and SRX95 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . FB460V Starting System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Electric Crankcase Capacity: SRX75 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.1 L (1.16 U.S. qt) GX95 and SRX95 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.4 L (1.48 U.S. qt) Electrical System: Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Volt Battery Size . . . . . . . . . . . . . . . . . . . . . . . . . . . 160 Cold Cranking Amps at 18°C (0°F) Alternator. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Amp Fuel System: Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Carburetor Fuel Delivery: SRX75 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Gravity Fed SRX95 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Fuel Pump Fuel Tank Capacity SRX75 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.5 L (0.91 U.S. gal) GX95 and SRX95 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.5 L (1.6 U.S. gal) Drive Train: Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Gear Transaxle Number of Speeds . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Variable Travel Speeds at Full Engine RPM: Forward. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0--8 km/h (0--5 mph) Reverse . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.5 km/h (2.2 mph) Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Disk Steering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Sector and Pinion Tires: Front . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 x 4.00--5 Rear . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 x 6.50--8 Overall Dimensions: Wheelbase . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1060 mm (42 in.) Minimum Ground Clearance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95 mm (3.74 in.) Overall Length. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1570 mm (62 in.) Overall Width: W/O Deck (Front) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 694 mm (27.3 in.) W/O Deck (Rear) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 780 mm (30.7 in.) W/Deck SRX75. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 790 mm (31.1 in.) W/Deck GX95 and SRX95 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1040 mm (40.9 in.) Height . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1010 mm (39.76 in.) Weight: SRX75 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .167 kg (367 lbs) GX95 and SRX95 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .196 kg (431 lbs) 7/19/99 2 - 3 SPECIFICATIONS--GX85/SX85 SPECIFICATIONS AND INFORMATION SPECIFICATIONS--GX85/SX85 GENERAL SPECIFICATIONS Engine: Make . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Briggs & Stratton "Diamond I/C" Model . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28M707 Starting System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Electric Crankcase Capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.4 L (1.48 U.S. qt) Electrical System: Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Volt Battery Size . . . . . . . . . . . . . . . . . . . . . . . . . . . 160 Cold Cranking Amps at 18°C (0°F) Alternator. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Amp Fuel System: Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Carburetor Fuel Delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Fuel Pump Fuel Tank Capacity: GX85. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 L (1.1 U.S. gal) SX85 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.5 L (0.91 U.S. gal) Drive Train: Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Gear Transaxle Number of Speeds GX85 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Number of Speeds SX85 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Variable Travel Speeds at Full Engine RPM: Forward. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0--8 km/h (0--5 mph) 1st Gear . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.8 km/h (1.1 mph) 2nd Gear. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.5 km/h (2.2 mph) 3rd Gear . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.3 km/h (3.3 mph) 4th Gear . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.8 km/h (4.2 mph) 5th Gear . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.0 km/h (5.0 mph) Reverse . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.1 km/h (1.9 mph) Final Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Spur Gear Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Disk Steering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Sector & Pinion Tires: Front . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 x 4.00--5 Rear . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 x 6.50--8 Overall Dimensions: Wheelbase . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1060 mm (42 in.) Minimum Ground Clearance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95 mm (3.74 in.) Overall Length. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1570 mm (62 in.) Overall Width: W/O Deck (Front) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 694 mm (27.3 in.) W/O Deck (Rear) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 780 mm (30.7 in.) W/Deck . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 790 mm (31.1 in.) Height . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1010 mm (39.76 in.) Weight: GX85. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 155 kg (340 lb) SX85 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 168 kg (370 lb) 2 - 4 7/19/99 SPECIFICATIONS AND INFORMATION METRIC FASTENER TORQUE VALUES 5 10 10 12 METRIC FASTENER TORQUE VALUES Property Class and Head Markings 4.8 8.8 9.8 4.8 8.8 9.8 4.8 8.8 9.8 Property 5 Class and Nut 5 Markings 10 10 10.9 10.9 10.9 10 10 12.9 12.9 12.9 12.9 12 12 TS1163 Class 4.8 Lubricateda SIZE N·m lb-ft M6 4.8 3.5 M8 12 8.5 M10 23 17 M12 40 29 M14 63 47 M16 100 73 M18 135 100 M20 190 140 M22 260 190 M24 330 250 M27 490 360 M30 675 490 M33 900 675 M36 1150 850 Drya Class 8.8 or 9.8 Lubricateda Drya Class 10.9 Lubricateda Drya Class 12.9 Lubricateda Drya N·m lb-ft N·m lb-ft N·m lb-ft N·m lb-ft N·m lb-ft N·m lb-ft N·m lb-ft 6 4.5 9 6.5 11 8.5 13 9.5 17 12 15 11.5 19 14.5 15 11 22 16 28 20 32 24 40 30 37 28 47 35 29 21 43 32 55 40 63 47 80 60 75 55 95 70 50 37 75 55 95 70 110 80 140 105 130 95 165 120 80 60 120 88 150 110 175 130 225 165 205 150 260 109 125 92 190 140 240 175 275 200 350 225 320 240 400 300 175 125 260 195 330 250 375 275 475 350 440 325 560 410 240 180 375 275 475 350 530 400 675 500 625 460 800 580 330 250 510 375 650 475 725 540 925 675 850 625 1075 800 425 310 650 475 825 600 925 675 1150 850 1075 800 1350 1000 625 450 950 700 1200 875 1350 1000 1700 1250 1600 1150 2000 1500 850 625 1300 950 1650 1200 1850 1350 2300 1700 2150 1600 2700 2000 1150 850 1750 1300 2200 1650 2500 1850 3150 2350 2900 2150 3700 2750 1450 1075 2250 1650 2850 2100 3200 2350 4050 3000 3750 2750 4750 3500 DO NOT use these hand torque values if a different torque value or tightening procedure is given for a specific application. Torque values listed are for general use only and include a ±10% variance factor. Check tightness of fasteners periodically. DO NOT use air powered wrenches. Shear bolts are designed to fail under predetermined loads. Always replace shear bolts with identical grade. Fasteners should be replaced with the same class. Make sure fastener threads are clean and that you properly start thread engagement. This will prevent them from failing when tightening. When bolt and nut combination fasteners are used, torque values should be applied to the NUT instead of the bolt head. Tighten toothed or serrated-type lock nuts to the full torque value. a "Lubricated" means coated with a lubricant such as engine oil, or fasteners with phosphate and oil coatings. "Dry" means plain or zinc plated (yellow dichromate - Specification JDS117) without any lubrication. Reference: JDS--G200. 7/19/99 2 - 5 METRIC FASTENER TORQUE VALUE--GRADE 7 METRIC FASTENER TORQUE VALUE--GRADE 7 Size M6 M8 M10 M12 M14 M16 Steel or Gray Iron Torque N·m lb-ft 11 8 24 18 52 38 88 65 138 102 224 165 Aluminum Torque N·m lb-ft 8 6 19 14 41 30 70 52 111 82 179 132 SPECIFICATIONS AND INFORMATION 2 - 6 7/19/99 SPECIFICATIONS AND INFORMATION INCH FASTENER TORQUE VALUES INCH FASTENER TORQUE VALUES SAE Grade and Head Markings 1 or 2b No Marks SAE Grade and Nut Markings 2 No Marks 5 5.1 5.2 8 8.2 5 8 TS1162 Grade 1 Lubricateda SIZE N·m lb-ft 1/4 3.7 2.8 5/16 7.7 5.5 3/8 14 10 7/16 22 16 1/2 33 25 9/16 48 36 5/8 67 50 3/4 120 87 7/8 190 140 1 290 210 1-1/8 470 300 1-1/4 570 425 1-3/8 750 550 1-1/2 1000 725 Drya N·m lb-ft 4.7 3.5 10 7 17 13 28 20 42 31 60 45 85 62 150 110 240 175 360 270 510 375 725 530 950 700 1250 925 Grade 2b Lubricateda N·m lb-ft 6 4.5 12 9 22 16 35 26 53 39 75 56 105 78 190 140 190 140 290 210 470 300 570 425 750 550 990 725 Drya N·m lb-ft 7.5 5.5 15 11 27 20 44 32 67 50 95 70 135 100 240 175 240 175 360 270 510 375 725 530 950 700 1250 930 Grade 5, 5.1 or 5.2 Lubricateda Drya Grade 8 or 8.2 Lubricateda Drya N·m lb-ft N·m lb-ft N·m lb-ft N·m lb-ft 9.5 7 12 9 13.5 10 17 12.5 20 15 25 18 28 21 35 26 35 26 44 33 50 36 63 46 55 41 70 52 80 58 100 75 85 63 110 80 120 90 150 115 125 90 155 115 175 130 225 160 170 125 215 160 215 160 300 225 300 225 375 280 425 310 550 400 490 360 625 450 700 500 875 650 725 540 925 675 1050 750 1300 975 900 675 1150 850 1450 1075 1850 1350 1300 950 1650 1200 2050 1500 2600 1950 1700 1250 2150 1550 2700 2000 3400 2550 2250 1650 2850 2100 3600 2650 4550 3350 DO NOT use these hand torque values if a different torque value or tightening procedure is given for a specific application. Torque values listed are for general use only and include a ±10% variance factor. Check tightness of fasteners periodically. DO NOT use air powered wrenches. Shear bolts are designed to fail under predetermined loads. Always replace shear bolts with identical grade. Fasteners should be replaced with the same grade. Make sure fastener threads are clean and that you properly start thread engagement. This will prevent them from failing when tightening. When bolt and nut combination fasteners are used, torque values should be applied to the NUT instead of the bolt head. Tighten toothed or serrated-type lock nuts to the full torque value. a "Lubricated" means coated with a lubricant such as engine oil, or fasteners with phosphate and oil coatings. "Dry" means plain or zinc plated (yellow dichromate - Specification JDS117) without any lubrication. b "Grade 2" applies for hex cap screws (not hex bolts) up to 152 mm (6-in.) long. "Grade 1" applies for hex cap screws over 152 mm (6-in.) long, and for all other types of bolts and screws of any length. Reference: JDS--G200. 7/19/99 2 - 7 O-RING SEAL SERVICE RECOMMENDATIONS SPECIFICATIONS AND INFORMATION O-RING SEAL SERVICE RECOMMENDATIONS FACE SEAL FITTINGS WITH INCH STUD ENDS TORQUE Stud End Tube Nut Stud Straight and Tube Nut Bulkhead Union and Bulkhead Lucknut Locknut Stud End 90 Adjustable Stud Elbow Swivel Nut Tube Nut 90 Swivel Elbow and Tube Nut Nominal Tube O.D./Hose I.D. Face Seal Tube/Hose End Metric Tube O.D. Inch Tube O.D. Tube Nut/ Thread Size Swivel Nut Torque Bulkhead Locknut Torque mm Dash Size in. mm in. N·m lb-ft N·m lb-ft -3 0.188 4.76 6 -4 0.250 6.35 9/16-18 16 12 12 9 8 -5 0.312 7.94 10 -6 0.375 9.52 11/16-16 24 18 24 18 12 -8 0.500 12.70 13/16-16 50 37 46 34 16 -10 0.625 15.88 1-14 69 51 62 46 -12 0.750 19.05 1-3/16-12 102 75 102 75 22 -14 0.875 22.22 1-3/16-12 102 75 102 75 25 -16 1.000 25.40 1-7/16-12 142 105 142 105 32 -20 1.25 31.75 1-11/16-12 190 140 190 140 38 -24 1.50 38.10 2-12 217 160 217 160 O-ring Stud Ends Thread Straight Fitting or Size Locknut Torque in. N·m lb-ft 3/8-24 8 6 7/16-20 12 9 1/2-20 16 12 9/16-18 24 18 3/4-16 46 34 7/8-14 62 46 1-1/16-12 102 75 1-3/16-12 122 90 1-5/16-12 142 105 1-5/8-12 190 140 1-7/8-12 217 160 NOTE: Torque tolerance is + 15 minus 20%. 2 - 8 7/19/99 SPECIFICATIONS AND INFORMATION O-RING SEAL SERVICE RECOMMENDATIONS FACE SEAL FITTINGS WITH METRIC STUD ENDS TORQUE Stud End Tube Nut Groove For Metric Identification Stud Straight and Tube Nut Locknut Groove For Metric Identification Stud End Bulkhead Union and Bulkhead Lucknut 90 Adjustable Stud Elbow Swivel Nut Tube Nut 90 Swivel Elbow and Tube Nut Nominal Tube O.D./Hose I.D. Face Seal Tube/Hose End O-ring Stud Ends, Straight Fitting or Locknut Metric Tube O.D. Inch Tube O.D. Thread Size Hex Size Tube Nut/ Swivel Nut Torque Bulkhead Locknut Torque Thread Size Hex Size Steel or Gray Iron Torque Aluminum Torque mm Dash Size in. mm in. mm N·m lb-ft N·m lb-ft mm mm N·m lb-ft N·m lb-ft 6 -4 0.250 6.35 9/16-18 17 16 12 12 9 M12X1.5 17 21 15.5 9 6.6 8 -5 0.312 7.94 M14X1.5 19 33 24 15 11 10 -6 0.375 9.52 11/16-16 22 24 18 24 18 M16X1.5 22 41 30 18 13 12 -8 0.500 12.70 13/16-16 24 50 37 46 34 M18X1.5 24 50 37 21 15 16 -10 0.625 15.88 1-14 30 69 51 62 46 M22X1.5 27 69 51 28 21 -12 0.750 19.05 1-3/16-12 36 102 75 102 75 M27X2 32 102 75 46 34 22 -14 0.875 22.22 1-3/16-12 36 102 75 102 75 M30X2 36 25 -16 1.000 25.40 1-7/16-12 41 142 105 142 105 M33X2 41 158 116 71 52 28 M38X2 46 176 130 79 58 32 -20 1.25 31.75 1-11/16-12 50 190 140 190 140 M42X2 50 190 140 85 63 38 -24 1.50 38.10 2-12 60 217 160 217 160 M48X2 55 217 160 98 72 NOTE: Torque tolerance is + 15 minus 20%. 7/19/99 2 - 9 O-RING SEAL SERVICE RECOMMENDATIONS O-RING FACE SEAL FITTINGS . SPECIFICATIONS AND INFORMATION Sealing Surface Special Nut Special Washer Angle Fitting O-ring Sealing Surface 1. Inspect the fitting sealing surfaces. They must be free of dirt or defects. 2. Inspect the O-ring. It must be free of damage or defects. 3. Lubricate O-rings and install into groove using petroleum jelly to hold in place. 4. Push O-ring into the groove with plenty of petroleum jelly so O-ring is not displaced during assembly. 5. Index angle fittings and tighten by hand pressing joint together to insure O-ring remains in place. 6. Tighten fitting or nut to torque value shown on the chart per dash size stamped on the fitting. Do not allow hoses to twist when tightening fittings. O-RING BOSS FITTINGS 1. Inspect boss O-ring boss seat. It must be free of dirt and defects. If repeated leaks occur, inspect for defects with a magnifying glass. Some raised defects can be removed with a slip stone. Groove O-ring 2. Put hydraulic oil or petroleum jelly on the O-ring. Place electrical tape over the threads to protect Oring from nicks. Slide O-ring over the tape and into the groove of fitting. Remove tape. 3. For angle fittings, loosen special nut and push special washer against threads so O-ring can be installed into the groove of fitting. 4. Turn fitting into the boss by hand until special washer or washer face (straight fitting) contacts boss face and O-ring is squeezed into its seat. 5. To position angle fittings, turn the fitting counterclockwise a maximum of one turn. 6. Tighten straight fittings to torque value shown on chart. For angle fittings, tighten the special nut to value shown in the chart while holding body of fitting with a wrench. STRAIGHT FITTING OR SPECIAL NUT TORQUE Thread Size Torquea N·m lb-ft Number of Flatsb 3/8-24 UNF 8 (6) 2 7/16-20 UNF 12 (9) 2 1/2-20 UNF 16 (12) 2 9/16-18 UNF 24 (18) 2 3/4-16 UNF 46 (34) 2 7/8-14 UNF 62 (46) 1-1/2 1-1/16-12 UN 102 (75) 1 1-3/16-12 UN 122 (90) 1 1-5/16-12 UN 142 (105) 3/4 1-5/8-12 UN 190 (140) 3/4 1-7/8-12 UN 217 (160) 1/2 a. Torque tolerance is ± 10 percent. b. To be used if a torque wrench cannot be used. After tightening fitting by hand, put a mark on nut or boss; then tighten special nut or straight fitting the number of flats shown. 2 - 10 7/19/99Acrobat Distiller 2.0 for Windows
