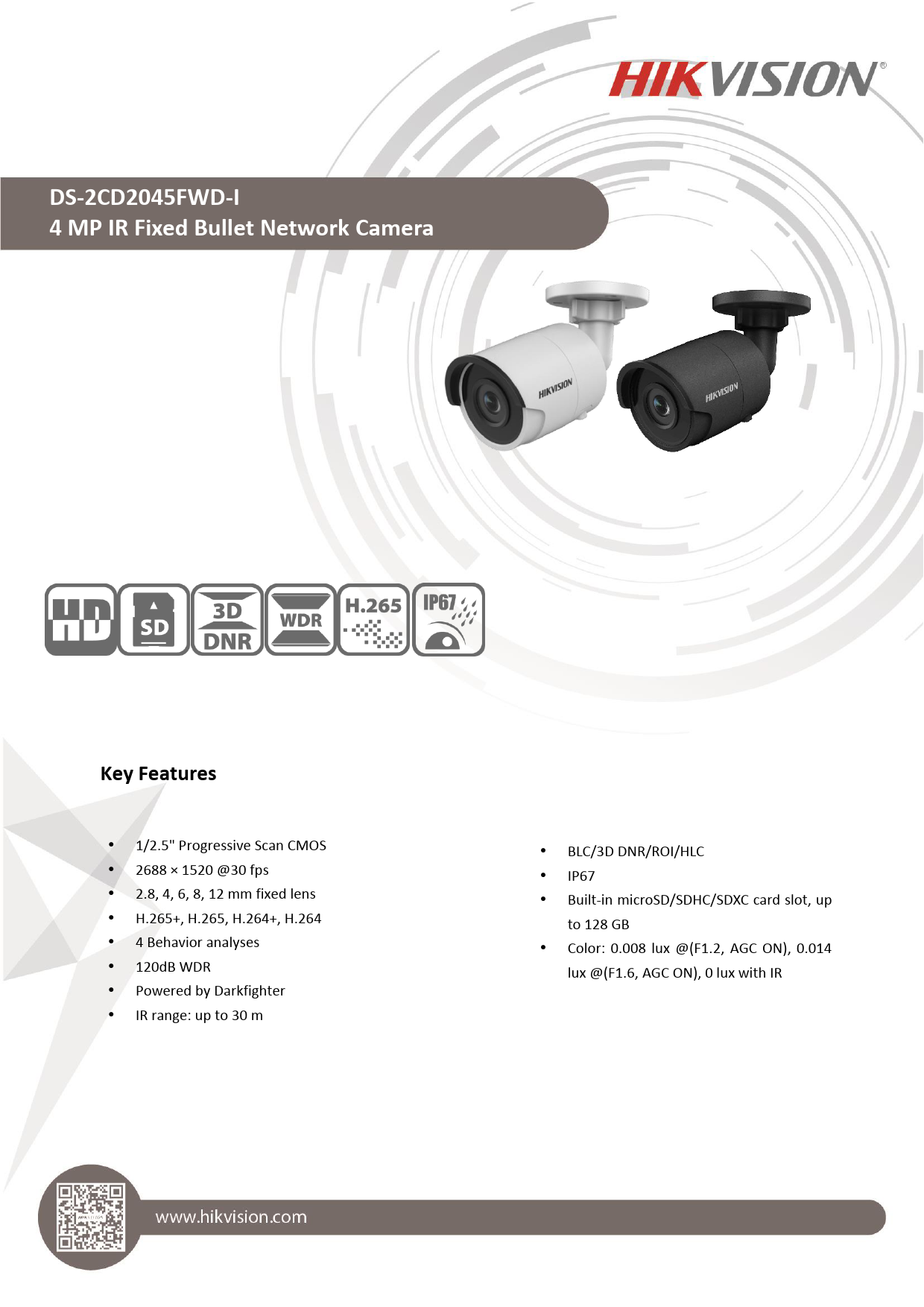

DS-2CD2045FWD-I 4 MP IR Fixed Bullet Network Camera Key Features 1/2.5" Progressive Scan CMOS 2688 × 1520 @30 fps 2.8, 4, 6, 8, 12 mm fixed lens H.265+, H.265, H.264+, H.264 4 Behavior analyses 120dB WDR Powered by Darkfighter IR range: up to 30 m BLC/3D DNR/ROI/HLC IP67 Built-in microSD/SDHC/SDXC card slot, up to 128 GB Color: 0.008 lux @(F1.2, AGC ON), 0.014 lux @(F1.6, AGC ON), 0 lux with IR Camera Image Sensor Min. Illumination Shutter Speed Slow Shutter Day & Night Digital Noise Reduction WDR 3-Axis Adjustment Lens Focal Length Aperture Focus FOV Lens Mount IR IR Range Wavelength Compression Standard Video Compression H.264 Type H.264+ H.265 Type H.265+ Video Bit Rate Smart Feature-set Smart Event Basic Event Linkage Method Region of Interest Image Max. Resolution Main Stream Sub-Stream Specification 1/2.5" Progressive Scan CMOS Color: 0.008 lux @(F1.2, AGC ON), 0.014 lux @(F1.6, AGC ON), 0 lux with IR 1/3 s to 1/100,000 s Yes IR Cut Filter 3D DNR 120dB Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360° 2.8, 4, 6, 8, 12 mm F1.6 Fixed 2.8 mm, horizontal FOV: 109°, vertical FOV: 60°, diagonal FOV: 131° 4 mm, horizontal FOV: 88°, vertical FOV: 46°, diagonal FOV: 105° 6 mm, horizontal FOV: 53°, vertical FOV: 30°, diagonal FOV: 61° 8 mm, horizontal FOV: 41°, vertical FOV: 23°, diagonal FOV: 48° 12 mm, horizontal FOV: 25°, vertical FOV: 14°, diagonal FOV: 29° M12 Up to 30 m 850nm Main stream: H.265/H.264 Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264 Main Profile/High Profile Main stream supports Main Profile Main stream supports 32 Kbps to 16 Mbps Line crossing detection, intrusion detection, unattended baggage detection, object removal detection, face detection, scene change detection Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error) Trigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, Email Support 1 fixed region for main stream and sub-stream 2688 × 1520 50Hz: 25 fps (2688 × 1520, 2304 × 1296, 1920 × 1080, 1280 × 720) 60Hz: 30 fps (2688 × 1520, 2304 × 1296, 1920 × 1080, 1280 × 720) 50Hz: 25 fps (640 × 480, 640 × 360, 320 × 240) Third Stream Image Enhancement Image Setting Target Cropping SVC Day/Night Switch Network Network Storage Protocols General Function API Security Simultaneous Live View User/Host Client Web Browser Interface Video Output Communication Interface On-board storage Reset Button General Operating Conditions Web Client Language Power Supply Power Consumption and Current Protection Level Material Dimensions Weight 60Hz: 30 fps (640 × 480, 640 × 360, 320 × 240) 50Hz: 25 fps (1280 × 720, 640 × 360, 352 × 288) 60Hz: 30 fps (1280 × 720, 640 × 360, 352 × 240) BLC/3D DNR/HLC Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance adjustable by client software or web browser No H.264 and H.265 encoding support Day/Night/Auto/Schedule Support microSD/SDHC/SDXC card (128G), local storage and NAS (NFS, SMB/CIFS), ANR TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS Anti-flicker, three streams, heartbeat, mirror, privacy masks, password reset via e-mail, pixel counter, HTTP listening ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2 Up to 6 channels Up to 32 users 3 levels: Administrator, Operator and User iVMS-4200, Hik-Connect, Hik-Central Plug-in required live view: IE8+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ Local Service: Chrome 41.0+, Firefox 30.0+ No 1 RJ45 10M/100M self-adaptive Ethernet port Built-in microSD/SDHC/SDXC slot, up to 128 GB Yes -30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing) 32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil) 12 VDC ± 25%, 5.5 mm coaxial plug power PoE(802.3af, class 3) 12 VDC, 0.5 A, max. 5.5 W PoE (802.3af, 36V to 57V), 0.2 A to 0.1 A, max. 7 W IP67 Metal Camera: 70 × 155 mm (2.8" × 6.1") Package: 216 × 121 × 118 mm (8.5" × 4.8" × 4.7") Camera: 410 g (0.9 lb.) Available Model DS-2CD2045FWD-I (2.8/4/6/8/12 mm) Dimension 155(6.1" ) 81.1(3.2" ) Accessory DS-1280ZJ-XS Junction Box DS-1280ZJ-XS(Black) Junction Box Unit: mm(inch) 05060020200413Microsoft Word 2016 Microsoft Word 2016
