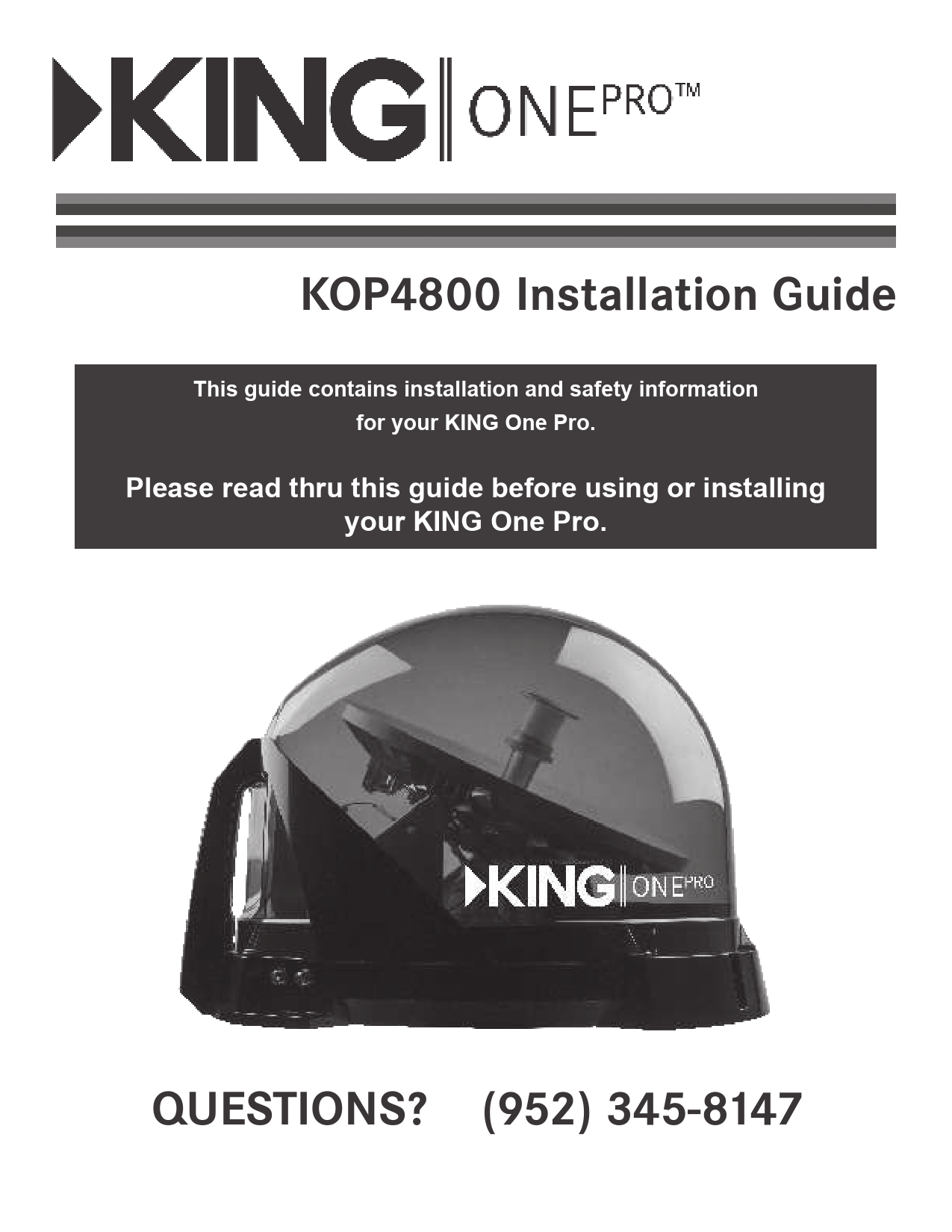

KOP4800 Installation Guide
This guide contains installation and safety information for your KING One Pro.
Please read thru this guide before using or installing your KING One Pro.
QUESTIONS? (952) 345-8147

IMPORTANT SAFETY INFORMATION
1. Please read this safety information thoroughly before using or installing the KING One Pro. 2. Keep this safety information and the included Quick Reference Guide in a safe place for future
reference. 3. Follow all instructions and warnings. Set up, operate and install (optional) the KING One Pro in
accordance with the instructions. 4. Do not submerge the KING One Pro or place in standing water. Hand wash only with mild soap
and water. 5. Do not operate or store near any indoor or outdoor heat source such as radiators, heat
registers, stoves, barbecues, campfires, or other items that produce heat. 6. Servicing may be required if the unit has been dropped or damaged in any way or if the unit
does not operate normally. Call KING Customer Service at (952) 345-8147. 7. Tighten all of the coax cable connections only by hand. If you use a wrench, you may
over-tighten the connections and damage your equipment. 8. To avoid risk of electrical shock, unplug your receiver before connecting/disconnecting the
KING One Pro in damp or wet conditions. 9. Always handle the KING One Pro carefully. Do not drop the KING One Pro. Avoid excessive
shock or vibration to the KING One Pro. 10. Use caution when carrying the KING One Pro. Always carry the KING One Pro by the handle. 11. Do not remove the cover of the KING One Pro without authorization. Doing so will void the
limited warranty. 12. Do not stack the KING One Pro on top of or below other electronic devices as this can cause
heat build-up or block the satellite signal from reaching the KING One Pro. 13. Keep the enclosure clean from dirt, bugs, and other debris by hand washing with mild soap and
water. 14. Do not coat or paint the KING One Pro with any substance. 15. The KING One Pro has been designed to be maintenance and trouble free. If not using the
KING One Pro for long periods of time, it is recommended that you set up the system on a quarterly basis (every three months) to keep all moving parts of the KING One Pro in good working order. 16. The KING One Pro can be secured to an object by looping a cable (sold separately) thru the handle and attaching the cable to a secure object.
DO NOT OVER-TIGHTEN COAX CONNECTIONS.
DO NOT POWER WASH THE ANTENNA UNIT.
If you have any comments or questions, please contact KING Customer Service at (952) 345-8147, or by email at help@kingconnect.com.
Page 1

OPTIONAL MOUNTING ACCESSORIES

Although the antenna unit is designed to be mounted directly to the roof, the following two options are also available.

MB160
Mounting Bracket

MB700
Quick Release Roof-Mount Kit

The KING One Pro is not compatible with the MB100 Mounting Bracket. Use of MB100 will void warranty.
The use of any unauthorized mounting bracket will void warranty.
For temporary use when you don't want to put the antenna unit on the ground, KING offers these two options.

Allows you to easily use the antenna unit as either a roof-mounted or portable antenna.
MB500
Mounting Bracket

TR1000
Tripod Mount

Allows you to position your KING One Pro
almost anywhere for best line of sight to satellite. Keeps
antenna off the ground away from
moisture.

Allows hanging of antenna unit on vehicle window or included hanger bracket.
For stationary use only. Vehicle must not be in motion while antenna
unit is on window or hanger bracket.

See your dealer or the satellite antenna accessories page at kingconnect.com for details. KING antenna not included with purchase of these products. Page 2

� � � � � IMPORTANT POINTS! � � � � �
The installer is responsible for determining the most appropriate fasteners to secure the antenna unit to the roof. Depending on the roof material, fasteners such as lag screws, well nuts, sheet metal screws, toggle bolts and T anchors may be used, and should always be used in combination with a roof-compatible sealant. The installer is responsible for properly securing the coax cable to the roof (for example, cable ties and cable tie mounting pads). The installer is responsible for weatherproofing all holes (except drain holes in base) with roof-compatible sealant. If the rubber feet have been installed, remove them from the bottom of the unit. DO NOT INSTALL UNIT ON ROOF WITH RUBBER FEET IN PLACE.
Do not put sharp bends in coax cables. This can reduce signal strength from the antenna.
You can cut the coax to length but you must terminate the coax with Snap-n-Seal connectors. Otherwise, bundle and store excess coax in cabinet with receiver.
Page 3

ITEMS YOU WILL NEED

In the KING One Pro box:

Additional Items (sold separately):

Antenna Unit
50' RG-6 Coax Cable

ANT

REC

Power Inserter with Power Supply

Short Coax Cable

(3) Rubber Feet
Do not use rubber feet. If installed on antenna unit, remove before mounting.

Programming

Subscription

TV

Cable(s) Receiver compatible with your service*
*Some DIRECTV receivers require additional components to enable satellite signal reception (page 9).
Visit kingconnect.com/support for additional receiver compatibility information.
KC1170

You will also need a drill and drill bits, roof-compatible sealant, and appropriate fasteners to install all components and wiring.

The CE2000 Cable Entry Cover (sold separately) provides a watertight seal where cables penetrate the roof (see the satellite antenna accessories page at kingconnect.com for more information).

ANTENNA UNIT LOCATION
END-USER INSTALLATIONS: Many RVs are prewired with RG-6 coax cable for satellite antennas. Contact the manufacturer of your RV or your local dealer to verify where this cable is located.
If prewired, run the existing coax cable from the prewired location in the roof to the antenna unit. When choosing the antenna unit location, make sure the prewiring will reach the antenna unit.
1. Select an area on the roof for the antenna unit and the location where the wiring will enter the vehicle through the roof to the satellite receiver inside using the following criteria: � A shorter distance between the antenna unit and the satellite receiver is most desirable. � Make sure you have enough room to mount the antenna unit. � The antenna unit should be mounted on the center line of the vehicle, and not tilted more than 2 degrees in any direction. � There must be no line of sight obstructions. Air conditioning units, other antennas, and storage areas that are too close to the antenna unit may prevent the satellite signal from reaching the antenna unit. � Mount the antenna unit with the handle to rear of the vehicle.
Page 4

ANTENNA UNIT LOCATION

HEIGHT OF OBSTRUCTION
10" 11" 12" 13" 14" 15" 16"

APPROXIMATE MINIMUM DISTANCE TO EDGE OF ANTENNA UNIT
8" 10" 12" 14" 16" 18" 20"

Page 5

ANTENNA UNIT MOUNTING
IF INSTALLED, REMOVE THE (3) RUBBER FEET FROM THE BOTTOM OF THE ANTENNA UNIT. DO NOT ROOF MOUNT ANTENNA UNIT WITH FEET IN PLACE. MAKE SURE YOU READ AND UNDERSTAND ALL OF THE IMPORTANT POINTS ON PAGE 3 BEFORE BEGINNING THE INSTALLATION. 2. Apply roof-compatible sealant to roof around entire area where fasteners will penetrate the roof. Mount the antenna unit using the (4) mounting holes. After mounting unit, seal fastener heads with roof-compatible sealant.
COAX ROUTING
There are two coax ports on the back of the antenna unit. The one labeled "MAIN" MUST be connected to the KING power inserter. The AUX port can be used for an additional receiver, or for DIRECTV SWM installations. Review the wiring diagrams on pages 8-9 before routing your coax.
3. Connect one end of the RG-6 coax cable to the MAIN port and tighten connection (see below). DO NOT OVER-TIGHTEN. If using a second receiver, connect one end of second RG-6 coax (sold separately) to the AUX port. Tighten connection. DO NOT OVER-TIGHTEN.
IMPORTANT! Coax connections should be snug.
DO NOT OVER-TIGHTEN!
Page 6

4. Run coax from the antenna unit to the roof edge, then along edge to location where coax will be fed into the vehicle. If installing an optional second receiver, run second coax to location where it will enter the vehicle. Secure (both) coax to roof every 12-18 inches (see below).
5. Drill 3/4" hole through the roof and into the cabinet where receiver is stored. Feed coax down through hole. Seal opening with roof-compatible sealant so that it is completely waterproof (inside and outside of the 3/4" hole). Repeat for second coax if present.
TYPICAL ROOF INSTALLATION - OVERHEAD VIEW
Installer is responsible for determining proper roof-compatible sealant. All holes for cables and fasteners must be sealed so they are completely waterproof.
OPTIONAL: OEM INSTALLATION AND END-USERS WITH CABLE ENTRY COVER:
Fasten cable entry cover to roof with appropriate sealant and roof fasteners.
IMPORTANT! Installer is responsible for determining proper fasteners. Mounting holes, perimeter of cable entry cover and cable opening of cable entry cover must be sealed so they are completely waterproof.

6. Make interior connections shown on next page.

Page 7

INTERIOR CONNECTIONS: DISH�, BELLTM AND DIRECTV�
Use this page for DISH, Bell, and DIRECTV connections. IMPORTANT! If you have a DIRECTV receiver H/HR25 or higher, make the connections shown on page 9 (requires DSWM30 Kit - sold separately).
HAND-TIGHTEN COAX. OVER-TIGHTENING CAN DAMAGE CONNECTIONS.

AUX

MAIN

110 AC/DC Power Supply

Receivers sold separately

110 AC

Long RG-6 Coax

ANT

REC

KING Power Inserter

Short Coax

POWER INSERTER FOR INDOOR USE ONLY.

SAT IN

MAIN Receiver

Coax sold separately

DISH and Bell receivers with two SAT IN ports: AUX coax may be connected to second SAT IN
port on main receiver for dual tuner usage

110 AC

SAT IN Optional AUX Receiver

Page 8

IMPORTANT! DIRECTV receivers H/HR25 and higher require use of components shown below. NOTE: When using this connection diagram, you will not receive programming from the 119 satellite.

DO NOT use DSWM30H or your receiver may be damaged.
DSWM30 is compatible with H21 or later receivers and HR20 or later DVRs. It is not compatible with D12 receivers.

110 AC/DC Power Supply

SWM Power Inserter PI-29Z (Do not use PI-21)
Power to SWM
Signal to IRD

Not more than 100 ft of total RG-6 coax between
antenna and DSWM30

DSWM30 Power LED

SWM2 SWM1 PWR

AUX

MAIN
Not more than 50 ft of RG-6 coax between antenna and
power inserter

For access to 101�satellite programming, connect the MAIN and AUX ports of the antenna to both LNB inputs
labeled Sat 99�/101�
CONNECT COAX TO PROPER INPUTS! MAIN TO 18V AUX TO 13V
110 AC/DC Power Supply

ANT

REC

KING Power Inserter

Sat 99�/101� 18V 13V
Unused SWM outputs: screw on dust cap (no center pin)
Not necessary if DSWM30 is used in dry conditions

POWER INSERTER FOR INDOOR USE ONLY.

110 AC

SAT IN (SWM-1)

Back of SWM Receiver

Receivers can be non-DVR or DVR receivers**

**If connecting to a DVR receiver, do not connect a coaxial cable to the Satellite 2 input. With SWM, only connect to the Satellite 1 port (labeled FTM or SWM)

All items other than KING Antenna, KING Power Inserter (with power supply), 50' coax, and short coax sold separately.

Optional Splitter for more than one receiver
4 Way SWM Splitter MSPLIT 4R1-03
To SWM Receivers

KC1194
Page 9

Simply better, by design.TM
11200 Hampshire Avenue South, Bloomington, MN 55438 PH 952.922.6889 || FAX 952.922.8424 || kingconnect.com
� KING 2018 23359 Rev A Trademarks are the sole property of their respective owners.

KOP4800 Owner's Manual
For use with DIRECTV� satellite programming
IMPORTANT!
The KING One Pro works with DIRECTV, DISH, and Bell TV. This manual is for DIRECTV subscribers. Manuals for DISH and Bell subscribers are available at kingconnect.com. Do not use this manual if you are a DISH or Bell subscriber.

IMPORTANT!
The satellite TV market is expanding and changing. The information in this manual was accurate at the time of printing. If your KING One Pro Satellite Antenna does not operate as outlined in this manual, please call KING� at (952) 345-8147 or visit our website at kingconnect.com. KING is not responsible for changes outside of its control.
PRODUCT REGISTRATION To provide ongoing technical support and to better facilitate warranty processing, please register your product at
kingconnect.com/support.
CONTENTS
INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3 IMPORTANT SAFETY AND CARE INFORMATION . . . . . . . . . . . . . . . . 2 ABOUT SIGNAL LOSS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 SECURITY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
SETUP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 CONTENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 APPLY RUBBER FEET TO ANTENNA UNIT . . . . . . . . . . . . . . . . . . . . . 4
CONNECTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-7 DIRECTV CONNECTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 DIRECTV CONNECTIONS WITH H/HR25 RECEIVER OR HIGHER. . . 7
OPERATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8-11 RECEIVER CONFIGURATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 ANTENNA CONFIGURATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-9 SCAN FOR SATELLITES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-11
TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 ACCESSORIES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 FCC GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Page 1

INTRODUCTION
Thank you for choosing the premium KING One Pro Portable HDTV System!
The KING One Pro is factory programmed to work with DIRECTV. No antenna configuration is required. (The configuration process is shown on pages 8-9 for future reference.)
IMPORTANT SAFETY AND CARE INFORMATION
1. Keep the Quick Reference Guide and Installation Guide that came with your KING One Pro in a safe place for future reference. You may also print this on-line manual and keep it for future reference as well.
2. Follow all instructions and warnings. Set up and operate the KING One Pro in accordance with the instructions.
3. To avoid risk of electric shock, unplug your receiver before connecting/disconnecting the KING One Pro in damp or wet conditions.
4. Tighten all of the coax cable connections by hand only. If you use a wrench, you may over-tighten the connections and damage your equipment.
5. Always handle the KING One Pro carefully. Do not drop the KING One Pro. Avoid excessive shock or vibration to the KING One Pro.
6. Use caution when carrying the KING One Pro. Always carry the KING One Pro by the handle. 7. Do not remove the cover of the KING One Pro without authorization. Doing so will void the
limited warranty. 8. Do not stack the KING One Pro on top of or below other electronic devices as this can cause
heat build-up or block the satellite signal from reaching the KING One Pro. 9. Do not operate or store near any indoor or outdoor heat source such as radiators, heat registers,
stoves, barbecues, campfires, or other items that produce heat. 6. Servicing may be required if the unit has been dropped or damaged in any way or if the unit does
not operate normally. Call KING Customer Service at (952) 345-8147. 10. Do not power wash the KING One Pro. 11. Do not submerge the KING One Pro or place in standing water. 12. Keep the enclosure clean from dirt, bugs, and other debris by hand washing with mild soap and
water. 13. Do not coat or paint the KING One Pro with any substance.
The KING One Pro has been designed to be maintenance and trouble free. If not using the KING One Pro for long periods of time, it is recommended that you set up the system on a quarterly basis (every three months) to keep all moving parts of the KING One Pro in good working order.
If you have any comments or questions, please contact KING Customer Service at (952) 345-8147, or by email at help@kingconnect.com.
QUESTIONS? (952) 345-8147
Page 2

ABOUT SIGNAL LOSS

OBSTRUCTIONS
The KING One Pro requires an unobstructed view of the southern sky for the best signal reception.
Be sure to place the KING One Pro in a location free from obstructions such as people, trees, buildings, vehicles, etc. This will allow for the strongest signal and will help prevent any interruption to your programming. Pointing the handle approximately north may speed up scan time.

WHILE IN USE, DO NOT BLOCK THE ANTENNA UNIT'S LINE OF SIGHT TO THE SATELLITES IN THE SOUTHERN SKY AT ANY TIME!

Place on a reasonably level surface
Pointing the handle approximately north may speed up scan time, but is not required for a successsful search

OBSTRUCTIONS

ANTENNA

UNIT

KC1148

SATELLITES IN SOUTHERN SKY
IMPORTANT! If you move the antenna unit any time during or after the scan, you
will have to repeat the scan.

RAIN AND SNOW FADE
Though rare, heavy rain, snow, or dense cloud cover can reduce the satellite signal, which may interrupt your programming. Your programming should return as conditions improve.
KC1168
SECURITY

The KING Antenna can be secured to an object by looping a cable thru the handle.

Cable sold separately.
Page 3

SETUP
CONTENTS

Antenna Unit

Power Inserter

with Power Supply

ANT

REC

You will also need (sold separately):

DIRECTV

Programming

Subscription

TV

Cable(s)

DIRECTV Receiver

KC1193

For the most up-to-date receiver compatibility information, go to kingconnect.com/support

Installation Quick Guide Reference Guide

(3) Rubber Registration Feet
Card

50' RG-6 Coax Cable

Short Coax Cable

APPLY RUBBER FEET TO ANTENNA UNIT

IMPORTANT! Do not apply rubber feet if roof-mounting the antenna unit.
See the Installation Guide included in the box.

Apply (3) rubber feet

Do not apply here.

Soft, non-scratching surface
KC1153

Page 4

CONNECTIONS
NOTE: If you wish to roof mount the antenna, see the Installation Guide that came with your KING One Pro.
Make the connections on page 6 or page 7.
PAGE 6: Make these connections unless you have an H/HR25 or higher receiver.
PAGE 7: Make these connections if you have an H/HR25 or higher receiver. (Requires DSWM30 Kit - sold separately)
NOTE: The KING One Pro will not receive channels broadcast from DIRECTV's Ka band satellites at 99� and 103�. When using page 7 connection diagram, you will not receive programming from the 119 satellite.
� � � � � IMPORTANT POINTS! � � � � �
Connect all coax cables first. Plug in power inserter and then receivers. Power inserter is for indoor use only. Place the power inserter in an accessible location. Do not over-tighten the coax connections. Do not put sharp bends or kinks in the cables. Do not route the cables where they can be tripped on or run over by a vehicle.
HAND-TIGHTEN COAX. OVER-TIGHTENING CAN DAMAGE CONNECTIONS.

After connecting and plugging in all components, wait for the power inserter LED to start flashing orange (about 10 seconds).

Go to page 8.

Page 5

DIRECTV CONNECTIONS
HAND-TIGHTEN COAX. OVER-TIGHTENING CAN DAMAGE CONNECTIONS.

AUX

MAIN

110 AC/DC Power Supply

Receivers sold separately

110 AC

50' RG-6 Coax

ANT

REC

KING Power Inserter

Short Coax

POWER INSERTER FOR INDOOR USE ONLY.

SAT IN

MAIN Receiver

Coax sold separately

110 AC
SAT IN Optional AUX Receiver
KC1201

Second receiver must be configured the same as the main receiver (see operation section). Second receiver must be the same as main receiver (SWM vs. non-SWM). If your main receiver has a second "satellite in" port and built in DVR, you can connect this input to the AUX port to record programs on a different channel than the one you are watching.
Page 6

DIRECTV CONNECTIONS WITH H/HR25 RECEIVER OR HIGHER

DO NOT use DSWM30H or your receiver may be damaged.
DSWM30 is compatible with H21 or later receivers and HR20 or later DVRs. It is not compatible with D12 receivers.

110 AC/DC Power Supply

SWM Power Inserter PI-29Z (Do not use PI-21)
Power to SWM
Signal to IRD

Not more than 100 ft of total RG-6 coax between
antenna and DSWM30

DSWM30 Power LED

SWM2 SWM1 PWR

AUX

MAIN
Not more than 50 ft of RG-6 coax between antenna and
power inserter

For access to 101�satellite programming, connect the MAIN and AUX ports of the antenna to both LNB inputs
labeled Sat 99�/101�
CONNECT COAX TO PROPER INPUTS! MAIN TO 18V AUX TO 13V
110 AC/DC Power Supply

ANT

REC

KING Power Inserter

Sat 99�/101� 18V 13V
Unused SWM outputs: screw on dust cap (no center pin)
Not necessary if DSWM30 is used in dry conditions

POWER INSERTER FOR INDOOR USE ONLY.

110 AC

SAT IN (SWM-1)

Back of SWM Receiver

Receivers can be non-DVR or DVR receivers**

**If connecting to a DVR receiver, do not connect a coaxial cable to the Satellite 2 input. With SWM, only connect to the Satellite 1 port (labeled FTM or SWM)

KING Antenna, KING Power Inserter (with power supply), 50' coax and short coax included. All other items sold separately.

Optional Splitter for more than one receiver
4 Way SWM Splitter MSPLIT 4R1-03
To SWM Receivers

KC1194
Page 7

OPERATION

RECEIVER CONFIGURATION

Make sure your TV is on the correct input from your receiver.
If your receiver screen does not appear on your TV, check TV input by pressing Source/Input button located on your TV or TV's remote.
Configure your receiver as follows:

Switch Type: Multi-switch

Dish Type: 3-LNB (18"x20") or 18x20" Triple-sat LNB

Make this one-time setting in the receiver's satellite setup menu.

ANTENNA CONFIGURATION
DIRECTV uses mode 1. The KING One Pro comes factory preset for mode 1. If your antenna is new, you will not need to configure it.

IF YOUR ANTENNA IS NEW, SKIP THIS STEP AND GO TO PAGE 10.

MODE
1
2 3 4

SERVICE DIRECTV

SATELLITES 101, 119

DIRECTV subscribers

DISH DISH Bell TV DISH

61.5, 110, 119, 129 DISH subscribers with Wally, ViP211z, 211k, 211 or 411 receivers

110, 119, 129 DISH subscribers with receivers not listed in MODE 1

82, 91

Bell TV subscribers

61.5, 110, 119 DISH subscribers with receivers not listed in MODE 1

Page 8

IF YOUR ANTENNA IS NEW, SKIP THIS STEP AND GO TO PAGE 10.

Make sure the LED is flashing orange (ready to scan)

ORANGE

1 KC1217

To enter Configuration Mode, press and hold (~3 sec) the power
inserter button until one of the options below appears

2

Press and release as needed to

choose Mode 1

MODE 1 (DIRECTV)
BLUE

MODE 2 RED

RED

pattern repeats... pattern repeats...

MODE 3 GREEN

GREEN

pattern repeats...

MODE 4 RED

RED

pattern repeats...

3

KC1189

Press and hold (~3 sec) until LED flashes orange (ready to scan)

ORANGE

Go to next page to start a scan.

Page 9

SCAN FOR SATELLITES

Make sure the LED is flashing orange.

ORANGE

ORANGE
KC1200

Press and release the power inserter button to start a scan
KC1199

GR

GR Antenna is scanning (flashing green)

SOLID GREEN

Both satellites found Watch TV. Enjoy!

If one or both satellites were not found, you will get one of the flash patterns shown on the opposite page.
Many times lack of satellite acquisition is due to obstructions. Try moving the antenna to have a better view of the southern sky, press the button once to turn the LED yellow, and a second time to start a new scan.
KC1192
NOTE: If no satellites are found, you will have to start a new scan.
If only one satellite is found, you can press the button to turn the LED yellow and watch TV with limited channels.

If you get a different color and/or flash pattern on the LED than steady green or one of the patterns shown on the next page, the LED is flashing an error code. Call KING Customer Service for an explanation of the problem.
(952) 345-8147

Page 10

SATELLITES NOT FOUND
MODE 1 (DIRECTV)

101 not found

YELLOW

RED

GREEN

pattern repeats...

119 not found

YELLOW

GREEN

RED

101 & 119 not found
RED
KC1198

pattern repeats... continuous...

Page 11

TROUBLESHOOTING

Symptom

Possible Cause

Antenna unit does not scan for satellites.

No power to antenna unit.

Troubleshooting
Make sure antenna unit is connected to power inserter.
Make sure power supply is plugged in and connected to power inserter.

Antenna unit scans but no picture on TV.

Improper connections made.

Make sure antenna unit is connected to power inserter, and power inserter is plugged in.
Make sure powered receiver is connected to TV and the power inserter.

Antenna unit scans but does Line of sight obstruction. not find satellite.

Move antenna unit to have a clear view of the southern sky. Start a new scan.

Picture on TV goes in and out. Temporary obstruction of signal. Heavy rain or snow may cause loss of signal. Reception will improve as weather clears.
Make sure nothing is temporarily blocking view to the southern sky (like tree branches blowing in the wind).

If you connect or install the antenna unit using any of the vehicle's internal wiring/coax, and the antenna unit does not work properly, it could be the vehicle's wiring/coax. Connect a known good coax directly from the antenna unit to the power inserter and see if the problem goes away. If it does, the vehicle's wiring/coax is at fault. KING is not responsible for faulty vehicle wiring/coax.

Page 12

ACCESSORIES (Sold separately - see the satellite antenna accessories page at kingconnect.com)

MB700
Quick Release Roof-Mount Kit
Allows you to easily use your KING One Pro as either a roof-mounted or
portable antenna.
KING Antenna not included.

MB500
Mounting Bracket

CB1000
Carry Bag
KING One Pro fits securely inside. Features include zippered cover, foam padding,
carry handles and pockets for cables, receiver and remote.
KING Antenna not included.
TR1000
Tripod Mount
Allows you to position your KING One Pro almost anywhere for best line of sight to satellite. Keeps antenna off the ground away from moisture.
KING Antenna not included.

Allows hanging of antenna unit on vehicle window or included hanger bracket. For stationary use only.
Vehicle must not be in motion while antenna unit is on window or hanger bracket.
KING Antenna not included.
MB160
Mounting Bracket
The KING One Pro is not compatible with the MB100 Mounting Bracket.
Use of the MB100 will void warranty. The use of any unauthorized
mounting bracket will void warranty.
KING Antenna not included.
Page 13

LIMITED WARRANTY
KING One Pro Satellite Antennas are thoroughly inspected and tested before leaving the factory, and are covered by the following limited warranty from the date of original purchase:
� Two-year parts warranty: The customer is not responsible for the cost of replacement parts if the original part is determined to be defective under the terms of the warranty. The customer is responsible for the cost of replacement parts after two years.
� One-year labor warranty: The customer is not responsible for labor costs to repair unit if labor is performed within the labor warranty period. The customer is responsible for all labor costs after one year.
Only KING and certified dealers may perform warranty evaluations and repairs. Depending upon the problem, KING may authorize a dealer to perform the necessary repairs. Any warranty labor outside of that performed at the factory is not covered unless 1) the product has been installed by an authorized dealer/installer or OEM manufacturer and 2) the dealer/installer receives prior authorization to perform the repair. A certified dealer must not perform any repair without first contacting KING for a Service Order Number. KING will advise the dealer on how to proceed with any repairs.
Should any trouble develop during the warranty period, contact KING at (952) 345-8147. You must contact KING before the warranty period expires. The customer must supply proof of purchase (such as a dated sales receipt) when requesting warranty service. If the customer cannot supply proof of purchase, warranty period shall start 30 days after date of manufacture. If it is determined that the unit needs to be returned to KING, customer must return COMPLETE product, freight prepaid, to: KING, 11200 Hampshire Avenue South, Bloomington, MN 55438-2453. If inspection shows the trouble is caused by defective workmanship or material, KING will repair (or at its option, replace) without charge. When returning product, KING will supply an RMA number (Return Merchandise Authorization). This number must be clearly written on the box. Failure to clearly write RMA number on box may result in delays in processing claim. Along with product, customer should include in the box: his/her name, address, daytime phone number, proof of purchase and description of the problem. This warranty does not cover installation and external wiring, or remanufactured units. This warranty does not cover damage caused by the use of an accessory other than a KING accessory designed for the product. This warranty is not transferable from the original owner. Due to the expanding and changing TV market, KING cannot be held responsible for changes made to satellite services. Software updates to address such issues are not covered under warranty. This warranty also does not apply where:
� The product has been abused, misused, improperly installed or improperly maintained. � The product has been used with an accessory other than a KING accessory designed for the product. � Repairs have been made or attempted by others that are not certified by KING to do such repairs. � Repairs are required because of normal wear and tear. � Alterations have been made to the product. � The product or any associated component has been opened without authorization or disassembled to any degree. � Damage has been caused by power washing. � Circumstances beyond the control of KING cause the product to no longer operate correctly. � Customer is not the original owner. In no event shall KING be liable for any indirect, incidental, or consequential damages from the sale or use of the product. This disclaimer applies both during and after the term of this warranty. KING disclaims liability for any implied warranties, including implied warranties of "merchantability" and "fitness for a specific purpose," after the term of this warranty. This warranty gives you specific legal rights, and you may also have other rights, which vary from state to state. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you.
Page 14

FCC GUIDELINES
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not incur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
� Reorient or relocate the receiving antenna. � Increase the separation between the equipment and the receiver. � Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. � Consult the dealer or an experienced radio/TV technician for help.
Page 15

NOTES:

Simply better, by design.TM
11200 Hampshire Avenue South, Bloomington, MN 55438 PH 952.922.6889 || FAX 952.922.8424 || kingconnect.com
�2019 KING 23432 Rev A
All trademarks are the sole property of their respective owners.

KOP4800 Owner's Manual
For use with DISH� satellite programming
This manual is for use with DISH receivers except for the following: Wally� � ViP�211z � ViP211k � ViP 211 � 411
If you have one of the receivers listed above, do not use this manual. See the KING One Pro owner's manual for these receivers at kingconnect.com/support.

IMPORTANT!
The satellite TV market is expanding and changing. The information in this manual was accurate at the time of printing. If your KING One Pro Satellite Antenna does not operate as outlined in this manual, please call KING� at (952) 345-8147 or visit our website at kingconnect.com. KING is not responsible for changes outside of its control.
PRODUCT REGISTRATION To provide ongoing technical support and to better facilitate warranty processing, please register your product at
kingconnect.com/support.
CONTENTS
INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3 IMPORTANT SAFETY AND CARE INFORMATION. . . . . . . . . . . . . . . . . . . . 2 ABOUT SIGNAL LOSS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 SECURITY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
SETUP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 CONTENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 APPLY RUBBER FEET TO ANTENNA UNIT . . . . . . . . . . . . . . . . . . . . . . . . . 4
CONNECTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 OPERATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-13
ANTENNA CONFIGURATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-7 SCAN FOR SATELLITES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-9 CHECK SWITCH TEST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-11 SECOND RECEIVER OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12-13 TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 ACCESSORIES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 FCC GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Page 1

INTRODUCTION
Thank you for choosing the premium KING One Pro Portable HDTV System!
You are about to experience the excitement of satellite television programming and the convenience of the KING One Pro portable antenna, which delivers the very best HD picture and sound quality wherever you go.

IMPORTANT SAFETY AND CARE INFORMATION
1. Keep the Quick Reference Guide and Installation Guide that came with your KING One Pro in a safe place for future reference. You may also print this on-line manual and keep it for future reference as well.
2. Follow all instructions and warnings. Set up and operate the KING One Pro in accordance with the instructions.
3. To avoid risk of electric shock, unplug your receiver before connecting/disconnecting the KING One Pro in damp or wet conditions.
4. Tighten all of the coax cable connections only by hand. If you use a wrench, you may over-tighten the connections and damage your equipment.
5. Always handle the KING One Pro carefully. Do not drop the KING One Pro. Avoid excessive shock or vibration to the KING One Pro.
6. Use caution when carrying the KING One Pro. Always carry the KING One Pro by the handle. 7. Do not remove the cover of the KING One Pro without authorization. Doing so will void the
limited warranty. 8. Do not stack the KING One Pro on top of or below other electronic devices as this can cause
heat build-up or block the satellite signal from reaching the KING One Pro. 9. Do not operate or store near any indoor or outdoor heat source such as radiators, heat registers,
stoves, barbecues, campfires, or other items that produce heat. 6. Servicing may be required if the unit has been dropped or damaged in any way or if the unit does
not operate normally. Call KING Customer Service at (952) 345-8147. 10. Do not power wash the KING One Pro. 11. Do not submerge the KING One Pro or place in standing water. 12. Keep the enclosure clean from dirt, bugs, and other debris by hand washing with mild soap and
water. 13. Do not coat or paint the KING One Pro with any substance.
The KING One Pro has been designed to be maintenance and trouble free. If not using the KING One Pro for long periods of time, it is recommended that you set up the system on a quarterly basis (every three months) to keep all moving parts of the KING One Pro in good working order.
If you have any comments or questions, please contact KING Customer Service at (952) 345-8147, or by email at help@kingconnect.com.

Page 2

QUESTIONS? (952) 345-8147

ABOUT SIGNAL LOSS
OBSTRUCTIONS
The KING One Pro requires an unobstructed view of the southern sky for the best signal reception.
Be sure to place the KING One Pro in a location free from obstructions such as people, trees, buildings, vehicles, etc. This will allow for the strongest signal and will help prevent any interruption to your programming. Point the handle approximately north to speed up scan time.

WHILE IN USE, DO NOT BLOCK THE ANTENNA UNIT'S LINE OF SIGHT TO THE SATELLITES IN THE SOUTHERN SKY AT ANY TIME!

Place on a reasonably level surface
Pointing the handle approximately north may speed up scan time, but is not required for a successsful search

OBSTRUCTIONS

ANTENNA

UNIT

KC1148

SATELLITES IN SOUTHERN SKY
IMPORTANT! If you move the antenna unit any time during or after the scan, you
will have to repeat the scan.

RAIN AND SNOW FADE
Though rare, heavy rain, snow, or dense cloud cover can reduce the satellite signal, which may interrupt your programming. Your programming should return as conditions improve.
KC1168
SECURITY

The KING Antenna can be secured to an object by looping a cable thru the handle.

Cable sold separately.
Page 3

SETUP
CONTENTS

Antenna Unit

Power Inserter with Power Supply

ANT

REC

You will also need (sold separately):

DISH Programming

Subscription

TV

DISH Receiver Cable(s)

KC1193

For the most up-to-date receiver compatibility

information, go to kingconnect.com/support

Installation Quick Guide Reference Guide

Registration Card

(3) Rubber Feet

50' RG-6 Coax Cable

Short Coax Cable

APPLY RUBBER FEET TO ANTENNA UNIT

IMPORTANT! Do not apply rubber feet if roof-mounting the antenna unit.
See the Installation Guide included in the box.

Apply (3) rubber feet

Do not apply here.

Soft, non-scratching surface
KC1153

Page 4

CONNECTIONS
Connect components in following order.
A Connect coax cables. B Plug in power inserter. C Plug in receiver(s).
Power inserter is for indoor use only. Place the power inserter in an accessible location. Do not over-tighten the coax connections. Do not put sharp bends or kinks in the cables. Do not route the cables where they can be tripped on or run over by a vehicle. NOTE: If your main receiver has two SAT IN ports: AUX coax may be connected to second SAT IN port for dual tuner usage.

110 AC/DC Power Supply

HAND-TIGHTEN COAX. OVER-TIGHTENING CAN DAMAGE CONNECTIONS.

AUX

MAIN

Button LED

A
50' Coax
A

ANT

REC

KING Power Inserter

Coax sold separately

B
Receivers sold separately

C 110 AC

A
Short
Coax

SAT IN MAIN Receiver

To TV

C 110 AC

SAT IN Optional AUX Receiver

To TV

KC1187

After connecting and plugging in all components, wait for the power inserter LED to start flashing orange (about 10 seconds).

Go to the next page.

Page 5

OPERATION

ANTENNA CONFIGURATION

The KING One Pro comes factory preset for mode 1. You will need to choose either mode 2 (Western Arc) or mode 4 (Hybrid Arc) based on where you are in the country, and then configure the antenna as shown on the next page.

This is a one-time procedure unless you travel between the two modes and wish to reconfigure the antenna for better satellite acquisition (see additional notes in map box below).

MODE
1
2 3

SERVICE DIRECTV�

SATELLITES 101, 119

DIRECTV subscribers

DISH DISH Bell TVTM

61.5, 110, 119, 129 DISH subscribers with Wally, ViP211z, 211k, 211 or 411 receivers

110, 119, 129 DISH subscribers with receivers not listed in MODE 1

82, 91

Bell TV subscribers

DISH subscribers with receivers not listed in MODE 1

4

DISH

61.5, 110, 119 NOTE: This is an alternative mode to mode 2. Signal strength from

the 129 may be reduced in the far northeastern US. Use this mode

if you cannot lock onto the 129 when in this area.

Reception from the 129 may be difficult in this area. Choose Mode 4 for best signal reception.

MODE 4 Hybrid Arc

MODE 2 Western Arc

Mode 2 will work for most of the country.
The antenna unit may have trouble locking onto the 129 when in the northeastern United States (you can use the Dish Diagnostics Screen after a scan to check this).
If the antenna unit does not lock onto the 129, choose mode 4. Any programming from the 129 will not be available when using mode 4.
You can switch between the two modes as necessary when traveling between the coverage areas shown.

KC1212

129

119

110

Page 6

61.5

Make sure the LED is flashing orange (ready to scan)

ORANGE

1 KC1213
2

To enter Configuration Mode, press and hold (~3 sec) the power
inserter button until one of the options below appears
Press and release as needed to choose either Mode 2 or Mode 4

MODE 1 BLUE

pattern repeats...

MODE 2 (Western Arc)

RED

pattern repeats...

MODE 3 GREEN

GREEN

pattern repeats...

MODE 4 (Hybrid Arc)

RED

pattern repeats...

3

KC1189

ORANGE

Press and hold (~3 sec) until LED flashes orange (ready to scan)

ORANGE

Go to next page to start a scan.

Page 7

4 KC1190

SCAN FOR SATELLITES Press and release to start a scan

GR

GR Antenna is scanning (flashing green)

SOLID GREEN

All 3 satellites found

If all 3 satellites were found, go to page 10 and run the check switch. If less than 3 satellites were found, you will get one of the flash patterns shown on the opposite page.
If not all satellites were found, you can still run the check switch on page 10, but you will have fewer available channels when it is complete.
Many times lack of satellite acquisition is due to obstructions. Try moving the antenna to have a better view of the southern sky, press the button once to turn the LED yellow, and a second time to start a new scan.
KC1192
NOTE: If no satellites are found, you will have to start a new scan.

If you get a different color and/or flash pattern on the LED than steady green or one of the patterns shown on the next page, the LED is flashing an error code. Call KING Customer Service for an explanation of the problem.
(952) 345-8147

Page 8

SATELLITES NOT FOUND

MODE 2 (Western Arc) and MODE 4 (Hybrid Arc)

No satellites found

RED

continuous...

110 not found
YELLOW
119 not found
YELLOW

MODE 2 (Western Arc)

RED

GREEN

RED

GREEN

pattern repeats... pattern repeats...

129 not found
YELLOW

GREEN

110 & 119 not found
YELLOW

RED

RED RED

110 & 129 not found
YELLOW

RED

GREEN

119 & 129 not found

YELLOW

GREEN

RED

pattern repeats...
GREEN
pattern repeats...
RED
pattern repeats...
RED
pattern repeats...

61.5 not found
YELLOW
110 not found
YELLOW

MODE 4 (Hybrid Arc)

RED

GREEN

RED

GREEN

pattern repeats... pattern repeats...

119 not found
YELLOW

GREEN

61.5 & 110 not found
YELLOW

RED

RED RED

61.5 & 119 not found
YELLOW

RED

GREEN

110 & 119 not found
YELLOW
KC1214

GREEN

RED

pattern repeats...
GREEN
pattern repeats...
RED
pattern repeats...
RED
pattern repeats...
Page 9

CHECK SWITCH TEST
5 Run a check switch test. This is a one-time procedure unless noted in gray box below.
NOTE: The SW64 switch is a receiver software configuration that is loaded into the receiver after successfully running a check switch test with the dish locked on and configured for the appropriate service.
Step 5 is a one-time procedure that will not need to be repeated after successful installation, unless:
a) check switch test is run again while the receiver is connected to a home dish system. b) check switch test is run when the receiver is not connected. c) you travel outside the coverage area of either arc and switch to the other. d) you are parked in an area where the selected satellites are blocked, but are able to select alternate
satellites and get signal.

5.1 On the receiver remote, press MENU, 6, 1, 1 to go to the Point Dish screen.
5.2 Highlight "Check Switch."
Press SELECT on your remote.
NOTE: Some receivers may prompt you to select "Check Switch" a second time to initiate the test.

Screen graphics may vary.

5.3 Make sure "SuperDISH" and "Alternate" boxes are NOT selected. NOTE: Not all receivers will display a screen with options that include "SuperDISH" and "Alternate" boxes.
5.4 Highlight "Test." Press SELECT on your remote. The receiver will perform a check switch test. This process can take a little while so PLEASE BE PATIENT.
Page 10

5.5 When test is complete, a screen similar to one below should appear. Because receivers are always changing, screen graphics may vary.

MODE 2 (Western Arc)

MODE 4 (Hybrid Arc)

NO "X"s
MUST SHOW "SW64"

If the indicated results are not obtained, go back to Step 5.1 and run test again. Contact KING if the check switch fails to load after 4 attempts.
5.6 When the installation summary shows the successful check switch test results, save the settings, exit to the main menu screen and wait for programming to download.
NOTE: Verify that your saved settings show your desired satellite trio: 61.5, 110, 119 (Hybrid Arc) or 110, 119, 129 (Western Arc).
5.7 When programming has downloaded, select your desired channel. Enjoy!
OPERATING NOTES: For standard operation, make all connections and start a scan (step 4). Wait for programming to download, select your desired channel and watch TV.
If you move the vehicle, you will have to reacquire the satellites by repeating the scan process. Your local channels may not be available when traveling outside your home area.

Page 11

SECOND RECEIVER OPERATION

INITIAL SETUP FOR SECOND RECEIVER
1. With the antenna locked on the satellite and the second receiver connected to the antenna unit's AUX port coax, use your DISH remote control and press MENU, 6, 1, 1 to display the Point Dish screen.

Antenna locked on and
receiver connected!
Receiver sold separately.

2. Use the arrow buttons on the remote to highlight "Check Switch."
Press SELECT on your remote.

3. Verify "SuperDISH" and "Alternate" are not selected. Verify "Test" is highlighted. Press SELECT on your remote.
4. When test is complete, highlight "Save." Press SELECT on your remote. See the next page for downloading programming to the second receiver.
Page 12

DOWNLOADING PROGRAMMING TO THE SECOND RECEIVER 1. After completing the steps on the previous page, reset the second receiver by pressing the POWER button on the front panel for 10 seconds. The TV picture will go away and should reappear within two minutes. The receiver will then download the program guide to show only the channels available on the current satellite as determined by the channel selected on the main receiver. Downloading the new program guide can take up to five minutes to complete.
The channels available on the second receiver are determined by the channel/satellite selected on the main receiver. For example, if you select a channel on the main receiver that is broadcast from the 119 satellite, then the second receiver will be able to view any channel broadcast from the 119 satellite. If you switch channels on the main receiver to one that is broadcast from a different satellite, (i.e. your channel was broadcast from satellite 119 but your new channel is broadcast from the 110 or 129), the antenna will automatically switch to the new satellite and programming will be lost on the second receiver until you either:
� Select a channel on the main receiver that is broadcast from the previous satellite (satellite 119 in this example). (or)
� Reset the second receiver to download the program guide for the newly selected satellite (satellite 110 or 129 in this example).
If you choose a channel on the main TV that causes the antenna to switch satellites, you may have to run a check switch on the second receiver.
Page 13

TROUBLESHOOTING

Symptom

Possible Cause

Antenna unit does not scan for satellites.

No power to antenna unit.

Troubleshooting
Make sure antenna unit is connected to power inserter.
Make sure power supply is plugged in and connected to power inserter.

Antenna unit scans but no picture on TV.

Improper connections made.

Make sure antenna unit is connected to power inserter, and power inserter is plugged in.
Make sure powered receiver is connected to TV and the power inserter.

Antenna unit scans but does Line of sight obstruction. not find satellite.

Move antenna unit to have a clear view of the southern sky. Start a new scan.

Picture on TV goes in and out. Temporary obstruction of signal. Heavy rain or snow may cause loss of signal. Reception will improve as weather clears.
Make sure nothing is temporarily blocking view to the southern sky (like tree branches blowing in the wind).

If you connect or install the antenna unit using any of the vehicle's internal wiring/coax, and the antenna unit does not work properly, it could be the vehicle's wiring/coax. Connect a known good coax directly from the antenna unit to the power inserter and see if the problem goes away. If it does, the vehicle's wiring/coax is at fault. KING is not responsible for faulty vehicle wiring/coax.

Page 14

ACCESSORIES (Sold separately - see the satellite antenna accessories page at kingconnect.com)

MB700
Quick Release Roof-Mount Kit
Allows you to easily use your KING One Pro as either a roof-mounted or
portable antenna.
KING Antenna not included.

MB500
Mounting Bracket

CB1000
Carry Bag
KING One Pro fits securely inside. Features include zippered cover, foam padding,
carry handles and pockets for cables, receiver and remote.
KING Antenna not included.
TR1000
Tripod Mount
Allows you to position your KING One Pro almost anywhere for best line of sight to satellite. Keeps antenna off the ground away from moisture.
KING Antenna not included.

Allows hanging of antenna unit on vehicle window or included hanger bracket. For stationary use only.
Vehicle must not be in motion while antenna unit is on window or hanger bracket.
KING Antenna not included.
MB160
Mounting Bracket
The KING One Pro is not compatible with the MB100 Mounting Bracket.
Use of the MB100 will void warranty. The use of any unauthorized
mounting bracket will void warranty.
KING Antenna not included.
Page 15

LIMITED WARRANTY
KING One Pro Satellite Antennas are thoroughly inspected and tested before leaving the factory, and are covered by the following limited warranty from the date of original purchase:
� Two-year parts warranty: The customer is not responsible for the cost of replacement parts if the original part is determined to be defective under the terms of the warranty. The customer is responsible for the cost of replacement parts after two years.
� One-year labor warranty: The customer is not responsible for labor costs to repair unit if labor is performed within the labor warranty period. The customer is responsible for all labor costs after one year.
Only KING and certified dealers may perform warranty evaluations and repairs. Depending upon the problem, KING may authorize a dealer to perform the necessary repairs. Any warranty labor outside of that performed at the factory is not covered unless 1) the product has been installed by an authorized dealer/installer or OEM manufacturer and 2) the dealer/installer receives prior authorization to perform the repair.
A certified dealer must not perform any repair without first contacting KING for a Service Order Number. KING will advise the dealer on how to proceed with any repairs.
Should any trouble develop during the warranty period, contact KING at (952) 345-8147. You must contact KING before the warranty period expires. The customer must supply proof of purchase (such as a dated sales receipt) when requesting warranty service. If the customer cannot supply proof of purchase, warranty period shall start 30 days after date of manufacture.
If it is determined that the unit needs to be returned to KING, customer must return COMPLETE product, freight prepaid, to: KING, 11200 Hampshire Avenue South, Bloomington, MN 55438-2453. If inspection shows the trouble is caused by defective workmanship or material, KING will repair (or at its option, replace) without charge.
When returning product, KING will supply an RMA number (Return Merchandise Authorization). This number must be clearly written on the box. Failure to clearly write RMA number on box may result in delays in processing claim. Along with product, customer should include in the box: his/her name, address, daytime phone number, proof of purchase and description of the problem.
This warranty does not cover installation and external wiring, or remanufactured units. This warranty does not cover damage caused by the use of an accessory other than a KING accessory designed for the product. This warranty is not transferable from the original owner.
Due to the expanding and changing TV market, KING cannot be held responsible for changes made to satellite services. Software updates to address such issues are not covered under warranty.
This warranty also does not apply where:
� The product has been abused, misused, improperly installed or improperly maintained. � The product has been used with an accessory other than a KING accessory designed for the product. � Repairs have been made or attempted by others that are not certified by KING to do such repairs. � Repairs are required because of normal wear and tear. � Alterations have been made to the product. � The product or any associated component has been opened without authorization or disassembled to any degree. � Damage has been caused by power washing. � Circumstances beyond the control of KING cause the product to no longer operate correctly. � Customer is not the original owner.
In no event shall KING be liable for any indirect, incidental, or consequential damages from the sale or use of the product. This disclaimer applies both during and after the term of this warranty. KING disclaims liability for any implied warranties, including implied warranties of "merchantability" and "fitness for a specific purpose," after the term of this warranty.
This warranty gives you specific legal rights, and you may also have other rights, which vary from state to state. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you.
FCC GUIDELINES
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not incur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
� Reorient or relocate the receiving antenna. � Increase the separation between the equipment and the receiver. � Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. � Consult the dealer or an experienced radio/TV technician for help.
Page 16

Page 17

Simply better, by design.TM
11200 Hampshire Avenue South, Bloomington, MN 55438 PH 952.922.6889 || FAX 952.922.8424 || kingconnect.com
�2019 KING 23435 Rev A
All trademarks are the sole property of their respective owners.

KOP4800 Owner's Manual
This manual contains detailed information on your KING One Pro.
To start using your KING One Pro right away, see the Quick Reference Guide.
DISH� & Wally� Receivers
IMPORTANT!
The KING One Pro works with DIRECTV�, DISH, and BellTM TV. This manual is for DISH subscribers with Wally receivers. Manuals for DISH (with other receivers), DIRECTV and Bell subscribers are available at kingconnect.com. Use this manual only if you have a Wally receiver.

IMPORTANT!
The satellite TV market is expanding and changing. The information in this manual was accurate at the time of printing. If your KING One Pro Satellite Antenna does not operate as outlined in this manual, please call KING� at (952) 345-8147 or visit our website at kingconnect.com. KING is not responsible for changes outside of its control.
PRODUCT REGISTRATION To provide ongoing technical support and to better facilitate warranty processing, please register your product at
kingconnect.com/support.
INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3 IMPORTANT SAFETY AND CARE INFORMATION. . . . . . . . . . . . . . . . . . . . 2 ABOUT SIGNAL LOSS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 SECURITY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
SETUP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 CONTENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 APPLY RUBBER FEET TO ANTENNA UNIT . . . . . . . . . . . . . . . . . . . . . . . . . 4
CONNECTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 ANTENNA CONFIGURATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-7 OPERATION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-18
NEW AND UNACTIVATED WALLY RECEIVER . . . . . . . . . . . . . . . . . . . . 8-13 STANDARD OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14-17 SECOND RECEIVER OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 ACCESSORIES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20-23 LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 FCC GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Page 1

INTRODUCTION
Thank you for choosing the premium KING One Pro Portable HDTV System!
You are about to experience the excitement of satellite television programming and the convenience of the KING One Pro portable antenna, which delivers the very best HD picture and sound quality wherever you go.

IMPORTANT SAFETY AND CARE INFORMATION
1. Keep the Quick Reference Guide and Installation Guide that came with your KING One Pro in a safe place for future reference. You may also print this on-line manual and keep it for future reference as well.
2. Follow all instructions and warnings. Set up and operate the KING One Pro in accordance with the instructions.
3. To avoid risk of electric shock, unplug your receiver before connecting/disconnecting the KING One Pro in damp or wet conditions.
4. Tighten all of the coax cable connections only by hand. If you use a wrench, you may over-tighten the connections and damage your equipment.
5. Always handle the KING One Pro carefully. Do not drop the KING One Pro. Avoid excessive shock or vibration to the KING One Pro.
6. Use caution when carrying the KING One Pro. Always carry the KING One Pro by the handle. 7. Do not remove the cover of the KING One Pro without authorization. Doing so will void the
limited warranty. 8. Do not stack the KING One Pro on top of or below other electronic devices as this can cause
heat build-up or block the satellite signal from reaching the KING One Pro. 9. Do not operate or store near any indoor or outdoor heat source such as radiators, heat registers,
stoves, barbecues, campfires, or other items that produce heat. 6. Servicing may be required if the unit has been dropped or damaged in any way or if the unit does
not operate normally. Call KING Customer Service at (952) 345-8147. 10. Do not power wash the KING One Pro. 11. Do not submerge the KING One Pro or place in standing water. 12. Keep the enclosure clean from dirt, bugs, and other debris by hand washing with mild soap and
water. 13. Do not coat or paint the KING One Pro with any substance.
The KING One Pro has been designed to be maintenance and trouble free. If not using the KING One Pro for long periods of time, it is recommended that you set up the system on a quarterly basis (every three months) to keep all moving parts of the KING One Pro in good working order.
If you have any comments or questions, please contact KING Customer Service at (952) 345-8147, or by email at help@kingconnect.com.

Page 2

QUESTIONS? (952) 345-8147

ABOUT SIGNAL LOSS
OBSTRUCTIONS
The KING One Pro requires an unobstructed view of the southern sky for the best signal reception.
Be sure to place the KING One Pro in a location free from obstructions such as people, trees, buildings, vehicles, etc. This will allow for the strongest signal and will help prevent any interruption to your programming. Point the handle approximately north to speed up scan time.

WHILE IN USE, DO NOT BLOCK THE ANTENNA UNIT'S LINE OF SIGHT TO THE SATELLITES IN THE SOUTHERN SKY AT ANY TIME!

Place on a reasonably level surface
Pointing the handle approximately north may speed up scan time, but is not required for a successsful search

OBSTRUCTIONS

ANTENNA

UNIT

KC1148

SATELLITES IN SOUTHERN SKY
IMPORTANT! If you move the antenna unit any time during or after the scan, you
will have to repeat the scan.

RAIN AND SNOW FADE
Though rare, heavy rain, snow, or dense cloud cover can reduce the satellite signal, which may interrupt your programming. Your programming should return as conditions improve.
KC1168
SECURITY

The KING Antenna can be secured to an object by looping a cable thru the handle.

Cable sold separately.
Page 3

SETUP
CONTENTS

Antenna Unit

Power Inserter with Power Supply

ANT

REC

You will also need (sold separately):
DISH Programming Subscription TV

Cable(s)

DISH Wally

KC1210

Receiver

Installation Quick Guide Reference Guide

Registration Card

(3) Rubber Feet

50' RG-6 Coax Cable

Short Coax Cable

APPLY RUBBER FEET TO ANTENNA UNIT

IMPORTANT! Do not apply rubber feet if roof-mounting the antenna unit.
See the Installation Guide included in the box.

Apply (3) rubber feet

Do not apply here.

Soft, non-scratching surface
KC1153

Page 4

CONNECTIONS
Connect components in following order.
A Connect coax cables. B Plug in power inserter. C Plug in receiver(s).
Power inserter is for indoor use only. Place the power inserter in an accessible location. Do not over-tighten the coax connections. Do not put sharp bends or kinks in the cables. Do not route the cables where they can be tripped on or run over by a vehicle.
NOTE: If your main receiver has two SAT IN ports: AUX coax may be connected to second SAT IN port for dual tuner usage.

110 AC/DC Power Supply

HAND-TIGHTEN COAX. OVER-TIGHTENING CAN DAMAGE CONNECTIONS.

AUX

MAIN

Button LED

A
50' Coax
A

ANT

REC

KING Power Inserter

Coax sold separately

B
Receivers sold separately

C 110 AC

A
Short
Coax

SAT IN MAIN Receiver

To TV

C 110 AC

SAT IN Optional AUX Receiver

To TV

KC1187

After connecting and plugging in all components, wait for the power inserter LED to turn steady green.
The Mobile Antenna Setup screen should appear on your TV. Go to the next page.
Page 5

ANTENNA CONFIGURATION
DISH with Wally receivers and the ViP models listed below (in the gray box) use mode 1. The KING One Pro comes factory preset for mode 1. If your antenna is new, you will not need to configure it.
IF YOUR ANTENNA IS NEW, SKIP THIS STEP AND GO TO PAGE 8.

MODE
1
2 3 4

SERVICE DIRECTV

SATELLITES 101, 119

DIRECTV subscribers

DISH DISH Bell TV DISH

61.5, 110, 119, 129 DISH subscribers with Wally, ViP211z, 211k, 411or 211 receivers

110, 119, 129 DISH subscribers with receivers not listed in MODE 1

82, 91

Bell TV subscribers

61.5, 110, 119 DISH subscribers with receivers not listed in MODE 1

Page 6

IF YOUR ANTENNA IS NEW, SKIP THIS STEP AND GO TO PAGE 8.

Make sure the LED is steady green
GREEN

1 KC1218

To enter Configuration Mode, press and hold (~3 sec) the power
inserter button until one of the options below appears

2

Press and release as needed to

choose Mode1

MODE 1 (DISH)
BLUE

MODE 2 RED

RED

pattern repeats... pattern repeats...

MODE 3 GREEN

GREEN

pattern repeats...

MODE 4 RED

RED

pattern repeats...

3

KC1220

GREEN

Press and hold (~3 sec) until LED turns steady green

Go to next page to start a scan.

Page 7

NEW AND UNACTIVATED RECEIVER

OPERATION
NEW AND UNACTIVATED WALLY RECEIVER
IF YOUR RECEIVER IS NEW AND UNACTIVATED, START HERE. Otherwise go to STANDARD OPERATION on page 14.

WHILE IN USE, DO NOT BLOCK THE ANTENNA UNIT'S LINE OF SIGHT TO THE SATELLITES IN THE SOUTHERN SKY AT ANY TIME!

Place on a reasonably level surface
Pointing the handle approximately north may speed up scan time, but is not required for a successsful search

OBSTRUCTIONS

ANTENNA

UNIT

KC1148

SATELLITES IN SOUTHERN SKY
IMPORTANT! If you move the antenna unit any time during or after the scan, you
will have to repeat the scan.

1. After connecting and turning on your equipment, the Wally Startup screens will appear (this may take several minutes).
IMPORTANT!
Your TV screen may look different from what is shown in this manual. Screen information
may vary depending on choices you make during the setup process.
For best results, follow the on-screen instructions.

Page 8

2. Follow the on-screen instructions to pair your remote control.
IMPORTANT! If present, pull out the protective battery tab from the battery compartment on the back
of the remote.
3. Use the arrow buttons on your remote to highlight "Next" and press Select.
4. Follow the on-screen instructions to select your display resolution.
5. The Mobile Antenna Setup screen will appear.

Install � Pair Remote Control

Receiver ID XXXXXXXXXX-XX Smart Card ID XXXXXXXXXX-XX

Pair Remote Control Test Installation Activate Receiver Download Software Summary

Pair Your DISH Remote Control
Press the SAT button to pair your remote control to your receiver. Your timers and other settings will automatically be restored from your remote.
Status No remote paired. Press the SAT button now

or

MODES

TV

DVD

SAT INPUT

AUX PAGE

MENU

Pair

TV

MUTE

VOLUME

GUIDE

SAT TV AUX

Please keep your remote control in the vicinity of your receiver throughout the installation process.

Note: To avoid pairing the remote with multiple receivers, ensure no other DISH receivers in the home are on the Pair Remote Control step or in Diagnostics.
KC944

Install � Pair Remote Control

Receiver ID XXXXXXXXXX-XX Smart Card ID XXXXXXXXXX-XX

Pair Remote Control Test Installation Activate Receiver Download Software Summary

Pair Your DISH Remote Control
Status Remote successfully paired
Text to Speech
Now that you've paired your remote successfully, let us know whether you would like text to speech turned on. If so, select Continue with Text to Speech below.

Please keep your remote control in the vicinity of your receiver throughout the installation process.

Next step begins automatically in 30 seconds.

Continue with Text to Speech

Install � Pair Remote Control

Receiver ID XXXXXXXXXX-XX Smart Card ID XXXXXXXXXX-XX

Pair Remote Control Test Installation Activate Receiver Download Software Summary

Pair Your DISH Remote Control

Testing Display Settings

756

Status Remote successfully paired

Display set to: 720p
Text to Speech
Please select Keep to save this display setting.

Now that you've paired your remote successfully, let us know whKeetehper you wouRldevleikrte text to speech turned on. If so, select Continue with Text to Speech below.

Reverting to previous settings in 6 seconds

Please keep your remote control in the vicinity of your receiver throughout the installation process.

Next step begins automatically in 30 seconds.

Continue with Text to Speech

Install � Test Installation

Receiver ID XXXXXXXXXX-XX Smart Card ID XXXXXXXXXX-XX

Pair Remote Control Test Installation Activate Receiver Download Software Summary

Mobile Antenna Setup
Please ensure your antenna is placed on a stable surface with a clear view of the southern sky. If applicable, point the handle towards the north.

Once you have completed the selections below, please select Scan.

State:

Select State

?

Mode:

Select mode type

?

Please keep your remote control in the vicinity of your receiver throughout the installation process.

Scan

KC1110
Page 9

NEW AND UNACTIVATED RECEIVER

6. Use the arrow buttons on your remote to highlight the state menu. Press Select on your remote to open the state menu.
Use the arrow buttons on your remote to highlight the state you are currently in.
Press Select on your remote. (State selection will be saved.)

Install � Test Installation

Receiver ID XXXXXXXXXX-XX Smart Card ID XXXXXXXXXX-XX

Pair Remote Control Test Installation Activate Receiver Download Software Summary

Mobile Antenna Setup

Please ensure your antenna is placed on a stable surface with a clear view of the southern sky. If applicable, point the handle towards the north.

Once you have completed the selections below, please select Scan. Select State

State:

MAilnanbeasmoata

?

Mode:

Alaska Select mode type

?

Arizona

Arkansas

Please keep your remote control in the vicinity of your receiver throughout the installation process.

Scan

KC1094

NOTE FOR STEP 7: The mode menu may not be present on all receivers.
The 110, 119, 129 trio will work for most of the country.
The antenna unit may have trouble locking onto the 129 when in the northeastern United States (you can use the Dish Diagnostics Screen after a scan to check this).
If the antenna unit does not lock onto the 129, choose the 61.5, 110, 119 trio.
Any programming from the 129 will not be available when using the 61.5, 110, 119 trio.

Reception from the 129 may be difficult in this area.
Choose the 61.5, 110, 119 trio.

129 119 110

KC1149
61.5

7. Use the arrow buttons on your remote to highlight the mode menu. Press Select on your remote to open the mode menu.
Use the arrow buttons on your remote to highlight the mode you wish to select.
Press Select on your remote. Page 10

Install � Test Installation

Receiver ID XXXXXXXXXX-XX Smart Card ID XXXXXXXXXX-XX

Pair Remote Control Test Installation Activate Receiver Download Software Summary

Mobile Antenna Setup

Please ensure your antenna is placed on a stable surface with a clear view of the southern sky. If applicable, point the handle towards the north.

Once you have completed the selections below, please select Scan.

State: Mode:

M innesota

?

SSeelleecctt mmooddee ttyyppee

?

WA 1 TV(110, 119, 129)

WA 1 TV(61.5, 110, 119)

Please keep your remote control in the vicinity of your receiver throughout the installation process.

Scan

KC1093

8. Use the arrow buttons to highlight "Scan" and press Select.
This screen will appear while the antenna scans for satellites.
The satellite signals are being acquired. When complete, the system will proceed to the next step automatically.
9. You are now ready to activate your receiver. Call a DISH mobile antenna specialist to activate your receiver.
1-800-963-DISH (3474)

Install � Test Installation

Receiver ID XXXXXXXXXX-XX Smart Card ID XXXXXXXXXX-XX

Pair Remote Control Test Installation Activate Receiver Download Software Summary

Mobile Antenna Setup

Please ensure your antenna is placed on a stable surface with a clear view of the southern sky. If applicable, point the handle towards the north.

Once you have completed the selections below, please select Scan.

State:

M innesota

?

Mode:

WA 1 TV(110, 119, 129)

?

Please keep your remote control in the vicinity of your receiver throughout the installation process.

Scan

KC1111

Install � Test Installation

Pair Remote Control

Testing Installation

Test Installation Activate Receiver

Please wait while satellite signals are acquired. When complete, the system will Check SwpitrcohceSetdattoutshPernoegxrtestsesp automatically.

Download Software

Do not move or disturb your mobile Please waitawnhteilnenyaoudrusriwnigtcthheinisntsatlalalltaiotinonispcrhoecceksesd. .

Summary

Acquiring satellite signals

Stop 4 minutes remaining

Please keep your remote control in the vicinity of your receiver throughout the installation process.

Satellite 110 Tuner 1

Receiver ID XXXXXXXXXX-XX Smart Card ID XXXXXXXXXX-XX
Retest Installation Turn Alternate On 058 Select Turn Alternate On
if you live outside of the continental U.S.
KC951

Install � Test Installation

Pair Remote Control Test Installation Activate Receiver Download Software Summary
Please keep your remote control in the vicinity of your receiver throughout the installation process.

Testing Installation
Please wait while satellite signals are acquired. When complete, the system will proceed to the next step automatically. Do not move or disturb your mobile antenna during the installation process.
Acquiring satellite signals

4 minutes remaining

Satellite 110 119 129 Tuner 1

Conn

Receiver ID XXXXXXXXXX-XX Smart Card ID XXXXXXXXXX-XX
Retest Installation Turn Alternate On Select Turn Alternate On
if you live outside of the continental U.S.
KC952

Install � Activate Receiver

Call 1-800-333-DISH (3474) Receiver ID XXXXXXXXXX-XX for assistance. Smart Card ID XXXXXXXXXX-XX

Pair Remote Control Test Installation Activate Receiver Download Software Summary

Activate your Receiver

Activation Status

Waiting for activation signal...

To activate your receiver, please call 1-800-333-DISH (3474).

Please keep your remote control in the vicinity of your receiver throughout the installation process.

Receiver ID XXXXXXXXXX-XX Smart Card ID XXXXXXXXXX-XX Satellites 110,119,129,Conn

Software version U418

Switch

Mobile

KC953
Page 11

NEW AND UNACTIVATED RECEIVER

After calling to activate your receiver, a software download will begin.
Do not disturb or unplug your receiver during this process!

Install � Test Installation

Call 1-800-333-DISH (3474) Receiver ID XXXXXXXXXX-XX for assistance. Smart Card ID XXXXXXXXXX-XX

Pair Remote Control Test Installation Activate Receiver Download Software Summary

Downloading Wally software.
Please do not disturb or unplug your DISH receiver during the download. This step should take no longer than 20 minutes to complete.
When complete, the receiver will reboot automatically.
Waiting to download...

Checking for available downloads.

Please keep your remote control in the vicinity of your receiver throughout the installation process.

Please remain on the line if you are in the process of activating your receiver.

KC954

10. When the download is complete, the installation summary will appear.
Use the arrow buttons on your remote to highlight "Activate Receiver" and press Select.

Install � Summary

Software Version U418 Receiver ID XXXXXXXXXX-XX Call 1-800-333-DISH (3474) for assistance. Smart Card ID XXXXXXXXXX-XX

! Internet Connectivity

Internet:

Not Connected

Use your internet connection to access free and paid on-demand titles, get proactive customer support, and more.

Get Connected

TV Settings
Resolution: 480p

! Remote Control Settings

Paired TV:

Not Set

Receiver Activation

Status:

Not Activated

Set Resolution Set up your remote to control your TV. Pair to your TV
Activate Receiver

Press the SYS INFO button on the front of your receiver for more information.

Watch TV
KC955

The receiver activates.
This may take a while. PLEASE BE PATIENT.

Install � Activate Receiver

Call 1-800-333-DISH (3474) Receiver ID XXXXXXXXXX-XX for assistance Smart Card ID XXXXXXXXXX-XX

Pair Remote Control Test Installation Activate Receiver Download Software Summary

Activate your Receiver

Activation Status

Activating....

To activate your receiver, please call 1-800-333-DISH (3474).

Receiver ID XXXXXXXXXX-XX

Software version U418

Smart Card ID XXXXXXXXXX-XX

Switch

Mobile

Please keep your remote control in the vicinity of your receiver throughout the installation process.

Satellites 110,119,129,Conn

KC956

The installation summary screen confirms receiver activation.
Page 12

Install � Summary

Software Version U418 Receiver ID XXXXXXXXXX-XX Call 1-800-333-DISH (3474) for assistance. Smart Card ID XXXXXXXXXX-XX

! Internet Connectivity

Internet:

Not Connected

Use your internet connection to access free and paid on-demand titles, get proactive customer support, and more.

Get Connected

TV Settings
Resolution: 480p

! Remote Control Settings

Paired TV:

Not Set

Receiver Activation

Status:

Activated

Set Resolution Set up your remote to control your TV. Pair to your TV
Activate Receiver

Press the SYS INFO button on the front of your receiver for more information.

Watch TV
KC957

NEW AND UNACTIVATED RECEIVER

11. Use the arrow buttons on your remote to highlight "Watch TV" and press Select.

Install � Summary

Software Version U418 Receiver ID XXXXXXXXXX-XX Call 1-800-333-DISH (3474) for assistance. Smart Card ID XXXXXXXXXX-XX

! Internet Connectivity

Internet:

Not Connected

Use your internet connection to access free and paid on-demand titles, get proactive customer support, and more.

Get Connected

TV Settings
Resolution: 480p

! Remote Control Settings

Paired TV:

Not Set

Receiver Activation

Status:

Activated

Set Resolution Set up your remote to control your TV. Pair to your TV
Activate Receiver

Press the SYS INFO button on the front of your receiver for more information.

Watch TV
KC958

The receiver will acquire signal.

Acquiring Signal

535

This should take no more than 5 minutes to complete...

KC959

12. Watch TV!

NOTE: Your Wally should have downloaded its program guide already. Check and make sure the full guide is available. If it is not, you will need to reset the Wally for it to download the full guide. If there is a software update available for your Wally, it will automatically download when you put your Wally in standby mode.
You can now use STANDARD OPERATION on page 14.
Page 13

STANDARD OPERATION
IF YOUR RECEIVER IS NEW AND UNACTIVATED, MAKE SURE TO DO THE FIRST-TIME SETUP PROCEDURE ON PAGES 8-13 FIRST.

WHILE IN USE, DO NOT BLOCK THE ANTENNA UNIT'S LINE OF SIGHT TO THE SATELLITES IN THE SOUTHERN SKY AT ANY TIME!

Place on a reasonably level surface
Pointing the handle approximately north may speed up scan time, but is not required for a successsful search

OBSTRUCTIONS

ANTENNA

UNIT

KC1148

SATELLITES IN SOUTHERN SKY
IMPORTANT! If you move the antenna unit any time during or after the scan, you
will have to repeat the scan.

NOTE: This manual shows graphics for a DISH Wally receiver. If you have a ViP model receiver, you can access the KING One with ViP Receiver Owner's Manual by going to kingconnect.com/support. Click on "Owners Manuals" and choose the manual for KING One with ViP receiver.
1. After connecting and turning on your equipment, the Wally Startup screens will appear (this may take several minutes).
NOTE: If the Wally Standby screen appears, press any button on your remote to continue.

STANDARD OPERATION

IMPORTANT! Your TV screen may look different from what is shown in this manual. Screen information may vary depending on choices you make.
For best results, follow the on-screen instructions.
Page 14

2. After the Wally starts up, the Mobile Antenna Setup screen will appear.

STANDARD OPERATION

NOTE FOR STEP 3: The mode menu may not be present on all receivers.
The 110, 119, 129 trio will work for most of the country.
The antenna unit may have trouble locking onto the 129 when in the northeastern United States (you can use the Dish Diagnostics Screen after a scan to check this).
If the antenna unit does not lock onto the 129, choose the 61.5, 110, 119 trio.
Any programming from the 129 will not be available when using the 61.5, 110, 119 trio.

Reception from the 129 may be difficult in this area.
Choose the 61.5, 110, 119 trio.

129 119 110

KC1149
61.5

3. Use the arrow buttons on your remote to highlight the mode menu. Press Select on your remote to open the mode menu.
Use the arrow buttons on your remote to highlight the mode you wish to select.
Press Select on your remote.

Page 15

STANDARD OPERATION

4. Use the arrow buttons on your remote to highlight the state menu. Press Select on your remote to open the state menu. Use the arrow buttons on your remote to highlight the state you are currently in. Press Select on your remote. (State selection will be saved.)
5. Use the arrow buttons on your remote to highlight "Scan." Press Select on your remote.
The scan will begin and may take up to several minutes to complete. This screen will appear during the scan.
When the scan is complete, the Acquiring Signal screen will appear.
Page 16

STANDARD OPERATION

After your receiver has acquired the signal, the program guide will download. This may take up to 10 minutes to complete (potentially longer if an external hard drive is connected).
6. When the guide has downloaded, live TV will appear. Enjoy!
OPERATING NOTES: If you move the KING One Pro while in use, or get a screen indicating complete signal loss, you will have to perform a new scan to restore programming by going to the Mobile Antenna Setup screen as follows: Press the HOME button to return to the home page. Choose "Settings" and then "Diagnostics." Choose "Dish 3" and then "Test Installation 5." This will take you back to the Mobile Antenna Setup screen. Initiate a new scan. When in the northeastern United States, television programming from the 129 satellite may not be available (see page 15). If your system is inactive for an extended period of time, you may have to call DISH Customer Service at 1-800-333-DISH (3474) to reauthorize your receiver.
If your receiver has not been used for a while the 013 error message may appear. Call 1-800-333-DISH (3474) and follow the prompts to reauthorize your receiver. Note that if channel 101 appears, scroll channel up or down to make sure 013 error message does not appear. You can view your programming when your receiver has been authorized and the guide has finished downloading.
Page 17

SECOND RECEIVER OPERATION

IMPORTANT! If your second receiver is new and unactivated, you must first connect it to the MAIN port and do an initial setup as described in the New and Unactivated Receiver Section starting on page 8.

INITIAL SETUP FOR SECOND RECEIVER
1. Make sure your second receiver has been properly set up and activated (while connected to the MAIN port) as described in the New and Unactivated Receiver Section (page 8).

2. Connect your properly activated main receiver to the MAIN port. Run a scan to lock onto the satellites.
3. Connect the second receiver to the AUX port.

Antenna must be locked on with main receiver
connected to MAIN port.

4. Run a check switch test on second receiver. When test is complete, save the results.

DOWNLOADING PROGRAMMING TO THE SECOND RECEIVER
5. After completing the check switch test, reset the second receiver by pressing the POWER button on the front panel for 10 seconds. The receiver will reboot and go into sleep mode (green light on front panel will be off). Press Select to wake it up.
The receiver will then download the program guide to show only the channels available on the current satellite as determined by the channel selected on the main receiver. Downloading the new program guide can take up to five minutes to complete.
The channels available on the second receiver are determined by the channel/satellite selected on the main receiver. For example, if you select a channel on the main receiver that is broadcast from the 119 satellite, then the second receiver will be able to view any channel broadcast from the 119 satellite.
If you switch channels on the main receiver to one that is broadcast from a different satellite, (for example, your channel was broadcast from satellite 119 but your new channel is broadcast from the 110), the antenna will automatically switch to the 110 satellite and programming will be lost on the second receiver until you either:
� Select a channel on the main receiver that is broadcast from the previous satellite (satellite 119 in this example).
(or)
� Reset the second receiver by running another check switch test to download the program guide for the newly selected satellite (satellite 110 in this example).
NOTE: If you choose a channel on the main TV that causes the antenna to switch satellites, you may have to run a check switch on the second receiver.
Page 18

ACCESSORIES (Sold separately - see the satellite antenna accessories page at kingconnect.com)

MB700
Quick Release Roof-Mount Kit
Allows you to easily use your KING One Pro as either a roof-mounted or
portable antenna.
KING Antenna not included.

MB500
Mounting Bracket

CB1000
Carry Bag
KING One Pro fits securely inside. Features include zippered cover, foam padding,
carry handles and pockets for cables, receiver and remote.
KING Antenna not included.
TR1000
Tripod Mount
Allows you to position your KING One Pro almost anywhere for best line of sight to satellite. Keeps antenna off the ground away from moisture.
KING Antenna not included.

Allows hanging of antenna unit on vehicle window or included hanger bracket. For stationary use only.
Vehicle must not be in motion while antenna unit is on window or hanger bracket.
KING Antenna not included.
MB160
Mounting Bracket
The KING One Pro is not compatible with the MB100 Mounting Bracket.
Use of the MB100 will void warranty. The use of any unauthorized
mounting bracket will void warranty.
KING Antenna not included.
Page 19

TROUBLESHOOTING

GENERAL

Symptom

Possible Cause

Antenna unit does not scan for satellites.

No power to antenna unit.

Troubleshooting
Make sure antenna unit is connected to power inserter.
Make sure power supply is plugged in and connected to power inserter.

Antenna unit scans but no picture on TV.

Improper connections made.

Make sure antenna unit is connected to power inserter, and power inserter is plugged in.
Make sure powered receiver is connected to TV and the power inserter.

Antenna unit scans but does Line of sight obstruction. not find satellite.

Move antenna unit to have a clear view of the southern sky. Start a new scan.

Picture on TV goes in and out. Temporary obstruction of signal. Heavy rain or snow may cause loss of signal. Reception will improve as weather clears.
Make sure nothing is temporarily blocking view to the southern sky (like tree branches blowing in the wind).

If you connect or install the antenna unit using any of the vehicle's internal wiring/coax, and the antenna unit does not work properly, it could be the vehicle's wiring/coax. Connect a known good coax directly from the antenna unit to the power inserter and see if the problem goes away. If it does, the vehicle's wiring/coax is at fault. KING is not responsible for faulty vehicle wiring/coax.

Page 20

WALLY RECEIVERS

Symptom/Message

Possible Cause

Troubleshooting

"SmartCard Not Inserted" message (021) on startup.

SmartCard is not fully seated in Wally slot.

Your SmartCard is located on the left side of the Wally. Pull out the SmartCard and insert it back into the slot. Make sure the arrow on the SmartCard is facing up and is inserted first into the receiver. If there is not a SmartCard in your receiver please call 1-800-333-DISH.

My remote is not working. Remote is in wrong mode.
Your batteries may need to be replaced.
Your remote is not currently paired with your receiver.

If you think the remote is paired, but in the wrong mode, press the "SAT" button on the left side of the remote.
Check to make sure the batteries are properly inserted in your remote. If "SAT" on the front top of the remote does not light up when you press the SAT button on the left side of the remote, replace the batteries.
To pair your remote, press the "SYS INFO" button on the front of the Wally and then press the "SAT" button on the left side of your remote.

Complete Signal Loss 015A

Obstructions to the KING One Pro's Make sure nothing is blocking the KING One

view of the southern sky, such as tree Pro's view of the southern sky, such as tree

branches, severe rain, etc.

branches, severe rain, or other obstructions.

Coax cable not connected properly between your Wally and the KING One Pro.

Check that the coax cable between your Wally and the KING One Pro is connected properly and hand-tightened.

You have selected a local channel but First, verify you have reception by selecting a

are outside of its spot beam area.

nationally broadcast channel (CNN, ESPN, etc.).

Then call DISH at 1-800-333-DISH to have your locals switched to your current area.

KING One Pro has been moved.

If KING One Pro has been moved, initiate a new scan.

Channel Signal Loss - 004

KING One Pro has not tracked to the appropriate orbital slot upon channel change.

There may be an obstruction blocking signal from the newly chosen satellite.
Verify there are no obstructions, or move KING One Pro to have a better view of southern sky and initiate a new scan. Once your system has found its satellites, it may take a few minutes to download the electronic program guide and acquire signal before live TV appears.

Page 21

Symptom/Message

Possible Cause

Troubleshooting

All Satellites Not Found - 150 Obstructions to the KING One Pro's Make sure nothing is blocking the KING One

view of the southern sky, such as Pro's view of the southern sky, such as tree

tree branches, severe rain, etc.

branches, severe rain, or other obstructions.

Your physical location may be outside the footprint of the desired orbital slot.

Unplug the power cord of your receiver for 10 seconds and plug it back in. It may take up to 5 minutes for your receiver to power back on.

No Satellites Found - 151

Obstructions to the KING One Pro's Make sure nothing is blocking the KING One

view of the southern sky, such as Pro's view of the southern sky, such as tree

tree branches, severe rain, etc.

branches, severe rain, or other obstructions.

Coax cable not connected properly Check that the coax cable between your receiver

between your receiver and the KING and the KING One Pro is connected properly and

One Pro.

hand-tightened.

Unplug the power cord of your receiver for 10 seconds and plug it back in. It may take up to 5 minutes for your receiver to power back on.

OTA Channel Signal Lost 739

The signal has been lost for this over-the-air channel. This can be due to relocation or realignment of the antenna.
Possible obstruction of the signal.

Reposition antenna into optimal position to get clearest signal. May need to scan again for OTA channels.
Remove obstruction from signal path.

OTA Tuner Module Not Detected - 978

An over-the-air (OTA) tuner module has been removed.

Reinstall OTA tuner module. When this is complete the Wally will request to be reset. Select YES to reset the Wally.

Local Channels Interrupted - 536

Call DISH at 1-800-333-DISH to have your locals switched to your current area.

Missing Channels.

The electronic program guide may not be set to "My Channels."

Press the GUIDE button on your remote twice to display the "Favorite Channels" menu. Select "None" or one of your favorite channels list.

You may not have the orbital slots required to view the missing television programming.

Confirm that you subscribe to the missing channel by using dish.com/mychannels.

Low signal strength.

Because of the small size of the

N/A

highly portable KING One Pro, sig-

nal strength may not be as strong as

with a fixed home antenna.

Page 22

Symptom/Message

Possible Cause

Unable to Access Feature - Feature not downloadable. 024

Troubleshooting
Keep receiver in standby for 1 hour.

Sporting Event Blackout 744

Blackout patterns are applied based N/A on the physical address on your account. Events outside the area surrounding your physical address may not be available.

Outside of Viewing Area - 120

You are outside of the viewing area Call DISH at 1-800-333-DISH to have your locals

of currently available channels.

switched to your current area.

Page 23

LIMITED WARRANTY
KING One Pro Satellite Antennas are thoroughly inspected and tested before leaving the factory, and are covered by the following limited warranty from the date of original purchase:
� Two-year parts warranty: The customer is not responsible for the cost of replacement parts if the original part is determined to be defective under the terms of the warranty. The customer is responsible for the cost of replacement parts after two years.
� One-year labor warranty: The customer is not responsible for labor costs to repair unit if labor is performed within the labor warranty period. The customer is responsible for all labor costs after one year.
Only KING and certified dealers may perform warranty evaluations and repairs. Depending upon the problem, KING may authorize a dealer to perform the necessary repairs. Any warranty labor outside of that performed at the factory is not covered unless 1) the product has been installed by an authorized dealer/installer or OEM manufacturer and 2) the dealer/installer receives prior authorization to perform the repair.
A certified dealer must not perform any repair without first contacting KING for a Service Order Number. KING will advise the dealer on how to proceed with any repairs.
Should any trouble develop during the warranty period, contact KING at (952) 345-8147. You must contact KING before the warranty period expires. The customer must supply proof of purchase (such as a dated sales receipt) when requesting warranty service. If the customer cannot supply proof of purchase, warranty period shall start 30 days after date of manufacture.
If it is determined that the unit needs to be returned to KING, customer must return COMPLETE product, freight prepaid, to: KING, 11200 Hampshire Avenue South, Bloomington, MN 55438-2453. If inspection shows the trouble is caused by defective workmanship or material, KING will repair (or at its option, replace) without charge.
When returning product, KING will supply an RMA number (Return Merchandise Authorization). This number must be clearly written on the box. Failure to clearly write RMA number on box may result in delays in processing claim. Along with product, customer should include in the box: his/her name, address, daytime phone number, proof of purchase and description of the problem.
This warranty does not cover installation and external wiring, or remanufactured units. This warranty does not cover damage caused by the use of an accessory other than a KING accessory designed for the product. This warranty is not transferable from the original owner.
Due to the expanding and changing TV market, KING cannot be held responsible for changes made to satellite services. Software updates to address such issues are not covered under warranty.
This warranty also does not apply where:
� The product has been abused, misused, improperly installed or improperly maintained. � The product has been used with an accessory other than a KING accessory designed for the product. � Repairs have been made or attempted by others that are not certified by KING to do such repairs. � Repairs are required because of normal wear and tear. � Alterations have been made to the product. � The product or any associated component has been opened without authorization or disassembled to any degree. � Damage has been caused by power washing. � Circumstances beyond the control of KING cause the product to no longer operate correctly. � Customer is not the original owner.
In no event shall KING be liable for any indirect, incidental, or consequential damages from the sale or use of the product. This disclaimer applies both during and after the term of this warranty.
KING disclaims liability for any implied warranties, including implied warranties of "merchantability" and "fitness for a specific purpose," after the term of this warranty.
This warranty gives you specific legal rights, and you may also have other rights, which vary from state to state. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you.
Page 24

FCC GUIDELINES
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not incur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
� Reorient or relocate the receiving antenna. � Increase the separation between the equipment and the receiver. � Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. � Consult the dealer or an experienced radio/TV technician for help.
Page 25

Simply better, by design.TM
11200 Hampshire Avenue South, Bloomington, MN 55438 PH 952.922.6889 || FAX 952.922.8424 || kingconnect.com
�2019 KING 23433 Rev A
All trademarks are the sole property of their respective owners.

KING One Pro Premium Satellite TV Antenna Installation Guide

KOP4800 Installation Guide QUESTIONS? - Northern Tool

KOP4800 Installation Guide QUESTIONS? (952) 345-8147

Full PDF Document

Extracted Text

References
