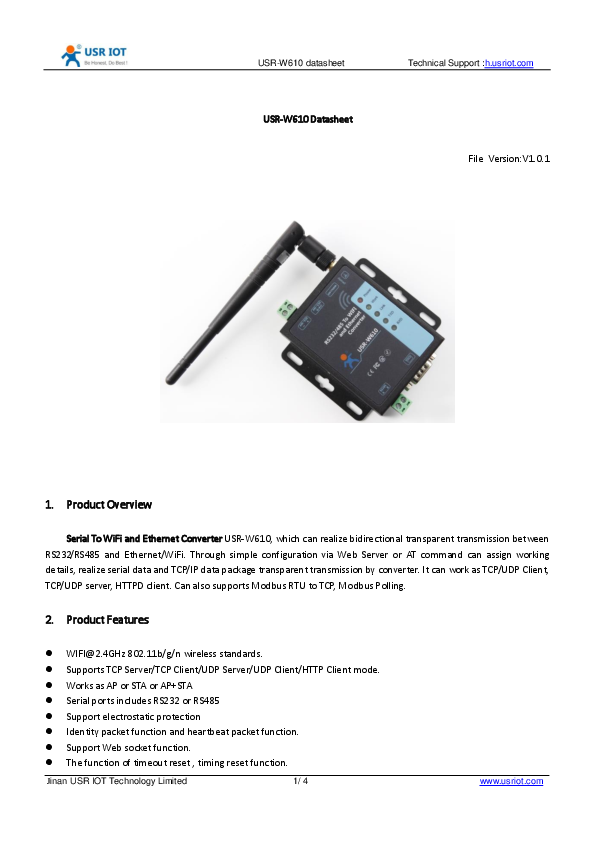

USR-W610 datasheet
USR-W610 Datasheet

Technical Support :h.usriot.com
File Version:V1.0.1

1. Product Overview

Serial To WiFi and Ethernet Converter USR-W610, which can realize bidirectional transparent transmission between RS232/RS485 and Ethernet/WiFi. Through simple configuration via Web Server or AT command can assign working details, realize serial data and TCP/IP data package transparent transmission by converter. It can work as TCP/UDP Client, TCP/UDP server, HTTPD client. Can also supports Modbus RTU to TCP, Modbus Polling.

2. Product Features

WIFI@2.4GHz 802.11b/g/n wireless standards. Supports TCP Server/TCP Client/UDP Server/UDP Client/HTTP Client mode. Works as AP or STA or AP+STA Serial ports includes RS232 or RS485 Support electrostatic protection Identity packet function and heartbeat packet function. Support Web socket function. The function of timeout reset , timing reset function.

Jinan USR IOT Technology Limited

1/ 4

www.usriot.com

USR-W610 datasheet

Technical Support :h.usriot.com

Support Web Server, setup software, serial/network AT command to configure module.

Hardware reload.

Support usrllink

It can work as router and bridge

Rich indicator LED power, work, link, RXD, TXD

Wide voltage DC 5~36V, support 5.5*2.1 standard power interface and terminal power

Double supply, one in and one out supply for device

Support MAC, USR-cloud, modbus polling

Remote upgrade

Add hardware watch dog, makes more stable

Support websocket and realize the timing communication for serial port and netport.

Support webpage, setting software, serial port AT command, net AT command

Long distance communication: two serial server can transport for 280m

Design for location hole, convenient for install

3. Product Specifications
Ethernet Port Port Number Buffer Protection
Network Protocol Speed Rate
Wi-Fi Certificate WiFi
Frequency Range Transmit Power Receive Sensitivity

1 Ethernet Ports: 1 x WAN/LAN Rx/TX: Max 16K bytes
2 KV Electromagnetic isolation for Ethernet port IP/TCP/UDP/DHCP/DNS/HTTP/ ARP/ICMP/Web socket/Httpd client
10/100 Mbps, MDI/MDIX
FCC/CE 802.11 b/g/n 2.412GHz-2.484GHz 802.11b: +19dBm(Max),802.11g: +18dBm(Max),802.11n:+17dBm(Max) 802.11b: -89dBm,802.11g: -81dBm,802.11n: -73dBm

Jinan USR IOT Technology Limited

2/ 4

www.usriot.com

Hardware
Interface Standard Input Voltage
Operating Temp. Storage Temp.
Size Software

USR-W610 datasheet

Technical Support :h.usriot.com

RS232: 300460.8Kbps RS485:300230.4Kbps
DC536V -40c 85c -40c 125c
86*82.5*25mm(L*W*H)

Network Mode Security
Encryption
Work Mode Setting Command Networking Protocol Max. Client Number in TCP Server Mode
Configuration More
Warranty

Station/AP/AP+Station WEP/WPA-PSK/WPA2-PSK WEP64/WEP128/TKIP/AES Transparent transmission / serial AT command/ HTTP ClientModbus TCP<=>Modbus RTU
AT+command TCP/UDP/ARP/ICMP/DHCP/DNS/HTTP
24 Web sever+ AT command
2 years

4. Product Dimensions Unit: mm

Jinan USR IOT Technology Limited

3/ 4

www.usriot.com

USR-W610 datasheet

Technical Support :h.usriot.com

5. Contact Us
Company: Jinan USR IOT Technology Limited Address: Floor 11, Building 1, No. 1166 Xinluo Street, Gaoxin District, Jinan, Shandong, 250101, China Web: www.usriot.com Support: h.usriot.com Email: sales@usriot.com Tel: 86-531-88826739
