User Guide for WINIX models including: C545, Air Purifier

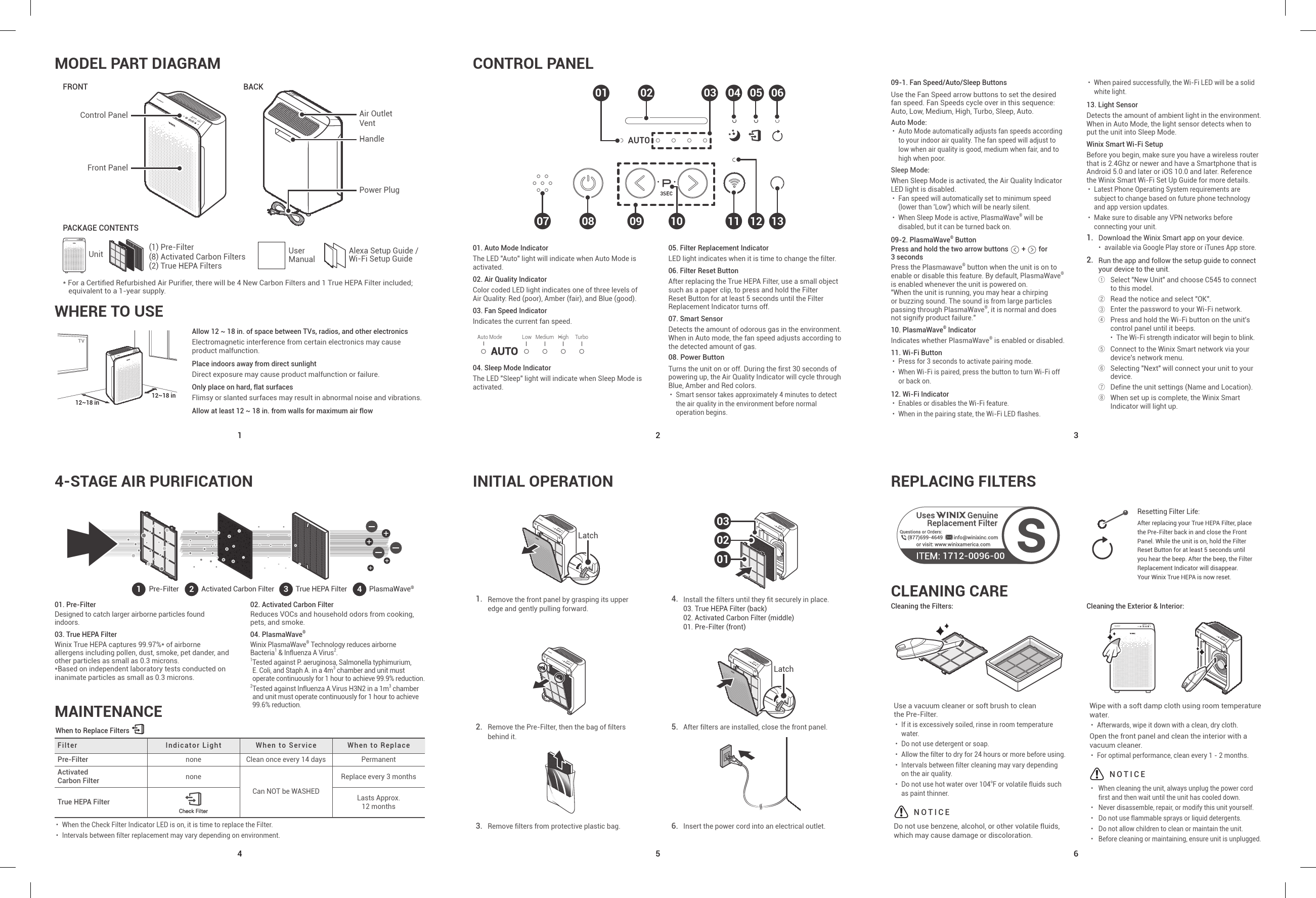

MODEL PART DIAGRAM FRONT BACK Control Panel Front Panel Air Outlet Vent Handle Power Plug PACKAGE CONTENTS Unit (1) Pre-Filter (8) Activated Carbon Filters User Manual Alexa Setup Guide / Wi-Fi Setup Guide (2) True HEPA Filters * For a Certified Refurbished Air Purifier, there will be 4 New Carbon Filters and 1 True HEPA Filter included; equivalent to a 1-year supply. WHERE TO USE 12~18 in 12~18 in Allow 12 ~ 18 in. of space between TVs, radios, and other electronics Electromagnetic interference from certain electronics may cause product malfunction. Place indoors away from direct sunlight Direct exposure may cause product malfunction or failure. Only place on hard, flat surfaces Flimsy or slanted surfaces may result in abnormal noise and vibrations. Allow at least 12 ~ 18 in. from walls for maximum air flow 1 4-STAGE AIR PURIFICATION 1 Pre-Filter 2 Activated Carbon Filter 3 True HEPA Filter 4 PlasmaWave® 01. Pre-Filter Designed to catch larger airborne particles found indoors. 03. True HEPA Filter Winix True HEPA captures 99.97%* of airborne allergens including pollen, dust, smoke, pet dander, and other particles as small as 0.3 microns. *Based on independent laboratory tests conducted on inanimate particles as small as 0.3 microns. MAINTENANCE 02. Activated Carbon Filter Reduces VOCs and household odors from cooking, pets, and smoke. 04. PlasmaWave® Winix PlasmaWave® Technology reduces airborne Bacteria1 & Influenza A Virus2. 1Tested against P. aeruginosa, Salmonella typhimurium, E. Coli, and Staph A. in a 4m3 chamber and unit must operate continuously for 1 hour to achieve 99.9% reduction. 2Tested against Influenza A Virus H3N2 in a 1m3 chamber and unit must operate continuously for 1 hour to achieve 99.6% reduction. When to Replace Filters Filter Pre-Filter Activated Carbon Filter True HEPA Filter Indicator Light none none When to Service Clean once every 14 days Can NOT be WASHED When to Replace Permanent Replace every 3 months Lasts Approx. 12 months · When the Check Filter Indicator LED is on, it is time to replace the Filter. · Intervals between filter replacement may vary depending on environment. 4 CONTROL PANEL 01 02 03 04 05 06 07 08 09 10 11 12 13 01. Auto Mode Indicator The LED "Auto" light will indicate when Auto Mode is activated. 02. Air Quality Indicator Color coded LED light indicates one of three levels of Air Quality: Red (poor), Amber (fair), and Blue (good). 03. Fan Speed Indicator Indicates the current fan speed. Auto Mode Low Medium High Turbo 04. Sleep Mode Indicator The LED "Sleep" light will indicate when Sleep Mode is activated. 05. Filter Replacement Indicator LED light indicates when it is time to change the filter. 06. Filter Reset Button After replacing the True HEPA Filter, use a small object such as a paper clip, to press and hold the Filter Reset Button for at least 5 seconds until the Filter Replacement Indicator turns off. 07. Smart Sensor Detects the amount of odorous gas in the environment. When in Auto mode, the fan speed adjusts according to the detected amount of gas. 08. Power Button Turns the unit on or off. During the first 30 seconds of powering up, the Air Quality Indicator will cycle through Blue, Amber and Red colors. · Smart sensor takes approximately 4 minutes to detect the air quality in the environment before normal operation begins. 2 INITIAL OPERATION Latch 1. Remove the front panel by grasping its upper edge and gently pulling forward. 03 02 01 4. Install the filters until they fit securely in place. 03. True HEPA Filter (back) 02. Activated Carbon Filter (middle) 01. Pre-Filter (front) Latch 2. Remove the Pre-Filter, then the bag of filters behind it. 5. After filters are installed, close the front panel. 3. Remove filters from protective plastic bag. 6. Insert the power cord into an electrical outlet. 5 09-1. Fan Speed/Auto/Sleep Buttons Use the Fan Speed arrow buttons to set the desired fan speed. Fan Speeds cycle over in this sequence: Auto, Low, Medium, High, Turbo, Sleep, Auto. Auto Mode: · Auto Mode automatically adjusts fan speeds according to your indoor air quality. The fan speed will adjust to low when air quality is good, medium when fair, and to high when poor. Sleep Mode: When Sleep Mode is activated, the Air Quality Indicator LED light is disabled. · Fan speed will automatically set to minimum speed (lower than 'Low') which will be nearly silent. · When Sleep Mode is active, PlasmaWave® will be disabled, but it can be turned back on. 09-2. PlasmaWave® Button Press and hold the two arrow buttons + for 3 seconds Press the Plasmawave® button when the unit is on to enable or disable this feature. By default, PlasmaWave® is enabled whenever the unit is powered on. "When the unit is running, you may hear a chirping or buzzing sound. The sound is from large particles passing through PlasmaWave®, it is normal and does not signify product failure." 10. PlasmaWave® Indicator Indicates whether PlasmaWave® is enabled or disabled. 11. Wi-Fi Button · Press for 3 seconds to activate pairing mode. · When Wi-Fi is paired, press the button to turn Wi-Fi off or back on. 12. Wi-Fi Indicator · Enables or disables the Wi-Fi feature. · When in the pairing state, the Wi-Fi LED flashes. · When paired successfully, the Wi-Fi LED will be a solid white light. 13. Light Sensor Detects the amount of ambient light in the environment. When in Auto Mode, the light sensor detects when to put the unit into Sleep Mode. Winix Smart Wi-Fi Setup Before you begin, make sure you have a wireless router that is 2.4Ghz or newer and have a Smartphone that is Android 5.0 and later or iOS 10.0 and later. Reference the Winix Smart Wi-Fi Set Up Guide for more details. · Latest Phone Operating System requirements are subject to change based on future phone technology and app version updates. · Make sure to disable any VPN networks before connecting your unit. 1. Download the Winix Smart app on your device. · available via Google Play store or iTunes App store. 2. Run the app and follow the setup guide to connect your device to the unit. Select "New Unit" and choose C545 to connect to this model. Read the notice and select "OK". Enter the password to your Wi-Fi network. Press and hold the Wi-Fi button on the unit's control panel until it beeps. · The Wi-Fi strength indicator will begin to blink. Connect to the Winix Smart network via your device's network menu. Selecting "Next" will connect your unit to your device. Define the unit settings (Name and Location). When set up is complete, the Winix Smart Indicator will light up. 3 REPLACING FILTERS 1712-0096-00 CLEANING CARE Cleaning the Filters: Resetting Filter Life: After replacing your True HEPA Filter, place the Pre-Filter back in and close the Front Panel. While the unit is on, hold the Filter Reset Button for at least 5 seconds until you hear the beep. After the beep, the Filter Replacement Indicator will disappear. Your Winix True HEPA is now reset. Cleaning the Exterior & Interior: Use a vacuum cleaner or soft brush to clean the Pre-Filter. · If it is excessively soiled, rinse in room temperature water. · Do not use detergent or soap. · Allow the filter to dry for 24 hours or more before using. · Intervals between filter cleaning may vary depending on the air quality. · Do not use hot water over 104oF or volatile fluids such as paint thinner. NOTICE Do not use benzene, alcohol, or other volatile fluids, which may cause damage or discoloration. 6 Wipe with a soft damp cloth using room temperature water. · Afterwards, wipe it down with a clean, dry cloth. Open the front panel and clean the interior with a vacuum cleaner. · For optimal performance, clean every 1 - 2 months. NOTICE · When cleaning the unit, always unplug the power cord first and then wait until the unit has cooled down. · Never disassemble, repair, or modify this unit yourself. · Do not use flammable sprays or liquid detergents. · Do not allow children to clean or maintain the unit. · Before cleaning or maintaining, ensure unit is unplugged. SAFETY AND CAUTIONS Before operating this equipment, carefully read and follow these safety cautions. Ensure filters are inserted before running unit. Running the unit without filters can shorten the lifespan of the unit and cause electric shock or injury. Be sure foreign objects are NOT inserted into the vents on the unit. Objects can include pins, rods, and coins. Do not touch any part of the interior of the unit with wet hands. The high voltage may cause electric shock. Ensure unit intake and outlet vents do not become blocked. Blockage may lead to increased internal termperatures, causing product failure and deformation. Do not use the unit as a step stool or place heavy objects on the unit. Personal injury may occur or product failure and deformation. WARNING Follow these instructions to reduce the risk of serious injury or death and to reduce risk of damaging the unit. · If the power cord is damaged, it must be replaced by a special cord. Reassembly is available from the manufacturer or its service agent. · This appliance is not intended for use by a person (including children) with reduced physical sensory or mental capabilities, or lack of experience and knowledge of the unit, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. · Children should be supervised to ensure that they do not play with the appliance. · This unit is not intended to be used to preserve documents or art conservation. 7 Do not pull on the power cord when unplugging the unit. Do not tie or knot the power cord when unit is in operation. If the unit becomes submerged in water, unplug it and contact customer service. Do not unplug or move the unit while in operation. Do not plug additional appliances into the same outlet or power supply. Do not touch the plug with wet hands. Unplug the unit when not in operation for extended periods of time. Do not place around heating elements. Do not use around mist or fumes from industrial oil or around large quantities of metallic dust. The cord can become damaged by forcefully bending, pulling, twisting, bundling, pinching or placing heavy objects on it. Do not install in any sort of motor or transport vehicle (trucks, boats, ships, etc.). Do not place in an area with excessive amounts of noxious gases. Do not place near any flammable materials (aerosols, fuel, gases, etc.). Do not have the unit facing into wind or drafts. Do not place below any electrical outlet. Do not place in excessively humid areas where the unit may become wet. Do not place unit closer than 12 inches from the wall during operation. It may cause condensation on the wall and the surrounding area. FREQUENTLY ASKED QUESTIONS The unit does not turn on at all. · Is the plug securely attached to the outlet? - Make sure the outlet has power going to it and ensure the plug is secured. · Is there a power outage? - Check to see if other lights and electrical equipment are working and try again. The unit doesn't work in Auto Mode. · Has Auto Mode been selected? - Press the Fan Speed button until Auto Mode is selected. · Is the sensor blocked or clogged? - Wipe Smart Sensor with wet cloth, then dry. It vibrates and makes a lot of noise. · Is it running on a slanted or uneven surface? - Move the unit to a hard, flat, even area. PRODUCT WARRANTY The power plug and outlet feel hot. · Is the plug securely plugged in? - Make sure the plug is properly plugged into the outlet. There is a strange smell. · Is it being used in a place with a lot of smoke, dust, or odors? - Clean the air intakes on either side and clean the Pre-Filter. - Replace the Carbon and the True HEPA Filter. The fan strength is weak. The unit is not purifying the air. · Is the Check Filter Indicator light on? - Change the filters as required. The display panel is dim. · Is the Light Sensor blocked by debris? - When Auto Mode is on, Sleep Mode is automatically activated when the Light Sensor detects that the room is dark. The terms of the warranty are as follows: 1. This product is manufactured under stringent quality control and inspections. 2. The warranty will be voided if product failure is a result of negligence or misuse by the consumer. 3. A proof of purchase must be presented upon claiming a Product Warranty. 4. Store the proof of purchase in a safe place or register your product on winixamerica.com to upload your proof of purchase. 5. This warranty is valid only in the USA and Canada. * For more information visit https://winixamerica.com/terms-and-conditions/ Product Name Model Name Purchase Date Warranty Period Place of Purchase Place of Purchase tel. Address Customer Name Tel. Air Purifier C545 Two (2) Years After purchase, be sure to complete all of the above information. * Certified Refurbished Air Purifiers come with a 1-year warranty. All Winix Certified Refurbished Air Purifiers go through a detailed inspection and refurbishment process to ensure all quality and performance standards are met. 9 SAFETY INSTRUCTIONS Thank you for purchasing a Winix air purifier. This product is for household use only. IMPORTANT CAUTIONS FOR USING YOUR AIR PURIFIER: WARNING: Follow the instructions in this manual to reduce the risk of electric shock, short circuit, and/or fire. · Do not repair or modify the unit. All repairs should be completed by a qualified technician. · The plug for this unit is polarized with one blade wider than the other. Do not force the plug into an electrical outlet. Do not alter the plug in any way. If the plug does not fit into the outlet, reverse the plug. If it still does not fit, contact a qualified technician to install a proper outlet. · Do not use if the power cord or plug is damaged or the connection to the wall outlet is loose. · Use AC 120V only. · Do not damage, break, forcefully bend, pull, twist, bundle, coat, pinch, or place heavy objects on the power cord. · Periodically remove dust from the power plug. This will reduce the risk of shock due to humidity build up. · Remove the power plug from the outlet before cleaning the unit. When removing the power plug, grasp by holding the plug itself, never hold by the cord. · If the power plug is damaged, it must be replaced by the manufacturer or a qualified technician. · Remove the power plug from the outlet when not in use. · Do not handle the power plug with wet hands. · Do not operate the unit when using indoor smokegenerating insecticides. · Do not clean unit with benzene or paint thinner. Do not spray insecticides on the unit. · Do not use the unit where it is humid or where the unit may become wet, such as the bathroom. · Do not insert fingers or foreign objects into air intake or outlet. · Do not use the unit near flammable gases. Do not use near cigarettes, incense, or other spark-creating items. · Unit will not remove carbon monoxide emitted from heating appliances or other sources. · Unplugging the product disconnects the remote functions. IMPORTANT PRECAUTIONS FOR USING YOUR AIR PURIFIER: · Do not block the intake or outlet vents. · Do not use near hot objects, such as a stove. · Do not use where the unit may come into contact with steam. · Do not use the unit on its side. · Keep away from products that generate oily residue, such as a deep fryer. · Do not use detergent to clean the unit. · Do not operate without a filter. · Do not wash and reuse the True HEPA Filter. · Hold the handle on the back of the unit to transport. · Do not hold by the front panel. · Do not stick any small objects into the air outlet vents or fan. 8 UNIT SPECIFICATIONS Model Name Power Voltage Power Rate Verified Room Size Dimensions Weight Replacement Filter C545 AC 120 V / 60 Hz 65 W 360 sq.ft. 13.7 in(W) × 8.4 in(D) × 20.5 in(H) 11 lbs Filter S / SKU: 1712-0096-00 The exterior, design, and product specifications may be changed without prior notice to improve product performance. Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: · Reorient or relocate the receiving antenna. · Increase the separation between the equipment and receiver. · Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. · Consult the dealer or an experienced radio/TV technician for help. This device contains license-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada's license-exempt RSS(s). Operation is subject to the following two conditions: · This device may not cause interference. · This device must accept any interference, including interference that may cause undesired operation of the device. "In French: Cet appareil contient des émetteurs/récepteurs exemptés de licence et conformes aux normes Innovation, Science et Economic. RSS(s) sans licence de Développement Canada. Le fonctionnement est soumis aux deux conditions suivantes: · cet appareil ne doit pas causer d'interférences nuisibles, et · cet appareil doit accepter toute interférence reçue, y compris les interférences pouvant provoquer un fonctionnement non souhaité." 10 AIR PURIFIER User Manual Model Use & Care Guide C545 · The product warranty is printed on the back of this guide. · This product is manufactured for use only in USA / CA. · This product is suitable for 120 V only. The energy efficiency of this ENERGY STAR certified model is measured based on a ratio between the model's CADR for smoke and the electrical energy it consumes, or CADR/Watt. Contact Winix for product related inquiries and customer service · Dedicated Call Center: (877) 699-4649 · Website: www.winixamerica.com To expedite service, please specify the model name and number, the nature of the problem, your contact information, and your address. EPA Est. No: 99260-THA-1 2610-0256-00 Rev.07Adobe InDesign 16.0 (Windows) Adobe PDF Library 15.0
