Owner's Manual for MASSIMO models including: Buck 450, Utility Vehicle
Read this manual and all labels carefully and follow the operating procedures described. This vehicle is designed to carry the driver and one passenger.

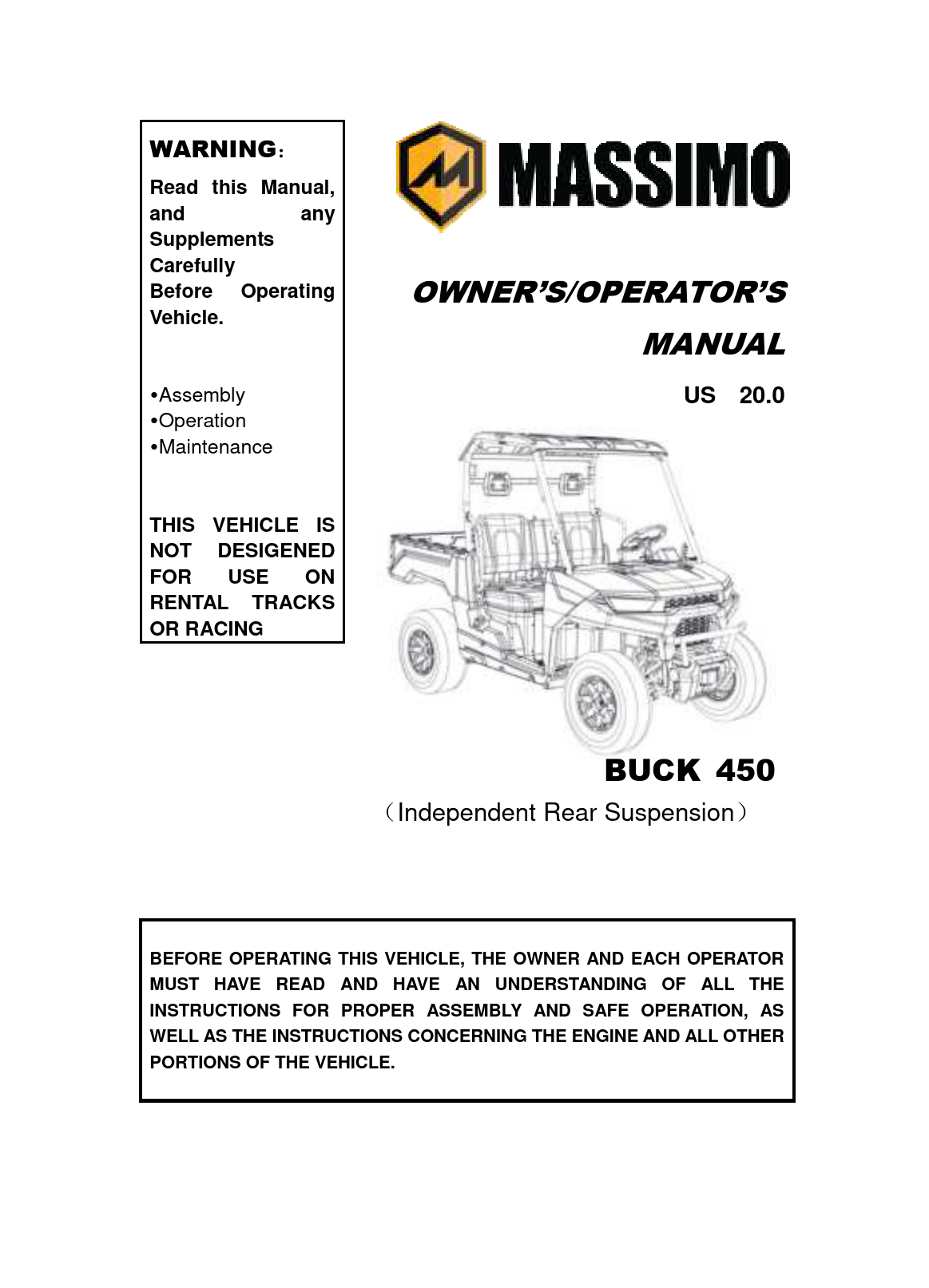

WARNING Read this Manual, and any Supplements Carefully Before Operating Vehicle. Assembly Operation Maintenance THIS VEHICLE IS NOT DESIGENED FOR USE ON RENTAL TRACKS OR RACING OWNER'S/OPERATOR'S MANUAL US 20.0 BUCK 450 Independent Rear Suspension BEFORE OPERATING THIS VEHICLE, THE OWNER AND EACH OPERATOR MUST HAVE READ AND HAVE AN UNDERSTANDING OF ALL THE INSTRUCTIONS FOR PROPER ASSEMBLY AND SAFE OPERATION, AS WELL AS THE INSTRUCTIONS CONCERNING THE ENGINE AND ALL OTHER PORTIONS OF THE VEHICLE. NOTE: A storage area/toolbox has been provided on the UTV for storage of this manual, and addendums. Please keep this manual and addendums in the glove compartment so that it can be found easily and referenced when needed. WARNING The engine exhaust from this product contains chemicals known, in certain quantities, to cause cancer, birth defects or other reproductive harm. CONTENTS 1. INTRODUCTION ·····························1.1 2. UNDERSTANDING WARNING ·················2.1 3. SAFETY WARNING···························3.1 4. DAILY PRE-RIDE INSPECTION··············· 4.1 5. OPERATION WARNING······················5.1 6. V.I.N. AND ENGINE SERIAL NUMBER·······6.1 7. CONTROL AND FUNCTIONS···················7.1 8. STARTING THE ENGINE·····················8.1 9. VEHICLE BREAK-IN PERIOD·················9.1 10. RIDING GEAR······························10.1 11. CARRYING LOADS·························11.1 12. RIDING····································12.1 13. CVT SYSTEM·····························13.1 14. BATTERY··································14.1 15. EXHAUST SYSTEM························15.1 16. MAINTENANCE····························16.1 17. TROUBLE SHOOTING·····················17.1 18. TOOLS···································18.1 19. SPECIFICATION···························19.1 20. WIRING DIAGRAM·························20.1 21. Emissions Control System Warranty··········· 21.1 BUCK 450 OWNER'S/OPERATOR'S MANUAL 20.0 1. INTRODUCTION Introduction Congratulations on the purchase of your Utility Vehicle (UTV). We take pride in offering you this product engineered and manufactured to the highest performance and quality standards. We are sure that you will enjoy superior levels of performance, reliability, riding comfort, and safety. This manual is provided to help the owner and operators of this UTV become familiar with the operating characteristic, and the many features offered on the UTV. The manual also covers information on the care and maintenance of your UTV. Please read this manual carefully. The information contained in this Owner's Manual, the Warning Labels supplied with this product will help you to understand the safe use and maintenance of your UTV. Make sure that you understand and follow all Warnings and Instructions in this material. If you did not receive any of the material listed above, please call your dealer and request to have them sent to you. 1- 1 BUCK 450 OWNER'S/OPERATOR'S MANUAL 20.0 1. INTRODUCTION Important Safety Notice Never make any modifications to the engine, drive system, mechanical or electrical systems of your UTV. Never install aftermarket parts or accessories intended to increase the speed or power of your UTV. Failure to follow these warnings increases the possibility of accidents leading to DEATH or SERIOUS INJURY! Additionally, failure to follow these requirements will void the Warranty on your UTV. NOTE The addition and use of certain accessories including, (but not limited to) mowers, blades, sprayers, winches and windshields will change the handling characteristics and the performance of your UTV. Practice Responsible UTV Riding Make sure that you understand and follow all local, state/province, and federal/national riding laws and requirements. Remember......Respect your vehicle, respect the environment and respect the property of others. You are responsible for your safety and the safety of others around you when you ride! A UTV CAN BE HAZARDOUS TO OPERATE. A UTV handles differently from other vehicles including motorcycles, ATVs and cars. A collision rollover can occur quickly, even during routine maneuvers such as turning and driving on hills or over obstacles, if you fail to take proper precautions. 1- 2 BUCK 450 OWNER'S/OPERATOR'S MANUAL 20.0 1. INTRODUCTION SERIOUS INJURY OR DEATH can result if you do not follow these instructions. Read this manual and all labels carefully and follow the operating procedures described. This vehicle is designed to carry the driver and one passenger. Never carry passengers in the cargo bed. Always be sure the driver and passenger are wearing seat belts. Never allow anyone who is not an adult to operate this UTV. Never permit a guest to operate this UTV unless the guest has read this manual and all product labels. The driver and passenger must wear approved off-road motorcycle -type helmets that fits properly. The driver and passenger should also wear eye protections (goggles or face shields), gloves, boots, long-sleeved shirts or jackets, and long pants. As with any off-road-capable vehicle, there is a risk of tip over or rollover under certain conditions. Uneven terrain or slopes which pitch the vehicle sideways, turning too fast or sharp, or a combination of conditions increase the risk of tip over. If you are in a situation where the vehicle is tipping over, do not put your arm or/ and leg outside the vehicle, do not try to stop tipping with your arm or leg. You could be severely injured. You could suffer a crushed hand, arm, leg, or foot, if part of your body is caught underneath the vehicle. You must keep your arms and legs inside the vehicle until it has stopped moving. Never consume alcohol or drugs before or while operating this UTV. Never operate at excessive speeds. Always travel at a speed which is proper for the terrain, visibility and operating conditions, and your experience. Never attempt wheelies, jumps or other stunts. Always inspect your UTV each time you use it to make sure it is in safe operating condition. Always follow the inspection and maintenance procedures and schedules described in this manual. Always keep both hands, arms, feet, and legs inside the vehicle at all times during operation. Keep your feet on the floorboard. Never hold onto the enclosure except when using the handgrip inside the enclosure. Otherwise, your hand could be injured if it is caught between the enclosure and an obstacle outside the vehicle. 1- 3 BUCK 450 OWNER'S/OPERATOR'S MANUAL 20.0 1. INTRODUCTION Always keep both hands on the steering wheel when driving. Never wrap your thumbs and fingers around the steering wheel. This is particularly important when driving in rough terrain. The front wheels will move right and left as they respond to the terrain, and this movement will be felt in the steering wheel. A sudden jolt could wrench the steering wheel around, and your thumbs or fingers could be injured if they are in the way of the steering wheel spokes. Always go slowly and be extra careful when operating on unfamiliar terrain. Always be alert to changing terrain conditions when operating the UTV. Never operate on excessively rough, slippery or loose terrain. Always follow proper procedures for turning as described in this manual. Practice turning at low speeds before attempting to turn at faster speeds. Do not turn at excessive speed. Always have the UTV checked by an authorized dealer if it has been involved in an accident. Never operate UTV on hills too steep for the UTV or for your abilities. Practice on smaller hills before attempting larger hills. Always follow proper procedures for climbing hills as described in this manual. Check the terrain carefully before you start up any hill. Never climb hills with excessively slippery or loose surfaces. Never open throttle suddenly or make sudden gear changes. Never go over the top of any hill at high speed. Always follow proper procedures for going down hills and for braking on hills as described in this manual. Check the terrain carefully before you start down any hill. Never go down a hill at high speed. Avoid going down a hill at an angle which would cause the vehicle to lean sharply to one side. Go straight down the hill where possible. Always follow proper procedures for crossing the side of a hill as described in this manual. Avoid hills with excessively slippery or loose surfaces. Never attempt to turn the UTV around on any hill. Avoid crossing the side of a steep hill if possible. Always use proper procedures if you stall or roll backwards when climbing a hill. To avoid stalling, maintain a steady speed when climbing a hill. If you stall or roll backwards, follow the special procedure for braking described in this manual. Always check for obstacles before operating in a new area. Never attempt to operate over large obstacles, such as large rocks or fallen trees. Always follow proper procedures when operating over 1- 4 BUCK 450 OWNER'S/OPERATOR'S MANUAL 20.0 1. INTRODUCTION obstacles as described in this manual. Always be careful of skidding of sliding. On slippery surfaces, such as ice, go slowly and be very cautious in order to reduce the chance of skidding or sliding out of control. Avoid operating the UTV through deep or fast flowing water. Avoid water which exceeds the recommended maximum depth. Go slowly, carefully avoiding sudden movements, maintain a slow and steady forward motion, do not make sudden turns or stops, and do not make sudden throttle changes. Wet brakes may have reduced stopping ability. Test your brakes after leaving water. If necessary apply them lightly several times to let friction dry out the pads. Always be sure there are no obstacles or people behind you when you operate in reverse. When it is safe to proceed in reverse, go slowly. Avoid turning at sharp angles in reverse. Always use the size and type tires specified in this manual. Always maintain proper tire pressure as described in this manual. Never modify A UTV through improper installation or use of accessories Never exceed the stated load capacity. Cargo should be as far forward in the bed as possible, and distributed evenly from side to side. Be sure cargo is secured so that it cannot move around during operation. Reduce speed and follow instructions in this manual for carrying cargo or pulling a trailer. Allow greater distance for braking. 1- 5 BUCK 450 OWNER'S/OPERATOR'S MANUAL 20.0 2. UNDERSTANDING WARNINGS ATTENTION: This is an ADULT VEHICLE ONLY! Not a toy! READ AND UNDERSTAND WARNINGS AND OWNER'S MANUAL BERORE OPERATION. KNOW YOUR VEHICLE BEFORE YOU BEGING RIDING! Read this manual thoroughly referring to the various areas which are being discussed on your machine. Operating this vehicle carries with it responsibilities for your personal safety, the safety of others, and the protection of our environment. NOTE: Illustrations used in this manual are for general representation only. Your model may differ. 2- 1 BUCK 450 OWNER'S/OPERATOR'S MANUAL 20.0 2. UNDERSTANDING WARNINGS SAFETY ALERT WARNINGS identify special instructions or procedures which, if not correctly followed, could result in personal injury, or loss of life. Read all WARNINGS in this manual carefully. Follow their instructions to remain safe. The following precautionary signal words are used throughout this manual to convey the following messages: This is the safety alert symbol. When you see this symbol on your machine or in this manual, be alert to the potential for personal injury. Your safety is involved! WARNING Indicates a potential hazard which could result in severe injury or death. CAUTION Indicates a potential hazard which may result in minor personal injury or damage to the UTV. CAUTION Indicates a situation that can result in damage to the machine. NOTE The word "NOTE" in this manual will alert you to key information or instructions. 2- 2 BUCK 450 OWNER'S/OPERATOR'S MANUAL 20.0 3. SAFETY WARNING NOTE Warning decals have been placed on the vehicle for your protection. Read and follow the instructions on each decal carefully. In the event any decal becomes illegible or comes off, contact your dealer for a replacement. Attention: There is a risk of fire from driving the vehicle on the ground where grass has dried up or parking the vehicle on such surface while the engine is hot. 3- 1 BUCK 450 OWNER'S/OPERATOR'S MANUAL 20.0 3. SAFETY WARNING 1 2 NOTEMaximum tire pressure:Front :12psi(83kPa) Rear :12psi(83kPa) 3 3- 2 BUCK 450 OWNER'S/OPERATOR'S MANUAL 20.0 3. SAFETY WARNING 4 5 6 7 3- 3 BUCK 450 OWNER'S/OPERATOR'S MANUAL 20.0 3. SAFETY WARNING 8 9 10 3- 4 BUCK 450 OWNER'S/OPERATOR'S MANUAL 20.0 3. SAFETY WARNING 11 12 13 14 3- 5 BUCK 450 OWNER'S/OPERATOR'S MANUAL 20.0 3. SAFETY WARNING 15 16 3- 6 BUCK 450 OWNER'S/OPERATOR'S MANUAL 20.0 3. SAFETY WARNING 17 18 19 3- 7 BUCK 450 OWNER'S/OPERATOR'S MANUAL 20.0 3. SAFETY WARNING 20 21option 22 3- 8 BUCK 450 OWNER'S/OPERATOR'S MANUAL 20.0 4. DAILY PRE-RIDE INSPECTION WARNING You must inspect your UTV each time before riding to ensure it is in proper working order. If proper inspection is not done, severe injury or death could result. Use the following checklist to verify your machine is in proper working order each time you ride. ITEM/ INSPECTION PROCEDURE 1, Tire-- check condition and pressures. 2, Fuel tank-- checking for leaking, fill the fuel tank to its proper lever. 3, All brakes -- check fluid level, check operation, adjustment (includes parking brake). Brake pedal Check for correct brake pedal free play. If the brake pedal free play is incorrect, have an authorized dealer adjust it. Check the operation of the brake pedal. It should move smoothly and there should be a firm feeling when the brakes are applied. If not, have the vehicle inspected by your dealer. Brake fluid leakage Check to see if any brake fluid is leaking out of the pipe joints or the brake fluid reservoir. Apply the brakes firmly for one minute. If there is any leakage, have the vehicle inspected by an authorized dealer. Brake fluid level Check the brake fluid level. Add fluid if necessary. Brake operation Test the brakes at slow speed after starting out to make sure they are working properly. If the brakes do not provide proper braking performance, inspect the brake system. 4, Throttle/ Accelerator pedal-- check for free operation, closing and freeplay. Check to see that the accelerator pedal operates correctly. It must operate smoothly and fully spring back to the idle position when 4-1 BUCK 450 OWNER'S/OPERATOR'S MANUAL 20.0 4. DAILY PRE-RIDE INSPECTION released. Have an authorized dealer repair as necessary for proper operation. 5, Headlight / Taillight / Brake light-- check operation of all indicator lights and switches. 6, Wheels-- check for tightness of wheel nuts and axle nuts; check those axle nuts are secured by cotter pins. Check balance/ damage/ runout. Have an authorized dealer repair/ replace if necessary. Check bearing assemblies for looseness/damage. Have an authorized dealer replace if damaged. 7, Air cleaner element-- check for dirt; clean or replace. 8, Steering-- check for free operation noting any unusual looseness in any area. Park on level ground. Turn the steering wheel right and left. Check for excessive free play, abnormal noises, or a rough feeling. Have an authorized dealer repair as necessary for proper operation. 9, Loose parts -- visually inspect vehicle for any damaged components or loose nuts/bolts or fasteners. Always check the tightness of chassis fittings and fasteners before a ride. Take the vehicle to your dealer for correct tightening torque. 10, Operator's and passenger's helmets, goggles and clothing. 11, Engine coolant-- check for proper level at the recovery bottle. 12, Seat belts-- Check for proper operation and belt wear. Make sure that both seat belts are not frayed or damaged. The seat belt must move smoothly when pulled out and retract on its own when released. The latch plate should click securely into the buckle and release when the release button is pushed firmly. Clean off any dirt or mud which could affect operation. Have an authorized dealer repair as necessary for proper operation. 4-2 BUCK 450 OWNER'S/OPERATOR'S MANUAL 20.0 5. OPERATION WARNINGS WARNING POTENTIAL HAZARD Improper handling of gasoline. WHAT CAN HAPPEN Gasoline can catch fire and you could be burned. HOW TO AVOID THE HAZARD Always turn off the engine when refueling. Do not refuel right after the engine has been running and is still very hot. Do not spill gasoline on the engine or exhaust pipe/muffler when refueling. Never refuel while smoking, or while in the vicinity of sparks, open flames, or other sources of ignition such as the pilot lights of water heaters and clothes dryers. WARNING POTENTIAL HAZARD Checking the fuel system while smoking or near an open flame. WHAT CAN HAPPEN Fuel can ignite or explode, causing severe injury or property damage. HOW TO AVOID THE HAZARD Do not smoke when checking the fuel system. Make sure there are no open flames or sparks in the area, including pilot lights from water heaters or furnaces. 5-1 BUCK 450 OWNER'S/OPERATOR'S MANUAL 20.0 5. OPERATION WARNINGS WARNING POTENTIAL HAZARD When transporting the vehicle in another vehicle, be sure it is kept in an upright position. Otherwise, fuel may leak out of the carburetor or fuel tank. WHAT CAN HAPPEN Gasoline is poisonous and can cause injuries. HOW TO AVOID THE HAZARD If you should swallow some gasoline or inhale a lot of gasoline vapor, or get some gasoline in your eyes, see your doctor immediately. If gasoline spills on your skin, wash with soap and water. If gasoline spills on your clothing, change your clothes. WARNING POTENTIAL HAZARD Changing from 2WD to 4WD or vice-versa while the vehicle is moving. WHAT CAN HAPPEN The vehicle handles differently in 2WD than in 4WD, or vice-vers a while moving may cause the vehicle to unexpectedly handle differently. This could distract the operator and increase the risk of losing control and an accident. HOW TO AVOID THE HAZARD Always stop the vehicle before changing from 2WD to 4WD, or vice-versa. 5-2 BUCK 450 OWNER'S/OPERATOR'S MANUAL 20.0 5. OPERATION WARNINGS WARNING POTENTIAL HAZARD Malfunction of the accelerator pedal. WHAT CAN HAPPEN The accelerator pedal could be hard to operate, making it difficult to speed up or slow down when you need to. This could cause an accident. HOW TO AVOID THE HAZARD Check the operation of the accelerator pedal before you start the engine. If it does not work smoothly, check for the cause. Correct the problem before operating the vehicle. Consult an authorized dealer if you can't find or solve the problem yourself. WARNING POTENTIAL HAZARD A loose seat. WHAT CAN HAPPEN The operator could lose control or the operator or passenger could fall if the seat is loose during operation. HOW TO AVOID THE HAZARD Make sure the seat is securely latched. WARNING POTENTIAL HAZARD Not wearing the seat belt. Wearing the seat belt improperly. WHAT CAN HAPPEN There is increased risk of being killed or seriously injured in an accident. HOW TO AVOID THE HAZARD Always wear your seat belt when riding in the vehicle. Be sure the seat belt is close-fitting across your hips and chest and is latched securely. 5-3 BUCK 450 OWNER'S/OPERATOR'S MANUAL 20.0 5. OPERATION WARNINGS WARNING POTENTIAL HAZARD Try to stop the tipping vehicle with your arm or leg. WHAT CAN HAPPEN You could be severely injured. You could suffer a crushed hand, arm, leg, or foot, HOW TO AVOID THE HAZARD You must keep your arms and legs inside the vehicle until it has stopped moving. As with any off-road-capable vehicle, there is a risk of tip over or rollover under certain conditions. Uneven terrain or slopes which pitch the vehicle sideways, turning too fast or sharp, or a combination of conditions increase the risk of tip over. If you are in a situation where the vehicle is tipping over, do not put your arm or/ and leg outside the vehicle, do not try to stop tipping with your arm or leg. You could be severely injured. You could suffer a crushed hand, arm, leg, or foot, if part of your body is caught underneath the vehicle. WARNING POTENTIAL HAZARD Pinch points. WHAT CAN HAPPEN You or someone else could be pinched between the cargo bed and the frame when the bed is being lowered. HOW TO AVOID THE HAZARD Before closing the bed, be sure others are standing away from the vehicle. Keep hands and fingers away from the pinch points between the bed and the frame. 5-4 BUCK 450 OWNER'S/OPERATOR'S MANUAL 20.0 5. OPERATION WARNINGS WARNING POTENTIAL HAZARD Overloading the cargo bed WHAT CAN HAPPEN Could cause changes in vehicle handling which could lead to an accident. HOW TO AVOID THE HAZARD Never exceed the stated maximum load limit for this cargo bed. Cargo should be properly distributed and securely attached. Reduce speed when carrying cargo. Allow greater distance for braking. WARNING POTENTIAL HAZARD Carrying a passenger/ passengers in the cargo bed WHAT CAN HAPPEN The passenger(s) could fall, be thrown out, or be struck by objects in the cargo bed. HOW TO AVOID THE HAZARD Never carry a passenger/ passengers in the cargo bed. This cargo bed is designed to carry cargo only. WARNING POTENTIAL HAZARD Improper shock absorber adjustment. WHAT CAN HAPPEN Uneven adjustment can cause poor handling and loss of stability, which could lead to an accident. HOW TO AVOID THE HAZARD Always adjust the shock absorbers on the left and right side to the same setting. 5-5 BUCK 450 OWNER'S/OPERATOR'S MANUAL 20.0 5. OPERATION WARNINGS WARNING POTENTIAL HAZARD Driving with improperly operating brakes. WHAT CAN HAPPEN You could lose braking ability, which could lead to an accident. HOW TO AVOID THE HAZARD Always check the brakes at the start of every ride. Do not operate the vehicle if you find any problem with the brakes. If a problem cannot be corrected by the adjustment procedures provided in this manual, have the vehicle inspected by an authorized dealer. WARNING POTENTIAL HAZARD Improper care when refueling. WHAT CAN HAPPEN Fuel can spill, which can cause a fire and severe injury. Fuel expands when it heats up. If the fuel tank is overfilled, fuel could spill out due to heat from the engine or the sun. HOW TO AVOID THE HAZARD Do not overfill the fuel tank. Be careful not to spill fuel, especially on the engine or exhaust pipe. Wipe up any spilled fuel immediately. Be sure the fuel tank cap is closed securely. WARNING POTENTIAL HAZARD Removing the radiator cap when the engine and radiator are still hot. WHAT CAN HAPPEN You could be burned by hot fluid and steam blown out under pressure. HOW TO AVOID THE HAZARD Wait for the engine to cool before removing the radiator cap. Always use a thick rag over the cap. Allow any remaining pressure to escape before completely removing the cap. 5-6 BUCK 450 OWNER'S/OPERATOR'S MANUAL 20.0 5. OPERATION WARNINGS WARNING POTENTIAL HAZARD Operating vehicle without being familiar with all controls. WHAT CAN HAPPEN Loss of control, which could cause an accident or injury. HOW TO AVOID THE HAZARD Read the Owner's Manual carefully. If there is a control or function you do not understand, ask our authorized dealer. WARNING POTENTIAL HAZARD Freezing control cables in cold weather. WHAT CAN HAPPEN You could be unable to control the vehicle, which could lead to an accident or collision. HOW TO AVOID THE HAZARD When riding in cold weather, always make sure all control cables work smoothly before you begin riding. WARNING POTENTIAL HAZARD Overloading this vehicle or carrying or towing cargo improperly. WHAT CAN HAPPEN Could cause changes in vehicle handling which could lead to an accident. HOW TO AVOID THE HAZARD Never exceed the stated load capacity for this vehicle. Cargo should be properly distributed and securely attached. Reduce speed when carrying cargo or pulling a trailer. Allow greater distance for braking. 5-7 BUCK 450 OWNER'S/OPERATOR'S MANUAL 20.0 5. OPERATION WARNINGS WARNING POTENTIAL HAZARD Servicing an engine while it is running. WHAT CAN HAPPEN Moving parts can catch clothing or parts of the body, causing injury. Electrical components can cause shocks or can start fires. HOW TO AVOID THE HAZARD Turn off the engine when performing maintenance unless otherwise specified. Have an authorized dealer perform service if you are not familiar with vehicle service. WARNING POTENTIAL HAZARD Operating this vehicle with improper modifications. WHAT CAN HAPPEN Improper installation of accessories or modification of this vehicle may cause changes in handling which in some situations could lead to an accident. HOW TO AVOID THE HAZARD Never modify this vehicle through improper installation or use of accessories. All parts and accessories added to this vehicle should be genuine parts or equivalent components designed for use on this vehicle and should be installed and used according to instructions. If you have questions, consult an authorized dealer. 5-8 BUCK 450 OWNER'S/OPERATOR'S MANUAL 20.0 5. OPERATION WARNINGS WARNING POTENTIAL HAZARD Using low flash point solvents or gasoline to clean the sponge material. WHAT CAN HAPPEN Low flash point solvents or gasoline can catch fire or explode. HOW TO AVOID THE HAZARD Use parts cleaning solvent to clean the sponge material. WARNING POTENTIAL HAZARD Improper cleaning of the spark arrester. Hot exhaust system WHAT CAN HAPPEN Could injure the eyes. Could cause burns. Could cause carbon monoxide poisoning, possibly leading to death. Could start a fire. HOW TO AVOID THE HAZARD When cleaning the spark arrester: Always let the exhaust system cool prior to touching exhaust components. Do not start the engine when cleaning the exhaust system. 5-9 BUCK 450 OWNER'S/OPERATOR'S MANUAL 20.0 5. OPERATION WARNINGS WARNING POTENTIAL HAZARD Operating with improperly serviced or adjusted brakes. WHAT CAN HAPPEN You could lose braking ability, which could lead to an accident. HOW TO AVOID THE HAZARD After servicing: Make sure the brakes operate smoothly and that the brake pedal position is correct. Make sure the brakes do not drag. All air must be bled from the brake system. Replacement of brake components requires professional knowledge. These procedures should be performed by an authorized dealer. WARNING POTENTIAL HAZARD Damaged control cables. WHAT CAN HAPPEN Corrosion can result when the outer covering of control cables becomes damaged. Cables can also become frayed or kinked. Operation of controls could be restricted, which could cause an accident or injury. HOW TO AVOID THE HAZARD Inspect cables frequently. Replace damaged cables. 5-10 BUCK 450 OWNER'S/OPERATOR'S MANUAL 20.0 5. OPERATION WARNINGS WARNING POTENTIAL HAZARD Failure to handle batteries or battery electrolyte carefully. WHAT CAN HAPPEN You could be poisoned. You could be severely burned by the sulfuric acid in battery electrolyte. Batteries produce explosive gases. HOW TO AVOID THE HAZARD Avoid contact with skin, eyes or clothing. Always shield eyes when working near batteries. Keep out of reach of children. Antidote: EXTERNAL: Flush with water. INTERNAL: Drink large quantities of water or milk. Follow with milk of magnesia, beaten egg or vegetable oil. Get prompt medical attention. EYES: Flush with water for 15 minutes and get prompt medical attention. Keep batteries away from sparks, flames, cigarettes or other sources of ignition. Ventilate when charging or using in a closed space. WARNING POTENTIAL HAZARD Using an improper fuse WHAT CAN HAPPEN An improper fuse can cause damage to the electrical system, which could lead to a fire. HOW TO AVOID THE HAZARD Always use a fuse of the specified rating. Never use a material in place of the proper fuse. 5-11 BUCK 450 OWNER'S/OPERATOR'S MANUAL 20.0 5. OPERATION WARNINGS WARNING POTENTIAL HAZARD A headlight bulb is hot when it is on and immediately after it is turned off. WHAT CAN HAPPEN You can be burned, or a fire could start if the bulb touches something flammable. HOW TO AVOID THE HAZARD Wait for the bulb to cool before touching or removing it. WARNING POTENTIAL HAZARD Operation with wet brakes after washing. WHAT CAN HAPPEN Wet brakes may have reduced stopping ability, increasing the chance of an accident. HOW TO AVOID THE HAZARD Test the brakes after washing. Apply the brakes several times at slow speeds to let friction dry out the linings. 5-12 BUCK 450 OWNER'S/OPERATOR'S MANUAL 20.0 5. OPERATION WARNINGS WARNING POTENTIAL HAZARD Operating/ riding this UTV without wearing an approved helmet, eye protection and protective clothing. WHAT CAN HAPPEN Operating/ riding without an approved helmet increases your chances of a severe head injury or death in the event of an accident. Operating/ riding without eye protection can result in an accident and increases your chances of a severe injury in the event of an accident. HOW TO AVOID THE HAZARD Always wear an approved helmet which fits properly. You should also wear: eye protection (goggles or face shield); gloves; boots; long-sleeved shirt or jacket; and long pants. WARNING POTENTIAL HAZARD Operating this UTV after consuming alcohol or drugs. WHAT CAN HAPPEN Could seriously affect your judgment. Could cause you to react more slowly. Could affect your balance and perception. Could result in an accident. HOW TO AVOID THE HAZARD Never consume alcohol or drugs before or while driving this UTV. 5-13 BUCK 450 OWNER'S/OPERATOR'S MANUAL 20.0 5. OPERATION WARNINGS WARNING POTENTIAL HAZARD Operating this UTV at excessive speeds. WHAT CAN HAPPEN Increases your chances of losing control of the UTV, which can result in an accident. HOW TO AVOID THE HAZARD Always travel at a speed which is proper for the terrain, visibility and operating conditions; and your experience. WARNING POTENTIAL HAZARD Attempting wheelies, jumps and other stunts. WHAT CAN HAPPEN Increases the chance of an accident, including an overturn. HOW TO AVOID THE HAZARD Never attempt stunts, such as wheelies or jumps. WARNING POTENTIAL HAZARD Failure to inspect the UTV before operating. Failure to properly maintain the UTV. WHAT CAN HAPPEN Increases the possibility of an accident or equipment damage. HOW TO AVOID THE HAZARD Always inspect your UTV each time you use it to make sure the UTV is in safe operating condition. Always follow the inspection and maintenance procedures and schedules described in the Owner's Manual. 5-14 BUCK 450 OWNER'S/OPERATOR'S MANUAL 20.0 5. OPERATION WARNINGS WARNING POTENTIAL HAZARD Removing hands from steering wheel or feet from footrests during operation. WHAT CAN HAPPEN Removing even one hand or foot can reduce your ability to control the UTV or could cause you to lose your balance and fall off the UTV. HOW TO AVOID THE HAZARD Always keep both hands on the steering wheel and both feet on the footrests of your UTV during operation. WARNING POTENTIAL HAZARD Failure to use extra care when operating this UTV on unfamiliar terrain. WHAT CAN HAPPEN You can come upon hidden rocks, bumps, or holes, without enough time to react. Could result in the UTV overturning or going out of control. HOW TO AVOID THE HAZARD Go slowly and be extra careful when operating on unfamiliar terrain. Always be alert to changing terrain conditions when operating the UTV. 5-15 BUCK 450 OWNER'S/OPERATOR'S MANUAL 20.0 5. OPERATION WARNINGS WARNING POTENTIAL HAZARD Failure to use extra care when operating on excessively rough, slippery or loose terrain. WHAT CAN HAPPEN Could cause loss of traction or vehicle control, which could result in an accident, including an overturn. HOW TO AVOID THE HAZARD Do not operate on excessively rough, slippery or loose terrain until you have learned and practiced the skills necessary to control the UTV on such terrain. Always be especially cautious on these kinds of terrain. WARNING POTENTIAL HAZARD Climbing hills improperly. WHAT CAN HAPPEN Could cause loss of control or cause UTV to overturn. HOW TO AVOID THE HAZARD Always follow proper procedures for climbing hills as described in the Owner's Manual. Always check the terrain carefully before you start up any hill. Never climb hills with excessively slippery or loose surfaces. Never open the throttle suddenly. The UTV could flip over backwards. Never go over the top of any hill at high speed. An obstacle, a sharp drop, or another vehicle or person could be on the other side of the hill. 5-16 BUCK 450 OWNER'S/OPERATOR'S MANUAL 20.0 5. OPERATION WARNINGS WARNING POTENTIAL HAZARD Turning improperly. WHAT CAN HAPPEN UTV could go out of control, causing a collision or overturn. HOW TO AVOID THE HAZARD Always follow proper procedures for turning as described in the Owner's Manual. Practice turning at low speeds before attempting to turn at faster speeds. Do not turn at excessive speed. WARNING POTENTIAL HAZARD Operating on excessively steep hills. WHAT CAN HAPPEN The vehicle can overturn more easily on extremely steep hills than on level surfaces or small hills. HOW TO AVOID THE HAZARD Never operate the UTV on hills too steep for the UTV or for your abilities. Practice on smaller hills before attempting large hills. Never operate UTV on hills steeper than 15. 5-17 BUCK 450 OWNER'S/OPERATOR'S MANUAL 20.0 5. OPERATION WARNINGS WARNING POTENTIAL HAZARD Going down a hill improperly. WHAT CAN HAPPEN Could cause loss of control or cause UTV to overturn. HOW TO AVOID THE HAZARD Always follow proper procedures for going down hills as described in the Owner's Manual. NOTE: A special technique is required when braking as you go downhill. Always check the terrain carefully before you start down any hill. Never go down a hill at high speed. Avoid going down a hill at an angle which would cause the vehicle to lean sharply to one side. Go straight down the hill where possible. WARNING POTENTIAL HAZARD Improperly crossing hills or turning on hills. WHAT CAN HAPPEN Could cause loss of control or cause UTV to overturn. HOW TO AVOID THE HAZARD Never attempt to turn the UTV around on any hill until you have mastered the turning technique as described in the Owner's Manual on level ground. Be very careful then turning on any hill. Avoid crossing the side of a steep hill if possible. When crossing the side of a hill: Always follow proper procedures as described in the Owner's Manual. Avoid hills with excessively slippery or loose surfaces. 5-18 BUCK 450 OWNER'S/OPERATOR'S MANUAL 20.0 5. OPERATION WARNINGS WARNING POTENTIAL HAZARD Stalling, rolling backwards or improperly dismounting while climbing a hill. WHAT CAN HAPPEN Could result in UTV overturning. HOW TO AVOID THE HAZARD Maintain steady speed when climbing a hill. If you lose all forward speed: Keep weight uphill. Apply the brakes. Lock parking brake after you are stopped. If you begin rolling backwards: Keep weight uphill; never apply engine power. Apply the brake gradually. When fully stopped, apply rear brake as well, and then lock parking brake. Dismount on uphill side, or to either side if pointed straight uphill. WARNING POTENTIAL HAZARD Improperly operating over obstacles. WHAT CAN HAPPEN Could cause loss of control or a collision. Could cause the UTV to overturn. HOW TO AVOID THE HAZARD Before operating in a new area, check for obstacles. Use extreme caution when riding over large obstacles, such as large rocks or fallen trees. If you cannot avoid obstacles, always follow proper procedures as described in the Owner's Manual. 5-19 BUCK 450 OWNER'S/OPERATOR'S MANUAL 20.0 5. OPERATION WARNINGS WARNING POTENTIAL HAZARD Skidding or sliding, WHAT CAN HAPPEN You may lose control of the UTV. You may also regain traction unexpectedly, which may cause the UTV to overturn. HOW TO AVOID THE HAZARD On slippery surfaces, such as ice, go slowly and be very cautious in order to reduce the chance or skidding or sliding out of control. WARNING POTENTIAL HAZARD Operating this UTV through deep or fast flowing water. WHAT CAN HAPPEN Tires may float, causing loss of traction and loss of control, which could lead to an accident. HOW TO AVOID THE HAZARD Never operating the UTV through water which exceeds the recommended maximum depth in this manual. Avoid operating the UTV through deep or fast flowing water. If you cannot avoid water, go slowly, balance your weight carefully avoiding sudden movement, maintain a slow and steady forward motion, do not make sudden turns or stops, and do not make sudden throttle changes. Remember that wet brakes may have reduced stopping ability. Test your brakes after leaving water. If necessary, apply them several times to let friction dry out the pads. 5-20 BUCK 450 OWNER'S/OPERATOR'S MANUAL 20.0 5. OPERATION WARNINGS WARNING POTENTIAL HAZARD Improperly operating in reverse, WHAT CAN HAPPEN You could hit an obstacle or person behind you, resulting in severe injury. HOW TO AVOID THE HAZARD When you select reverse gear, make sure there are no obstacles or people behind you. When it is safe to proceed, go slowly. WARNING POTENTIAL HAZARD Operating this UTV with improper tires, or with improper or uneven tire pressure. WHAT CAN HAPPEN Use of improper tires on this UTV, or operation of this UTV with improper or uneven tier pressure, may cause loss of control, and increases the risk of an accident. HOW TO AVOID THE HAZARD Always use the size and type ties specified in the Owner's Manual for this vehicle. Always maintain proper tire pressure a described in the Owner's Manual. Use proper pressures stated on the side wall of the tire when seating the tire beads. Higher pressures may cause the tire to burst. Inflate the tires very slowly and carefully. Fast inflation could cause the tire to burst. 5-21 BUCK 450 OWNER'S/OPERATOR'S MANUAL 20.0 5. OPERATION WARNINGS WARNING POTENTIAL HAZARD Operating this UTV with improper modifications. WHAT CAN HAPPEN Improper installation of accessories or modification of this vehicle may cause changes in handling which in some situations could lead to an accident. HOW TO AVOID THE HAZARD Never modify this UTV through improper installation or use of accessories. All parts and accessories added to this vehicle should be genuine or equivalent components designed for use on this UTV; and should be installed and used according to instructions. If you have questions, consult our authorized dealer. WARNING POTENTIAL HAZARD Riding on frozen lakes and rivers. WHAT CAN HAPPEN Severe injury or death can result if the UTV and /or the operator break through the ice. HOW TO AVOID THE HAZARD Never ride you UTV on a frozen body of water. 5-22 BUCK 450 OWNER'S/OPERATOR'S MANUAL 20.0 5. OPERATION WARNINGS WARNING After a rollover or an accident, have a qualified service dealer check the complete machine including, but not limited to, brakes, throttle and steering for possible damage. WARNING Safe operation of this rider active vehicle requires good judgment and physical skills. Persons with cognitive or physical disabilities who operate this vehicle have an increased risk of overturns and loss of control which could result in severe injury or death. CAUTION Keep combustible materials away from exhaust system. Fire may result. 5-23 BUCK 450 OWNER'S/OPERATOR'S MANUAL 20.0 6. V.I.N. AND ENGINE SERIAL NUMBER 6- 1 BUCK 450 OWNER'S/OPERATOR'S MANUAL 20.0 6. V.I.N. AND ENGINE SERIAL NUMBER Record these numbers from your UTV in the spaces provided. 1. Frame VIN (Rear right of the frame tube) 2. Engine Serial Number (Left side of engine crankcase) The vehicle frame and engine serial numbers are important for model identification when registering your vehicle, obtaining insurance or whenever replacement parts are required. In the event your vehicle were stolen these numbers are essential to the recovery and identification of your UTV. 6- 2 BUCK 450 OWNER'S/OPERATOR'S MANUAL 20.0 7. CONTROL AND PARTS FUNCTIONS ELECTRICAL SWITCHES Switch On Panel 1. Switch 2WD / 4WD and Front Diff Lock 2. Turn Signal Lamp Switch 3. Main Switch 4. Horn Switch 5 .Hi/ Lo Beam Switch 6. Tractor Switch 7. Accessory SocketOptional 8. USB Charger 1. Switch 2WD / 4WD and 4WD Front Diff Lock Two-wheel drive (2WD): Power is supplied to the rear wheels only. Four-wheel drive (4WD): Power is supplied to the rear and front wheels. 4WD Front Differentia Lock: Switch on 4WD and engage the front DIFF lock Always shift as the vehicle stop. NOTE: When shift 2WD / 4WD, the mechanics in the front gear box maybe still engaged / disengaged, the mechanics would finally disengaged / engaged when rides on a hard surface or rides in reverse. 7- 1 BUCK 450 OWNER'S/OPERATOR'S MANUAL 20.0 7. CONTROL AND PARTS FUNCTIONS Do not switch on 4WD if the rear wheels are spinning. This may cause severe machine damage. When switch on 4WD, the button will stay in 4WD position but 4WD mechanics maybe still disengaged. Always apply throttle gently and let the wheels move slightly to allow the 4WD mechanics finally engage. The 4WD indicator on the speedometer will come on when 4WD engaged. 2. Turn Signal Lamp Switch 3. Main Switch Functions of the respective switch positions are as follows: : All electrical circuits are switched off. The key can be removed in this position. : All electrical circuits are supplied with power. : The electric starter is engaged by turning and holding the key in this position. Release the key when the engine starts. Do not operate the electric starter continuously for more than 5 seconds, or starter damage could occur. Wait at least 5 seconds between each operation of the electric starter to let it cool. Do not turn the key to the "START" position with the engine running, or damage to the electric starter can result. 4. Horn Switch 5. Hi/ Lo Beam Switch Turn on the high-beam headlight .Use caution and drive at reduced speeds in conditions of reduced visibility such as fog, rain and darkness. 7- 2 BUCK 450 OWNER'S/OPERATOR'S MANUAL 20.0 7. CONTROL AND PARTS FUNCTIONS 7.Accessory SocketOptional The accessory socket (1) is attached to the left side of the front cover. You can use the accessory socket to power a trouble light, spotlight, CB radio, or cell phone etc. Do not plug in any heat-generating accessory such as an automobile cigarette lighter because it damages the socket. To use the accessory socket, start the engine. Then turn the headlights OFF, and open the accessory socket cap (2). Be sure the engine is on and the headlights are turned off before using the accessory socket, otherwise you may drain the battery. The accessory socket is rated capacity is DC 12V. 120 Watts (10A) or less. If you exceed this limit, you may blow a fuse. When you are done using an accessory, unplug it, and cover the socket with the cap. Be careful not to flood this accessory socket when washing your UTV. 8. USB Charger USB socket can output: 5V 600mA ,It can charge devices such as mobile phones. The device must not be charged until the engine is working properly, otherwise it may damage the device. When you are done using an accessory, unplug it, and cover the socket with the cap. When cleaning the UTV, be careful not to clean the accessory. 7- 3 BUCK 450 OWNER'S/OPERATOR'S MANUAL 20.0 7. CONTROL AND PARTS FUNCTIONS LCD METER 1. Turn Left Indicator Light 2. Position Lamp Indicator 3. High Beam Indicator Light 4. Parking Brake Indicate Lamp 5. Safety Belt Lamp 6. Turn Right Indicator Light 7. ODO/TRIP/ Engine Working Hour Selector 8. Engine RPM Meter 9. MIL Indicator 10. The Odometer and Engine Working Hour Counter 11. Km/ Mile Selector 12. Gear Position Indicator 13. 2WD/4WD Indicator 14.Front Differential Lock Indicator 15. Coolant Temperature Meter 16. Dome Lamp Indicator 17. Speedometer 18. Fuel gauge Indicator When turn on the key but not start the engine, the MIL Indicator will on. After the engine starting the MIL Indicator will turn off. If the MIL Indicator lighting or flashing while the engine working, please consult an authorized UTV dealer and repair it immediately to avoid the vehicle damaged. 7- 4 BUCK 450 OWNER'S/OPERATOR'S MANUAL 20.0 7. CONTROL AND PARTS FUNCTIONS ACCELERATOR PEDAL WARNING Before starting the engine, check the accelerator pedal to be sure it is operating smoothly. Make sure the accelerator pedal fully returns to the idle position as soon as it is released. 1.Accelerator pedal Press the accelerator pedal down to increase engine speed. Spring pressure returns the pedal to the rest position when released. Always check that the accelerator pedal returns normally before starting the engine. WARNING POTENTIAL HAZARD Malfunction of the accelerator pedal. WHAT CAN HAPPEN The accelerator pedal could be hard to operate, making it difficult to speed up or slow down when you need to. This could cause an accident. HOW TO AVOID THE HAZARD Check the operation of the accelerator pedal before you start the engine. If it does not work smoothly, check for the cause. Correct the problem before operating the vehicle. Consult the authorized dealer if you can't find or solve the problem yourself. 7- 5 BUCK 450 OWNER'S/OPERATOR'S MANUAL 20.0 7. CONTROL AND PARTS FUNCTIONS BRAKE PEDAL 1.Brake pedal Press the brake pedal to slow or stop the vehicle. WARNING Never operate the UTV with a spongy feeling brake pedal. Operating the UTV with a spongy brake pedal can result in loss of braking. Loss of braking could cause an accident. PARKING BRAKE LEVER The parking brake lever is located at the left side of the steering wheel. It will help hold the vehicle from moving while parked. To set the parking brake, pull the lever up completely. The parking indicator light will come on if the main switch is on. To release the parking brake, pull up on the lever, press the release button, and then push the lever all the way down. Be sure to fully release the parking brake before starting out. Failure to do so may result in poor performance and premature wearing of the parking brake and V-belt. 1. Release button 2. Parking brake lever 7- 6 BUCK 450 OWNER'S/OPERATOR'S MANUAL 20.0 7. CONTROL AND PARTS FUNCTIONS AUTOMATIC TRANSMISSION GEAR SELECTOR OPERATION The transmission gear selector is located at the right side of the steering wheel. The transmission selector lever has four positions: reverse; neutral; high forward; and low forward NOTE: To extend belt life, use low forward gear in heavy pulling situations and in situations where you are operating below 7mph(11km/h) for extended periods of time. CAUTION To change gears, stop the vehicle and with the engine idling, move the lever to the desired gear. Shifting gears with the engine speed above idle or while the vehicle is moving could cause transmission damage. Always place the transmission in gear with the parking brake locked whenever the vehicle is left unattended. Maintaining shift linkage adjustment is important to assure proper transmission function. Should you experience any shifting problem see your dealer. WARNING POTENTIAL HAZARD Engaging a lower gear when the engine speed is too high. WHAT CAN HAPPEN The wheels could stop rotating. This could cause loss of control, an accident and injury. It could also cause engine or drive train damage. HOW TO AVOID THE HAZARD Make certain the engine has sufficiently slowed before shifting to a lower gear. 7- 7 BUCK 450 OWNER'S/OPERATOR'S MANUAL 20.0 7. CONTROL AND PARTS FUNCTIONS FUEL TANK CAP 1.Fuel tank cap Remove the fuel tank cap by turning it counterclockwise. SEATS 1.Drive seat 2.Passenger seat To remove a seat, lift the rear of the seat, and then slide the seat up and backward. To install a seat, push down on the seat at the front and insert the projections on the rear of the seat into the seat holders. WARNING POTENTIAL HAZARD A loose seat. WHAT CAN HAPPEN The operator could lose control or the operator or passenger could fall if the seat is loose during operation. HOW TO AVOID THE HAZARD Make sure the seat is securely latched. 7- 8 BUCK 450 OWNER'S/OPERATOR'S MANUAL 20.0 7. CONTROL AND PARTS FUNCTIONS SEAT BELTS 1.Seat belt (×2) 2.Latch plate (×2) 3.Buckle (×2) This vehicle is equipped with three-point seat belts for both the operator and passenger. Always wear the seat belt while riding in the vehicle. 1. Buckle 2. Latch plate 1. Buckle 2.Release button 7- 9 BUCK 450 OWNER'S/OPERATOR'S MANUAL 20.0 7. CONTROL AND PARTS FUNCTIONS To Wear The Seat Belt Properly, do the following: 1. Hold the latch plate as you pull the belt across your lap and chest. Make sure the belt is not twisted and is not caught on any portion of the vehicle, your clothing, or any equipment you are carrying. 2. Push the latch plate into the buckle until it clicks. Pull up on the latch plate to make sure it is secure. 3. Put the lap portion of the belt low on your hips. Push down on the buckle end of the belt as you pull up on the shoulder part so the belt is snug across your hips. 4. Position the shoulder belt over your shoulder and across your chest. The shoulder belt should fit against your chest. If it is loose, pull the belt out all the way and then let it retract. To Release The Buckle, firmly press the release button. WARNING POTENTIAL HAZARD Not wearing the seat belt. Wearing the seat belt improperly. WHAT CAN HAPPEN There is increased risk of being killed or seriously injured in an accident. HOW TO AVOID THE HAZARD Always wear your seat belt when riding in the vehicle. Be sure the seat belt is close-fitting across your hips and chest and is latched securely. CAUTION To protect from damage, do not put metal products, like tools or sharply edged products directly in the glove compartment. If they must be stored, wrap them in appropriate cushion material. 7- 10 BUCK 450 OWNER'S/OPERATOR'S MANUAL 20.0 7. CONTROL AND PARTS FUNCTIONS CARGO BED 1.Cargo bed 2.Tailgate 3.Cargo hook (×4) Opening And Closing The Tailgate 1.Tailgate 2. handle To open Pull the handle, and then lower the tailgate. To close Place the tailgate in the original position, and be sure that it is locked into place. Lifting And Lowering The Cargo Bed 1.Cargo bed release lever To lift Push down the cargo bed release lever on the left or right side of the vehicle, and then slowly lift up the cargo bed until it stops. 7- 11 BUCK 450 OWNER'S/OPERATOR'S MANUAL 20.0 7. CONTROL AND PARTS FUNCTIONS To lower Lower the cargo bed slowly to its original position and be sure that it is locked into place. WARNING POTENTIAL HAZARD Pinch points. WHAT CAN HAPPEN You or someone else could be pinched between the cargo bed and the frame when the bed is being lowered. HOW TO AVOID THE HAZARD Before closing the bed, be sure others are standing away from the vehicle. Keep hands and fingers away from the pinch points between the bed and the frame. Load Limit CARGO BED Maximum load limit: 150 kg (330 lb) WARNING POTENTIAL HAZARD Overloading the cargo bed WHAT CAN HAPPEN Could cause changes in vehicle handling which could lead to an accident. HOW TO AVOID THE HAZARD Never exceed the stated maximum load limit for this cargo bed. Cargo should be properly distributed and securely attached. Reduce speed when carrying cargo. Allow greater distance for braking. WARNING POTENTIAL HAZARD Carrying a passenger/ passengers in the cargo bed 7- 12 BUCK 450 OWNER'S/OPERATOR'S MANUAL 20.0 7. CONTROL AND PARTS FUNCTIONS WHAT CAN HAPPEN The passenger(s) could fall, be thrown out, or be struck by objects in the cargo bed. HOW TO AVOID THE HAZARD Never carry a passenger/ passengers in the cargo bed. This cargo bed is designed to carry cargo only. TRAILER HITCH BRACKET 1.Trailer hitch bracket This vehicle is equipped with a receiver bracket for a standard trailer hitch. HOOD 1.latch (×2) To Open Unhook the hood latches, pull down the hood and then take it out. To Close Put the hood in place, push up it and then lock the latch. 7- 13 BUCK 450 OWNER'S/OPERATOR'S MANUAL 20.0 7. CONTROL AND PARTS FUNCTIONS WARNING If the hood latches are hooked improperly, or the latches and their attachments can not work properly, the front hood can come off during operation, striking the driver or passenger and causing serious personal injury. ENGINE COOLING SYSTEM Coolant Level The recovery bottle, located the left of the frame, must be maintained between the minimum and levels indicated on the recovery bottle. The engine coolant level is controlled or maintained by the recovery system. The recovery system components are the recovery bottle, radiator filler neck, radiator pressure cap and connecting hose. As coolant operating temperature increases, the expanding (heated) excess coolant is forced out of the radiator past the pressure cap and into the recovery bottle. As engine coolant temperature decreases, the contracting (cooled) coolant is drawn back up from the tank past the pressure cap and into the radiator. NOTE: Some coolant level drop on new machines is normal as the system is purging itself of trapped air. Observe coolant levels and maintain as recommended by adding coolant to the recovery bottle. We recommends the use of high quality aluminum compatible anti-freeze coolant. NOTE: Always follow the manufacturer's mixing recommendations for the freeze protection required in your area. WARNING Never remove the pressure cap when the engine is warm or hot. Escaping steam can cause severe burns. The engine must be cool 7- 14 BUCK 450 OWNER'S/OPERATOR'S MANUAL 20.0 7. CONTROL AND PARTS FUNCTIONS before removing the pressure cap. Radiator Coolant Level Inspection NOTE:This procedure is only required if the cooling system has been drained for maintenance and/or repair. However, if the recovery bottle has run dry, the level in the radiator should be inspected and coolant added if necessary. NOTE: Use of a non-standard pressure cap will not allow the recovery system to function properly. If the cap should need replacement contact your dealer for the correct replacement part. To insure that the coolant maintains its ability to protect the engine, it is recommended that the system be completely drain every two years and a fresh antifreeze be added. Using a funnel, slowly add coolant as necessary through the radiator filler neck. FUEL AND OIL SYSTEM WARNING Gasoline is highly flammable and explosive under certain conditions. Always exercise extreme caution whenever handling gasoline. Always refuel with the engine stopped and outdoors or in a well ventilated area. Do not smoke or allow open flames or sparks in or near the area where refueling is performed or where gasoline is stored. Do not over fill the tank. Do not fill the tank neck. If you get gasoline on your skin or clothing, immediately wash it off with soap and water and change clothing. Never start the engine or let it run in an enclosed area. Gasoline 7- 15 BUCK 450 OWNER'S/OPERATOR'S MANUAL 20.0 7. CONTROL AND PARTS FUNCTIONS powered engine exhaust fumes are poisonous and can cause loss of consciousness and death in a short time. WARNING The engine exhaust from this product contains chemicals known, in certain quantities, to cause cancer, birth defects or other reproductive harm. Recommended Fuel: Unleaded Gasoline Only Fuel tank capacity: 26.0 L (5.72 Imp gal, 6.87 US gal) CAUTION Use only unleaded gasoline. The use of leaded gasoline will cause severe damage to internal engine parts, such as the valves and piston rings, as well as to the exhaust system. Use 87 octane or higher gasoline. Fuel filter The filter should be replaced by your dealer every 100 hours of operation or annually. Do not attempt to clean the fuel filter. Oil System 1.Dipstick The oil tank is located on the right side of the vehicle. To check the oil: 1. Set machine on a level surface. 2. Start the engine and let it idle for 20-30 seconds. 3. Stop the engine, remove dipstick (1) and wipe dry with a clean cloth. 4. Put dipstick into the oil tank (don't screw in it), remove it and read the oil level. 5. Remove dipstick and check to see that the oil level is between the full 7- 16 BUCK 450 OWNER'S/OPERATOR'S MANUAL 20.0 7. CONTROL AND PARTS FUNCTIONS and add marks(2). Add oil as indicated by the level on the dipstick. Do not overfill. CAUTION Use only SAE 15W/40, SJ OIL. Never substitute or mix oil brands. Serious engine damage and voiding of warranty can result. 7- 17 BUCK 450 OWNER'S/OPERATOR'S MANUAL 20.0 8. STARTING THE ENGINE Procedure for Starting a Cold Engine WARNING Never run an engine in an enclosed area. Carbon monoxide exhaust gas is poisonous and can cause severe injury or death. Always start engines outdoors. WARNING POTENTIAL HAZARD Freezing control cables in cold weather. WHAT CAN HAPPEN You could be unable to control the vehicle, which could lead to an accident or collision. HOW TO AVOID THE HAZARD When riding in cold weather, always make sure all control cables work smoothly before you begin riding. CAUTION You must allow your vehicle adequate warm up time before operating or engine damage could result. 1. Apply the brake. 2. Shift the drive select lever into the neutral position. NOTE: When the drive select lever is in the neutral position, the Gear Position Indicator display "N". If the Gear Position Indicator does not display "N", ask a dealer to inspect the electric circuit. The engine can be started in any gear if the brake is applied. However, it is recommended to shift into neutral before starting the engine. 3. With your foot off the accelerator pedal, start the engine by turning the key to " ". 8-1 BUCK 450 OWNER'S/OPERATOR'S MANUAL 20.0 8. STARTING THE ENGINE NOTE: If the engine fails to start, release the key, and then try starting again. Wait a few seconds before the next attempt. Each cranking should be as short as possible to preserve battery energy. Do not crank the engine more than 5 seconds on each attempt. 1. After the engine starts, Continue warming up the engine until it runs smoothly. Jump-starting Jump-starting the vehicle should be avoided. The battery should be removed and charged instead. However, if the vehicle must be jumpstarted, proceed as follows. 1. Turn the key to " ". 2. Open the hood. 3. Using a charged 12 V battery, connect the positive lead of the jumper cable to the positive terminal of the battery in the vehicle and the other end of the positive lead to the positive terminal of the charged battery. 1. Jumper cable positive lead 2. Jumper cable negative lead 4. Connect the negative lead of the jumper cable to the negative terminal of the charged battery and the other end of the negative lead to an unpainted metal surface of the vehicle. 5. Start the engine. 8-2 BUCK 450 OWNER'S/OPERATOR'S MANUAL 20.0 8. STARTING THE ENGINE 6. After the engine starts, disconnect the negative lead of the jumper cable from the vehicle and charged battery, and then disconnect the positive lead of the jumper cable from the charged battery and the battery in the vehicle. 7. Close the hood. WARNING If the hood latches are hooked improperly, or the latches and their attachments can not work properly, the front hood can come off during operation, striking the driver or passenger and causing serious personal injury. 8-3 BUCK 450 OWNER'S/OPERATOR'S MANUAL 20.0 9. VEHICLE BREAK-IN PERIOD The break-in period for your new UTV is defined as the first 50 hours of operation. No single action on your part is as important as a proper break in period. Careful treatment of new engine will result in more efficient performance and longer life for the engine. Perform the following procedures carefully. CAUTION Do not operate at full throttle or high speeds for extended periods during the break-in period. Excessive heat can build up and cause damage to close fitted engine parts. 1. Fill fuel tank. 2. Check oil reservoir level indicated on dipstick. Add oil if necessary. 3. Drive slowly at first. Select an area which is open and will give you room to familiarize yourself with vehicle operation and handling. 4. Do not operate at sustained idle. 5. Perform regular checks on fluid levels, controls and all important areas on the vehicle as outlined earlier on the daily pre-ride inspection checklist found in" 4.daily pre-ride inspection ". 6. Don't pull loads. 7. Break in oil and filter. Change at 20 hours or 500 miles/800km. 9-1 BUCK 450 OWNER'S/OPERATOR'S MANUAL 20.0 10. RIDING GEAR SAFE RIDING GEAR Always wear clothing suite to the type of riding you are doing. UTV riding requires special protective clothing which will make you fell more comfortable and reduce chances of injury. 1. Helmet Your helmet is the most important piece of protective gear for safe riding. A helmet can prevent a severe head injury. Select an approved off-road motorcycle -type helmets that fits properly. 2. Eye Protection A pair of goggles or helmet face shield offer the best protection for your eyes. 3. Gloves (off-road style) 4. Boots A pair of strong over the calf type boots with heels, such as motocross boots. 5. Clothing To protect your body, long sleeves and pants should always be worn. Riding pants with kneepads, a jersey and shoulder pads provide the best protection. 10-1 BUCK 450 OWNER'S/OPERATOR'S MANUAL 20.0 10. RIDING GEAR WARNING POTENTIAL HAZARD Operating this vehicle without wearing an approved motorcycle helmet, eye protection, and protective clothing. WHAT CAN HAPPEN Operating without an approved motorcycle helmet increases your chances of a severe head injury or death in the event of an accident. Operating without eye protection can result in an accident and increases your chances of a severe injury in the event of an accident. HOW TO AVOID THE HAZARD Always wear an approved motorcycle helmet that fits properly. You should also wear: eye protection (goggles or face shield), gloves, boots, long-sleeved shirt or jacket long pants. 10-2 BUCK 450 OWNER'S/OPERATOR'S MANUAL 20.0 11. CARRYING LOADS CARRYING LOADS Cargo or a trailer can change the stability and handling of a vehicle. You must use common sense and good judgment when carrying cargo or towing a trailer. Keep the following points in mind: Never exceed the weight limits shown. An overloaded vehicle can be unstable. MAXIMUM LOADING LIMIT Cargo bed: 150 kg (330 lb) Trailer hitch: Pulling load (total weight of trailer and cargo): 200 kgf (440 lbf) Tongue weight (vertical weight on trailer hitch point): 11 kgf (25 lbf) Choose a trailer hitch drawbar designed for use with a 5 cm (2 in) receiver. Do not exceed the maximum tongue weight. You can measure tongue weight with a bathroom scale. Put the tongue of the loaded trailer on the scale with the tongue at hitch height. Adjust the load in the trailer, if necessary, to reduce the weight on hitch. If you are carrying cargo and towing a trailer, include the tongue weight in the maximum vehicle load limit. Load cargo in the cargo bed as close to the center of the vehicle as possible and tie it down using the cargo hooks equipped on the cargo bed. Tie down cargo securely in the trailer. Make sure cargo in the trailer cannot move around. A shifting load can cause an accident. 11-1 BUCK 450 OWNER'S/OPERATOR'S MANUAL 20.0 11. CARRYING LOADS Make sure the load does not interfere with controls or your ability to see where you are going. Drive more slowly than you would without a load. The more weight you carry, the slower you should go. Although conditions vary, it is good practice not to exceed low range whenever you are carrying heavier loads or when towing a trailer. Allow more braking distance. A heavier vehicle takes longer to stop. Avoid making sharp turns unless at very slow speeds. Avoid hills and rough terrain. Choose terrain carefully. Added weight affects the stability and handling of the vehicle. Use A Safety Chain A safety chain will help control drawn machinery should it separate from the tractor drawbar. Use a chain with the strength rating equal to or greater than the gross weight of the towed machinery. Attach the chain to the tractor drawbar support or other specified anchor location. Allow only enough slack in the chain to permit turning. Do not use safety chain for towing. 11-2 BUCK 450 OWNER'S/OPERATOR'S MANUAL 20.0 11. CARRYING LOADS WARNING POTENTIAL HAZARD Overloading this vehicle or carrying or towing cargo improperly. WHAT CAN HAPPEN Could cause changes in vehicle handling which could lead to an accident. HOW TO AVOID THE HAZARD Never exceed the stated load capacity for this vehicle. Cargo should be properly distributed and securely attached. Reduce speed when carrying cargo or pulling a trailer. Allow greater distance for braking. WARNING POTENTIAL HAZARD Carrying a passenger in the cargo bed. WHAT CAN HAPPEN The passenger could fall or be struck by objects in the cargo bed. HOW TO AVOID THE HAZARD Never carry a passenger in the cargo bed. The cargo bed is designed to carry cargo only. 11-3 BUCK 450 OWNER'S/OPERATOR'S MANUAL 20.0 12. DRIVING YOUR VEHICLE GETTING TO KNOW YOUR VEHICLE This off-highway utility vehicle will handle and maneuver differently from an ordinary passenger car or other vehicle. Before you begin to use your vehicle, be sure you have read this Owner's Manual completely and understand the operation of the controls. Pay particular attention to the safety information. Please also read all caution and warning labels on your vehicle. This vehicle is designed for the operator and one passenger. The driver and passenger must always wear a seat belt. Never carry passengers in the cargo bed. WARNING POTENTIAL HAZARD Not wearing the seat belt. Wearing the seat belt improperly. WHAT CAN HAPPEN There is increased risk of being killed or seriously injured in an accident. HOW TO AVOID THE HAZARD Always wear your seat belt when riding in the vehicle. Be sure the seat belt is close-fitting across your hips and chest and is latched securely. WARNING The engine rpm limiter works at 7000 rpm, this may cause excessive fuel to build in the exhaust, and ignited by the catalyst in the muffler, MAY RESULT IN THE MUFFLERS OVERHEATING AND FIRE RISK. Always reduce throttle when the engine reach top rpm, avoid the engine popping. WARNING You must inspect you UTV each time before riding to ensure it is in proper working order. If proper inspection is not done, severe injury or death could result. See"4.DAILY PRE-RIDE INSPECTION" 12- 1 BUCK 450 OWNER'S/OPERATOR'S MANUAL 20.0 12. DRIVING YOUR VEHICLE LEARNING TO OPERATE YOUR VEHICLE You should become familiar with the performance characteristics of the vehicle in a large, flat area that is free of obstacles and other vehicles. Practice control of the accelerator pedal, brakes, steering, and drive select lever. Drive first at slow speed and become comfortable at that speed before gradually increasing your speed. Become familiar with the way the vehicle feels in low and high ranges, first in two-wheel drive (2WD) and then in four-wheel drive (4WD). Also practice driving in reverse. Take the time to learn basic operation before attempting more difficult maneuvers. 1. Set the parking brake, shift to neutral, and follow the instructions to start the engine. 2. With the engine idling, shift the drive select lever into low or high. Then release the parking brake. 3. Press the accelerator pedal slowly and smoothly. The centrifugal clutch will engage and you will start to accelerate. Avoid higher speeds until you are thoroughly familiar with the operation of your vehicle. 4. When slowing down or stopping, take your foot off the accelerator pedal and smoothly press the brake pedal. Improper use of the brakes can cause the tires to lose traction, reducing control and increasing the possibility of an accident. MAKING TURNS It is possible for the vehicle to roll over or go out of control if you attempt sharp, high-speed turns. You should also be careful making sharp turns on rough terrain. Do not attempt to turn around or make abrupt maneuvers on slopes. Position your hands on the steering wheel so that your thumbs and fingers do not wrap around the wheel. This is particularly important when driving in rough terrain. The front wheels will move right and left as they respond to the terrain, and this movement will be felt in the steering wheel. A sudden jolt could wrench the steering wheel around, and your thumbs or fingers could be injured if they are in the way of the steering wheel spokes. 12- 2 BUCK 450 OWNER'S/OPERATOR'S MANUAL 20.0 12. DRIVING YOUR VEHICLE BRAKING Braking ability is affected by the type of terrain. In most cases, gradually application of the brakes is more effective than abrupt braking, particularly on loose surfaces like gravel. Always allow for greater braking distance on rough, loose, or slippery surfaces. GOING UPHILL Do not attempt to climb hills until you have mastered basic maneuvers on flat ground. Use proper driving techniques to avoid overturns on hills and slopes. Drive straight up hills, and avoid crossing the side of a hill, which increases your chance of rollover. Practice first on gentle slopes before attempting steeper hills. Always check the terrain carefully before attempting any hill. Use common sense and remember that some hills are too steep for you to climb. Choose carefully which hills you attempt to climb. Avoid hills with slippery surfaces or ones where you will not be able to see far enough ahead of you. WARNING POTENTIAL HAZARD Operating on excessively steep hills. WHAT CAN HAPPEN The vehicle can overturn more easily on extremely steep hills than on level surfaces or small hills. HOW TO AVOID THE HAZARD Never operate your vehicle on hills too steep for it or your abilities. 12- 3 BUCK 450 OWNER'S/OPERATOR'S MANUAL 20.0 12. DRIVING YOUR VEHICLE Never operate vehicles on hills steeper than 15. Do not drive across the face of a hill. Go straight up the hill. Practice on smaller hills before attempting large hills. 15 Maximum Before climbing the hill, first be sure you are operating in low range 4WD ( 4WD modle). To climb a hill, you need traction, momentum, and steady throttle. Travel fast enough to keep your momentum going, but not so fast that you cannot react to changes in the terrain as you climb. Slow down when you reach the crest of the hill if you cannot clearly see what is on the other side there could be another person, an obstacle, or a sharp drop off. If you start to lose traction or momentum when climbing, and you decide you will be unable to continue, use the brakes to come to a stop. Do not attempt to turn the vehicle around. With your foot on the brake, look behind you and plan your descent. Release the brake and begin to coast down the hill. gently applying the brakes when necessary. GOING DOWNHILL Check the terrain carefully before going down a hill. When possible, choose a path that lets you drive your vehicle straight downhill. Avoid sharp angles that could allow the vehicle to pitch or roll over. Carefully choose your path and drive no faster than you will be able to react to obstacles that may appear. 12- 4 BUCK 450 OWNER'S/OPERATOR'S MANUAL 20.0 12. DRIVING YOUR VEHICLE WARNING POTENTIAL HAZARD Going down a hill improperly. WHAT CAN HAPPEN Could cause loss of control or cause the vehicle to overturn. HOW TO AVOID THE HAZARD Always check the terrain carefully before you start down any hill. Never go down a hill at high speed. Avoid going down a hill at an angle that would cause the vehicle to lean sharply to one side. Go straight down the hill where possible. Before starting down hill, make sure the vehicle is in low-range 4WD ( 4WD modle). Go as slowly as possible. If you are starting to go too fast, apply the brakes gently. Avoid sudden application of the brakes, which could cause the vehicle to start sliding. If you are sliding or skidding, try to steer in the direction the vehicle is sliding to help you regain control. If you must turn on the hill to avoid an obstacle, do so slowly and carefully. If the vehicle starts to tip, gradually steer in the downhill direction if there are no obstacles in your path. As you regain proper balance, gradually steer again in the direction you want to go. WARNING POTENTIAL HAZARD Try to stop the tipping vehicle with your arm or leg. WHAT CAN HAPPEN You could be severely injured. You could suffer a crushed hand, arm, leg, or foot. HOW TO AVOID THE HAZARD You must keep your arms and legs inside the vehicle until it has stopped moving. As with any off-road-capable vehicle, there is a risk of tip over or rollover under certain conditions. Uneven terrain or slopes which pitch the vehicle sideways, turning too fast or sharp, or a combination of conditions increase the risk of tip over. If you are in a situation where the vehicle is tipping over, do not put your arm or/ and leg outside the vehicle, do not try to stop tipping with your 12- 5 BUCK 450 OWNER'S/OPERATOR'S MANUAL 20.0 12. DRIVING YOUR VEHICLE arm or leg. You could be severely injured. You could suffer a crushed hand, arm, leg, or foot, if part of your body is caught underneath the vehicle. CROSSING THROUGH SHALLOW WATER If you must cross shallow, slow moving water up to 200mm (8 in) depth, choose your path carefully to avoid sharp drop-offs, large rocks, or slippery surfaces that could cause the vehicle to overturn. Never operate through water deeper than 200mm (8 in) or fast flowing water. Wet brakes may have reduced effectiveness. After leaving the water, test your brakes. If necessary, apply the brakes several times to let friction dry out the linings. NOTE: After running the vehicle in water, it is critical your machine is serviced as outlined in the maintenance chart see "16.maintenance".The following areas need special attention: engine oil, transmission oil, rear gearcase, and all grease fittings. WARNING POTENTIAL HAZARD Operating this vehicle through deep or fast-flowing water. WHAT CAN HAPPEN Loss of control, which could result in an accident including overturn, which could increase the risk of drowning. HOW TO AVOID THE HAZARD Never operate this vehicle in fast flowing water or in water deeper than 200 mm (8 in). Remember that wet brakes may have reduced stopping ability. Test your brakes after leaving water. If necessary, apply them several times to let friction dry out the linings. RIDING OVER ROUGH TERRAIN Operating over rough terrain should be done with caution. Look for obstacles that could cause damage to the vehicle or could lead to a rollover or accident. Avoid jumping the vehicle as injury, loss of control, and damage to the vehicle could occur. WARNING 12- 6 BUCK 450 OWNER'S/OPERATOR'S MANUAL 20.0 12. DRIVING YOUR VEHICLE POTENTIAL HAZARD Failure to use extra care when operating this vehicle on unfamiliar terrain. WHAT CAN HAPPEN You can come upon hidden rocks, bumps, or holes, without enough time to react. Could result in the vehicle overturning or going out of control. HOW TO AVOID THE HAZARD Go slowly and be extra careful when operating on unfamiliar terrain. Always be alert to changing terrain conditions when operating the vehicle. RIDING IN BRUSH OR WOODED AREAS When operating in areas with brush or trees, watch carefully on both sides and above the vehicle for obstacles such as branches that the vehicle might hit, causing an accident, or for brush that might enter the vehicle as you pass and strike the driver or passenger. Never hold onto the enclosure so your hand is outside the vehicle. Hold only onto the handgrip inside the enclosure. ENCOUNTERING OBSTACLES ON THE TRAIL If you cannot go around an obstacle such as a fallen tree trunk or a ditch, stop the vehicle where it is safe to do so. Set the parking brake and get out to inspect the area thoroughly. Look from your approach side and the exit side. If you believe you can continue safely, decide the path that will allow you to get over the obstacle at as close to a right angle as possible to minimize vehicle tipping. Go only fast enough to maintain your momentum but still give yourself plenty of time to react to changes in conditions. If there is any question about your ability to maneuver safely over the obstacle, you should turn around, if the ground is flat and you have the room, or back up until you find a less difficult path. WARNING POTENTIAL HAZARD Improperly operating over obstacles WHAT CAN HAPPEN Could cause loss of control or a collision. Could cause the vehicle to overturn. 12- 7 BUCK 450 OWNER'S/OPERATOR'S MANUAL 20.0 12. DRIVING YOUR VEHICLE HOW TO AVOID THE HAZARD Before operating in a new area, check for obstacles. Use extreme caution when operating over large obstacles, such as large rocks or fallen trees. PARKING When parking, stop the engine and shift the drive select lever into the neutral position. Apply the parking brake to help prevent the vehicle from rolling. Parking on a slope 1. Bring the vehicle to a stop by applying the brakes. 2. Stop the engine. 3. With the brakes applied, set the parking brake. WARNING POTENTIAL HAZARD Parking on a hill or other incline. WHAT CAN HAPPEN The vehicle could roll out of control, increasing the chance of an accident. HOW TO AVOID THE HAZARD Avoid parking on hills or other inclines. If you must park on an incline, apply the parking brake, and block the front and rear wheels with rocks or other objects. Do not park the vehicle at all on hills that are so steep you could not walk up them easily. 12- 8 BUCK 450 OWNER'S/OPERATOR'S MANUAL 20.0 13. CVT SYSTEM WARNING The CVT system rotates at high speeds. Creating large amounts of force on clutch components. Do not modify any components of the CVT system. Any modification will damage the system; cause the system to be out of balance, The CVT housing must be securely in place during operation, Failure to comply with this warning can result in severe injury or death. Low Range Use May Reduce CVT Operating Temperatures The basic operation of the CVT system is dependent on engine speed and vehicle torque requirements. As engine speed increased, the force exerted on the movable drive sheave by the fly-weights also increases. This, in turn, increases the amount of "pinch" applied to the drive belt. Similarly, if the engine speed decrease, the amount of centrifugal; force decreases, reducing the amount of belt "pinch". 13- 1 BUCK 450 OWNER'S/OPERATOR'S MANUAL 20.0 13. CVT SYSTEM CVT SYSTEM On UTV, the approximate gear ratio difference between high and low range is 1:2.05..This difference in gearing affects the operation of the CVT, especially at speeds less than 7 MPH, due to the system's dependence on engine speed. By switching to low range while operating at low ground speeds, the air temperature in the clutch will be reduced. Reducing the temperature inside the clutch cover extends the life of the CVT components (belt, cover, etc.). WHEN TO USE LOW RANGE The following lists provide a guideline for when to use low range rather than high. Low Range Basic operation at speeds less than 7 MPH (11km/h) Heavy pulling Riding through rough terrain (swamps, mountains, etc.)at low ground speeds High Range: Basic operation at speeds greater than 7 MPH (11km/h) High ground speeds 13- 2 14. BATTERY BUCK 450 OWNER'S/OPERATOR'S MANUAL 20.0 WARNING Whenever removing the battery, disconnect the negative (black) cable first. When reinstalling the battery, connect the negative (black) cable last or an explosive situation could result causing serious injury or death. WARNING Battery electrolyte is poisonous. It contains sulfuric acid. Serious burns can result from contact with skin, eyes or clothing. Antidote: External: Flush with water. Internal: Drink large quantities of water or milk. Follow with milk of magnesia, beaten egg, or vegetable oil. Call physician immediately. Eyes: Flush with water for 15minutes and get prompt medical attention. Batteries produce explosive gases. Keep sparks, flame, cigarettes, etc. away. Ventilate when charging or using in an enclosed space. Always shield eyes when working near batteries. KEEP OUT OF REACH OF CHILDREN. Battery Removal 1. Loosen the nuts and remove the bracket . 2. Disconnect the black (negative) battery cable first. 3. Disconnect the red(positive) battery cable next. 4. Lift the battery out of the UTV, being careful not to tip it sideways and spill electrolyte. CAUTION If electrolyte spills, immediately wash it off with a solution of one tablespoon baking soda and one cup water to prevent damage to the UTV. Battery Installation and Connections WARNING To avoid the possibility of explosion, always connect battery cables in the order specified. Red (positive) cable first; black (negative) cable last. An exploding battery can cause serious injury or death. 14-1 14. BATTERY BUCK 450 OWNER'S/OPERATOR'S MANUAL 20.0 WARNING Battery terminals and connections should be kept free of corrosion. If cleaning is necessary, remove the corrosion with a stiff wire brush. Wash with a solution of one tablespoon baking soda and one cup water. Rinse well with tap water and dry off with clean rags. Coat the terminals with dialectic grease or petroleum jelly. Be careful not to allow cleaning solution or tap water into the battery. 1. Set the battery in its holder. 2. First connect and tighten the red (positive) cable. 3. Second connect and tighten the black (negative) cable. 4. Reinstall bracket and tighten the nut. 5. Verify that cables are properly routed. NOTE: When you UTV is placed in storage for one months or more, the battery should be removed, charged to proper level, and stored in a cool dry place. Before reusing, take the battery to your dealer for testing and recharging. Power plug leads may need to be bent down so that battery cover may be installed. When installing a new battery, make certain it is fully charged prior to it is initial use. Using a new battery that has not been fully charged can damage the battery resulting in a shorter life of the battery, It can also hinder vehicle performance. CAUTION Your UTV is equipped with a 18Ah Battery(or 30AhBattery for EPS model).This may no be sufficient to provide power for optional equipment. When installing optional equipment please upgrade your battery as necessary. See your dealer for the proper battery. 14-2 BUCK 450 OWNER'S/OPERATOR'S MANUAL 20.0 15. EXHAUST SYSTEM SYSTEM REGULATION TAMPERING WITH NOISE CONTROL SYSTEM PROHIBITED! CAUTION: Exhaust system components are very hot during and after use of UTV. Do not touch exhaust system components. Serious burns can result. Be especially careful when traveling through tall grass. The potential for fire exists Spark Arrestor The exhaust pipe must be periodically purged of accumulated carbon as follows: 1. Remove the 3 bolts and remove the arrester from the end of the muffler. 2. Use a non-synthetic brush to clean the arrester screen. A synthetic brush may melt if components are warm. If necessary, blow debris from the screen with compressed air. 3. Inspect the screen for wear and damage. Replace the arrester if damage is found. 4. Reinstall the arrester. 15-1 BUCK 450 OWNER'S/OPERATOR'S MANUAL 20.0 15. EXHAUST SYSTEM WARNING When cleaning the spark arrestor, you must follow the safe guards listed below to avoid serious injury. Do not perform this operation immediately after the engine has been run because the exhaust system becomes very hot. Keep combustible materials away from exhaust system. Fire may result. Catalyst There is catalyst inside the muffler on all U.S. models. WARNING The engine rpm limiter will work at 7000rpm, this may cause excessive fuel to build in the exhaust, and ignited by the catalyst in the muffler, MAY RESULT IN THE MUFFLERS OVERHEATING AND FIRE RISK. Always reduce throttle when the engine reach top rpm, avoid the engine popping. WARNING The engine exhaust from this product contains chemicals known, in certain quantities, to cause cancer, birth defects or other reproductive harm. 15-2 BUCK 450 OWNER'S/OPERATOR'S MANUAL 20.0 16. MAINTENANCE CAUTION Due to the nature of the adjustments marked with a D on the following chart, it is recommended that service be performed by an authorized dealer. More often under severe use, such as dirty or wet conditions to purge water or dirt contamination from grease fittings and other critical components. PERIODIC MAINTENANCE SCHEDULE Careful periodic maintenance will help keep your vehicle in the safest, most reliable condition. Inspection, adjustment and lubrication intervals of important components are explained in the following chart on the following pages. NOTE: Maintenance intervals are based upon average riding conditions and an average vehicle speed of approximately 16 km/ 10 miles per hour. However, keep in mind that if the vehicle isn't used for a long period of time, the month maintenance intervals should be followed. Vehicles subjected to severe use, such as operation in wet or dusty areas, should be inspected and serviced more frequently. Inspect, clean, lubricate, adjust or replace parts as necessary. NOTE: Inspection may reveal the need for replacement parts. Always use genuine parts available from your dealer. Service and adjustments are critical. If you are not familiar with safe service and adjustment procedures, have a qualified dealer perform these operations. 16- 1 BUCK 450 OWNER'S/OPERATOR'S MANUAL 20.0 16. MAINTENANCE Item Brake System Accelerator pedal Hours Pre-ride Pre-ride Fuel System Pre-ride Tires Pre-ride Front and Rear Wheels/ Pre-ride Hubs Steering Pre-ride D Wheels bearings 10 hrs Frame nuts, bolts Pre-ride fasteners Air Filter-Pre-Cleaner Daily Coolant/Level Inspection Daily Air Box Sediment Tube Headlamp Inspection Daily Daily Tail/ indicator lamp Daily inspection Air Filter-Main Element Battery Weekly 20 hrs D Brake pad wear Rear Gear case Oil Front Gear case Oil 10 hrs 100 hrs 100 hrs When Pre-ride Pre-ride Pre-ride Pre-ride Pre-ride Pre-ride Monthly Pre-ride Daily Daily Daily Daily Daily Weekly Monthly Monthly Monthly Monthly Remarks Pre-ride inspection item Inspect adjust, lubricate, replace if necessary; pre-ride inspection item Check for leaks at tank cap, lines, fuel valve, filter, and carburetor. Inspect daily, pre-ride inspection item Pre-ride inspection item Inspect daily, lubricate Check for looseness/ damage. Replace if damaged. Pre-ride inspection item Inspect-Clean Replace engine coolant every one year Drain deposits whenever visible Check operation daily; apply dielectric grease to connector when replaced Check operation daily; apply dielectric grease to socket when replaced Inspect Replace if necessary Check/clean Terminals; check fluid level Inspect periodically Check monthly and change annually Check monthly and change annually 16- 2 BUCK 450 OWNER'S/OPERATOR'S MANUAL 20.0 16. MAINTENANCE Item Engine Cylinder and Cylinder Fasteners Head Base Hours 25 hrs When Remarks 3 months Inspect (re-torque required at first service only) General Lubrication 50 hrs 3 months Lubricate all fittings, pivots, cables, etc. Engine Oil-Level/Change 30 hrs 3 months Check Level Daily; Break in Service at 1 month. Change oil more often in cold weather use. Engine breather hose 100 hrs 6 months Inspect Throttle Cable/ D Accelerator pedal 20 hrs monthly Inspect adjust, lubricate, replace if necessary; pre-ride inspection item Coolant strength 100 hrs 6 months Inspect strength seasonally Shift linkage 50 hrs 6 months Inspect, adjust Drive belt D Steering system D 50 hrs 50 hrs 6 months Inspect, replace if necessary 6 months Check operation and for looseness, worn, damage, binding feeling / Adjust, repair, Replace if necessary. Check toe alignment /Adjust if necessary. Toe adjustment D As required D Front Axle (CV Joints, 10 hrs 4x4 model) Rear Axle 100 hrs Front Prop ShaftShaft 50 hrs Yoke Rear Prop Shaft 50 hrs As required Monthly 6 months Periodic inspection, adjust when parts are replaced Check for/ Axle looseness/ damage. Inspect bearings, Lube boots/ 6 months Check for looseness/ damage. 6 months Check for looseness/ damage. 16- 3 BUCK 450 OWNER'S/OPERATOR'S MANUAL 20.0 16. MAINTENANCE Item Hours When Remarks Front Suspension Rear Suspension Spark Plug D Ignition Timing Fuel System D Fuel Filter D Radiator 50 hrs 50 hrs 100 hrs 100 hrs 50 hrs 100 hrs 100 hrs 6 months 6 months 12 months 12 months 6 months 12 months 12 months Inspect-lubricate, tighten fasteners Inspect, tighten fasteners Inspect-replace if necessary Inspect and adjust as needed Check for leaks at tank cap, lines, fuel valve, filter, and carburetor. Replace lines every one year Replace annually Inspect/clean external surface Cooling System hoses Spark arrestor Clutches (drive and D driven) Engine mounts Valve clearance D Brake fluid D Headlight Aim 50 hrs 10 hrs 25 hrs 6 months Inspect/replace if necessary monthly Clean out-replace if necessary 3 months Inspect, clean 25 hrs 100 hrs 200 hrs As required 3 months 12 months 24 months As required Inspect Inspect/adjust Change every two years Adjust if necessary 16- 4 BUCK 450 OWNER'S/OPERATOR'S MANUAL 20.0 16. MAINTENANCE LUBRICATION RECOMMENDATIONS Item Lube Rec Method 1. Engine Oil SAE 15W/40SJ Add to proper level on dipstick 2.Brake Fluid DOT 3 Only Maintain level Between fill lines. See "16. MAINTENANC/ Brakes" 3.Transmission Oil SAE Add to proper GL-4 85W/90 level on dipstick 4.Rear Gear case SAE oil GL-4 85W/90 5.Front Gear case SAE oil GL-4 85W/90 See "16.MAINTENANCE/ Rear Gear Case Lubrication" See "16.MAINTENANCE/ Front Gear Case Lubrication" Frequency Check level daily As require; change every two years or 200 hours Change annually or at 100 hours Change annually or at 100 hours Change annually or at 100 hours 16- 5 BUCK 450 OWNER'S/OPERATOR'S MANUAL 20.0 16. MAINTENANCE Item 6.Steering system 7.Tie rods 8.Shift Linkages 9.Front Wheel bearings 10.Ball joints Lube Rec Grease Grease Grease Inspect Grease 11.Prop Shaft Shaft Grease Yoke, Spline Joint 12. Front/Rear A-arm Grease pivot Shaft 13.Throttle Cable Grease M 14. Accelerator pedal Grease and brake pedal Method Lubricate the pivoting and sliding parts Grease Locate fittings and Grease Inspect and replace bearings if necessary Inspect, Locate fittings and Grease, or replace it if necessary Locate fitting and Grease Locate fitting on pivot shaft and grease with grease gun Grease, inspect and replace it if necessary Grease, inspect Frequency Every 3 months or 50 hours Semi-annually Semi-annually Semi-annually Semi-annually Semi-annually Every 3 months or 50 hours Monthly or 20 hours Monthly or 20 hours 15.Rear Wheel Bearing Inspect Inspect and replace bearings if Semi-annually necessary NOTE: 1. More often under severe use, such as wet or dusty conditions . 2. Grease: Light weight lithium-soap grease. 3. Grease Mmolybdenum disulfide(MoS2 ) grease(water resistant). 4. *When suspension action becomes stiff or after washing. 5. Hours are based on 10 mph(16Km/h) average. 16- 6 BUCK 450 OWNER'S/OPERATOR'S MANUAL 20.0 16. MAINTENANCE PERIODIC MAINTENANCE RECORD Use the following chart to record periodic maintenance work Maintenance Servicing Servicing Dealer Remarks Interval Date or Performed Person First 5 Hrs 10 Hrs 15 Hrs 20 Hrs 25 Hrs 50 Hrs 75 Hrs 100 Hrs 16- 7 BUCK 450 OWNER'S/OPERATOR'S MANUAL 20.0 16. MAINTENANCE The following items should be checked occasionally for tightness; or if they have been loosened for maintenance service. WHEEL NUT TORQUE SPECIFICATIONS Bolt Size Specification Front M10X1.25 63Ft.Lbs 85N.m Rear M10X1.25 63Ft.Lbs 85N.m Front Wheel Hub Tightening Front wheel bearing tightness and spindle nut retention are critical component operations. Service work must be performed by an authorized dealer. Front Rear Tapered nuts: install with tapered side against wheel AXLE BOOTS Rear Prop Shaft Boots, Front Axle (CV Joints, 4x4 model) Boots, Check the protective boots for holes or tears. If any damage is found, have them replaced by an authorized dealer. 16- 8 BUCK 450 OWNER'S/OPERATOR'S MANUAL 20.0 16. MAINTENANCE REAR SPRING ADJUSTMENT The rear shock absorber spring is adjusted by rotating the adjuster in the direction required to increase or decrease spring tension. Rear Spring Adjustment AIR FILTER SERVICE 16- 9 BUCK 450 OWNER'S/OPERATOR'S MANUAL 20.0 16. MAINTENANCE 1. Disengage the three cover latches . 2. Unlatch the cover and carefully remove it from the air box. 3. Remove the filter . 4. Inspect the air box for oil or water deposits. Wipe away any deposits with a clean shop towel. Note: If the filter has been soaked with fuel or oil it must be replaced. 5. Inspect the air filter and replace if necessary. Note: DO NOT attempt to clean the air filter with compressed air . 6. Place the air filter into the air box and reinstall the air box cover. Note: Make sure the tabs are properly positioned into the hinge. Ensure the O-ring is installed inside the lid properly. 7. Engage the cover latches. STEERING Steering Inspection The steering assembly of the machine should be checked periodically for loose nuts and bolts, worn tie rod ends, worn boots, and damage. Checking routing of all cables, hoses, and wiring to be sure the steering mechanism is not restricted or limited. If any found, have your dealer repair them before riding your vehicle. The steering assembly should be also checked periodically for free operation, steering should move freely through entire range of travel without binding. Park on level ground. Turn the steering wheel right and left. Check for excessive free play, abnormal noises, or a rough feeling. Have an authorized dealer repair as necessary for proper operation. Lubricate the pivoting parts. Recommended lubricant: Lithium-soap-based grease 16- 10 BUCK 450 OWNER'S/OPERATOR'S MANUAL 20.0 16. MAINTENANCE CAMBER AND CASTER The camber and caster are non-adjustable. TOE ALIGNMENT CHECK WARNING Do not attempt to adjust the tie rod for toe alignment. Severe injury or death can result from improper adjustment. Contact your dealer. He/she has the training and tools to Make these adjustment. The recommended toe alignment is 1/8"to 1/4"(3to6mm) toe out. 1. Set the steering wheel in a straight ahead position and hold them in this position. 2. Measure A and B,A minus B should be 1/16" to 1/8" (1.5 to 3mm). 3. If this measurement needs to be adjusted, contact your dealer for service. WARNING If the tie rod is positioned incorrectly or adjusted incorrectly, it will not pivot, may break, and may separate. Severe injury or death can result 16- 11 BUCK 450 OWNER'S/OPERATOR'S MANUAL 20.0 16. MAINTENANCE BRAKES Front brake WARNING Once a bottle of brake fluid is opened, use what is necessary and discard the rest. Do not store or use a partial bottle of brake fluid. Brake fluid is hygroscopic, meaning it rapidly absorbs moisture from the air. This causes the boiling temperature of the brake fluid to drop, which can lead to early brake fade and the possibility of serious injury. The front brake is hydraulic disc brakes which is depressing the brake pedal. These brakes are self-adjusting and require no adjustment. The following checks are recommended to keep the brake system in good operating condition. How often they need checking depends upon the type of driving that has been done. Keep fluid level in the master cylinder reservoirs. Normal functioning of the diaphragm is to extend into the reservoir as fluid lever drops. If the fluid lever is low and the diaphragm is not extended, a leak is indicated and the diaphragm should be replaced. Always fill the reservoir as indicated whenever the cover is loosened or removed to insure proper diaphragm operation. Use DOT 3 brake fluid. Check brake system for fluid leaks. Check brake for excessive travel or spongy feel. Check friction pads for wear, damage and loosened. Check security and surface 16- 12 BUCK 450 OWNER'S/OPERATOR'S MANUAL 20.0 16. MAINTENANCE condition of the disc. Pads should be changed when friction material is worn to 3/64"(1mm).(A) Rear Brake The rear brake is a hydraulic disc type brake which is activated by the same pedal which activates the front brake system is self adjusting and requires no maintenance other than periodic checks of the pads for wear Pads should be changed when the friction material is worn to 3/64"(1mm). Inspect the brake disc and pad wear surface for excessive wear. Checking the brake fluid level Insufficient brake fluid may let air enter the brake system, possibly causing the brakes to become ineffective. Before riding, check that the brake fluid is above the minimum level mark and replenish if necessary. A low brake fluid level may indicate worn brake pads and/or brake system leakage. If the brake fluid level is low, be sure to check the brake pads for wear and the brake system for leakage. The brake fluid reservoir is located under the hood. When checking the fluid level, make sure the top of the brake fluid reservoir is level. Use only the recommended quality brake fluid. Otherwise, the rubber seals may deteriorate, causing leakage and poor braking performance. Recommended brake fluid: DOT 3 Refill with the same type of brake fluid. Mixing fluids may result in a harmful chemical reaction and lead to poor braking performance. Be careful that water does not enter the brake fluid reservoir when refilling. Water will significantly lower the boiling point of the fluid and may result in vapor lock. Brake fluid may deteriorate painted surfaces or plastic parts. Always clean up spilled fluid immediately. Have an authorized dealer inspect the brake system if the brake 16- 13 BUCK 450 OWNER'S/OPERATOR'S MANUAL 20.0 16. MAINTENANCE fluid level goes down. Brake pedal and accelerator pedal lubrication Lubricate the pivoting parts. Recommended lubricant: Lithium-soap-based grease (all-purpose grease) PARKING BRAKE Checking Although the parking brake has been adjusted at the factory, the brake should be checked for proper operation. The mechanical brake must be maintained to be fully functional. 1. With the engine off, apply the parking brake lever and attempt to move the UTV. 2. If the rear wheels are locked, it is adjusted properly. 3. If the wheels are not locked, it must be adjusted. 4. The maximum free play is equal to one click of the parking brake lever. If necessary, adjust the free play as follows. Adjusting To adjust (set up) the mechanical parking brake, use the following procedure Note: The adjusting on the caliper is for the wear out of the pads. 1. With the engine off, loosen the adjustor on the lever. 2. Loosen the jam nut of the adjuster on the caliper. 3. Turn the adjuster (bolt) CW (clockwise) by hand till the pad touch the brake disc, turn the adjuster bolt CCW (counterclockwise) by 1/4 to one turn for 10 to 20mm free play at the end of the parking lever. 4. Tighten the jam nuts securely against the adjusters. 5. Make sure the rear wheels turns freely without dragging. 6. Turn the adjustor (the one on the lever) and apply the lever. While adjusting, it is important you apply the lever back and forth for operation, free play and the locking of the parking position. 7. Make sure the rear wheels turns freely without dragging and parking 16- 14 BUCK 450 OWNER'S/OPERATOR'S MANUAL 20.0 16. MAINTENANCE brake works properly. CAUTION Don't over tighten the adjustor. The maximum free play is equal to one click of the parking brake lever. 8. Field test for parking. It must be capable of holding the laden UTV stationary on an 20% up and down gradient. A temporary adjusting can also be done to the brake cable on the parking lever side by turn the adjuster (nut) directly. But the adjust range is limited. Always do the procedure 1 to 8 when necessary. Parking Brake Indicator (light) Switch Adjustment Throttle Free Play Inspection 1. Apply the parking brake. 2. Put gear in Neutral position. 3. Start the engine, and warm it up thoroughly. 4. Measure the distance the throttle pedal moves before the engine begins to pick up seep. Free play should be 1/16" to 1/8" (1.5-3mm). 16- 15 BUCK 450 OWNER'S/OPERATOR'S MANUAL 20.0 16. MAINTENANCE SPARK PLUGS Standard spark plug DR8EA (NGK) Gap:0.6-0.7mm Inspect: Insulator Abnormal color: Replace. Normal color is a medium- To-light tan color. Electrode Wear/damage: Replace. Clean: Spark plug (with spark plug cleaner or wire brush) Measure: Spark plug gap Out of specification: Adjust gap. Spark Plug Removal and Replacement WARNING Never attempt to remove a spark plug while the engine is warm. The exhaust system or engine could burn you causing severe injury. Remove the spark plug by rotating counterclockwise. Reverse the procedure for spark plug installation. Torque to 17ft.Ibs (23N.m). OIL AND FILTER CHANGE Recommended Engine Oil The recommended oil change interval is 30 hours, or every 3 months, whichever comes first. Suggested break in oil change is at 20 hours, or one month, whichever comes first. Severe use operation requires more frequent service. Severe use includes continuous duty in dusty or wet conditions, and cold weather riding. 16- 16 BUCK 450 OWNER'S/OPERATOR'S MANUAL 20.0 16. MAINTENANCE NOTE: Severe use cold weather riding is all riding below 10°F(-12), and riding between 10°F (-12) and 30°F (0) when most trips are slow speed and less than 5 mph (8km/h). CAUTION Oil may be hot. Do not allow hot oil to come into contact with skin as severe burns may result 1. Place vehicle on a level surface; 2. Run engine two or three minutes until warm, Stop engine; 3. Clean area around drain plug; 5. Place a drain pan beneath engine crankcase and remove drain plug; 6. Allow oil to drain completely; 7. Reinstall drain plug and torque to 14ft.Ibs (19N.m) Transmission Lubrication The transmission fill plug is located on the right side of the machine. The transmission lubricant level should be checked monthly or 20 hours, whichever comes first. Transmission oil should be changed annually. With the UTV on a level surface, remove fill plug and check the lubricant level. The correct transmission lubricant to use is SEA GL-4 85W/90 Lubricant. And see"16.Maintenance; lubrication recommendations" for the correct fluid level. 16- 17 BUCK 450 OWNER'S/OPERATOR'S MANUAL 20.0 16. MAINTENANCE Transmission Oil Changing Procedure 1. Remove the four screws on the footwall and gently pull outward for access. 2. Remove fill plug. 3. Remove transmission drain plug located on the bottom left hand side and drain the oil. Catch and discard used oil properly. 4. Clean and reinstall the drain plug torque to 14 ft.lbs. (20Nm 5. Add the correct amount of SAE GL-4 85W/90 Lubricant until oil reaches the upper limit position of the oil level stick. 6. Check for leaks. 7. Reinstall footwall and screws removed in step 1. 16- 18 BUCK 450 OWNER'S/OPERATOR'S MANUAL 20.0 16. MAINTENANCE Rear Gearcase Lubrication CAUTION Be sure no foreign material enters the gear case. With the UTV on a level surface, remove fill plug and visually inspect the lubricant level through the fill hole. Lubricant should be kept even with the center of the drill point approximately below the top of the fill hole. NOTE: Do not add lubricant to the bottom of the fill plug threads. The correct gearcase lubricant to use is SAE GL-4 85W/90 Weight Gear Lube. Oil Changing Procedure 16- 19 BUCK 450 OWNER'S/OPERATOR'S MANUAL 20.0 16. MAINTENANCE 1. Remove the drain plug. Catch and discard used oil properly. 2. Clean and reinstall the drain plug with a new sealing washer and tighten securely (11~15ft. lbs/15~20N.m). 3. Remove the fill plug and add 7 ounces (200ml) of SAE GL-4 85W/90 Weight Gear Lubricant and inspect oil level. Oil level should be kept even with the center of the drill point (approximately below the top of the fill hole). 4. Reinstall the fill plug. Tight securely (26~30 ft. lbs/35~40N.m). 5. Check for leaks. Front Gearcase Lubrication CAUTION Be sure no foreign material enters the gear case. With the ATV on a level surface, remove fill plug and visually inspect the lubricant level through the fill hole. Lubricant should be kept even with the center of the drill point approximately below the top of the fill hole. NOTE: Do not add lubricant to the bottom of the fill plug threads. The correct gear case lubricant to use is SAE GL-4 85W/90 Weight Gear Lube. Oil Changing Procedure 16- 20 BUCK 450 OWNER'S/OPERATOR'S MANUAL 20.0 16. MAINTENANCE 1. Remove the drain plug. Catch and discard used oil properly. 2. Clean and reinstall the drain plug with a new sealing washer and tighten securely (14.8 ft. lbs/20N.m). 3. Remove the fill plug and add 7-8.5 ounces (200ml-250ml) of SAE GL-4 85W/90 Weight Gear Lubricant and inspect oil level. Oil level should be kept even with the center of the drill point (approximately below the top of the fill hole). 4. Reinstall the fill plug. Tight securely (18.4 ft. lbs/25N.m). 5. Check for leaks. WHEELS AND TIRES WARNING Operating your UTV with worn tires, improperly inflated tires, non-standard tires or improperly installed tire will affect vehicle handling which could cause an accident resulting in serious injury or death. Follow the safeguards listed below to prevent this type of situation. Important Safeguards Maintain proper tire pressure according to charts below. Improper tire inflation may affect UTV maneuverability. Do not use improper tires. The use of non-standard size or type tires may affect UTV handling. Make certain the wheels are installed properly. If wheels are improperly installed it could affect vehicle handling and tire wear. Tire Pressure front see detail on the mark of sidewall rear see detail on the mark of sidewall Wheel Removal Procedure 1. Stop the engine, place the transmission in gear and lock the parking brake. 2. Loosen the wheel nuts slightly. 16- 21 BUCK 450 OWNER'S/OPERATOR'S MANUAL 20.0 16. MAINTENANCE 3. Elevate the side of the vehicle by placing a suitable stand under the footrest frame. 4. Remove the wheel nuts and remove the wheel. Wheel Installation 1. With the transmission in gear and the parking brake locked, place the wheel in the correct position on the wheel hub. Be sure the valve stem is toward the outside and totation arrows on the tire point toward forward rotation. 2. Attach the wheel nuts and finger tighten them. 3. Lower the vehicle to the ground. 4. Securely tighten the wheel nuts according to the chart found in "16.MAINTENANCE/ Wheel Nut Torque". Tire Inspection When replacing a tire always use original equipment size and type. Tire Tread Depth Always replace tires when tread depth is worn to 1/8" (3mm) (1) or less. Please refer to your Owner's Manual for tire specifications. LIGHTS Keep your headlights and taillights clean. Poor light while riding can result in an accident causing severe injury or death. Do not service while headlight is hot. Serious burns may result. 16- 22 BUCK 450 OWNER'S/OPERATOR'S MANUAL 20.0 16. MAINTENANCE Headlight Lamp Replacement and Adjust 1. To lower headlight brightness cut-off line, turn adjusting bolt .counterclockwise. And to raise brightness cut-off line, turn the bolt clockwise. 2. This type of headlight is LED , do not try to replace the bulb, if there is a problem with the headlight, please contact the dealer. Taillight / Brake light Lamp Replacement If the Taillight / Brake light does not work ,the lamp may need to be replaced. 1. Remove the Side Cover A . 16- 23 BUCK 450 OWNER'S/OPERATOR'S MANUAL 20.0 16. MAINTENANCE 2. Loosen bulb base 3.Take off the Taillight / Brake Light. 4.Remove bulb and replace it with recommended bulb. 5.Test the Taillight/ Brake Light to see that it's working . 6.Re-install the Light . CLEANING YOUR UTV Keeping your UTV clean will extend the life of various components. Washing Never use a high pressure type car wash system, it can damage to the wheel bearings, transmission seals, body panels, brakes and warning labels, and water might enter the engine or exhaust system. The best and safest way to clean your UTV is with a garden hose and a pail of mild soap and water. Use a professional type washing mitten, cleaning the upper body first and lower parts last. Rinse with water frequently and dry with a chamois to prevent water spots. NOTE: If warning labels are damaged, contact your dealer for replacement. Waxing Your UTV can be waxed with any non-abrasive automotive paste wax. Avoid the use of harsh cleaners since they can scratch the body finish. CAUTION Certain products, including insect repellants and chemicals, will damage plastic surfaces. Care must be taken when using these products plastic surfaces. STORAGE TIPS 16- 24 BUCK 450 OWNER'S/OPERATOR'S MANUAL 20.0 16. MAINTENANCE CAUTION Do not start the engine during the storage period. This will disturb the protective film created by fogging. Cleaning----Clean the UTV thoroughly. Fuel----To avoid possible fire, drain the fuel tank for long-term storage. However, when starting the UTV again, ensure that there is enough fuel in the fuel tank ( The fuel gauge indicator is more than one grid ). Oil Add and Filter Change----Warm the engine and change oil and filter. Air Filter/Air Box----Inspect and clean or replace the pre-cleaner and air filter. Clean the air box and drain the sediment tube. Inspect All Fluid Levels----Inspect the following fluid levels and change if necessary: transmission; brake fluid (change every two years or as required if fluid looks dark or contaminated). Fog the Engine----Spray a light oil into the cylinder through the spark plug hole. Check and Lubricate Cables/Grease----Inspect all cables and lubricate. Battery Maintenance----Remove the battery and store in a dry place. Apply Dielectric Grease to the terminal bolts and terminals. Often charge the battery. Storage Area/Covers----Set tire pressure and safely support the UTV with the tires 1-2"(25-50mm) off the ground. Be sure the storage area is well ventilated. Cover the machine with a UTV cover. NOTE: Do not use plastic or coated materials. They do not allow enough ventilation to prevent condensation, and may promote corrosion and oxidation. TRANSPORTING Whenever the UTV is to be transported the following measures should be taken. 1. Turn off the engine and remove the key. 2. Be certain the fuel cap, oil cap, and seat are installed correctly. 3. Always tie the frame of the UTV to the transporting until securely using suitable straps or rope. 4. Always place the transmission in gear and lock the parking brake. 16- 25 BUCK 450 OWNER'S/OPERATOR'S MANUAL 20.0 17. TROUBLESHOOTING Issues of Improper Operation Driven Clutch (CVT) Burning Possible Causes Solutions Loading the UTV into a pickup or tall trailer when in high range. Shift transmission to Low Range during loading of the UTV to prevent belt burning Starting out going up a steep incline When starting out on an incline, use low range. When parking, first applying the park brake and perform the "K" turn, then dismount the UTV. Driving at low RPM or low Drive at higher speed or use low range. The ground speed (at use of low range is highly recommended for approximately 3-7MPH/ cooler CVT operating temperatures and 5-12km/h longer component life. Insufficient warm-up of UTV's exposed to low ambient temperatures. Warm engine at least 5 min., they with transmission in neutral, advance throttle to approx. 1/8throttle in short bursts, 5 to 7 times. The belt will become more flexible and prevent belt burning. Slow and easy clutch Fast, effective use of the throttle for efficient engagement. engagement. Towing /Pushing at low Use Low Range only. RPM/low ground aped. Stuck in mud or snow. Shift the transmission to Low Range carefully use fast, aggressive throttle application to engage clutch. WARNING: Excessive throttle may cause loss of control and vehicle overturn. Climbing over large objects from a stopped position. Shift the transmission to Low Range carefully use fast, brief, aggressive throttle application to engage clutch. WARNING: Excessive throttle may cause loss of control and vehicle overturn. Low Battery Possible Cause Solutions Starting a faulty engine for long See"8.STARTING THE ENGINE" And time check the fuel/ air/ ignition/ compression system Let the main switch (key) on When stopping the engine, turn off the while parking the UTV main switch (key) off at once 17-1 BUCK 450 OWNER'S/OPERATOR'S MANUAL 20.0 17. TROUBLESHOOTING WARNING This UTV is equipped with EFI system ,If the battery is under 12 Volt, the engine will not start. NOTE: The following trouble shooting does not cover all the possible causes of trouble. It should be helpful, however, as a guide to troubleshooting. Refer to the relative procedure in this manual for inspection, adjustment and replacement of parts. Adjustment and replacement must be done by your dealer. STARTING FAILURE / HARD STARTING FUEL SYSTEM Fuel tank Empty Clogged fuel tank breather pipe Deteriorated fuel or fuel containing water or foreign material fuel filter clogging the fuel pressure not correct Throttle body The connect not good Air cleaner Clogged air cleaner element Improper air cleaner setting COMPRESSION SYSTEM Cylinder and cylinder head Loose spark plug Loose cylinder head Broken cylinder head gasket Broken cylinder gasket Worn, damaged or seized cylinder Valve system Improperly adjusted valve clearance Improperly sealed valve Improperly contacted valve and vale seat Improper valve timing Broken valve spring Seized valve Piston and Piston ring Worn piston Worn fatigued or broken piston ring Seized piston ring Seized or damaged piston 17-2 BUCK 450 OWNER'S/OPERATOR'S MANUAL 20.0 17. TROUBLESHOOTING IGNTION SYSTEM Battery Improperly charged battery Faulty battery Fuse Burnt out, improper connection Spark plug Improper plug gap Worn electrodes Wire between terminals broken Improper heat range Faulty spark plug cap Ignition system Faulty ignitor unit Faulty pick up coil Broken magneto woodruff key Switch Faulty main switch Faulty "ENGINE STOP" switch Faulty brake switch Ignition coil Broken or shorted primary/ secondary coil Faulty high tension cord Broken ignition coil body Wiring Loose battery terminal Loose coupler connection Improperly grounded Broken wireharness POOR IDLE SPEED PERFORMANCE EFI the fuel pressure not correct fuel filter clogging fuel injector clogging Air cleaner Clogged air cleaner element Valve system Improperly adjusted valve clearance Ignition system Faulty spark plug Faulty high tension cord Faulty ignitor unit Faulty pick up coil Faulty ignition coil POOR MEDIUM AND HIGH SPEED PERFORMANCE Air cleaner Clogged air cleaner element EFI the fuel pressure not correct fuel filter clogging fuel injector clogging 17-3 BUCK 450 OWNER'S/OPERATOR'S MANUAL 20.0 17. TROUBLESHOOTING POOR SPEED PERFORMANCE Ignition system Dirty spark plug Improper heat range Faulty igniter unit Faulty pick up coil Compression system Worn cylinder Worn or seized piston ring Cylinder head gasket broken Cylinder gasket broken Carbon deposit buildup Improper adjusted valve clearance Improper contacted valve and valve seat Faulty valve timing Fuel system Clogged fuel tank breather hole Clogged air cleaner element fuel filter clogging the fuel pressure not correct Engine oil Improper oil level (low or over Oil level) Valve system Improperly adjusted valve clearance Clutch Refer to "CLUTCH SLIPPING /DRAGGING" section Ignition system Faulty spark plug Faulty high tension cord Faulty ignitor unit Faulty pick up coil Faulty ignition coil OVER HEATING OR OVER-COOLING OVER HEATING OVER-COOLING Ignition system Improperly spark plug gap Improper spark plug heat rang Faulty igniter unit Cooling system Faulty thermostat Faulty thermo switch Compression system Heavy carbon deposit build-up Improperly adjusted valve timing Improperly adjusted valve clearance Engine oil 17-4 BUCK 450 OWNER'S/OPERATOR'S MANUAL 20.0 17. TROUBLESHOOTING Incorrect engine oil level Improper engine oil quality (High viscosity) Low engine oil quality Brakes Dragging brake Cooling system Inoperative fan motor Faulty thermostat Faulty thermo switch Incorrect coolant level (low coolant level) Faulty radiator (Clogged, damage) Faulty radiator cap Impeller shaft gear malfunction (bent dowel pin, gear) Damaged impeller shaft Disconnected fan motor connector FAULTY CLUTCH WHEN ENGINE RUN, UTV DOES NOT RUN V belt Worn/bent/slipping POOR SPEED PERFORMANCE V-belt Worn Oil V belt Cam, slider Worm/damaged Compression spring Damage Roller weight Worn/improper operation primary/secondary/sheave Worm Gears Damage 17-5 BUCK 450 OWNER'S/OPERATOR'S MANUAL 20.0 17. TROUBLESHOOTING CLUTCH SLIPPING Clutch weight spring Worn/loose Clutch shoe Worn/ damaged Primary sliding sheave Seized CVT SYSTEM Uncorrect Primaty Clutch Position Uncorrect engine mount (see 13. CVT system) POORSTARTING PERFORMANCE V-belt Worn front hub bearing Slipping/oily V-belt Primary sliding sheave Improper operation Damage Compressing spring Worm/loose FAULTY BRAKE POOR BRAKING EFFECT Worn brake pad Worn brake disc Air in brake fluid Leaking brake fluid Faulty master cylinder kit Faulty caliper seal kit Loose union bolt Broken brake hose Oily or greasy brake pad Oily or greasy brake disc Secondary sliding sheave Improper operation Worn guide pin grove Worn guide pin Clutch shoe Worn/ bent 17-6 18. TOOL BUCK 450 OWNER'S/OPERATOR'S MANUAL 20.0 18-1 BUCK 450 OWNER'S/OPERATOR'S MANUAL 20.0 19. SPECIFICATION Dimensions & Capacities L X W X H Seat height Wheel Base Turn Radius Ground Clearance Fuel capacity Engine Oil Capacity Dry Weight Cargo Bed Maximum load limit Load Capacity (Combined Rider& Payload) Gross Vehicle Weight (Maximum Technically Permissible Mass) Tongue Weight Tow Capacity 2750×1460×1860mm 460 mm 1890 mm Outer: 4900 mm Inner: 3700 mm 280 mm 26 L 1.4L 505kg 150 kg 300 kg 820 kg 11 kg 200 kg 108×74×73in 18 in 74 in 193 in 146 in 11 in 6.9 US gal 1.48 US qt 1113 lb 331 lb 661 lb 1808 lb 24 lb 441 lb Drive System Drive System Front Tire Rear Tire Tire Pressure(front) Tire Pressure(rear) CVT 25X8-12 25X10-12 See detail on the mark of sidewall See detail on the mark of sidewall Brake System Brake Parking Brake Front Brake Rear Brake Operation Dual Hydraulic Discs Single Hydraulic Disc Foot Mechanical Disc Suspension Front Rear shock absorber Twin-A arm independent suspension Twin-A arm independent suspension Coil spring/oil damper 19-1 BUCK 450 OWNER'S/OPERATOR'S MANUAL 20.0 19. SPECIFICATION Engine Engine Type LH180MQ-3B 4Stroke, Single Cylinder, SOHC Bore x Stroke Displacement Starter System Engine Cooling Lubrication System Ignitions Spark Plug Type 80mmX70mm 352cm3 Electric Starter Liquid-Cooled Wet Sump EFI DR8EA NGK Electrical Equipment Battery Dipped beam High beam Front Position Light Front direction light Brake/ Tail Light Rear Position Light Rear direction light Main Fuse Backup Fuse Specified fuses Lighting System Fuse Accessory Socket Fuse Signaling System Fuse Fan-motor Fuse ECU1 ECU2 12V 18AH 7.2W/7.2W x2 (LED) 7.2W/7.2W x2 (LED) 12V 3W x2 (LED) 12V 1.7W x2 (LED) 12V 21W x2 12V 5W x2 12V 10W x2 30 A On The Start 30 A Relay 5A 15 A 15 A 10A In The Fuse Box 5A 10A 19-2 BUCK 450 OWNER'S/OPERATOR'S MANUAL 20.0 19. SPECIFICATION Emission Related Parts List Part Name Fuel Injector Fuel Pump Oxygen Sensor Throttle Position Sensor Coolant Temperature Sensor Air Cleaner Element Intake Air Temperature Sensor Manifold Absolute Pressure Spark Plug Ignition Coil Catalyst FUEL TANK FUEL TANK CAP FUEL LINE FUEL LINE FUEL LINE Part Number 1823 EFM1090119P RE94 35999 CS010 4CF-14400-00 28086011 28086011 DR8EA NGK BDW-IN-103 4CM-14721-10 4CT-24110-00 4CT-24110-10 4CM-13401-00 4CM-13402-00 4CM-13403-00 19-3 BUCK 450 OWNER'S/OPERATOR'S MANUAL 20.0 20. WIRNING DIAGRAM MSU 450 20-1 BUCK 450 OWNER'S/OPERATOR'S MANUAL 20.0 21. Emissions Control System Warranty 21-1 OWNER'S/OPERATOR'S MANUAL US 20.0
