Read all warnings and instructions in this manual, related manuals, and on the unit. Be familiar with the controls and the proper usage of the equipment.

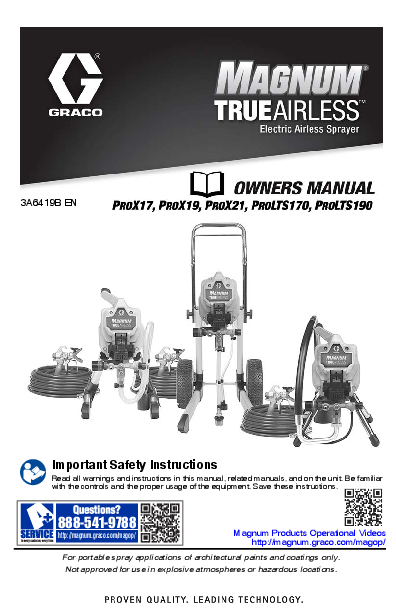

3A6419B EN Important Safety Instructions Read all warnings and instructions in this manual, related manuals, and on the unit. Be familiar with the controls and the proper usage of the equipment. Save these instructions. 888-541-9788 http://magnum.graco.com/magop/ Magnum Products Operational Videos http://magnum.graco.com/magop/ For portable spray applications of architectural paints and coatings only. Not approved for use in explosive atmospheres or hazardous locations. Before You Spray Before You Spray Review Warnings for Important Safety Information Important! Read carefully and practice good safety habits. Related Manuals 312830 3A3172 SG Spray Guns ProXChangeTM Pump Models Magnum Products Operational Videos http://magnum.graco.com/magop/ 3000 psi (207 bar, 20.7 MPa) Maximum Working Pressure VAC Model Stand (Series) Cart (Series) 110474 Certified to CAN/CSA C22.2 No. 68 Conforms to UL 1450 120 USA ProX17 ProLTS170 ProX19 ProLTS190 ProX21 17G177 (A) 17K438 (A) CAN177 (A) 17H198 (A) 17G179 (A) CAN179 (A) 17G181 (A) CAN181 (A) 17G178 (A) CAN178 (A) 17G180 (A) 17K439 (A) CAN180 (A) 17H206 (A) 17G182 (A) CAN182 (A) Online Resources Visit Our Website: Operational Videos: Manuals: Parts Online: Material Compatibility: magnum.graco.com magnum.graco.com/magop/ magnum.graco.com/support/#manuals magnum.graco.com/partsonline/ magnum.graco.com/downloads/MaterialCompatibility.pdf 2 3A6419B EN Contents Contents Before You Spray . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Know Your Sprayer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 ProX and ProLTS Stand Models . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Know Your Sprayer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 ProX and ProLTS Cart Models . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Know Your Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Set Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Start Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Pressure Relief Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Flush Storage Fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Strain the Paint . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Fill Pump (Prime Pump) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Fill Gun and Hose . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Refilling Paint Pail . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Blockages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Spraying . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 Start . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 Adjust Pressure Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 Spray Pattern Quality . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 Spray Techniques . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Triggering Gun . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Aiming Gun . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Aligning Spray Pattern . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Spray Tip and Pressure Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 Clear Spray Tip Clog . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 Spray Tip Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 Cleanup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 Cleaning from a Pail . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 Cleanup with Power Flush Valve . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 Cleaning InstaClean Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 Clean the Gun and Gun Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 Short Term Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 Long Term Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 Reference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 Lacquer Conversion Kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 Cleaning Fluid Compatibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 Static Grounding Instructions (Oil-Based materials) . . . . . . . . . . . . . . . . . . . . . . . . 30 Quick Reference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31 3A6419B EN 3 Contents Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32 Airless Hoses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32 Spray Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32 Storage/Priming Tool . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32 Inlet Valve Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33 Pump Repair . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36 ProX17, ProX19, ProLTS170 Stand Sprayer Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . 40 ProX17, ProX19, ProLTS170 Stand Sprayer Parts List . . . . . . . . . . . . . . . . . . . . . . 41 ProX21 Stand Sprayer Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42 ProX21 Stand Sprayer Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43 ProX17, ProX19, ProLTS190 Cart Sprayer Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44 ProX17, ProX19, ProLTS190 Cart Sprayer Parts List . . . . . . . . . . . . . . . . . . . . . . . 45 ProX21 Cart Sprayer Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46 ProX21 Cart Sprayer Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47 ProXChange Pump Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48 ProXChange Pump Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49 Wiring Diagram - 110/120V . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52 Graco Standard Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54 4 3A6419B EN Notes Notes 3A6419B EN 5 Warnings Warnings The following warnings are for the setup, use, grounding, maintenance, and repair of this equipment. The exclamation point symbol alerts you to a general warning and the hazard symbols refer to procedure-specific risks. When these symbols appear in the body of this manual or on warning labels, refer back to these Warnings. Product-specific hazard symbols and warnings not covered in this section may appear throughout the body of this manual where applicable. GROUNDING This product must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This product is equipped with a cord having a grounding wire with an appropriate grounding plug. The plug must be plugged into an outlet that is properly installed and grounded in accordance with all local codes and ordinances. · Improper installation of the grounding plug is able to result in a risk of electric shock. · When repair or replacement of the cord or plug is required, do not connect the grounding wire to either flat blade terminal. · The wire with insulation having an outer surface that is green with or without yellow stripes is the grounding wire. · Check with a qualified electrician or serviceman when the grounding instructions are not completely understood, or when in doubt as to whether the product is properly grounded. · Do not modify the plug provided; if it does not fit the outlet, have the proper outlet installed by a qualified electrician. · This product is for use on a nominal 120V circuit and has a grounding plug similar to the plugs illustrated below. ti3509b · Only connect the product to an outlet having the same configuration as the plug. · Do not use a 3-to-2 adapter with this product. Extension Cords: · Use only a 3-wire extension cord that has a grounding plug and a grounding receptacle that accepts the plug on the product. · Make sure your extension cord is not damaged. If an extension cord is necessary use 12 AWG (2.5mm2) minimum to carry the current that the product draws. · An undersized cord results in a drop in line voltage and loss of power and overheating. Conductor Size Length AWG (American Wire Gauge) 16 12 Metric 1.5 mm2 2.5 mm2 Maximum 25 ft. (8 m) 50 ft. (15 m) 6 3A6419B EN Warnings FIRE AND EXPLOSION HAZARD Flammable fumes, such as solvent and paint fumes, in work area can ignite or explode. To help prevent fire and explosion: · Do not spray flammable or combustible materials near an open flame or sources of ignition such as cigarettes, motors, and electrical equipment. · Paint or solvent flowing through the equipment is able to result in static electricity. Static electricity creates a risk of fire or explosion in the presence of paint or solvent fumes. All parts of the spray system, including the pump, hose assembly, spray gun, and objects in and around the spray area shall be properly grounded to protect against static discharge and sparks. Use Graco conductive or grounded high-pressure airless paint sprayer hoses. · Verify that all containers and collection systems are grounded to prevent static discharge. Do not use pail liners unless they are anti-static or conductive. · Connect to a grounded outlet and use grounded extensions cords. Do not use a 3-to-2 adapter. · Do not use a paint or a solvent containing halogenated hydrocarbons. · Do not spray flammable or combustible liquids in a confined area. · Keep spray area well-ventilated. Keep a good supply of fresh air moving through the area. · Sprayer generates sparks. Keep pump assembly in a well ventilated area a least 20 feet (6.1 m) from the spray area when spraying, flushing, cleaning, or servicing. Do not spray pump assembly. · Do not smoke in the spray area or spray where sparks or flame is present. · Do not operate light switches, engines, or similar spark producing products in the spray area. · Keep area clean and free of paint or solvent containers, rags, and other flammable materials. · Know the contents of the paints and solvents being sprayed. Read all Safety Data Sheets (SDSs) and container labels provided with the paints and solvents. Follow the paint and solvents manufacturer's safety instructions. · Keep a working fire extinguisher in the work area. ELECTRIC SHOCK HAZARD This equipment must be grounded. Improper grounding, setup, or usage of the system can cause electric shock. · Turn off and disconnect power cord before servicing equipment. · Connect only to grounded electrical outlets. · Use only 3-wire extension cords. · Ensure ground prongs are intact on power and extension cords. · Do not expose to rain. Store indoors. 3A6419B EN 7 Warnings SKIN INJECTION HAZARD High-pressure spray is able to inject toxins into the body and cause serious bodily injury. In the event that injection occurs, get immediate surgical treatment. · Do not aim the gun at, or spray any person or animal. · Keep hands and other body parts away from the discharge. For example, do not try to stop leaks with any part of the body. · Always use the nozzle tip guard. Do not spray without nozzle tip guard in place. · Use Graco nozzle tips. · Use caution when cleaning and changing nozzle tips. In the case where the nozzle tip clogs while spraying, follow the Pressure Relief Procedure for turning off the unit and relieving the pressure before removing the nozzle tip to clean. · Equipment maintains pressure after power is shut off. Do not leave the equipment energized or under pressure while unattended. Follow the Pressure Relief Procedure when the equipment is unattended or not in use, and before servicing, cleaning, or removing parts. · Check hoses and parts for signs of damage. Replace any damaged hoses or parts. · This system is capable of producing 3000 psi (207 bar, 20.7 MPa). Use Graco replacement parts or accessories that are rated a minimum of 3000 psi (207 bar, 20.7 MPa). · Always engage the trigger lock when not spraying. Verify the trigger lock is functioning properly. · Verify that all connections are secure before operating the unit. · Know how to stop the unit and bleed pressure quickly. Be thoroughly familiar with the controls. EQUIPMENT MISUSE HAZARD Misuse can cause death or serious injury. · Always wear appropriate gloves, eye protection, and a respirator or mask when painting. · Do not operate or spray near children. Keep children away from equipment at all times. · Do not overreach or stand on an unstable support. Keep effective footing and balance at all times. · Stay alert and watch what you are doing. · Do not operate the unit when fatigued or under the influence of drugs or alcohol. · Do not kink or over-bend the hose. · Do not expose the hose to temperatures or to pressures in excess of those specified by Graco. · Do not use the hose as a strength member to pull or lift the equipment. · Do not spray with a hose shorter than 25 feet. · Do not alter or modify equipment. Alterations or modifications may void agency approvals and create safety hazards. · Make sure all equipment is rated and approved for the environment in which you are using it. 8 3A6419B EN Warnings PRESSURIZED ALUMINUM PARTS HAZARD Use of fluids that are incompatible with aluminum in pressurized equipment can cause serious chemical reaction and equipment rupture. Failure to follow this warning can result in death, serious injury, or property damage. · Do not use 1,1,1-trichloroethane, methylene chloride, other halogenated hydrocarbon solvents or fluids containing such solvents. · Do not use chlorine bleach. · Many other fluids may contain chemicals that can react with aluminum. Contact your material supplier for compatibility. MOVING PARTS HAZARD Moving parts can pinch, cut, or amputate fingers and other body parts. · Keep clear of moving parts. · Do not operate equipment with protective guards or covers removed. · Pressurized equipment can start without warning. Before checking, moving, or servicing equipment, follow the Pressure Relief Procedure and disconnect all power sources. TOXIC FLUID OR FUMES HAZARD Toxic fluids or fumes can cause serious injury or death if splashed in the eyes or on skin, inhaled, or swallowed. · Read Safety Data Sheets (SDSs) to know the specific hazards of the fluids you are using. · Store hazardous fluid in approved containers, and dispose of it according to applicable guidelines. PERSONAL PROTECTIVE EQUIPMENT Wear appropriate protective equipment when in the work area to help prevent serious injury, including eye injury, hearing loss, inhalation of toxic fumes, and burns. This protective equipment includes but is not limited to: · Protective eyewear, and hearing protection. · Respirators, protective clothing, and gloves as recommended by the fluid and solvent manufacturer. CALIFORNIA PROPOSITION 65 This product contains a chemical known to the State of California to cause cancer, birth defects or other reproductive harm. Wash hands after handling. 3A6419B EN 9 Know Your Sprayer Know Your Sprayer ProX and ProLTS Stand Models A Power - ON/OFF Switch B Pressure Control Knob C Prime/Spray Valve D Spray Tip E PushPrimeTM Button F Suction Tube G Drain Tube (with diffuser) H Airless Spray Gun J Spray Tip Guard K Gun Trigger Lock L Gun Fitting M Gun Filter (inside handle) N ProXChangeTM Pump (behind Easy Access Door) O Inlet Valve 10 P Airless Hose Connection Q Airless Hose R InstaCleanTM Filter (inside fluid outlet) T Inlet Screen U Power Cord V Easy Access Door W Suction Tube Drip Cup X Pump Removal Tool Y Outlet Valve Z Inlet Valve Removal Tool Model/Serial Tag (Not shown, located on bottom of unit.) See Quick Reference, page 31 for more information. 3A6419B EN Know Your Sprayer Know Your Sprayer ProX and ProLTS Cart Models A Power - ON/OFF Switch B Pressure Control Knob C Prime/Spray Valve D Spray Tip E PushPrime Button F Suction Tube G Drain Tube (with diffuser) H Airless Spray Gun J Spray Tip Guard K Gun Trigger Lock L Gun Fitting M Gun Filter (inside handle) N ProXChangeTM Pump (behind Easy Access Door) O Inlet Valve 3A6419B EN P Airless Hose Connection Q Airless Hose R InstaClean Filter (inside fluid outlet) S Pail Hanger T Inlet Screen U Power Cord V Easy Access Door X Pump Removal Tool Y Outlet Valve Z Inlet Valve Removal Tool Model/Serial Tag (Not shown, located on bottom of unit.) See Quick Reference, page 31 for more information. 11 Know Your Controls Know Your Controls The ON/OFF power switch controls the main power to your sprayer. The Pressure Control knob increases or decreases the pressure and flow of the paint. The Prime/Spray Valve directs the fluid to either the Drain Tube or the hose and gun. It is used to prime the sprayer, which means to evacuate the air out of the pump, hose, and gun. Your gun will not spray if there is air in the system. It is necessary to prime the pump, hose, and gun any time air enters the Suction Tube. The Spray Tip is the key to airless spray technology. High pressure paint pumped through the very small hole in the Spray Tip comes out as a spray. The Spray Tip has the ability to be reversed and quickly clear clogs. 12 3A6419B EN Set Up Assemble Your Sprayer 1. Connect airless hose to airless hose connection (P) on sprayer. Use wrench to tighten securely. 2. Connect the other end of the hose to the gun. Use two wrenches to tighten securely to gun (see image below). If hose is already connected, make sure connections are tight. Set Up 3. Assure Spray Tip is properly inserted into the Spray Tip Guard, and the Spray Tip Guard assembly is tightened securely to gun. See Spray Tip Installation, page 21. 4. Perform the Pressure Relief Procedure, page 14. 3A6419B EN 13 Start Up Start Up Pressure Relief Procedure Follow the Pressure Relief Procedure whenever you see this symbol. 3. Turn pressure control knob to lowest setting. This equipment stays pressurized until pressure is manually relieved. To help prevent serious injury from pressurized fluid, such as skin injection or splashed fluid, follow the Pressure Relief Procedure whenever sprayer is stopped and before sprayer is cleaned or checked, and before equipment is serviced. 1. Turn ON/OFF switch to the OFF position. 4. Put Drain Tube into a waste pail and turn Prime/Spray Valve down to PRIME position to relieve pressure. 5. Hold the gun firmly to a pail. Point gun into pail. Disengage the trigger lock and trigger the gun to relieve pressure. 2. Engage the trigger lock. Always engage the trigger lock when sprayer is stopped to prevent the gun from being triggered accidentally. 6. Engage the trigger lock. 7. If you suspect that pressure has not been fully relieved, see Blockages, page 17. NOTE: Leave Prime/Spray Valve in the PRIME position until you are ready to spray. 14 3A6419B EN Flush Storage Fluid It is important that you flush storage fluid from the sprayer before using it. 1. Make certain ON/OFF switch is OFF. 2. Separate Drain Tube (smaller) from Suction Tube (larger). Place Drain Tube in a waste pail. 3. Submerge Suction Tube into pail filled with water if spraying water-based material, or mineral spirits if spraying oil-based material. Start Up 7. Align setting indicator with the START setting on the pressure control knob. 8. Turn ON/OFF switch to ON position. 4. Turn Prime/Spray Valve down to PRIME position. 9. When sprayer starts pumping, flushing fluid will flow up the Suction Tube and out the Drain Tube. Allow fluid to flow out of Drain Tube, into waste pail, for 30 to 60 seconds. 5. Plug power supply cord into a properly grounded electrical outlet. 6. Press the PushPrime button twice to loosen Inlet Valve ball. 10. Turn the ON/OFF switch to OFF position. 3A6419B EN NOTE: If flushing fluid fails to come out of the Drain Tube, see Storage/Priming Tool, page 32. 15 Start Up Strain the Paint Disposable paint strainer bags are used to remove coarse particles and debris from new or previously opened paint or stain, and are available where paint is sold. To avoid priming problems and Spray Tip clogs it is recommended to strain all paints and stains before spraying. Stretch a disposable paint strainer bag over a clean pail and pour the paint through the strainer. 2. Turn ON/OFF switch to ON position. 3. Wait to see paint coming out of Drain Tube. 4. Turn ON/OFF switch to OFF position. NOTE: If paint does NOT flow up the Suction Tube and out the Drain Tube, see Flush Storage Fluid, page 15. Fill Gun and Hose 1. Rotate Spray Tip to UNCLOG position and ensure the Spray Tip Guard is tight. ti26894a High-pressure spray is able to inject toxins into the body and cause serious bodily injury. Do not stop leaks with hand or rag. Fill Pump (Prime Pump) The Prime/Spray Valve directs the fluid to either the Drain Tube or the hose and gun. It is used to prime the sprayer, which means to evacuate the air out of the pump, hose, and gun. Your gun will not spray if there is air in the system. It is necessary to prime the pump, hose, and gun any time air enters the suction tube. 1. Move Suction Tube to paint pail and submerge Suction Tube in paint. 2. Hold gun against waste pail. Point gun into waste pail. a. Disengage trigger lock (A). b. Pull and hold gun trigger (B). c. Turn Prime/Spray Valve horizontal to SPRAY position (C). d. Turn ON/OFF switch to ON position (D). 3. Trigger gun into waste pail until only paint comes out of the gun. 16 3A6419B EN 4. Release trigger. Engage trigger lock. High-pressure spray is able to inject toxins into the body and cause serious bodily injury. Do not stop leaks with hand or rag. NOTE: Inspect for leaks. If leaking occurs, perform Pressure Relief Procedure, page 14, then tighten all fittings and repeat Fill Pump (Prime Pump), page 16. 5. Transfer Drain Tube to paint pail and clip to Suction Tube. 6. Rotate Spray Tip back to SPRAY position and ensure the Spray Tip Guard is tight. Start Up Refilling Paint Pail When the paint pail runs low and the gun stops spraying, refill the paint pail and repeat the Fill Pump (Prime Pump) procedure, then the Fill Gun and Hose procedure. You are now ready to spray! NOTE: It is normal for the motor to stop once the sprayer is primed and under pressure. If the motor continues to run, the sprayer is not primed. Repeat the Fill Pump (Prime Pump) and Fill Gun and Hose processes. Blockages If paint does not come out of the gun, or if performing pressure relief procedure and you suspect pressure has not been fully relieved: 1. VERY SLOWLY loosen the hose connection to the gun and disconnect the airless spray hose from the gun. 2. Turn Prime/Spray Valve horizontal to SPRAY position. 3. While holding hose firmly, point end of hose into paint pail and turn ON/OFF switch to ON position. a. If fluid does not flow out of hose, replace the hose and continue to step 4. b. If fluid flows out of hose, see Clean the Gun and Gun Filter, page 27. 4. Reassemble the hose and gun, and repeat Fill Gun and Hose, page 16. 3A6419B EN 17 Spraying Spraying Start 1. Turn pressure control knob to START position. 2. Disengage trigger lock. Adjust Pressure Control To select a setting, align symbol on pressure control knob with setting indicator on sprayer. 1. For best spray results with lowest overspray, adjust pressure control to "START" setting. 2. Test the spray pattern on a test area or piece of cardboard. 3. If needed, increase Pressure Control Knob setting to minimum setting that results in an acceptable spray pattern. Spray Pattern Quality A good spray pattern is evenly distributed as it hits the surface. · Spray should be atomized (evenly dis- tributed, no gaps at edges). · Increase Pressure Control Knob if needed until spray is even and without gaps at edges. · Spray Tip may be worn or a smaller tip may be needed. See Spray Tip and Pressure Selection, page 20. · Material may need to be thinned. If material needs to be thinned follow manufacturer's recommendations. 18 3A6419B EN Spray Techniques Use a piece of scrap cardboard to practice these basic spraying techniques before you begin spraying the surface. · Hold gun 12 in. (30 cm) from surface and aim straight at surface. Tilting gun to direct spray angle causes an uneven finish. · Flex wrist to keep gun pointed straight. Fanning gun to direct spray at angle causes uneven finish. Spraying Aiming Gun Aim center of spray of gun at bottom edge of previous stroke, overlapping each stroke by half. Aligning Spray Pattern High-pressure spray is able to inject toxins into the body and cause serious bodily injury. Do not stop leaks with hand or rag. 1. Relieve pressure. See Pressure Relief Procedure, page 14. Engage trigger lock. 2. Align guard horizontally to spray a horizontal pattern. 3. Align guard vertically to spray a vertical pattern. Triggering Gun Pull trigger after starting stroke. Release trigger before end of stroke. Gun must be moving when trigger is pulled and released. 3A6419B EN 19 Spraying Spray Tip and Pressure Selection Spray Tips come in a variety of sizes for spraying a wide range of materials. Your sprayer includes a 515 Spray Tip for use with most paints on large surfaces such as walls and ceilings. If you are spraying stain or need a different spray fan width, refer to the Spray Tip chart below to select the best Spray Tip for your project. Additional Spray Tip sizes are available where paint sprayers are sold. 1. What material are you spraying? Tip Number Calculation: · The thicker the material, the larger Spray Tip size you will need. · The first digit is half of the fan width (#5 x 2 = 10 inch fan width). 2. What spray fan width is needed for your project? · Narrow spray fan for smaller projects · The last two digits are the size of the tip opening in thousandths of an inch. · Wider spray fan for larger projects 3. Confirm your sprayer can be used with your Spray Tip size. Fan Width Material 4 in Fan 6 in Fan 8 in Fan 10 in Fan 12 in Fan Width Width Width Width Width Stain and Sealer 209 211 309 311 411 Semi Transparent 211 311 411 Stain 313 413 Solid Stain 211 311 411 313 413 Interior Paint/Primer 315 415 515 417 517 415 515 Exterior Paint/Primer 417 517 519 619 521 621 Sprayer Compatibility Each Sprayer Supports a Maximum Spray Tip Size ProX17/ProLTS170, ProX19/ProLTS190, ProX21 ProX17/ProLTS170, ProX19/ProLTS190, ProX21 ProX17/ProLTS170, ProX19/ProLTS190, ProX21 ProX17/ProLTS170, ProX19/ProLTS190, ProX21 ProX17/ProLTS170, ProX19/ProLTS190, ProX21 ProX17/ProLTS170, ProX19/ProLTS190, ProX21 ProX17/ProLTS170, ProX19/ProLTS190, ProX21 ProX17/ProLTS170, ProX19/ProLTS190, ProX21 ProX17/ProLTS170, ProX19/ProLTS190, ProX21 ProX17/ProLTS170, ProX19/ProLTS190, ProX21 ProX19/ProLTS190, ProX21 ProX21 · As you spray, the Spray Tip wears and as a result, the hole size gets larger. Starting with a Spray Tip hole size smaller than the maximum will allow you to spray longer within the compatibility of the sprayer. · Spray Tips wear with use and need periodic replacement. 20 3A6419B EN Clear Spray Tip Clog Spraying 2. Engage trigger lock. Rotate Spray Tip back to SPRAY position. Disengage trigger lock and continue spraying. SPRAY In the event that particles or debris clog the Spray Tip, the Spray Tip can be reversed to quickly and easily clear particles without disassembling the sprayer. See Strain the Paint, page 16 for additional information. 1. Engage trigger lock. Rotate Spray Tip to UNCLOG position. Ensure spray tip remains fully seated, pushed all the way into the Spray Tip Guard. Disengage trigger lock. Trigger gun at waste area to clear clog. UNCLOG Spray Tip Installation To avoid serious injury from skin injection do not put your hand in front of the spray tip when installing or removing the spray tip and spray tip guard. To prevent Spray Tip leaks make certain Spray Tip and Spray Tip Guard are installed properly. 1. Perform Pressure Relief Procedure, page 14. 2. Engage trigger lock. 3. Verify Spray Tip Guard parts are assembled in the order shown. NOTE: If Spray Tip is difficult to rotate when turning to the UNCLOG position perform, Pressure Relief Procedure, page 14, then turn Prime/Spray Valve horizontal to SPRAY position and repeat step 1. 3A6419B EN 21 Spraying a. Use Spray Tip to align gasket and seal in the Spray Tip Guard. c. Turn the arrow shaped handle on the Spray Tip forward to the SPRAY position. 4. Screw Spray Tip Guard assembly onto the gun and tighten. b. Spray Tip must be pushed all the way into the Spray Tip Guard. Rotate Spray Tip while pushing down. 22 3A6419B EN Cleanup Cleaning the sprayer after each use results in a trouble free start up the next time the sprayer is used. Cleanup 4. Separate Drain Tube (smaller) from Suction Tube (larger). · For short term shutdown periods (overnight to two days), refer to Short Term Storage, page 28. · For cleanup after using water-based materials only (by use of a garden hose), refer to Cleanup with Power Flush Valve, page 25. · For cleanup from pails, refer to Cleaning from a Pail, below. · For cleanup after using oil-based or solvent-based flammable materials, see Cleaning Fluid Compatibility, page 30. Cleaning from a Pail 1. Perform Pressure Relief Procedure, page 14. 2. Remove Spray Tip Guard assembly from gun and place in waste pail. ti27124a 5. Place empty waste and flushing fluid pails side by side. 6. Place Suction Tube in flushing fluid. For water-based paints, use water. For non-water-based paints, use mineral spirits, paint thinner, or compatible flushing fluid. Place Drain Tube in waste pail. 7. Turn Pressure Control Knob to the START position. 3. Lift Suction Tube and Drain Tube from paint pail. Let paint drain into the pail. 3A6419B EN 23 Cleanup 8. Turn Prime/Spray valve down to PRIME position. e. Continue to hold gun trigger until you see paint diluted with flushing fluid starting to come out of gun. 13. While continuing to trigger gun, quickly move gun to redirect spray into waste pail. Continue triggering gun into waste pail until flushing fluid dispensed from gun is relatively clear. 9. Turn ON/OFF switch to ON position. 10. Flush until approximately 1/3 of the flushing fluid is emptied from the pail. 11. Turn ON/OFF switch to OFF position. NOTE: Step 12 is for returning paint in hose to paint pail. One 50 ft (15.2 m) hose holds approximately 1 quart (1 liter) of paint. 12. To recover paint in hose, point gun into paint pail while holding gun firmly to the pail. a. Disengage trigger lock (A). b. Pull and hold gun trigger (B). c. Turn Prime/Spray Valve horizontal to SPRAY position (C). d. Turn ON/OFF switch to ON position (D). 14. Turn pressure control knob to the lowest setting. 15. Stop triggering gun. Engage the trigger lock. ti25196b 16. Turn Prime/Spray Valve down to PRIME position. 17. Turn ON/OFF switch to OFF position. 18. Follow Short Term Storage or Long Term Storage, page 28. 24 3A6419B EN Cleanup with Power Flush Valve (Water-based materials only) Power flushing is a faster method of cleanup. It can only be used after spraying water-based coatings. 1. Perform Pressure Relief Procedure, page 14. 2. Engage trigger lock. Remove Spray Tip Guard assembly from gun and place in waste pail. Cleanup 7. Screw Power Flush Valve (included with sprayer) to garden hose. Close Power Flush Valve. 8. Turn on water. Open Power Flush Valve. Rinse paint off Suction Tube, Drain Tube and inlet screen. Close Power Flush Valve. 3. Place empty waste and paint pails side by side. 4. Lift Suction Tube and Drain Tube from paint pail. Let paint drain into the pail. 5. Place suction and Drain Tube in waste pail. 9. Unscrew inlet screen from Suction Tube. Place inlet screen in waste pail. Connect garden hose to Power Flush Valve on Suction Tube. Leave Drain Tube in waste pail. 6. Turn pressure control knob to the START position. 10. Turn ON/OFF switch to ON position. 11. Open Power Flush Valve. 12. Circulate water through sprayer, into waste pail, for 20 seconds. 13. Turn ON/OFF switch to OFF position. NOTE: Step 14 is for returning paint in hose to paint pail. One 50 ft (15.2 m) hose holds approximately 1 quart (1 liter) of paint. 14. To recover paint in hose, point gun into paint pail while holding gun firmly to the pail. a. Disengage trigger lock (A). b. Pull and hold gun trigger (B). 3A6419B EN 25 Cleanup c. Turn Prime/Spray Valve horizontal to SPRAY position (C). d. Turn ON/OFF switch to ON position (D). e. Continue to hold gun trigger until you see paint diluted with flushing fluid starting to come out of gun. 16. Turn pressure control knob to the lowest setting. 17. Stop triggering gun. Engage the trigger lock. 18. Turn Prime/Spray Valve down to PRIME position. 19. Turn ON/OFF switch to OFF position. 20. Follow Short Term Storage or Long Term Storage, page 28. 15. While continuing to trigger gun, quickly move gun to redirect spray into waste pail. Continue triggering gun into waste pail until flushing fluid dispensed from gun is relatively clear. 26 3A6419B EN Cleaning InstaClean Filter The InstaClean Filter prevents debris from entering paint hose. After each use, remove and clean it to ensure peak performance. 1. Perform Pressure Relief Procedure, page 14. 2. Disconnect airless spray hose (A) from sprayer. 3. Unscrew fluid outlet (B). 4. Remove InstaClean filter (C). Cleanup Clean the Gun and Gun Filter 1. Perform Pressure Relief Procedure, page 14. 2. Remove the gun handle by unscrewing the handle from the gun head. C B A ti27179a 5. Check InstaClean Filter (C) for debris. If needed, clean filter with water or flushing fluid and a soft brush. a. Install closed (square) end of InstaClean Filter (C) in sprayer. b. Screw outlet valve (B) into sprayer. 6. Tighten outlet valve and reconnect hose (A) to sprayer. Use two wrenches to tighten securely. 3. Clean gun filter with water or flushing fluid and a brush every time you flush the system. Replace gun filter if damaged. 4. Remove Spray Tip Guard assembly and clean with water or flushing fluid and a brush. 5. See Spray Tip Installation, page 21 to properly reinstall Spray Tip Guard assembly. 6. Wipe paint off outside of gun using a soft cloth moistened with water or flushing fluid. 3A6419B EN 27 Storage Storage With proper storage, the sprayer will be ready to use the next time it is needed. 4. Engage trigger lock. Short Term Storage (up to 2 days) 1. Disconnect power (unplug power cord). Perform Pressure Relief Procedure, page 14. 2. Leave Suction Tube and Drain Tube in paint pail. ti27185a 3. Cover paint and pail tightly with plastic wrap. ti25196b 5. Leave gun attached to hose. 6. Remove Spray Tip and Spray Tip Guard and clean with water or flushing fluid and a brush. 7. Wipe paint off outside of gun using a soft cloth moistened with water or flushing fluid. Long Term Storage (more than 2 days) Pump ArmorTM fluid protects the sprayer against freezing and corrosion. · Do not store the sprayer full of water. · Do not allow water to freeze in sprayer. · Do not store sprayer under pressure. · Store sprayer indoors. 1. Perform Cleanup, page 23. 2. Remove Pump Armor bottle cap and foil seal. ti27186a 3. If needed, unscrew Inlet Screen from Suction Tube. Turn Prime/Spray Valve down to PRIME position. 28 3A6419B EN 4. Place drain tube in waste pail. Turn pressure control to the START position. Storage 7. Screw Inlet Screen back to Suction Tube. Ensure that spray gun and hose stay attached to sprayer. 5. ProX21 only: Place Suction Tube in Pump Armor fluid bottle. Turn Power Switch ON. 8. Turn Spray/Prime Valve horizontal to SPRAY position for storage. All other models: While holding the Suction Tube above the sprayer, pour approximately 2 ounces (1/4 cup) of Pump Armor into Suction Tube and turn Power Switch ON. 9. Turn ON/OFF switch to OFF position. Disconnect power (unplug power cord). 10. Secure a plastic bag around Suction Tube and Drain Tube to catch any drips. 6. When Pump Armor is flushed through the sprayer and out the Drain Tube, turn Power Switch OFF. Replace and tighten child-proof cap for storage. ti27190a 3A6419B EN 29 Reference Reference Lacquer Conversion Kit To spray lacquers and other solvent-based flammable materials with models other than ProX21, you must purchase a lacquer conversion kit and follow Static Grounding Instructions (Oil or Solvent-Based Flammable Materials), page 30. Refer to Parts List for kit part numbers. Cleaning Fluid Compatibility · When spraying water-based materials, flush the system thoroughly with water. · When spraying lacquers or oil-based materials, flush the system thoroughly with mineral spirits or compatible oil-based flushing fluid and follow Static Grounding Instructions (Oil or Solvent-Based Flammable Materials), page 30. · To spray water-based materials after spraying oil-based materials, flush the system thoroughly with water first. The water flowing out of Drain Tube should be clear before you begin spraying the water-based material. · To spray lacquers or oil-based materials after spraying water-based materials, flush the system thoroughly with mineral spirits or a compatible oil-based flushing fluid first. Follow Static Grounding Instructions (Oil or Solvent-Based Flammable Materials), page 30. The fluid flowing out of the Drain Tube should not contain any water. · To avoid fluid splashing back on your skin or into your eyes, always aim gun at inside wall of pail. 30 Static Grounding Instructions (Oil or Solvent-Based Flammable Materials) The equipment must be grounded to reduce the risk of static sparking. Static sparking can cause fumes to ignite or explode. Grounding provides an escape wire for the electric current. Always use a metal pail for oil-based materials when sprayer is flushed or pressure is relieved. Follow local code. Use only conductive metal pails, placed on a grounded surface such as concrete. Do not place pail on a non-conductive surface such as paper or cardboard which interrupts grounding continuity. Always ground a metal pail: connect a ground wire to the pail. Clamp one end to the pail and the other end to a true earth ground such as a water pipe. ti24584a To maintain ground continuity when sprayer is flushed or pressure is relieved: hold metal part of gun firmly to the side of a grounded metal pail, then trigger the gun. 3A6419B EN Quick Reference Page 10 A B Name Power - ON/OFF Switch Pressure Control Knob C Prime/Spray Valve D Spray Tip E PushPrime Button F Suction Tube G Drain Tube H Airless Spray Gun J Spray Tip Guard K Gun Trigger Lock L Gun Fitting M Gun Filter (inside handle) N ProXChangeTM Pump O Inlet Valve P Airless Hose Connection Q Airless Hose R InstaClean Filter S Pail Hanger T Inlet Screen U Power Cord V Easy Access Door W Suction Tube Drip Cup X Pump Removal Tool Y Outlet Valve Z Inlet Valve Removal Tool Power Flush Valve Reference Description Turns sprayer ON and OFF. Increases (clockwise) and decreases (counter-clockwise) fluid pressure in pump, hose, and spray gun. To select function, align symbol on pressure control knob with setting indicator. · In PRIME position directs fluid to Drain Tube. · In SPRAY position directs pressurized fluid to paint hose. · Automatically relieves system pressure in overpressure situations. · Atomizes fluid being sprayed, forms spray pattern and controls fluid flow according to hole size. · Reverse position unclogs plugged Spray Tips without disassembly. Taps the inlet ball when pushed to loosen it. Draws fluid from paint pail into pump. Drains fluid in system during priming and pressure relief. Dispenses fluid. Reduces risk of fluid injection injury. Prevents accidental triggering of spray gun. Threaded connection for Airless Hose. Filters fluid entering spray gun to reduce Spray Tip clogs. Pumps and pressurizes fluid and delivers it to Airless Hose. Allows paint to flow from paint bucket into the sprayer. Threaded connection for airless hose. Transports high-pressure fluid from pump to spray gun. · Filters fluid coming out of pump to reduce Spray Tip clogs and improve finish. · Self cleans only during pressure relief. For transporting pail by its handle. Prevents debris from entering pump. Plugs into power source. Permits quick access to the pump. Open pump door by pulling out on the tabs while sliding door up. Holds the Suction Tube during transport to catch drips. Cut out in the frame provides the tools to quickly remove the pump packing without additional tools. Allows paint to flow from the sprayer to the gun. Cut out in the frame provides the tools to quickly remove the inlet valve without additional tools. Connects garden hose to Suction Tube for power flushing water-based fluids. 3A6419B EN 31 Maintenance Maintenance Routine maintenance is important to ensure proper operation of your sprayer. Maintenance Activity 1. Inspect motor shroud openings for blockage every time you spray. 2. Clean/inspect inlet screen, InstaClean filter, and gun filter every time you spray. Replace if the filter cannot be cleaned or is damaged. NOTICE Protect the internal drive parts of this sprayer from water. Openings in shroud allow cooling of mechanical parts and electronics inside. If water gets into these openings, the sprayer could malfunction or be permanently damaged. Airless Hoses Check hose for damage every time you spray. Do not attempt to repair hose if hose jacket or fittings are damaged. Do not use hoses shorter than 25 ft. (7.6 m). Wrench tighten, using two wrenches. Spray Tips · Always clean Spray Tips with compatible cleaning fluid and brush after spraying. · Tips may require replacement after 15 gallons (57 liters) or they may last through 60 gallons (227 liters) depending on abrasiveness of paint. See Spray Pattern Quality, page 18. Storage/Priming Tool Perform these steps if you are experiencing difficulty priming your sprayer. For ProX21, see Inlet Valve Removal, page 33. 1. Perform Pressure Relief Procedure, page 14. 2. Remove Pump Armor bottle cap. Insert small fluid tube into bottom of Storage/Prime Tool, and thread tool onto the bottle. NOTE: For best results, make sure the bottle is full of Pump Armor. 3. Remove sprayer Suction Tube. Insert tool into the inlet and push up firmly until it stops. 32 3A6419B EN 4. Squeeze Pump Armor bottle until Pump Armor flows into the Drain Tube. Maintenance Inlet Valve Removal An integrated tool is included in the frame to remove the inlet valve assembly from the pump. If you suspect that the inlet valve is clogged or stuck, remove the valve assembly and clean or replace. 1. Insert pump inlet into frame and loosen the inlet valve. Remove inlet valve. 5. Remove tool. Replace and tighten child-proof cap for storage. 6. Reinstall the sprayer Suction Tube. Ensure that the tube is snug on the inlet and the clamp is engaged. ti27479a 2. Remove inlet valve. NOTICE Do not lose the ball and spring inside the inlet valve assembly. It may fall out when the inlet valve is removed. Pump will not prime without the ball and spring. 3A6419B EN 33 Maintenance 3. Perform a power flush. See Cleanup with Power Flush Valve, page 25. 3. Now lift the door so that it swings out of the way. 1 High-pressure spray is able to inject toxins into the body and cause serious bodily injury. Do not stop leaks with hand or rag. 4. Inspect for leaks. If leaks occur, perform Pressure Relief Procedure, page 14, 2 then tighten all fittings and repeat step 3. Pump Repair 3 When pump packings wear, paint will begin to leak down outside of pump. Purchase a pump repair kit and install according to instructions provided with kit, before your next job. See ProXChange Pump Parts List, page 49, or consult a Graco/MAGNUM authorized retailer, distributor, or service center. Each time the pump kit is replaced, check pump inlet and outlet valves for wear or damage. Replace if worn or damaged. Always replace inlet and outlet valves every second time the pump kit is replaced. Pump Removal Remove airless hose, suction tube, and drain tube. Always perform Pressure Relief Procedure, page 14 before starting any pump repairs and unplug the sprayer. 1. Unplug the sprayer from the power source. 2. Pull tabs on sides of the easy access door towards you while pushing the entire door up. ti27463a 4. Slide pump assembly off the mounting pins. ti26930a 34 3A6419B EN ProXChange Removal Tool An integrated tool is included in the frame to remove the ProXChange packing assembly. See ProXChange Pump manual for complete repair instructions. Maintenance a. Move pump rod up or down until cap is level with the opening in the yoke. ti26931a Pump Installation 1. Slide pump assembly onto the mounting pins. ti27037a b. Push on pump rod to slide pump assembly back on to mounting pins. 2. Swing Easy Access Door closed while pushing the entire door down. 1 2 3 3A6419B EN ti27036a ti27478a 3. Install hose, suction tube, and drain tube. 4. Plug sprayer into power source. NOTE: Door must be fully closed and latched before sprayer will operate. 35 Troubleshooting Troubleshooting 3. Check everything in this Troubleshooting Table before you bring the sprayer to an authorized service center. 1. Follow Pressure Relief Procedure, page 14, before checking or repairing. 2. Solutions at the beginning of each problem listed are the most common. Have a Question? Call Us Toll-Free: 1-888-541-9788 or visit us at: www.magnum.graco.com ti24021a Problem Motor does not run: (verify sprayer is plugged in, and ON/OFF switch is on) 36 Cause Solution Easy Access Door not fully closed Verify that Easy Access Door is closed and latched. See step 2 of Pump Installation, page 35. Pressure control is set at zero pressure. Turn pressure control knob clockwise to increase pressure setting. Electric outlet is not providing power. Test outlet with known working device. Reset circuit breaker or replace fuse. Find working outlet. Reset building circuit breaker or replace fuse. Extension cord is damaged. Replace extension cord. See page 5. Sprayer electric cord is damaged. Check for broken insulation or wires. Replace electric cord if damaged. Pump is seized (Paint has hardened in pump or Water is frozen in pump.) Turn ON/OFF switch off and unplug sprayer from outlet. If frozen do NOT try to start sprayer until it is completely thawed or it may damage the motor, control board and/or drive train. Place sprayer in warm area for several hours. Check for free moving pump by removing shroud and spinning fan. If not frozen, check for hardened paint in pump. If paint has hardened in pump. See Pump Repair, page 34. If motor does not turn with pump removed, consult a Graco/ Magnum authorized retailer, distributor, or service center. Motor or control is damaged. Consult a Graco/ Magnum authorized retailer, distributor, or service center. 3A6419B EN Troubleshooting Problem Cause Solution Sprayer runs, but pump does not prime or looses prime while in use. (Pump cycles but does not pull paint into Suction Tube or build pressure.) Prime/Spray Valve is in SPRAY position. Inlet screen is clogged or Suction Tube is not completely immersed in paint. Inlet or outlet valve ball is stuck or dirty. Turn Prime/Spray Valve down to PRIME position until paint exits Drain Tube. Clean debris off inlet screen and make sure Suction Tube is completely immersed in paint. Press PushPrime button twice to loosen inlet valve and reprime sprayer. See Fill Pump (Prime Pump), page 16. See Storage/Priming Tool, page 32. Then reprime pump. Remove inlet and/or outlet valves and clean, replace and reprime. See Fill Pump (Prime Pump), page 16. · Make certain to not lose the ball and spring of the inlet valve assembly or the sprayer will not function. See Inlet Valve Removal, page 33. · Make certain the outlet ball moves free in the housing before replacing. Suction Tube is leaking. Debris in paint causing obstruction. Prime/Spray Valve is worn or obstructed with debris. Inspect Suction Tube connection for cracks or vacuum leaks. Strain the paint. See Strain the Paint, page 16. Take sprayer to Graco/MAGNUM authorized service center. 3A6419B EN 37 Troubleshooting Problem Cause Pump is primed, but can not achieve good spray pattern. Spray Tip may be partially clogged. Reversible Spray Tip is in UNCLOG position. Debris in paint causing obstruction. Pressure is set too low. InstaClean Filter is clogged. Spray gun filter is clogged. Spray Tip selected is too large for capability of sprayer. Spray Tip is worn beyond the capability of sprayer. Spray Tip gasket and seal worn or missing. Inlet screen is clogged or Suction Tube is not immersed in paint. Extension cord is too long or not heavy enough gauge. Inlet valve or outlet valve is worn or clogged with debris. Material is too thick. Airless hose is too long (if extra section was added). Solution See Clear Spray Tip Clog, page 21. Rotate arrow-shaped handle on Spray Tip so it points forward to SPRAY position. See page 21. Strain the paint. See Clear Spray Tip Clog, page 21. Align pressure control knob setting indicator to desired spray setting. See Clear Spray Tip Clog, page 21. Clean or replace InstaClean filter. See Cleaning InstaClean Filter, page 27. Clean or replace gun filter. See Clear Spray Tip Clog, page 21. Replace Spray Tip. See Spray Techniques, page 19. Replace Spray Tip. See Spray Techniques, page 19. Replace gasket and seal. See Spray Techniques, page 19. Clean debris off inlet screen and make sure Suction Tube is immersed in paint. Replace extension cord. See Extension Cords:, page 6. Check for worn or contaminated inlet valve or outlet valve. - Prime sprayer with paint - Trigger gun momentarily - When trigger is released, pump should cycle momentarily and stop - If pump continues to cycle, pump valves may be worn or contaminated with debris - See Storage/Priming Tool, page 32. - Clean and reinstall valves. - Replace valves with appropriate kits. For kit part numbers, see ProXChange Pump Parts List, page 49. Thin material. Follow manufacturers recommendations. Remove section of airless hose. 38 3A6419B EN Troubleshooting Problem Cause Solution Spray gun stopped spraying while trigger is pulled. Spray Tip is clogged. Sprayer lost prime. See Clear Spray Tip Clog, page 21 Reprime sprayer. See Fill Pump (Prime Pump), page 16. See Troubleshooting, page 36. When paint is sprayed, it runs down Material is going on too thick. the wall or sags. Move gun faster. Choose a Spray Tip with smaller hole size. Choose Spray Tip with wider fan. Make sure gun is far enough from surface. When paint is sprayed, coverage is Material is going on too thin. inadequate. Move gun slower. Choose Spray Tip with larger hole size. Choose Spray Tip with narrower fan. Make sure gun is close enough to surface. Fan pattern varies dramatically while Pressure control switch is worn and Take sprayer to Graco/MAGNUM spraying. causing excessive pressure variation. authorized service center. Cannot trigger spray gun. Spray gun trigger lock is engaged. Rotate trigger lock to disengage trigger lock. Paint is coming out of pressure control switch. Pressure control switch is worn. Take sprayer to Graco/MAGNUM authorized service center. Paint is leaking through Drain Tube. Sprayer is over pressurizing. Take sprayer to Graco/MAGNUM authorized service center. Paint leaks down outside of pump. Pump packings are worn. Replace pump. See Pump Repair, page 34. Motor is hot and runs intermittently. Motor automatically shuts off due to excessive heat. Damage can occur if cause is not corrected. Vent holes in enclosure are plugged or sprayer is covered. Extension cord is too long or not a heavy enough gauge. Keep vent holes clear of obstructions and overspray and keep sprayer open to air. Replace extension cord. Unregulated electrical generator Use electrical generator with a proper being used has excessive voltage. voltage regulator. Motor needs to be replaced. Take sprayer to Graco/Magnum authorized retailer, distributor, or service center. Online Resources Visit Our Website: magnum.graco.com Operational Videos: magnum.graco.com/magop/ Manuals: magnum.graco.com/support/#manuals Parts Online: magnum.graco.com/partsonline/ Material Compatibility: magnum.graco.com/downloads/MaterialCompatibility.pdf 3A6419B EN 39 ProX17, ProX19, ProLTS170 Stand Sprayer ProX17, ProX19, ProLTS170 Stand Sprayer Parts Ref. Torque 1 140-160 in-lb (16-18 N·m) 2 30-35 in-lb (3.5-4.0 N·m) 3 110-120 in-lb (12-14 N·m) 4 45-55 in-lb (5-6 N·m) 2 2 2 1 See page 48. 2 3 4 3 40 3A6419B EN ProX17, ProX19, ProLTS170 Stand Sprayer ProX17, ProX19, ProLTS170 Stand Sprayer Parts List Ref. Part 1 17F756 1a 287770 2 17J863 3 17J173 4 17J864 6 117493 7 17J874 8 17J865 9 118444 10 17J866 10a 128551 10b 17F262 12 115478 13 15X737 14 17F233 15 17J867 15a 119276 16 117501 17 24Y329 18 115498 19 17G328 20 16E836 21 16E837 21a 15J695 22 260212 23 15J699 24 276864 25 116139 27 17J031 Description Qty. KIT, repair, motor, 1 120V includes 1a, 22 FAN 1 KIT, gear and yoke 1 CORD, power 1 KIT, yoke 1 SCREW, mach, hex, 1 washer head KIT, pump complete 1 SHIELD, motor, blue 1 includes 9 and labels SCREW, mach, hwhd 3 10-24 x 0.5 in. COVER, front includes 1 9, 10a, 10b, 12, 14 CABLE, jumper, PC 1 COVER, wire 1 SCREW, mach, Torx, 4 pan hd SWITCH, bracket 1 COVER, pump, 1 locking KIT, control board 1 120V includes 15a, 16 FUSE, 12.5A slow 1 blow SCREW, plastite 1 KIT, switch, repair 1 includes 13 SCREW, mach, slot, 1 hex whd PLATE, motor mount 1 KIT, right leg includes 1 21a, 22, 23 KIT, left leg includes 1 21a, 22, 23 CAP, tube 2 SCREW, hwh, thread 12 forming CAP, tube 2 HANDLE, sprayer 1 GRIP, handle 1 LABEL, front ProX17 1 Ref. Part 17J033 17J032 30 247340 31 243012 246506 32 115099 34 244035 35 115489 36 195084 37 24V074 37a 197607 38 116295 39 195400 40 288716 257002 45 17H422 56 17J027 57 179960 60 17Y786 61 115648 62 17S980 64 17Y794 65 15G026 17L305 Description Qty. ProX19 1 ProLTS170 1 HOSE, cpld, 1 1/4 in. x 50 ft GUN, spray, SG3 Models 17G177, 1 17G179, 17H198 Model 17K438 1 WASHER, hose 1 DEFLECTOR, barbed 1 CLAMP, drain tube 2 TUBE, drain 1 KIT, tube, suction 1 includes 32, 34, 35, 36, 37a, 38, 39, 40 TUBE, suction 1 includes 32 CLAMP, tube 1 CLIP, spring 2 KIT, inlet screen 1 ProX17 and ProX19 ProLTS170 CUP, suction/drain 1 LABEL, warning 1 CARD, medical alert 1 (not shown) GUIDE, Magnum quick 1 guide, (not shown) VALVE, power flush 1 (not shown) FLUID, pump armor, 8 1 oz (not shown) TAG, hang, tip (not 1 shown) TAG, warning, hose, 1 (not shown) KIT, conversion, lacquer, stand (sold separate) Replacement Danger and Warning labels, tags, and cards are available at no cost. 3A6419B EN 41 ProX21 Stand Sprayer Parts ProX21 Stand Sprayer Parts Ref. Torque 1 140-160 in-lb (16-18 N·m) 2 30-35 in-lb (3.5-4.0 N·m) 3 110-120 in-lb (12-14 N·m) 2 2 2 See page 48. 1 2 3 2 3 42 3A6419B EN ProX21 Stand Sprayer Parts ProX21 Stand Sprayer Parts List Ref. Part Description Qty. 1 MOTOR, 120V includes 1a, 22 17K684 Series A 1 17F757 Series B 1 1a 16X980 FAN 1 2 17J869 KIT, gear and yoke 1 3 17J173 CORD, power 1 4 17J864 KIT, yoke 1 6 117493 SCREW, mach, hex, 1 washer head 7 17J875 KIT, pump complete 1 8 SHIELD, motor, blue includes 9, 56 17K688 Series A 1 17J865 Series B 1 9 118444 SCREW, mach, hwhd 3 10-24 x 0.5 in. 10 17J866 COVER, front includes 1 9, 10a, 10b, 12, 14 10a 128551 CABLE, jumper, PC 1 10b 17F262 COVER, wire 1 12 115478 SCREW, mach, Torx, 4 pan hd 13 15X737 SWITCH, bracket 1 14 17F233 COVER, pump, locking 1 15 17J867 KIT, control board 120V 1 includes 15a, 16 15a 119276 FUSE, 12.5A slow blow 1 16 117501 SCREW, plastite 1 17 24Y329 KIT, switch, repair 1 includes 13 18 115498 SCREW, mach, slot, 1 hex whd 19 17G329 PLATE, pump 1 20 15E823 FRAME, standmount 1 22 260212 SCREW, hwh, thread 4 forming 23 15G857 CAP, leg 4 24 276864 HANDLE, sprayer 1 Ref. Part Description Qty. 25 116139 GRIP, handle 1 27 17J035 LABEL, front, ProX21 1 30 247340 HOSE, cpld, 1 1/4 in. x 50 ft 31 243012 GUN, spray,SG3 1 37 17J870 KIT, suction set 1 includes 37a, 44, 46, 47, 48, 49, 50 37a 17J719 HOSE, suction 1 43 122667 SCREW, drill, hex, 1 washer head 44 17J884 TUBE, drain includes 1 46 45 15G838 CUP, suction/drain 1 46 244035 DEFLECTOR, barbed 1 47 245673 KIT, strainer 1 48 404989 STRAP, tie 1 49 115099 WASHER, hose 1 50 117559 O-ring 2 56 17J027 LABEL, warning 1 57 179960 CARD, medical alert 1 (not shown) 60 17Y786 GUIDE, Magnum quick 1 guide, (not shown) 61 115648 VALVE, power flush 1 (not shown) 62 244168 FLUID, pump armor, 8 1 oz (not shown) 64 17Y794 TAG, hang, tip (not 1 shown) 65 288686 ADAPTER, power flush 1 (not shown) 66 15G026 TAG, warning, hose, 1 (not shown) Replacement Danger and Warning labels, tags, and cards are available at no cost. 3A6419B EN 43 ProX17, ProX19, ProLTS190 Cart Sprayer ProX17, ProX19, ProLTS190 Cart Sprayer Parts Ref. Torque 2 30-35 in-lb (3.5-4.0 N·m) 3 110-120 in-lb (12-14 N·m) 4 45-55 in-lb (5-6 N·m) 2 2 2 4 2 3 See page 48. 3 44 3A6419B EN ProX17, ProX19, ProLTS190 Cart Sprayer ProX17, ProX19, ProLTS190 Cart Sprayer Parts List Ref. Part Description Qty. 1 17F756 MOTOR, 120V 1 includes1a, 22 1a 287770 FAN 1 2 17J863 KIT, gear and yoke 1 3 17J173 CORD, power 1 4 17J864 KIT, yoke 1 7 17J874 KIT, pump complete 1 8 17J865 SHIELD, motor, blue 1 includes 9 and labels 9 118444 SCREW, mach, hwhd 3 10-24 x 0.5 in. 10 17J866 COVER, front includes 1 9, 10a, 10b, 12, 14 10a 128551 CABLE, jumper, PC 1 10b 17F262 COVER, wire 1 12 115478 SCREW, mach, Torx, pan hd 13 15X737 SWITCH, bracket 1 14 17F233 COVER, pump, locking 1 15 17J867 KIT, control board 120V 1 includes 15a, 16 15a 119276 FUSE, 12.5A slow blow 1 16 117501 SCREW, plastite 3 17 24Y329 KIT, switch, repair 1 includes 13 18 115498 SCREW, mach, slot, 1 hex whd 19 17G541 PLATE, motor, mount 1 20 LEG, right 262014 ProX17 includes 22, 54, 1 55 17K185 ProX19 and ProLTS190 1 includes 54, 55 21 LEG, left 262012 ProX17 includes 22, 54, 1 55 17K186 ProX19 and ProLTS190 1 includes 54, 55 22 260212 SCREW, hwh, thread 8 forming 26 24V073 TUBE, suction, 1 assembly includes 26a, 43, 44, 45, 46, 47, 48, 49, 61 26a 16H348 TUBE, suction 1 includes 49 27 LABEL, front 17J031 ProX17 1 17J033 ProX19 1 17J034 ProLTS190 1 30 247340 HOSE, cpld, 1 1/4 in. x 50 ft 31 GUN, spray, SG3 Ref. Part Description Qty. 243012 Models 17G178, 1 17G180, 17H206 246506 Model 17K439 1 34 112612 CAP, hub 2 35 WHEEL includes 34 24Y324 ProX17 2 17K546 ProX19, ProLTS190 2 36 115480 KNOB, T-handle 2 37 120689 NUT, hex, acorn, 2 5/16-18 38 17J430 HOOK, pail 1 39 AXLE, cart 15R602 ProX17 1 16W362 ProX19, ProLTS190 1 40 16H350 RACK, hose 1 41 HANDLE, cart 16H354 ProX17 1 16H353 ProX19, ProLTS190 1 42 120788 SCREW, carriage 2 43 115489 CLAMP, drain tube 1 44 195108 TUBE, drain 1 45 195400 CLIP, spring 1 46 244035 DEFLECTOR, barbed 1 47 STRAINER, inlet 1 288716 ProX17 and ProX19 257002 ProLTS190 48 116295 CLAMP, tube 1 49 115099 WASHER, hose 1 54 15J699 CAP, tube 2 55 CAP, tube 15J695 ProX17 2 16W505 ProX19, ProLTS190 1 right 16W517 ProX19, ProLTS190 left 1 56 17J027 LABEL, warning 1 57 179960 CARD, medical alert 1 (not shown) 60 17Y786 GUIDE, Magnum quick 1 guide, (not shown) 61 115648 VALVE, power flush 1 (not shown) 62 17S980 FLUID, pump armor, 8 1 oz (not shown) 64 17Y794 TAG, hang, tip (not 1 shown) 65 15G026 TAG, warning, hose, 1 (not shown) 17J873 KIT, conversion, lacquer, cart (sold separate) Replacement Danger and Warning labels, tags, and cards are available at no cost. 3A6419B EN 45 ProX21 Cart Sprayer Parts ProX21 Cart Sprayer Parts Ref. Torque 2 30-35 in-lb (3.5-4.0 N·m) 3 110-120 in-lb (12 -14 N·m) 2 2 2 2 3 3 See page 48. 46 3A6419B EN ProX21 Cart Sprayer Parts ProX21 Cart Sprayer Parts List Ref. Part Description Qty. 1 KIT, repair, motor, 120V includes 1a, 22 17K684 Series A 1 17F757 Series B 1 1a 16X980 FAN 1 2 17J869 KIT, gear and yoke 1 3 17J173 CORD, power 1 4 17J864 KIT, yoke 1 7 17J875 KIT, pump complete 1 8 SHIELD, motor, blue includes 9, 56 17K688 Series A 1 17J865 Series B 1 9 118444 SCREW, mach, hwhd 3 10-24 x 0.5 in. 10 17J866 COVER, front includes 1 9, 10a, 10b, 12, 14 10a 128551 CABLE, jumper, PC 1 10b 17F262 COVER, wire 1 12 115478 SCREW, mach, Torx, pan hd 13 15X737 SWITCH, bracket 1 14 17F233 COVER, pump, locking 1 15 17J867 KIT, control board 120V 1 includes 15a, 16 15a 119276 FUSE, 12.5A slow blow 1 16 117501 SCREW, plastite 3 17 24Y329 KIT, switch, repair 1 includes 13 18 115498 SCREW, mach, slot, 1 hex whd 20 17C485 FRAME 1 22 260212 SCREW, hwh, thread 4 forming 26 17J871 TUBE, suction, intake 1 includes 26a, 44, 46, 47, 49, 50 51, 52, 53 26a 17L281 TUBE, suction 1 27 17J035 LABEL, front, ProX21 1 Ref. Part Description Qty. 30 247340 HOSE, cpld, 1 1/4 in. x 50 ft 31 243012 GUN, spray,SG3 1 34 119452 CAP, hub 2 35 119451 WHEEL, 2 semi-pneumatic 38 17J430 HOOK, pail 1 41 287489 HANDLE, assembly, 1 Hi-cart 42 109032 SCREW, machine, pnh 4 44 17L393 TUBE, drain 1 46 244035 DEFLECTOR, barbed 1 47 245673 STRAINER, inlet 1 49 115099 WASHER, hose 1 50 103413 PACKING, O-ring 1 51 15B652 WASHER, suction 1 52 15E813 NUT, jam 1 53 195400 CLIP, spring 1 56 17J027 LABEL, warning 1 57 179960 CARD, medical alert 1 (not shown) 60 17Y786 GUIDE, Magnum quick 1 guide, (not shown) 61 115648 VALVE, power flush 1 (not shown) 62 244168 FLUID, pump armor, 1 8 oz (not shown) 64 17Y794 TAG, hang, tip (not 1 shown) 65 288686 ADAPTER, power flush 1 (not shown) 66 15G026 TAG, warning, hose, 1 (not shown) Replacement Danger and Warning labels, tags, and cards are available at no cost. 3A6419B EN 47 ProXChange Pump Parts ProXChange Pump Parts Ref. Torque 1 140-160 in-lb (16-18 N·m) 2 30-35 in-lb (3.4-4.0 N·m) 3 30-35 ft-lb (40-48 N·m) 4 220-250 in-lb (25-28 N·m) 5 320-380 in-lb (36-43 N·m) 3 25 16 21 28 30 1 2 28c 3 4 28a 28b 6a 48 2 5 29 11 10 49 8 1 5 15 42 12 13 6 14 4 5 7a 7 4 7b ti27261a 3A6419B EN ProXChange Pump Parts ProXChange Pump Parts List iRef. Part Description Qty. 1 17G447 HOUSING, pump 1 2 17D364 GUIDE, ball 1 3 128336 SPRING, compression 1 4 105445 BALL, 0.5 in. 1 5 117501 SCREW, mach, slot 2 HWH 6 KIT, inlet housing 17J876 ProX17, ProX19 1 17J877 ProX21 1 6a 124582 O-ring 1 7 17J878 KIT, PushPrime 1 includes 7a, 7b 7a 16P303 PACKING, O-ring 1 7b 17G540 LABEL, PushPrime 1 8 235014 VALVE, drain, assy 1 9 224807 BASE, valve 1 10 187625 HANDLE, valve, drain 1 11 111600 PIN, grooved 1 12 288747 KIT, filter 1 Ref. Part Description Qty. 13 120776 PACKING, O-ring 1 14 24Y327 KIT, repair outlet 1 includes 12,13 15 17J880 KIT, outlet valve repair 1 includes 42 16 128323 SPRING, valve 1 21 16D531 PACKING, O-ring 1 25 24Y472 KIT, repair, piston pump 1 28 17J881 KIT, pressure control 1 includes 5, 28a, 28b, 28c, 29, 30 28a 15A464 LABEL, control 1 28b 17V191 LABEL, control 1 28c 106555 O-ring 1 29 17F227 BRACKET, electrical 1 connector 30 17F229 KIT, shield, wire 1 42 122486 PACKING, O-ring 1 3A6419B EN 49 Wiring Diagram - 110/120V Wiring Diagram - 110/120V M ti27233a 50 3A6419B EN Notes Notes 3A6419B EN 51 Technical Specifications Technical Specifications Sprayer Maximum fluid working pressure Maximum Delivery ProX17, ProLTS170 ProX19, ProLTS190 ProX21 Maximum Spray Tip Size ProX17, ProLTS170 ProX19, ProLTS190 ProX21 Fluid Outlet npsm Generator Minimum Power Requirements ProX17, ProX19, ProLTS170, ProLTS190 ProX21 Dimensions Height ProX17, ProX19, ProLTS170 Stand ProX21 Stand ProX17 Cart ProX19, ProLTS190 Cart ProX21 Cart Length ProX17, ProX19, ProLTS170 Stand ProX21 Stand ProX17 Cart ProX19, ProLTS190 Cart ProX21 Cart Width ProX17, ProX19, ProLTS170 Stand ProX21 Stand ProX17 Cart ProX19, ProLTS190 Cart ProX21 Cart Weight ProX17, ProX19, ProLTS170 Stand US Metric 3000 psi 207 bar, 20.7 MPa 0.34 gpm 0.38 gpm 0.47 gpm 1.3 lpm 1.4 lpm 1.8 lpm 0.017 in. 0.019 in. 0.021 in. 1/4 in. 2500 W 0.43 mm 0.48 mm 0.53 mm 1/4 in. 110120V, 8 A, 1Ø 110120V, 12 A, 1Ø 21.2 in. 18.4 in. 37.0 in. 36.7 in. 38.5 in. 15.1 in. 16.7 in. 19.6 in. 20.2 in. 20.8 in. 13.2 in. 13.5 in. 15.2 in. 17.2 in. 20.6 in. 27.3 lb. 53.9 cm 46.7 cm 94.0 cm 93.0 cm 97.8 cm 38.4 cm 42.4 cm 49.8 cm 51.3 cm 52.8 cm 33.5 cm 34.3 cm 38.6 cm 43.7 cm 52.3 cm 12.4 kg 52 3A6419B EN Technical Specifications US Metric ProX21 Stand 25.0 lb. 11.3 kg ProX17 Cart 37.5 lb. 17.0 kg ProX19, ProLTS190 Cart 41.2 lb. 18.7 kg ProX21 Cart 49.5 lb. 22.5 kg Storage temperature range 30° to 160°F 35° to 71°C Operating temperature range 40° to 115°F 4° to 46°C Materials of Construction Wetted materials on all models stainless steel, brass, leather, ultra-high molecular weight polyethylene (UHMWPE), carbide, nylon, aluminum, PVC, polypropylene, fluoroelastomer, plated steel Notes * Startup pressures and displacement per cycle may vary based on suction condition, discharge head, air pressure, and fluid type. When pump is stored with non-freezing fluid. Pump damage will occur if water or latex paint freezes in pump. Damage to plastic parts may result if impact occurs in low temperature conditions. Changes in paint viscosity at very low or very high temperatures can affect sprayer performance. 3A6419B EN 53 Graco Standard Warranty Graco Standard Warranty Graco warrants all equipment referenced in this document which is manufactured by Graco and bearing its name to be free from defects in material and workmanship on the date of sale to the original purchaser for use. With the exception of any special, extended, or limited warranty published by Graco, Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment determined by Graco to be defective. This warranty applies only when the equipment is installed, operated and maintained in accordance with Graco's written recommendations. This warranty does not cover, and Graco shall not be liable for general wear and tear, or any malfunction, damage or wear caused by faulty installation, misapplication, abrasion, corrosion, inadequate or improper maintenance, negligence, accident, tampering, or substitution of non-Graco component parts. Nor shall Graco be liable for malfunction, damage or wear caused by the incompatibility of equipment with structures, accessories, equipment or materials not supplied by Graco, or the improper design, manufacture, installation, operation or maintenance of structures, accessories, equipment or materials not supplied by Graco. This warranty is conditioned upon the prepaid return of the equipment claimed to be defective to an authorized Graco distributor for verification of the claimed defect. If the claimed defect is verified, Graco will repair or replace free of charge any defective parts. The equipment will be returned to the original purchaser transportation prepaid. If inspection of the equipment does not disclose any defect in material or workmanship, repairs will be made at a reasonable charge, which charges may include the costs of parts, labor, and transportation. THIS WARRANTY IS EXCLUSIVE, AND IS IN LIEU OF ANY OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO WARRANTY OF MERCHANTABILITY OR WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE. Graco's sole obligation and buyer's sole remedy for any breach of warranty shall be as set forth above. The buyer agrees that no other remedy (including, but not limited to, incidental or consequential damages for lost profits, lost sales, injury to person or property, or any other incidental or consequential loss) shall be available. Any action for breach of warranty must be brought within two (2) years of the date of sale. GRACO MAKES NO WARRANTY, AND DISCLAIMS ALL IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, IN CONNECTION WITH ACCESSORIES, EQUIPMENT, MATERIALS OR COMPONENTS SOLD BUT NOT MANUFACTURED BY GRACO. These items sold, but not manufactured by Graco (such as electric motors, switches, hose, etc.), are subject to the warranty, if any, of their manufacturer. Graco will provide purchaser with reasonable assistance in making any claim for breach of these warranties. In no event will Graco be liable for indirect, incidental, special or consequential damages resulting from Graco supplying equipment hereunder, or the furnishing, performance, or use of any products or other goods sold hereto, whether due to a breach of contract, breach of warranty, the negligence of Graco, or otherwise. FOR GRACO CANADA CUSTOMERS The Parties acknowledge that they have required that the present document, as well as all documents, notices and legal proceedings entered into, given or instituted pursuant hereto or relating directly or indirectly hereto, be drawn up in English. Les parties reconnaissent avoir convenu que la rédaction du présente document sera en Anglais, ainsi que tous documents, avis et procédures judiciaires exécutés, donnés ou intentés, à la suite de ou en rapport, directement ou indirectement, avec les procédures concernées. 54 3A6419B EN Graco Information Graco Information For the latest information about Graco products, visit www.graco.com. For patent information, see www.graco.com/patents. TO PLACE AN ORDER, contact your Graco distributor or call 1-800-690-2894 to identify the nearest distributor. 3A6419B EN 55 All written and visual data contained in this document reflects the latest product information available at the time of publication. Graco reserves the right to make changes at any time without notice. Original instructions. This manual contains English. MM 3A6419 Graco Headquarters: Minneapolis International Offices: Belgium, China, Japan, Korea GRACO INC. AND SUBSIDIARIES · P.O. BOX 1441 · MINNEAPOLIS MN 55440-1441 · USA Copyright 2018, Graco Inc. All Graco manufacturing locations are registered to ISO 9001. www.graco.com Revision B, February 2019Acrobat Distiller 10.0.0 (Windows)
