Assembly instructions RS6002 / HDRS6002 Two Bike Gravity Stand WARNING DO NOT EXCEED MAXIMUM TOTAL WEIGHT LIMIT OF 100 LBS (45.4 Kgs) - HDRS6002 / 80 LBS (36 Kgs) - RS6002 MAX LOAD PER HOOK: 25 LBS (11.4 kgs) / MAX WEIGHT PER BIKE: 50LBS (22.7 kgs)

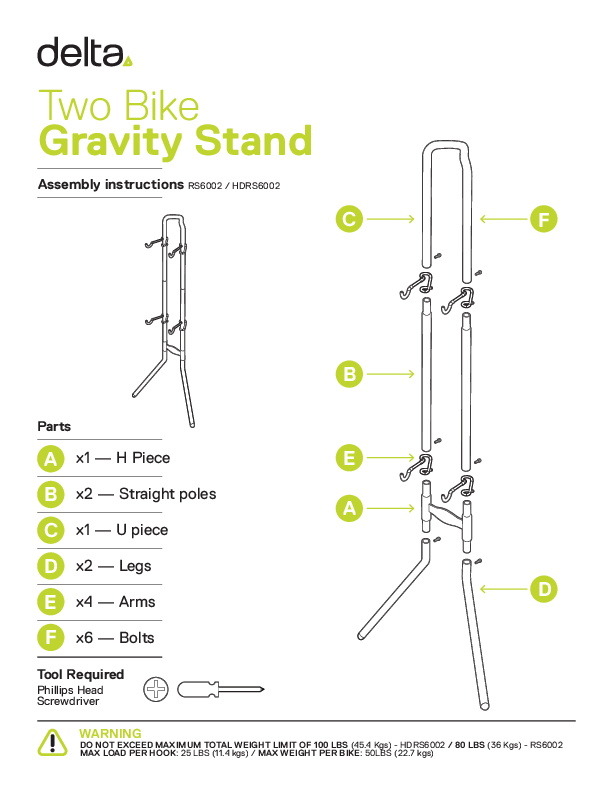

Two Bike Gravity Stand Assembly instructions RS6002 / HDRS6002 C F B Parts A x1 -- H Piece E B x2 -- Straight poles A C x1 -- U piece D x2 -- Legs E x4 -- Arms D F x6 -- Bolts Tool Required Phillips Head Screwdriver WARNING DO NOT EXCEED MAXIMUM TOTAL WEIGHT LIMIT OF 100 LBS (45.4 Kgs) - HDRS6002 / 80 LBS (36 Kgs) - RS6002 MAX LOAD PER HOOK: 25 LBS (11.4 kgs) / MAX WEIGHT PER BIKE: 50LBS (22.7 kgs) 1 Do not tighten bolts until rack is fully assembled and tubes are properly aligned. 2 3 5 Adjust height of arms before they bear any weight. 4 Tighten all bolts before using. Spread legs apart to max width before tightening IMPORTANT / SAFETY In order to avoid accidental toppling of the rack, a wall stabilizing strap is supplied. This should be attached to the rack at one end with the bolt provided. The other end of the strap should be secured to the wall using a screw that is suitable for the type of wall construction. If in doubt, consult your hardware merchant for the correct method of xing based on the wall construction. Need help? Email us at service@designbydelta.com & we'll help solve your issue. Assembly video Visit designbydelta.com/downloads Delta Cycle Corporation 36 York Avenue, Randolph, MA 02368 USA / 800-474-6615 / www.designbydelta.comAdobe PDF library 15.00 Adobe Illustrator(R) 17.0
