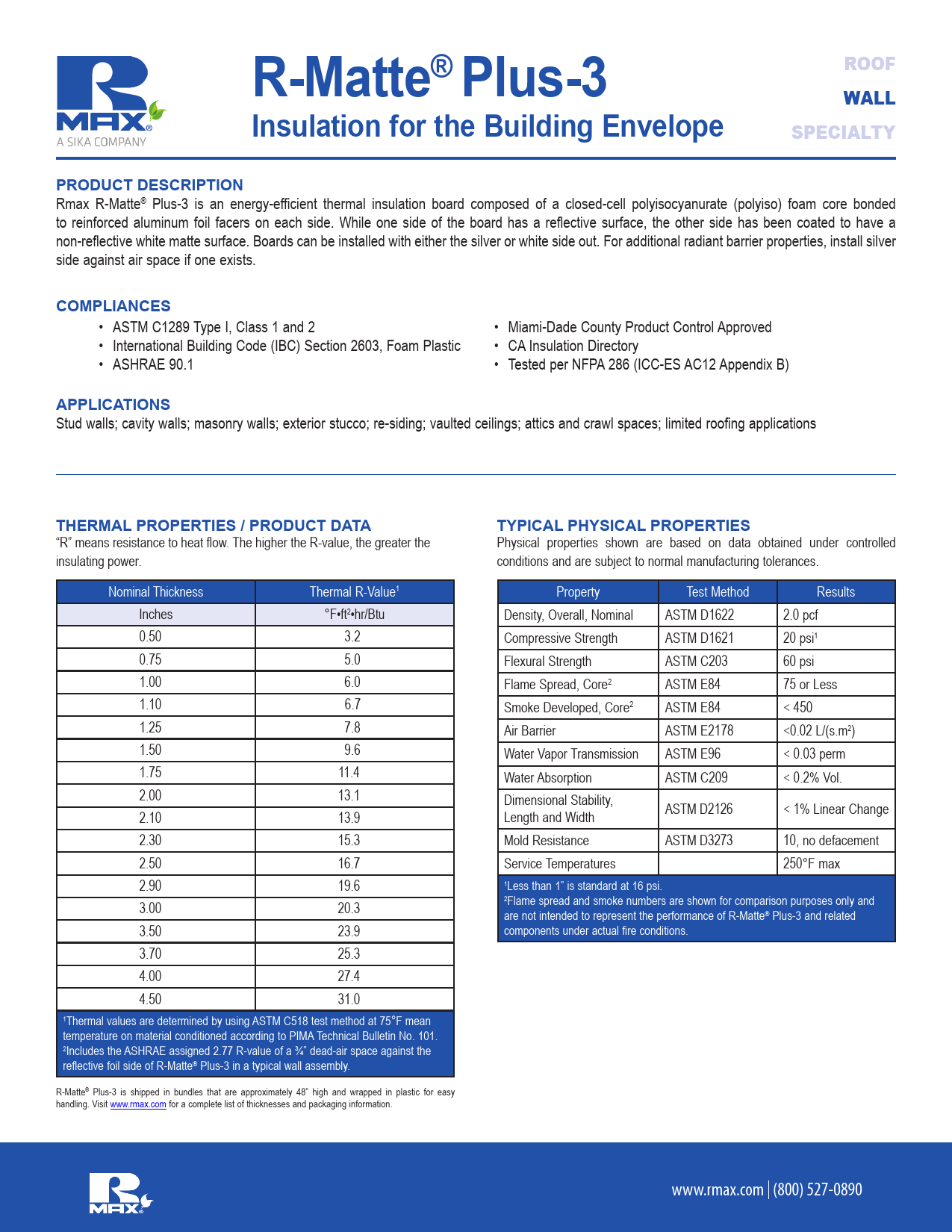

R-Matte® Plus-3 Insulation for the Building Envelope ROOF WALL SPECIALTY PRODUCT DESCRIPTION Rmax R-Matte® Plus-3 is an energy-efficient thermal insulation board composed of a closed-cell polyisocyanurate (polyiso) foam core bonded to reinforced aluminum foil facers on each side. While one side of the board has a reflective surface, the other side has been coated to have a non-reflective white matte surface. Boards can be installed with either the silver or white side out. For additional radiant barrier properties, install silver side against air space if one exists. COMPLIANCES · ASTM C1289 Type I, Class 1 and 2 · International Building Code (IBC) Section 2603, Foam Plastic · ASHRAE 90.1 · Miami-Dade County Product Control Approved · CA Insulation Directory · Tested per NFPA 286 (ICC-ES AC12 Appendix B) APPLICATIONS Stud walls; cavity walls; masonry walls; exterior stucco; re-siding; vaulted ceilings; attics and crawl spaces; limited roofing applications THERMAL PROPERTIES / PRODUCT DATA "R" means resistance to heat flow. The higher the R-value, the greater the insulating power. Nominal Thickness Thermal R-Value1 Inches °F·ft2·hr/Btu 0.50 3.2 0.75 5.0 1.00 6.0 1.10 6.7 1.25 7.8 1.50 9.6 1.75 11.4 2.00 13.1 2.10 13.9 2.30 15.3 2.50 16.7 2.90 19.6 3.00 20.3 3.50 23.9 3.70 25.3 4.00 27.4 4.50 31.0 1Thermal values are determined by using ASTM C518 test method at 75°F mean temperature on material conditioned according to PIMA Technical Bulletin No. 101. 2Includes the ASHRAE assigned 2.77 R-value of a ¾" dead-air space against the reflective foil side of R-Matte® Plus-3 in a typical wall assembly. R-Matte® Plus-3 is shipped in bundles that are approximately 48" high and wrapped in plastic for easy handling. Visit www.rmax.com for a complete list of thicknesses and packaging information. TYPICAL PHYSICAL PROPERTIES Physical properties shown are based on data obtained under controlled conditions and are subject to normal manufacturing tolerances. Property Test Method Results Density, Overall, Nominal ASTM D1622 2.0 pcf Compressive Strength ASTM D1621 20 psi1 Flexural Strength ASTM C203 60 psi Flame Spread, Core2 ASTM E84 75 or Less Smoke Developed, Core2 ASTM E84 < 450 Air Barrier ASTM E2178 <0.02 L/(s.m2) Water Vapor Transmission ASTM E96 < 0.03 perm Water Absorption ASTM C209 < 0.2% Vol. Dimensional Stability, Length and Width ASTM D2126 < 1% Linear Change Mold Resistance ASTM D3273 10, no defacement Service Temperatures 250°F max 1Less than 1" is standard at 16 psi. 2Flame spread and smoke numbers are shown for comparison purposes only and are not intended to represent the performance of R-Matte® Plus-3 and related components under actual fire conditions. www.rmax.com (800) 527-0890 APPLICATION / INSTALLATION General R-Matte® Plus-3 shall be installed vertically or horizontally with all edges tightly butted. Vertical joints must be backed by framing or structural sheathing. Taping the joints is acceptable, although not required. Rmax recommends using a pressure sensitive tape such as R-SEAL Construction Tape, R-SEAL 3000, or equivalent. Securement Rmax recommends a minimum of eight fasteners per 4'x8' board. Additional fasteners may be required in locations expected to experience additional loading (heavy wind drafts/gusts, accelerated wear and tear, etc.) prior to attachment of covering material (cladding, furring, thermal barrier, etc.) or when not being covered. Exact number of fasteners also depends on the type being used and the capacity, consult fastener manufacturer. Fasten to wood framing using roofing nails, bugle head screws, cap nails, or staples. The fasteners shall be long enough to penetrate wood framing a minimum of 1". Fasten to metal framing using self-taping screws and plastic washers. The fasteners shall be long enough to penetrate metal framing a minimum of four threads. Secure to concrete surfaces using plastic masonry fasteners with washer or a quality grade construction adhesive. Rodenhouse fasteners, sold by Rmax, are a great option for fastening R-Matte® Plus-3 to wood, steel and concrete substrates. Refer to the Rmax/Rodenhouse Fastener List and Installation Guide for more details. LIMITATIONS R-Matte® Plus-3 is not recommended, nor warranted, for use as a commercial roof insulation directly under membrane systems. Consult Rmax Sales for suitable commercial roof insulation products. R-Matte® Plus-3 is not a structural panel. It must not be used as a nailing base for any other building products. Furthermore, stud walls insulated with R-Matte® Plus-3 must be properly braced for lateral loads according to the requirements of local Building Codes. WARNING Installations utilizing R-Matte® Plus-3 must be fully protected on the inhabited side of the building by a thermal barrier such as a minimum of 1/2" gypsum wallboard, or equivalent. Consult local Building Codes and insurance authorities regarding special applications or details required when using R-Matte® Plus-3 as an exposed product. The code also has provisions regarding vapor retarders, type and location, based on the assembly, climate zone and the amount of continuous insulation. It is up to the design professional to specify an assembly that will perform adequately and meet these requirements. Per the IBC and IRC, a WRB is required behind the exterior wall veneer. WARRANTY See Rmax "Sales Policy" for warranty conditions. Rmax does not assume any responsibility or liability for the performance of any products other than those manufactured by Rmax. NOTE: All Rmax products must be tarped, placed on skids and kept dry before and throughout construction. Rmax Sales Offices and Plant Locations Central: East: 13524 Welch Road 1649 South Batesville Road Dallas, Texas 75244 Greer, South Carolina 29650 Phone: 972-387-4500 Fax: 972-387-4673 Toll Free: 1-800-527-0890 Phone: 864-297-1382 Fax: 864-234-7548 Toll Free: 1-800-845-4455 E-mail us at rmax@rmax.com or visit our website www.rmax.com 2018-04 West: 210 Lyon Drive Fernley, Nevada 89408 Phone: 775-575-4849 Fax: 775-575-5035 Toll Free: 1-800-762-9462 Proudly Made and Engineered in the U.S.A. www.rmax.com (800) 527-0890Adobe PDF Library 9.9 Adobe InDesign CS5.5 (7.5)
