SPH-170TC

SPH-170TC

Dual voice coil. Polypropylene cone with a good midrange attenuation. Suitable for both very small subwoofers and high-performance 2-way speaker systems.

pdf monacor SPH-170TC 1

Index of /pdf/brands/Monacor/SPH-170TC

Data sheet

Monacor SPH-170TC woofer kopen? - SoundImports

Original Document

If the viewer doesn’t load, open the PDF directly.

Extracted Text

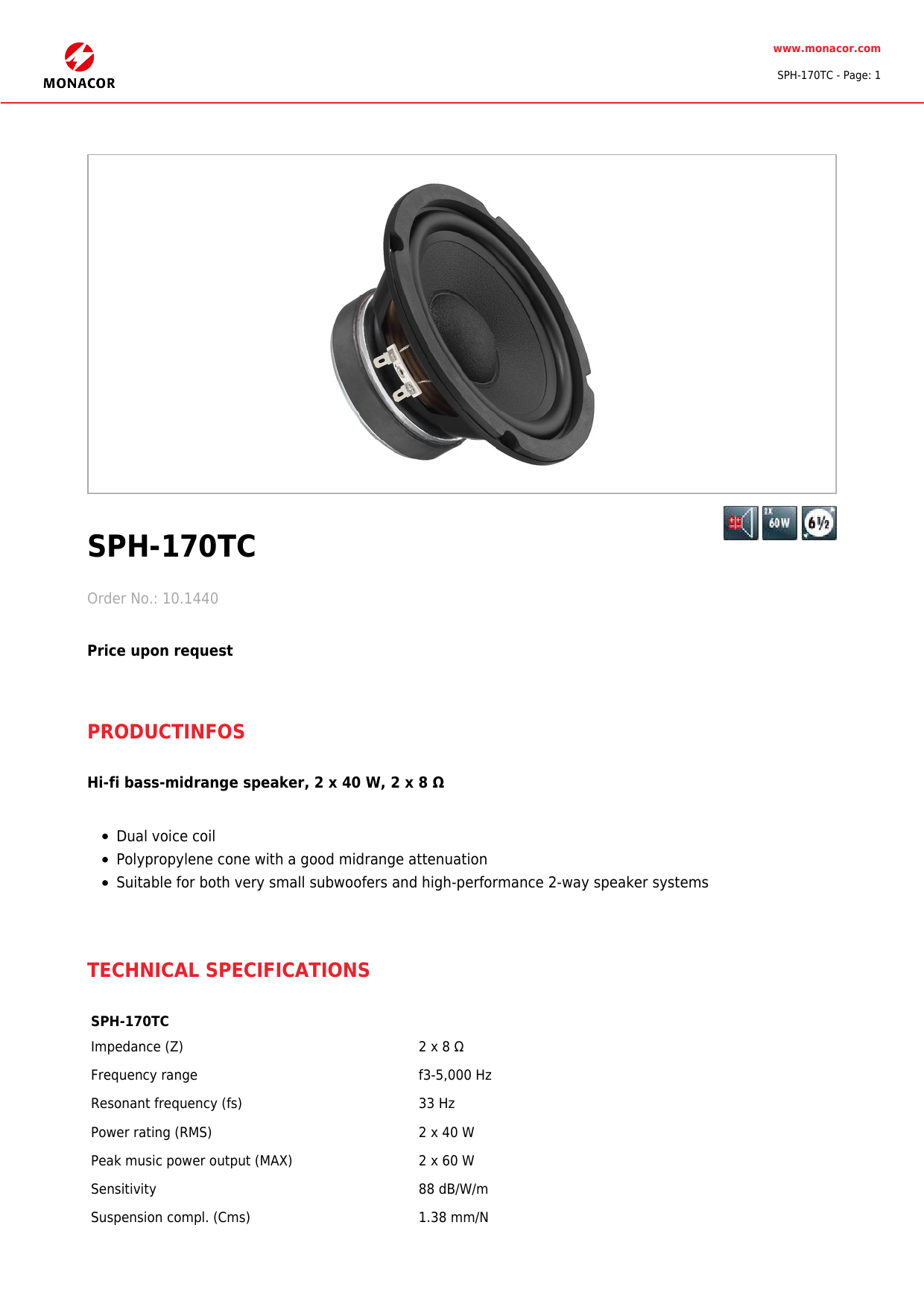

www.monacor.com SPH-170TC - Page: 1

SPH-170TC
Order No.: 10.1440 Price upon request
PRODUCTINFOS
Hi-fi bass-midrange speaker, 2 x 40 W, 2 x 8  Dual voice coil Polypropylene cone with a good midrange attenuation Suitable for both very small subwoofers and high-performance 2-way speaker systems

TECHNICAL SPECIFICATIONS
SPH-170TC Impedance (Z) Frequency range Resonant frequency (fs) Power rating (RMS) Peak music power output (MAX) Sensitivity Suspension compl. (Cms)

2 x 8  f3-5,000 Hz 33 Hz 2 x 40 W 2 x 60 W 88 dB/W/m 1.38 mm/N

SPH-170TC Moving mass (Mms) Mech. Q factor (Qms) Electr. Q factor (Qes) Total Q factor (Qts) Equivalent volume (Vas) DC resistance (Re) Force factor (BxL) Voice coil induct. (Le) Voice coil diameter Voice coil former Linear excursion (XMAX) Eff. cone area (Sd) Magnet weight Magnet diameter Mounting cutout Mounting depth Dimensions Outside diameter Width Depth Admiss. ambient temp. Weight Packing unit Type of speaker

16 g 2.98 0.48 0.41 31 l 2 x 7.5 / 3.8  5.20 Tm 2 x 0.6 mH/ 0.6 mH � 25.5 mm Kapton � 2.25 mm 127 cm2 380 g � 100 mm � 142 mm 74 mm � 166 mm x 82 mm � 166 mm � 166 mm 82 mm 0-40 �C 1.155 kg 1 6.5"

www.monacor.com SPH-170TC - Page: 2
