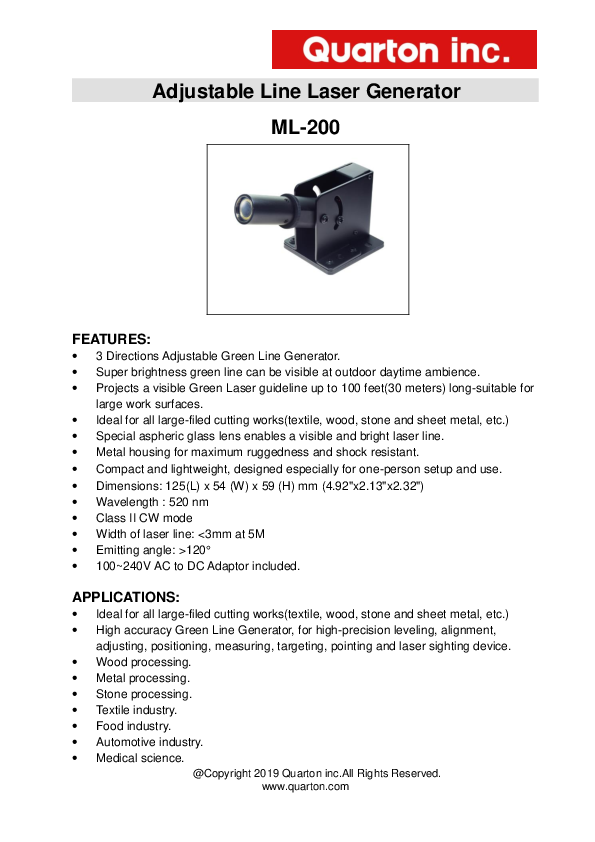

Adjustable Line Laser Generator
ML-200
FEATURES:
 3 Directions Adjustable Green Line Generator.  Super brightness green line can be visible at outdoor daytime ambience.  Projects a visible Green Laser guideline up to 100 feet(30 meters) long-suitable for
large work surfaces.  Ideal for all large-filed cutting works(textile, wood, stone and sheet metal, etc.)  Special aspheric glass lens enables a visible and bright laser line.  Metal housing for maximum ruggedness and shock resistant.  Compact and lightweight, designed especially for one-person setup and use.  Dimensions: 125(L) x 54 (W) x 59 (H) mm (4.92"x2.13"x2.32")  Wavelength : 520 nm  Class II CW mode  Width of laser line: <3mm at 5M  Emitting angle: >120�  100~240V AC to DC Adaptor included.
APPLICATIONS:
 Ideal for all large-filed cutting works(textile, wood, stone and sheet metal, etc.)  High accuracy Green Line Generator, for high-precision leveling, alignment,
adjusting, positioning, measuring, targeting, pointing and laser sighting device.  Wood processing.  Metal processing.  Stone processing.  Textile industry.  Food industry.  Automotive industry.  Medical science.
@Copyright 2019 Quarton inc.All Rights Reserved. www.quarton.com

ML-200
OUTLINE DIMENSIONS (UNITS: mm)
Outline (Lead Wire type)

SPECIFICATIONS
SPECIFICATIONS
1 Dimensions
2 Weight 3 Output power 4 Wavelength 5 Width of laser line 6 Operating temp. range 7 Emitting angle 8 Housing 9 Finishing 10 Power

ML-200 125(L) x 54(W) x 59(H) mm
(4.92" x 2.13" x 2.32") 250�5g / 8.81�0.17oz.
Class II CW mode 520nm
<3mm at 5M -20�C ~ +60�C
>120� Metal Black anodized Micro USB(Adapter included)

@Copyright 2019 Quarton inc.All Rights Reserved. www.quarton.com

ORDER CODE
Order Code
ML-200

ML-200

Wavelength
520 nm

Output Power
Class II

Connection Type
Micro USB

SAFETY LABEL

@Copyright 2019 Quarton inc.All Rights Reserved. www.quarton.com
