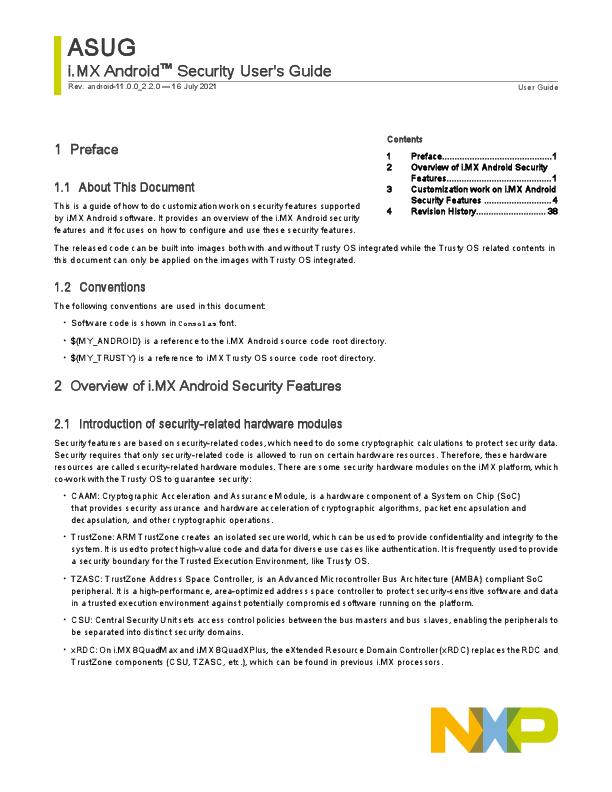

ASUG
i.MX AndroidTM Security User's Guide
Rev. android-11.0.0_2.2.0 -- 16 July 2021
User Guide
1 Preface
1.1 About This Document
This is a guide of how to do customization work on security features supported by i.MX Android software. It provides an overview of the i.MX Android security features and it focuses on how to configure and use these security features.
Contents
1 Preface............................................ 1 2 Overview of i.MX Android Security
Features.......................................... 1 3 Customization work on i.MX Android
Security Features ........................... 4 4 Revision History............................ 38
The released code can be built into images both with and without Trusty OS integrated while the Trusty OS related contents in this document can only be applied on the images with Trusty OS integrated.
1.2 Conventions
The following conventions are used in this document: � Software code is shown in Consolas font. � ${MY_ANDROID} is a reference to the i.MX Android source code root directory. � ${MY_TRUSTY} is a reference to i.MX Trusty OS source code root directory.
2 Overview of i.MX Android Security Features
2.1 Introduction of security-related hardware modules
Security features are based on security-related codes, which need to do some cryptographic calculations to protect security data. Security requires that only security-related code is allowed to run on certain hardware resources. Therefore, these hardware resources are called security-related hardware modules. There are some security hardware modules on the i.MX platform, which co-work with the Trusty OS to guarantee security:
� CAAM: Cryptographic Acceleration and Assurance Module, is a hardware component of a System on Chip (SoC) that provides security assurance and hardware acceleration of cryptographic algorithms, packet encapsulation and decapsulation, and other cryptographic operations.
� TrustZone: ARM TrustZone creates an isolated secure world, which can be used to provide confidentiality and integrity to the system. It is used to protect high-value code and data for diverse use cases like authentication. It is frequently used to provide a security boundary for the Trusted Execution Environment, like Trusty OS.
� TZASC: TrustZone Address Space Controller, is an Advanced Microcontroller Bus Architecture (AMBA) compliant SoC peripheral. It is a high-performance, area-optimized address space controller to protect security-sensitive software and data in a trusted execution environment against potentially compromised software running on the platform.
� CSU: Central Security Unit sets access control policies between the bus masters and bus slaves, enabling the peripherals to be separated into distinct security domains.
� xRDC: On i.MX 8QuadMax and i.MX 8QuadXPlus, the eXtended Resource Domain Controller (xRDC) replaces the RDC and TrustZone components (CSU, TZASC, etc.), which can be found in previous i.MX processors.
NXP Semiconductors
Overview of i.MX Android Security Features
i.MX 8QuadMax and i.MX 8QuadXPlus SoC contains a mix of Cortex-A and Cortex-M CPUs, which frequently operate in an asymmetric mode with different software environments executing on them. To keep these software environments from unintentionally interfering with each other, the SoC contains xRDC to enforce isolation. The xRDC operates in a manner like ARM's TrustZone. Transactions from masters are annotated with user-side band information to indicate their domain and the access control logic allows/disallows accesses to peripherals/memory based on this information.
� AHAB/HABv4: The Advanced High Assurance Boot (AHAB) and High Assurance Boot (HABv4) support authentication on the images by using cryptography operations to prevent unauthorized software from being executed during the device boot sequence. Details about how to verify images with HAB can be found in Chapter 2.1.
� SCU: The System Controller Unit (SCU) is only for i.MX 8QuadMax and i.MX 8QuadXPlus platforms. It consists of a Cortex-M4 processor and a set of peripherals and interfaces to connect to an external PMIC and to control internal subsystems. The SCU Cortex-M4 is the first processor to boot the chip. The SCU is dedicated to:
-- Boot management
-- Power management
External power management by communicating with external PMIC
Internal power management of all the subsystems
-- Clock and reset management
-- I/O configuration and muxing
-- Resource partitioning/access control
� SECO: The Security Controller Subsystem (SECO) is only for i.MX 8QuadMax and i.MX 8QuadXPlus platforms. It manages several security hardware modules (CAAM, SNVS, OTP, ADM, etc.) to perform cryptography acceleration and ensure the security of the whole system.
� eMMC RPMB: RPMB is a separate physical partition in the eMMC device designed for secure data storage. Every access to RPMB is authenticated and it allows the host to store data to this area in an authenticated and replay protected manner.
In Trusty OS, the RPMB partition is managed as the secure storage to store all critical data like lock/unlock status, rollback index, etc.
The following table lists the modules on the i.MX 8QuadMax, i.MX 8QuadXPlus, i.MX 8M Mini, i.MX 8M Quad platforms:
Table 1. Modules on the i.MX 8QuadMax, i.MX 8QuadXPlus, i.MX 8M Mini, i.MX 8M Quad platforms
Modules
i.MX 8QuadMax and 8QuadXPlus
i.MX 8M Quad, 8M Mini, 8M Nano, and 8M Plus
CAAM
Y
Y
TZASC
N
Y
CSU
N
Y
xRDC
Y
N
AHAB
Y
N
HABv4
N
Y
SCU
Y
N
SECO
Y
N
eMMC
Y
Y
2.2 i.MX Android security framework
i.MX Android/Android Automotive security framework includes secure enhanced U-Boot, Android/Android Auto, i.MX Trusty OS, and the related hardware.
User Guide
i.MX AndroidTM Security User's Guide, Rev. android-11.0.0_2.2.0, 16 July 2021
2 / 39
NXP Semiconductors
Overview of i.MX Android Security Features
Secure enhanced U-Boot provides the Android Verified Boot module, keys provisioning interface, and secure storage proxy.
Android Verified Boot assures the end user of the integrity of the software loaded and started by secure-enhanced U-Boot. This is defined by Google, and more details can be found in https://source.android.com/security/verifiedboot/avb.
Key provisioning interface provides the RPMB keys, key attestation, and AVB keys provisioning interface. These interfaces can be used to inject the keys into the device to make it secure.
Secure Storage Proxy is the client of Secure Storage service from Trusty OS. It helps to access the RPMB secure storage device by SoC IPs.
Android/Android Auto platform, based on Google's design, integrates the Keymaster HAL, Gatekeeper HAL, and Secure Storage proxy.
Keymaster HAL uses trusty-backed one and supports Keymaster V2 and Keymaster V3 APIs. For more details about keymaster, see https://source.android.com/security/keystore.
Gatekeeper also uses the Trusty-backed gatekeeper HAL. For more details about gatekeeper, see https://source.android.com/ security/authentication/gatekeeper.
i.MX Trusty OS is based on Trusty OS that is released from Google. Secure TAs and services are integrated in it. Trusty OS is a very important module for the whole security of i.MX Android/Android Auto platform.
Trusty OS provides a trusty-ipc, which is used to realize communication between secure and non-secure world. Trusty OS has the hardware driver for CAAM used for keyblob calculation and security algorithm acceleration.
The following figure shows the logic between these components.
Figure 1. i.MX Android security framework The following figure shows the i.MX Android/Android Auto security trust chain.
User Guide
i.MX AndroidTM Security User's Guide, Rev. android-11.0.0_2.2.0, 16 July 2021
3 / 39
NXP Semiconductors
Customization work on i.MX Android Security Features
Figure 2. i.MX Android security trust chain
Secure root key is programed into the One Time Programmable (OTP) eFuse hardware in i.MX chips and work as the root trust of the solution. It is used by CAAM to generate other keys. In the trust chain, the HAB/AHAB, AVB, and DM-Verity are used by a different level to verify the specific images or encrypt user data.
After power-on, the boot process begins, U-Boot and Trusty OS are loaded by ROM code. They are the first to be verified by ROM code with HAB/AHAB. They can only be executed after they pass the verification. U-boot loads the Linux kernel and uses AVB to verify it before jumping to the Linux kernel. The Linux kernel mounts the Android file system. Data access from Android file system will be verified by DM-Verity to assure integrity. The security chain is formed by these features.
3 Customization work on i.MX Android Security Features
3.1 Verifying images with HAB
The i.MX family of application processors provide the High Assurance Boot (HAB) feature in the on-chip ROM. The ROM is responsible for loading the initial image and verifying the image before the image is executed.
Due to the new architecture, multiple firmware and software images are required to boot i.MX 8Quad and i.MX 8M family devices. NXP defines "container" to organize images. AHAB for i.MX 8Quad devices can recognize the format of "container" and verify the images in a container. For i.MX 8M devices, these images are stored in the format of Flattened Image Tree (FIT) with an appropriate Image Vector Table (IVT) set. HABv4 for i.MX 8M devices can recognize this format and verify the images. By default, HAB verification is enabled and i.MX chip is in open stage, so failure of HAB verification does not block the boot process. After closing the chip, only correctly signed images can be executed.
This section covers AHAB used on i.MX 8Quad family devices and HABv4 used on i.MX 8M family devices.
3.1.1 Verifying images with AHAB
AHAB is closely bound with "container". Detailed information about "container" can be found in the Reference Manual of specific chips. According to the Reference manual, the hash values of multiple firmware and software components are stored in the container header. The container sign process described below embeds an SRK table in the container and signs the container. The contents described in the sign process is used to verify the container during the boot time.
For i.MX 8QuadMax MEK and i.MX 8QuadXPlus MEK, "container" is used to organize the SECO firmware, SCU firmware, Cortex-M4 software, Trusty OS, and U-Boot.
When U-Boot has SPL enabled, three containers are used to organize the images. If SPL is not enabled, two containers are used. We now distinguish containers by the order of these containers being loaded.
User Guide
i.MX AndroidTM Security User's Guide, Rev. android-11.0.0_2.2.0, 16 July 2021
4 / 39
NXP Semiconductors
Customization work on i.MX Android Security Features
When the U-Boot image used by UUU does not have SPL enabled, two containers are used. The first container only has the SECO firmware in it, and this container is provided as a binary file and signed by NXP. The second container is constructed in build time and appended to the first container. The second container contains U-Boot, and it is not signed by default. Take u-boot-imx8qm-mek-uuu.imx as an example, its high-level layout structure is shown in the following figure.
Figure 3. Layout structure when SPL is not enabled
When U-Boot to be flashed to the board has SPL enabled, three containers are used. The first container only has the SECO firmware in it, and this container is provided as a binary file and signed by NXP. The second container is constructed in build time and appended to the first container. This container contains SPL. The third container is also constructed in build time. It contains U-Boot proper. The two containers constructed at build time are not signed by default. These three containers are in two files if dual-bootloader is enabled. For single bootloader condition, taking "u-boot-imx8qm-trusty.imx" of standard Android images as an example, layout structure is shown in the following figure.
Figure 4. Layout structure when SPL is enabled with single bootloader
For dual-bootloader condition, taking "spl-imx8qm.bin" and "bootloader-imx8qm.img" of Android Automotive as an example, the layout structure is shown in the following figure.
User Guide
i.MX AndroidTM Security User's Guide, Rev. android-11.0.0_2.2.0, 16 July 2021
5 / 39
NXP Semiconductors
Customization work on i.MX Android Security Features
Figure 5. Layout structure when SPL is enabled with dual bootloaders
To sign the containers constructed in the process of building Android images, perform the following steps: 1. Download Code Signing Tool (CST) from the NXP official website. Decompress the package using the following command:
$ tar zxvf cst-3.1.0.tgz
2. Generate AHAB PKI tree. After the tool package is decompressed, enter the directory of release/keys/, and execute the following command:
$ ./ahab_pki_tree.sh
Then enter some parameters based on the output of this script. An example is as follows:
Do you want to use an existing CA key (y/n)?: n Do you want to use Elliptic Curve Cryptography (y/n)?: y Enter length for elliptic curve to be used for PKI tree: Possible values p256, p384, p521: p384 Enter the digest algorithm to use: sha384 Enter PKI tree duration (years): 5 Do you want the SRK certificates to have the CA flag set? (y/n)?: n
After the preceding command is successfully executed, private keys are under the keys/ directory, and public key certificates are under the crts/ directory. 3. Generate AHAB SRK tables and eFuse hash. Enter the directory of release/crts/, and execute the following command:
$ ../linux64/bin/srktool -a -s sha384 -t SRK_1_2_3_4_table.bin \ -e SRK_1_2_3_4_fuse.bin -f 1 -c \ SRK1_sha384_secp384r1_v3_usr_crt.pem,\ SRK2_sha384_secp384r1_v3_usr_crt.pem,\ SRK3_sha384_secp384r1_v3_usr_crt.pem,\ SRK4_sha384_secp384r1_v3_usr_crt.pem
After the command is executed successfully, the SRK table and its SHA512 value are generated and saved respectively in two files under release/crts/. The SRK table is embedded in the container in the process of signing that container. Therefore, during the boot time, it can be used to verify the signature. If the signature is authenticated, the hash value of firmware and software images can be
User Guide
i.MX AndroidTM Security User's Guide, Rev. android-11.0.0_2.2.0, 16 July 2021
6 / 39
NXP Semiconductors
Customization work on i.MX Android Security Features
trusted to verify the corresponding firmware and software. The SRK table SHA512 value will be fused to the OTP eFuse hardware and work as the "secure root key", it is used to verify the SRK table embedded in the container.
Files generated in release/keys/ and /release/crts/ are very important. If the SRK HASH value is fused to the chip and then the chip is changed from open to close state, the board can only boot with images signed with these files.
If you are a user of both i.MX 8Quad and i.MX 8M devices, use two copies of this CST respectively for two device families, since this process will generate files with the same names in the same directory, while these files should be prevented from being overwritten.
4. Build Android images to construct the containers to be signed.
To use AHAB to verify images in SPL, enable "CONFIG_AHAB_BOOT" configurations in the corresponding defconfig files in U-Boot code. They are not enabled by default. For i.MX 8QuadMax MEK and i.MX 8QuadXPlus MEK, the defconfig files are listed as follows. Some are used in standard Android platform, and some are used in Android Automotive platform.
imx8qm_mek_androidauto_trusty_defconfig imx8qm_mek_androidauto_trusty_secure_unlock_defconfig imx8qxp_mek_androidauto_trusty_defconfig imx8qxp_mek_androidauto_trusty_secure_unlock_defconfig imx8qm_mek_androidauto2_trusty_defconfig imx8qm_mek_androidauto2_trusty_md_defconfig imx8qxp_mek_androidauto2_trusty_defconfig imx8qm_mek_android_defconfig imx8qxp_mek_android_defconfig imx8qm_mek_android_trusty_defconfig imx8qm_mek_android_trusty_secure_unlock_defconfig imx8qxp_mek_android_trusty_defconfig imx8qxp_mek_android_trusty_secure_unlock_defconfig
"mkimage_imx8" is used to construct containers. It outputs the layout information of a container on standard output when constructing it. When building the Android images, save the log information of the build system. For example, execute the following command:
$ ./imx-make.sh �j12 2>&1 | tee make_android.txt
During the build process, the build system output information is also saved in make_android.txt.
After Android Auto images for i.MX 8QuadMax MEK and i.MX 8QuadXPlus MEK are built, all the files to be signed for both standard Android and Android Automotive are listed in the following table. The three examples mentioned above can be categorized into two when signing the images: the image file directly generated by mkimage_imx8 and the image file not directly generated by mkimage_imx8. Because mkimage_imx8 will output the container layout information into a file generated by itself, if the image file is directly generated by mkimage_imx8, the layout information parameter can be directly used. If the final image is assembled with intermediate files generated by mkimage_imx8, the layout information parameters need to be properly processed before being used.
Table 2. Image files for i.MX 8QuadMax and i.MX 8QuadXPlus
Image file spl-imx8qm.bin
bootloader-imx8qm.img
Remark
Two containers, one is signed by NXP, and one is not signed, directly generated by mkimage_imx8.
One container, not signed, directly generated by mkimage_imx8.
spl-imx8qm-secure-unlock.bin
Two containers, one is signed by NXP, and one is not signed, directly generated by mkimage_imx8.
bootloader-imx8qm-secure-unlock.img One container, not signed, directly generated by mkimage_imx8.
Table continues on the next page...
User Guide
i.MX AndroidTM Security User's Guide, Rev. android-11.0.0_2.2.0, 16 July 2021
7 / 39
NXP Semiconductors
Customization work on i.MX Android Security Features
Table 2. Image files for i.MX 8QuadMax and i.MX 8QuadXPlus (continued)
spl-imx8qxp.bin
Two containers, one is signed by NXP, and one is not signed, directly generated by mkimage_imx8.
bootloader-imx8qxp.img
One container, not signed, directly generated by mkimage_imx8.
spl-imx8qxp-secure-unlock.bin
Two containers, one is signed by NXP, and one is not signed, directly generated by mkimage_imx8.
bootloader-imx8qxp-secure-unlock.img One container, not signed, directly generated by mkimage_imx8.
u-boot-imx8qm-mek-uuu.imx
Two containers, one is signed by NXP, and one is not signed, directly generated by mkimage_imx8.
u-boot-imx8qxp-mek-uuu.imx
Two containers, one is signed by NXP, and one is not signed, directly generated by mkimage_imx8.
u-boot-imx8qm.imx
Three containers, one is signed by NXP, and the other two are not signed, assembled with two files generated by mkimage_imx8.
u-boot-imx8qxp.imx
Three containers, one is signed by NXP,and the other two are not signed, assembled with two files generated by mkimage_imx8.
u-boot-imx8qm-trusty.imx
Three containers, one is signed by NXP, and the other two are not signed, assembled with two files generated by mkimage_imx8.
u-boot-imx8qxp-trusty.imx
Three containers, one is signed by NXP, the other two are not signed, assembled with two files generated by mkimage_imx8.
If SPL is enabled, single bootloader image like "u-boot-imx8qm-trusty.imx" is assembled with two files generated by mkimage_imx8. In fact, dual bootloader condition keeps these two files separated as you can see in the preceding table, while single bootloader condition appends one file after another at 1 KB aligned boundary.
5. Get the layout information of containers in a file.
Layout information is needed when signing the container. To be more specific, it is the offset information of the container and the container signature block in a file. Code signing tool uses these offsets to locate the container in a file. The layout information can be found in make_android.txt just generated. With the following principles, the offset of the container to be signed in a file can be easily found.
The generated files with containers to be signed mentioned before are built based on different U-Boot defconfig files. Different U-Boot compilation targets with different U-Boot defconfig files can be found in ${MY_ANDROID}/device/nxp/ imx8q/mek_8q/BoardConfig.mk. Android Auto related part is listed below, with some annotations.
# bootloader-imx8qm.img and spl-imx8qm.bin TARGET_BOOTLOADER_CONFIG := imx8qm:imx8qm_mek_androidauto_trusty_defconfig # bootloader-imx8qm-secure-unlock.img and spl-imx8qm-secure-unlock.bin TARGET_BOOTLOADER_CONFIG += imx8qm-secureunlock:imx8qm_mek_androidauto_trusty_secure_unlock_defconfig # bootloader-imx8qxp.img and spl-imx8qxp.bin TARGET_BOOTLOADER_CONFIG += imx8qxp:imx8qxp_mek_androidauto_trusty_defconfig # bootloader-imx8qxp-c0.img and spl-imx8qxp-c0.bin TARGET_BOOTLOADER_CONFIG += imx8qxp-c0:imx8qxp_mek_androidauto_trusty_defconfig # bootloader-imx8qxp-secure-unlock.img and spl-imx8qxp-secure-unlock.bin TARGET_BOOTLOADER_CONFIG += imx8qxp-secureunlock:imx8qxp_mek_androidauto_trusty_secure_unlock_defconfig # bootloader-imx8qm.img and spl-imx8qm.bin TARGET_BOOTLOADER_CONFIG := imx8qm:imx8qm_mek_androidauto2_trusty_defconfig # bootloader-imx8qm-md.img and spl-imx8qm-md.bin TARGET_BOOTLOADER_CONFIG += imx8qm-md:imx8qm_mek_androidauto2_trusty_md_defconfig # bootloader-imx8qxp.img and spl-imx8qxp.bin
User Guide
i.MX AndroidTM Security User's Guide, Rev. android-11.0.0_2.2.0, 16 July 2021
8 / 39
NXP Semiconductors
Customization work on i.MX Android Security Features
TARGET_BOOTLOADER_CONFIG += imx8qxp:imx8qxp_mek_androidauto2_trusty_defconfig # bootloader-imx8qxp-c0.img and spl-imx8qxp-c0.bin TARGET_BOOTLOADER_CONFIG += imx8qxp-c0:imx8qxp_mek_androidauto2_trusty_defconfig # u-boot-imx8qm.imx TARGET_BOOTLOADER_CONFIG := imx8qm:imx8qm_mek_android_defconfig # u-boot-imx8qxp.imx TARGET_BOOTLOADER_CONFIG += imx8qxp:imx8qxp_mek_android_defconfig # u-boot-imx8qxp-c0.imx TARGET_BOOTLOADER_CONFIG += imx8qxp-c0:imx8qxp_mek_android_defconfig # u-boot-imx8qm-trusty.imx TARGET_BOOTLOADER_CONFIG += imx8qm-trusty:imx8qm_mek_android_trusty_defconfig # u-boot-imx8qm-trusty-secure-unlock.imx TARGET_BOOTLOADER_CONFIG += imx8qm-trusty-secureunlock:imx8qm_mek_android_trusty_secure_unlock_defconfig # u-boot-imx8qxp-trusty.imx TARGET_BOOTLOADER_CONFIG += imx8qxp-trusty:imx8qxp_mek_android_trusty_defconfig # u-boot-imx8qxp-trusty-c0.imx TARGET_BOOTLOADER_CONFIG += imx8qxp-trusty-c0:imx8qxp_mek_android_trusty_defconfig # u-boot-imx8qxp-trusty-secure-unlock.imx TARGET_BOOTLOADER_CONFIG += imx8qxp-trusty-secureunlock:imx8qxp_mek_android_trusty_secure_unlock_defconfig # u-boot-imx8qm-mek-uuu.imx TARGET_BOOTLOADER_CONFIG += imx8qm-mek-uuu:imx8qm_mek_android_uuu_defconfig # u-boot-imx8qxp-mek-uuu.imx TARGET_BOOTLOADER_CONFIG += imx8qxp-mek-uuu:imx8qxp_mek_android_uuu_defconfig # u-boot-imx8qxp-mek-c0-uuu.imx TARGET_BOOTLOADER_CONFIG += imx8qxp-mek-c0-uuu:imx8qxp_mek_android_uuu_defconfig
The defconfig file name can be used to locate the layout information of containers. Search the defconfig file name in make_android.txt just generated. A line prompts that the build process for that defconfig file has been finished. Container and container signature block offset can be found in several lines before this line.
Search the log file for container layout information. For the condition that images to be signed are directly generated by mkimage_imx8, the container layout information of "u-boot-imx8qm-mek-uuu.imx" with the defconfig file of "imx8qm_mek_android_uuu_defconfig" like below can be found in the log file. Unrelated lines are omitted and represented with ellipsis.
CST: CONTAINER 0 offset: 0x400 CST: CONTAINER 0: Signature Block: offset is at 0x590 ... =================== Finish building imx8qm-mekuuu:imx8qm_mek_android_uuu_defconfig ===================
The container layout information of "bootloader-imx8qm.img" and "spl-imx8qm.bin" with the defconfig file of "imx8qm_mek_androidauto_trusty_defconfig" like below can be found in the log file. The layout information of the first two lines is for "bootloader-imx8qm.im", and the information in the following two lines are for "spl-imx8qm.bin".
CST: CONTAINER 0 offset: 0x0 CST: CONTAINER 0: Signature Block: offset is at 0x190 ... CST: CONTAINER 0 offset: 0x400 CST: CONTAINER 0: Signature Block: offset is at 0x610 ... =================== Finish building imx8qm:imx8qm_mek_androidauto_trusty_defconfig ===================
For the condition that images to be signed are not directly generated by mkimage_imx8 , taking "u-boot-imx8qm-trusty.imx" with the defconfig file of "imx8qm_mek_android_trusty_defconfig" as an example, the following information should be retrieved in the log file. The first two lines are for the intermediate file "u-boot-atf-container.img". This file is the third
User Guide
i.MX AndroidTM Security User's Guide, Rev. android-11.0.0_2.2.0, 16 July 2021
9 / 39
NXP Semiconductors
Customization work on i.MX Android Security Features
container that has Arm Trusted Firmware and U-Boot proper in it. The layout information in the following two lines are for another intermediate file that has the second container in it. This intermediate file will be padded to 1 KB aligned boundary. Then "u-boot-atf-container.img" is appended to this file. Therefore, the second two lines can be directly used, while the first two lines should be added with an offset, which is 388 KB, 0x61000 in hexadecimal. Then the offset of the third container in the final "u-boot-imx8qm-trusty.imx" is 0x61000. Its signature offset in the file is 0x61000+0x190=0x61190.
CST: CONTAINER 0 offset: 0x0 CST: CONTAINER 0: Signature Block: offset is at 0x190 ... CST: CONTAINER 0 offset: 0x400 CST: CONTAINER 0: Signature Block: offset is at 0x610 ... append u-boot-atf-container.img at 388 KB ... =================== Finish building imx8qmtrusty:imx8qm_mek_android_trusty_defconfig ===================
The same method can be used on other targets. The targets for UUU generates one file with one set of offset values. All offset values can be found and a summary is in the following table.
Table 3. Container offset information Files having container to be signed bootloader-imx8qm.img spl-imx8qm.bin u-boot-imx8qm-mek-uuu.imx u-boot-imx8qm-trusty.imx
Container offset in the file 0x0 0x400 0x400 0x4000x61000
Container signature block offset 0x190 0x610 0x590 0x6100x61190
6. Sign the image files.
Copy the files to be signed to the directory of release/linux64/bin/ in Code Signing Tool (CST) directory. The binary file named cst is used to sign these files. This cst needs the CSF description file to be provided as an input file when it is executed. CSF examples are in the directory of ${MY_ANDROID}/vendor/nxp-opensource/uboot-imx/doc/imx/ahab/ csf_examples/. We copy one cst_uboot_atf.txt to CST release/linux64/bin/.
Make some changes to the cst_uboot_atf.txt just copied based on the image to sign. For the condition that images to be signed are directly generated by mkimage_imx8, taking "u-boot-imx8qm-mek-uuu.imx" as an example, the modification is as follows:
@@ -4,9 +4,9 @@ Version = 1.0 [Install SRK] # SRK table generated by srktool -File = "../crts/SRK_1_2_3_4_table.bin" +File = "../../crts/SRK_1_2_3_4_table.bin" # Public key certificate in PEM format on this example only using SRK key -Source = "../crts/SRK1_sha384_secp384r1_v3_usr_crt.pem" +Source = "../../crts/SRK1_sha384_secp384r1_v3_usr_crt.pem" # Index of the public key certificate within the SRK table (0 .. 3) Source index = 0 # Type of SRK set (NXP or OEM) @@ -16,6 +16,6 @@ Revocations = 0x0 [Authenticate Data] # Binary to be signed generated by mkimage -File = "u-boot-atf-container.img" +File = "u-boot-imx8qm-mek-uuu.imx" # Offsets = Container header Signature block (printed out by mkimage)
User Guide
i.MX AndroidTM Security User's Guide, Rev. android-11.0.0_2.2.0, 16 July 2021
10 / 39
NXP Semiconductors
Customization work on i.MX Android Security Features
-Offsets = 0x0 0x110 +Offsets = 0x400 0x590
Then execute the command below:
$ ./cst -i cst_uboot_atf.txt -o signed-u-boot-imx8qm-mek-uuu.imx
With preceding command successfully executed, signed-u-boot-imx8qm-mek-uuu.imx is generated. Copy it back to the output directory, and change its name as before, since uuu_imx_android_flash script flashes images based on their names.
Based on the description of signing "u-boot-imx8qm-mek-uuu.imx", sign all the other images directly generated by mkimage_imx8 like "bootloader-imx8qm.img", "spl-imx8qm.bin", etc. Signing process of images not directly generated by mkimage_imx8 is a bit different. It should be signed twice. Taking "u-boot-imx8qm-trusty.imx" as an example, first make the following change to the original "cst_uboot_atf.txt":
@@ -4,9 +4,9 @@ Version = 1.0 [Install SRK] # SRK table generated by srktool -File = "../crts/SRK_1_2_3_4_table.bin" +File = "../../crts/SRK_1_2_3_4_table.bin" # Public key certificate in PEM format on this example only using SRK key -Source = "../crts/SRK1_sha384_secp384r1_v3_usr_crt.pem" +Source = "../../crts/SRK1_sha384_secp384r1_v3_usr_crt.pem" # Index of the public key certificate within the SRK table (0 .. 3) Source index = 0 # Type of SRK set (NXP or OEM) @@ -16,6 +16,6 @@ Revocations = 0x0 [Authenticate Data] # Binary to be signed generated by mkimage -File = "u-boot-atf-container.img" +File = "u-boot-imx8qm-trusty.imx" # Offsets = Container header Signature block (printed out by mkimage) -Offsets = 0x0 0x110 +Offsets = 0x400 0x610
Then execute the command below:
$ ./cst -i cst_uboot_atf.txt -o first_signed_u-boot-imx8qm-trusty.imx Apply the following change on the "cst_uboot_atf.txt" as below to do the second sign @@ -16,6 +16,6 @@ Revocations = 0x0 [Authenticate Data] # Binary to be signed generated by mkimage -File = "u-boot-imx8qm-trusty.imx" +File = "first_signed_u-boot-imx8qm-trusty.imx" # Offsets = Container header Signature block (printed out by mkimage) -Offsets = 0x400 0x610 +Offsets = 0x61000 0x61190
And exeucte the command below:
$ ./cst -i cst_uboot_atf.txt -o second_signed_u-boot-imx8qm-trusty.imx
With preceding command successfully executed, "second_signed_u-boot-imx8qm-trusty.imx" is generated, copy it back to the output directory, and change its name as before. All the images not directly generated by mkimage_imx8 can be signed with preceding method. SPL enabled single bootloader images can be signed with this method.
User Guide
i.MX AndroidTM Security User's Guide, Rev. android-11.0.0_2.2.0, 16 July 2021
11 / 39
NXP Semiconductors
Customization work on i.MX Android Security Features
Images are signed now. When booting with signed images, SRK table embedded in image file is used to verify the signature. Embedded SRK table is verified based on its hash value. The hash value is programed in OTP efuse in i.MX chips, so it is not tempered by others. Perform the following steps to fuse the SRK hash value.
7. Dump the SRK hash value.
Change the directory to release/crts/ in Code Signing Tool (CST). Execute the following command to dump the SRK hash value:
$ od -t x4 SRK_1_2_3_4_fuse.bin 0000000 d436cc46 8ecccda9 b89e1601 5fada3db 0000020 d454114a b6cd51f4 77384870 c50ee4b2 0000040 a27e5132 eba887cf 592c1e2b bb501799 0000060 ee702e07 cf8ce73e fb55e2d5 eba6bbd2
8. Use the U-Boot fuse command to fuse the hash value to a chip. Because the fuse command is removed from U-Boot for Android Auto images to shorten the boot time, we use UUU to load the U-Boot used by UUU to RAM, and then use the fuse command. Change the board to serial download mode, and execute the following command to download U-Boot to RAM. It then enters fastboot mode. For i.MX 8QuadMax, it is as follows:
$ sudo ./uuu_imx_android_flash.sh -f imx8qm -i
For i.MX 8QuadXPlus, it is as follows: $ sudo ./uuu_imx_android_flash.sh -f imx8qxp -i
With the commands above executed, U-Boot used by UUU under the current working directory is loaded to RAM on board and it enters fastboot mode.
On the U-Boot console, it shows that U-Boot is in fastboot mode. Press "CTRL+C" to exit fastboot mode and enter U-Boot command mode.
For i.MX 8QuadMax, execute the following commands on the U-Boot console:
=> fuse prog 0 722 0xd436cc46 => fuse prog 0 723 0x8ecccda9 => fuse prog 0 724 0xb89e1601 => fuse prog 0 725 0x5fada3db => fuse prog 0 726 0xd454114a => fuse prog 0 727 0xb6cd51f4 => fuse prog 0 728 0x77384870 => fuse prog 0 729 0xc50ee4b2 => fuse prog 0 730 0xa27e5132 => fuse prog 0 731 0xeba887cf => fuse prog 0 732 0x592c1e2b => fuse prog 0 733 0xbb501799 => fuse prog 0 734 0xee702e07 => fuse prog 0 735 0xcf8ce73e => fuse prog 0 736 0xfb55e2d5 => fuse prog 0 737 0xeba6bbd2
For i.MX 8QuadXPlus, execute the following commands on the U-Boot console:
=> fuse prog 0 730 0xd436cc46 => fuse prog 0 731 0x8ecccda9 => fuse prog 0 732 0xb89e1601
User Guide
i.MX AndroidTM Security User's Guide, Rev. android-11.0.0_2.2.0, 16 July 2021
12 / 39
NXP Semiconductors
Customization work on i.MX Android Security Features
=> fuse prog 0 733 0x5fada3db => fuse prog 0 734 0xd454114a => fuse prog 0 735 0xb6cd51f4 => fuse prog 0 736 0x77384870 => fuse prog 0 737 0xc50ee4b2 => fuse prog 0 738 0xa27e5132 => fuse prog 0 739 0xeba887cf => fuse prog 0 740 0x592c1e2b => fuse prog 0 741 0xbb501799 => fuse prog 0 742 0xee702e07 => fuse prog 0 743 0xcf8ce73e => fuse prog 0 744 0xfb55e2d5 => fuse prog 0 745 0xeba6bbd2
Now, images are signed and SRK hash value is fused. The images can be flashed to boards. For how to flash i.MX Android images, see the AndroidTM Release Notes (ARN).
The chip is now in open stage, and verification failure does not block the boot process. To make sure that SRK hash value is correctly fused and images are correctly signed, check the SECO event during boot. After "CONFIG_AHAB_BOOT" is enabled in the defconfig file of U-Boot, use a U-Boot command to check the SECO events. After images are signed and SRK hash value is programed, boot the board to U-Boot command mode. On the U-Boot console, execute the following command:
=> ahab_status
If preceding command outputs the SECO event, use the following code to check whether it is related to AHAB verification.
0x0087EE00 = The container image is not signed. 0x0087FA00 = The container image was signed with wrong key that is not matching the OTP SRK hashes.
For example, if the SRK hash value is programed, but images are not signed, after ahab_status is executed, the following prompt is displayed on the console:
=> ahab_status Lifecycle: 0x0020, NXP closed SECO Event[0] = 0x0087EE00 CMD = AHAB_AUTH_CONTAINER_REQ (0x87) IND = AHAB_NO_AUTHENTICATION_IND (0xEE) SECO Event[1] = 0x0087EE00 CMD = AHAB_AUTH_CONTAINER_REQ (0x87) IND = AHAB_NO_AUTHENTICATION_IND (0xEE)
After it is confirmed that the SRK hash value is correctly fused, and signed images do not cause AHAB related SECO events, execute the following command on the U-Boot console to close the chip:
=> ahab_close
Note that this close operation is irreversible to the chips and the closed chips does not boot up if AHAB verification fails.
3.1.2 Verifying images with HABv4
HABv4 verifies images based on Image Vector Table (IVT) and Flattened Image Tree (FIT). Detailed information of the boot image format can be found in the Reference Manual of specific chips. According to the Reference manual, the sign process described below embeds the Command Sequence File (CSF) generated by code signing tool in the final image. The CSF is used to verify the images during the boot time.
To sign the images for i.MX 8M devices, perform the following steps:
User Guide
i.MX AndroidTM Security User's Guide, Rev. android-11.0.0_2.2.0, 16 July 2021
13 / 39
NXP Semiconductors
Customization work on i.MX Android Security Features
1. Download Code Signing Tool (CST) from NXP official website. Decompress the package with the following command: $ tar zxvf cst-3.1.0.tgz
2. Generate the HABv4 PKI tree. After the tool package is decompressed, enter the directory of release/keys/, and execute the following command: ./hab4_pki_tree.sh
Then enter some parameters based on the output of this script. An example is as follows:
Do you want to use an existing CA key (y/n)?: n Do you want to use Elliptic Curve Cryptography (y/n)?: n Enter key length in bits for PKI tree: 2048 Enter PKI tree duration (years): 5 How many Super Root Keys should be generated? 4 Do you want the SRK certificates to have the CA flag set? (y/n)?: y
3. Generate AHAB SRK tables and eFuse hash.
Enter the directory of release/crts/, and execute the following command:
$ ../linux64/bin/srktool -h 4 -t SRK_1_2_3_4_table.bin -e \ SRK_1_2_3_4_fuse.bin -d sha256 -c \ SRK1_sha256_2048_65537_v3_ca_crt.pem,\ SRK2_sha256_2048_65537_v3_ca_crt.pem,\ SRK3_sha256_2048_65537_v3_ca_crt.pem,\ SRK4_sha256_2048_65537_v3_ca_crt.pem
After the preceding commands are executed successfully. The SRK table and its SHA256 value is generated and saved respectively in two files under release/crts/.
The SRK table is embedded in the CSF. Therefore, during the boot time, it can be used to verify the signature. The SRK table SHA256 value is fused to the OTP eFuse hardware and works as the "secure root key". It is used to verify the SRK table in CSF.
Files generated in "release/keys/" and "/release/crts/" are very important. If the SRK HASH value is fused to the chip and then changes the chip from open to close state, the board can only boot with images signed with these files.
If you are a user of both i.MX 8Quad and i.MX 8M devices, use two copies of this CST respectively for two device families, since this process generates files with the same names in the same directory, while these files should be prevented from being overwritten.
4. Build Android images to generate the file to be signed.
To support HAB features, enable "CONFIG_IMX_HAB" configurations in the corresponding defconfig files in U-Boot code. They are not enabled by default. Taking i.MX 8M Mini EVK and i.MX 8M Nano EVK as an example, the files are:
imx8mm_evk_android_defconfig imx8mm_evk_android_dual_defconfig imx8mm_evk_android_trusty_defconfig imx8mm_evk_android_trusty_secure_unlock_defconfig imx8mm_evk_android_trusty_dual_defconfig imx8mm_evk_android_uuu_defconfig
User Guide
i.MX AndroidTM Security User's Guide, Rev. android-11.0.0_2.2.0, 16 July 2021
14 / 39
NXP Semiconductors
Customization work on i.MX Android Security Features
Layout information of the final U-Boot image is needed during the signing process. When building the Android images, save the log information of build system. For example, execute the following command:
$ ./imx-make.sh �j12 2>&1 | tee make_android.txt
During the build process, the build system output information is also saved in make_android.txt.
5. Get the layout information of the file to be signed.
Final U-Boot image files are generated with different U-Boot defconfig files. Taking i.MX 8M Mini as an example, different U-Boot compilation targets with different U-Boot defconfig files can be found in ${MY_ANDROID}/device/nxp/imx8m/ evk_8mm/BoardConfig.mk. They are listed below with some annotations.
TARGET_BOOTLOADER_CONFIG := imx8mm:imx8mm_evk_android_defconfig TARGET_BOOTLOADER_CONFIG += imx8mm-dual:imx8mm_evk_android_dual_defconfig TARGET_BOOTLOADER_CONFIG += imx8mm-trusty:imx8mm_evk_android_trusty_defconfig TARGET_BOOTLOADER_CONFIG += imx8mm-trusty-secureunlock:imx8mm_evk_android_trusty_secure_unlock_defconfig TARGET_BOOTLOADER_CONFIG += imx8mm-trusty-dual:imx8mm_evk_android_trusty_dual_defconfig TARGET_BOOTLOADER_CONFIG += imx8mm-evk-uuu:imx8mm_evk_android_uuu_defconfig
Search the defconfig file name in the log of make_android.txt just generated for a line prompt that the build process for that defconfig file is finished. The layout information needed in the signing process is several lines before that. The layout information needs to be categorized based on whether dual-bootloader is enabled. The defconfig files with "dual" substring in their names have dual-bootloader enabled. On the contrary, the ones without "dual" substring in their names do not enable dual-bootloader.
For the single bootloader condition, take "imx8mm_evk_android_uuu_defconfig" as an example. Its corresponding output file is "u-boot-imx8mm-evk-uuu.imx". The lines directly related to the layout info of this output file are listed below, and unrelated lines are omitted and represented with ellipsis.
Loader IMAGE:
...
csf_off
0x2d600
spl hab block:
0x7e0fc0 0x0 0x2d600
...
Second Loader IMAGE:
...
sld_csf_off
0x58c20
sld hab block:
0x401fcdc0 0x57c00 0x1020
...
0x40200000 0x5AC00 0xAE710
0x402AE710 0x109310 0x8630
0x920000 0x111940 0x91D0
...
=================== Finish building imx8mm-evk-
uuu:imx8mm_evk_android_uuu_defconfig ===================
For the dual-bootloader condition, take "imx8mm_evk_android_trusty_dual_defconfig" as an example. Its corresponding output files are "spl-imx8mm-trusty-dual.bin" and "bootloader-imx8mm-trusty-dual.img". The lines directly related to the layout info of this output file are listed below, and unrelated lines are omitted and represented with ellipsis.
Loader IMAGE: ... csf_off spl hab block: ... Second Loader IMAGE: ...
0x2d600 0x7e0fc0 0x0 0x2d600
User Guide
i.MX AndroidTM Security User's Guide, Rev. android-11.0.0_2.2.0, 16 July 2021
15 / 39
NXP Semiconductors
Customization work on i.MX Android Security Features
sld_csf_off
0x58c20
sld hab block:
0x401fcdc0 0x57c00 0x1020
...
0x40200000 0x5AC00 0xAE710
0x402AE710 0x109310 0x8630
0x920000 0x111940 0x91D0
...
=================== Finish building imx8mm-evk-
uuu:imx8mm_evk_android_uuu_defconfig ===================
The same method of retrieving the layout information can be used on other targets.
6. Sign the image files.
Copy the files to be signed to the directory of release/linux64/bin/ in Code Signing Tool (CST) directory. The binary file named CST is used to sign these files. This CST needs CSF description file to be as an input file when it is executed. CSF examples are in the directory of ${MY_ANDROID}/vendor/nxp-opensource/uboot-imx/doc/imx/habv4/csf_examples/ mx8m_mx8mm/. Copy "csf_fit.txt" and "csf_spl.txt" to Code Signing Tool (CST) release/linux64/bin/. The file to be signed also needs to be copied to this directory. The signing process is different between single bootloader condition and dual-bootloader condition. The examples of the two conditions are described together in this section, but in practice, different U-Boot target files should be signed with the following steps one by one.
For the single bootloader example with "imx8mm_evk_android_uuu_defconfig" defconfig file, make the following modifications on the "csf_fit.txt" and "csf_spl.txt" just copied.
diff --git a/csf_fit.txt b/csf_fit.txt
index d9218ab..dfd0ded 100644
--- a/csf_fit.txt
+++ b/csf_fit.txt
@@ -8,12 +8,12 @@
[Install SRK]
# Index of the key location in the SRK table to be installed
- File = "../crts/SRK_1_2_3_4_table.bin"
+ File = "../../crts/SRK_1_2_3_4_table.bin"
Source index = 0
[Install CSFK]
# Key used to authenticate the CSF data
- File = "../crts/CSF1_1_sha256_2048_65537_v3_usr_crt.pem"
+ File = "../../crts/CSF1_1_sha256_2048_65537_v3_usr_crt.pem"
[Authenticate CSF]
@@ -23,14 +23,14 @@
# Target key slot in HAB key store where key will be installed
Target index = 2
# Key to install
- File = "../crts/IMG1_1_sha256_2048_65537_v3_usr_crt.pem"
+ File = "../../crts/IMG1_1_sha256_2048_65537_v3_usr_crt.pem"
[Authenticate Data]
# Key slot index used to authenticate the image data
Verification index = 2
# Authenticate Start Address, Offset, Length and file
- Blocks = 0x401fcdc0 0x057c00 0x01020 "flash.bin", \
-
0x40200000 0x05AC00 0x9AAC8 "flash.bin", \
-
0x00910000 0x0F56C8 0x09139 "flash.bin", \
-
0xFE000000 0x0FE804 0x4D268 "flash.bin", \
-
0x4029AAC8 0x14BA6C 0x06DCF "flash.bin"
+ Blocks = 0x401fcdc0 0x57c00 0x1020 "u-boot-imx8mm-evk-uuu.imx", \
+
0x40200000 0x5AC00 0xAE710 "u-boot-imx8mm-evk-uuu.imx", \
+
0x402AE710 0x109310 0x8630 "u-boot-imx8mm-evk-uuu.imx", \
+
0x920000 0x111940 0x91D0 "u-boot-imx8mm-evk-uuu.imx"
diff --git a/csf_spl.txt b/csf_spl.txt
User Guide
i.MX AndroidTM Security User's Guide, Rev. android-11.0.0_2.2.0, 16 July 2021
16 / 39
NXP Semiconductors
Customization work on i.MX Android Security Features
index 39adf7a..80165a8 100644
--- a/csf_spl.txt
+++ b/csf_spl.txt
@@ -8,12 +8,12 @@
[Install SRK]
# Index of the key location in the SRK table to be installed
- File = "../crts/SRK_1_2_3_4_table.bin"
+ File = "../../crts/SRK_1_2_3_4_table.bin"
Source index = 0
[Install CSFK]
# Key used to authenticate the CSF data
- File = "../crts/CSF1_1_sha256_2048_65537_v3_usr_crt.pem"
+ File = "../../crts/CSF1_1_sha256_2048_65537_v3_usr_crt.pem"
[Authenticate CSF]
[Unlock]
# Leave Job Ring and DECO master ID registers Unlocked
Engine = CAAM
-
Features = MID
+
Features = MID, MFG
[Install Key]
# Key slot index used to authenticate the key to be installed
@@ -28,10 +28,10 @@
# Target key slot in HAB key store where key will be installed
Target index = 2
# Key to install
- File = "../crts/IMG1_1_sha256_2048_65537_v3_usr_crt.pem"
+ File = "../../crts/IMG1_1_sha256_2048_65537_v3_usr_crt.pem"
[Authenticate Data]
# Key slot index used to authenticate the image data
Verification index = 2
# Authenticate Start Address, Offset, Length and file
- Blocks = 0x7e0fc0 0x1a000 0x2a600 "flash.bin"
+ Blocks = 0x7e0fc0 0x0 0x2d600 "u-boot-imx8mm-evk-uuu.imx"
For the dual-bootloader example with "imx8mm_evk_android_trusty_dual_defconfig" defconfig file, make the following modifications on the "csf_fit.txt" and "csf_spl.txt" just copied.
diff --git a/csf_fit.txt b/csf_fit.txt index d9218ab..dfd0ded 100644 --- a/csf_fit.txt +++ b/csf_fit.txt @@ -8,12 +8,12 @@ [Install SRK] # Index of the key location in the SRK table to be installed - File = "../crts/SRK_1_2_3_4_table.bin" + File = "../../crts/SRK_1_2_3_4_table.bin" Source index = 0 [Install CSFK] # Key used to authenticate the CSF data - File = "../crts/CSF1_1_sha256_2048_65537_v3_usr_crt.pem" + File = "../../crts/CSF1_1_sha256_2048_65537_v3_usr_crt.pem" [Authenticate CSF] @@ -23,14 +23,14 @@ # Target key slot in HAB key store where key will be installed Target index = 2 # Key to install - File = "../crts/IMG1_1_sha256_2048_65537_v3_usr_crt.pem" + File = "../../crts/IMG1_1_sha256_2048_65537_v3_usr_crt.pem" [Authenticate Data] # Key slot index used to authenticate the image data
User Guide
i.MX AndroidTM Security User's Guide, Rev. android-11.0.0_2.2.0, 16 July 2021
17 / 39
NXP Semiconductors
Customization work on i.MX Android Security Features
Verification index = 2
# Authenticate Start Address, Offset, Length and file
- Blocks = 0x401fcdc0 0x057c00 0x01020 "flash.bin", \
-
0x40200000 0x05AC00 0x9AAC8 "flash.bin", \
-
0x00910000 0x0F56C8 0x09139 "flash.bin", \
-
0xFE000000 0x0FE804 0x4D268 "flash.bin", \
-
0x4029AAC8 0x14BA6C 0x06DCF "flash.bin"
+ Blocks = 0x401fcdc0 0x0 0x1020 "bootloader-imx8mm-trusty-dual.img", \
+
0x40200000 0x3000 0xAF2D0 "bootloader-imx8mm-trusty-dual.img", \
+
0x402AF2D0 0xB22D0 0x8630 "bootloader-imx8mm-trusty-dual.img", \
+
0x920000 0xBA900 0xA1D0 "bootloader-imx8mm-trusty-dual.img", \
+
0xBE000000 0xC4AD0 0x164C50 "bootloader-imx8mm-trusty-dual.img"
diff --git a/csf_spl.txt b/csf_spl.txt
index 39adf7a..80165a8 100644
--- a/csf_spl.txt
+++ b/csf_spl.txt
@@ -8,12 +8,12 @@
[Install SRK]
# Index of the key location in the SRK table to be installed
- File = "../crts/SRK_1_2_3_4_table.bin"
+ File = "../../crts/SRK_1_2_3_4_table.bin"
Source index = 0
[Install CSFK]
# Key used to authenticate the CSF data
- File = "../crts/CSF1_1_sha256_2048_65537_v3_usr_crt.pem"
+ File = "../../crts/CSF1_1_sha256_2048_65537_v3_usr_crt.pem"
[Authenticate CSF]
[Unlock]
# Leave Job Ring and DECO master ID registers Unlocked
Engine = CAAM
-
Features = MID
+
Features = MID, MFG
[Install Key]
# Key slot index used to authenticate the key to be installed
@@ -28,10 +28,10 @@
# Target key slot in HAB key store where key will be installed
Target index = 2
# Key to install
- File = "../crts/IMG1_1_sha256_2048_65537_v3_usr_crt.pem"
+ File = "../../crts/IMG1_1_sha256_2048_65537_v3_usr_crt.pem"
[Authenticate Data]
# Key slot index used to authenticate the image data
Verification index = 2
# Authenticate Start Address, Offset, Length and file
- Blocks = 0x7e0fc0 0x1a000 0x2a600 "flash.bin"
+ Blocks = 0x7e0fc0 0x0 0x34200 "spl-imx8mm-trusty-dual.bin"
Execute the following commands to generate CSF with the CSF description file. They are the same for single bootloader condition and dual-bootloader condition.
$ ./cst --i=csf_spl.txt --o=csf_spl.bin $ ./cst --i=csf_fit.txt --o=csf_fit.bin
Execute the following commands to embed the CSF into the U-Boot image.
# For the single bootloader example with "imx8mm_evk_android_uuu_defconfig" defconfig file $ dd if=csf_spl.bin of=u-boot-imx8mm-evk-uuu.imx seek=$((0x2d600)) bs=1 conv=notrunc $ dd if=csf_fit.bin of=u-boot-imx8mm-evk-uuu.imx seek=$((0x58c20)) bs=1 conv=notrunc # For the dual bootloader example with "imx8mm_evk_android_trusty_dual_defconfig" defconfig file
User Guide
i.MX AndroidTM Security User's Guide, Rev. android-11.0.0_2.2.0, 16 July 2021
18 / 39
NXP Semiconductors
Customization work on i.MX Android Security Features
$ dd if=csf_spl.bin of=spl-imx8mm-trusty-dual.bin seek=$((0x34200)) bs=1 conv=notrunc $ dd if=csf_fit.bin of=bootloader-imx8mm-trusty-dual.img seek=$((0x1020)) bs=1 conv=notrunc
With preceding commands successfully executed, "u-boot-imx8mm-evk-uuu.imx" or "spl-imx8mm-trusty-dual.bin" and "=bootloader-imx8mm-trusty-dual.img" are well signed. Then sign other images according to the description of the signing process.
Image are signed now. When booting with signed images, the SRK table embedded in the image file is used to verify the signature. Embedded SRK table is verified based on its hash value. The hash value is programed in OTP eFuse in i.MX chips, so it is not affected by others. The way to fuse SRK hash value will be described.
7. Dump the SRK hash value.
Change directory to release/crts/ in Code Signing Tool (CST). Execute the following command to dump the SRK hash value:
hexdump -e '/4 "0x"' -e '/4 "%X""\n"' SRK_1_2_3_4_fuse.bin 0x20593752 0x6ACE6962 0x26E0D06C 0xFC600661 0x1240E88F 0x1209F144 0x831C8117 0x1190FD4D
8. Use the U-Boot fuse command to fuse the hash value to a chip.
Flash the image just signed to the board, and then boot to U-Boot command mode, and execute the following command to fuse the SRK hash value. This is the same for i.MX 8M Mini, i.MX 8M Nano, i.MX 8M Quad, and i.MX 8M Plus.
fuse prog -y 6 0 0x20593752 0x6ACE6962 0x26E0D06C 0xFC600661 fuse prog -y 7 0 0x1240E88F 0x1209F144 0x831C8117 0x1190FD4D
Now, images are signed, and the SRK hash value is fused. The chip is in open stage, and the verification failure does not block the boot process. One way to make sure that the SRK hash value is correctly fused and images are correctly signed is to check HAB events and U-Boot log. Reboot the board to U-Boot command board and execute the following command:
=> hab_status
Make sure there is no HAB EVENT reported. Before SPL invokes HAB to verify the FIT part, it first validates the CSF. Make sure there is no CSF related error as follows in the boot log.
Error: CSF header command not found
After it is confirmed that the SRK hash value is correctly fused, and signed images do not cause HAB event, execute the following command on the U-Boot console to close the chip.
=> fuse prog -y 1 3 0x2000000
This close operation is irreversible to the chips and closed chips do not boot up if HABv4 verification fails.
3.2 Configurations on TEE
3.2.1 Memory region configuration in ATF
The TEE binary is loaded to DRAM at the address of $BL32_BASE by SPL. By default, the load address $BL32_BASE is defined as 0xFE000000. It is specified during the process of generating the bootloader image with imx-mkimage. For example,
User Guide
i.MX AndroidTM Security User's Guide, Rev. android-11.0.0_2.2.0, 16 July 2021
19 / 39
NXP Semiconductors
Customization work on i.MX Android Security Features
you can specify the load address as 0xFF000000 for i.MX 8QuadMax and i.MX 8QuadXPlus in ${MY_ANDROID}/vendor/
nxp-opensource/imx-mkimage as follows:
diff --git a/iMX8QM/soc.mak b/iMX8QM/soc.mak index 355851e..fe70191 100644 --- a/iMX8QM/soc.mak +++ b/iMX8QM/soc.mak @@ -82,7 +82,7 @@ u-boot-atf-container.img: bl31.bin u-boot-hash.bin fi if [ -f "tee.bin" ]; then \
if [ $(shell echo $(ROLLBACK_INDEX_IN_CONTAINER)) ]; then \ - ./$(MKIMG) -soc QM -sw_version $(ROLLBACK_INDEX_IN_CONTAINER) -rev B0 -c -ap bl31.bin
a53 0x80000000 -ap u-boot-hash.bin a53 0x80020000 -ap tee.bin a53 0xFE000000 -out u-boot-atfcontainer.img; \
+ ./$(MKIMG) -soc QM -sw_version $(ROLLBACK_INDEX_IN_CONTAINER) -rev B0 -c -ap bl31.bin a53 0x80000000 -ap u-boot-hash.bin a53 0x80020000 -ap tee.bin a53 0xFF000000 -out u-boot-atfcontainer.img; \
else \ ./$(MKIMG) -soc QM -rev B0 -c -ap bl31.bin a53 0x80000000 -ap u-boot-hash.bin a53 0x80020000
-ap tee.bin a53 0xFE000000 -out u-boot-atf-container.img; \ fi; \ diff --git a/iMX8QX/soc.mak b/iMX8QX/soc.mak index 56422e0..d917dc3 100644 --- a/iMX8QX/soc.mak +++ b/iMX8QX/soc.mak @@ -73,7 +73,7 @@ u-boot-atf.itb: u-boot-hash.bin bl31.bin u-boot-atf-container.img: bl31.bin u-boot-hash.bin if [ -f tee.bin ]; then \
if [ $(shell echo $(ROLLBACK_INDEX_IN_CONTAINER)) ]; then \ - ./$(MKIMG) -soc QX -sw_version $(ROLLBACK_INDEX_IN_CONTAINER) -rev B0 -c -ap bl31.bin
a35 0x80000000 -ap u-boot-hash.bin a35 0x80020000 -ap tee.bin a35 0xFE000000 -out u-boot-atfcontainer.img; \
+ ./$(MKIMG) -soc QX -sw_version $(ROLLBACK_INDEX_IN_CONTAINER) -rev B0 -c -ap bl31.bin a35 0x80000000 -ap u-boot-hash.bin a35 0x80020000 -ap tee.bin a35 0xFF000000 -out u-boot-atfcontainer.img; \
else \ ./$(MKIMG) -soc QX -rev B0 -c -ap bl31.bin a35 0x80000000 -ap u-boot-hash.bin a35 0x80020000
-ap tee.bin a35 0xFE000000 -out u-boot-atf-container.img; \ fi; \
After loading the TEE binary to DRAM, the ATF tries to kick it at the address of $BL32_BASE with the size of $BL32_SIZE, which are defined in ${MY_ANDROID}/vendor/nxp-opensource/arm-trusted-firmware/plat/imx/$(PLAT)/include/platform_def.h. By default, $BL32_BASE is defined as 0xFE000000 and $BL32_SIZE is 0x02000000, but you can configure them as needed. For example, $BL32_BASE can be configured as 0xFF000000 and $BASE_SIZE can be configured as 0x03000000 for i.MX 8QuadMax and i.MX 8QuadXPlus as follows:
diff --git a/plat/imx/imx8qm/include/platform_def.h b/plat/imx/imx8qm/include/platform_def.h index b305bfc..6f9f7d4 100644 --- a/plat/imx/imx8qm/include/platform_def.h +++ b/plat/imx/imx8qm/include/platform_def.h @@ -37,8 +37,8 @@ #define BL31_LIMIT 0x80020000 #ifdef TEE_IMX8 -#define BL32_BASE 0xfe000000 -#define BL32_SIZE 0x02000000 +#define BL32_BASE 0xff000000 +#define BL32_SIZE 0x03000000 #define BL32_SHM_SIZE 0x00400000 #define BL32_LIMIT 0x100000000
User Guide
i.MX AndroidTM Security User's Guide, Rev. android-11.0.0_2.2.0, 16 July 2021
20 / 39
NXP Semiconductors
Customization work on i.MX Android Security Features
#endif diff --git a/plat/imx/imx8qxp/include/platform_def.h b/plat/imx/imx8qxp/include/platform_def.h index 24eacc2..cfc0717 100644 --- a/plat/imx/imx8qxp/include/platform_def.h +++ b/plat/imx/imx8qxp/include/platform_def.h @@ -33,8 +33,8 @@ #define BL31_LIMIT 0x80020000 #ifdef TEE_IMX8 -#define BL32_BASE 0xfe000000 -#define BL32_SIZE 0x02000000 +#define BL32_BASE 0xff000000 +#define BL32_SIZE 0x03000000 #define BL32_SHM_SIZE 0x00400000 #define BL32_LIMIT 0x100000000 #define PLAT_TEE_IMAGE_OFFSET 0x84000000
The following table lists the recommended $BL32_BASE and $BL32_SIZE for DRAM with different sizes on the i.MX 8Quad platform:
Table 4. Recommended $BL32_BASE and $BL32_SIZE for DRAM
DRAM Size (GB)
$BL32_BASE
$BL32_SIZE
6
0xFE000000
0x02000000
4
0xFE000000
0x02000000
3
0xFE000000
0x02000000
2
0xFE000000
0x02000000
1
0xBE000000
0x02000000
3.2.2 Basic file and folder construction for Trusty OS
i.MX Trusty OS provides a fully security solution for Android platform and Android Automotive platform. It also provides a set of development APIs for customer to develop their own TAs.
Trusty OS is based on LittleKernel. i.MX Trusty OS has the following basic file structure.
Table 5. Basic file structure of i.MX Trusty OS
Folder name
Folder description
trusty/device/nxp/imx8
This folder contains the script files. Most of the configurations for the build target are defined in this folder, including project configuration files.
The Makefile configurations, board configurations, and modules need to be built.
trusty/hardware/nxp/app trusty/hardware/nxp/target trusty/hardware/nxp/platform/imx trusty/kernel/lib
NXP specific TA source code folder. Currently the hwcrypto TA located in this folder that provides security functions depends on the i.MX SoC hardware.
NXP reference board target folder. Only rules.mk for the build target in this folder, platform name, and UART information are defined in this file.
NXP SoC specific source codes for Trusty OS. All i.MX SoCs share these codes. It includes platform initialization codes, UART drivers, and registers map definitions.
Trusty OS core codes including secure monitor calls management, TIPC/QLTIPC stack.
Table continues on the next page...
User Guide
i.MX AndroidTM Security User's Guide, Rev. android-11.0.0_2.2.0, 16 July 2021
21 / 39
NXP Semiconductors
Customization work on i.MX Android Security Features
Table 5. Basic file structure of i.MX Trusty OS (continued)
Folder name
Folder description
external/lk
LittleKernel codes, including all LittleKernel modules like arch codes, interrupt management, task management, and SMP support.
trusty/user/app
Trusty OS TAs are placed here, including AVB, Gatekeeper, and Keymaster user space source codes.
For TAs implementation, see Google Trusty OS reference webpage: https://source.android.com/security/trusty/trusty-ref.
3.2.3 Applying new build target in Trusty OS
By default, NXP already provides i.MX 8QuadMax/8QuadXPlus and i.MX 8M Mini/8M Quad series template in the i.MX Trusty OS. To add a new platform based on i.MX 8QuadMax/8QuadXPlus or i.MX 8M Mini/8M Quad/8M Plus, add or modify the following file or modules.
In ${MY_TRUSTY}/trusty/device/nxp/imx8/project, imx8-inc.mk contains all common configurations, such as CPU cores, modules that need to be built. The imx8-inc.mk can be overwritten by the build target mk files, such as imx8qm.mk.
For example, to add a new build target based on i.MX 8QuadMax SoC called imx8qm-abc, which has six CPUs and 1024 RPMB blocks, write a new .mk file called imx8qm-abc.mk in ${MY_TRUSTY}trusty/device/nxp/imx8/project. The content is as follows:
TARGET := imx8q # imx8q/x use lpuart for UART IP IMX_USE_LPUART := true SMP_MAX_CPUS := 6 STORAGE_RPMB_BLOCK_COUNT := 1024 include project/imx8-inc.mk
In the root of Trusty OS codes, execute $make list. Then imx8qm-abc is displayed.
3.2.4 Adding unit tests in Trusty OS and adding CAAM self-tests in Trusty OS
Trusty OS supports two unit tests to test the functionality of Trusty IPC (TIPC) and CAAM. It is only for debug purpose and should not be released with the open unit tests. For i.MX 8QuadMax and i.MX 8QuadXPlus, to include these unit tests, make the following changes in ${MY_TRUSTY}/trusty/device/nxp/imx8/project:
diff --git a/project/imx8-inc.mk b/project/imx8-inc.mk index 681a223..e7dcfdb 100644 --- a/project/imx8-inc.mk +++ b/project/imx8-inc.mk @@ -70,6 +70,7 @@ GLOBAL_DEFINES += APP_STORAGE_RPMB_BLOCK_COUNT=$(STORAGE_RPMB_BLOCK_COUNT) GLOBAL_DEFINES += \ WITH_LIB_VERSION=1 \ + WITH_CAAM_SELF_TEST=1 \ # ARM suggest to use system registers to access GICv3/v4 registers GLOBAL_DEFINES += ARM_GIC_USE_SYSTEM_REG=1 @@ -98,6 +99,8 @@ TRUSTY_ALL_USER_TASKS := \ trusty/user/app/keymaster \ trusty/user/app/gatekeeper \ trusty/user/app/storage \ + trusty/user/app/sample/ipc-unittest/main \ + trusty/user/app/sample/ipc-unittest/srv \ # This project requires trusty IPC WITH_TRUSTY_IPC := true
User Guide
i.MX AndroidTM Security User's Guide, Rev. android-11.0.0_2.2.0, 16 July 2021
22 / 39
NXP Semiconductors
Customization work on i.MX Android Security Features
Rebuild the Trusty OS and copy the output binary to ${MY_ANDROID}/vendor/nxp/fsl-proprietary/uboot-firmware/ imx8q_car. Make the following changes to build out the TIPC test binary:
diff --git a/imx8q/mek_8q/mek_8q_car.mk b/imx8q/mek_8q/mek_8q_car.mk index 6acc89a..19e8e24 100644 --- a/imx8q/mek_8q/mek_8q_car.mk +++ b/imx8q/mek_8q/mek_8q_car.mk @@ -59,7 +59,8 @@ PRODUCT_PACKAGES += \ # Add Trusty OS backed gatekeeper and secure storage proxy PRODUCT_PACKAGES += \ gatekeeper.trusty \ - storageproxyd + storageproxyd \ + tipc-test
Rebuild the Android project, the TIPC test binary is located at ${MY_ANDROID}/out/target/product/mek_8q/data/ nativetest64/vendor/tipc-test/tipc-test. Flash the images to board, and remount and push the tipc-test binary to / vendor/bin with ADB commands.
Trusty OS runs the CAAM unit test when initializing the CAAM. The following logs are displayed in U-Boot if the CAAM is initialized correctly:
hwcrypto: 222: Initializing caam_drv: 728: caam hwrng test PASS!!! caam_drv: 761: caam blob test PASS!!! caam_drv: 843: caam gen kdf root key test PASS!!! caam_drv: 793: caam AES enc test PASS!!! caam_drv: 802: caam AES enc test PASS!!! caam_drv: 830: caam hash test PASS!!!
If the TIPC unit test is started correctly, the following logs are displayed in U-Boot:
ipc-unittest-main: 2607: Welcome to IPC unittest!!! unittest: 144: added port com.android.ipc-unittest.ctrl handle, 1001, to handleset 1000 unittest: 148: waiting forever ipc-unittest-srv: 318: Init unittest services!!!
Run the following commands to test the TIPC. The correct result is as follows:
mek_8q:/vendor/bin # tipc-test -t connect connect_test: repeat = 1 connect_test: done mek_8q:/vendor/bin # tipc-test -t connect_foo connect_foo: repeat = 1 connect_foo: done mek_8q:/vendor/bin # tipc-test -t echo -r 100 echo_test: repeat 100: msgsz 32: variable false echo_test: done mek_8q:/vendor/bin # tipc-test -t echo -r 1000 echo_test: repeat 1000: msgsz 32: variable false echo_test: done
3.2.5 Modifying the console port for Trusty OS
Due to different hardware board designs, the debug UART may be different. i.MX Trusty OS supports to configure a different UART port by modifying the configuration file.
To change the debug UART port, see the SoC reference manual to get the specific UART port base address. The debug UART address is defined in trusty/hardware/nxp/target/$SOC_NAME/rules.mk.
User Guide
i.MX AndroidTM Security User's Guide, Rev. android-11.0.0_2.2.0, 16 July 2021
23 / 39
NXP Semiconductors
Customization work on i.MX Android Security Features
For example, if LPUART1 is used instead of LPUART0 for i.MX 8QuadMax board, make the following modification on rules.mk:
diff --git a/target/imx8q/rules.mk b/target/imx8q/rules.mk index e6239e2..8ea3f37 100644 --- a/target/imx8q/rules.mk +++ b/target/imx8q/rules.mk @@ -25,4 +25,4 @@ PLATFORM_SOC := imx8qm PLATFORM := imx -CONFIG_CONSOLE_TTY_BASE := 0x5A060000 +CONFIG_CONSOLE_TTY_BASE := 0x5A070000
3.2.6 Configuring the related TA services
The Trusted Application (TA) is the software running in a secure context. There are several TAs running in the Trusty OS. The following figure shows their relationships.
Figure 6. Relationship between TAs
� AVB TA: It provides tamper proof operations for data used during Android Verified Boot (AVB), such as rollback index, lock/unlock state, and vbmeta public key.
� Storage TA: It provides encrypted and tamper proof storage to secure applications, such as AVB TA. All operations that modify the secure storage are transactional.
� Hardware Crypto TA: It provides hardware crypto and accelerates operations based on CAAM, such as RNG generation and SHA1/SHA256 hash calculation.
� Keymaster TA: It provides all secure Keystore operations, with access to the raw key material, validating all of the access control conditions on keys.
� Gatekeeper TA: It authenticates user passwords and generates authentication tokens used to prove to the Keymaster TA that an authentication is done for a particular user at a particular point in time.
3.3 Configurations in U-Boot for security
U-Boot is loaded by SPL and verified with HAB. ATF starts U-Boot. The primary purpose of U-Boot is to load and verify Android images.
User Guide
i.MX AndroidTM Security User's Guide, Rev. android-11.0.0_2.2.0, 16 July 2021
24 / 39
NXP Semiconductors
Customization work on i.MX Android Security Features
3.3.1 Overview of security features in U-Boot
Android Verified Boot (AVB) is enabled in i.MX Android images. There is an additional vbmeta image used in AVB. This vbmeta image does not contain any code that the device will execute. It is used by U-Boot to authenticate its own and other Android images. The other images to be authenticated with the vbmeta image include images for boot, dtbo, system, and vendor partitions. If there are other images containing executing code, like product, they are also authenticated based on the data in the vbmeta image. The hash value of these images is calculated and the metadata is stored in the vbmeta image. The following figure shows the relationship of these images.
Figure 7. Relationship between vbmeta image and related images
To make sure that the vbmeta image is trusted, it is signed with the RSA key, and the signature of the vbmeta image is verified at boot time before the data in it are used to verify other images.
To prevent rollback attack, there is a rollback index value stored in the vbmeta image. The value can increase with the release of images. This rollback index value in the vbmeta image is also saved in the RPMB partition of eMMC after all the images are verified as bootable. If the rollback index value in the vbmeta image is smaller than the one stored in the RPMB partition of eMMC, U-Boot does not boot with the related images. With dual bootloader enabled, SPL and U-Boot proper is not in one file, so there is another rollback index value for U-Boot proper.
To prevent the device from getting bricked during OTA, a/b slot feature is provided. Some partitions used to store images have two copies in the boot device. They are called "slot a" and "slot b". The image update process only flashes one slot. An update failure does not affect the other slot.
3.3.2 Generating and fusing the eMMC RPMB key
The RPMB partition of eMMC can be fused with the 256-bit secure key. The secure key can only be programmed one time. This secure key can only be accessed by secure world (either TEE or SPL). It is used to sign and verify data transfer between eMMC RPMB and TEE.
There are two ways to generate the RPMB key: CAAM hardware bound key and vendor specified key. Both ways are associated with CAAM, which uses the value in efuse hardware. If the SRK hash value needs to be programmed into efuse hardware and close the chips, do it first, and only after that can the RPMB key be programmed.
� CAAM hardware bound key
The RPMB key can be derived from CAAM. This is hardware bound and is unique per device. TEE derives this hardware bound key in every boot from CAAM, and as it is bound to the CAAM hardware, so it does not need to store one copy of this key. This way is perferred as it is simpler and more secure.
Fastboot command is provided to set the RPMB key from CAAM hardware bound key:
$ fastboot oem set-rpmb-hardware-key
� Vendor specified key
Vendor can specify any customized RPMB key. One copy of the key is encapsulated with CAAM and the generated key blob is saved into the last block of the eMMC BOOT1 partition. The BOOT1 partition size of eMMC on i.MX 8QuadMax MEK and
User Guide
i.MX AndroidTM Security User's Guide, Rev. android-11.0.0_2.2.0, 16 July 2021
25 / 39
NXP Semiconductors
Customization work on i.MX Android Security Features
i.MX 8QuadXPlus MEK is 8 MB. It is 4 MB on i.MX 8M Mini EVK, i.MX 8M Plus EVK, and i.MX8M Nano EVK. To prevent key blob from being tampered when the system is running, the BOOT1 partition is set with power-on write protection when the board boots up.
The location to store the key blob may need to be changed based on the board design. Two macros are used to control the location of the key blob. These two macros are the same for i.MX 8QuadMax MEK and i.MX 8QuadXPlus MEK. Their definitions are as follows:
#define KEYSLOT_HWPARTITION_ID 2 #define KEYSLOT_BLKS 0x3FFF
While for i.MX 8M Mini EVK and i.MX 8M Nano EVK, the definition is as follows:
#define KEYSLOT_HWPARTITION_ID 2 #define KEYSLOT_BLKS 0x1FFF
"KEYSLOT_HWPARTITION_ID" represents the eMMC partition. 0 means USERDATA partition, 1 means BOOT0 partition, and 2 means BOOT1 partition. "KEYSLOT_BLKS" represents the block in which the key blob is stored.
For i.MX 8QuadMax MEK, they are in the following files. For other platforms, it is in other board related header files in the same folder.
/* Android Automotive */ ${MY_ANDROID}/vendor/nxp-opensource/uboot-imx/include/configs/imx8qm_mek_android_auto.h /* Standard Android */ ${MY_ANDROID}/vendor/nxp-opensource/uboot-imx/include/configs/imx8qm_mek_android.h
The customized RPMB key file should be started with magic "RPMB" and followed by the raw key. The following steps show how to generate the default key file rpmb_key_test.bin:
$ touch rpmb_key_test.bin $ echo �n "RPMB" > rpmb_key_test.bin $ echo �n -e '\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00 \x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00'>> rpmb_key_test.bin
The '\xHH' means eight-bit character whose value is the hexadecimal value 'HH'. You can replace above "00" with the key you want to set.
After generating the customized RPMB key file, the following fastboot commands are available to set the RPMB key:
$ fastboot stage rpmb_key_test.bin $ fastboot oem set-rpmb-staged-key
After the RPMB key is programed with either of the two ways, reboot the board. The RPMB service in Trusty OS is then initialized successfully.
3.3.3 Generating keys to sign and verify images
Images are signed during the time of building Android platform to ensure their integrity. A pair of asymmetric keys (AVB keys) are used to sign the vbmeta struct in the vbmeta image. On the standard Android platform, there are another pair of asymm etric keys (AVB boot keys) to sign the vbmeta struct in the boot image, which would be built as 'chained partition'. For more information about chained partition, see https://android.googlesource.com/platform/external/avb/+/master/README.md. By default, the private AVB key used to sign the vbmeta struct in vbmeta image is located at:
${MY_ANDROID}/device/nxp/common/security/testkey_rsa4096.pem
User Guide
i.MX AndroidTM Security User's Guide, Rev. android-11.0.0_2.2.0, 16 July 2021
26 / 39
NXP Semiconductors
Customization work on i.MX Android Security Features
Its corresponding public key is: ${MY_ANDROID}/device/nxp/common/security/testkey_public_rsa4096.bin.
The default private AVB boot key used to sign the boot image is located at: ${MY_ANDROID}/external/avb/test/data/testkey_rsa2048.pem
The private key can be generated with OpenSSL. For example, the following command can generate RSA-4096 private key test_rsa4096_private.pem:
openssl genpkey -algorithm RSA -pkeyopt rsa_keygen_bits:4096 -outform PEM out custom_rsa4096_private.pem
The corresponding public key can be extracted from the private key with avbtool. The avbtool can be found in ${MY_ANDROID}/ external/avb. Execute the following command to extract the public key from the private key:
avbtool extract_public_key --key custom_rsa4096_private.pem --output custom_rsa4096_public.bin
SHA256_RSA4094 and SHA256_RSA2048 are recommended algorithm to sign the images for i.MX 8Quad and i.MX 8M devices whose Cryptographic Acceleration and Assurance Module (CAAM) can help accelerate the hash calculation. We can keep it as default.
Custom keys should be used to sign the images for production, examples to set the custom AVB key to sign the vbmeta image are as follows:
diff --git a/imx8q/mek_8q/BoardConfig.mk b/imx8q/mek_8q/BoardConfig.mk index 8e367bb..e1385f9 100644 --- a/imx8q/mek_8q/BoardConfig.mk +++ b/imx8q/mek_8q/BoardConfig.mk @@ -207,7 +207,7 @@ BOARD_AVB_ENABLE := true ifeq ($(PRODUCT_IMX_CAR),true) BOARD_AVB_ALGORITHM := SHA256_RSA4096 # The testkey_rsa4096.pem is copied from external/avb/test/data/testkey_rsa4096.pem -BOARD_AVB_KEY_PATH := device/nxp/common/security/testkey_rsa4096.pem +BOARD_AVB_KEY_PATH := ${your-key-directory}/custom_rsa4096_private.pem endif TARGET_USES_MKE2FS := true
Examples to set the custom AVB boot key to sign the boot image are as follows:
diff --git a/imx8q/mek_8q/BoardConfig.mk b/imx8q/mek_8q/BoardConfig.mk index dbfb2821..744c2086 100644 --- a/imx8q/mek_8q/BoardConfig.mk +++ b/imx8q/mek_8q/BoardConfig.mk @@ -253,7 +253,7 @@ BOARD_AVB_ALGORITHM := SHA256_RSA4096 BOARD_AVB_KEY_PATH := device/nxp/common/security/testkey_rsa4096.pem ifneq ($(PRODUCT_IMX_CAR),true) -BOARD_AVB_BOOT_KEY_PATH := external/avb/test/data/testkey_rsa2048.pem +BOARD_AVB_BOOT_KEY_PATH := ${your-key-directory}/custom_rsa2048_private.pem BOARD_AVB_BOOT_ALGORITHM := SHA256_RSA2048 BOARD_AVB_BOOT_ROLLBACK_INDEX := 0 BOARD_AVB_BOOT_ROLLBACK_INDEX_LOCATION := 2
User Guide
i.MX AndroidTM Security User's Guide, Rev. android-11.0.0_2.2.0, 16 July 2021
27 / 39
NXP Semiconductors
Customization work on i.MX Android Security Features
AVB checks the signature and the AVB public key when verifying the vbmeta image, so the AVB public key must be stored to the TEE backed RPMB when Trusty is enabled. Make the board enter fastboot mode, and execute the following commands:
$ fastboot stage custom_rsa4096_public.bin $ fastboot oem set-public-key
custom_rsa4096_public.bin is the public AVB key just generated. If you use the default AVB keys for debug purpose, flash the default public key with the following commands:
$ fastboot stage testkey_public_rsa4096.bin $ fastboot oem set-public-key
3.3.4 Bypass vbmeta/lock check for development purposes
Bypassing vbmeta/lock check is very convenient for development work. To unlock the device after all images are flashed, boot the board to the Android UI, enable "Developer options" in the "Settings" Application, open "OEM unlocking" under "Developer options", and reboot the board to fastboot mode. Execute the following command:
$ sudo fastboot oem unlock
After the board is unlocked, images can be flashed with the fastboot command. To bypass vbmeta check, use fastboot to flash the vbmeta image with the "--disable-verity" option. Take i.MX 8QuadMax MEK as an example, execute the following commands:
$ sudo fastboot flash vbmeta_a vbmeta-imx8qm.img --disable-verity $ sudo fastboot flash vbmeta_b vbmeta-imx8qm.img --disable-verity
3.3.5 Changing the value of the rollback index in images
There are three rollback index values involved in this release: bootloader rollback index, boot rollback index, and vbmeta rollback index. The bootloader rollback index is used to prevent bootloader rollback attack. It is only available when the dual-bootloader feature is enabled. The boot rollback index is available when the boot image is built as chained partition. It is only supported on standard Android patform. The vbmeta rollback index are supported on all platforms. By default, the initial value of all kinds of rollback index are zero.
When a version of images is to be released to fix a bug in previous version, which makes previous images under potential attacks, it is suggested to increase the rollback index values by one compared to previous version. For more information about rollback index usage, see https://android.googlesource.com/platform/external/avb/+/master/README.md.
In this release of i.MX Android platform, some modifications are made to the Android build system. A shell script named "imx-make.sh" is provided to build U-Boot and kernel code independently from the building process of Android images. To make the build process simple, as all images can be built with only one command, imx-make.sh starts to build Android images afer U-Boot and kernel are built. When executing the imx-make.sh script, a shell variable named "BOOTLOADER_RBINDEX" can be specified to change the bootloader rollback index, a shell variable named "AVB_BOOT_RBINDEX" can be specified to change the boot rollback index, and a shell variable named "AVB_RBINDEX" can be specified to change the vbmeta rollback index.
As an example, the following command can be executed to change the rollback index values. Change ${bootloader_rbindex}, ${avb_rbindex}, and ${avb_boot_rbindex} to the value you want to set:
BOOTLOADER_RBINDEX=${bootloader_rbindex} AVB_RBINDEX=${avb_rbindex} AVB_BOOT_RBINDEX=$ {avb_boot_rbindex} ./imx-make.sh -j4
Of course, if the U-Boot and kernel are already built and they d not need to be updated, make can be used to build vbmeta and other related images need to be updated. Change the rollback index value as shown in the following example. Change ${avb_rbindex} and ${avb_boot_rbindex} to the value you want to set.
make -j4 AVB_RBINDEX=$(avb_rbindex) AVB_BOOT_RBINDEX=${avb_boot_rbindex}
User Guide
i.MX AndroidTM Security User's Guide, Rev. android-11.0.0_2.2.0, 16 July 2021
28 / 39
NXP Semiconductors
Customization work on i.MX Android Security Features
3.3.6 Programming the attestation key
Attestation key is programmed in U-Boot. The keystore key attestation aims to provide a way to strongly determine if an asymmetric key pair is hardware-backed, what the properties of the key are, and what constraints are applied to its usage.
Google provides the attestation "keybox", which contains private keys (RSA and ECDSA) and the corresponding certificate chains to partners from the Android Partner Front End (APFE). After retrieving the "keybox" from Google, you need to parse the "keybox", provision the keys and certificates to secure storage. Both keys and certificates should be encoded with Distinguished Encoding Rules (DER).
Two ways are provided to provision the attestation keys and certificates. One is provisioning the keys and certificates in plaintext format, and the other is provisioning the keys and certificates in AES-ECB encrypted format. Before provisioning starts, make sure the secure storage is properly initialized for Trusty OS.
1. Provision keys and certificates in plaintext format.
Fastboot commands are provided to flash the attestation keys and certificates in plaintext format to device. This way is more simple but has more risk of leaking the keys. Boot the board into fastboot mode and use the following commands.
� Set the RSA private key:
$ fastboot stage ${path-to-rsa-private-key} $ fastboot oem set-rsa-atte-key
� Set the ECDSA private key:
$ fastboot stage ${path-to-ecdsa-private-key} $ fastboot oem set-ec-atte-key
� Append the RSA certificate chain:
$ fastboot stage ${path-to-rsa-atte-cert} $ fastboot oem append-rsa-atte-cert
The second command may need to be executed multiple times to append the whole certificate chain. � Append the ECDSA certificate chain:
$ fastboot stage < path-to-ecdsa-cert > $ fastboot oem append-ec-atte-cert
The second command may need to be executed multiple times to append the whole certificate chain.
2. Provision keys and certificates in AES-ECB encrypted format.
Fastboot commands are provided to flash AES-ECB encoded keys and certificates to device. This way is more secure, because it encrypts the keys and certificates with the MPPUBK (Manufacturing Protection Public Key, generated from CAAM module) to prevent leakage. This way can only be used on HAB CLOSED board. The workflow is as shown in the following figure.
User Guide
i.MX AndroidTM Security User's Guide, Rev. android-11.0.0_2.2.0, 16 July 2021
29 / 39
NXP Semiconductors
Customization work on i.MX Android Security Features
Figure 8. Flashing AES-ECB encoded keys and certificates to device
Boot the board into fastboot mode and perform the following steps:
a. Get MPPUBK:
$ fastboot oem get-mppubk $ fastboot get_staged mppubk.bin
b. Encrypt the plaintext attestation keys and certificates with the MPPUBK.
The attestation keys and certificates should be encrypted in AES-ECB with the generated MPPUBK. The following is a simple encryption python scripts gen_secure_atte.py:
from Crypto.Cipher import AES import struct import argparse parser = argparse.ArgumentParser(description='Secure Provision encrypt tool.') parser.add_argument('key', type=file) parser.add_argument('plaintext', type=file) parser.add_argument('blob', type=argparse.FileType('w')) args = parser.parse_args() data = args.plaintext.read() data_len = len(data) written_len = struct.pack('I', data_len) #AES need 16 bytes align, so pad the data it data += '\0' * (((len(data)+15)/16 * 16) - len(data)) key2 = args.key.read() key = key2[0:16] magic = "!AT" pad0 = struct.pack('B', 0) cipher = AES.new(key, AES.MODE_ECB) blob = cipher.encrypt(data) args.blob.write(magic) args.blob.write(pad0) args.blob.write(written_len) args.blob.write(blob) #blob structure describe as below:
User Guide
i.MX AndroidTM Security User's Guide, Rev. android-11.0.0_2.2.0, 16 July 2021
30 / 39
NXP Semiconductors
Customization work on i.MX Android Security Features
#{ # char magic[4] = "!AT"; # uint32_t len = plaintext_length # uint8 *encrypted_data #}
Encrypt the keys and the certificates on the host computer:
$ python gen_secure_atte.py mppubk.bin < path-to-plaintext-keys-or-certificates > < encrypted-keys-or-certificates >
c. Set encrypted RSA private key:
$ fastboot stage ${path-to-encrypted-rsa-private-key} $ fastboot oem set-rsa-atte-key-enc
d. Set encrypted ECDSA private key:
$ fastboot stage ${path-to-encrypted-ecdsa-private-key} $ fastboot oem set-ec-atte-key-enc
e. Append encrypted RSA certificate chain:
$ fastboot stage ${path-to-encrypted-rsa-atte-cert} $ fastboot oem append-rsa-atte-cert-enc
The second command may need to be executed multiple times to append the whole certificate chain. f. Append encrypted ECDSA certificate chain:
$ fastboot stage < path-to-encrypted-ecdsa-cert > $ fastboot oem append-ec-atte-cert-enc
The second command may need to be executed multiple times to append the whole certificate chain.
3.3.7 Programming the hardware identifiers
ID attestation allows the device to provide proof of its hardware identifiers, more info about ID attestation please refer to: https:// source.android.com/security/keystore/attestation. All hardware identifiers provisioned should match related system properties. Below is a map of all supported identifiers and the system properties:
identifiers ATTESTATION_ID_BRAND ATTESTATION_ID_DEVICE ATTESTATION_ID_MANUFACTURER ATTESTATION_ID_MODEL ATTESTATION_ID_PRODUCT ATTESTATION_ID_SERIAL
build property ro.product.brand ro.product.device ro.product.manufacturer ro.product.model ro.product.product.name ro.serialno
User Guide
i.MX AndroidTM Security User's Guide, Rev. android-11.0.0_2.2.0, 16 July 2021
31 / 39
NXP Semiconductors
Customization work on i.MX Android Security Features
The hardware identifiers are provisioned in bootloader and they are hard-coded. Take i.MX 8QM as example, its hardware identifiers are set in {UBOOT_PATH}/include/configs/imx8qm_mek_android.h:
#define ATTESTATION_ID_BRAND "Android" #define ATTESTATION_ID_DEVICE "mek_8q" #define ATTESTATION_ID_MANUFACTURER "nxp" #define ATTESTATION_ID_MODEL "MEK-MX8Q" #ifdef CONFIG_ATTESTATION_ID_PRODUCT #undef CONFIG_ATTESTATION_ID_PRODUCT #endif #define CONFIG_ATTESTATION_ID_PRODUCT "mek_8q"
Change the identifiers as needed, then flash updated bootloader image and boot the board into fastboot mode, run below command to provision the identifiers:
$ fastboot oem append-device-id
3.3.8 Provisioning Widevine L1 keybox
The Widevine is a widely used Digital Rights Management (DRM) technology, which helps to protect media streaming from being copied and redistributed. The L1 level Widevine is now supported on the i.MX 8M Plus EVK board. Before making the L1 level Widevine work, users need to provision the Widevine keybox first. There are two ways to provision the Widevine keybox:
� Provisioning keybox binary in plaintext format Fastboot commands are provided to flash the keybox in plaintext format to device. This way is simpler but has more risks of leaking the keys. Boot the board into fastboot mode and run the following commands:
$ fastboot stage ${path-to-keybox-binary} $ fastboot oem provision-wv-keybox
� Provisioning keybox binary in AES-ECB encrypted format Fastboot commands are provided to flash the AES-ECB encoded keybox to device. This way is more secure because it encrypts the keys and certificates with the MPPUBK (Manufacturing Protection Public Key, generated from the CAAM module) to prevent leakage. This way can only be used on the HAB CLOSED board. Perform the following steps to encrypt the keybox and provision it into the device: 1. Get the MPPUBK.
$ fastboot oem get-mppubk $ fastboot get_staged mppubk.bin
2. Encrypt the plaintext keybox with the MPPUBK. The plaintext keybox binary should be encrypted in AES-ECB with the generated MPPUBK. Do the encryption with the python scripts gen_secure_atte.py, which is mentioned in Section Programming the attestation key.
$ python gen_secure_atte.py mppubk.bin ${path-to-plaintext-keybox} ${encrypted-keybox}
3. Provision the widevine keybox.
$ fastboot stage ${path-to-encrypted-keybox} $ fastboot oem provision-wv-keybox-enc
User Guide
i.MX AndroidTM Security User's Guide, Rev. android-11.0.0_2.2.0, 16 July 2021
32 / 39
NXP Semiconductors
Customization work on i.MX Android Security Features
3.3.9 Changing the way to store lock status and/or rollback index
For images with TEE enabled, lock status and rollback index values are stored in RPMB. The rollback index value for AVB is written/read by TEE into/from RPMB but the write/read process is initiated by U-Boot. For i.MX Android with dual-bootloader feature, there is a rollback index for bootloader, this rollback index value for bootloader is written/read by SPL into/from RPMB.
Rollback index values and lock status can be used for many purposes as designed by developers, not limited to the usage in i.MX Android code. At this point, it is necessary to know how the lock status and rollback index values are stored on board.
For i.MX Android with dual-bootloader feature, the rollback index value for bootloader is read from RPMB to compare with the one in the bootloader image. If the rollback index value is bigger than the one stored in RPMB and the images are verified as bootable, rollback index value in bootloader image is written into RPMB. This logic is completed in the following function:
static int spl_verify_rbidx(struct mmc *mmc, AvbABSlotData *slot, struct spl_image_info *spl_image)
In the following file: ${MY_ANDROID}/vendor/nxp-opensource/uboot-imx/lib/avb/fsl/fsl_avb_ab_flow.c
For new boards just flashed with images, at their first time of boot, a default rollback index value is written in RPMB in the following function:
int rpmb_init(void)
In the following file: ${MY_ANDROID}/vendor/nxp-opensource/uboot-imx/lib/avb/fsl/fsl_avb_ab_flow.c
From the functions listed above, it is known that the rollback index value for bootloader is located by a kblb_hdr_t type structure variable. This structure has a magic value. A member with the type of kblb_tag_t is used to specify the rollback index value.
Now in i.MX Android Auto, the offset of the rollback index value for bootloader is controlled by a macro named "BOOTLOADER_RBIDX_START" as defined in the following two files respectively for i.MX 8QuadMax MEK and i.MX 8QuadXPlus MEK.
${MY_ANDROID}/vendor/nxp-opensource/uboot-imx/include/configs/imx8qm_mek_android_auto.h ${MY_ANDROID}/vendor/nxp-opensource/uboot-imx/include/configs/imx8qxp_mek_android_auto.h
The value for "BOOTLOADER_RBIDX_START" is 0x3FF000, 4KB offset from the end of the RPMB partition. The read process of the rollback index value for AVB is initiated by U-Boot in the following function:
FbLockState fastboot_get_lock_stat(void)
In the following file: ${MY_ANDROID}/vendor/nxp-opensource/uboot-imx/drivers/usb/gadget/fastboot_lock_unlock.c
For images with TEE enabled, this function invokes the following function. It uses TIPC to communicate with TEE to get the value. int trusty_read_lock_state(uint8_t *lock_state)
The write process of the rollback index value for AVB is initiated by U-Boot in the following function: int fastboot_set_lock_stat(FbLockState lock)
User Guide
i.MX AndroidTM Security User's Guide, Rev. android-11.0.0_2.2.0, 16 July 2021
33 / 39
NXP Semiconductors
Customization work on i.MX Android Security Features
In the following file: ${MY_ANDROID}/vendor/nxp-opensource/uboot-imx/drivers/usb/gadget/fastboot_lock_unlock.c
For images with TEE enabled, this function invokes the following function. It uses TIPC to communicate with TEE to save the value. int trusty_write_lock_state(uint8_t lock_state)
Rollback index value for AVB is read to compare with the one in vbmeta image and the one in vbmeta image is saved into RPMB if necessary. This logic is completed in the following function:
AvbABFlowResult avb_flow_dual_uboot(AvbABOps* ab_ops, const char* const* requested_partitions, AvbSlotVerifyFlags flags, AvbHashtreeErrorMode hashtree_error_mode, AvbSlotVerifyData** out_data)
In the following file: ${MY_ANDROID}/vendor/nxp-opensource/uboot-imx/lib/avb/fsl/fsl_avb_ab_flow.c
The following two functions are invoked to read and store the rollback index for vbmeta:
AvbIOResult fsl_read_rollback_index_rpmb(AvbOps* ops, size_t rollback_index_slot, uint64_t* out_rollback_index) AvbIOResult fsl_write_rollback_index_rpmb(AvbOps* ops, size_t rollback_index_slot, uint64_t rollback_index)
They finally communicate with TEE to finish the work.
3.3.10 Choosing to boot a specific slot
With both slots flashed with images, a specific slot can be chosen to boot manually for development purpose. Boot the board into fastboot mode, and execute the following command to boot from "slot a" or "slot b":
$ sudo fastboot set_active a $ sudo fastboot set_active b
3.3.11 Disabling development options in U-Boot
To facilitate development, some development options are set in U-Boot, which may bring in potential security holes. Before shipping the final products, these options must be closed.
� Boot delay
By default, the U-Boot reserves 1 second count-down to help developer stop at U-Boot and run some U-Boot commands. This can be disabled by setting CONFIG_BOOTDELAY to -2. For i.MX 8QuadMAX and i.MX 8QuadXPlus, make the following changes. Similar changes need to be made on other platforms that you are working on.
diff --git a/configs/imx8qm_mek_androidauto_trusty_defconfig b/ configs/imx8qm_mek_androidauto_trusty_defconfig index 0a8c3cb..8150b2b 100644 --- a/configs/imx8qm_mek_androidauto_trusty_defconfig +++ b/configs/imx8qm_mek_androidauto_trusty_defconfig @@ -40,7 +40,7 @@ CONFIG_USB_GADGET_DUALSPEED=y CONFIG_DM_GPIO=y CONFIG_DM_PCA953X=y -CONFIG_BOOTDELAY=1 +CONFIG_BOOTDELAY=-2
User Guide
i.MX AndroidTM Security User's Guide, Rev. android-11.0.0_2.2.0, 16 July 2021
34 / 39
NXP Semiconductors
Customization work on i.MX Android Security Features
CONFIG_CMD_MMC=y CONFIG_DM_MMC=y CONFIG_MMC_IO_VOLTAGE=y diff --git a/configs/imx8qxp_mek_androidauto_trusty_defconfig b/ configs/imx8qxp_mek_androidauto_trusty_defconfig index 0611773..a424e31 100644 --- a/configs/imx8qxp_mek_androidauto_trusty_defconfig +++ b/configs/imx8qxp_mek_androidauto_trusty_defconfig @@ -41,7 +41,7 @@ CONFIG_USB_GADGET_DUALSPEED=y CONFIG_DM_GPIO=y CONFIG_DM_PCA953X=y -CONFIG_BOOTDELAY=1 +CONFIG_BOOTDELAY=-2 CONFIG_CMD_MMC=y CONFIG_DM_MMC=y CONFIG_MMC_IO_VOLTAGE=y
� Bootargs appending
The bootargs may need to be changed frequently during development. NXP U-Boot supports appending the U-Boot variable append_bootargs to the default bootargs, which will be passed to kernel. However, this feature can be used by hackers to compromise the device and should be disabled in any formal release. To disable the bootargs appending feature, you need to disable CONFIG_APPEND_BOOTARGS. For i.MX 8QuadMAX and i.MX 8QuadXPlus, make the following changes. Similar changes need to be made on other platforms that you are working on.
diff --git a/configs/imx8qm_mek_androidauto_trusty_defconfig b/ configs/imx8qm_mek_androidauto_trusty_defconfig index 0a8c3cb..bc6a97d 100644 --- a/configs/imx8qm_mek_androidauto_trusty_defconfig +++ b/configs/imx8qm_mek_androidauto_trusty_defconfig @@ -120,4 +120,3 @@ CONFIG_NOT_UUU_BUILD=y CONFIG_SHA256=y CONFIG_SPL_MMC_WRITE=y CONFIG_DUAL_BOOTLOADER=y -CONFIG_APPEND_BOOTARGS=y diff --git a/configs/imx8qxp_mek_androidauto_trusty_defconfig b/ configs/imx8qxp_mek_androidauto_trusty_defconfig index 0611773..e501c40 100644 --- a/configs/imx8qxp_mek_androidauto_trusty_defconfig +++ b/configs/imx8qxp_mek_androidauto_trusty_defconfig @@ -121,4 +121,3 @@ CONFIG_NOT_UUU_BUILD=y CONFIG_SHA256=y CONFIG_SPL_MMC_WRITE=y CONFIG_DUAL_BOOTLOADER=y -CONFIG_APPEND_BOOTARGS=y
3.3.12 Secure unlock
Secure unlock is designed to prevent unauthorized unlock. It requires the unlock credential. The unlock operation can only occur after a valid unlock credential is provided.
An example is provided, which generates the unlock credential with serial number and MPPUBK (Manufacturing Protection Public Key, generated from CAAM module). To enable the secure unlock feature, enable "CONFIG_SECURE_UNLOCK". For i.MX 8QuadMAX MEK and i.MX 8QuadXPlus MEK running Android Automotive, make the following changes. Similar changes need to be made on other platforms that you are working on:
diff --git a/configs/imx8qm_mek_androidauto_trusty_defconfig b/ configs/imx8qm_mek_androidauto_trusty_defconfig index b18e3d5..66c9ee5 100644
User Guide
i.MX AndroidTM Security User's Guide, Rev. android-11.0.0_2.2.0, 16 July 2021
35 / 39
NXP Semiconductors
Customization work on i.MX Android Security Features
--- a/configs/imx8qm_mek_androidauto_trusty_defconfig +++ b/configs/imx8qm_mek_androidauto_trusty_defconfig @@ -171,4 +171,4 @@ CONFIG_LIBAVB=y CONFIG_SHA256=y CONFIG_SPL_MMC_WRITE=y CONFIG_DUAL_BOOTLOADER=y +CONFIG_SECURE_UNLOCK=y diff --git a/configs/imx8qxp_mek_androidauto_trusty_defconfig b/ configs/imx8qxp_mek_androidauto_trusty_defconfig index 264dc2d..ffaf254 100644 --- a/configs/imx8qxp_mek_androidauto_trusty_defconfig +++ b/configs/imx8qxp_mek_androidauto_trusty_defconfig @@ -180,4 +180,4 @@ CONFIG_LIBAVB=y CONFIG_SHA256=y CONFIG_SPL_MMC_WRITE=y CONFIG_DUAL_BOOTLOADER=y +CONFIG_SECURE_UNLOCK=y
Perform the following steps to verify the secure unlock feature. These operations can only be executed on the hab closed boards: 1. Get MPPUBK:
$ fastboot oem get-mppubk $ fastboot get_staged mppubk.bin
2. Get the serial number:
$ fastboot oem get-serial-number $ fastboot get_staged serial.bin
3. Generate the unlock credential. Encrypt serial.bin with mppubk.bin on the host PC. For the encryption script, see Section Programming the attestation key.
$ python gen_secure_atte.py mppubk.bin serial.bin serial-enc.bin
4. Verify the secure unlock feature:
$ fastboot stage serial-enc.bin $ fastboot oem unlock
You may need to lock the device first if the device is already in unlocked state.
3.4 Configurations in Linux/Android platform for security features
3.4.1 DM-Verity relationship with vbmeta
The Device Mapper verity (DM-verity) kernel feature supports transparent integrity checking of block devices. This feature helps Android users be sure that when booting a device, it is in the same state as when it is flashed. The vbmeta image contains a kernel command line descriptor for setting up DM-verity for system.img, together with hashtree descriptors for system.img and vendor.img. The hash tree descriptor in the vbmeta image contains the root hash, salt and the offset of the hashtree, which are essential to do the DM-verity check for system and vendor partitions.
When the DM-verity is enabled for system and vendor partition, any operations that break the consistency of the system.img, vendor.img, and vbmeta.img will cause DM-verity check failure, and thus cause the system boot failure.
User Guide
i.MX AndroidTM Security User's Guide, Rev. android-11.0.0_2.2.0, 16 July 2021
36 / 39
NXP Semiconductors
Customization work on i.MX Android Security Features
3.4.2 Trusty OS Linux driver configuration
The Trusty OS supports to output the logs to UART or TIPC log channel. The Trusty OS Linux driver supports to carry the logs from the Trusty OS by TIPC channel. By default, this feature is enabled in the reference image.
In the Trusty OS Linux driver trusty-log, when it is enabled, the Trusty OS shuts down the UART output log port. The UART driver in the Trusty OS outputs characters synchronously and it costs much IO time.
The trusty-log driver is configured in the device tree as follows:
trusty-log { compatible = "android,trusty-log-v1"; };
3.4.3 Introductions of trusty based keymaster, gatekeeper, and secure storage proxy
The trusty backed keymaster HAL is a dynamically loadable library used by the keystore service to provide hardware-backed cryptographic services. It does not provide any sensitive operations in user space, or even in kernel space. All sensitive operations are delegated to the keymaster TA in the Trusty OS (secure world). The relationship is shown in the following figure.
Figure 9. Relationship between keymaster HAL and keymaster TA
The trusty backed keymaster HAL 3.0 is designed for Android Pie 9 or later, which cannot work for Android Oreo 8.1. Instead, the Android Oreo 8.1 is running trusty backed keymaster HAL 2.0.
The Gatekeeper subsystem performs device pattern/password authentication. It enrolls and verifies passwords through an HMAC with a secret key. Additionally, the Gatekeeper throttles consecutive failed verification attempts and refuses to service requests based on a given timeout and a given number of consecutive failed attempts. The trusty backed gatekeeper sends all critical operations to the gatekeeper TA in trusty.
The secure storage proxy is running in the Linux end to communicate with the storage TA in trusty to perform secure storage read/write operations, for example, reading/writing data from/to RPMB partition of the eMMC device.
Trusty backed keymaster, gatekeeper, and secure storage proxy all depend on secure storage, which can only be accessed by trusty, but users may not want to set the secure storage properly (like the key of RPMB), because in some instances, security is not so important and can even be neglected. In this case, both keymaster and gatekeeper fall back to software backed version, and they are chosen by the androidboot.keystore variable in the kernel command line.
When the trusty and associated trusted applications (such as keymaster TA and storage TA) are initialized properly, U-Boot sets androidboot.keystore to trusty, otherwise to software, and then passes it to the kernel through the kernel command line. The androidboot.keystore is translated to ro.boot.keystore Android property, and then the initialization program chooses the keymaster and gatekeeper version (trusty backed or software backed) and starts the secure storage proxy according to this property. The following figure shows the workflow.
User Guide
i.MX AndroidTM Security User's Guide, Rev. android-11.0.0_2.2.0, 16 July 2021
37 / 39
NXP Semiconductors
Revision History
Figure 10. TEE and TA initialization and workflow
4 Revision History
Table 6. Revision history Revision number P9.0.0_1.0.0-beta P9.0.0_1.0.0-ga P9.0.0_2.0.0-ga P9.0.0_2.0.0-ga android-10.0.0_1.0.0
Date 11/2018 01/2019 04/2019 08/2019 02/2020
android-10.0.0_1.0.0 android-10.0.0_2.1.0 android-10.0.0_2.0.0
03/2020 04/2020 05/2020
android-10.0.0_2.3.0
07/2020
android-11.0.0_1.0.0
12/2020
android-11.0.0_1.2.0 android-11.0.0_2.0.0
03/2021 04/2021
android-11.0.0_2.2.0
07/2021
Substantive changes
Initial release
i.MX 8M, i.MX 8QuadMax, i.MX 8QuadXPlus GA release.
i.MX 8M, i.MX 8QuadMax, i.MX 8QuadXPlus GA release.
Updated the location of the SCFW porting kit.
i.MX 8M Mini, i.MX 8M Quad, i.MX 8QuadMax, and i.MX 8QuadXPlus GA release.
Deleted the Android 10 image.
i.MX 8M Plus Alpha and i.MX 8QuadXPlus Beta release.
i.MX 8M Mini, i.MX 8M Nano, i.MX 8M Quad, i.MX 8QuadMax, and i.MX 8QuadXPlus GA release.
i.MX 8M Plus EVK Beta1 release, and all the other i.MX 8 GA release.
i.MX 8M Plus EVK Beta release, and all the other i.MX 8 GA release.
i.MX 8M Plus EVK GA release.
i.MX 8M Mini, i.MX 8M Nano, i.MX 8M Plus, and i.MX 8M Quad GA release.
i.MX 8M Mini, i.MX 8M Nano, i.MX 8M Plus, and i.MX 8M Quad GA release.
User Guide
i.MX AndroidTM Security User's Guide, Rev. android-11.0.0_2.2.0, 16 July 2021
38 / 39
How To Reach Us Home Page: nxp.com Web Support: nxp.com/support
Information in this document is provided solely to enable system and software implementers to use NXP products. There are no express or implied copyright licenses granted hereunder to design or fabricate any integrated circuits based on the information in this document. NXP reserves the right to make changes without further notice to any products herein.
NXP makes no warranty, representation, or guarantee regarding the suitability of its products for any particular purpose, nor does NXP assume any liability arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without limitation consequential or incidental damages. "Typical" parameters that may be provided in NXP data sheets and/or specifications can and do vary in different applications, and actual performance may vary over time. All operating parameters, including "typicals," must be validated for each customer application by customer's technical experts. NXP does not convey any license under its patent rights nor the rights of others. NXP sells products pursuant to standard terms and conditions of sale, which can be found at the following address: nxp.com/SalesTermsandConditions.
Right to make changes - NXP Semiconductors reserves the right to make changes to information published in this document, including without limitation specifications and product descriptions, at any time and without notice. This document supersedes and replaces all information supplied prior to the publication hereof.
Security -- Customer understands that all NXP products may be subject to unidentified or documented vulnerabilities. Customer is responsible for the design and operation of its applications and products throughout their lifecycles to reduce the effect of these vulnerabilities on customer's applications and products. Customer's responsibility also extends to other open and/or proprietary technologies supported by NXP products for use in customer's applications. NXP accepts no liability for any vulnerability. Customer should regularly check security updates from NXP and follow up appropriately. Customer shall select products with security features that best meet rules, regulations, and standards of the intended application and make the ultimate design decisions regarding its products and is solely responsible for compliance with all legal, regulatory, and security related requirements concerning its products, regardless of any information or support that may be provided by NXP. NXP has a Product Security Incident Response Team (PSIRT) (reachable at PSIRT@nxp.com) that manages the investigation, reporting, and solution release to security vulnerabilities of NXP products.
NXP, the NXP logo, NXP SECURE CONNECTIONS FOR A SMARTER WORLD, COOLFLUX,EMBRACE, GREENCHIP, HITAG, ICODE, JCOP, LIFE, VIBES, MIFARE, MIFARE CLASSIC, MIFARE DESFire, MIFARE PLUS, MIFARE FLEX, MANTIS, MIFARE ULTRALIGHT, MIFARE4MOBILE, MIGLO, NTAG, ROADLINK, SMARTLX, SMARTMX, STARPLUG, TOPFET, TRENCHMOS, UCODE, Freescale, the Freescale logo, AltiVec, CodeWarrior, ColdFire, ColdFire+, the Energy Efficient Solutions logo, Kinetis, Layerscape, MagniV, mobileGT, PEG, PowerQUICC, Processor Expert, QorIQ, QorIQ Qonverge, SafeAssure, the SafeAssure logo, StarCore, Symphony, VortiQa, Vybrid, Airfast, BeeKit, BeeStack, CoreNet, Flexis, MXC, Platform in a Package, QUICC Engine, Tower, TurboLink, EdgeScale, EdgeLock, eIQ, and Immersive3D are trademarks of NXP B.V. All other product or service names are the property of their respective owners. AMBA, Arm, Arm7, Arm7TDMI, Arm9, Arm11, Artisan, big.LITTLE, Cordio, CoreLink, CoreSight, Cortex, DesignStart, DynamIQ, Jazelle, Keil, Mali, Mbed, Mbed Enabled, NEON, POP, RealView, SecurCore, Socrates, Thumb, TrustZone, ULINK, ULINK2, ULINK-ME, ULINK-PLUS, ULINKpro, Vision, Versatile are trademarks or registered trademarks of Arm Limited (or its subsidiaries) in the US and/or elsewhere. The related technology may be protected by any or all of patents, copyrights, designs and trade secrets. All rights reserved. Oracle and Java are registered trademarks of Oracle and/or its affiliates. The Power Architecture and Power.org word marks and the Power and Power.org logos and related marks are trademarks and service marks licensed by Power.org.
� NXP B.V. 2018-2021.
All rights reserved.
For more information, please visit: http://www.nxp.com For sales office addresses, please send an email to: salesaddresses@nxp.com
Date of release: 16 July 2021 Document identifier: ASUG
