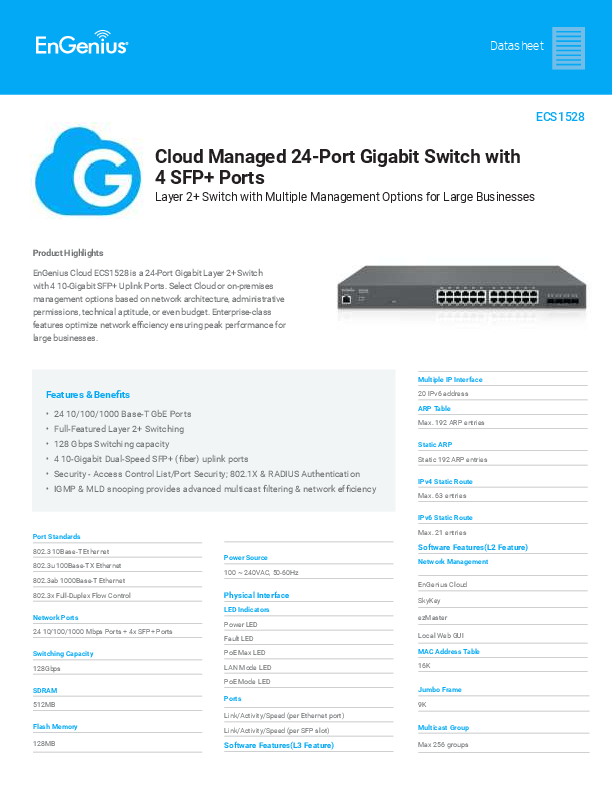

EnGenius Cloud Managed 24-Port Gigabit Switch with 4 SFP+ Ports Datasheet
File info: application/pdf · 3 pages · 358.81KB
Cloud Managed 24-Port Gigabit Switch with 4 SFP Ports
Datasheet ECS1528 Product Highlights EnGenius Cloud ECS1528 is a 24-Port Gigabit Layer 2 Switch with 4 10-Gigabit SFP Uplink Ports. Select Cloud or on-premises
Port Gigabit Switch with 4 SFP Ports
Jul 20, 2021 —
Full PDF Document
If the inline viewer fails, it will open the original document in compatibility mode automatically. You can also open the file directly.
Extracted Text
Datasheet ECS1528 Cloud Managed 24-Port Gigabit Switch with 4 SFP+ Ports Layer 2+ Switch with Multiple Management Options for Large Businesses Product Highlights EnGenius Cloud ECS1528 is a 24-Port Gigabit Layer 2+ Switch with 4 10-Gigabit SFP+ Uplink Ports. Select Cloud or on-premises management options based on network architecture, administrative permissions, technical aptitude, or even budget. Enterprise-class features optimize network efficiency ensuring peak performance for large businesses. Features & Benefits � 24 10/100/1000 Base-T GbE Ports � Full-Featured Layer 2+ Switching � 128 Gbps Switching capacity � 4 10-Gigabit Dual-Speed SFP+ (fiber) uplink ports � Security - Access Control List/Port Security; 802.1X & RADIUS Authentication � IGMP & MLD snooping provides advanced multicast filtering & network efficiency Port Standards 802.3 10Base-T Ethernet 802.3u 100Base-TX Ethernet 802.3ab 1000Base-T Ethernet 802.3x Full-Duplex Flow Control Network Ports 24 10/100/1000 Mbps Ports + 4x SFP+ Ports Switching Capacity 128Gbps SDRAM 512MB Flash Memory 128MB Power Source 100 ~ 240VAC, 50-60Hz Physical Interface LED Indicators Power LED Fault LED PoE Max LED LAN Mode LED PoE Mode LED Ports Link/Activity/Speed (per Ethernet port) Link/Activity/Speed (per SFP slot) Software Features(L3 Feature) Multiple IP Interface 20 IPv6 address ARP Table Max. 192 ARP entries Static ARP Static 192 ARP entries IPv4 Static Route Max. 63 entries IPv6 Static Route Max. 21 entries Software Features(L2 Feature) Network Management EnGenius Cloud SkyKey ezMaster Local Web GUI MAC Address Table 16K Jumbo Frame 9K Multicast Group Max 256 groups MLD Snooping MLD Snooping: v1 QoS-Number of Priority Queues Supported Queue 8 Trust Mode Cos/802.1p DSCP CoS/802.1p-DSCP Scheduling Mechanism Strict / WRR/ Strict + WRR Bandwidth Control Port-based bandwidth control (Ingress/Egress) Port Security Max. 256 Entries Access Control List (ACL) MAC Based ACL IPv4/IPv6 Based ACL ACL Binding Time base ACL Web Graphical User Interface(GUI) HTTP IPv4 / IPv6 HTTPS IPv4 / IPv6 SSL Certificate Certificate/Key Import SNMP SNMP v1/v2c/v3 Support RMON RMON 1,2,3,9 System Time Time Setting/Daylight saving Common L2 Features 802.1d Spanning tree Loopback Detection Multicast Filitering IGMP Multicast Forwarding IGMP Snooping MLD Multicast Forwarding 802.1Q VLAN tagging 802.3x flow control 802.3ad Link Aggregation IPv4 DHCP Relay IPv4 DHCP Snooping IPv4 DHCP Snooping Source MAC Address Check-up ARP Inspection ARP Packet Validation (additional validation checks) Voice VLAN Port-based VLAN Protocol-Based VLAN CoS Mapping 802. 1X Radius Authentication Protocol IPv4 Settings IPv6 Settings IEEE 802. 3az Energy Efficeient Ethernet (EEE) Command Line Interface (CLI) SSH Server Telnet Server TFTP Client Configuration Upgrade/ Backup Simple Network Time Protocol (SNTP) SYSLOG 802.1d Spanning tree Environmental & Physical Temperature Range Operating: 32�F to 122�F (0�C to 50�C) Humidity (Non-Condensing) Operating: 5% - 95% Package Contents 1x ECS Managed Gigabit Switch 1x Quick Installation Guide 1x Power Cord 1x RJ45 Console Cable 1x Rack Mount Kit Device Dimensions & Weights Weight: 5.93 lbs. (2.69 kg) Width: 17.32" (440 mm) Depth: 7.87" (200 mm) Height: 1.73" (44 mm) Warranty 2 year ECS1528 Mode Selector & Reset Button RJ45 Console Link /Activity/Speed Port 1000/10000 Mbps SFP+ Slots LED Indicators 10/100/1000 Mbps Ethernet Ports EnGenius Technologies | 1580 Scenic Ave. Costa Mesa, CA 92626 Email: partners@engeniustech.com | Website: engeniustech.com Version: 1.10 07/2021 Features and specifications subject to change without notice. Trademarks and registered trademarks are the property of their respective owners. For United States of America: Copyright �2021 EnGenius Technologies, Inc. All rights reserved. Maximum data rates are based on IEEE 802.11 standards. Actual throughput and range may vary depending on distance between devices or traffic and bandwidth load in the network.
