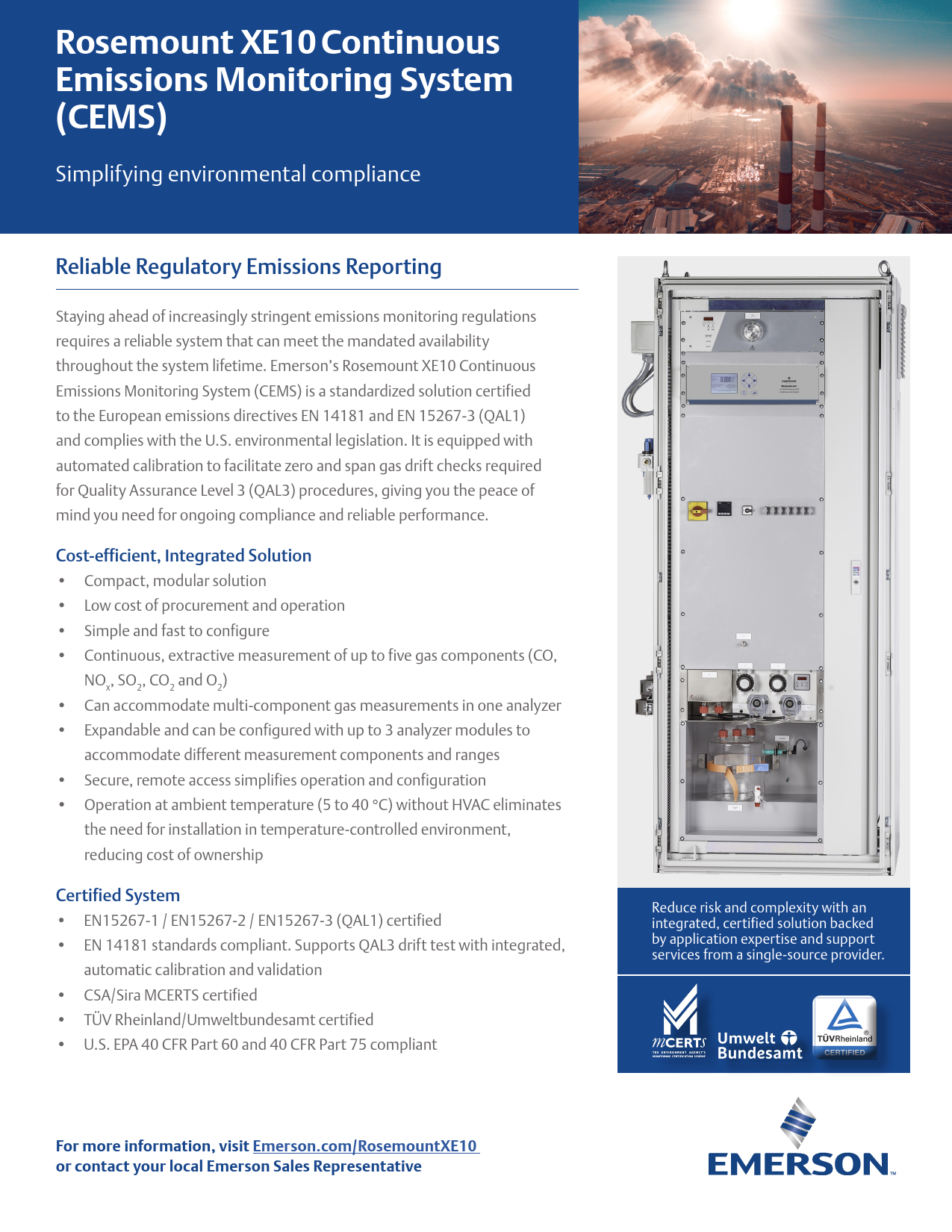

Full PDF Document
If the inline viewer fails, it will open the original document in compatibility mode automatically. You can also open the file directly.
Extracted Text
Rosemount XE10 Continuous Emissions Monitoring System (CEMS) Simplifying environmental compliance Reliable Regulatory Emissions Reporting Staying ahead of increasingly stringent emissions monitoring regulations requires a reliable system that can meet the mandated availability throughout the system lifetime. Emerson's Rosemount XE10 Continuous Emissions Monitoring System (CEMS) is a standardized solution certified to the European emissions directives EN 14181 and EN 15267-3 (QAL1) and complies with the U.S. environmental legislation. It is equipped with automated calibration to facilitate zero and span gas drift checks required for Quality Assurance Level 3 (QAL3) procedures, giving you the peace of mind you need for ongoing compliance and reliable performance. Cost-efficient, Integrated Solution � Compact, modular solution � Low cost of procurement and operation � Simple and fast to configure � Continuous, extractive measurement of up to five gas components (CO, NOx, SO2, CO2 and O2) � Can accommodate multi-component gas measurements in one analyzer � Expandable and can be configured with up to 3 analyzer modules to accommodate different measurement components and ranges � Secure, remote access simplifies operation and configuration � Operation at ambient temperature (5 to 40 �C) without HVAC eliminates the need for installation in temperature-controlled environment, reducing cost of ownership Certified System � EN15267-1 / EN15267-2 / EN15267-3 (QAL1) certified � EN 14181 standards compliant. Supports QAL3 drift test with integrated, automatic calibration and validation � CSA/Sira MCERTS certified � T�V Rheinland/Umweltbundesamt certified � U.S. EPA 40 CFR Part 60 and 40 CFR Part 75 compliant Reduce risk and complexity with an integrated, certified solution backed by application expertise and support services from a single-source provider. For more information, visit Emerson.com/RosemountXE10 or contact your local Emerson Sales Representative Rosemount XE10 Continuous Emissions Monitoring System Complete System with Gas Sampling, Sample Conditioning and Gas Analyzer Gas Sampling � Heated sample gas probe with DIN DN65 PN6 flange at 180 �C � Heated PTFE sample gas line at 180 �C � Low temperature interlocks for the sample gas probe and heated line to avoid condensation in the sample gas lines � Two-stage sample gas cooler with peristaltic pumps. No need for H3PO4 injection to avoid cooler loss of SO2 � 2 �m fine filter and coalescing filter protect the analyzer from contaminations � Internal sample gas pump with a bypass and a needle valve for sample gas flow adjustment Gas Analysis � The modular system can consist of one or up to three configurable analyzer modules equipped with paramagnetic or electrochemical sensors as well as non-dispersive infrared (NDIR) and non-dispersive ultraviolet (NDUV) photometers � Up to five components can be measured in one analyzer: CO 0 - 75 (150)*mg/m3 to 3000 mg/m3 NOx or NO 0 - 150 mg/m3 to 2000 mg/m3 SO2 0 - 150 mg/m3 to 2500 mg/m3 CO2 0 - 25% O2 0 - 25% * (150) mg/m3 per the German QAL1 certificate System Options � Sample gas probe with weather protection or blow back option � ATEX sample gas probe and heated sample gas line � NO2 converter with metal-based material at 400 �C for efficient NOx emissions monitoring � O2 measurement with paramagnetic module or electrochemical sensor � Swing frame cabinet for easy front side access � Glass condensate vessel with level alarm � Junction boxes for seamless installation � Calibration gas line from cabinet to probe Leverage Global Service Capabilities From a Partner You Can Trust � CEMS start-up and commissioning services � CEMS installation services in accordance with Quality Assurance Level 2 (QAL2) � Service contracts and support for CEMS Annual Surveillance Test (AST) The Emerson logo is a trademark and service mark of Emerson Electric Co. Rosemount and Rosemount logotype are trademarks of Emerson Electric Co. All other marks are the property of their respective owners. �2021 Emerson. All rights reserved. 00807-0200-4049 Rev AA Consider it Solved. Emerson Automation Solutions supports you with innovative gas analysis technologies and expertise to address your toughest process analytics challenges. For more information, visit Emerson.com/RosemountGasAnalysis
