Keysight PathWave 89600 VSA Software - Quick Start Guide

This Quick Start Guide documents how to install the transportable license. ... 8 89600 Software Quick Start Guide. Overview Installation and Configuration Process.

Full PDF Document

If the inline viewer fails, it will open the original document in compatibility mode automatically. You can also open the file directly.

Extracted Text

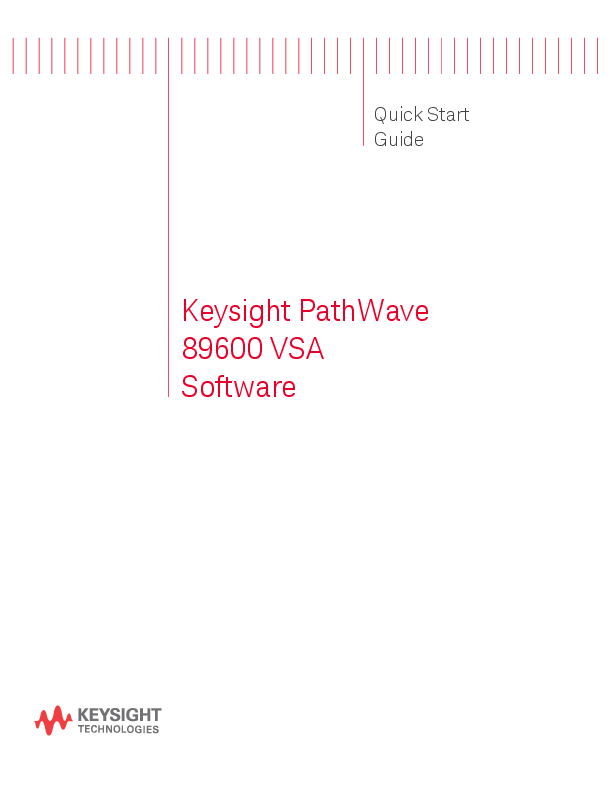

Quick Start Guide
Keysight PathWave 89600 VSA Software

Notices

HEREIN. SHOULD KEYSIGHT AND THE public to use, modify, reproduce,

USER HAVE A SEPARATE WRITTEN

release, perform, display, or disclose

AGREEMENT WITH WARRANTY TERMS commercial computer software or

� Keysight Technologies 2000-2020

COVERING THE MATERIAL IN THIS

DOCUMENT THAT CONFLICT WITH

No part of this manual may be

THESE TERMS, THE WARRANTY

reproduced in any form or by any

TERMS IN THE SEPARATE

means (including electronic storage

AGREEMENT SHALL CONTROL.

and retrieval or translation into a foreign

language) without prior agreement and KEYSIGHT TECHNOLOGIES DOES NOT

written consent from Keysight

WARRANT THIRD-PARTY SYSTEM-

Technologies, Inc. as governed by

LEVEL (COMBINATION OF CHASSIS,

United States and international

CONTROLLERS, MODULES, ETC.)

PERFORMANCE, SAFETY, OR

REGULATORY COMPLIANCE, UNLESS

Manual Part Number

SPECIFICALLY STATED.

89600-90291

Technology Licenses

commercial computer software documentation. No additional government requirements beyond those set forth in the EULA shall apply, except to the extent that those terms, rights, or licenses are explicitly required from all providers of commercial computer software pursuant to the FAR and the DFARS and are set forth specifically in writing elsewhere in the EULA. Keysight shall be under no obligation to update, revise or otherwise modify the Software. With respect to any technical data as defined by FAR

Published By
Keysight Technologies, Inc. 1400 Fountaingrove Pkwy. Santa Rosa, CA 95403 USA
Edition
November, 2020 Printed in USA

The hardware and/or software described in this document are furnished under a license and may be used or copied only in accordance with the terms of such license.
U.S. Government Rights
The Software is "commercial computer software," as defined by Federal

2.101, pursuant to FAR 12.211 and 27.404.2 and DFARS 227.7102, the U.S. government acquires no greater than Limited Rights as defined in FAR 27.401 or DFAR 227.7103-5 (c), as applicable in any technical data.
Safety Notices

Regulatory Compliance
This product has been designed and tested in accordance with accepted industry standards, and has been supplied in a safe condition.
Warranty
THE MATERIAL CONTAINED IN THIS DOCUMENT IS PROVIDED "AS IS," AND IS SUBJECT TO BEING CHANGED,

Acquisition Regulation ("FAR") 2.101. Pursuant to FAR 12.212 and 27.405-3 and Department of Defense FAR Supplement ("DFARS") 227.7202, the U.S. government acquires commercial computer software under the same terms by which the software is customarily provided to the public. Accordingly, Keysight provides the Software to U.S. government customers under its standard commercial license,

A CAUTION notice denotes a hazard. It calls attention to an operating procedure, practice, or the like that, if not correctly performed or adhered to, could result in damage to the product or loss of important data. Do not proceed beyond a CAUTION notice until the indicated conditions are fully understood and met.

WITHOUT NOTICE, IN FUTURE EDITIONS. FURTHER, TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, KEYSIGHT DISCLAIMS ALL WARRANTIES, EITHER EXPRESS OR IMPLIED, WITH REGARD TO THIS MANUAL AND ANY INFORMATION CONTAINED HEREIN, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. KEYSIGHT

which is embodied in its End User License Agreement (EULA), a copy of which can be found at http://www.keysight.com/find/sweula. The license set forth in the EULA represents the exclusive authority by which the U.S. government may use, modify, distribute, or disclose the Software. The EULA and the license set forth therein, does not require or permit, among other things, that Keysight: (1) Furnish technical information related to

A WARNING notice denotes a hazard. It calls attention to an operating procedure, practice, or the like that, if not correctly performed or adhered to, could result in personal injury or death. Do not proceed beyond a WARNING notice until the indicated conditions are fully understood and met.

SHALL NOT BE LIABLE FOR ERRORS OR FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES IN

commercial computer software or commercial computer software documentation that is not customarily

CONNECTION WITH THE FURNISHING, USE, OR PERFORMANCE OF THIS DOCUMENT

provided to the public; or (2) Relinquish to, or otherwise provide, the government rights in excess of these

OR OF ANY INFORMATION CONTAINED rights customarily provided to the

In This Book
This guide documents how to install the Keysight 89600 software and a transportable license. It also documents how to view the software's online help and demo signal packages.
Other Documentation
In addition to the Quick Start Guide (this book), the following documentation is included with your software:
The 89600 Software Installation Guide (InstallationGuide.pdf) is available on the installation DVD in the manuals folder, during installation by clicking More Installation Choices > View Installation Guide, or after you install the software in C:\Program Files\Keysight\89600 Software <ReleaseVersion>\89600 VSA Software\Help. The 89600 Online Help is available after you install the software on your computer. The help provides use and operation information. If you install the IO libraries, the complete documentation for the Keysight IO libraries is available by right-clicking the Keysight IO Libraries Suite icon in the Windows task bar's Hidden Icons panel and selecting Documentation. Technical Specifications are available from the 89600 web page: http://www.keysight.com/find/89600
To read the PDF files, you must have Acrobat Reader installed on your computer. To install the latest Acrobat Reader, go to: http://get.adobe.com/reader/
3

Contents

In This Book

Other Documentation

Overview

89600 Software

Licensing

Keysight 89600 Software Operating Configurations

Installation and Configuration Process

Configuring Remote PC

Configuration Steps

Installing 89600 Software

Installing 89600 Software in a PC

Installing 89600 Software in a Keysight X-Series Signal Analyzer

Installing 89600 Software in a Keysight Infiniium Scope

Installing 89600 Software in a Keysight Logic Analyzer

Installing Licenses

Transportable License

Redeeming a transportable license

Installing a transportable license

Using the VSA Online Help and Demos

Accessing Help

Help menu

Dynamic help

Help button on dialogs

F1 on the keyboard

Recalling a Demo Signal Package

Overview 89600 Software
Overview
The Keysight PathWave 89600 VSA Quick Start Guide provides all necessary instructions to install the Keysight 89600 software and a transportable license
89600 Software
The Keysight 89600 software's installation wizard guides you though the installation process.
7

Overview Licensing
Licensing
There are four types of licenses: Demo: The Demo license is provided with the 89600 software installation and enables you to use the 89600 software with limited functionality. Trial: The Trial license lets you immediately start using a fully licensed 89600 software application for a temporary trail period. When the trial period expires, you will need to purchase a valid license for continued use. Node-locked: The node-locked license is used to license the Keysight 89600 software plus options to only run on one specified host PC. Transportable: The Transportable license is used to license the Keysight 89600 software plus options to only run on the host PC. However, you do have the capability to transport the license to a different PC, making it the new host PC. Floating: The Floating or Network license provides the ability for different PC's to use a license that is stored on a network PC (or server). USB portable: The USB portable license is used to license 89600 VSA software with options to only run on one host PC with certified USB dongle, which needs be purchased separately. You can move the USB portable license together with the certified USB dongle from one Host PC to another Host PC.
This Quick Start Guide documents how to install the transportable license. For information on how to install the demo, trial, or floating license types, see the Installation Guide (InstallationGuide.pdf) available on the installation DVD in the manuals folder, during installation by clicking More Installation Choices > View Installation Guide, or after you install the software in C:\Program Files\Keysight\89600 Software <ReleaseVersion>\89600 VSA Software\Help.
Keysight 89600 Software Operating Configurations
The Host PC is the computer that will run the Keysight 89600 software. There are two 89600 software operating configurations: Remote PC Operation and Embedded PC Operation (also referred to as Embedded Instrument Operation). In a Remote PC Operation, the software runs on a standalone host PC linked to the measurement hardware via the I/O interface, such as LAN, GPIB, USB, and IEEE 1394.

89600 Software Quick Start Guide

Overview Installation and Configuration Process
In an Embedded PC Operation, the 89600 software runs on a PC embedded in the measurement hardware platform such as the Keysight X-Series Analyzer, Keysight Infiniium Scope, and Keysight Logic Analyzer.

Installation and Configuration Process
The Keysight 89600 software installation process includes the following primary steps:
1. Set up and configure the remote PC.
Skip this step if you are installing the software in an embedded PC operation.
Go to Chapter 2 Configuring Remote PC (page 11) to setup and configure the remote PC hardware including: 2. Install the 89600 software. Go to Chapter 3 Installing 89600 Software (page 17) and follow the instructions to install the Keysight 89600 software. 3. License the Keysight 89600 software. Go to Chapter 4 Installing Licenses (page 27) and follow the instructions to license the Keysight 89600 software and option.

89600 Software Quick Start Guide

Configuring Remote PC
Configuring Remote PC
This chapter only applies to the remote PC operation configuration. This contains information to setup and configure the PC including system requirements, I/O interface requirements, and the PC interface installation and setup procedure.
If you are going to install the software in an embedded PC operation, skip this chapter and go directly to Installing 89600 Software (page 17).
11

Configuring Remote PC Configuration Steps

Configuration Steps

1. Verify your PC meets the system requirements listed in the following table.

Characteristic

Requirement

Operating system

Microsoft Windows 7 Professional, Enterprise or Ultimate (64 bit, for 89600 VSA version v22.0 or above) Microsoft Windows 10 Professional, Enterprise or Education (64 bit, for 89600 VSA version v22.0 or above) Linux (only for floating license and 89600 VSA version v22.0 or above)

CPU

1 GHz (>2 GHz recommended)

RAM

2 GB (16 GB recommended)

Video RAM

128 MB (1 GB recommended)

Graphics support

OpenGL version of 2.1 or higher required for rendering of 3D trace data in some measurement options

Hard disk

3 GB minimum available

Additional drives

DVD to load the software; license transfer requires network access or a USB memory device

Interface support

LAN, GPIB, USB. For Option SSA, PCIe Express card interface to PXI mainframe or an embedded PC M9036A/M9037A to be used

Browser

Internet Explorer Version 9.0 or higher required for full context-sensitive help functionality.

2. Verify that your PC's I/O interface meets the requirements listed in the following table.
If you are only using simulated measurement hardware or signal simulation software, you do not need to install/configure an I/O interface. You can skip the remainder of this chapter and go directly to Installing 89600 Software in a PC (page 18).
Using the following table, determine what type of PC and I/O interface is required for your measurement hardware. Note that you may need to install and configure more than one interface.
If the PC already supports the I/O interface, skip the remainder of this chapter and install the 89600 VSA software--go to Installing 89600 Software in a PC (page 18).

89600 Software Quick Start Guide

Configuring Remote PC Configuration Steps
If the PC supports the I/O interface but it is not currently installed, you will need to install and configure the I/O interface hardware on the PC-- go to Installing I/O Interface Hardware (page 15). If the PC does not support the I/O interface, you can not use the 89600 VSA software with your measurement hardware.

89600 Software Quick Start Guide

Configuring Remote PC Configuration Steps

Measurement Hardware Computer Type

Interface

Keysight ESA

Laptop or desktop PC

GPIB, or USB/GPIB adapter

Keysight ESA-E Series Analyzer

Laptop or desktop PC

GPIB or USB/GPIB

Keysight InfiniiVision Oscilloscope

Laptop or desktop PC

LAN, GPIB, or USB/GPIB

Keysight Infiniium Oscil- Laptop or desktop PC or

LAN, GPIB, USB/GPIB, or

loscope

embedded Windows 7 scope internal

Keysight Logic Analyzer

Laptop, desktop PC, or embedded PC

LAN, IEEE-1394 (only for 1690 Series), or internal

Keysight X-Series Signal Laptop, desktop PC, or

Analyzer

embedded PC

LAN or internal*

Keysight Handheld RF Laptop or desktop PC

LAN

and Microwave Analyzer

Keysight modular products

Laptop, desktop PC, or embedded PC

LAN, GPIB, USB/GPIB or internal

* The Keysight X-Series Signal Analyzer embedded PC operation only supports a LAN interface between the analyzer and a Keysight Source.

89600 Software Quick Start Guide

Configuring Remote PC Configuration Steps
5. Installing I/O Interface Hardware a. Install I/O Interface Card(s) in the PC. Install all necessary I/O interface card(s) in the PC per the instructions that came with the I/O interface card vendor documentation. National Instruments GPIB card: For a National Instruments GPIB card, be sure to install the NI 488.2 software first, then reboot your PC and install the interface card.
Exclude Multiple GPIB Devices: If this PC controls other GPIB measurement hardware or devices, you need to exclude those devices from the 89600 identification process.
b. Configure the PC I/O Interface. Configure the I/O interface card(s) in the PC per the instructions that came with the I/O interface card vendor documentation.
You can typically use the default I/O interface hardware settings.
GPIB: For GPIB interfaces, make sure that each measurement hardware has a unique GPIB address-- multiple GPIB devices cannot use the same GPIB address.
If the PC and measurement hardware are connected to a local internal LAN, you may need to check with your network administrator to verify that the IP addresses for the PC and measurement hardware satisfy requirements.
c. Cycle power OFF/ON on all system hardware. After completing the hardware I/O connections, cycle the power OFF/ON on the PC and all connected measurement hardware.
d. Next install the 89600 VSA software. Go to Installing 89600 Software in a PC (page 18).

89600 Software Quick Start Guide

Installing 89600 Software
Installing 89600 Software
This procedure installs the 89600 VSA software. There are different installation procedures for each operating configuration--Remote PC and Embedded PC configuration. Remote PC configuration requires installing the software in a PC. Embedded PC configuration requires installing the software in the measurement hardware; there are also different install procedures for different measurement hardware types. Select and use the software installation procedure for your particular installation: Remote PC Configuration
Installing 89600 Software in a PC (page 18) Embedded PC Configuration
Installing 89600 Software in a Keysight X-Series Signal Analyzer (page 21) Installing 89600 Software in a Keysight Infiniium Scope (page 23) Installing 89600 Software in a Keysight Logic Analyzer (page 25)
17

Installing 89600 Software Installing 89600 Software in a PC
Installing 89600 Software in a PC
To install the Keysight 89600 software in a remote PC configuration: 1. Close any applications you have open. To install the Keysight 89600 software, you must have administrator privileges.
2. Insert the Keysight 89600 software installation DVD. 3. If the installation utility does not start automatically, navigate to the DVD drive
and double-click this file: autoplay.exe 4. When the Keysight 89600 Installation Manager window opens, click View Readme then review the following sections of the Readme file.
Required Minimum License Version Installation Information

5. After reviewing the Readme file, start the software installation by clicking Install PathWave 89600 VSA. Step through the InstallShield Wizard and stop at the Select Products and Features window.
6. Select the Products and Features you want to install, click Next then continue through the InstallShield Wizard to complete the installation.
7. If you want to install hardware support after the 89600 software installation has finished, select More Installation Choices. If you choose not to install hardware support, you can install it at a later time--see the 89600 Software

89600 Software Quick Start Guide

Installing 89600 Software Installing 89600 Software in a PC
Installation Guide for instructions. a. To add hardware support, select Hardware Support Menu. b. On the Hardware Support dialog, select the components to add then click Install Hardware Support and follow the prompts to complete the installation.
8. The installation process configures your system environment for the 89600 software applications. Some installations may required a system PC reboot. If this occurs, click OK to reboot.
After rebooting you will need to be logged on with administrative privileges to complete the installation.
When installing from a remotely mounted DVD drive, the remote drive must be configured to reconnect at logon so that the installation files can be located after the reboot.
9. When the installation is complete, exit the Installation Manager. 10. Start the 89600 VSA. Click Start > (All) Programs > Keysight PathWave 89600
VSA <ReleaseVersion> > Keysight PathWave 89600 VSA <ReleaseVersion>.

89600 Software Quick Start Guide

Installing 89600 Software Installing 89600 Software in a PC
Next the software and options need to be licensed. To learn how to obtain a license, see Installing Licenses (page 27).

89600 Software Quick Start Guide

Installing 89600 Software Installing 89600 Software in a Keysight X-Series Signal Analyzer

Installing 89600 Software in a Keysight X-Series Signal Analyzer
Verify that the Instrument software revision (System hardkey > Show softkey > System softkey) is A.19.05 or greater.
Since the Keysight X-Series Signal Analyzers do not have internal DVD drives, you must first copy the contents of the Keysight 89600 software DVD onto a USB Drive. The Keysight 89600 software DVD is not protected or encrypted. The copy will be identical to the original DVD.
This procedure assumes that a USB Flash Drive is being used. Other USB storage devices, such as a USB hard drive or USB DVD drive, could also be used.
To install the 89600 VSA software in a Keysight X-Series Signal Analyzer using a USB Flash drive:
1. Insert the Keysight 89600 software DVD into a PC's DVD drive. If the Keysight 89600 Installation Manager window opens, close the installer program (click Exit).
2. Insert a USB Flash Drive into a USB port on the same PC in which the Keysight 89600 software DVD is loaded.
3. Use Windows Explorer to copy the contents of the Keysight 89600 software DVD onto the USB Flash Drive.
4. Connect a USB keyboard and mouse to the analyzer.
To install the Keysight 89600 software on the analyzer, you need to have administrator privileges. Press Ctrl - Alt - Delete, then click Log Off.... Log back in as the Administrator. Depending on your instrument's installed Windows OS image version, the default administrator password is either agilent4u or Keysight4u!.
5. Insert the USB Flash Drive into an available USB port on the analyzer. 6. Open Windows Explorer and navigate to the USB drive. 7. Double-click autoplay.EXE. 8. When the Keysight PathWave Vector Signal Analyzer (89600 VSA) Installer
window opens, please read the Readme information. 9. After you read the Readme file, close it, then click Install 89600 Software.
Continue through the InstallShield Wizard until you reach the Select Products and Features window. 10. Select the features you want to install, then continue through the InstallShield

89600 Software Quick Start Guide

Installing 89600 Software Installing 89600 Software in a Keysight X-Series Signal Analyzer
Wizard to complete the installation. 11. When the installation is complete, exit the Installation Manager. 12. Start the X-Series analyzer application: Double-click the LaunchXSA icon on
the Windows desktop. 13. After the X-Series analyzer finishes booting up, start the Keysight 89600
software: Press the Mode Hardkey, then there is Launch VSA button on the left bottom of the window. You can choose from the menu below the "Launch VSA" button to specify the launched 89600 VSA version which has already been installed inside this signal analyzer.
Next the software and options need to be licensed. To learn how to obtain a license, see Installing Licenses (page 27).

89600 Software Quick Start Guide

Installing 89600 Software Installing 89600 Software in a Keysight Infiniium Scope

Installing 89600 Software in a Keysight Infiniium Scope
Embedded operation with the 89600 is not recommended for the Infiniium 8000 and 80000 Series scopes.
Many Infiniium oscilloscopes provide an open Microsoft Windows 7 operating system that enables you to install other applications. You can install and operate the 89600 Vector Signal Analysis software on these scopes. Some Keysight Infiniium scopes have no DVD drive, so for these scopes you must use a USB drive. If you are installing from a USB drive, you must copy the contents of the Keysight 89600 software DVD onto the USB Drive. The Keysight 89600 software DVD is not protected or encrypted. The copy will be identical to the original DVD. To install the 89600 VSA software in a Windows 7 scope:
1. Increase the scope's virtual memory to at least 1 GB as follows: a. Minimize the scope application. b. Navigate to: Control Panel > Administrative Tools (double-click) > Computer Management (double-click) > Computer Management (Local) (right-click) > Properties > Advanced (tab)> Performance Settings (button) > Virtual Memory - Change (button) to display the Virtual Memory dialog screen. c. Set Initial Size (MB) and Maximum Size (MB) to 1000 MB (or more if you have sufficient Space Available), then click Set > OK > OK (reboot message) > OK > OK. d. When the System Settings Change dialog appears, click Yes to restart the computer.
2. Insert the Keysight 89600 software installation DVD into the scope's DVD drive. If your scope does not have a DVD drive, use the following procedure:
This procedure assumes that a USB Flash Drive is being used. Other USB storage devices, such as a USB hard drive or USB DVD drive, could also be used.
a. Insert the Keysight 89600 software DVD into a PC's DVD drive. If the Keysight PathWave Vector Signal Analyzer (89600 VSA) Installer window opens, close the installer program (click Exit).
b. Insert a USB Flash Drive into a USB port on the same PC that the Keysight 89600 software DVD is in.
c. Copy the contents of the Keysight 89600 software DVD onto the USB Flash Drive.
d. Connect a USB keyboard and mouse to the scope.

89600 Software Quick Start Guide

Installing 89600 Software Installing 89600 Software in a Keysight Infiniium Scope
To install the Keysight 89600 software on the scope, you need to have administrator privileges. Press Ctrl - Alt - Delete, then click Log Off.... Log back in as the Administrator.
e. Insert the USB Flash Drive into an available USB port. f. Open Windows Explorer and navigate to the USB drive. g. Double-click autoplay.EXE to bring up the Keysight PathWave Vector Sig-
nal Analyzer (89600 VSA) Installer. 3. When the Keysight PathWave Vector Signal Analyzer (89600 VSA) Installer win-
dow opens, please read the Readme information. 4. After you read the Readme file, close it then click Install 89600 Software.
Continue through the InstallShield Wizard until you reach the Select Products and Features window. 5. Select the features you want to install, then continue through the InstallShield Wizard to complete the installation. 6. When the installation is complete, exit the Installation Manager. 7. Start the 89600 VSA. Click Start > (All) Programs > Keysight PathWave 89600 VSA <ReleaseVersion> > Keysight PathWave 89600 VSA <ReleaseVersion>. Next the software and options need to be licensed. To learn how to obtain a license, see Installing Licenses (page 27).

89600 Software Quick Start Guide

Installing 89600 Software Installing 89600 Software in a Keysight Logic Analyzer

Installing 89600 Software in a Keysight Logic Analyzer
Some Keysight Logic Analyzers have no DVD drive, so for these analyzers you must use a USB drive. If you are installing from a USB drive, you must copy the contents of the Keysight 89600 software DVD onto the USB Drive. The Keysight 89600 software DVD is not protected or encrypted. The copy will be identical to the original DVD. To install the 89600 VSA software in a logic analyzer:
1. Insert the Keysight 89600 software DVD into the logic analyzer's DVD drive. If your logic analyzer does not have a DVD drive, use the following procedure:
This procedure assumes that a USB Flash Drive is being used. Other USB storage devices, such as a USB hard drive or USB DVD drive, could also be used.
a. Insert the Keysight 89600 software DVD into a PC's DVD drive. If the Keysight PathWave Vector Signal Analyzer (89600 VSA) Installer window opens, close the installer program (click Exit).
b. Insert a USB Flash Drive into a USB port on the same PC that the Keysight 89600 software DVD is in.
c. Copy the contents of the Keysight 89600 software DVD onto the USB Flash Drive.
d. Connect a USB keyboard and mouse to the analyzer.
To install the Keysight 89600 software on the logic analyzer, you need to log on with administrator privileges.
e. Insert the USB Flash Drive into an available USB port on the analyzer. f. Open Windows Explorer and navigate to the USB drive. g. Double-click autoplay.EXE to bring up the Keysight 89600 Installation
Manager. 2. When the Keysight PathWave Vector Signal Analyzer (89600 VSA) Installer win-
dow opens, please read the Readme information. 3. After you read the Readme file, close it then click Install 89600 Software.
Continue through the InstallShield Wizard until you reach the Select Products and Features window. 4. Select the features you want to install, then continue through the InstallShield Wizard to complete the installation. 5. When the installation is complete, exit the Installation Manager.
When installing the 89600 VSA in a logic analyzer mainframe, Hardware support is disabled. This prevents

89600 Software Quick Start Guide

Installing 89600 Software Installing 89600 Software in a Keysight Logic Analyzer
using disk space for unnecessary components that are not needed when the 89600 VSA software is installed in a logic analyzer.
6. Start the 89600 VSA. Click Start > (All) Programs > Keysight PathWave 89600 VSA <ReleaseVersion> > Keysight PathWave 89600 VSA <ReleaseVersion>.
Next, the software and its options must be licensed. To learn how to obtain a license, see Installing Licenses (page 27).

89600 Software Quick Start Guide

Installing Licenses
Installing Licenses
The 89600 software and options must be licensed to operate in a useful manner. The 89600 software has Demo, Trial, Node-locked, Transportable, Floating, and USB portable license types. The Demo license is installed with the 89600 software. This chapter describes how to install a Transportable license. For instructions on installing the other types of licenses, see the Installation Guide (InstallationGuide.pdf), which is available on the installation DVD in the manuals folder, during installation by clicking More Installation Choices > View Installation Guide, or after you install the software in C:\Program Files\Keysight\89600 Software <ReleaseVersion>\89600 VSA Software\Help.
27

Installing Licenses Transportable License
Transportable License
This section describes the steps to obtain and install a Transportable license. The Transportable license enables the 89600 software and options that you purchased. The license must be installed on the same computer that runs the 89600 software. However, the license can be transferred from one computer to another computer. Licensing the 89600 Software is a two step process:
1. Redeem the License. Go to Redeeming a transportable license (page 28).
2. Install the License file. Go to Installing a transportable license (page 29).
The term PC refers to any computer or instrument (such as analyzers and oscilloscopes) running the 89600 software.
Redeeming a transportable license
To redeem a Transportable license, follow these steps: 1. Collect the Software License Entitlement Certificates for all 89600 software options that you purchased. The Software License Entitlement Certificates are included with the 89600 VSA Software Installation Materials envelope (printed on gray parchment).
The Software License Entitlement Certificate also includes instructions to redeem your licenses.
2. Obtain the Host identification information (Host ID) for the PC on which you are installing the 89600 software license. Use the Keysight License Service utility or Keysight License Manager to obtain the Host ID. a. Open the About Keysight License Service utility: right click the Keysight License Service icon in the Windows desktop notification area (lower right side of the Windows Task bar) and select About Keysight License Service. b. Click the Copy button to the right of the Host ID box. The Host ID information is copied into the Windows clipboard.

89600 Software Quick Start Guide

Installing Licenses Transportable License

3. Redeem your licenses and obtain the license files. Follow the instructions included on the Software License Entitlement Certificate to redeem your licenses and obtain the license files. Go to the Keysight Software Manager website: http://www.keysight.com/find/softwaremanager First time access will require you to register.
Remember your user password. The password is required for future access to manage your licenses.
You will need the Keysight Order Number and Keysight Certificate Number located on the top of your Software License Entitlement Certificate. 4. Install License File(s): Check your email for the license file(s) and then install the license file(s) on the PC--go to Installing a transportable license (page 29).
Installing a transportable license
Installing the license file is necessary to license the 89600 software. After completing Redeeming a transportable license (page 28), you will receive a Keysight email containing your license file for the redeemed Entitlement Certificates. Follow these steps to install the license files on the PC:
1. Copy the email attachment with the .lic file extension to a folder on your PC, connected hard drive, or USB storage device.
2. Start the Keysight License Manager: in the 89600 software: in the 89600 software, click Utilities > Licenses > Status > Keysight License Manager or double click the Keysight License Service icon in the Windows desktop notification area (lower right side of the Windows Task bar).
3. To install the license file, drag-and-drop the license file onto your computer or instrument's connection in the Keysight License Manager's list of connections. See the Add a New License section of the Keysight License Manager Help for more ways to install the license (click the "?" icon to from within the Keysight License Manager to open the help file, or click Start > (All) Programs > Keysight License Manager > Keysight License Manager Help).
The install operation can take up to 40 seconds to complete.
When the license file is successfully installed, the installed transportable licenses that are available are listed in the Keysight License Manager's main license view area. Make sure your licensed options and features are shown. 4. After installing the license file, verify that the Options are licensed for use by the Keysight 89600 software. Start the Keysight 89600 software, then open Utilities > Licenses > Features (or Utilities > Licenses > Legacy Options for

89600 Software Quick Start Guide

Installing Licenses Transportable License

legacy licenses) and verify the options are correctly licensed (Yes in the On column).

"On" Column

License Status

Yes

Option is licensed for use.

Dash indicates that the license option has not been selected for

use by the VSA. To include an option, open the Select License

Options system utility and select (check) the options that you

want to include in the VSA measurement capability (click Start >

(All) Programs > Keysight PathWave 89600 VSA <ReleaseVer-

sion> > Select License Options. The VSA must be closed and

restarted to incorporate the changes.

Option is not licensed for use.

89600 Software Quick Start Guide

Using the VSA Online Help and Demos
Using the VSA Online Help and Demos
Now that you have installed and licensed your Keysight 89600 software, it is time to start using it. The best way to learn how to use the VSA software is to view the online help and demo signal packages. There are multiple ways to access the 89600 VSA help, as described on the following pages in this chapter.
31

Using the VSA Online Help and Demos Accessing Help

Accessing Help

Start menu
After installing the 89600 VSA software, you can click the Windows Start button > All Programs > Keysight PathWave 89600 VSA <ReleaseVersion> > Help > VSA Help to open the 89600 VSA help system.

Help menu

While the VSA software is running, click Help from the main menu then select one of the following menu items:

This menu item...

Does this...

Show Help

Opens the 89600 VSA help system in an external window.

Search Help

Opens the 89600 VSA help system to the search tab.

Dynamic Help

Opens the dynamic help panel. By default, dynamic help is shown in a tool window that is docked to the right-hand side of the VSA main window.

Getting Started

Opens a topic with links to information about getting started with the 89600 VSA.

Demos

Opens a list of demo signals that are provided with the VSA.

.NET API Reference

Opens the 89600 VSA .NET API reference in a separate help window.

SCPI Reference Keysight 89600 VSA website Keysight VSA forums Technical Support About...

Opens the 89600 VSA SCPI reference in a separate help window. Opens the 89600 VSA website in the default web browser.
Opens the Keysight VSA forums. Opens the 89600 VSA Technical Support website. Shows information about the VSA software, including what software version is installed on your computer.

89600 Software Quick Start Guide

Using the VSA Online Help and Demos Accessing Help
Dynamic help
Dynamic help is the quickest and easiest method to find help. To open the dynamic help window, select Help > Dynamic Help. The current topic follows the user interface item that currently has focus.

Help button on dialogs
You can access help for any dialog box by clicking the ? button in title bar of the dialog box. In the following illustration, clicking the Help button opens the VSA help for the Format tab of the Digital Demod Properties dialog box.
F1 on the keyboard
You can access context-sensitive help by pressing the F1 key. When you are viewing a dialog box, pressing F1 shows the same information as clicking the ? button. The F1 help also works on menus and traces. Pressing F1 while a menu item is highlighted opens context-sensitive help for that menu item.

89600 Software Quick Start Guide

Using the VSA Online Help and Demos Accessing Help

89600 Software Quick Start Guide

Using the VSA Online Help and Demos Recalling a Demo Signal Package
Recalling a Demo Signal Package
Recalling a demo signal package is a good way to learn about the measurement capabilities and features of the 89600 VSA. The 89600 VSA provides various demo signal packages that include recorded signals, signal setup files, or Signal Studio setup files, and a demo help topic. To view the available demo signals, open the Demo and Recorded Signals help topic (click Help > Demos). To recall a demo:
1. Click File > Recall > Recall Demo. 2. In the Recall Demo dialog, browse to C:\Program Files\Keysight\89600 Soft-
ware <ReleaseVersion>\89600 VSA Software\Help\Signals. 3. Select a Demo file of interest. For example, browse to AM FM PM, then select
XMITTER.htm. 4. Click Open. The VSA recalls the instrument setup (measurement state), loads
the recorded signal, and opens the corresponding help file in a separate window. 5. Read the Demo help file to learn about the recorded signal and the VSA setup information.
6. To start the measurement, click the Restart button ( ) in the tool bar or click Control > Restart.

89600 Software Quick Start Guide

This information is subject to change without notice. � Keysight Technologies 2000-2020 Edition 1, November 2020
89600-90291 www.keysight.com
